Anchor Stand Schematic for CS Unitec Core Drills: 256 955 E
This document contains two parts lists for an Anchor Stand Model 256 955 E. The first list contains 36 items that make up the main parts of the stand. The second list contains 18 items that make up the carriage assembly of the stand. Both lists provide the part number, description, and in some cases replacement part information for each item.
More Related Content
Similar to Anchor Stand Schematic for CS Unitec Core Drills: 256 955 E
Anchor Stand Schematic for CS Unitec Core Drills: 256 955 E

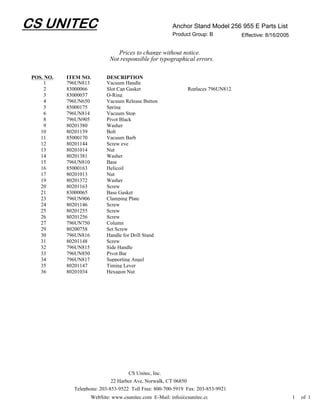

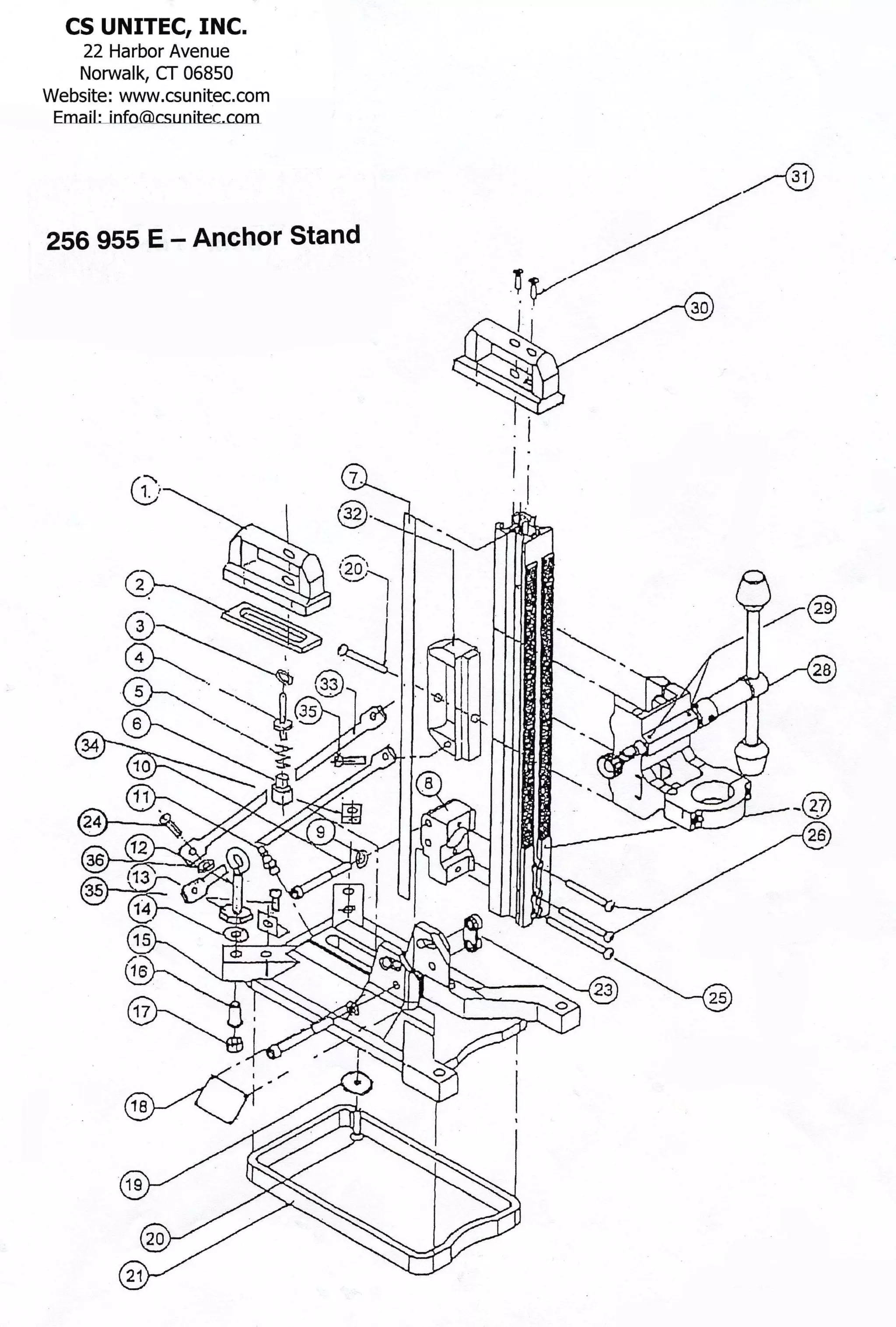

- 2. CS UNITEC Anchor Stand Model 256 955 E Parts List Product Group: B Effective: 8/16/2005 Prices to change without notice. Not responsible for typographical errors. POS. NO. ITEM NO. DESCRIPTION 1 796UN813 Vacuum Handle 2 83000066 Slot Cap Gasket Replaces 796UN812 3 83000037 O-Ring 4 796UN650 Vacuum Release Button 5 85000175 Spring 6 796UN814 Vacuum Stop 8 796UN905 Pivot Black 9 80201380 Washer 10 80201139 Bolt 11 85000170 Vacuum Barb 12 80201144 Screw eye 13 80201014 Nut 14 80201381 Washer 15 796UN810 Base 16 85000163 Helicoil 17 80201013 Nut 19 80201372 Washer 20 80201163 Screw 21 83000065 Base Gasket 23 796UN906 Clamping Plate 24 80201146 Screw 25 80201255 Screw 26 80201256 Screw 27 796UN750 Column 29 80200758 Set Screw 30 796UN816 Handle for Drill Stand 31 80201148 Screw 32 796UN815 Side Handle 33 796UN850 Pivot Bar 34 796UN817 Supporting Angel 35 80201147 Timing Lever 36 80201034 Hexagon Nut CS Unitec, Inc. 22 Harbor Ave, Norwalk, CT 06850 Telephone: 203-853-9522 Toll Free: 800-700-5919 Fax: 203-853-9921 WebSite: www.csunitec.com E-Mail: info@csunitec.co 1 of 1

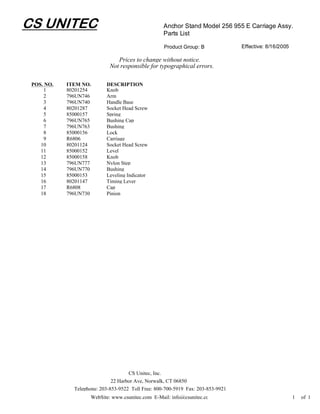

- 4. CS UNITEC Anchor Stand Model 256 955 E Carriage Assy. Parts List Product Group: B Effective: 8/16/2005 Prices to change without notice. Not responsible for typographical errors. POS. NO. ITEM NO. DESCRIPTION 1 80201254 Knob 2 796UN746 Arm 3 796UN740 Handle Base 4 80201287 Socket Head Screw 5 85000157 Spring 6 796UN765 Bushing Cap 7 796UN763 Bushing 8 85000156 Lock 9 R6806 Carriage 10 80201124 Socket Head Screw 11 85000152 Level 12 85000158 Knob 13 796UN777 Nylon Step 14 796UN770 Bushing 15 85000153 Leveling Indicator 16 80201147 Timing Lever 17 R6808 Cap 18 796UN730 Pinion CS Unitec, Inc. 22 Harbor Ave, Norwalk, CT 06850 Telephone: 203-853-9522 Toll Free: 800-700-5919 Fax: 203-853-9921 WebSite: www.csunitec.com E-Mail: info@csunitec.co 1 of 1
