1. The document discusses using merchant silicon switches with simple, low-cost hardware for commodity switching fabrics. These are decoupled from more flexible edge switches. 2. Centralized software is used for real-time traffic analytics and control by collecting flow data from switches. This enables identifying large "elephant" flows and applying targeted controls to increase fabric efficiency. 3. A hybrid OpenFlow approach is proposed to control forwarding planes, using existing routing protocols for normal traffic but allowing the controller to override specific flows through ACL tables for exceptions like blocking or rate limiting.

1. Analytics driven SDN and
commodity switches
Peter Phaal
Founder and President, InMon Corp.
Silicon Valley SDN Group, May, 2014

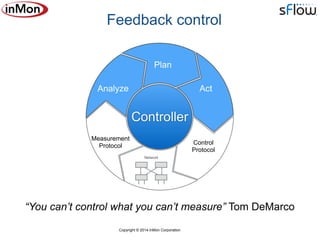

2. Copyright © 2014 InMon Corporation
Controller
Analyze
Plan
Act
Network
Measurement
Protocol Control
Protocol
Feedback control
“You can’t control what you can’t measure” Tom DeMarco

3. Copyright © 2014 InMon Corporation

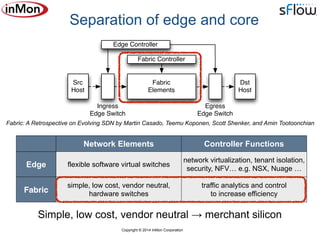

Separation of edge and core
Fabric: A Retrospective on Evolving SDN by Martin Casado, Teemu Koponen, Scott Shenker, and Amin Tootoonchian
Network Elements Controller Functions
Edge flexible software virtual switches
network virtualization, tenant isolation,
security, NFV… e.g. NSX, Nuage …
Fabric
simple, low cost, vendor neutral,
hardware switches
traffic analytics and control
to increase efficiency
dard headers)
, this requires
dreds of bits;
d only match
e forwarding
y far from the
y. We expect
to increasing
in turn means
owed and the
ign paradigm,
ery switch. It
a sweet spot
functionality
ion towards a
generality.
ements to the
to but more
hange in the
IPv4 to IPv6)
Fabric
Elements
Fabric Controller
Src
Host
Dst
Host
Edge Controller
Ingress
Edge Switch
Egress
Edge Switch
Figure 1: The source host sends a packet to an edge switch, which
after providing network services, sends it across the fabric for the
egress switch to deliver it to the destination host. Neither host sees
any internals of the fabric. The control planes of the edge and fabric
are similarly decoupled.
a new concept but rather we believe it should be included as an
architectural building block within SDN. We now identify the key
properties for these fabrics.
Separation of Forwarding. In order for a fabric to remain decou-
pled from the edge it should provide a minimal set of forwarding
primitives without exposing any internal forwarding mechanisms
Simple, low cost, vendor neutral → merchant silicon

4. Copyright © 2014 InMon Corporation
Rise of merchant silicon
20132011
Ports
Opportunity to leverage merchant silicon traffic analytics and
apply targeted controls to increase fabric efficiency

5. Copyright © 2014 InMon Corporation

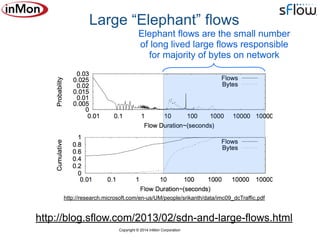

Large “Elephant” flows
http://research.microsoft.com/en-us/UM/people/srikanth/data/imc09_dcTraffic.pdf
Elephant flows are the small number
of long lived large flows responsible
for majority of bytes on network
http://blog.sflow.com/2013/02/sdn-and-large-flows.html

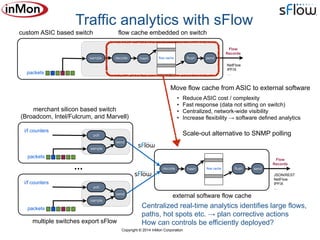

6. Copyright © 2014 InMon Corporation
packets
decode hash sendflow cache flushsample
Flow
Records
flow cache embedded on switchcustom ASIC based switch
NetFlow
IPFIX
…
decode hash sendflow cache flush
Flow
Records
packets
send
poll
i/f counters
sample
multiple switches export sFlow
packets
send
poll
i/f counters
sample
...
external software flow cache
merchant silicon based switch
(Broadcom, Intel/Fulcrum, and Marvell)
JSON/REST
NetFlow
IPFIX
…
• Reduce ASIC cost / complexity
• Fast response (data not sitting on switch)
• Centralized, network-wide visibility
• Increase flexibility → software defined analytics
Move flow cache from ASIC to external software
Scale-out alternative to SNMP polling
Traffic analytics with sFlow
Centralized real-time analytics identifies large flows,
paths, hot spots etc. → plan corrective actions
How can controls be efficiently deployed?

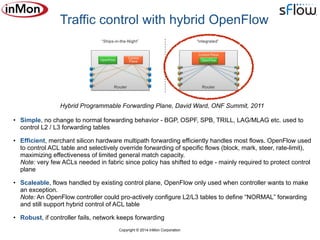

7. Copyright © 2014 InMon Corporation
• Simple, no change to normal forwarding behavior - BGP, OSPF, SPB, TRILL, LAG/MLAG etc. used to
control L2 / L3 forwarding tables
• Efficient, merchant silicon hardware multipath forwarding efficiently handles most flows. OpenFlow used
to control ACL table and selectively override forwarding of specific flows (block, mark, steer, rate-limit),
maximizing effectiveness of limited general match capacity.
Note: very few ACLs needed in fabric since policy has shifted to edge - mainly required to protect control
plane
• Scaleable, flows handled by existing control plane, OpenFlow only used when controller wants to make
an exception.
Note: An OpenFlow controller could pro-actively configure L2/L3 tables to define “NORMAL” forwarding
and still support hybrid control of ACL table
• Robust, if controller fails, network keeps forwarding
Traffic control with hybrid OpenFlow
Hybrid Programmable Forwarding Plane, David Ward, ONF Summit, 2011

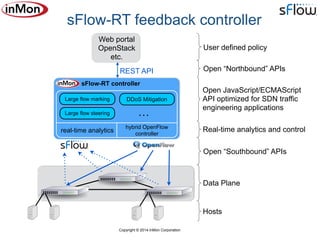

8. Copyright © 2014 InMon Corporation
sFlow-RT feedback controller
Large flow steering
DDoS Mitigation
REST API
Open “Southbound” APIs
Data Plane
Real-time analytics and control
Hosts
Open “Northbound” APIs
User defined policy
sFlow-RT controller
real-time analytics
hybrid OpenFlow
controller
Open JavaScript/ECMAScript
API optimized for SDN traffic
engineering applications
Large flow marking
…
Web portal
OpenStack
etc.

9. Copyright © 2014 InMon Corporation
Brocade/InMon: DDoS mitigation
http://www.opennetsummit.org/pdf/2014/sdn-idol/Brocade-SDN-Idol-Proposal.pdf
“Real-Time SDN Analytics for DDoS Mitigation” winner of ONS SDN Idol 2014

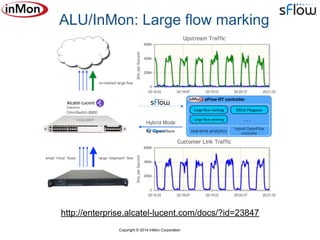

10. Copyright © 2014 InMon Corporation
ALU/InMon: Large flow marking
http://enterprise.alcatel-lucent.com/docs/?id=23847

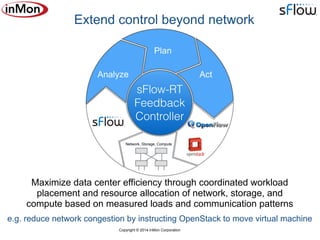

11. Copyright © 2014 InMon Corporation
Extend control beyond network
Analyze
Plan
Act
Network, Storage, Compute
sFlow-RT
Feedback
Controller
Maximize data center efficiency through coordinated workload
placement and resource allocation of network, storage, and
compute based on measured loads and communication patterns
e.g. reduce network congestion by instructing OpenStack to move virtual machine

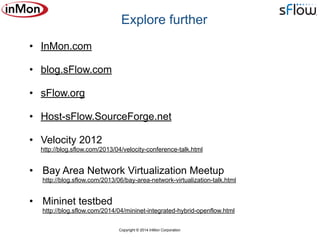

12. Copyright © 2014 InMon Corporation
• InMon.com
• blog.sFlow.com
• sFlow.org
• Host-sFlow.SourceForge.net
• Velocity 2012
http://blog.sflow.com/2013/04/velocity-conference-talk.html
• Bay Area Network Virtualization Meetup
http://blog.sflow.com/2013/06/bay-area-network-virtualization-talk.html
• Mininet testbed
http://blog.sflow.com/2014/04/mininet-integrated-hybrid-openflow.html
Explore further
