This document provides information about the Testo Saveris 2 wireless data logging system. It explains that Testo Saveris 2 uses WiFi data loggers to measure and transfer temperature, humidity, and other data points wirelessly to the Testo Cloud for secure storage and remote access from any internet-connected device. The cloud storage requires a paid license, but automatically sends alarms if measurements exceed limits. It also provides a checklist for customers to determine their needs like number of data points, parameters, measurement ranges, ambient conditions, and alarm preferences. A free test kit is available to demo the system.

1. 14.7 3.6 48.3
15.3
48.3
59.5
Sales Guide
testo Saveris 2

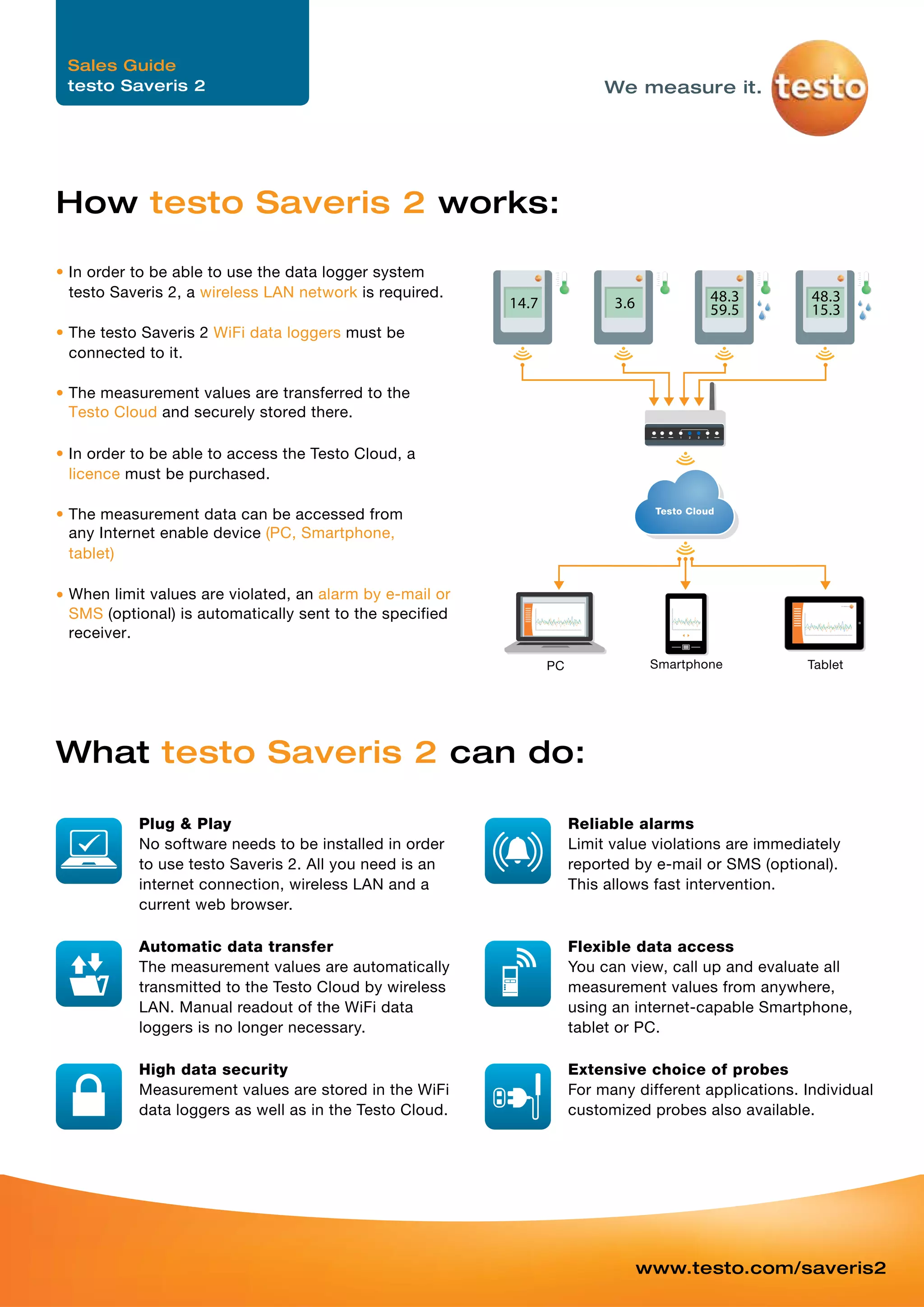

How testo Saveris 2 works:
• In order to be able to use the data logger system
testo Saveris 2, a wireless LAN network is required.
• The testo Saveris 2 WiFi data loggers must be
connected to it.
• The measurement values are transferred to the
Testo Cloud and securely stored there.
• In order to be able to access the Testo Cloud, a
licence must be purchased.
• The measurement data can be accessed from
any Internet enable device (PC, Smartphone,
tablet)
• When limit values are violated, an alarm by e-mail or
SMS (optional) is automatically sent to the specified
receiver.
Plug & Play
No software needs to be installed in order
to use testo Saveris 2. All you need is an
internet connection, wireless LAN and a
current web browser.
Automatic data transfer
The measurement values are automatically
transmitted to the Testo Cloud by wireless
LAN. Manual readout of the WiFi data
loggers is no longer necessary.
High data security
Measurement values are stored in the WiFi
data loggers as well as in the Testo Cloud.
PC Smartphone Tablet
Reliable alarms
Limit value violations are immediately
reported by e-mail or SMS (optional).
This allows fast intervention.
Flexible data access
You can view, call up and evaluate all
measurement values from anywhere,
using an internet-capable Smartphone,
tablet or PC.
Extensive choice of probes
For many different applications. Individual
customized probes also available.
www.testo.com/saveris2
What testo Saveris 2 can do:
Testo Cloud

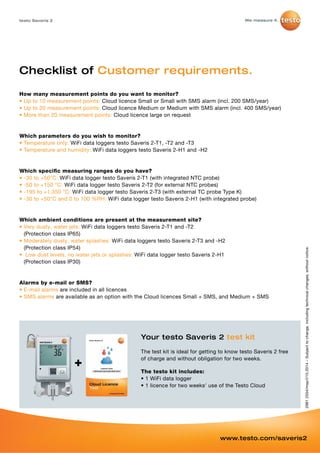

2. Checklist of Customer requirements.
How many measurement points do you want to monitor?
• Up to 10 measurement points: Cloud licence Small or Small with SMS alarm (incl. 200 SMS/year)
• Up to 20 measurement points: Cloud licence Medium or Medium with SMS alarm (incl. 400 SMS/year)
• More than 20 measurement points: Cloud licence large on request
Which parameters do you wish to monitor?
• Temperature only: WiFi data loggers testo Saveris 2-T1, -T2 and -T3
• Temperature and humidity: WiFi data loggers testo Saveris 2-H1 and -H2
Which specific measuring ranges do you have?
• -30 to +50°C: WiFi data logger testo Saveris 2-T1 (with integrated NTC probe)
• -50 to +150 °C: WiFi data logger testo Saveris 2-T2 (for external NTC probes)
• -195 to +1,350 °C: WiFi data logger testo Saveris 2-T3 (with external TC probe Type K)
• -30 to +50°C and 0 to 100 %RH: WiFi data logger testo Saveris 2-H1 (with integrated probe)
Which ambient conditions are present at the measurement site?
• Very dusty, water jets: WiFi data loggers testo Saveris 2-T1 and -T2
(Protection class IP65)
• Moderately dusty, water splashes: WiFi data loggers testo Saveris 2-T3 and -H2
(Protection class IP54)
• Low dust levels, no water jets or splashes: WiFi data logger testo Saveris 2-H1
(Protection class IP30)
Alarms by e-mail or SMS?
• E-mail alarms are included in all licences
• SMS alarms are available as an option with the Cloud licences Small + SMS, and Medium + SMS
+
testo Saveris 2
Your testo Saveris 2 test kit
The test kit is ideal for getting to know testo Saveris 2 free
of charge and without obligation for two weeks.
The testo kit includes:
• 1 WiFi data logger
• 1 licence for two weeks' use of the T esto Cloud
2981 2554/msp/I/10.2014 – Subject to change, including technical changes, without notice.
www.testo.com/saveris2
