An Introduction to
Quantum Programming Languages
D. L. Yonge-Mallo
Programming Languages Group
University of Waterloo
April 20, 2006

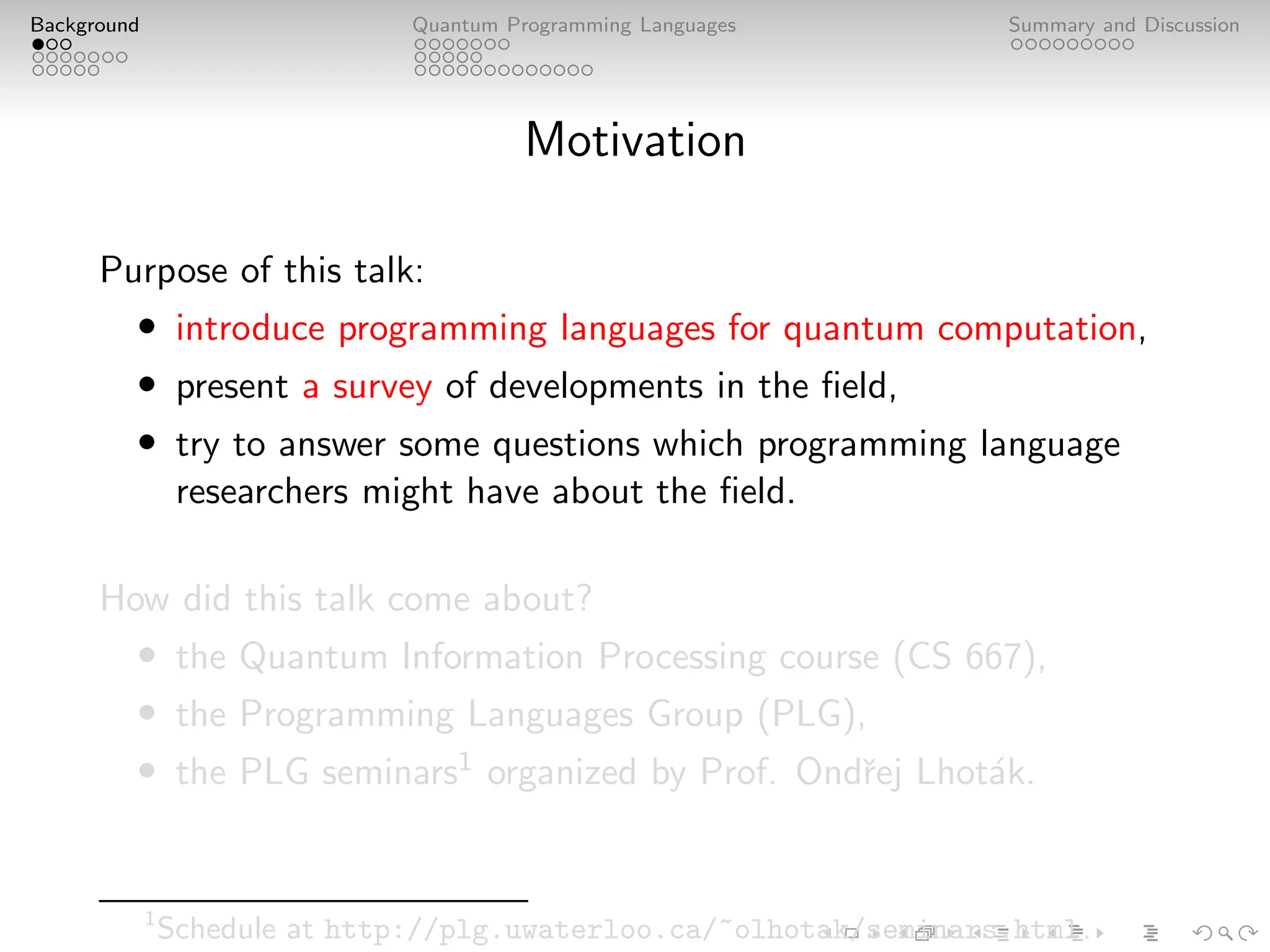

Motivation
Purpose of this talk:
• introduce programming languages for quantum computation,
• present a survey of developments in the field,
• try to answer some questions which programming language
researchers might have about the field.
How did this talk come about?
• the Quantum Information Processing course (CS 667),
• the Programming Languages Group (PLG),
• the PLG seminars1 organized by Prof. Ondřej Lhoták.
1
Schedule at http://plg.uwaterloo.ca/~olhotak/seminars.html.

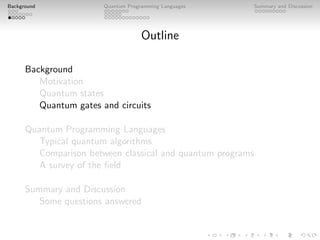

Outline
Background
Motivation
Quantum states
Quantum gates and circuits
Quantum Programming Languages
Typical quantum algorithms
Comparison between classical and quantum programs
A survey of the field
Summary and Discussion
Some questions answered

A short history of quantum computation
Time line:
• 1982 – Feynman and Benioff independently suggest that
quantum mechanics can be harnessed to perform computation
• 1985 – Deutsch formulates quantum Turing machine
• 1994 – Shor shows that integer factorization and discrete
logarithm can be solved efficiently using a quantum computer
• 1995 – Grover speeds up database search
• . . .
At present:
• well-developed theory and many applications, but
• physical implementations still in early stages.

Basics of Quantum Computation
Classical computation:
• Boolean bit: either 0 or 1.
Quantum computation:
• Quantum bit: superposition of 0 and 1.
• Examples:
• photo polarization
• electron excitation levels
• Schrödinger’s cat
• . . .
• The computational model is an abstraction – the underlying
physical system doesn’t really matter.

Quantum bits
A quantum bit (qubit) is:
|ψi = α0 |0i + α1 |1i
where:
• amplitudes α0 and α1 are complex numbers
• |αi|2 is the probability of measuring |ii
• measurement is “destructive”
• normalization constraint: |α0|2 + |α1|2 = 1
• |0i and |1i are the basis vectors in Dirac notation
Example
|ψi =
r
3
4
|0i +
r
1
4
|1i

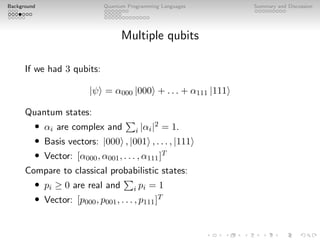

Multiple qubits
If we had 3 qubits:
|ψi = α000 |000i + . . . + α111 |111i
Quantum states:
• αi are complex and
P
i |αi|2 = 1.
• Basis vectors: |000i , |001i , . . . , |111i
• Vector: [α000, α001, . . . , α111]T
Compare to classical probabilistic states:
• pi ≥ 0 are real and
P
i pi = 1
• Vector: [p000, p001, . . . , p111]T

Quantum states
Note the dimension of the vectors (and matrices) involved:
• |0i =

1
0

, |1i =

0
1

• |000i =












1
0
0
0
0
0
0
0












, |001i =












0
1
0
0
0
0
0
0












, . . . , |111i =












0
0
0
0
0
0
0
1












• The dimension is exponential in the size of the system.

Measurement
Consider the 2-qubit system:
|ψi = α00 |00i + α01 |01i + α10 |10i + α11 |11i
If both qubits are measured:
• result is i ∈ {00, 01, 10, 11} with probability |αi|2
• the state collapses to |ii
If only the first qubit is measured:
• result is 0 with probability |α00|2 + |α01|2
• the state after the measurement becomes
|ψi =
α00 |00i + α01 |01i
p
|α00|2 + |α01|2

Entanglement
If we had two non-interacting systems A and B, the state of the
composite system is:
|ψiA ⊗ |φiB
e.g.,
1
√
2
(|00i + |01i) = |0i ⊗
1
√
2
(|0i + |1i)
But consider the following state:
1
√
2
(|01i + |10i)
This state cannot be separated into the product form above. It is
said to be entangled2.
2
What does this do to a quantum type theory?

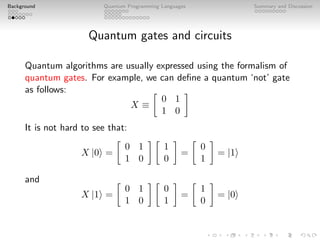

Quantum algorithms are usually expressed using the formalism of
quantum gates. For example, we can define a quantum ‘not’ gate
as follows:
X ≡

0 1
1 0

It is not hard to see that:
X |0i =

0 1
1 0

1
0

=

0
1

= |1i
and
X |1i =

0 1
1 0

0
1

=

1
0

= |0i

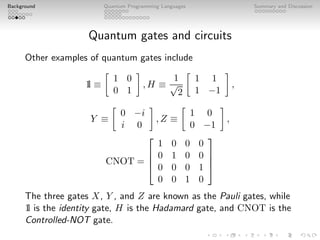

Other examples of quantum gates include
1
l ≡

1 0
0 1

, H ≡
1
√
2

1 1
1 −1

,
Y ≡

0 −i
i 0

, Z ≡

1 0
0 −1

,
CNOT =




1 0 0 0
0 1 0 0
0 0 0 1
0 0 1 0




The three gates X, Y , and Z are known as the Pauli gates, while
1
l is the identity gate, H is the Hadamard gate, and CNOT is the
Controlled-NOT gate.

Quantum circuits
A quantum algorithm may be expressed by connecting quantum
gates together in the form of a quantum circuit.
|ψi • H
NM
✌
✌
✌ •
|0i

NM
✌
✌
✌
|0i H • X Z |ψi
Figure: A quantum circuit, from [Nielsen and Chuang].

Typical quantum algorithms
A typical quantum algorithm has:
• quantum operations (usually specified by circuit diagrams)
• quantum data (qubits, quantum registers, scratch space)
• classical operations
• classical data
• control flow
What’s the best way to describe or specify such an algorithm?
• Traditionally: ad hoc manner using circuit diagrams
accompanied by a meta-level description of the high-level
control flow
• . . . ?

Example: Shor’s factoring algorithm
Overall control flow of Shor’s factoring algorithm:
• read in an integer
• perform some classical tests and preparation
(turns factoring into order-finding)
• calls the quantum order-finding subroutine
• measures the result, and if successful, outputs the integer
The order-finding algorithm:
• circuit’s gates depend on size of the input
• uses the quantum Fourier transform
The quantum Fourier transform:
• is composed of smaller quantum gates

Quantum Fourier transform
. . .
Rn−2 Rn−1
H R2
R2
H
H
Rn−1 Rn
H
.
.
.
.
.
.
|j1i
|j2i
|jni
|jn−1i
. . .
. . . . . . . . .
. . .
Figure: Circuit scheme for the quantum Fourier transform, from [Nielsen
and Chuang].

Order-finding circuit
|0i FT†
|ji
xj
mod N
H
|1i
Figure: Quantum circuit for order-finding (and for Shor’s factoring
algorithm), from [Nielsen and Chuang].

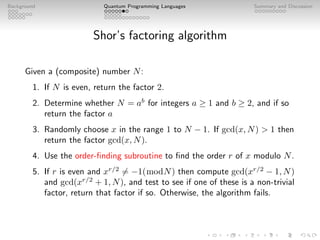

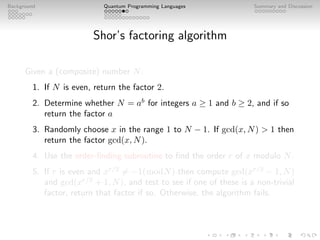

Shor’s factoring algorithm
Given a (composite) number N:
1. If N is even, return the factor 2.
2. Determine whether N = ab
for integers a ≥ 1 and b ≥ 2, and if so
return the factor a
3. Randomly choose x in the range 1 to N − 1. If gcd(x, N) 1 then
return the factor gcd(x, N).
4. Use the order-finding subroutine to find the order r of x modulo N.
5. If r is even and xr/2
6= −1(modN) then compute gcd(xr/2
− 1, N)
and gcd(xr/2
+ 1, N), and test to see if one of these is a non-trivial
factor, return that factor if so. Otherwise, the algorithm fails.

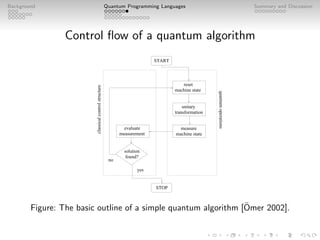

Control flow of a quantum algorithm
classical
control
structure
machine state
reset
transformation
unitary
machine state
measure
measurement
evaluate
solution
found?
quantum
operations
yes
no
START
STOP
Figure: The basic outline of a simple quantum algorithm [Ömer 2002].

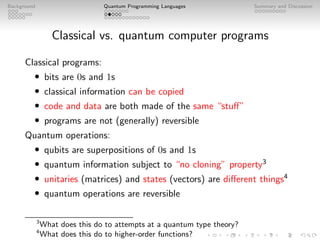

Classical vs. quantum computer programs
Classical programs:
• bits are 0s and 1s
• classical information can be copied
• code and data are both made of the same “stuff”
• programs are not (generally) reversible
Quantum operations:
• qubits are superpositions of 0s and 1s
• quantum information subject to “no cloning” property3
• unitaries (matrices) and states (vectors) are different things4
• quantum operations are reversible
3
What does this do to attempts at a quantum type theory?
4
What does this do to higher-order functions?

Comparison of classical and quantum computation
classical concept quantum analog
classical machine model hybrid quantum architecture
variables quantum registers
subroutines unitary operators
argument and return types quantum data types
local variables scratch registers
dynamic memory scratch space management
boolean expressions quantum conditions
conditional execution conditional operators
selection quantum if-statement
conditional loops quantum forking
none inverse execution of operators
none quantum measurement
Table: A comparison between classical and quantum concepts related to
programming languages [Ömer 2002].

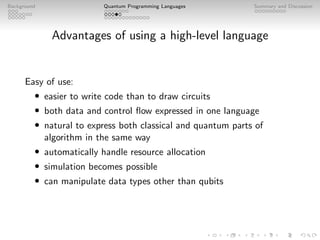

Advantages of using a high-level language
Easy of use:
• easier to write code than to draw circuits
• both data and control flow expressed in one language
• natural to express both classical and quantum parts of
algorithm in the same way
• automatically handle resource allocation
• simulation becomes possible
• can manipulate data types other than qubits

Advantages of using a high-level language
Extensibility:
• portable and hardware-independent
• encourages re-use and modularity
• library of routines for instances of the hidden subgroup
problem, such as order-finding and discrete logarithm
• frequently used subcircuits such as Fourier transform
• many quantum algorithms have blocks or steps which are
repeated
• facilitates the development and refinement of algorithms,
allows modifications and variants to be tested
Reliability:
• Error-checking, type-checking, model-checking, etc.

A survey of the field
Virtual hardware models:
• Quantum circuit model
• QRAM model of [Knill 1996], guidelines for pseudo-code
A QRAM machine consists of a classical RAM machine hooked up
to a quantum subsystem.
quantum operations
hardware and
Classical
software
resources
Quantum
measurement results
Figure: A simplified scheme of a QRAM machine. (Based on figures in
[Ömer 2002] and [Bettelli et al. 2001].)

The QRAM model
The classical RAM machine:
• is general-purpose
• carries out purely classical operations
• handles program flow
• performs pre- and post-processing of data for the quantum
subsystem
The quantum subsystem:
• is treated as a black box
• is assumed to have an array of addressable quantum bits
• capable of only two operations
• unitary transformations
• measurements

Imperative quantum programming languages

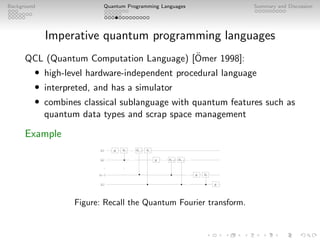

QCL (Quantum Computation Language) [Ömer 1998]:
• high-level hardware-independent procedural language
• interpreted, and has a simulator
• combines classical sublanguage with quantum features such as
quantum data types and scrap space management
Example
. . .
Rn−2 Rn−1
H R2
R2
H
H
Rn−1 Rn
H
.
.
.
.
.
.
|j1i
|j2i
|jni
|jn−1i
. . .
. . . . . . . . .
. . .
Figure: Recall the Quantum Fourier transform.

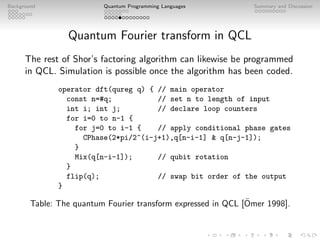

Quantum Fourier transform in QCL
The rest of Shor’s factoring algorithm can likewise be programmed
in QCL. Simulation is possible once the algorithm has been coded.
operator dft(qureg q) { // main operator
const n=#q; // set n to length of input
int i; int j; // declare loop counters
for i=0 to n-1 {
for j=0 to i-1 { // apply conditional phase gates
CPhase(2*pi/2^(i-j+1),q[n-i-1] q[n-j-1]);
}
Mix(q[n-i-1]); // qubit rotation
}
flip(q); // swap bit order of the output
}
Table: The quantum Fourier transform expressed in QCL [Ömer 1998].

Imperative quantum programming languages
qGCL [Sanders and Zuliani 2000]:
• based on Dijsktra’s guarded command language
• has a formal semantics
• suitable for systematic program derivation and verification
Q (extension of C++) [Bettelli et al. 2001]
• combines general purpose classical language with a set of
quantum primitives: quantum operators, register
management, measurement, etc.
• treats quantum operators as objects which can be explicitly
constructed and manipulated at run-time
• implemented as a C++ library
• some details of a compilation scheme

Functional quantum programming langauges
QFC (Quantum Flow Charts) [Selinger 2002]:
• statically typed with two basic data types, bits and qubits
• has high-level features such as loops, recursive procedures,
structured data types
• assigns an operator to each program fragment
• syntax and semantics described by means of flow charts
• flow charts connect physical and programming languages
views of quantum computation
• no run-time type checks or errors
• loops and recursion are interpreted as least fixpoints

Quantum Flow Charts
0 1
Γ = A + B
measure q
q : qbit, Γ =

A B
C D

q : qbit, Γ =

0 0
0 D

Γ = 0
Γ = B
Unitary transformation:
Allocate qbit:
Γ = A
q : qbit, Γ =

A 0
0 0

Γ = A
q : qbit, Γ =

A 0
0 0

Initial: Permutation:
q1, . . . , qn : qbit = (aij)ij
qφ(1), . . . , qφ(n) : qbit = (a2φ(i),2φ(j))ij
permute φ
q : qbit, Γ = A
q ∗ = S
q : qbit, Γ = (S ⊗ 1
l)A(S ⊗ 1
l)†
discard q
q : qbit, Γ =

A B
C D

Γ = A + D
Discard qbit:
Measurement:
Merge:
new qbit q := |0i
Figure: Rules for quantum flow charts [Selinger 2002].

Quantum Flow Charts
0 1
output p, q : qbit
p ∗ = N
q ∗ = N
measure p
p, q : qbit =

A B
C D

p, q : qbit =

0 0
0 D

p, q : qbit =

D 0
0 0

p, q : qbit =

NAN†
+ D 0
0 0

p, q : qbit =

NAN†
0
0 0

p, q : qbit =

A 0
0 0

input p, q : qbit
Figure: A simple quantum flow chart [Selinger 2002].

Loops in Quantum Flow Charts
(*)
(**) · · ·
X
· · ·
Figure: A loop in a quantum flow chart [Selinger 2002].
In the above, X is an arbitrary flow chart fragment with n + 1
incoming edges and m + 1 outgoing edges. Thus, excluding the
loop, X has n incoming and n outgoing edges.

Unwinding the loop
(*)
(**)
X
X
X
F21(A)
F22F21(A)
F22F22F21(A)
G(A)
A
F11(A) + F12F21(A)
F11(A)
.
.
.
.
.
.
Figure: Unwinding the loop [Selinger 2002].
The state at the edge (or tuple of edges) labeled (**) is given by
the infinite sum:
G(A) = F11(A) +
∞
X
i=0
F12(Fi
22(F21(A)))

Extensions of the λ-calculus
Various extensions of the λ-calculus:
• λq-calculus [Maymin 1996]:
• incorporates distribution of terms
• terms may be represented negatively in distributions
• quantum λ-calculus [Van Tonder 2004]
• simulator written in Scheme
• QML [Altenkirch Grattage 2005]
• control, as well as data, may be quantum
• compiler written in Haskell
• typed quantum λ-calculus [Selinger and Valiron 2005]
• based on classical control and quantum data
There are other approaches, but I don’t have time in this talk to
discuss them.

Compilation issues
Software architecture proposal [Svore, Cross, Aho, Chuang, Markov
2004]:
• defines a suite of tools
• proposal for compilation in two stages
• source high-level language translated into an intermediate
quantum assembly language
• high-level language has complex data and control structures
• intermediate language works on qubits and unitaries
QML [Altenkirch Grattage 2005]
• compiler for QML into a representation of quantum circuits

Summary: Recall the comparison
classical concept quantum analog
classical machine model hybrid quantum architecture
variables quantum registers
subroutines unitary operators
argument and return types quantum data types
local variables scratch registers
dynamic memory scratch space management
boolean expressions quantum conditions
conditional execution conditional operators
selection quantum if-statement
conditional loops quantum forking
none inverse execution of operators
none quantum measurement
Table: A comparison between classical and quantum concepts related to
programming languages [Ömer 2002].

Discussion
Many aspects of quantum programming languages remain
unexplored:
• use of more complicated quantum data types
• development of high-level quantum control structures
• formal semantics for higher-order quantum programming
languages, including classical features and measurement
Limited access to hardware means:
• design of simulators and compilers
• need to anticipate and develop techniques that will work over
a range of technology

Some questions answered. . . ?
Thanks!
Thanks to everyone who sent in their questions!
Questions about quantum programming language research:
1. What are quantum programming languages? How are they
different from conventional ones?
2. What are the hard problems to be solved in quantum
programming languages?
3. What is the difficulty in devising quantum algorithms?
4. And can specialized languages or tools (compilers or
simulators) alleviate the difficulty?
5. How can programming language expertise contribute to
quantum computing?

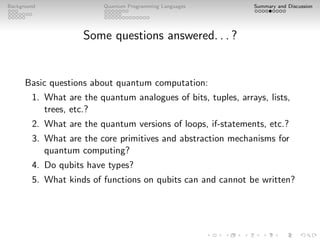

Basic questions about quantum computation:
1. What are the quantum analogues of bits, tuples, arrays, lists,
trees, etc.?
2. What are the quantum versions of loops, if-statements, etc.?
3. What are the core primitives and abstraction mechanisms for
quantum computing?
4. Do qubits have types?
5. What kinds of functions on qubits can and cannot be written?

Questions about quantum algorithms:
1. What is a typical quantum algorithm?
2. Is any particular conventional programming paradigm better
suited than others for quantum computing?
3. Are we likely to see very large quantum programs in the
future?
4. Or is quantum computing likely to consist of short pieces of
quantum operations for very specific tasks primarily controlled
by a non-quantum program?

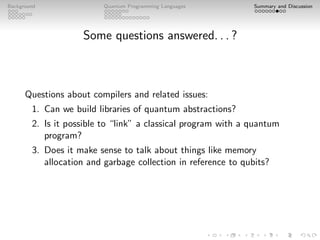

Questions about compilers and related issues:
1. Can we build libraries of quantum abstractions?
2. Is it possible to “link” a classical program with a quantum
program?
3. Does it make sense to talk about things like memory
allocation and garbage collection in reference to qubits?

Looking towards the future
A major problem in quantum computing is a lack of unifying
principles for developing new quantum algorithms.
The promotion of abstractions and high-level concepts may reveal
new ways to analyze and view existing algorithms.
But it’s not yet clear which abstractions are useful. Hence the need
for research in quantum programming languages.

Bibliography
The following two survey papers together give a thorough and
relatively up-to-date coverage of research in the field of quantum
programming languages:
Simon Gay.
Quantum programming languages: Survey and bibliography.
http://www.dcs.gla.ac.uk/~simon/quantum, 2005.
Accessed: 2006-04-20.
Peter Selinger.
A Brief Survey of Quantum Programming Languages.
In Proceedings of the 7th International Symposium on
Functional and Logic Programming (FLOPS ’04), Nara,
Japan, 2004.

An Introduction to Quantum Programming Languages

More Related Content

Similar to An Introduction to Quantum Programming Languages

Recently uploaded

An Introduction to Quantum Programming Languages
