The document discusses techniques for creating reusable Puppet modules. It recommends using parameters, qualified variables, and OS-specific classes to handle diversity across operating systems. Default values should be set for user variables, and users' variables can be filtered. Modules should follow consistent naming conventions and have predictable behaviors. The document also describes how to quickly clone an existing module, customize it for a new project, add monitoring abstractions, and create a coherent infrastructure for sharing modules. The goal is to more easily manage modules and updates through templates and a "Modules Machine."

1. RE-USEYOUR MODULES!
Techniques and Approaches to Modules Reusability
Puppet Camp 2010 San Francisco
Alessandro Franceschi
al@lab42.it

2. I have a dream
a small one

3. CrossVendor

4. Reusable

5. Plug & Play

6. Puppet
modules

7. CrossVendor
Reusable
Plug & Play

8. At the beginning...

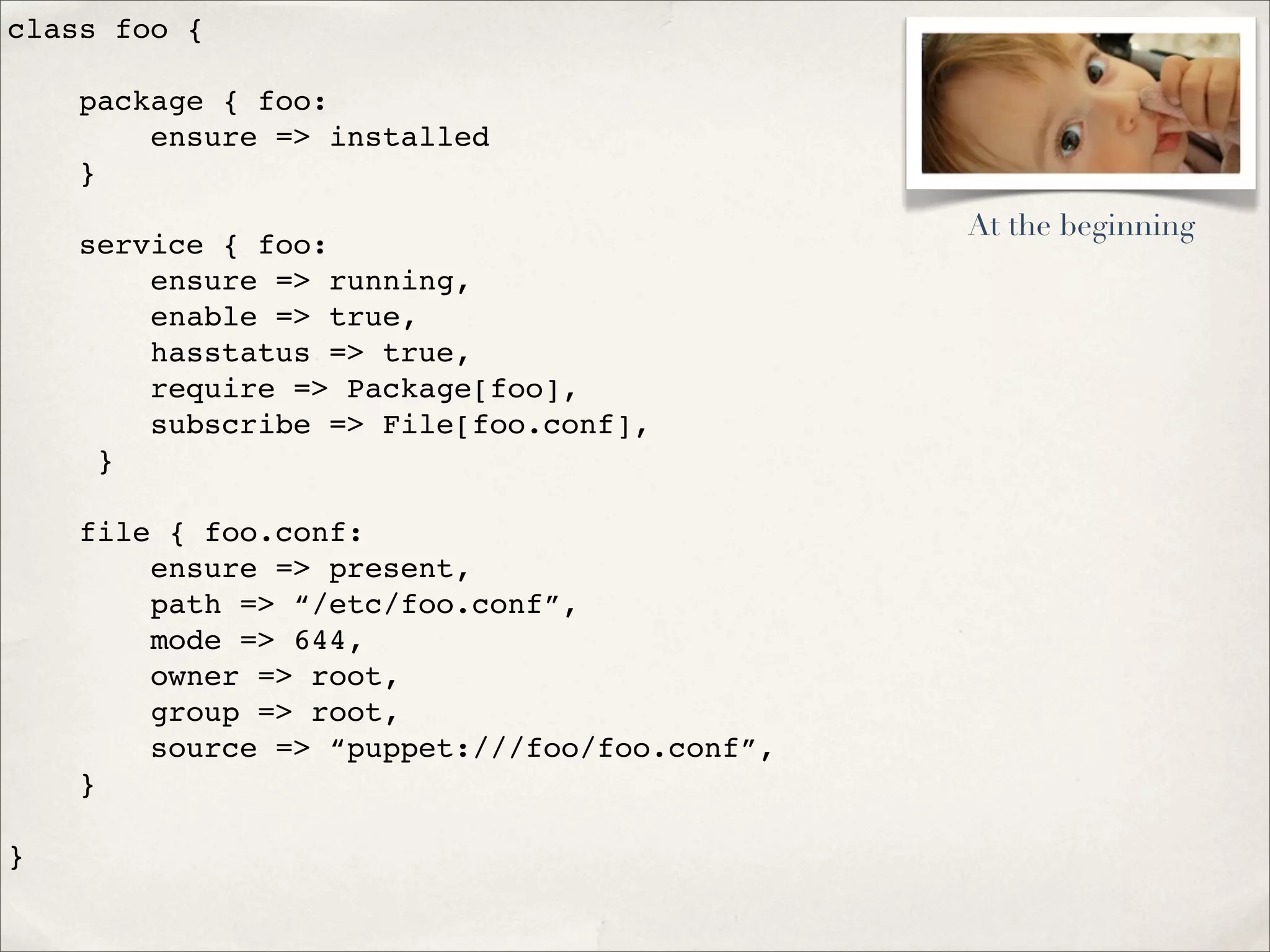

9. class foo {
package { foo:
ensure => installed
}
service { foo:
ensure => running,
enable => true,
hasstatus => true,
require => Package[foo],
subscribe => File[foo.conf],
}
file { foo.conf:
ensure => present,
path => “/etc/foo.conf”,
mode => 644,
owner => root,
group => root,
source => “puppet:///foo/foo.conf”,
}
}
At the beginning

10. Facing Diversity

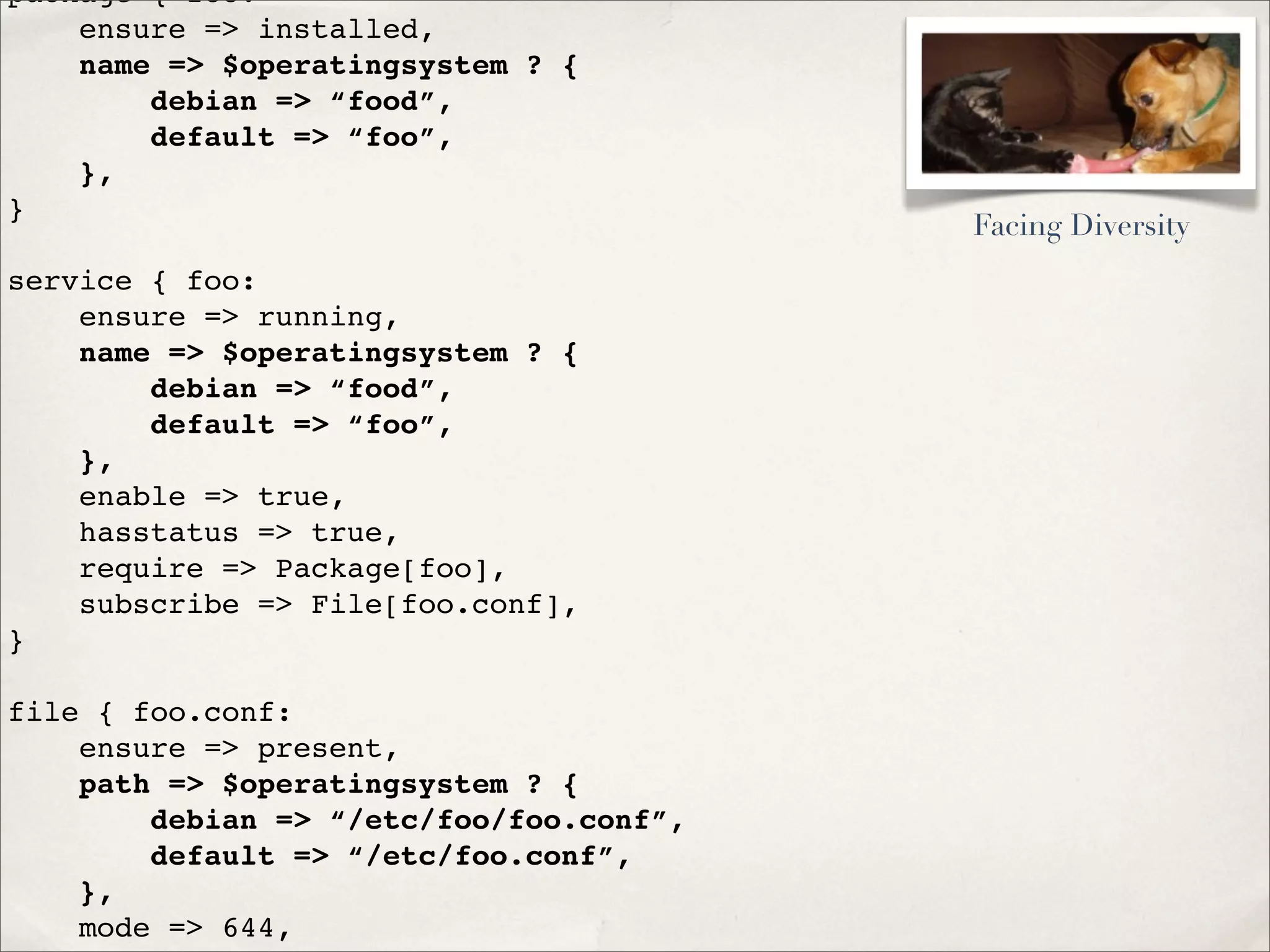

11. package { foo:
ensure => installed,
name => $operatingsystem ? {
debian => “food”,
default => “foo”,
},
}
service { foo:
ensure => running,
name => $operatingsystem ? {
debian => “food”,
default => “foo”,
},
enable => true,
hasstatus => true,
require => Package[foo],
subscribe => File[foo.conf],
}
file { foo.conf:
ensure => present,
path => $operatingsystem ? {
debian => “/etc/foo/foo.conf”,
default => “/etc/foo.conf”,
},
mode => 644,
Facing Diversity

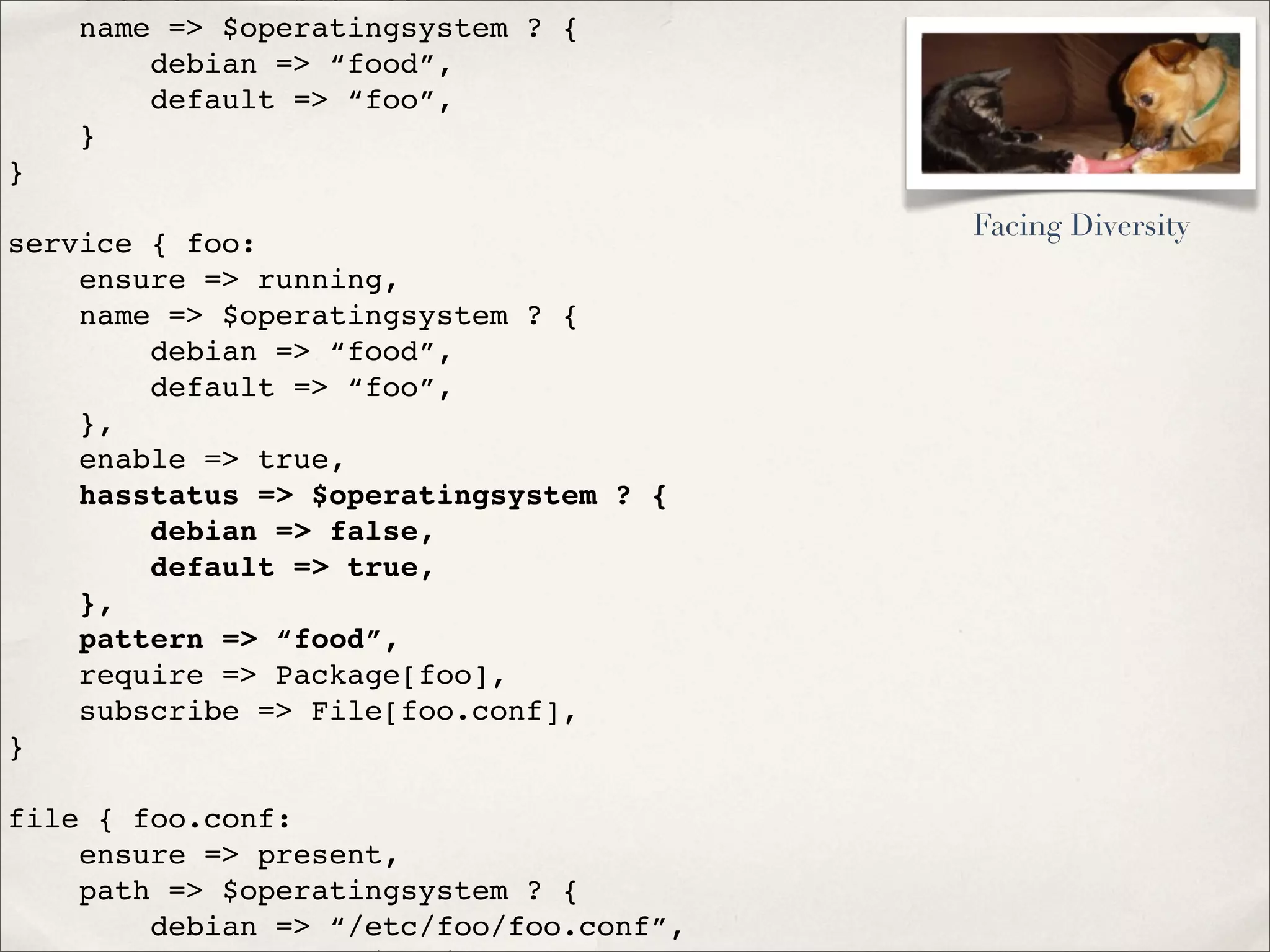

12. ensure => installed
name => $operatingsystem ? {
debian => “food”,
default => “foo”,
}
}
service { foo:
ensure => running,
name => $operatingsystem ? {
debian => “food”,
default => “foo”,
},
enable => true,
hasstatus => $operatingsystem ? {
debian => false,
default => true,
},
pattern => “food”,
require => Package[foo],
subscribe => File[foo.conf],
}
file { foo.conf:
ensure => present,
path => $operatingsystem ? {
debian => “/etc/foo/foo.conf”,
Facing Diversity

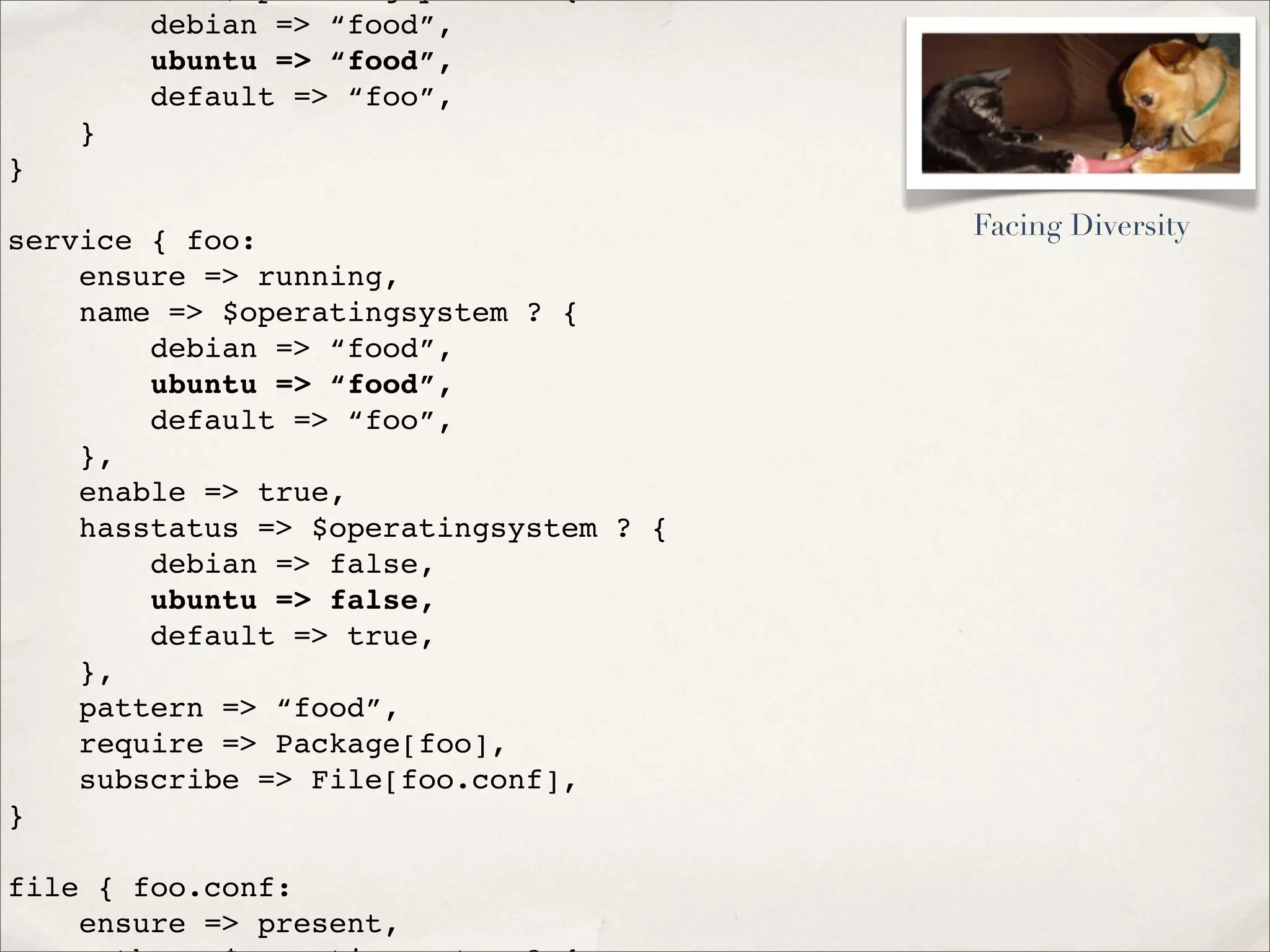

13. debian => “food”,
ubuntu => “food”,
default => “foo”,
}
}
service { foo:
ensure => running,
name => $operatingsystem ? {
debian => “food”,
ubuntu => “food”,
default => “foo”,
},
enable => true,
hasstatus => $operatingsystem ? {
debian => false,
ubuntu => false,
default => true,
},
pattern => “food”,
require => Package[foo],
subscribe => File[foo.conf],
}
file { foo.conf:
ensure => present,
Facing Diversity

14. Centralized settings: foo::params
Qualified variables
OS dedicated classes
Facing Diversity

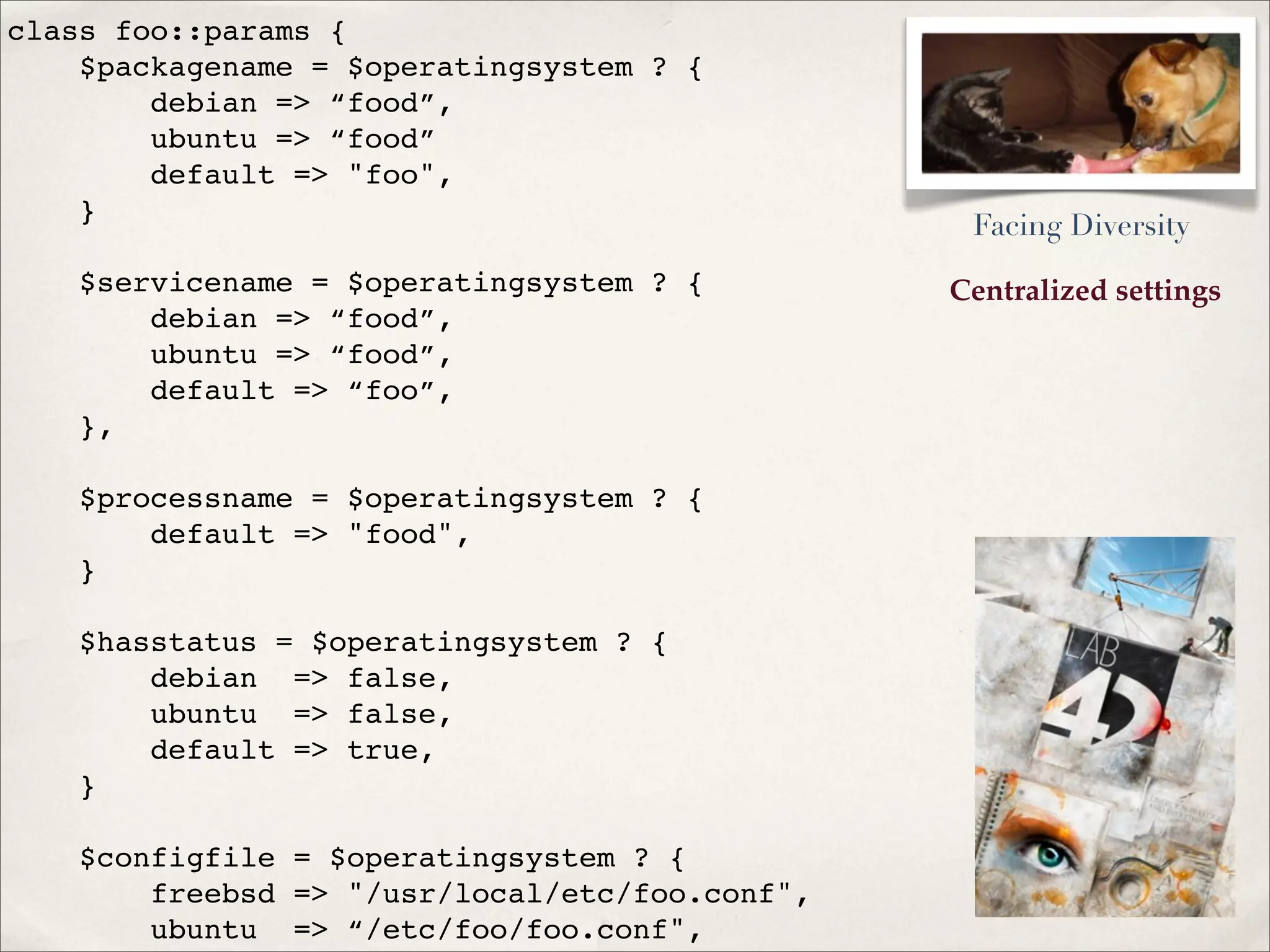

15. Centralized settings
class foo::params {
$packagename = $operatingsystem ? {
debian => “food”,
ubuntu => “food”
default => "foo",
}
$servicename = $operatingsystem ? {
debian => “food”,
ubuntu => “food”,
default => “foo”,
},
$processname = $operatingsystem ? {
default => "food",
}
$hasstatus = $operatingsystem ? {
debian => false,
ubuntu => false,
default => true,
}
$configfile = $operatingsystem ? {
freebsd => "/usr/local/etc/foo.conf",
ubuntu => “/etc/foo/foo.conf",
Facing Diversity

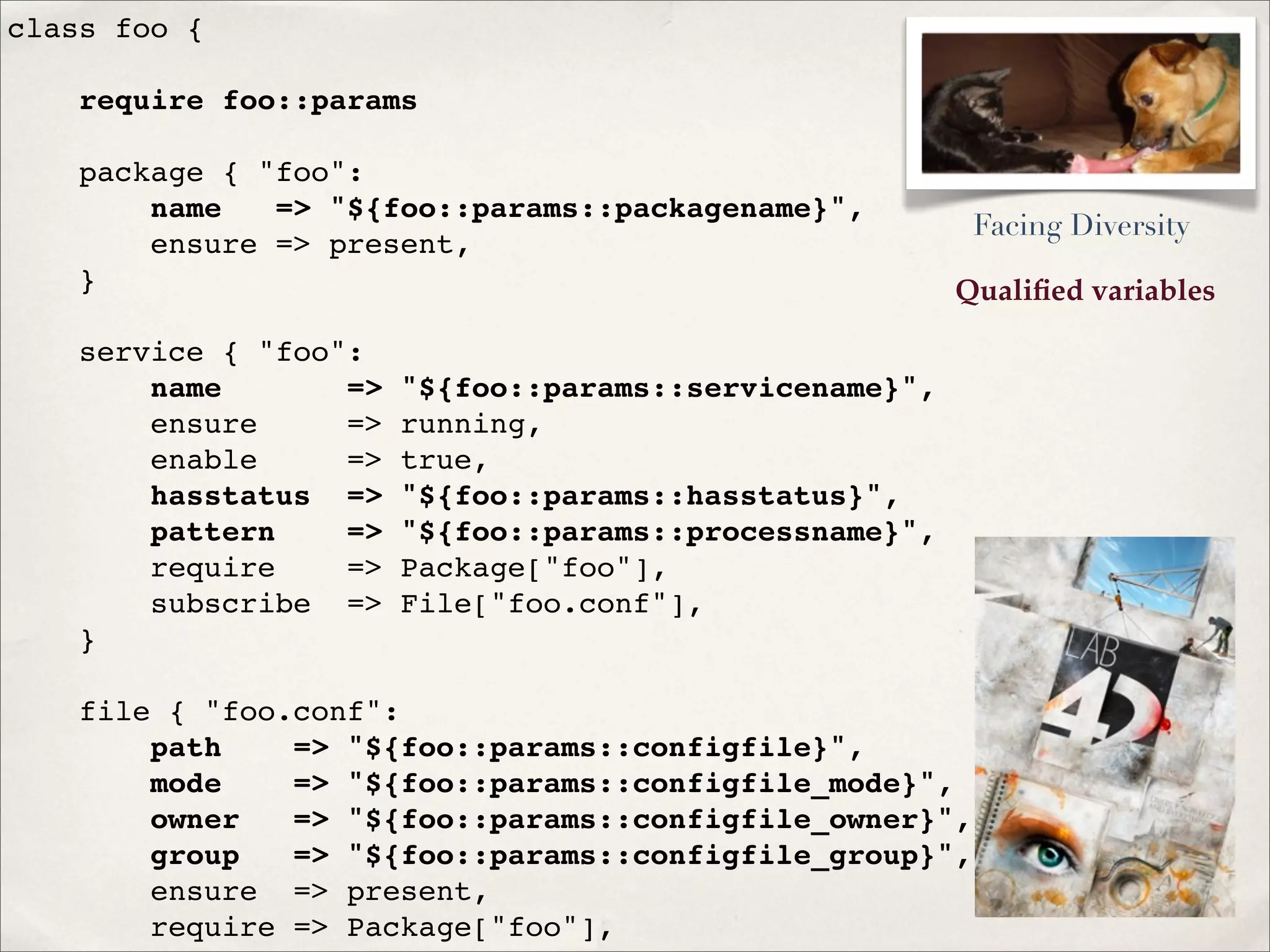

16. Qualified variables
class foo {
require foo::params
package { "foo":
name => "${foo::params::packagename}",
ensure => present,
}
service { "foo":
name => "${foo::params::servicename}",
ensure => running,
enable => true,
hasstatus => "${foo::params::hasstatus}",
pattern => "${foo::params::processname}",
require => Package["foo"],
subscribe => File["foo.conf"],
}
file { "foo.conf":
path => "${foo::params::configfile}",
mode => "${foo::params::configfile_mode}",
owner => "${foo::params::configfile_owner}",
group => "${foo::params::configfile_group}",
ensure => present,
require => Package["foo"],
Facing Diversity

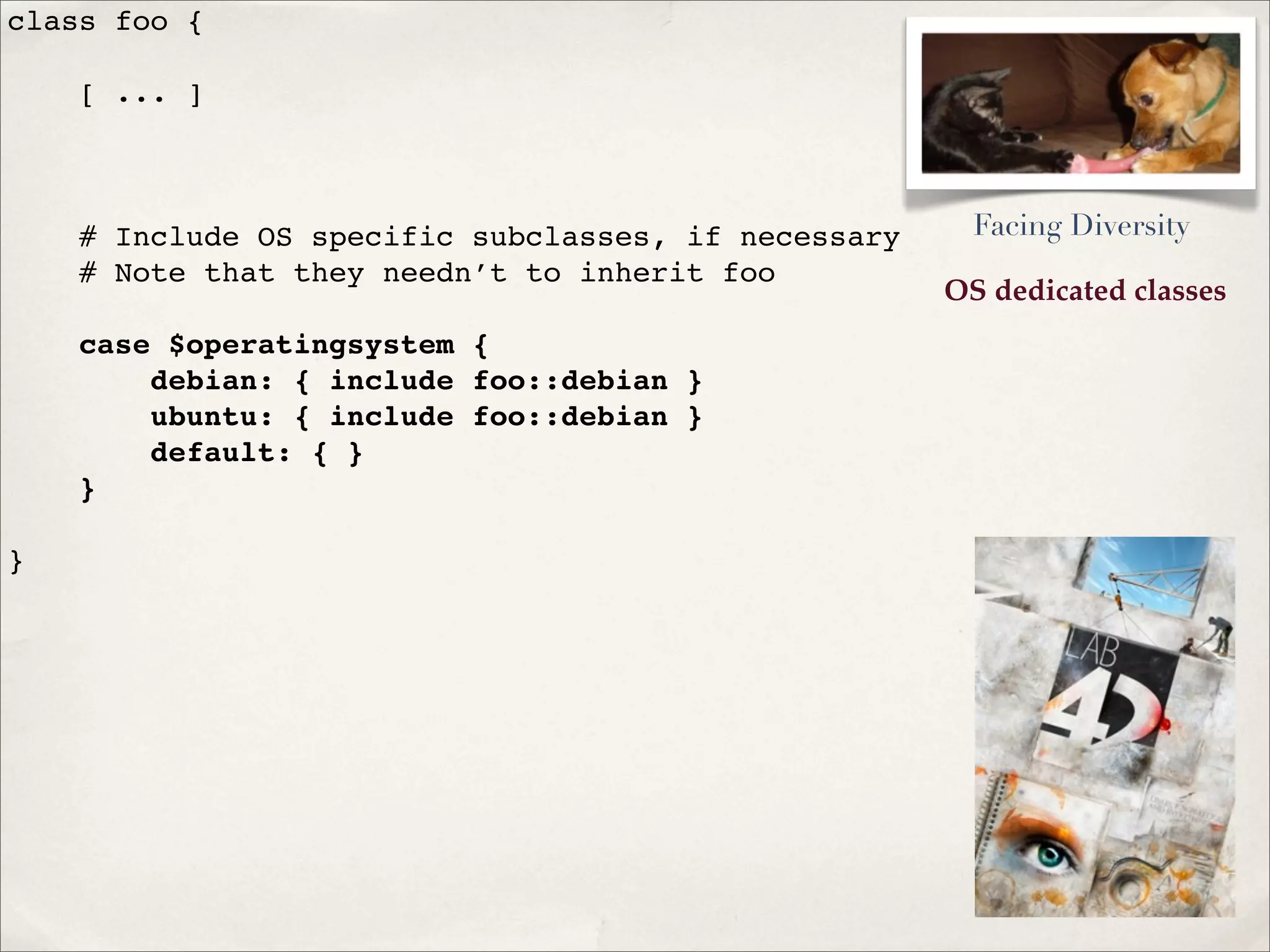

17. OS dedicated classes
class foo {
[ ... ]
# Include OS specific subclasses, if necessary
# Note that they needn’t to inherit foo
case $operatingsystem {
debian: { include foo::debian }
ubuntu: { include foo::debian }
default: { }
}
}
Facing Diversity

18. Dealing with Users

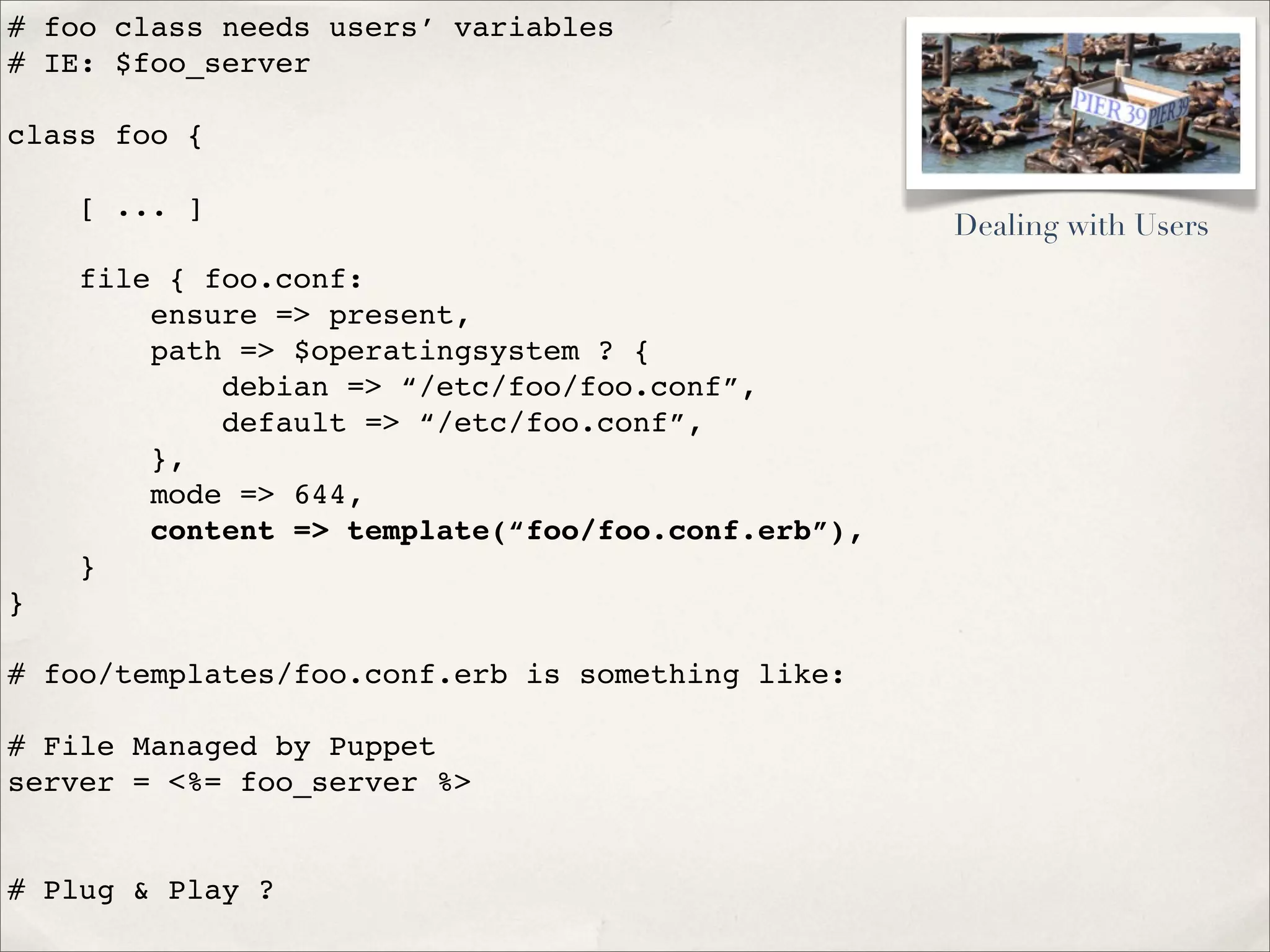

19. # foo class needs users’ variables
# IE: $foo_server
class foo {
[ ... ]
file { foo.conf:
ensure => present,
path => $operatingsystem ? {
debian => “/etc/foo/foo.conf”,
default => “/etc/foo.conf”,
},
mode => 644,
content => template(“foo/foo.conf.erb”),
}
}
# foo/templates/foo.conf.erb is something like:
# File Managed by Puppet
server = <%= foo_server %>
# Plug & Play ?
Dealing with Users

20. Filtering user variables
Setting default values
Dealing with Users

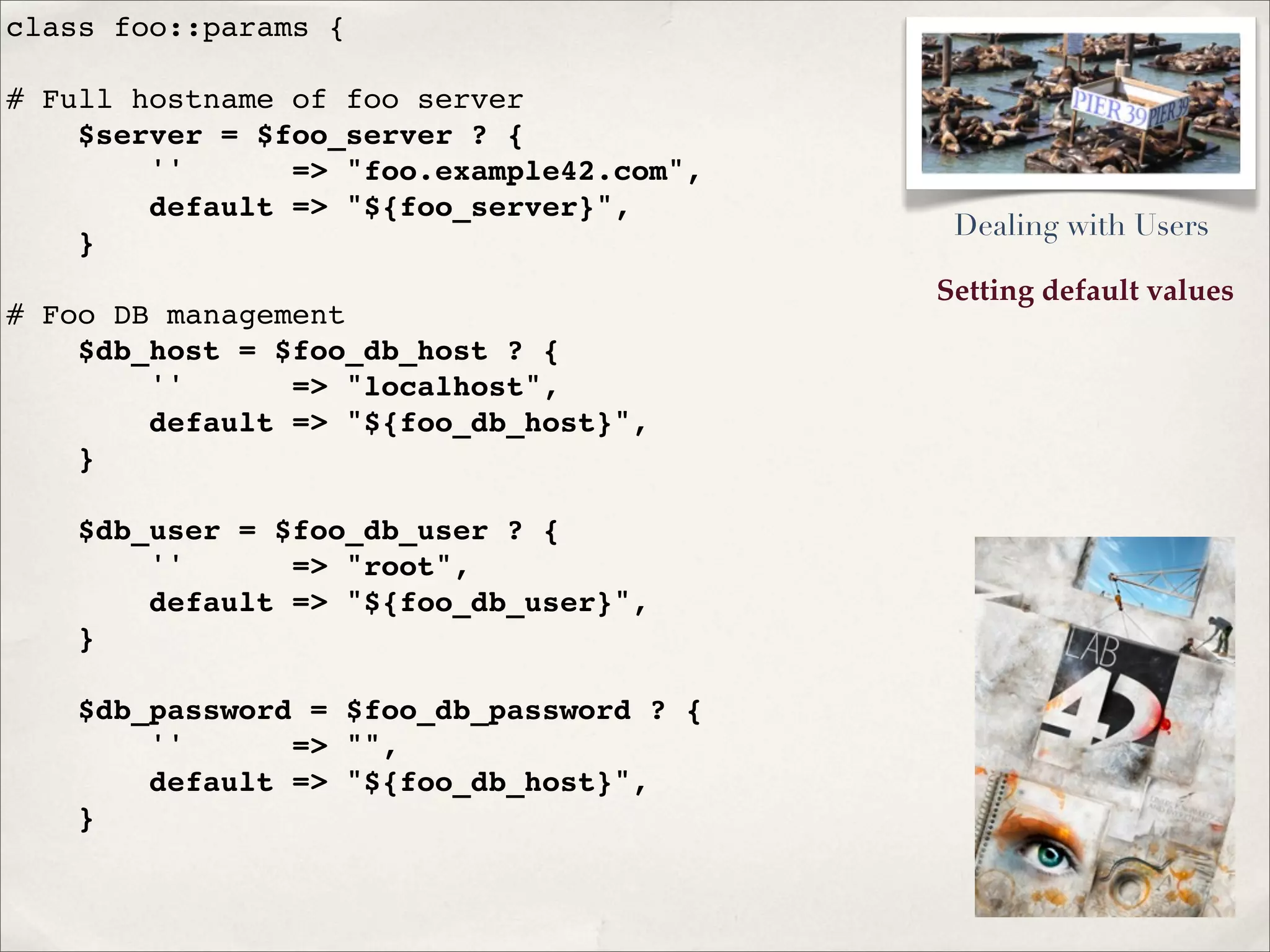

21. Setting default values
class foo::params {
# Full hostname of foo server
$server = $foo_server ? {
'' => "foo.example42.com",
default => "${foo_server}",
}
# Foo DB management
$db_host = $foo_db_host ? {
'' => "localhost",
default => "${foo_db_host}",
}
$db_user = $foo_db_user ? {
'' => "root",
default => "${foo_db_user}",
}
$db_password = $foo_db_password ? {
'' => "",
default => "${foo_db_host}",
}
Dealing with Users

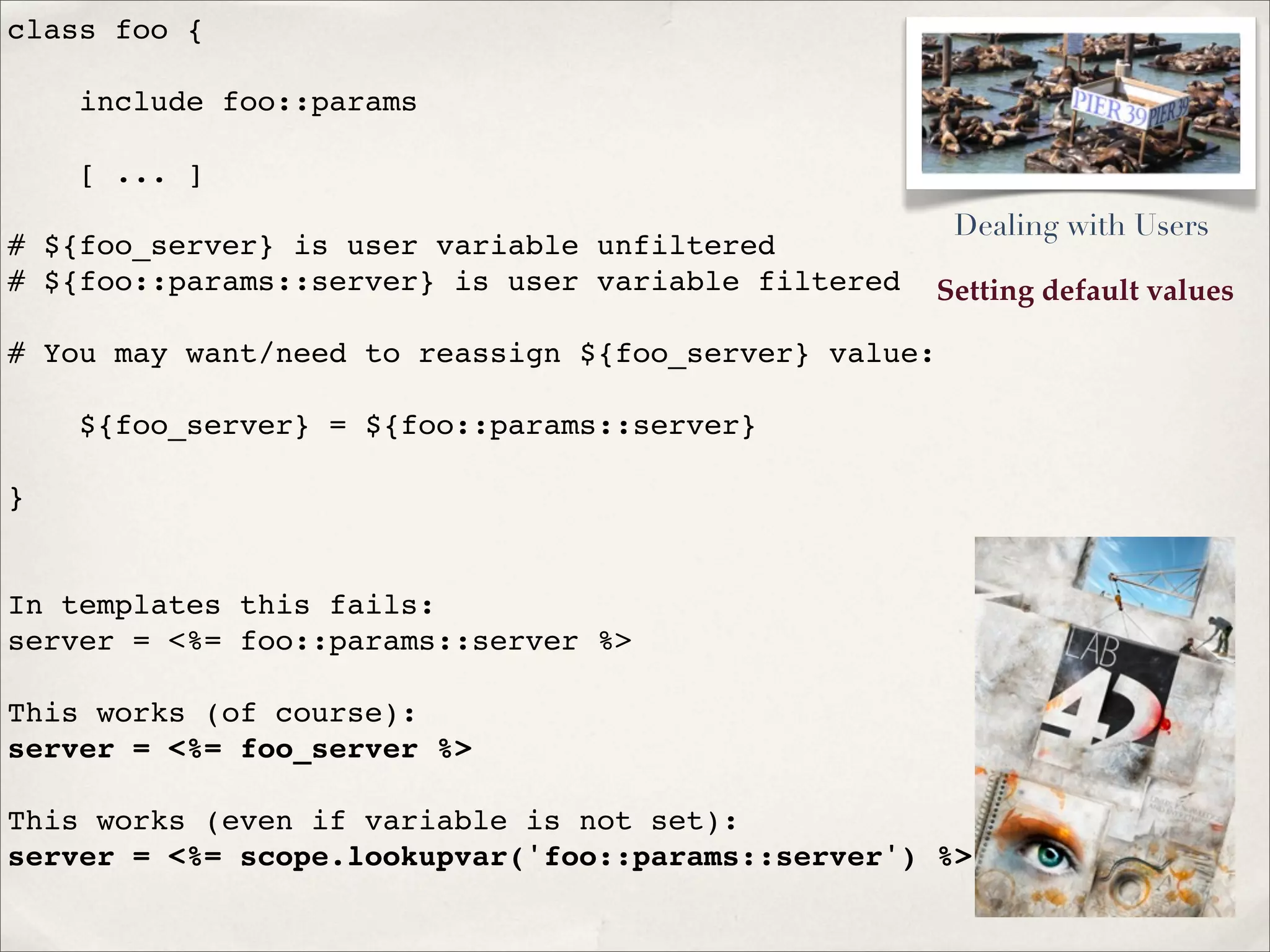

22. Setting default values
class foo {
include foo::params
[ ... ]
# ${foo_server} is user variable unfiltered
# ${foo::params::server} is user variable filtered
# You may want/need to reassign ${foo_server} value:
${foo_server} = ${foo::params::server}
}
In templates this fails:
server = <%= foo::params::server %>
This works (of course):
server = <%= foo_server %>
This works (even if variable is not set):
server = <%= scope.lookupvar('foo::params::server') %>
Dealing with Users

23. Adapt and Customize

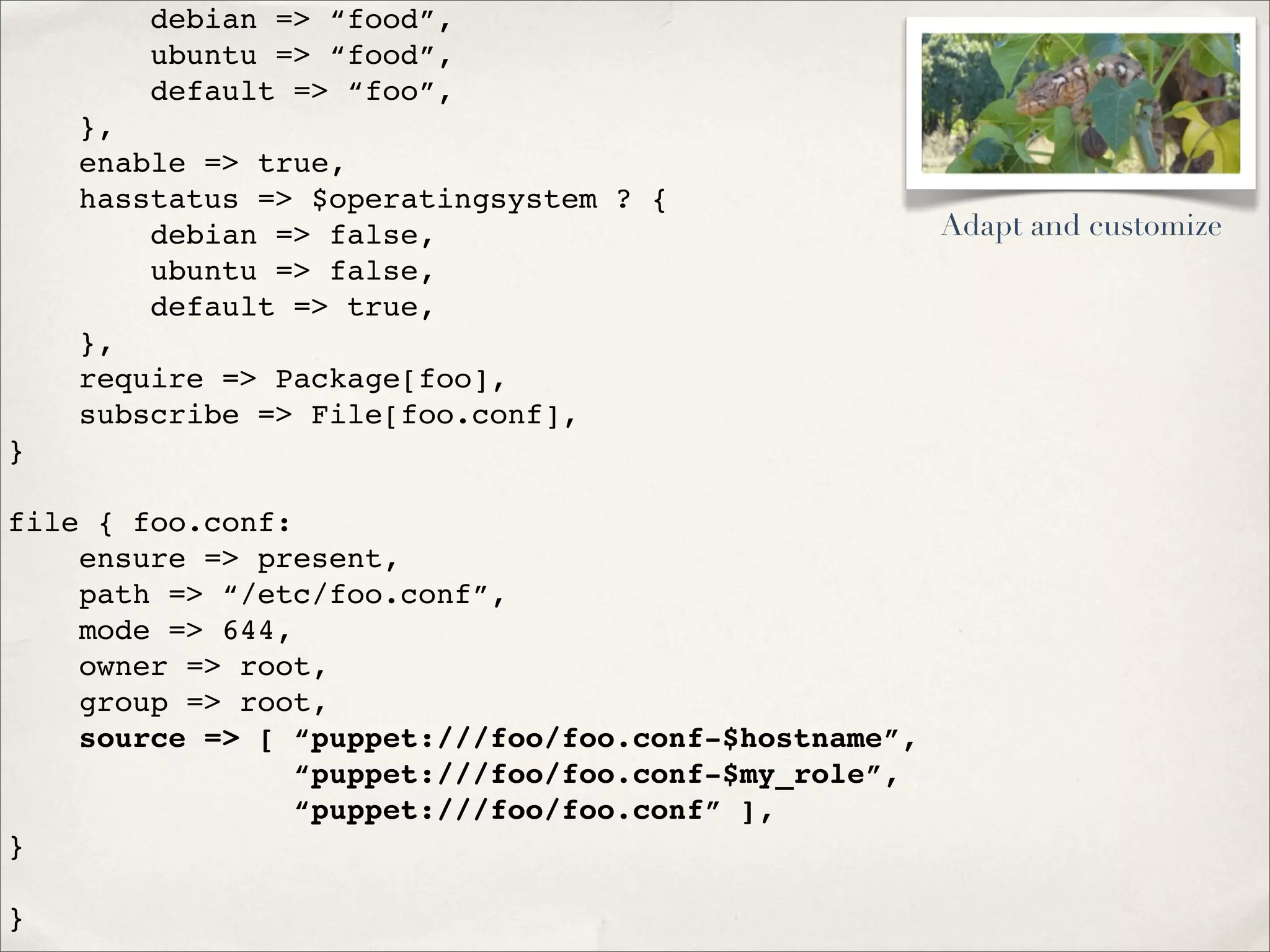

24. debian => “food”,
ubuntu => “food”,
default => “foo”,
},
enable => true,
hasstatus => $operatingsystem ? {
debian => false,
ubuntu => false,
default => true,
},
require => Package[foo],
subscribe => File[foo.conf],
}
file { foo.conf:
ensure => present,
path => “/etc/foo.conf”,
mode => 644,
owner => root,
group => root,
source => [ “puppet:///foo/foo.conf-$hostname”,
“puppet:///foo/foo.conf-$my_role”,
“puppet:///foo/foo.conf” ],
}
}
Adapt and customize

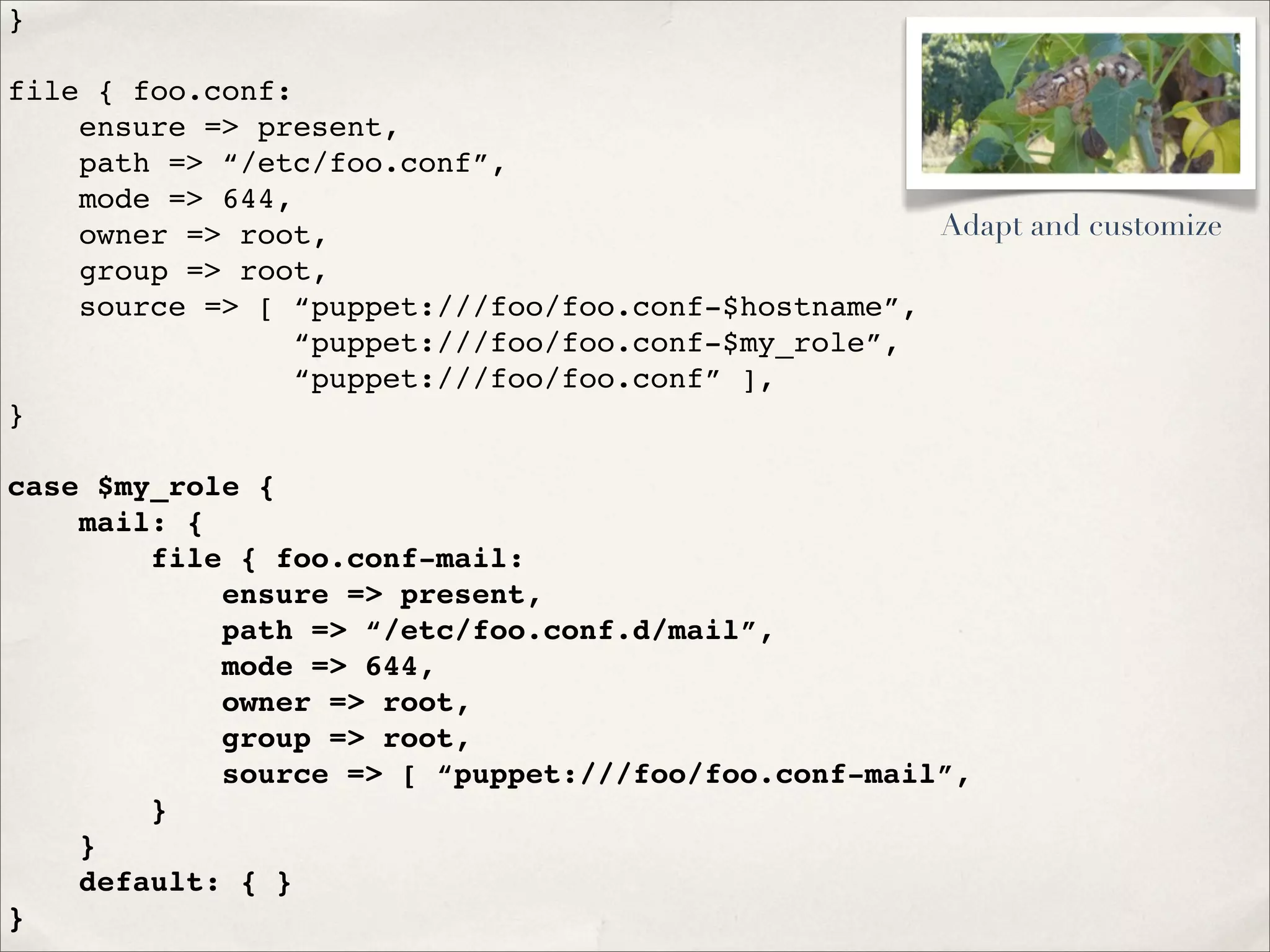

25. }
file { foo.conf:
ensure => present,
path => “/etc/foo.conf”,
mode => 644,
owner => root,
group => root,
source => [ “puppet:///foo/foo.conf-$hostname”,
“puppet:///foo/foo.conf-$my_role”,
“puppet:///foo/foo.conf” ],
}
case $my_role {
mail: {
file { foo.conf-mail:
ensure => present,
path => “/etc/foo.conf.d/mail”,
mode => 644,
owner => root,
group => root,
source => [ “puppet:///foo/foo.conf-mail”,
}
}
default: { }
}
Adapt and customize

26. Isolation of diversity
Project classes || Project module
Adapt and Customize

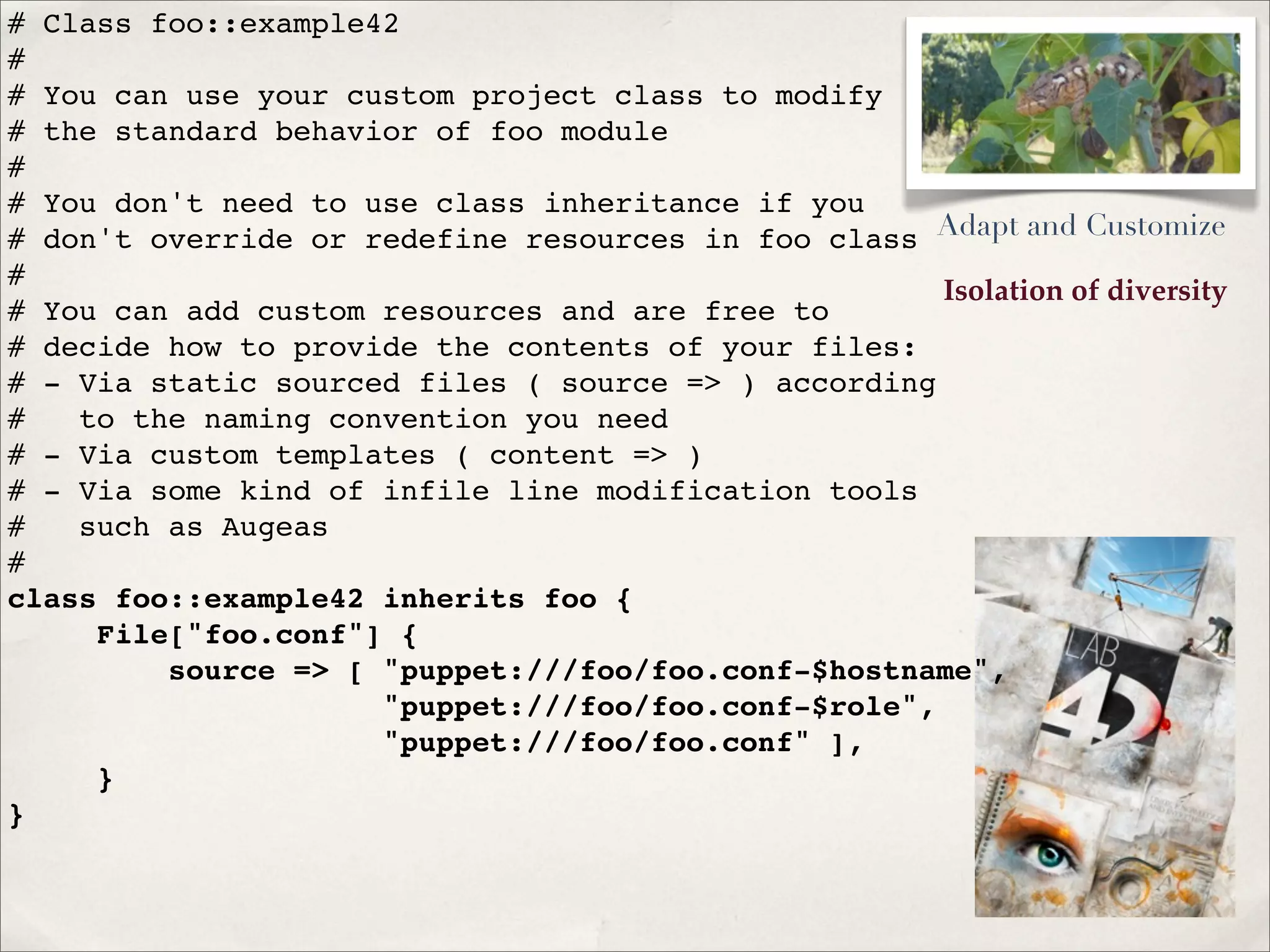

27. Isolation of diversity
# Class foo::example42
#
# You can use your custom project class to modify
# the standard behavior of foo module
#
# You don't need to use class inheritance if you
# don't override or redefine resources in foo class
#
# You can add custom resources and are free to
# decide how to provide the contents of your files:
# - Via static sourced files ( source => ) according
# to the naming convention you need
# - Via custom templates ( content => )
# - Via some kind of infile line modification tools
# such as Augeas
#
class foo::example42 inherits foo {
File["foo.conf"] {
source => [ "puppet:///foo/foo.conf-$hostname",
"puppet:///foo/foo.conf-$role",
"puppet:///foo/foo.conf" ],
}
}
Adapt and Customize

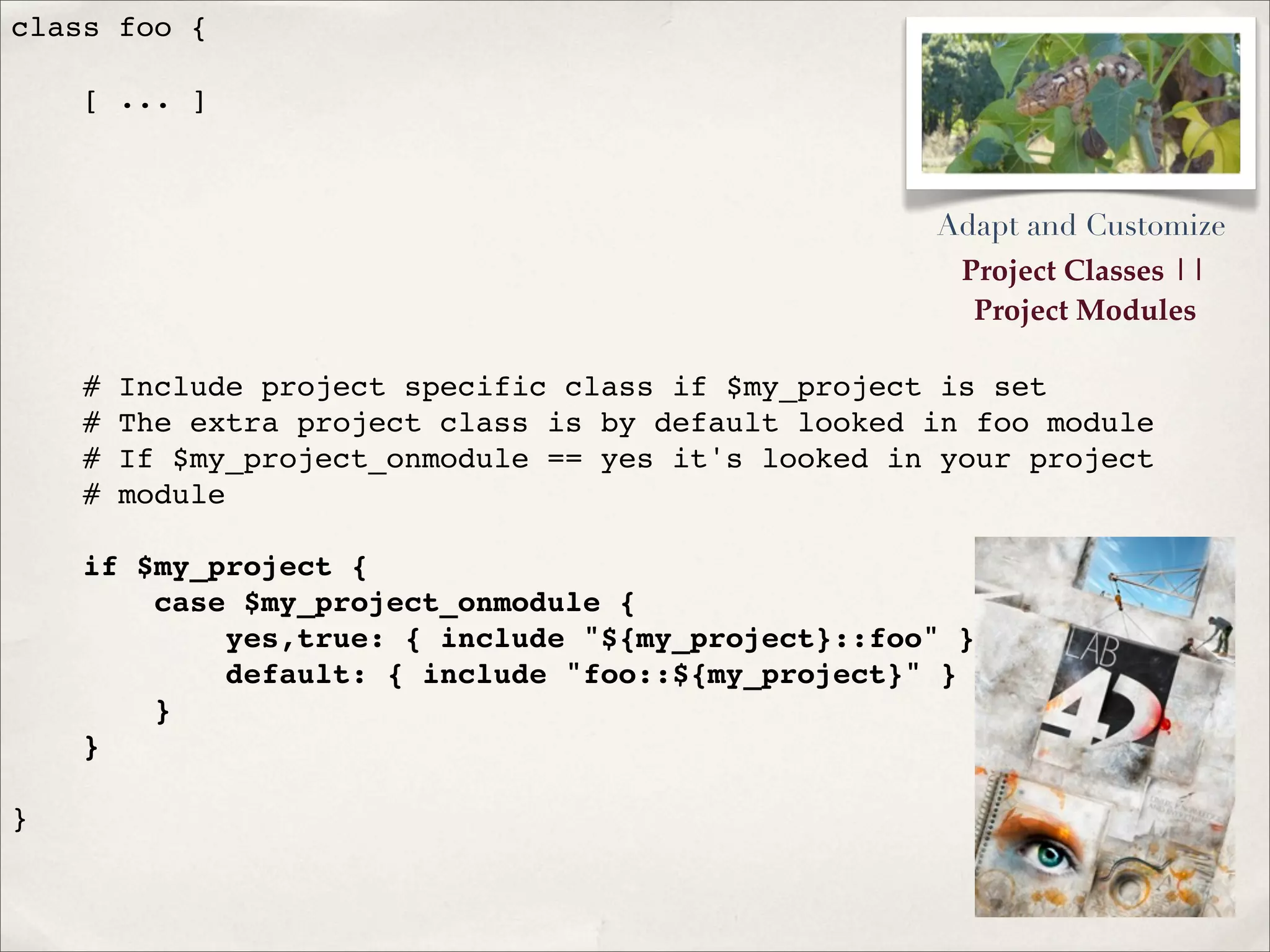

28. Project Classes ||
Project Modules
class foo {
[ ... ]
# Include project specific class if $my_project is set
# The extra project class is by default looked in foo module
# If $my_project_onmodule == yes it's looked in your project
# module
if $my_project {
case $my_project_onmodule {
yes,true: { include "${my_project}::foo" }
default: { include "foo::${my_project}" }
}
}
}
Adapt and Customize

29. Control and monitor

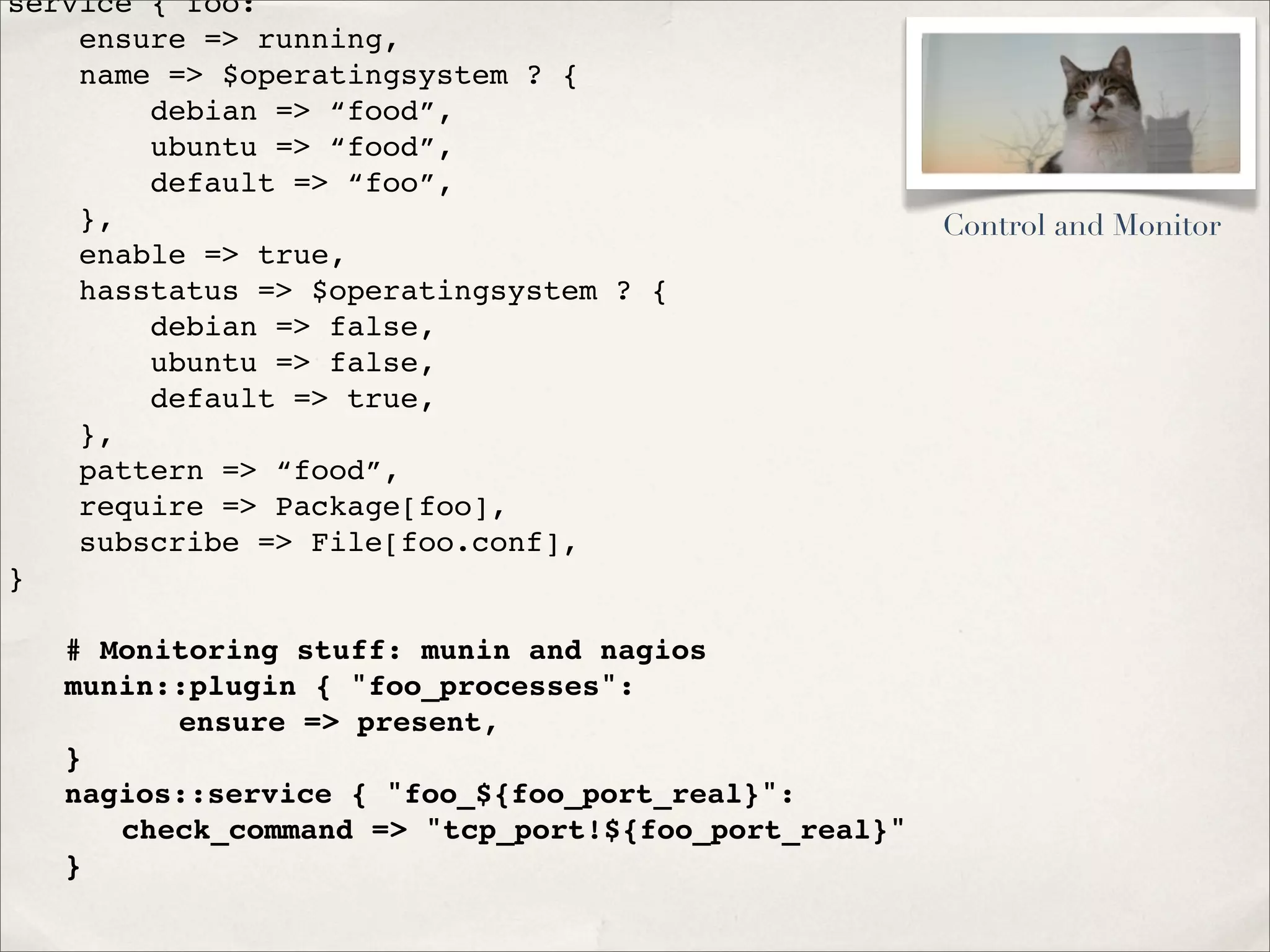

30. service { foo:
ensure => running,
name => $operatingsystem ? {
debian => “food”,
ubuntu => “food”,
default => “foo”,
},
enable => true,
hasstatus => $operatingsystem ? {
debian => false,
ubuntu => false,
default => true,
},
pattern => “food”,
require => Package[foo],
subscribe => File[foo.conf],
}
! # Monitoring stuff: munin and nagios
! munin::plugin { "foo_processes":
! ! ! ensure => present,
! }
! nagios::service { "foo_${foo_port_real}":
! ! check_command => "tcp_port!${foo_port_real}"
! }
Control and Monitor

31. Monitoring abstraction
Monitor meta-module
Control and Monitor

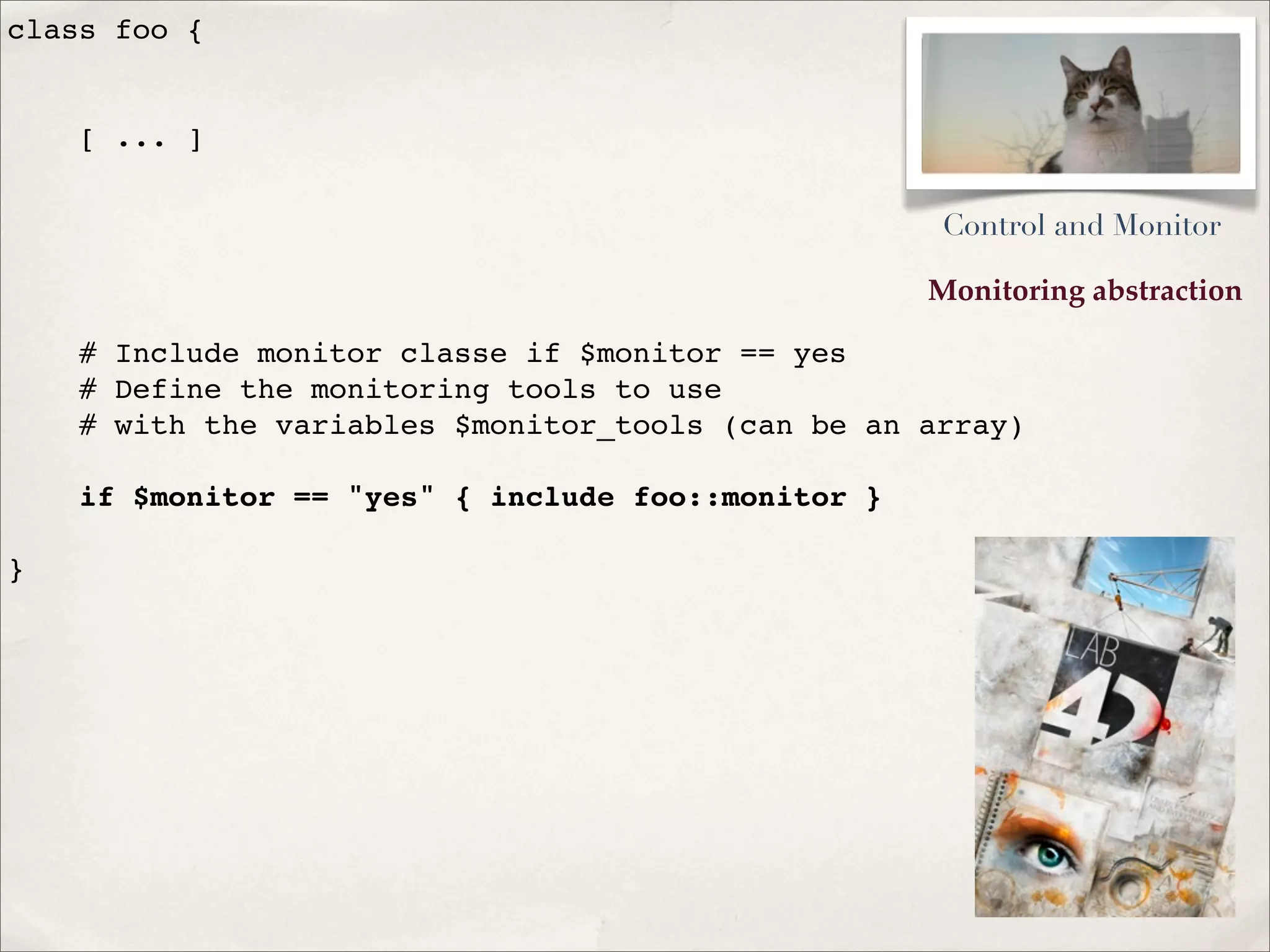

32. Monitoring abstraction
class foo {
[ ... ]
# Include monitor classe if $monitor == yes
# Define the monitoring tools to use
# with the variables $monitor_tools (can be an array)
if $monitor == "yes" { include foo::monitor }
}
Control and Monitor

33. Monitoring abstraction
class foo::monitor {
include foo::params
monitor::port { "foo_${foo::params::protocol}_
${foo::params::port}":
protocol => "${foo::params::protocol}",
target => "${foo::params::monitor_target_real}",
port => "${foo::params::port}",
enable => "${foo::params::monitor_port_enable}",
tool => "${monitor_tool}",
}
monitor::process { "foo_process":
process => "${foo::params::processname}",
service => "${foo::params::servicename}",
pidfile => "${foo::params::pidfile}",
enable => "${foo::params::monitor_process_enable}",
tool => "${monitor_tool}",
}
[ ... ]
if $my_project {
case $my_project_onmodule {
yes,true: { include "${my_project}::foo::monitor" }
default: { include "foo::monitor::${my_project}" }
Control and Monitor

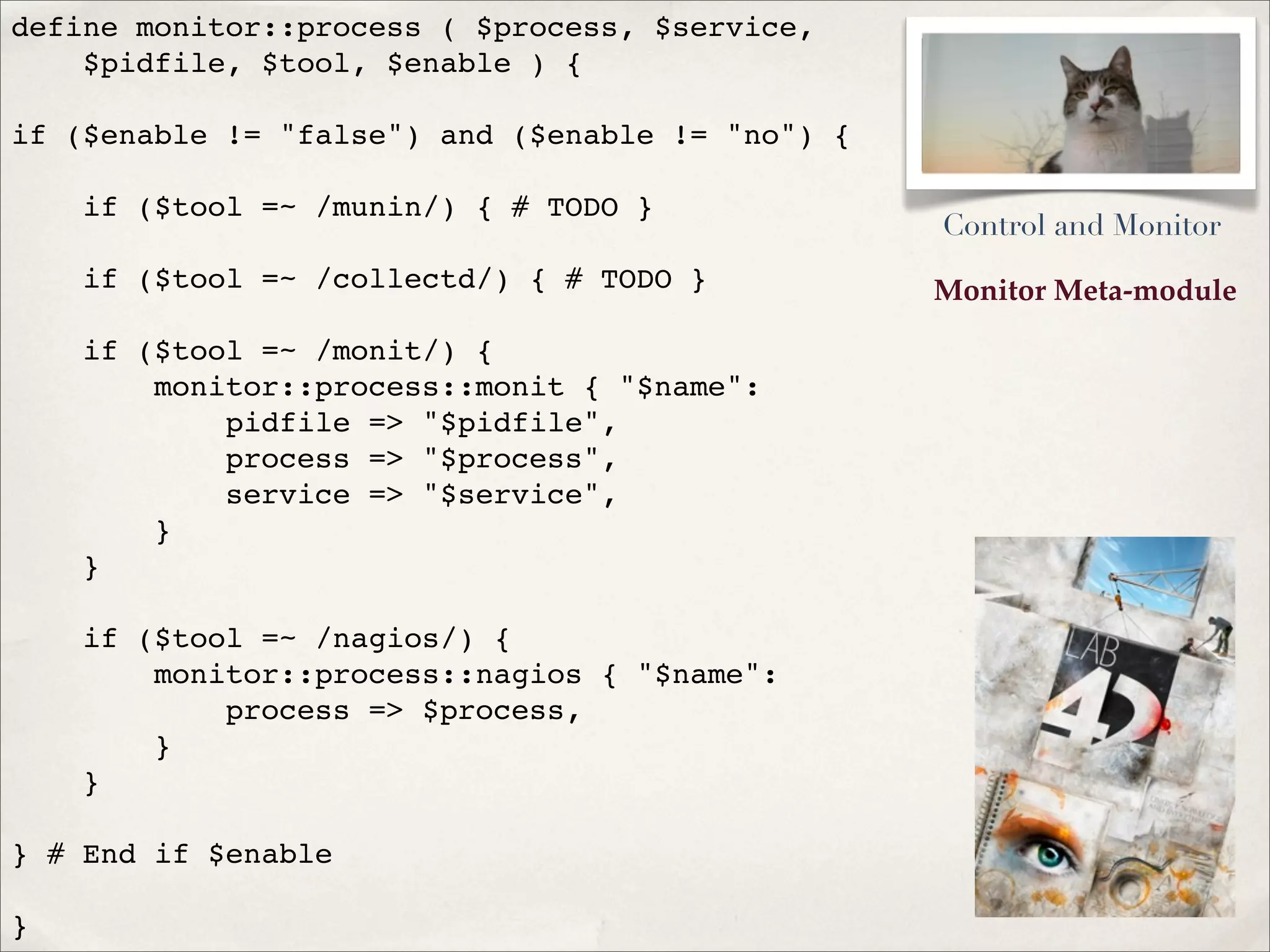

34. Monitor Meta-module
define monitor::process ( $process, $service,
$pidfile, $tool, $enable ) {
if ($enable != "false") and ($enable != "no") {
if ($tool =~ /munin/) { # TODO }
if ($tool =~ /collectd/) { # TODO }
if ($tool =~ /monit/) {
monitor::process::monit { "$name":
pidfile => "$pidfile",
process => "$process",
service => "$service",
}
}
if ($tool =~ /nagios/) {
monitor::process::nagios { "$name":
process => $process,
}
}
} # End if $enable
}
Control and Monitor

35. Monitor Meta-module
define monitor::process::monit (
$pidfile='',
$process='',
$service=''
) {
# Use for Example42 monit module
monit::checkpid { "${process}":
pidfile => "${pidfile}",
startprogram => "/etc/init.d/${service} start",
stopprogram => "/etc/init.d/${service} stop",
}
# Use for Camptocamp’s monit module (sample)
# monit::config { "${process}":
# ensure => present,
# content => template(“monit/checkprocess.erb”), # To create
# }
# Use for Monit recipe on Puppet’s wiki (sample)
# monit::package { "${process}": }
}
Control and Monitor

36. Coherent naming conventions
Predictable behaviors
A name for Everything

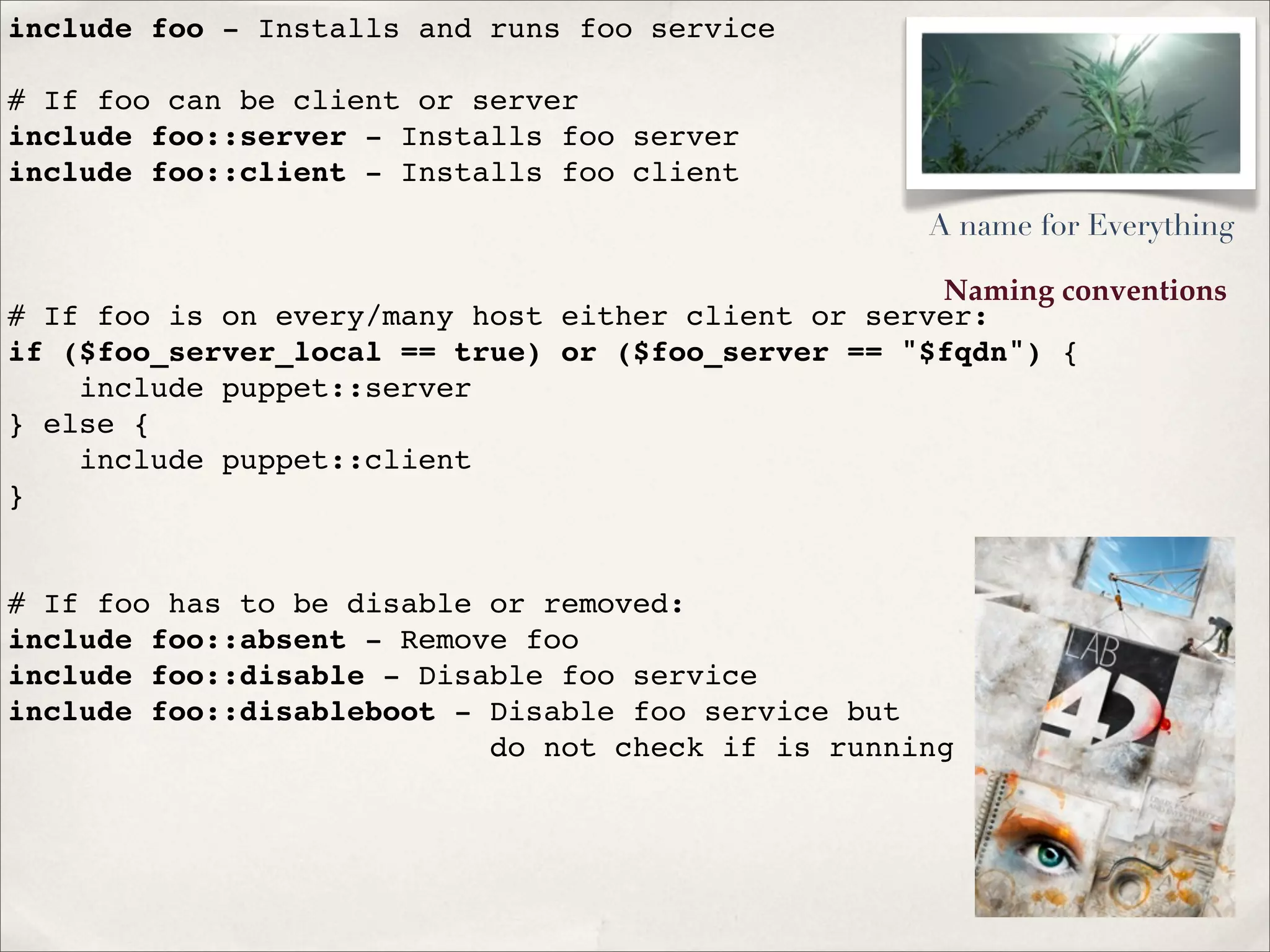

37. Naming conventions
include foo - Installs and runs foo service
# If foo can be client or server
include foo::server - Installs foo server
include foo::client - Installs foo client
# If foo is on every/many host either client or server:
if ($foo_server_local == true) or ($foo_server == "$fqdn") {
include puppet::server
} else {
include puppet::client
}
# If foo has to be disable or removed:
include foo::absent - Remove foo
include foo::disable - Disable foo service
include foo::disableboot - Disable foo service but
do not check if is running
A name for Everything

38. Quick cloning & customization
Coherent Modules Infrastructure
Modules Machine

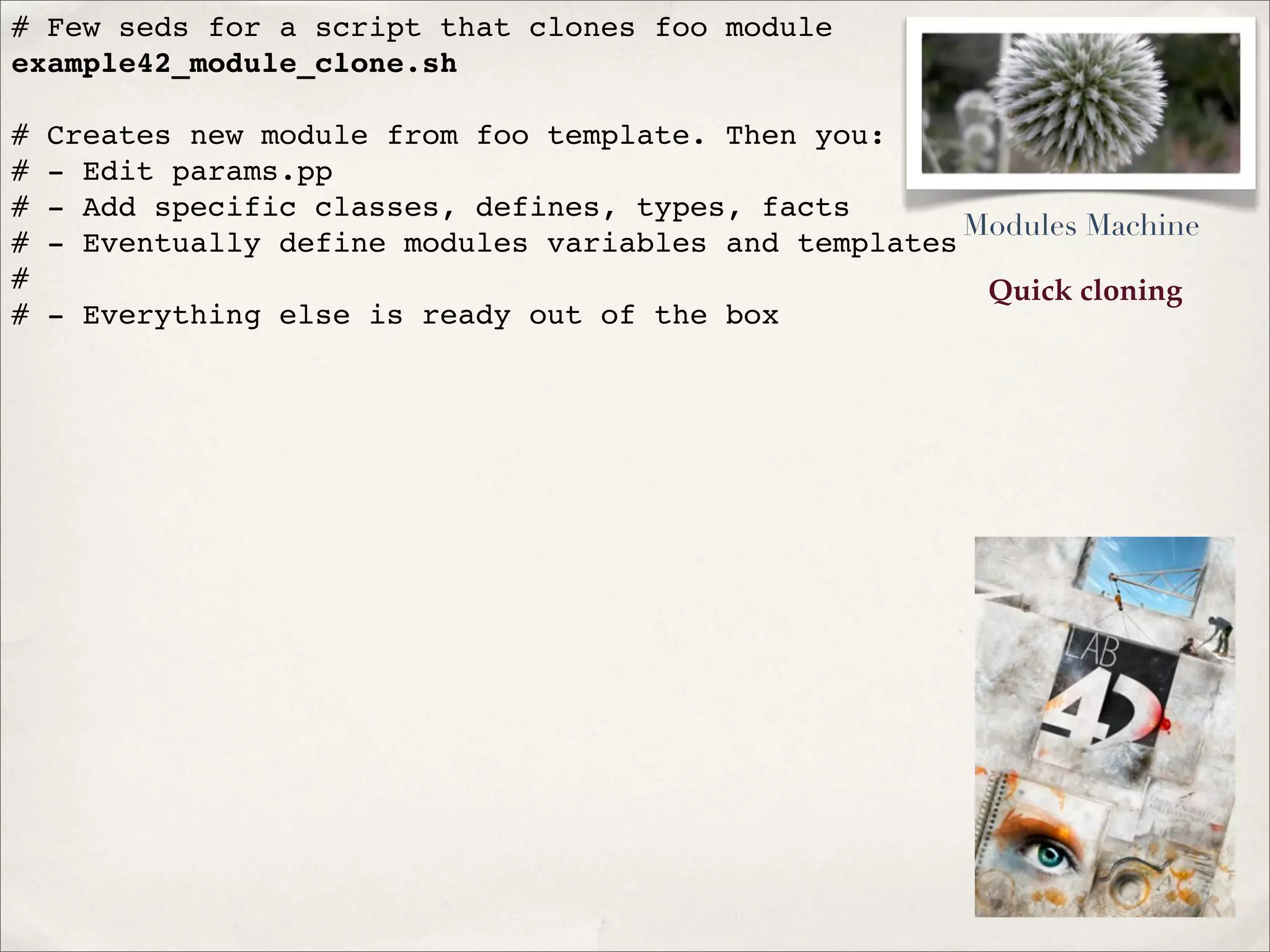

39. Quick cloning
# Few seds for a script that clones foo module
example42_module_clone.sh
# Creates new module from foo template. Then you:
# - Edit params.pp
# - Add specific classes, defines, types, facts
# - Eventually define modules variables and templates
#
# - Everything else is ready out of the box
Modules Machine

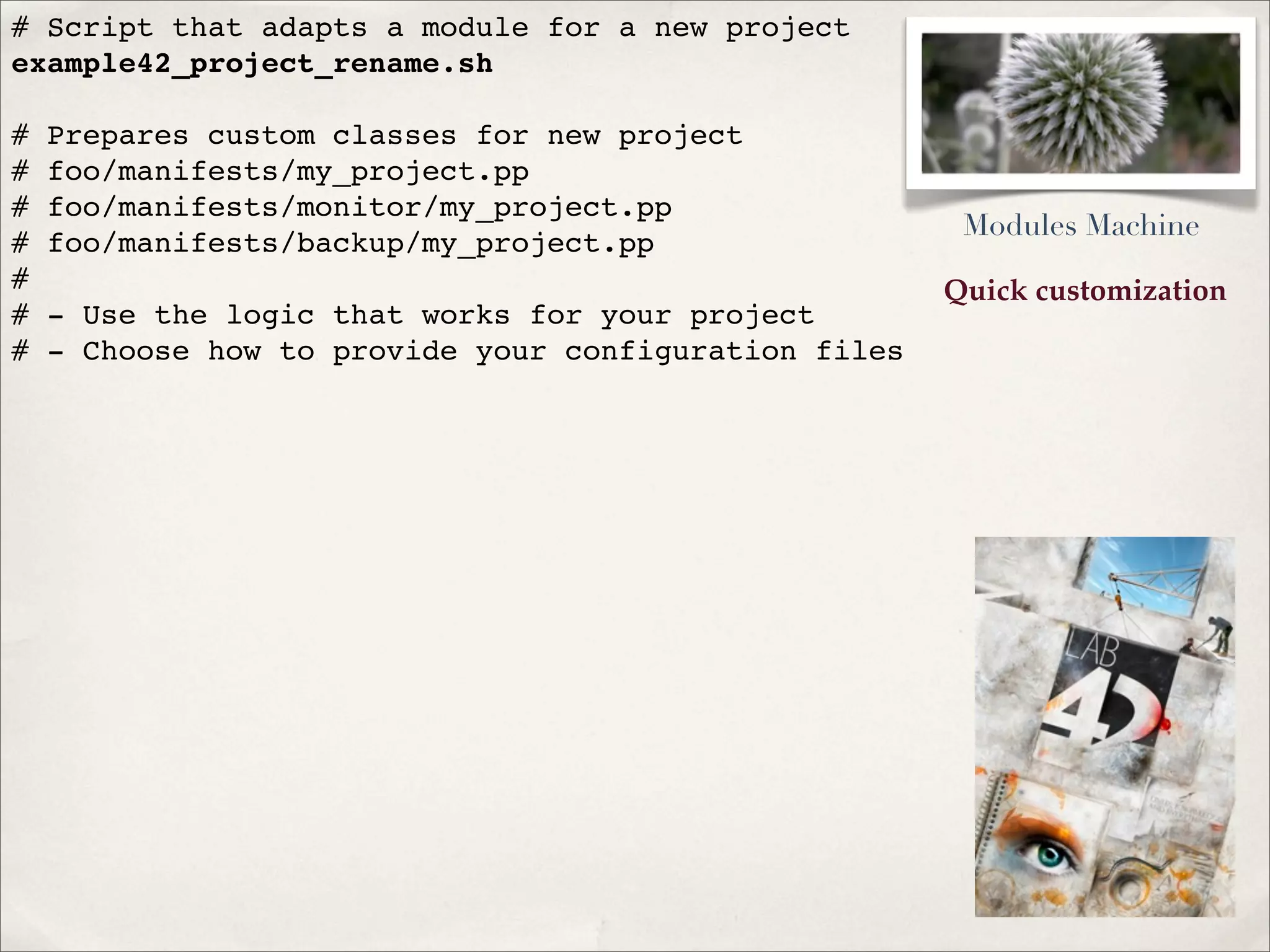

40. Quick customization
# Script that adapts a module for a new project
example42_project_rename.sh
# Prepares custom classes for new project
# foo/manifests/my_project.pp
# foo/manifests/monitor/my_project.pp
# foo/manifests/backup/my_project.pp
#
# - Use the logic that works for your project
# - Choose how to provide your configuration files
Modules Machine

41. Coherent Infrastructure
# Clone is GOOD
# Modules are similar
# They share a coherent naming convention
# They have confined places where to apply
# custom logic
# Fixed files for fixes functions
# Common approach for the Puppet team members
# Reduced risks and better manageability
# Quick update to template improvements
# Could be more easily manageable/autogenerated
# by GUI tools
Modules Machine

43. Centralized settings:
foo::params
Qualified variables
Isolation of diversity
Project classes ||
Project module
Monitoring abstraction
Monitor meta-module
Filtering user variables
Setting default values
Coherent naming
conventions
Predictable behaviors
Quick cloning of foo
module
Quick customization
CrossVendor Reusable Plug & Play
Modules
Machine
A name for
Everything
Dealing
with Users
Control
and Monitor
Adapt and
Customize
Facing
Diversity
small dreams turn easier into reality

44. www.example42.com
github.com/example42/puppet-foo/

45. Questions?
(Please Loud & Clear, I’ve lost my Babelfish)
