Agile Gurugram 2017 | DevOps > CI + CD | Sudipta Lahiri

DEVOPS >
CI + CD (TOOLS)
S U D I P TA L A H I R I
D I G I T É
AG I L E G U R U G R A M 2 0 1 7

@sudiptal
QUICK INTRODUCTION…
• Sudipta Lahiri (Sudi)
• 27+ years in the industry
• Agile/Lean practitioner (85%) + Agile/Lean Student (15%)
– Head of Products @ Digité
– ex-Head of Engineering and Professional Services @ Digité
– Development of SwiftKanban and SwiftALM products
• Organize the LimitedWIP Societies in India
@ Agile Network India , All Rights Reserved. www.agilenetworkindia.com

WHY DEVOPS?

@sudiptal

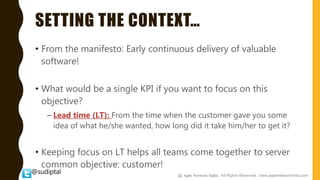

SETTING THE CONTEXT…
• From the manifesto: Early continuous delivery of valuable
software!
• What would be a single KPI if you want to focus on this
objective?
– Lead time (LT): From the time when the customer gave you some
idea of what he/she wanted, how long did it take him/her to get it?
• Keeping focus on LT helps all teams come together to server
common objective: customer!

@sudiptal

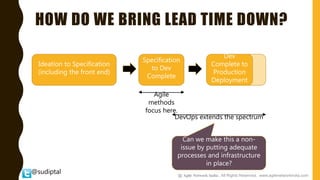

HOW DO WE BRING LEAD TIME DOWN?
Ideation to Specification
(including the front end)
Specification
to Dev
Complete
Dev
Complete to
Production
Deployment
Agile
methods
focus here.
DevOps extends the spectrum
Can we make this a non-
issue by putting adequate
processes and infrastructure
in place?

@sudiptal

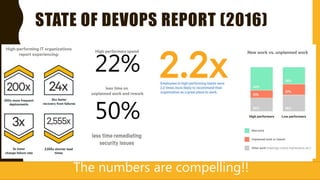

STATE OF DEVOPS REPORT (2016)
22%
50%
The numbers are compelling!!

@sudiptal

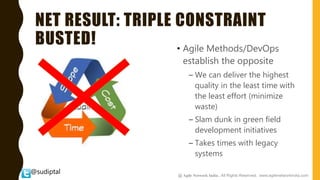

NET RESULT: TRIPLE CONSTRAINT
BUSTED! • Agile Methods/DevOps
establish the opposite
– We can deliver the highest
quality in the least time with
the least effort (minimize
waste)
– Slam dunk in green field
development initiatives
– Takes times with legacy
systems

@sudiptal

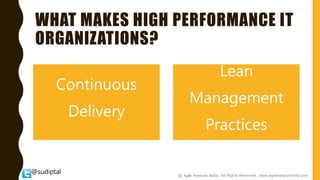

WHAT MAKES HIGH PERFORMANCE IT
ORGANIZATIONS?
Continuous
Delivery
Lean
Management
Practices

@sudiptal

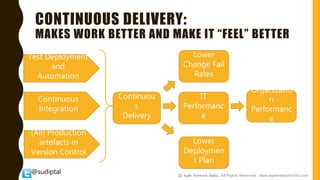

CONTINUOUS DELIVERY:
MAKES WORK BETTER AND MAKE IT “FEEL” BETTER
Test Deployment
and
Automation
Continuous
Integration
(All) Production
artefacts in
Version Control
Continuou
s
Delivery
IT
Performanc
e
Lower
Deploymen
t Plan
Lower
Change Fail
Rates
Organizatio
n
Performanc
e

@sudiptal

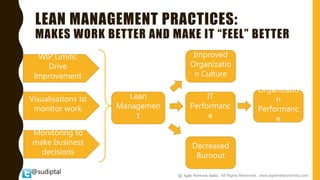

LEAN MANAGEMENT PRACTICES:
MAKES WORK BETTER AND MAKE IT “FEEL” BETTER
WIP Limits:
Drive
Improvement
Visualisations to
monitor work
Monitoring to
make business
decisions
Lean
Managemen
t
IT
Performanc
e
Decreased
Burnout
Improved
Organizatio
n Culture
Organizatio
n
Performanc
e

WHY IS IT
DIFFICULT?

@sudiptal
THE PROBLEM IS: WE HAVE A
CONFLICT!

@sudiptal

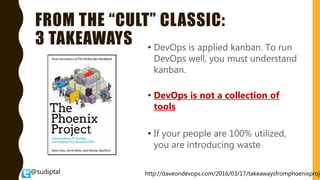

FROM THE “CULT” CLASSIC:
3 TAKEAWAYS • DevOps is applied kanban. To run
DevOps well, you must understand
kanban.
• DevOps is not a collection of
tools
• If your people are 100% utilized,
you are introducing waste
http://daveondevops.com/2016/03/17/takeawaysfromphoenixproje

SO, WHAT’S
BEYOND CI+CD
(TOOLS)?
What are the CSFs?
DRIVEN BY FOCUS ON LEAD TIME!

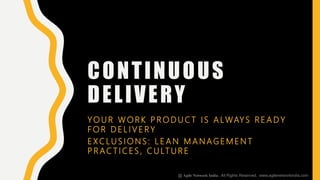

CONTINUOUS
DELIVERY
YO U R W O R K P R O D U C T I S A LWAY S R E A D Y
F O R D E L I V E R Y
E X C LU S I O N S : L E A N M A N AG E M E N T
P R AC T I C E S , C U LT U R E

@sudiptal

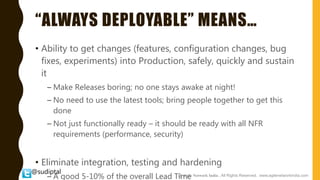

“ALWAYS DEPLOYABLE” MEANS…
• Ability to get changes (features, configuration changes, bug
fixes, experiments) into Production, safely, quickly and sustain
it
– Make Releases boring; no one stays awake at night!
– No need to use the latest tools; bring people together to get this
done
– Not just functionally ready – it should be ready with all NFR
requirements (performance, security)
• Eliminate integration, testing and hardening
– A good 5-10% of the overall Lead Time@ Agile Network India , All Rights Reserved. www.agilenetworkindia.com

HOW DO WE GET
THERE?

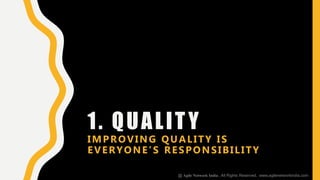

1. QUALITY
IMPROVING QUALITY IS
EVERYONE’S RESPONSIBILITY

@sudiptal

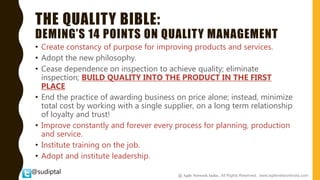

THE QUALITY BIBLE:
DEMING’S 14 POINTS ON QUALITY MANAGEMENT
• Create constancy of purpose for improving products and services.
• Adopt the new philosophy.
• Cease dependence on inspection to achieve quality; eliminate
inspection; BUILD QUALITY INTO THE PRODUCT IN THE FIRST
PLACE
• End the practice of awarding business on price alone; instead, minimize
total cost by working with a single supplier, on a long term relationship
of loyalty and trust!
• Improve constantly and forever every process for planning, production
and service.
• Institute training on the job.
• Adopt and institute leadership.

@sudiptal

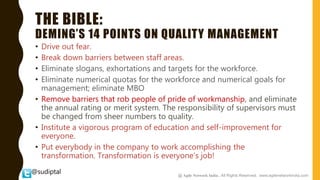

THE BIBLE:
DEMING’S 14 POINTS ON QUALITY MANAGEMENT
• Drive out fear.
• Break down barriers between staff areas.
• Eliminate slogans, exhortations and targets for the workforce.
• Eliminate numerical quotas for the workforce and numerical goals for
management; eliminate MBO
• Remove barriers that rob people of pride of workmanship, and eliminate
the annual rating or merit system. The responsibility of supervisors must
be changed from sheer numbers to quality.
• Institute a vigorous program of education and self-improvement for
everyone.
• Put everybody in the company to work accomplishing the
transformation. Transformation is everyone’s job!

@sudiptal

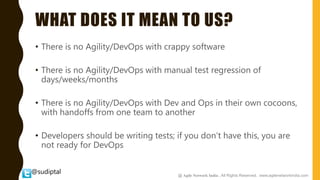

WHAT DOES IT MEAN TO US?
• There is no Agility/DevOps with crappy software
• There is no Agility/DevOps with manual test regression of
days/weeks/months
• There is no Agility/DevOps with Dev and Ops in their own cocoons,
with handoffs from one team to another
• Developers should be writing tests; if you don’t have this, you are
not ready for DevOps

@sudiptal

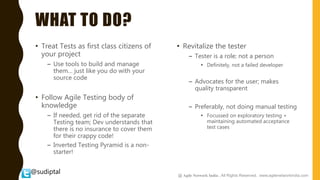

WHAT TO DO?
• Treat Tests as first class citizens of
your project
– Use tools to build and manage
them… just like you do with your
source code
• Follow Agile Testing body of
knowledge
– If needed, get rid of the separate
Testing team; Dev understands that
there is no insurance to cover them
for their crappy code!
– Inverted Testing Pyramid is a non-
starter!
• Revitalize the tester
– Tester is a role; not a person
• Definitely, not a failed developer
– Advocates for the user; makes
quality transparent
– Preferably, not doing manual testing
• Focussed on exploratory testing +
maintaining automated acceptance
test cases

@sudiptal

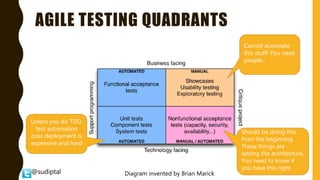

AGILE TESTING QUADRANTS
Diagram invented by Brian Marick
Unless you do TDD,
test automation
post deployment is
expensive and hard
Cannot automate
this stuff! You need
people…
Should be doing this
from the beginning.
These things are
testing the architecture.
You need to know if
you have this right

@sudiptal
TEST DATA MANAGEMENT
• Suffers from low focus on (compared to Test Automation)
• Need adequate test data + ability to create test data on demand
• Choose low volume test data combinations that cover large
volume scenarios
– Avoid loading/unloading of DB dumps
– Don’t use production data dumps (except for Staging and Performance)
– Start from a clean DB and programmatically create data using the
application APIs => Works nicely with an automation led strategy

@sudiptal

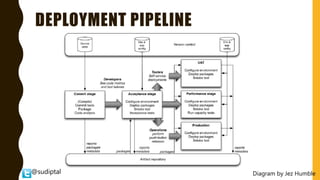

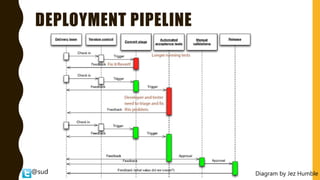

DEPLOYMENT PIPELINE
Diagram by Jez Humble

@sudiptal
ACCEPTANCE TESTING
• Writing “good” acceptance test
cases is hard
• Its “good” IF you have the
confidence in the quality of the
software when Acceptance Test
Cases pass
• If you get failure, introduce an
automation script at the right
level

@sudiptal

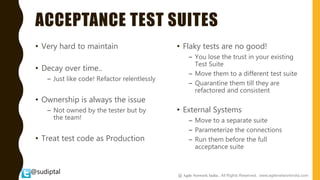

ACCEPTANCE TEST SUITES
• Very hard to maintain
• Decay over time..
– Just like code! Refactor relentlessly
• Ownership is always the issue
– Not owned by the tester but by
the team!
• Treat test code as Production
• Flaky tests are no good!
– You lose the trust in your existing
Test Suite
– Move them to a different test suite
– Quarantine them till they are
refactored and consistent
• External Systems
– Move to a separate suite
– Parameterize the connections
– Run them before the full
acceptance suite

@sudiptal

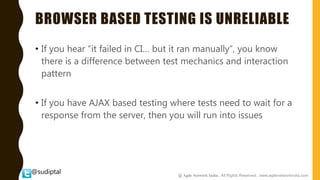

BROWSER BASED TESTING IS UNRELIABLE
• If you hear “it failed in CI… but it ran manually”, you know
there is a difference between test mechanics and interaction
pattern
• If you have AJAX based testing where tests need to wait for a
response from the server, then you will run into issues

@sudiptal
PERSONA BASED USER-JOURNEYS
• Persona based user-journeys
– Extract them from existing Acceptance Test Cases
– Move to server side testing (away from browser based UI testing)
– Journey should only cover the most likely path
• Extract negative/edge scenarios to a separate suite to run after the journey
scenarios are done

@sudiptal

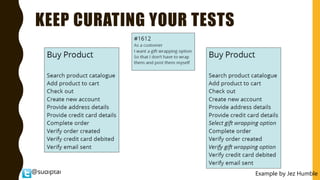

KEEP CURATING YOUR TESTS
Example by Jez Humble

2. ARCHITECTURE/
DESIGN IMPACT

@sudiptal

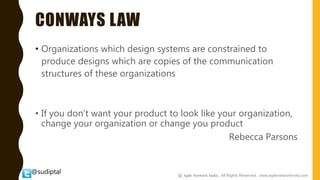

CONWAYS LAW
• Organizations which design systems are constrained to
produce designs which are copies of the communication
structures of these organizations
• If you don’t want your product to look like your organization,
change your organization or change you product
Rebecca Parsons

@sudiptal

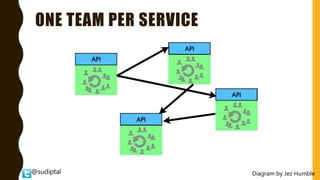

ONE TEAM PER SERVICE
Diagram by Jez Humble

@sudiptal

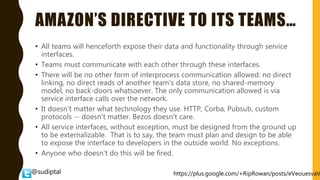

AMAZON’S DIRECTIVE TO ITS TEAMS…
• All teams will henceforth expose their data and functionality through service
interfaces.
• Teams must communicate with each other through these interfaces.
• There will be no other form of interprocess communication allowed: no direct
linking, no direct reads of another team's data store, no shared-memory
model, no back-doors whatsoever. The only communication allowed is via
service interface calls over the network.
• It doesn't matter what technology they use. HTTP, Corba, Pubsub, custom
protocols -- doesn't matter. Bezos doesn't care.
• All service interfaces, without exception, must be designed from the ground up
to be externalizable. That is to say, the team must plan and design to be able
to expose the interface to developers in the outside world. No exceptions.
• Anyone who doesn't do this will be fired.
https://plus.google.com/+RipRowan/posts/eVeouesvaV

@sudiptal
YOU BUILD IT, YOU RUN IT!
“… Giving developers operational responsibilities has greatly
enhanced the quality of the services, both from a customer and a
technology point of view. The traditional model is that you take your
software to the wall that separates development and operations,
and throw it over and then forget about it. Not at Amazon. You
build it, you run it. This brings developers into contact with the day-
to-day operation of their software. It also brings them into day-to-
day contact with the customer. This customer feedback loop is
essential for improving the quality of the service.”
Werner Vogels, CTO, Amazon
June 2006
http://queue.acm.org/detail.cfm?id=114206

@sudiptal

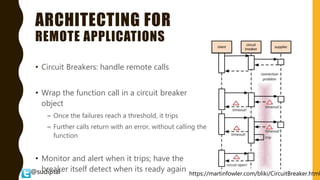

ARCHITECTING FOR
REMOTE APPLICATIONS
• Circuit Breakers: handle remote calls
• Wrap the function call in a circuit breaker
object
– Once the failures reach a threshold, it trips
– Further calls return with an error, without calling the
function
• Monitor and alert when it trips; have the
breaker itself detect when its ready again https://martinfowler.com/bliki/CircuitBreaker.html

@sudiptal

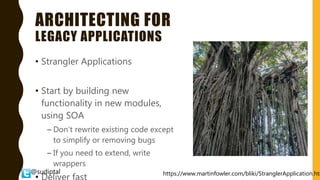

ARCHITECTING FOR
LEGACY APPLICATIONS

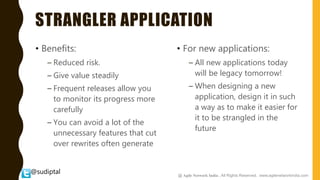

• Strangler Applications
• Start by building new
functionality in new modules,
using SOA
– Don’t rewrite existing code except
to simplify or removing bugs
– If you need to extend, write
wrappers
https://www.martinfowler.com/bliki/StranglerApplication.htm

@sudiptal
STRANGLER APPLICATION
• Benefits:
– Reduced risk.
– Give value steadily
– Frequent releases allow you
to monitor its progress more
carefully
– You can avoid a lot of the
unnecessary features that cut
over rewrites often generate
• For new applications:
– All new applications today
will be legacy tomorrow!
– When designing a new
application, design it in such
a way as to make it easier for
it to be strangled in the
future

@sudiptal

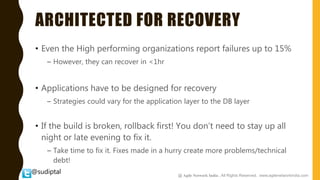

ARCHITECTED FOR RECOVERY
• Even the High performing organizations report failures up to 15%
– However, they can recover in <1hr
• Applications have to be designed for recovery
– Strategies could vary for the application layer to the DB layer
• If the build is broken, rollback first! You don’t need to stay up all
night or late evening to fix it.
– Take time to fix it. Fixes made in a hurry create more problems/technical
debt!

@sudiptal

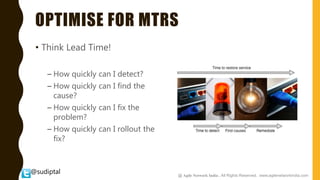

OPTIMISE FOR MTRS
• Think Lead Time!
– How quickly can I detect?
– How quickly can I find the
cause?
– How quickly can I fix the
problem?
– How quickly can I rollout the
fix?

3. CONTINUOUS
INTEGRATION
I N T E G R A T E E A R L Y A N D O F T E N

@sudiptal

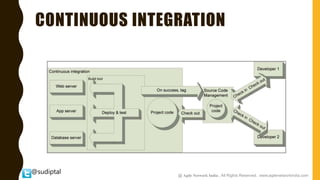

CONTINUOUS INTEGRATION

@sudiptal

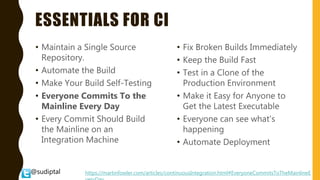

ESSENTIALS FOR CI
• Maintain a Single Source
Repository.
• Automate the Build
• Make Your Build Self-Testing
• Everyone Commits To the
Mainline Every Day
• Every Commit Should Build
the Mainline on an
Integration Machine
• Fix Broken Builds Immediately
• Keep the Build Fast
• Test in a Clone of the
Production Environment
• Make it Easy for Anyone to
Get the Latest Executable
• Everyone can see what's
happening
• Automate Deployment
https://martinfowler.com/articles/continuousIntegration.html#EveryoneCommitsToTheMainlineE

@sudiptal

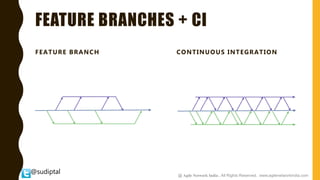

FEATURE BRANCHES + CI
FEATURE BRANCH CONTINUOUS INTEGRATION

@sudiptal
AWAY FROM (LONG LIVE) FEATURE
BRANCHES
• Most teams got driven to
Feature Based Development
– Until these explode… and they
age!
• Longer you are building in your
own branch, greater the risk of
all sorts of incompatibilities
• Move to:
– Short branches (less than a day)
– Less than 3 active branches
– Merge to trunk/master on a daily
basis
• Emphasis on main line
development

@sudiptal

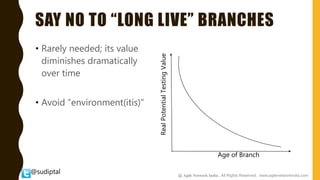

SAY NO TO “LONG LIVE” BRANCHES
• Rarely needed; its value
diminishes dramatically
over time
• Avoid “environment(itis)”
Age of Branch
RealPotentialTestingValue

@sudiptal

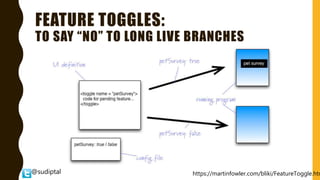

FEATURE TOGGLES:
TO SAY “NO” TO LONG LIVE BRANCHES
https://martinfowler.com/bliki/FeatureToggle.htm

@sudiptal

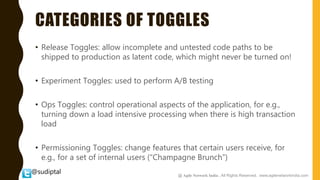

CATEGORIES OF TOGGLES
• Release Toggles: allow incomplete and untested code paths to be
shipped to production as latent code, which might never be turned on!
• Experiment Toggles: used to perform A/B testing
• Ops Toggles: control operational aspects of the application, for e.g.,
turning down a load intensive processing when there is high transaction
load
• Permissioning Toggles: change features that certain users receive, for
e.g., for a set of internal users (“Champagne Brunch”)

@sudiptal

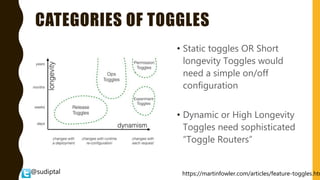

CATEGORIES OF TOGGLES
• Static toggles OR Short
longevity Toggles would
need a simple on/off
configuration
• Dynamic or High Longevity
Toggles need sophisticated
“Toggle Routers”
https://martinfowler.com/articles/feature-toggles.htm

@sudiptal

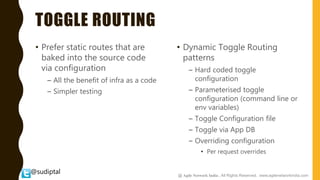

TOGGLE ROUTING
• Prefer static routes that are
baked into the source code
via configuration
– All the benefit of infra as a code
– Simpler testing
• Dynamic Toggle Routing
patterns
– Hard coded toggle
configuration
– Parameterised toggle
configuration (command line or
env variables)
– Toggle Configuration file
– Toggle via App DB
– Overriding configuration
• Per request overrides

@sudiptal

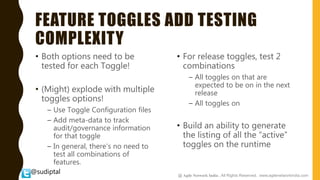

FEATURE TOGGLES ADD TESTING
COMPLEXITY
• Both options need to be
tested for each Toggle!
• (Might) explode with multiple
toggles options!
– Use Toggle Configuration files
– Add meta-data to track
audit/governance information
for that toggle
– In general, there's no need to
test all combinations of
features.
• For release toggles, test 2
combinations
– All toggles on that are
expected to be on in the next
release
– All toggles on
• Build an ability to generate
the listing of all the “active”
toggles on the runtime

@sudiptal

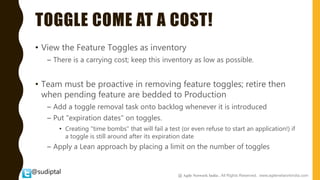

TOGGLE COME AT A COST!
• View the Feature Toggles as inventory
– There is a carrying cost; keep this inventory as low as possible.
• Team must be proactive in removing feature toggles; retire then
when pending feature are bedded to Production
– Add a toggle removal task onto backlog whenever it is introduced
– Put "expiration dates" on toggles.
• Creating "time bombs" that will fail a test (or even refuse to start an application!) if
a toggle is still around after its expiration date
– Apply a Lean approach by placing a limit on the number of toggles

4. DEPLOYMENT
PIPELINE
D E P L O Y M E N T I S T H E F I N A L S T A G E O F
C I

LOW RISK RELEASE
PATTERNS
Y O U H A V E T O A R C H I T E C T F O R T H E S E !

@sudiptal

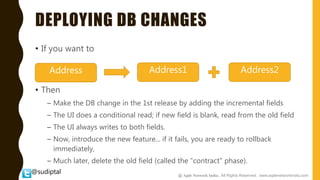

DEPLOYING DB CHANGES
• If you want to
• Then
– Make the DB change in the 1st release by adding the incremental fields
– The UI does a conditional read; if new field is blank, read from the old field
– The UI always writes to both fields.
– Now, introduce the new feature... if it fails, you are ready to rollback
immediately,
– Much later, delete the old field (called the "contract" phase).
Address Address1 Address2

@sudiptal

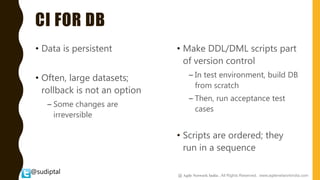

CI FOR DB
• Data is persistent
• Often, large datasets;
rollback is not an option
– Some changes are
irreversible
• Make DDL/DML scripts part
of version control
– In test environment, build DB
from scratch
– Then, run acceptance test
cases
• Scripts are ordered; they
run in a sequence

@sudiptal

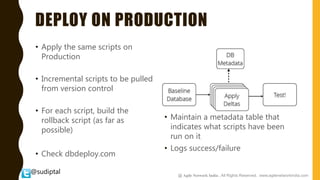

DEPLOY ON PRODUCTION
• Apply the same scripts on
Production
• Incremental scripts to be pulled
from version control
• For each script, build the
rollback script (as far as
possible)
• Check dbdeploy.com
• Maintain a metadata table that
indicates what scripts have been
run on it
• Logs success/failure

@sudiptal
BLUE-GREEN DEPLOYMENTS
• Deployments often become a batch
operation waiting for the next “good” time
• Solution: Blue Green deployments
• Minimizes cutover from one version to
next; Fast rollback if needed
• Use the “other” as staging environment
• Multiple approaches to handle “live”
transactions on the earlier system
https://martinfowler.com/bliki/BlueGreenDeployment.htm
• For Database Changes:
– Separate from the application rollout
– Use the earlier pattern

@sudiptal

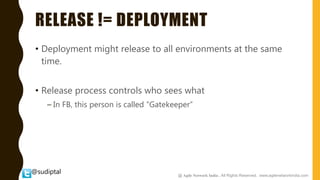

RELEASE != DEPLOYMENT
• Deployment might release to all environments at the same
time.
• Release process controls who sees what
– In FB, this person is called “Gatekeeper”

@sudiptal
CANARY RELEASE
https://martinfowler.com/bliki/CanaryRelease.htm
• Used by both FB
and Netflix
• Also called
Red/Black
pattern
Heavily
Monitored

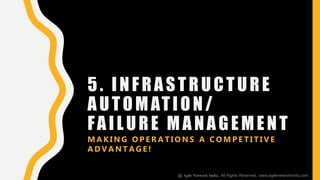

5. INFRASTRUCTURE
AUTOMATION/
FAILURE MANAGEMENT
M A K I N G O P E R A T I O N S A C O M P E T I T I V E
A D V A N T A G E !

@sudiptal
DEFINE THE ENVIRONMENT
• What it is?
• What to use it for?
• How long to retain that environment?
• All environments are an “approximation” of the Production
– Hence, it is only good for a purpose – not good for any other
purpose
– That defines the “What to use it for?”

@sudiptal

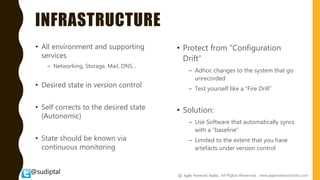

INFRASTRUCTURE
• All environment and supporting
services
– Networking, Storage, Mail, DNS…
• Desired state in version control
• Self corrects to the desired state
(Autonomic)
• State should be known via
continuous monitoring
• Protect from “Configuration
Drift”
– Adhoc changes to the system that go
unrecorded
– Test yourself like a “Fire Drill”
• Solution:
– Use Software that automatically syncs
with a “baseline”
– Limited to the extent that you have
artefacts under version control

@sudiptal

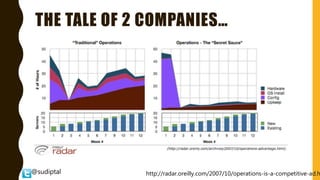

THE TALE OF 2 COMPANIES…
http://radar.oreilly.com/2007/10/operations-is-a-competitive-ad.h

@sudiptal

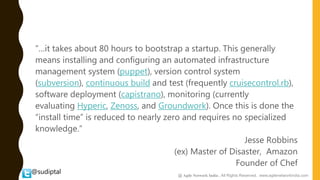

“…it takes about 80 hours to bootstrap a startup. This generally
means installing and configuring an automated infrastructure
management system (puppet), version control system
(subversion), continuous build and test (frequently cruisecontrol.rb),
software deployment (capistrano), monitoring (currently
evaluating Hyperic, Zenoss, and Groundwork). Once this is done the
“install time” is reduced to nearly zero and requires no specialized
knowledge.”
Jesse Robbins
(ex) Master of Disaster, Amazon
Founder of Chef

@sudiptal

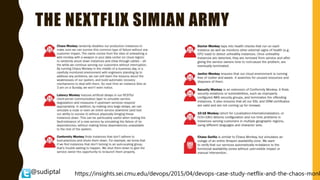

THE NEXTFLIX SIMIAN ARMY
https://insights.sei.cmu.edu/devops/2015/04/devops-case-study-netflix-and-the-chaos-monk

@sudiptal
AMAZON GAME DAYS
• Inject failures into critical
systems
• Discover flaws and critical
dependencies
• Accept that reliable software
platform is built on top of
components that are
unreliable
• Need to keep testing services
against failure all year around
• Fail systems that will need to
bring people together who
otherwise don’t interact with
each other

@sudiptal

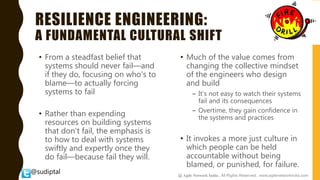

RESILIENCE ENGINEERING:
A FUNDAMENTAL CULTURAL SHIFT
• From a steadfast belief that
systems should never fail—and
if they do, focusing on who's to
blame—to actually forcing
systems to fail
• Rather than expending
resources on building systems
that don't fail, the emphasis is
to how to deal with systems
swiftly and expertly once they
do fail—because fail they will.
• Much of the value comes from
changing the collective mindset
of the engineers who design
and build
– It's not easy to watch their systems
fail and its consequences
– Overtime, they gain confidence in
the systems and practices
• It invokes a more just culture in
which people can be held
accountable without being
blamed, or punished, for failure.

SOME OTHER
THOUGHTS…
… T H A T I C O U L D N ’ T F I T A N Y W H E R E E L S E !

@sudiptal

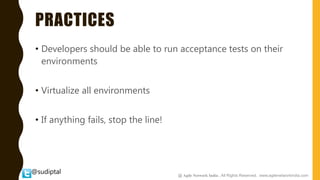

PRACTICES
• Developers should be able to run acceptance tests on their
environments
• Virtualize all environments
• If anything fails, stop the line!

@sudiptal
PITFALLS
• Configuration(itis)!
– Once you start automating your
configurations, you will see an
explosion in the same
– For every small incremental
functional OR NFT, you will get a
request for a new configuration…
and then, these will stay
– Set some STANDARDS and
governance around this (similar to
temporary branching)!
• What should be a standard env
for Test, Staging, including test
data
• Ops people are generally
automation savvy
– Don’t get too obsessed with
frameworks, trying to make it too
generic
– Don’t build a huge framework with
tons of scripts and tools! Don’t have
hundreds of metadata config points
that becomes a nightmare to manage
• Don’t create Configuration
Management “Sherpas” whose only
job is to manage and track
configuration
– Avoid your Brent!@ Agile Network India , All Rights Reserved. www.agilenetworkindia.com

@sudiptal

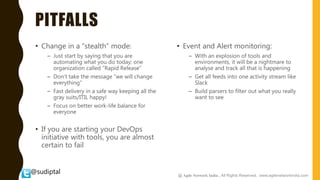

PITFALLS
• Change in a “stealth” mode:
– Just start by saying that you are
automating what you do today; one
organization called “Rapid Release”
– Don’t take the message “we will change
everything”
– Fast delivery in a safe way keeping all the
gray suits/ITIL happy!
– Focus on better work-life balance for
everyone
• If you are starting your DevOps
initiative with tools, you are almost
certain to fail
• Event and Alert monitoring:
– With an explosion of tools and
environments, it will be a nightmare to
analyse and track all that is happening
– Get all feeds into one activity stream like
Slack
– Build parsers to filter out what you really
want to see

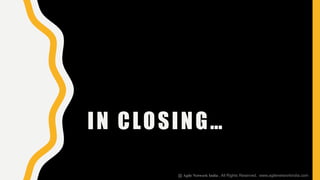

IN CLOSING…

@sudiptal
• Think lean: shorten Lead Time by focussing on the full value
stream
• Don’t look at Agile and DevOps as two different initiatives!
– If you do that, Agility is “Dead on Arrival”
– Go beyond your CI/CD tools
• Initiate small changes – take a Toyota Kata approach
– Start small; avoid the “cliché” terms – no reorg!
– The way they think, interact, architect, code, test
– Think SERVICES (SOA/Microservices)
– Simulate and test for failure/security/performance

@sudiptal
THANK YOU….
• Reach me at:
– @sudiptal
– slahiri@digite.com
– sudiptalahiri.wordpress.c
om

Agile Gurugram 2017 | DevOps > CI + CD | Sudipta Lahiri

More Related Content

What's hot

Similar to Agile Gurugram 2017 | DevOps > CI + CD | Sudipta Lahiri

More from AgileNetwork

Recently uploaded

Agile Gurugram 2017 | DevOps > CI + CD | Sudipta Lahiri

Editor's Notes
