Hub Technologies was founded in 2005 and has invested in research on solid aerosol compound technology. The company envisions becoming a RM 1 billion turnover company through targeted markets, technology expertise, and setting international fire safety benchmarks. Hub Technologies seeks to be a leader in fire suppression solutions internationally through strategic alliances in Malaysia, Asia Pacific and the Middle East. The company developed Aerohub, a new generation of green aerosol fire extinguishing system that is organic-based, locally manufactured, and approved as a National Product of Malaysia.
Bm training vendor

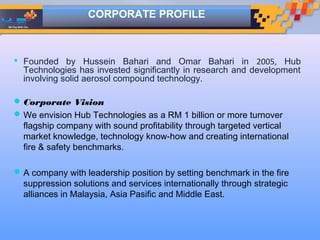

- 2. CORPORATE PROFILE Foundedby Hussein Bahari and Omar Bahari in 2005, Hub Technologies has invested significantly in research and development involving solid aerosol compound technology. Corporate Vision We envision Hub Technologies as a RM 1 billion or more turnover flagship company with sound profitability through targeted vertical market knowledge, technology know-how and creating international fire & safety benchmarks. A company with leadership position by setting benchmark in the fire suppression solutions and services internationally through strategic alliances in Malaysia, Asia Pasific and Middle East.
- 3.
- 4.
- 5. HUB TECHNOLOGIES (M)SDN BHD Generasi Baru Aerosol Sistem Pemadam kebakaran Manufactured and Designed by 5 HUB TECHNOLOGIES (M) SDN BHD
- 6. HUB TECHNOLOGIES (M)SDN BHD Sistem Pemadam Kebakaran sedia ada Gas Inert Halocarbon Berasaskan Generasi 1st Argon, Nitrogen HCFC, HFC,CFC air dan 2nd Antara keburukan: Aerosol • Menghakis lapisan Ozone • Kerosakan pada peralatan dan dokumen (alat electrical/electronik) • Kerosakan pada harta benda disebabkan air atau asid. • Menyebab kepanasan global • Bahaya kepada manusia by Designed 6 HUB TECHNOLOGIES (M) SDN BHD
- 7. HUB TECHNOLOGIES (M)SDN BHD Sistem Pemadam Kebakaran sedia ada An inert gas is a non-reactive gas used during chemical synthesis, chemical analysis, or preservation of reactive materials. Eg. Neon, Argon, Helium, Nitrogen Cth Product: Gas Inert 1.Argonite- (Kidde USA) Argon, Neon 2.Inergen (Ansul USA, Firefighter.my) 3.Argotec Designed by 7 HUB TECHNOLOGIES (M) SDN BHD
- 8. HUB TECHNOLOGIES (M)SDN BHD Sistem Pemadam Kebakaran sedia ada Halocarbons are a class of organic compounds containing covalently bonded fluorine, chlorine, bromine, or iodine. Cth Product: 1.FM200 – Kidde, DuPont 2.FE13- DuPont 3.AF11E(HCFC123)- Hartindo Halocarbon 4.NOVEC 1230 - Kidde HCFC, HFC,CFC 5.NAFS 111- Safety Hi-Tech 6.Electron HFC 227ea – FM200 HFC125 –FE25 HFC23 – FE13 HFC236fa – FE36 Designed by 8 HUB TECHNOLOGIES (M) SDN BHD
- 9. HUB TECHNOLOGIES (M)SDN BHD Sistem Pemadam Kebakaran sedia ada Water spinkler system- many players in the market Berasaskan air Designed by 9 HUB TECHNOLOGIES (M) SDN BHD

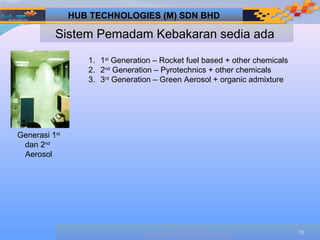

- 10. HUB TECHNOLOGIES (M)SDN BHD Sistem Pemadam Kebakaran sedia ada 1. 1st Generation – Rocket fuel based + other chemicals 2. 2nd Generation – Pyrotechnics + other chemicals 3. 3rd Generation – Green Aerosol + organic admixture Generasi 1st dan 2nd Aerosol Designed by 10 HUB TECHNOLOGIES (M) SDN BHD
- 11. Apa itu AEROHUB Generasibaru pemadam kebakaran (Generasi ke-3) • Sepenuhnya bahan asas organik+(rumusan organik ) • Ciptaan Malaysia dan hakmilik didaftarkan • Buatan Malaysia • Di terima sebagai Produk Nasional (SJJB) Designed by 11 HUB TECHNOLOGIES (M) SDN BHD
- 12. Kenapa AEROHUB BuktiAerohub berkesan Hub Video Designed by 12 HUB TECHNOLOGIES (M) SDN BHD

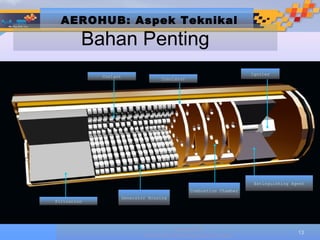

- 13. AEROHUB: Aspek Teknikal Bahan Penting Igniter Coolant Insulator Extinguishing Agent Combustion Chamber Generator Housing Filtration Designed by 13 HUB TECHNOLOGIES (M) SDN BHD
- 14. AEROHUB: Cara mengaktifkan 2 cara untuk mengaktifkan Isyarat Elektrik dari Control Panel (Manual / Automatic) Suhu panas- Di aktifkan sendiri Designed by 14 HUB TECHNOLOGIES (M) SDN BHD
- 15. Apa itu AEROHUB Totalflooding aerosol mengeluarkan kepulan asap Masa bertahan sehingga 60 minit. Penyejuk Organik 40-45degC Aerosol Aerohub dijana dengan cepat Designed by 15 HUB TECHNOLOGIES (M) SDN BHD

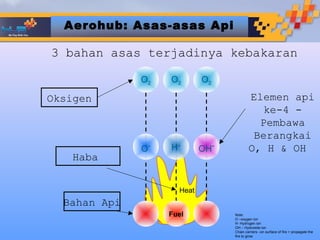

- 16. Aerohub: Asas-asas Api 3bahan asas terjadinya kebakaran O2 O2 O2 Oksigen Elemen api ke-4 - Pembawa Berangkai O- H+ OH- O, H & OH Haba Heat Bahan Api Fuel Note: O –oxygen ion H- Hydrogen ion OH – Hydroxide ion Chain carriers –on surface of fire > propagate the fire to grow
- 17. Cara AEROHUB padamkan api Bagaimana ia berfungsi O2 O2 O2 Oxygen K+ Aerohub Chain aerosol K+ O H OH carrier Heat O, H & OH K+ Fuel 1.KIMIA Aerohub® => aerosol (Potassium + Organic admixture). Rantai api di buang 2.FISIKAL Penyejukkan api dimana tiada peluang bakar semula ( Tiada Thermal shock))
- 18. Bagaimana AEROHUB memadam kebakaran Cara bertindak Produk stabil KOH Pembawa K O O, H & OH H KO Di buang dari rantai api K O KOH H O KO K O KOH KOH Radikal Potassium (K*) bergabung dan membuang rantaian (O, H, OH) Henti penyebaran api => produk yang stabil KOH(potash), KO. Oxygen tidak dikurangkan
- 19. AEROHUB: Kebaikan • MesraAlam dan Manusia Mesra manusia Tiada kesan merosak pada manusia, haiwan dan alam sekitar Tiada ODP – Ozone Depletion Potential Tiada GWP – Global Warming Potential 1.Protokol Montreal : 16th Sept 1987 Haramkan CFCs cth. Halon 1301 dan Halon 1211 (menjelang 2010) 2.Protokol Kyoto: 11th Dec 1997 Kurangkan pembebasan gas-gas rumah hijau (CO2, CH4, N2O, HFC, PFC dan SF6) (menjelang 2012) Designed by 19 HUB TECHNOLOGIES (M) SDN BHD

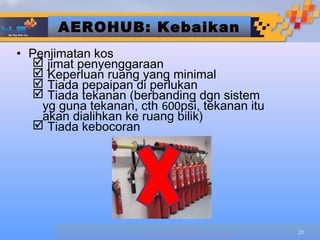

- 20. AEROHUB: Kebaikan • Penjimatankos jimat penyenggaraan Keperluan ruang yang minimal Tiada pepaipan di perlukan Tiada tekanan (berbanding dgn sistem yg guna tekanan, cth 600psi, tekanan itu akan dialihkan ke ruang bilik) Tiada kebocoran Designed by 20 HUB TECHNOLOGIES (M) SDN BHD
- 21. AEROHUB: Benefits Technologi terkini Tiadakesan panjang keatas peralatan elektonik dan magnetik. Tiada penggunaan Nitrobutadien(kesan minyak) atau Nitrocellulose(gun powder) Tiada kesan pembentukan toksik atau klorin perosak. Tiada Sulfur (penyebab kekakisan atau corrosion), kalium klorida. Tiada Gelatin haiwan. Masa nyahcas yg pantas (1-2 saat) dan mudah ganti. Aplikasi pelbagai dan mudah. Designed by 21 HUB TECHNOLOGIES (M) SDN BHD
- 22. AEROHUB: Kebaikan Lain-lain faktor: 100 % buatan tempatan. Jimat tukaran asing 100% rekacipta tempatan. Di paten di Malaysia dan di daftarkan. Penyenggaraan dalam negeri– Tindakan segera dan cepat Alatganti – set gantian semasa dalam jaminan. Harga lebih rendah– 15-25% lebih rendah dari saingan kami. HUB TECHNOLOGIESby SDN BHD Designed (M) 22
- 23.
- 24. AEROHUB : UjianToksik AGIT Chemical Name Formula Average Results Average Life Threatening Conversion O2 20.6vol.% - - Oxygen Co 1195 ppm 0.12vol.% 0.3 vol.% Carbon monoxide Co2 0.40 vol % - 20.0 vol% Carbon dioxide No <1ppm - - Nitric oxide No2 <1ppm - - Nitric dioxide K 492mg/m3 - - Potassium anion No3 <23mg/3 - - Nitrogen trioxide pH 8.5 - - pH Scale - - Potassium K2CO3 879mg/m3 Carbonate 24
- 25. Perbandingan Produk Category AEROHUB DYXXXXO HAXXXX ErXFE13 PXXXXXXX (MALAYSIA) Patent Process & Other countries Other countries Other countries Other countries Formulation - Organic Admixture YES NO NO NO YES Organic Binder YES NO NO NO NO Sulfur Polycloride No unknown unknown YES NO Cyanide Contains Non-Halal NO UNKNOWN UNKNOWN UNKNOWN YES Gelatine Corrosive Non-corrosive NO NO NO YES YES Residue: Oily (Nitrobutadien) No Yes No No YES Dry Usage category OCCUPIED OCCUPIED NORMALLY NORMALLY NORMALLY UNOCCUPIED UNOCCUPIED UNOCCUPIED Space Requirement NO STORAGE NO STORAGE STORAGE AREA STORAGE AREA NO STORAGE AREA REQUIRED AREA REQUIRED REQUIRED REQUIRED AREA REQUIRED 25
- 26. Perbandingan Produk Category AEROHUB DXXXXXO HXXXXX ErXXX13 PYXXXX Pipework No piping No piping YES YES NO required required Standby Pressure NOT NOT HIGH HIGH NOT PRESSURISED PRESSURISED PRESSURE PRESSURE PRESSURISED Leakage NO NO YES YES No Pressure Pressure Loss Holding Time 45-60 mins 30 mins 5 min. 5 min Uncertain No Maintenance No (MINIMUM) Yes Yes Minimum (MINIMUM) Thermal Shock No No Yes Yes No 26
- 27. DATA ENVIRONMEN Category Ozone GWP Global Atmospheric Extinguishing Mechanism of Depleting Warming lifetimes (yrs) concentration fire suppression Potential ODP Potential (100yrs vs C02=1 %V.V. g/m3 AEROSOL BASED 0 0 0 - Physical and chemical HFC BASED: 0 1170-2900 36.4 to 264 7-18 chemical FE25, FM200, FE13 CFC BASED 10 5600 65 5 chemical Halon 1301 PFC BASED: 0.036 11.9 chemical Naf S 111 1450 12 NATURAL GASES: 11700 264 16-18 Physical Argonite 0 Argotec 0 0 38 Inergen 0 37.5 0 0 0 50 CO2 1 1 120 WATER BASED 0 0 0 0 physical CHEMICAL 0 0 0 chemical POWDER Or physical 27
- 28. AEROHUB SIJIL PENGIKTIRAFAN SIJIL-SIJIL ANTARABANGSA • Bureau Veritas • BOMBA MALAYSIA • AGIT, FRANCE • DINAS KEBAKARAN, INDONESIA • SINGAPORE CIVIL DEFENCE FORCE
- 29. AEROHUB :PRODUK SEDIA ADA Model SS/MS SS/MS SS/MS SS/MS SS/MS SS/MS 50 30 20 10 5 2.5 50m3 30m3 20m3 10m3 5m3 2.5m3 Room Volume GENERATOR SPECIFICATIONS : • Generator housing and all internal components are made of Stainless Steel or Mild Steel to suit the environment. • Temperature : Operates with +50 to -50 °C • Humidity : Operates up to 96% RH • Warranty : 2 years for manufacturer’s defect

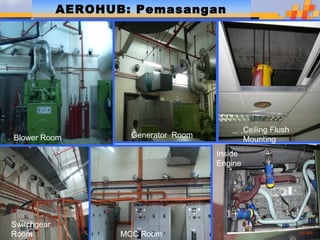

- 30. AEROHUB: Pemasangan Ceiling Flush Blower Room Generator Room Mounting Inside Engine Switchgear Room MCC Room
- 31. AEROHUB: Pemasangan PENUTUP: RENUNGAN LAPISAN OZON TELAH DILAPORKAN MAKIN MENIPIS TERUTAMA DI KAWASAN KUTUB. APAKAH PERANAN DAN TANGGUNGJAWAB ANDA? Switchgear Room MCC Room
