This document covers topics in structural analysis including: 1. Elastic analysis of grids using the compatibility method and slope deflection method. 2. Plastic analysis of beams, frames, and slabs. 3. Introduction to second order analysis of structures. The document provides examples of applying the slope deflection method to analyze grids, including determining degrees of freedom, points of zero moment, drawing shear and moment diagrams, and checking joint equilibrium. It also discusses differences between analyzing determinate and indeterminate grids.

1. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION
BEYOND 2D SYSTEMS AND ELASTIC ANALYSIS

2. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION
1.- ELASTIC ANALYSIS OF GRIDS
1.1.- COMPATIBILITY METHOD
1.2- SLOPE DEFLECTION METHOD
2.- PLASTIC ANALYSIS OF STRUCTURES
2.1- PLASTIC ANALYSIS OF BEAMS
2.2- PLASTIC ANALYSIS OF FRAMES
2.2.1- KINEMATIC METHOD
2.2.2- INCREMENTAL ANALYSIS. HINGE BY HINGE METHOD
3.- INTRODUCTION TO SECOND ORDER ANALYSIS OF STRUCTURES
2.3- PLASTIC ANALYSIS OF SLABS.
FEBRUARY
MARCH
APRIL

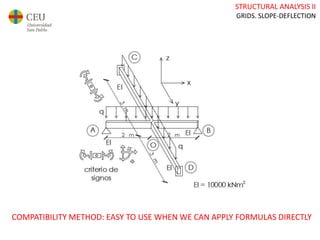

3. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION
COMPATIBILITY METHOD: EASY TO USE WHEN WE CAN APPLY FORMULAS DIRECTLY

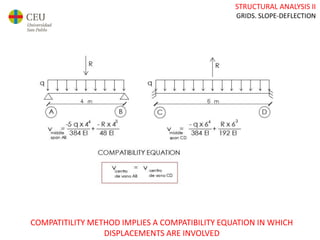

4. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION
COMPATITILITY METHOD IMPLIES A COMPATIBILITY EQUATION IN WHICH
DISPLACEMENTS ARE INVOLVED

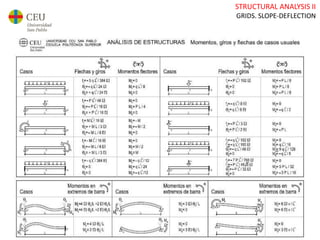

5. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

6. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

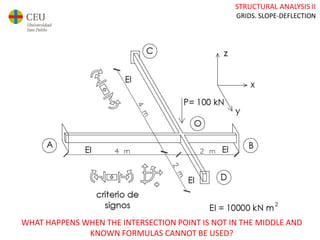

WHAT HAPPENS WHEN THE INTERSECTION POINT IS NOT IN THE MIDDLE AND
KNOWN FORMULAS CANNOT BE USED?

7. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

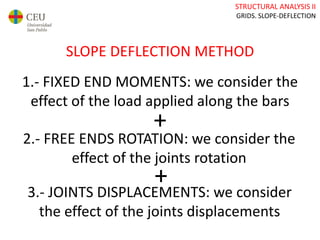

1.- FIXED END MOMENTS: we consider the
effect of the load applied along the bars
SLOPE DEFLECTION METHOD

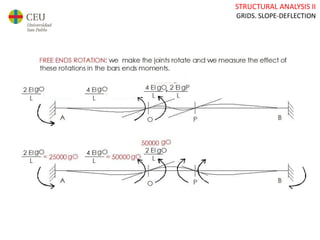

2.- FREE ENDS ROTATION: we consider the
effect of the joints rotation
3.- JOINTS DISPLACEMENTS: we consider
the effect of the joints displacements
+
+

8. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

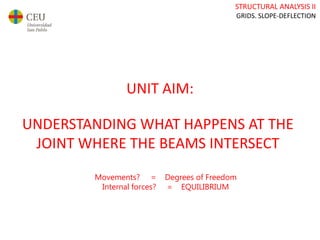

UNIT AIM:
UNDERSTANDING WHAT HAPPENS AT THE
JOINT WHERE THE BEAMS INTERSECT
Movements? = Degrees of Freedom
Internal forces? = EQUILIBRIUM

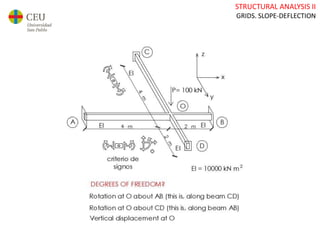

9. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

10. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

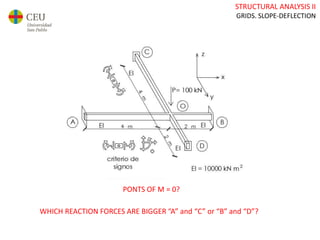

PONTS OF M = 0?
WHICH REACTION FORCES ARE BIGGER “A” and “C” or “B” and “D”?

11. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION
WE DO NOT CONSIDER THE WHOLE BEAM
WE CONSIDER EACH BAR BETWEEN TWO POINTS

12. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

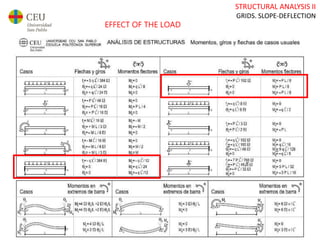

EFFECT OF THE LOAD

13. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

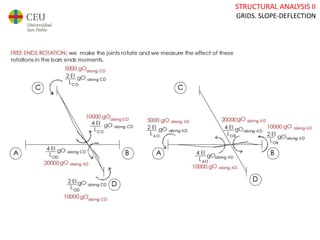

EFFECT OF THE ROTATION

14. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

15. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

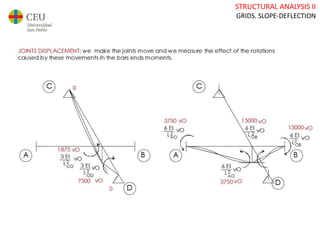

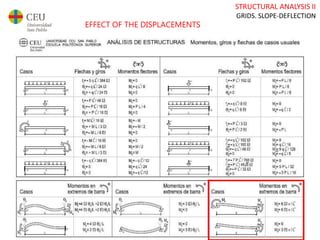

EFFECT OF THE DISPLACEMENTS

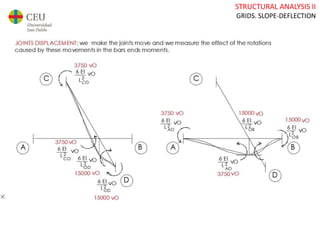

16. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

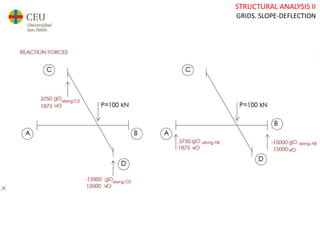

17. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

18. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

19. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

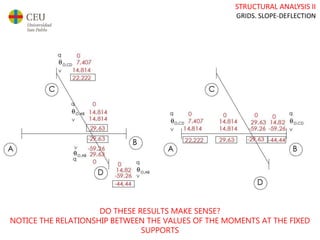

DO THESE RESULTS MAKE SENSE?
NOTICE THE RELATIONSHIP BETWEEN THE VALUES OF THE MOMENTS AT THE FIXED
SUPPORTS

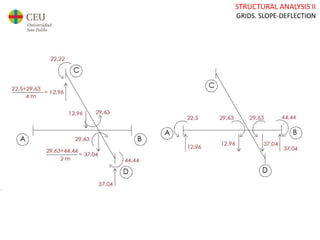

20. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

21. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

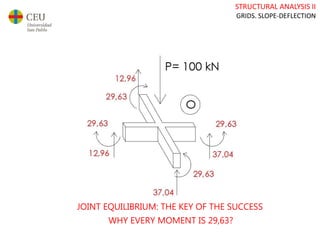

JOINT EQUILIBRIUM: THE KEY OF THE SUCCESS
WHY EVERY MOMENT IS 29,63?

22. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

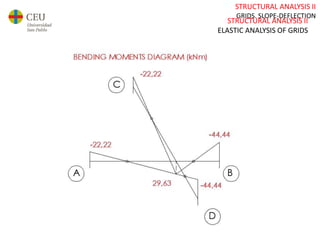

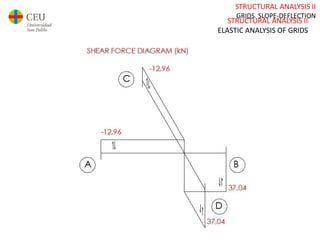

STRUCTURAL ANALYSIS II
ELASTIC ANALYSIS OF GRIDS

23. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION
STRUCTURAL ANALYSIS II
ELASTIC ANALYSIS OF GRIDS

24. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION
2,71 mm
2,71 mm
1,61 mm

25. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

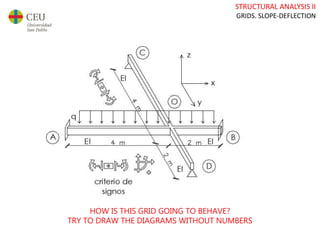

HOW IS THIS GRID GOING TO BEHAVE?
TRY TO DRAW THE DIAGRAMS WITHOUT NUMBERS

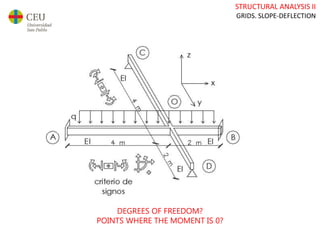

26. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION
DEGREES OF FREEDOM?
POINTS WHERE THE MOMENT IS 0?

27. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION
EFFECT OF THE LOAD

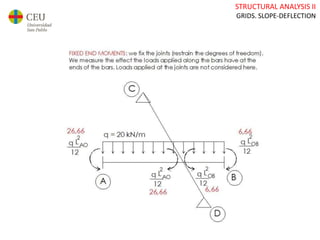

28. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

29. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

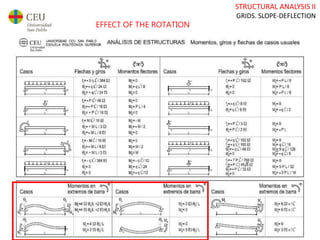

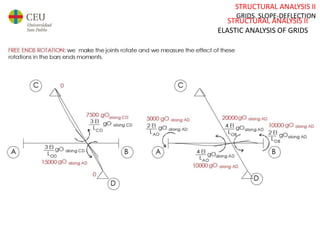

EFFECT OF THE ROTATION

30. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION
STRUCTURAL ANALYSIS II
ELASTIC ANALYSIS OF GRIDS

31. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

32. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

33. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

34. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

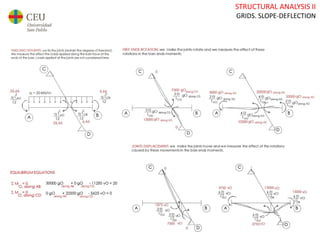

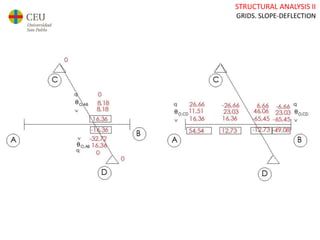

35. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

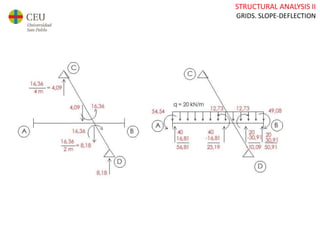

36. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

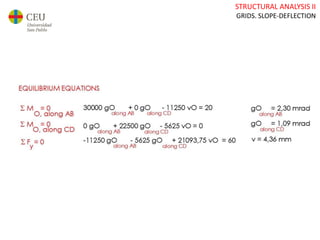

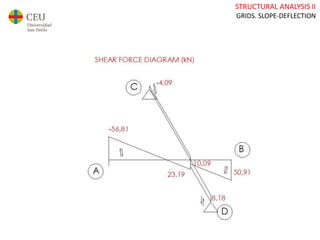

37. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

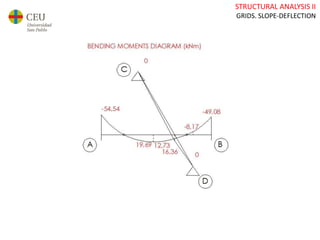

38. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

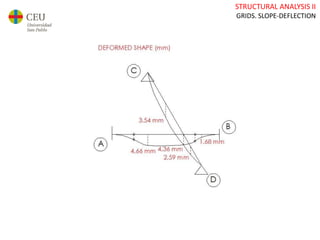

39. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

40. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

41. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

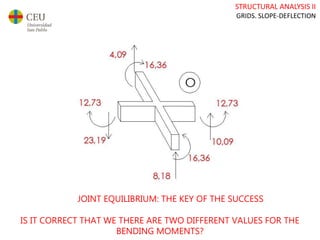

JOINT EQUILIBRIUM: THE KEY OF THE SUCCESS
IS IT CORRECT THAT WE THERE ARE TWO DIFFERENT VALUES FOR THE
BENDING MOMENTS?

42. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

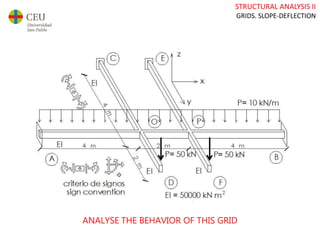

ANALYSE THE BEHAVIOR OF THIS GRID

43. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

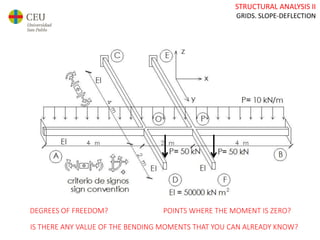

DEGREES OF FREEDOM? POINTS WHERE THE MOMENT IS ZERO?
IS THERE ANY VALUE OF THE BENDING MOMENTS THAT YOU CAN ALREADY KNOW?

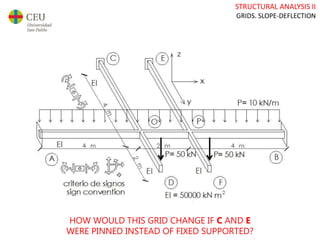

44. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION
HOW WOULD THIS GRID CHANGE IF C AND E
WERE PINNED INSTEAD OF FIXED SUPPORTED?

45. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION
DEGREES OF FREEDOM? POINTS WHERE THE MOMENT IS ZERO?
IS THERE ANY VALUE OF THE BENDING MOMENTS THAT YOU CAN ALREADY KNOW?

46. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

47. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

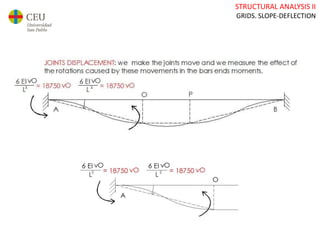

48. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

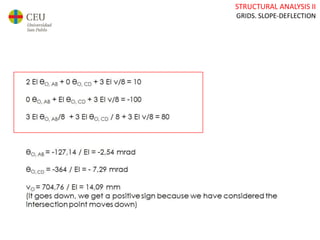

49. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

50. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

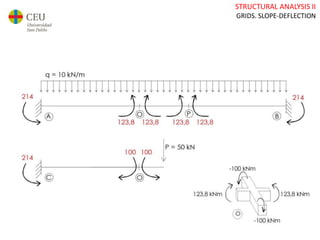

51. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

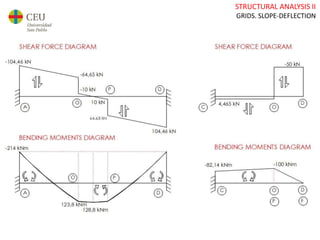

52. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

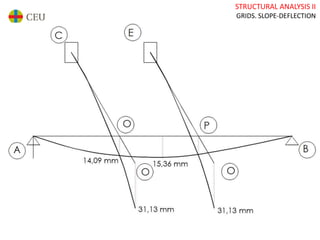

53. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

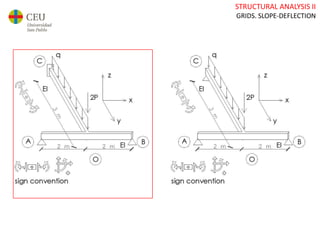

54. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

55. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

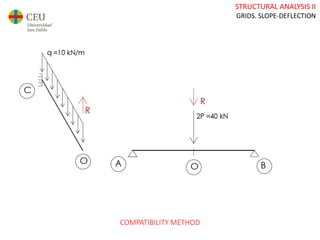

COMPATIBILITY METHOD

56. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION
COMPATIBILITY EQUATION

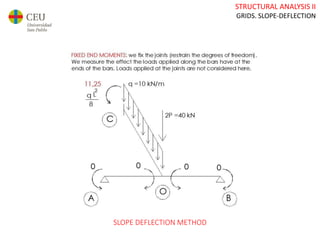

57. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION
SLOPE DEFLECTION METHOD

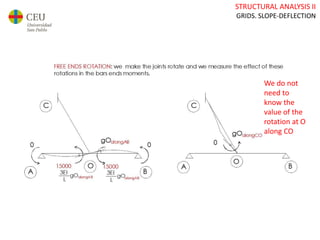

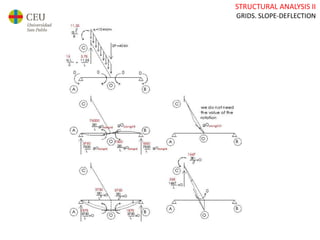

58. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION
We do not
need to
know the
value of the
rotation at O
along CO

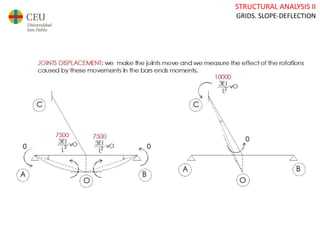

59. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

60. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

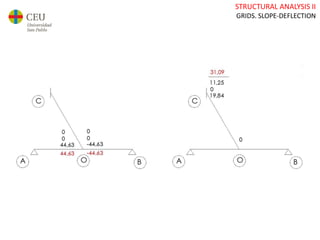

61. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

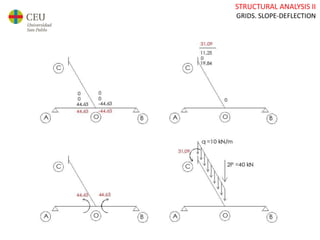

62. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

63. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

64. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

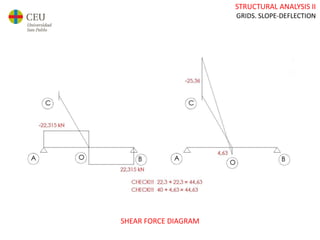

SHEAR FORCE DIAGRAM

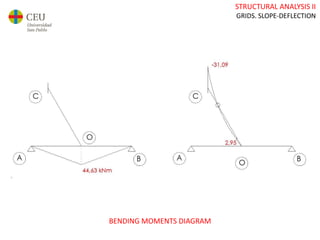

65. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION
BENDING MOMENTS DIAGRAM

66. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

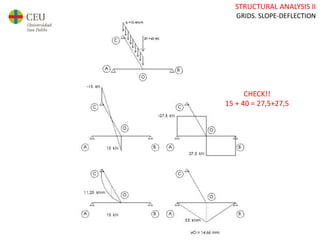

CHECK!!
15 + 40 = 27,5+27,5

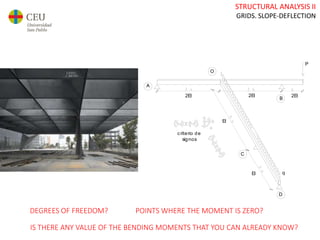

67. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION
2EI
2EI 2EI
A
B
P
criterio de
signos
D
q
EI
EI
C
O
DEGREES OF FREEDOM? POINTS WHERE THE MOMENT IS ZERO?
IS THERE ANY VALUE OF THE BENDING MOMENTS THAT YOU CAN ALREADY KNOW?

68. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

69. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

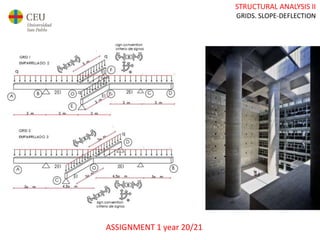

ASSIGNMENT 1 year 20/21

70. STRUCTURAL ANALYSIS II
GRIDS. SLOPE-DEFLECTION

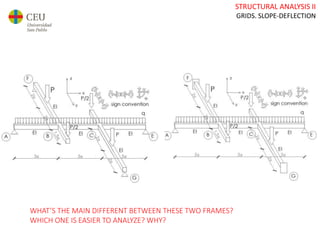

WHAT’S THE MAIN DIFFERENT BETWEEN THESE TWO FRAMES?
WHICH ONE IS EASIER TO ANALYZE? WHY?
