The document discusses the fundamentals of mathematics in architecture and geometry. It covers topics like the Maxwell-Cremona method for determining internal forces in bars, reciprocal diagrams of external forces, and step-by-step processes for constructing reciprocal diagrams. Examples are provided throughout to illustrate these concepts. The document also references architectural works like the Villa La Mediterranee designed by Stefano Boeri and the Thomson Optronics Factory built by Renzo Piano.

1. FUNDAMENTOS MATEMÁTICOS DE LA ARQUITECTURA I
FUNDAMENTALS OF MATHEMATIC IN ARCHITECTURE I GEOMETRY
FUNDAMENTALS OF MATHEMATICS I

2. FUNDAMENTOS MATEMÁTICOS DE LA ARQUITECTURA I
FUNDAMENTALS OF MATHEMATIC IN ARCHITECTURE I GEOMETRY

3. FUNDAMENTOS MATEMÁTICOS DE LA ARQUITECTURA I
FUNDAMENTALS OF MATHEMATIC IN ARCHITECTURE I GEOMETRY
PREVIOUSLY ON MATHS 1...

4. FUNDAMENTOS MATEMÁTICOS DE LA ARQUITECTURA I
FUNDAMENTALS OF MATHEMATIC IN ARCHITECTURE I GEOMETRY

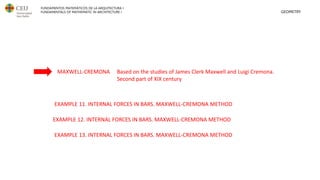

MAXWELL-CREMONA

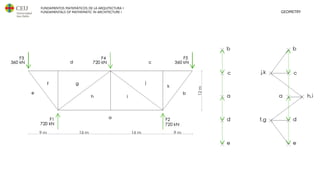

EXAMPLE 11. INTERNAL FORCES IN BARS. MAXWELL-CREMONA METHOD

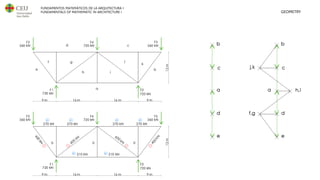

EXAMPLE 12. INTERNAL FORCES IN BARS. MAXWELL-CREMONA METHOD
Based on the studies of James Clerk Maxwell and Luigi Cremona.
Second part of XIX century
EXAMPLE 13. INTERNAL FORCES IN BARS. MAXWELL-CREMONA METHOD

5. FUNDAMENTOS MATEMÁTICOS DE LA ARQUITECTURA I
FUNDAMENTALS OF MATHEMATIC IN ARCHITECTURE I GEOMETRY
FIRST MINUTE QUESTION
Username: First part of your CEU email
For example:
if your email is a.garcia245@uspceu.es
Your username will be a.garcia245
Password: SAME AS USERNAME

6. FIRST MINUTE QUESTION

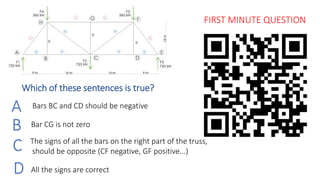

Which of these sentences is true?
Bars BC and CD should be negative
A
B
C
D All the signs are correct
Bar CG is not zero
The signs of all the bars on the right part of the truss,
should be opposite (CF negative, GF positive...)

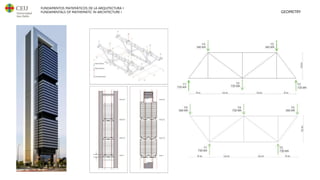

7. FUNDAMENTOS MATEMÁTICOS DE LA ARQUITECTURA I
FUNDAMENTALS OF MATHEMATIC IN ARCHITECTURE I GEOMETRY

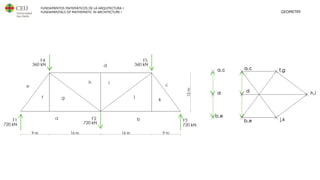

8. FUNDAMENTOS MATEMÁTICOS DE LA ARQUITECTURA I
FUNDAMENTALS OF MATHEMATIC IN ARCHITECTURE I GEOMETRY

9. FUNDAMENTOS MATEMÁTICOS DE LA ARQUITECTURA I
FUNDAMENTALS OF MATHEMATIC IN ARCHITECTURE I GEOMETRY

10. FUNDAMENTOS MATEMÁTICOS DE LA ARQUITECTURA I
FUNDAMENTALS OF MATHEMATIC IN ARCHITECTURE I GEOMETRY

11. FUNDAMENTOS MATEMÁTICOS DE LA ARQUITECTURA I
FUNDAMENTALS OF MATHEMATIC IN ARCHITECTURE I GEOMETRY

12. FUNDAMENTOS MATEMÁTICOS DE LA ARQUITECTURA I
FUNDAMENTALS OF MATHEMATIC IN ARCHITECTURE I GEOMETRY

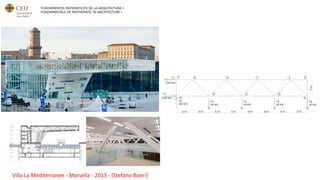

Villa La Mediterranee - Marsella - 2013 - [Stefano Boeri]

13. FUNDAMENTOS MATEMÁTICOS DE LA ARQUITECTURA I
FUNDAMENTALS OF MATHEMATIC IN ARCHITECTURE I GEOMETRY

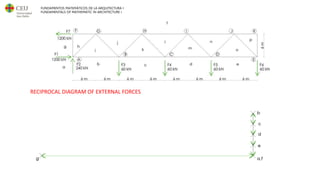

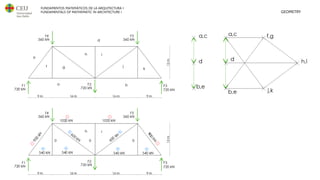

RECIPROCAL DIAGRAM OF EXTERNAL FORCES

14. FUNDAMENTOS MATEMÁTICOS DE LA ARQUITECTURA I
FUNDAMENTALS OF MATHEMATIC IN ARCHITECTURE I GEOMETRY
RECIPROCAL DIAGRAM OF EXTERNAL FORCES

15. FUNDAMENTOS MATEMÁTICOS DE LA ARQUITECTURA I
FUNDAMENTALS OF MATHEMATIC IN ARCHITECTURE I GEOMETRY

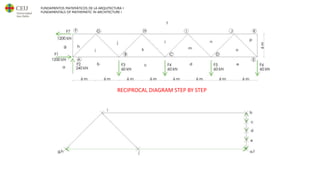

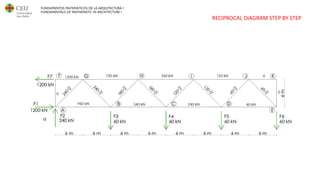

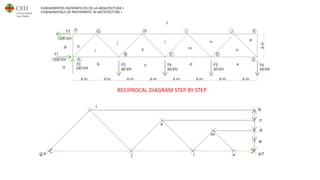

RECIPROCAL DIAGRAM STEP BY STEP

16. FUNDAMENTOS MATEMÁTICOS DE LA ARQUITECTURA I
FUNDAMENTALS OF MATHEMATIC IN ARCHITECTURE I GEOMETRY

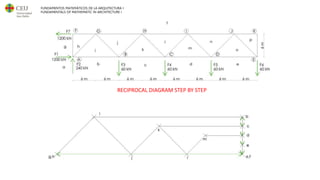

RECIPROCAL DIAGRAM STEP BY STEP

17. FUNDAMENTOS MATEMÁTICOS DE LA ARQUITECTURA I
FUNDAMENTALS OF MATHEMATIC IN ARCHITECTURE I GEOMETRY
RECIPROCAL DIAGRAM STEP BY STEP

18. FUNDAMENTOS MATEMÁTICOS DE LA ARQUITECTURA I
FUNDAMENTALS OF MATHEMATIC IN ARCHITECTURE I GEOMETRY

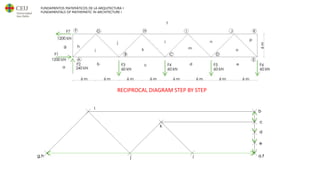

RECIPROCAL DIAGRAM STEP BY STEP

19. FUNDAMENTOS MATEMÁTICOS DE LA ARQUITECTURA I
FUNDAMENTALS OF MATHEMATIC IN ARCHITECTURE I GEOMETRY
RECIPROCAL DIAGRAM STEP BY STEP

20. FUNDAMENTOS MATEMÁTICOS DE LA ARQUITECTURA I
FUNDAMENTALS OF MATHEMATIC IN ARCHITECTURE I GEOMETRY

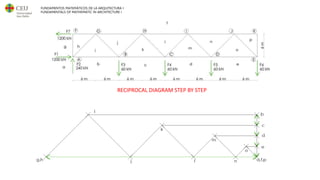

RECIPROCAL DIAGRAM STEP BY STEP

21. FUNDAMENTOS MATEMÁTICOS DE LA ARQUITECTURA I
FUNDAMENTALS OF MATHEMATIC IN ARCHITECTURE I GEOMETRY
RECIPROCAL DIAGRAM STEP BY STEP

22. FUNDAMENTOS MATEMÁTICOS DE LA ARQUITECTURA I
FUNDAMENTALS OF MATHEMATIC IN ARCHITECTURE I GEOMETRY
RECIPROCAL DIAGRAM STEP BY STEP

23. FUNDAMENTOS MATEMÁTICOS DE LA ARQUITECTURA I
FUNDAMENTALS OF MATHEMATIC IN ARCHITECTURE I GEOMETRY
RECIPROCAL DIAGRAM STEP BY STEP

24. FUNDAMENTOS MATEMÁTICOS DE LA ARQUITECTURA I
FUNDAMENTALS OF MATHEMATIC IN ARCHITECTURE I GEOMETRY

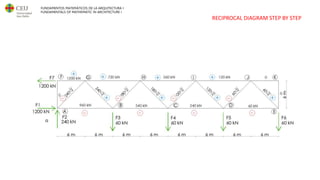

RECIPROCAL DIAGRAM STEP BY STEP

25. FUNDAMENTOS MATEMÁTICOS DE LA ARQUITECTURA I
FUNDAMENTALS OF MATHEMATIC IN ARCHITECTURE I GEOMETRY

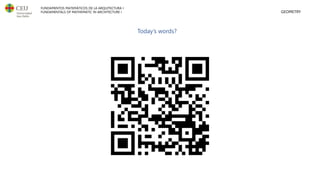

Today’s words?

26. FUNDAMENTOS MATEMÁTICOS DE LA ARQUITECTURA I
FUNDAMENTALS OF MATHEMATIC IN ARCHITECTURE I GEOMETRY
Thomson Optronics Factory, designed and built in Paris by Renzo Piano
between 1988 and 1990

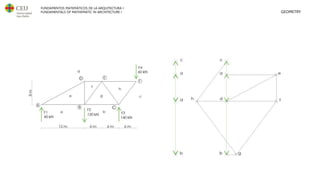

27. FUNDAMENTOS MATEMÁTICOS DE LA ARQUITECTURA I
FUNDAMENTALS OF MATHEMATIC IN ARCHITECTURE I GEOMETRY
