1. Novidades em Redes VSAT
SSPI Day 2016
24/11/2016

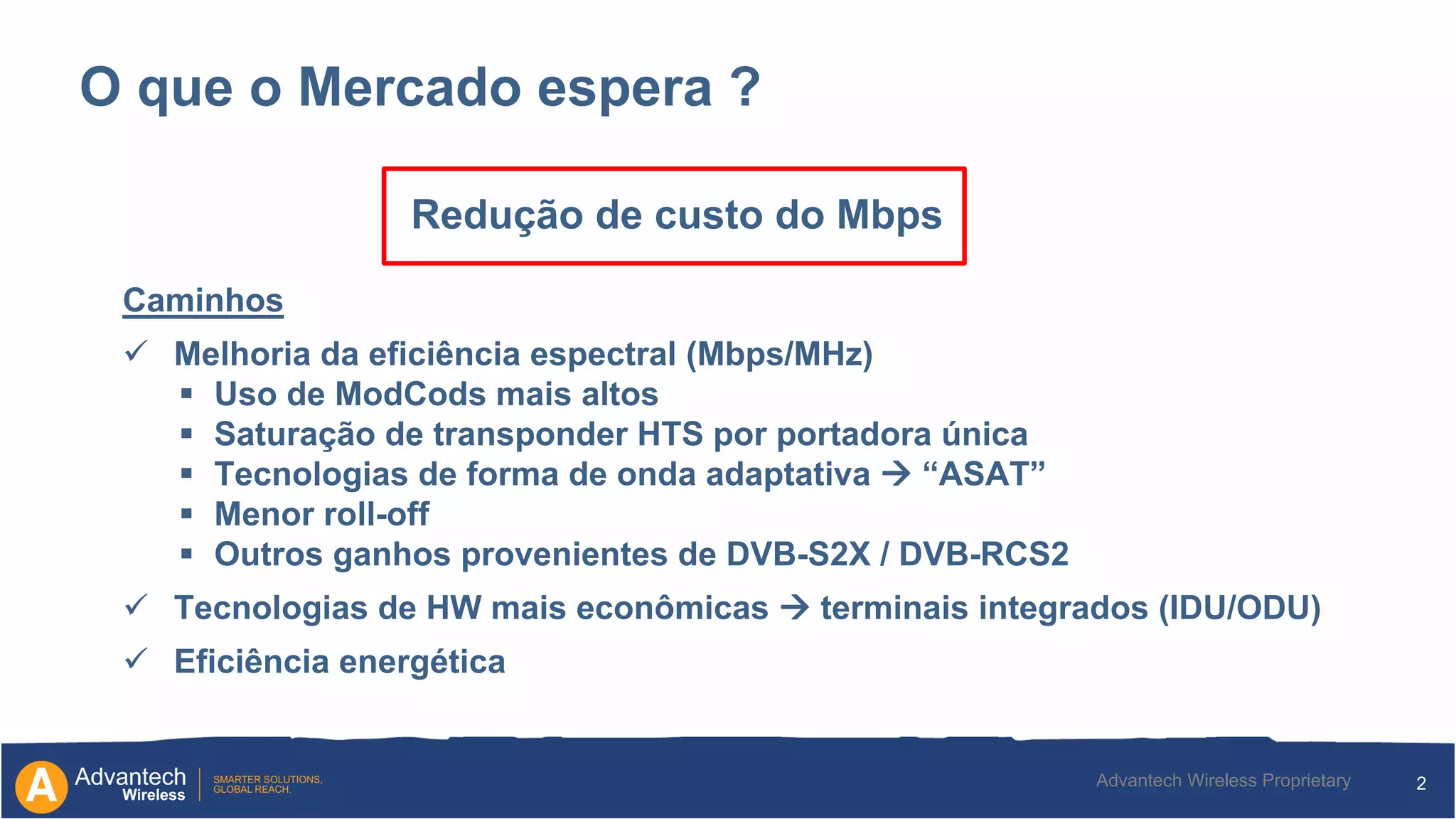

2. 2Advantech Wireless Proprietary
O que o Mercado espera ?
Redução de custo do Mbps
Caminhos
 Melhoria da eficiência espectral (Mbps/MHz)
 Uso de ModCods mais altos
 Saturação de transponder HTS por portadora única
 Tecnologias de forma de onda adaptativa  “ASAT”
 Menor roll-off
 Outros ganhos provenientes de DVB-S2X / DVB-RCS2
 Tecnologias de HW mais econômicas  terminais integrados (IDU/ODU)
 Eficiência energética

3. 3
Terminais Integrados

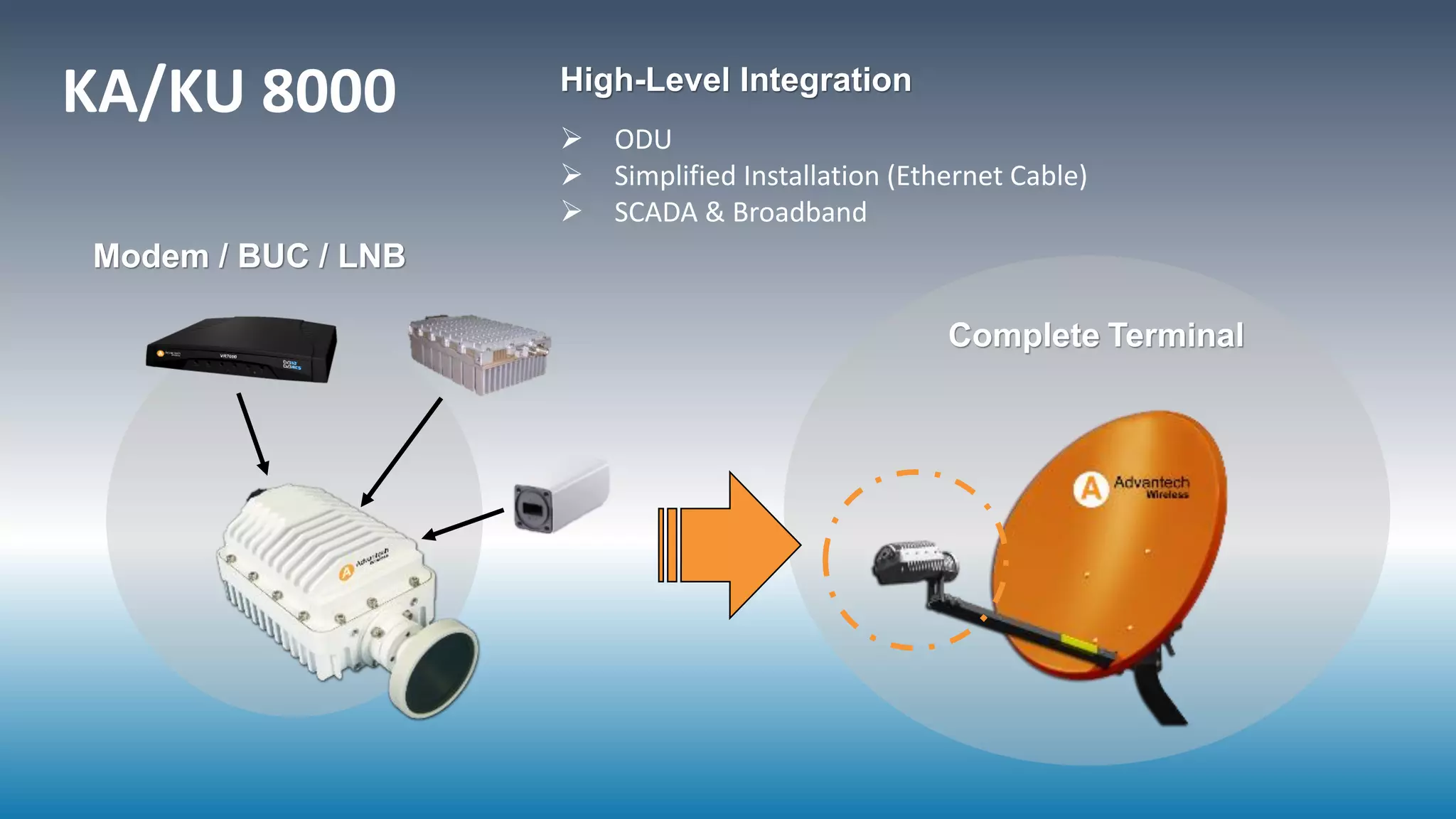

4. KA/KU 8000
Complete Terminal
Modem / BUC / LNB
High-Level Integration
 ODU
 Simplified Installation (Ethernet Cable)
 SCADA & Broadband

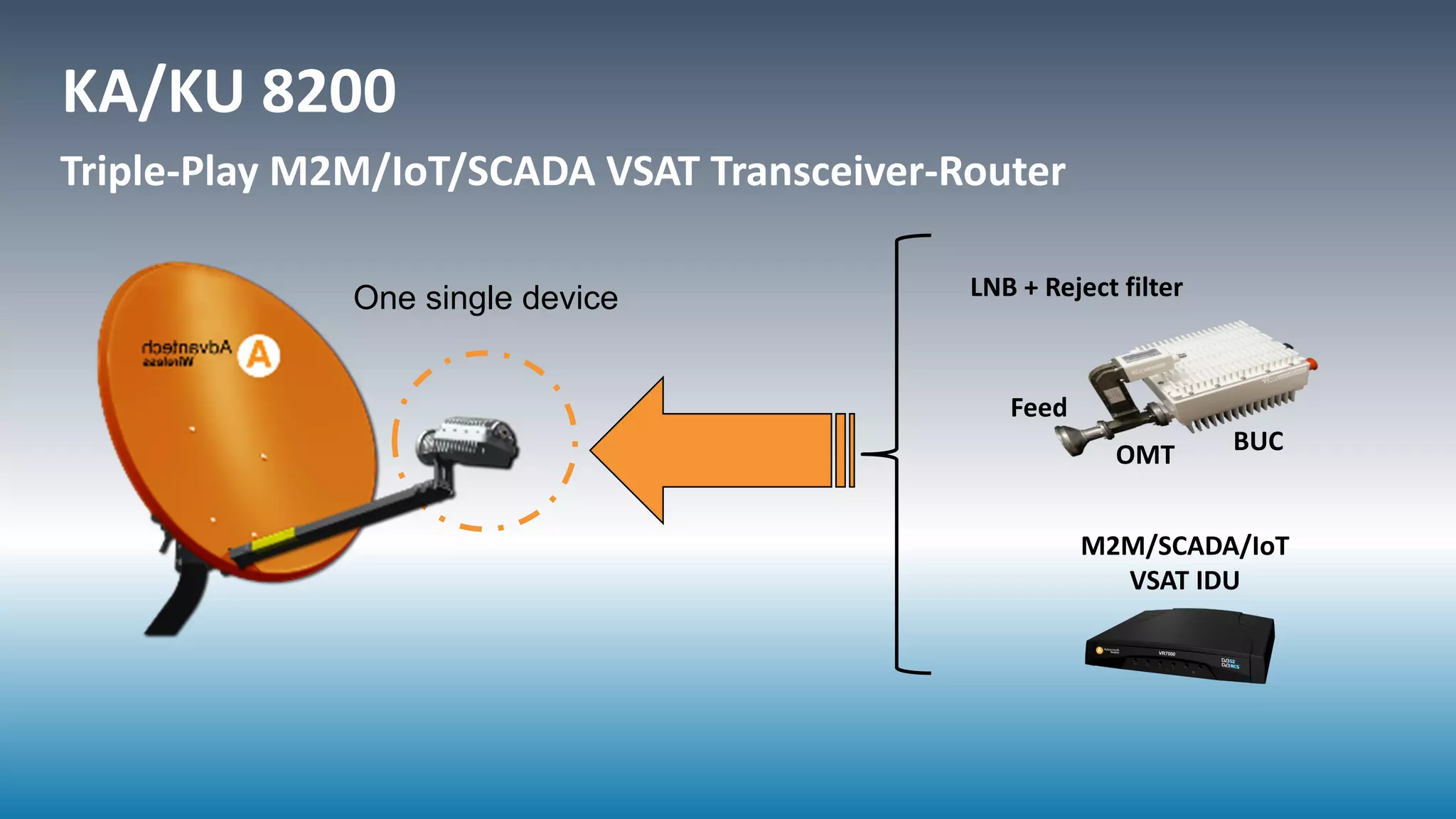

5. KA/KU 8200
Feed
OMT
M2M/SCADA/IoT
VSAT IDU
LNB + Reject filter
BUC
One single device
Triple-Play M2M/IoT/SCADA VSAT Transceiver-Router

6. 6Advantech Wireless Proprietary
• Single RG6 coax cable utilizing Ethernet-Over-
Coax(EoC) technology delivering both data and L-Band
signal to the indoor adapter
• RG6 coax cable powers the outdoor unit (ODU)
• Single antenna for TV and Data
8200 Adapter
Single RG6
Coax Cable
CAT 5/WiFi

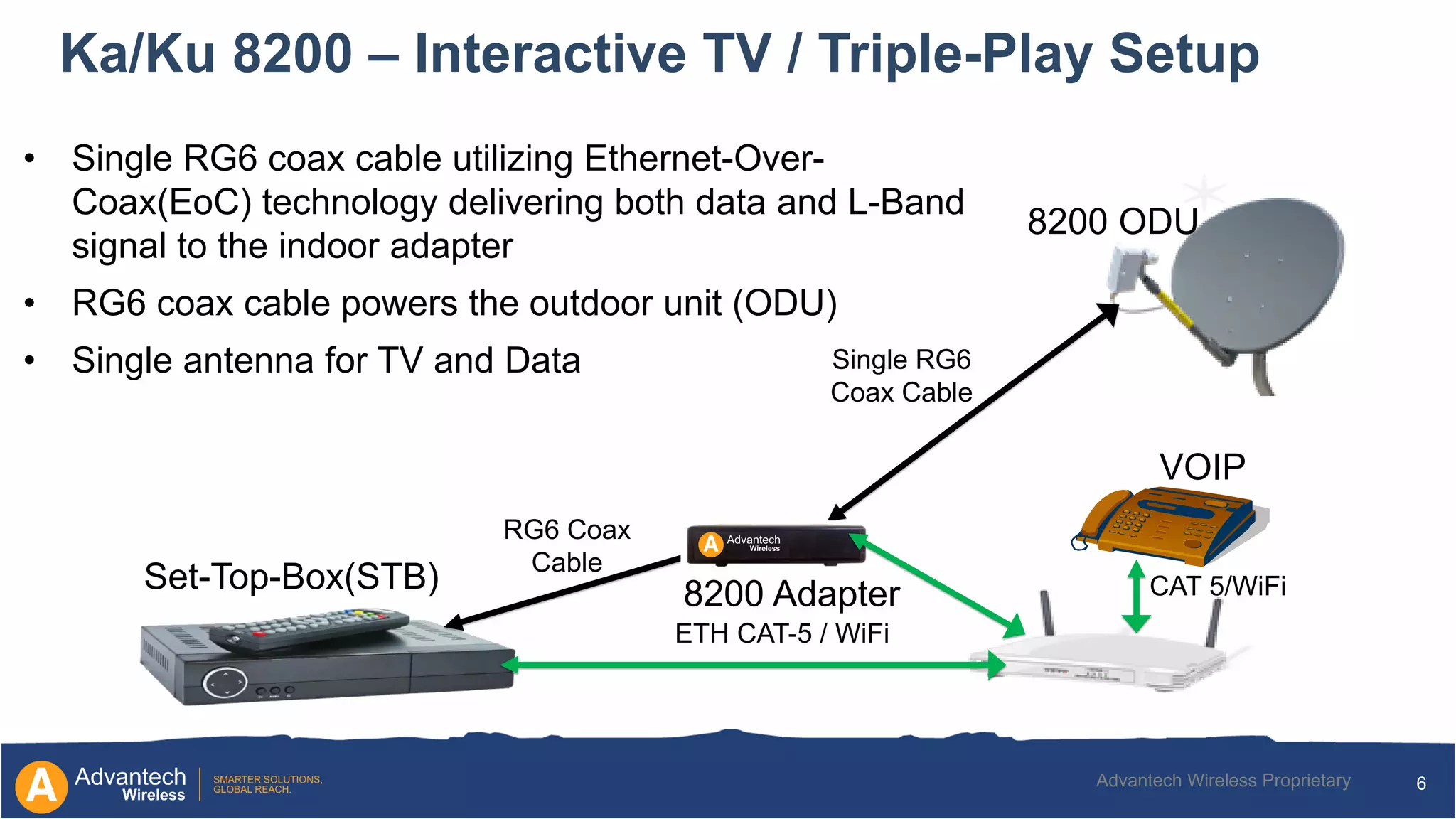

Ka/Ku 8200 – Interactive TV / Triple-Play Setup
VOIP
RG6 Coax
Cable
ETH CAT-5 / WiFi
8200 ODU
Set-Top-Box(STB)

7. 7
The iTool reduces Installation Time
and Cost ensuring the quality and
the interference free on each
installation by measuring Copol,
Xpol and ASI.
It provides an extremely easy
interface can be understood without
being experts on VSAT installations.

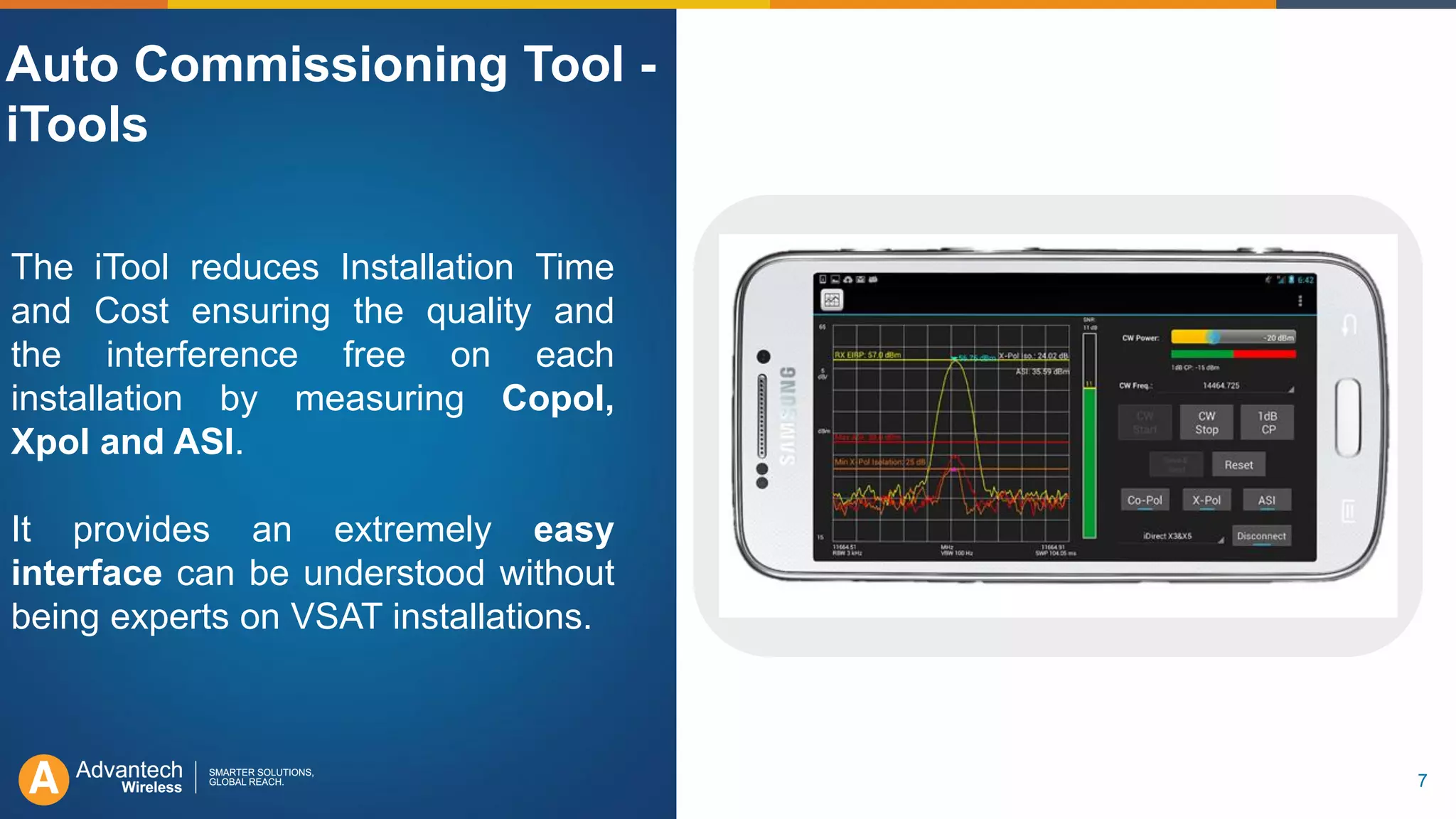

Auto Commissioning Tool -
iTools

8. 8
Tecnologia ASAT

9. 9Advantech Wireless Proprietary
Eb/No=6.8dB
SCPC
DVB-S2
16APSK, 4/5
0
1
2
3
4
5
6
7
1
2
3
4
0 20 40 60 80 100
Traffic Density (Average to Peak Ratio%)
MF-TDMA
8PSK
TCC, 2/3
BM-FDMA
8PSK, 8/9
SpectralEfficiency
(Bps/Hz)

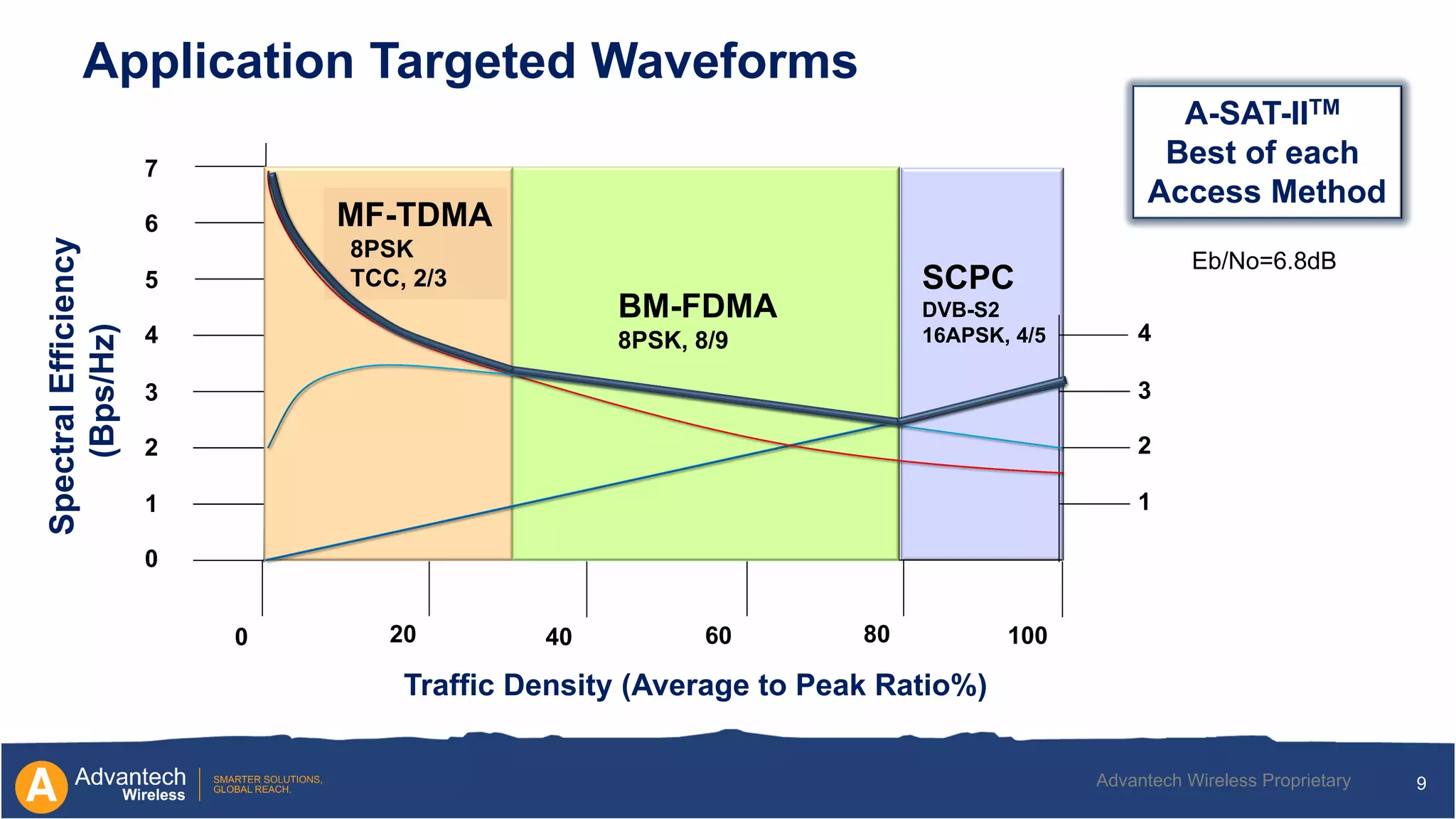

Application Targeted Waveforms
A-SAT-IITM
Best of each
Access Method

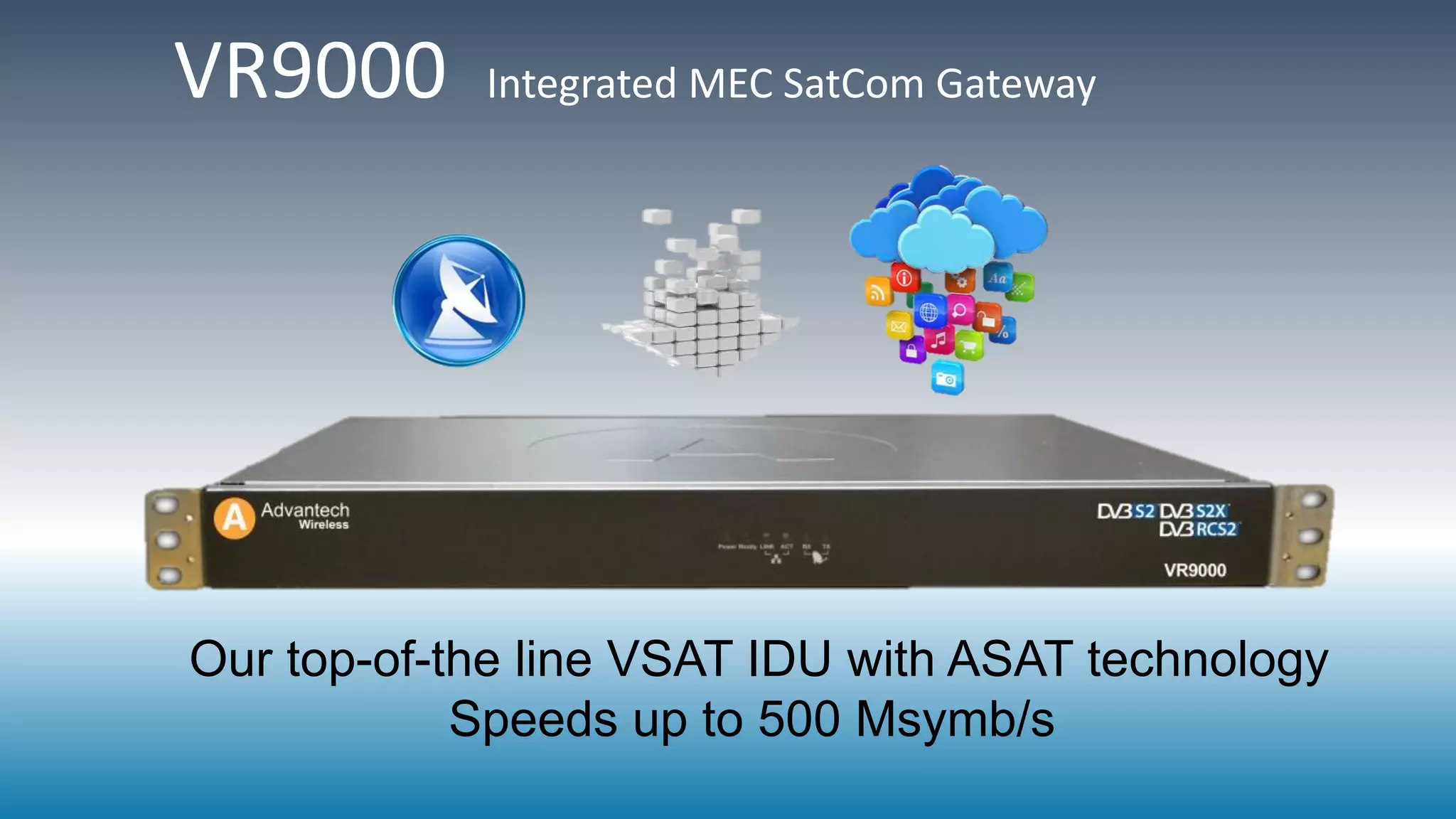

10. VR9000 Integrated MEC SatCom Gateway
Our top-of-the line VSAT IDU with ASAT technology
Speeds up to 500 Msymb/s

11. 11
Modems de Alta Capacidade

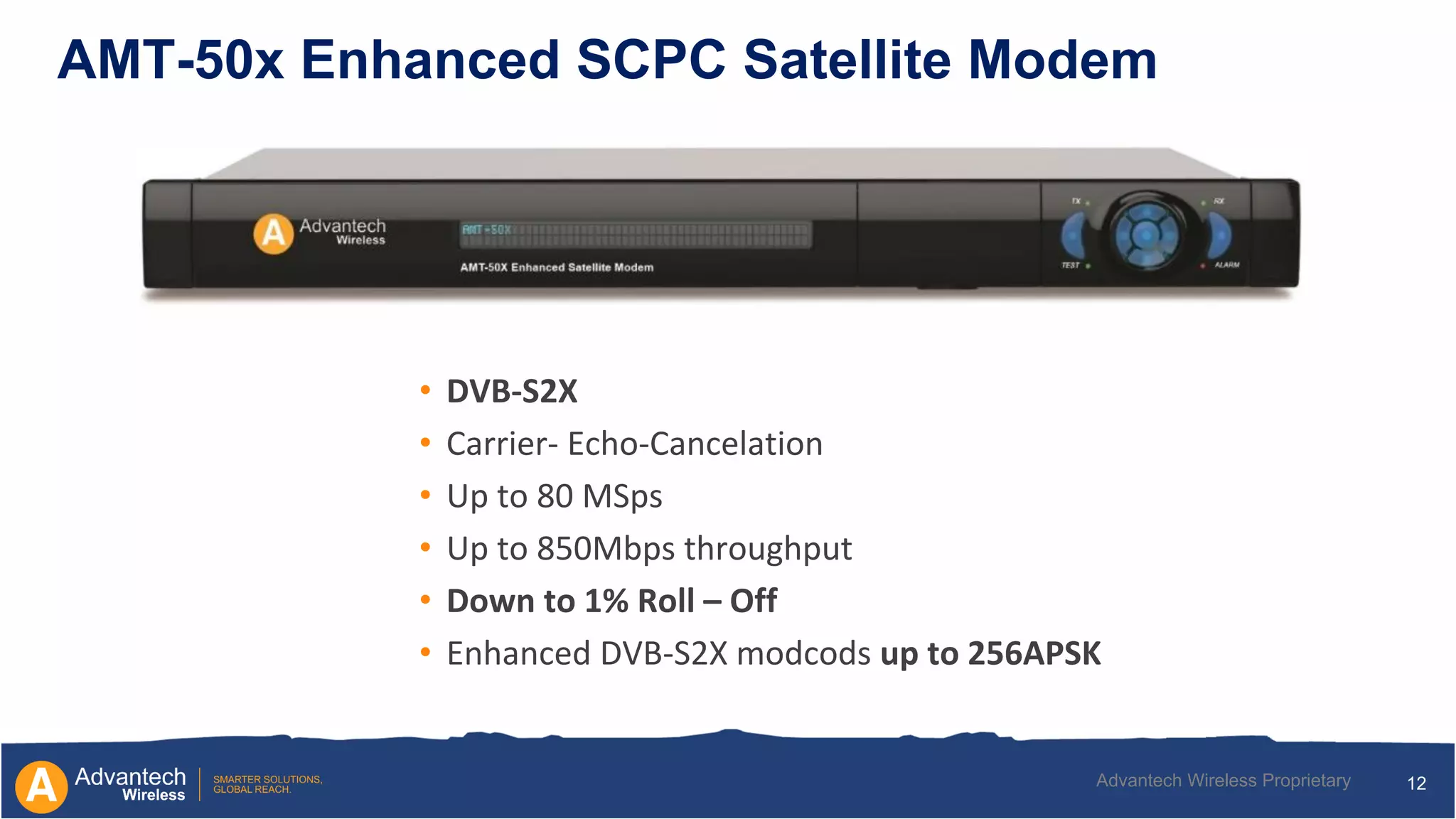

12. 12Advantech Wireless Proprietary
AMT-50x Enhanced SCPC Satellite Modem
• DVB-S2X
• Carrier- Echo-Cancelation
• Up to 80 MSps
• Up to 850Mbps throughput
• Down to 1% Roll – Off
• Enhanced DVB-S2X modcods up to 256APSK

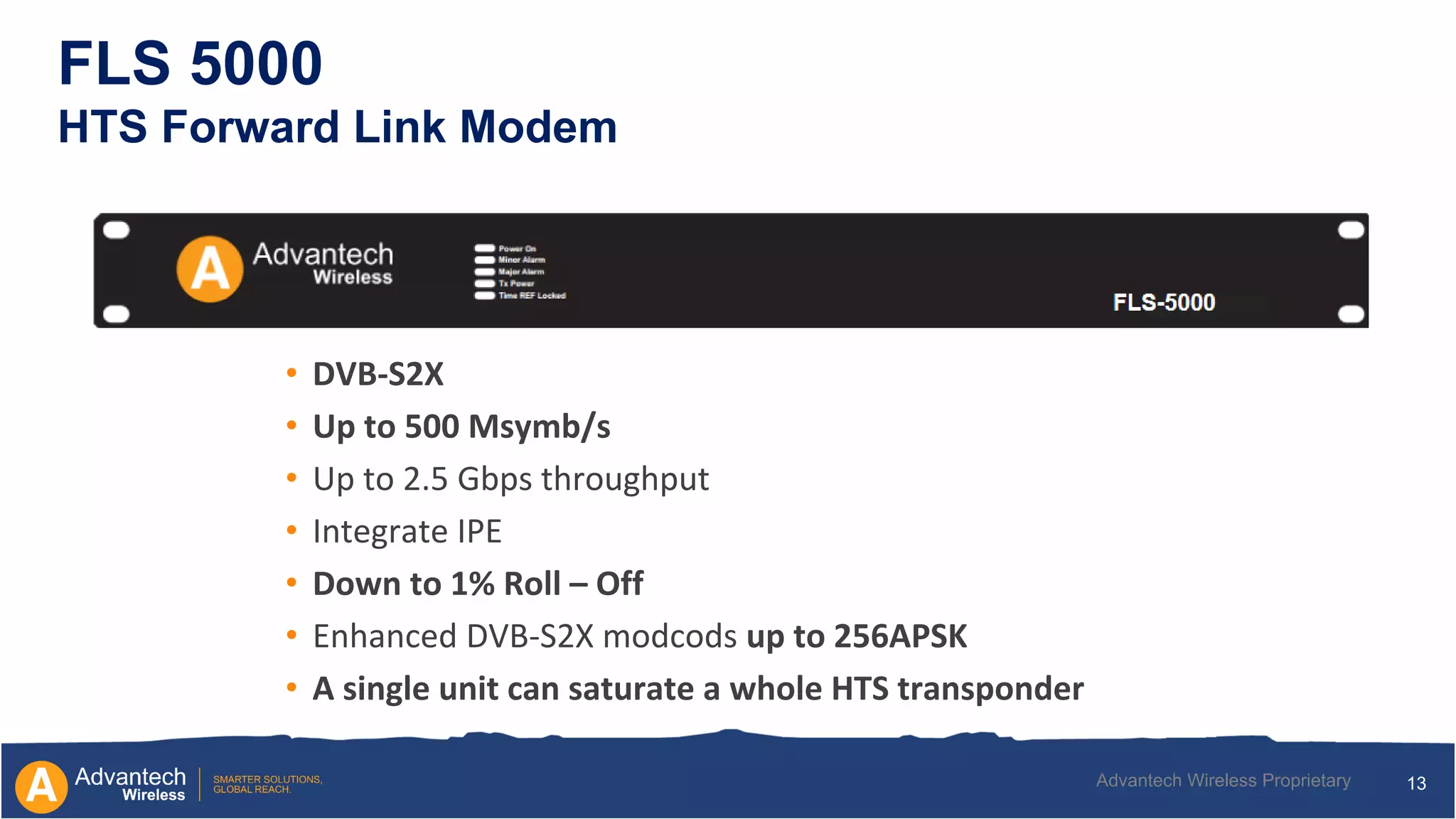

13. 13Advantech Wireless Proprietary
FLS 5000
HTS Forward Link Modem
• DVB-S2X
• Up to 500 Msymb/s
• Up to 2.5 Gbps throughput
• Integrate IPE
• Down to 1% Roll – Off
• Enhanced DVB-S2X modcods up to 256APSK
• A single unit can saturate a whole HTS transponder

14. 14
Eficiência Energética

15. 15Advantech Wireless Proprietary

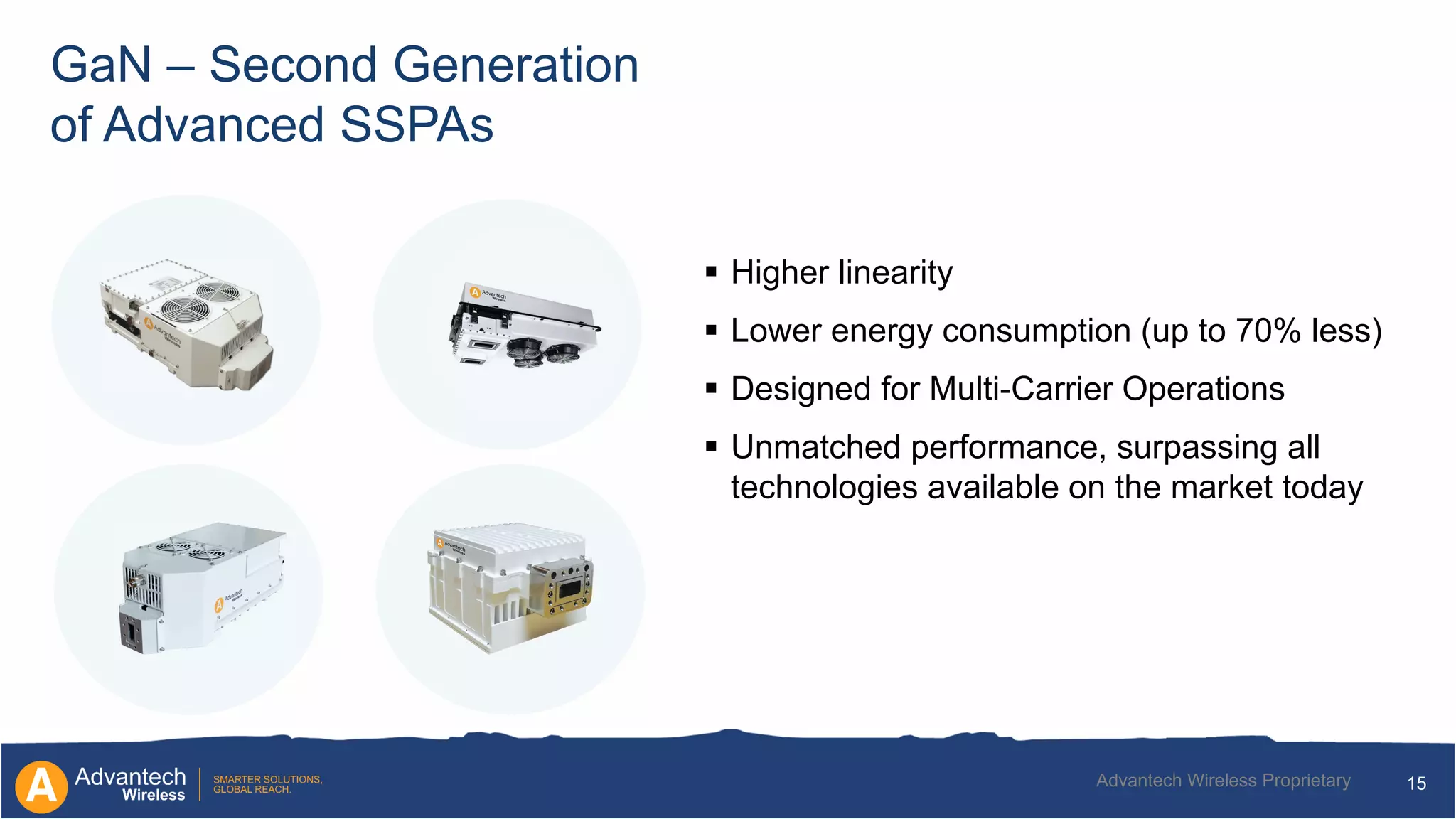

GaN – Second Generation
of Advanced SSPAs
 Higher linearity
 Lower energy consumption (up to 70% less)
 Designed for Multi-Carrier Operations
 Unmatched performance, surpassing all
technologies available on the market today

16. Novidades em Redes VSAT
SSPI Day 2016
24/11/2016
OBRIGADO !
