AD301: Introducing the Composite Application Container Framework - Lotusphere 2009

Introducing the Composite Application
Container Framework
● Bob Balfe | Senior Technical Staff Member – Composite Applications |
®
IBM
AD301
● Brian O'Gorman | Architect – Composite Application Editor | IBM

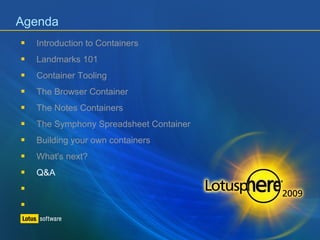

Agenda
 Introduction to Containers
 Landmarks 101
 Container Tooling
 The Browser Container
 The Notes Containers
 The Symphony Spreadsheet Container
 Building your own containers
 What's next?
 Q&A



Composite Application Background
 A role based application framework where decoupled components
can communicate through declarative connections (wires)
 Primarily used to integrate heterogeneous technologies
 Lotus Notes to SWT, Web to Lotus Notes, SWT to ..., etc
 Target audience for “application assembly” is technically savvy lines
of business users
 Was great on paper :)
 Provide a clear and consistent component model where all
components can communicate with well defined properties
(outputs) and actions (inputs)
 The primary value add is using existing resources (applications) in
new context and sharing data from those applications with each
other



Introduction to Containers – Why a new component type?
 WSDL is very hard to understand
 Current component model does not work well for complex
containers:
Applications like web applications with more than one page or form
Host based applications with many screens
Spreadsheets with more than one sheet
 Creating new components is cumbersome
Must create new Java code, new WSDL, deploy feature and plugin




What is really wanted/needed
 The ability to define new components with no programming and no
WSDL
 Have new components created from basic XML – ie. extension points
 These new components need to be 100% compatible with existing
components
 Let low level assemblers create new components using plugin.xml
 Let higher level assemblers create new components with CAE.


What is a “container”?
 A container is a new type of view part that can display not only an
application but applications with many pages (states) and pieces to
it.
 For instance, we have a web browser container that exposed general
actions and properties.
 Setting the URL
 Setting the HTML text
 Publishing the URL
 Etc.

 These containers can define properties and actions at different
landmarks within the contained content.
 For instance, define actions and properties across many pages in a web
application


What is a landmark and a landmark identifier?
 The term landmark is taken from navigation.
 Think of what “landmarks” you know that tell where you are at
 For instance
 The statue of Liberty tells you are in New York City


 The landmarks here are the same concept
 They tell the container it is in a particular place in the containing
application.


(cont)  A container definition states what its landmark identifier is.
 The landmark identifier tells the container what reference to use to identify
different states (or places) of the component.
 These states can then have actions applied to them by referencing the value
returned from the container using the landmark identifier – the returned
value is the landmark.

 The landmark is the value returned by the container using the
landmark identifier
 All landmark values are basic strings
 Regular expressions and wild-cards are also supported
– http://www.ibm.com/*


(cont)  A container definition states what its landmark identifier is.
 The landmark identifier tells the container what reference to use to identify
different states (or places) of the component.
 These states can then have actions applied to them by referencing the value
returned from the container using the landmark identifier – the returned
value is the landmark.

 The landmark is the value returned by the container using the
landmark identifier
 All landmark values are basic strings
 Regular expressions are also supported

Landmark

Property Name spaces for common containers
 The new framework introduces the concept of shared property spaces
 This enables multiple instances of a container type to share the values
across them
 You can optionally set the namespace for a specific component using the
advanced property - “com.ibm.rcp.composite.container.namespace”
 This name space will be used to store the and retrieve the property for the specific
component.
 By default the name space is the perspective ID, so all same types of components
share properties on a given screen

Container Tooling
 Generic Landmark Editor provider by Composite Application Editor
 Define landmarks & operations
 Landmark, operation, and field suggestions provided by container

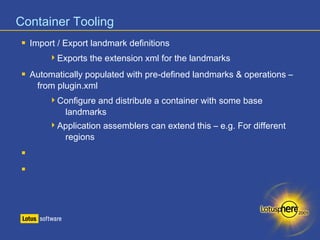

Container Tooling
 Import / Export landmark definitions
Exports the extension xml for the landmarks
 Automatically populated with pre-defined landmarks & operations –
from plugin.xml
Configure and distribute a container with some base
landmarks
Application assemblers can extend this – e.g. For different
regions



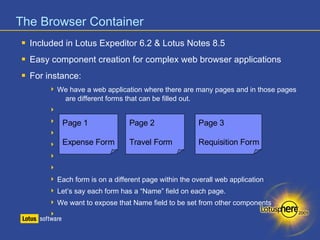

The Browser Container
 Included in Lotus Expeditor 6.2 & Lotus Notes 8.5
 Easy component creation for complex web browser applications
 For instance:
 We have a web application where there are many pages and in those pages
are different forms that can be filled out.


Page 1
Page 2
Page 3


Expense Form
Travel Form
Requisition Form


 Each form is on a different page within the overall web application
 Let’s say each form has a “Name” field on each page.
 We want to expose that Name field to be set from other components


 There is a problem though:
 On Page 1 the field “Name” has the HTML name attribute set to “nameField”
 On Page 2 the field “Name” has the HTML name attribute set to “Requester”
 And on Page 3, it is not even a field, it is highlighted text in bold

 What we want to do is expose “Name” as a field that can be set by or
queried by other components (publish or receive)

 We can handle this by specifying the landmark identifier as the URL
or the Title of the page
 This makes the landmark results unique so we can define how “Name” is
handled on the three different pages.


 There is a problem though:
 On Page 1 the field “Name” has the HTML name attribute set to “nameField”
 On Page 2 the field “Name” has the HTML name attribute set to “Requester”
 And on Page 3, it is not even a field, it is highlighted text in bold

 What we want to do is expose “Name” as a field that can be set by or
Landmarks
queried by other components (publish or receive)

 We can handle this by specifying the landmark identifier as the URL
or the Title of the page
 This makes the landmark results unique so we can define how “Name” is
handled on the three different pages.

Name Properties

The Browser Container – sample extension xml
<landmark expression="Expense Form">
<event id="contentComplete">
<receive field="name:txtName" property="Name"/>
</event>
</landmark>
<landmark expression="Travel Form">
<receive field="name:name" property="Name"/>
</event>
</landmark>
<landmark expression="Requisition Form">
<publish
field="xpath://*[@id=‘profileInfo']/attr[@name='cn']/value"
property="Name"/>
</event>
</landmark>


Demonstration time – The Browser Container!
®

The Notes Containers
 Web Delivery – Notes View Container & PIM View Container
 Extract data from Notes views as properties, right in CAE
NO WSDL!
No database modifications
 Each property is published individually upon selection
 Multiple selections are delimited. “00” by default
Delimiter can be overridden
 Hide the complexity of Landmarks and the underlying configuration


The Notes Containers – Notes View Container
 Based on the re-parent technology
 Can contain any Notes View
 “Formula” is supported to extract information from view
 Uses Java back-end classes to access the data. Document is opened.



The Notes Containers – Notes View Container
 Inline landmark configuration
 Define new properties to publish, right in the container in CAE
Type/Select Property
Name
Field Type
(only formula) Formula Create
Property
Create new wire
Save
Configuration

The Notes Containers – PIM View Container
 Based on Notes Java views (CSI Views)
 Supports both “Formula” and “Columns” to extract data
 Formula uses Java back-end classes – document is opened
 Columns use new Java view framework – document not opened, data exists
 Supports 5 default configurations
 Inbox, Calendar, Contacts, Todo, Recent Collaborations




 Selecting a configuration generates a new landmark configuration
 i.e. Default set of properties to extract & publish

 Define new properties to publish, right in the container in CAE

Type/Select Property
Name
Field Type
(formula/column) Formula Create
Property
Create new wire
Save
Configuration

Demonstration time – The Notes Container!
®

The Symphony Spreadsheet Container
 Extra information from & publish information to spreadsheets
 Support cells and cell ranges (and named ranges)
Publishing data from
a web application to
spreadsheet to
populate a chart!

The Symphony Spreadsheet Container

Type/Select
Property Name
Cell
Range
Create
Action
Create new wire
Save
Configuration
Action
Publish/Receive Display Fields

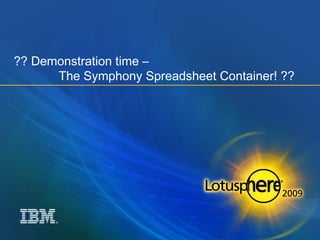

?? Demonstration time –
®
The Symphony Spreadsheet Container! ??

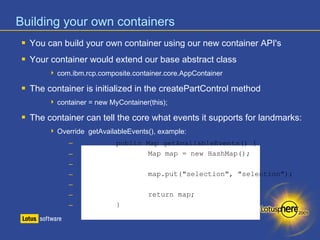

Building your own containers
 You can build your own container using our new container API's
 Your container would extend our base abstract class
 com.ibm.rcp.composite.container.core.AppContainer
 The container is initialized in the createPartControl method
 container = new MyContainer(this);
 The container can tell the core what events it supports for landmarks:
 Override getAvailableEvents(), example:
– public Map getAvailableEvents() {
– Map map = new HashMap();
–
– map.put("selection", "selection");
–
– return map;
– }

Building your own containers (cont)
 Even the actions can be completely custom for your container
 Make them make sense for your container
 For instance, if you only support a “Publish” action then you could do this:
 public Map getSuggestedActions() {
 Map map = new HashMap();

 map.put(AppContainer.PUBLISH, AppContainer.PUBLISH);

 return map;
 }

 You can publish and receive data easily
 No Property Broker API's are needed
 You would implement the following two methods:
● public void publish(String name, String field, LandmarkEvent event,
Object context)
● public void receive(String name, String field, LandmarkEvent event,
Object context)

 You would then call the core containers publishProperty() method to publish
the data to the broker

● publishProperty(name, value.toString());



 Each area of the composite application editor can be customized by
your container
 Components can add their own tabs for editing configuration

What's next?
 Lotus Expeditor 6.2.1
 Symphony Spreadsheet Container
 Host On Demand (HOD) Container
 Lotus Notes 8.5.1 (above plus...)
 Notes View Container
 PIM View Container
 Notes Document Container
 Building your own
 Ability to provide your own Landmark Editor tab in CAE
 Ability to provide your own inline landmark configuration UI


Further resources
 IBM Composite Applications wiki
http://www-10.lotus.com/ldd/compappwiki.nsf
 Lotus Expeditor Infocenter
http://publib.boulder.ibm.com/infocenter/ledoc/v6r2
 Bob's Blog
http://blog.balfes.net
 IBM Lotus developerWorks
http://www.ibm.com/developerworks/lotus
 IBM Lotus Application Development Overview
http://www.ibm.com/software/lotus/appdev/

 Questions
?
Thank you for joining us, and please remember to fill out the feedback forms.
For more demos and information come see us in the Meet The Developers lab.

Legal disclaimer Please delete all instructions (text in red) and insert this information at the end ofexternal publications.
© IBM Corporation 2008. All Rights Reserved.

The information contained in this publication is provided for informational purposes only. While efforts were made to verify the completeness and accuracy of the information contained in this publication, it is
provided AS IS without warranty of any kind, express or implied. In addition, this information is based on IBM’s current product plans and strategy, which are subject to change by IBM without notice. IBM shall
not be responsible for any damages arising out of the use of, or otherwise related to, this publication or any other materials. Nothing contained in this publication is intended to, nor shall have the effect of,
creating any warranties or representations from IBM or its suppliers or licensors, or altering the terms and conditions of the applicable license agreement governing the use of IBM software.
References in this presentation to IBM products, programs, or services do not imply that they will be available in all countries in which IBM operates. Product release dates and/or capabilities referenced in
this presentation may change at any time at IBM’s sole discretion based on market opportunities or other factors, and are not intended to be a commitment to future product or feature availability in any way.
Nothing contained in these materials is intended to, nor shall have the effect of, stating or implying that any activities undertaken by you will result in any specific sales, revenue growth or other results.

If the text contains performance statistics or references to benchmarks, insert the following language; otherwise delete:
Performance is based on measurements and projections using standard IBM benchmarks in a controlled environment. The actual throughput or performance that any user will experience will vary depending
upon many factors, including considerations such as the amount of multiprogramming in the user's job stream, the I/O configuration, the storage configuration, and the workload processed. Therefore, no
assurance can be given that an individual user will achieve results similar to those stated here.

If the text includes any customer examples, please confirm we have prior written approval from such customer and insert the following language; otherwise delete:
All customer examples described are presented as illustrations of how those customers have used IBM products and the results they may have achieved. Actual environmental costs and performance
characteristics may vary by customer.

Please review text for proper trademark attribution of IBM products. At first use, each product name must be the full name and include appropriate trademark symbols (e.g., IBM Lotus® Sametime®
Unyte™). Subsequent references can drop “IBM” but should include the proper branding (e.g., Lotus Sametime Gateway, or WebSphere Application Server). Please refer to
http://www.ibm.com/legal/copytrade.shtml for guidance on which trademarks require the ® or ™ symbol. Do not use abbreviations for IBM product names in your presentation. All product names must be
used as adjectives rather than nouns. Please list all of the trademarks that you use in your presentation as follows; delete any not included in your presentation.
IBM, the IBM logo, Lotus, Lotus Notes, Notes, Domino, Quickr, Sametime, WebSphere, UC2, PartnerWorld and Lotusphere are trademarks of International Business Machines Corporation in the United
States, other countries, or both. Unyte is a trademark of WebDialogs, Inc., in the United States, other countries, or both.

If you reference Adobe® in the text, please mark the first use and include the following; otherwise delete:
Adobe, the Adobe logo, PostScript, and the PostScript logo are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States, and/or other countries.
If you reference Java™ in the text, please mark the first use and include the following; otherwise delete:
Java and all Java-based trademarks are trademarks of Sun Microsystems, Inc. in the United States, other countries, or both.

If you reference Microsoft® and/or Windows® in the text, please mark the first use and include the following, as applicable; otherwise delete:
Microsoft and Windows are trademarks of Microsoft Corporation in the United States, other countries, or both.

If you reference Intel® and/or any of the following Intel products in the text, please mark the first use and include those that you use as follows; otherwise delete:
Intel, Intel Centrino, Celeron, Intel Xeon, Intel SpeedStep, Itanium, and Pentium are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.
If you reference UNIX® in the text, please mark the first use and include the following; otherwise delete:
UNIX is a registered trademark of The Open Group in the United States and other countries.

If you reference Linux® in your presentation, please mark the first use and include the following; otherwise delete:
Linux is a registered trademark of Linus Torvalds in the United States, other countries, or both.
Other company, product, or service names may be trademarks or service marks of others.

If the text/graphics include screenshots, no actual IBM employee names may be used (even your own), if your screenshots include fictitious company names (e.g., Renovations, Zeta Bank, Acme) please
update and insert the following; otherwise delete:
All references to [insert fictitious company name] refer to a fictitious company and are used for illustration purposes only.

AD301: Introducing the Composite Application Container Framework - Lotusphere 2009

More Related Content

What's hot

Similar to AD301: Introducing the Composite Application Container Framework - Lotusphere 2009

Recently uploaded

AD301: Introducing the Composite Application Container Framework - Lotusphere 2009

Editor's Notes
