1. Active Record Basics
RoRLabBiWeeklyLecture
남승균 - RoR Lab

2. 모든 초고는 쓰레기다
- 어네스트 헤밍웨이
2/72

3. 먼저 소설가가 되어야만 소설을 쓸 수 있는 게 아니라 먼저
뭔가를 써야만 소설가가 될 수 있다.
- 김연수, <소설가의 일> 중
3/72

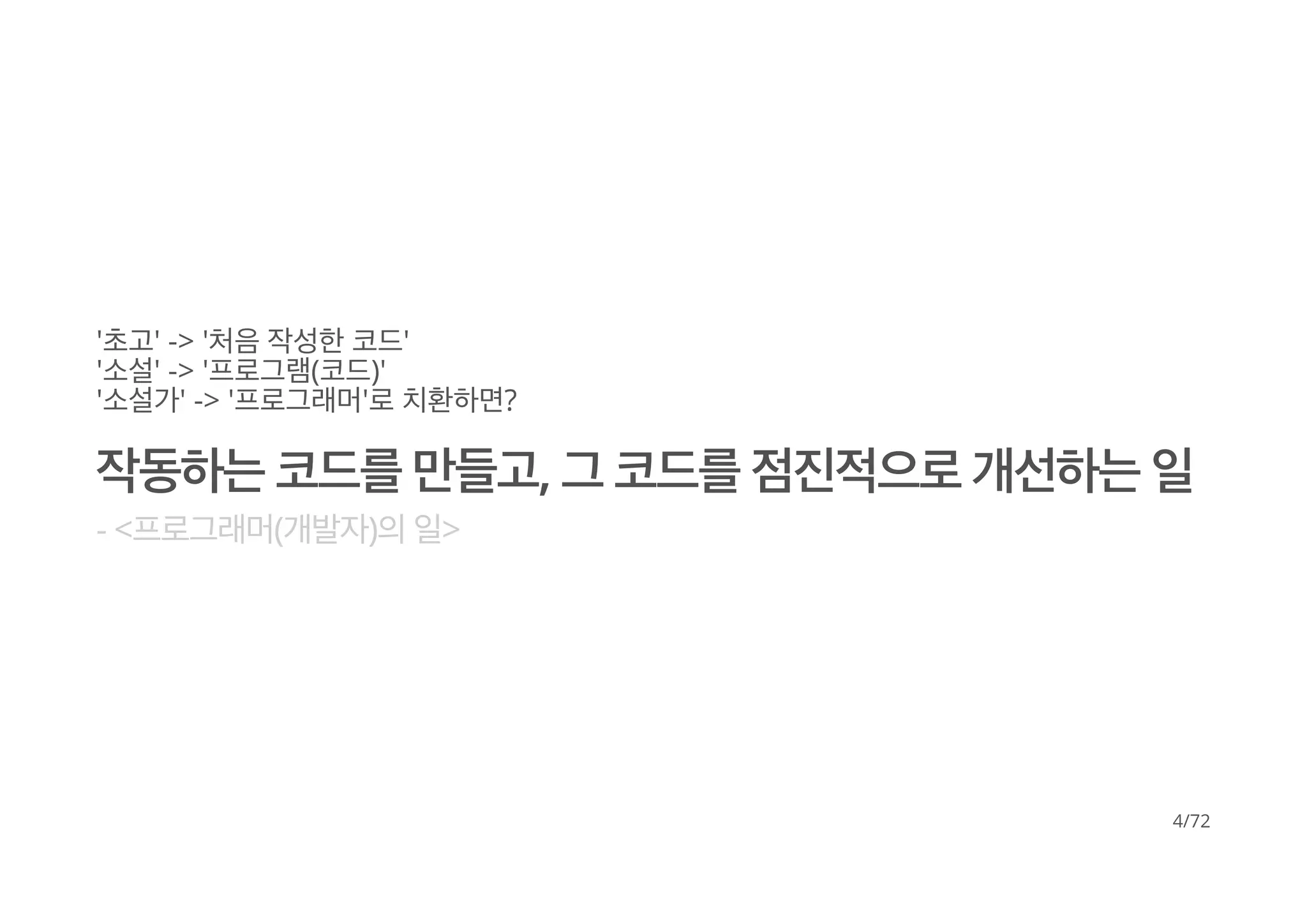

4. '초고' -> '처음 작성한 코드'
'소설' -> '프로그램(코드)'
'소설가' -> '프로그래머'로 치환하면?
작동하는 코드를 만들고, 그 코드를 점진적으로 개선하는 일
- <프로그래머(개발자)의 일>
4/72

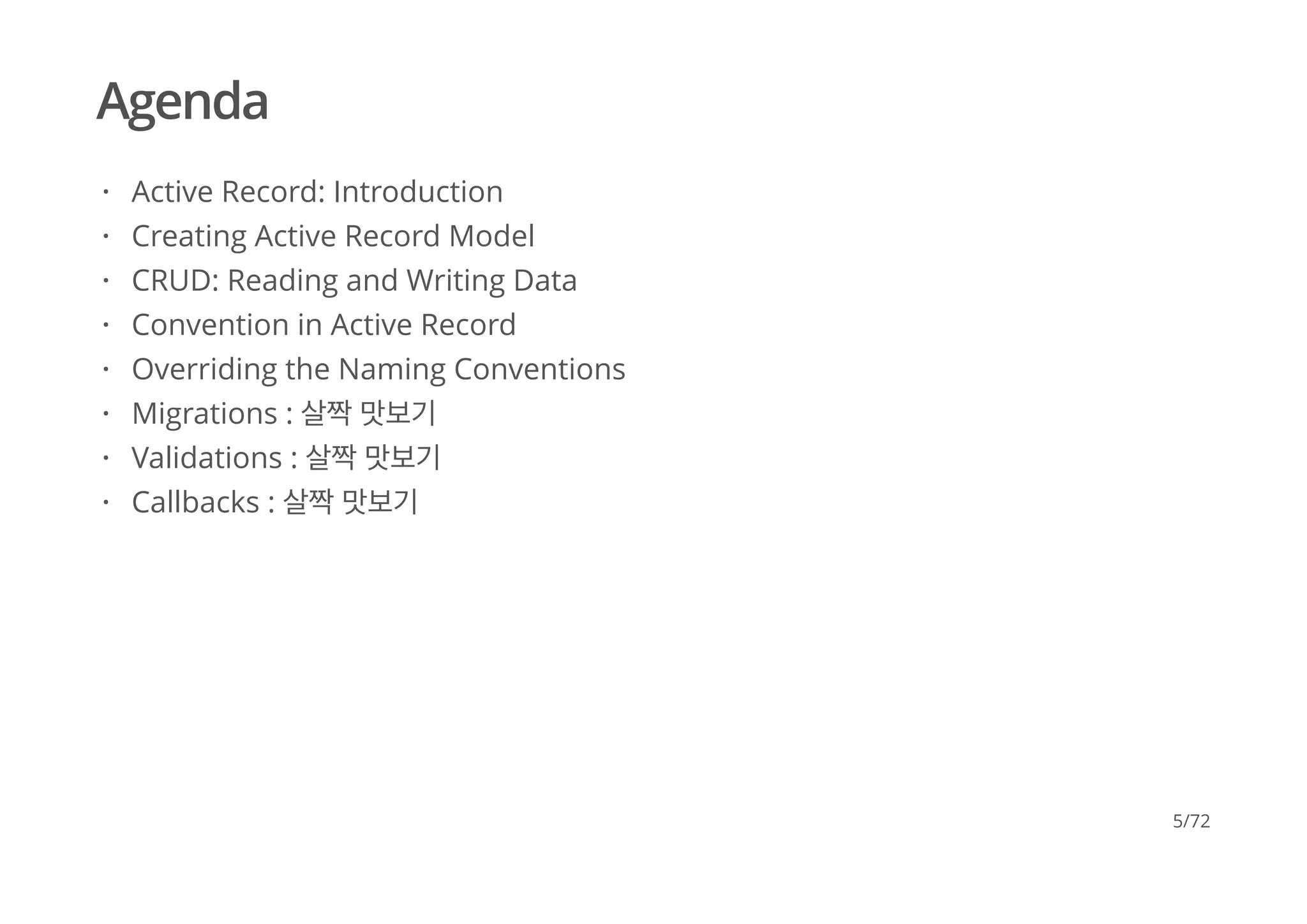

5. Agenda
Active Record: Introduction
Creating Active Record Model
CRUD: Reading and Writing Data
Convention in Active Record
Overriding the Naming Conventions
Migrations : 살짝 맛보기
Validations : 살짝 맛보기
Callbacks : 살짝 맛보기
·
·
·
·
·
·
·
·
5/72

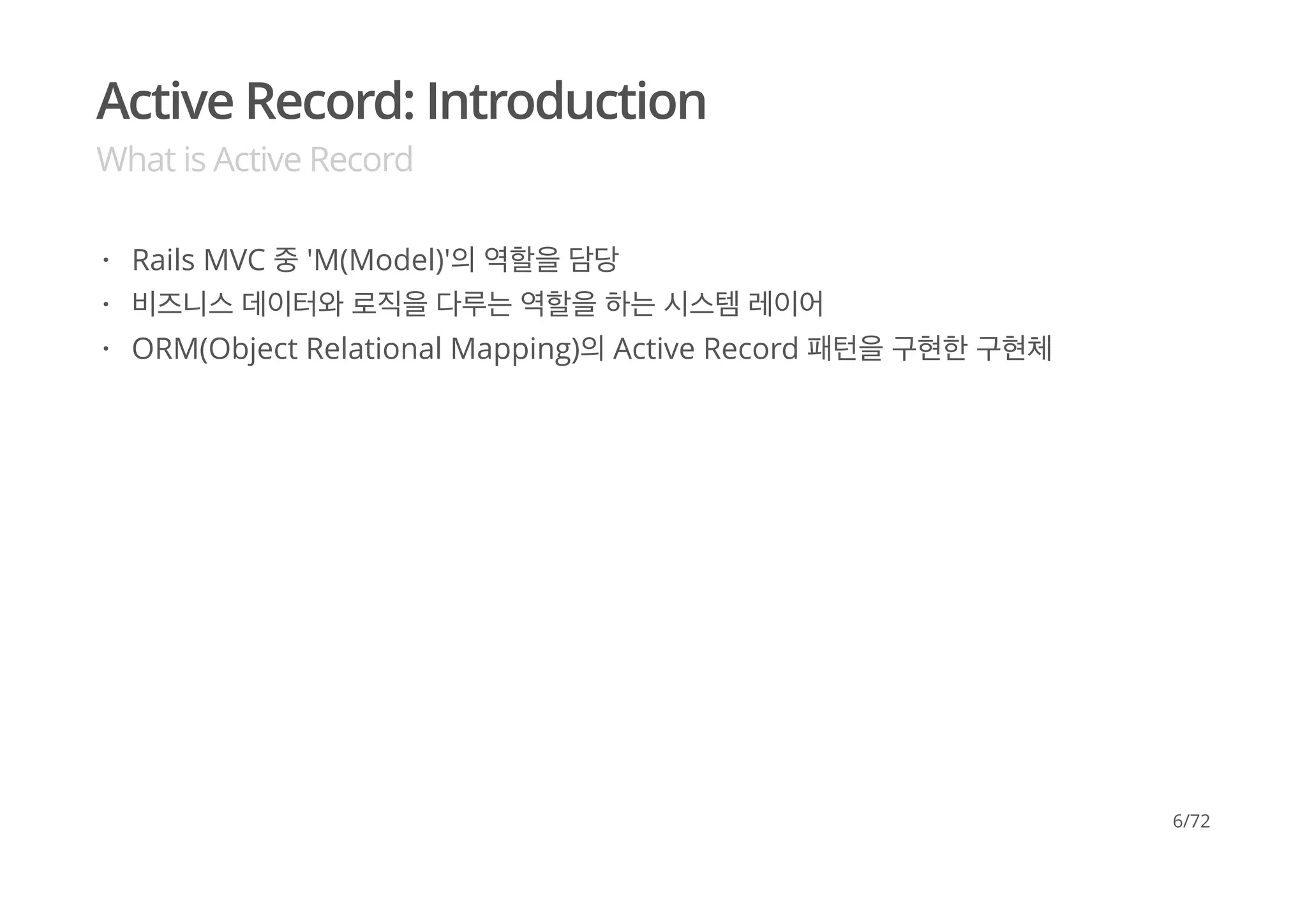

6. Active Record: Introduction
What is Active Record
Rails MVC 중 'M(Model)'의 역할을 담당
비즈니스 데이터와 로직을 다루는 역할을 하는 시스템 레이어
ORM(Object Relational Mapping)의 Active Record 패턴을 구현한 구현체
·
·
·
6/72

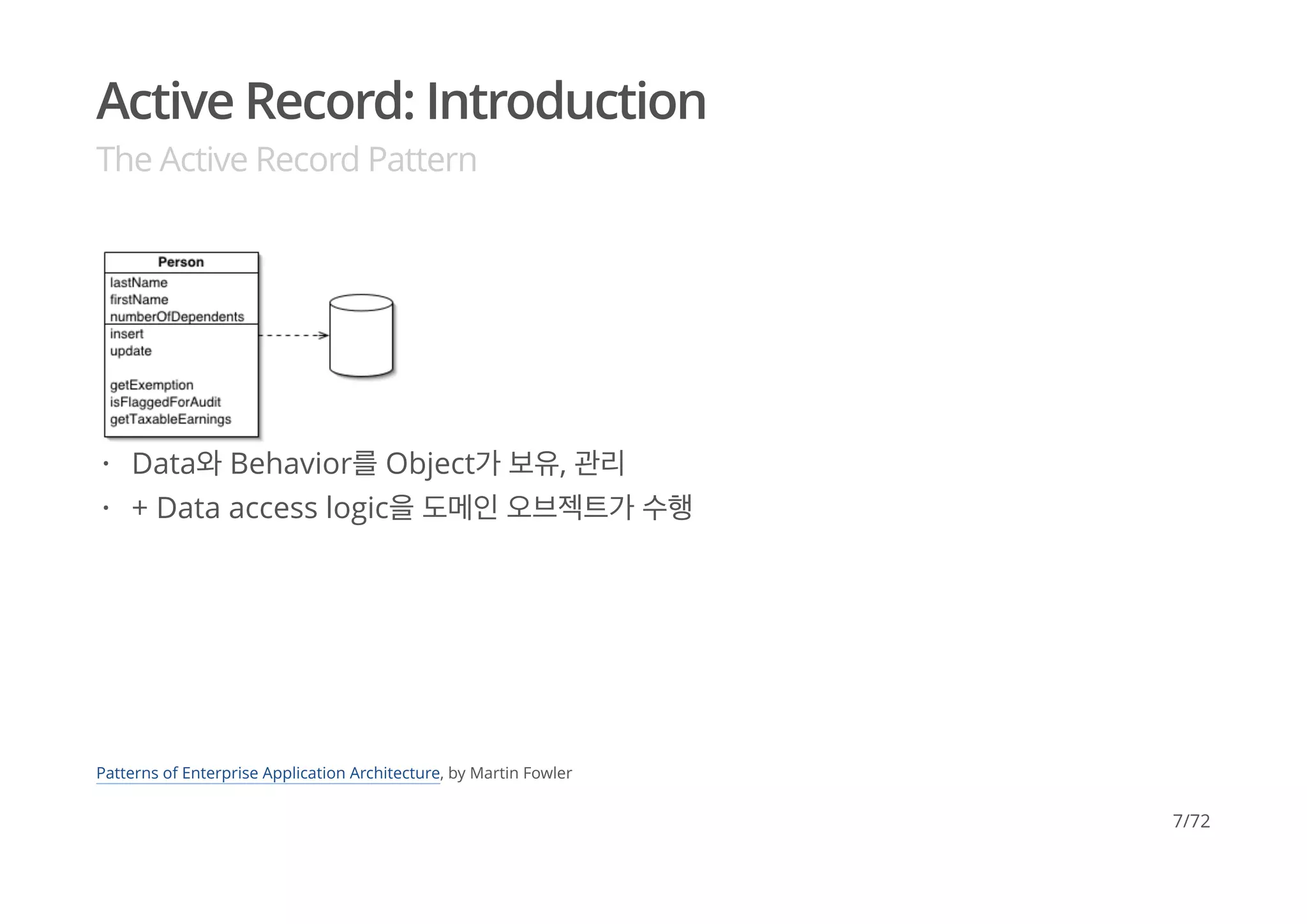

7. Active Record: Introduction
The Active Record Pattern
Patterns of Enterprise Application Architecture, by Martin Fowler
Data와 Behavior를 Object가 보유, 관리
+ Data access logic을 도메인 오브젝트가 수행
·
·
7/72

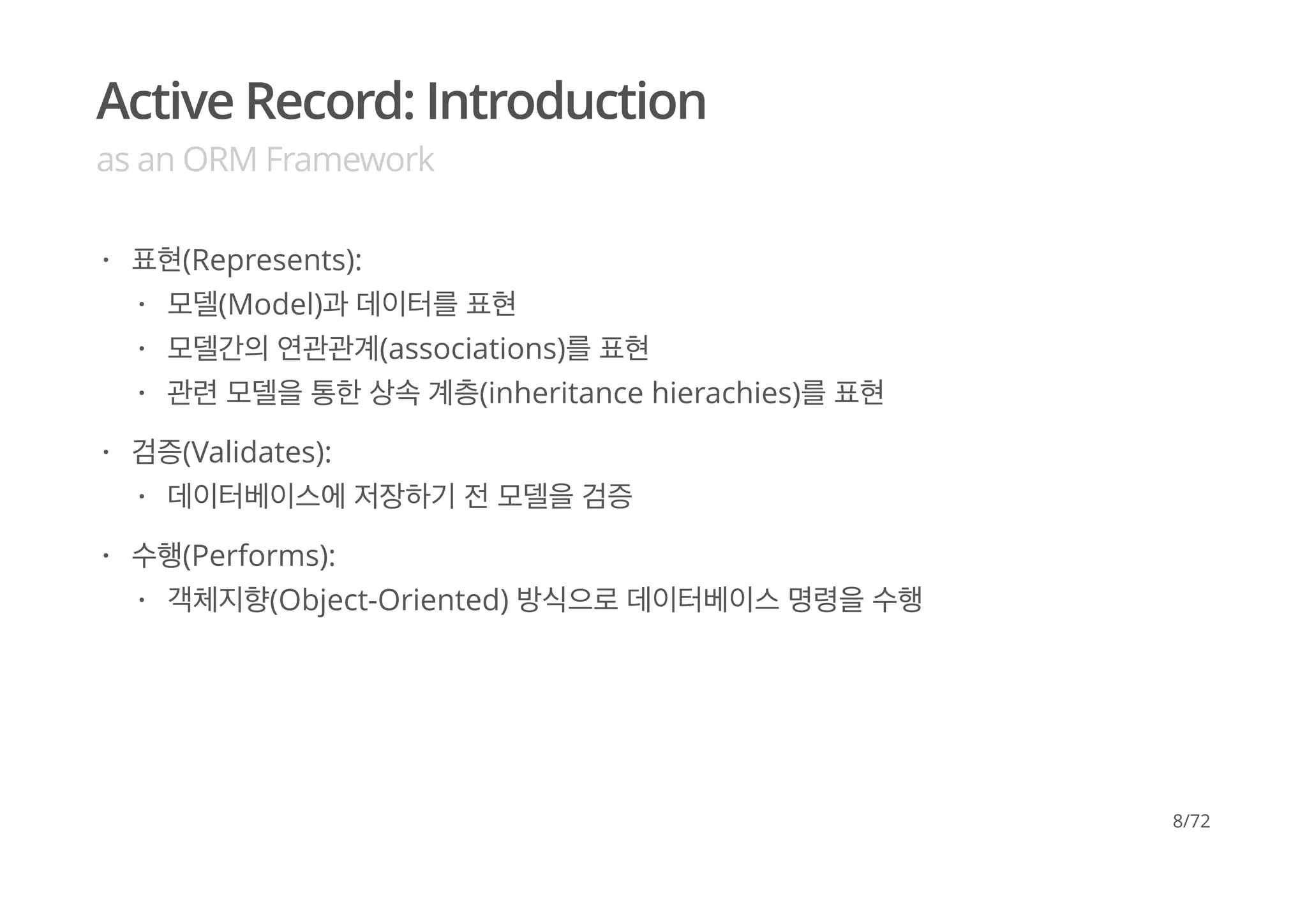

8. Active Record: Introduction
as an ORM Framework
표현(Represents):
검증(Validates):
수행(Performs):
·
모델(Model)과 데이터를 표현
모델간의 연관관계(associations)를 표현
관련 모델을 통한 상속 계층(inheritance hierachies)를 표현
·
·
·
·
데이터베이스에 저장하기 전 모델을 검증·
·
객체지향(Object-Oriented) 방식으로 데이터베이스 명령을 수행·
8/72

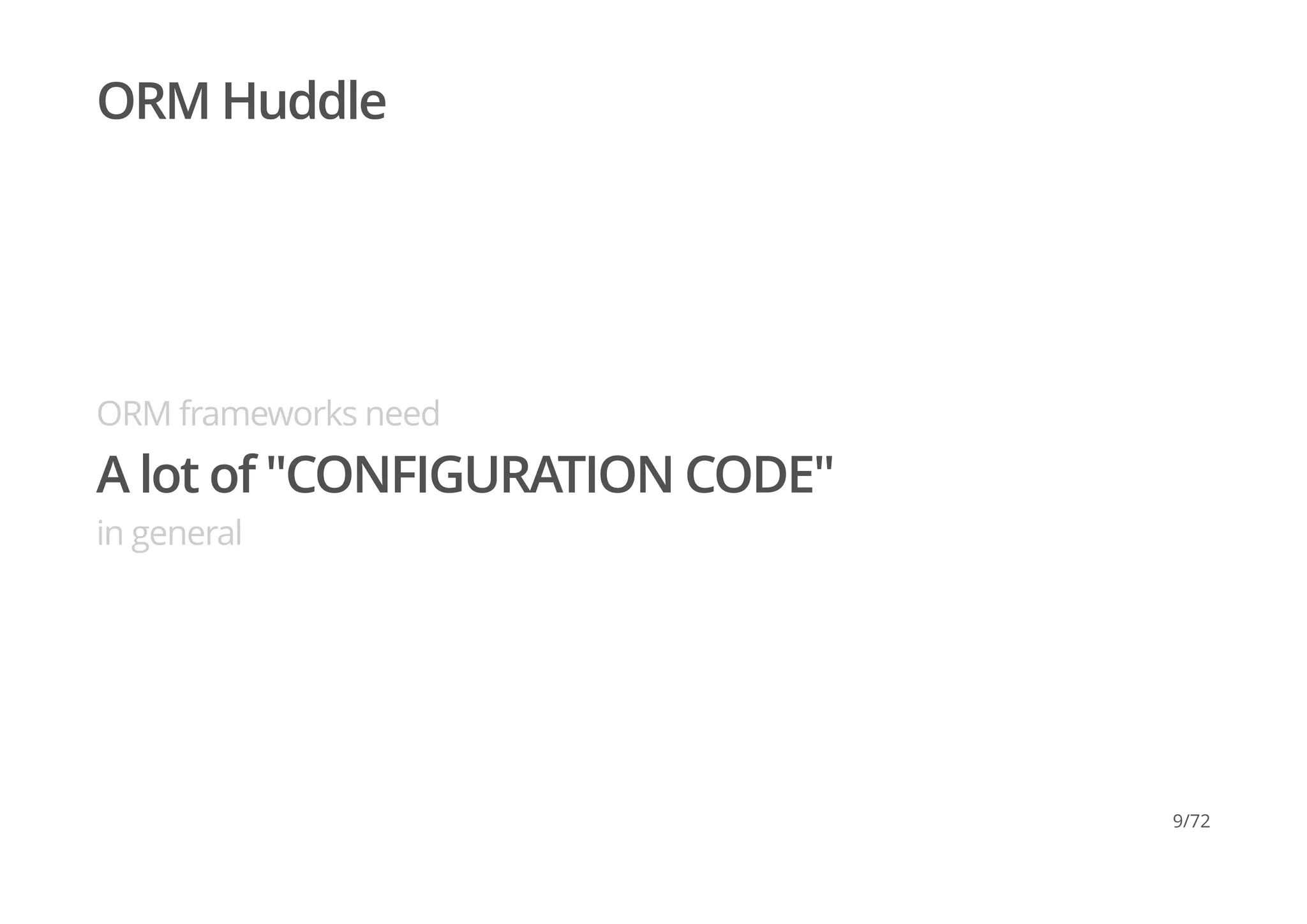

9. ORM Huddle
ORM frameworks need
A lot of "CONFIGURATION CODE"
in general
9/72

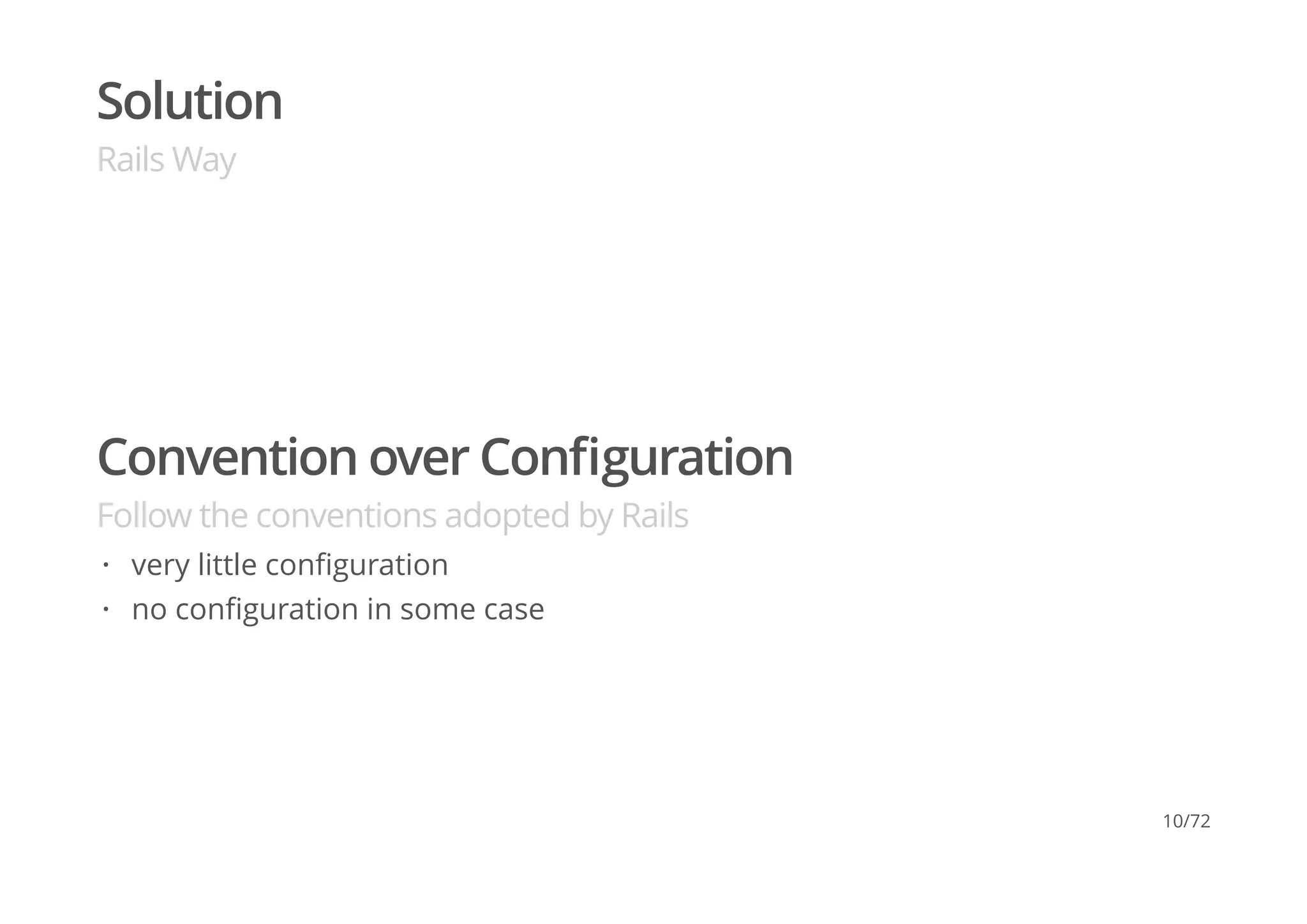

10. Solution
Rails Way
Convention over Configuration
Follow the conventions adopted by Rails
very little configuration
no configuration in some case
·
·
10/72

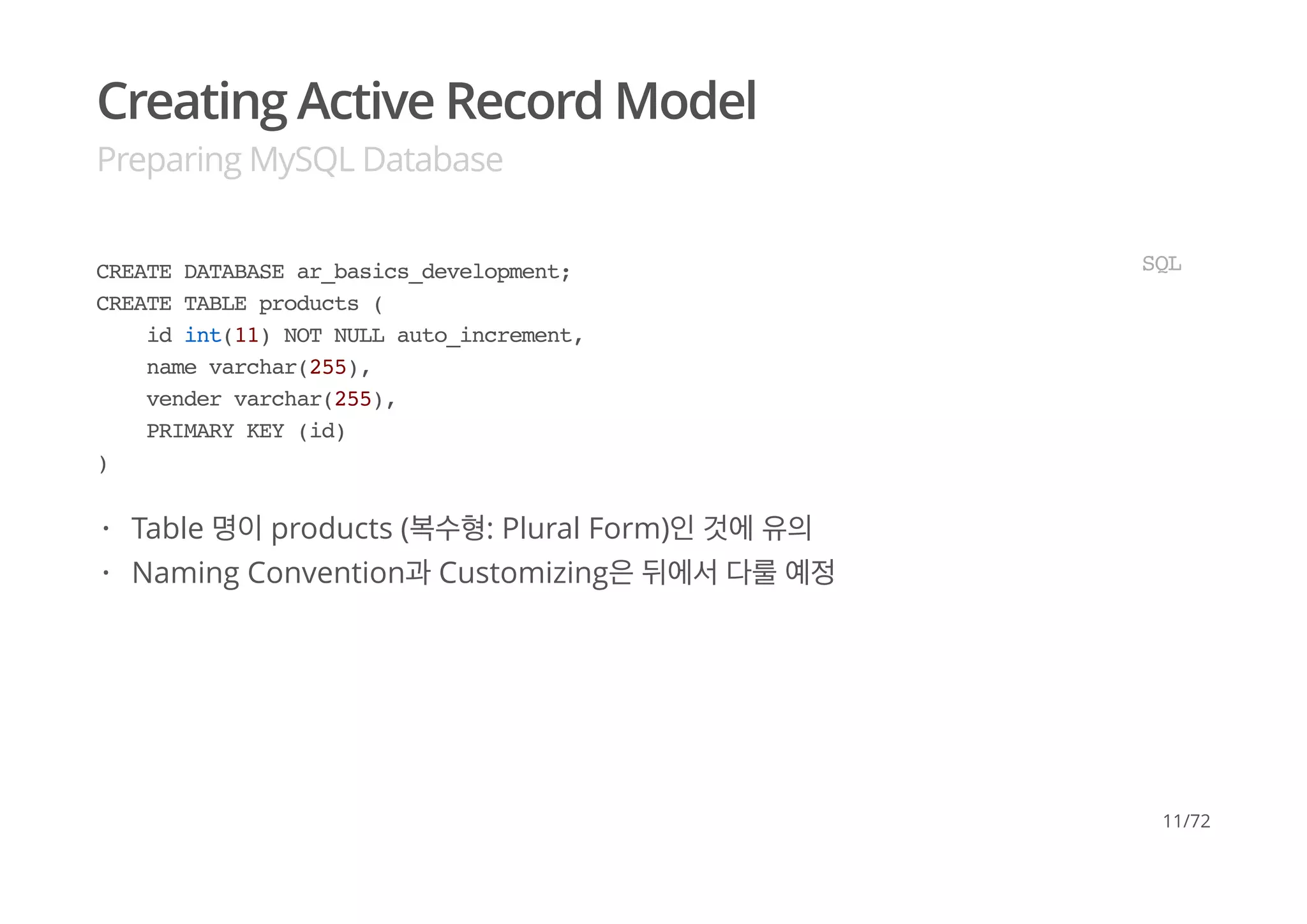

11. Creating Active Record Model
Preparing MySQL Database
CREATE DATABASE ar_basics_development;
CREATE TABLE products (
id int(11) NOT NULL auto_increment,
name varchar(255),
vender varchar(255),
PRIMARY KEY (id)
)
SQL
Table 명이 products (복수형: Plural Form)인 것에 유의
Naming Convention과 Customizing은 뒤에서 다룰 예정
·
·
11/72

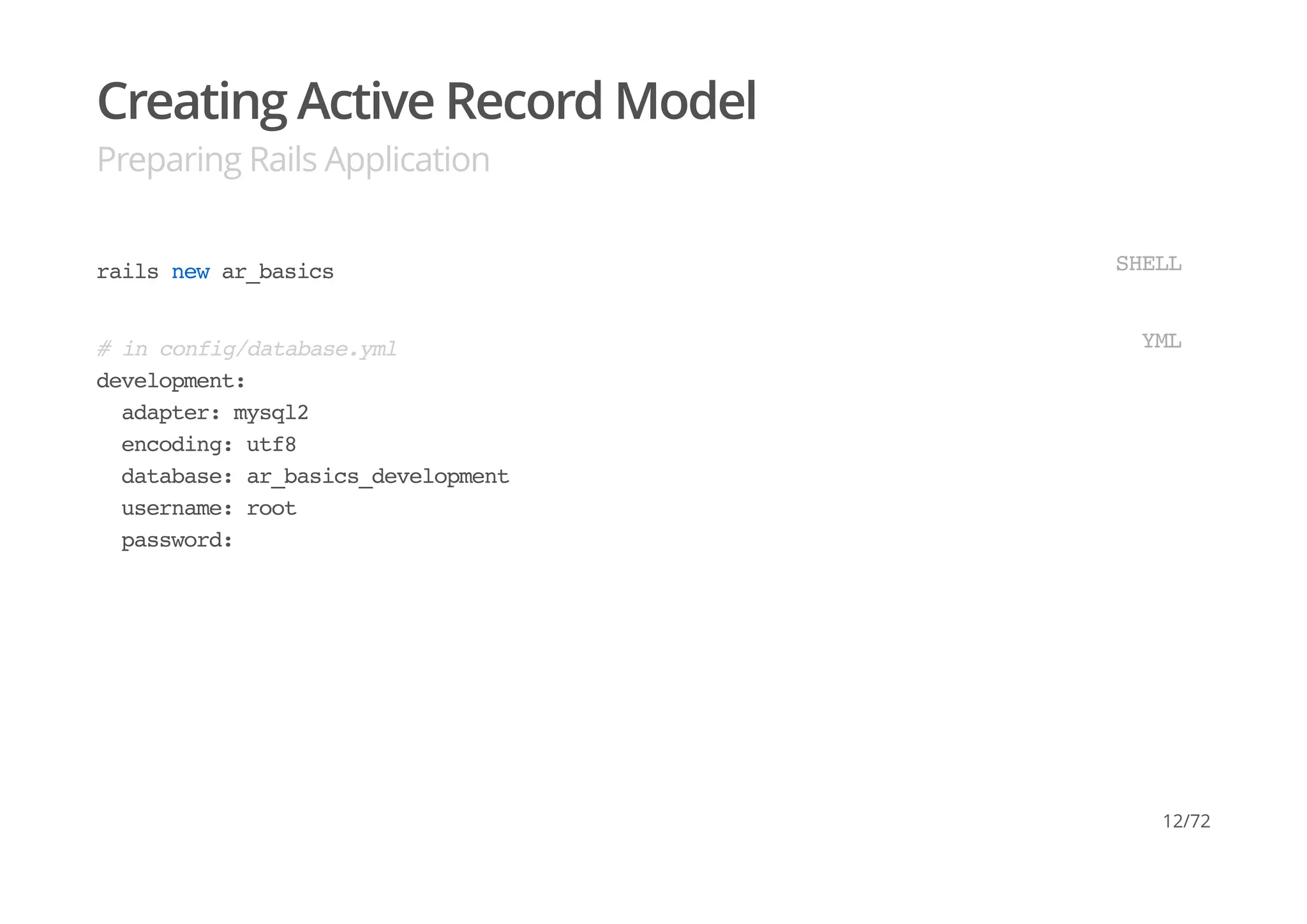

12. Creating Active Record Model
Preparing Rails Application
rails new ar_basics SHELL
# in config/database.yml
development:
adapter: mysql2
encoding: utf8
database: ar_basics_development
username: root
password:
YML
12/72

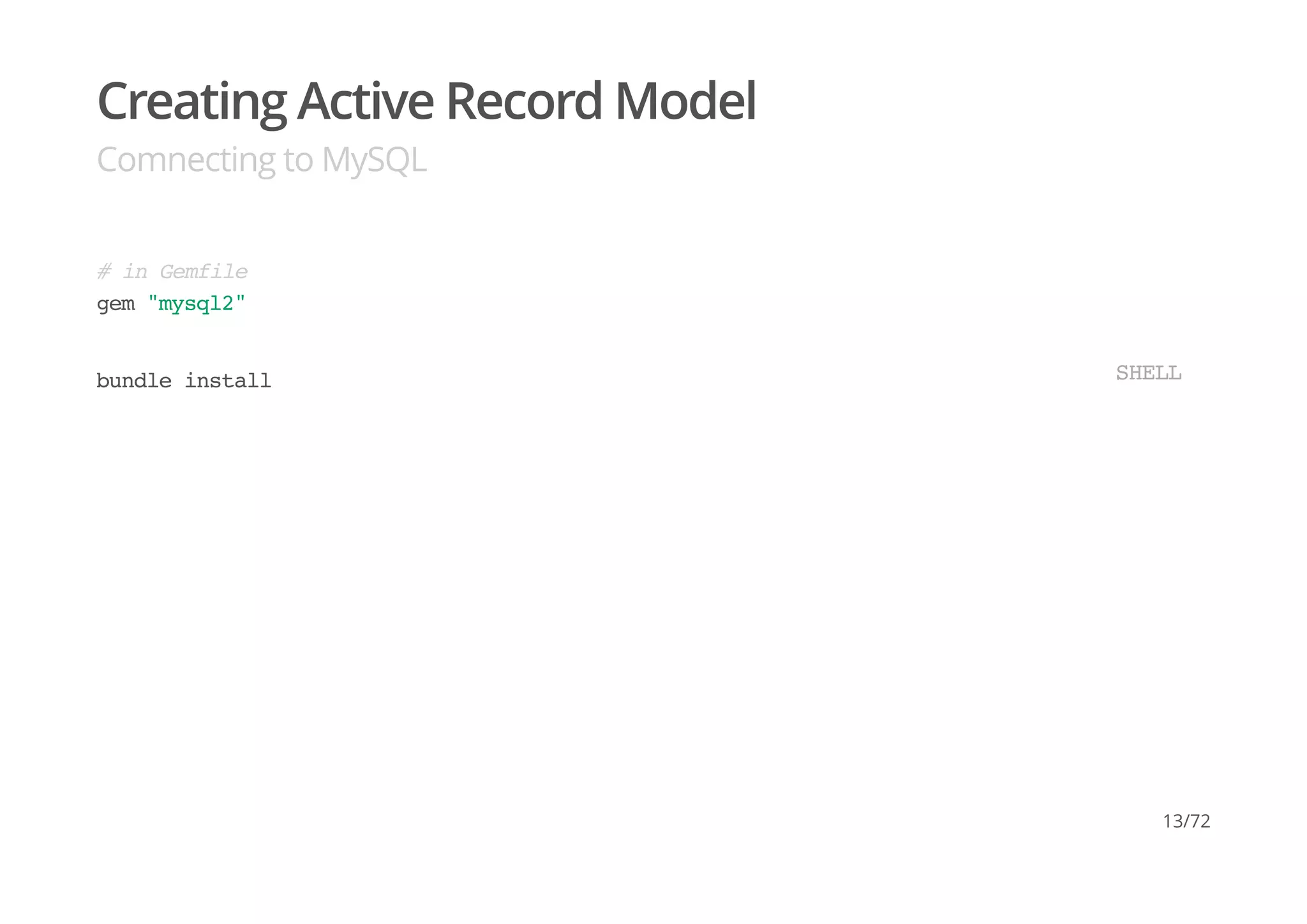

13. Creating Active Record Model
Comnecting to MySQL
# in Gemfile
gem "mysql2"
bundle install SHELL
13/72

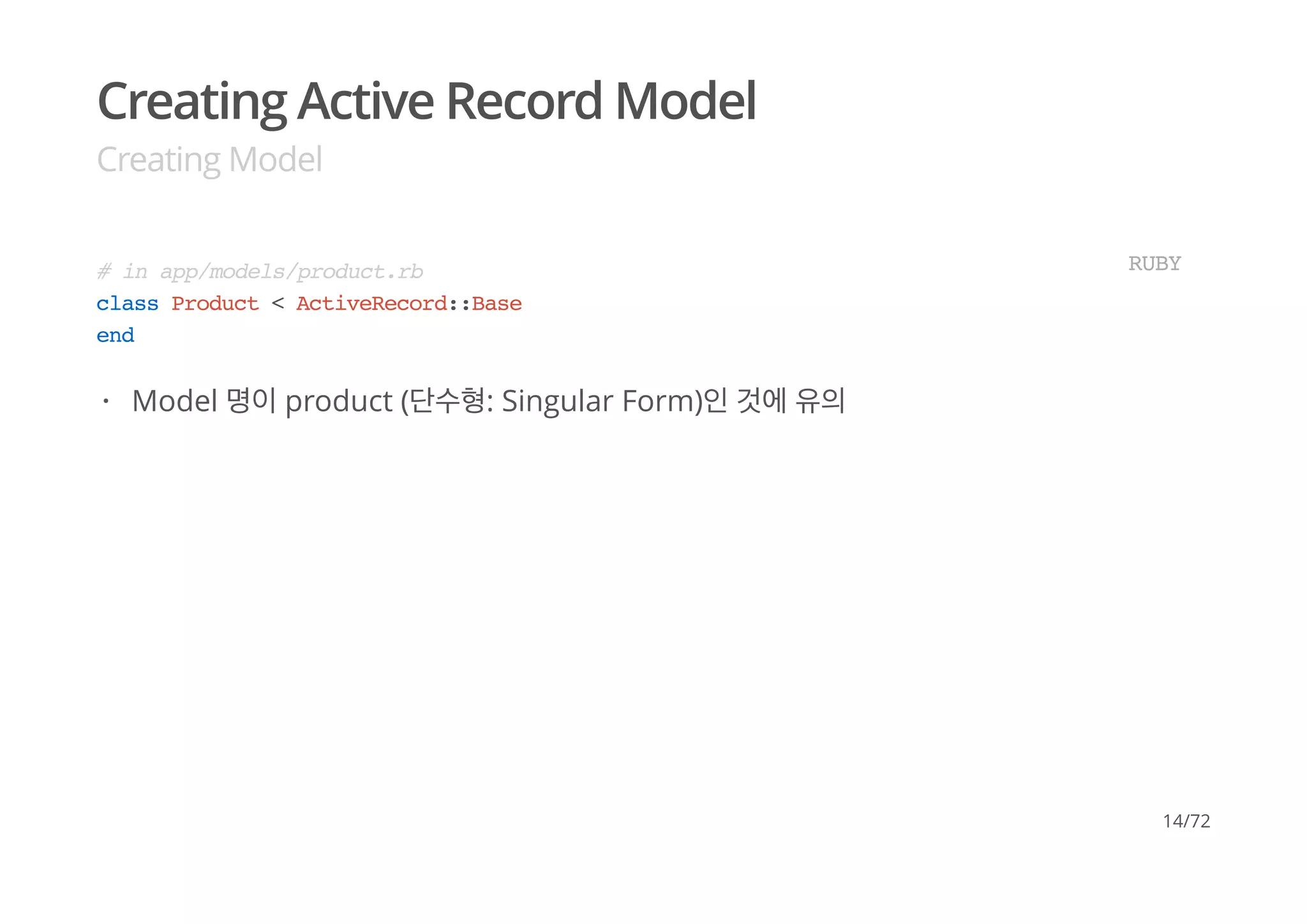

14. Creating Active Record Model
Creating Model
# in app/models/product.rb
class Product < ActiveRecord::Base
end
RUBY
Model 명이 product (단수형: Singular Form)인 것에 유의·
14/72

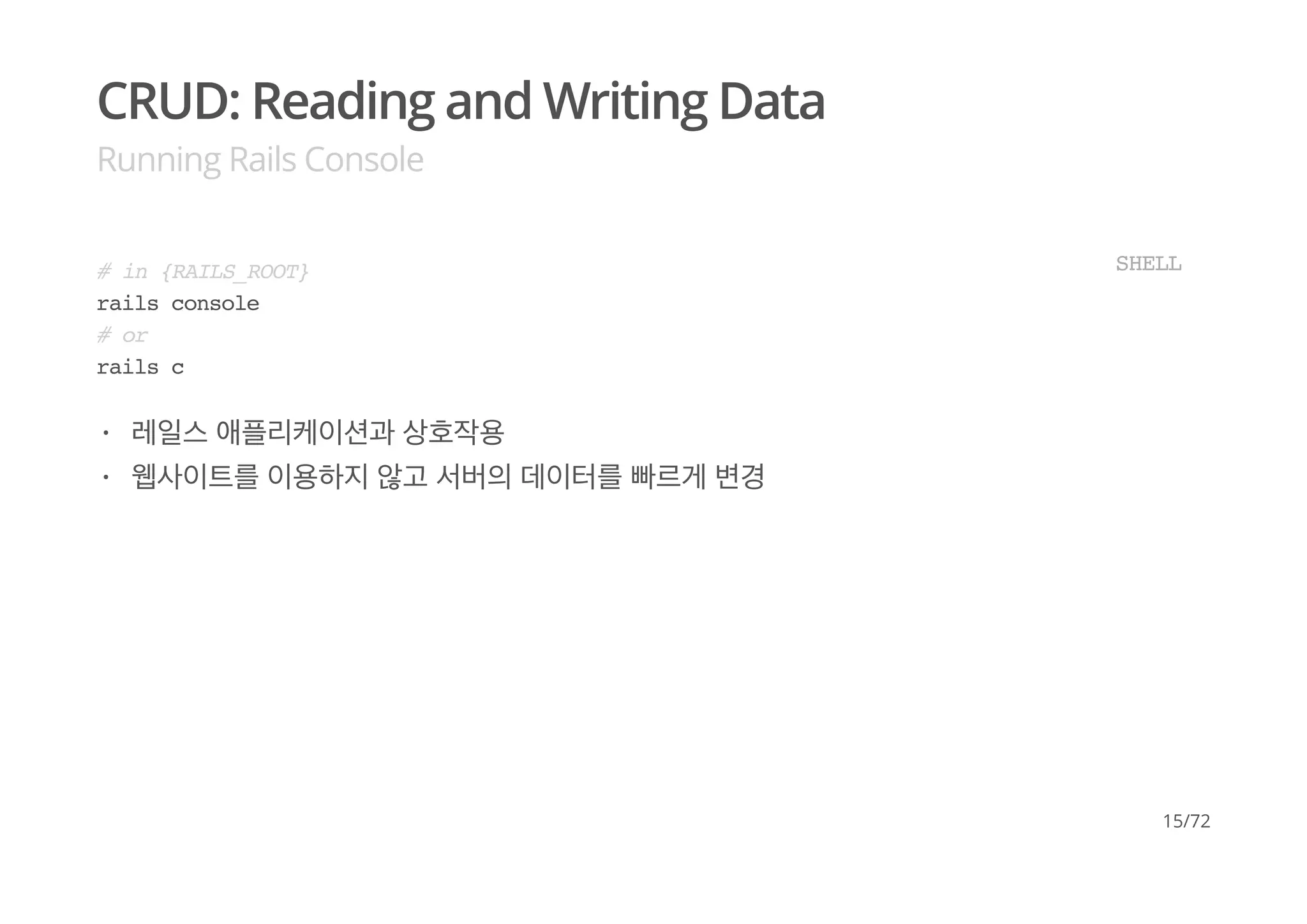

15. CRUD: Reading and Writing Data
Running Rails Console
# in {RAILS_ROOT}
rails console
# or
rails c
SHELL
레일스 애플리케이션과 상호작용
웹사이트를 이용하지 않고 서버의 데이터를 빠르게 변경
·
·
15/72

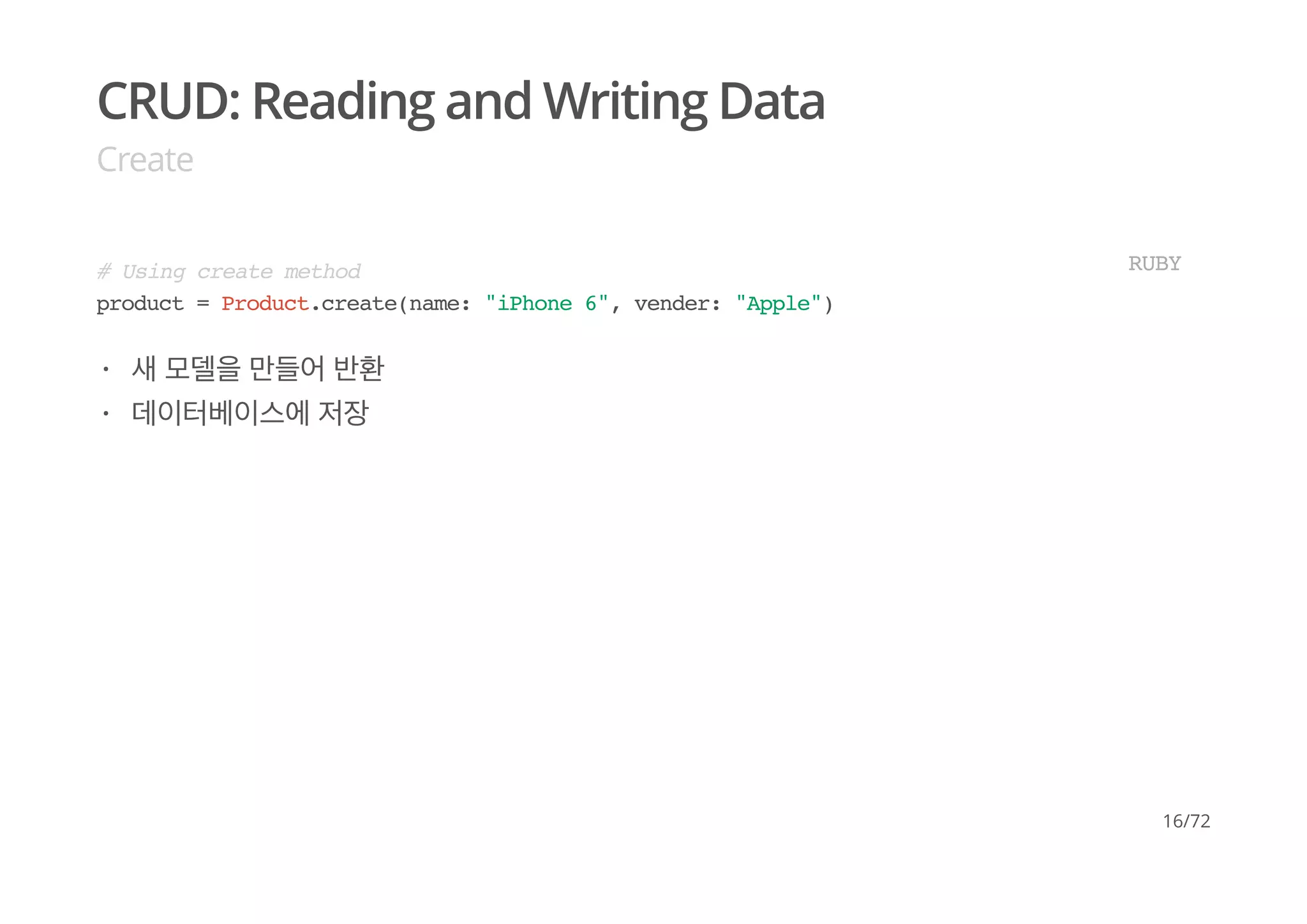

16. CRUD: Reading and Writing Data
Create
# Using create method
product = Product.create(name: "iPhone 6", vender: "Apple")
RUBY
새 모델을 만들어 반환
데이터베이스에 저장
·
·
16/72

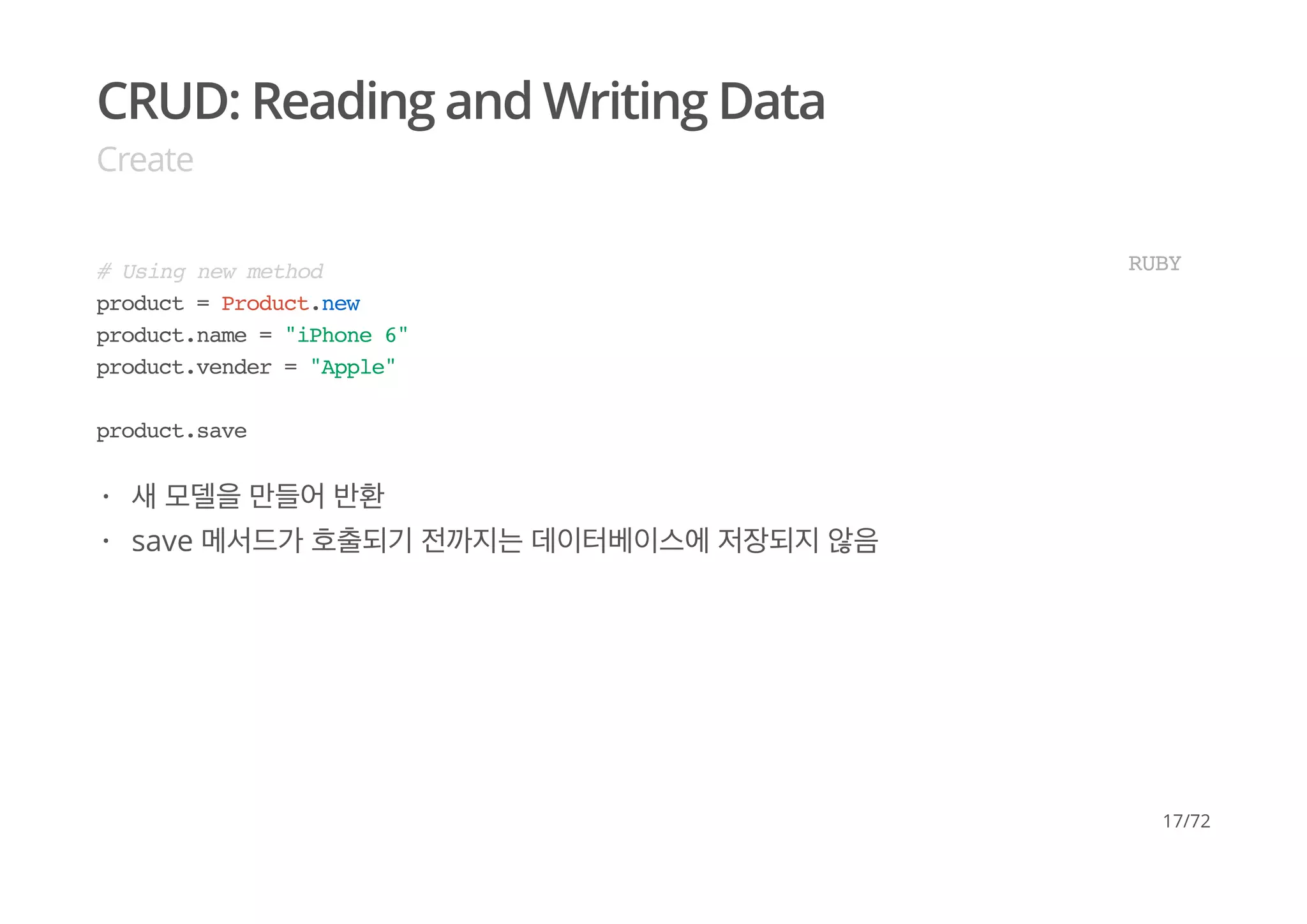

17. CRUD: Reading and Writing Data
Create
# Using new method
product = Product.new
product.name = "iPhone 6"
product.vender = "Apple"
product.save
RUBY
새 모델을 만들어 반환
save 메서드가 호출되기 전까지는 데이터베이스에 저장되지 않음
·
·
17/72

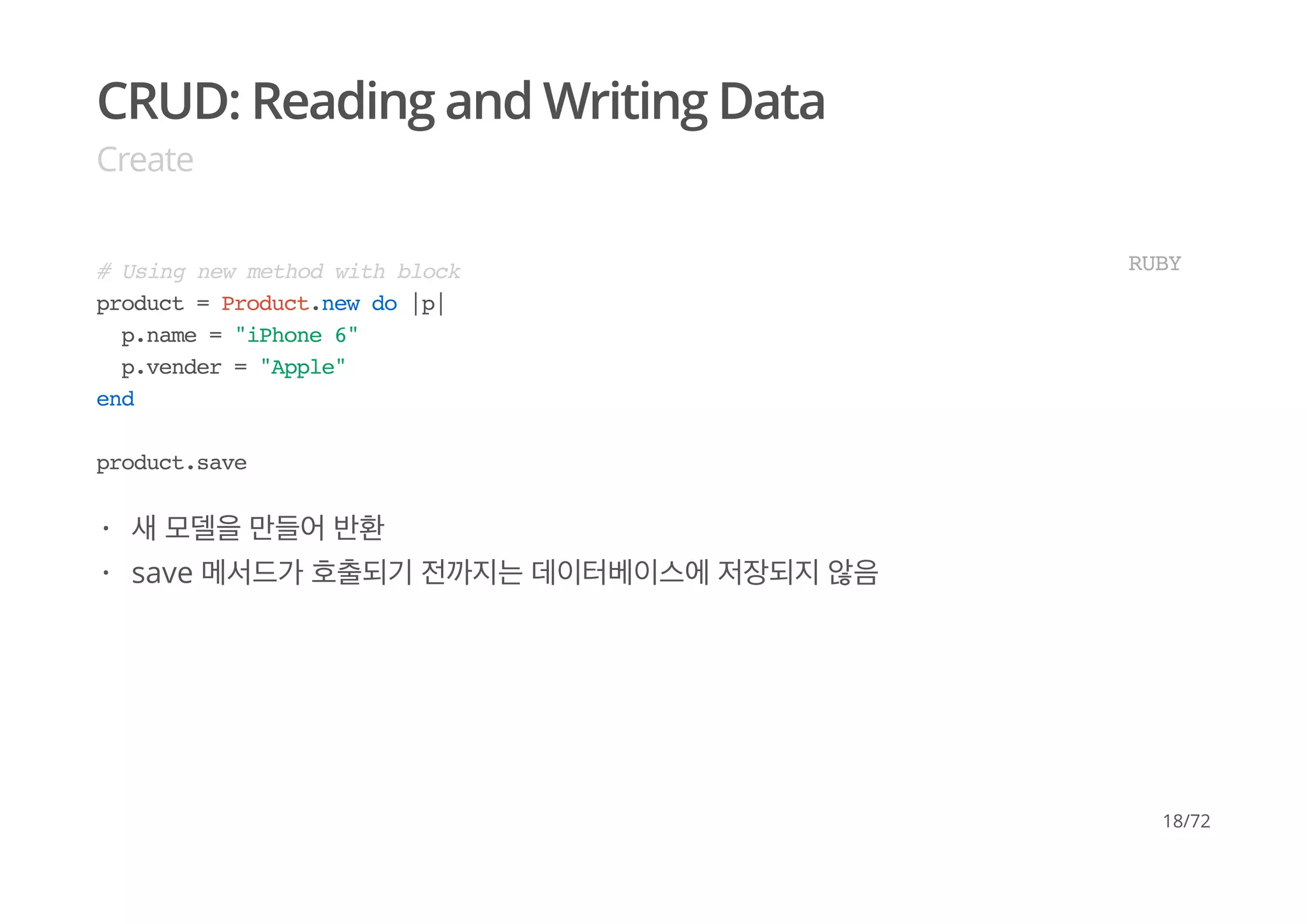

18. CRUD: Reading and Writing Data
Create
# Using new method with block
product = Product.new do |p|
p.name = "iPhone 6"
p.vender = "Apple"
end
product.save
RUBY
새 모델을 만들어 반환
save 메서드가 호출되기 전까지는 데이터베이스에 저장되지 않음
·
·
18/72

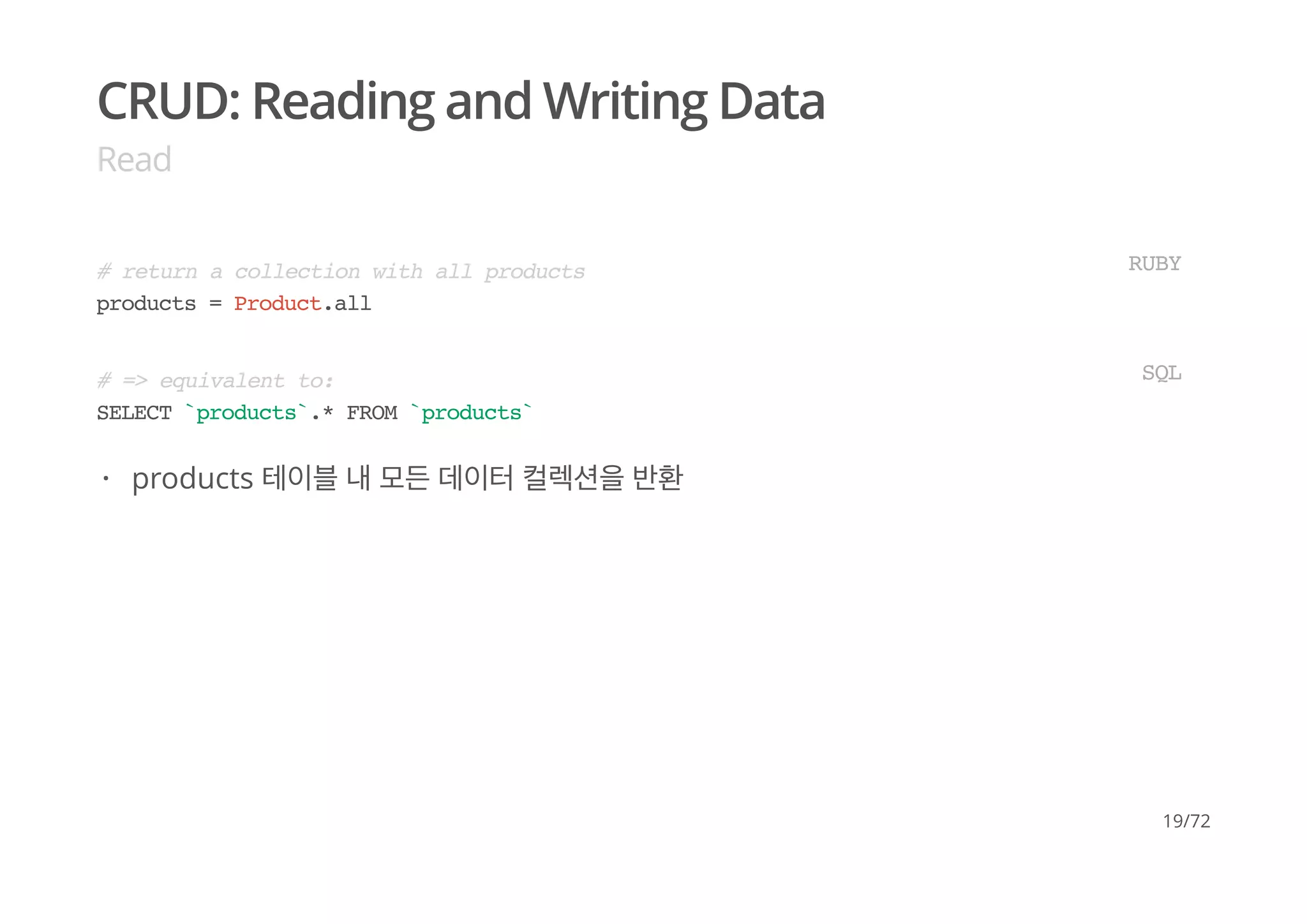

19. CRUD: Reading and Writing Data
Read
# return a collection with all products
products = Product.all
RUBY
# => equivalent to:
SELECT `products`.* FROM `products`
SQL
products 테이블 내 모든 데이터 컬렉션을 반환·
19/72

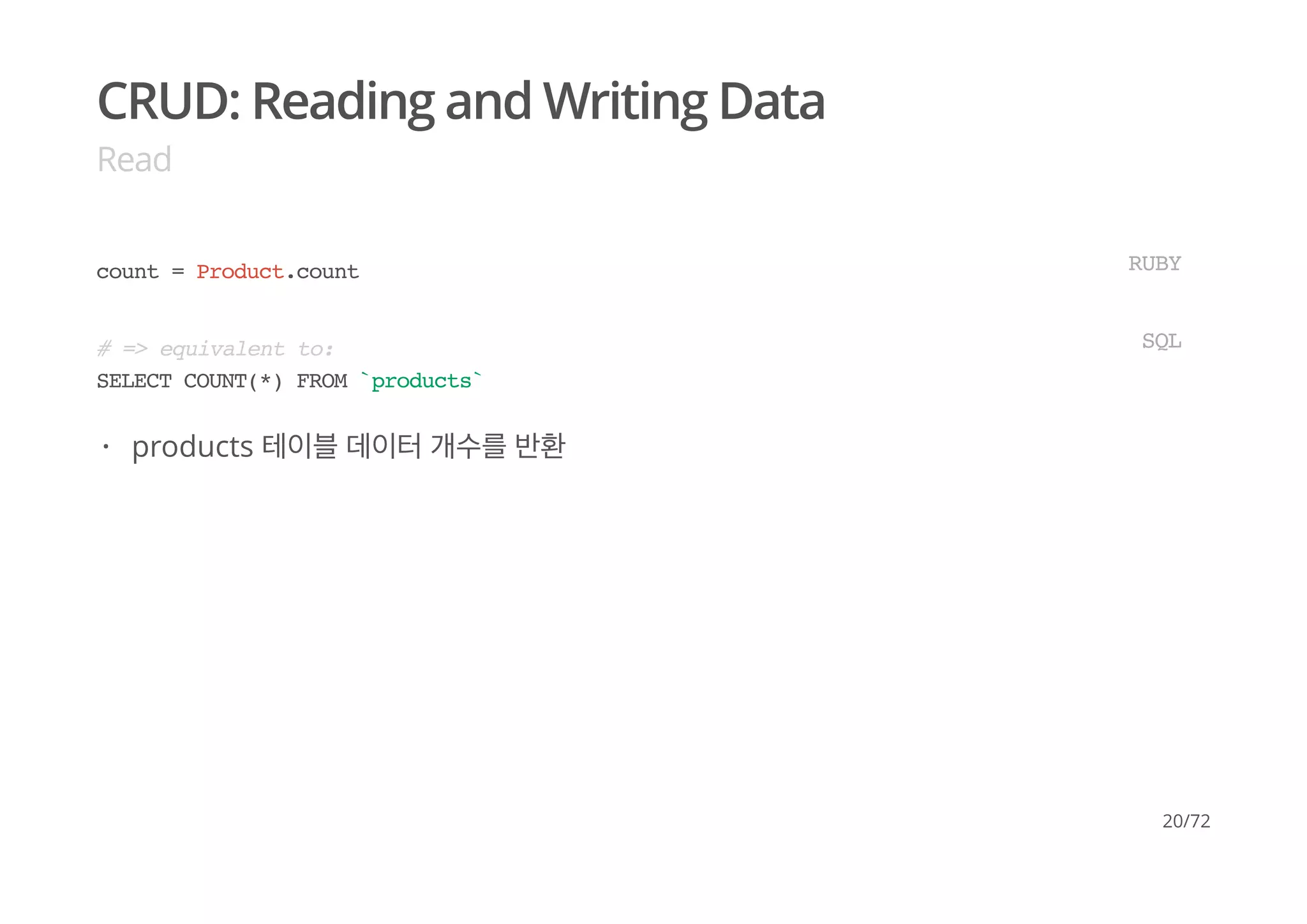

20. CRUD: Reading and Writing Data
Read
count = Product.count RUBY
# => equivalent to:
SELECT COUNT(*) FROM `products`
SQL
products 테이블 데이터 개수를 반환·
20/72

21. CRUD: Reading and Writing Data
Read
# return the first product
product = Product.first
RUBY
# => equivalent to:
SELECT `products`.*
FROM `products`
ORDER BY `products`.`id` ASC LIMIT 1
SQL
products 테이블 내 첫 번째 데이터를 반환
ORDER BY id ASC
·
·
21/72

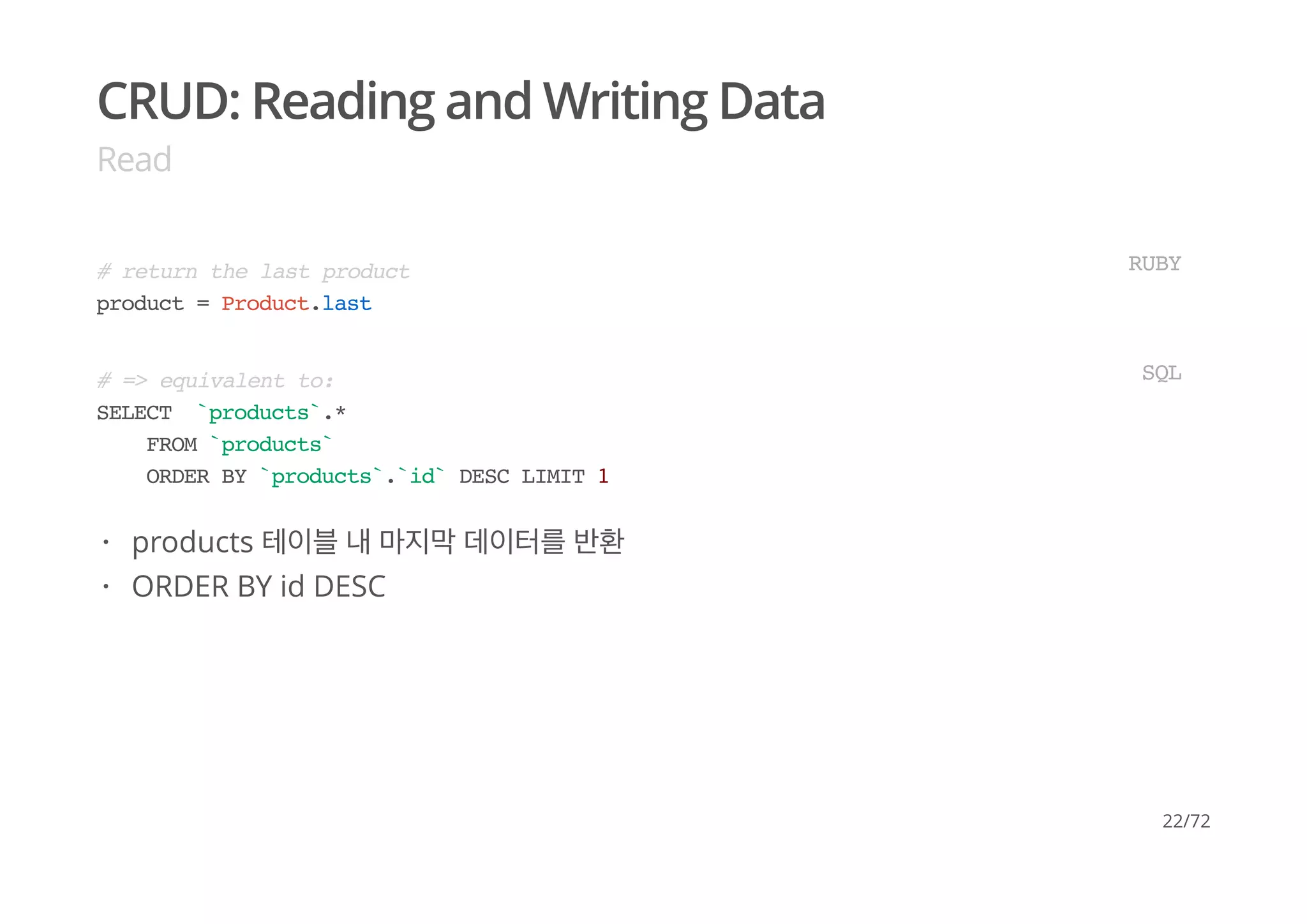

22. CRUD: Reading and Writing Data
Read
# return the last product
product = Product.last
RUBY
# => equivalent to:
SELECT `products`.*
FROM `products`
ORDER BY `products`.`id` DESC LIMIT 1
SQL
products 테이블 내 마지막 데이터를 반환
ORDER BY id DESC
·
·
22/72

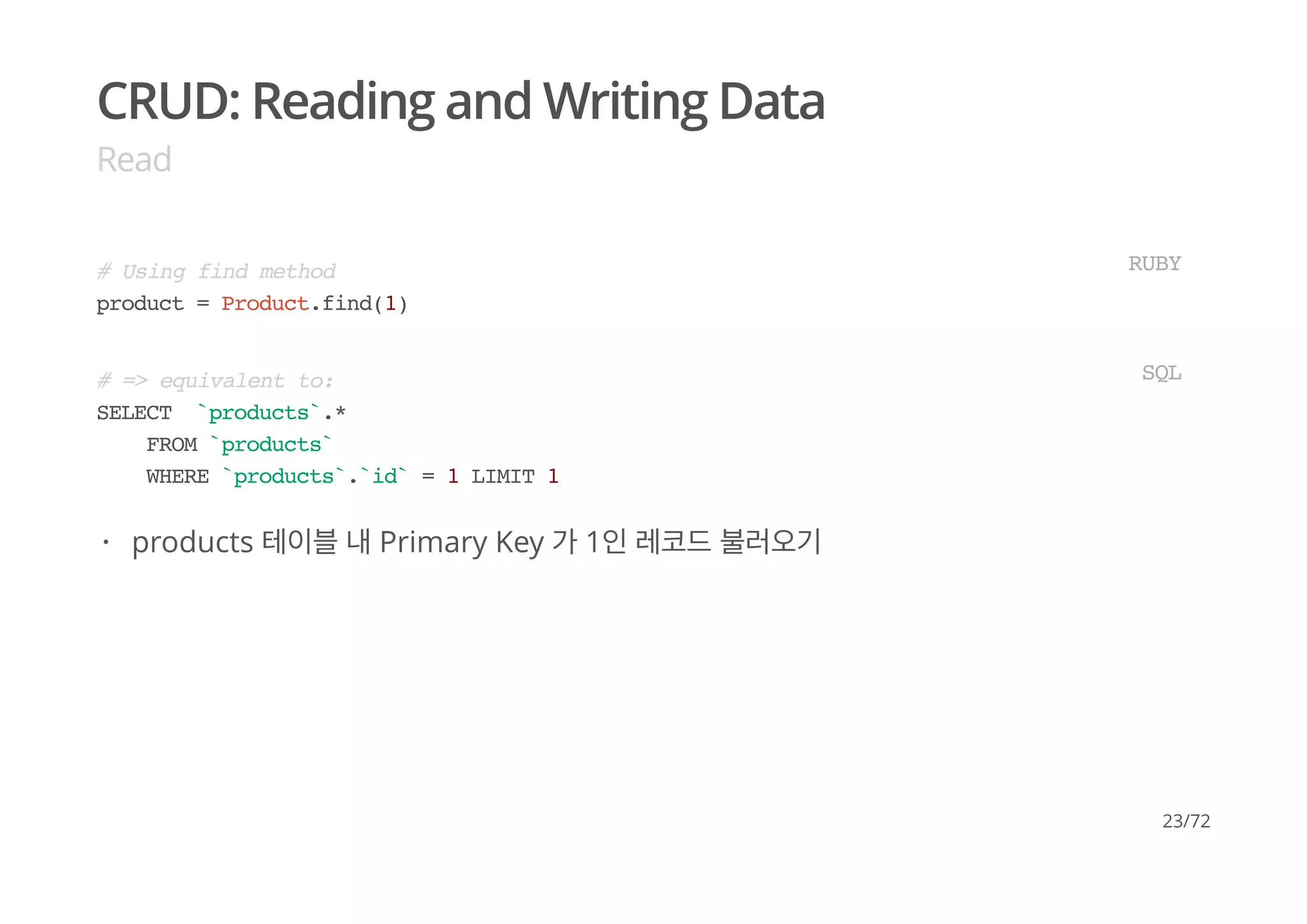

23. CRUD: Reading and Writing Data
Read
# Using find method
product = Product.find(1)
RUBY
# => equivalent to:
SELECT `products`.*
FROM `products`
WHERE `products`.`id` = 1 LIMIT 1
SQL
products 테이블 내 Primary Key 가 1인 레코드 불러오기·
23/72

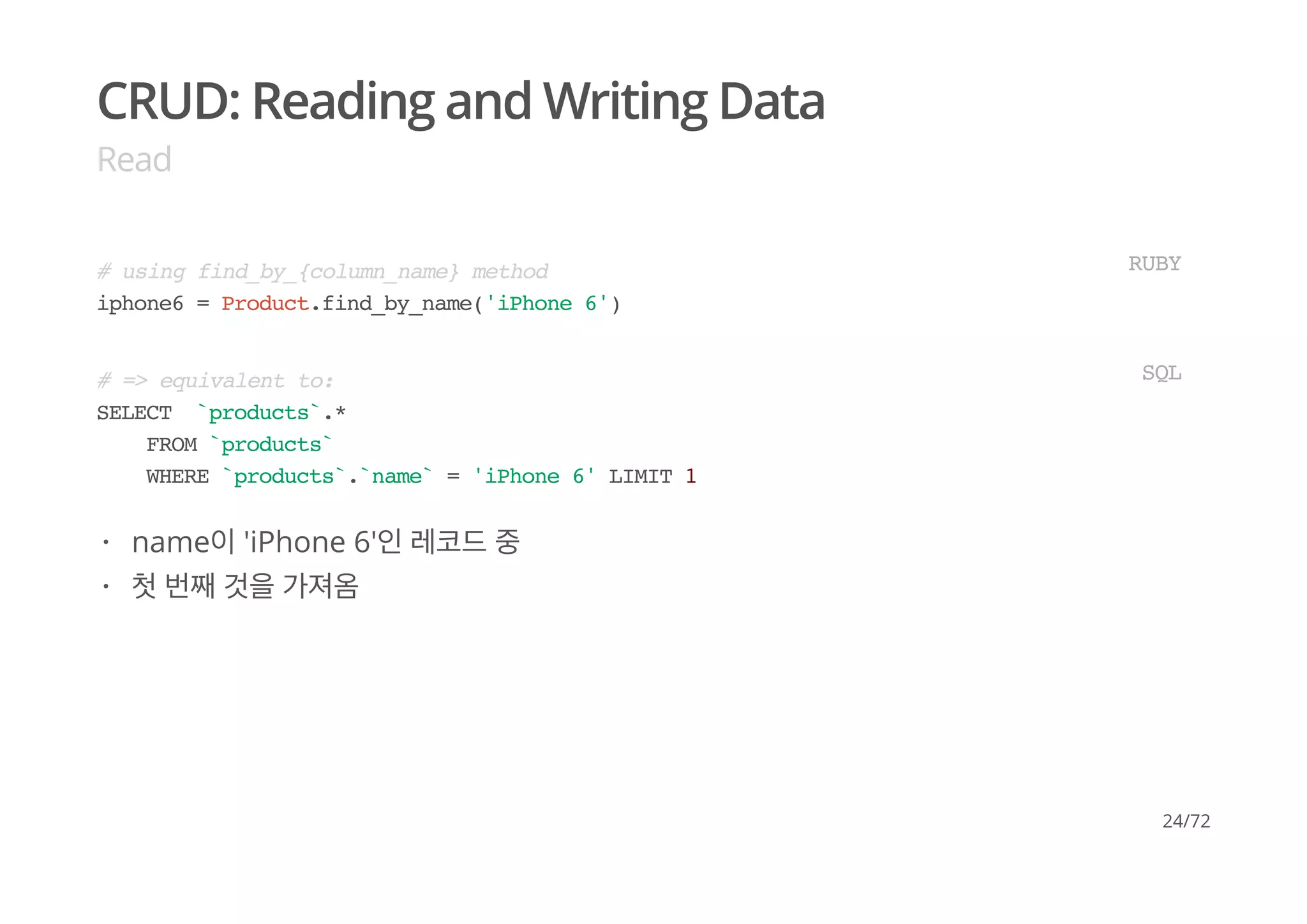

24. CRUD: Reading and Writing Data
Read
# using find_by_{column_name} method
iphone6 = Product.find_by_name('iPhone 6')
RUBY
# => equivalent to:
SELECT `products`.*
FROM `products`
WHERE `products`.`name` = 'iPhone 6' LIMIT 1
SQL
name이 'iPhone 6'인 레코드 중
첫 번째 것을 가져옴
·
·
24/72

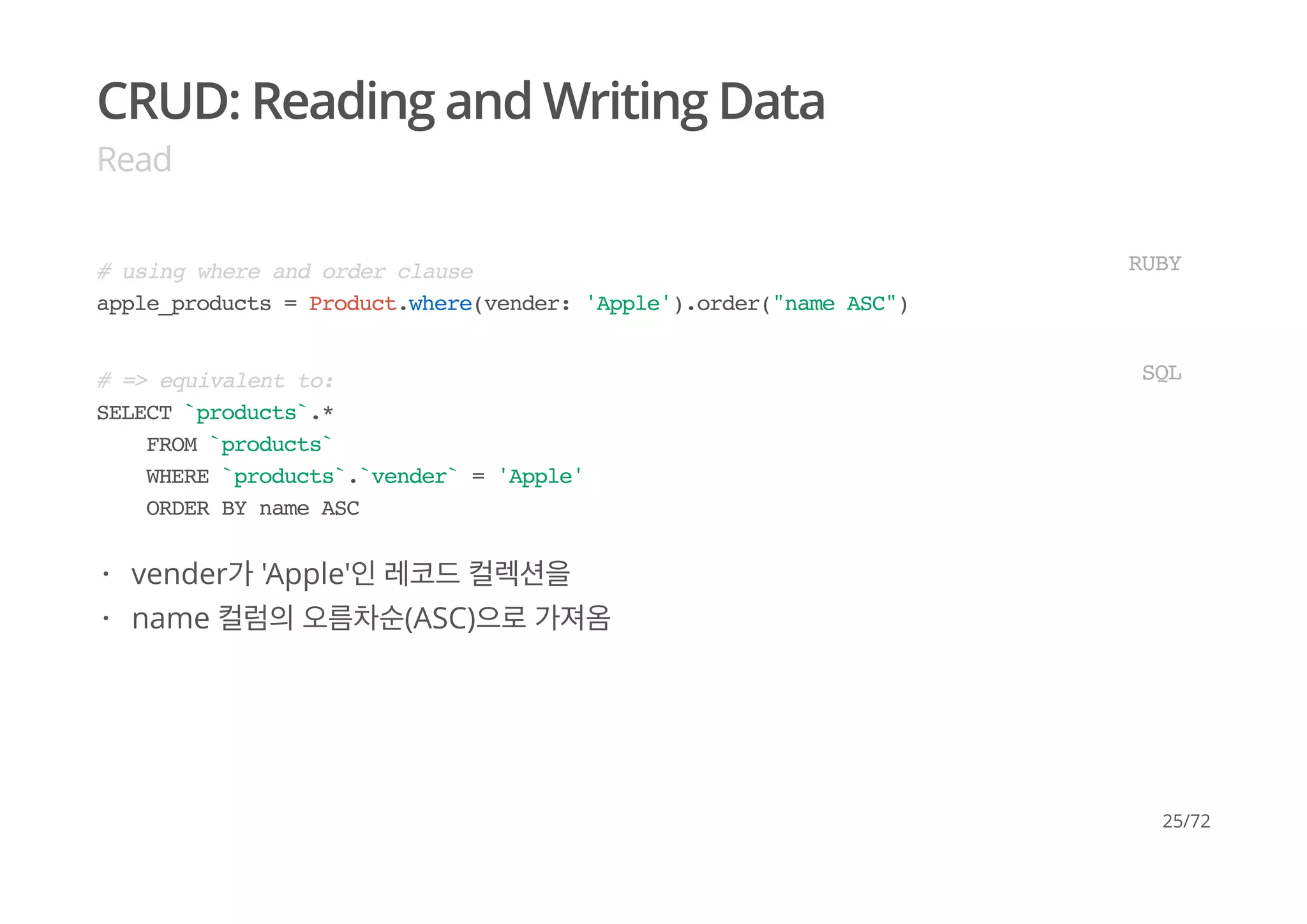

25. CRUD: Reading and Writing Data
Read
# using where and order clause
apple_products = Product.where(vender: 'Apple').order("name ASC")
RUBY
# => equivalent to:
SELECT `products`.*
FROM `products`
WHERE `products`.`vender` = 'Apple'
ORDER BY name ASC
SQL
vender가 'Apple'인 레코드 컬렉션을
name 컬럼의 오름차순(ASC)으로 가져옴
·
·
25/72

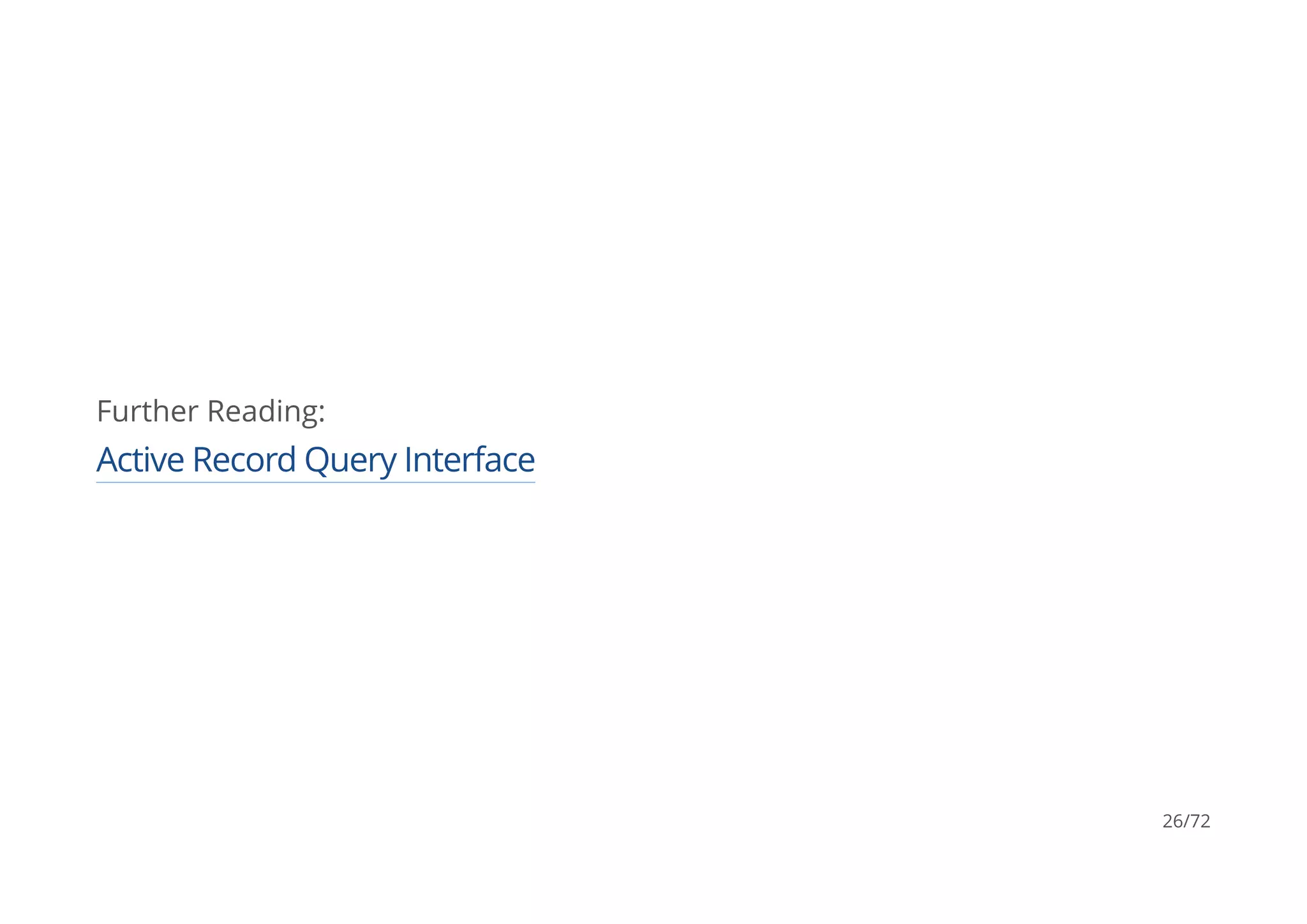

26. Further Reading:
Active Record Query Interface
26/72

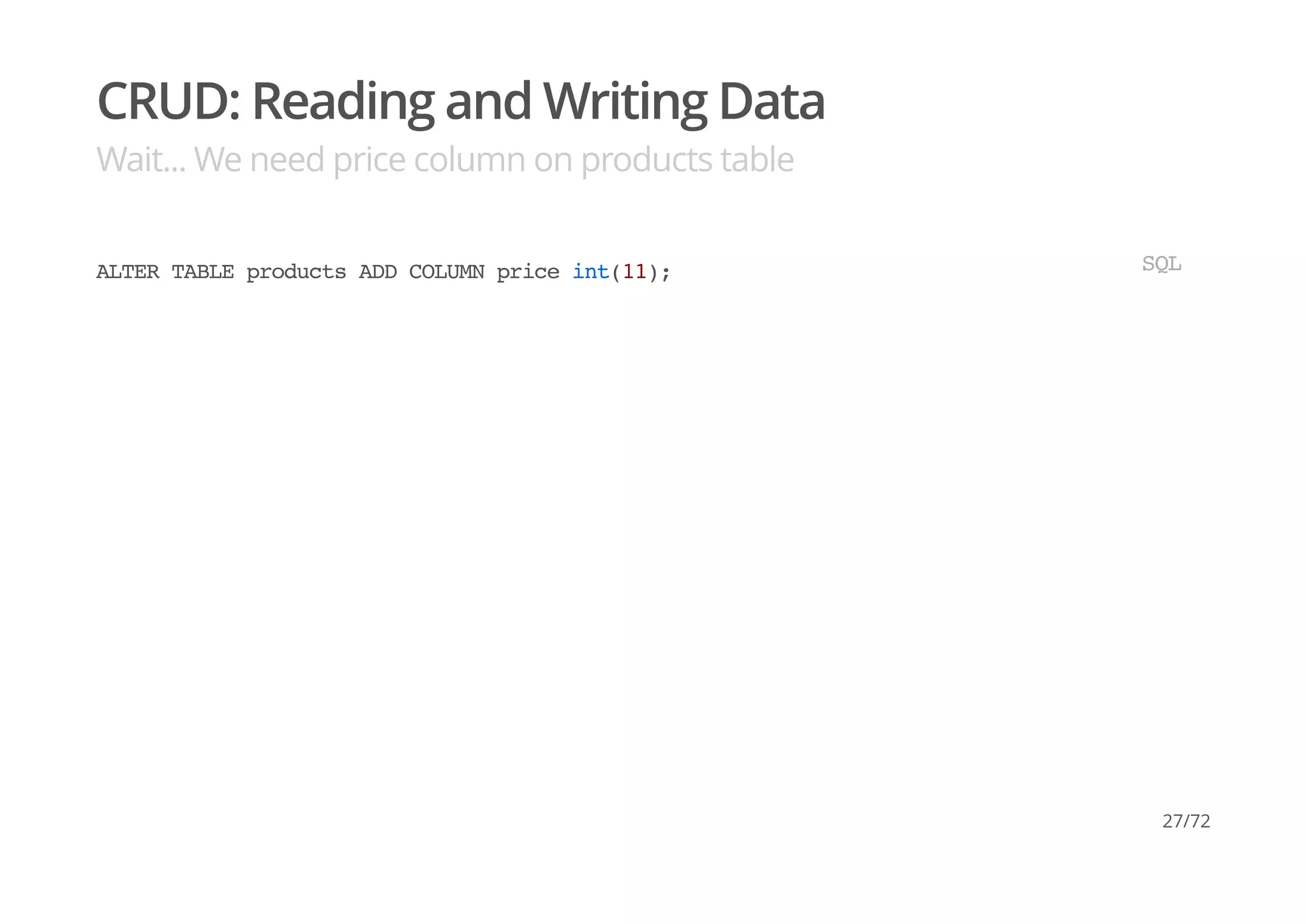

27. CRUD: Reading and Writing Data
Wait... We need price column on products table
ALTER TABLE products ADD COLUMN price int(11); SQL
27/72

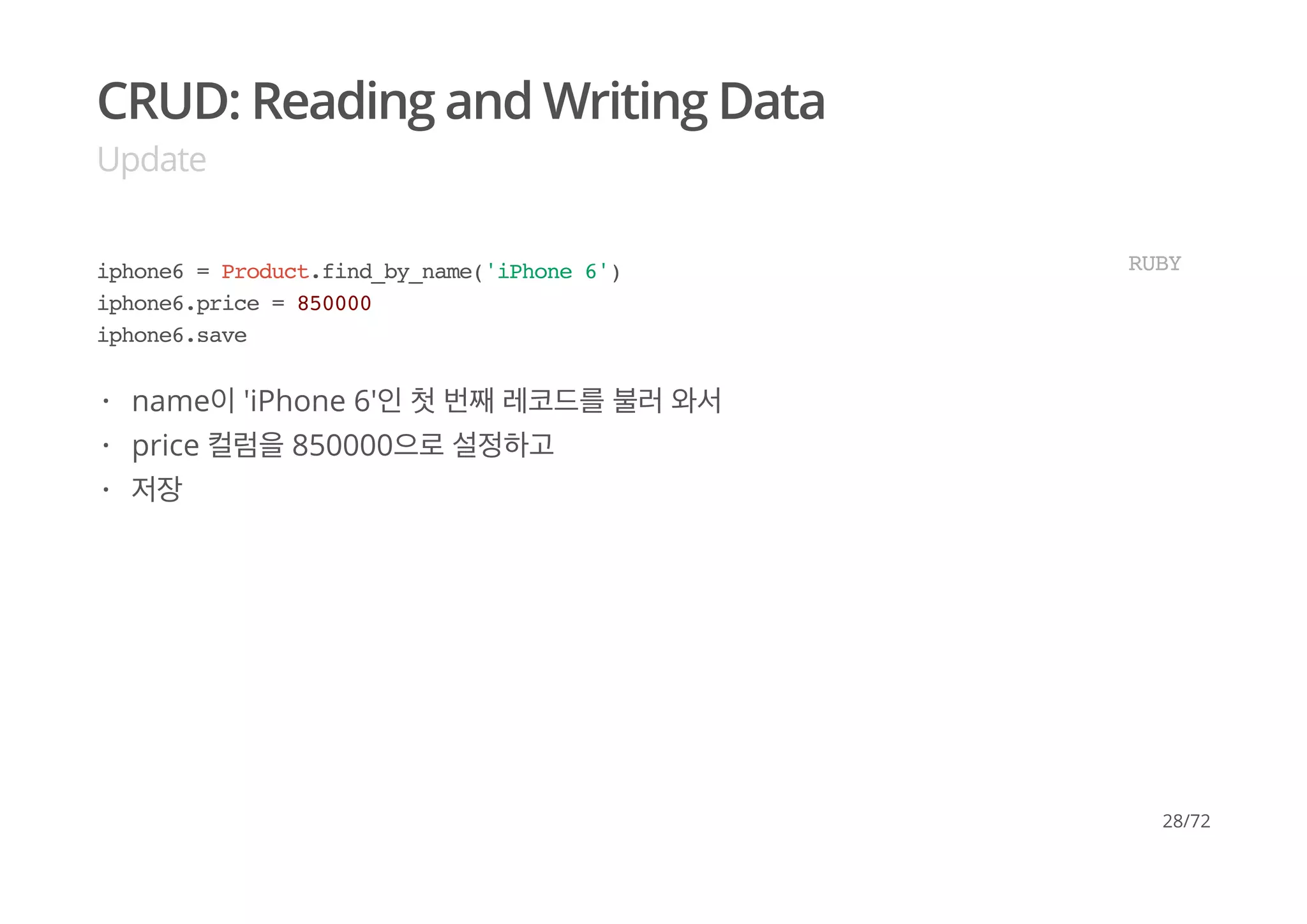

28. CRUD: Reading and Writing Data
Update
iphone6 = Product.find_by_name('iPhone 6')
iphone6.price = 850000
iphone6.save
RUBY
name이 'iPhone 6'인 첫 번째 레코드를 불러 와서
price 컬럼을 850000으로 설정하고
저장
·
·
·
28/72

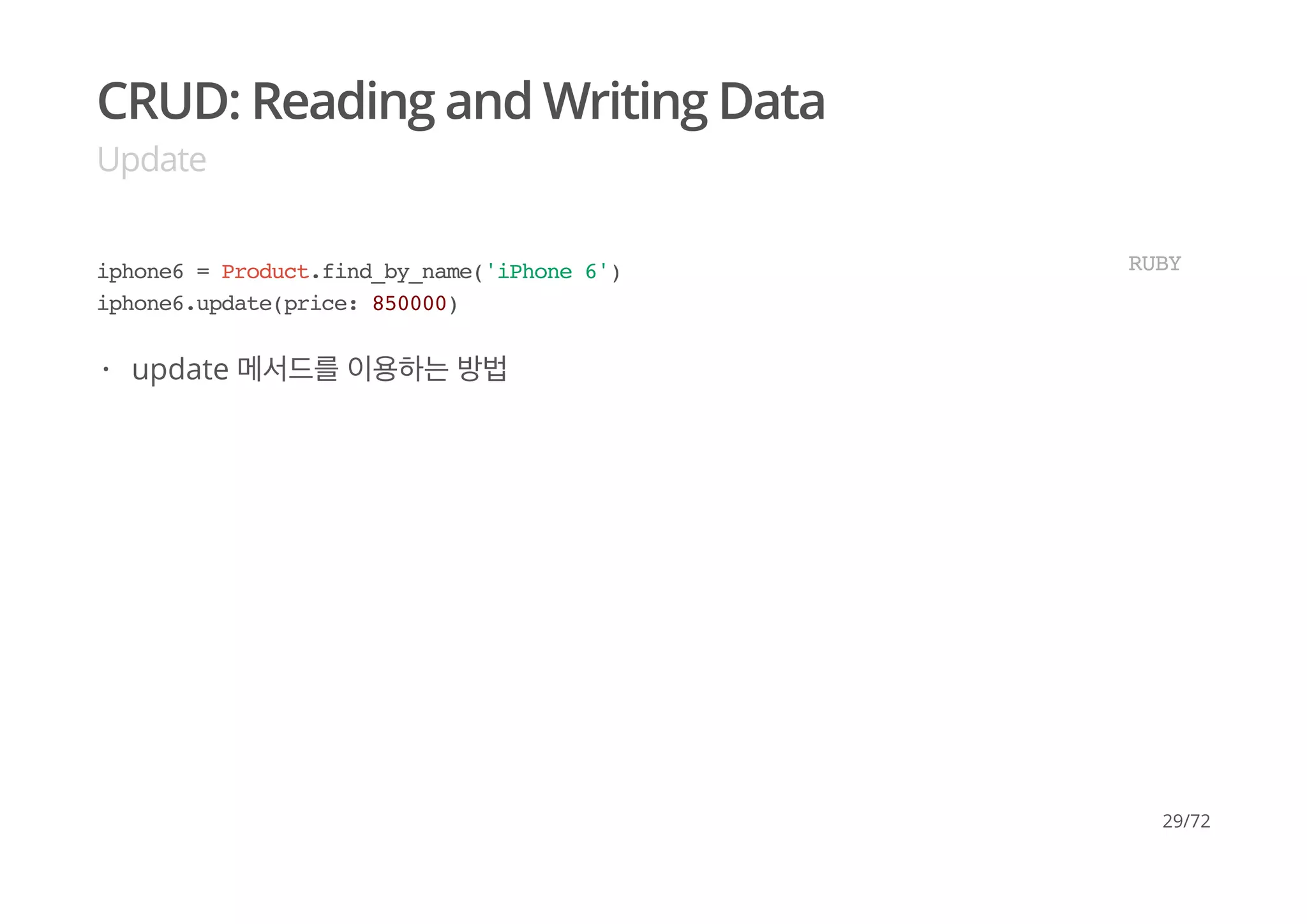

29. CRUD: Reading and Writing Data
Update
iphone6 = Product.find_by_name('iPhone 6')
iphone6.update(price: 850000)
RUBY
update 메서드를 이용하는 방법·
29/72

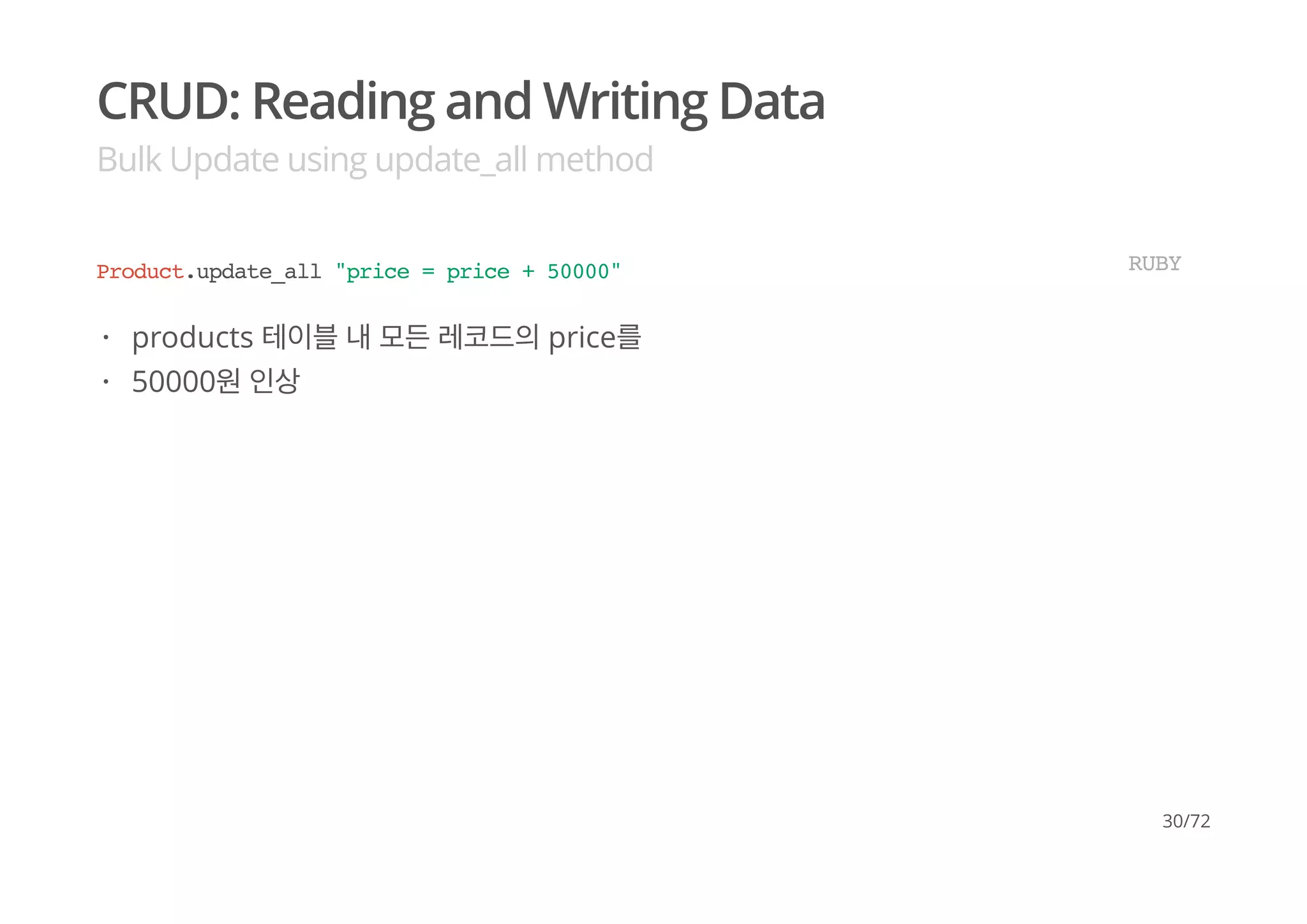

30. CRUD: Reading and Writing Data
Bulk Update using update_all method
Product.update_all "price = price + 50000" RUBY
products 테이블 내 모든 레코드의 price를
50000원 인상
·
·
30/72

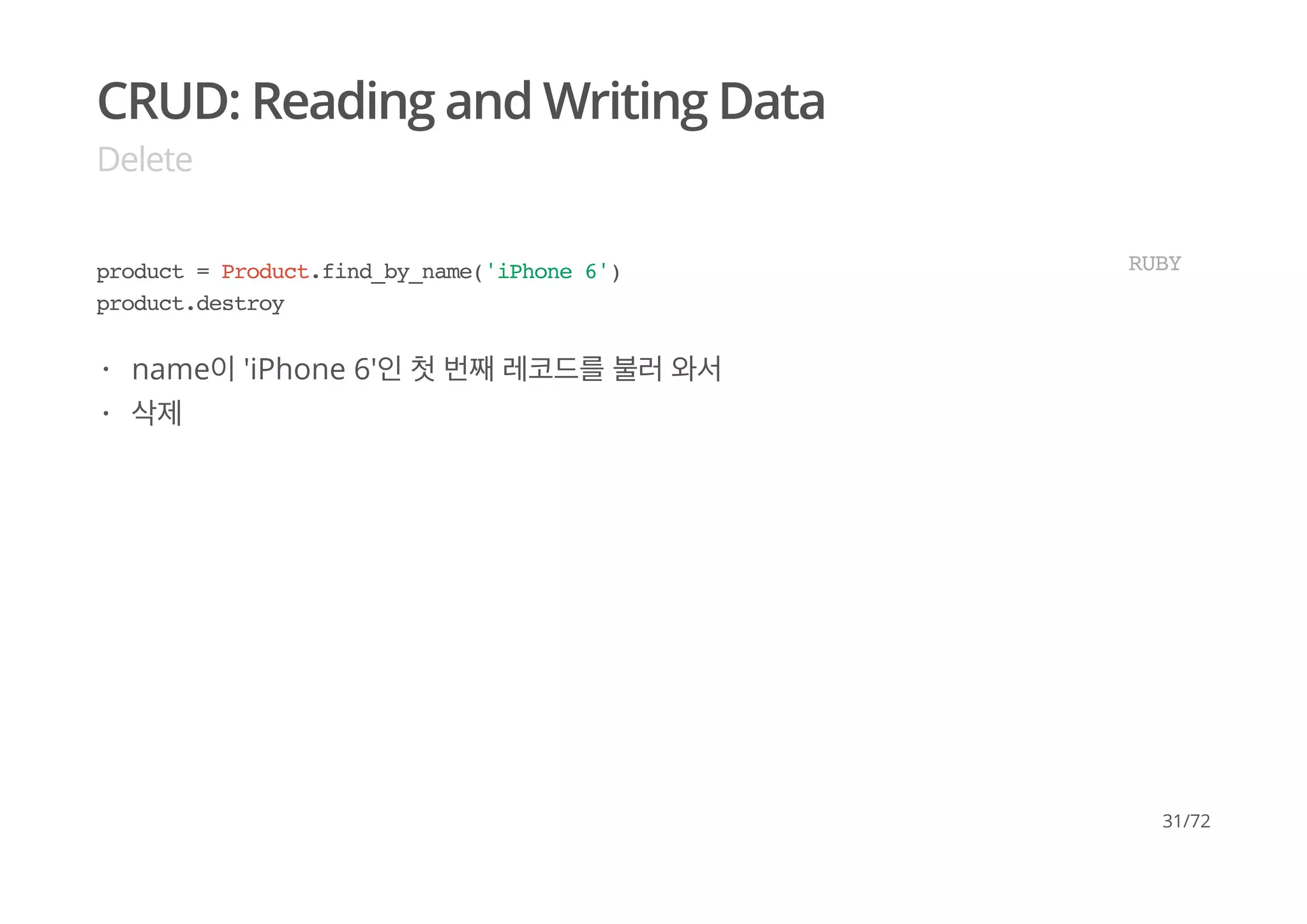

31. CRUD: Reading and Writing Data
Delete
product = Product.find_by_name('iPhone 6')
product.destroy
RUBY
name이 'iPhone 6'인 첫 번째 레코드를 불러 와서
삭제
·
·
31/72

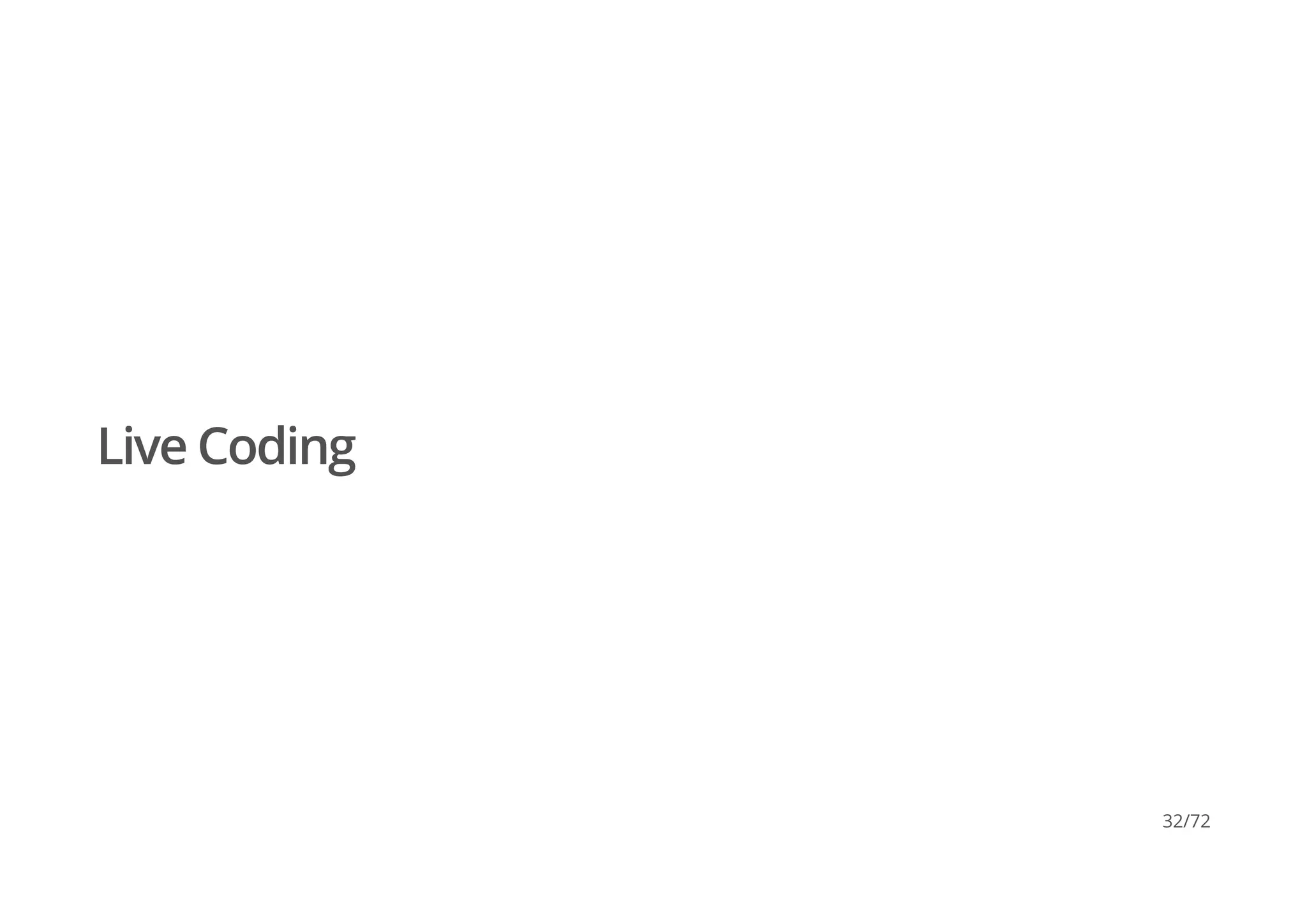

32. Live Coding
32/72

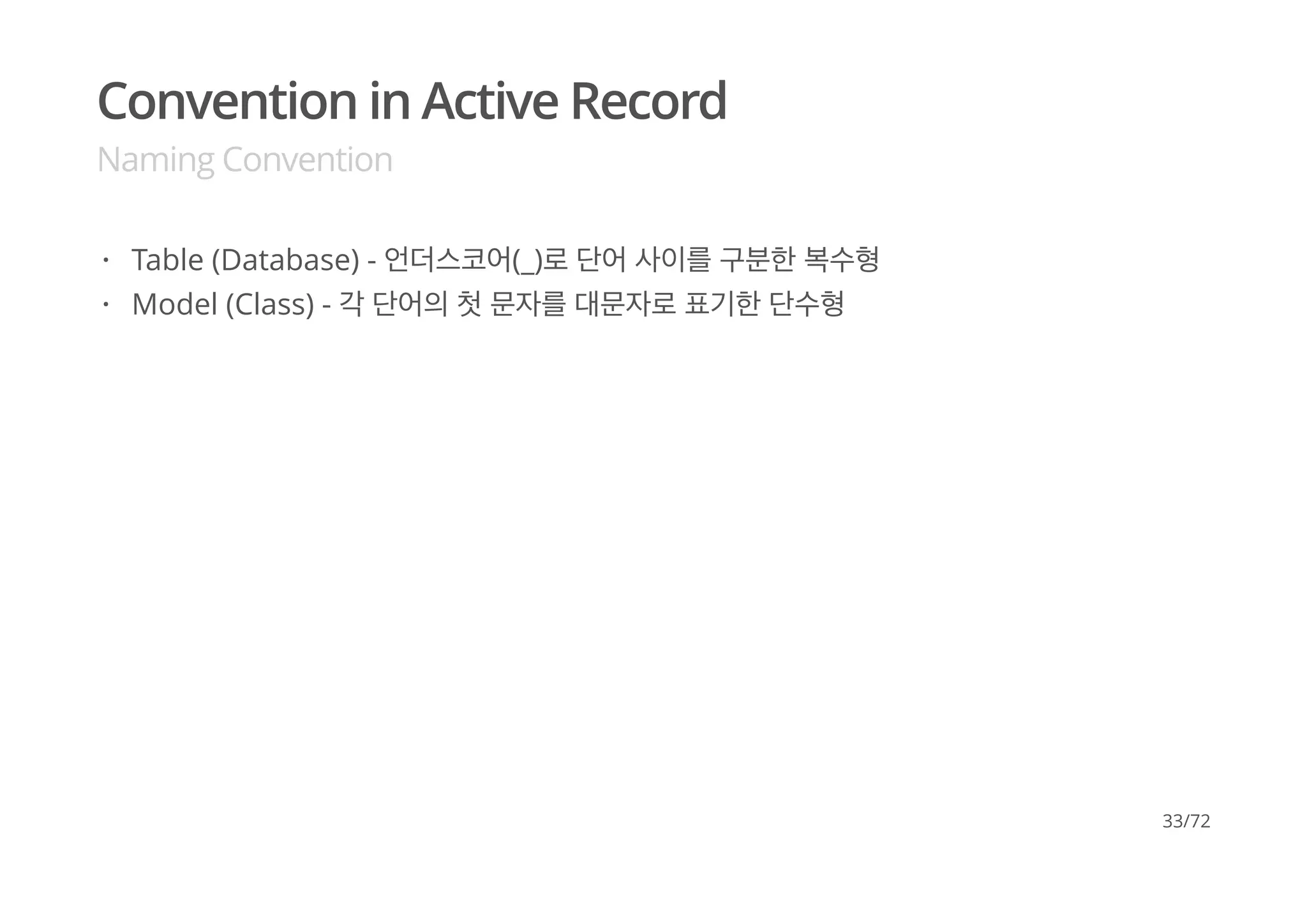

33. Convention in Active Record
Naming Convention
Table (Database) - 언더스코어(_)로 단어 사이를 구분한 복수형
Model (Class) - 각 단어의 첫 문자를 대문자로 표기한 단수형
·
·
33/72

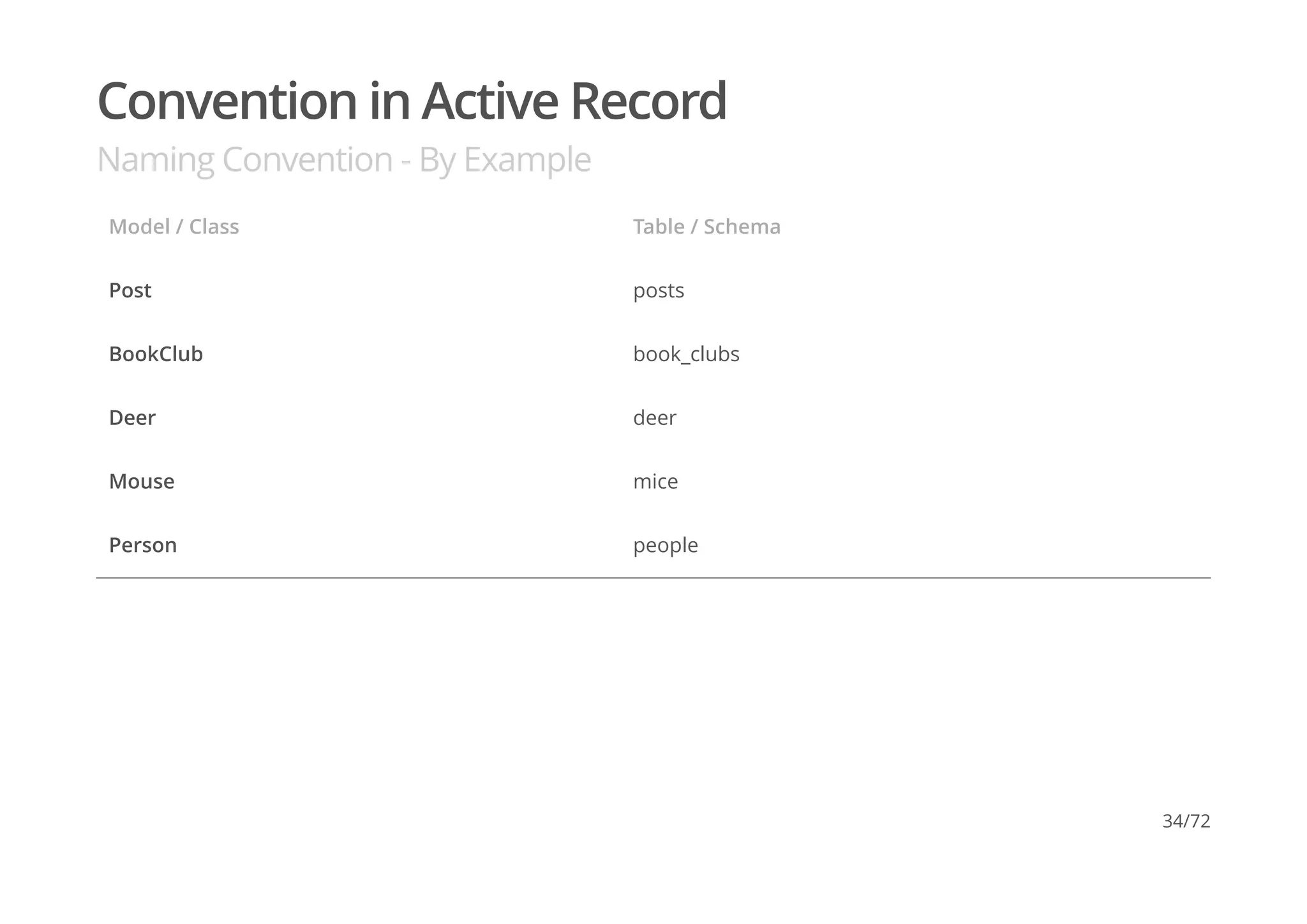

34. Convention in Active Record
Naming Convention - By Example
Model / Class Table / Schema
Post posts
BookClub book_clubs
Deer deer
Mouse mice
Person people
34/72

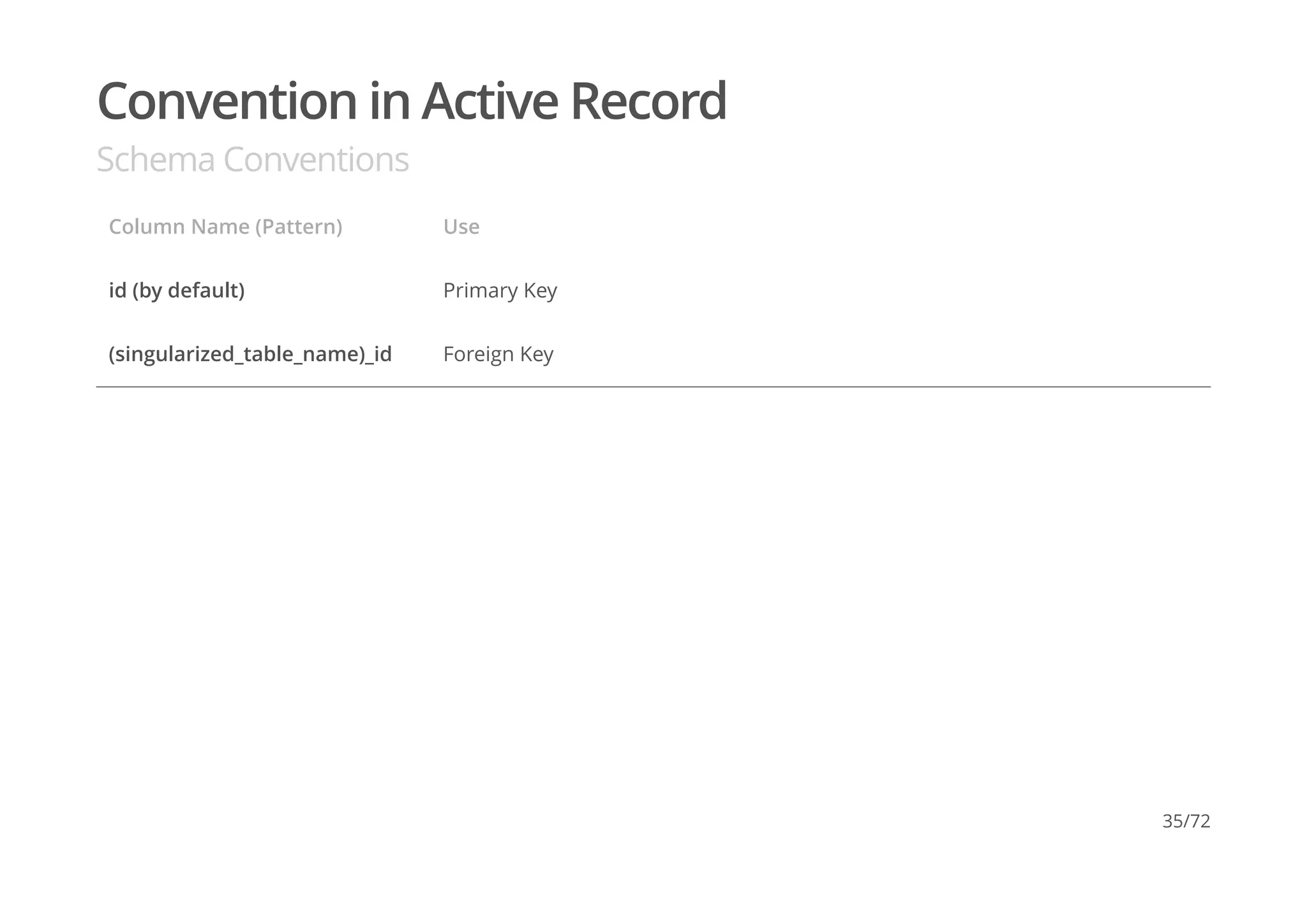

35. Convention in Active Record
Schema Conventions
Column Name (Pattern) Use
id (by default) Primary Key
(singularized_table_name)_id Foreign Key
35/72

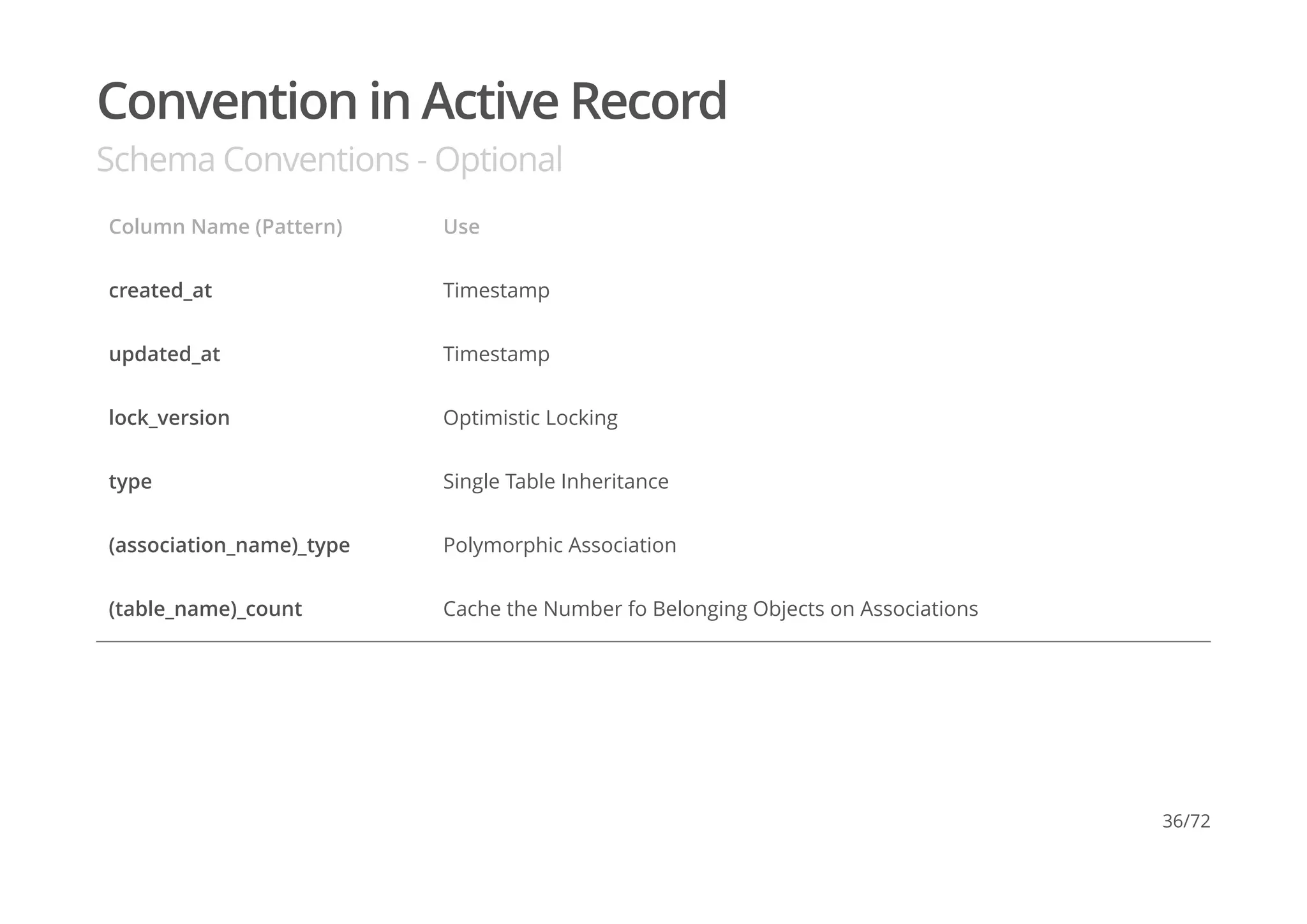

36. Convention in Active Record
Schema Conventions - Optional
Column Name (Pattern) Use
created_at Timestamp
updated_at Timestamp
lock_version Optimistic Locking
type Single Table Inheritance
(association_name)_type Polymorphic Association
(table_name)_count Cache the Number fo Belonging Objects on Associations
36/72

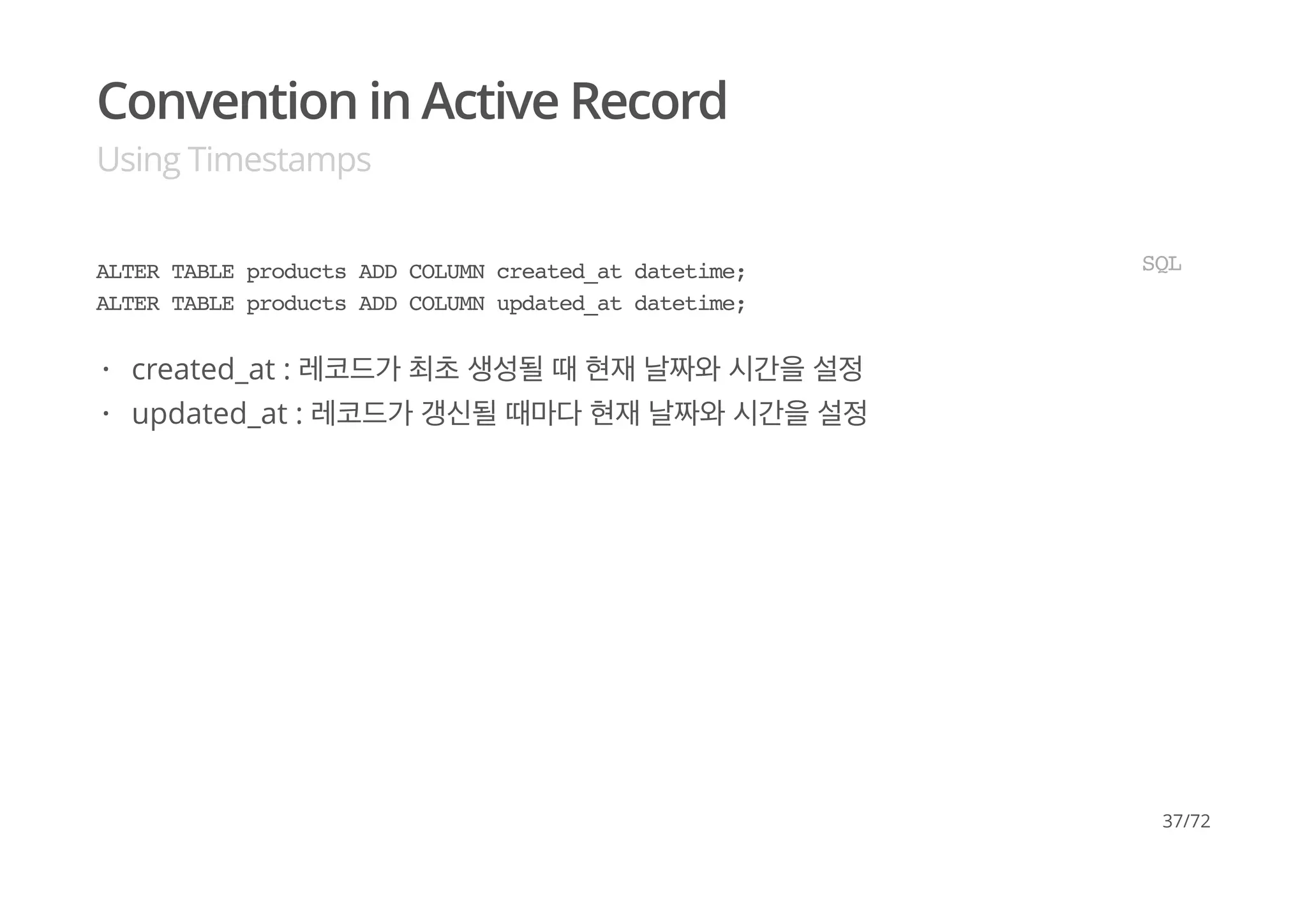

37. Convention in Active Record
Using Timestamps
ALTER TABLE products ADD COLUMN created_at datetime;
ALTER TABLE products ADD COLUMN updated_at datetime;
SQL
created_at : 레코드가 최초 생성될 때 현재 날짜와 시간을 설정
updated_at : 레코드가 갱신될 때마다 현재 날짜와 시간을 설정
·
·
37/72

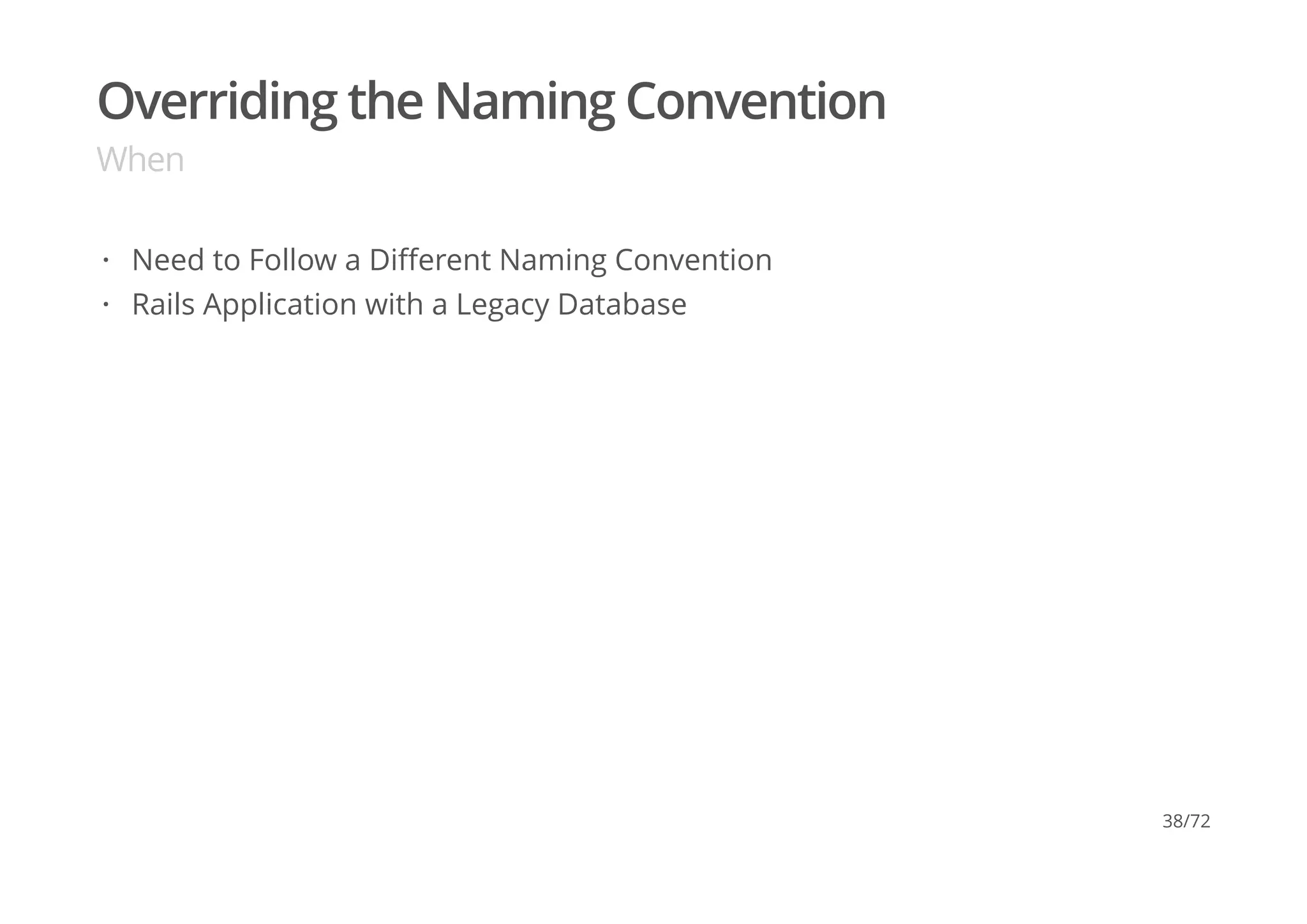

38. Overriding the Naming Convention
When
Need to Follow a Different Naming Convention
Rails Application with a Legacy Database
·
·
38/72

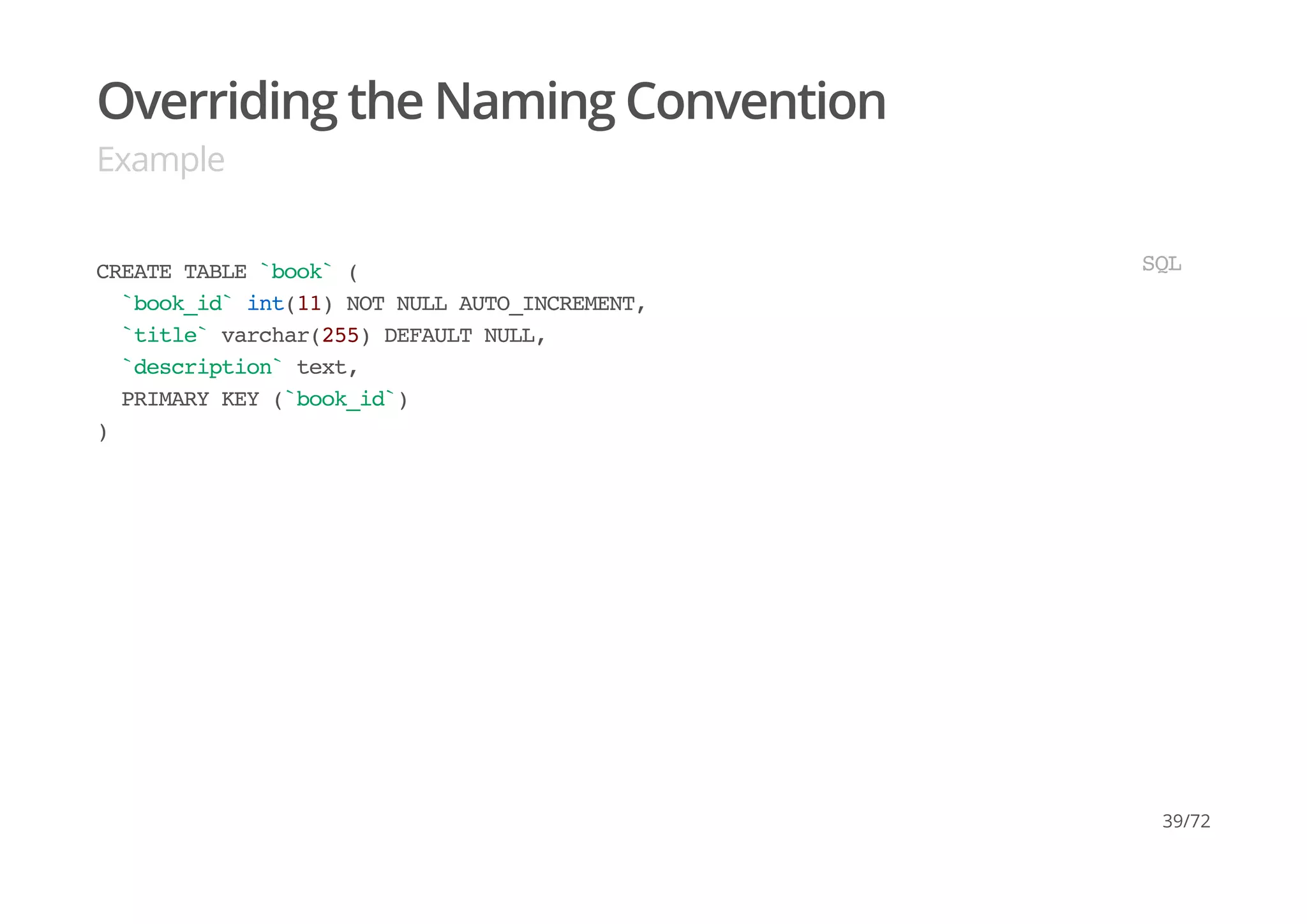

39. Overriding the Naming Convention
Example
CREATE TABLE `book` (
`book_id` int(11) NOT NULL AUTO_INCREMENT,
`title` varchar(255) DEFAULT NULL,
`description` text,
PRIMARY KEY (`book_id`)
)
SQL
39/72

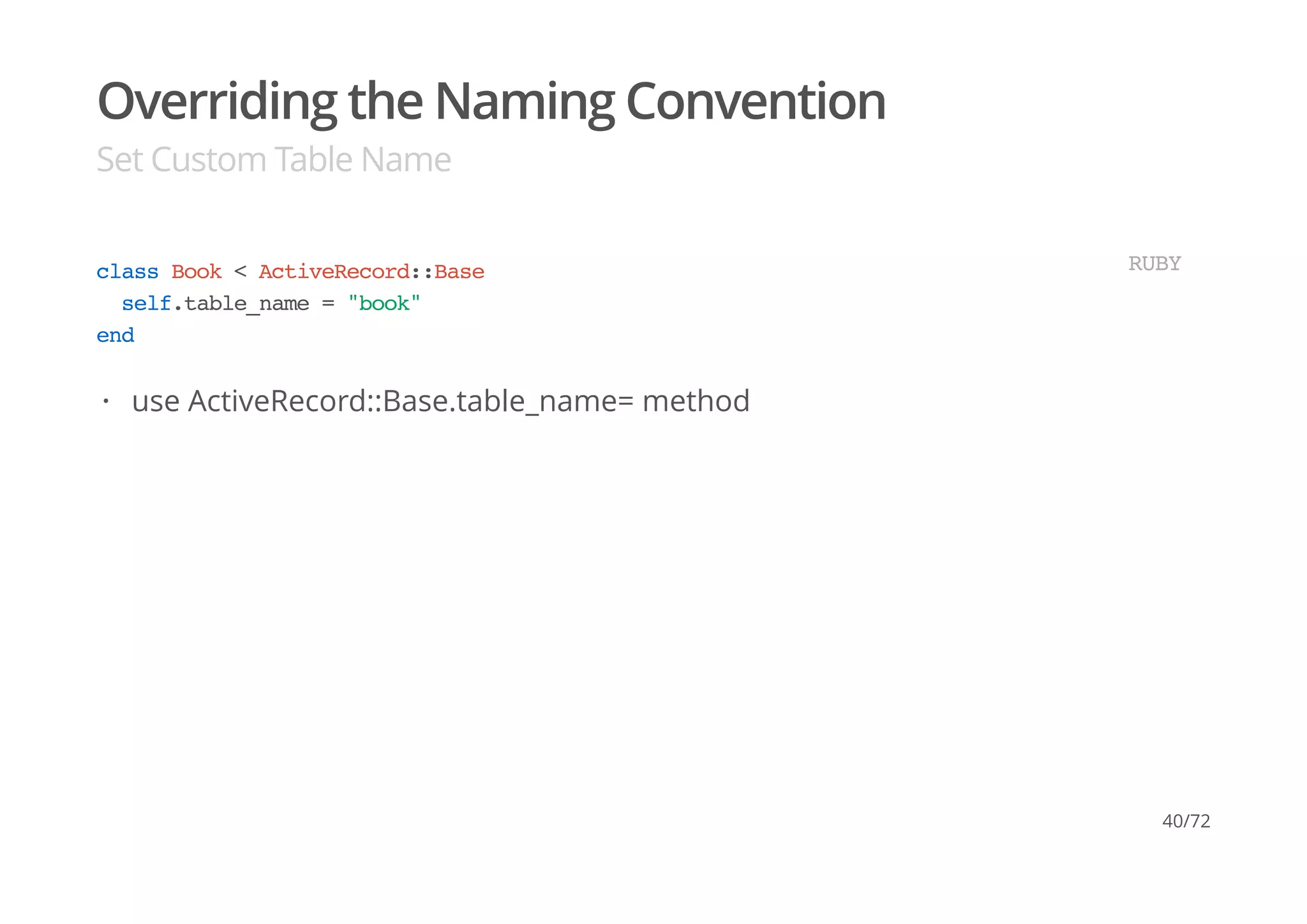

40. Overriding the Naming Convention
Set Custom Table Name
class Book < ActiveRecord::Base
self.table_name = "book"
end
RUBY
use ActiveRecord::Base.table_name= method·
40/72

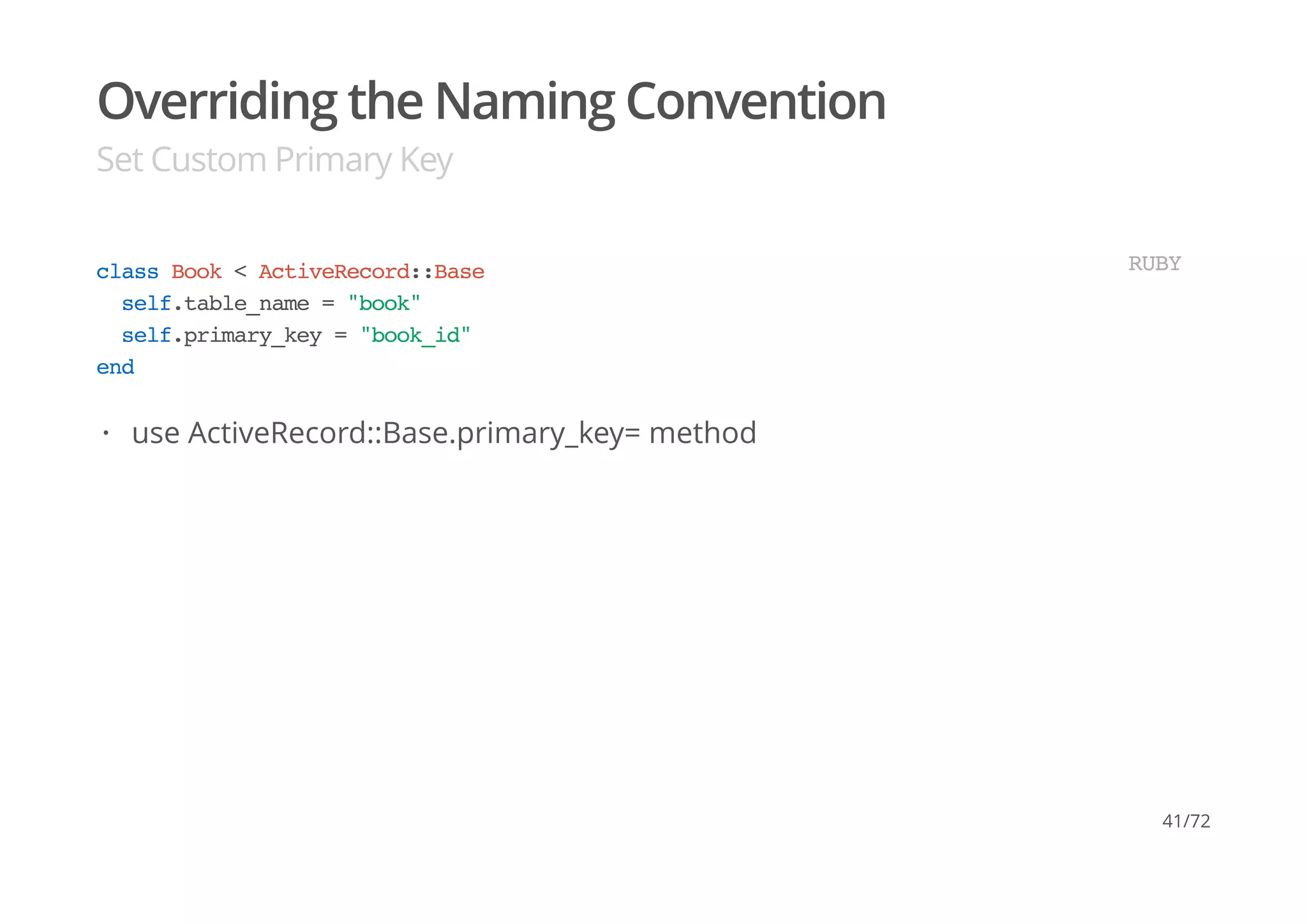

41. Overriding the Naming Convention
Set Custom Primary Key
class Book < ActiveRecord::Base
self.table_name = "book"
self.primary_key = "book_id"
end
RUBY
use ActiveRecord::Base.primary_key= method·
41/72

42. Live Coding
42/72

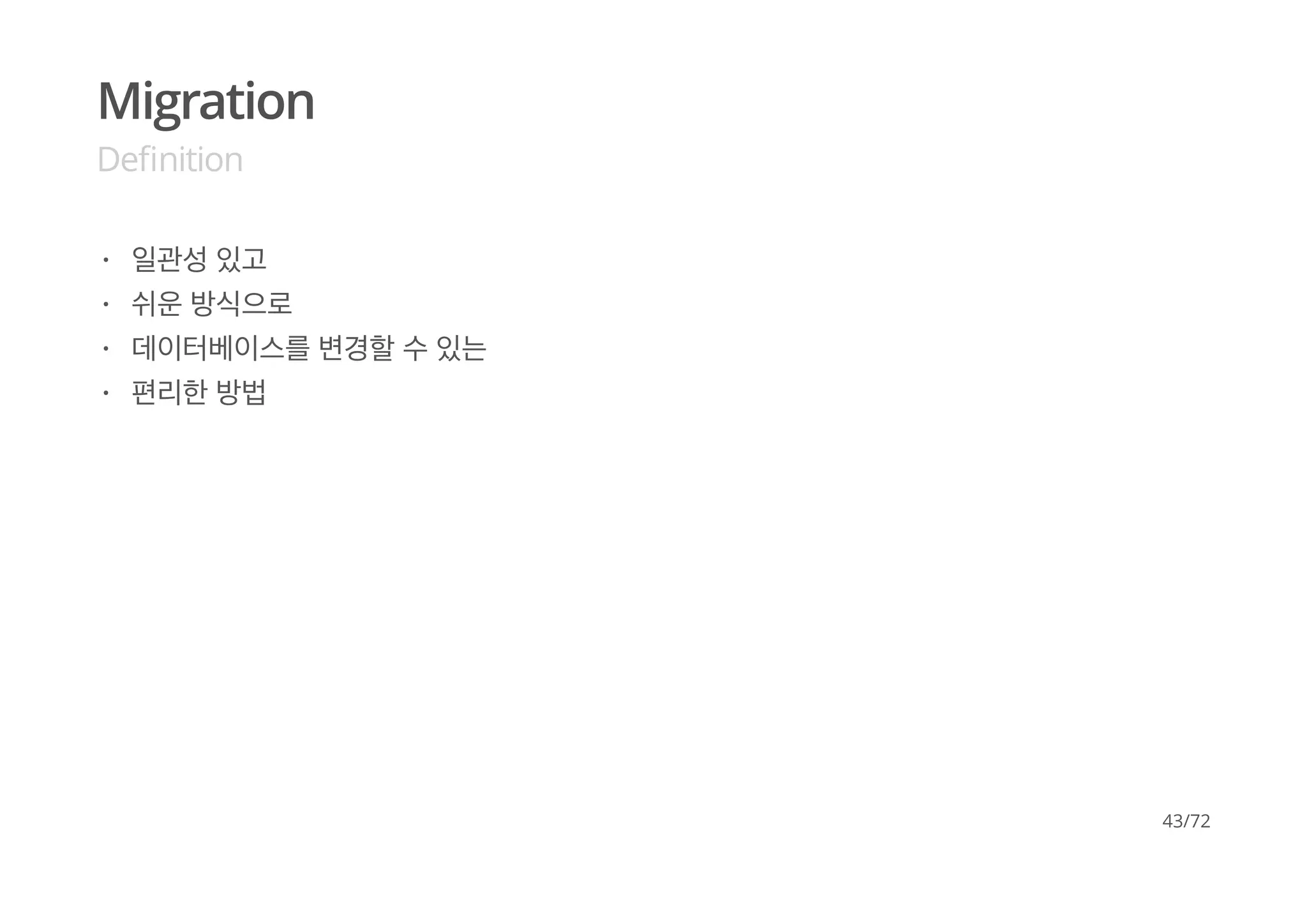

43. Migration
Definition
일관성 있고
쉬운 방식으로
데이터베이스를 변경할 수 있는
편리한 방법
·
·
·
·
43/72

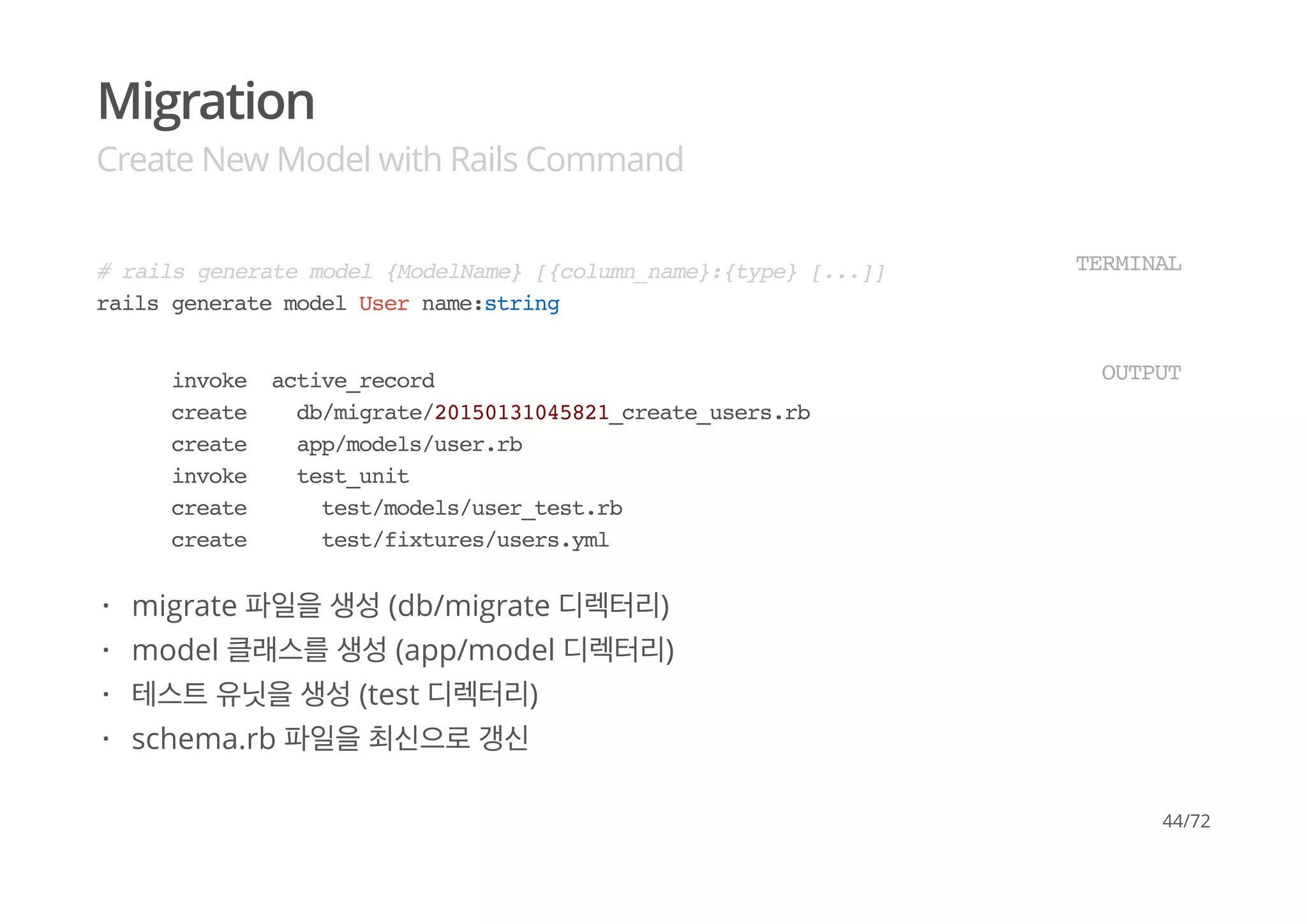

44. Migration
Create New Model with Rails Command
# rails generate model {ModelName} [{column_name}:{type} [...]]
rails generate model User name:string
TERMINAL
invoke active_record
create db/migrate/20150131045821_create_users.rb
create app/models/user.rb
invoke test_unit
create test/models/user_test.rb
create test/fixtures/users.yml
OUTPUT
migrate 파일을 생성 (db/migrate 디렉터리)
model 클래스를 생성 (app/model 디렉터리)
테스트 유닛을 생성 (test 디렉터리)
schema.rb 파일을 최신으로 갱신
·
·
·
·
44/72

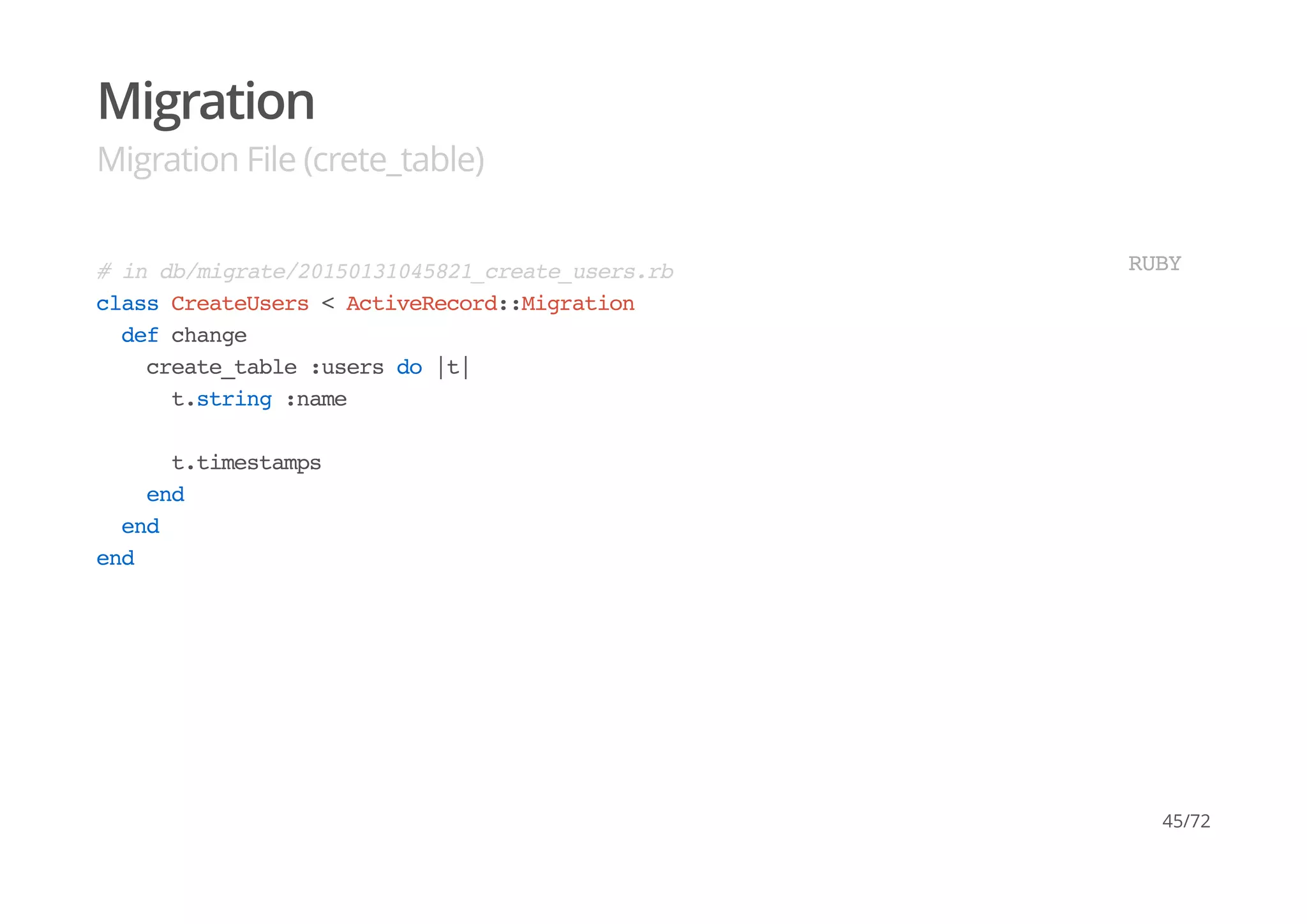

45. Migration
Migration File (crete_table)
# in db/migrate/20150131045821_create_users.rb
class CreateUsers < ActiveRecord::Migration
def change
create_table :users do |t|
t.string :name
t.timestamps
end
end
end
RUBY
45/72

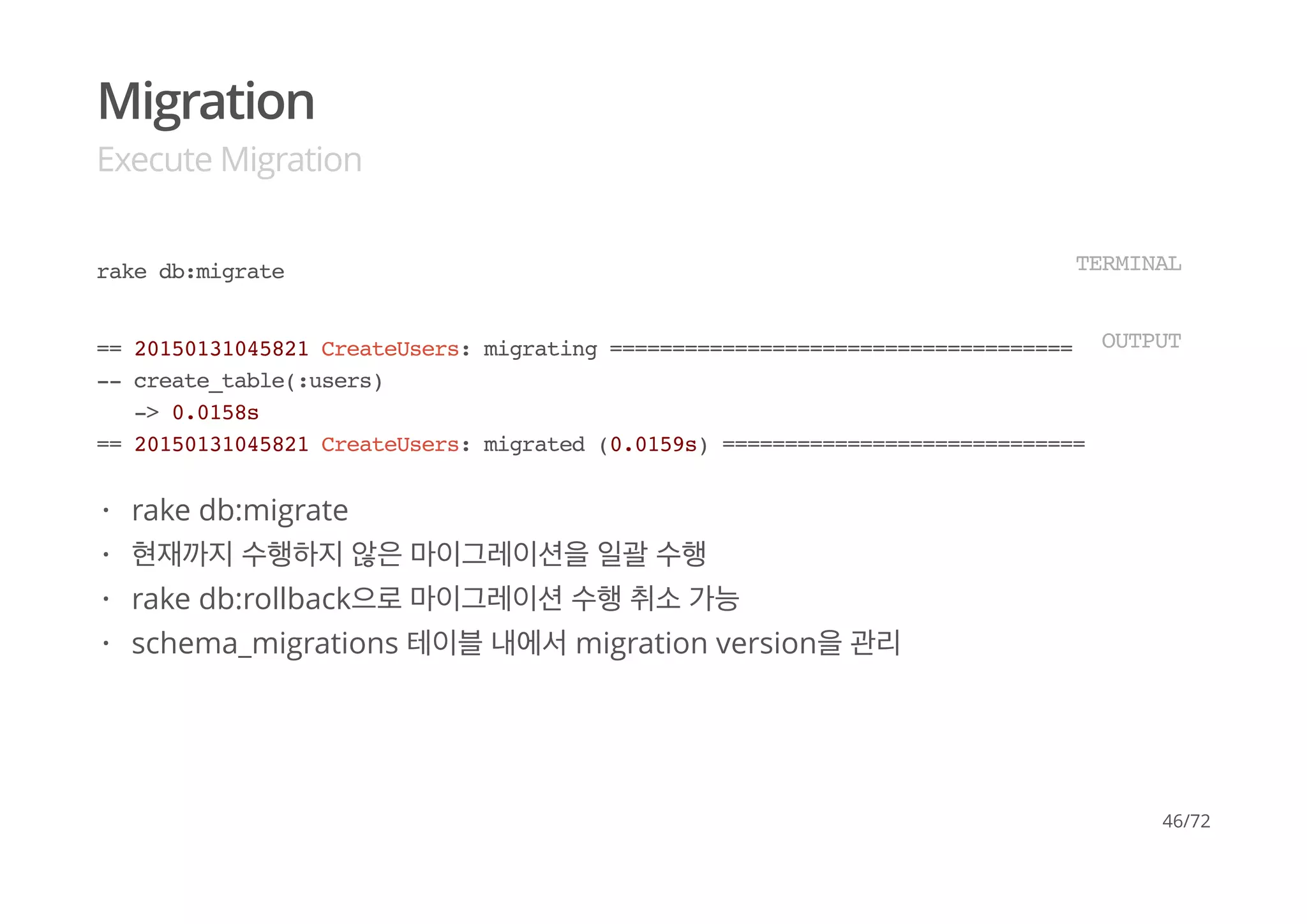

46. Migration
Execute Migration
rake db:migrate TERMINAL
== 20150131045821 CreateUsers: migrating ======================================
-- create_table(:users)
-> 0.0158s
== 20150131045821 CreateUsers: migrated (0.0159s) =============================
OUTPUT
rake db:migrate
현재까지 수행하지 않은 마이그레이션을 일괄 수행
rake db:rollback으로 마이그레이션 수행 취소 가능
schema_migrations 테이블 내에서 migration version을 관리
·
·
·
·
46/72

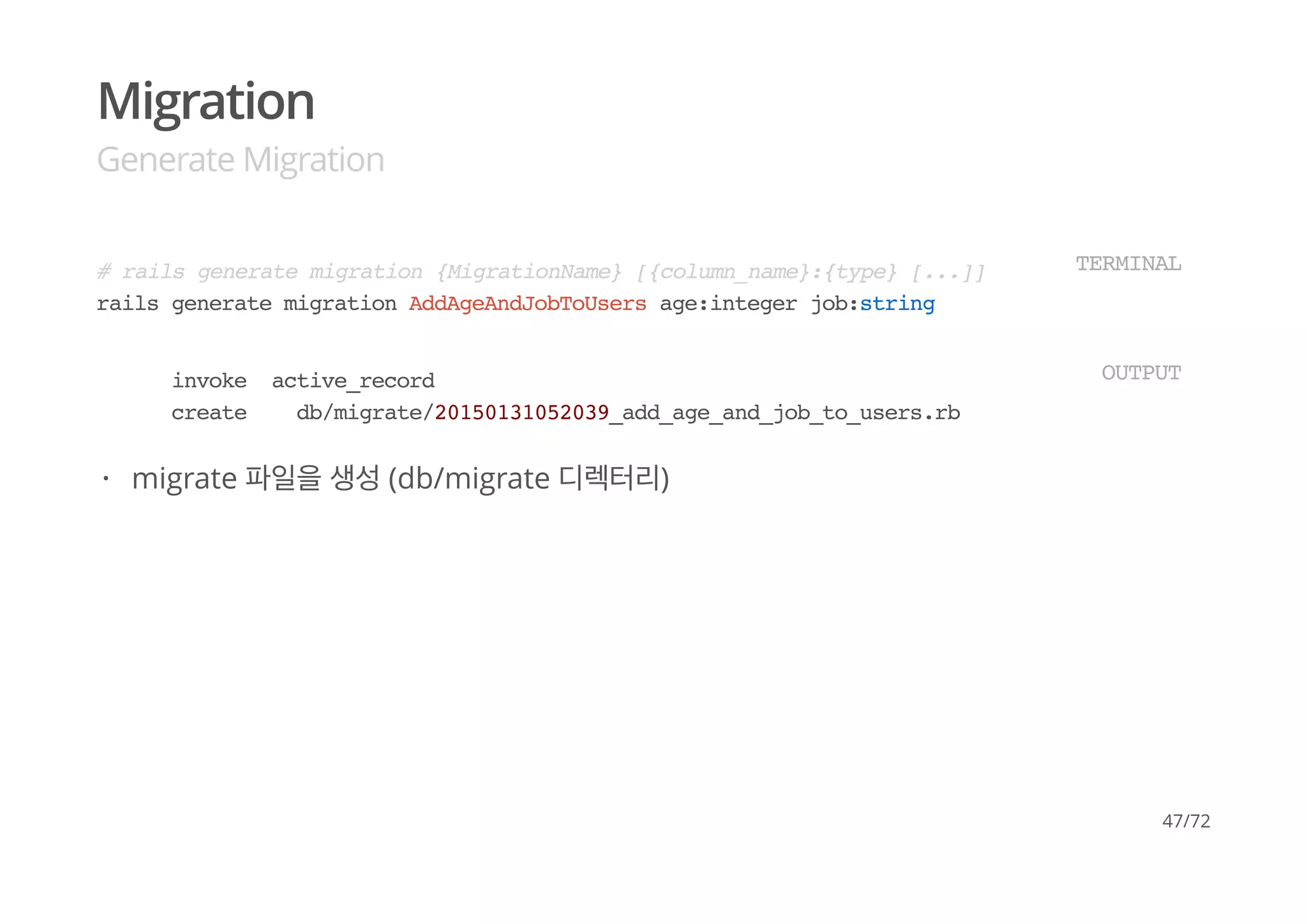

47. Migration
Generate Migration
# rails generate migration {MigrationName} [{column_name}:{type} [...]]
rails generate migration AddAgeAndJobToUsers age:integer job:string
TERMINAL
invoke active_record
create db/migrate/20150131052039_add_age_and_job_to_users.rb
OUTPUT
migrate 파일을 생성 (db/migrate 디렉터리)·
47/72

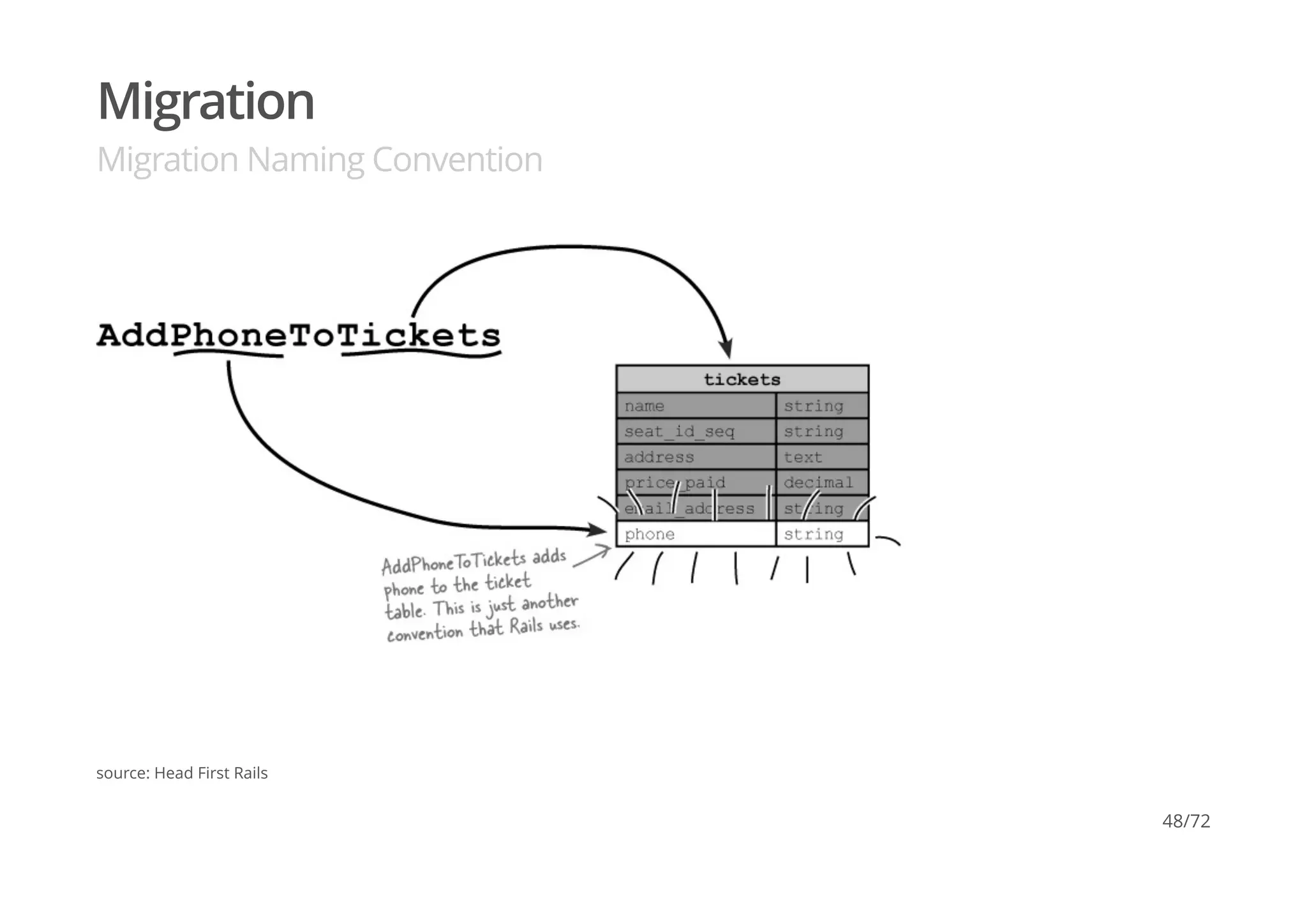

48. Migration
Migration Naming Convention
source: Head First Rails
48/72

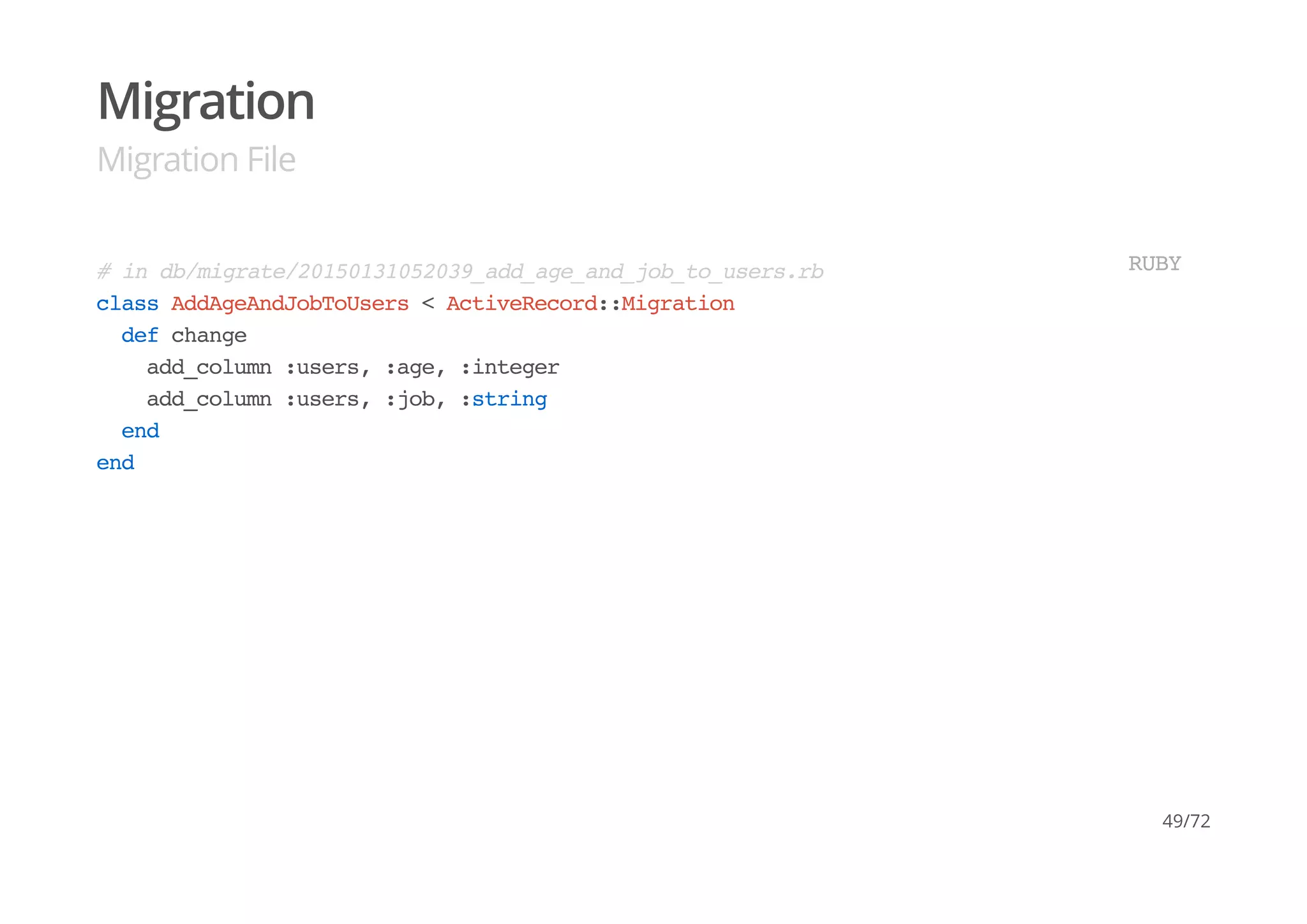

49. Migration
Migration File
# in db/migrate/20150131052039_add_age_and_job_to_users.rb
class AddAgeAndJobToUsers < ActiveRecord::Migration
def change
add_column :users, :age, :integer
add_column :users, :job, :string
end
end
RUBY
49/72

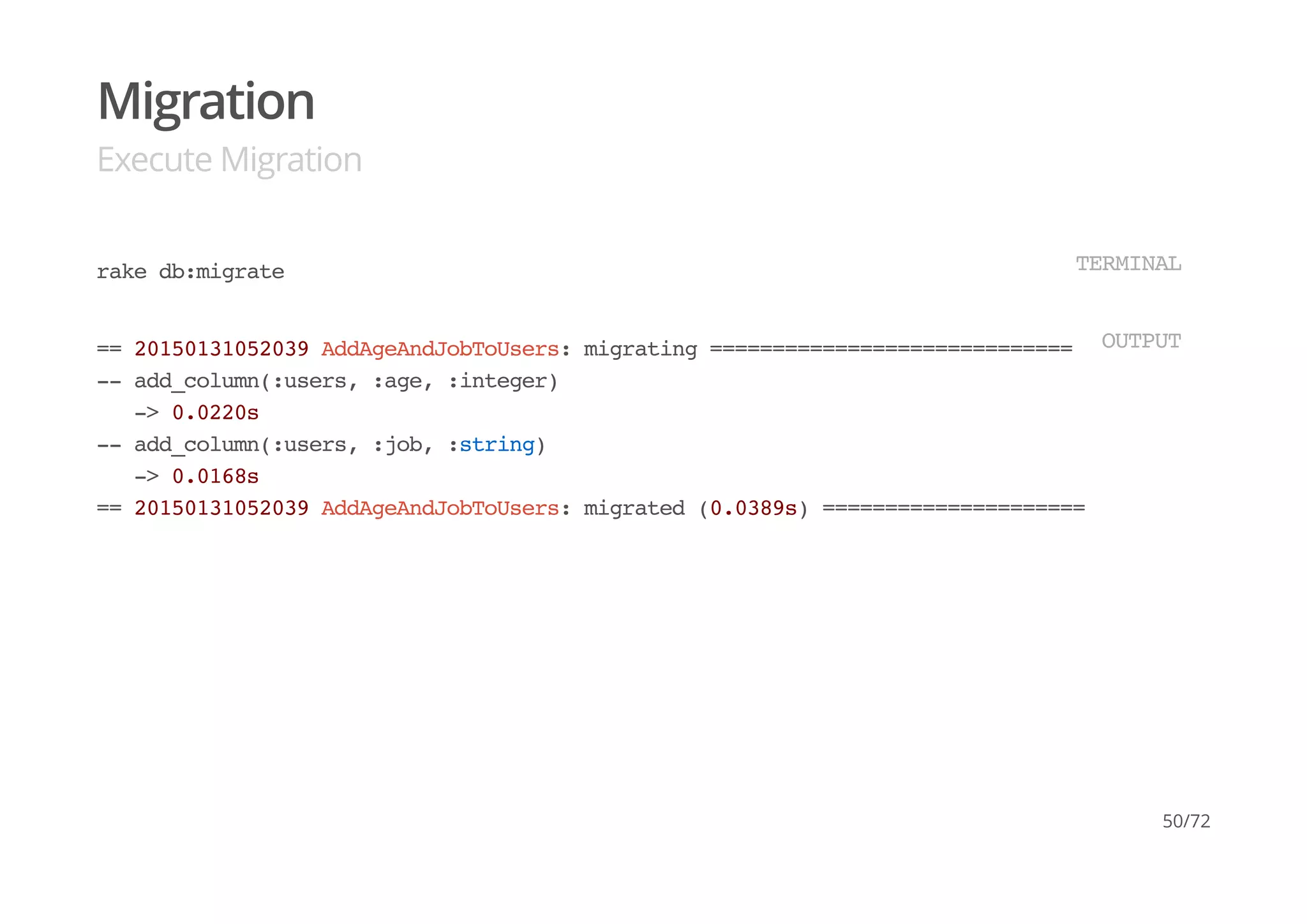

50. Migration
Execute Migration
rake db:migrate TERMINAL
== 20150131052039 AddAgeAndJobToUsers: migrating ==============================
-- add_column(:users, :age, :integer)
-> 0.0220s
-- add_column(:users, :job, :string)
-> 0.0168s
== 20150131052039 AddAgeAndJobToUsers: migrated (0.0389s) =====================
OUTPUT
50/72

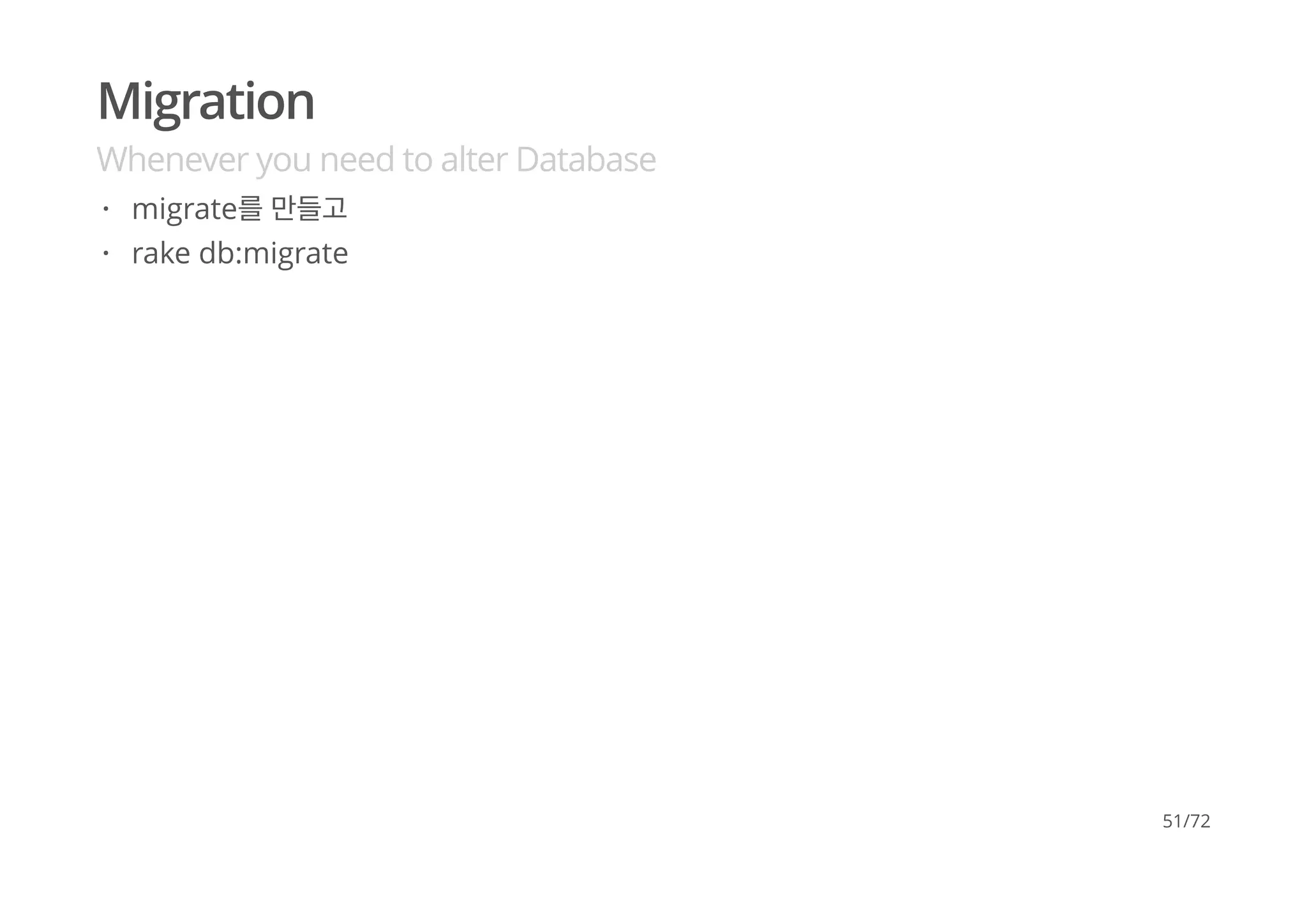

51. Migration
Whenever you need to alter Database
migrate를 만들고
rake db:migrate
·
·
51/72

52. 참 쉽죠?
52/72

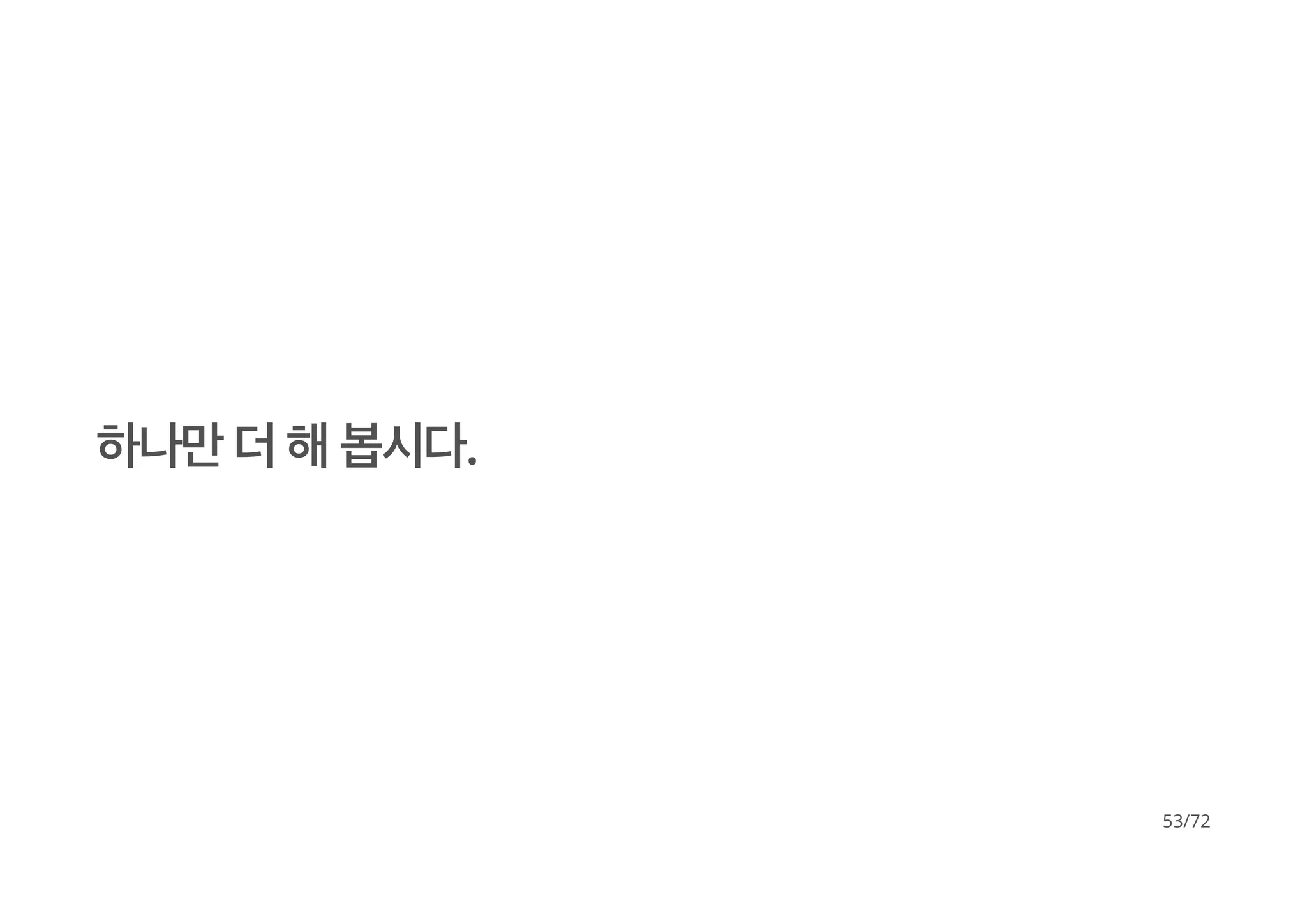

53. 하나만 더 해 봅시다.
53/72

54. Migration
Generate New Model with Relationship
rails generate model TodoItem user:references title:string memo:text TERMINAL
invoke active_record
create db/migrate/20150131054248_create_todo_items.rb
create app/models/todo_item.rb
invoke test_unit
create test/models/todo_item_test.rb
create test/fixtures/todo_items.yml
OUTPUT
54/72

55. Migration
Execute Migration
rake db:migrate TERMINAL
== 20150131054248 CreateTodoItems: migrating ==================================
-- create_table(:todo_items)
-> 0.0444s
== 20150131054248 CreateTodoItems: migrated (0.0445s) =========================
OUTPUT
55/72

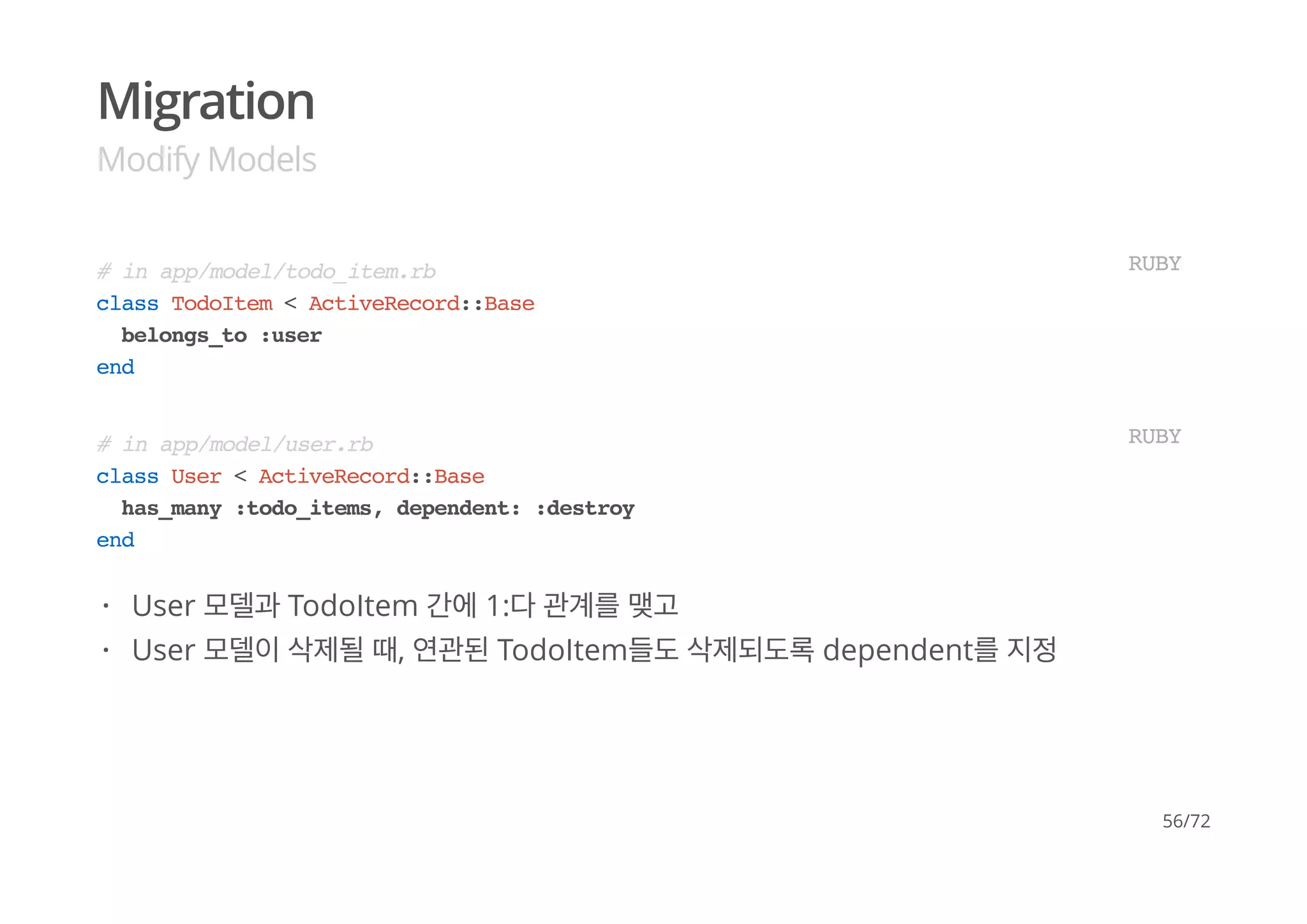

56. Migration
Modify Models
# in app/model/todo_item.rb
class TodoItem < ActiveRecord::Base
belongs_to :user
end
RUBY
# in app/model/user.rb
class User < ActiveRecord::Base
has_many :todo_items, dependent: :destroy
end
RUBY
User 모델과 TodoItem 간에 1:다 관계를 맺고
User 모델이 삭제될 때, 연관된 TodoItem들도 삭제되도록 dependent를 지정
·
·
56/72

57. Live Coding
57/72

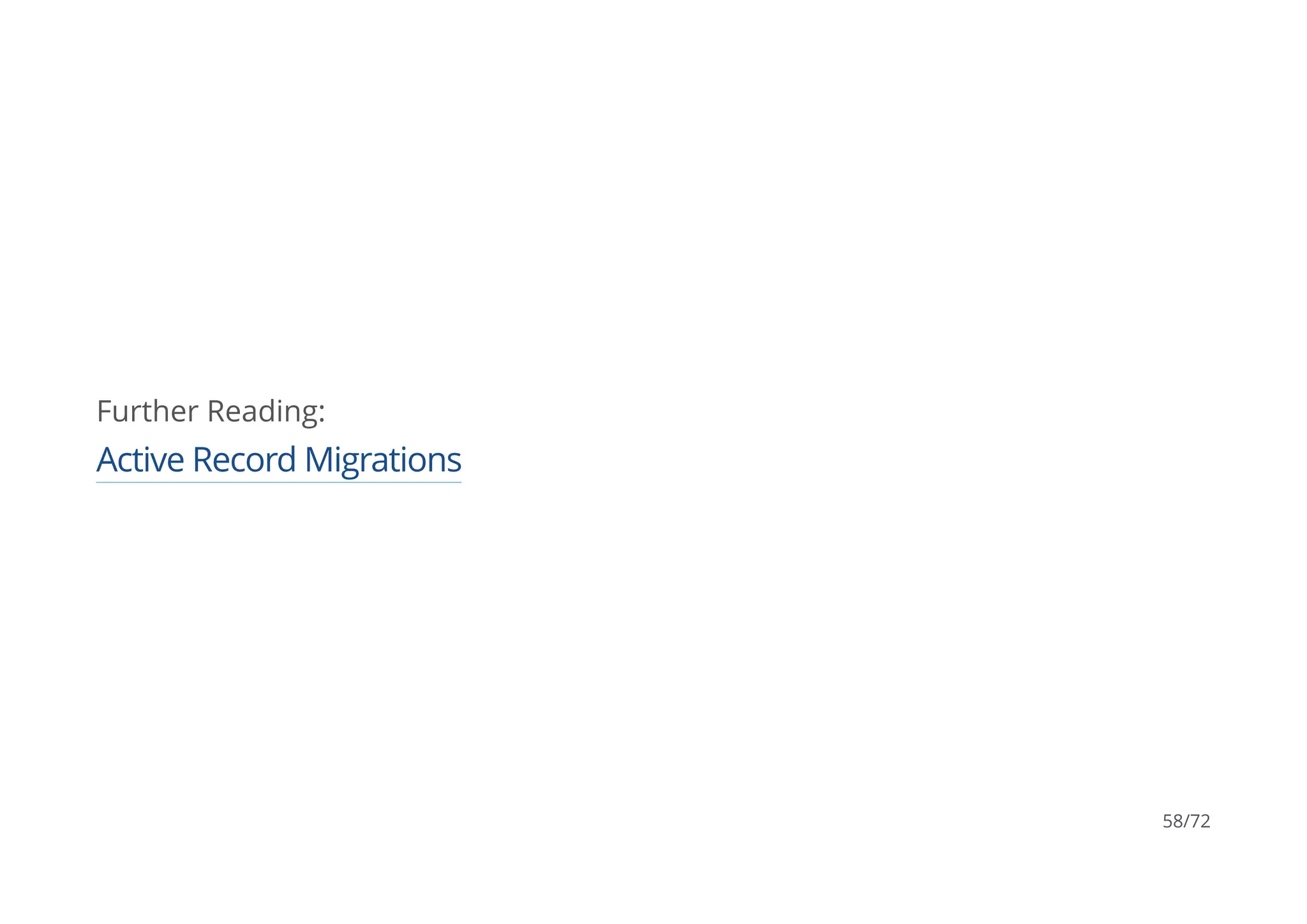

58. Further Reading:
Active Record Migrations
58/72

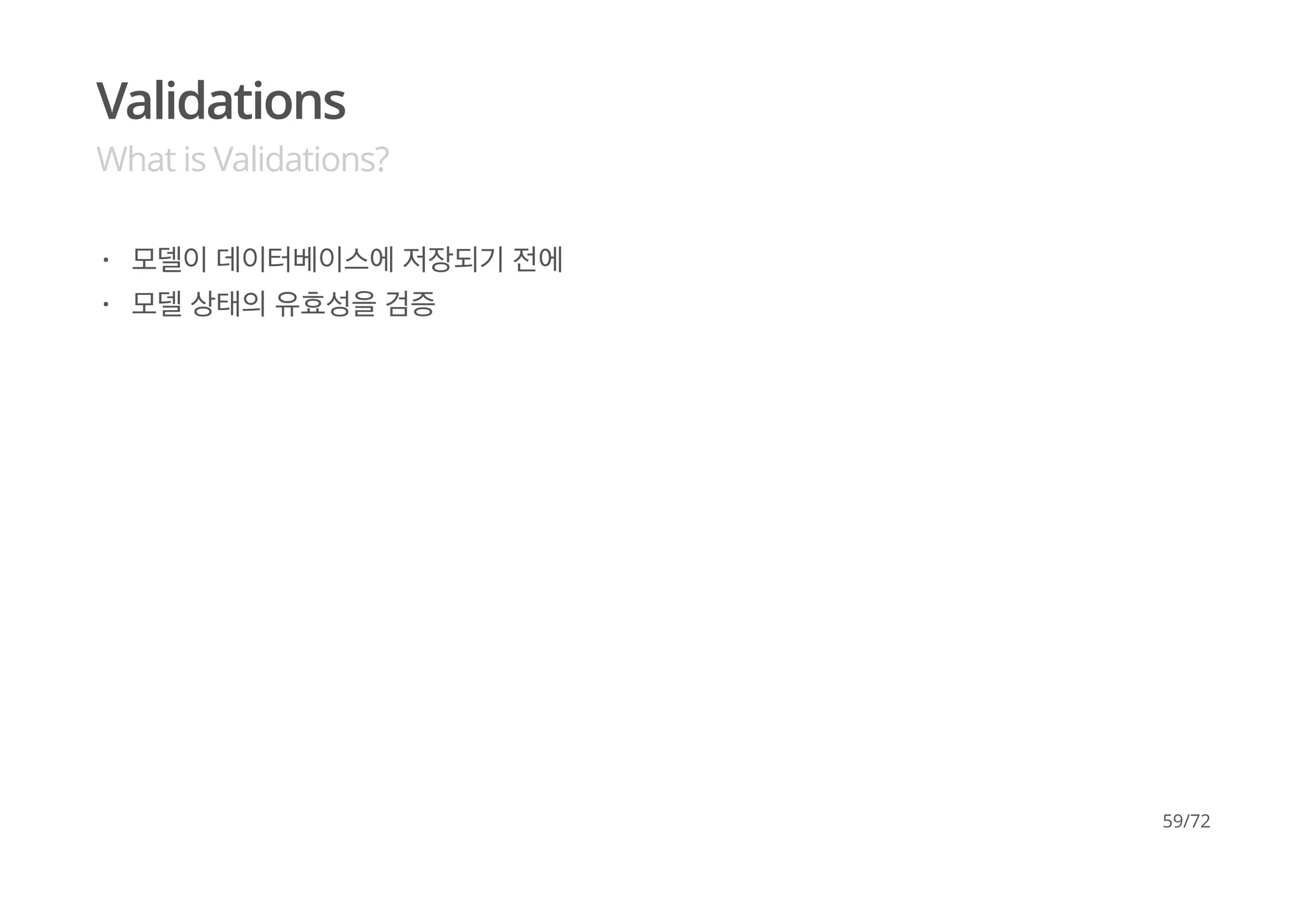

59. Validations
What is Validations?
모델이 데이터베이스에 저장되기 전에
모델 상태의 유효성을 검증
·
·
59/72

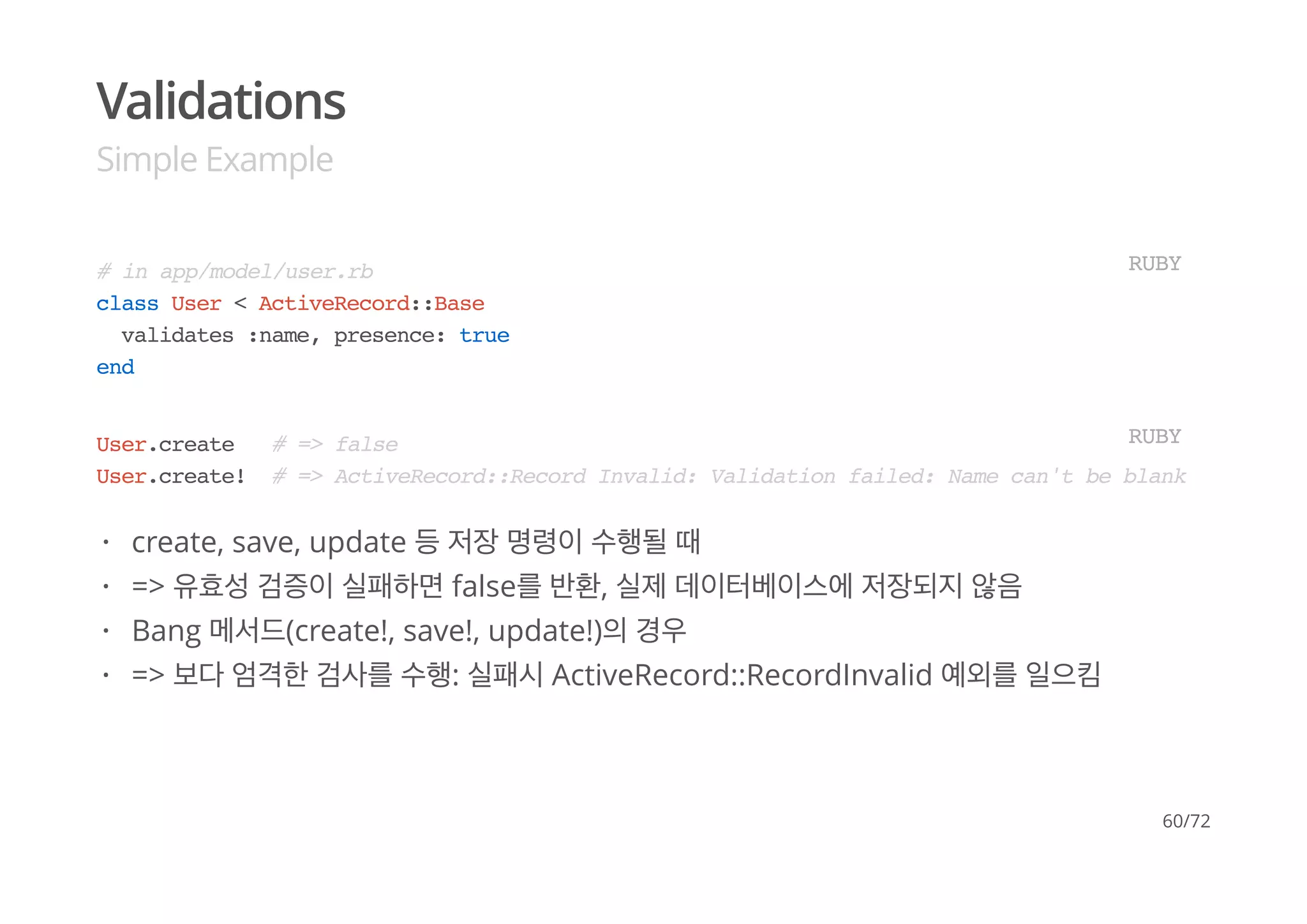

60. Validations
Simple Example
# in app/model/user.rb
class User < ActiveRecord::Base
validates :name, presence: true
end
RUBY
User.create # => false
User.create! # => ActiveRecord::Record Invalid: Validation failed: Name can't be blank
RUBY
create, save, update 등 저장 명령이 수행될 때
=> 유효성 검증이 실패하면 false를 반환, 실제 데이터베이스에 저장되지 않음
Bang 메서드(create!, save!, update!)의 경우
=> 보다 엄격한 검사를 수행: 실패시 ActiveRecord::RecordInvalid 예외를 일으킴
·
·
·
·
60/72

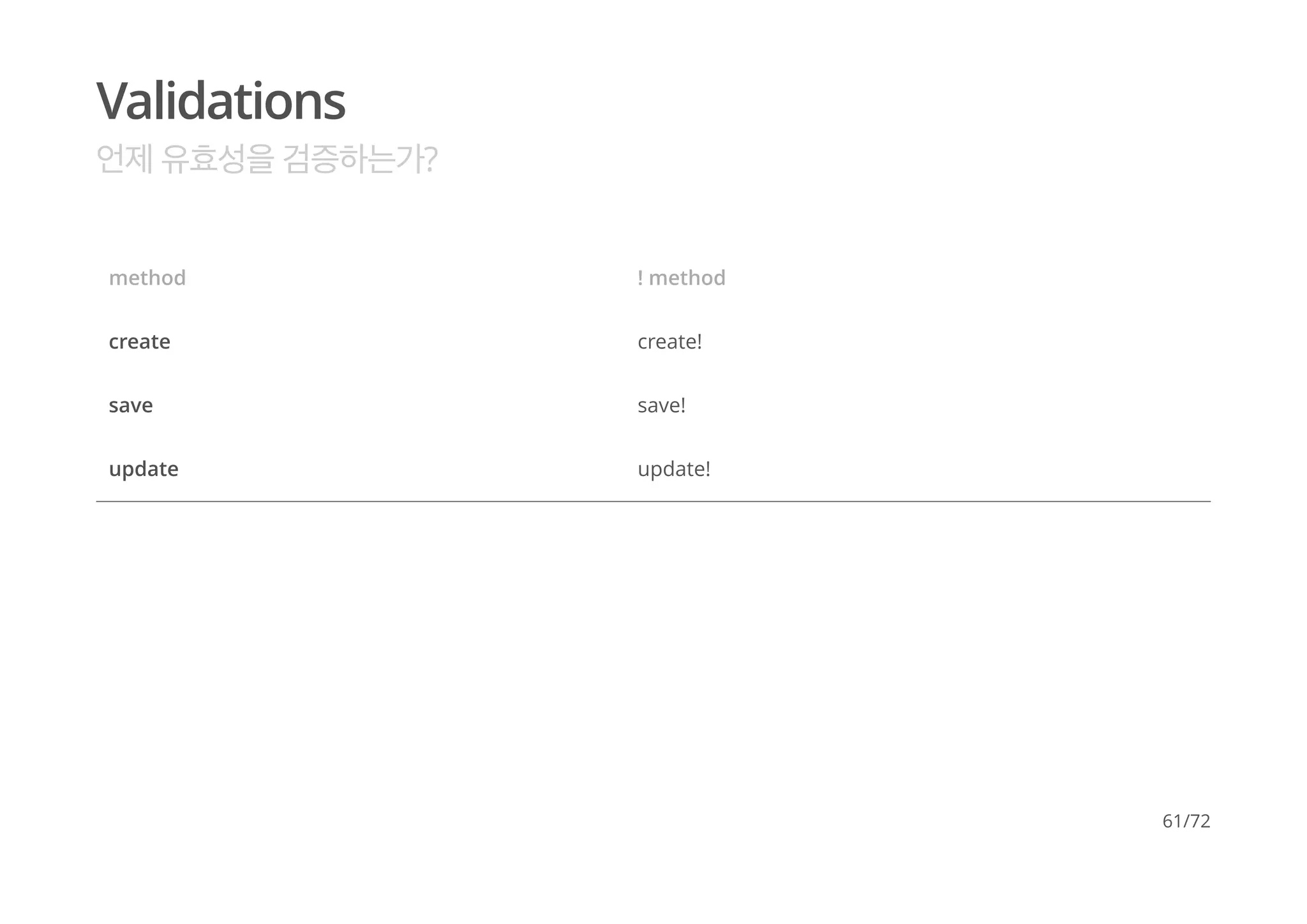

61. Validations
언제 유효성을 검증하는가?
method ! method
create create!
save save!
update update!
61/72

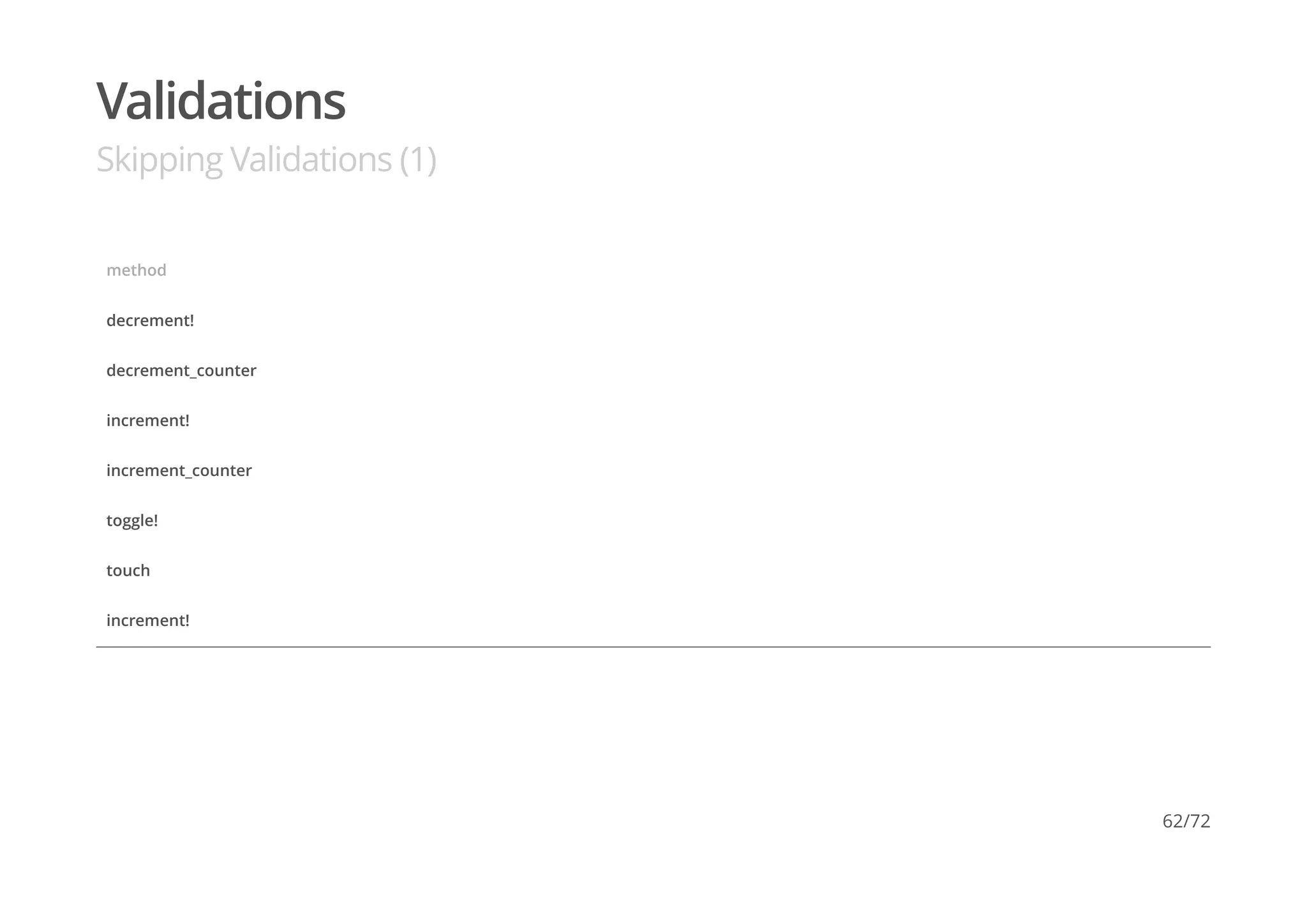

62. Validations
Skipping Validations (1)
method
decrement!
decrement_counter
increment!
increment_counter
toggle!
touch
increment!
62/72

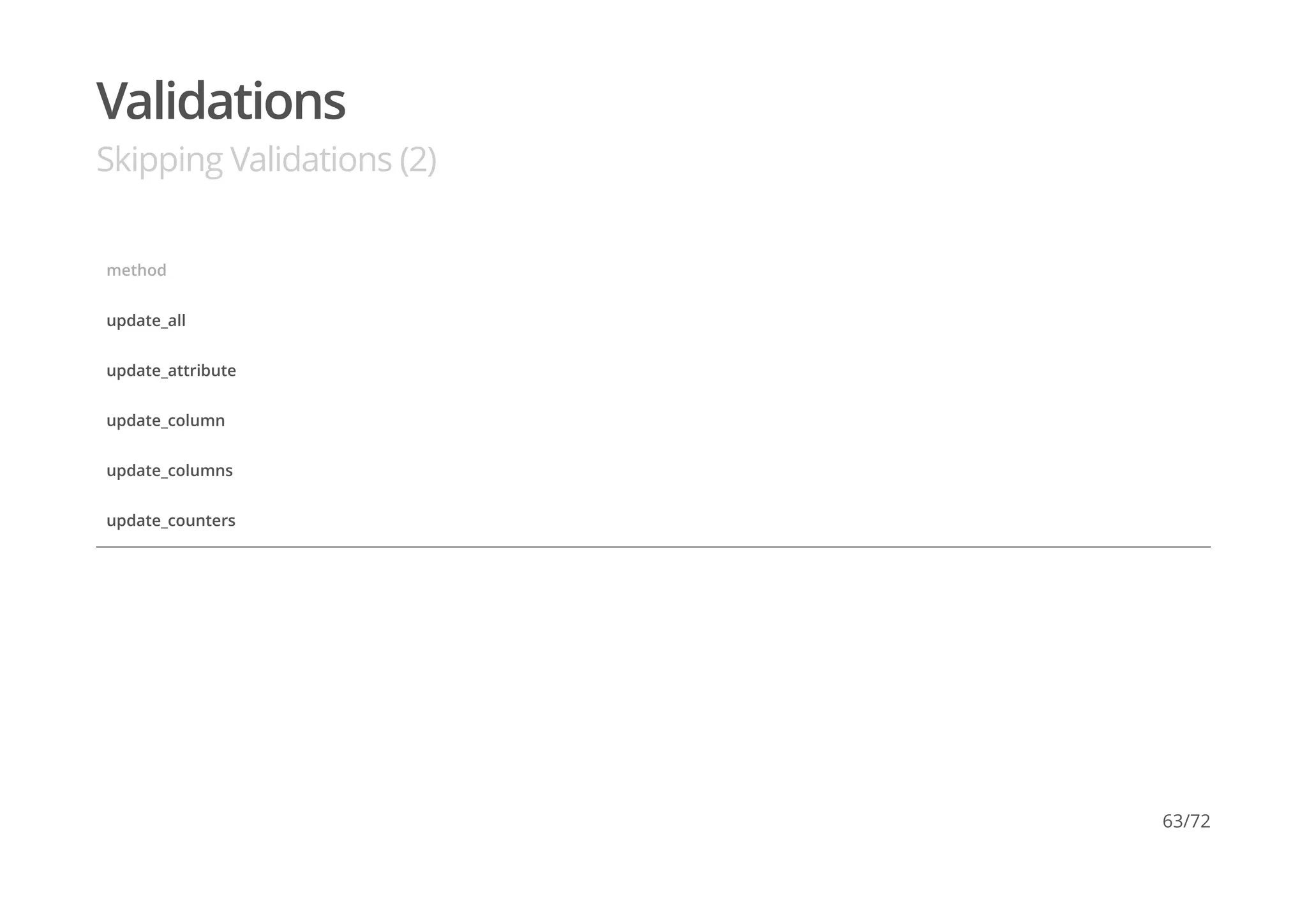

63. Validations
Skipping Validations (2)
method
update_all
update_attribute
update_column
update_columns
update_counters
63/72

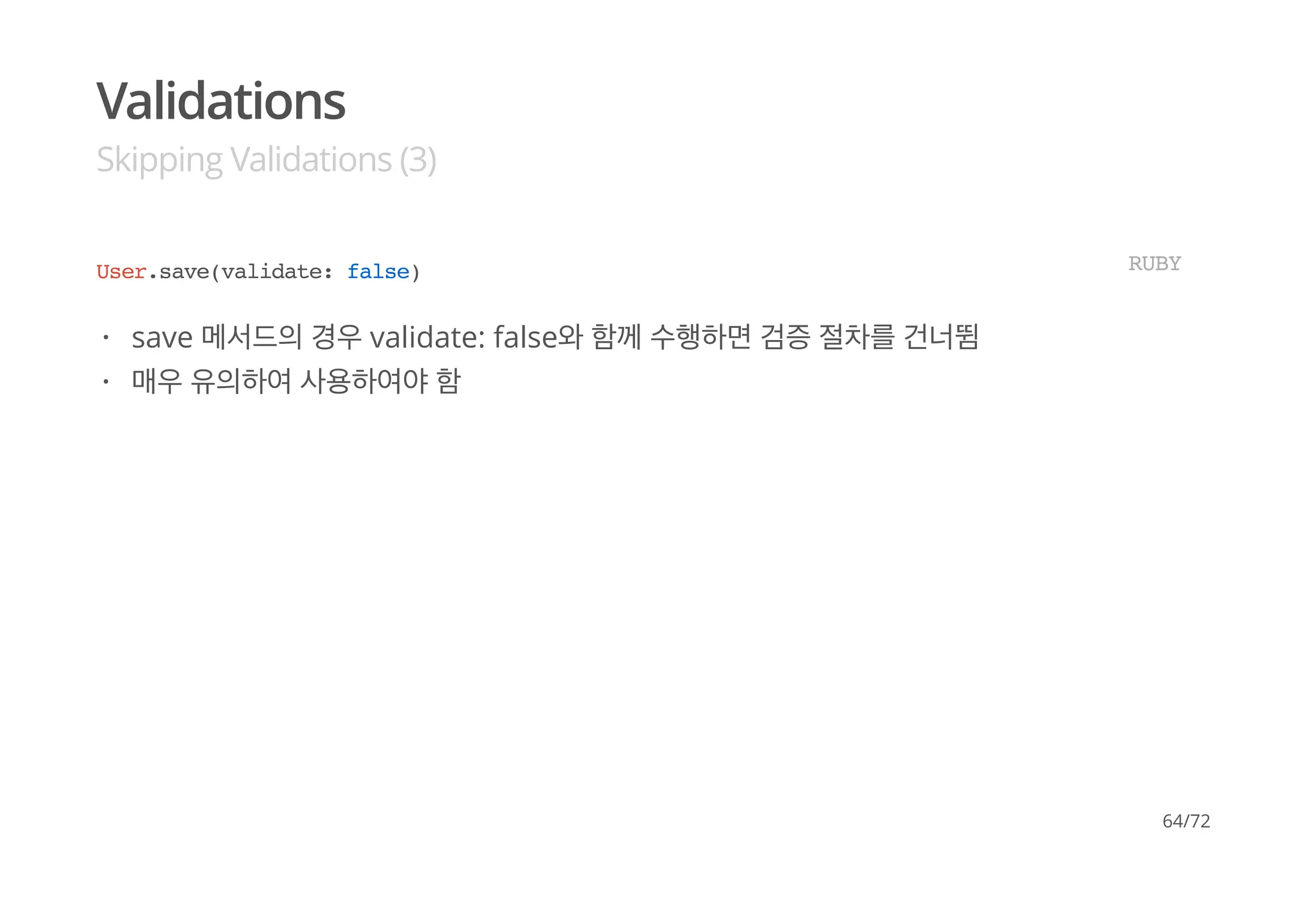

64. Validations
Skipping Validations (3)
User.save(validate: false) RUBY
save 메서드의 경우 validate: false와 함께 수행하면 검증 절차를 건너뜀
매우 유의하여 사용하여야 함
·
·
64/72

65. Further Reading:
Active Record Validations
65/72

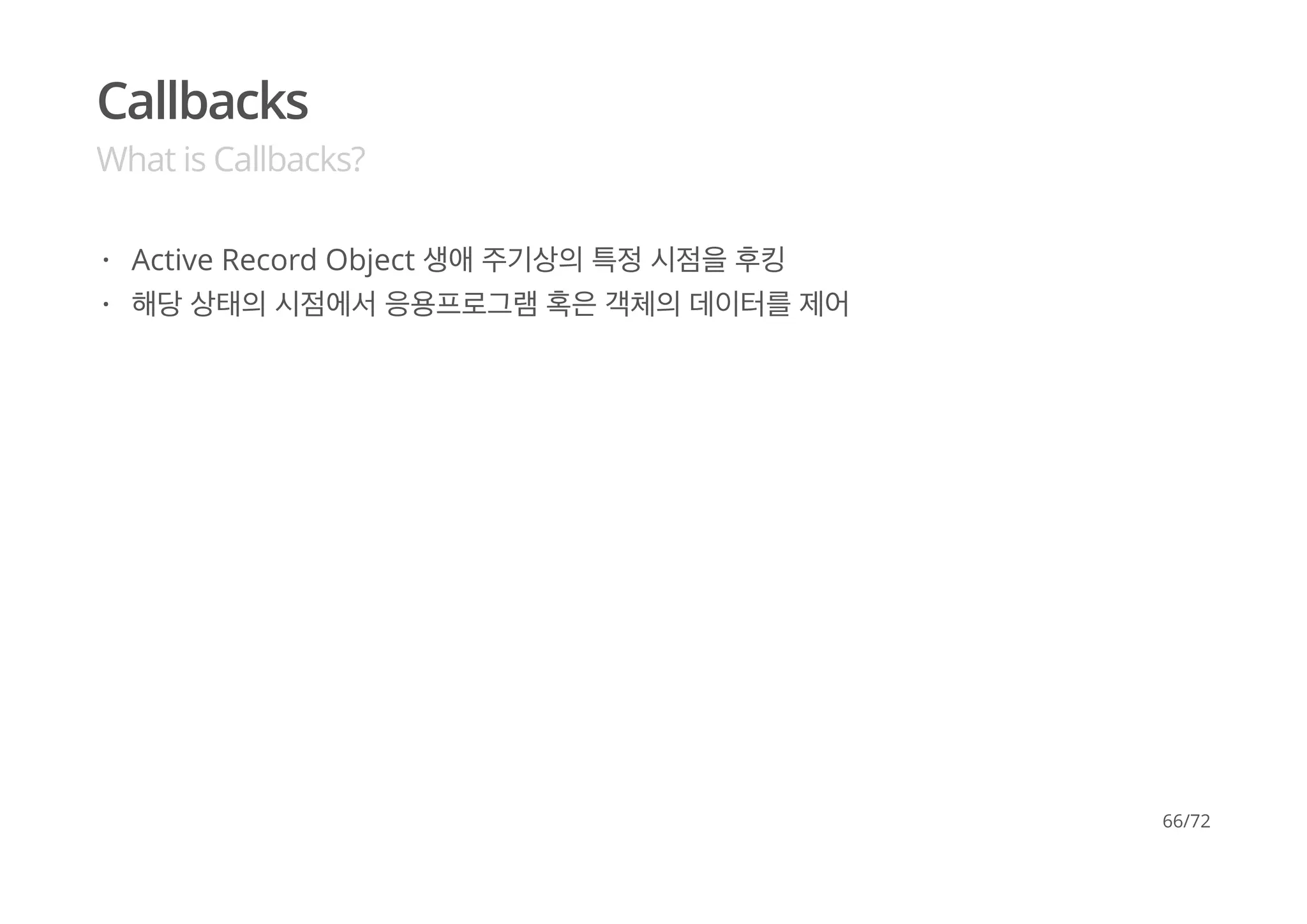

66. Callbacks
What is Callbacks?
Active Record Object 생애 주기상의 특정 시점을 후킹
해당 상태의 시점에서 응용프로그램 혹은 객체의 데이터를 제어
·
·
66/72

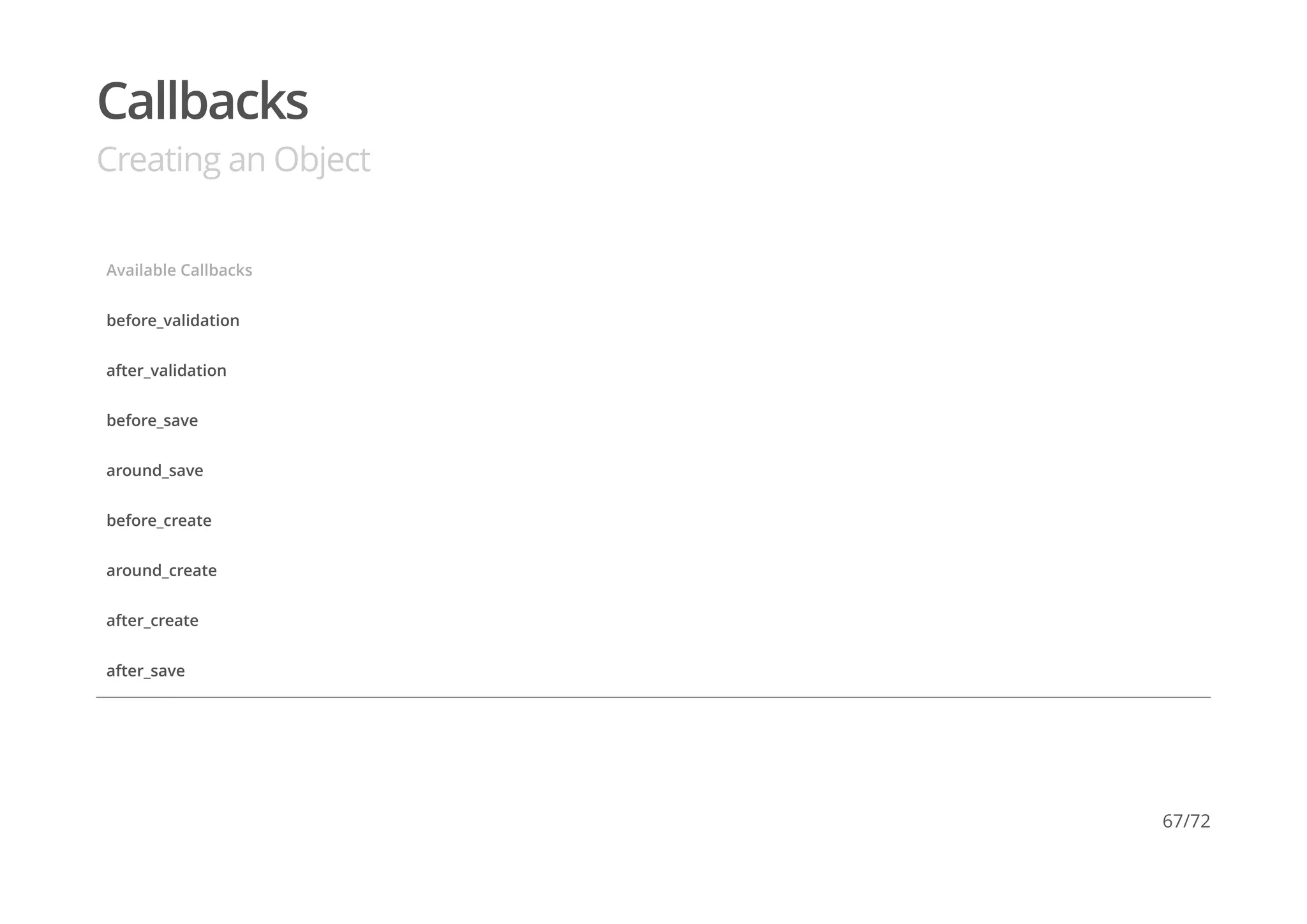

67. Callbacks
Creating an Object
Available Callbacks
before_validation
after_validation
before_save
around_save
before_create
around_create
after_create
after_save
67/72

68. Callbacks
Updating an Object
Available Callbacks
before_validation
after_validation
before_save
around_save
before_update
around_update
after_update
after_save
68/72

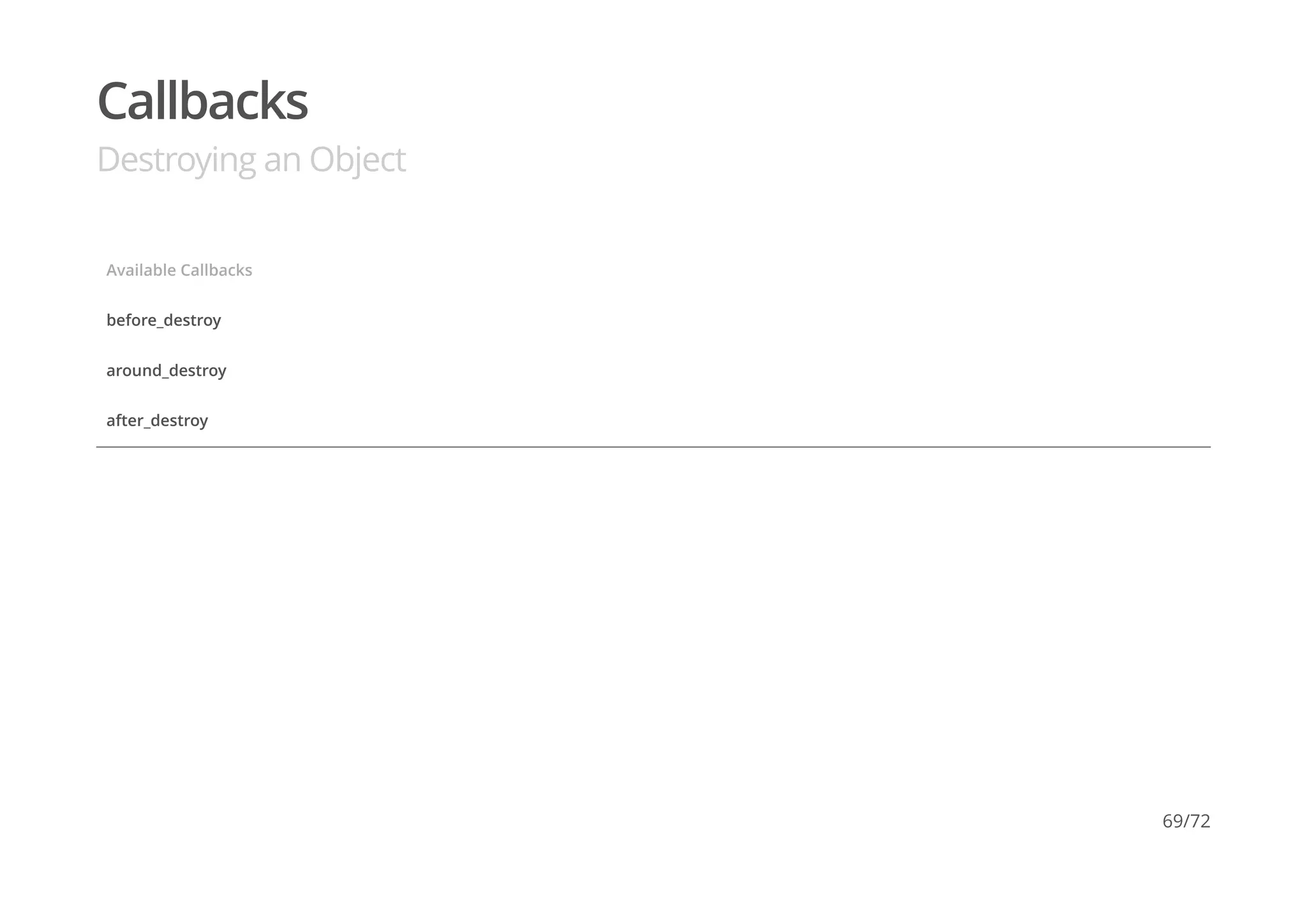

69. Callbacks
Destroying an Object
Available Callbacks
before_destroy
around_destroy
after_destroy
69/72

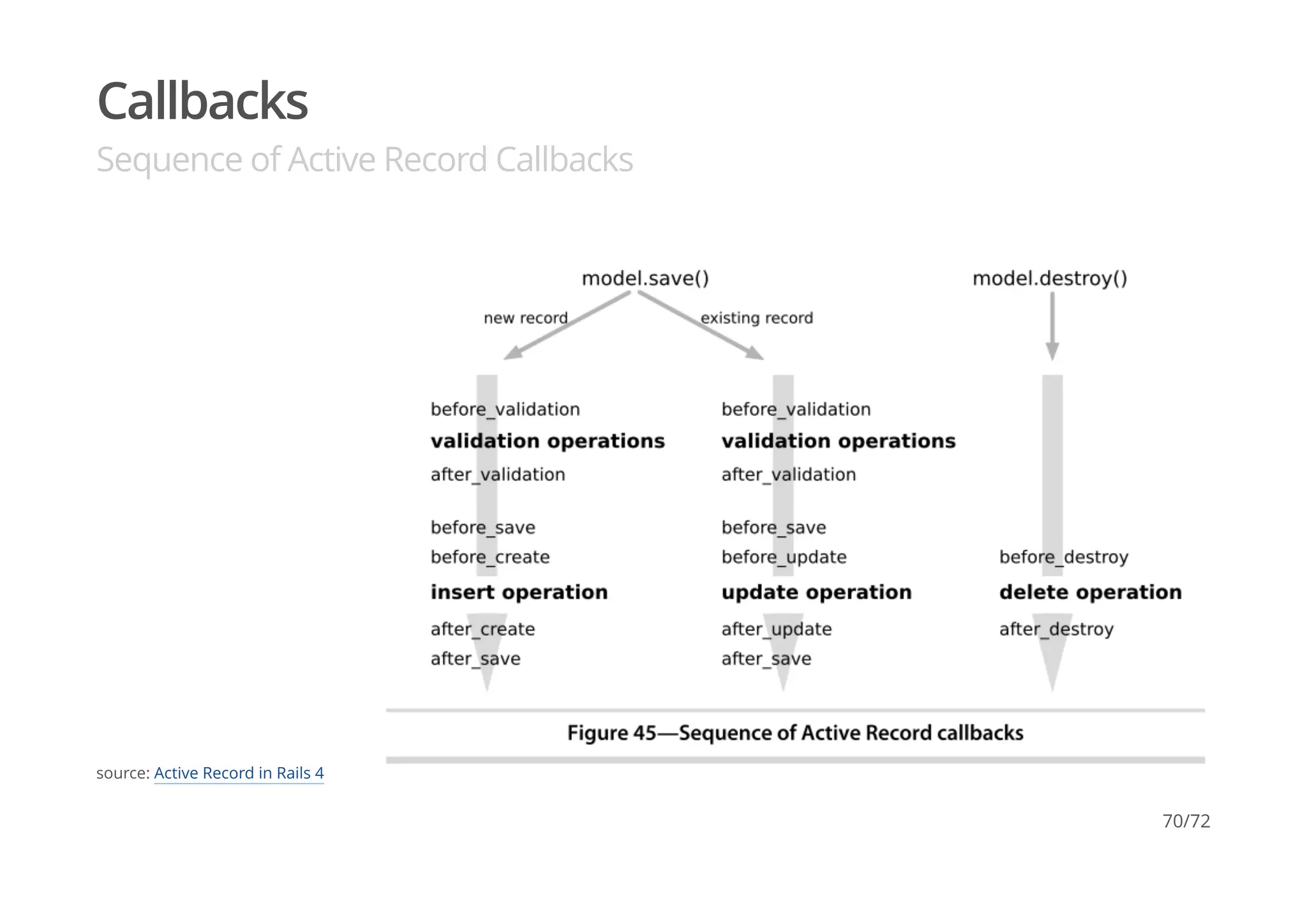

70. Callbacks
Sequence of Active Record Callbacks
source: Active Record in Rails 4
70/72

71. Further Reading:
Active Record Callbacks
71/72

72. <Thank You!>
To Be Continued...
