SQL 쿼리를 AWS DynamoDB에서 (CLI)로 사용해 볼까요?

SQL 쿼리를
AWS DynamoDB 에서
사용해 볼까요?
윤평호 @20190305

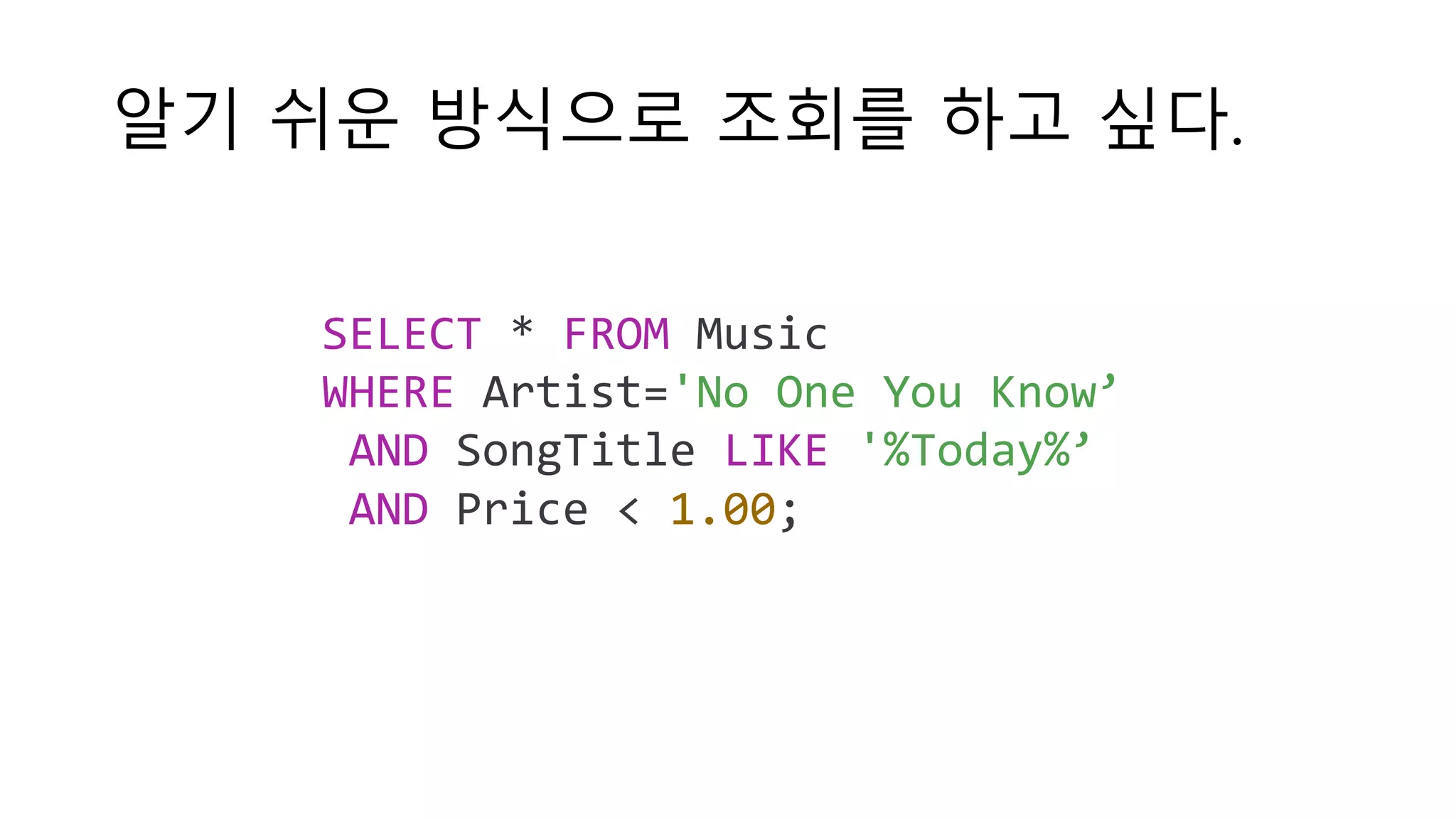

알기 쉬운 방식으로 조회를 하고 싶다.
SELECT * FROM Music
WHERE Artist='No One You Know’
AND SongTitle LIKE '%Today%’
AND Price < 1.00;

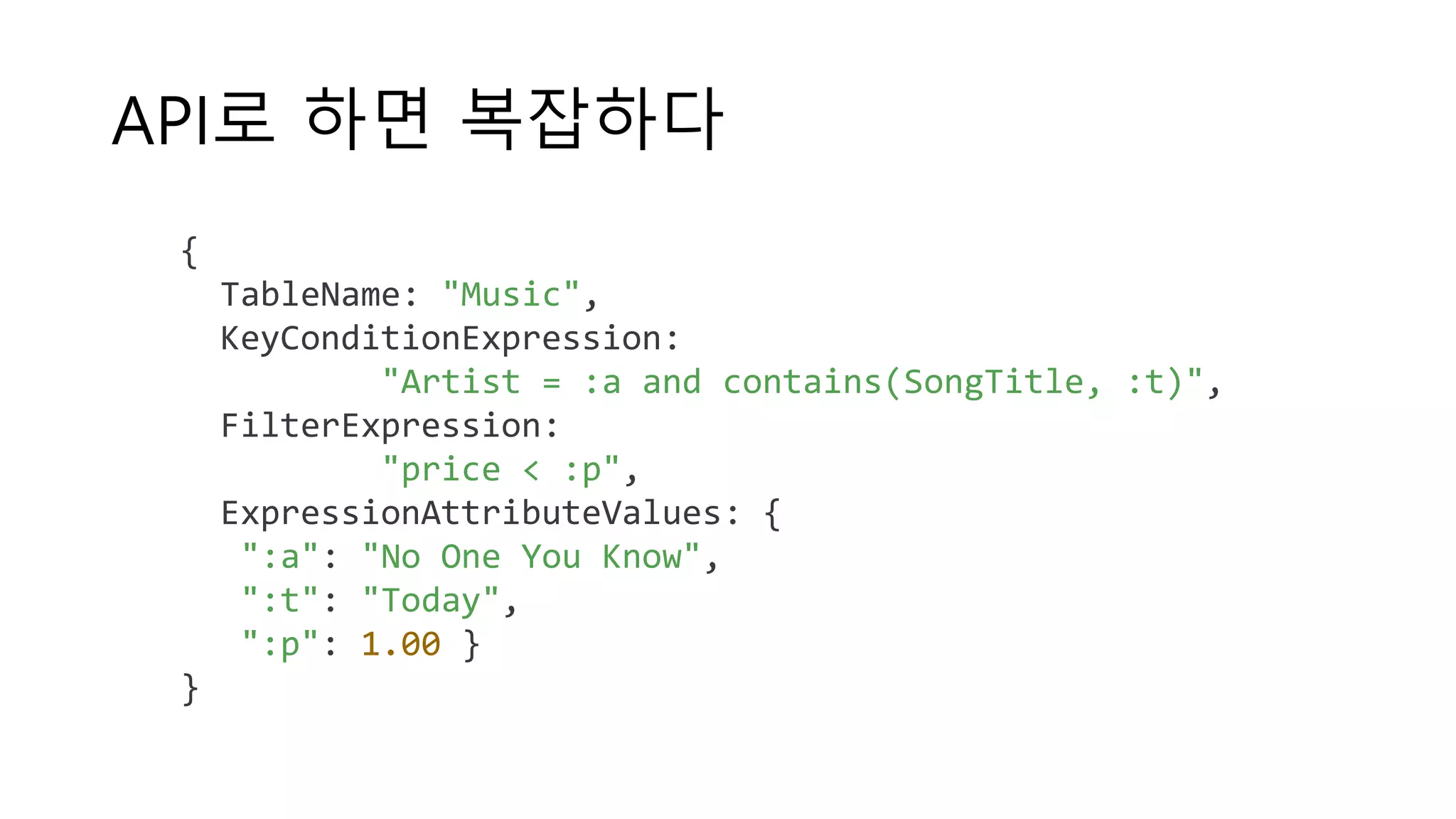

API로 하면 복잡하다
{
TableName: "Music",
KeyConditionExpression:
"Artist = :a and contains(SongTitle, :t)",
FilterExpression:
"price < :p",
ExpressionAttributeValues: {
":a": "No One You Know",
":t": "Today",
":p": 1.00 }
}

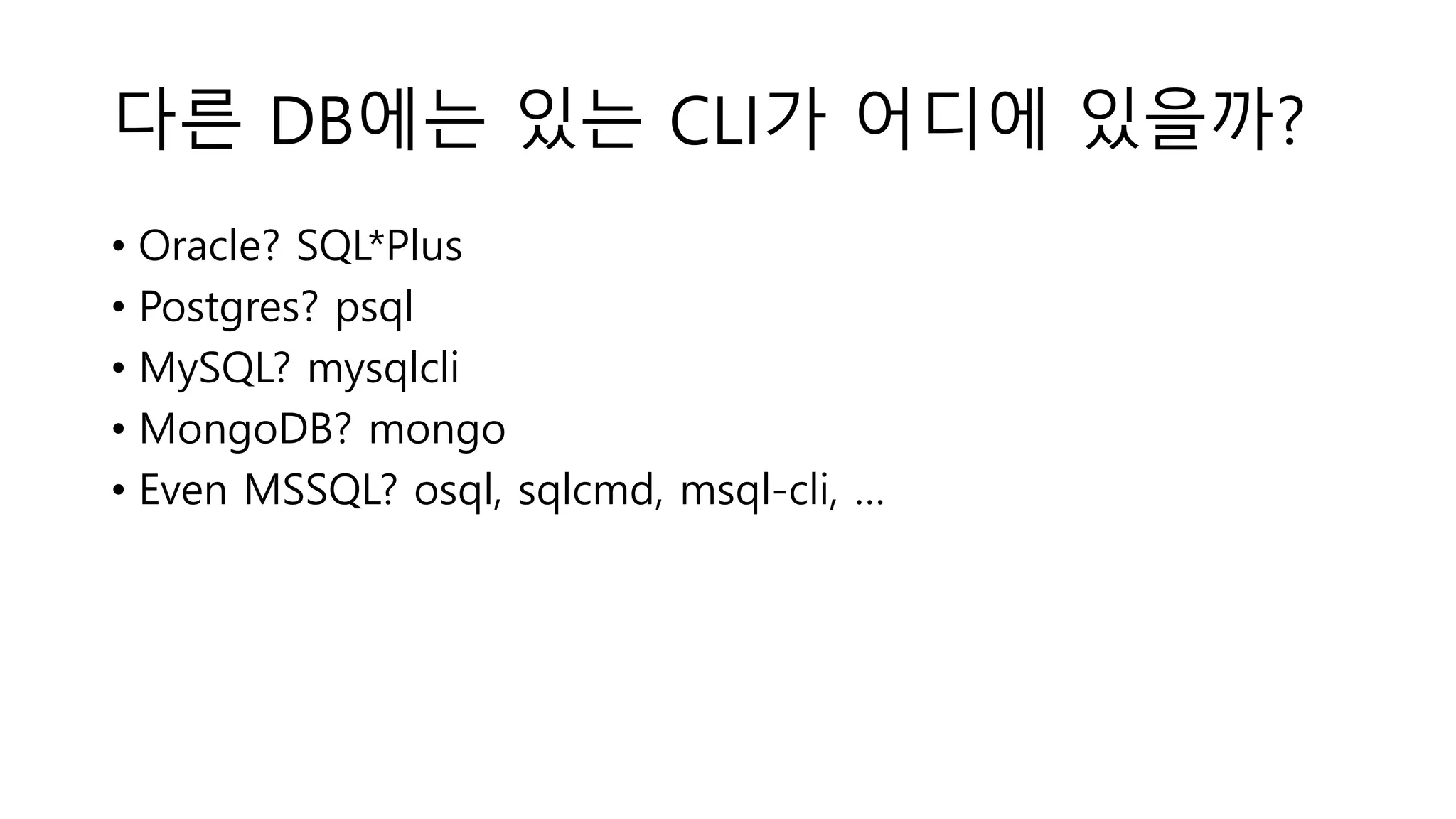

다른 DB에는 있는 CLI가 어디에 있을까?
• Oracle? SQL*Plus
• Postgres? psql
• MySQL? mysqlcli
• MongoDB? mongo
• Even MSSQL? osql, sqlcmd, msql-cli, …

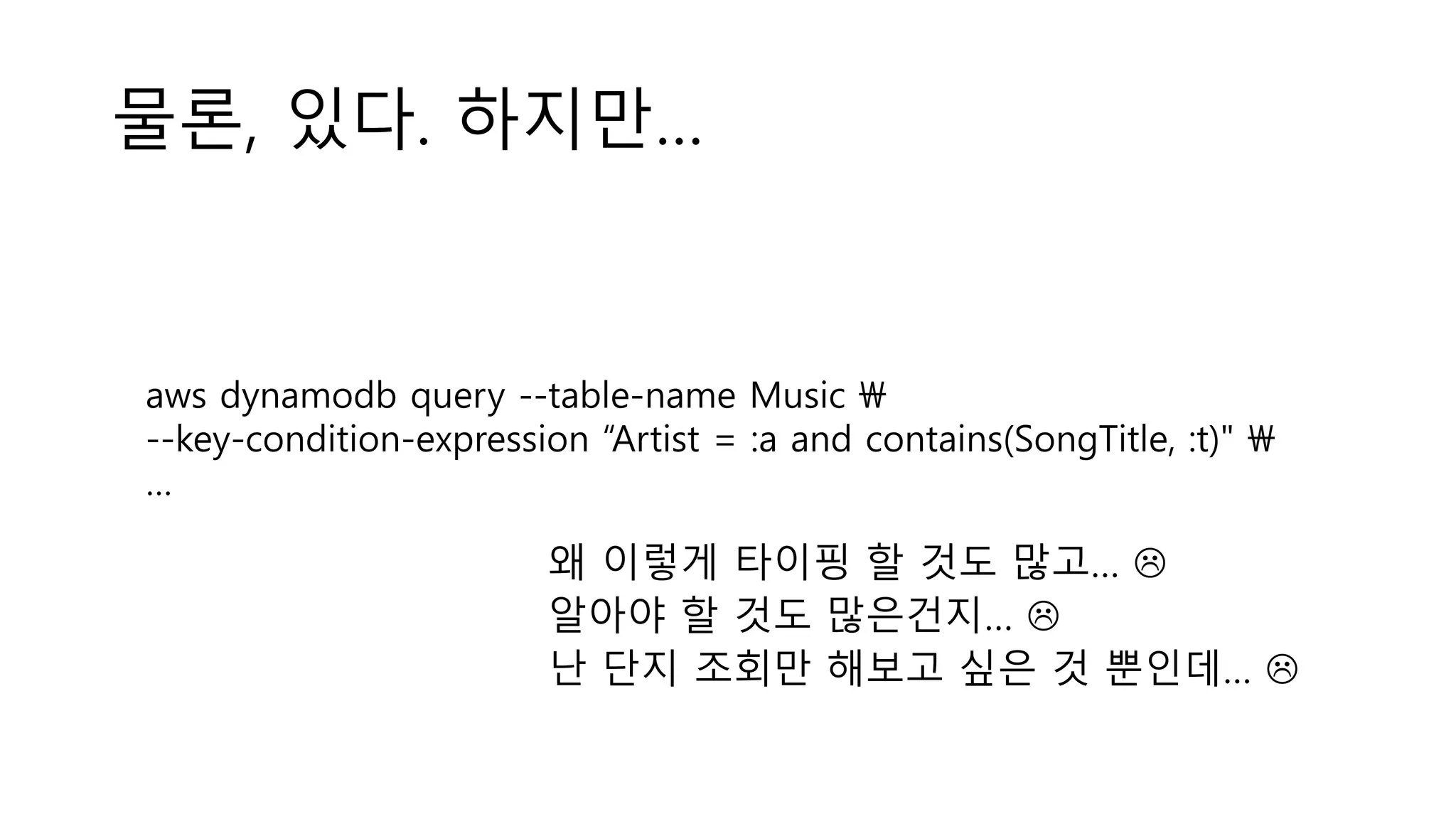

물론, 있다. 하지만…
aws dynamodb query --table-name Music
--key-condition-expression “Artist = :a and contains(SongTitle, :t)"
…
왜 이렇게 타이핑 할 것도 많고… 
알아야 할 것도 많은건지… 
난 단지 조회만 해보고 싶은 것 뿐인데… 

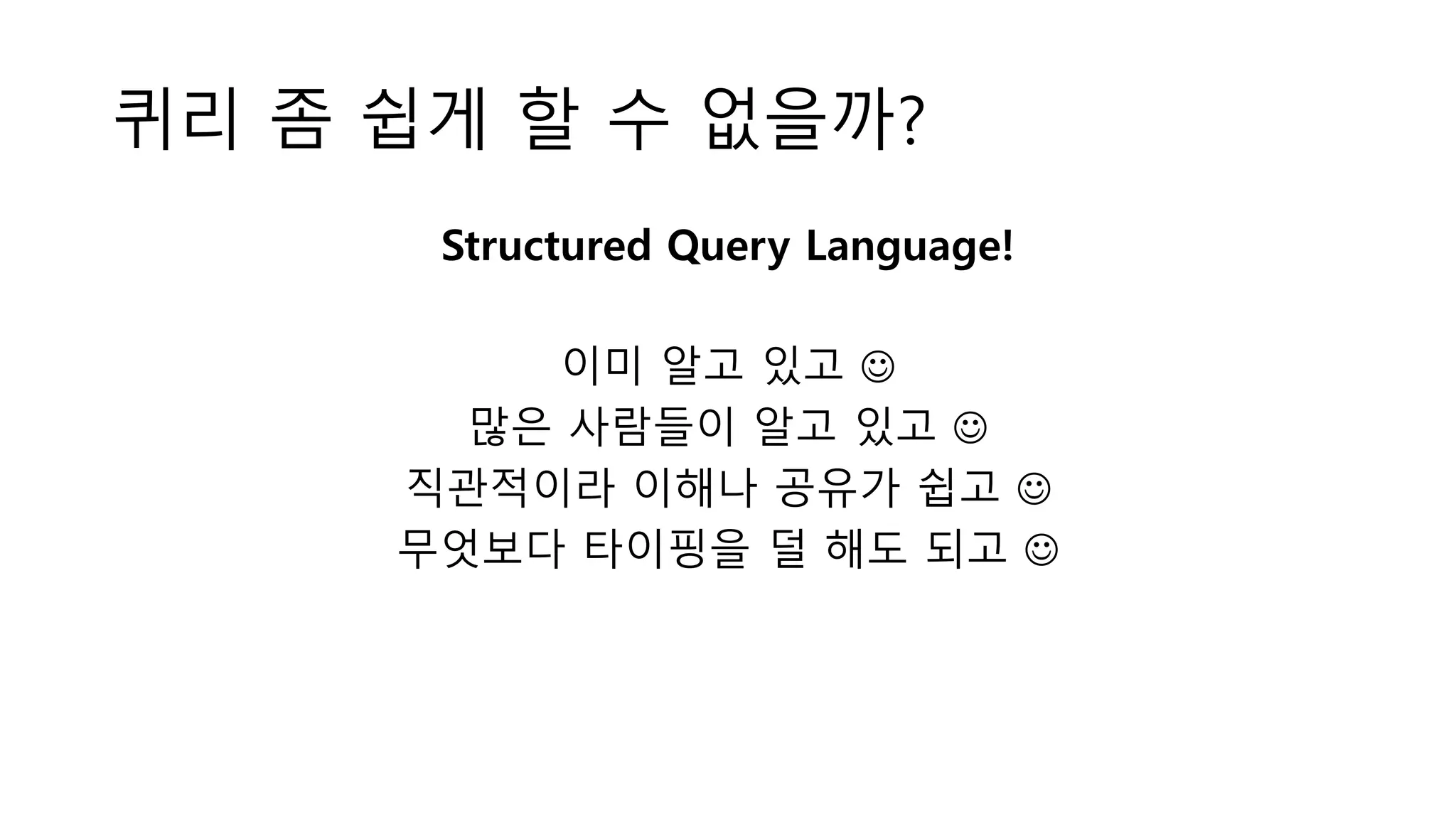

퀴리 좀 쉽게 할 수 없을까?
Structured Query Language!
이미 알고 있고 
많은 사람들이 알고 있고 
직관적이라 이해나 공유가 쉽고 
무엇보다 타이핑을 덜 해도 되고 

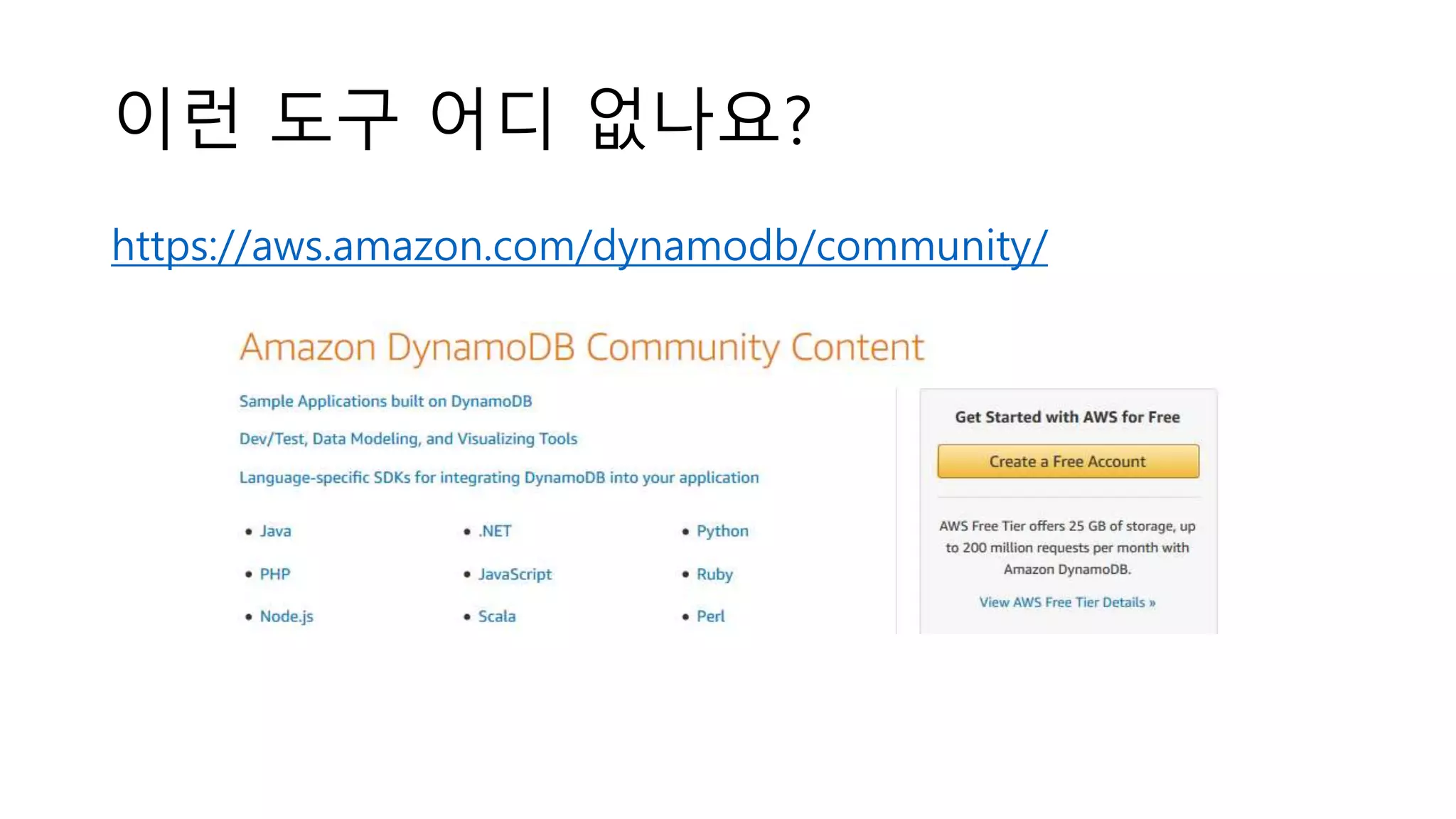

이런 도구 어디 없나요?
https://aws.amazon.com/dynamodb/community/

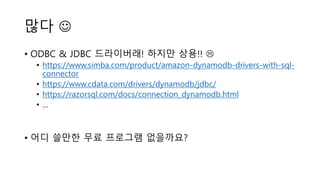

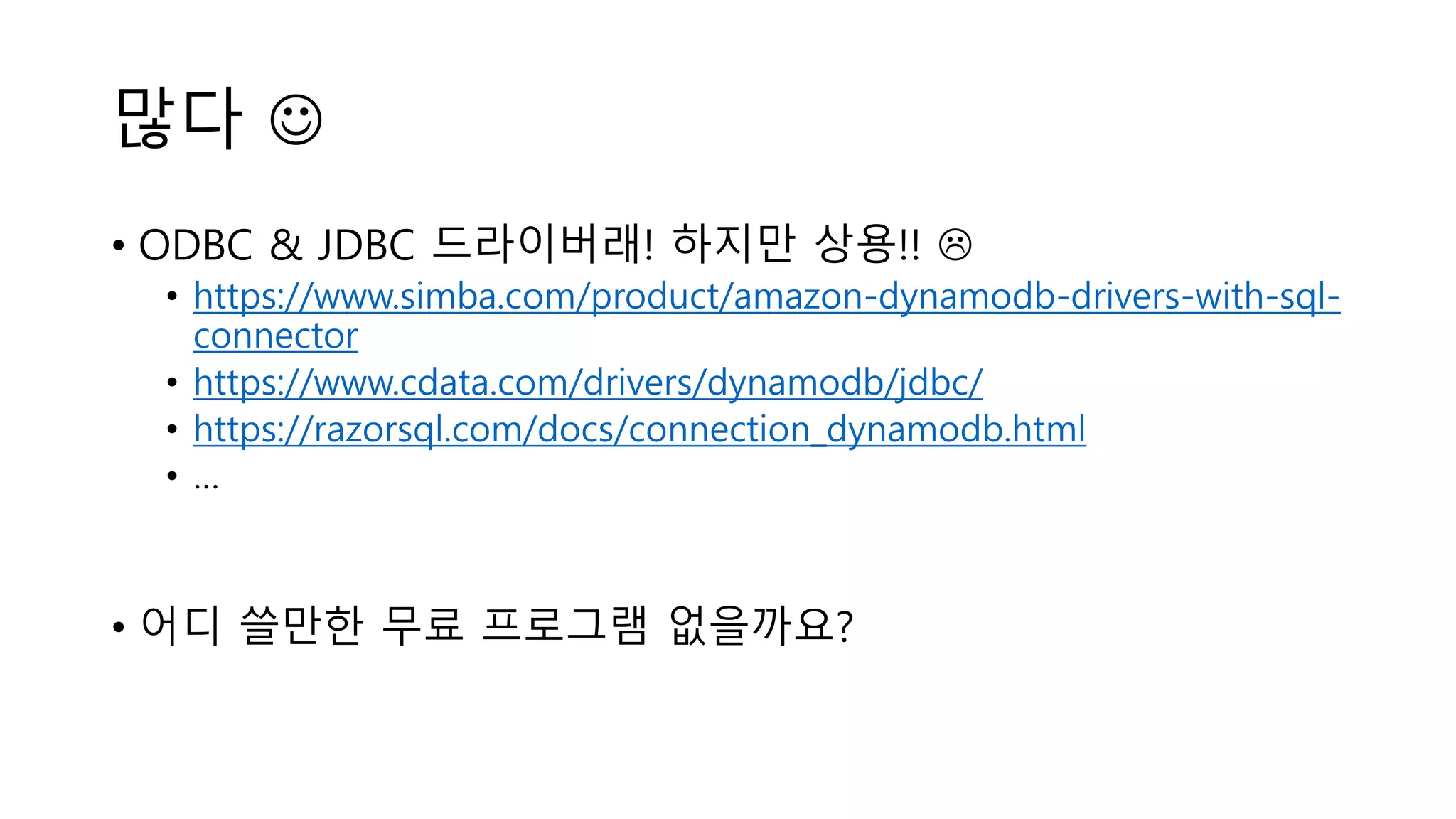

많다 
• ODBC & JDBC 드라이버래! 하지만 상용!! 
• https://www.simba.com/product/amazon-dynamodb-drivers-with-sql-
connector
• https://www.cdata.com/drivers/dynamodb/jdbc/
• https://razorsql.com/docs/connection_dynamodb.html
• …
• 어디 쓸만한 무료 프로그램 없을까요?

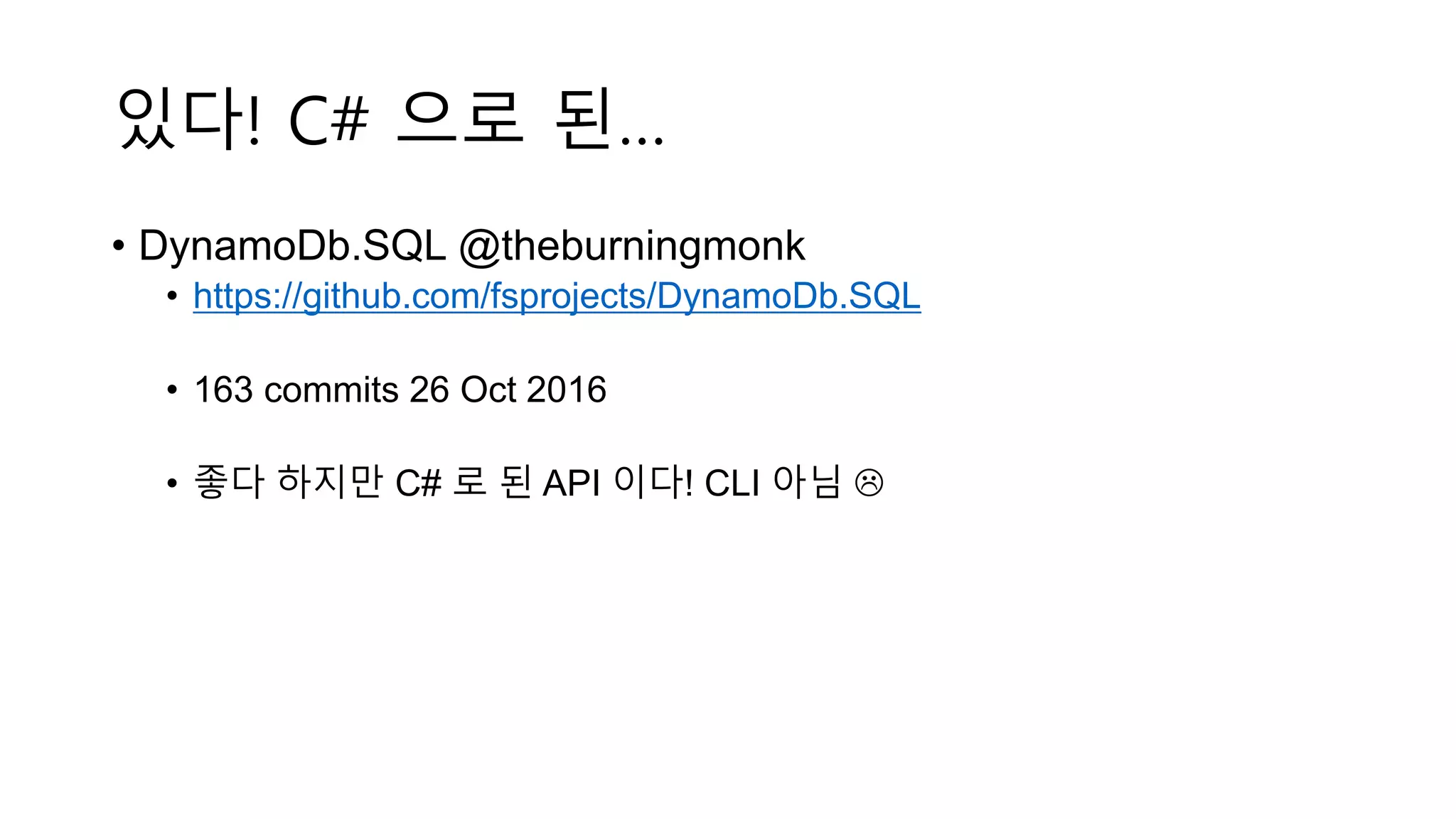

있다! C# 으로 된…
• DynamoDb.SQL @theburningmonk
• https://github.com/fsprojects/DynamoDb.SQL
• 163 commits 26 Oct 2016
• 좋다 하지만 C# 로 된 API 이다! CLI 아님 

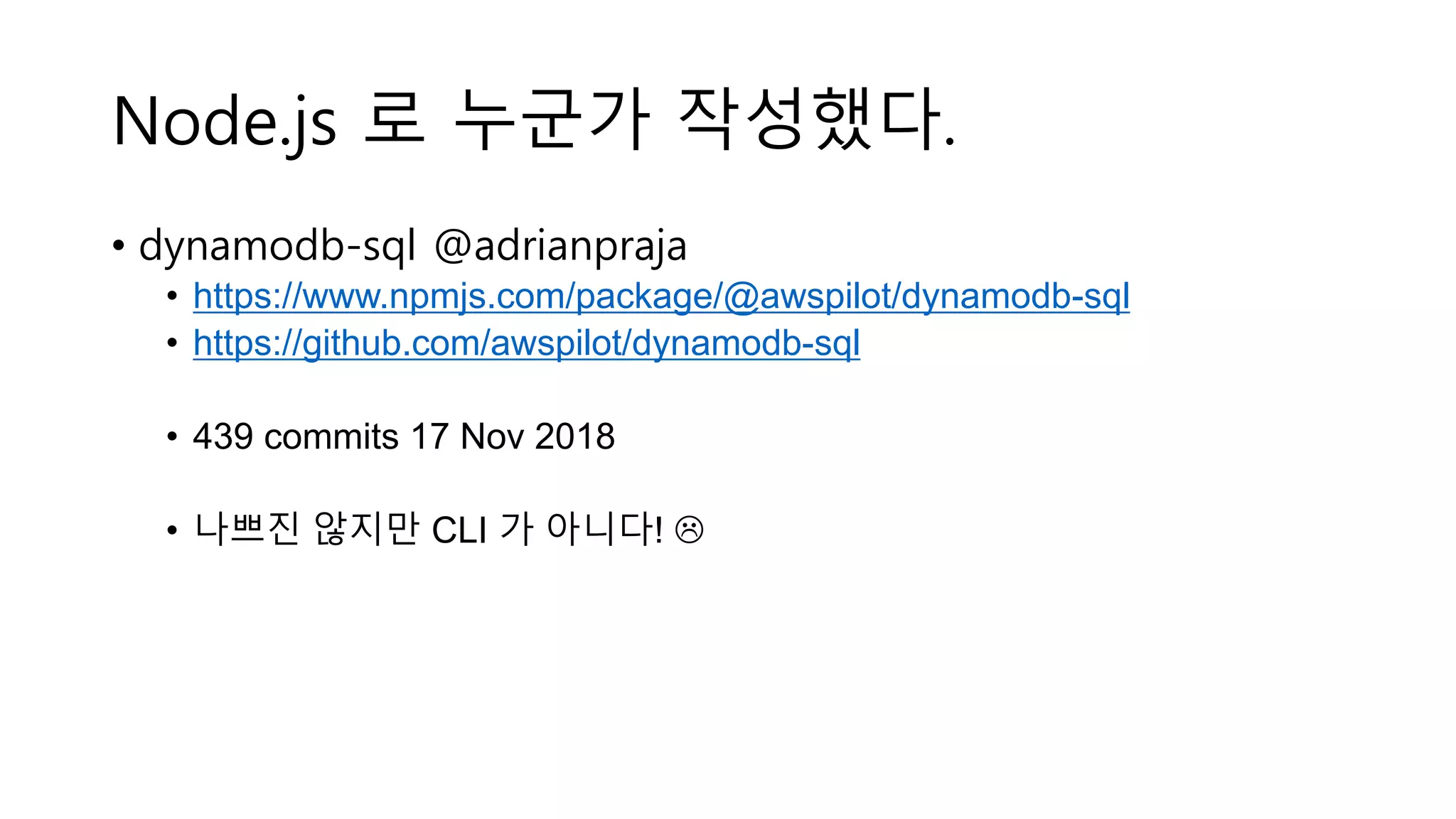

Node.js 로 누군가 작성했다.
• dynamodb-sql @adrianpraja
• https://www.npmjs.com/package/@awspilot/dynamodb-sql
• https://github.com/awspilot/dynamodb-sql
• 439 commits 17 Nov 2018
• 나쁘진 않지만 CLI 가 아니다! 

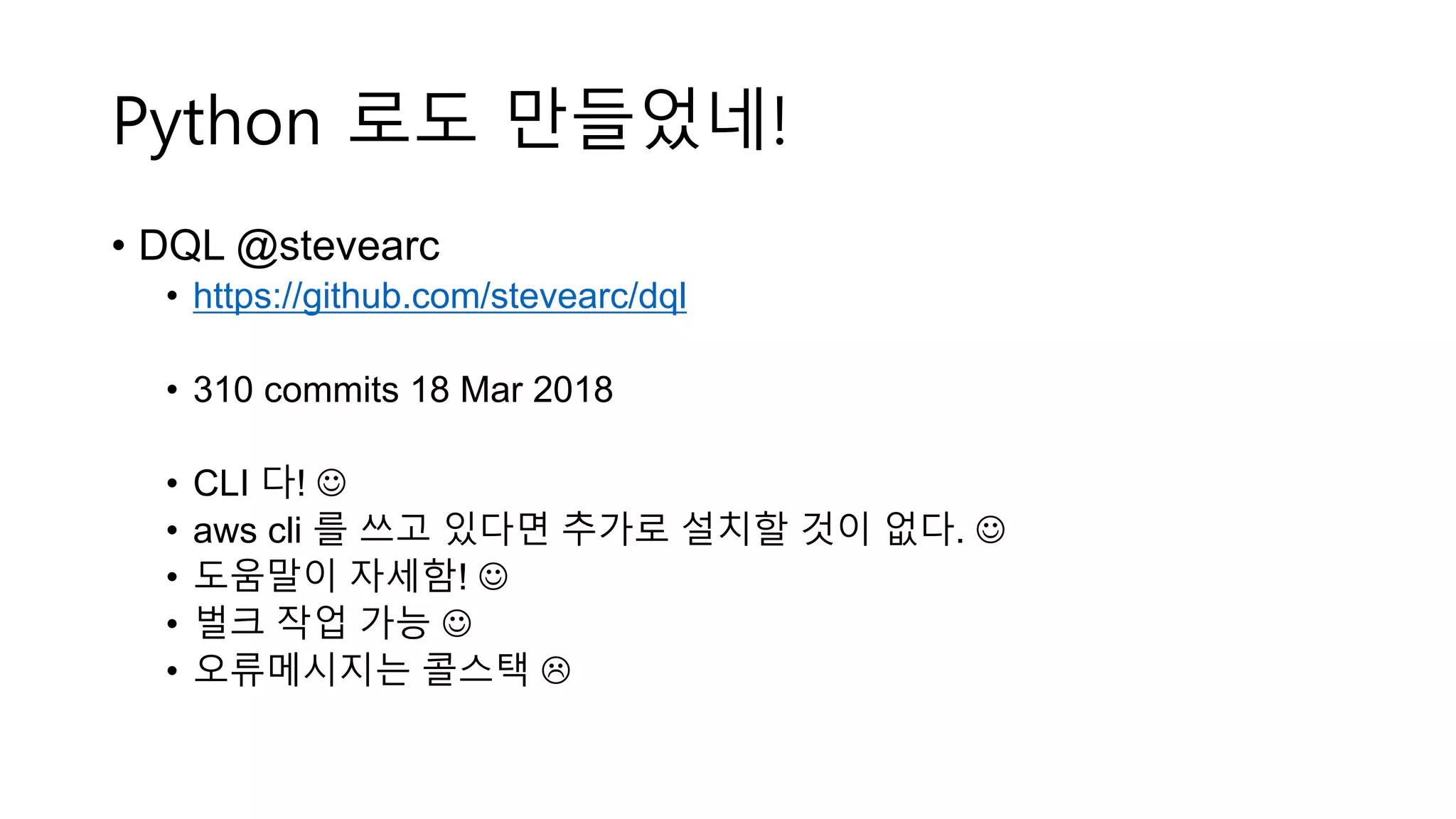

Python 로도 만들었네!
• DQL @stevearc
• https://github.com/stevearc/dql
• 310 commits 18 Mar 2018
• CLI 다! 
• aws cli 를 쓰고 있다면 추가로 설치할 것이 없다. 
• 도움말이 자세함! 
• 벌크 작업 가능 
• 오류메시지는 콜스택 

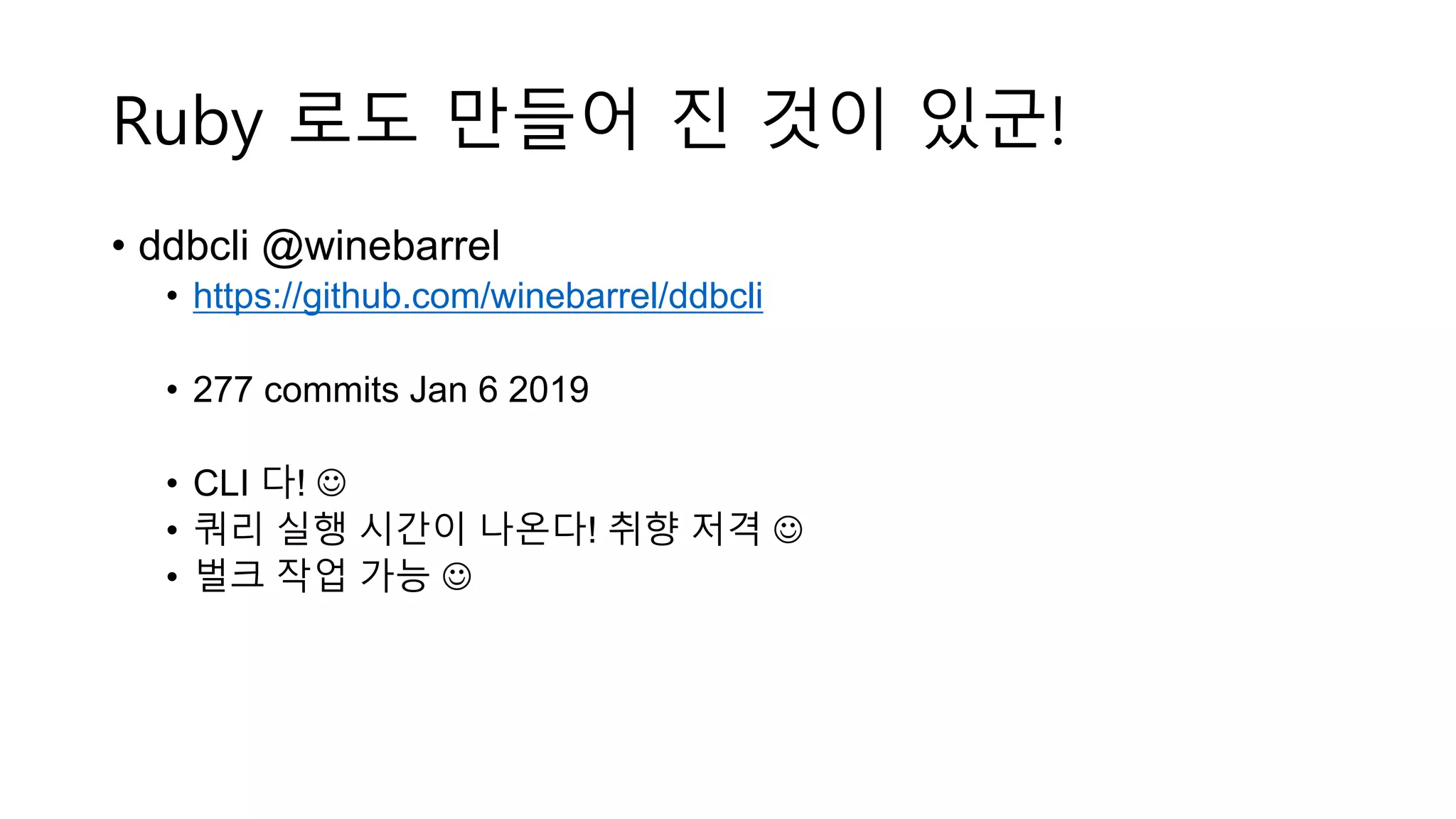

Ruby 로도 만들어 진 것이 있군!
• ddbcli @winebarrel
• https://github.com/winebarrel/ddbcli
• 277 commits Jan 6 2019
• CLI 다! 
• 쿼리 실행 시간이 나온다! 취향 저격 
• 벌크 작업 가능 

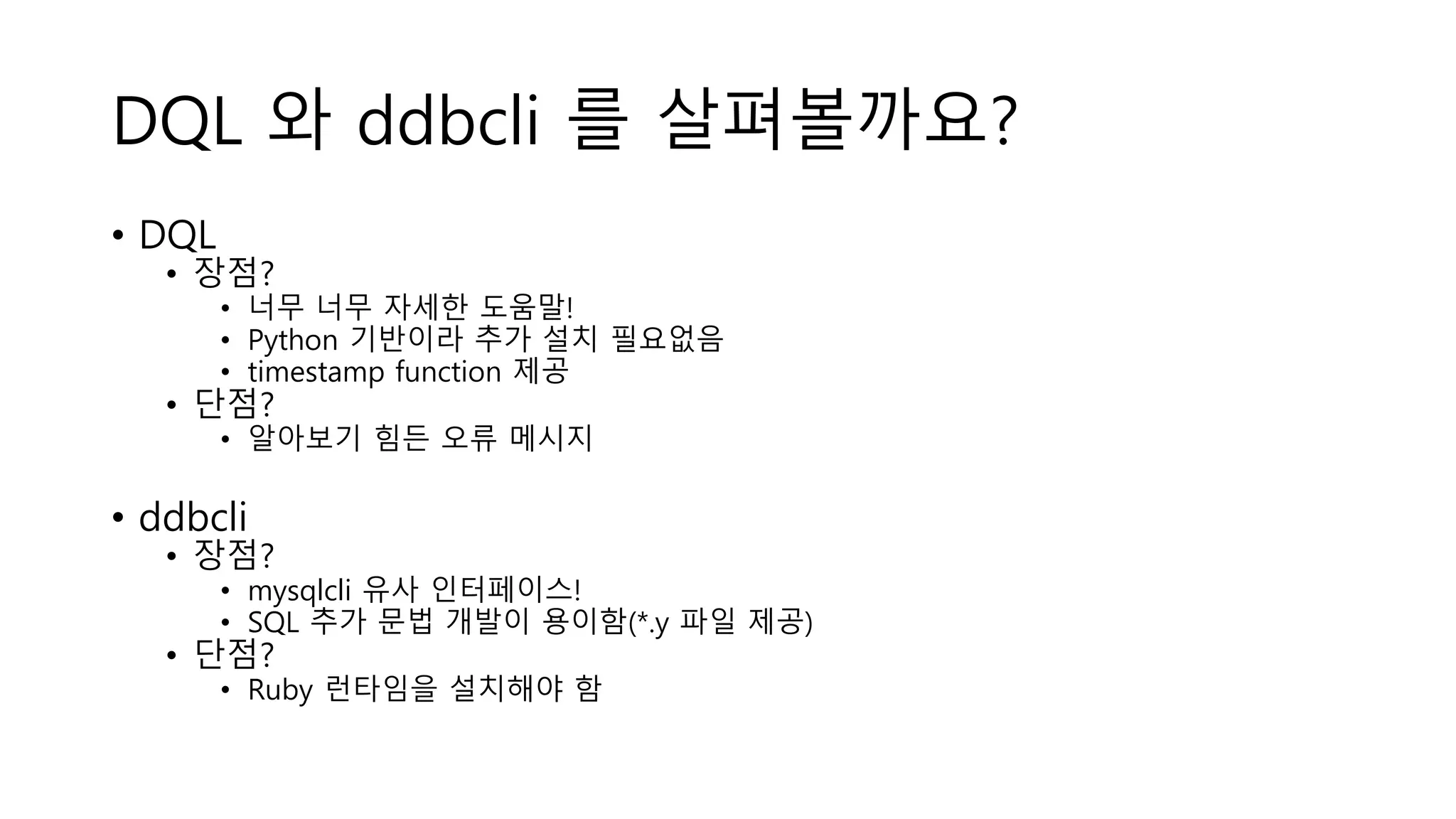

DQL 와 ddbcli 를 살펴볼까요?
• DQL
• 장점?
• 너무 너무 자세한 도움말!
• Python 기반이라 추가 설치 필요없음
• timestamp function 제공
• 단점?
• 알아보기 힘든 오류 메시지
• ddbcli
• 장점?
• mysqlcli 유사 인터페이스!
• SQL 추가 문법 개발이 용이함(*.y 파일 제공)
• 단점?
• Ruby 런타임을 설치해야 함

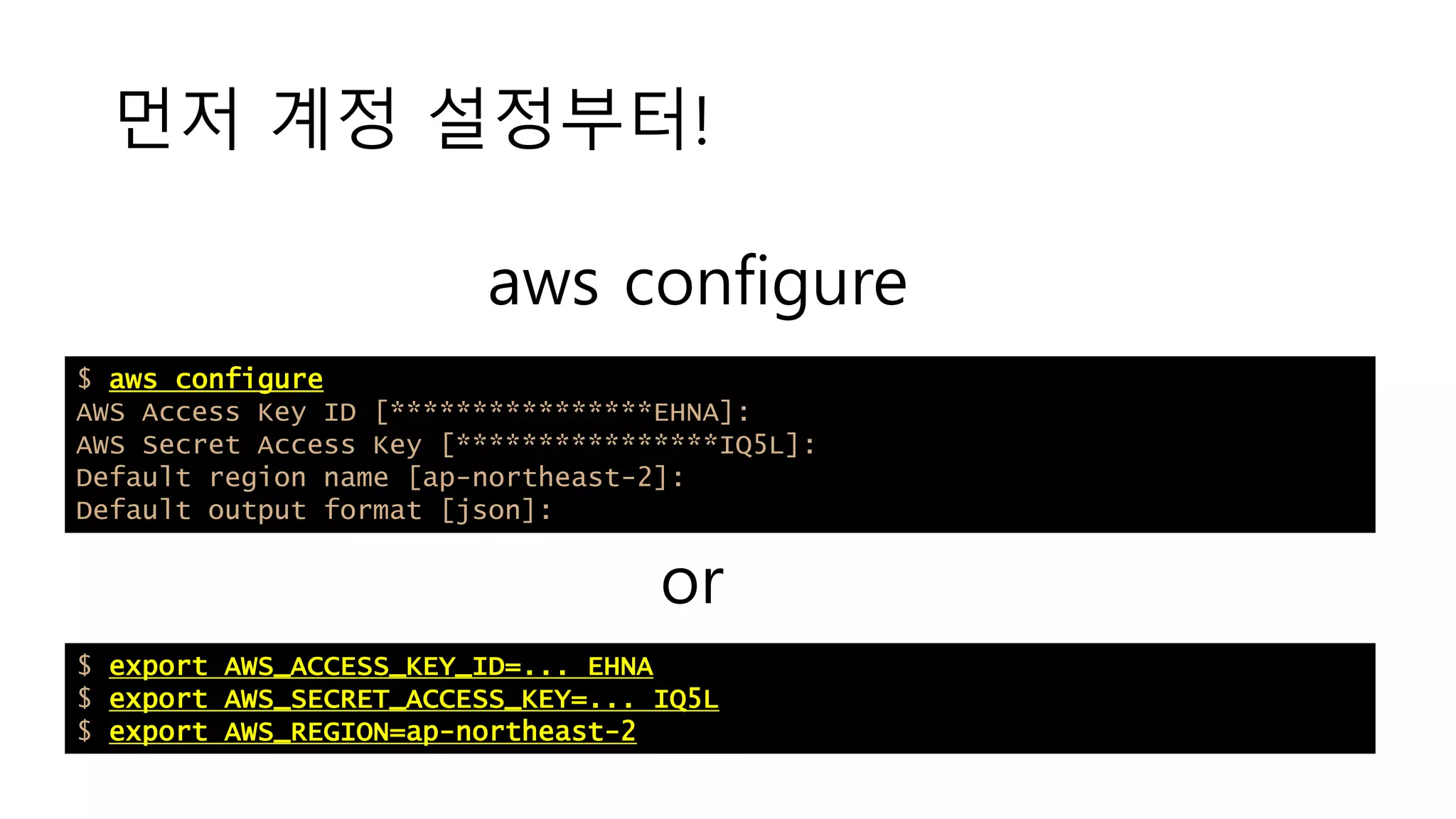

$ aws configure
AWS Access Key ID [****************EHNA]:
AWS Secret Access Key [****************IQ5L]:
Default region name [ap-northeast-2]:
Default output format [json]:
먼저 계정 설정부터!
$ export AWS_ACCESS_KEY_ID=... EHNA
$ export AWS_SECRET_ACCESS_KEY=... IQ5L
$ export AWS_REGION=ap-northeast-2
or
aws configure

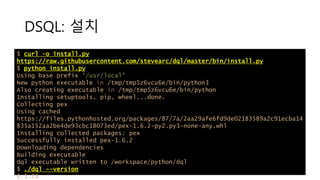

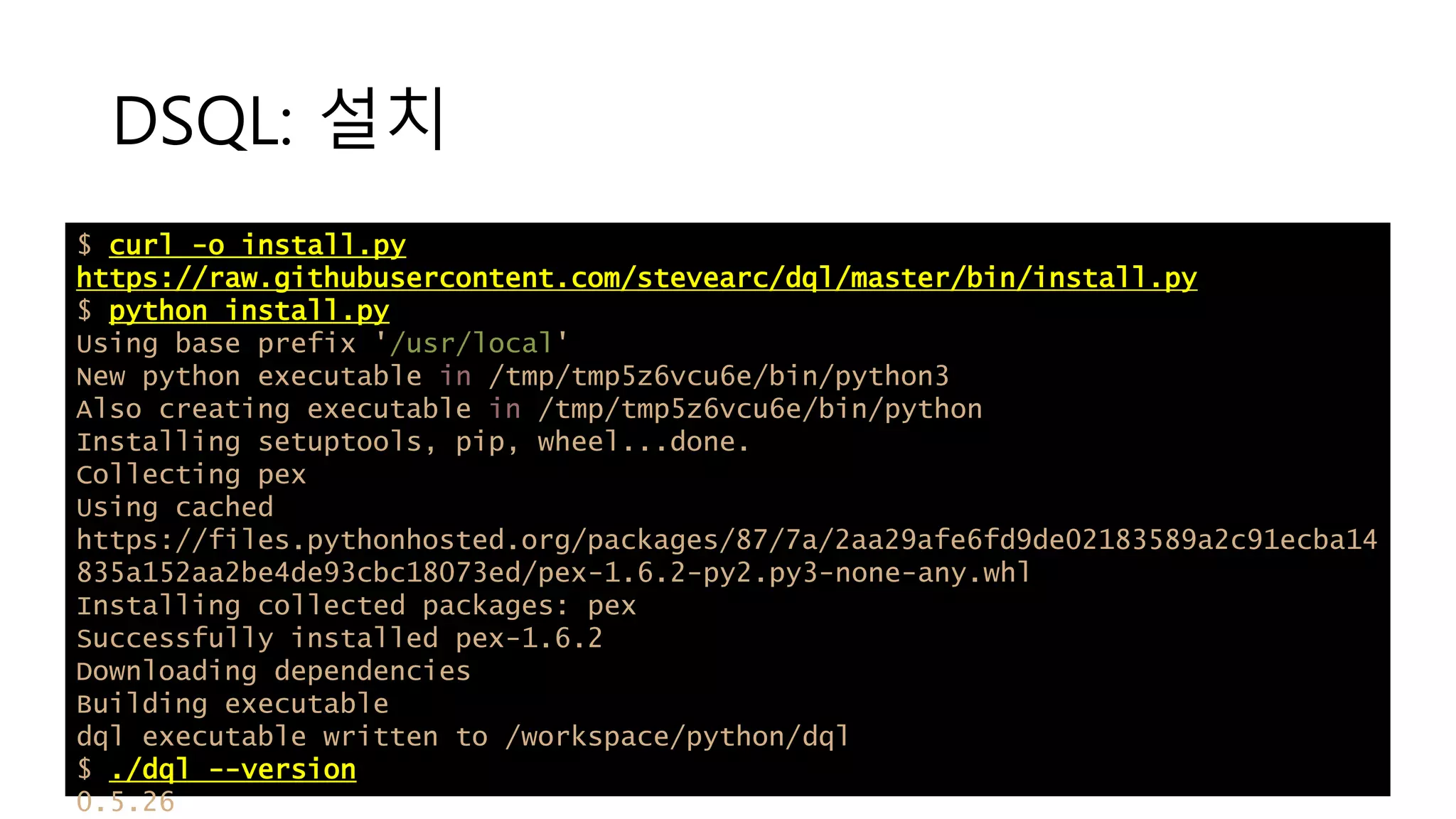

DSQL: 설치
$ curl -o install.py
https://raw.githubusercontent.com/stevearc/dql/master/bin/install.py
$ python install.py
Using base prefix '/usr/local'
New python executable in /tmp/tmp5z6vcu6e/bin/python3
Also creating executable in /tmp/tmp5z6vcu6e/bin/python
Installing setuptools, pip, wheel...done.
Collecting pex
Using cached
https://files.pythonhosted.org/packages/87/7a/2aa29afe6fd9de02183589a2c91ecba14
835a152aa2be4de93cbc18073ed/pex-1.6.2-py2.py3-none-any.whl
Installing collected packages: pex
Successfully installed pex-1.6.2
Downloading dependencies
Building executable
dql executable written to /workspace/python/dql
$ ./dql --version
0.5.26

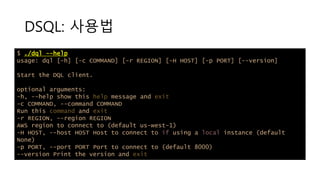

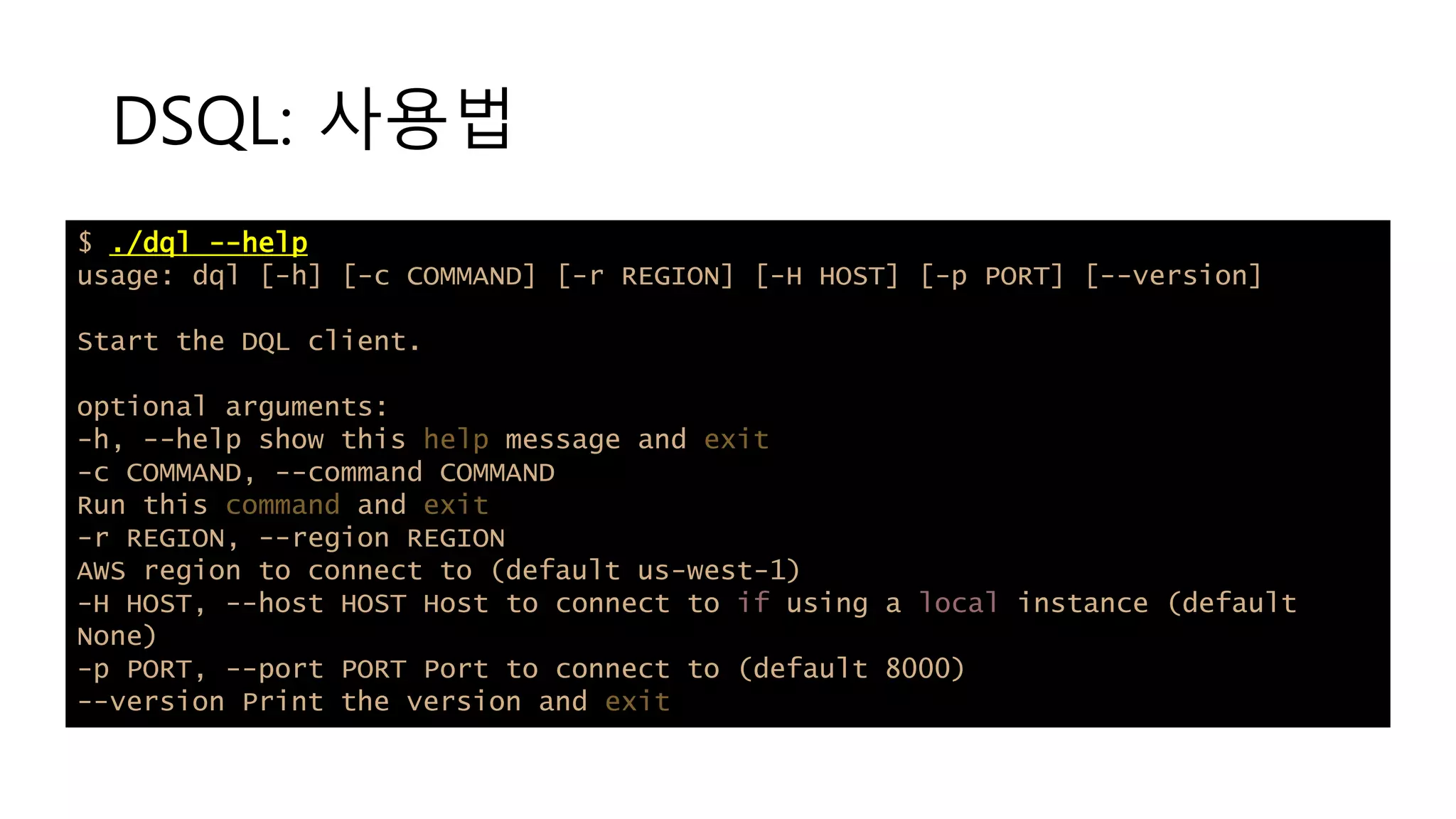

DSQL: 사용법
$ ./dql --help
usage: dql [-h] [-c COMMAND] [-r REGION] [-H HOST] [-p PORT] [--version]
Start the DQL client.
optional arguments:
-h, --help show this help message and exit
-c COMMAND, --command COMMAND
Run this command and exit
-r REGION, --region REGION
AWS region to connect to (default us-west-1)
-H HOST, --host HOST Host to connect to if using a local instance (default
None)
-p PORT, --port PORT Port to connect to (default 8000)
--version Print the version and exit

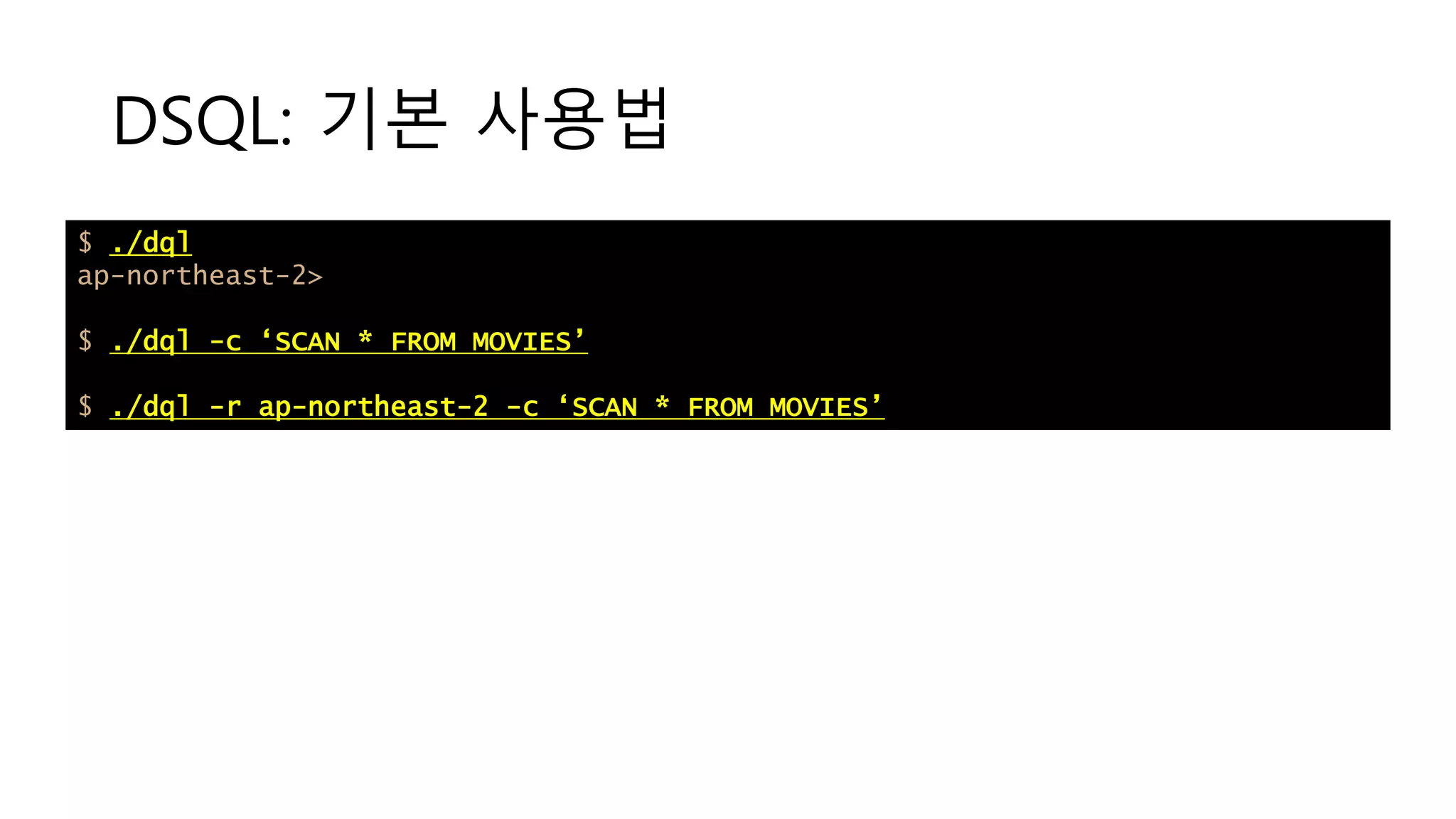

DSQL: 기본 사용법
$ ./dql
ap-northeast-2>
$ ./dql -c ‘SCAN * FROM MOVIES’
$ ./dql -r ap-northeast-2 -c ‘SCAN * FROM MOVIES’

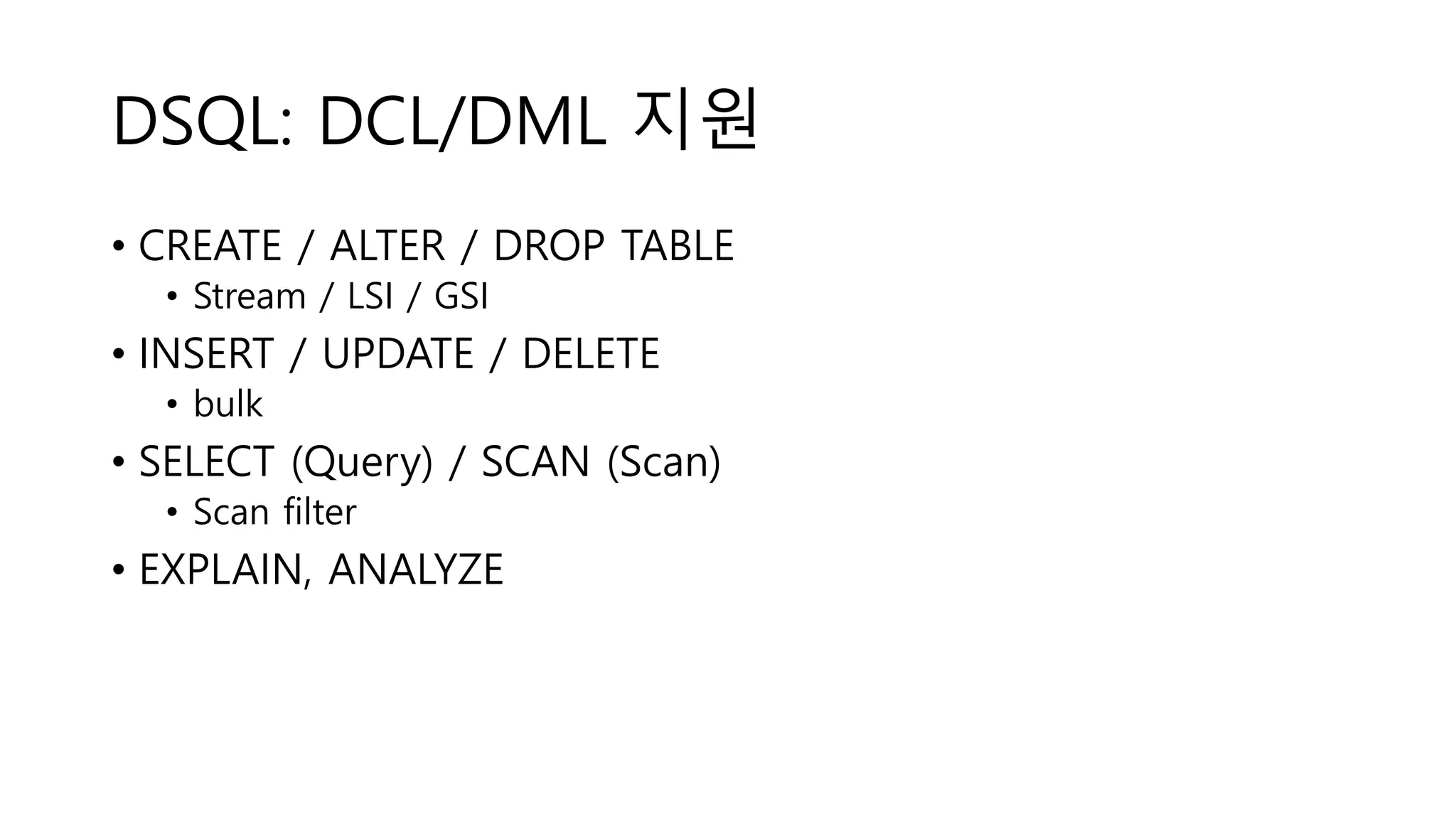

DSQL: DCL/DML 지원
• CREATE / ALTER / DROP TABLE
• Stream / LSI / GSI
• INSERT / UPDATE / DELETE
• bulk
• SELECT (Query) / SCAN (Scan)
• Scan filter
• EXPLAIN, ANALYZE

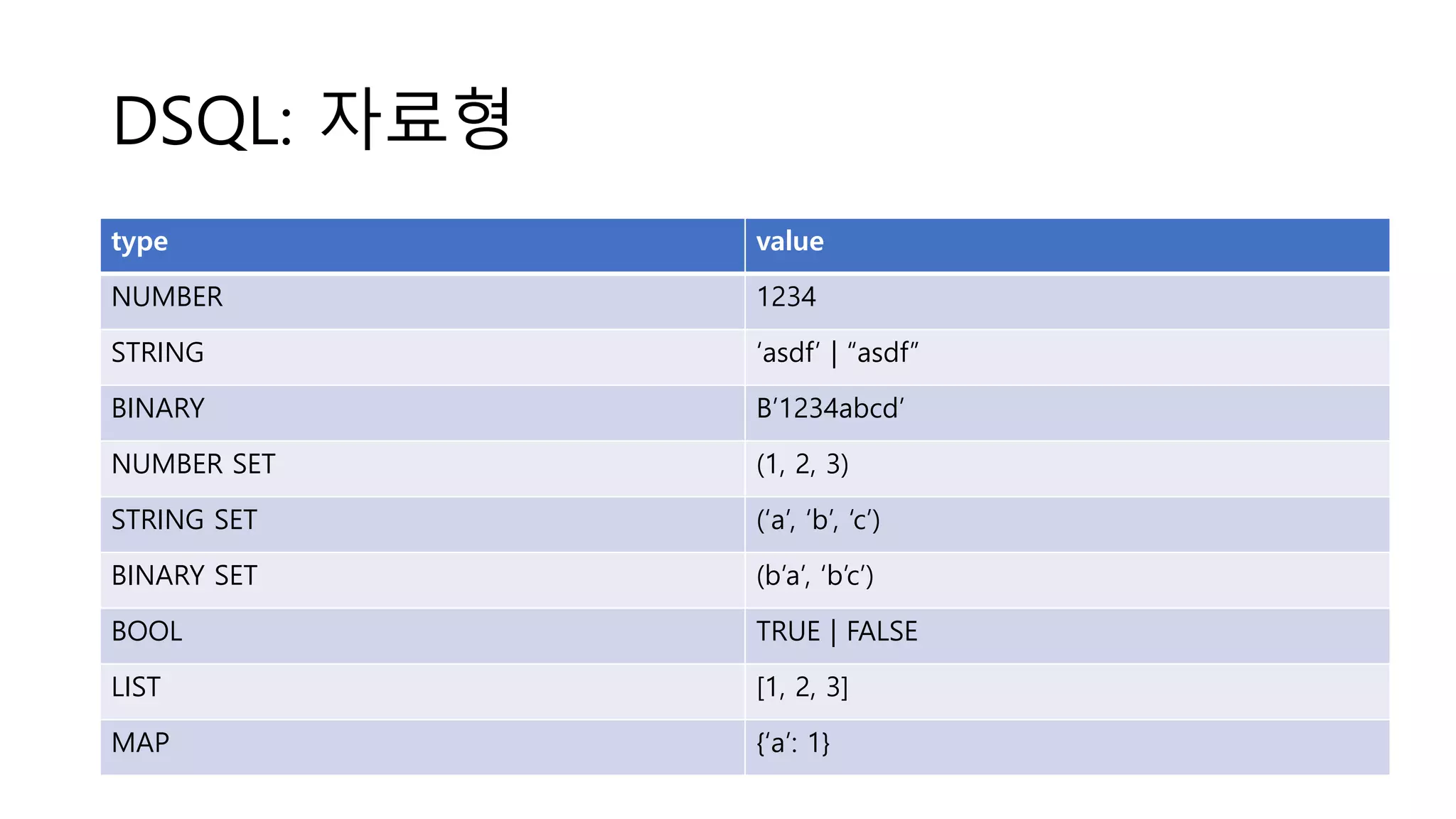

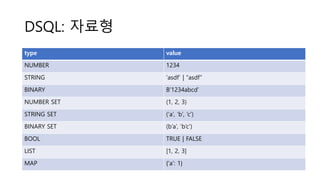

DSQL: 자료형
type value
NUMBER 1234
STRING ‘asdf’ | “asdf”
BINARY B’1234abcd’
NUMBER SET (1, 2, 3)
STRING SET (‘a’, ‘b’, ‘c’)
BINARY SET (b’a’, ‘b’c’)
BOOL TRUE | FALSE
LIST [1, 2, 3]
MAP {‘a’: 1}

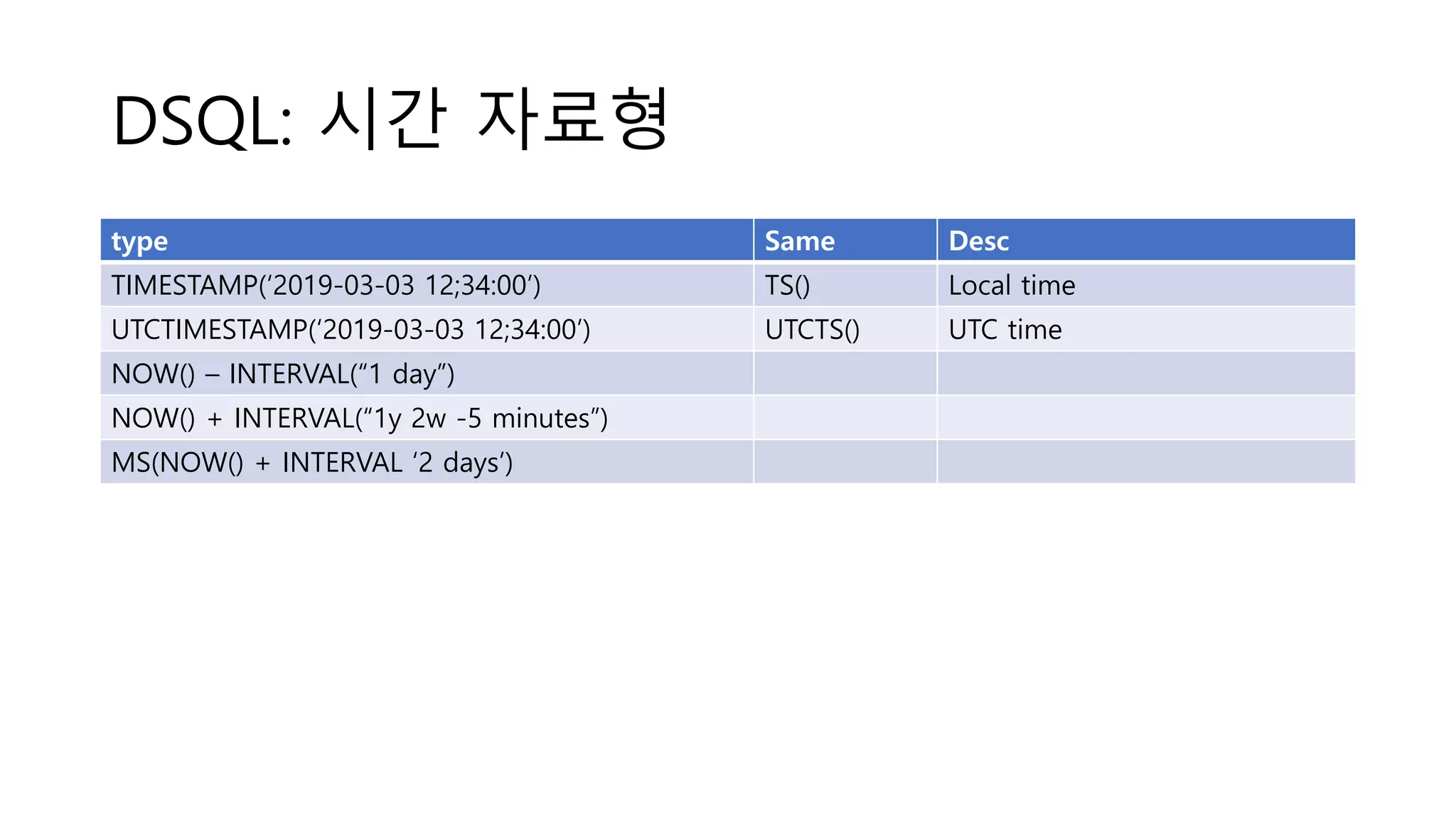

DSQL: 시간 자료형
type Same Desc
TIMESTAMP(‘2019-03-03 12;34:00’) TS() Local time
UTCTIMESTAMP(‘2019-03-03 12;34:00’) UTCTS() UTC time
NOW() – INTERVAL(“1 day”)
NOW() + INTERVAL(“1y 2w -5 minutes”)
MS(NOW() + INTERVAL ‘2 days’)

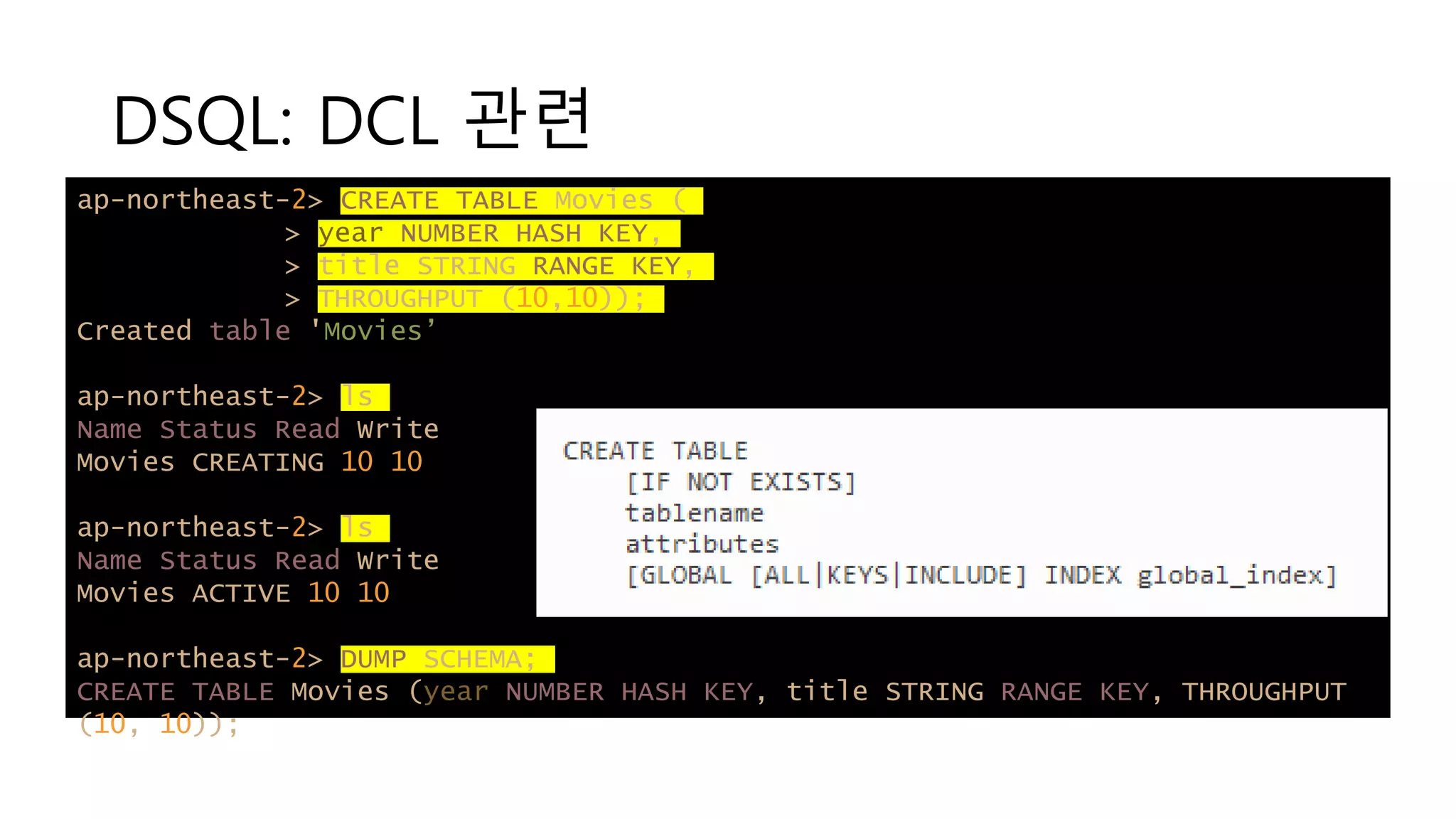

DSQL: DCL 관련
ap-northeast-2> CREATE TABLE Movies (
> year NUMBER HASH KEY,
> title STRING RANGE KEY,
> THROUGHPUT (10,10));
Created table 'Movies’
ap-northeast-2> ls
Name Status Read Write
Movies CREATING 10 10
ap-northeast-2> ls
Name Status Read Write
Movies ACTIVE 10 10
ap-northeast-2> DUMP SCHEMA;
CREATE TABLE Movies (year NUMBER HASH KEY, title STRING RANGE KEY, THROUGHPUT
(10, 10));

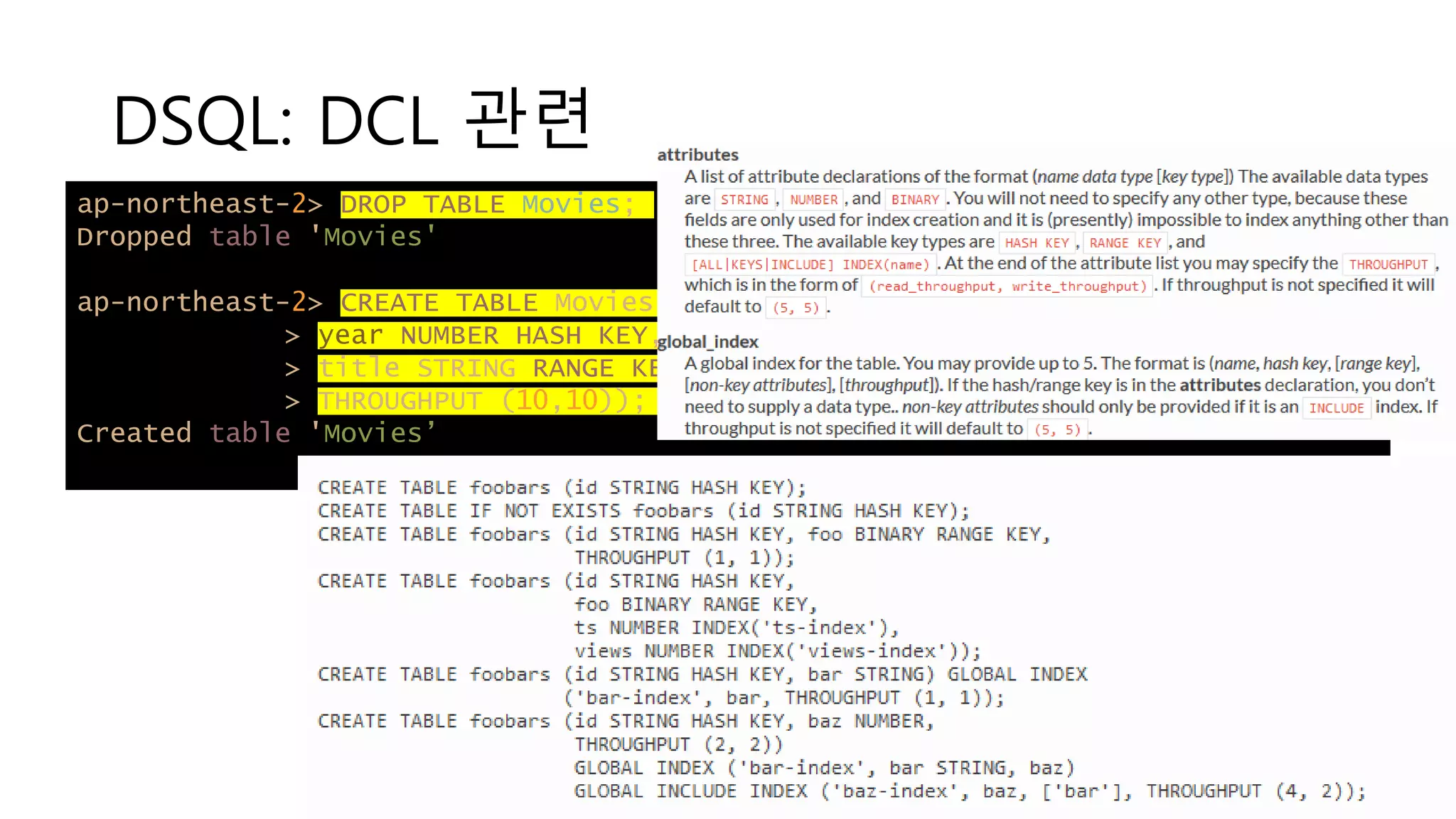

DSQL: DCL 관련
ap-northeast-2> DROP TABLE Movies;
Dropped table 'Movies'
ap-northeast-2> CREATE TABLE Movies (
> year NUMBER HASH KEY,
> title STRING RANGE KEY,
> THROUGHPUT (10,10));
Created table 'Movies’

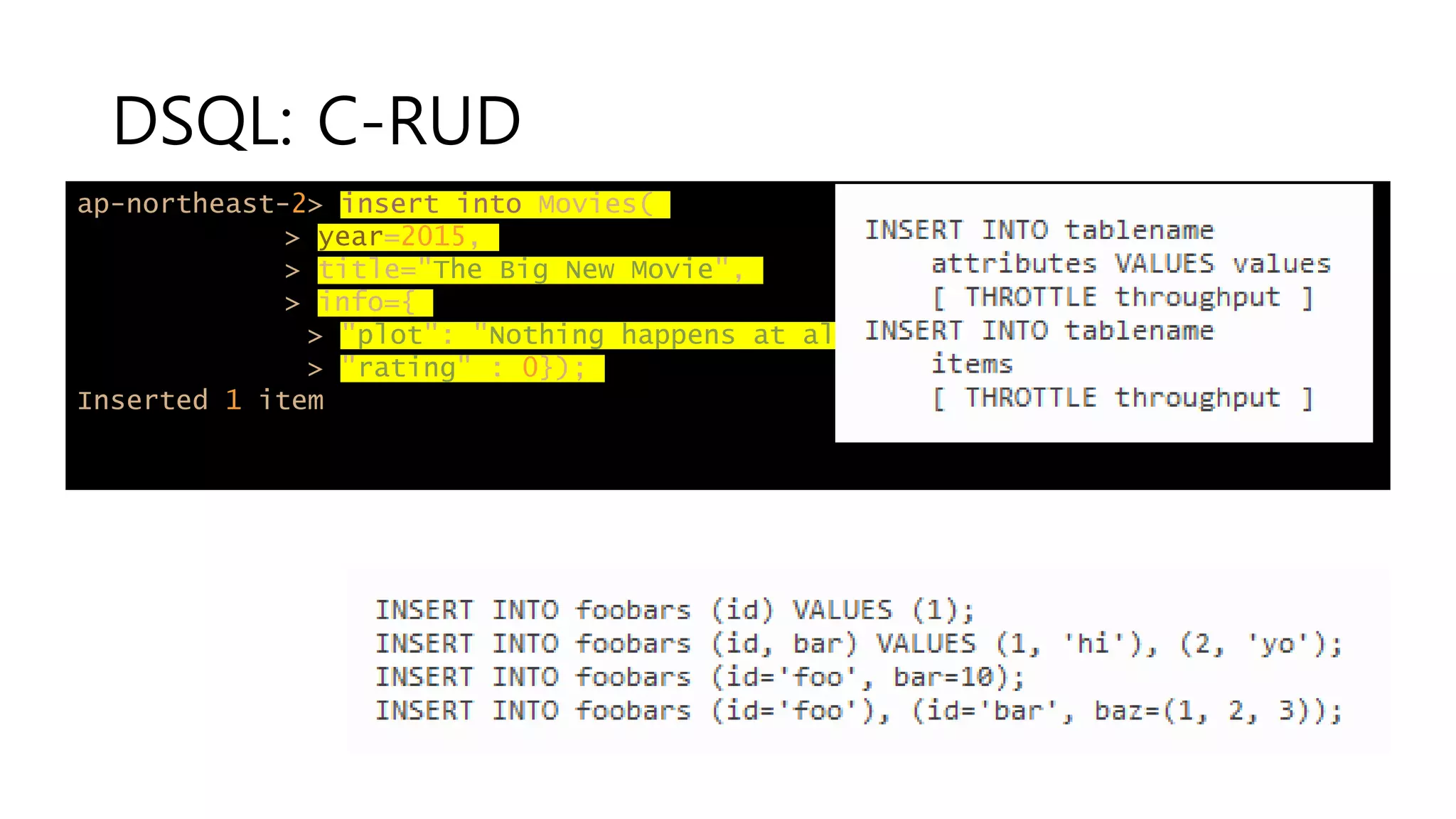

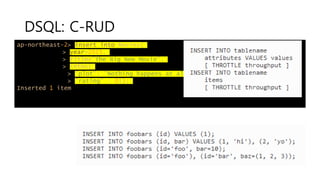

DSQL: C-RUD
ap-northeast-2> insert into Movies(
> year=2015,
> title="The Big New Movie",
> info={
> "plot": "Nothing happens at all.",
> "rating" : 0});
Inserted 1 item

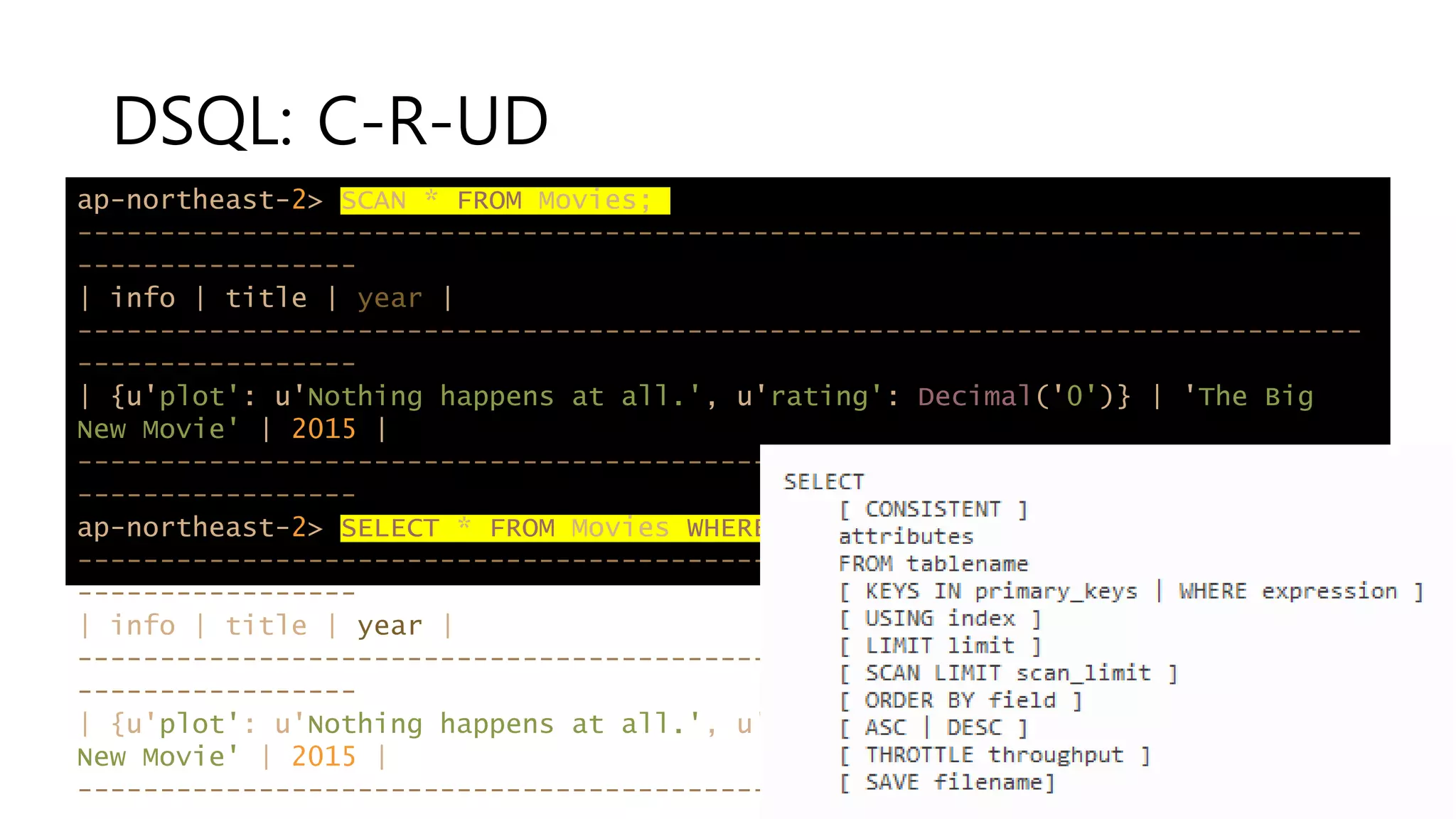

DSQL: C-R-UD
ap-northeast-2> SCAN * FROM Movies;
------------------------------------------------------------------------------
-----------------
| info | title | year |
------------------------------------------------------------------------------
-----------------
| {u'plot': u'Nothing happens at all.', u'rating': Decimal('0')} | 'The Big
New Movie' | 2015 |
------------------------------------------------------------------------------
-----------------
ap-northeast-2> SELECT * FROM Movies WHERE year=2015;
------------------------------------------------------------------------------
-----------------
------------------------------------------------------------------------------
-----------------
New Movie' | 2015 |
------------------------------------------------------------------------------

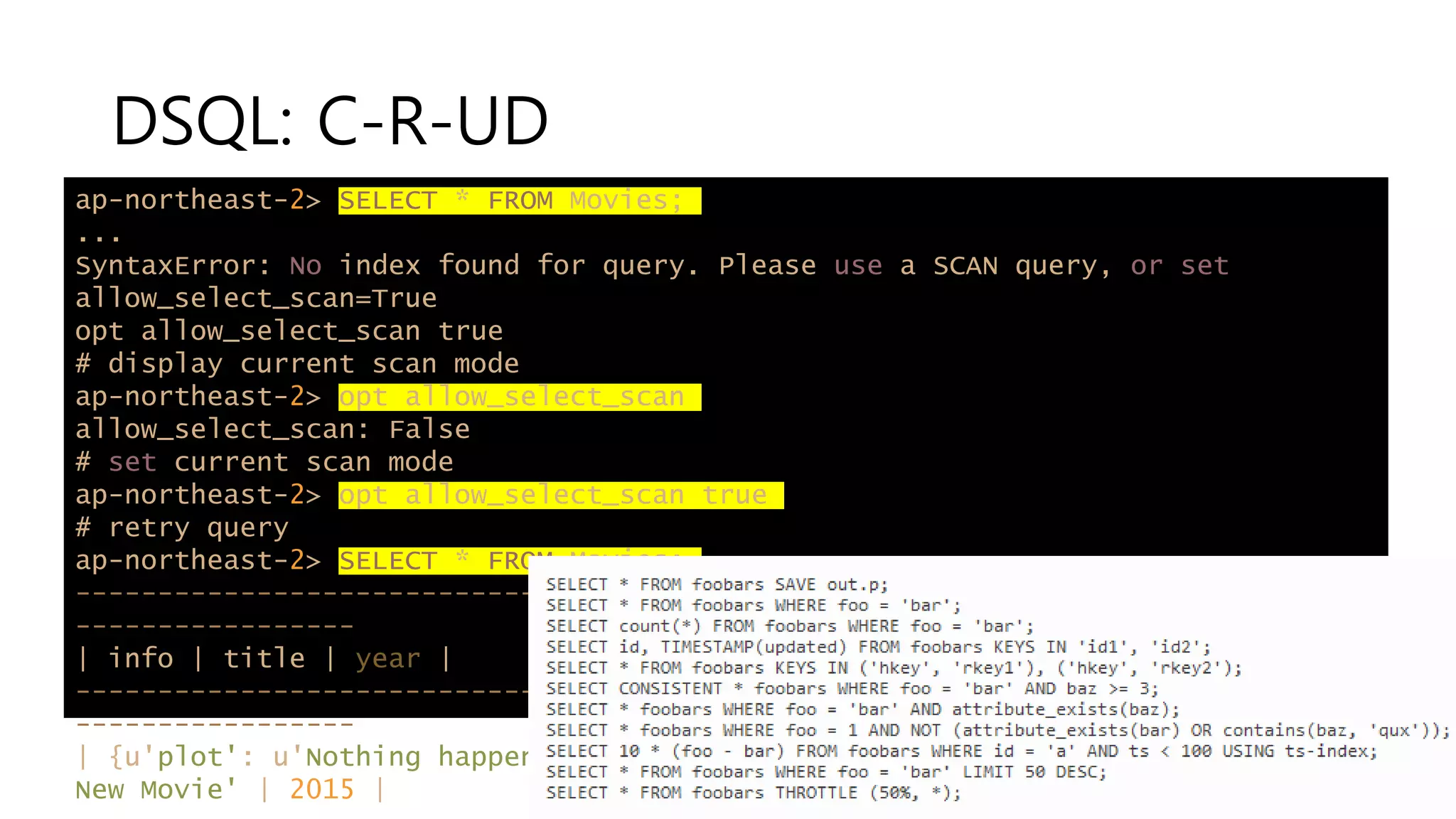

DSQL: C-R-UD
ap-northeast-2> SELECT * FROM Movies;
...
SyntaxError: No index found for query. Please use a SCAN query, or set
allow_select_scan=True
opt allow_select_scan true
# display current scan mode
ap-northeast-2> opt allow_select_scan
allow_select_scan: False
# set current scan mode
ap-northeast-2> opt allow_select_scan true
# retry query
ap-northeast-2> SELECT * FROM Movies;
------------------------------------------------------------------------------
-----------------
------------------------------------------------------------------------------
-----------------
New Movie' | 2015 |

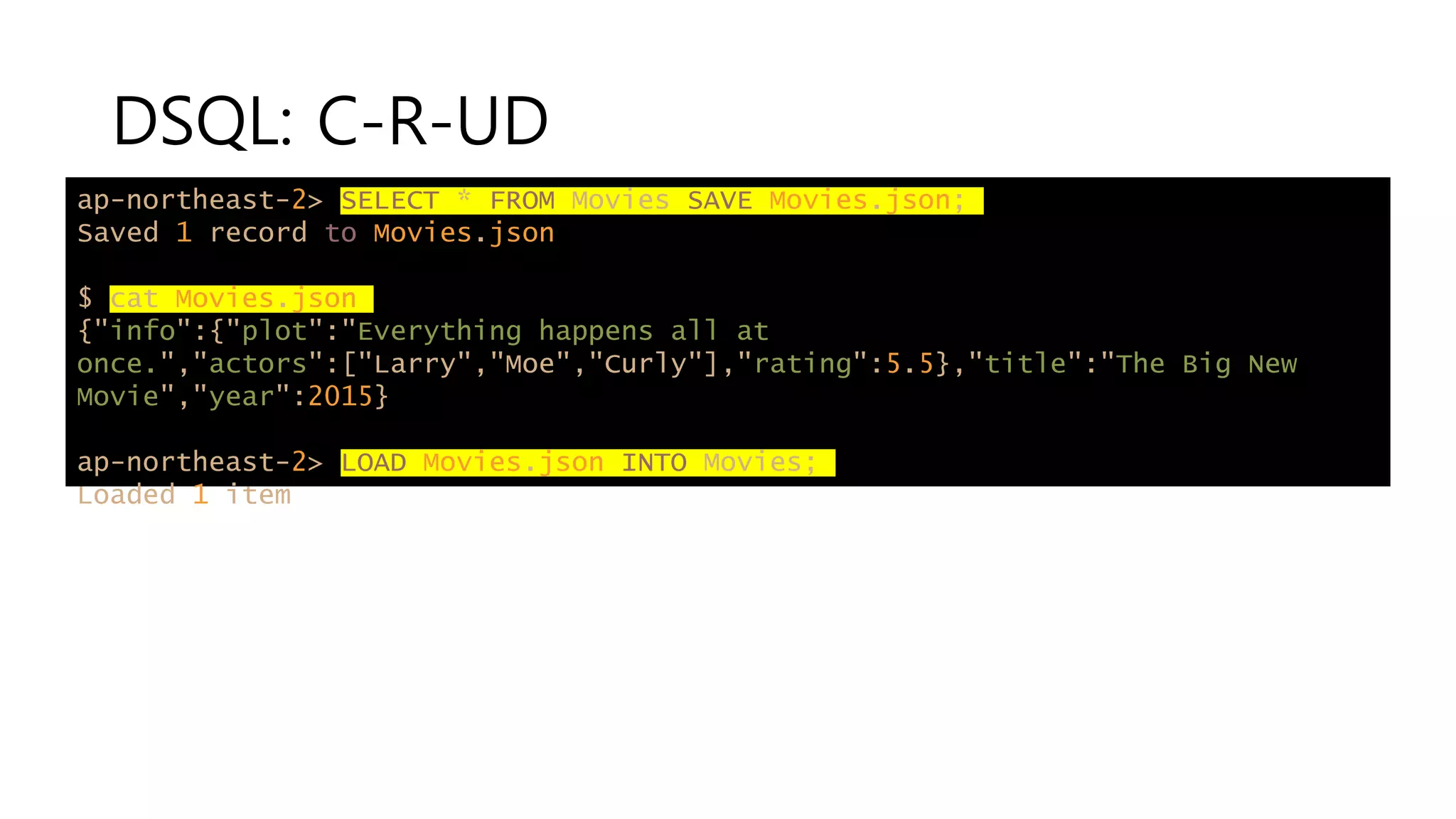

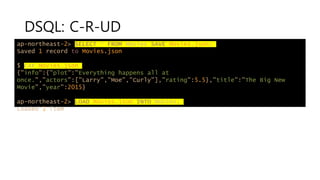

DSQL: C-R-UD
ap-northeast-2> SELECT * FROM Movies SAVE Movies.json;
Saved 1 record to Movies.json
$ cat Movies.json
{"info":{"plot":"Everything happens all at
once.","actors":["Larry","Moe","Curly"],"rating":5.5},"title":"The Big New
Movie","year":2015}
ap-northeast-2> LOAD Movies.json INTO Movies;
Loaded 1 item

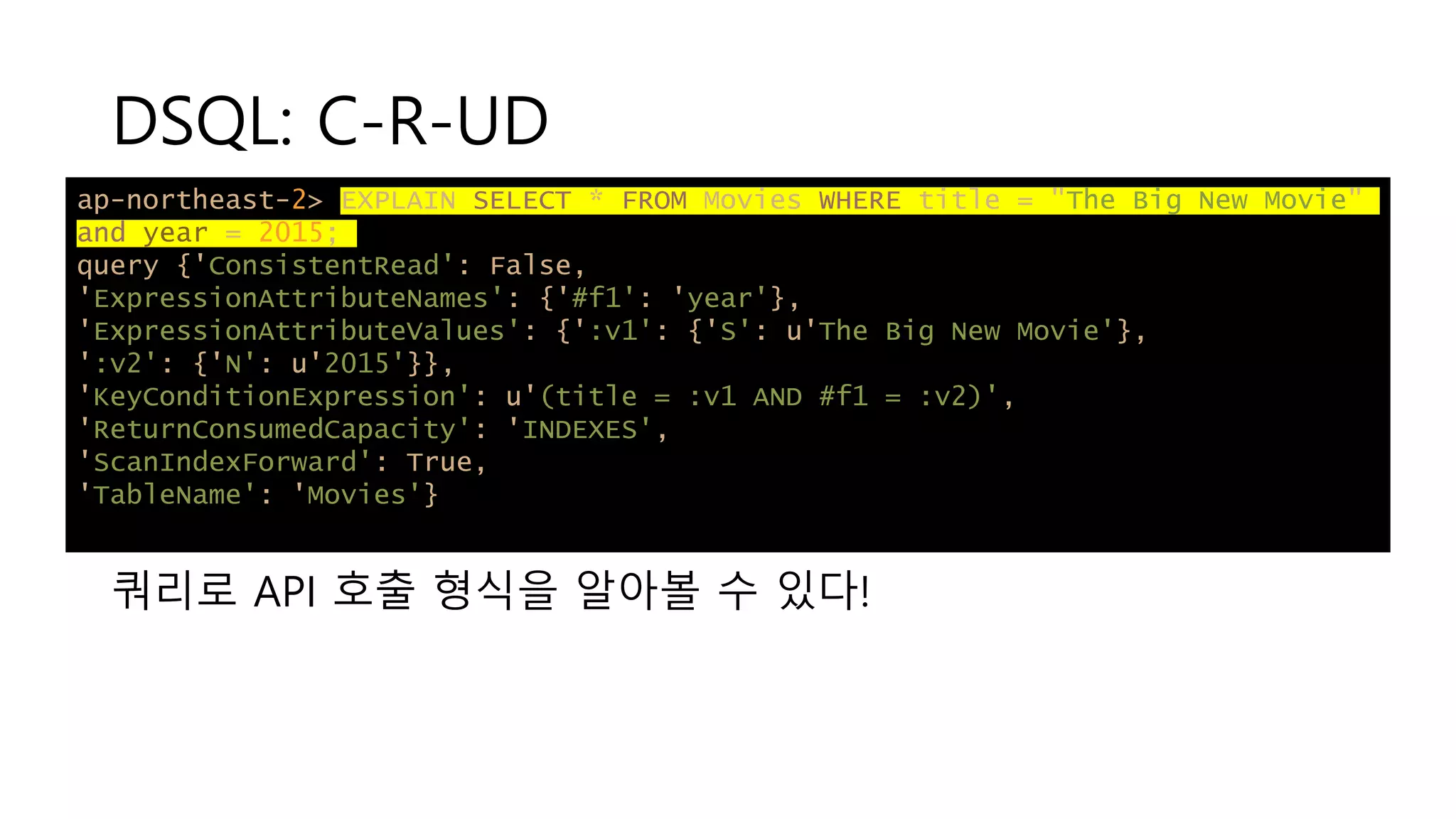

DSQL: C-R-UD
ap-northeast-2> EXPLAIN SELECT * FROM Movies WHERE title = "The Big New Movie"
and year = 2015;
query {'ConsistentRead': False,
'ExpressionAttributeNames': {'#f1': 'year'},
'ExpressionAttributeValues': {':v1': {'S': u'The Big New Movie'},
':v2': {'N': u'2015'}},
'KeyConditionExpression': u'(title = :v1 AND #f1 = :v2)',
'ReturnConsumedCapacity': 'INDEXES',
'ScanIndexForward': True,
'TableName': 'Movies'}
쿼리로 API 호출 형식을 알아볼 수 있다!

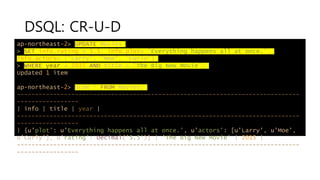

DSQL: CR-U-D
ap-northeast-2> UPDATE Movies
> SET info.rating = 5.5, info.plot= "Everything happens all at once.",
info.actors= ["Larry", "Moe", "Curly"]
> WHERE year = 2015 AND title = "The Big New Movie";
Updated 1 item
ap-northeast-2> SCAN * FROM Movies;
------------------------------------------------------------------------------
-----------------
------------------------------------------------------------------------------
-----------------
| {u'plot': u'Everything happens all at once.', u'actors': [u'Larry', u'Moe',
u'Curly'], u'rating': Decimal('5.5')} | 'The Big New Movie' | 2015 |
------------------------------------------------------------------------------
-----------------

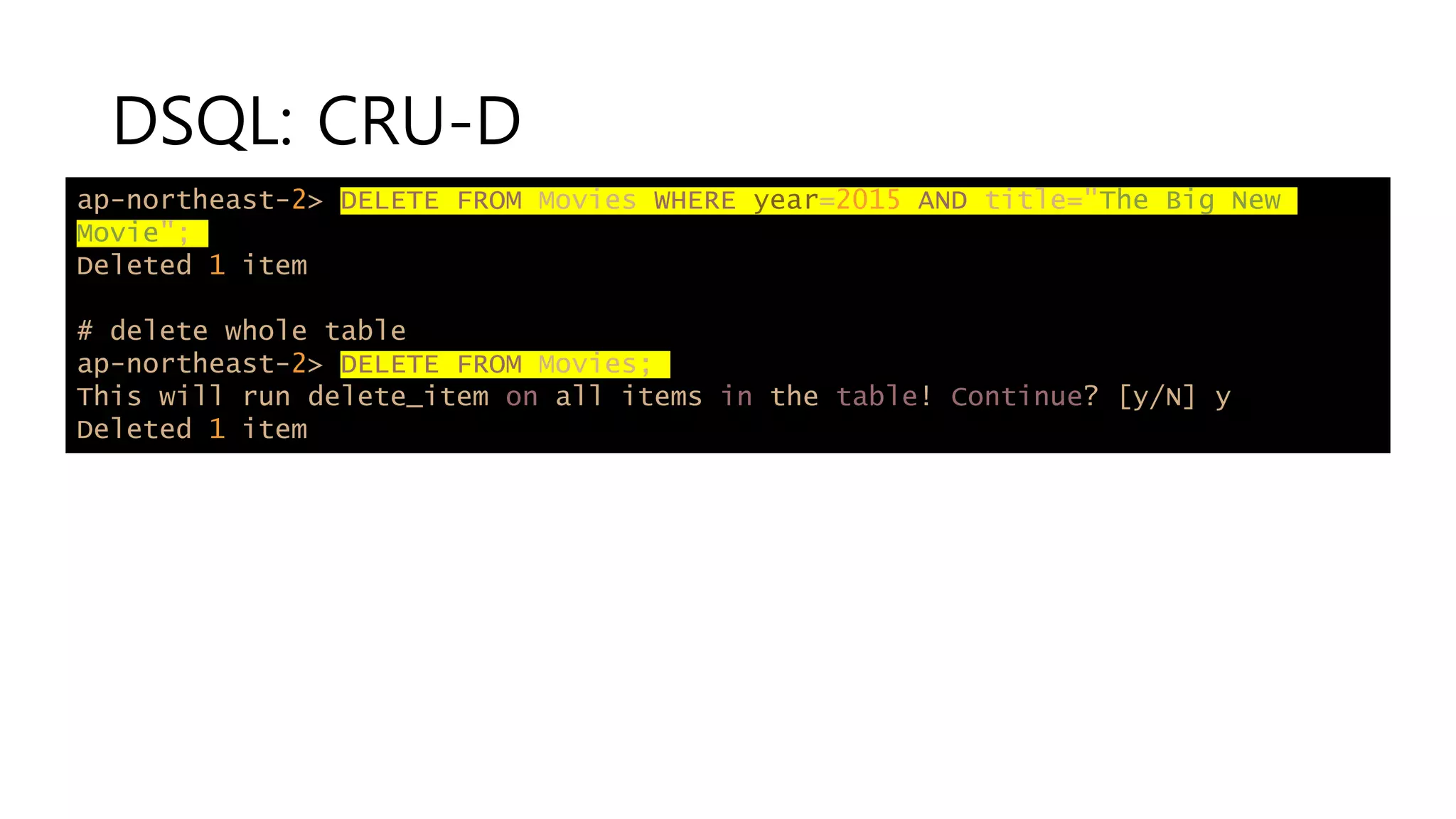

DSQL: CRU-D
ap-northeast-2> DELETE FROM Movies WHERE year=2015 AND title="The Big New
Movie";
Deleted 1 item
# delete whole table
ap-northeast-2> DELETE FROM Movies;
This will run delete_item on all items in the table! Continue? [y/N] y
Deleted 1 item

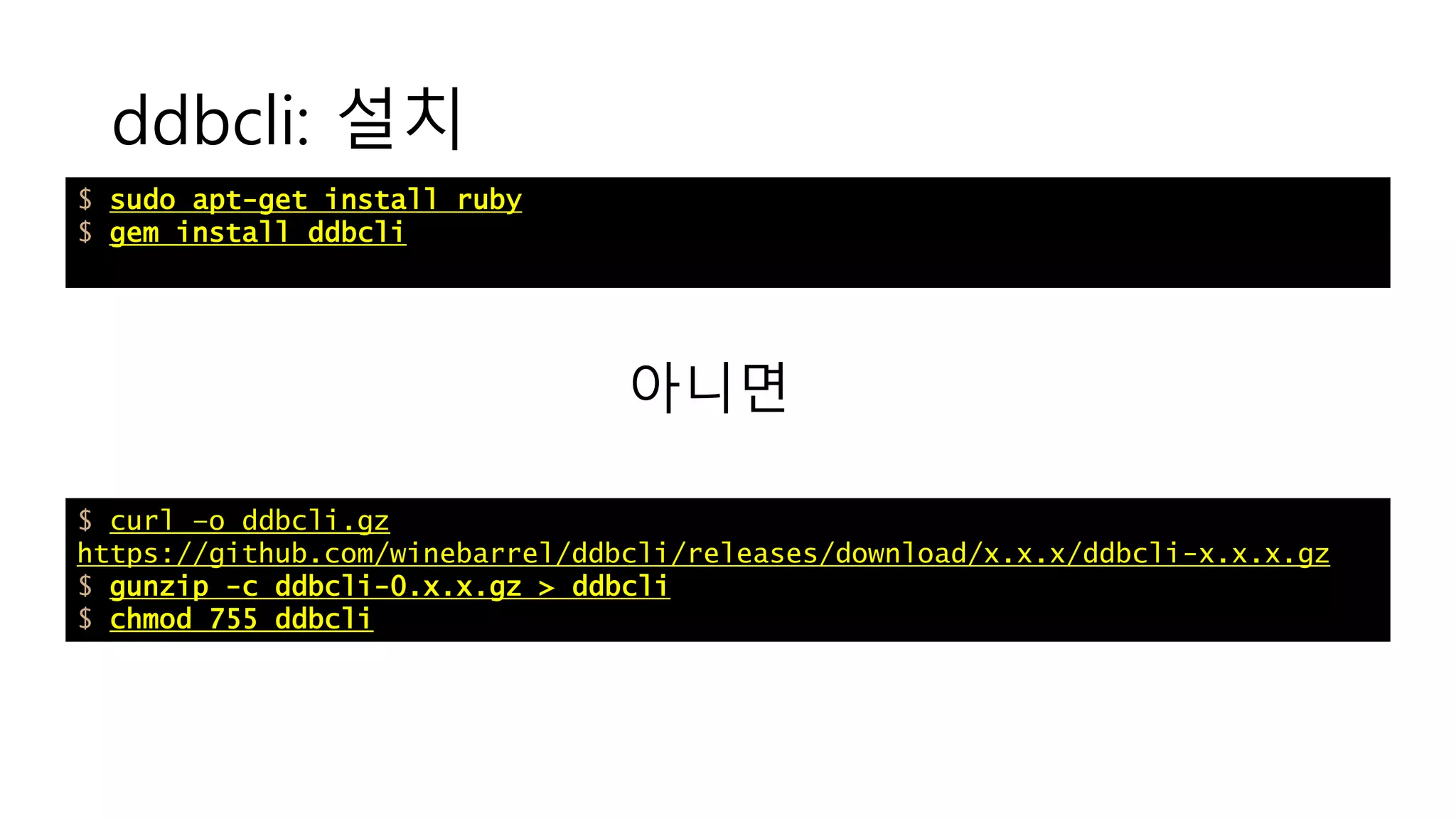

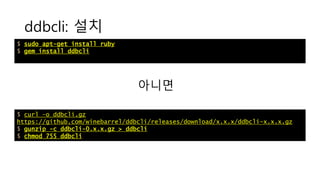

ddbcli: 설치
$ sudo apt-get install ruby
$ gem install ddbcli
$ curl –o ddbcli.gz
https://github.com/winebarrel/ddbcli/releases/download/x.x.x/ddbcli-x.x.x.gz
$ gunzip -c ddbcli-0.x.x.gz > ddbcli
$ chmod 755 ddbcli
아니면

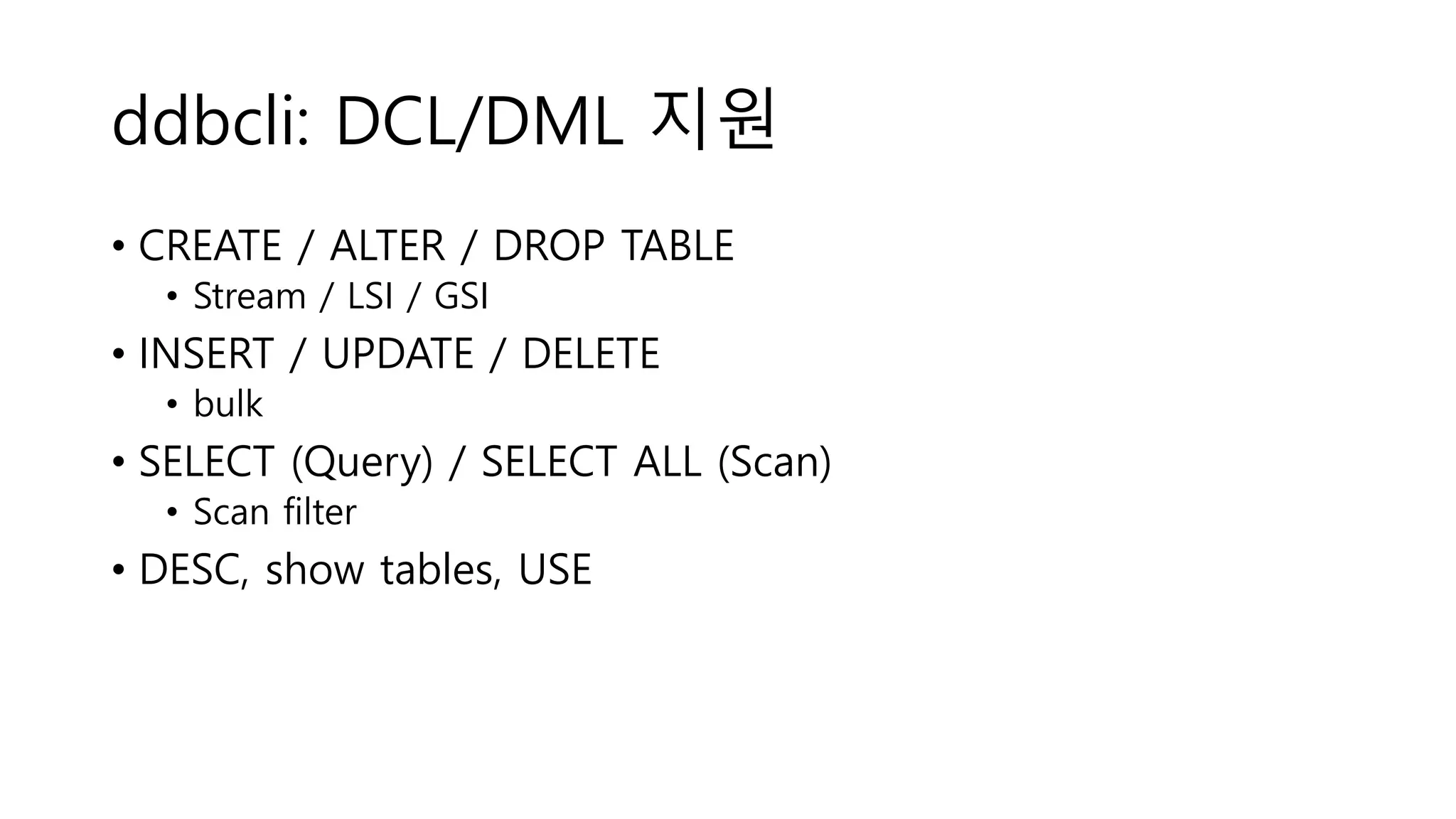

ddbcli: DCL/DML 지원
• CREATE / ALTER / DROP TABLE
• Stream / LSI / GSI
• INSERT / UPDATE / DELETE
• bulk
• SELECT (Query) / SELECT ALL (Scan)
• Scan filter
• DESC, show tables, USE

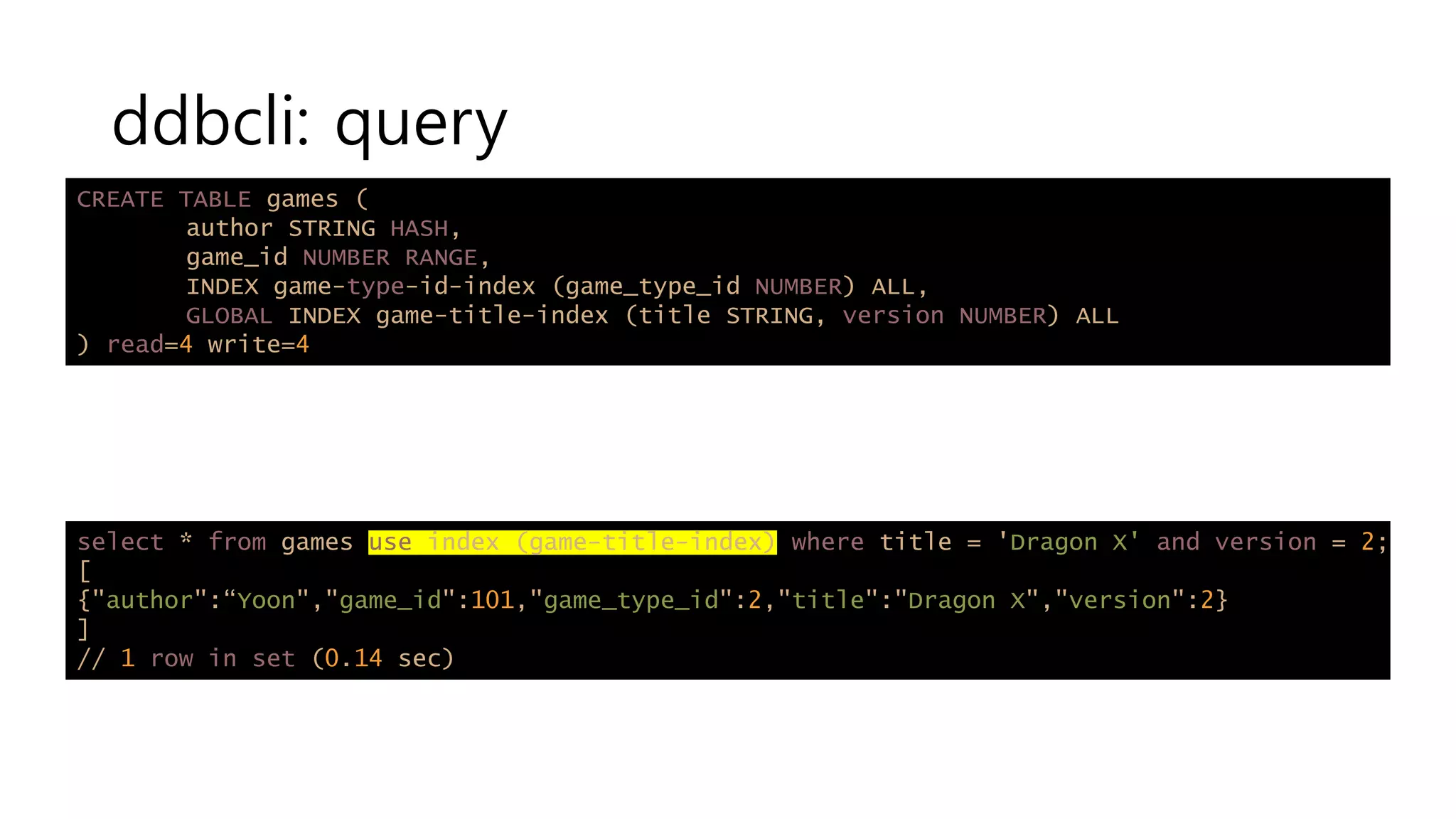

ddbcli: query
select * from games use index (game-title-index) where title = 'Dragon X' and version = 2;
[
{"author":“Yoon","game_id":101,"game_type_id":2,"title":"Dragon X","version":2}
]
// 1 row in set (0.14 sec)
CREATE TABLE games (
author STRING HASH,
game_id NUMBER RANGE,
INDEX game-type-id-index (game_type_id NUMBER) ALL,
GLOBAL INDEX game-title-index (title STRING, version NUMBER) ALL
) read=4 write=4

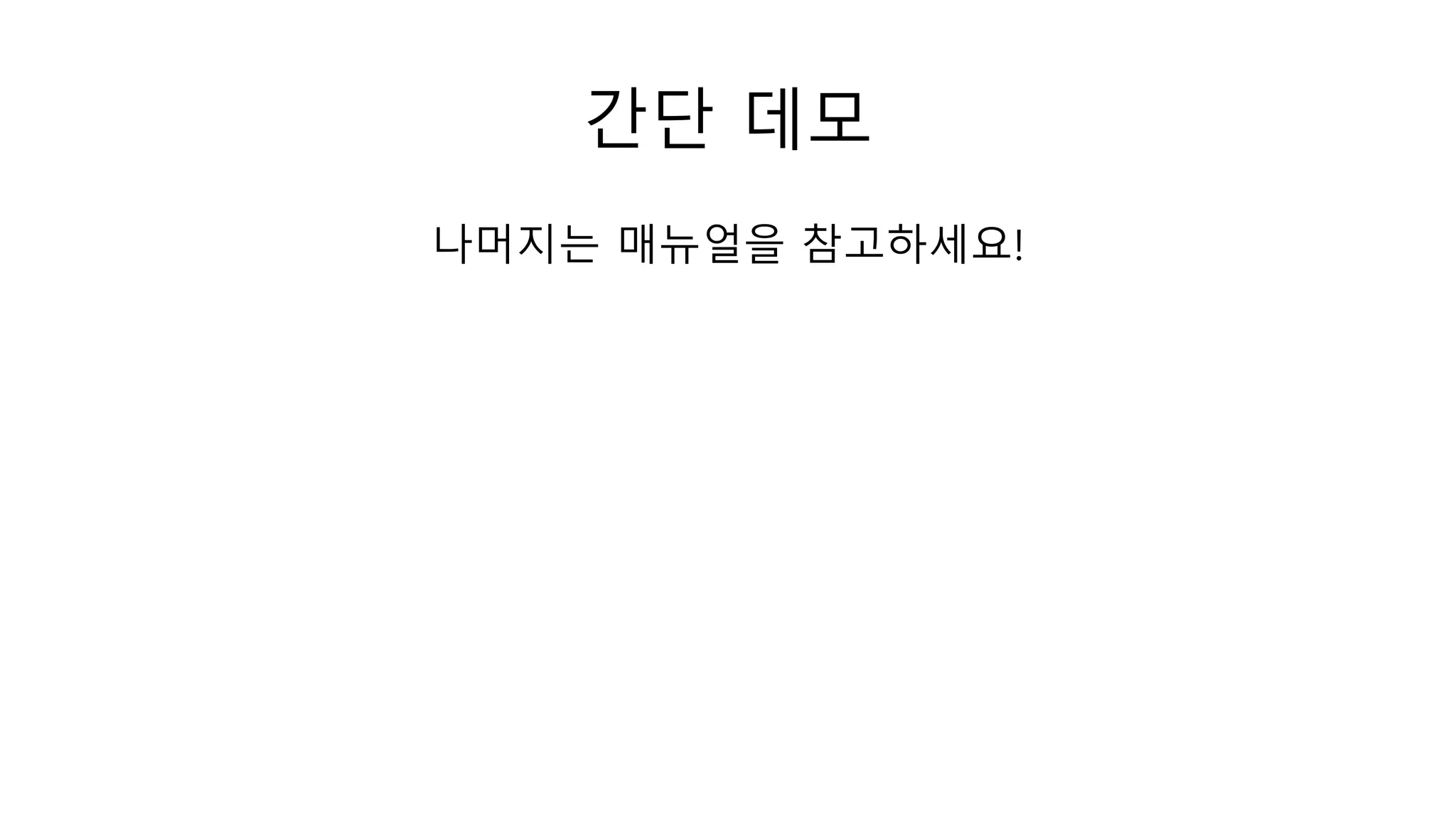

간단 데모
나머지는 매뉴얼을 참고하세요!
