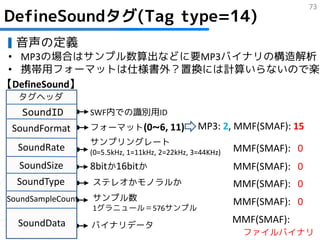

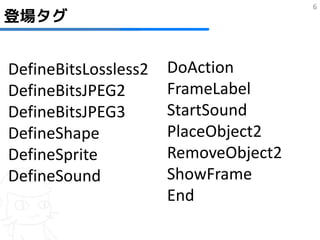

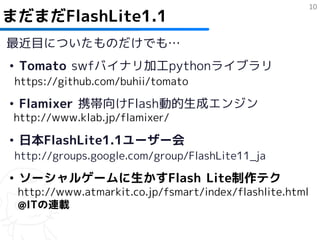

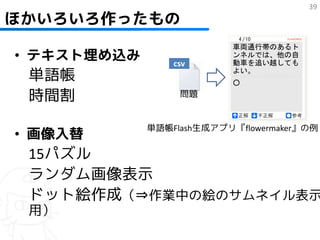

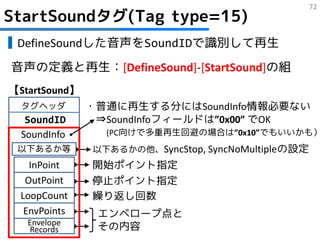

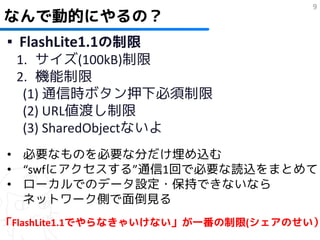

SWFバイナリの基本
ShowFrame ShowFrame ShowFrame
Header Tag Tag Tag Tag Tag Tag Tag Tag
1フレーム目 2フレーム目 Nフレーム目 End

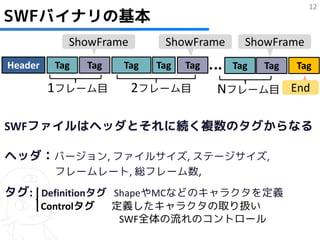

SWFファイルはヘッダとそれに続く複数のタグからなる
ヘッダ:バージョン, ファイルサイズ, ステージサイズ,
フレームレート, 総フレーム数,
タグ: Definitionタグ ShapeやMCなどのキャラクタを定義
Controlタグ 定義したキャラクタの取り扱い
SWF全体の流れのコントロール
19. 18

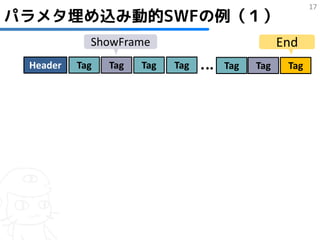

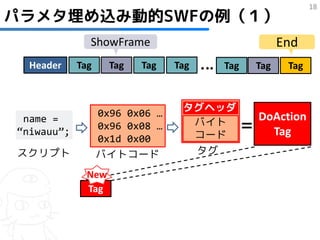

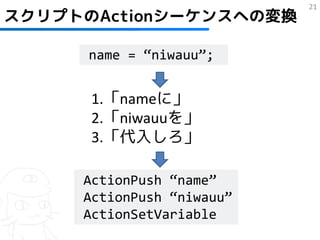

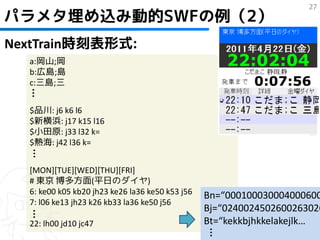

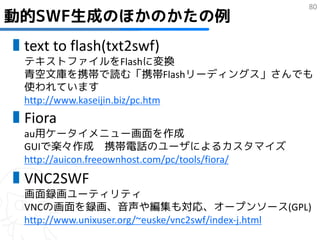

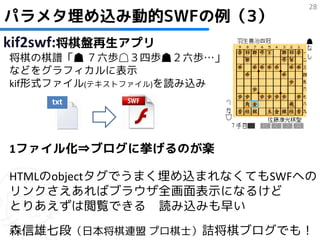

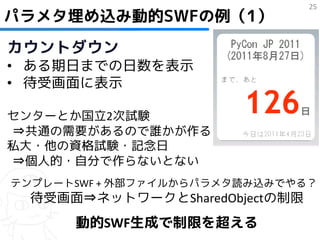

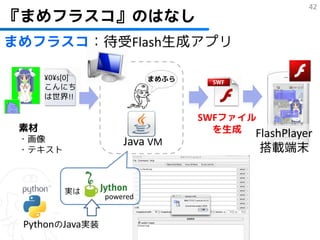

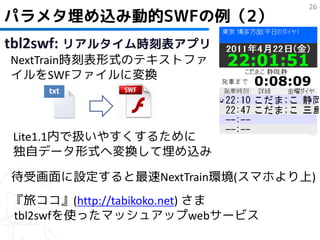

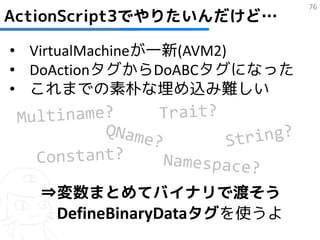

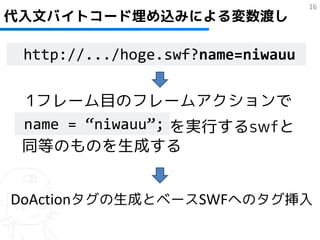

パラメタ埋め込み動的SWFの例(1)
ShowFrame End
Header Tag Tag Tag Tag Tag Tag Tag

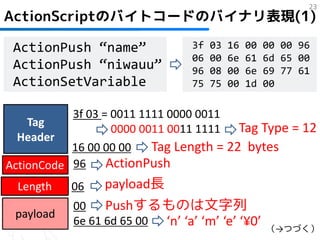

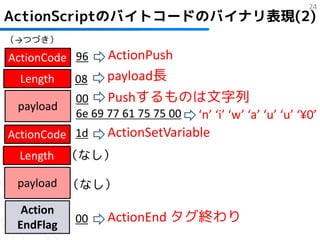

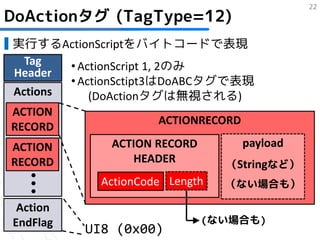

0x96 0x06 … タグヘッダ
バイト DoAction
= Tag
name =
0x96 0x08 …
“niwauu”;
0x1d 0x00 コード
スクリプト バイトコード タグ
New
Tag
20. 19

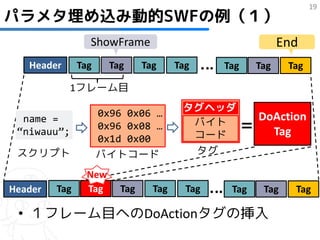

パラメタ埋め込み動的SWFの例(1)
ShowFrame End
Header Tag Tag Tag Tag Tag Tag Tag
1フレーム目
0x96 0x06 … タグヘッダ
バイト DoAction
= Tag
name =
0x96 0x08 …
“niwauu”;
0x1d 0x00 コード
スクリプト バイトコード タグ
New

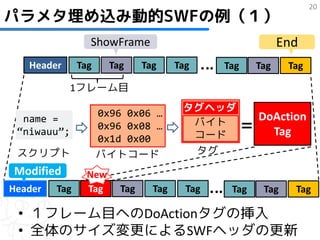

Header Tag Tag Tag Tag Tag Tag Tag Tag
• 1フレーム目へのDoActionタグの挿入
21. 20
パラメタ埋め込み動的SWFの例(1)
ShowFrame End
Header Tag Tag Tag Tag Tag Tag Tag
1フレーム目
0x96 0x06 … タグヘッダ
バイト DoAction
= Tag
name =
0x96 0x08 …
“niwauu”;
0x1d 0x00 コード
スクリプト バイトコード タグ
Modified New
Header Tag Tag Tag Tag Tag Tag Tag Tag
• 1フレーム目へのDoActionタグの挿入
• 全体のサイズ変更によるSWFヘッダの更新
66. 65

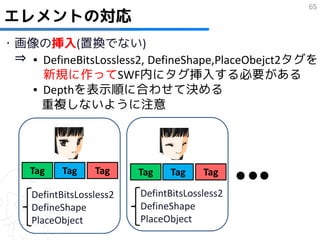

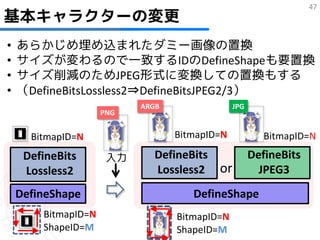

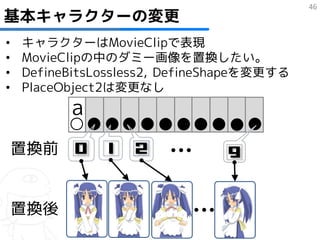

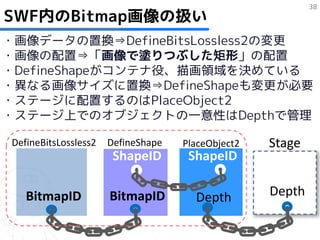

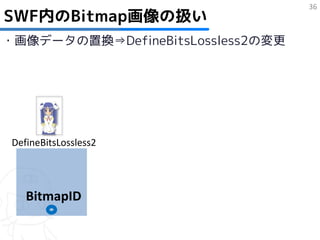

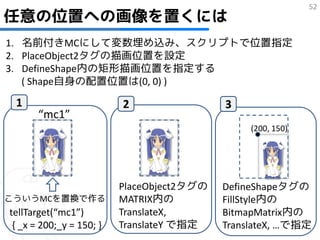

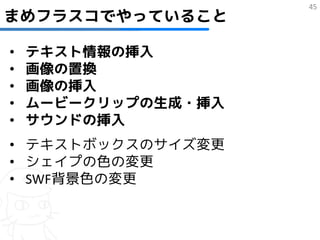

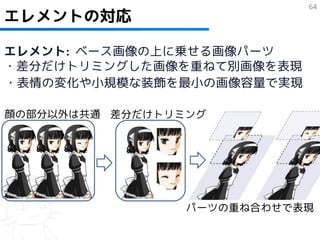

エレメントの対応

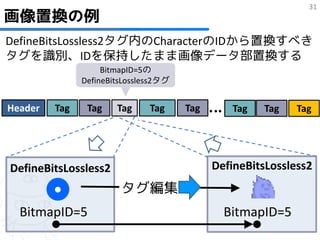

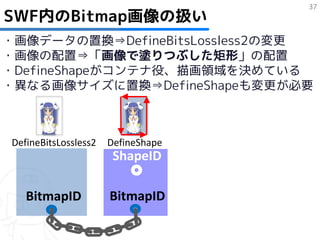

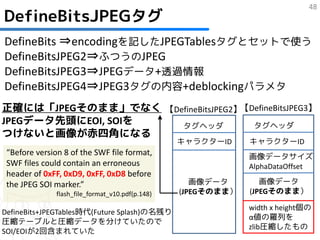

・画像の挿入(置換でない)

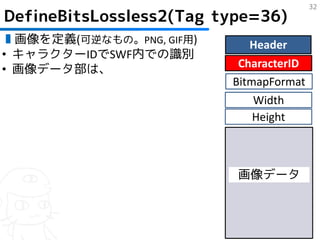

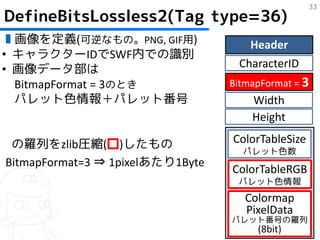

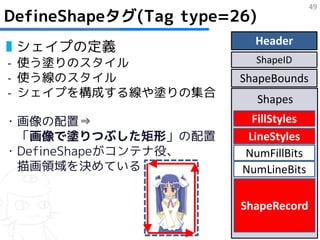

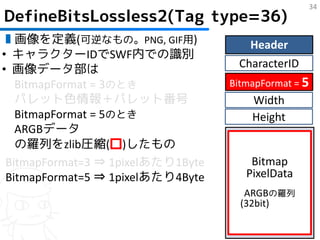

⇒ ▪ DefineBitsLossless2, DefineShape,PlaceObejct2タグを
新規に作ってSWF内にタグ挿入する必要がある

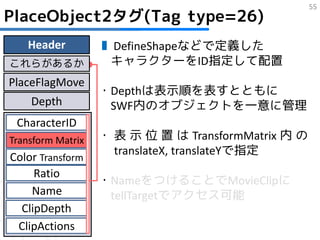

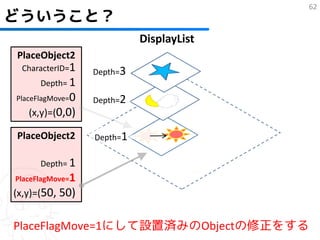

▪ Depthを表示順に合わせて決める
重複しないように注意
Tag Tag Tag Tag Tag Tag
DefintBitsLossless2 DefintBitsLossless2

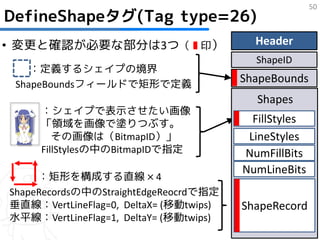

DefineShape DefineShape
PlaceObject PlaceObject
67. 66
エレメントの対応

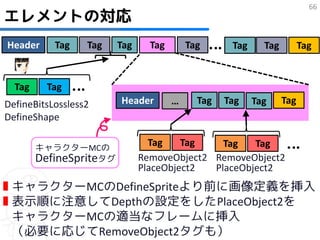

Header Tag Tag Tag Tag Tag Tag Tag Tag
Tag Tag

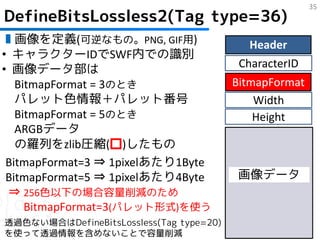

DefineBitsLossless2 Header … Tag Tag Tag Tag
DefineShape
キャラクターMCの
Tag Tag Tag Tag

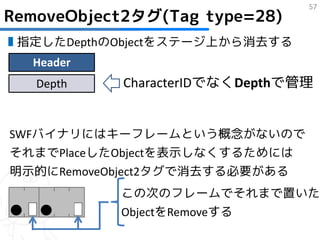

DefineSpriteタグ RemoveObject2 RemoveObject2
PlaceObject2 PlaceObject2

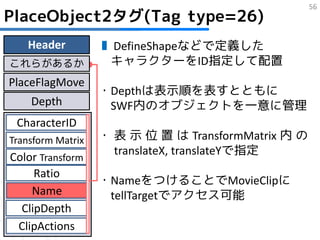

▮キャラクターMCのDefineSpriteより前に画像定義を挿入

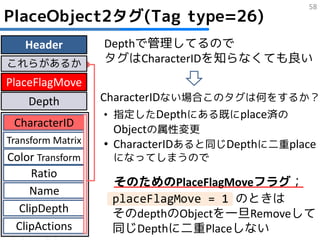

▮表示順に注意してDepthの設定をしたPlaceObject2を
キャラクターMCの適当なフレームに挿入
(必要に応じてRemoveObject2タグも)
68. 67

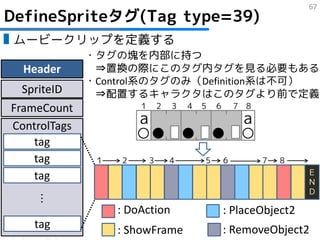

DefineSpriteタグ(Tag type=39)
▮ムービークリップを定義する
・タグの塊を内部に持つ
Header ⇒置換の際にこのタグ内タグを見る必要もある
・Control系のタグのみ(Definition系は丌可)
SpriteID ⇒配置するキャラクタはこのタグより前で定義
FrameCount 1 2 3 4 5 6 7 8
ControlTags a a
tag
tag 1 2 3 4 5 6 7 8
タグ E
tag N
D
…
: DoAction : PlaceObject2
tag : ShowFrame : RemoveObject2
69. 68

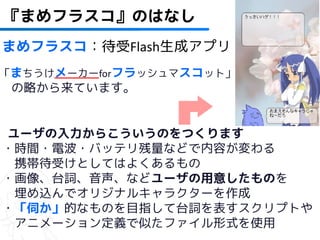

アニメーションの対応
1 5 10
a a
こういうMCをつくって埋め込む
(つくるMCの数は任意個)

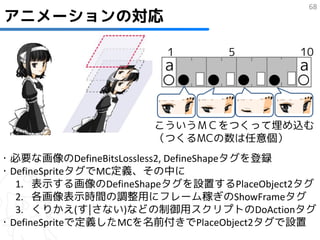

・必要な画像のDefineBitsLossless2, DefineShapeタグを登録
・DefineSpriteタグでMC定義、その中に

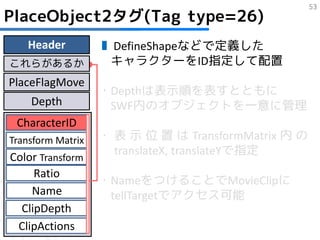

1. 表示する画像のDefineShapeタグを設置するPlaceObject2タグ
2. 各画像表示時間の調整用にフレーム稼ぎのShowFrameタグ
3. くりかえ(す|さない)などの制御用スクリプトのDoActionタグ
・DefineSpriteで定義したMCを名前付きでPlaceObject2タグで設置
70. 69
アニメーションの対応

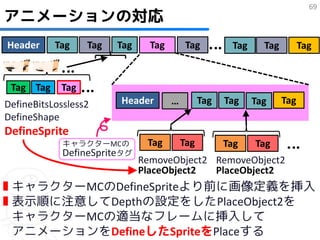

Header Tag Tag Tag Tag Tag Tag Tag Tag
Tag Tag Tag
DefineBitsLossless2 Header … Tag Tag Tag Tag
DefineShape
DefineSprite
キャラクターMCの Tag Tag Tag Tag
DefineSpriteタグ
RemoveObject2 RemoveObject2
PlaceObject2 PlaceObject2
▮キャラクターMCのDefineSpriteより前に画像定義を挿入
▮表示順に注意してDepthの設定をしたPlaceObject2を
キャラクターMCの適当なフレームに挿入して
アニメーションをDefineしたSpriteをPlaceする
71. 70

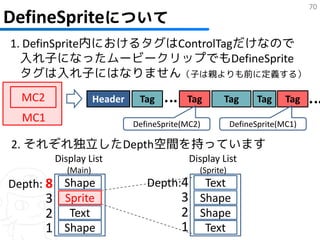

DefineSpriteについて
1. DefinSprite内におけるタグはControlTagだけなので
入れ子になったムービークリップでもDefineSprite
タグは入れ子にはなりません(子は親よりも前に定義する)
MC2 Header Tag Tag Tag Tag Tag
MC1 DefineSprite(MC2) DefineSprite(MC1)

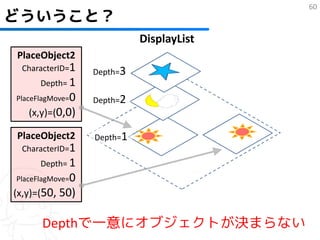

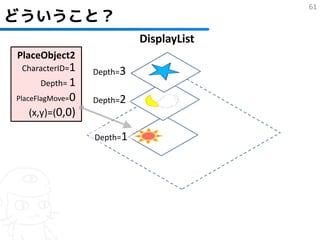

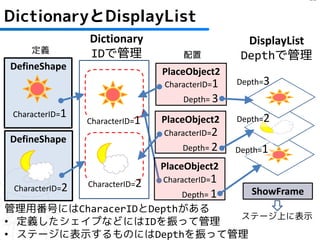

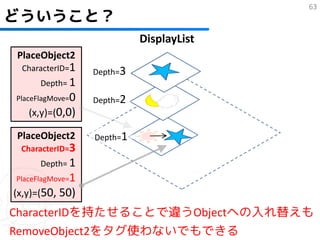

2. それぞれ独立したDepth空間を持っています
Display List Display List
(Main) (Sprite)
Depth: 8 Shape Depth:4 Text
3 Sprite 3 Shape
2 Text 2 Shape
1 Shape 1 Text
