WELCOME! Thank You for Attending Cisco Application Visibility and Control Webinar Our Session Will Begin Shortly
ActionPacked! Webinar Series Cisco Application Visibility and Control
About our Presenter Kangwarn Chinthammit Double CCIE #11715 (Routing & Switching, Security) Cisco Technical Marketing Engineer
Agenda • Introduction • Application Visibility and Control Presentation • Questions and Answers *A recording of this session will be posted on www.actionpacked.com
Kangwarn Chinthammit – CCIE #11715 Technical Marketing Engineer Cisco Systems July 2012 © 2010 Cisco and/or its affiliates. All rights reserved. All specifications subject to change without notice 5
Drastic Change in Application Type, Delivery, and Consumption Public/Hybrid Cloud SaaS/IaaS Storage Users/ Machines THE Private Cloud Proliferation NETWORK VDI | IaaS of Devices Database 60% of IT professional cites performance as key challenge for cloud © 2012 Cisco and/or its affiliates. All rights reserved. How Application are Consumed How applications are Delivered Type of applications All specifications subject to change without notice 6

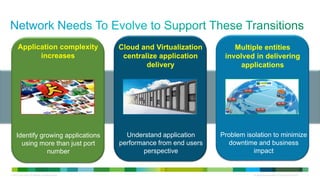

Application complexity Cloud and Virtualization Multiple entities increases centralize application involved in delivering delivery applications Identify growing applications Understand application Problem isolation to minimize using more than just port performance from end users downtime and business number perspective impact © 2012 Cisco and/or its affiliates. All rights reserved. All specifications subject to change without notice 7

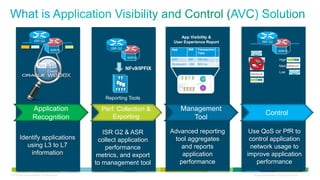

App Visibility & ISR G2 User Experience Report ISR G2 ASR1K ISR G2 App BW Transaction … ASR1K Time ASR1K SAP 3M 150 ms … High Sharepoint 10M 500 ms … Med NFv9/IPFIX Low Reporting Tools Application Reporting Tool Perf. Collection & Management Control Recognition Exporting Tool ISR G2 & ASR Advanced reporting Use QoS or PfR to Identify applications collect application tool aggregates control application using L3 to L7 performance and reports network usage to information metrics, and export application improve application to management tool performance performance © 2012 Cisco and/or its affiliates. All rights reserved. All specifications subject to change without notice 8
App Visibility & ISR G2 User Experience Report ISR G2 ASR1K ISR G2 App BW Transaction … ASR1K Time ASR1K SAP 3M 150 ms … High Sharepoint 10M 500 ms … Med NFv9/IPFIX Low Reporting Tools Application Reporting Tool Perf. Collection & Management Control Recognition Exporting Tool ISR G2 & ASR Advanced reporting Use QoS or PfR to Identify applications collect application tool aggregates control application using L3 to L7 performance and reports network usage to information metrics, and export application improve application to management tool performance performance © 2012 Cisco and/or its affiliates. All rights reserved. All specifications subject to change without notice 9

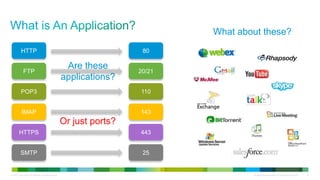

What about these? HTTP 80 FTP Are these 20/21 applications? POP3 110 IMAP 143 Or just ports? HTTPS 443 SMTP 25 © 2012 Cisco and/or its affiliates. All rights reserved. All specifications subject to change without notice 10

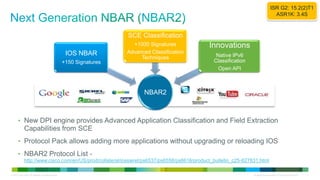

ISR G2: 15.2(2)T1 ASR1K: 3.4S SCE Classification +1000 Signatures Innovations IOS NBAR Advanced Classification Techniques Native IPv6 +150 Signatures Classification Open API NBAR2 • New DPI engine provides Advanced Application Classification and Field Extraction Capabilities from SCE • Protocol Pack allows adding more applications without upgrading or reloading IOS • NBAR2 Protocol List - http://www.cisco.com/en/US/prod/collateral/iosswrel/ps6537/ps6558/ps6616/product_bulletin_c25-627831.html © 2012 Cisco and/or its affiliates. All rights reserved. All specifications subject to change without notice 11

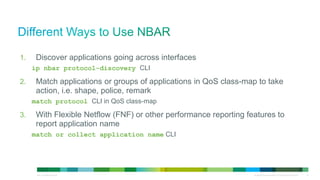

1. Discover applications going across interfaces ip nbar protocol-discovery CLI 2. Match applications or groups of applications in QoS class-map to take action, i.e. shape, police, remark match protocol CLI in QoS class-map 3. With Flexible Netflow (FNF) or other performance reporting features to report application name match or collect application name CLI © 2012 Cisco and/or its affiliates. All rights reserved. All specifications subject to change without notice 12

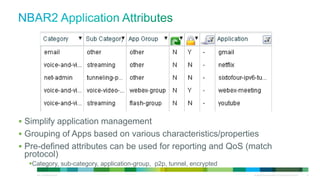

 Simplify application management  Grouping of Apps based on various characteristics/properties  Pre-defined attributes can be used for reporting and QoS (match protocol) Category, sub-category, application-group, p2p, tunnel, encrypted © 2012 Cisco and/or its affiliates. All rights reserved. All specifications subject to change without notice 13
• Attribute based selection enables matching multiple applications of the same type WAN1 (IP-VPN) ‘file-sharing’ includes FTP, CIFS, Bittorrent, Winmx, etc. HQ WAN2 (IPVPN, DMVPN) class-map my-class match protocol attribute category file-sharing © 2012 Cisco and/or its affiliates. All rights reserved. All specifications subject to change without notice 14

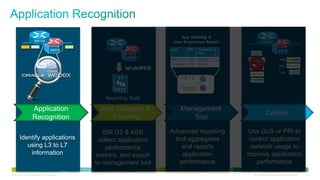

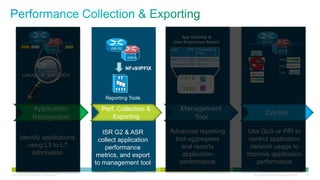

App Visibility & ISR G2 User Experience Report ISR G2 ASR1K ISR G2 App BW Transaction … ASR1K Time ASR1K SAP 3M 150 ms … High Sharepoint 10M 500 ms … Med NFv9/IPFIX Low Reporting Tools Application Reporting Tool Perf. Collection & Management Control Recognition Exporting Tool ISR G2 & ASR Advanced reporting Use QoS or PfR to Identify applications collect application tool aggregates control application using L3 to L7 performance and reports network usage to information metrics, and export application improve application to management tool performance performance © 2012 Cisco and/or its affiliates. All rights reserved. All specifications subject to change without notice 15

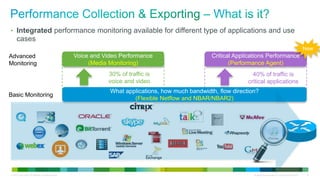

• Integrated performance monitoring available for different type of applications and use cases New Advanced Voice and Video Performance Critical Applications Performance Monitoring (Media Monitoring) (Performance Agent) 30% of traffic is 40% of traffic is voice and video critical applications What applications, how much bandwidth, flow direction? Basic Monitoring (Flexible Netflow and NBAR/NBAR2) HTTP HTTP © 2012 Cisco and/or its affiliates. All rights reserved. All specifications subject to change without notice 16

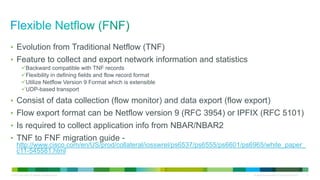

• Evolution from Traditional Netflow (TNF) • Feature to collect and export network information and statistics Backward compatible with TNF records Flexibility in defining fields and flow record format Utilize Netflow Version 9 Format which is extensible UDP-based transport • Consist of data collection (flow monitor) and data export (flow export) • Flow export format can be Netflow version 9 (RFC 3954) or IPFIX (RFC 5101) • Is required to collect application info from NBAR/NBAR2 • TNF to FNF migration guide - http://www.cisco.com/en/US/prod/collateral/iosswrel/ps6537/ps6555/ps6601/ps6965/white_paper_ c11-545581.html © 2012 Cisco and/or its affiliates. All rights reserved. All specifications subject to change without notice 17

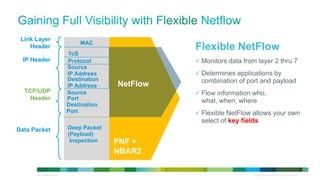

Link Layer MAC Header Flexible NetFlow ToS IP Header Protocol  Monitors data from layer 2 thru 7 Source IP Address  Determines applications by Destination combination of port and payload IP Address NetFlow TCP/UDP Source  Flow information who, Header Port what, when, where Destination Port  Flexible NetFlow allows your own select of key fields Data Packet Deep Packet (Payload) Inspection FNF + NBAR2 © 2012 Cisco and/or its affiliates. All rights reserved. All specifications subject to change without notice 18

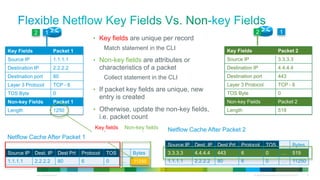

2 1 2 1 • Key fields are unique per record Key Fields Packet 1 Match statement in the CLI Key Fields Packet 2 Source IP 1.1.1.1 • Non-key fields are attributes or Source IP 3.3.3.3 Destination IP 2.2.2.2 characteristics of a packet Destination IP 4.4.4.4 Destination port 80 Collect statement in the CLI Destination port 443 Layer 3 Protocol TCP - 6 Layer 3 Protocol TCP - 6 • If packet key fields are unique, new TOS Byte 0 TOS Byte 0 entry is created Non-key Fields Packet 1 Non-key Fields Packet 2 Length 1250 • Otherwise, update the non-key fields, Length 519 i.e. packet count Key fields Non-key fields Netflow Cache After Packet 2 Netflow Cache After Packet 1 1 Before Packet Source IP Dest. IP Dest Prt Protocol TOS … Bytes Source IP Dest. IP Dest Prt Protocol TOS … Bytes 3.3.3.3 4.4.4.4 443 6 0 … 519 1.1.1.1 2.2.2.2 80 6 0 … 10000 11250 1.1.1.1 2.2.2.2 80 6 0 … 11250 © 2012 Cisco and/or its affiliates. All rights reserved. All specifications subject to change without notice 19

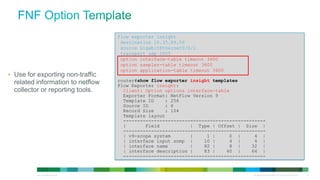

flow exporter insight destination 10.35.89.59 source GigabitEthernet0/0/1 transport udp 2055 option interface-table timeout 3600 option sampler-table timeout 3600 option application-table timeout 3600 • Use for exporting non-traffic related information to netflow router#show flow exporter insight templates Flow Exporter insight: collector or reporting tools. Client: Option options interface-table Exporter Format: NetFlow Version 9 Template ID : 256 Source ID : 6 Record Size : 104 Template layout --------------------------------------------------- | Field | Type | Offset | Size | --------------------------------------------------- | v9-scope system | 1 | 0 | 4 | | interface input snmp | 10 | 4 | 4 | | interface name | 82 | 8 | 32 | | interface description | 83 | 40 | 64 | --------------------------------------------------- © 2012 Cisco and/or its affiliates. All rights reserved. All specifications subject to change without notice 20
For Your Reference 1. Configure the Exporter Router(config)# flow exportersent? Where do I want my data my-exporter Router(config-flow-exporter)# destination 1.1.1.1 2. Configure the Flow Record What data do I want to meter? Router(config)# flow record my-record Router(config-flow-record)# match ipv4 destination address Router(config-flow-record)# match ipv4 source address Router(config-flow-record)# collect counter bytes 3. Configure the Flow Monitor Router(config)# flow monitor my-monitor How do I want to cache information Router(config-flow-monitor)# exporter my-exporter Router(config-flow-monitor)# record my-record 4. Apply to an Interface Router(config)# interface want to monitor? Which interface do I s3/0 Router(config-if)# ip flow monitor my-monitor input © 2012 Cisco and/or its affiliates. All rights reserved. All specifications subject to change without notice 21
Check out this webinar Cisco Media Monitoring http://actionpacked.com/cisco-medianet For more information Cisco Media Monitoring @ Cisco Website http://www.cisco.com/en/US/solutions/ns340/ ns857/ns156/ns1094/media_monitoring.html © 2012 Cisco and/or its affiliates. All rights reserved. All specifications subject to change without notice 22

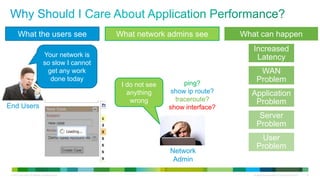

What the users see What network admins see What can happen Increased Your network is Latency so slow I cannot get any work WAN done today ping? Problem I do not see anything show ip route? Application wrong traceroute? Problem End Users show interface? Server Problem User Problem Network Admin © 2012 Cisco and/or its affiliates. All rights reserved. All specifications subject to change without notice 23
ISR G2: 15.2(4) M ASR1K: Future How do I ensure my SLA My email is slow! IOS PA is met My query WAN is taking long time! NFv9 Branch Data Center Collector or Netflow Mangement Tool Key Features Benefits Application Response Time (ART) Measurement Visibility into application usage and performance Interact with NBAR2 Quantify user experience Standard NFv9 export Troubleshoot application performance Application Usage (BW, Top N) Track service levels for application delivery Metric aggregation reduces number of flow records across WAN © 2012 Cisco and/or its affiliates. All rights reserved. All specifications subject to change without notice 24

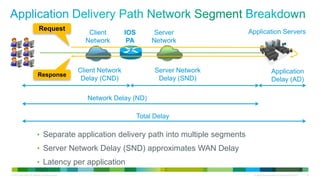

Request Application Servers Clients Client IOS Server Network PA Network Client Network Server Network Application Response Delay (CND) Delay (SND) Delay (AD) Network Delay (ND) Total Delay • Separate application delivery path into multiple segments • Server Network Delay (SND) approximates WAN Delay • Latency per application © 2012 Cisco and/or its affiliates. All rights reserved. All specifications subject to change without notice 25

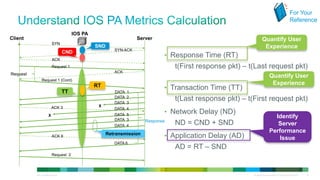

For Your Reference IOS PA Client Server Quantify User SYN SND SYN-ACK Experience CND • Response Time (RT) ACK Request 1 t(First response pkt) – t(Last request pkt) ACK Request Quantify User Request 1 (Cont) RT Experience • Transaction Time (TT) TT DATA 1 DATA DATA 2 3 t(Last response pkt) – t(First request pkt) ACK 3 X DATA 4 X DATA 5 • Network Delay (ND) DATA 3 Identify Response DATA 4 ND = CND + SND Server Retransmission Performance ACK 6 • Application Delay (AD) Issue DATA 6 AD = RT – SND Request 2 © 2012 Cisco and/or its affiliates. All rights reserved. All specifications subject to change without notice 26

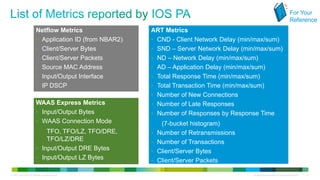

For Your Reference Netflow Metrics ART Metrics • Application ID (from NBAR2) • CND - Client Network Delay (min/max/sum) • Client/Server Bytes • SND – Server Network Delay (min/max/sum) • Client/Server Packets • ND – Network Delay (min/max/sum) • Source MAC Address • AD – Application Delay (min/max/sum) • Input/Output Interface • Total Response Time (min/max/sum) • IP DSCP • Total Transaction Time (min/max/sum) • Number of New Connections WAAS Express Metrics • Number of Late Responses • Input/Output Bytes • Number of Responses by Response Time • WAAS Connection Mode (7-bucket histogram) TFO, TFO/LZ, TFO/DRE, • Number of Retransmissions TFO/LZ/DRE • Number of Transactions • Input/Output DRE Bytes • Client/Server Bytes • Input/Output LZ Bytes • Client/Server Packets © 2012 Cisco and/or its affiliates. All rights reserved. All specifications subject to change without notice 27

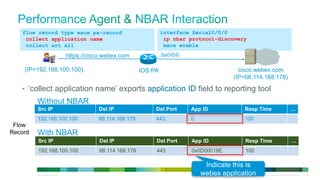

flow record type mace pa-record interface Serial0/0/0 collect application name ip nbar protocol-discovery collect art all mace enable https://cisco.webex.com Se0/0/0 (IP=192.168.100.100) IOS PA cisco.webex.com (IP=66.114.168.178) • „collect application name‟ exports application ID field to reporting tool Without NBAR Src IP Dst IP Dst Port App ID Resp Time … 192.168.100.100 66.114.168.178 443 0 100 Flow Record With NBAR Src IP Dst IP Dst Port App ID Resp Time … 192.168.100.100 66.114.168.178 443 0x0D00019E 100 Indicate this is © 2012 Cisco and/or its affiliates. All rights reserved. webex application All specifications subject to change without notice 28
For Your Reference Collect application name flow exporter pa-export provided by NBAR2 destination 172.30.104.128 transport udp 9991 Configuration Steps ! flow record type mace pa-record collect application name 1. Configure flow exporter collect art all collect (..) 2. Configure flow record type mace ! flow monitor type mace pa-monitor record pa-record 3. Configure flow monitor type mace exporter pa-export ! 4. Configure class-map access-list 100 permit tcp any host 10.0.0.1 eq 80 class-map match-any pa-traffic 5. Configure policy-map type mace – policy must match access-group 100 be named mace_global ! policy-map type mace mace_global class pa-traffic 6. Configure mace enable on interface flow monitor pa-monitor ! interface Serial0/0/0 Optionally Enable NBAR2 to ip nbar protocol-discovery identify applications mace enable © 2012 Cisco and/or its affiliates. All rights reserved. All specifications subject to change without notice 29
App Visibility & ISR G2 User Experience Report ISR G2 ASR1K ISR G2 App BW Transaction … ASR1K Time ASR1K SAP 3M 150 ms … High Sharepoint 10M 500 ms … Med NFv9/IPFIX Low Reporting Tools Application Reporting Tool Perf. Collection & Management Control Recognition Exporting Tool ISR G2 & ASR Advanced reporting Use QoS or PfR to Identify applications collect application tool aggregates control application using L3 to L7 performance and reports network usage to information metrics, and export application improve application to management tool performance performance © 2012 Cisco and/or its affiliates. All rights reserved. All specifications subject to change without notice 30

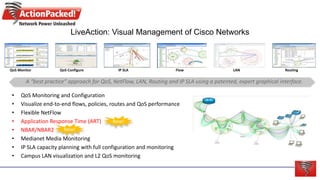

LiveAction: Visual Management of Cisco Networks QoS Monitor QoS Configure IP SLA Flow LAN Routing A “best practice” approach for QoS, NetFlow, LAN, Routing and IP SLA using a patented, expert graphical interface. • QoS Monitoring and Configuration • Visualize end-to-end flows, policies, routes and QoS performance • Flexible NetFlow • Application Response Time (ART) New! • NBAR/NBAR2 New! • Medianet Media Monitoring • IP SLA capacity planning with full configuration and monitoring • Campus LAN visualization and L2 QoS monitoring

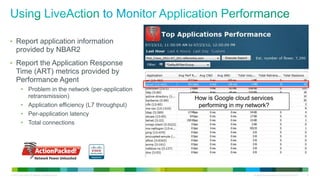

• Report application information provided by NBAR2 • Report the Application Response Time (ART) metrics provided by Performance Agent • Problem in the network (per-application retransmission) How is Google cloud services • Application efficiency (L7 throughput) performing in my network? • Per-application latency • Total connections © 2012 Cisco and/or its affiliates. All rights reserved. All specifications subject to change without notice 32

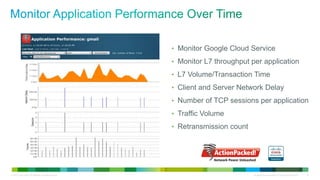

• Monitor Google Cloud Service • Monitor L7 throughput per application • L7 Volume/Transaction Time • Client and Server Network Delay • Number of TCP sessions per application • Traffic Volume • Retransmission count © 2012 Cisco and/or its affiliates. All rights reserved. All specifications subject to change without notice 33
© 2012 Cisco and/or its affiliates. All rights reserved. All specifications subject to change without notice 34
App Visibility & ISR G2 User Experience Report ISR G2 ASR1K ISR G2 App BW Transaction … ASR1K Time ASR1K SAP 3M 150 ms … High Sharepoint 10M 500 ms … Med NFv9/IPFIX Low Reporting Tools Application Reporting Tool Perf. Collection & Management Control Recognition Exporting Tool ISR G2 & ASR Advanced reporting Use QoS or PfR to Identify applications collect application tool aggregates control application using L3 to L7 performance and reports network usage to information metrics, and export application improve application to management tool performance performance © 2012 Cisco and/or its affiliates. All rights reserved. All specifications subject to change without notice 35

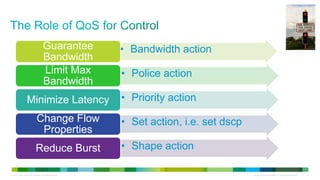

• Guarantee • Bandwidth action Bandwidth Limit Max • Police action Bandwidth Minimize Latency • Priority action Change Flow • Set action, i.e. set dscp Properties Reduce Burst • Shape action © 2012 Cisco and/or its affiliates. All rights reserved. All specifications subject to change without notice 36

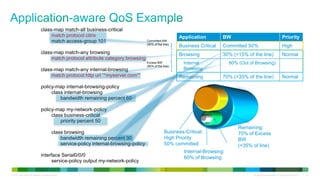

class-map match-all business-critical match protocol citrix Application BW Priority match access-group 101 Committed BW (50% of the line) Business Critical Committed 50% High class-map match-any browsing Browsing 30% (=15% of the line) Normal match protocol attribute category browsing Excess BW Internal 60% (Out of Browsing) (50% of the line) class-map match-any internal-browsing Browsing match protocol http url “*myserver.com*” Remaining 70% (=35% of the line) Normal policy-map internal-browsing-policy class internal-browsing bandwidth remaining percent 60 policy-map my-network-policy class business-critical priority percent 50 Remaining: class browsing Business-Critical: 70% of Excess bandwidth remaining percent 30 High Priority BW service-policy internal-browsing-policy 50% committed Browsing: of line) (=35% Internal-Browsing: 30% of Excess BW interface Serial0/0/0 60% of Browsing (=15% of the line) service-policy output my-network-policy © 2012 Cisco and/or its affiliates. All rights reserved. All specifications subject to change without notice 37

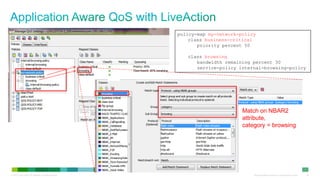

policy-map my-network-policy class business-critical priority percent 50 class browsing bandwidth remaining percent 30 service-policy internal-browsing-policy Match on NBAR2 attribute, category = browsing © 2012 Cisco and/or its affiliates. All rights reserved. All specifications subject to change without notice 38

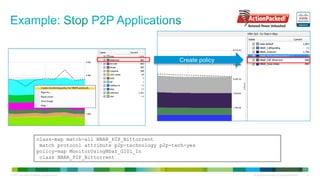

Create policy class-map match-all NBAR_P2P_Bittorrent match protocol attribute p2p-technology p2p-tech-yes policy-map MonitorUsingNbar_GI01_In class NBAR_P2P_Bittorrent © 2012 Cisco and/or its affiliates. All rights reserved. All specifications subject to change without notice 39
Police Bittorrent Bittorrent class-map match-all NBAR_P2P_Bittorrent match protocol attribute p2p-technology p2p-tech-yes policy-map control-policy class NBAR_P2P_Bittorrent police 8000 conform-action transmit exceed-action drop © 2012 Cisco and/or its affiliates. All rights reserved. All specifications subject to change without notice 40
Cisco ISR G2 Cisco ASR1K Your Network Is Your Network Probe • Leverage the monitoring capabilities embedded in your WAN platforms Identify Applications in Today Network • Deep Packet Inspection – NBAR and NBAR2 Proactively Monitoring Application Performance • Application Response Time (ART) engine in Performance Agent Granular Control of Application Performance • Application-aware QoS © 2012 Cisco and/or its affiliates. All rights reserved. All specifications subject to change without notice 41

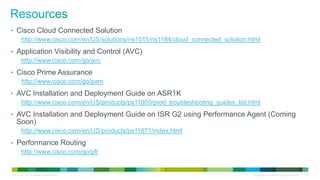

• Cisco Cloud Connected Solution http://www.cisco.com/en/US/solutions/ns1015/ns1184/cloud_connected_solution.html • Application Visibility and Control (AVC) http://www.cisco.com/go/avc • Cisco Prime Assurance http://www.cisco.com/go/pam • AVC Installation and Deployment Guide on ASR1K http://www.cisco.com/en/US/products/ps11009/prod_troubleshooting_guides_list.html • AVC Installation and Deployment Guide on ISR G2 using Performance Agent (Coming Soon) http://www.cisco.com/en/US/products/ps11671/index.html • Performance Routing http://www.cisco.com/go/pfr © 2012 Cisco and/or its affiliates. All rights reserved. All specifications subject to change without notice 42

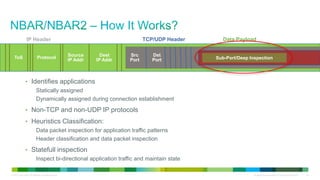

IP Header TCP/UDP Header Data Payload Source Dest Src Dst ToS Protocol Sub-Port/Deep Inspection IP Addr IP Addr Port Port • Identifies applications Statically assigned Dynamically assigned during connection establishment • Non-TCP and non-UDP IP protocols • Heuristics Classification: Data packet inspection for application traffic patterns Header classification and data packet inspection • Statefull inspection Inspect bi-directional application traffic and maintain state © 2012 Cisco and/or its affiliates. All rights reserved. All specifications subject to change without notice 44

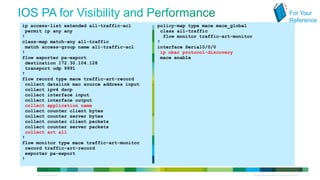

For Your Reference ip access-list extended all-traffic-acl policy-map type mace mace_global permit ip any any class all-traffic ! flow monitor traffic-art-monitor class-map match-any all-traffic ! match access-group name all-traffic-acl interface Serial0/0/0 ! ip nbar protocol-discovery flow exporter pa-export mace enable destination 172.30.104.128 transport udp 9991 ! flow record type mace traffic-art-record collect datalink mac source address input collect ipv4 dscp collect interface input collect interface output collect application name collect counter client bytes collect counter server bytes collect counter client packets collect counter server packets collect art all ! flow monitor type mace traffic-art-monitor record traffic-art-record exporter pa-export ! © 2012 Cisco and/or its affiliates. All rights reserved. All specifications subject to change without notice 45

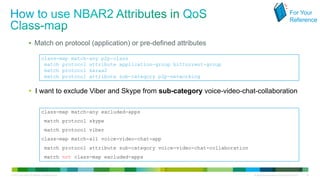

For Your Reference  Match on protocol (application) or pre-defined attributes class-map match-any p2p-class match protocol attribute application-group bittorrent-group match protocol kazaa2 match protocol attribute sub-category p2p-networking  I want to exclude Viber and Skype from sub-category voice-video-chat-collaboration class-map match-any excluded-apps match protocol skype match protocol viber class-map match-all voice-video-chat-app match protocol attribute sub-category voice-video-chat-collaboration match not class-map excluded-apps © 2012 Cisco and/or its affiliates. All rights reserved. All specifications subject to change without notice 46
Questions and Answers
Question: Do we need a router reload for recognizing new applications?
Question: If I’m using AVC, do I still need to use the Medianet functionality?
Question: How do I control the applications discovered with AVC?
Download Free Trial of LiveAction® 2.5 http://www.actionpacked.com/liveactiondownload Watch a replay of this webinar: http://www.actionpacked.com/ciscoavcwebinar For More Information on ActionPacked! Networks Contact: Steve Adams Keith Parsons Sales Engineering & Solutions Delivery +1-704-953-2269 mobile +1-205-514-9634 mobile sadams@actionpacked.com kparsons@actionpacked.com http://www.actionpacked.com
THANK YOU!
