The document discusses building ACORD web services aware applications. It outlines goals of driving competitive advantage through greater flexibility and interoperability. It proposes initially focusing on system to system projects using a common set of Just a Bunch Of Web Services (JBOWS). It describes current vendor integration and architecture including an Enterprise Service Bus. It introduces the ACORD Software Factory (ASF) which is an open source .NET accelerator for developing ACORD compliant web services quickly and discusses its value, architecture, and next steps around a common object model and community involvement.

1. BUILDING ACORD WEB
SERVICE AWARE
APPLICATIONS
ACORD Software Factory

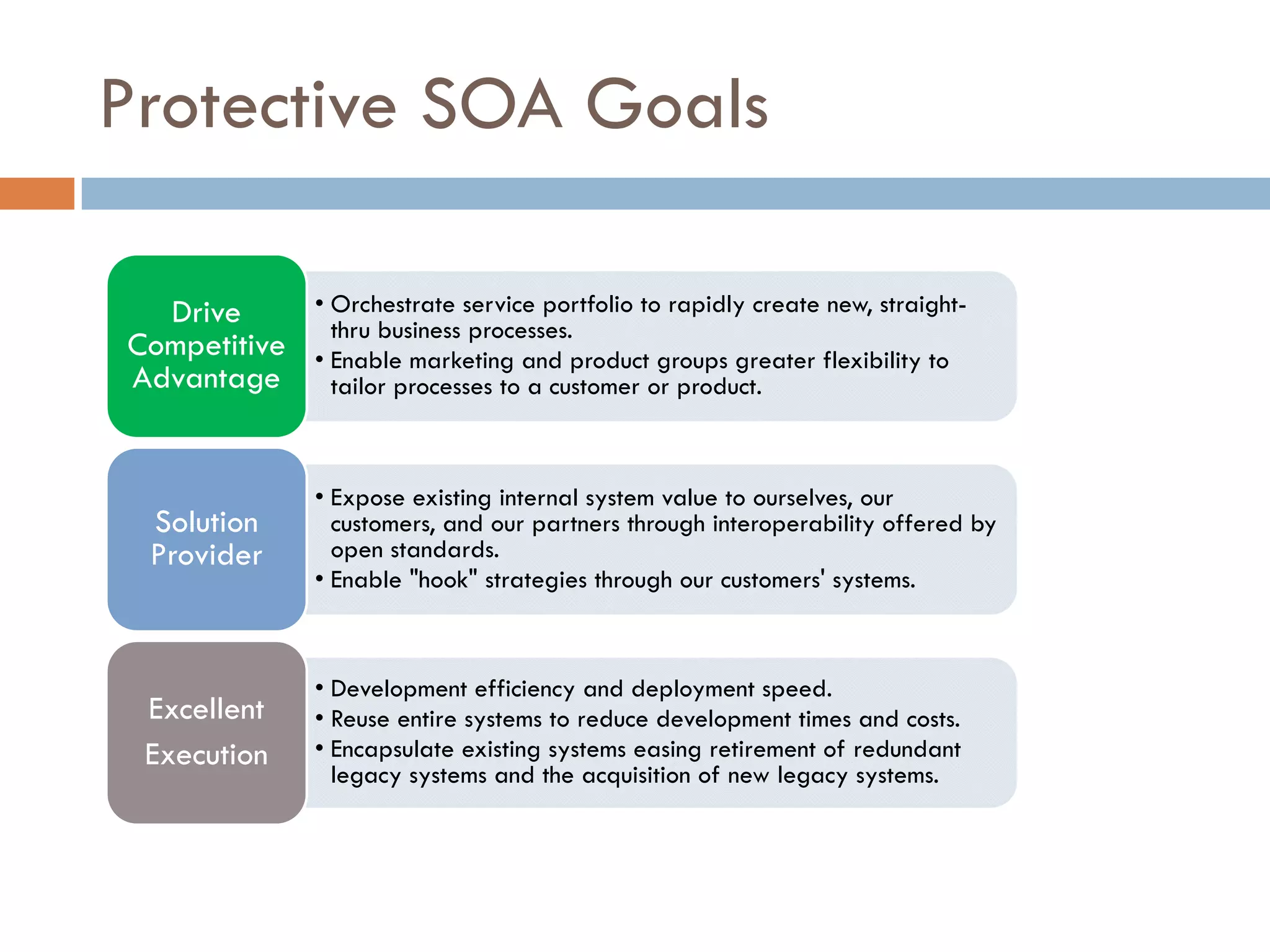

2. Protective SOA Goals
Drive • Orchestrate service portfolio to rapidly create new, straight-
thru business processes.
Competitive • Enable marketing and product groups greater flexibility to
Advantage tailor processes to a customer or product.
• Expose existing internal system value to ourselves, our
Solution customers, and our partners through interoperability offered by
Provider open standards.
• Enable "hook" strategies through our customers' systems.
• Development efficiency and deployment speed.
Excellent • Reuse entire systems to reduce development times and costs.
Execution • Encapsulate existing systems easing retirement of redundant
legacy systems and the acquisition of new legacy systems.

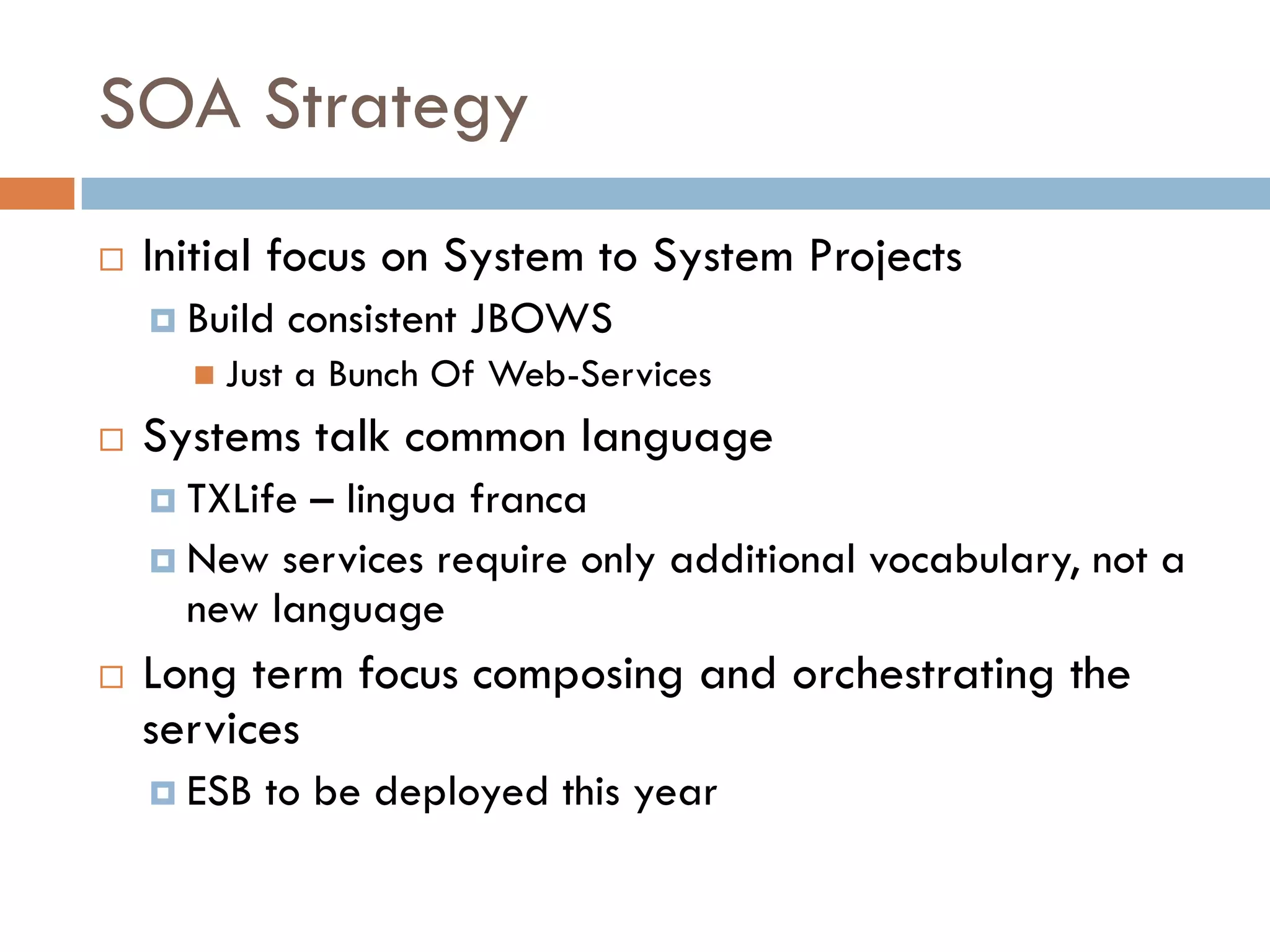

3. SOA Strategy
Initial focus on System to System Projects
Build consistent JBOWS
Just a Bunch Of Web-Services
Systems talk common language
TXLife – lingua franca
New services require only additional vocabulary, not a
new language
Long term focus composing and orchestrating the
services
ESB to be deployed this year

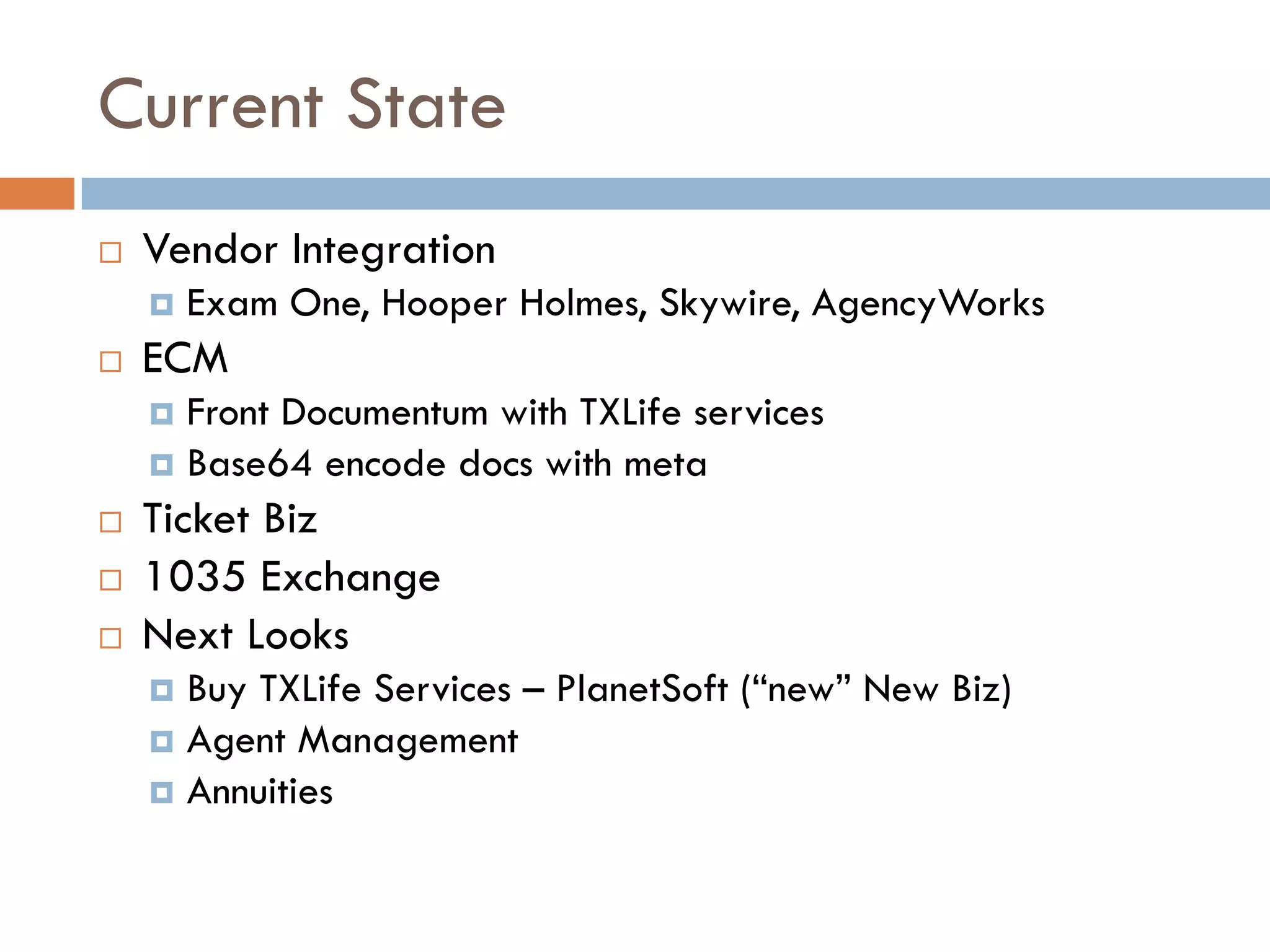

4. Current State
Vendor Integration
Exam One, Hooper Holmes, Skywire, AgencyWorks
ECM
Front Documentum with TXLife services
Base64 encode docs with meta
Ticket Biz
1035 Exchange
Next Looks
Buy TXLife Services – PlanetSoft (“new” New Biz)
Agent Management
Annuities

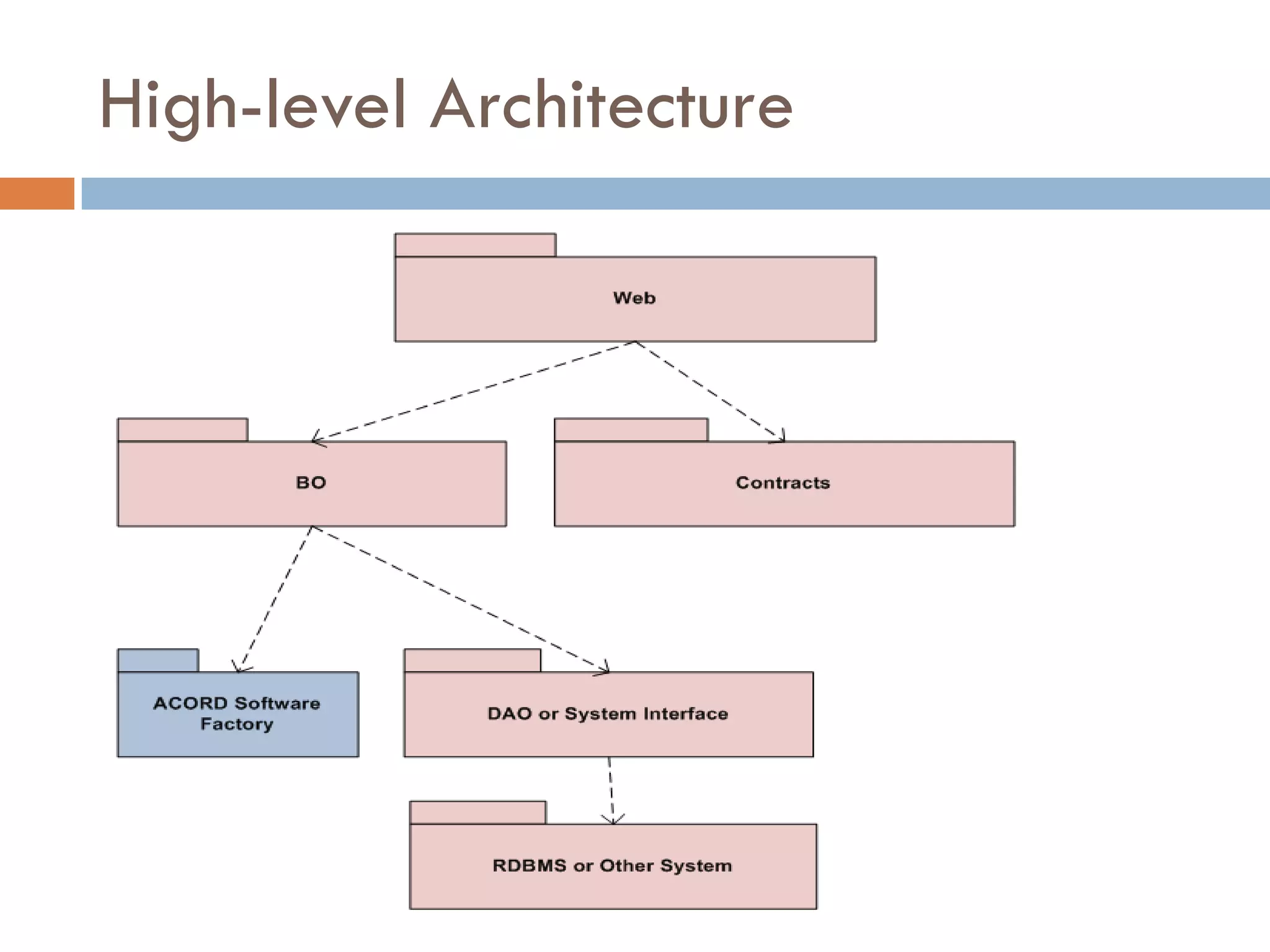

5. High-level Architecture

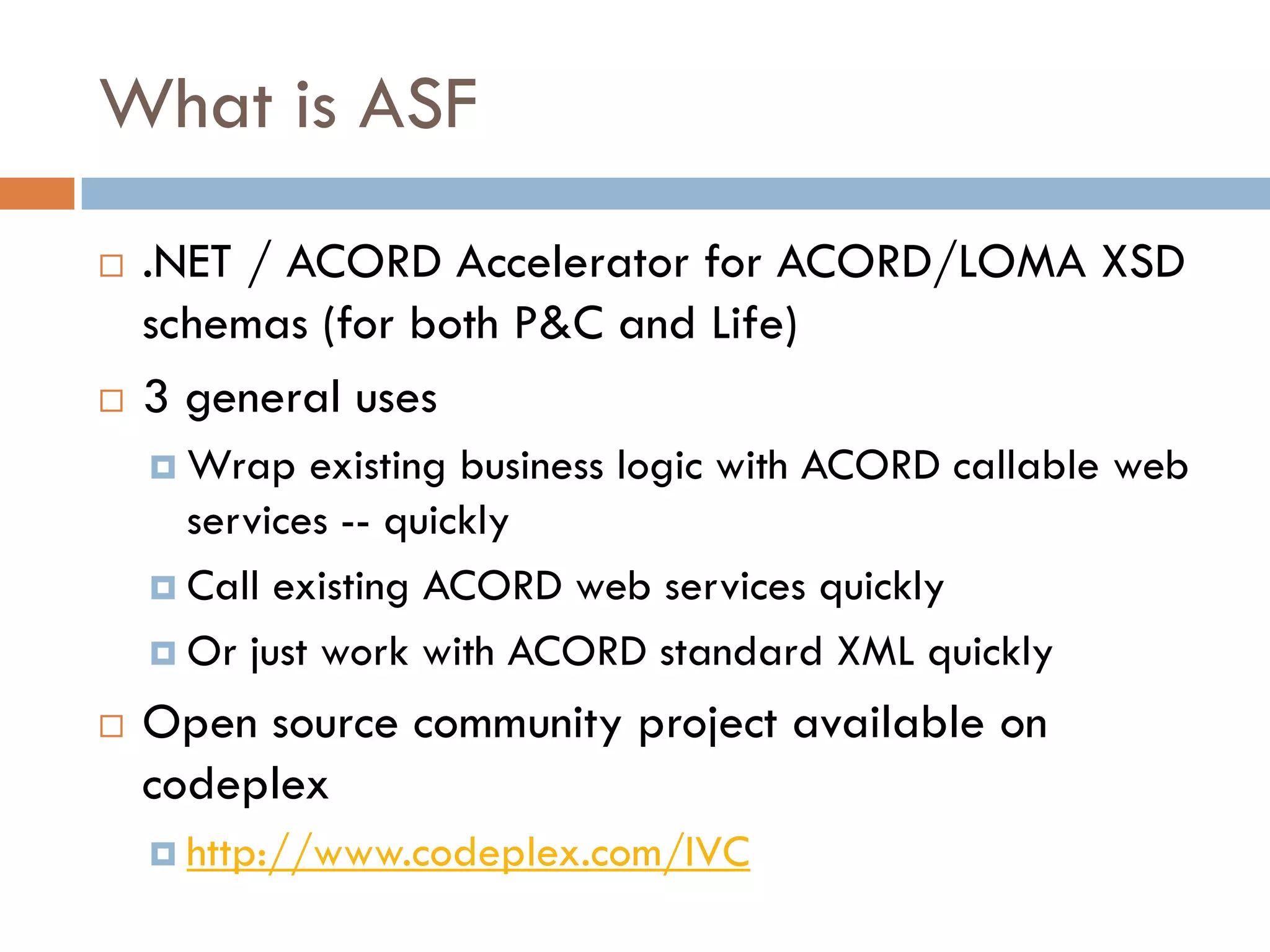

6. What is ASF
.NET / ACORD Accelerator for ACORD/LOMA XSD
schemas (for both P&C and Life)
3 general uses
Wrap existing business logic with ACORD callable web
services -- quickly
Call existing ACORD web services quickly
Or just work with ACORD standard XML quickly
Open source community project available on
codeplex
http://www.codeplex.com/IVC

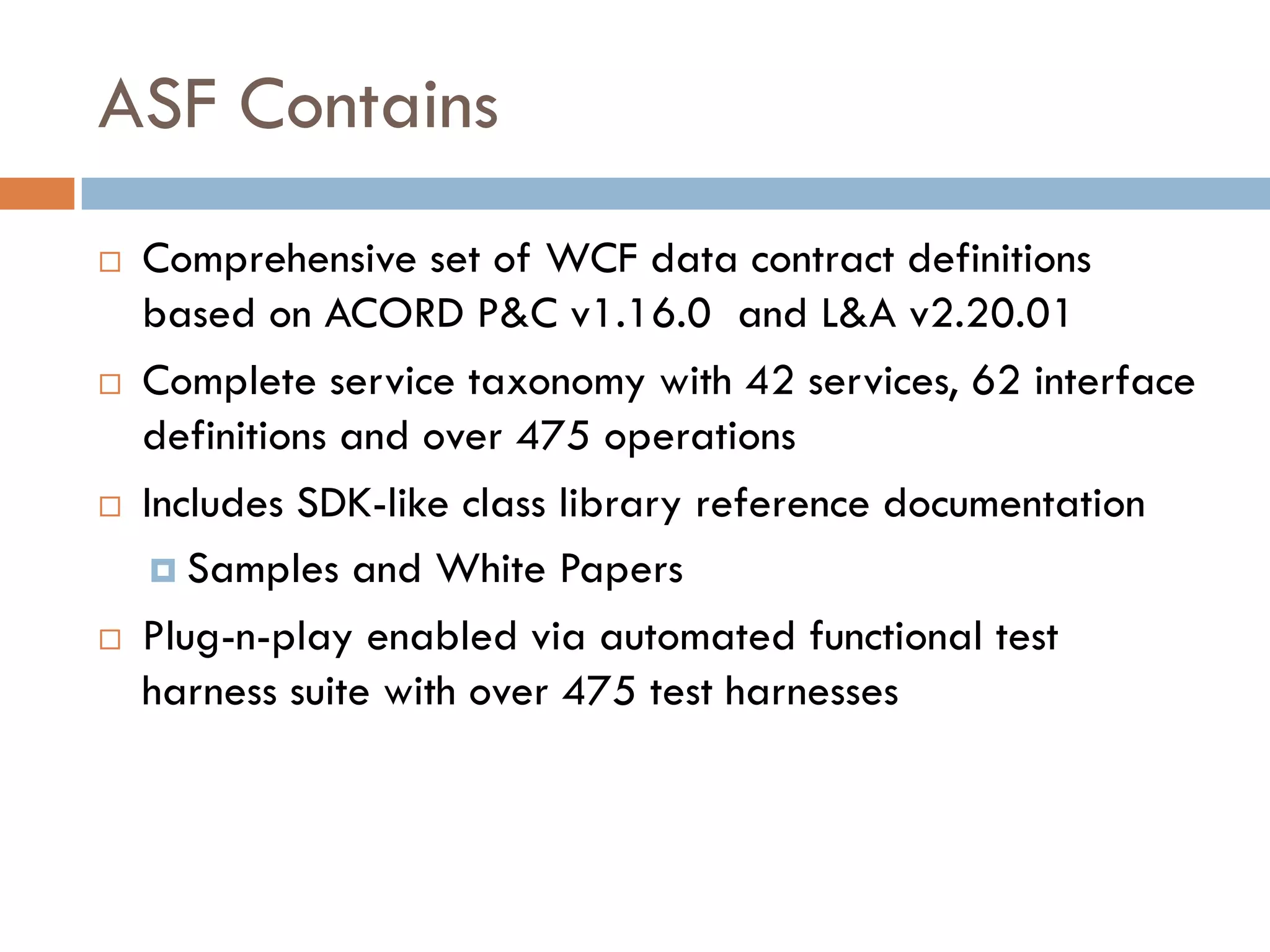

7. ASF Contains
Comprehensive set of WCF data contract definitions
based on ACORD P&C v1.16.0 and L&A v2.20.01
Complete service taxonomy with 42 services, 62 interface
definitions and over 475 operations
Includes SDK-like class library reference documentation
Samples and White Papers
Plug-n-play enabled via automated functional test
harness suite with over 475 test harnesses

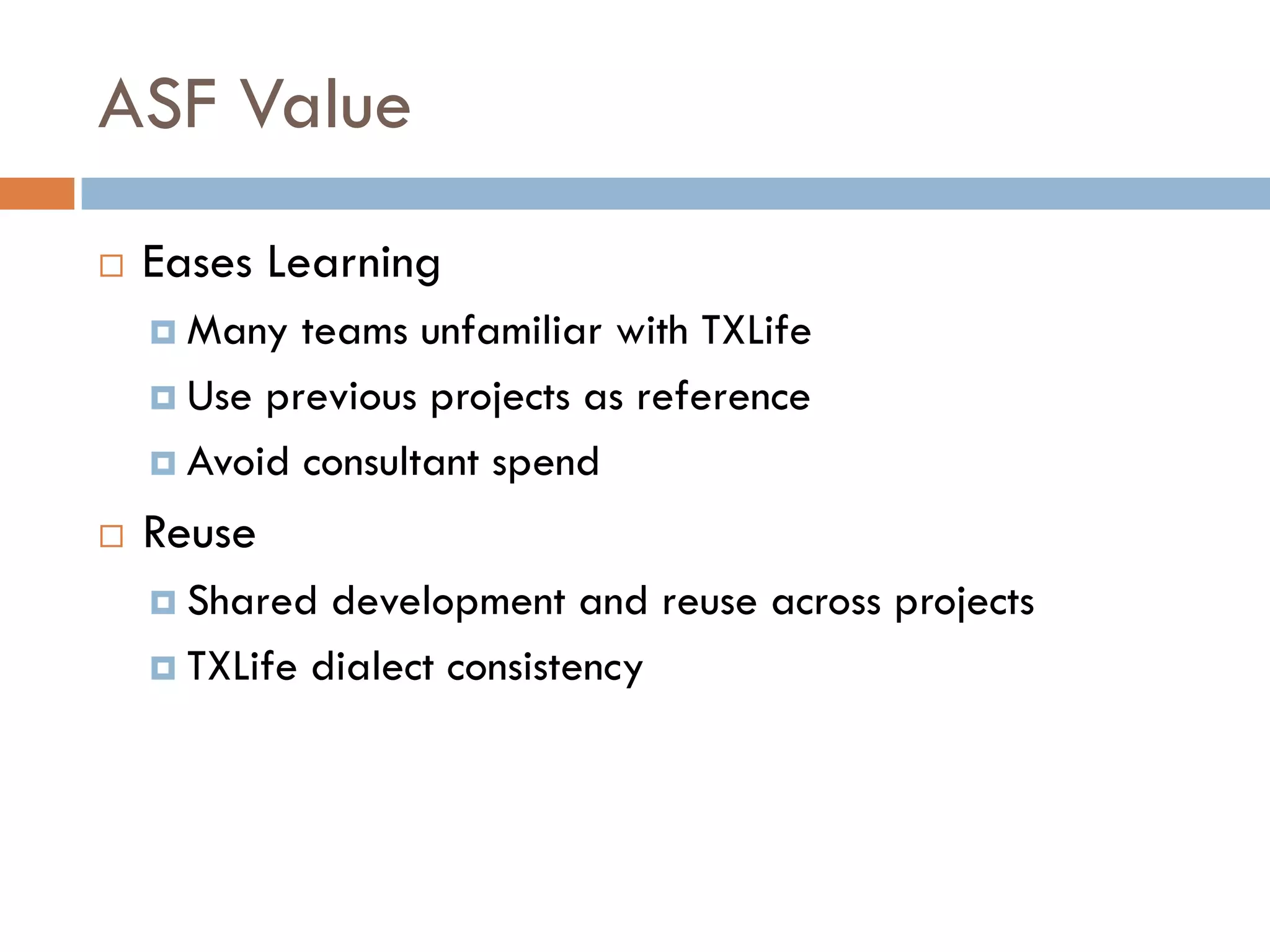

8. ASF Value
Eases Learning
Many teams unfamiliar with TXLife
Use previous projects as reference
Avoid consultant spend
Reuse
Shared development and reuse across projects
TXLife dialect consistency

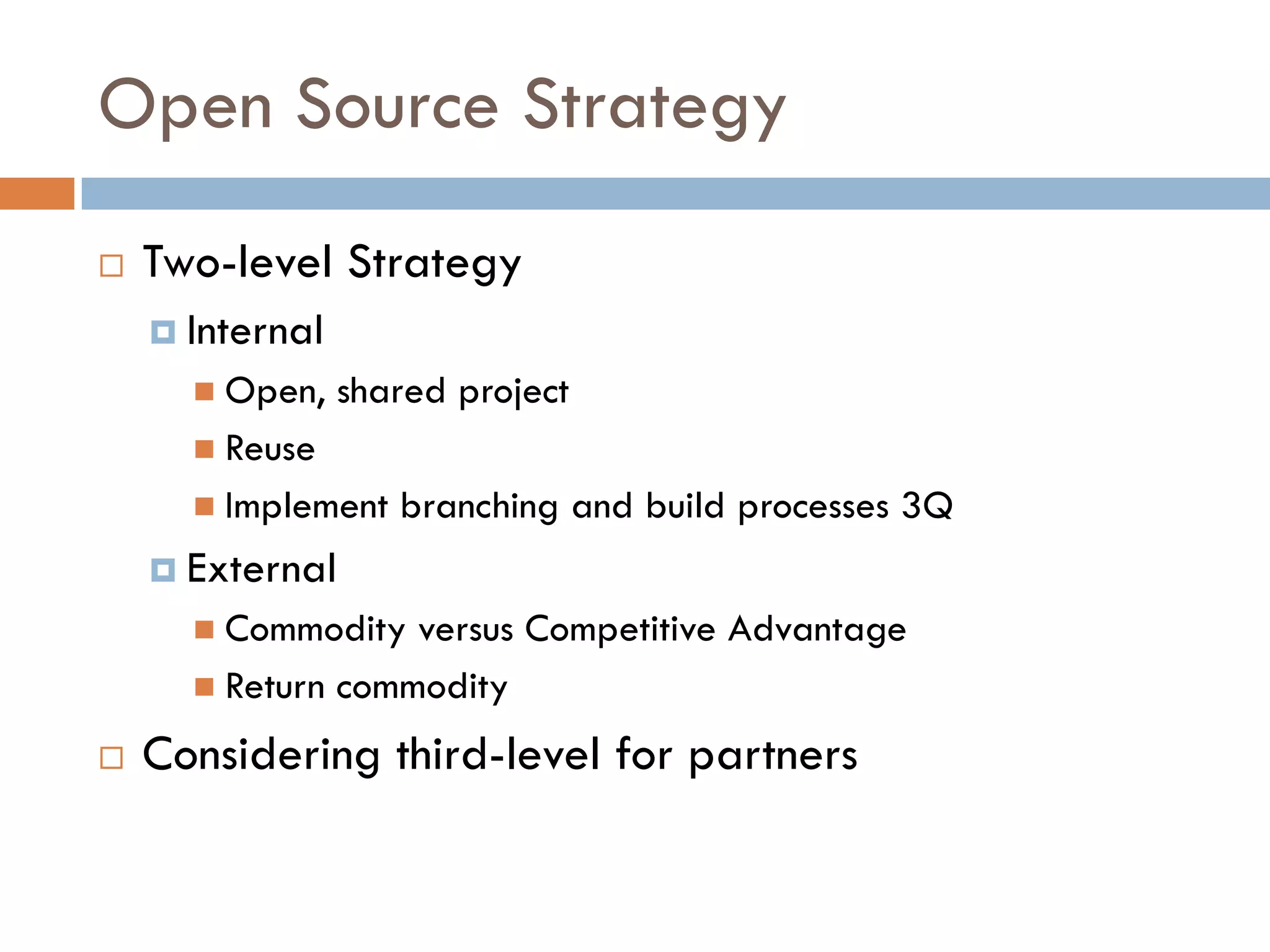

9. Open Source Strategy
Two-level Strategy
Internal
Open, shared project
Reuse
Implement branching and build processes 3Q
External
Commodity versus Competitive Advantage
Return commodity
Considering third-level for partners

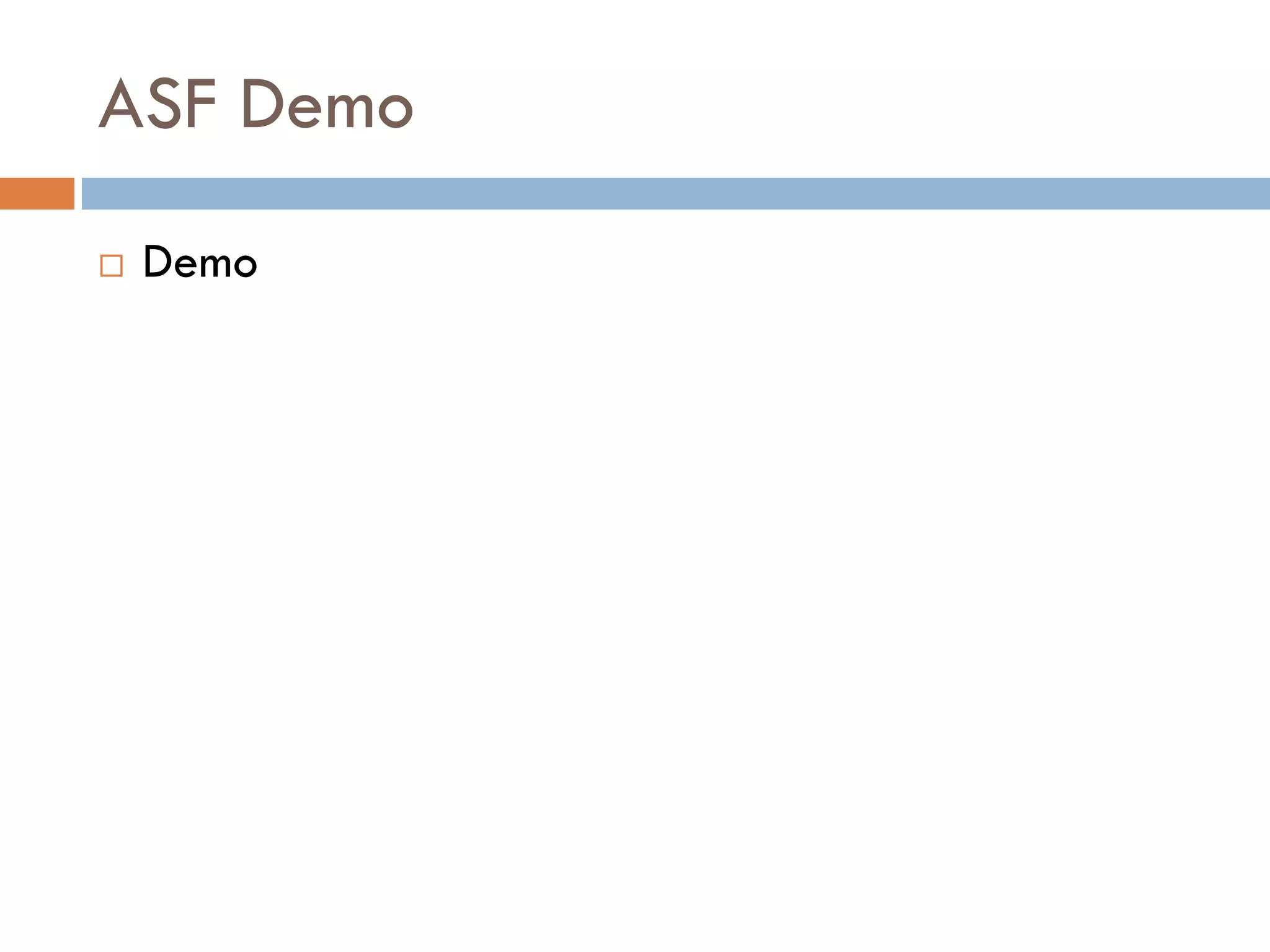

10. ASF Demo
Demo

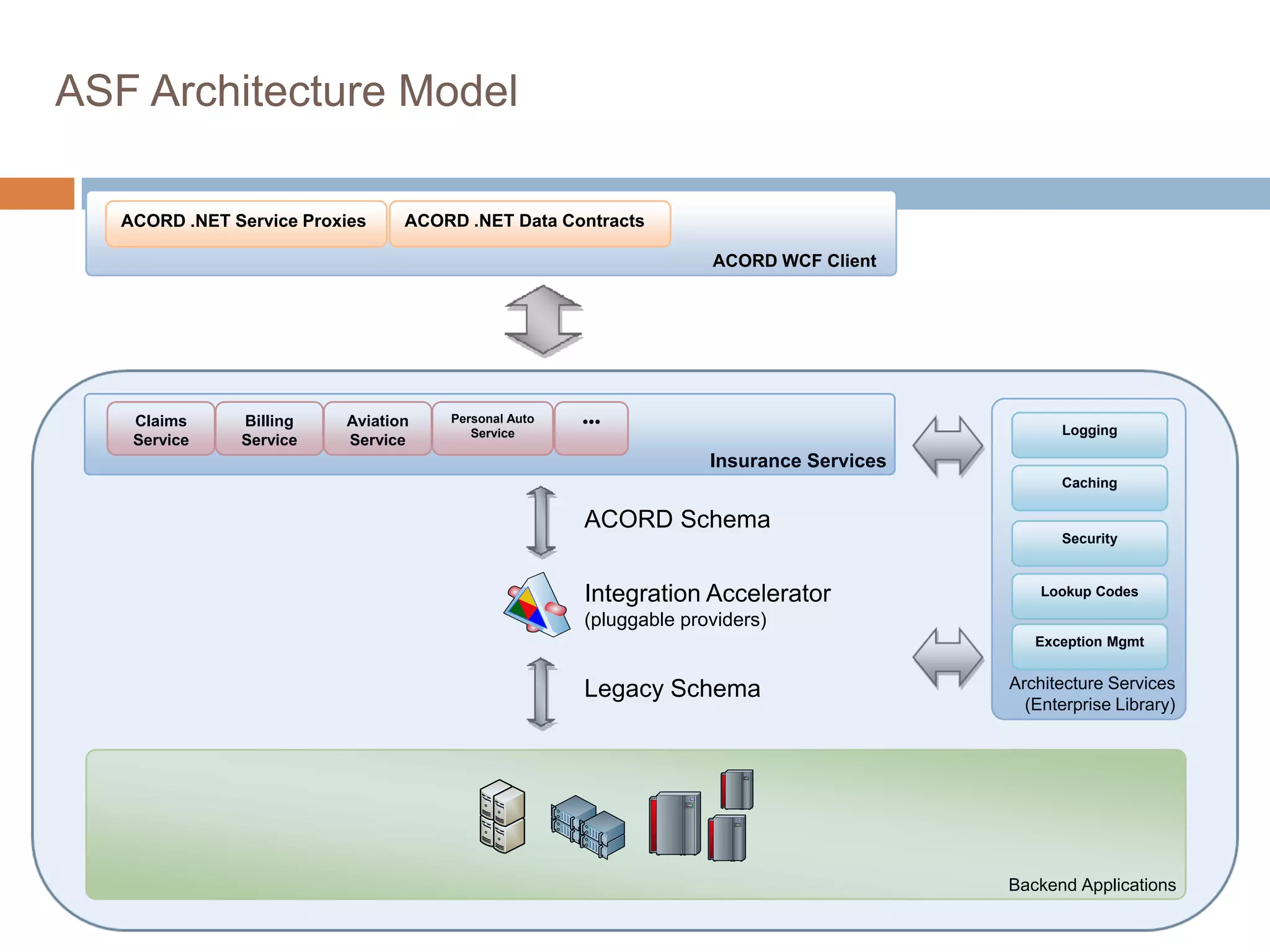

11. ASF Architecture Model
ACORD .NET Service Proxies ACORD .NET Data Contracts
ACORD WCF Client
Claims Billing Aviation Personal Auto •••
Service Logging
Service Service Service
Insurance Services
Caching
ACORD Schema
Security
Integration Accelerator Lookup Codes
(pluggable providers)
Exception Mgmt
Legacy Schema Architecture Services
(Enterprise Library)
Backend Applications

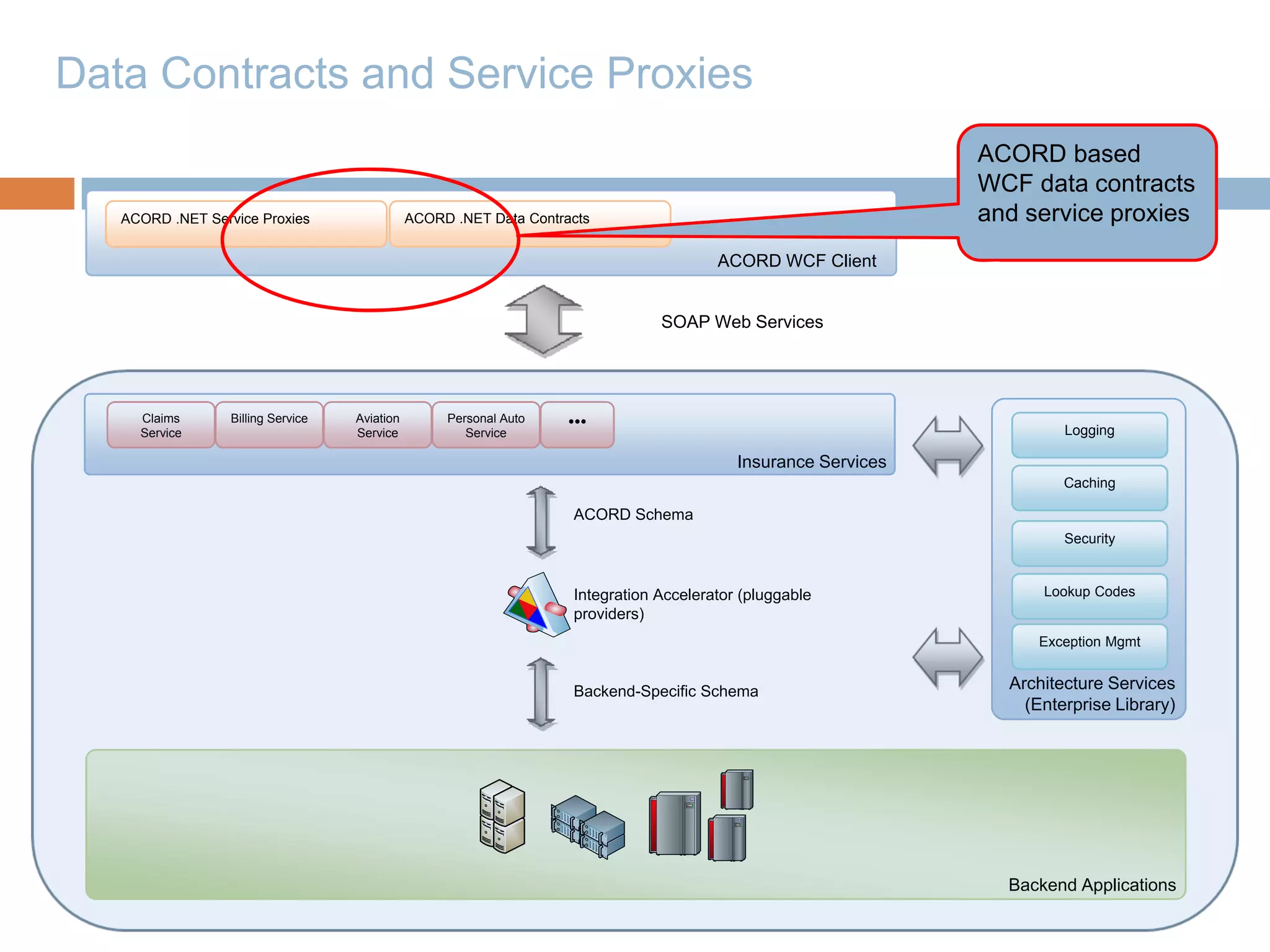

12. Data Contracts and Service Proxies
ACORD based
WCF data contracts
ACORD .NET Service Proxies ACORD .NET Data Contracts and service proxies
ACORD WCF Client
SOAP Web Services
Claims Billing Service Aviation Personal Auto •••
Service Service Service Logging
Insurance Services
Caching
ACORD Schema
Security
Integration Accelerator (pluggable Lookup Codes
providers)
Exception Mgmt
Backend-Specific Schema Architecture Services
(Enterprise Library)
Backend Applications

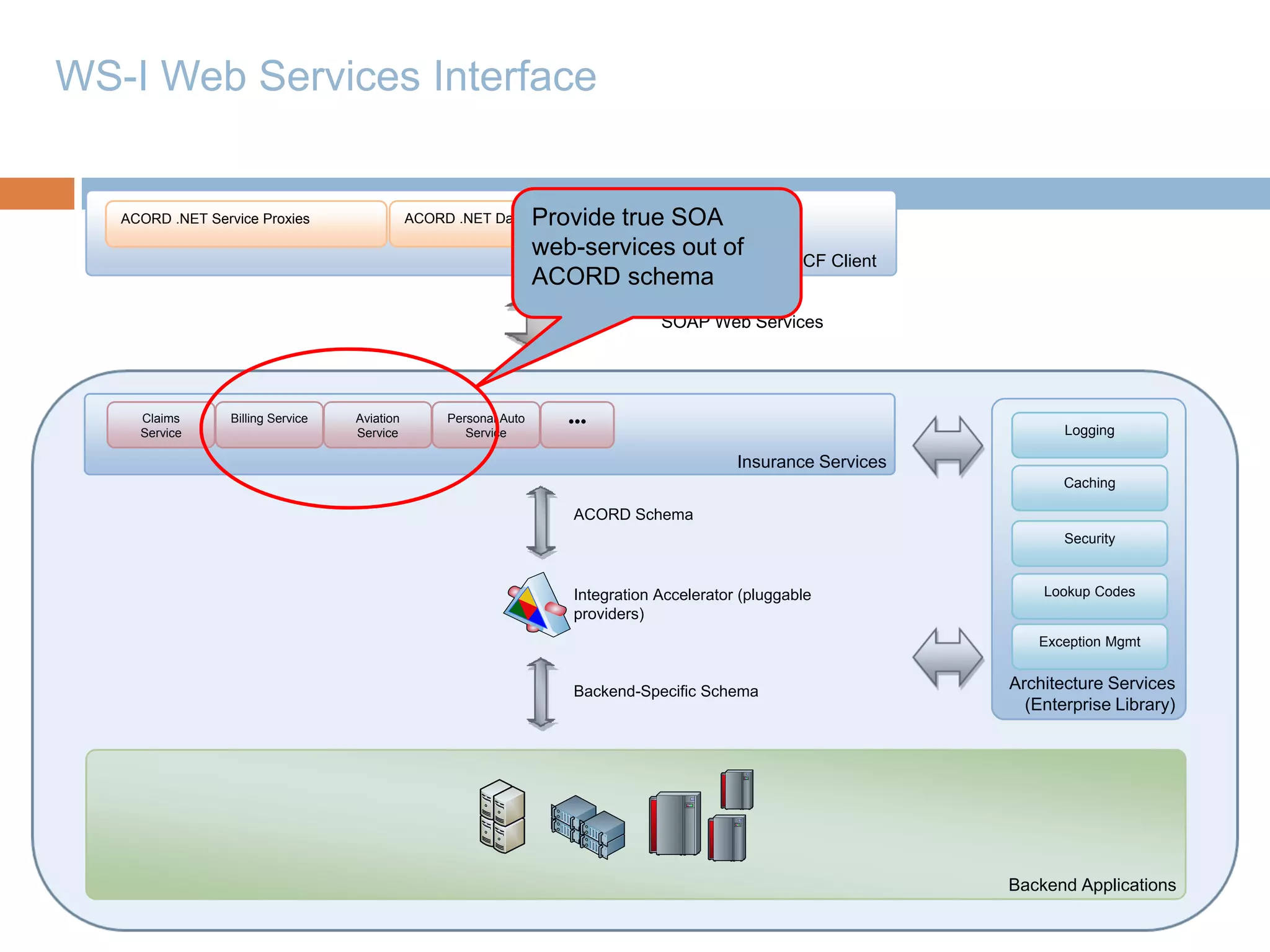

13. WS-I Web Services Interface
ACORD .NET Service Proxies Provide true SOA
ACORD .NET Data Contracts
web-services out ACORD WCF Client
of
ACORD schema
SOAP Web Services
Claims Billing Service Aviation Personal Auto •••
Service Service Service Logging
Insurance Services
Caching
ACORD Schema
Security
Integration Accelerator (pluggable Lookup Codes
providers)
Exception Mgmt
Backend-Specific Schema Architecture Services
(Enterprise Library)
Backend Applications

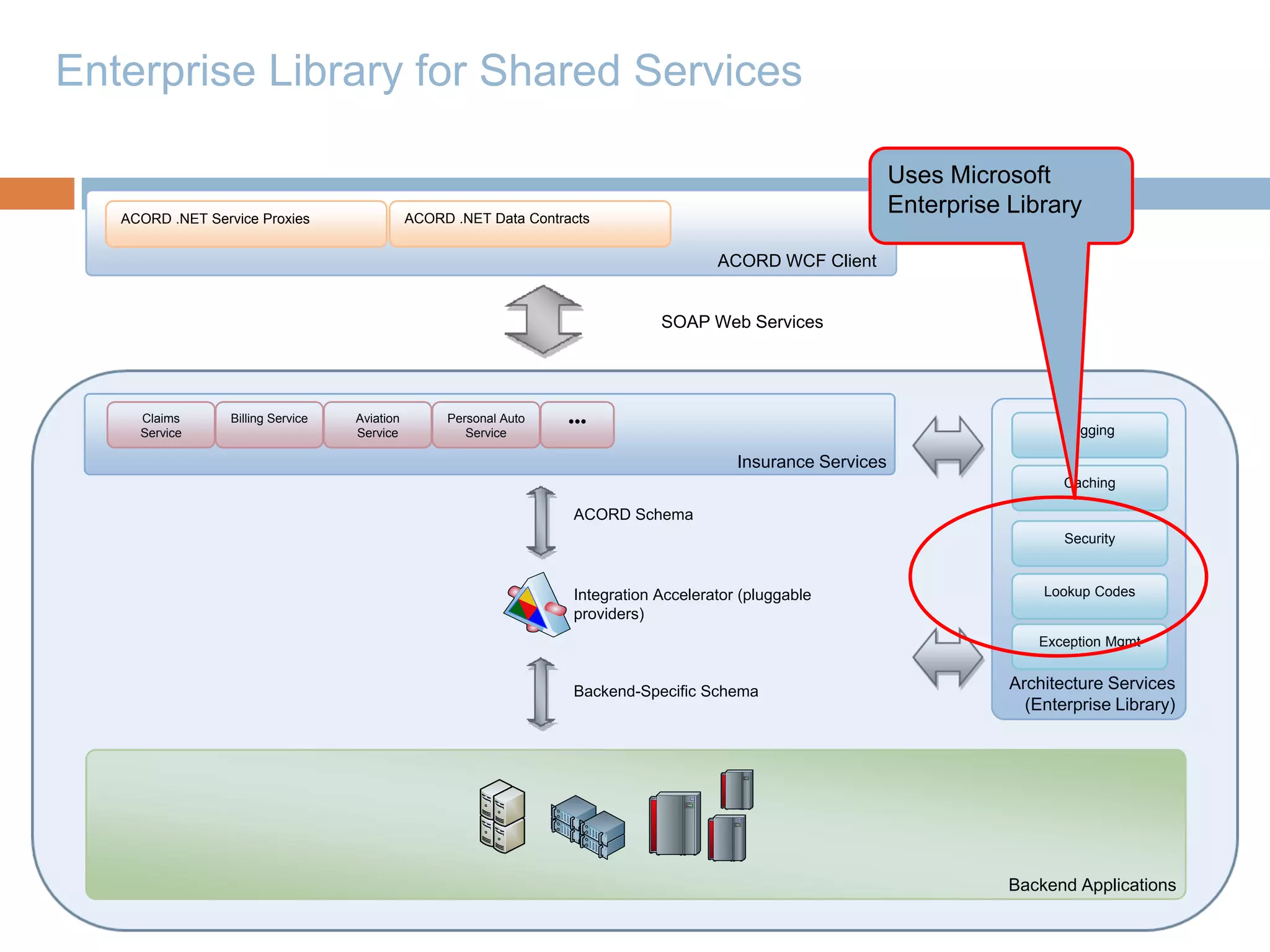

14. Enterprise Library for Shared Services
Uses Microsoft
ACORD .NET Service Proxies ACORD .NET Data Contracts
Enterprise Library
ACORD WCF Client
SOAP Web Services
Claims Billing Service Aviation Personal Auto •••
Service Service Service Logging
Insurance Services
Caching
ACORD Schema
Security
Integration Accelerator (pluggable Lookup Codes
providers)
Exception Mgmt
Backend-Specific Schema Architecture Services
(Enterprise Library)
Backend Applications

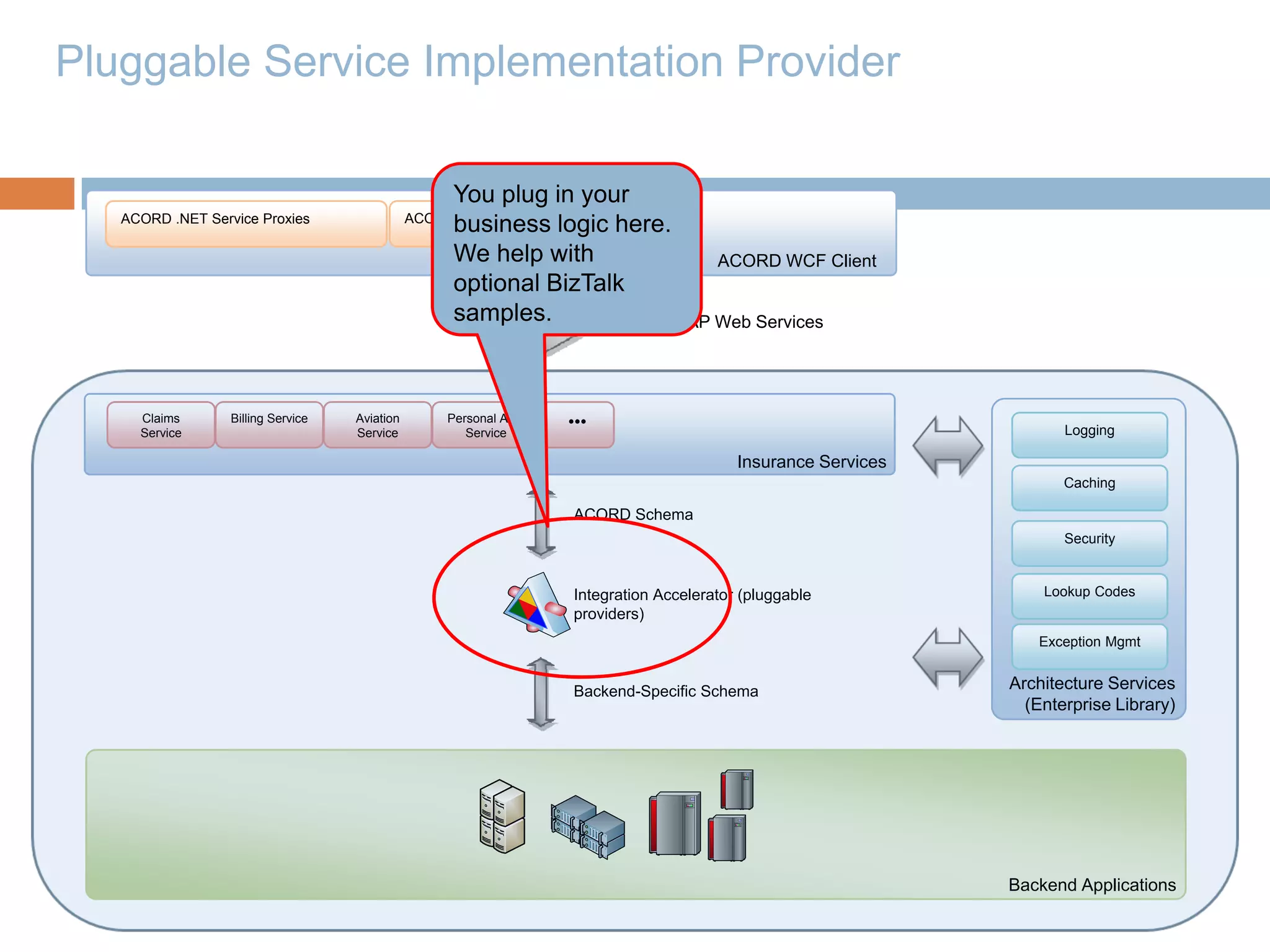

15. Pluggable Service Implementation Provider
You plug in your
ACORD .NET Service Proxies ACORD .NET Data Contracts
business logic here.
We help with ACORD WCF Client
optional BizTalk
samples. SOAP Web Services
Claims Billing Service Aviation Personal Auto •••
Service Service Service Logging
Insurance Services
Caching
ACORD Schema
Security
Integration Accelerator (pluggable Lookup Codes
providers)
Exception Mgmt
Backend-Specific Schema Architecture Services
(Enterprise Library)
Backend Applications

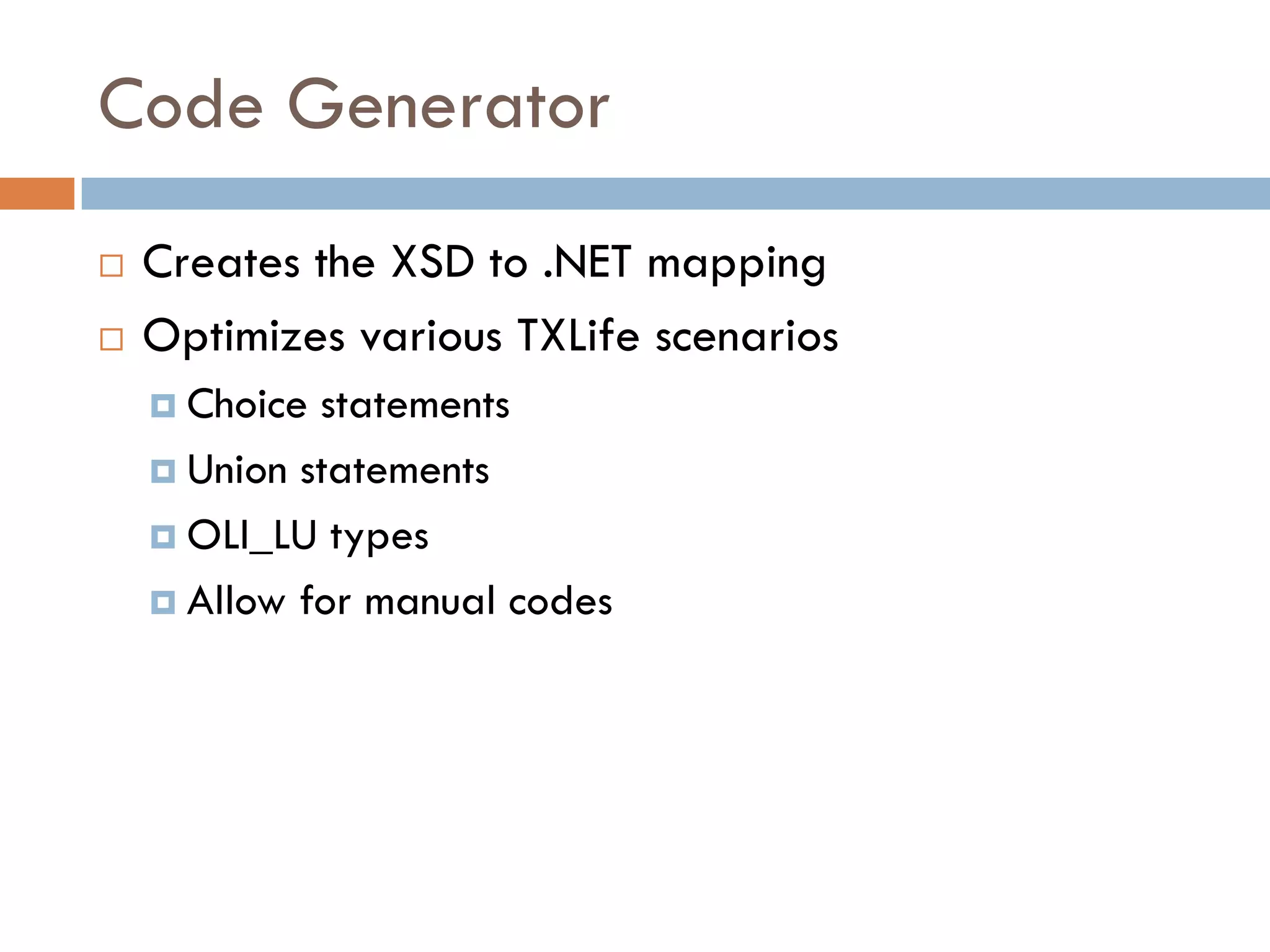

16. Code Generator
Creates the XSD to .NET mapping
Optimizes various TXLife scenarios
Choice statements
Union statements
OLI_LU types
Allow for manual codes

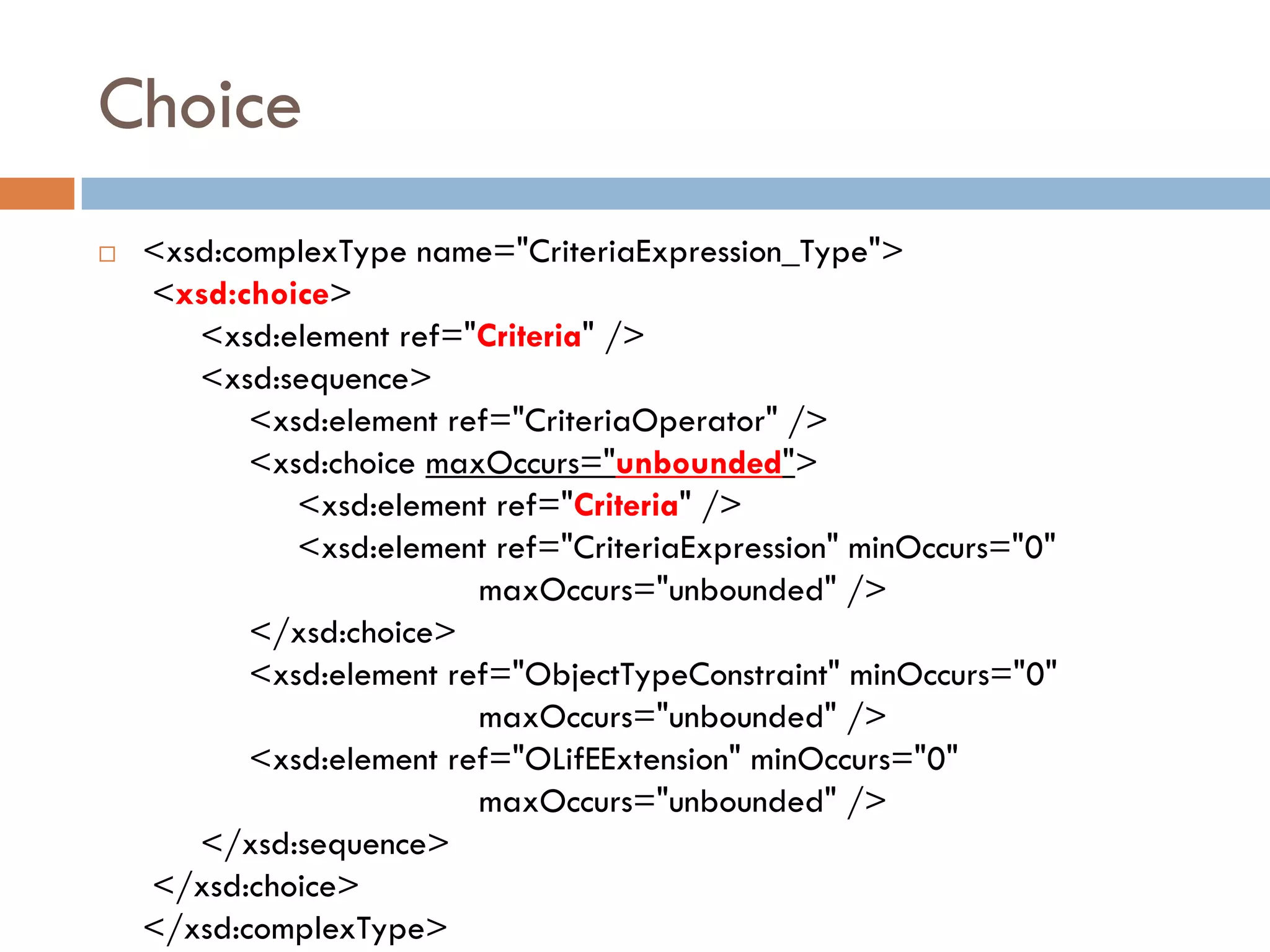

17. Choice
<xsd:complexType name="CriteriaExpression_Type">
<xsd:choice>
<xsd:element ref="Criteria" />
<xsd:sequence>
<xsd:element ref="CriteriaOperator" />
<xsd:choice maxOccurs="unbounded">
<xsd:element ref="Criteria" />
<xsd:element ref="CriteriaExpression" minOccurs="0"
maxOccurs="unbounded" />
</xsd:choice>
<xsd:element ref="ObjectTypeConstraint" minOccurs="0"
maxOccurs="unbounded" />
<xsd:element ref="OLifEExtension" minOccurs="0"
maxOccurs="unbounded" />
</xsd:sequence>
</xsd:choice>
</xsd:complexType>

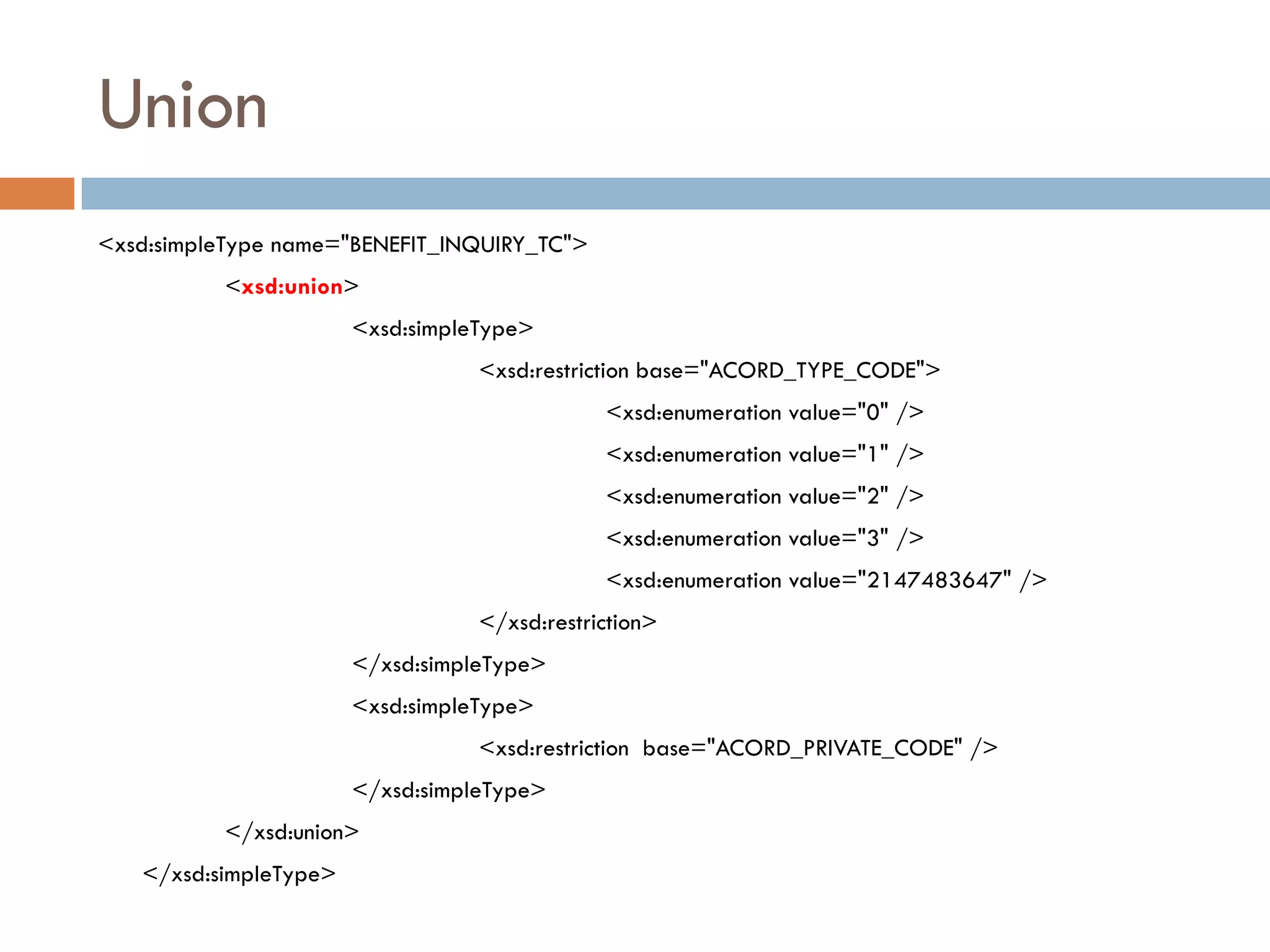

18. Union
<xsd:simpleType name="BENEFIT_INQUIRY_TC">
<xsd:union>
<xsd:simpleType>
<xsd:restriction base="ACORD_TYPE_CODE">
<xsd:enumeration value="0" />
<xsd:enumeration value="1" />
<xsd:enumeration value="2" />
<xsd:enumeration value="3" />
<xsd:enumeration value="2147483647" />
</xsd:restriction>
</xsd:simpleType>
<xsd:simpleType>
<xsd:restriction base="ACORD_PRIVATE_CODE" />
</xsd:simpleType>
</xsd:union>
</xsd:simpleType>

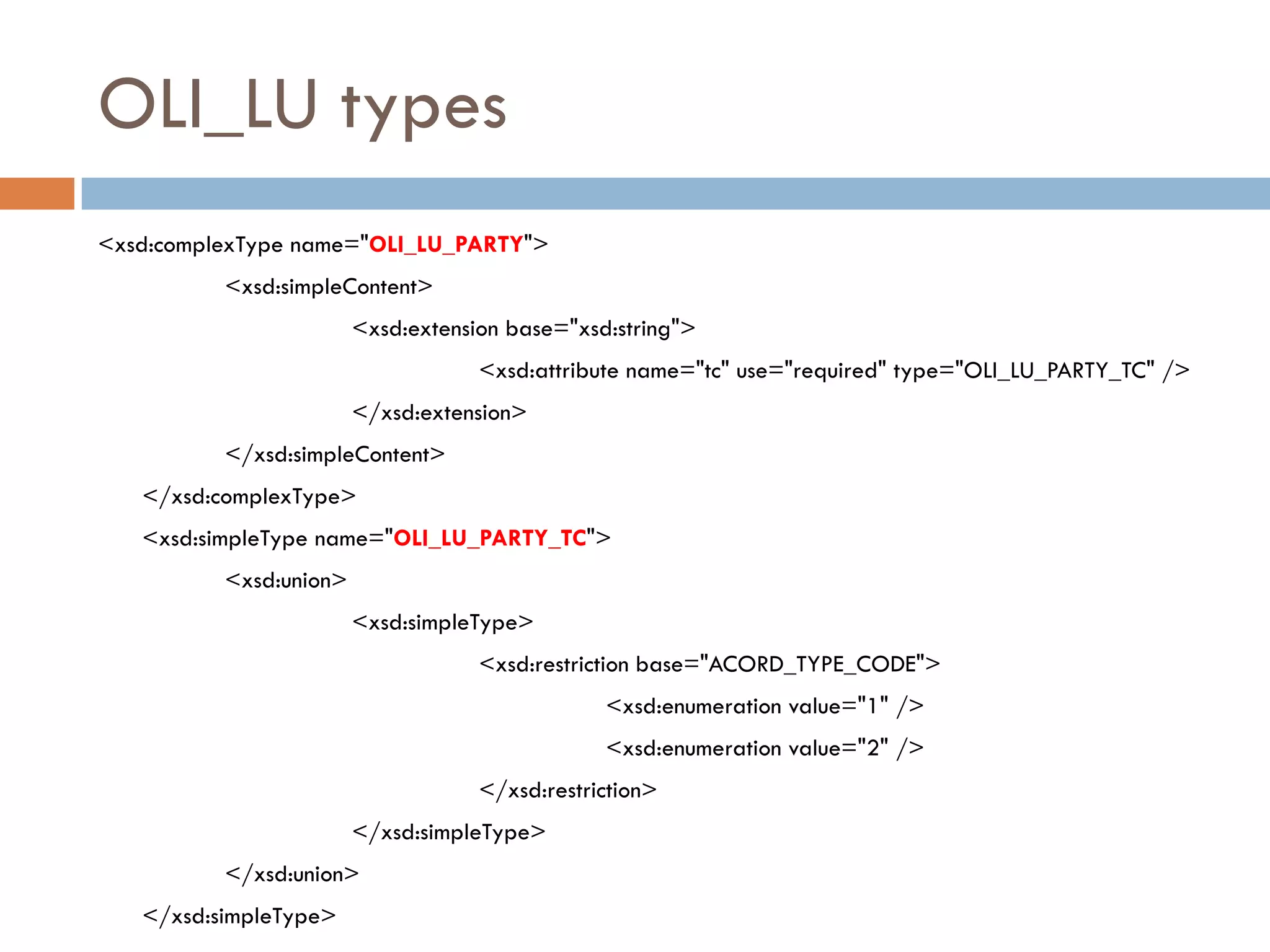

19. OLI_LU types
<xsd:complexType name="OLI_LU_PARTY">
<xsd:simpleContent>
<xsd:extension base="xsd:string">
<xsd:attribute name="tc" use="required" type="OLI_LU_PARTY_TC" />
</xsd:extension>
</xsd:simpleContent>
</xsd:complexType>
<xsd:simpleType name="OLI_LU_PARTY_TC">
<xsd:union>
<xsd:simpleType>
<xsd:restriction base="ACORD_TYPE_CODE">
<xsd:enumeration value="1" />
<xsd:enumeration value="2" />
</xsd:restriction>
</xsd:simpleType>
</xsd:union>
</xsd:simpleType>

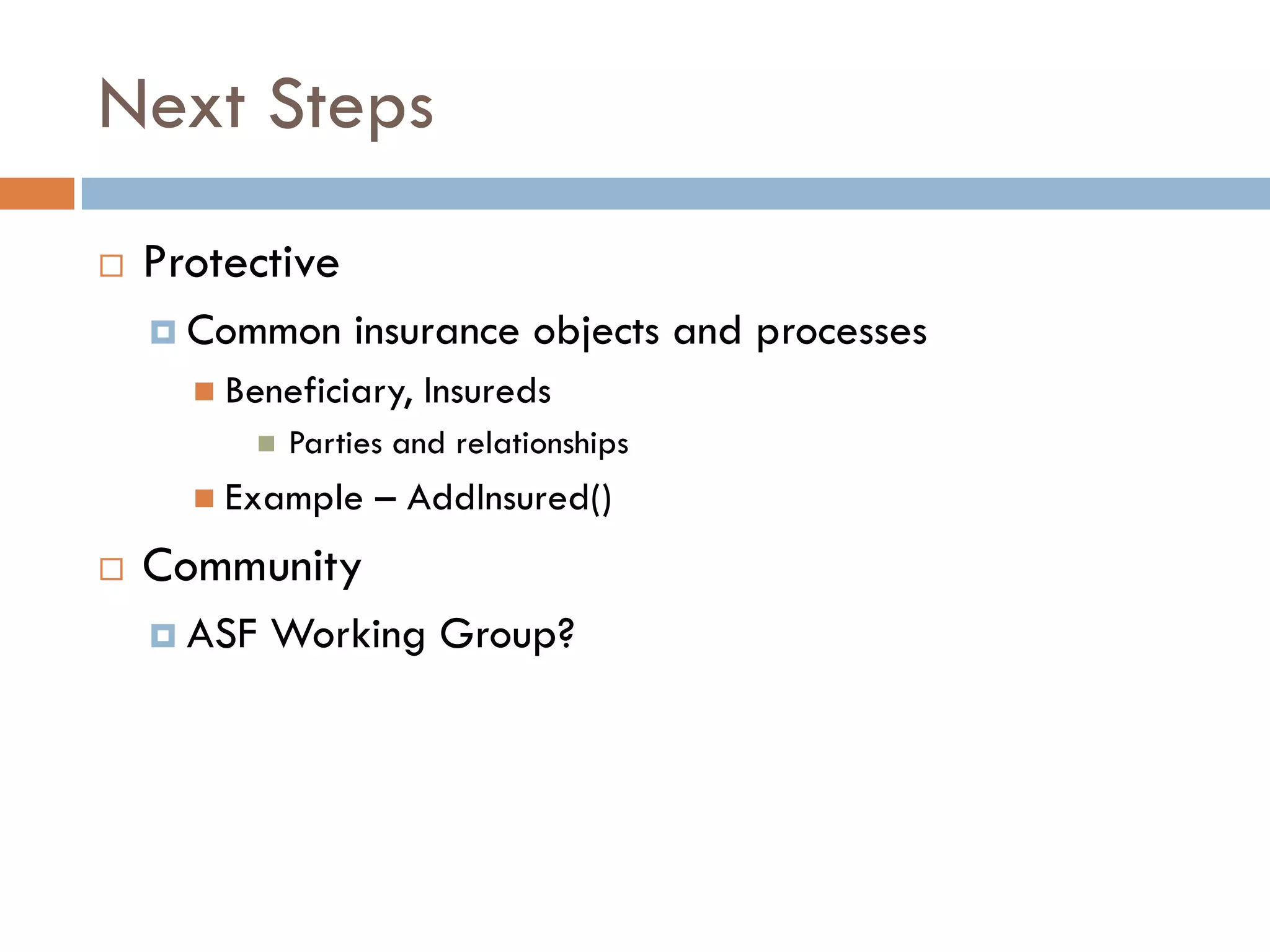

20. Next Steps
Protective
Common insurance objects and processes
Beneficiary, Insureds
Parties and relationships
Example – AddInsured()
Community
ASF Working Group?
