- 1. 28th TF-Mobility andNetwork Middleware Meeting A4-Mesh: Authentication, Authorization, Accounting, and Auditing in Wireless Mesh Networks Torsten Braun Communication and Distributed Systems Institute of Computer Science and Applied Mathematics Universität Bern braun@iam.unibe.ch http://cds.unibe.ch, http://a4-mesh.unibe.ch

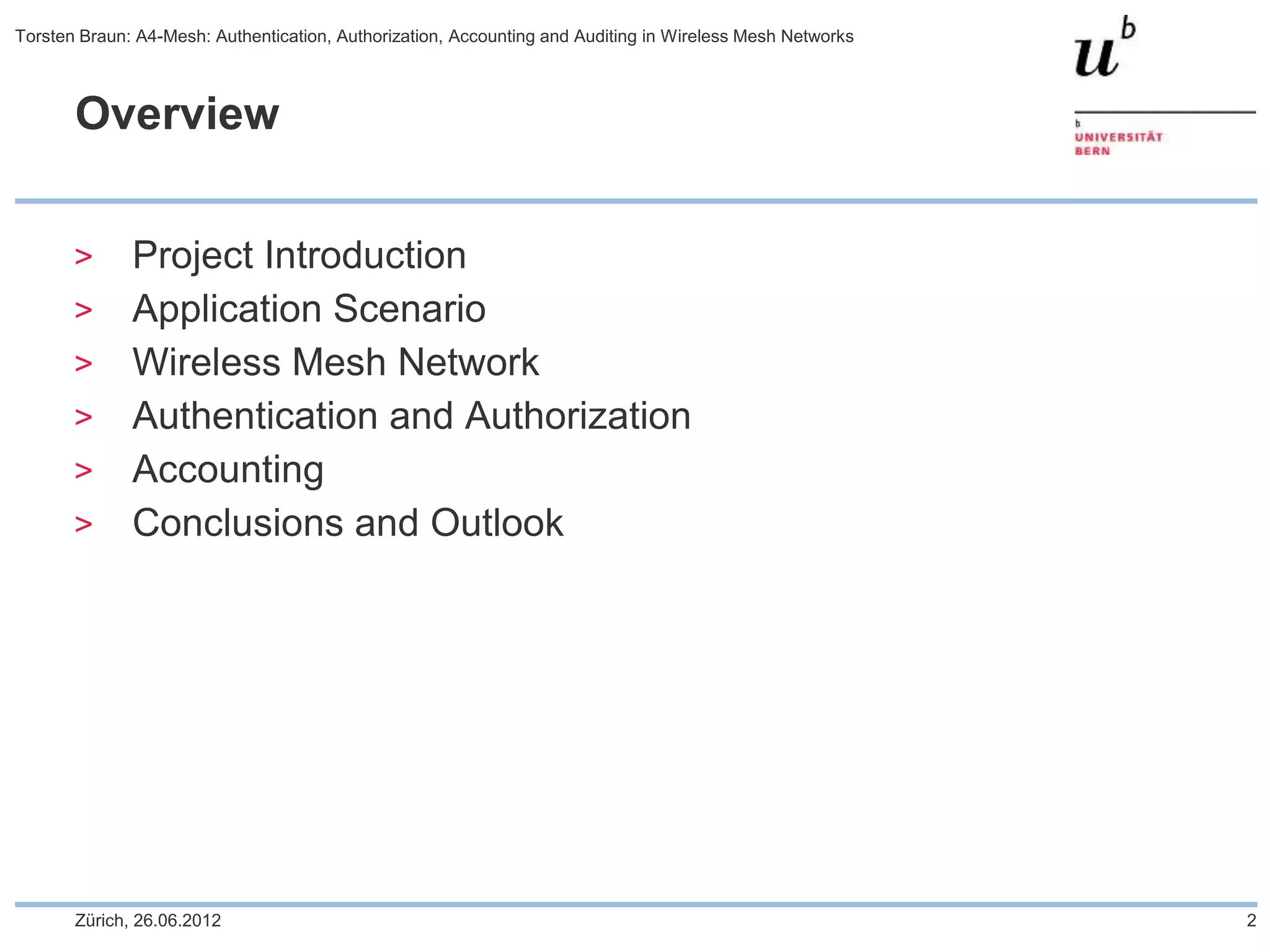

- 2. Overview > Project Introduction >Application Scenario > Wireless Mesh Network > Authentication and Authorization > Accounting > Conclusions and Outlook Zürich, 26.06.2012 2 Torsten Braun: A4-Mesh: Authentication, Authorization, Accounting and Auditing in Wireless Mesh Networks
- 3.
- 4. Project Partners > Institutfür Informatik und Angewandte Mathematik > Geographisches Institut > Informatikdienste > Institut d’Informatique > Service Informatique et Télématique Zürich, 26.06.2012 4 Torsten Braun: A4-Mesh: Authentication, Authorization, Accounting and Auditing in Wireless Mesh Networks
- 5. Project Goals andObjectives > Goal — Provide low-cost broadband network access to researchers and students at remote locations > Objectives — Cost-efficient network access — Easily deployable wireless mesh network (WMN) — Integrated into regular authentication and authorization infrastructure of Swiss higher education (SWITCHaai) Zürich, 26.06.2012 5 Torsten Braun: A4-Mesh: Authentication, Authorization, Accounting and Auditing in Wireless Mesh Networks
- 6. Wireless Mesh Networks(WMNs) Application Scenarios 1. Environmental Monitoring 2. Campus Network Extension Zürich, 26.06.2012 6 Torsten Braun: A4-Mesh: Authentication, Authorization, Accounting and Auditing in Wireless Mesh Networks

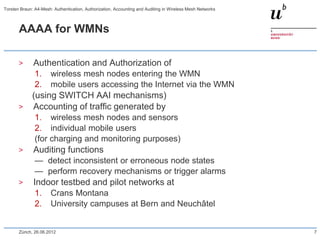

- 7. AAAA for WMNs >Authentication and Authorization of 1. wireless mesh nodes entering the WMN 2. mobile users accessing the Internet via the WMN (using SWITCH AAI mechanisms) > Accounting of traffic generated by 1. wireless mesh nodes and sensors 2. individual mobile users (for charging and monitoring purposes) > Auditing functions — detect inconsistent or erroneous node states — perform recovery mechanisms or trigger alarms > Indoor testbed and pilot networks at 1. Crans Montana 2. University campuses at Bern and Neuchâtel Zürich, 26.06.2012 7 Torsten Braun: A4-Mesh: Authentication, Authorization, Accounting and Auditing in Wireless Mesh Networks
- 8.
- 9. Requirements by EnvironmentalMonitoring > Support of scientists (hydrology researchers) to collect sensor data from environmental measurements. > Scientists use data for generating and verifying models of the environment. > Specific measurements to cover certain areas or to collect specific sensor data are needed. Zürich, 26.06.2012 9 Torsten Braun: A4-Mesh: Authentication, Authorization, Accounting and Auditing in Wireless Mesh Networks
- 10. MontanAqua Investigation Area Sion Sierre Tseuzier storagelake Plaine Morte glacier © Weingartner Zürich, 26.06.2012 10 Torsten Braun: A4-Mesh: Authentication, Authorization, Accounting and Auditing in Wireless Mesh Networks
- 11. Modelling Water Resources PIHM- Penn State Integrated Hydrologic Model cc scenarios 2050 WATER RESOURCES 2010 LAND USE © Martina Kauzlaric module GLACIER module KARST Jeannin ice thickness 0 m 100 m 200 m © Matthias Huss © Weingartner PHIM high data demand for modelling water balance and fluxes Zürich, 26.06.2012 11 Torsten Braun: A4-Mesh: Authentication, Authorization, Accounting and Auditing in Wireless Mesh Networks
- 12. Weather Stations andRain Gauges wind velocity & direction air temperature & relative humidity solar radiation rainfall Zürich, 26.06.2012 12 Torsten Braun: A4-Mesh: Authentication, Authorization, Accounting and Auditing in Wireless Mesh Networks

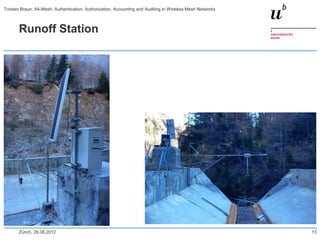

- 13. Runoff Station Zürich, 26.06.201213 Torsten Braun: A4-Mesh: Authentication, Authorization, Accounting and Auditing in Wireless Mesh Networks

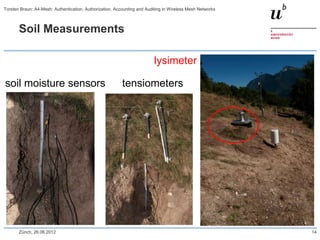

- 14. Soil Measurements soil moisturesensors tensiometers lysimeter Zürich, 26.06.2012 14 Torsten Braun: A4-Mesh: Authentication, Authorization, Accounting and Auditing in Wireless Mesh Networks

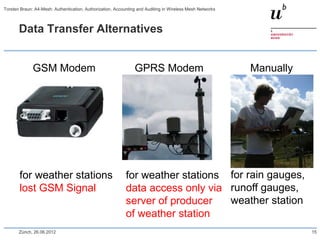

- 15. Data Transfer Alternatives GSMModem for weather stations lost GSM Signal GPRS Modem for weather stations data access only via server of producer of weather station Manually for rain gauges, runoff gauges, weather station Zürich, 26.06.2012 15 Torsten Braun: A4-Mesh: Authentication, Authorization, Accounting and Auditing in Wireless Mesh Networks
- 16. Serial Port Tunneling Zürich,26.06.2012 16 Torsten Braun: A4-Mesh: Authentication, Authorization, Accounting and Auditing in Wireless Mesh Networks
- 17. Benefits for Scientists >Real-time access on logger (software up-dates, failure checking) → reduced frequency of maintenance > Real-time data access (data verification, monitoring of sensors) > Data stored on server at University and logger in the field → reduction of data loss risk (destruction of sensors/loggers) → independent of GSM/GPRS network availability → high data-transfer rates (web cam) Zürich, 26.06.2012 17 Torsten Braun: A4-Mesh: Authentication, Authorization, Accounting and Auditing in Wireless Mesh Networks

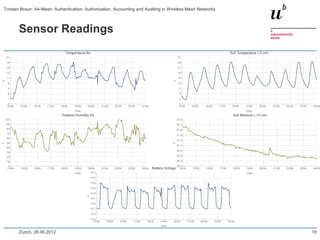

- 18. Sensor Readings Zürich, 26.06.201218 Torsten Braun: A4-Mesh: Authentication, Authorization, Accounting and Auditing in Wireless Mesh Networks
- 19.

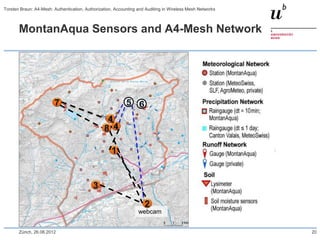

- 20. MontanAqua Sensors andA4-Mesh Network webcam Zürich, 26.06.2012 20 Torsten Braun: A4-Mesh: Authentication, Authorization, Accounting and Auditing in Wireless Mesh Networks

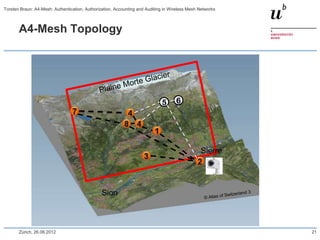

- 21. A4-Mesh Topology Sion Sierre Zürich, 26.06.201221 Torsten Braun: A4-Mesh: Authentication, Authorization, Accounting and Auditing in Wireless Mesh Networks

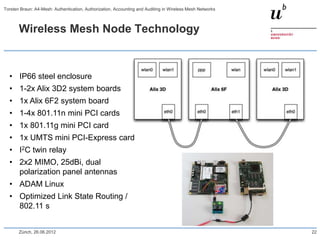

- 22. Wireless Mesh NodeTechnology • IP66 steel enclosure • 1-2x Alix 3D2 system boards • 1x Alix 6F2 system board • 1-4x 801.11n mini PCI cards • 1x 801.11g mini PCI card • 1x UMTS mini PCI-Express card • I2C twin relay • 2x2 MIMO, 25dBi, dual polarization panel antennas • ADAM Linux • Optimized Link State Routing / 802.11 s Zürich, 26.06.2012 22 Torsten Braun: A4-Mesh: Authentication, Authorization, Accounting and Auditing in Wireless Mesh Networks

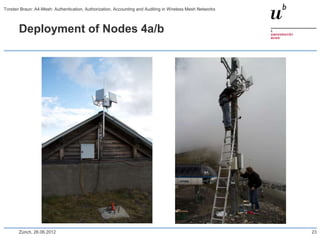

- 23. Deployment of Nodes4a/b Zürich, 26.06.2012 23 Torsten Braun: A4-Mesh: Authentication, Authorization, Accounting and Auditing in Wireless Mesh Networks

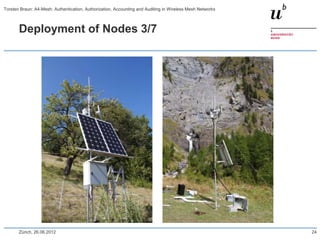

- 24. Deployment of Nodes3/7 Zürich, 26.06.2012 24 Torsten Braun: A4-Mesh: Authentication, Authorization, Accounting and Auditing in Wireless Mesh Networks
- 25. Deployment of Node8 Zürich, 26.06.2012 25 Torsten Braun: A4-Mesh: Authentication, Authorization, Accounting and Auditing in Wireless Mesh Networks
- 26.
- 27. Authentication and Authorisation >Network resources can only be accessed by authenticated and authorized end users and wireless mesh nodes: — Wireless mesh nodes entering the WMN – Mechanism tailored to WMNs supporting easy and secure inter- organizational access to network resources using a separate Shibboleth federation. — Mobile users accessing the Internet via the WMN – Implementation based on web-based captive portal protected by SWITCHaai Zürich, 26.06.2012 Torsten Braun: A4-Mesh: Authentication, Authorization, Accounting and Auditing in Wireless Mesh Networks 27
- 28. A4-Mesh AAAA Architecture Zürich,26.06.2012 28 Torsten Braun: A4-Mesh: Authentication, Authorization, Accounting and Auditing in Wireless Mesh Networks
- 29. Machine Authentication andAuthorization Zürich, 26.06.2012 Torsten Braun: A4-Mesh: Authentication, Authorization, Accounting and Auditing in Wireless Mesh Networks 29 Request VPN key Authentication request with X.509 certificate Machine attributes is authorized ? authorized VPN key Open firewall VPN tunnel establishment

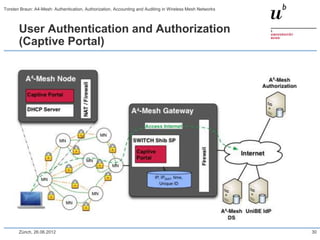

- 30. User Authentication andAuthorization (Captive Portal) Zürich, 26.06.2012 Torsten Braun: A4-Mesh: Authentication, Authorization, Accounting and Auditing in Wireless Mesh Networks 30
- 31.

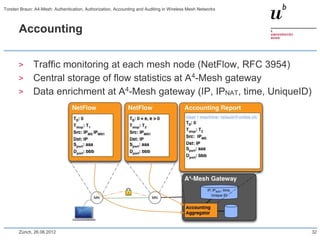

- 32. Accounting > Traffic monitoringat each mesh node (NetFlow, RFC 3954) > Central storage of flow statistics at A4-Mesh gateway > Data enrichment at A4-Mesh gateway (IP, IPNAT, time, UniqueID) Zürich, 26.06.2012 32 Torsten Braun: A4-Mesh: Authentication, Authorization, Accounting and Auditing in Wireless Mesh Networks
- 33. Accounting Aggregator Zürich, 26.06.201233 Torsten Braun: A4-Mesh: Authentication, Authorization, Accounting and Auditing in Wireless Mesh Networks

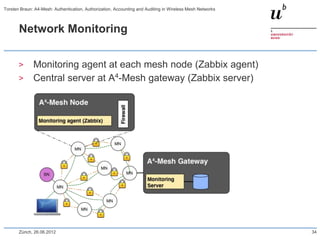

- 34. Network Monitoring > Monitoringagent at each mesh node (Zabbix agent) > Central server at A4-Mesh gateway (Zabbix server) Zürich, 26.06.2012 34 Torsten Braun: A4-Mesh: Authentication, Authorization, Accounting and Auditing in Wireless Mesh Networks
- 35.

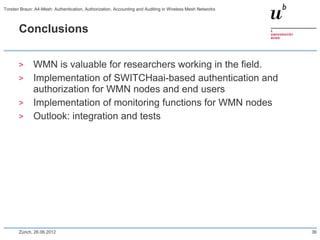

- 36. Conclusions > WMN isvaluable for researchers working in the field. > Implementation of SWITCHaai-based authentication and authorization for WMN nodes and end users > Implementation of monitoring functions for WMN nodes > Outlook: integration and tests Zürich, 26.06.2012 Torsten Braun: A4-Mesh: Authentication, Authorization, Accounting and Auditing in Wireless Mesh Networks 36

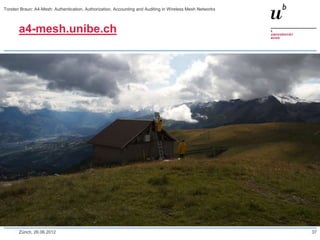

- 37. a4-mesh.unibe.ch Zürich, 26.06.2012 37 TorstenBraun: A4-Mesh: Authentication, Authorization, Accounting and Auditing in Wireless Mesh Networks
