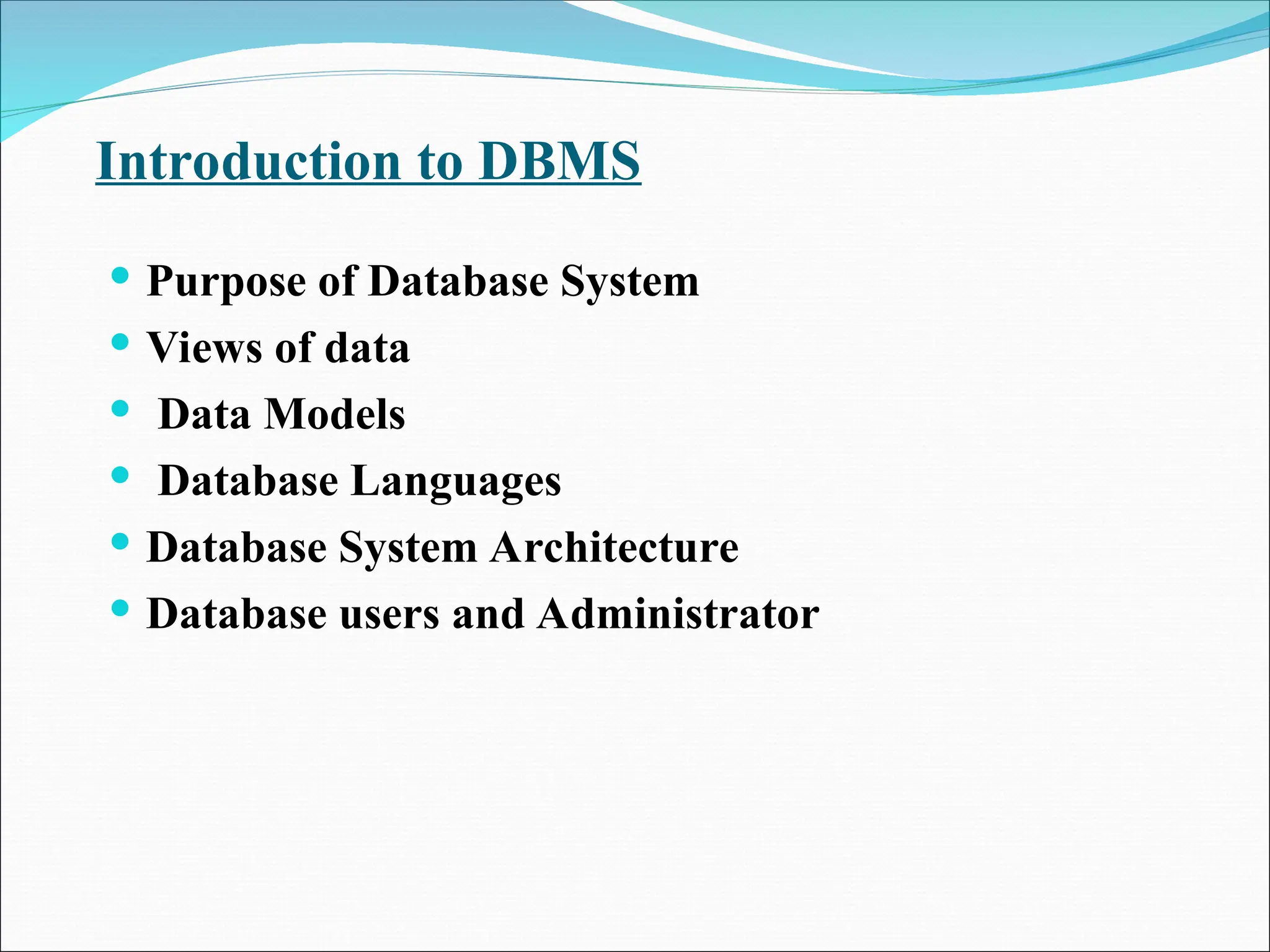

1. Introduction to DBMS
 Purpose of Database System
 Views of data
 Data Models
 Database Languages
 Database System Architecture
 Database users and Administrator

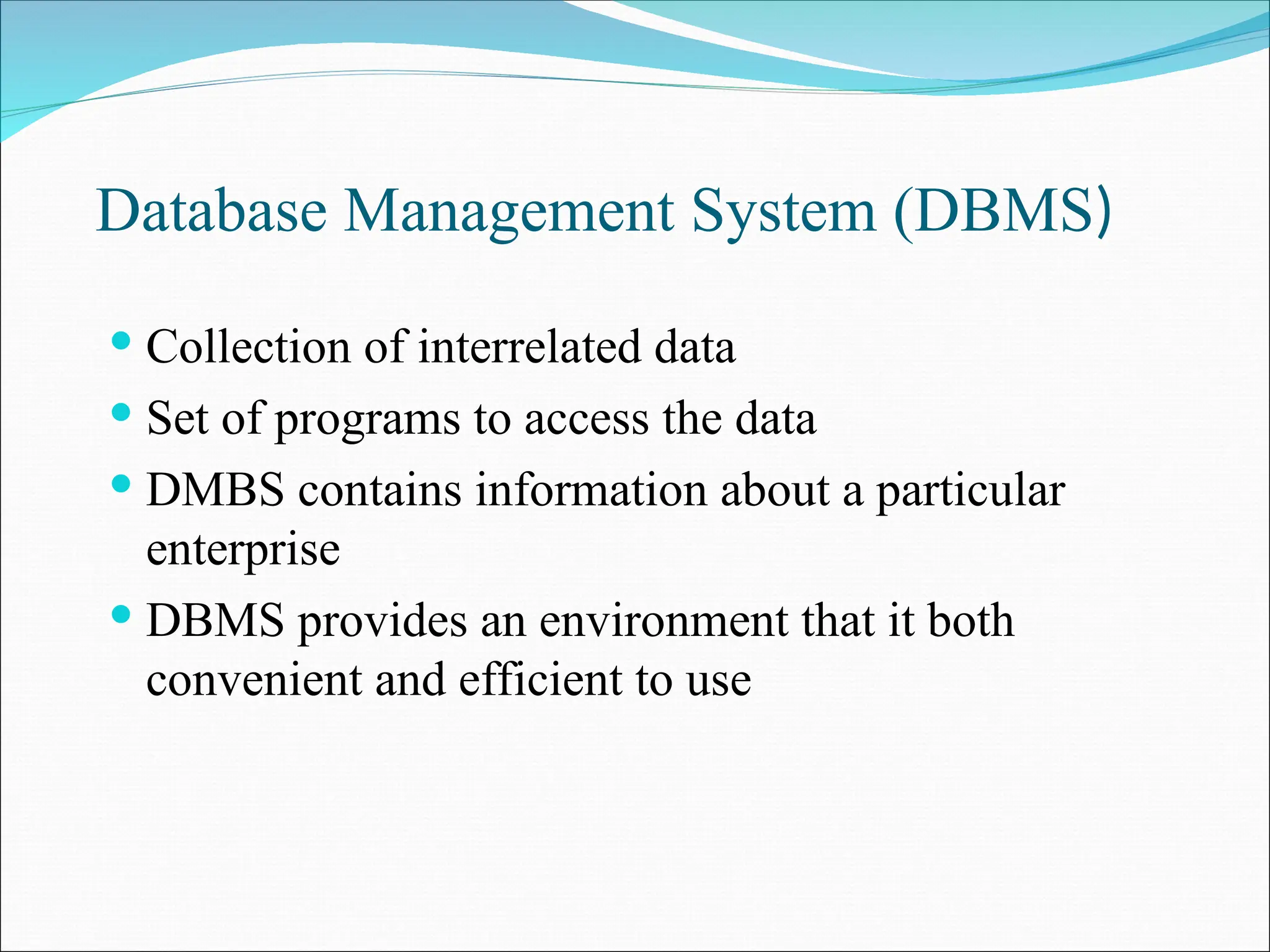

2. Database Management System (DBMS)
 Collection of interrelated data
 Set of programs to access the data
 DMBS contains information about a particular
enterprise
 DBMS provides an environment that it both
convenient and efficient to use

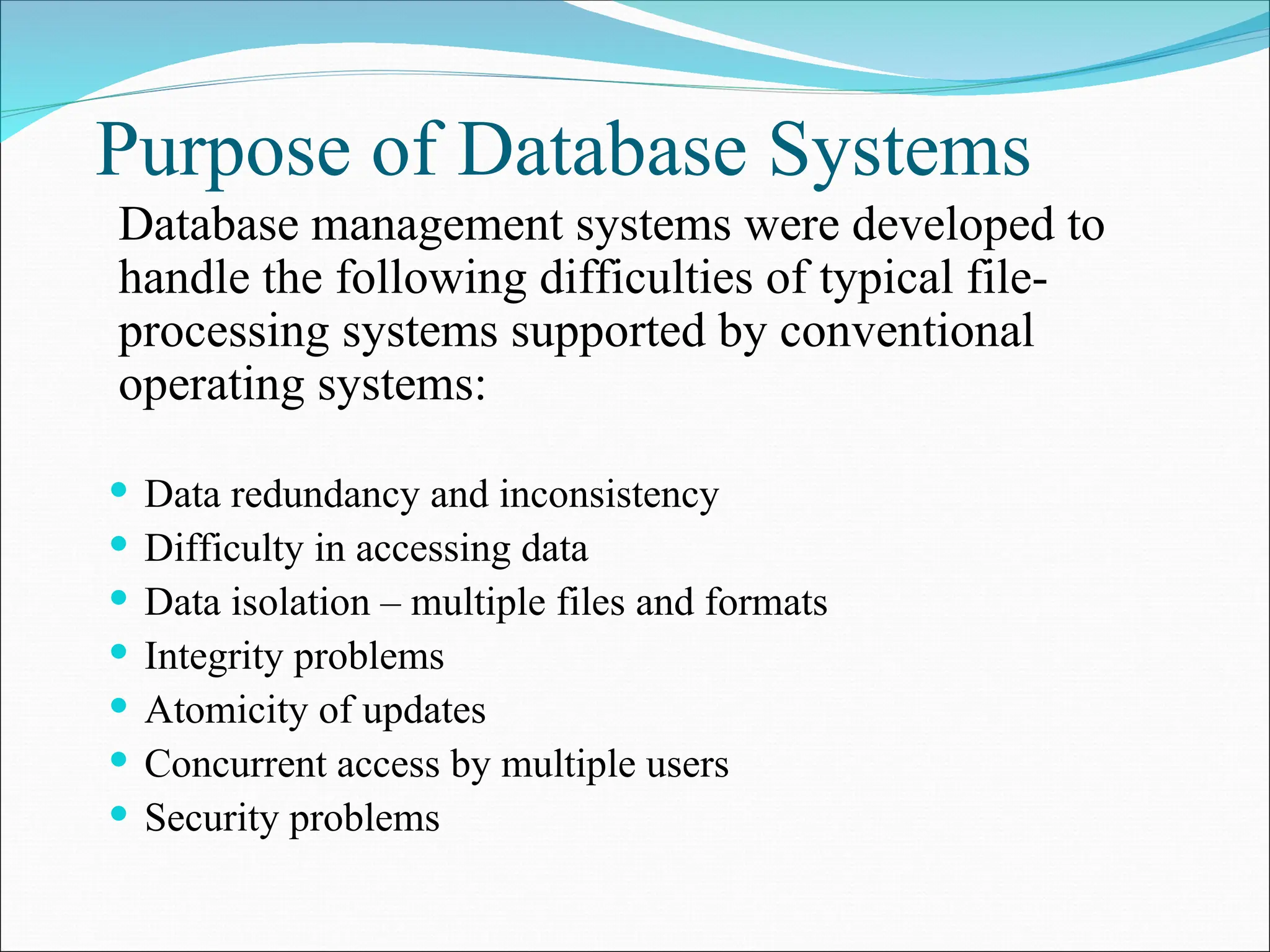

3. Purpose of Database Systems
 Data redundancy and inconsistency
 Difficulty in accessing data
 Data isolation – multiple files and formats
 Integrity problems
 Atomicity of updates
 Concurrent access by multiple users
 Security problems
Database management systems were developed to
handle the following difficulties of typical file-
processing systems supported by conventional
operating systems:

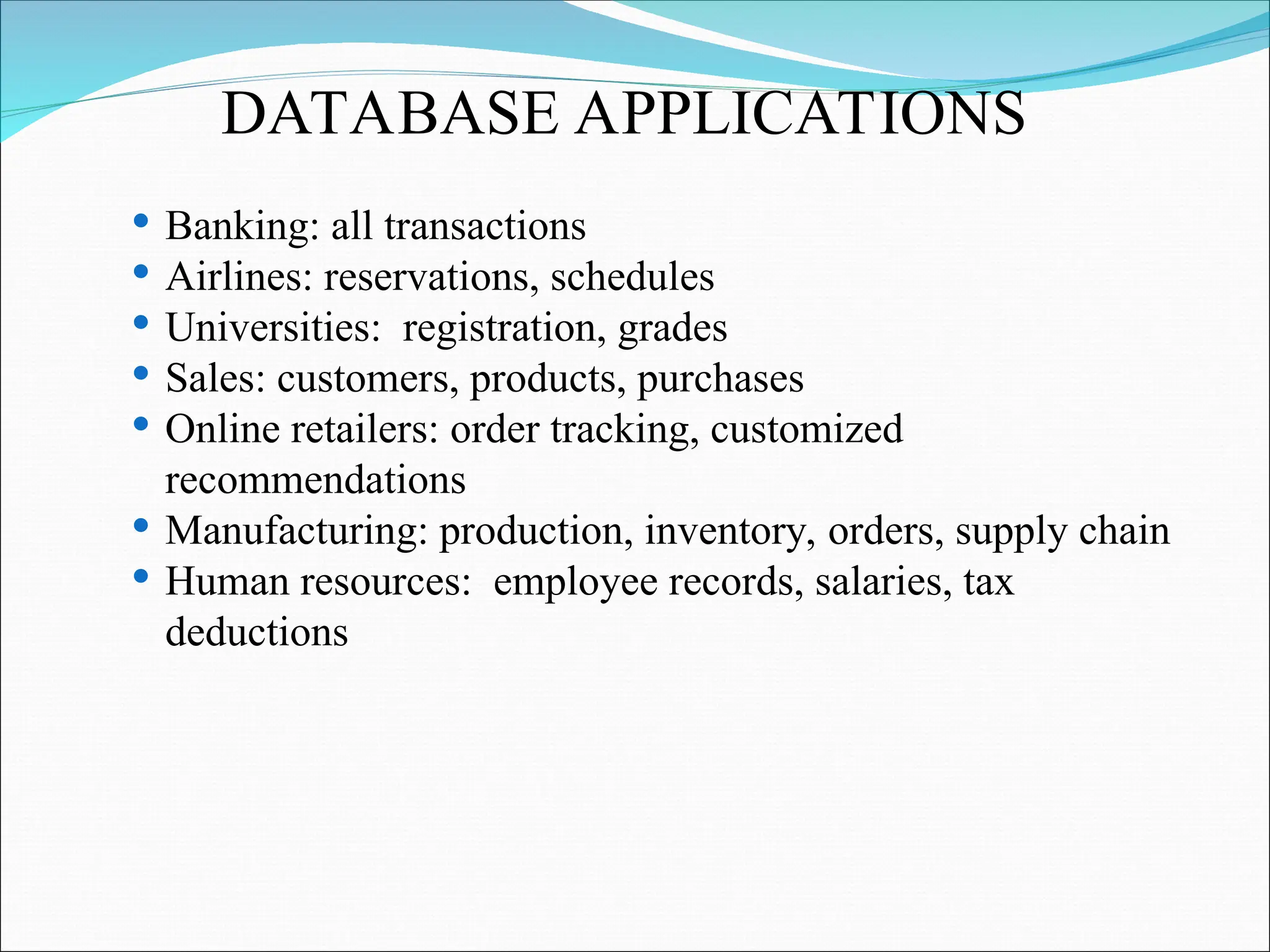

4.  Banking: all transactions
 Airlines: reservations, schedules
 Universities: registration, grades
 Sales: customers, products, purchases
 Online retailers: order tracking, customized
recommendations
 Manufacturing: production, inventory, orders, supply chain
 Human resources: employee records, salaries, tax
deductions
DATABASE APPLICATIONS

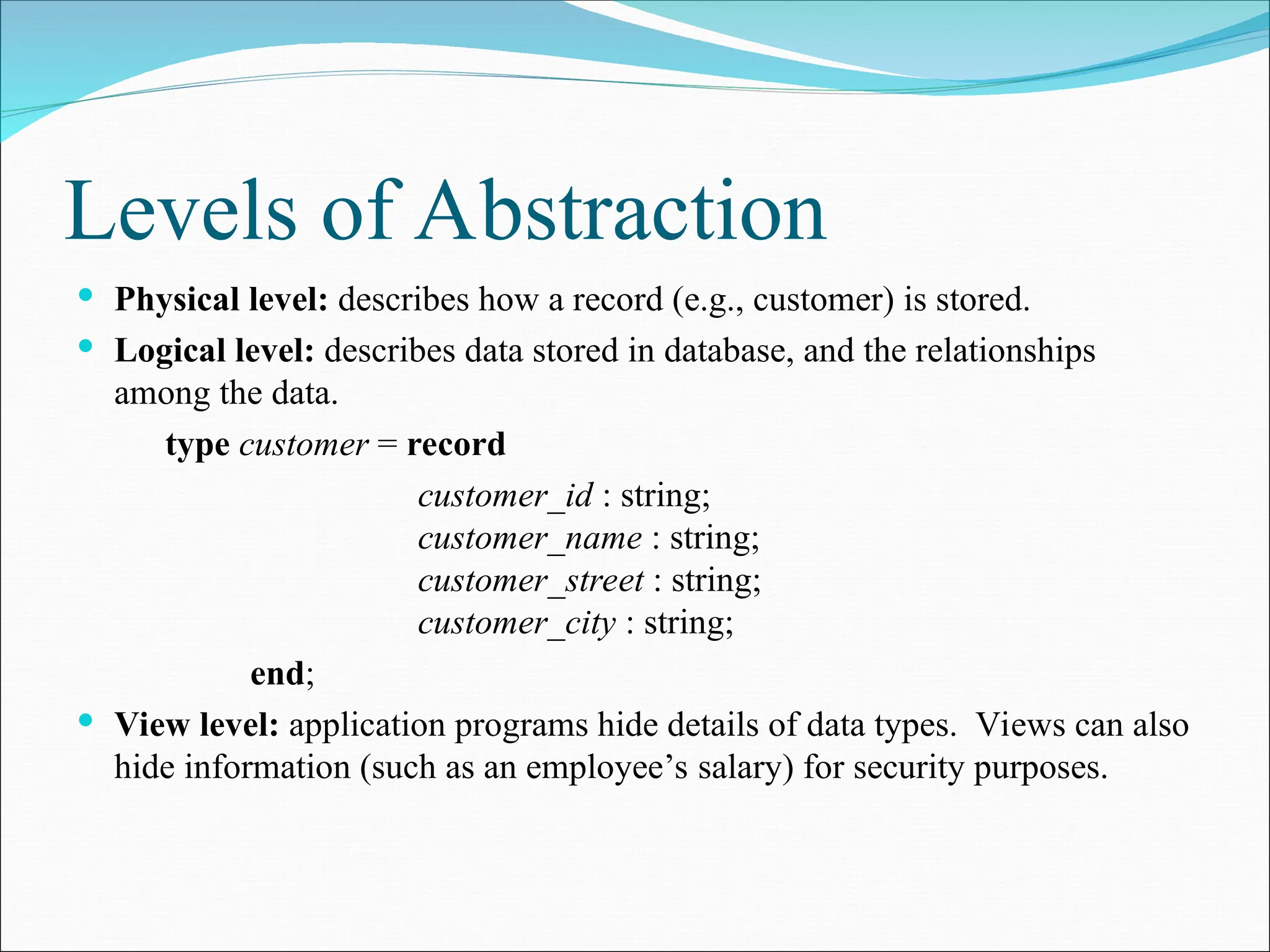

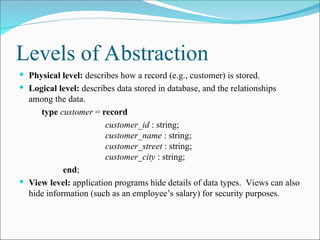

5. Levels of Abstraction
 Physical level: describes how a record (e.g., customer) is stored.
 Logical level: describes data stored in database, and the relationships
among the data.
type customer = record
customer_id : string;
customer_name : string;
customer_street : string;
customer_city : string;
end;
 View level: application programs hide details of data types. Views can also
hide information (such as an employee’s salary) for security purposes.

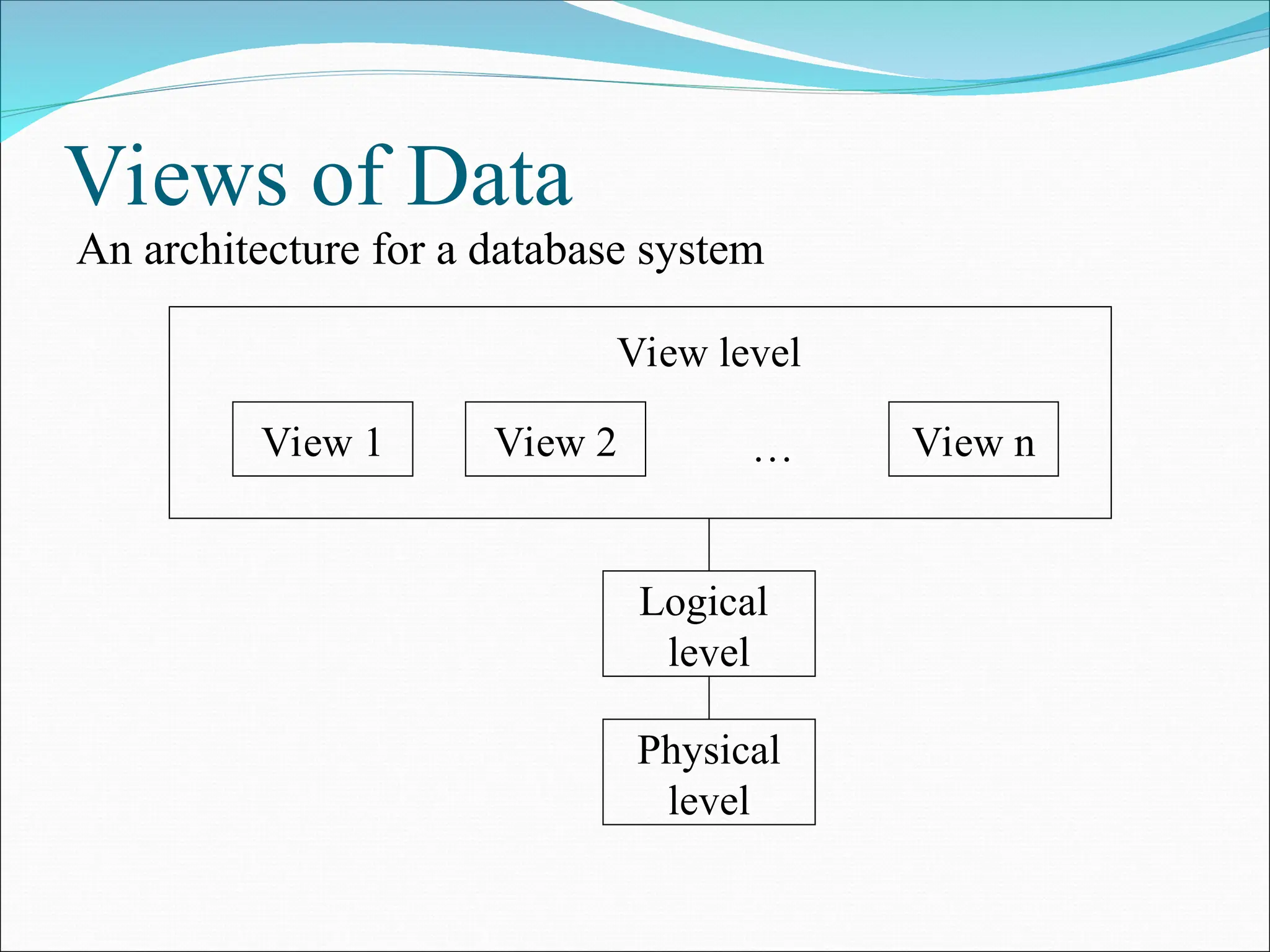

6. Views of Data
An architecture for a database system
View 1
Physical
level
Logical
level
View 2 View n
…
View level

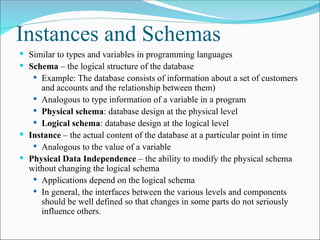

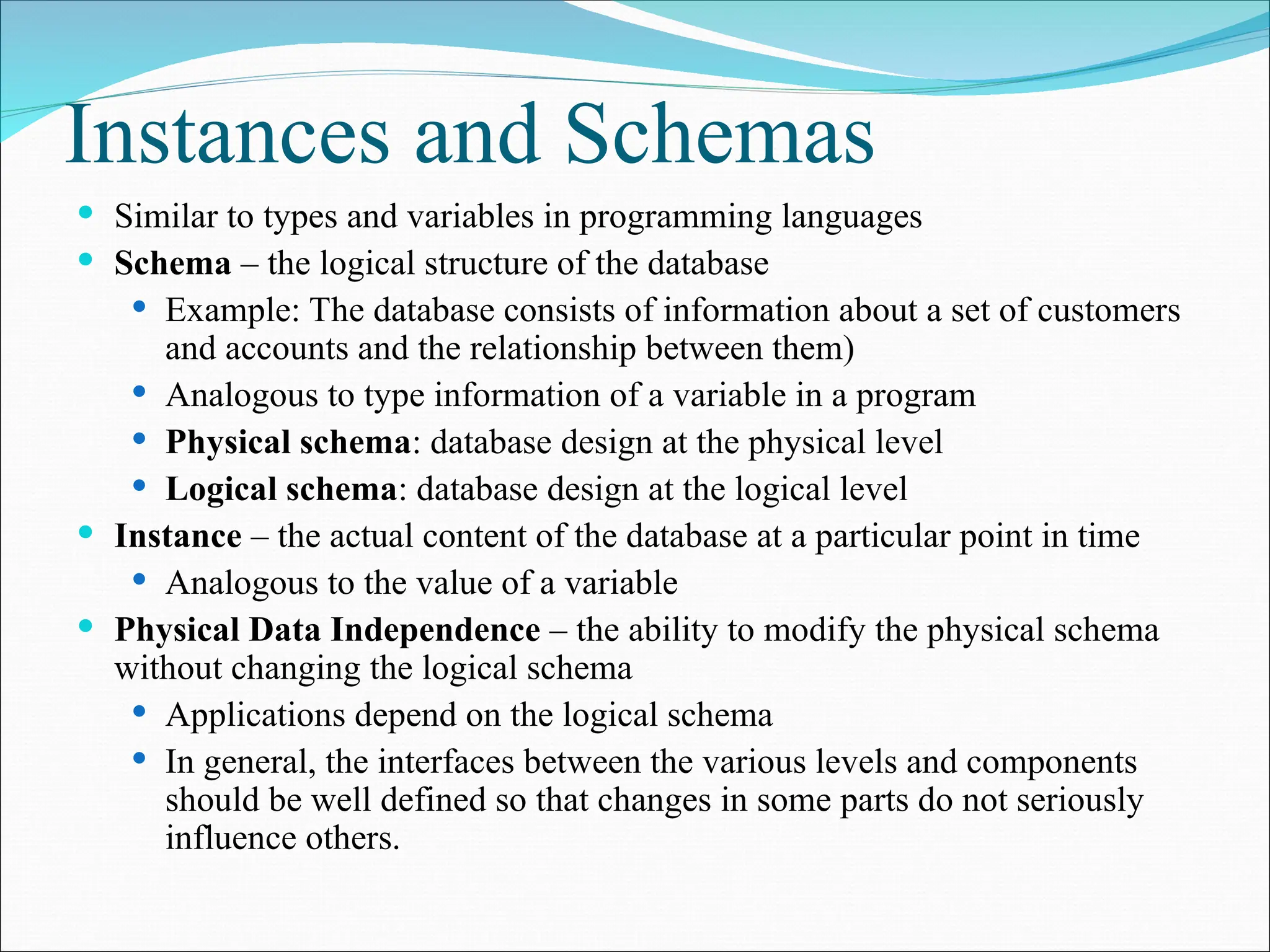

7. Instances and Schemas
 Similar to types and variables in programming languages
 Schema – the logical structure of the database
 Example: The database consists of information about a set of customers
and accounts and the relationship between them)
 Analogous to type information of a variable in a program
 Physical schema: database design at the physical level
 Logical schema: database design at the logical level
 Instance – the actual content of the database at a particular point in time
 Analogous to the value of a variable
 Physical Data Independence – the ability to modify the physical schema
without changing the logical schema
 Applications depend on the logical schema
 In general, the interfaces between the various levels and components
should be well defined so that changes in some parts do not seriously
influence others.

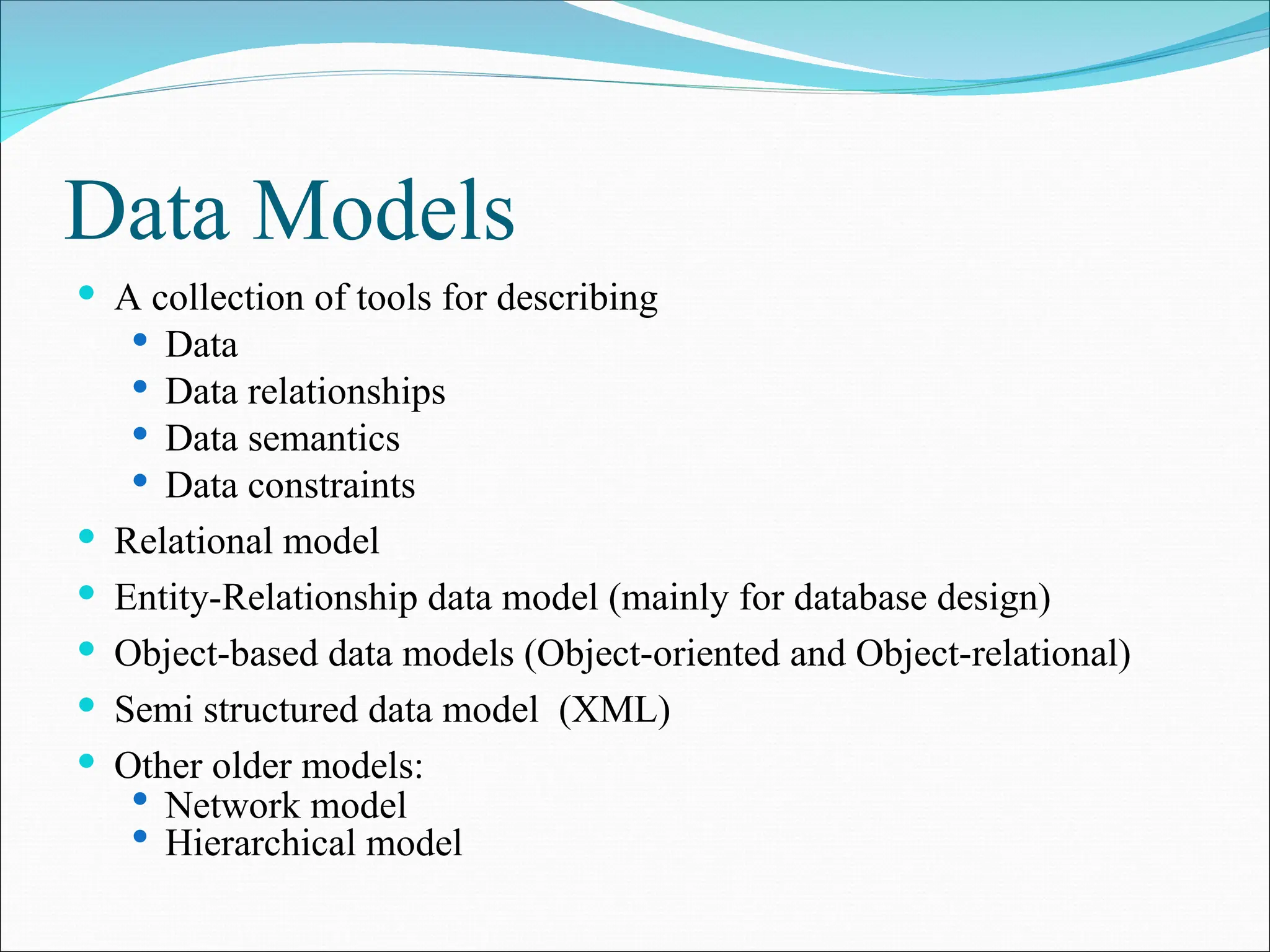

8. Data Models
 A collection of tools for describing
 Data
 Data relationships
 Data semantics
 Data constraints
 Relational model
 Entity-Relationship data model (mainly for database design)
 Object-based data models (Object-oriented and Object-relational)
 Semi structured data model (XML)
 Other older models:
 Network model
 Hierarchical model

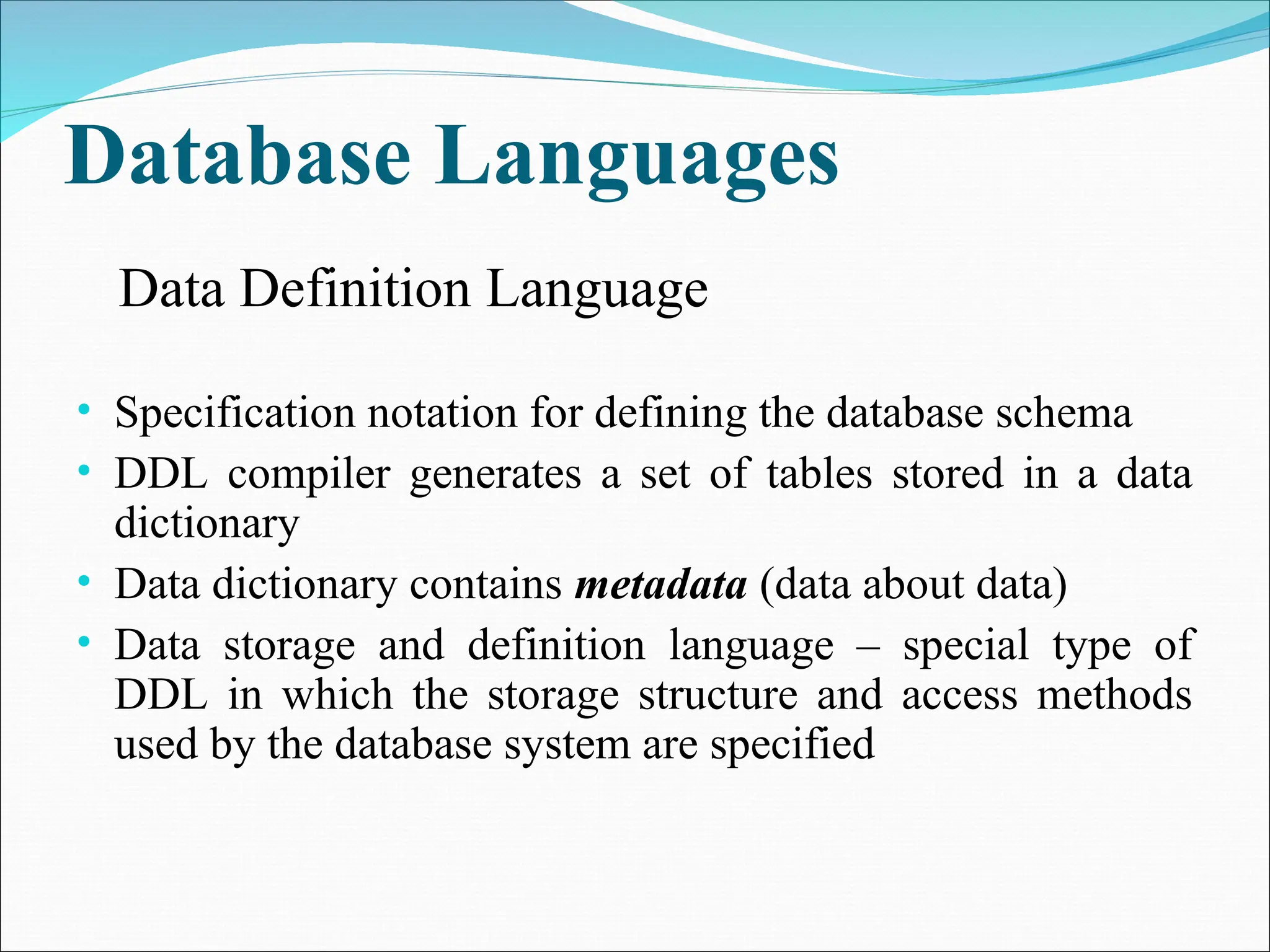

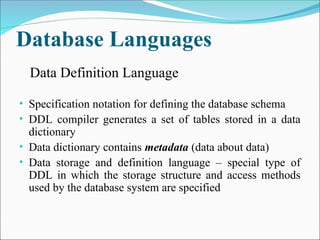

9. Database Languages
• Specification notation for defining the database schema
• DDL compiler generates a set of tables stored in a data
dictionary
• Data dictionary contains metadata (data about data)
• Data storage and definition language – special type of
DDL in which the storage structure and access methods
used by the database system are specified
Data Definition Language

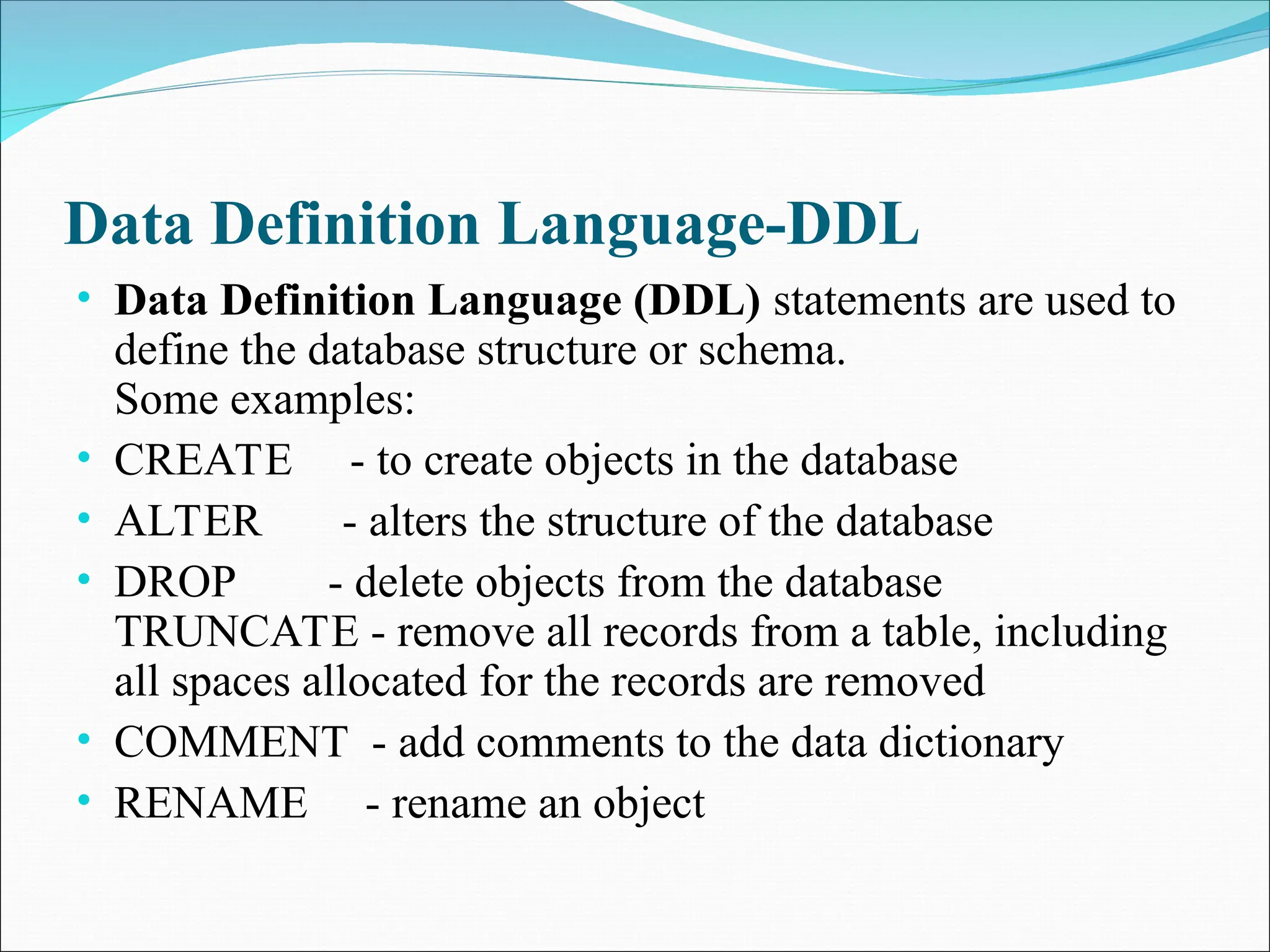

10. Data Definition Language-DDL
• Data Definition Language (DDL) statements are used to
define the database structure or schema.
Some examples:
• CREATE - to create objects in the database
• ALTER - alters the structure of the database
• DROP - delete objects from the database
TRUNCATE - remove all records from a table, including
all spaces allocated for the records are removed
• COMMENT - add comments to the data dictionary
• RENAME - rename an object

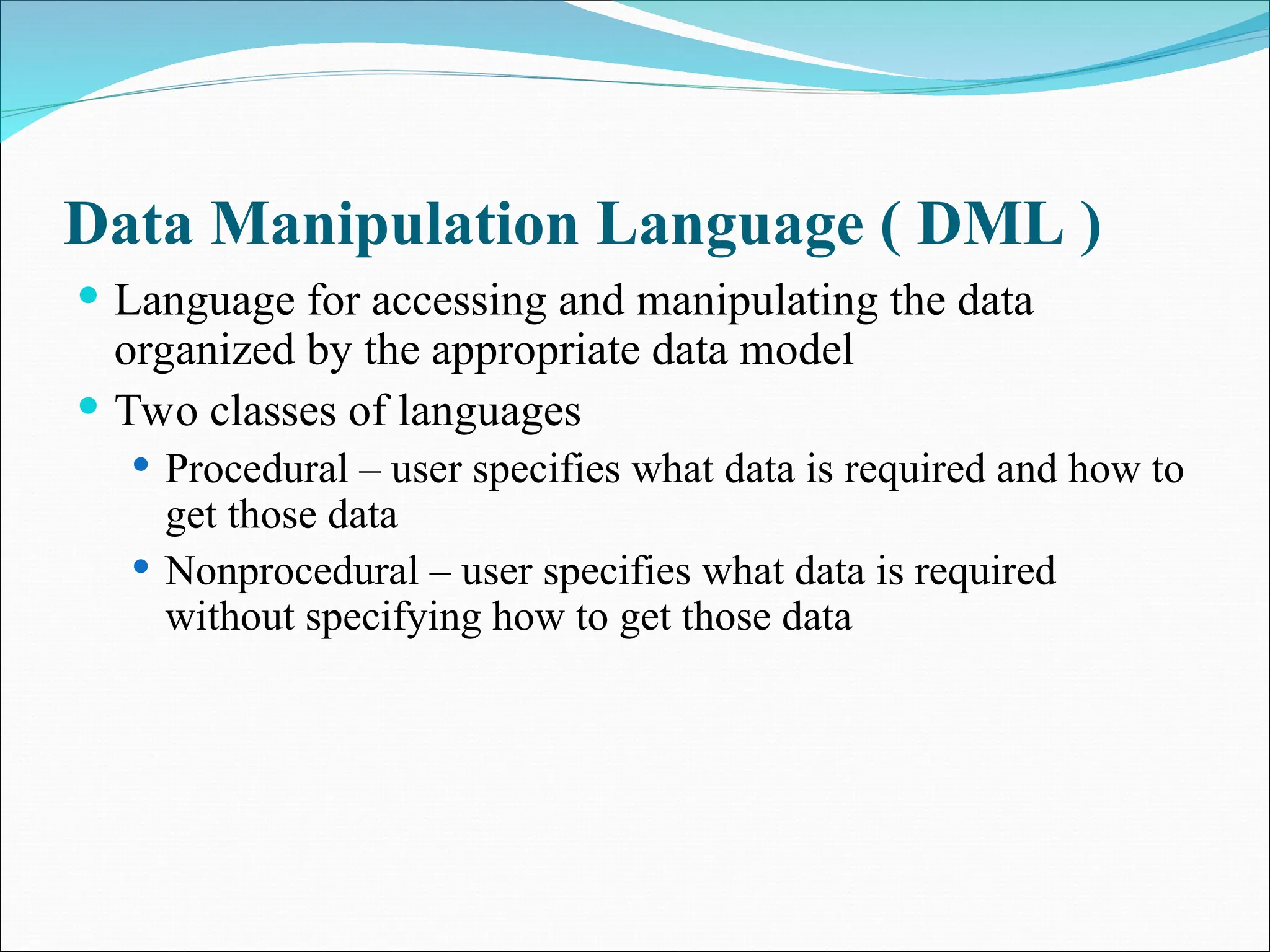

11. Data Manipulation Language ( DML )
 Language for accessing and manipulating the data
organized by the appropriate data model
 Two classes of languages
 Procedural – user specifies what data is required and how to
get those data
 Nonprocedural – user specifies what data is required
without specifying how to get those data

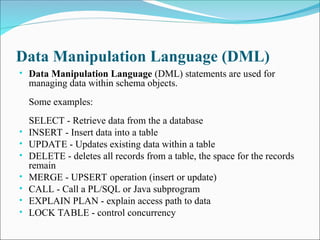

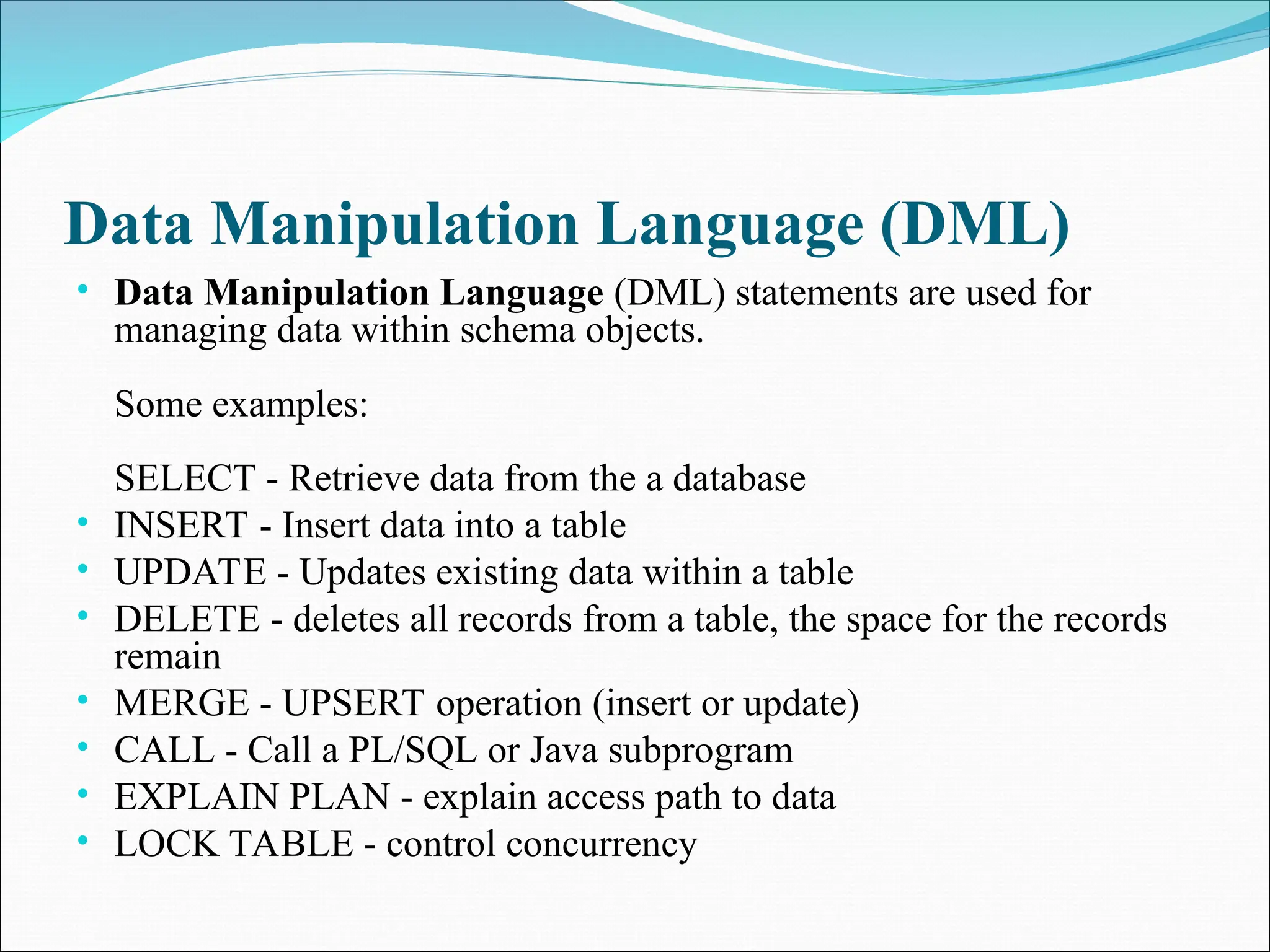

12. Data Manipulation Language (DML)
• Data Manipulation Language (DML) statements are used for
managing data within schema objects.
Some examples:
SELECT - Retrieve data from the a database
• INSERT - Insert data into a table
• UPDATE - Updates existing data within a table
• DELETE - deletes all records from a table, the space for the records
remain
• MERGE - UPSERT operation (insert or update)
• CALL - Call a PL/SQL or Java subprogram
• EXPLAIN PLAN - explain access path to data
• LOCK TABLE - control concurrency

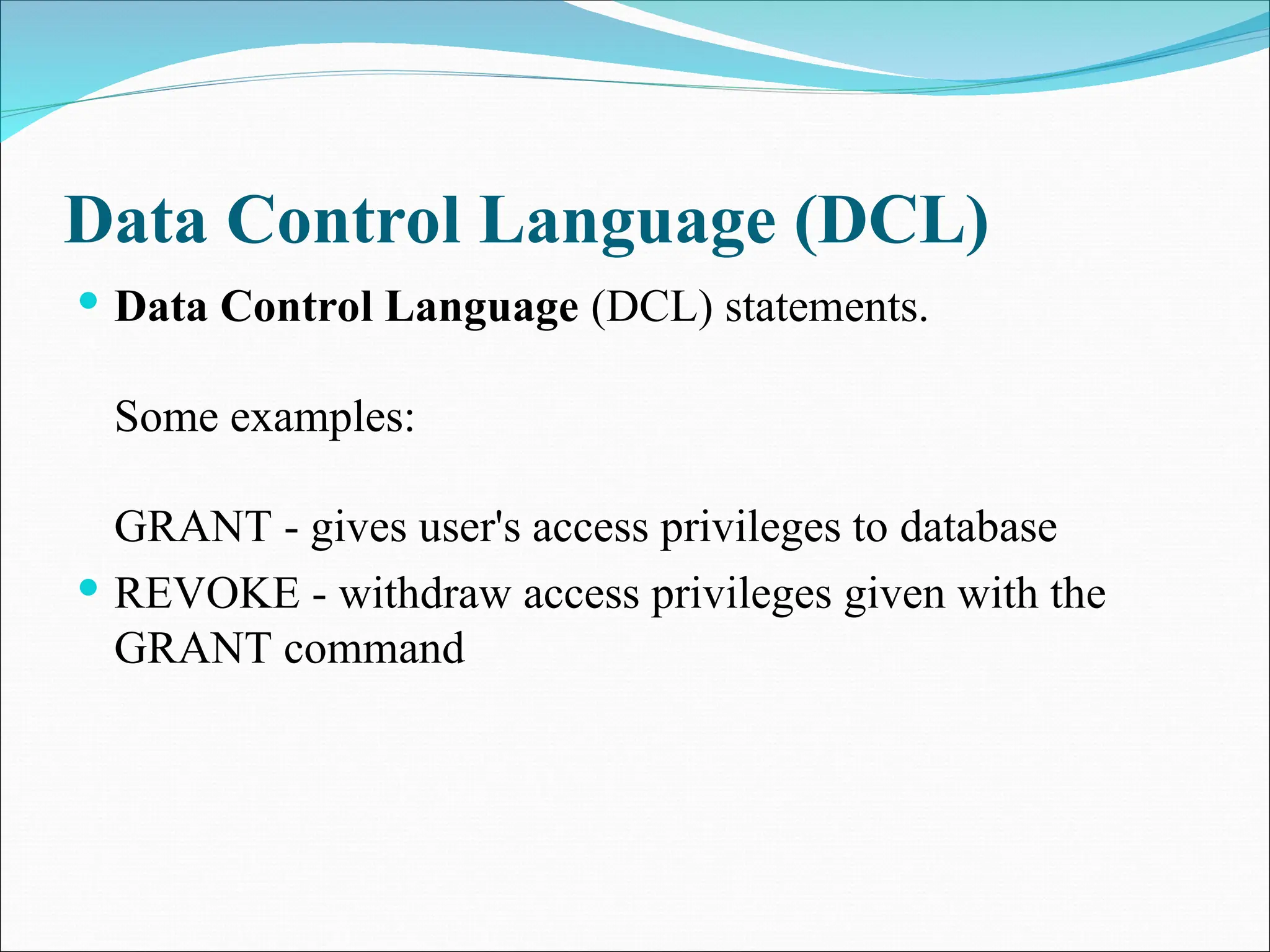

13. Data Control Language (DCL)
 Data Control Language (DCL) statements.
Some examples:
GRANT - gives user's access privileges to database
 REVOKE - withdraw access privileges given with the
GRANT command

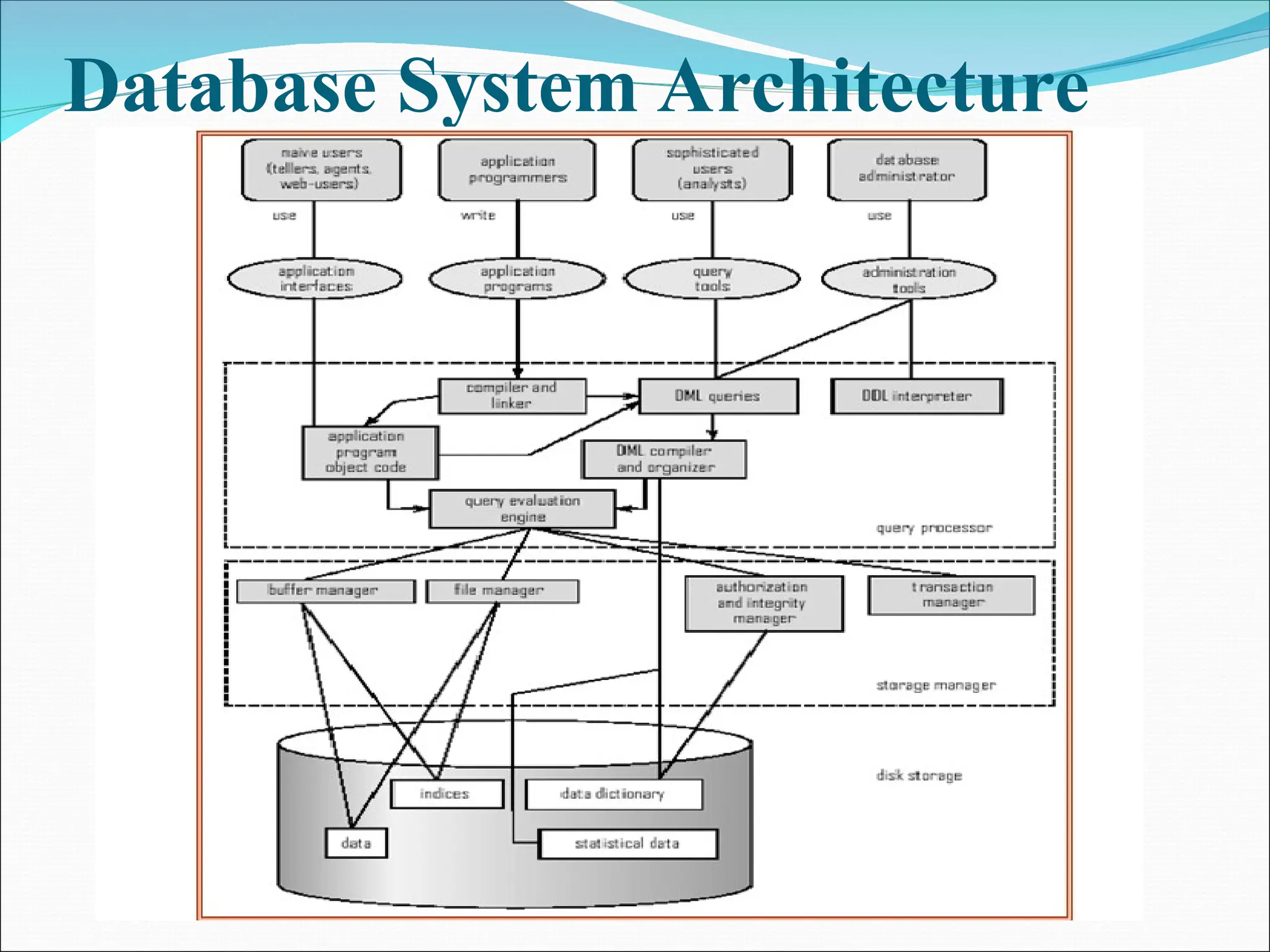

14. Database System Architecture

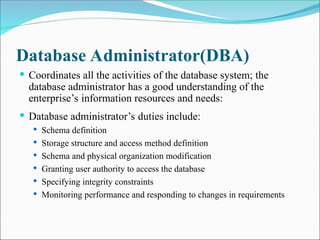

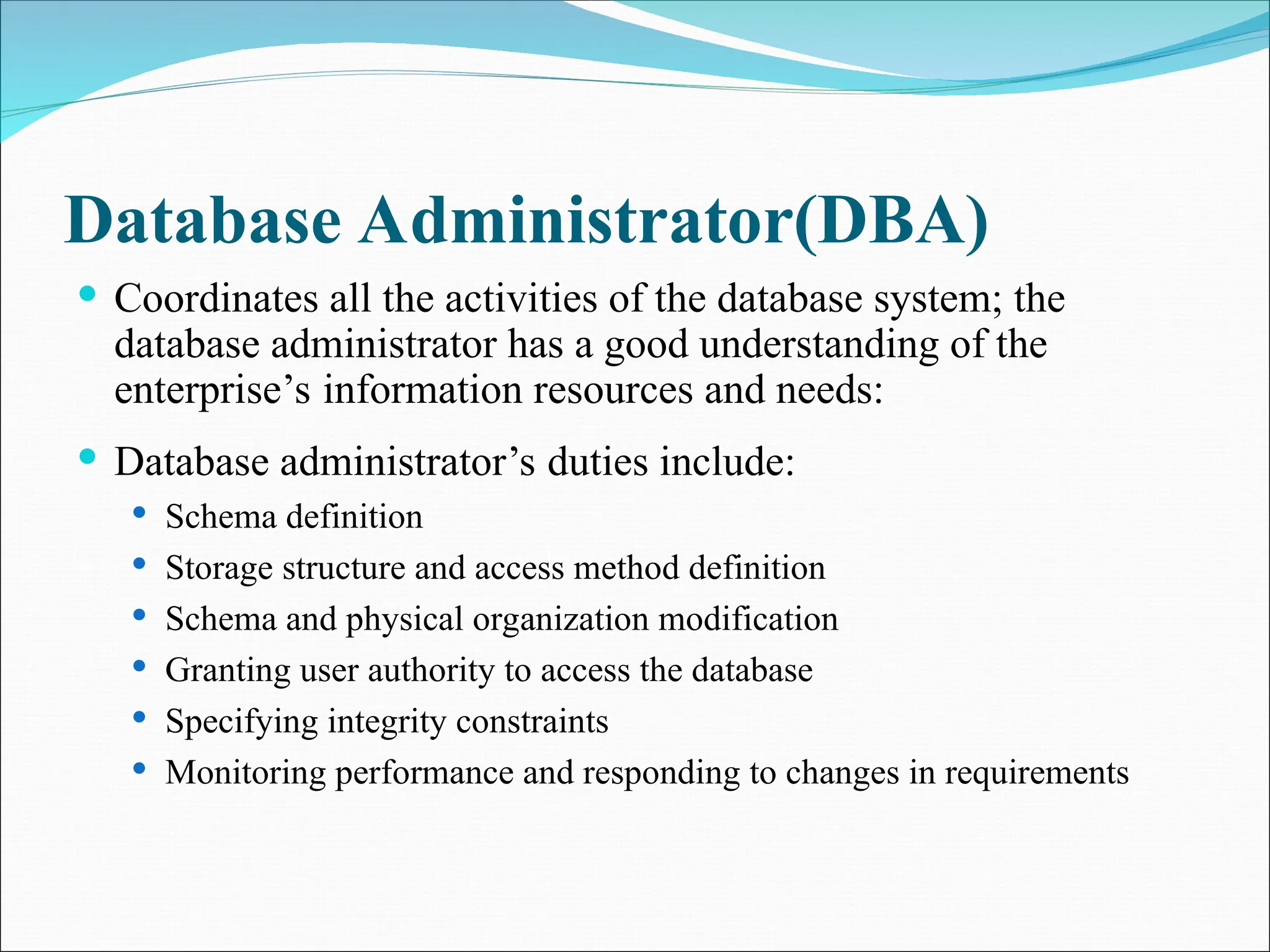

15. Database Administrator(DBA)
 Coordinates all the activities of the database system; the
database administrator has a good understanding of the
enterprise’s information resources and needs:
 Database administrator’s duties include:
 Schema definition
 Storage structure and access method definition
 Schema and physical organization modification
 Granting user authority to access the database
 Specifying integrity constraints
 Monitoring performance and responding to changes in requirements

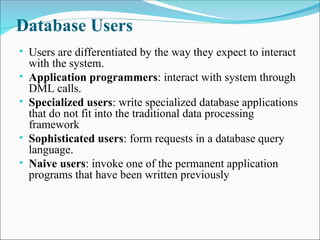

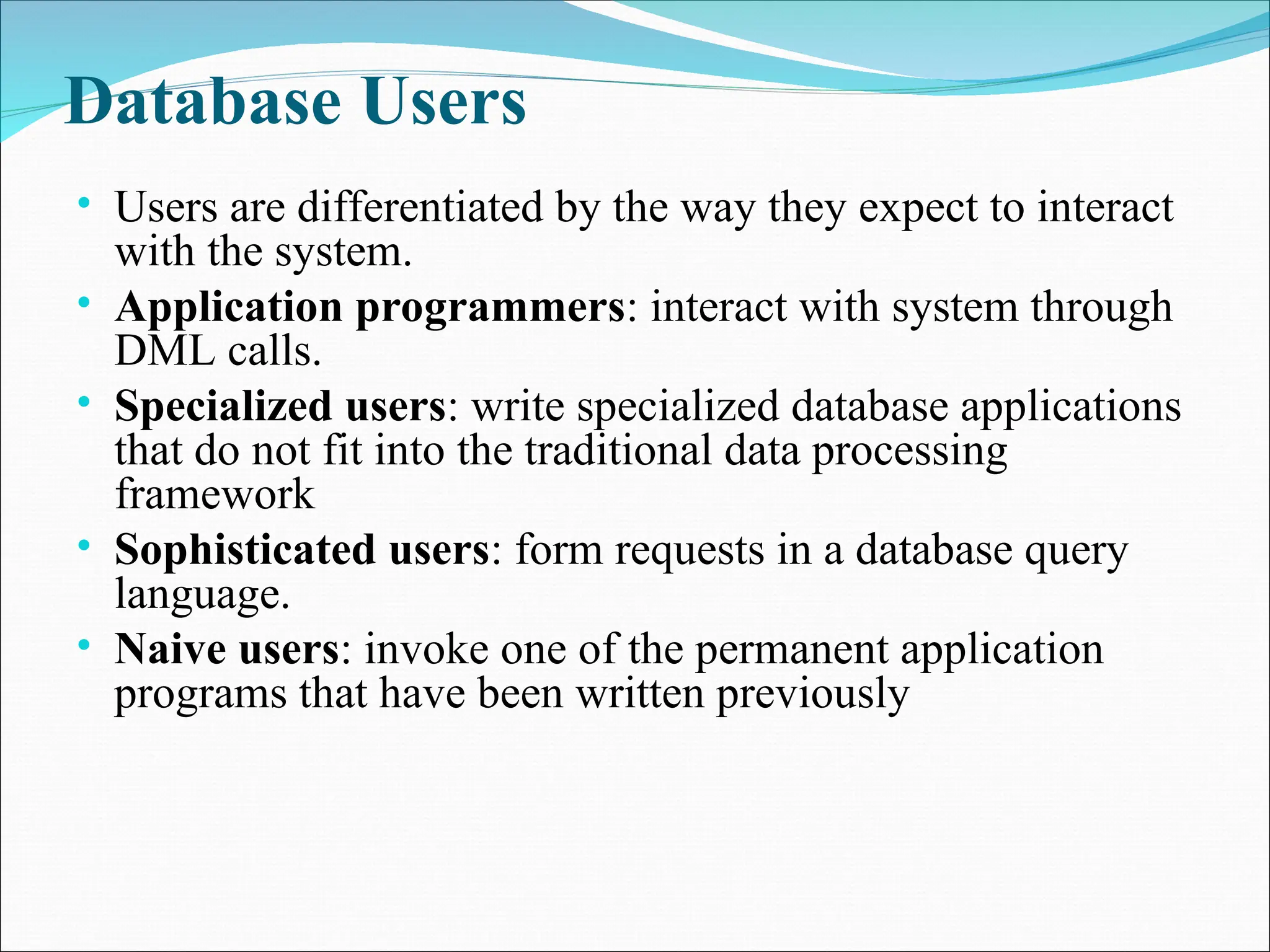

16. Database Users
• Users are differentiated by the way they expect to interact
with the system.
• Application programmers: interact with system through
DML calls.
• Specialized users: write specialized database applications
that do not fit into the traditional data processing
framework
• Sophisticated users: form requests in a database query
language.
• Naive users: invoke one of the permanent application
programs that have been written previously

17. BY:
Ms.K.Gayathri,
Assistant Professor,
Dept of Computer Science,
Bon Secours College for Women,
Thanjavur.
