Hysteresis affects the current waveform. It causes the switching point of the current to depend on both the increasing and decreasing values of the magnetic field. Hysteresis results in energy loss and heating effects in the core material of inductors and transformers due to the lag between the applied and induced magnetic fields.

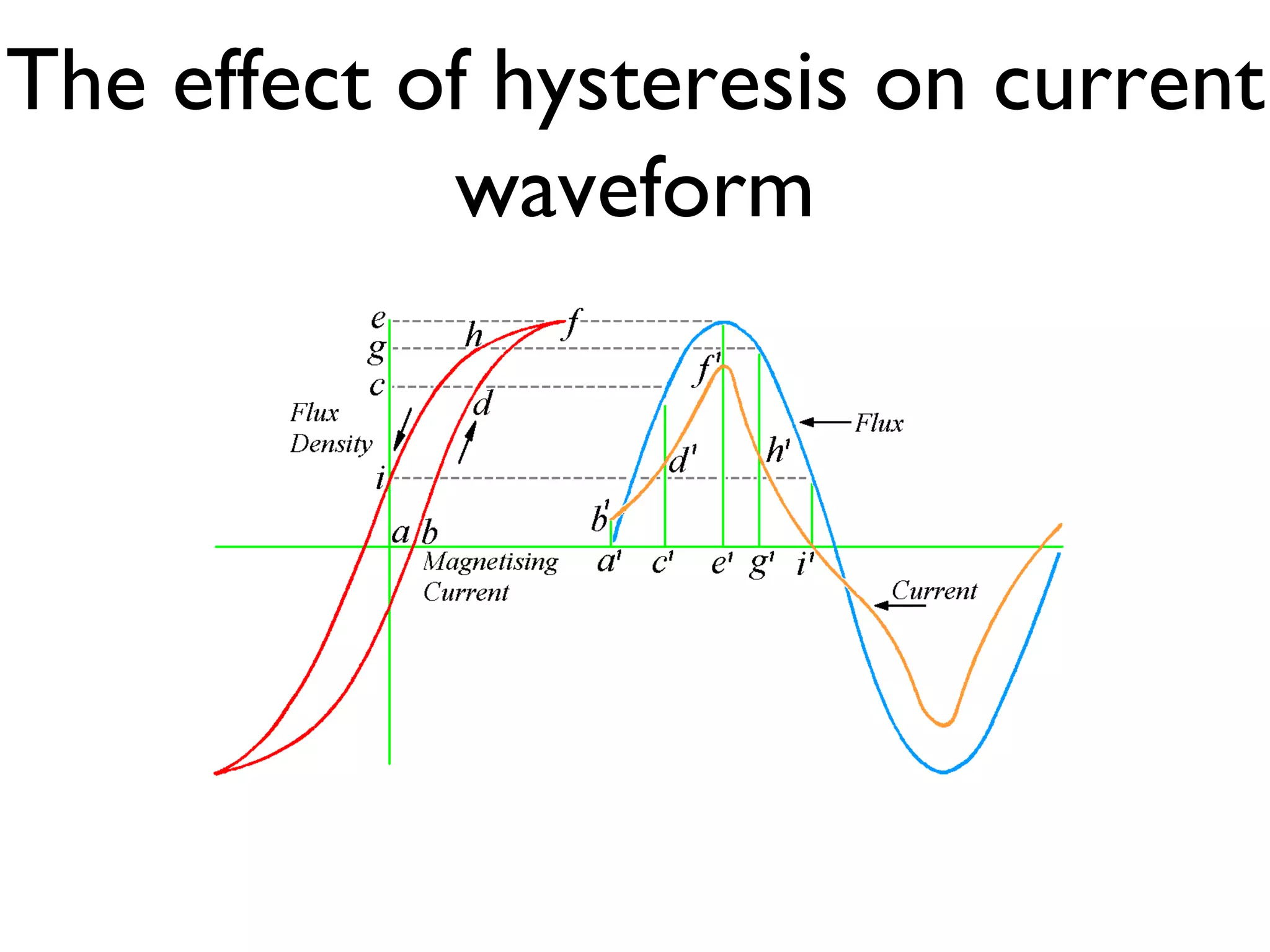

1. The effect of hysteresis on current waveform

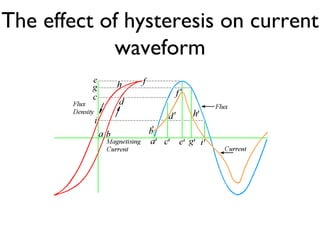

2. The effect of hysteresis on current waveform
