7 1-system plus-evolution_spares_eng_6.0
This document is a spare parts catalogue for Micromed systems. It includes amplifiers, stimulators, interfaces, headbox cables, monitor cables, network components, supports, trolleys and other spare parts. The catalogue is divided into sections for current standard parts and obsolete parts. Current standard parts include items for the SD PLUS, SD LTM EXPRESS, MORPHEUS, MATRIX, MATRIX LIGHT, BRAIN SPY PLUS, ENERGY and PATTERN 10 systems. Obsolete sections cover older headboxes, stimulators, interfaces and accessories no longer in standard production. Micromed operates under ISO quality standards and parts are intended to be compatible replacements for Micromed EEG, EMG, PSG and
![3-fluoroscopy-and_x_rayb_uses_(1)[1].pdf](https://cdn.slidesharecdn.com/ss_thumbnails/3-fluoroscopy-andxraybuses11-230222133707-9e77d7a4-thumbnail.jpg?width=640&height=640&fit=bounds)
7 1-system plus-evolution_spares_eng_6.0
- 1. Via Giotto 2 31021Mogliano Veneto (TV) - ITALY Tel. +39.041.5937000 Fax. +39.041.5937011 e-mail: micromed@micromed.eu Internet: www.micromed.eu Release 6.0 24 April 2014 Spare Parts Catalogue

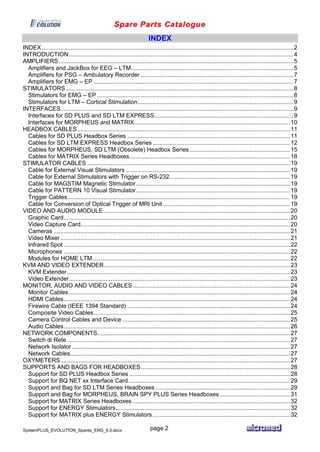

- 2. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 2 INDEX INDEX ......................................................................................................................................................2 INTRODUCTION......................................................................................................................................4 AMPLIFIERS............................................................................................................................................5 Amplifiers and JackBox for EEG – LTM.................................................................................................5 Amplifiers for PSG – Ambulatory Recorder ...........................................................................................7 Amplifiers for EMG – EP .......................................................................................................................7 STIMULATORS........................................................................................................................................8 Stimulators for EMG – EP .....................................................................................................................8 Stimulators for LTM – Cortical Stimulation.............................................................................................9 INTERFACES...........................................................................................................................................9 Interfaces for SD PLUS and SD LTM EXPRESS...................................................................................9 Interfaces for MORPHEUS and MATRIX.............................................................................................10 HEADBOX CABLES...............................................................................................................................11 Cables for SD PLUS Headbox Series .................................................................................................11 Cables for SD LTM EXPRESS Headbox Series ..................................................................................12 Cables for MORPHEUS, SD LTM (Obsolete) Headbox Series............................................................15 Cables for MATRIX Series Headboxes................................................................................................18 STIMULATOR CABLES .........................................................................................................................19 Cable for External Visual Stimulators ..................................................................................................19 Cable for External Stimulators with Trigger on RS-232........................................................................19 Cable for MAGSTIM Magnetic Stimulator............................................................................................19 Cable for PATTERN 10 Visual Stimulator............................................................................................19 Trigger Cables.....................................................................................................................................19 Cable for Conversion of Optical Trigger of MRI Unit............................................................................19 VIDEO AND AUDIO MODULE ...............................................................................................................20 Graphic Card.......................................................................................................................................20 Video Capture Card.............................................................................................................................20 Cameras .............................................................................................................................................21 Video Mixer .........................................................................................................................................21 Infrared Spot .......................................................................................................................................22 Microphones .......................................................................................................................................22 Modules for HOME LTM......................................................................................................................22 KVM AND VIDEO EXTENDER...............................................................................................................23 KVM Extender.....................................................................................................................................23 Video Extender....................................................................................................................................23 MONITOR, AUDIO AND VIDEO CABLES..............................................................................................24 Monitor Cables....................................................................................................................................24 HDMI Cables.......................................................................................................................................24 Firewire Cable (IEEE 1394 Standard) .................................................................................................24 Composite Video Cables.....................................................................................................................25 Camera Control Cables and Device ....................................................................................................25 Audio Cables.......................................................................................................................................26 NETWORK COMPONENTS...................................................................................................................27 Switch di Rete .....................................................................................................................................27 Network Isolator ..................................................................................................................................27 Network Cables...................................................................................................................................27 OXYMETERS.........................................................................................................................................27 SUPPORTS AND BAGS FOR HEADBOXES.........................................................................................28 Support for SD PLUS Headbox Series ................................................................................................28 Support for BQ NET xx Interface Card ................................................................................................29 Support and Bag for SD LTM Series Headboxes ................................................................................29 Support and Bag for MORPHEUS, BRAIN SPY PLUS Series Headboxes..........................................31 Support for MATRIX Series Headboxes ..............................................................................................32 Support for ENERGY Stimulators........................................................................................................32 Support for MATRIX plus ENERGY Stimulators..................................................................................32

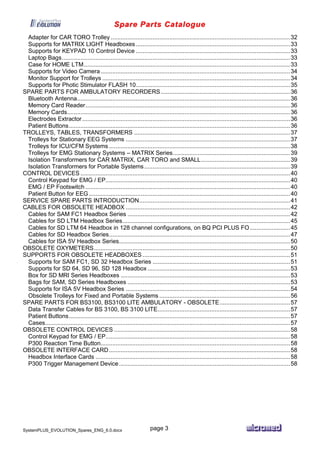

- 3. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 3 Adapter for CAR TORO Trolley ...........................................................................................................32 Supports for MATRIX LIGHT Headboxes............................................................................................33 Supports for KEYPAD 10 Control Device ............................................................................................33 Laptop Bags........................................................................................................................................33 Case for HOME LTM...........................................................................................................................33 Supports for Video Camera.................................................................................................................34 Monitor Support for Trolleys ................................................................................................................34 Supports for Photic Stimulator FLASH 10............................................................................................35 SPARE PARTS FOR AMBULATORY RECORDERS .............................................................................36 Bluetooth Antenna...............................................................................................................................36 Memory Card Reader..........................................................................................................................36 Memory Cards.....................................................................................................................................36 Electrodes Extractor............................................................................................................................36 Patient Buttons....................................................................................................................................36 TROLLEYS, TABLES, TRANSFORMERS .............................................................................................37 Trolleys for Stationary EEG Systems ..................................................................................................37 Trolleys for ICU/CFM Systems ............................................................................................................38 Trolleys for EMG Stationary Systems – MATRIX Series......................................................................39 Isolation Transformers for CAR MATRIX, CAR TORO and SMALL.....................................................39 Isolation Transformers for Portable Systems.......................................................................................39 CONTROL DEVICES .............................................................................................................................40 Control Keypad for EMG / EP..............................................................................................................40 EMG / EP Footswitch ..........................................................................................................................40 Patient Button for EEG........................................................................................................................40 SERVICE SPARE PARTS INTRODUCTION..........................................................................................41 CABLES FOR OBSOLETE HEADBOX ..................................................................................................42 Cables for SAM FC1 Headbox Series .................................................................................................42 Cables for SD LTM Headbox Series....................................................................................................45 Cables for SD LTM 64 Headbox in 128 channel configurations, on BQ PCI PLUS FO........................45 Cables for SD Headbox Series............................................................................................................47 Cables for ISA 5V Headbox Series......................................................................................................50 OBSOLETE OXYMETERS.....................................................................................................................50 SUPPORTS FOR OBSOLETE HEADBOXES ........................................................................................51 Supports for SAM FC1, SD 32 Headbox Series ..................................................................................51 Supports for SD 64, SD 96, SD 128 Headbox .....................................................................................53 Box for SD MRI Series Headboxes .....................................................................................................53 Bags for SAM, SD Series Headboxes .................................................................................................53 Supports for ISA 5V Headbox Series ..................................................................................................54 Obsolete Trolleys for Fixed and Portable Systems ..............................................................................56 SPARE PARTS FOR BS3100, BS3100 LITE AMBULATORY - OBSOLETE..........................................57 Data Transfer Cables for BS 3100, BS 3100 LITE...............................................................................57 Patient Buttons....................................................................................................................................57 Cases..................................................................................................................................................57 OBSOLETE CONTROL DEVICES .........................................................................................................58 Control Keypad for EMG / EP..............................................................................................................58 P300 Reaction Time Button.................................................................................................................58 OBSOLETE INTERFACE CARD............................................................................................................58 Headbox Interface Cards ....................................................................................................................58 P300 Trigger Management Device......................................................................................................58

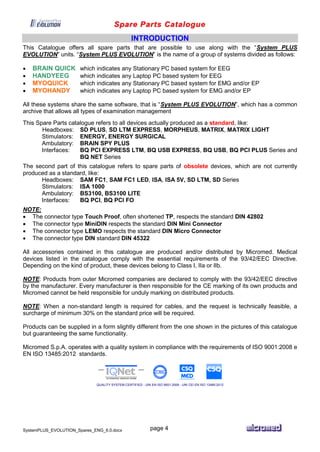

- 4. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 4 INTRODUCTION This Catalogue offers all spare parts that are possible to use along with the “System PLUS EVOLUTION” units. “System PLUS EVOLUTION” is the name of a group of systems divided as follows: BRAIN QUICK which indicates any Stationary PC based system for EEG HANDYEEG which indicates any Laptop PC based system for EEG MYOQUICK which indicates any Stationary PC based system for EMG and/or EP MYOHANDY which indicates any Laptop PC based system for EMG and/or EP All these systems share the same software, that is “System PLUS EVOLUTION”, which has a common archive that allows all types of examination management This Spare Parts catalogue refers to all devices actually produced as a standard, like: Headboxes: SD PLUS, SD LTM EXPRESS, MORPHEUS, MATRIX, MATRIX LIGHT Stimulators: ENERGY, ENERGY SURGICAL Ambulatory: BRAIN SPY PLUS Interfaces: BQ PCI EXPRESS LTM, BQ USB EXPRESS, BQ USB, BQ PCI PLUS Series and BQ NET Series The second part of this catalogue refers to spare parts of obsolete devices, which are not currently produced as a standard, like: Headboxes: SAM FC1, SAM FC1 LED, ISA, ISA 5V, SD LTM, SD Series Stimulators: ISA 1000 Ambulatory: BS3100, BS3100 LITE Interfaces: BQ PCI, BQ PCI FO NOTE: The connector type Touch Proof, often shortened TP, respects the standard DIN 42802 The connector type MiniDIN respects the standard DIN Mini Connector The connector type LEMO respects the standard DIN Micro Connector The connector type DIN standard DIN 45322 All accessories contained in this catalogue are produced and/or distributed by Micromed. Medical devices listed in the catalogue comply with the essential requirements of the 93/42/EEC Directive. Depending on the kind of product, these devices belong to Class I, IIa or IIb. NOTE: Products from outer Micromed companies are declared to comply with the 93/42/EEC directive by the manufacturer. Every manufacturer is then responsible for the CE marking of its own products and Micromed cannot be held responsible for unduly marking on distributed products. NOTE: When a non-standard length is required for cables, and the request is technically feasible, a surcharge of minimum 30% on the standard price will be required. Products can be supplied in a form slightly different from the one shown in the pictures of this catalogue but guaranteeing the same functionality. Micromed S.p.A. operates with a quality system in compliance with the requirements of ISO 9001:2008 e EN ISO 13485:2012 standards. QUALITY SYSTEM CERTIFIED - UNI EN ISO 9001:2008 - UNI CEI EN ISO 13485:2012

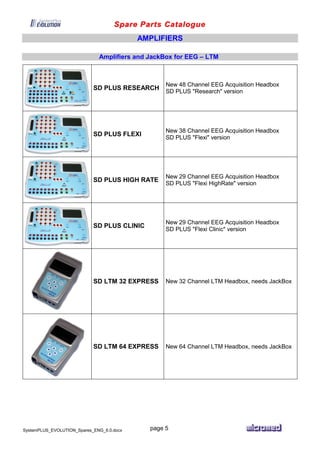

- 5. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 5 AMPLIFIERS Amplifiers and JackBox for EEG – LTM SD PLUS RESEARCH New 48 Channel EEG Acquisition Headbox SD PLUS "Research" version SD PLUS FLEXI New 38 Channel EEG Acquisition Headbox SD PLUS "Flexi" version SD PLUS HIGH RATE New 29 Channel EEG Acquisition Headbox SD PLUS "Flexi HighRate" version SD PLUS CLINIC New 29 Channel EEG Acquisition Headbox SD PLUS "Flexi Clinic" version SD LTM 32 EXPRESS New 32 Channel LTM Headbox, needs JackBox SD LTM 64 EXPRESS New 64 Channel LTM Headbox, needs JackBox
- 6. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 6 JB LTM 32 EXPRESS JackBox with 32 Common Reference Inputs, 21 arranged as Head Shape, 8 can be switched to Bipolar, to be used with SD LTM EXPRESS Series Headboxes JB LTM 64 EXPRESS JackBox with 64 Common Reference Inputs, 6 can be switched to Bipolar, to be used with SD LTM EXPRESS Series Headboxes JB LTM DSUB JackBox with Double 37 pin D-Sub Connector and additional Touch Proof Inputs for Ground, Reference and 4 Bipolar Inputs, to be used with SD LTM EXPRESS Series Headboxes JB LTM TOPHAT JackBox with Touch Proof Inputs for All Channels, including 8 Bipolar, Common Reference and Ground and Double 37 pin D-Sub Connector

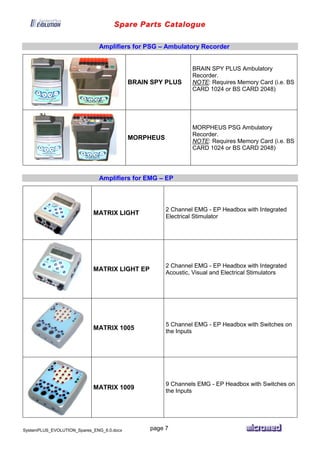

- 7. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 7 Amplifiers for PSG – Ambulatory Recorder BRAIN SPY PLUS BRAIN SPY PLUS Ambulatory Recorder. NOTE: Requires Memory Card (i.e. BS CARD 1024 or BS CARD 2048) MORPHEUS MORPHEUS PSG Ambulatory Recorder. NOTE: Requires Memory Card (i.e. BS CARD 1024 or BS CARD 2048) Amplifiers for EMG – EP MATRIX LIGHT 2 Channel EMG - EP Headbox with Integrated Electrical Stimulator MATRIX LIGHT EP 2 Channel EMG - EP Headbox with Integrated Acoustic, Visual and Electrical Stimulators MATRIX 1005 5 Channel EMG - EP Headbox with Switches on the Inputs MATRIX 1009 9 Channels EMG - EP Headbox with Switches on the Inputs

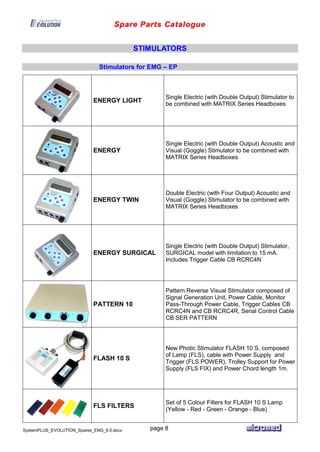

- 8. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 8 STIMULATORS Stimulators for EMG – EP ENERGY LIGHT Single Electric (with Double Output) Stimulator to be combined with MATRIX Series Headboxes ENERGY Single Electric (with Double Output) Acoustic and Visual (Goggle) Stimulator to be combined with MATRIX Series Headboxes ENERGY TWIN Double Electric (with Four Output) Acoustic and Visual (Goggle) Stimulator to be combined with MATRIX Series Headboxes ENERGY SURGICAL Single Electric (with Double Output) Stimulator, SURGICAL model with limitation to 15 mA. Includes Trigger Cable CB RCRC4N PATTERN 10 Pattern Reverse Visual Stimulator composed of Signal Generation Unit, Power Cable, Monitor Pass-Through Power Cable, Trigger Cables CB RCRC4N and CB RCRC4R, Serial Control Cable CB SER PATTERN FLASH 10 S New Photic Stimulator FLASH 10 S, composed of Lamp (FLS), cable with Power Supply and Trigger (FLS POWER), Trolley Support for Power Supply (FLS FIX) and Power Chord length 1m. FLS FILTERS Set of 5 Colour Filters for FLASH 10 S Lamp (Yellow - Red - Green - Orange - Blue)
- 9. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 9 Stimulators for LTM – Cortical Stimulation SD LTM STIM Cortical Stimulator to be combined with SD LTM 64 Series Amplifiers BATTERY PACK STIM External Battery Pack for Old SD LTM STIM Cortical Stimulator Model INTERFACES Interfaces for SD PLUS and SD LTM EXPRESS BQ PCI EXPRESS LTM Interface Card working on PCI Express bus, to operate SD PLUS and SD LTM EXPRESS Headbox, with Triggers on Panel and Hardware Key BQ USB EXPRESS USB Interface Card for SD PLUS and SD LTM EXPRESS Series Headbox BQ NET HS Module to Interface SD PLUS e SD LTM EXPRESS (Include BQ USB EXPRESS), including Power Supply and Wall Mount BQ NET POE Module to Interface SD PLUS and SD LTM EXPRESS (Include BQ USB EXPRESS), requires Switch with PoE option as it takes Power from the Network, includes Wall Mount

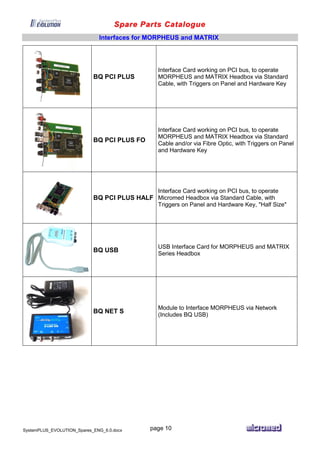

- 10. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 10 Interfaces for MORPHEUS and MATRIX BQ PCI PLUS Interface Card working on PCI bus, to operate MORPHEUS and MATRIX Headbox via Standard Cable, with Triggers on Panel and Hardware Key BQ PCI PLUS FO Interface Card working on PCI bus, to operate MORPHEUS and MATRIX Headbox via Standard Cable and/or via Fibre Optic, with Triggers on Panel and Hardware Key BQ PCI PLUS HALF Interface Card working on PCI bus, to operate Micromed Headbox via Standard Cable, with Triggers on Panel and Hardware Key, "Half Size" BQ USB USB Interface Card for MORPHEUS and MATRIX Series Headbox BQ NET S Module to Interface MORPHEUS via Network (Includes BQ USB)

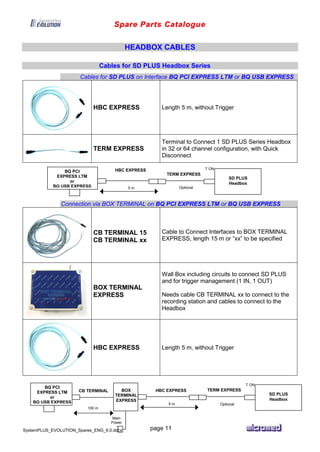

- 11. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 11 HEADBOX CABLES Cables for SD PLUS Headbox Series Cables for SD PLUS on Interface BQ PCI EXPRESS LTM or BQ USB EXPRESS HBC EXPRESS Length 5 m, without Trigger TERM EXPRESS Terminal to Connect 1 SD PLUS Series Headbox in 32 or 64 channel configuration, with Quick Disconnect Connection via BOX TERMINAL on BQ PCI EXPRESS LTM or BQ USB EXPRESS CB TERMINAL 15 CB TERMINAL xx Cable to Connect Interfaces to BOX TERMINAL EXPRESS, length 15 m or “xx” to be specified BOX TERMINAL EXPRESS Wall Box including circuits to connect SD PLUS and for trigger management (1 IN, 1 OUT) Needs cable CB TERMINAL xx to connect to the recording station and cables to connect to the Headbox HBC EXPRESS Length 5 m, without Trigger HBC EXPRESS 5 m TERM EXPRESS BQ PCI EXPRESS LTM or BQ USB EXPRESS SD PLUS Headbox T ON Optional TERM EXPRESS BQ PCI EXPRESS LTM or BQ USB EXPRESS SD PLUS Headbox T ON HBC EXPRESS 5 m Main Power BOX TERMINAL EXPRESS CB TERMINAL cc 100 m Optional

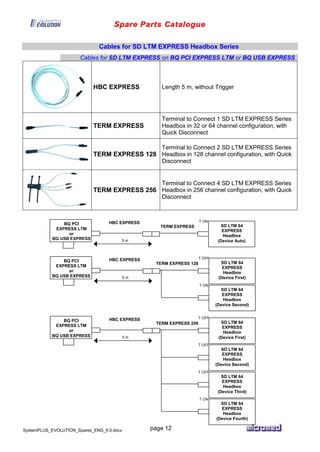

- 12. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 12 Cables for SD LTM EXPRESS Headbox Series Cables for SD LTM EXPRESS on BQ PCI EXPRESS LTM or BQ USB EXPRESS HBC EXPRESS Length 5 m, without Trigger TERM EXPRESS Terminal to Connect 1 SD LTM EXPRESS Series Headbox in 32 or 64 channel configuration, with Quick Disconnect TERM EXPRESS 128 Terminal to Connect 2 SD LTM EXPRESS Series Headbox in 128 channel configuration, with Quick Disconnect TERM EXPRESS 256 Terminal to Connect 4 SD LTM EXPRESS Series Headbox in 256 channel configuration, with Quick Disconnect HBC EXPRESS 5 m TERM EXPRESS BQ PCI EXPRESS LTM or BQ USB EXPRESS SD LTM 64 EXPRESS Headbox (Device Auto) T ON HBC EXPRESS 5 m BQ PCI EXPRESS LTM or BQ USB EXPRESS SD LTM 64 EXPRESS Headbox (Device Second) T ON SD LTM 64 EXPRESS Headbox (Device First) T OFF TERM EXPRESS 128 HBC EXPRESS 5 m BQ PCI EXPRESS LTM or BQ USB EXPRESS SD LTM 64 EXPRESS Headbox (Device Second) T OFF SD LTM 64 EXPRESS Headbox (Device First) T OFF SD LTM 64 EXPRESS Headbox (Device Fourth) T ON SD LTM 64 EXPRESS Headbox (Device Third) T OFF TERM EXPRESS 256
- 13. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 13 Connection via BOX TERMINAL on BQ PCI EXPRESS LTM or BQ USB EXPRESS CB TERMINAL 15 CB TERMINAL xx Cable to Connect Interfaces to BOX TERMINAL EXPRESS, length 15 m or “xx” to be specified BOX TERMINAL EXPRESS Wall Box including circuits to connect SD LTM EXPRESS up to 256 channels and for trigger management (1 IN, 1 OUT) Needs cable CB TERMINAL xx to connect to the recording station and cables to connect to the Headbox HBC EXPRESS Length 5 m, without Trigger TERM EXPRESS Terminal to Connect 1 SD LTM EXPRESS Series Headbox in 32 or 64 channel configuration, with Quick Disconnect TERM EXPRESS 128 Terminal to Connect 2 SD LTM EXPRESS Series Headbox in 128 channel configuration, with Quick Disconnect TERM EXPRESS 256 Terminal to Connect 4 SD LTM EXPRESS Series Headbox in 256 channel configuration, with Quick Disconnect TERM EXPRESS BQ PCI EXPRESS LTM or BQ USB EXPRESS SD LTM 64 EXPRESS Headbox (Device Auto) T ON HBC EXPRESS 5 m Main Power BOX TERMINAL EXPRESS CB TERMINAL cc 100 m

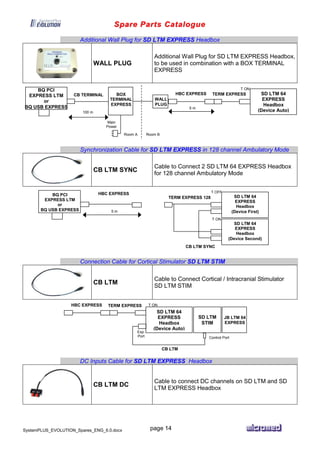

- 14. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 14 Additional Wall Plug for SD LTM EXPRESS Headbox WALL PLUG Additional Wall Plug for SD LTM EXPRESS Headbox, to be used in combination with a BOX TERMINAL EXPRESS Synchronization Cable for SD LTM EXPRESS in 128 channel Ambulatory Mode CB LTM SYNC Cable to Connect 2 SD LTM 64 EXPRESS Headbox for 128 channel Ambulatory Mode Connection Cable for Cortical Stimulator SD LTM STIM CB LTM Cable to Connect Cortical / Intracranial Stimulator SD LTM STIM DC Inputs Cable for SD LTM EXPRESS Headbox CB LTM DC Cable to connect DC channels on SD LTM and SD LTM EXPRESS Headbox TERM EXPRESS BQ PCI EXPRESS LTM or BQ USB EXPRESS SD LTM 64 EXPRESS Headbox (Device Auto) T ON HBC EXPRESS 5 m Main Power BOX TERMINAL EXPRESS CB TERMINAL cc 100 m WALL PLUG Room A Room B HBC EXPRESS 5 m BQ PCI EXPRESS LTM or BQ USB EXPRESS SD LTM 64 EXPRESS Headbox (Device Second) T ON SD LTM 64 EXPRESS Headbox (Device First) T OFF TERM EXPRESS 128 CB LTM SYNC TERM EXPRESS SD LTM STIM SD LTM 64 EXPRESS Headbox (Device Auto) T ONHBC EXPRESS Exp. Port JB LTM 64 EXPRESS Control Port CB LTM

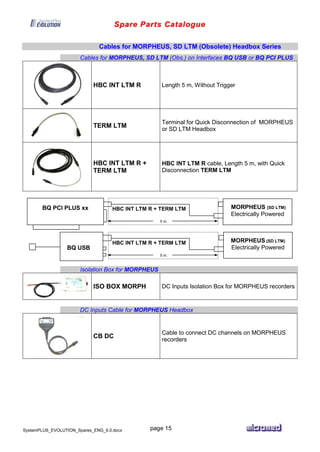

- 15. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 15 Cables for MORPHEUS, SD LTM (Obsolete) Headbox Series Cables for MORPHEUS, SD LTM (Obs.) on Interfaces BQ USB or BQ PCI PLUS HBC INT LTM R Length 5 m, Without Trigger TERM LTM Terminal for Quick Disconnection of MORPHEUS or SD LTM Headbox HBC INT LTM R + TERM LTM HBC INT LTM R cable, Length 5 m, with Quick Disconnection TERM LTM Isolation Box for MORPHEUS ISO BOX MORPH DC Inputs Isolation Box for MORPHEUS recorders DC Inputs Cable for MORPHEUS Headbox CB DC Cable to connect DC channels on MORPHEUS recorders BQ USB MORPHEUS (SD LTM) Electrically Powered HBC INT LTM R + TERM LTM 5 m. BQ PCI PLUS xx MORPHEUS (SD LTM) Electrically Powered HBC INT LTM R + TERM LTM 5 m.

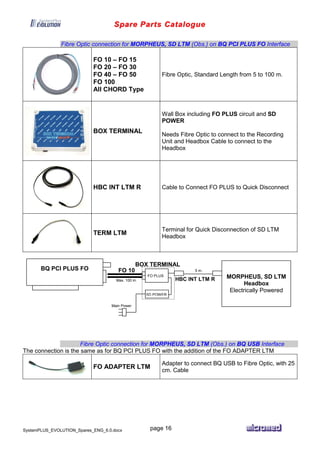

- 16. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 16 Fibre Optic connection for MORPHEUS, SD LTM (Obs.) on BQ PCI PLUS FO Interface FO 10 – FO 15 FO 20 – FO 30 FO 40 – FO 50 FO 100 All CHORD Type Fibre Optic, Standard Length from 5 to 100 m. BOX TERMINAL Wall Box including FO PLUS circuit and SD POWER Needs Fibre Optic to connect to the Recording Unit and Headbox Cable to connect to the Headbox HBC INT LTM R Cable to Connect FO PLUS to Quick Disconnect TERM LTM Terminal for Quick Disconnection of SD LTM Headbox Fibre Optic connection for MORPHEUS, SD LTM (Obs.) on BQ USB Interface The connection is the same as for BQ PCI PLUS FO with the addition of the FO ADAPTER LTM FO ADAPTER LTM Adapter to connect BQ USB to Fibre Optic, with 25 cm. Cable FO 10 Max. 100 m. BOX TERMINAL FO PLUS SD POWER Main Power 5 m. HBC INT LTM R MORPHEUS, SD LTM Headbox Electrically Powered BQ PCI PLUS FO

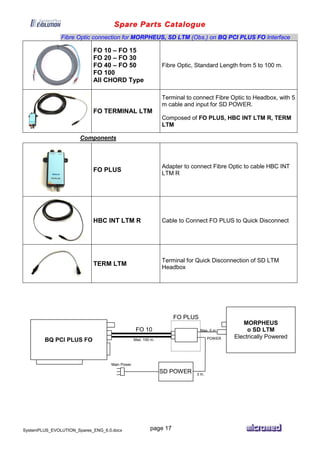

- 17. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 17 Fibre Optic connection for MORPHEUS, SD LTM (Obs.) on BQ PCI PLUS FO Interface FO 10 – FO 15 FO 20 – FO 30 FO 40 – FO 50 FO 100 All CHORD Type Fibre Optic, Standard Length from 5 to 100 m. FO TERMINAL LTM Terminal to connect Fibre Optic to Headbox, with 5 m cable and input for SD POWER. Composed of FO PLUS, HBC INT LTM R, TERM LTM Components FO PLUS Adapter to connect Fibre Optic to cable HBC INT LTM R HBC INT LTM R Cable to Connect FO PLUS to Quick Disconnect TERM LTM Terminal for Quick Disconnection of SD LTM Headbox FO 10 Max. 100 m.BQ PCI PLUS FO MORPHEUS o SD LTM Electrically Powered Max. 5 m FO PLUS SD POWER 3 m. Main Power POWER

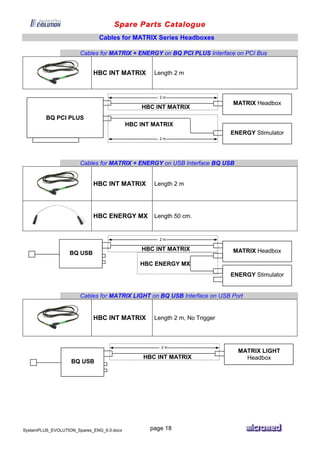

- 18. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 18 Cables for MATRIX Series Headboxes Cables for MATRIX + ENERGY on BQ PCI PLUS Interface on PCI Bus HBC INT MATRIX Length 2 m Cables for MATRIX + ENERGY on USB Interface BQ USB HBC INT MATRIX Length 2 m HBC ENERGY MX Length 50 cm. Cables for MATRIX LIGHT on BQ USB Interface on USB Port HBC INT MATRIX Length 2 m, No Trigger HBC INT MATRIX 2 m. MATRIX Headbox BQ PCI PLUS ENERGY Stimulator HBC INT MATRIX 2 m. HBC INT MATRIX 2 m. MATRIX LIGHT Headbox BQ USB HBC INT MATRIX 2 m. BQ USB MATRIX Headbox ENERGY Stimulator HBC ENERGY MX
- 19. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 19 STIMULATOR CABLES Cable for External Visual Stimulators SCREEN SENSE Cable for Trigger Generation from External Visual Stimulator. Includes Power and Monitor Cable, all cables 4 m. long Cable for External Stimulators with Trigger on RS-232 CB SER RCA Serial Cable (D-Sub 9 pin – D-Sub 9 pin) with Trigger OUT on Male RCA to synchronize External Stimulator via Digital Trigger ADAPT USB SER USB to Serial Adapter Cable for MAGSTIM Magnetic Stimulator CB MAG RAPID Cable connecting Micromed PORTABLE System Trigger-IN and Trigger-OUT (RCA Male) to Magstim 2002 , Rapid and Super Rapid New Model Magnetic Stimulator (D-Sub 26 pin) CB MAG FIX Cable connecting Micromed STATIONARY System Trigger-IN and Trigger-OUT (RCA Male) to Magstim 2002 , Rapid and Super Rapid New Model Magnetic Stimulator (D-Sub 26 pin) Cable for PATTERN 10 Visual Stimulator CB SER PATTERN Cable to control Pattern 10 via Serial (D-Sub 9 pin Male – D-Sub 9 pin Female) Trigger Cables CB RCRC4R CB RCRC4N Length 4 m, Red Male RCA – Red Male RCA Length 4 m, Black Male RCA – Black Male RCA Cable for Conversion of Optical Trigger of MRI Unit FO TRIGGER MRI Adapter to convert Fibre Optic Trigger (SIEMENS MRI Scanner) to TTL Trigger, working on FO ADAPTER PLUS

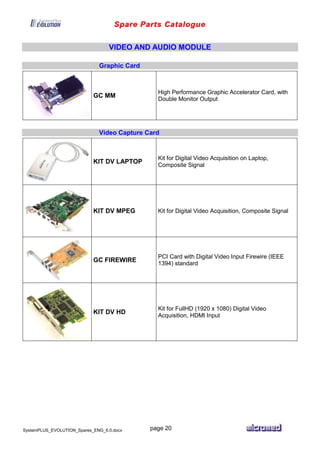

- 20. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 20 VIDEO AND AUDIO MODULE Graphic Card GC MM High Performance Graphic Accelerator Card, with Double Monitor Output Video Capture Card KIT DV LAPTOP Kit for Digital Video Acquisition on Laptop, Composite Signal KIT DV MPEG Kit for Digital Video Acquisition, Composite Signal GC FIREWIRE PCI Card with Digital Video Input Firewire (IEEE 1394) standard KIT DV HD Kit for FullHD (1920 x 1080) Digital Video Acquisition, HDMI Input

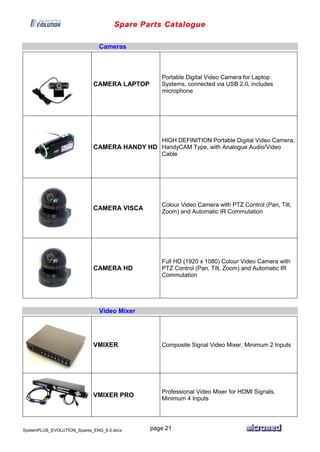

- 21. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 21 Cameras CAMERA LAPTOP Portable Digital Video Camera for Laptop Systems, connected via USB 2.0, includes microphone CAMERA HANDY HD HIGH DEFINITION Portable Digital Video Camera, HandyCAM Type, with Analogue Audio/Video Cable CAMERA VISCA Colour Video Camera with PTZ Control (Pan, Tilt, Zoom) and Automatic IR Commutation CAMERA HD Full HD (1920 x 1080) Colour Video Camera with PTZ Control (Pan, Tilt, Zoom) and Automatic IR Commutation Video Mixer VMIXER Composite Signal Video Mixer, Minimum 2 Inputs VMIXER PRO Professional Video Mixer for HDMI Signals, Minimum 4 Inputs
- 22. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 22 Infrared Spot VLAMP Infrared Lamp with Automatic Switch-On Microphones KIT MICROPHONE Professional Microphone Kit. Includes Microphone with 15 m. connection cable CB MICROPHONE, Audio Mixer, Cable connecting Mixer to Video Card Modules for HOME LTM CAMERA HOME LTM HIGH DEFINITION Portable Digital Video Camera, HandyCAM Type, for HOME LTM application, including Power Supply BQ HOME LTM Wireless Synchronization Module for CAMERA HOME LTM, compatible with MORPHEUS Recorder MEM SD 64 Memory Card SD 64 Gb for CAMERA HOME LTM CB LANC LanC to Mini-Jack Converter for CAMERA HOME LTM

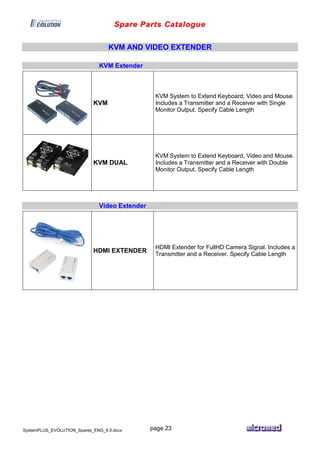

- 23. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 23 KVM AND VIDEO EXTENDER KVM Extender KVM KVM System to Extend Keyboard, Video and Mouse. Includes a Transmitter and a Receiver with Single Monitor Output. Specify Cable Length KVM DUAL KVM System to Extend Keyboard, Video and Mouse. Includes a Transmitter and a Receiver with Double Monitor Output. Specify Cable Length Video Extender HDMI EXTENDER HDMI Extender for FullHD Camera Signal. Includes a Transmitter and a Receiver. Specify Cable Length

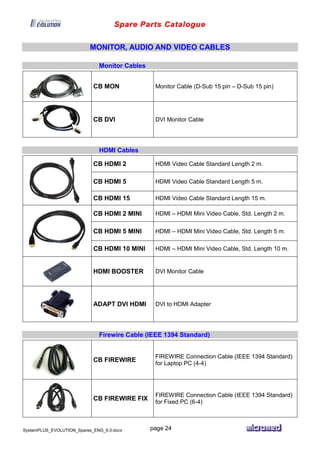

- 24. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 24 MONITOR, AUDIO AND VIDEO CABLES Monitor Cables CB MON Monitor Cable (D-Sub 15 pin – D-Sub 15 pin) CB DVI DVI Monitor Cable HDMI Cables CB HDMI 2 HDMI Video Cable Standard Length 2 m. CB HDMI 5 HDMI Video Cable Standard Length 5 m. CB HDMI 15 HDMI Video Cable Standard Length 15 m. CB HDMI 2 MINI HDMI – HDMI Mini Video Cable, Std. Length 2 m. CB HDMI 5 MINI HDMI – HDMI Mini Video Cable, Std. Length 5 m. CB HDMI 10 MINI HDMI – HDMI Mini Video Cable, Std. Length 10 m. HDMI BOOSTER DVI Monitor Cable ADAPT DVI HDMI DVI to HDMI Adapter Firewire Cable (IEEE 1394 Standard) CB FIREWIRE FIREWIRE Connection Cable (IEEE 1394 Standard) for Laptop PC (4-4) CB FIREWIRE FIX FIREWIRE Connection Cable (IEEE 1394 Standard) for Fixed PC (6-4)

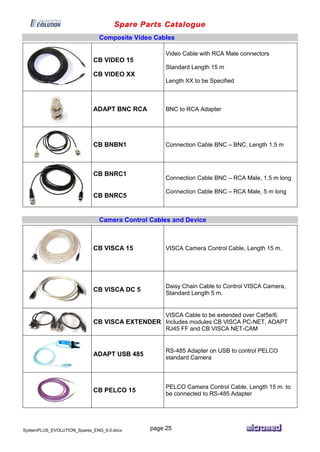

- 25. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 25 Composite Video Cables CB VIDEO 15 CB VIDEO XX Video Cable with RCA Male connectors Standard Length 15 m Length XX to be Specified ADAPT BNC RCA BNC to RCA Adapter CB BNBN1 Connection Cable BNC – BNC, Length 1.5 m CB BNRC1 CB BNRC5 Connection Cable BNC – RCA Male, 1.5 m long Connection Cable BNC – RCA Male, 5 m long Camera Control Cables and Device CB VISCA 15 VISCA Camera Control Cable, Length 15 m. CB VISCA DC 5 Daisy Chain Cable to Control VISCA Camera, Standard Length 5 m. CB VISCA EXTENDER VISCA Cable to be extended over Cat5e/6. Includes modules CB VISCA PC-NET, ADAPT RJ45 FF and CB VISCA NET-CAM ADAPT USB 485 RS-485 Adapter on USB to control PELCO standard Camera CB PELCO 15 PELCO Camera Control Cable, Length 15 m. to be connected to RS-485 Adapter

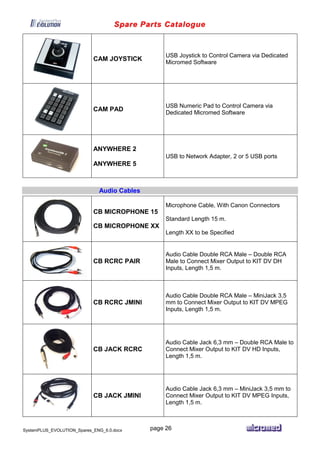

- 26. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 26 CAM JOYSTICK USB Joystick to Control Camera via Dedicated Micromed Software CAM PAD USB Numeric Pad to Control Camera via Dedicated Micromed Software ANYWHERE 2 ANYWHERE 5 USB to Network Adapter, 2 or 5 USB ports Audio Cables CB MICROPHONE 15 CB MICROPHONE XX Microphone Cable, With Canon Connectors Standard Length 15 m. Length XX to be Specified CB RCRC PAIR Audio Cable Double RCA Male – Double RCA Male to Connect Mixer Output to KIT DV DH Inputs, Length 1,5 m. CB RCRC JMINI Audio Cable Double RCA Male – MiniJack 3,5 mm to Connect Mixer Output to KIT DV MPEG Inputs, Length 1,5 m. CB JACK RCRC Audio Cable Jack 6,3 mm – Double RCA Male to Connect Mixer Output to KIT DV HD Inputs, Length 1,5 m. CB JACK JMINI Audio Cable Jack 6,3 mm – MiniJack 3,5 mm to Connect Mixer Output to KIT DV MPEG Inputs, Length 1,5 m.
- 27. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 27 NETWORK COMPONENTS Switch di Rete NET SWITCH 4 NET SWITCH 8 4 or 8 Port Network Switch NET SWITCH PRO Professional Network Switch Network Isolator NET ISOLATOR Network Isolator for 10/100 Mbit Networks, with RJ45 connectors Network Cables NET RJ45 3 NET RJ45 5 NET RJ45 10 RJ45 Network Cable, with connectors, 3 or 5 or 10 m. long NET RJ45 10 X RJ45 Crossed Network Cable, 10 m long OXYMETERS BSP OXY Oxymeter to be used with MORPHEUS or BRAIN SPY PLUS Recorder, with cable

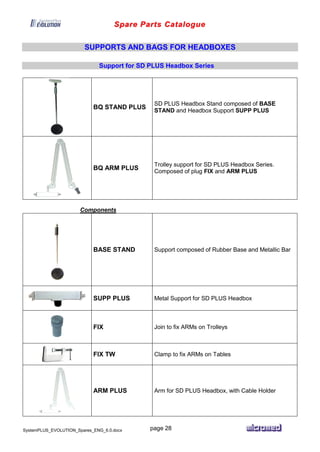

- 28. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 28 SUPPORTS AND BAGS FOR HEADBOXES Support for SD PLUS Headbox Series BQ STAND PLUS SD PLUS Headbox Stand composed of BASE STAND and Headbox Support SUPP PLUS BQ ARM PLUS Trolley support for SD PLUS Headbox Series. Composed of plug FIX and ARM PLUS Components BASE STAND Support composed of Rubber Base and Metallic Bar SUPP PLUS Metal Support for SD PLUS Headbox FIX Join to fix ARMs on Trolleys FIX TW Clamp to fix ARMs on Tables ARM PLUS Arm for SD PLUS Headbox, with Cable Holder

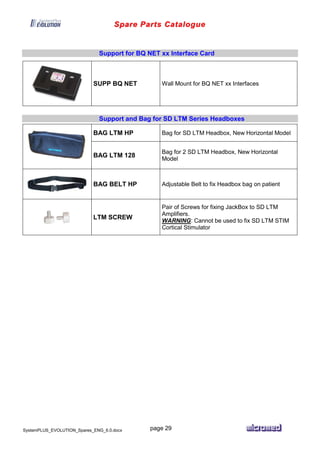

- 29. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 29 Support for BQ NET xx Interface Card SUPP BQ NET Wall Mount for BQ NET xx Interfaces Support and Bag for SD LTM Series Headboxes BAG LTM HP Bag for SD LTM Headbox, New Horizontal Model BAG LTM 128 Bag for 2 SD LTM Headbox, New Horizontal Model BAG BELT HP Adjustable Belt to fix Headbox bag on patient LTM SCREW Pair of Screws for fixing JackBox to SD LTM Amplifiers. WARNING: Cannot be used to fix SD LTM STIM Cortical Stimulator
- 30. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 30 BQ STAND LTM SD LTM Headbox Stand, composed of: BASE STAND and Headbox Support SUPP LTM SUPP LTM Shaped Support for SD LTM Headbox. Comes with join to fix it to STAND BQ STAND LTM 128 SD LTM Headbox Stand for 128 ch. configuration composed of base with Wheel STAND POLE, pole CAM STAND and support SUPP LTM 128 SUPP LTM 128 Shaped Support for two SD LTM Headbox. Comes with join to fix it to STAND BQ STAND LTM 256 SD LTM Headbox Stand for 256 ch. configuration composed of base with Wheel STAND POLE, pole CAM STAND and support SUPP LTM 256 SUPP LTM 256 Shaped Support for four SD LTM Headbox. Comes with join to fix it to STAND SUPP TOPHAT Additional Metal Support for Use of JB LTM TOPHAT, to be fixed to SUPP LTM. Includes Screws
- 31. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 31 Support and Bag for MORPHEUS, BRAIN SPY PLUS Series Headboxes BAG MORPH Bag for MORPHEUS or BRAIN SPY PLUS Recorder BAG MORPH BELT Belt to fix Headbox bag on patient BQ STAND MORPH MORPHEUS Recorder Stand, composed of: BASE STAND and Headbox Support SUPP MORPH SUPP MORPH Shaped Support for MORPHEUS Recorder. Comes with join to fix it to STAND

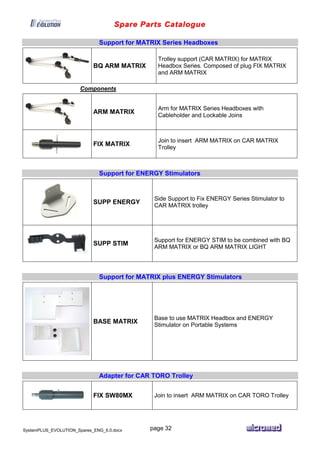

- 32. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 32 Support for MATRIX Series Headboxes BQ ARM MATRIX Trolley support (CAR MATRIX) for MATRIX Headbox Series. Composed of plug FIX MATRIX and ARM MATRIX Components ARM MATRIX Arm for MATRIX Series Headboxes with Cableholder and Lockable Joins FIX MATRIX Join to insert ARM MATRIX on CAR MATRIX Trolley Support for ENERGY Stimulators SUPP ENERGY Side Support to Fix ENERGY Series Stimulator to CAR MATRIX trolley SUPP STIM Support for ENERGY STIM to be combined with BQ ARM MATRIX or BQ ARM MATRIX LIGHT Support for MATRIX plus ENERGY Stimulators BASE MATRIX Base to use MATRIX Headbox and ENERGY Stimulator on Portable Systems Adapter for CAR TORO Trolley FIX SW80MX Join to insert ARM MATRIX on CAR TORO Trolley

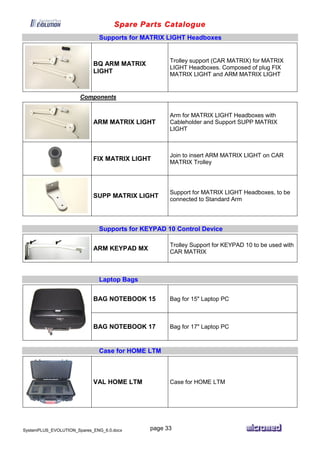

- 33. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 33 Supports for MATRIX LIGHT Headboxes BQ ARM MATRIX LIGHT Trolley support (CAR MATRIX) for MATRIX LIGHT Headboxes. Composed of plug FIX MATRIX LIGHT and ARM MATRIX LIGHT Components ARM MATRIX LIGHT Arm for MATRIX LIGHT Headboxes with Cableholder and Support SUPP MATRIX LIGHT FIX MATRIX LIGHT Join to insert ARM MATRIX LIGHT on CAR MATRIX Trolley SUPP MATRIX LIGHT Support for MATRIX LIGHT Headboxes, to be connected to Standard Arm Supports for KEYPAD 10 Control Device ARM KEYPAD MX Trolley Support for KEYPAD 10 to be used with CAR MATRIX Laptop Bags BAG NOTEBOOK 15 Bag for 15" Laptop PC BAG NOTEBOOK 17 Bag for 17" Laptop PC Case for HOME LTM VAL HOME LTM Case for HOME LTM

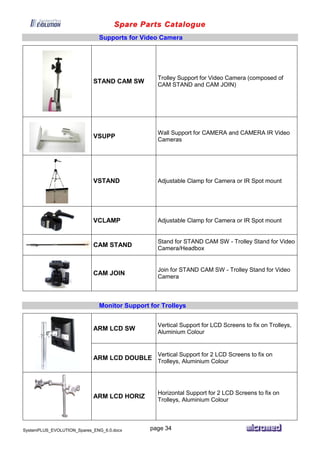

- 34. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 34 Supports for Video Camera STAND CAM SW Trolley Support for Video Camera (composed of CAM STAND and CAM JOIN) VSUPP Wall Support for CAMERA and CAMERA IR Video Cameras VSTAND Adjustable Clamp for Camera or IR Spot mount VCLAMP Adjustable Clamp for Camera or IR Spot mount CAM STAND Stand for STAND CAM SW - Trolley Stand for Video Camera/Headbox CAM JOIN Join for STAND CAM SW - Trolley Stand for Video Camera Monitor Support for Trolleys ARM LCD SW Vertical Support for LCD Screens to fix on Trolleys, Aluminium Colour ARM LCD DOUBLE Vertical Support for 2 LCD Screens to fix on Trolleys, Aluminium Colour ARM LCD HORIZ Horizontal Support for 2 LCD Screens to fix on Trolleys, Aluminium Colour

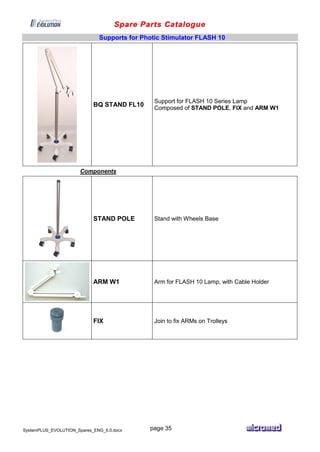

- 35. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 35 Supports for Photic Stimulator FLASH 10 BQ STAND FL10 Support for FLASH 10 Series Lamp Composed of STAND POLE, FIX and ARM W1 Components STAND POLE Stand with Wheels Base ARM W1 Arm for FLASH 10 Lamp, with Cable Holder FIX Join to fix ARMs on Trolleys

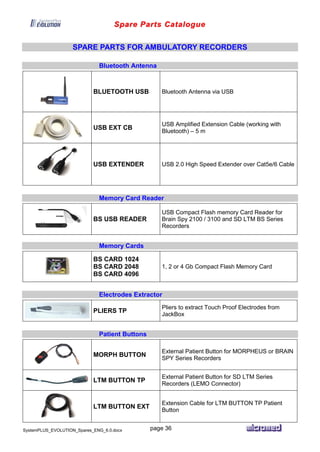

- 36. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 36 SPARE PARTS FOR AMBULATORY RECORDERS Bluetooth Antenna BLUETOOTH USB Bluetooth Antenna via USB USB EXT CB USB Amplified Extension Cable (working with Bluetooth) – 5 m USB EXTENDER USB 2.0 High Speed Extender over Cat5e/6 Cable Memory Card Reader BS USB READER USB Compact Flash memory Card Reader for Brain Spy 2100 / 3100 and SD LTM BS Series Recorders Memory Cards BS CARD 1024 BS CARD 2048 BS CARD 4096 1, 2 or 4 Gb Compact Flash Memory Card Electrodes Extractor PLIERS TP Pliers to extract Touch Proof Electrodes from JackBox Patient Buttons MORPH BUTTON External Patient Button for MORPHEUS or BRAIN SPY Series Recorders LTM BUTTON TP External Patient Button for SD LTM Series Recorders (LEMO Connector) LTM BUTTON EXT Extension Cable for LTM BUTTON TP Patient Button

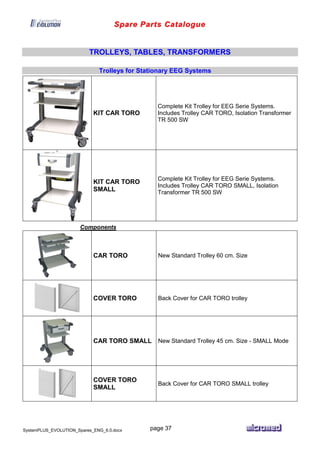

- 37. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 37 TROLLEYS, TABLES, TRANSFORMERS Trolleys for Stationary EEG Systems KIT CAR TORO Complete Kit Trolley for EEG Serie Systems. Includes Trolley CAR TORO, Isolation Transformer TR 500 SW Ù KIT CAR TORO SMALL Complete Kit Trolley for EEG Serie Systems. Includes Trolley CAR TORO SMALL, Isolation Transformer TR 500 SW Components CAR TORO New Standard Trolley 60 cm. Size COVER TORO Back Cover for CAR TORO trolley CAR TORO SMALL New Standard Trolley 45 cm. Size - SMALL Mode COVER TORO SMALL Back Cover for CAR TORO SMALL trolley

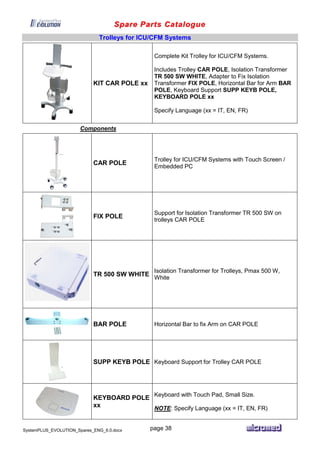

- 38. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 38 Trolleys for ICU/CFM Systems KIT CAR POLE xx Complete Kit Trolley for ICU/CFM Systems. Includes Trolley CAR POLE, Isolation Transformer TR 500 SW WHITE, Adapter to Fix Isolation Transformer FIX POLE, Horizontal Bar for Arm BAR POLE, Keyboard Support SUPP KEYB POLE, KEYBOARD POLE xx Specify Language (xx = IT, EN, FR) Components CAR POLE Trolley for ICU/CFM Systems with Touch Screen / Embedded PC FIX POLE Support for Isolation Transformer TR 500 SW on trolleys CAR POLE TR 500 SW WHITE Isolation Transformer for Trolleys, Pmax 500 W, White BAR POLE Horizontal Bar to fix Arm on CAR POLE SUPP KEYB POLE Keyboard Support for Trolley CAR POLE KEYBOARD POLE xx Keyboard with Touch Pad, Small Size. NOTE: Specify Language (xx = IT, EN, FR)

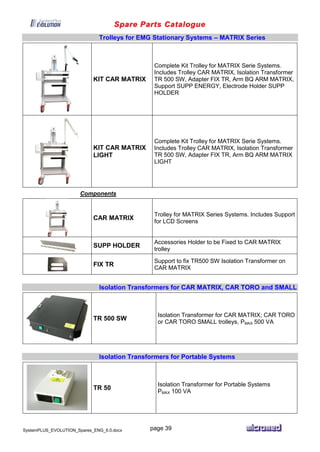

- 39. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 39 Trolleys for EMG Stationary Systems – MATRIX Series KIT CAR MATRIX Complete Kit Trolley for MATRIX Serie Systems. Includes Trolley CAR MATRIX, Isolation Transformer TR 500 SW, Adapter FIX TR, Arm BQ ARM MATRIX, Support SUPP ENERGY, Electrode Holder SUPP HOLDER KIT CAR MATRIX LIGHT Complete Kit Trolley for MATRIX Serie Systems. Includes Trolley CAR MATRIX, Isolation Transformer TR 500 SW, Adapter FIX TR, Arm BQ ARM MATRIX LIGHT Components CAR MATRIX Trolley for MATRIX Series Systems. Includes Support for LCD Screens SUPP HOLDER Accessories Holder to be Fixed to CAR MATRIX trolley FIX TR Support to fix TR500 SW Isolation Transformer on CAR MATRIX Isolation Transformers for CAR MATRIX, CAR TORO and SMALL TR 500 SW Isolation Transformer for CAR MATRIX; CAR TORO or CAR TORO SMALL trolleys, PMAX 500 VA Isolation Transformers for Portable Systems TR 50 Isolation Transformer for Portable Systems PMAX 100 VA

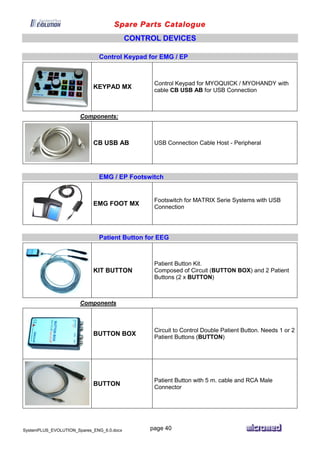

- 40. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 40 CONTROL DEVICES Control Keypad for EMG / EP KEYPAD MX Control Keypad for MYOQUICK / MYOHANDY with cable CB USB AB for USB Connection Components: CB USB AB USB Connection Cable Host - Peripheral EMG / EP Footswitch EMG FOOT MX Footswitch for MATRIX Serie Systems with USB Connection Patient Button for EEG KIT BUTTON Patient Button Kit. Composed of Circuit (BUTTON BOX) and 2 Patient Buttons (2 x BUTTON) Components BUTTON BOX Circuit to Control Double Patient Button. Needs 1 or 2 Patient Buttons (BUTTON) BUTTON Patient Button with 5 m. cable and RCA Male Connector

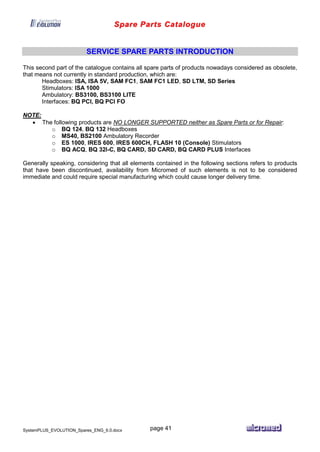

- 41. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 41 SERVICE SPARE PARTS INTRODUCTION This second part of the catalogue contains all spare parts of products nowadays considered as obsolete, that means not currently in standard production, which are: Headboxes: ISA, ISA 5V, SAM FC1, SAM FC1 LED, SD LTM, SD Series Stimulators: ISA 1000 Ambulatory: BS3100, BS3100 LITE Interfaces: BQ PCI, BQ PCI FO NOTE: The following products are NO LONGER SUPPORTED neither as Spare Parts or for Repair: o BQ 124, BQ 132 Headboxes o MS40, BS2100 Ambulatory Recorder o ES 1000, IRES 600, IRES 600CH, FLASH 10 (Console) Stimulators o BQ ACQ, BQ 32I-C, BQ CARD, SD CARD, BQ CARD PLUS Interfaces Generally speaking, considering that all elements contained in the following sections refers to products that have been discontinued, availability from Micromed of such elements is not to be considered immediate and could require special manufacturing which could cause longer delivery time.

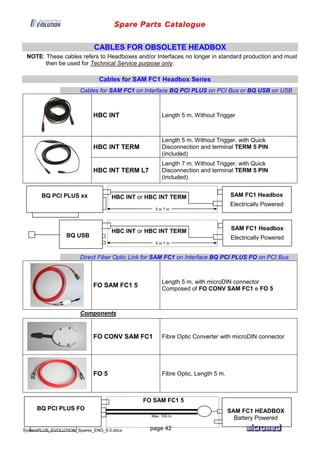

- 42. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 42 CABLES FOR OBSOLETE HEADBOX NOTE: These cables refers to Headboxes and/or Interfaces no longer in standard production and must then be used for Technical Service purpose only. Cables for SAM FC1 Headbox Series Cables for SAM FC1 on Interface BQ PCI PLUS on PCI Bus or BQ USB on USB HBC INT Length 5 m, Without Trigger HBC INT TERM Length 5 m, Without Trigger, with Quick Disconnection and terminal TERM 5 PIN (included) HBC INT TERM L7 Length 7 m, Without Trigger, with Quick Disconnection and terminal TERM 5 PIN (included) Direct Fiber Optic Link for SAM FC1 on Interface BQ PCI PLUS FO on PCI Bus FO SAM FC1 5 Length 5 m, with microDIN connector Composed of FO CONV SAM FC1 e FO 5 Components FO CONV SAM FC1 Fibre Optic Converter with microDIN connector FO 5 Fibre Optic, Length 5 m. BQ PCI PLUS FO FO SAM FC1 5 Max. 100 m. SAM FC1 HEADBOX Battery Powered BQ USB SAM FC1 Headbox Electrically Powered HBC INT or HBC INT TERM 5 or 7 m. BQ PCI PLUS xx SAM FC1 Headbox Electrically Powered HBC INT or HBC INT TERM 5 or 7 m.

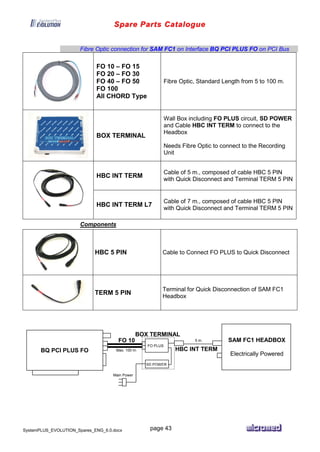

- 43. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 43 Fibre Optic connection for SAM FC1 on Interface BQ PCI PLUS FO on PCI Bus FO 10 – FO 15 FO 20 – FO 30 FO 40 – FO 50 FO 100 All CHORD Type Fibre Optic, Standard Length from 5 to 100 m. BOX TERMINAL Wall Box including FO PLUS circuit, SD POWER and Cable HBC INT TERM to connect to the Headbox Needs Fibre Optic to connect to the Recording Unit HBC INT TERM Cable of 5 m., composed of cable HBC 5 PIN with Quick Disconnect and Terminal TERM 5 PIN HBC INT TERM L7 Cable of 7 m., composed of cable HBC 5 PIN with Quick Disconnect and Terminal TERM 5 PIN Components HBC 5 PIN Cable to Connect FO PLUS to Quick Disconnect TERM 5 PIN Terminal for Quick Disconnection of SAM FC1 Headbox FO 10 Max. 100 m.BQ PCI PLUS FO SAM FC1 HEADBOX Electrically Powered BOX TERMINAL FO PLUS SD POWER Main Power 5 m. HBC INT TERM

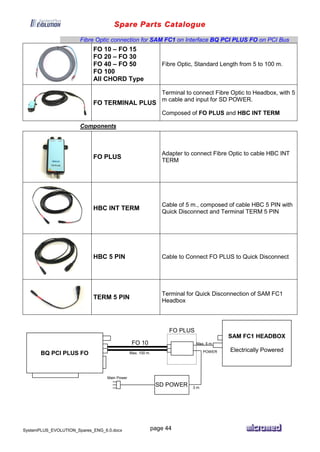

- 44. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 44 Fibre Optic connection for SAM FC1 on Interface BQ PCI PLUS FO on PCI Bus FO 10 – FO 15 FO 20 – FO 30 FO 40 – FO 50 FO 100 All CHORD Type Fibre Optic, Standard Length from 5 to 100 m. FO TERMINAL PLUS Terminal to connect Fibre Optic to Headbox, with 5 m cable and input for SD POWER. Composed of FO PLUS and HBC INT TERM Components FO PLUS Adapter to connect Fibre Optic to cable HBC INT TERM HBC INT TERM Cable of 5 m., composed of cable HBC 5 PIN with Quick Disconnect and Terminal TERM 5 PIN HBC 5 PIN Cable to Connect FO PLUS to Quick Disconnect TERM 5 PIN Terminal for Quick Disconnection of SAM FC1 Headbox FO 10 Max. 100 m.BQ PCI PLUS FO SAM FC1 HEADBOX Electrically Powered Max. 5 m FO PLUS SD POWER 3 m. Main Power POWER

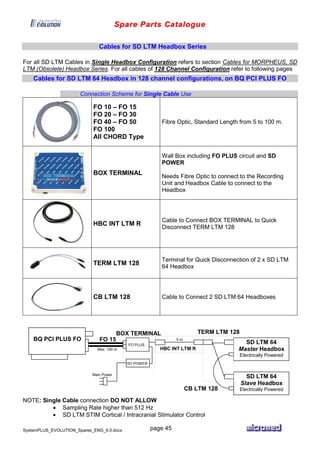

- 45. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 45 Cables for SD LTM Headbox Series For all SD LTM Cables in Single Headbox Configuration refers to section Cables for MORPHEUS, SD LTM (Obsolete) Headbox Series. For all cables of 128 Channel Configuration refer to following pages Cables for SD LTM 64 Headbox in 128 channel configurations, on BQ PCI PLUS FO Connection Scheme for Single Cable Use FO 10 – FO 15 FO 20 – FO 30 FO 40 – FO 50 FO 100 All CHORD Type Fibre Optic, Standard Length from 5 to 100 m. BOX TERMINAL Wall Box including FO PLUS circuit and SD POWER Needs Fibre Optic to connect to the Recording Unit and Headbox Cable to connect to the Headbox HBC INT LTM R Cable to Connect BOX TERMINAL to Quick Disconnect TERM LTM 128 TERM LTM 128 Terminal for Quick Disconnection of 2 x SD LTM 64 Headbox CB LTM 128 Cable to Connect 2 SD LTM 64 Headboxes NOTE: Single Cable connection DO NOT ALLOW Sampling Rate higher than 512 Hz SD LTM STIM Cortical / Intracranial Stimulator Control FO 15 Max. 100 m. BOX TERMINAL FO PLUS SD POWER Main Power SD LTM 64 Master Headbox Electrically Powered BQ PCI PLUS FO SD LTM 64 Slave Headbox Electrically PoweredCB LTM 128 5 m. HBC INT LTM R TERM LTM 128

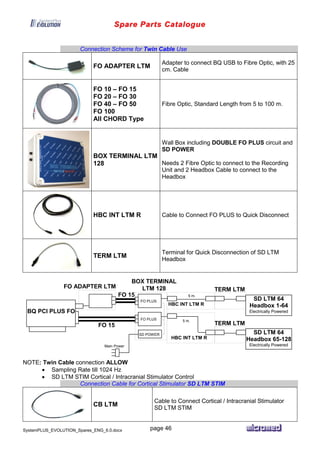

- 46. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 46 Connection Scheme for Twin Cable Use FO ADAPTER LTM Adapter to connect BQ USB to Fibre Optic, with 25 cm. Cable FO 10 – FO 15 FO 20 – FO 30 FO 40 – FO 50 FO 100 All CHORD Type Fibre Optic, Standard Length from 5 to 100 m. BOX TERMINAL LTM 128 Wall Box including DOUBLE FO PLUS circuit and SD POWER Needs 2 Fibre Optic to connect to the Recording Unit and 2 Headbox Cable to connect to the Headbox HBC INT LTM R Cable to Connect FO PLUS to Quick Disconnect TERM LTM Terminal for Quick Disconnection of SD LTM Headbox NOTE: Twin Cable connection ALLOW Sampling Rate till 1024 Hz SD LTM STIM Cortical / Intracranial Stimulator Control Connection Cable for Cortical Stimulator SD LTM STIM CB LTM Cable to Connect Cortical / Intracranial Stimulator SD LTM STIM FO 15 SD LTM 64 Headbox 1-64 Electrically PoweredBQ PCI PLUS FO SD LTM 64 Headbox 65-128 Electrically Powered 5 m. HBC INT LTM R TERM LTM BOX TERMINAL LTM 128 FO PLUS FO PLUS SD POWER Main Power TERM LTM 5 m. HBC INT LTM R FO 15 FO ADAPTER LTM

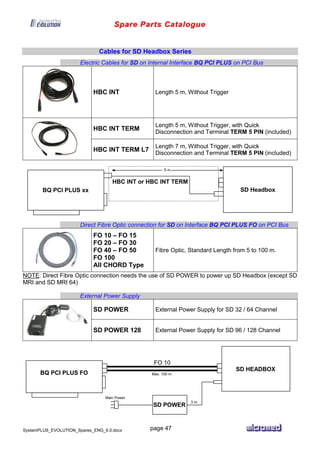

- 47. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 47 Cables for SD Headbox Series Electric Cables for SD on Internal Interface BQ PCI PLUS on PCI Bus HBC INT Length 5 m, Without Trigger HBC INT TERM Length 5 m, Without Trigger, with Quick Disconnection and Terminal TERM 5 PIN (included) HBC INT TERM L7 Length 7 m, Without Trigger, with Quick Disconnection and Terminal TERM 5 PIN (included) Direct Fibre Optic connection for SD on Interface BQ PCI PLUS FO on PCI Bus FO 10 – FO 15 FO 20 – FO 30 FO 40 – FO 50 FO 100 All CHORD Type Fibre Optic, Standard Length from 5 to 100 m. NOTE: Direct Fibre Optic connection needs the use of SD POWER to power up SD Headbox (except SD MRI and SD MRI 64) External Power Supply SD POWER External Power Supply for SD 32 / 64 Channel SD POWER 128 External Power Supply for SD 96 / 128 Channel BQ PCI PLUS xx HBC INT or HBC INT TERM 5 m. SD Headbox SD POWER 3 m. Main Power FO 10 Max. 100 m.BQ PCI PLUS FO SD HEADBOX

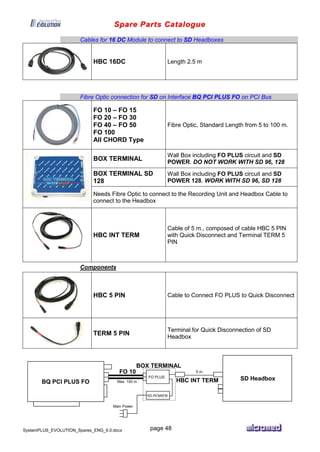

- 48. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 48 Cables for 16 DC Module to connect to SD Headboxes HBC 16DC Length 2.5 m Fibre Optic connection for SD on Interface BQ PCI PLUS FO on PCI Bus FO 10 – FO 15 FO 20 – FO 30 FO 40 – FO 50 FO 100 All CHORD Type Fibre Optic, Standard Length from 5 to 100 m. BOX TERMINAL Wall Box including FO PLUS circuit and SD POWER. DO NOT WORK WITH SD 96, 128 BOX TERMINAL SD 128 Wall Box including FO PLUS circuit and SD POWER 128. WORK WITH SD 96, SD 128 Needs Fibre Optic to connect to the Recording Unit and Headbox Cable to connect to the Headbox HBC INT TERM Cable of 5 m., composed of cable HBC 5 PIN with Quick Disconnect and Terminal TERM 5 PIN Components HBC 5 PIN Cable to Connect FO PLUS to Quick Disconnect TERM 5 PIN Terminal for Quick Disconnection of SD Headbox FO 10 Max. 100 m.BQ PCI PLUS FO BOX TERMINAL FO PLUS SD POWER Main Power 5 m. HBC INT TERM SD Headbox

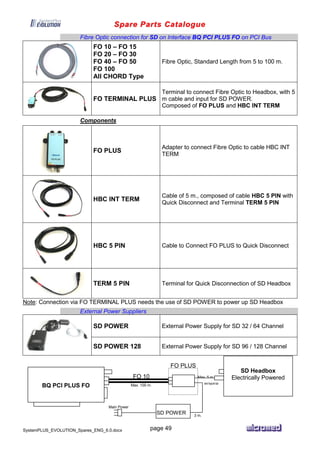

- 49. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 49 Fibre Optic connection for SD on Interface BQ PCI PLUS FO on PCI Bus FO 10 – FO 15 FO 20 – FO 30 FO 40 – FO 50 FO 100 All CHORD Type Fibre Optic, Standard Length from 5 to 100 m. FO TERMINAL PLUS Terminal to connect Fibre Optic to Headbox, with 5 m cable and input for SD POWER. Composed of FO PLUS and HBC INT TERM Components FO PLUS Adapter to connect Fibre Optic to cable HBC INT TERM HBC INT TERM Cable of 5 m., composed of cable HBC 5 PIN with Quick Disconnect and Terminal TERM 5 PIN HBC 5 PIN Cable to Connect FO PLUS to Quick Disconnect TERM 5 PIN Terminal for Quick Disconnection of SD Headbox Note: Connection via FO TERMINAL PLUS needs the use of SD POWER to power up SD Headbox External Power Suppliers SD POWER External Power Supply for SD 32 / 64 Channel SD POWER 128 External Power Supply for SD 96 / 128 Channel FO 10 Max. 100 m.BQ PCI PLUS FO SD Headbox Electrically PoweredMax. 5 m FO PLUS SD POWER 3 m. Main Power POWER

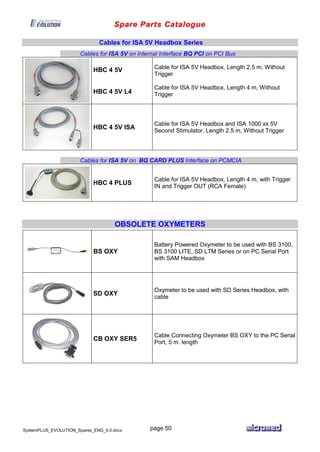

- 50. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 50 Cables for ISA 5V Headbox Series Cables for ISA 5V on Internal Interface BQ PCI on PCI Bus HBC 4 5V HBC 4 5V L4 Cable for ISA 5V Headbox, Length 2.5 m, Without Trigger Cable for ISA 5V Headbox, Length 4 m, Without Trigger HBC 4 5V ISA Cable for ISA 5V Headbox and ISA 1000 xx 5V Second Stimulator, Length 2.5 m, Without Trigger Cables for ISA 5V on BQ CARD PLUS Interface on PCMCIA HBC 4 PLUS Cable for ISA 5V Headbox, Length 4 m, with Trigger IN and Trigger OUT (RCA Female) OBSOLETE OXYMETERS BS OXY Battery Powered Oxymeter to be used with BS 3100, BS 3100 LITE, SD LTM Series or on PC Serial Port with SAM Headbox SD OXY Oxymeter to be used with SD Series Headbox, with cable CB OXY SER5 Cable Connecting Oxymeter BS OXY to the PC Serial Port, 5 m. length
- 51. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 51 SUPPORTS FOR OBSOLETE HEADBOXES Supports for SAM FC1, SD 32 Headbox Series BQ STAND SAM Support for SAM / SD 32 Headbox Series. Composed of BASE STAND, SUPP SAM BQ ARM SAMSW Trolley Support for SAM / SD 32 Headbox Series. Composed of FIX, ARM SAM BQ ARM SAMTB Table Support for SAM / SD 32 Headbox Series. Composed of FIX TW, ARM SAM

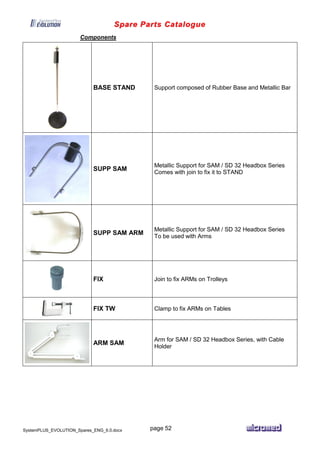

- 52. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 52 Components BASE STAND Support composed of Rubber Base and Metallic Bar SUPP SAM Metallic Support for SAM / SD 32 Headbox Series Comes with join to fix it to STAND SUPP SAM ARM Metallic Support for SAM / SD 32 Headbox Series To be used with Arms FIX Join to fix ARMs on Trolleys FIX TW Clamp to fix ARMs on Tables ARM SAM Arm for SAM / SD 32 Headbox Series, with Cable Holder

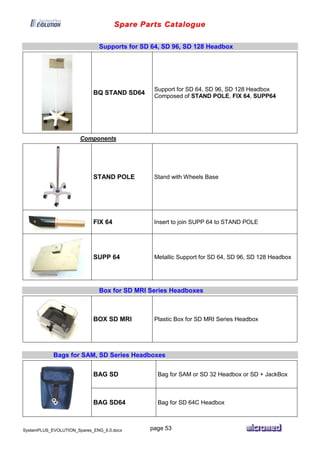

- 53. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 53 Supports for SD 64, SD 96, SD 128 Headbox BQ STAND SD64 Support for SD 64, SD 96, SD 128 Headbox Composed of STAND POLE, FIX 64, SUPP64 Components STAND POLE Stand with Wheels Base FIX 64 Insert to join SUPP 64 to STAND POLE SUPP 64 Metallic Support for SD 64, SD 96, SD 128 Headbox Box for SD MRI Series Headboxes BOX SD MRI Plastic Box for SD MRI Series Headbox Bags for SAM, SD Series Headboxes BAG SD Bag for SAM or SD 32 Headbox or SD + JackBox BAG SD64 Bag for SD 64C Headbox

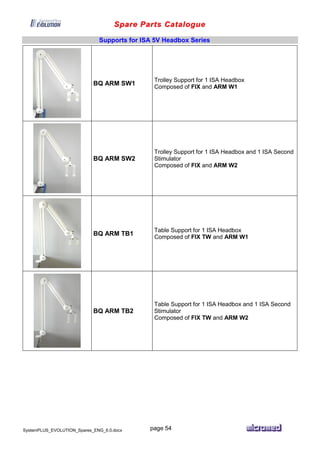

- 54. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 54 Supports for ISA 5V Headbox Series BQ ARM SW1 Trolley Support for 1 ISA Headbox Composed of FIX and ARM W1 BQ ARM SW2 Trolley Support for 1 ISA Headbox and 1 ISA Second Stimulator Composed of FIX and ARM W2 BQ ARM TB1 Table Support for 1 ISA Headbox Composed of FIX TW and ARM W1 BQ ARM TB2 Table Support for 1 ISA Headbox and 1 ISA Second Stimulator Composed of FIX TW and ARM W2

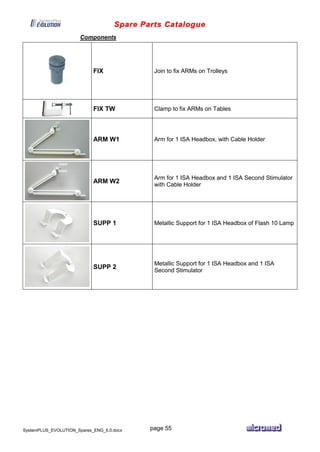

- 55. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 55 Components FIX Join to fix ARMs on Trolleys FIX TW Clamp to fix ARMs on Tables ARM W1 Arm for 1 ISA Headbox, with Cable Holder ARM W2 Arm for 1 ISA Headbox and 1 ISA Second Stimulator with Cable Holder SUPP 1 Metallic Support for 1 ISA Headbox of Flash 10 Lamp SUPP 2 Metallic Support for 1 ISA Headbox and 1 ISA Second Stimulator

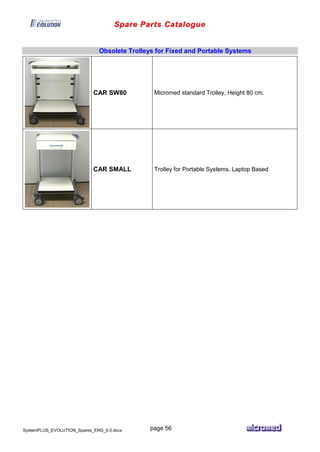

- 56. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 56 Obsolete Trolleys for Fixed and Portable Systems CAR SW80 Micromed standard Trolley, Height 80 cm. CAR SMALL Trolley for Portable Systems, Laptop Based

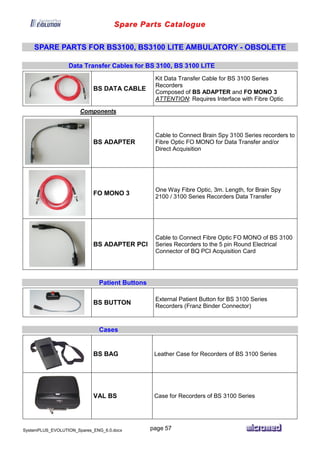

- 57. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 57 SPARE PARTS FOR BS3100, BS3100 LITE AMBULATORY - OBSOLETE Data Transfer Cables for BS 3100, BS 3100 LITE BS DATA CABLE Kit Data Transfer Cable for BS 3100 Series Recorders Composed of BS ADAPTER and FO MONO 3 ATTENTION: Requires Interface with Fibre Optic Components BS ADAPTER Cable to Connect Brain Spy 3100 Series recorders to Fibre Optic FO MONO for Data Transfer and/or Direct Acquisition FO MONO 3 One Way Fibre Optic, 3m. Length, for Brain Spy 2100 / 3100 Series Recorders Data Transfer BS ADAPTER PCI Cable to Connect Fibre Optic FO MONO of BS 3100 Series Recorders to the 5 pin Round Electrical Connector of BQ PCI Acquisition Card Patient Buttons BS BUTTON External Patient Button for BS 3100 Series Recorders (Franz Binder Connector) Cases BS BAG Leather Case for Recorders of BS 3100 Series VAL BS Case for Recorders of BS 3100 Series
- 58. Spare Parts Catalogue SystemPLUS_EVOLUTION_Spares_ENG_6.0.docxpage 58 OBSOLETE CONTROL DEVICES Control Keypad for EMG / EP KEYPAD 10 Control Keypad for MYOQUICK / MYOHANDY with cable CB USB AB for USB Connection P300 Reaction Time Button BUTTON EP Patient Button with 5 m. cable and 2.5 mm Jack connector, for Reaction Time on TRIGGER BOX OBSOLETE INTERFACE CARD Headbox Interface Cards BQ PCI FO PCI Interface Card with Fibre Optic Connector. Suitable for BQ 124, BQ 132, SAM, SAM FC1, ISA, SD, SD MRI Series Headbox BQ CARD PLUS PCMCIA Interface Cards for ISA, SAM, SAM FC1, SD Headbox Series BQ PCR PCI 2 Interface Card for 2 Slot Standard PCMCIA Drive, Rear, working on PCI bus P300 Trigger Management Device TRIGGER BOX Trigger Adapter and P300 Handling System
