This experiment report summarizes connecting computers and switches in a bus network topology in Cisco Packet Tracer. The objectives were to connect all PCs and switches with cables, send data packets from one PC to another, and confirm successful transmission. IP addresses ranging from 192.168.1.1 to 192.168.1.6 were assigned to the 6 PCs connected by the switches in the bus network topology diagram.

1. Course Name: Computer Networks
Course Code: CSE 318
Experiment Name: Network Topology (BUS) in Cisco
Packet Tracer
Experiment Number: 03
Submitted To:
Pranab Bandhu Nath
Senior Lecturer,
CSE Department,
City University, Dhaka
Submitted By:
Name: Tahsina Tabassum
ID: 1915002503
Batch: 50th
Program: B.Sc. in CSE

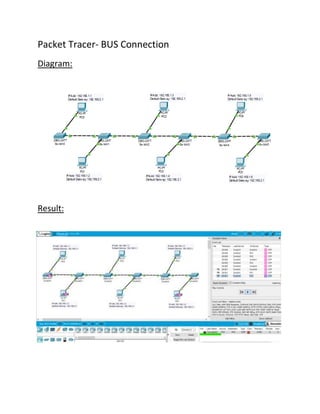

2. Packet Tracer- BUS Connection
Diagram:
Result:

3. Objectives:
Part 1: Connecting all PC & switches with wire/cable.
Part 2: Sending data packet from one PC to another.
Part 3: Sending successful.
IP Addresses:
PC 0 IP: 192.168.1.1
PC 1 IP: 192.168.1.2
PC 2 IP: 192.168.1.3
PC 3 IP: 192.168.1.4
PC 4 IP: 192.168.1.5
PC 5 IP: 192.168.1.6
