The user guide covers phone features, requirements, installation, startup screens, the idle screen, and an overview of key descriptions and customization methods. It provides instructions for making calls, handling calls, managing directories and lists, and configuring additional features. Expansion modules and troubleshooting are also addressed.

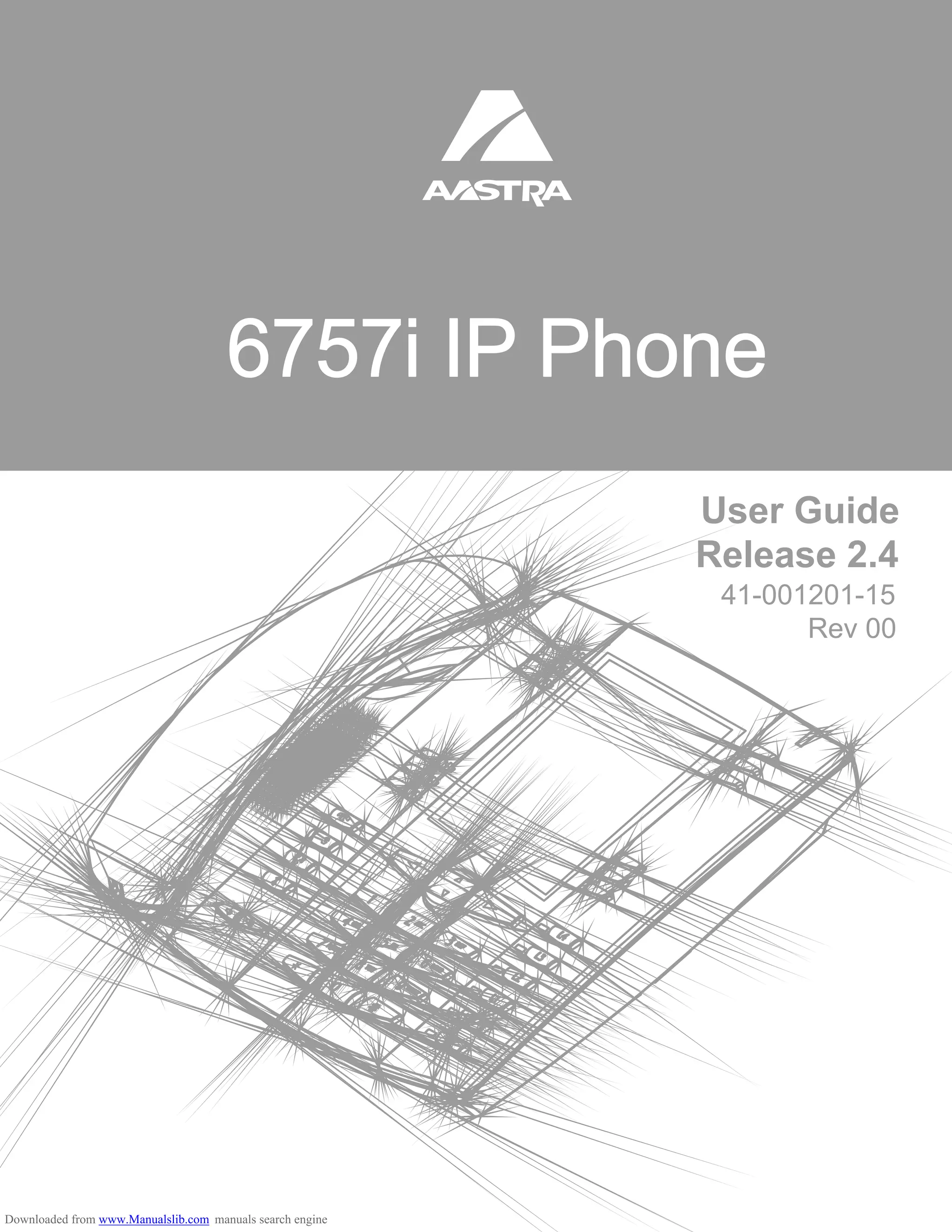

This document is a user guide for the Aastra Model 6757i IP Phone. It includes information about:
- A software license agreement for the phone's software.
- An overview of the phone's features and requirements for installation and setup.
- Instructions for getting started with the phone, including how to power it on and understand the different screens.
- Descriptions of the phone's keys and buttons.
- Methods for customizing settings and options via the phone's user interface and web user interface.
- How to check the phone's status, IP address, and settings.
- Configuring various phone options like ring tones, audio settings, time/date, passwords, and more.
This document provides safety warnings and precautions for using a mobile phone. It advises keeping the phone away from small children, protecting hearing from loud volumes, and avoiding interference with pacemakers. It also warns against use in explosive environments and cautions proper battery and charger handling. Overall, the document stresses safely using the phone and following regulations.
The document is a user manual that provides instructions on how to use a mobile phone. It includes sections on getting started with the phone, idle mode features, call functions, menu functions, and messaging features. The sections cover topics such as installing SIM cards and batteries, making calls, using menus and settings, and sending SMS, MMS and email messages.
This document is a user guide for the CV61 vehicle mount computer running Windows 7. It provides information about setting up and using the CV61, including how to mount, power, and connect accessories to the computer. It also describes the user interface, available Intermec applications, how to manage and configure the computer through Intermec Settings, and how to develop and install additional applications. The guide contains information about operating and maintaining the CV61 in a vehicle mount environment.
인터맥산업용PC Intermec CV61 12.1인치 차량탑재용 산업용패널PC 매뉴얼HION IT
인터맥 CV61은 차량탑재 (지게차 또는 자동차) 모바일 컴퓨터 중에 하나입니다.
강력한 64 비트 1.8GHz 인텔 ® 아톰 프로세서가 적용된 CV61은 Windows 7 Professional 또는 Windows XP 운영 체제 중에서 선택할 수 있습니다.
또한 CV61은 메모리를 많이 차지하는 ERP 및 창고관리시스템 (WMS) 을 지원하기 위해 최대 3GB RAM을 제공합니다.
드롭 인 교체가 쉽고 경제적입니다.
현재 인터맥 CV60 차량 탑재 컴퓨터를 사용중인 경우 CV61은 가장 빠르고 쉬운 마이그레이션 경로를 제공합니다.
CV60 마운팅, 케이블 링, 키보드, 트레이, 스캐너 및 프린터와 호환되도록 설계된 CV61은 비용과 설치 시간을 절약 해줍니다.
내장 된 9-60 VDC 전원 공급 장치는 설치 비용을 낮추고 지게차 배터리가 고장 나더라도 백업을 제공합니다. 옵션으로 제공되는 외부 고전압 및성에 제거 장치 전력 변환기는 물론 기존 CV60 전력 변환기와 함께 사용할 수있는 어댑터 케이블도 제공됩니다.
또한 IT 관리자는 사용자 관리, 보안, 안티 바이러스, 방화벽, 그룹 정책 및 소프트웨어 업데이트를위한 표준 엔터프라이즈 PC 관리 도구를 지원하므로 CV61을 사용하기가 쉽습니다. CV61 옵션 인 Intermec Client Pack 터미널 에뮬레이션 및 산업용 브라우저 소프트웨어는 창고관리시스템 (WMS) 에 빠르고 안정적이며 안전한 연결을 제공합니다. 또한 Intermec 개발자 툴킷을 사용하면 다중 장치 환경에서 응용 프로그램 소프트웨어를 마이그레이션하는 데 드는 시간을 절약 할 수 있습니다.
CV61은 편안하고 친숙하며 쉽게 습득 할 수 있습니다. 매우 밝은 12.1 인치 터치 스크린 디스플레이는 희미하게 빛나는 창고 환경과 햇빛이 비치는 야외에서 쉽게 읽을 수 있습니다. 터치 스크린과 견고한 외부 백라이트 키보드는 장갑을 낀 손으로 쉽게 데이터를 입력 할 수 있도록 설계되었습니다.
안정적인 성능
CV61은 네트워크 보안, 관리 시스템 및 회사 표준과 통합되도록 설계되었습니다.
포괄적 인 네트워크 옵션으로는 시스코® CCXv4 인증을 갖춘 802.11 a / b / g / n과 낮은 신호 레벨을 경험할 수있는 지역에서도 동급 최고의 무선 범위, 로밍 안정성 및 보안을위한 통합 EDR 2.1 Class 1.5 블루투스®가 포함됩니다. 간헐적인 연결. 또한 CV61은 Intermec의 Vocollect VoiceCatalyst ™로 핸즈프리 음성 작업의 정확성, 생산성 및 안전성을 제공합니다.
극한의 온도에 견디도록 제작 된 CV61은 -20 ° C ~ + 50 ° C (-4 ° F ~ + 122 ° F)에서 작동하며 냉장 보관 및 냉동실 환경을 위해 옵션으로 제공되는 터치 스크린 디프 로스터 (-30 ° C까지 -22F).
IP66 등급은 방진 및 압력 세척 기능을 통해 하드웨어를 보호하며 사용자가 교체 할 수있는 SSD (Solid State Disk) 스토리지는 가혹하고 진동이 심한 환경에서도 데이터 무결성을 유지합니다.
CV61과 호환되는 Intermec SR61 제품군의 산업용 핸드헬드 바코드 스캐너를 사용하여 작업배정, 위치확인, 로트추적을 하거나 예외적인 관리를 할 수 있습니다. 온도 변화, 낙하, 먼지 및 날씨와 같은 거친 현실을 견딜 수 있도록 설계되었습니다. 여분의 장거리 스캐닝을위한 옵션이있어 작업자가 지게차의 자리를 떠나지 않고 멀리서도 스캔 할 수 있으며 테더형 또는 블루투스 모델 중 하나에서 사용할 수 있습니다.
PHYSICAL CHARACTERISTICS
Dimensions : 높이: 27.4cm (10.8”) x 폭: 34.3cm (13.5”) x 깊이: 8.4cm (3.3”)
Weight : 5.2 kg (11.5 lbs)
Display : 12.1”, XGA 1024x768, LED backlit
PERFORMANCE CHARACTERISTICS
CPU : Intel® Atom 64-bit D425 1.8GHz
Operating System : Choice of Microsoft Windows® 7 Professional or Windows XP Professional
Memory :
Standard 1GB DDR2 for Windows XP
tandard 2GB DDR2 for Windows 7
User-upgradeable up to 3GB memory total
WIRELESS COMMUNICATIONS
Wireless LAN : 802.11a/b/g/n
Security : WIFI Certified; WPA and WPA2 Security
Authentication : 802.1x
Cisco Compatibility : CCXv4 Certified
Antenna : Dual internal MIMO antennas or optional external primary antenna with auto-sensing feature
Bluetooth : Integrated Bluetooth 2.0+EDR, Class 1.5 (30m range)
INTERFACE
2 USB 2.0 ports with locking breakout cable, 2 RS-232 COM ports with +5V power, CAN-BUS port,
Mic/ Headset port, Stereo Speaker output, DC power input, WiFi primary antenna port with auto-sensing,
RJ45 10/100 Ethernet port, Legacy PS/2 keyboard input
>하이온아이티
주소 : 서울 금천구 가산디지털2로 165, 1304호 (백상스타타워2차)
대표번호 : 02-2038-0018 / 이메일 : hion@hionit.com
홈페이지 : http://hionsmart.com
This document is a user guide for the CV41 vehicle mount computer running Windows CE. It provides information about operating and maintaining the computer such as attaching and removing it from the mounting dock, using accessories like the touchscreen and keypad, connecting power and antennas, transferring files, and understanding the user interface and included applications. The guide also describes how to manage the computer within a network using Intermec's SmartSystems Foundation software and how to develop and install custom applications.
인터맥 CN51 모바일 컴퓨터는 1.5GHz 듀얼 코어 프로세서, 1GB RAM, 16GB 플래시 메모리에 Windows® 또는 Android ™ 운영 체제를 선택할 수있는 탁월한 다 기능성을 제공합니다.
탁월한 사용자 경험을 위해 설계된 CN51 산업용 PDA는 대형, 멀티 터치, 실외 판독 가능 화면은 스크롤을 줄이고 생산성을 높이며 판독이 용이 한 서명을 캡처 할 수있는 공간을 넓히면서 애플리케이션을 볼 수있는 충분한 공간을 제공합니다.
인터맥 CN51 바코드 PDA의 고성능 이미저는 모션 허용 오차와 스캐닝이 탁월하며, 저조도 스캐닝 환경에서도 최적의 바코드 스캐닝 기능을 제공하여 스캔 집약적인 애플리케이션에서 많은 시간과 사용자의 불만을 없애줍니다.
Intermec의 최첨단 이미지 처리 기술과 결합된 5 메가 픽셀 컬러 카메라는 바코드 판독 이상의 고급 기능을 제공합니다.
MDI (Mobile Document Imaging) 및 RDC (Remote Deposit Capture)는 이동 중에도 풀 사이즈 문서 또는 수표를 캡쳐하여 전자 파일로 변환 지점에서 본사로 전송하는 빠르고 안정적인 방법을 제공합니다.
Multi OS (O/S VERSATILITY)
Supports Microsoft® Windows Embedded Handheld 6.5 and Android™ 4.1 Operating Systems for flexible application support and migration.
DISPLAY
Large 4” brilliant WVGA multi-touch display allows for more graphical user interface, display-centric applications.
RUGGED
Withstands multiple 1.5m (5ft) drops to concrete across the operating temperature range and an IP64 seal rating against rain and dust.
SCANNING
Features best-in-class motion tolerance, and support for omnidirectional 1D & 2D barcode scanning.
FLEXIBLE NETWORK
Features WAN radio options with voice and data support including UMTS and Flexible Network UMTS/CDMA, PTT, as well as 802.11 a/b/g/n, Bluetooth, and GPS with GLONASS support.
BATTERY
Industry-leading performance that lasts a full shift and beyond, enhanced by smart battery technology.
PROCESSOR
Equipped with a power-efficient 1.5GHz dual core multi-engine Texas Instruments OMAP4 processor architecture, with 1GB RAM and 16GB Flash memory.
PHYSICAL CHARACTERISTICS
Dimensions with battery : L X W X D: 164 x 74 x 28 mm (base of unit) 32 mm (top of unit) (6.45 x 2.93 x 1.09-1.26 in)
Weight with battery : 350 g (12.3 oz)
POWER
Smart Battery Pack: 3.7V, 3900 mAh; Batteries are IEEE 1725 compliant, Li-Ion, removable, rechargeable.
OPERATING SYSTEM
Microsoft Windows Embedded Handheld v6.5 or Android v4.1*
MULTI-PROCESSOR ARCHITECTURE
Texas Instruments 1.5 GHz OMAP 4470 dual core, multi-engine processor architecture
MEMORY AND STORAGE
Memory: 1 GB RAM
ROM: 16 GB Flash
Customer - accessible miniSD slot for removable memory cards
DISPLAY
10.16 cm (4.0 in), 480 x 800 pixel (WVGA) TFT-LCD display
LCD supports 24 bpp color depth
LED backlight
Ambient light sensor
Resistive multi-touch touch panel
STANDARD COMMUNICATIONS
USB – High Speed 2.0 Host, USB – High Speed 2.0 Client
INTEGRATED CAMMERA OPTION
5 Megapixel auto focus color camera with LED flash
KEYPAD OPTIONS
(27 Key) Numeric or (43 Key) QWERTY with backlit keypad
ACCESSORIES
Supports all CN50 charging and docking accessories as well as FlexDock modular docking system, vehicle dock, vehicle holder, snap on adaptors, removable scan handle, and magnetic stripe reader.
>하이온아이티
주소 : 서울 금천구 가산디지털2로 165, 1304호 (백상스타타워2차)
대표번호 : 02-2038-0018 / 이메일 : hion@hionit.com
홈페이지 : http://hionsmart.com
The document is the FortiGate-200 Administration Guide, version 2.80 MR8. It provides instructions for configuring and managing FortiGate-200 units including system settings, network interfaces, firewall policies, VPN configurations, and other security functions. The guide contains chapters on topics such as the web-based manager interface, system monitoring and firmware updates, network and interface settings, DHCP and routing protocols, user and device authentication, antivirus and intrusion prevention settings, and more. It aims to help administrators securely install and effectively manage FortiGate-200 devices.
This document is a user guide for the Aastra Model 6757i IP Phone. It includes information about:
- A software license agreement for the phone's software.
- An overview of the phone's features and requirements for installation and setup.
- Instructions for getting started with the phone, including how to power it on and understand the different screens.
- Descriptions of the phone's keys and buttons.
- Methods for customizing settings and options via the phone's user interface and web user interface.
- How to check the phone's status, IP address, and settings.
- Configuring various phone options like ring tones, audio settings, time/date, passwords, and more.
This document provides safety warnings and precautions for using a mobile phone. It advises keeping the phone away from small children, protecting hearing from loud volumes, and avoiding interference with pacemakers. It also warns against use in explosive environments and cautions proper battery and charger handling. Overall, the document stresses safely using the phone and following regulations.
The document is a user manual that provides instructions on how to use a mobile phone. It includes sections on getting started with the phone, idle mode features, call functions, menu functions, and messaging features. The sections cover topics such as installing SIM cards and batteries, making calls, using menus and settings, and sending SMS, MMS and email messages.
This document is a user guide for the CV61 vehicle mount computer running Windows 7. It provides information about setting up and using the CV61, including how to mount, power, and connect accessories to the computer. It also describes the user interface, available Intermec applications, how to manage and configure the computer through Intermec Settings, and how to develop and install additional applications. The guide contains information about operating and maintaining the CV61 in a vehicle mount environment.
인터맥산업용PC Intermec CV61 12.1인치 차량탑재용 산업용패널PC 매뉴얼HION IT
인터맥 CV61은 차량탑재 (지게차 또는 자동차) 모바일 컴퓨터 중에 하나입니다.
강력한 64 비트 1.8GHz 인텔 ® 아톰 프로세서가 적용된 CV61은 Windows 7 Professional 또는 Windows XP 운영 체제 중에서 선택할 수 있습니다.
또한 CV61은 메모리를 많이 차지하는 ERP 및 창고관리시스템 (WMS) 을 지원하기 위해 최대 3GB RAM을 제공합니다.
드롭 인 교체가 쉽고 경제적입니다.
현재 인터맥 CV60 차량 탑재 컴퓨터를 사용중인 경우 CV61은 가장 빠르고 쉬운 마이그레이션 경로를 제공합니다.
CV60 마운팅, 케이블 링, 키보드, 트레이, 스캐너 및 프린터와 호환되도록 설계된 CV61은 비용과 설치 시간을 절약 해줍니다.
내장 된 9-60 VDC 전원 공급 장치는 설치 비용을 낮추고 지게차 배터리가 고장 나더라도 백업을 제공합니다. 옵션으로 제공되는 외부 고전압 및성에 제거 장치 전력 변환기는 물론 기존 CV60 전력 변환기와 함께 사용할 수있는 어댑터 케이블도 제공됩니다.
또한 IT 관리자는 사용자 관리, 보안, 안티 바이러스, 방화벽, 그룹 정책 및 소프트웨어 업데이트를위한 표준 엔터프라이즈 PC 관리 도구를 지원하므로 CV61을 사용하기가 쉽습니다. CV61 옵션 인 Intermec Client Pack 터미널 에뮬레이션 및 산업용 브라우저 소프트웨어는 창고관리시스템 (WMS) 에 빠르고 안정적이며 안전한 연결을 제공합니다. 또한 Intermec 개발자 툴킷을 사용하면 다중 장치 환경에서 응용 프로그램 소프트웨어를 마이그레이션하는 데 드는 시간을 절약 할 수 있습니다.
CV61은 편안하고 친숙하며 쉽게 습득 할 수 있습니다. 매우 밝은 12.1 인치 터치 스크린 디스플레이는 희미하게 빛나는 창고 환경과 햇빛이 비치는 야외에서 쉽게 읽을 수 있습니다. 터치 스크린과 견고한 외부 백라이트 키보드는 장갑을 낀 손으로 쉽게 데이터를 입력 할 수 있도록 설계되었습니다.
안정적인 성능
CV61은 네트워크 보안, 관리 시스템 및 회사 표준과 통합되도록 설계되었습니다.
포괄적 인 네트워크 옵션으로는 시스코® CCXv4 인증을 갖춘 802.11 a / b / g / n과 낮은 신호 레벨을 경험할 수있는 지역에서도 동급 최고의 무선 범위, 로밍 안정성 및 보안을위한 통합 EDR 2.1 Class 1.5 블루투스®가 포함됩니다. 간헐적인 연결. 또한 CV61은 Intermec의 Vocollect VoiceCatalyst ™로 핸즈프리 음성 작업의 정확성, 생산성 및 안전성을 제공합니다.
극한의 온도에 견디도록 제작 된 CV61은 -20 ° C ~ + 50 ° C (-4 ° F ~ + 122 ° F)에서 작동하며 냉장 보관 및 냉동실 환경을 위해 옵션으로 제공되는 터치 스크린 디프 로스터 (-30 ° C까지 -22F).
IP66 등급은 방진 및 압력 세척 기능을 통해 하드웨어를 보호하며 사용자가 교체 할 수있는 SSD (Solid State Disk) 스토리지는 가혹하고 진동이 심한 환경에서도 데이터 무결성을 유지합니다.
CV61과 호환되는 Intermec SR61 제품군의 산업용 핸드헬드 바코드 스캐너를 사용하여 작업배정, 위치확인, 로트추적을 하거나 예외적인 관리를 할 수 있습니다. 온도 변화, 낙하, 먼지 및 날씨와 같은 거친 현실을 견딜 수 있도록 설계되었습니다. 여분의 장거리 스캐닝을위한 옵션이있어 작업자가 지게차의 자리를 떠나지 않고 멀리서도 스캔 할 수 있으며 테더형 또는 블루투스 모델 중 하나에서 사용할 수 있습니다.
PHYSICAL CHARACTERISTICS
Dimensions : 높이: 27.4cm (10.8”) x 폭: 34.3cm (13.5”) x 깊이: 8.4cm (3.3”)
Weight : 5.2 kg (11.5 lbs)
Display : 12.1”, XGA 1024x768, LED backlit
PERFORMANCE CHARACTERISTICS
CPU : Intel® Atom 64-bit D425 1.8GHz
Operating System : Choice of Microsoft Windows® 7 Professional or Windows XP Professional
Memory :
Standard 1GB DDR2 for Windows XP
tandard 2GB DDR2 for Windows 7
User-upgradeable up to 3GB memory total
WIRELESS COMMUNICATIONS
Wireless LAN : 802.11a/b/g/n
Security : WIFI Certified; WPA and WPA2 Security
Authentication : 802.1x
Cisco Compatibility : CCXv4 Certified
Antenna : Dual internal MIMO antennas or optional external primary antenna with auto-sensing feature
Bluetooth : Integrated Bluetooth 2.0+EDR, Class 1.5 (30m range)
INTERFACE
2 USB 2.0 ports with locking breakout cable, 2 RS-232 COM ports with +5V power, CAN-BUS port,
Mic/ Headset port, Stereo Speaker output, DC power input, WiFi primary antenna port with auto-sensing,
RJ45 10/100 Ethernet port, Legacy PS/2 keyboard input
>하이온아이티
주소 : 서울 금천구 가산디지털2로 165, 1304호 (백상스타타워2차)
대표번호 : 02-2038-0018 / 이메일 : hion@hionit.com
홈페이지 : http://hionsmart.com
This document is a user guide for the CV41 vehicle mount computer running Windows CE. It provides information about operating and maintaining the computer such as attaching and removing it from the mounting dock, using accessories like the touchscreen and keypad, connecting power and antennas, transferring files, and understanding the user interface and included applications. The guide also describes how to manage the computer within a network using Intermec's SmartSystems Foundation software and how to develop and install custom applications.
인터맥 CN51 모바일 컴퓨터는 1.5GHz 듀얼 코어 프로세서, 1GB RAM, 16GB 플래시 메모리에 Windows® 또는 Android ™ 운영 체제를 선택할 수있는 탁월한 다 기능성을 제공합니다.
탁월한 사용자 경험을 위해 설계된 CN51 산업용 PDA는 대형, 멀티 터치, 실외 판독 가능 화면은 스크롤을 줄이고 생산성을 높이며 판독이 용이 한 서명을 캡처 할 수있는 공간을 넓히면서 애플리케이션을 볼 수있는 충분한 공간을 제공합니다.
인터맥 CN51 바코드 PDA의 고성능 이미저는 모션 허용 오차와 스캐닝이 탁월하며, 저조도 스캐닝 환경에서도 최적의 바코드 스캐닝 기능을 제공하여 스캔 집약적인 애플리케이션에서 많은 시간과 사용자의 불만을 없애줍니다.
Intermec의 최첨단 이미지 처리 기술과 결합된 5 메가 픽셀 컬러 카메라는 바코드 판독 이상의 고급 기능을 제공합니다.
MDI (Mobile Document Imaging) 및 RDC (Remote Deposit Capture)는 이동 중에도 풀 사이즈 문서 또는 수표를 캡쳐하여 전자 파일로 변환 지점에서 본사로 전송하는 빠르고 안정적인 방법을 제공합니다.
Multi OS (O/S VERSATILITY)
Supports Microsoft® Windows Embedded Handheld 6.5 and Android™ 4.1 Operating Systems for flexible application support and migration.
DISPLAY
Large 4” brilliant WVGA multi-touch display allows for more graphical user interface, display-centric applications.
RUGGED
Withstands multiple 1.5m (5ft) drops to concrete across the operating temperature range and an IP64 seal rating against rain and dust.
SCANNING
Features best-in-class motion tolerance, and support for omnidirectional 1D & 2D barcode scanning.
FLEXIBLE NETWORK
Features WAN radio options with voice and data support including UMTS and Flexible Network UMTS/CDMA, PTT, as well as 802.11 a/b/g/n, Bluetooth, and GPS with GLONASS support.
BATTERY
Industry-leading performance that lasts a full shift and beyond, enhanced by smart battery technology.
PROCESSOR
Equipped with a power-efficient 1.5GHz dual core multi-engine Texas Instruments OMAP4 processor architecture, with 1GB RAM and 16GB Flash memory.
PHYSICAL CHARACTERISTICS
Dimensions with battery : L X W X D: 164 x 74 x 28 mm (base of unit) 32 mm (top of unit) (6.45 x 2.93 x 1.09-1.26 in)
Weight with battery : 350 g (12.3 oz)
POWER
Smart Battery Pack: 3.7V, 3900 mAh; Batteries are IEEE 1725 compliant, Li-Ion, removable, rechargeable.
OPERATING SYSTEM
Microsoft Windows Embedded Handheld v6.5 or Android v4.1*
MULTI-PROCESSOR ARCHITECTURE
Texas Instruments 1.5 GHz OMAP 4470 dual core, multi-engine processor architecture
MEMORY AND STORAGE
Memory: 1 GB RAM
ROM: 16 GB Flash
Customer - accessible miniSD slot for removable memory cards
DISPLAY
10.16 cm (4.0 in), 480 x 800 pixel (WVGA) TFT-LCD display
LCD supports 24 bpp color depth
LED backlight
Ambient light sensor
Resistive multi-touch touch panel
STANDARD COMMUNICATIONS
USB – High Speed 2.0 Host, USB – High Speed 2.0 Client
INTEGRATED CAMMERA OPTION
5 Megapixel auto focus color camera with LED flash
KEYPAD OPTIONS
(27 Key) Numeric or (43 Key) QWERTY with backlit keypad
ACCESSORIES
Supports all CN50 charging and docking accessories as well as FlexDock modular docking system, vehicle dock, vehicle holder, snap on adaptors, removable scan handle, and magnetic stripe reader.
>하이온아이티
주소 : 서울 금천구 가산디지털2로 165, 1304호 (백상스타타워2차)
대표번호 : 02-2038-0018 / 이메일 : hion@hionit.com
홈페이지 : http://hionsmart.com
The document is the FortiGate-200 Administration Guide, version 2.80 MR8. It provides instructions for configuring and managing FortiGate-200 units including system settings, network interfaces, firewall policies, VPN configurations, and other security functions. The guide contains chapters on topics such as the web-based manager interface, system monitoring and firmware updates, network and interface settings, DHCP and routing protocols, user and device authentication, antivirus and intrusion prevention settings, and more. It aims to help administrators securely install and effectively manage FortiGate-200 devices.
The document provides service information for the Acer TravelMate C300 series laptop, including:
- An overview of the laptop's specifications, components, indicators, keys, touchpad, and hardware configurations.
- Instructions for using the BIOS setup utility and accessing service utilities.
- Step-by-step guides for disassembling parts like the battery, hard drive, keyboard, and display module.
- Troubleshooting information like POST error messages and symptoms.
- Diagrams of connector and jumper locations.
- A list of replaceable parts and their part numbers.
- Details on tested operating system environments and compatible components for the TravelMate C300 series.
This document provides technical information about the Harmony SCU HMI controller, including:
- An overview of the system architecture, package contents, and device functions.
- Requirements for installing the controller, including mechanical, electrical, and wiring guidelines.
- Descriptions of the controller modules and their input/output capabilities.
- Instructions for connecting devices, installing the controller, and connecting to a PC for configuration.
- Specifications for the controller's general operation, I/O, memory, and communication interfaces.
- Procedures for configuring, troubleshooting, and maintaining the controller system.
This user guide provides instructions for operating a portable dual-mode telephone. It includes sections on phone basics, making calls, text entry, phone menus and settings, as well as safety warnings and legal information. The document contains all information needed to understand and use the core functionality of the telephone.
This document is the user's guide for the Xplore Technologies XSLATE B10 tablet. It provides important safety information and instructions for using and maintaining the tablet. The guide covers system overview, getting started, using the touch screen and EMR pen, maintaining the device by caring for components like the display screen, and troubleshooting. It also includes specifications, regulatory notices, and environmental policies.
This document provides an overview and instructions for using FortiGate UTM (Unified Threat Management) features including antivirus, intrusion prevention, web filtering, email filtering, application control, and network defence techniques. It discusses UTM components, protection profiles, SSL inspection, monitoring threats, blocking probes, defending against denial of service attacks, traffic inspection, and content inspection/filtering. The guide is organized to help users understand and configure these security features in FortiOS 4.0 MR1.
인터맥프린터 Intermec PM4i 열전사감열 RFID 바코드프린터 산업용프린터 매뉴얼HION IT
다기능 PM4i는 최신 RFID 기술과 함께 Intermec의 바코드프린터에서 사용자들이 기대해왔던 신뢰성 및 견고성과 함께 뛰어난 성능을 제공합니다.
기업들은 PM4i를 통해 RFID 어플리케이션을 구동시켜 RFID 스마트 라벨을 생성기킬 수 있습니다.
PM4i는 가변 주파수 RFID Tag 를 사용함으로써 전세계에서 사용할 수 있는 라벨 인코딩과 인쇄를 동시에 할 수 있으며, 이를 통해 지역 표준에 따라 달라지는 여러 주파수 Tag 를 읽을 수 있습니다.
PM4i 는 완벽한 프린터 독립성 어플리케이션에 대한 사용자 정의 프로그램을 실행하는 "스마트 클라이언트"의 역할도 할 수 있습니다.
PM4i 프린터는 PC 필요없이 추가적인 하드웨어(예, 스캐너, 다른 프린터, 컨베이어)를 작동시킬 수 있고, 네트워크 호스트로부터 정보에 접근할 수 있으며, 기능 추가를 위한 어플리케이션으로도 변경시킬 수 있습니다.
통합 EasyLAN 이더넷, USB, 직렬 연결은 PM4i와의 기본 인터페이스 입니다.
사용자는 추가적인 EasyLAN 무선 및 산업용 인터페이스 보드를 선택할 수 있습니다.
EasyLAN 무선 인터페이스는 통합 표준 802.11b 무선 통신을 사용합니다.
네트워크를 통해 이 무선 통신은 중계된 정보의 128-bit WEP 암호화를 제공합니다.
Intermec의 유선 및 무선 기술은 보안 인쇄와 모든 환경에 대한 네트워크 인프라를 보장합니다.
PM4i 바코드프린터는 공급망 전체에 걸쳐 신속하고 정확한 데이터 수집을 위해 모든 물품들이 RFID를 통해 라벨이 주어지고, 추적된다는 것을 보장하며, 제조업, 창고업 및 물류업 용도에 적합하도록 설계되었습니다.
향후 RFID 표준으로서의 UHF Gen 2를 지원
향후 RFID 표준 발전을 지원하기위한 고유 제품기능으로 고객 투자보호
주파수 가변 UHF Tag를 인코딩하는 최초의 RFID 프린터
바코드, 판독 가능한 택스트, 그래픽을 동시인쇄
독립형 프린터 어플리케이션 지원
통합 EastLAN 이더넷, USB, 직렬 인터페이스 표준
EasyLAN 무선 인터페이스(옵션)
DESCRIPTION
Direct thermal and thermal transfer label, ticket and tag printer. Also available with RFID.
PHYSICAL CHARACTERISTICS
LxHxW : 543 x 261 x 298mm (21.38 x10.28 x 11.73 in)
Weight : 13.5 kg (29.76 lbs.)
PRINT SPECIFICATIONS
Max. Width : 104 mm (4.09 in) at 203 dpi and 406dpi; 105.7 mm (4.16 in) at 300 dpi.
Max. Length : 4095 mm (161.2 in) at 203 dpi; 2730 mm (107.5 in) at 300 dpi. 1016 mm (40 in) at 406 dpi.
RFID STANDARD & FREQUENCIES
Supports ISO 18000-6B and 18000-6C / EPC Class 1 Generation 2, 865-928 MHz radio configured to comply with local UHF FID regulations including FCC and ETSI. Contact local representative for availability in particular regions.
PRINT SPEED
100 - 200 mm/s (4 - 8 ips) variable (203 dpi)
100 - 150 mm/s (4 - 6 ips) variable (300/406 dpi)
PRINT RESOLUTION
8 dots/mm (203 dpi)
11.8 dots/mm (300 dpi)
16 dots/mm (406 dpi)
MEDIA
Type : Labels and Tags
Max/Min Width : 114.3 /25.4 mm (4.5 /1 in)
Thickness : 2.5 to 8.7 mil
Configuration : Roll-fed or fanfold
Sensing : Gap, notch, black mark, continuous
Label Roll Max Diamete r: 213 mm (8.38 in)
Label Roll Core : 38-76mm (1.5-3 in)
Type : Ribbons
Roll Max Diameter : 82 mm (3.2 in), approx. 450m
Core ID : 25.4 mm (1 in)
Type : Wax, mid-range, resin
MEMORY
Standard : 16MB Flash memory, 32MB SDRAM, 1 Compact Flash slot
Available : 1GB CompactFlash memory, multi-GB USB memory device (FAT16/FAT32 USB drivers supported)
POWER SUPPLY
AC Voltage : 90 to 265 VAC, 45 to 65Hz
PFC Regulation : IEC 61000-3-2
Power Consumption : Standby 15W; Peak 300W
OPERATING ENVIRONMENT
Ambient Operating Temperature : +5°C to +40°C (+41°F to +104°F)
Storage Temperature : -20°C to +70°C (-4°F to +152°F)
Humidity : 20 to 80% non-condensing
>하이온아이티
주소 : 서울 금천구 가산디지털2로 165, 1304호 (백상스타타워2차)
대표번호 : 02-2038-0018 / 이메일 : hion@hionit.com
홈페이지 : http://hionsmart.com
This document is a user's manual that provides instructions and specifications for Toshiba Satellite laptop models L700, L740, L745, L700D, L740D and L745D. It includes sections on getting started, an overview of hardware features and components, operating instructions, keyboard functions, power management settings, hardware setup options, and troubleshooting. The manual provides guidance on set up, use and maintenance of the laptops to help users get the most from their Toshiba device.
Samsung Galaxy Rush Manual / User Guidemanualsheet
This document is the user guide for the Samsung SPH-M830 phone. It provides information about setting up the phone and service, phone features and operation, service features, and safety information. The guide disclaims warranties and liability for damages except as explicitly set forth. It also contains information about open source software used in the phone.
This document provides a user manual for the G9 mobile phone. It covers basics of safety, phone use, features, menus and troubleshooting. The introduction section outlines key features like handwriting input, photo/video/music capabilities, and personalization options. Safety tips are provided around phone, battery and charger handling. Instructions are given for setup including battery, SIM card, unlocking and connecting to networks. The manual then details functions for dialing, calls, menus and settings.
This document is a user manual that provides instructions on how to use a Gigaset S850PRO telephone. It includes sections on safety precautions, getting started, using the phone's features, phone settings, additional functions, technical specifications and more. The manual explains how to make calls, access voicemail and directories, change settings and use other phone features in detail through text and images.
Samsung is World’s second largest Mobile manufacturing company launching various groundbreaking and attractive mobiles in all range of price from low to high. Samsung R680 Repp has 3.2-inch TFT touchscreen display with 320 X 480 pixels resolution. It has 3.15 MP camera with digital zoom, FM Radio with recorder, multi format music player with 3.5mm audio jack, and social networking integration.
This document provides documentation for the HiPath 1100 communication system, including user manuals, programming manuals, quick references guides, and service information. It describes the system features and operation of the HiPath 1120, 1150, and 1190 models. The documentation covers using the system and Profiset 3030 phones, making calls, caller features, and other functions. Safety and regulatory information is also provided.
This document is the user manual for the FET-Pro430 MSP430 Flash Programmer software version 2.8 from Elprotronic Inc. It provides instructions on installing the software and drivers, connecting and using the hardware to program MSP430 microcontrollers. Key functions covered include selecting the microcontroller type, loading and managing code files, programming/erasing flash memory, verifying writes, reading memory contents, and options for serializing programmed devices. The manual includes disclaimers of warranty and limitations of liability for the software and hardware.
This user guide provides information about the R12 Tablet PC and its optional features. It describes the tablet's hardware components including front, back, sides and pen. It provides steps for initial setup and use including powering on, connecting to WiFi, locking/unlocking the screen, and using sleep/hibernate modes. It also describes the included Motion Computing applications and tablet settings that can be configured.
1. The document provides an operation manual for the IQ-BASIC-GPS flight instrument.
2. It describes the instrument's key features and functions, including altimeters, variometers, navigation functions using GPS, waypoints, routes, and flight memory recording.
3. The manual provides detailed instructions on operating the instrument, navigating menus to adjust settings, and using functions like variometer tones, waypoints, and flight analysis.
This document provides instructions for using the Huawei U8220 mobile phone. It covers topics such as safety precautions, an overview of phone features and buttons, how to power on/off the phone, make calls, manage contacts, send messages, use apps like the browser, camera and music player, and basic phone settings. Safety tips are provided at the beginning, such as avoiding moisture, high temperatures, and restricted areas.
지브라PDA Zebra MC17시리즈 1D 산업용PDA 퍼스널쇼퍼 바코드PDA 매뉴얼HION IT
지브라 MC17 시리즈 산업용 PDA는 구매 선호도 기반으로 한 고객별 프로모션과 제안으로 고객 경험의 가치를 높이십시오.
매장 직원이 현장에서 재고와 가격을 보다 효율적으로 관리할 수 있도록 지원합니다.
지브라 MC17 시리즈 바코드 PDA는 다목적 리테일 모바일 컴퓨터로 간접 비용을 줄이고 고객 충성도를 향상시킵니다.
고객의 쇼핑 경험을 혁신적으로 개선
퍼스널 쇼퍼 시리즈 무선 리테일 모바일 컴퓨터는 새로운 차원의 우수한 고객 서비스와 향상된 지원 생산성 및 효율성을 제공합니다.
지브라 MC17 바코드 PDA 다목적 장치는 직원들에게 현장에서 고객의 질문에 답하고 재고 보충에서 가격 인하까지 재고를 오류 없이 효율적으로 관리하며 계산대 대기 시간을 단축하는 데 필요한 도구를 제공하기 위한 목적으로 설계되었습니다.
O/S 선택 (안드로이드 또는 윈도우즈)
널리 사용되는 모바일 운영 체제인 Android KitKat 또는 Windows Embedded Compact 7 최신 버전 중에서 선택하십시오.
그런 다음 기존 MC17 Windows 장치를 Android로 쉽게 업데이트할 수 있습니다.
거의 모든 바코드를 즉시 캡처
지브라는 첨단 이미징 엔진은 바코드가 용지에 인쇄되었거나, 모바일 폰 화면에 표시되거나, 손상, 긁힘 또는 인쇄 품질 저하와 상관없이 모든 1D 또는 2D 바코드를 빠르게 캡처할 수 있습니다.
또한 전방향 스캔이 가능하므로 구매 고객과 매장 직원 모두에게 포인트-앤-슛(Point-and-Shoot) 방식의 간편함을 제공합니다.
Windows CE 5.0 Professional
Standard tool set for rapid application development.
Full Internet Explorer 6.0
Familiar platform for web-enabled applications.
Zebra PocketBrowser compatibility
Dramatically simplifies development of complex web-based solutions that integrate advanced functionalities such as barcode scanning, wireless connectivity and mobile printing.
320x240 QVGA colour display (MC17T only – backlit, resistive touch panel)
Enables rich content delivery for an enhanced customer experience.
Durability
Built to endure everyday drops to ensure reliable operation and investment protection.
Six-key intuitive interface
Easy to use for first time users of any age.
Sleek design
Easy to hold, minimizes user fatigue.
Wi-Fi IEEE 802.11 a/b/g
Provides wireless freedom for your customers and instant access to information for store associates.
Large capacity battery
Provides up to eight hours of continuous operation.
Zebra's Mobility Services Platform compatibility
Reduces cost, complexity, and effort associated with device management.
Customisable top cover
Professional branding reminds customers of your competitive identity and provides an additional revenue stream for promotional opportunities for manufacturers.
PHYSICAL CHARACTERISTICS
Dimensions : 2.3 in. H x 8.11 in. L x 3.2 in. W/ 5.9 cm H x 20.6 cm L x 8.1 cm W
Weight : 9.5 oz./270 g (with battery)
Display :
MC17A: 2.8 in. 320x240 QVGA
MC17T: 2.8 in. 320x240 QVGA backlit resistive touch screen
Keyboard : 6 fully programmable keys
Power Source : Rechargeable 2400 mAh Li-ION battery pack
>하이온아이티
주소 : 서울 금천구 가산디지털2로 165, 1304호 (백상스타타워2차)
대표번호 : 02-2038-0018 / 이메일 : hion@hionit.com
홈페이지 : http://hionsmart.com/
견고한 지브라 MC67 산업용PDA 시리즈를 사용하여 보다 빠르고 스마트한 작업에 필요한 도구를 현장 근무자에게 제공하십시오.
작업자는 완벽한 기능을 갖춘 이 기기를 사용하여 백엔드 시스템의 정보에 액세스하고 조건에 관계없이 거의 모든 바코드를 스캔할 수 있으며 문서를 캡처하여 간편하게 기록을 보관할 수 있습니다. 또한 실시간 수리 지원을 위해 동영상과 사진을 촬영, 전송할 수 있으며 도착 창에서 고객에게 전화를 할 수 있습니다.
현장 업무에 최적화된 지브라의 MC67 바코드PDA는 보다 많은 작업, 예를들어 장비수리, 물품픽업 또는 배송, 주문접수, 건물 또는 레스토랑 점검, 고지서 발행 또는 경쟁 정보 수집 등을 수행하는 모바일 컴퓨터입니다.
MC67 Base 모델
비용 효과적인 라인 확장을 통한 현장 근무자의 생산성 향상
MC67 Base는 MC67 시리즈의 비용대비 효과적인 확장입니다.
튼튼한 보급형 플랫폼을 찾는 고객들에게 MC67 Base는 현장 근로자에게 생산성을 높일 수 있는 모든 기능을 제공하며 MC65 및 MC55 액세서리와 역호환이 될 뿐 아니라 MC67 프리미엄 버전으로 귀사 시스템에 액세스할 수 있도록 지원합니다.
Windows® Embedded Handheld 6.5가 실행되는 MC67 Base는 복잡한 애플리케이션, 유연한 고속 이동통신 및 Wi-Fi 무선 연결을 지원하고 거의 모든 유형의 데이터를 캡처할 수 있습니다.
결과는? 향상된 고객 서비스. 고객 만족도 제고. 고객 유지 가능성 증대.
MC67 Premium 모델
작업자가 작업을 수행하는 데 필요한 모든 기능 제공
MC67 Premium을 사용하는 경우 모빌리티 전략을 가장 효과적으로 지원하는 운영 체제(Windows® Embedded Handheld 6.5 또는 Android™ Jelly Bean 4.1)를 선택하여 다양한 비즈니스 시스템 정보에 빠르게 액세스함으로써 작업 효율성과 정확성을 향상시킬 수 있습니다.
수리가 필요한 장비를 촬영한 동영상 클립을 보내 내부 전문가 또는 장비 제조업체로부터 즉시 조언을 얻습니다.
고해상도 스냅 사진으로 상황을 기록, 바코드를 스캔하여 사용 중인 부품을 빠르고 정확하게 추적하며 중요 문서는 캡처합니다.
고객에게 전화를 걸어 도착 시간 창을 업데이트합니다. 이메일을 확인하고 답장을 보냅니다.
또한 현재 MC65를 사용하는 경우 대부분의 기존 MC55/MC65 액세서리와의 백워드 호환성에 따라 최신 모바일 컴퓨팅 기술로의 비용 효율적인 업그레이드가 가능합니다.
PHYSICAL CHARACTERISTICE
Dimensions : 6.38 in. L x 3.03 in. W x 1.32 in. D (162.2 mm L x 77 mm W x 33.5 mm D)
Weight : 13.5 oz./385 g (with rechargeable 3600mAh Lithium Ion battery)
Display : 3.5 in. color VGA display, touch, 640 x 480 portrait, 650+ NIT s
Standard Battery : Rechargeable Lithium Ion 3.7V, 3600 mAh battery
Backup Battery : Ni-MH battery (rechargeable) 15mAh 3.6V nominal (not user-accessible or replaceable)
Expansion Slot : Micro SD card slot (supports up to 32GB)
Communication : Interface: USB 2.0 high speed (host and client)
PERFORMANCE CHARACTERISTICS
CPU : Dual core 1GHz OMAP 4 processor
Operating System : Microsoft® Embedded Handheld 6.5 Professional
Memory : 256 MB RAM/2 GB Flash
DATA CAPTURE
Options :
2D SE4500-SR imager
2D SE4500-SR imager + 8 MP Camera
2D SE4500-DL imager + 8 MP Camera
2D SE4500-DL imager
2D SE4500-DPM/HD + 8 MP camera
Data Types : 1D/2D bar codes, photographs, video, signatures and documents
WIRELESS VOICE AND DATA COMMUNICATIONS
WAN Radio : 4G HSPA+ Frequency band: UMTS/HSDPA and HSUP A - 850, 900, 1900 and 2100 MHz; GSM/EDGE: 850, 900, 1800 and 1900 MHz
WLAN : Push-to-talk (PTT ); VoIP -ready
INTEGRATED GPS
Integrated standalone and Assisted-GPS (A-GPS): SUPL 1.0
WIRELESS PAN AND DATA COMMUNICATIONS
Bluetooth Class II , v2.1 with Enhanced Data Rate (EDR)
>하이온아이티
주소 : 서울 금천구 가산디지털2로 165, 1304호 (백상스타타워2차)
대표번호 : 02-2038-0018 / 이메일 : hion@hionit.com
홈페이지 : http://hionsmart.com
This document describes a specification for performing remote procedure calls over the Data Distribution Service (DDS). It provides machine-readable files for C++ and Java implementations and replaces an earlier beta 1 version. The document outlines copyrights and licensing for using the specification and contacting representatives from companies involved in its development. It also details OMG's issue reporting process for providing feedback.
The document provides service information for the Acer TravelMate C300 series laptop, including:
- An overview of the laptop's specifications, components, indicators, keys, touchpad, and hardware configurations.
- Instructions for using the BIOS setup utility and accessing service utilities.
- Step-by-step guides for disassembling parts like the battery, hard drive, keyboard, and display module.
- Troubleshooting information like POST error messages and symptoms.
- Diagrams of connector and jumper locations.
- A list of replaceable parts and their part numbers.
- Details on tested operating system environments and compatible components for the TravelMate C300 series.
This document provides technical information about the Harmony SCU HMI controller, including:
- An overview of the system architecture, package contents, and device functions.
- Requirements for installing the controller, including mechanical, electrical, and wiring guidelines.
- Descriptions of the controller modules and their input/output capabilities.
- Instructions for connecting devices, installing the controller, and connecting to a PC for configuration.
- Specifications for the controller's general operation, I/O, memory, and communication interfaces.
- Procedures for configuring, troubleshooting, and maintaining the controller system.
This user guide provides instructions for operating a portable dual-mode telephone. It includes sections on phone basics, making calls, text entry, phone menus and settings, as well as safety warnings and legal information. The document contains all information needed to understand and use the core functionality of the telephone.
This document is the user's guide for the Xplore Technologies XSLATE B10 tablet. It provides important safety information and instructions for using and maintaining the tablet. The guide covers system overview, getting started, using the touch screen and EMR pen, maintaining the device by caring for components like the display screen, and troubleshooting. It also includes specifications, regulatory notices, and environmental policies.
This document provides an overview and instructions for using FortiGate UTM (Unified Threat Management) features including antivirus, intrusion prevention, web filtering, email filtering, application control, and network defence techniques. It discusses UTM components, protection profiles, SSL inspection, monitoring threats, blocking probes, defending against denial of service attacks, traffic inspection, and content inspection/filtering. The guide is organized to help users understand and configure these security features in FortiOS 4.0 MR1.
인터맥프린터 Intermec PM4i 열전사감열 RFID 바코드프린터 산업용프린터 매뉴얼HION IT
다기능 PM4i는 최신 RFID 기술과 함께 Intermec의 바코드프린터에서 사용자들이 기대해왔던 신뢰성 및 견고성과 함께 뛰어난 성능을 제공합니다.
기업들은 PM4i를 통해 RFID 어플리케이션을 구동시켜 RFID 스마트 라벨을 생성기킬 수 있습니다.
PM4i는 가변 주파수 RFID Tag 를 사용함으로써 전세계에서 사용할 수 있는 라벨 인코딩과 인쇄를 동시에 할 수 있으며, 이를 통해 지역 표준에 따라 달라지는 여러 주파수 Tag 를 읽을 수 있습니다.
PM4i 는 완벽한 프린터 독립성 어플리케이션에 대한 사용자 정의 프로그램을 실행하는 "스마트 클라이언트"의 역할도 할 수 있습니다.
PM4i 프린터는 PC 필요없이 추가적인 하드웨어(예, 스캐너, 다른 프린터, 컨베이어)를 작동시킬 수 있고, 네트워크 호스트로부터 정보에 접근할 수 있으며, 기능 추가를 위한 어플리케이션으로도 변경시킬 수 있습니다.
통합 EasyLAN 이더넷, USB, 직렬 연결은 PM4i와의 기본 인터페이스 입니다.
사용자는 추가적인 EasyLAN 무선 및 산업용 인터페이스 보드를 선택할 수 있습니다.
EasyLAN 무선 인터페이스는 통합 표준 802.11b 무선 통신을 사용합니다.
네트워크를 통해 이 무선 통신은 중계된 정보의 128-bit WEP 암호화를 제공합니다.
Intermec의 유선 및 무선 기술은 보안 인쇄와 모든 환경에 대한 네트워크 인프라를 보장합니다.
PM4i 바코드프린터는 공급망 전체에 걸쳐 신속하고 정확한 데이터 수집을 위해 모든 물품들이 RFID를 통해 라벨이 주어지고, 추적된다는 것을 보장하며, 제조업, 창고업 및 물류업 용도에 적합하도록 설계되었습니다.
향후 RFID 표준으로서의 UHF Gen 2를 지원
향후 RFID 표준 발전을 지원하기위한 고유 제품기능으로 고객 투자보호
주파수 가변 UHF Tag를 인코딩하는 최초의 RFID 프린터
바코드, 판독 가능한 택스트, 그래픽을 동시인쇄
독립형 프린터 어플리케이션 지원
통합 EastLAN 이더넷, USB, 직렬 인터페이스 표준
EasyLAN 무선 인터페이스(옵션)
DESCRIPTION
Direct thermal and thermal transfer label, ticket and tag printer. Also available with RFID.
PHYSICAL CHARACTERISTICS
LxHxW : 543 x 261 x 298mm (21.38 x10.28 x 11.73 in)
Weight : 13.5 kg (29.76 lbs.)
PRINT SPECIFICATIONS
Max. Width : 104 mm (4.09 in) at 203 dpi and 406dpi; 105.7 mm (4.16 in) at 300 dpi.
Max. Length : 4095 mm (161.2 in) at 203 dpi; 2730 mm (107.5 in) at 300 dpi. 1016 mm (40 in) at 406 dpi.
RFID STANDARD & FREQUENCIES
Supports ISO 18000-6B and 18000-6C / EPC Class 1 Generation 2, 865-928 MHz radio configured to comply with local UHF FID regulations including FCC and ETSI. Contact local representative for availability in particular regions.
PRINT SPEED
100 - 200 mm/s (4 - 8 ips) variable (203 dpi)
100 - 150 mm/s (4 - 6 ips) variable (300/406 dpi)
PRINT RESOLUTION
8 dots/mm (203 dpi)
11.8 dots/mm (300 dpi)
16 dots/mm (406 dpi)
MEDIA
Type : Labels and Tags
Max/Min Width : 114.3 /25.4 mm (4.5 /1 in)
Thickness : 2.5 to 8.7 mil
Configuration : Roll-fed or fanfold
Sensing : Gap, notch, black mark, continuous
Label Roll Max Diamete r: 213 mm (8.38 in)
Label Roll Core : 38-76mm (1.5-3 in)
Type : Ribbons
Roll Max Diameter : 82 mm (3.2 in), approx. 450m
Core ID : 25.4 mm (1 in)
Type : Wax, mid-range, resin
MEMORY
Standard : 16MB Flash memory, 32MB SDRAM, 1 Compact Flash slot
Available : 1GB CompactFlash memory, multi-GB USB memory device (FAT16/FAT32 USB drivers supported)
POWER SUPPLY
AC Voltage : 90 to 265 VAC, 45 to 65Hz
PFC Regulation : IEC 61000-3-2
Power Consumption : Standby 15W; Peak 300W
OPERATING ENVIRONMENT
Ambient Operating Temperature : +5°C to +40°C (+41°F to +104°F)
Storage Temperature : -20°C to +70°C (-4°F to +152°F)
Humidity : 20 to 80% non-condensing
>하이온아이티
주소 : 서울 금천구 가산디지털2로 165, 1304호 (백상스타타워2차)
대표번호 : 02-2038-0018 / 이메일 : hion@hionit.com
홈페이지 : http://hionsmart.com
This document is a user's manual that provides instructions and specifications for Toshiba Satellite laptop models L700, L740, L745, L700D, L740D and L745D. It includes sections on getting started, an overview of hardware features and components, operating instructions, keyboard functions, power management settings, hardware setup options, and troubleshooting. The manual provides guidance on set up, use and maintenance of the laptops to help users get the most from their Toshiba device.
Samsung Galaxy Rush Manual / User Guidemanualsheet
This document is the user guide for the Samsung SPH-M830 phone. It provides information about setting up the phone and service, phone features and operation, service features, and safety information. The guide disclaims warranties and liability for damages except as explicitly set forth. It also contains information about open source software used in the phone.
This document provides a user manual for the G9 mobile phone. It covers basics of safety, phone use, features, menus and troubleshooting. The introduction section outlines key features like handwriting input, photo/video/music capabilities, and personalization options. Safety tips are provided around phone, battery and charger handling. Instructions are given for setup including battery, SIM card, unlocking and connecting to networks. The manual then details functions for dialing, calls, menus and settings.
This document is a user manual that provides instructions on how to use a Gigaset S850PRO telephone. It includes sections on safety precautions, getting started, using the phone's features, phone settings, additional functions, technical specifications and more. The manual explains how to make calls, access voicemail and directories, change settings and use other phone features in detail through text and images.
Samsung is World’s second largest Mobile manufacturing company launching various groundbreaking and attractive mobiles in all range of price from low to high. Samsung R680 Repp has 3.2-inch TFT touchscreen display with 320 X 480 pixels resolution. It has 3.15 MP camera with digital zoom, FM Radio with recorder, multi format music player with 3.5mm audio jack, and social networking integration.
This document provides documentation for the HiPath 1100 communication system, including user manuals, programming manuals, quick references guides, and service information. It describes the system features and operation of the HiPath 1120, 1150, and 1190 models. The documentation covers using the system and Profiset 3030 phones, making calls, caller features, and other functions. Safety and regulatory information is also provided.
This document is the user manual for the FET-Pro430 MSP430 Flash Programmer software version 2.8 from Elprotronic Inc. It provides instructions on installing the software and drivers, connecting and using the hardware to program MSP430 microcontrollers. Key functions covered include selecting the microcontroller type, loading and managing code files, programming/erasing flash memory, verifying writes, reading memory contents, and options for serializing programmed devices. The manual includes disclaimers of warranty and limitations of liability for the software and hardware.
This user guide provides information about the R12 Tablet PC and its optional features. It describes the tablet's hardware components including front, back, sides and pen. It provides steps for initial setup and use including powering on, connecting to WiFi, locking/unlocking the screen, and using sleep/hibernate modes. It also describes the included Motion Computing applications and tablet settings that can be configured.
1. The document provides an operation manual for the IQ-BASIC-GPS flight instrument.
2. It describes the instrument's key features and functions, including altimeters, variometers, navigation functions using GPS, waypoints, routes, and flight memory recording.
3. The manual provides detailed instructions on operating the instrument, navigating menus to adjust settings, and using functions like variometer tones, waypoints, and flight analysis.
This document provides instructions for using the Huawei U8220 mobile phone. It covers topics such as safety precautions, an overview of phone features and buttons, how to power on/off the phone, make calls, manage contacts, send messages, use apps like the browser, camera and music player, and basic phone settings. Safety tips are provided at the beginning, such as avoiding moisture, high temperatures, and restricted areas.
지브라PDA Zebra MC17시리즈 1D 산업용PDA 퍼스널쇼퍼 바코드PDA 매뉴얼HION IT
지브라 MC17 시리즈 산업용 PDA는 구매 선호도 기반으로 한 고객별 프로모션과 제안으로 고객 경험의 가치를 높이십시오.
매장 직원이 현장에서 재고와 가격을 보다 효율적으로 관리할 수 있도록 지원합니다.
지브라 MC17 시리즈 바코드 PDA는 다목적 리테일 모바일 컴퓨터로 간접 비용을 줄이고 고객 충성도를 향상시킵니다.
고객의 쇼핑 경험을 혁신적으로 개선
퍼스널 쇼퍼 시리즈 무선 리테일 모바일 컴퓨터는 새로운 차원의 우수한 고객 서비스와 향상된 지원 생산성 및 효율성을 제공합니다.
지브라 MC17 바코드 PDA 다목적 장치는 직원들에게 현장에서 고객의 질문에 답하고 재고 보충에서 가격 인하까지 재고를 오류 없이 효율적으로 관리하며 계산대 대기 시간을 단축하는 데 필요한 도구를 제공하기 위한 목적으로 설계되었습니다.
O/S 선택 (안드로이드 또는 윈도우즈)
널리 사용되는 모바일 운영 체제인 Android KitKat 또는 Windows Embedded Compact 7 최신 버전 중에서 선택하십시오.
그런 다음 기존 MC17 Windows 장치를 Android로 쉽게 업데이트할 수 있습니다.
거의 모든 바코드를 즉시 캡처
지브라는 첨단 이미징 엔진은 바코드가 용지에 인쇄되었거나, 모바일 폰 화면에 표시되거나, 손상, 긁힘 또는 인쇄 품질 저하와 상관없이 모든 1D 또는 2D 바코드를 빠르게 캡처할 수 있습니다.
또한 전방향 스캔이 가능하므로 구매 고객과 매장 직원 모두에게 포인트-앤-슛(Point-and-Shoot) 방식의 간편함을 제공합니다.
Windows CE 5.0 Professional
Standard tool set for rapid application development.
Full Internet Explorer 6.0
Familiar platform for web-enabled applications.
Zebra PocketBrowser compatibility
Dramatically simplifies development of complex web-based solutions that integrate advanced functionalities such as barcode scanning, wireless connectivity and mobile printing.
320x240 QVGA colour display (MC17T only – backlit, resistive touch panel)
Enables rich content delivery for an enhanced customer experience.
Durability
Built to endure everyday drops to ensure reliable operation and investment protection.
Six-key intuitive interface
Easy to use for first time users of any age.
Sleek design
Easy to hold, minimizes user fatigue.
Wi-Fi IEEE 802.11 a/b/g
Provides wireless freedom for your customers and instant access to information for store associates.
Large capacity battery
Provides up to eight hours of continuous operation.
Zebra's Mobility Services Platform compatibility
Reduces cost, complexity, and effort associated with device management.
Customisable top cover
Professional branding reminds customers of your competitive identity and provides an additional revenue stream for promotional opportunities for manufacturers.
PHYSICAL CHARACTERISTICS
Dimensions : 2.3 in. H x 8.11 in. L x 3.2 in. W/ 5.9 cm H x 20.6 cm L x 8.1 cm W
Weight : 9.5 oz./270 g (with battery)
Display :
MC17A: 2.8 in. 320x240 QVGA
MC17T: 2.8 in. 320x240 QVGA backlit resistive touch screen
Keyboard : 6 fully programmable keys
Power Source : Rechargeable 2400 mAh Li-ION battery pack
>하이온아이티
주소 : 서울 금천구 가산디지털2로 165, 1304호 (백상스타타워2차)
대표번호 : 02-2038-0018 / 이메일 : hion@hionit.com
홈페이지 : http://hionsmart.com/
견고한 지브라 MC67 산업용PDA 시리즈를 사용하여 보다 빠르고 스마트한 작업에 필요한 도구를 현장 근무자에게 제공하십시오.
작업자는 완벽한 기능을 갖춘 이 기기를 사용하여 백엔드 시스템의 정보에 액세스하고 조건에 관계없이 거의 모든 바코드를 스캔할 수 있으며 문서를 캡처하여 간편하게 기록을 보관할 수 있습니다. 또한 실시간 수리 지원을 위해 동영상과 사진을 촬영, 전송할 수 있으며 도착 창에서 고객에게 전화를 할 수 있습니다.
현장 업무에 최적화된 지브라의 MC67 바코드PDA는 보다 많은 작업, 예를들어 장비수리, 물품픽업 또는 배송, 주문접수, 건물 또는 레스토랑 점검, 고지서 발행 또는 경쟁 정보 수집 등을 수행하는 모바일 컴퓨터입니다.
MC67 Base 모델
비용 효과적인 라인 확장을 통한 현장 근무자의 생산성 향상
MC67 Base는 MC67 시리즈의 비용대비 효과적인 확장입니다.
튼튼한 보급형 플랫폼을 찾는 고객들에게 MC67 Base는 현장 근로자에게 생산성을 높일 수 있는 모든 기능을 제공하며 MC65 및 MC55 액세서리와 역호환이 될 뿐 아니라 MC67 프리미엄 버전으로 귀사 시스템에 액세스할 수 있도록 지원합니다.
Windows® Embedded Handheld 6.5가 실행되는 MC67 Base는 복잡한 애플리케이션, 유연한 고속 이동통신 및 Wi-Fi 무선 연결을 지원하고 거의 모든 유형의 데이터를 캡처할 수 있습니다.
결과는? 향상된 고객 서비스. 고객 만족도 제고. 고객 유지 가능성 증대.
MC67 Premium 모델
작업자가 작업을 수행하는 데 필요한 모든 기능 제공
MC67 Premium을 사용하는 경우 모빌리티 전략을 가장 효과적으로 지원하는 운영 체제(Windows® Embedded Handheld 6.5 또는 Android™ Jelly Bean 4.1)를 선택하여 다양한 비즈니스 시스템 정보에 빠르게 액세스함으로써 작업 효율성과 정확성을 향상시킬 수 있습니다.
수리가 필요한 장비를 촬영한 동영상 클립을 보내 내부 전문가 또는 장비 제조업체로부터 즉시 조언을 얻습니다.
고해상도 스냅 사진으로 상황을 기록, 바코드를 스캔하여 사용 중인 부품을 빠르고 정확하게 추적하며 중요 문서는 캡처합니다.
고객에게 전화를 걸어 도착 시간 창을 업데이트합니다. 이메일을 확인하고 답장을 보냅니다.
또한 현재 MC65를 사용하는 경우 대부분의 기존 MC55/MC65 액세서리와의 백워드 호환성에 따라 최신 모바일 컴퓨팅 기술로의 비용 효율적인 업그레이드가 가능합니다.
PHYSICAL CHARACTERISTICE
Dimensions : 6.38 in. L x 3.03 in. W x 1.32 in. D (162.2 mm L x 77 mm W x 33.5 mm D)
Weight : 13.5 oz./385 g (with rechargeable 3600mAh Lithium Ion battery)
Display : 3.5 in. color VGA display, touch, 640 x 480 portrait, 650+ NIT s
Standard Battery : Rechargeable Lithium Ion 3.7V, 3600 mAh battery
Backup Battery : Ni-MH battery (rechargeable) 15mAh 3.6V nominal (not user-accessible or replaceable)
Expansion Slot : Micro SD card slot (supports up to 32GB)
Communication : Interface: USB 2.0 high speed (host and client)
PERFORMANCE CHARACTERISTICS
CPU : Dual core 1GHz OMAP 4 processor
Operating System : Microsoft® Embedded Handheld 6.5 Professional
Memory : 256 MB RAM/2 GB Flash
DATA CAPTURE
Options :
2D SE4500-SR imager
2D SE4500-SR imager + 8 MP Camera
2D SE4500-DL imager + 8 MP Camera
2D SE4500-DL imager
2D SE4500-DPM/HD + 8 MP camera
Data Types : 1D/2D bar codes, photographs, video, signatures and documents
WIRELESS VOICE AND DATA COMMUNICATIONS
WAN Radio : 4G HSPA+ Frequency band: UMTS/HSDPA and HSUP A - 850, 900, 1900 and 2100 MHz; GSM/EDGE: 850, 900, 1800 and 1900 MHz
WLAN : Push-to-talk (PTT ); VoIP -ready
INTEGRATED GPS
Integrated standalone and Assisted-GPS (A-GPS): SUPL 1.0
WIRELESS PAN AND DATA COMMUNICATIONS
Bluetooth Class II , v2.1 with Enhanced Data Rate (EDR)
>하이온아이티
주소 : 서울 금천구 가산디지털2로 165, 1304호 (백상스타타워2차)
대표번호 : 02-2038-0018 / 이메일 : hion@hionit.com
홈페이지 : http://hionsmart.com
This document describes a specification for performing remote procedure calls over the Data Distribution Service (DDS). It provides machine-readable files for C++ and Java implementations and replaces an earlier beta 1 version. The document outlines copyrights and licensing for using the specification and contacting representatives from companies involved in its development. It also details OMG's issue reporting process for providing feedback.
This is the user manual of Launch CReader 3001.
>> READ MORE: https://www.obdadvisor.com/launch-creader-3001-review/
Here is a detailed review of the scan tool based on my own experience, including:
- Compatibility
- Design and Specification
- Features and Functions
- Pros and Cons
Check it out to get the REVIEW and some NOTES about using this scanner.
This is the DDS Security adopted specification.
It was adopted as an OMG standard in June 2014.
The official URL is http://www.omg.org/spec/DDS-SECURITY/
지브라 MC2100 산업용 PDA 시리즈 모바일 컴퓨터는 매장에서 창고까지, 작업 지점에서 재고 데이터를 자동으로 캡처합니다.
Zebra MC2100 바코드 PDA는 중저가 제품이지만 상위 모델에서나 볼수 있는 다양한 기능을 갖추었으며, 업계 최고의 처리 능력, 견고한 디자인, 우수한 인체공학, 유연한 데이터 캡처 옵션, 엔터프라이즈급 PTT (Push-to-talk), 집중화된 관리 및 플랫폼 간 OS 애그노스틱 애플리케이션을 만들 수 있는 기능을 기대할 수 있습니다.
강력한 스캐닝 성능
지브라 MC2100 모바일 컴퓨터는 동급의 다른 어떤 기기보다도 다양한 옵션(1D 선형 이미저, 1D 레이저 또는 1D/2D 영역 이미저)을 제공하며 세 가지 스캔 엔진 모두 손상되거나 오염되거나 흠집이 난 바코드를 한 번에 스캔할 수 있습니다.
우수한 사용 편리성을 위한 뛰어난 인체공학식 설계
경량의 MC2100 산업용 PDA는 편의성을 고려한 설계와 함께 한 손으로 쉽게 사용할 수 있도록 최적화된 제품입니다.
장치 뒷면에 손가락 고리가 장착되어 안전하게 잡고 사용할 수 있습니다. 키의 크기와 위치는 한 손으로 조작하기에 쉽게 설계되었습니다.
하루 종일 어디에서나 사용할 수 있는 견고한 디자인
지브라 MC2100 바코드 PDA는 낙하 및 충격시험을 거친 IP54 등급 밀봉, 오목한 키패드 및 Corning® Gorilla® 유리 출력 창을 채택하여 낙하 사고, 부딪힘, 액체 엎지름에도 계속 작동합니다.
모든 바코드에 적용 가능한 업계 최고의 스캔 성능
캡처해야 할 데이터의 유형에 따라 최고의 성능을 발휘할 스캔 엔진을 선택하십시오.
우수한 사용 편리성을 위한 뛰어난 인체공학
MC2100은 가볍게 설계되어 간편하고 한 손으로 사용할 수 있습니다.
하루 종일 어디에서나 사용할 수 있는 견고한 디자인
MC2100은 낙하 및 충돌 시험을 거친 IP54 등급 밀봉, 오목한 키패드 및 Corning® Gorilla® 유리 출력 창을 채택하여 피할 수 없는 낙하, 부딪힘, 물 엎지름에도 계속 작동합니다.
진정한 엔터프라이즈급 PTT(Push-to-talk)
통합 TEAM Express 클라이언트를 통해 단체 방송 및 개인 응답 PTT 기능을 사용할 수 있습니다.
MC2100 및 기타 Zebra 모바일 컴퓨터용 단일 애플리케이션 버전 만들기
Zebra RhoElement를 사용하여 Android, Microsoft® Windows Mobile 또는 Windows CE 운영 체제와 관계없이 Zebra 모바일 컴퓨터와 동일하게 보고, 느끼고, 작동할 수 있는 단일 애플리케이션을 만들 수 있습니다.
PHYSICAL CHARACTERISTICE
Dimensions : 6.76 in. H x 1.34 in. D x 2.40 in. W (171.7 mm H x 34.1 mm D x 60.9 mm W)
Weight :
WLAN with battery : 8.3 oz./234.7 g to 8.5 oz./240.7 g
Batch with battery:8.2 oz./231.7 g to 8.4 oz./237.7 g
Display : 2.8 in. QVGA with backlight; TFT-LCD, 64K colors
Expansion Slot : User accessible Micro SDHC card slot (up to 32GB)
Connectivity : Wi-Fi 802.11b/g/n and Bluetooth (MC2180 only); USB 1.1 full speed host/client
PERFORMANCE CHARACTERISTICS
CPU : Marvell PXA 320 624 MHz
Operating System : Microsoft® Embedded CE 6.0 Core & Pro (MC2180 Only) Editions
Memory : 128 MB RAM/256 MB ROM; 256MB RAM/256MB ROM (MC2180 Only); user accessible microSD card slot (supports up to 32GB)
DATA CAPTURE
Scanner Options : 1D linear imager, 1D1 laser, 1D/2D area imager (MC2180 only)
Exit Window : Corning® Gorilla® Glass
WIRELESS COMMUNICATIONS (MC2180 ONLY)
WLAN : 802.11b/g/n
WLAN Security : WEP, WPA, WPA2, 802.1x, EAP-TLS,TTLS (CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5), PEAP (TLS, MSCHAPv2, EAP-GTC), LEAP, EAP-FAST (TLS, MS-CHAPv2, EAP-GTC), CCXv4 certified
WPAN Bluetooth : Class II, v 2.0 with EDR; integrated antenna
VOICE AND AUDIO
Audio : Speaker and microphone (MC2180 only) Buzzer (MC2100 only)
Push-to-Talk : PTT (client included); high quality speakerphone, wired headset support, PTT will support headset and speakerphone mode (MC2180 Only)
Voice Directed Picking : TEKSPEECH PRO TekSpeech Pro Certified (MC2180 Only); Compatible with 3rd party VDP clients (MC2180 only)
>하이온아이티
주소 : 서울 금천구 가산디지털2로 165, 1304호 (백상스타타워2차)
대표번호 : 02-2038-0018 / 이메일 : hion@hionit.com
홈페이지 : http://hionsmart.com/
This document is an end-user license agreement (EULA) for Articulate software. It states that by installing or using the software, the user agrees to the terms of the EULA without modification. The EULA grants the user a nonexclusive license to use one copy of the software for internal business purposes only. It also places limitations on the user's rights regarding the software and its confidentiality. The EULA disclaims all warranties and limits liability for the software or any issues arising from its use. Upon termination of the agreement, all rights to use the software cease and the user must destroy all copies.
This is the user manual of Launch X431 CReader VII+
>> READ MORE: https://www.obdadvisor.com/launch-creader-vii-plus-review/
Here is a detailed review of the scan tool based on my own experience, including:
- Compatibility
- Design and Specification
- Features and Functions
- Pros and Cons
Check it out to get the REVIEW and some NOTES about using this scanner.
This document contains supplemental information to the Getting Started Guide, including:
- TA Instruments End-User License Agreement governing use of their software
- Attachment A to the Microsoft OEM Customer License Agreement detailing additional terms for use of Windows XP Embedded software
- Attachments B and C listing optional software and 3rd party licenses included with some TA Instruments products
- A list of TA Instruments trademarks and patents and their international offices
This publication is intended for administrators tasked with deploying an Imperva SecureSphere in an Amazon Web Services (AWS) environment. It assumes the reader has a working knowledge of AWS and details the configuration steps required to achieve a successful deployment.
Business Process Model and Notation,BPMN2.0(Beta1)BPC流程社区
This document provides an overview of the Business Process Model and Notation (BPMN) Beta 1 specification for Version 2.0. It introduces BPMN as a standard for business process modeling and outlines the key elements and concepts in BPMN including processes, collaboration, choreography, activities, events, gateways, data, and more. The document also establishes the conformance requirements and references for BPMN and provides copyright and usage information.
This document is the user's manual for the CreaderV diagnostic tool. It begins with general information about OBD II/EOBD systems, diagnostic trouble codes, and monitor readiness status. It then provides a product description of the CreaderV, outlining its specifications, included accessories, and self-test procedure. The manual concludes with instructions for operating the CreaderV to view codes, live data, perform special tests, and look up code definitions. It also covers the process for upgrading the CreaderV software.
This is the user manual of Launch CReader V.
>> READ MORE: https://www.obdadvisor.com/autel-ms309-ms300-launch-creader-v/
Here is a detailed review of the scan tool based on my own experience, including:
- Compatibility
- Design and Specification
- Features and Functions
- Pros and Cons
Check it out to get the REVIEW and some NOTES about using this scanner.
지브라RFID리더 Zebra MC3190-Z 900MHz 휴대형RFID리더 매뉴얼HION IT
지브라 MC3190-Z는 RFID의 혜택을 산업공간을 넘어 고객 대면 비즈니스 환경까지 확장하기 위해 특별히 설계된 비즈니스급 핸드헬드 RFID 리더기입니다.
서명에 견고한 디자인과 고성능으로 정평이 있는 제브라 산업용 핸드헬드를 기반으로 하여 더욱 빠른 판독률과 높은 처리량을 위해 고급, 고효율의 Zebra RFID 리더기 엔진을 추가했습니다.
방향에 민감하지 않은 획기적인 첨단 안테나를 추가하면 소매점과 의료 시설부터 사무실에 이르기까지 고객을 대면하는 환경 어디서나 매우 다양하게 사용할 수 있는 장치가 됩니다.
지브라 RFID 리더기 엔진
더욱 빠른 판독률과 높은 처리량을 위한 고급, 고효율 판독 성능을 제공합니다.
지브라가 특허를 가진 전방향 MAX RFID 안테나
방향에 민감하지 않은 설계로 더 빠르고 더 정확한 판독을 위해 이제 정밀한 리더기와 태그 정렬이 필요하지 않습니다.
핀포인트 로케이셔닝 기술
직관적이며 청각적이고 시각적인 신호의 독특한 결합을 통해 작업자에게 다음과 같이 특정 제품을 알려줍니다.
장치가 원하는 제품에 가까워지면 신호음의 빈도가 높아지고 볼륨이 커지면서 움직이는 막대 그래프의 크기가 커집니다.
사용하기 쉬운 API(애플리케이션 프로그래밍 인터페이스)
신속하고 비용 효율적인 애플리케이션 개발 가능
지브라 MAX 보안
최고급 암호화 및 인증 알고리즘, 그리고 VPN(가상 사설망)에 사용되는 FIPS 140-2 인증 및 지원.
가장 엄격한 업계의 보안 규정 및 민감한 정부 애플리케이션 요구사항도 준수합니다.
지브라 MAX 러그드
낙하, 지면 충돌, 밀봉에 대하여 MIL-STD 810F 표준을 충족하거나
초과 매일의 업무 사용 환경에 적합하며 부득이하게 떨어뜨리거나 물을 엎질러도 안정적으로 작동하며 수명 연장과 세척이 가능합니다.
지브라 MAX 데이터 캡처
단일 장치에서 뛰어난 RFID 및 바코드 스캐닝 기능을 제공하며 두 장치를 별도 구매할 필요가 없어 자본과 운영 비용이 절감 됩니다.
백라이트가 포함된 320 x 320 디스플레이
거의 모든 조명 상태에서도 쉽게 볼 수 있도록 1/4 VGA보다 30% 높은 해상도
PHYSICAL CHARACTERISTICS
Dimensions : 7.6 in. H x 4.7 in. W x 6.4 in D (19.34 cm H x 11.94 cm W x 16.26 cm)
Weight : 22.93 oz./650 g (including battery, stylus, narrow keypad & strap)
Display : 3 in. QVGA color display (320 x 320) touchscreen with backlight
Battery : Li-Ion 4,400 mAh @ 3.7Vdc (2X Battery only)
Network Connections : RS232; USB (host and client)
Keypad : 48-key Alpha-Numeric
Data Capture Options RFID, 1D laser scanner and 2D imager
PERFORMANCE CHARACTERISTICS
CPU : Marvell PXA320 @ 624 MHz
Operating System : Microsoft® Windows Embedded Handheld 6.5.3
Memory : 256MB RAM/1GB Flash as shipped, user expandable
RFID
RFID Power Output : EU - 1/2 watt ERP for Europe US - 1 watt EIRP
RFID Antenna Type : Integrated Orientation Insensitive
Frequency Range : EU - 865-868 MHz; US - 902-928 MHz
Standards Supported : EPC Gen 2 DRM (DRM compliant up to 0.5W)
WIRELESS LAN VOICE AND DATA COMMUNICATIONS
Radio : Tri-mode IEEE® 802.11a/b/g
Data Rates Supported : 802.11a: up to 54 Mbps, 802.11b: up to 11 Mbps, 802.11g: up to 54 Mbps
VoIP-Ready : Optional (region dependent)
>하이온아이티
주소 : 서울 금천구 가산디지털2로 165, 1304호 (백상스타타워2차)
대표번호 : 02-2038-0018 / 이메일 : hion@hionit.com
홈페이지 : http://hionsmart.com/
The document provides information about configuring and managing Cyberoam's anti-spam solution. It describes how to create and manage spam policies, rules, address groups and enable scanning. Spam policies define the actions to take for detected spam emails. The types of policies include global, default and custom. Actions for detected spam include accept, reject, drop, change recipient and prefix subject. RBL lists and content filtering are used to detect spam attributes.
The document provides instructions for installing and using honestechTM VHS to DVDTM 4.0 software. It allows users to convert analog videos from sources like VCRs, camcorders, DVD players into digital formats like DVD, Blu-ray, VCD, and SVCD. The software has three modes - Easy Wizard mode, Advanced mode, and Audio Recorder. The installation process is described along with how to register the product and access the different modes of the software.
The document provides instructions for installing and using honestechTM VHS to DVDTM 4.0 software. It allows users to convert analog videos from sources like VCRs, camcorders, DVD players into digital formats like DVD, Blu-ray, VCD, and SVCD. The software has three modes - Easy Wizard mode, Advanced mode, and Audio Recorder. The installation process is described along with how to register the product and access the different modes of the software.
ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...PECB
Denis is a dynamic and results-driven Chief Information Officer (CIO) with a distinguished career spanning information systems analysis and technical project management. With a proven track record of spearheading the design and delivery of cutting-edge Information Management solutions, he has consistently elevated business operations, streamlined reporting functions, and maximized process efficiency.
Certified as an ISO/IEC 27001: Information Security Management Systems (ISMS) Lead Implementer, Data Protection Officer, and Cyber Risks Analyst, Denis brings a heightened focus on data security, privacy, and cyber resilience to every endeavor.
His expertise extends across a diverse spectrum of reporting, database, and web development applications, underpinned by an exceptional grasp of data storage and virtualization technologies. His proficiency in application testing, database administration, and data cleansing ensures seamless execution of complex projects.
What sets Denis apart is his comprehensive understanding of Business and Systems Analysis technologies, honed through involvement in all phases of the Software Development Lifecycle (SDLC). From meticulous requirements gathering to precise analysis, innovative design, rigorous development, thorough testing, and successful implementation, he has consistently delivered exceptional results.
Throughout his career, he has taken on multifaceted roles, from leading technical project management teams to owning solutions that drive operational excellence. His conscientious and proactive approach is unwavering, whether he is working independently or collaboratively within a team. His ability to connect with colleagues on a personal level underscores his commitment to fostering a harmonious and productive workplace environment.
Date: May 29, 2024
Tags: Information Security, ISO/IEC 27001, ISO/IEC 42001, Artificial Intelligence, GDPR
-------------------------------------------------------------------------------
Find out more about ISO training and certification services
Training: ISO/IEC 27001 Information Security Management System - EN | PECB
ISO/IEC 42001 Artificial Intelligence Management System - EN | PECB
General Data Protection Regulation (GDPR) - Training Courses - EN | PECB
Webinars: https://pecb.com/webinars
Article: https://pecb.com/article
-------------------------------------------------------------------------------
For more information about PECB:
Website: https://pecb.com/
LinkedIn: https://www.linkedin.com/company/pecb/
Facebook: https://www.facebook.com/PECBInternational/
Slideshare: http://www.slideshare.net/PECBCERTIFICATION
How to Fix the Import Error in the Odoo 17Celine George
An import error occurs when a program fails to import a module or library, disrupting its execution. In languages like Python, this issue arises when the specified module cannot be found or accessed, hindering the program's functionality. Resolving import errors is crucial for maintaining smooth software operation and uninterrupted development processes.
Strategies for Effective Upskilling is a presentation by Chinwendu Peace in a Your Skill Boost Masterclass organisation by the Excellence Foundation for South Sudan on 08th and 09th June 2024 from 1 PM to 3 PM on each day.
Chapter wise All Notes of First year Basic Civil Engineering.pptxDenish Jangid
Chapter wise All Notes of First year Basic Civil Engineering
Syllabus
Chapter-1
Introduction to objective, scope and outcome the subject
Chapter 2
Introduction: Scope and Specialization of Civil Engineering, Role of civil Engineer in Society, Impact of infrastructural development on economy of country.
Chapter 3
Surveying: Object Principles & Types of Surveying; Site Plans, Plans & Maps; Scales & Unit of different Measurements.
Linear Measurements: Instruments used. Linear Measurement by Tape, Ranging out Survey Lines and overcoming Obstructions; Measurements on sloping ground; Tape corrections, conventional symbols. Angular Measurements: Instruments used; Introduction to Compass Surveying, Bearings and Longitude & Latitude of a Line, Introduction to total station.
Levelling: Instrument used Object of levelling, Methods of levelling in brief, and Contour maps.
Chapter 4
Buildings: Selection of site for Buildings, Layout of Building Plan, Types of buildings, Plinth area, carpet area, floor space index, Introduction to building byelaws, concept of sun light & ventilation. Components of Buildings & their functions, Basic concept of R.C.C., Introduction to types of foundation
Chapter 5
Transportation: Introduction to Transportation Engineering; Traffic and Road Safety: Types and Characteristics of Various Modes of Transportation; Various Road Traffic Signs, Causes of Accidents and Road Safety Measures.
Chapter 6
Environmental Engineering: Environmental Pollution, Environmental Acts and Regulations, Functional Concepts of Ecology, Basics of Species, Biodiversity, Ecosystem, Hydrological Cycle; Chemical Cycles: Carbon, Nitrogen & Phosphorus; Energy Flow in Ecosystems.
Water Pollution: Water Quality standards, Introduction to Treatment & Disposal of Waste Water. Reuse and Saving of Water, Rain Water Harvesting. Solid Waste Management: Classification of Solid Waste, Collection, Transportation and Disposal of Solid. Recycling of Solid Waste: Energy Recovery, Sanitary Landfill, On-Site Sanitation. Air & Noise Pollution: Primary and Secondary air pollutants, Harmful effects of Air Pollution, Control of Air Pollution. . Noise Pollution Harmful Effects of noise pollution, control of noise pollution, Global warming & Climate Change, Ozone depletion, Greenhouse effect
Text Books:
1. Palancharmy, Basic Civil Engineering, McGraw Hill publishers.
2. Satheesh Gopi, Basic Civil Engineering, Pearson Publishers.
3. Ketki Rangwala Dalal, Essentials of Civil Engineering, Charotar Publishing House.
4. BCP, Surveying volume 1
Beyond Degrees - Empowering the Workforce in the Context of Skills-First.pptxEduSkills OECD
Iván Bornacelly, Policy Analyst at the OECD Centre for Skills, OECD, presents at the webinar 'Tackling job market gaps with a skills-first approach' on 12 June 2024
How to Make a Field Mandatory in Odoo 17Celine George
In Odoo, making a field required can be done through both Python code and XML views. When you set the required attribute to True in Python code, it makes the field required across all views where it's used. Conversely, when you set the required attribute in XML views, it makes the field required only in the context of that particular view.
This document provides an overview of wound healing, its functions, stages, mechanisms, factors affecting it, and complications.
A wound is a break in the integrity of the skin or tissues, which may be associated with disruption of the structure and function.
Healing is the body’s response to injury in an attempt to restore normal structure and functions.
Healing can occur in two ways: Regeneration and Repair
There are 4 phases of wound healing: hemostasis, inflammation, proliferation, and remodeling. This document also describes the mechanism of wound healing. Factors that affect healing include infection, uncontrolled diabetes, poor nutrition, age, anemia, the presence of foreign bodies, etc.
Complications of wound healing like infection, hyperpigmentation of scar, contractures, and keloid formation.
Leveraging Generative AI to Drive Nonprofit InnovationTechSoup
In this webinar, participants learned how to utilize Generative AI to streamline operations and elevate member engagement. Amazon Web Service experts provided a customer specific use cases and dived into low/no-code tools that are quick and easy to deploy through Amazon Web Service (AWS.)
LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UPRAHUL
This Dissertation explores the particular circumstances of Mirzapur, a region located in the
core of India. Mirzapur, with its varied terrains and abundant biodiversity, offers an optimal
environment for investigating the changes in vegetation cover dynamics. Our study utilizes
advanced technologies such as GIS (Geographic Information Systems) and Remote sensing to
analyze the transformations that have taken place over the course of a decade.
The complex relationship between human activities and the environment has been the focus
of extensive research and worry. As the global community grapples with swift urbanization,
population expansion, and economic progress, the effects on natural ecosystems are becoming
more evident. A crucial element of this impact is the alteration of vegetation cover, which plays a
significant role in maintaining the ecological equilibrium of our planet.Land serves as the foundation for all human activities and provides the necessary materials for
these activities. As the most crucial natural resource, its utilization by humans results in different
'Land uses,' which are determined by both human activities and the physical characteristics of the
land.
The utilization of land is impacted by human needs and environmental factors. In countries
like India, rapid population growth and the emphasis on extensive resource exploitation can lead
to significant land degradation, adversely affecting the region's land cover.
Therefore, human intervention has significantly influenced land use patterns over many
centuries, evolving its structure over time and space. In the present era, these changes have
accelerated due to factors such as agriculture and urbanization. Information regarding land use and
cover is essential for various planning and management tasks related to the Earth's surface,
providing crucial environmental data for scientific, resource management, policy purposes, and
diverse human activities.
Accurate understanding of land use and cover is imperative for the development planning
of any area. Consequently, a wide range of professionals, including earth system scientists, land
and water managers, and urban planners, are interested in obtaining data on land use and cover
changes, conversion trends, and other related patterns. The spatial dimensions of land use and
cover support policymakers and scientists in making well-informed decisions, as alterations in
these patterns indicate shifts in economic and social conditions. Monitoring such changes with the
help of Advanced technologies like Remote Sensing and Geographic Information Systems is
crucial for coordinated efforts across different administrative levels. Advanced technologies like
Remote Sensing and Geographic Information Systems
9
Changes in vegetation cover refer to variations in the distribution, composition, and overall
structure of plant communities across different temporal and spatial scales. These changes can
occur natural.
This presentation was provided by Steph Pollock of The American Psychological Association’s Journals Program, and Damita Snow, of The American Society of Civil Engineers (ASCE), for the initial session of NISO's 2024 Training Series "DEIA in the Scholarly Landscape." Session One: 'Setting Expectations: a DEIA Primer,' was held June 6, 2024.
This presentation includes basic of PCOS their pathology and treatment and also Ayurveda correlation of PCOS and Ayurvedic line of treatment mentioned in classics.
1. User Guide
6757i IP Phone
6757i IP Phone
41-001201-15
Rev 00
Release 2.4
Downloaded from www.Manualslib.com manuals search engine
2. Aastra Telecom will not accept liability for any damages and/or long distance charges, which result from unauthorized and/or
unlawful use. While every effort has been made to ensure accuracy, Aastra Telecom will not be liable for technical or editorial errors
or omissions contained within this documentation. The information contained in this documentation is subject to change without
notice.
Copyright 2008 Aastra Telecom. www.aastratelecom.com
All Rights Reserved.
Downloaded from www.Manualslib.com manuals search engine
3. iii
Software
License
Agreement
Software License Agreement
Aastra Telecom Inc., hereinafter known as "Seller", grants to Customer a personal,
worldwide, non-transferable, non-sublicenseable and non-exclusive, restricted use license
to use Software in object form solely with the Equipment for which the Software was
intended. This Product may integrate programs, licensed to Aastra by third party
Suppliers, for distribution under the terms of this agreement. These programs are
confidential and proprietary, and are protected as such by copyright law as unpublished
works and by international treaties to the fullest extent under the applicable law of the
jurisdiction of the Customer. In addition, these confidential and proprietary programs are
works conforming to the requirements of Section 401 of title 17 of the United States Code.
Customer shall not disclose to any third party such confidential and proprietary programs
and information and shall not export licensed Software to any country except in
accordance with United States Export laws and restrictions.
Customer agrees to not reverse engineer, decompile, disassemble or display Software
furnished in object code form. Customer shall not modify, copy, reproduce, distribute,
transcribe, translate or reduce to electronic medium or machine readable form or
language, derive source code without the express written consent of the Seller and its
Suppliers, or disseminate or otherwise disclose the Software to third parties. All Software
furnished hereunder (whether or not part of firmware), including all copies thereof, are
and shall remain the property of Seller and its Suppliers and are subject to the terms and
conditions of this agreement. All rights reserved.
Customer's use of this software shall be deemed to reflect Customer's agreement to abide
by the terms and conditions contained herein. Removal or modification of trademarks,
copyright notices, logos, etc., or the use of Software on any Equipment other than that for
which it is intended, or any other material breach of this Agreement, shall automatically
terminate this license. If this Agreement is terminated for breach, Customer shall
immediately discontinue use and destroy or return to Seller all licensed software and other
confidential or proprietary information of Seller. In no event shall Seller or its suppliers or
licensors be liable for any damages whatsoever (including without limitation, damages for
loss of business profits, business interruption, loss of business information, other
pecuniary loss, or consequential damages) arising out of the use of or inability to use the
software, even if Seller has been advised of the possibility of such damages.
Downloaded from www.Manualslib.com manuals search engine
5. v
Table
of
Contents
Software License Agreement ...................................................................................................... iii
Table of Contents ..........................................................................................................................v
About this Guide ...........................................................................................................................1
Documentation ..........................................................................................................................1
Introduction ...................................................................................................................................2
Phone Features ..........................................................................................................................2
Requirements ............................................................................................................................2
Installation and Setup ................................................................................................................3
Getting Started ..............................................................................................................................4
Plugging in and Starting the Phone ...........................................................................................4
Network Connected/Network Disconnected ............................................................................7
Idle Screen ................................................................................................................................8
IP Phone Keys and Key Descriptions ........................................................................................12
Key Descriptions .....................................................................................................................12
Methods for Customizing Your Phone ......................................................................................15
Phone Options via the IP Phone UI ........................................................................................15
Phone Options via the Aastra Web UI ....................................................................................18
Phone Status ................................................................................................................................22
Phone Status via IP Phone UI .................................................................................................22
Phone Status via IP Phone UI .................................................................................................22
Finding Your Phone’s IP Address ...........................................................................................23
Phone Status via the Aastra Web UI .......................................................................................24
Customizing Your Phone ............................................................................................................27
Ring Tones and Tone Sets .......................................................................................................27
Contrast Level .........................................................................................................................30
Backlight .................................................................................................................................31
Live Dialpad* .........................................................................................................................33
Set Audio ................................................................................................................................34
Time and Date .........................................................................................................................37
Language .................................................................................................................................44
User Password .........................................................................................................................51
Resetting a User Password ......................................................................................................53
Restarting your phone .............................................................................................................54
Phone Lock .............................................................................................................................55
Table of Contents
Downloaded from www.Manualslib.com manuals search engine
6. vi
Table
of
Contents
Table of Contents
Defining an Emergency Dial Plan ..........................................................................................57
Line Keys and Softkeys ..............................................................................................................59
Multiple Line and Call Appearances ......................................................................................59
Softkeys ..................................................................................................................................60
State-Based Softkeys (Bottom Keys only) .............................................................................63
Line Key .................................................................................................................................66
Speeddial Key .........................................................................................................................70
Editing Speeddial Keys ...........................................................................................................77
"Do not Disturb" (DND) Key .................................................................................................81
Busy Lamp Field (BLF) Key ..................................................................................................83
BLF List Key ..........................................................................................................................86
Automatic Call Distribution (ACD) Key (for Sylantro Servers) ............................................89
Directed Call Pickup/Group Call Pickup Keys (for Sylantro Servers) ...................................94
XML Key ..............................................................................................................................100
WebApps Key .......................................................................................................................106
Flash Key ..............................................................................................................................108
Sprecode Key ........................................................................................................................110
Park/Pickup Keys ..................................................................................................................112
Last Call Return (lcr) Key (Sylantro Servers only) ..............................................................119
Call Forward Key ..................................................................................................................121
BLF/Xfer ...............................................................................................................................123
Speeddial/Xfer ......................................................................................................................126
Speeddial/Conf ......................................................................................................................129
Services Key .........................................................................................................................132
Directory Key .......................................................................................................................135
Callers List Key ....................................................................................................................137
Intercom Key ........................................................................................................................139
Phone Lock Key ....................................................................................................................142
Paging Key (Sends the RTP Stream) ....................................................................................144
None Key ..............................................................................................................................147
Empty Key ............................................................................................................................149
Deleting a Key ......................................................................................................................151
Making Calls .............................................................................................................................152
Dialing a Number ..................................................................................................................152
Downloaded from www.Manualslib.com manuals search engine
7. vii
Table
of
Contents
Table of Contents
Pre-dialing a Number ............................................................................................................153
Using Handsfree Speakerphone ............................................................................................153
Using a Headset ....................................................................................................................154
Using Intercom .....................................................................................................................155
Redial ....................................................................................................................................157
Mute ......................................................................................................................................158
Receiving Calls ..........................................................................................................................159
Answering an Incoming Call ................................................................................................159
Sending an Incoming Call to Voicemail ...............................................................................160
Handling Calls ...........................................................................................................................161
Placing a Call on Hold ..........................................................................................................161
Transferring Calls .................................................................................................................163
Conferencing Calls ...............................................................................................................165
Ending Calls ..........................................................................................................................170
Managing Calls .........................................................................................................................171
Directory List ........................................................................................................................171
Callers List ............................................................................................................................182
Account Configuration (DND and Call Forwarding) ...........................................................187
Missed Calls Indicator ..........................................................................................................209
Voicemail ..............................................................................................................................210
Additional Features ..................................................................................................................211
Star Codes .............................................................................................................................211
Suppress DTMF Playback ....................................................................................................211
Display DTMF Digits ...........................................................................................................213
Enable/Disable Call Waiting .................................................................................................215
Play Call Waiting Tone .........................................................................................................217
Stuttered Dial Tone ...............................................................................................................218
XML Beep Support ...............................................................................................................219
Status Scroll Delay ................................................................................................................220
Incoming Call Interrupts Dialing ..........................................................................................221
Switch UI Focus to Ringing Line .........................................................................................223
Preferred Line and Preferred Line Timeout ..........................................................................224
Goodbye Key Cancels Incoming Calls .................................................................................226
UPnP Mapping Lines (for remote phones) ...........................................................................228
Downloaded from www.Manualslib.com manuals search engine
8. viii
Table
of
Contents
Table of Contents
Message Waiting Indicator ...................................................................................................230
Incoming Intercom Call Features .........................................................................................231
Using Redial Key for “Last Number Redial” .......................................................................234
Group RTP Paging (receives RTP streams) ..........................................................................235
Use LLDP ELIN ...................................................................................................................237
Available Features Enabled by Administrators .....................................................................238
Outgoing Intercom Calls .......................................................................................................238
Missed Call Summary Subscription .....................................................................................238
Customizable Callers List Key and Services Key ................................................................239
Autodial (Hotline and Warmline) .........................................................................................239
Centralized Conferencing .....................................................................................................239
Answer and Ignore Softkeys for XML Applications ............................................................240
XML Softkey for Special Characters in XML Applications ................................................240
Playing a WAV File On Your Phone .....................................................................................241
Using the Keypad During Active XML Applications ..........................................................241
Key Redirection ....................................................................................................................242
XML Applications and Off-Hook Interaction ......................................................................243
XML Override for a Locked Phone ......................................................................................243
RTP Recording and Simultaneous Playing ...........................................................................243
“Hold” Feature Enhancement (for Broadsoft Servers) .........................................................244
Authentication Support for HTTP/HTTPS Download Methods Used with Broadsoft Client
Management System (CMS) .................................................................................................244
Model M670i and M675i Expansion Modules ........................................................................245
Using the Expansion Modules ..............................................................................................247
Troubleshooting Solutions ........................................................................................................250
Limited Warranty .....................................................................................................................257
Appendix A - Time Zone Codes ...................................................................................................1
Index ...............................................................................................................................................1
Downloaded from www.Manualslib.com manuals search engine
9. Model 6757i IP Phone User Guide 1
About
this
Guide
About this Guide
This guide explains how to use the basic features of your new 6757i phone. Not all features listed
are available by default. Contact your system or network administrator to find out which features
and services are available to you on your system.
Your System Administrator has the ability to customize some features on this phone. For
information on more advanced settings and configurations, administrators should refer to the
Aastra SIP IP Phone Administrator Guide.
Documentation
• Aastra 6757i SIP IP Phone Installation Guide – Installation and set-up instructions, general
features and functions, and basic options list customization. This Installation Guide is included
with the telephone.
• Aastra 6757i SIP IP Phone User Guide – Describes the most commonly used features and
functions for an end user.
• Aastra SIP IP Phone Administrator Guide – Describes how to set the 6757i phone up on the
network and contains advanced configuration instructions for the 6757i. This guide has
instructions that are at an administrator level.
Downloaded from www.Manualslib.com manuals search engine
10. 2 Model 6757i IP Phone User Guide
Introduction
Introduction
This 6757i IP telephone has all the features of a regular business phone, allowing you to make
and receive calls, transfer, conference and more. The 6757i IP telephone provides
communications over an IP Network using the SIP IP telephony protocol.
Phone Features
• 11 line graphical LCD screen (144 x 128 pixels) with white backlight
• 12 multi-functional softkeys
— 6 Top Keys: Static softkeys (up to 10 programmable functions)
— 6 Bottom Keys:State-based softkeys (up to 20 programmable functions)
• Press-and-hold speeddial key configuration feature
• 4 call appearance lines with LEDs
• Supports up to 9 call lines
• Full-duplex speakerphone for handsfree calls
• Headset support (modular connector)
• Built-in-two-port, 10/100 Ethernet switch - lets you share a connection with your computer.
• Inline power support (based on 802.3af standard) which eliminates power adapters.
• AC power adapter (included)
• Enhanced busy lamp fields*
• Set paging*
* Availability of feature dependant on your phone system or service provider.
Requirements
The 6757i IP Phone requires the following environment:
• SIP-based IP PBX system or network installed and running with a SIP account created for
the 6757i phone.
• Access to a Trivial File Transfer Protocol (TFTP), File Transfer Protocol (FTP), Hypertext
Transfer Protocol (HTTP) server, or Hyper Text Transfer Protocol over Secure Sockets
Layer (SSL) (HTTPS).
• Ethernet/Fast Ethernet LAN (10/100 Mb)
• Category 5/5e straight through cabling
Downloaded from www.Manualslib.com manuals search engine
11. Model 6757i IP Phone User Guide 3
Introduction
• Power source
For Ethernet networks that supply in-line power to the phone (IEEE 802.3af):
— For power, use the Ethernet cable (supplied) to connect from the phone directly to the
network for power. (No 48v AC power adapter required.)
For Ethernet networks that DO NOT supply power to the phone:
— For power, use the 48V AC Power Adapter (included) to connect from the DC power port
on the phone to a power source.
or
— (optional) For power, use a Power over Ethernet (PoE) power injector or a PoE switch. A
PoE power injector is available as an optional accessory from Aastra Telecom. Contact
your Administrator for more information.
Installation and Setup
If your System Administrator has not already setup your 6757i phone, please refer to the Aastra
6757i Installation Guide for basic installation and physical setup information. For more advanced
administration and configuration information, System Administrators should refer to the
Aastra SIP IP Phone Administrator Guide.
Downloaded from www.Manualslib.com manuals search engine
12. 4 Model 6757i IP Phone User Guide
Getting
Started
Getting Started
The 6757i must be set up and be configured prior to its first use. This section describes phone
behavior and start up screens you may see when the phone is first plugged in, or when it is
restarted.
Plugging in and Starting the Phone
The 6757i automatically begins the start up sequence as soon as it is connected. The phone goes
through this process the first time you plug in your phone and every time you restart your phone.
The phone displays the following startup screens.
Checking for
Firmware.....
DHCP: waiting
for IP...
Downloaded from www.Manualslib.com manuals search engine
13. Model 6757i IP Phone User Guide 5
Getting
Started
The 6757i phone then checks settings and looks for new configuration and firmware updates for
the phone from a server. If a new update is found, the phone displays the message “Updating
Configuration”. This may take a few moments while the phone downloads the latest updates.
If language packs were loaded to your phone by your System Administrator, the following screen
displays during startup.
Note: New updates to your phone can be automatically scheduled from the server.
This is set up on the phone system by your System Administrator and should be
scheduled during non-business hours or slow call periods.
Important! Do not unplug or remove power to the phone while it is checking or
installing firmware and configuration information.
Updating
configuration..... Checking for firmware...
Do not unplug the phone!
Downloading
Language Packs
Downloaded from www.Manualslib.com manuals search engine
14. 6 Model 6757i IP Phone User Guide
Getting
Started
When the configuration update is complete, the phone displays the following screens and then
displays the Idle screen.
Network
DSP
SIP Done
Services
Dir
Callers
Icom
L1 John Smith
Sat Jan 1 12:18am
Idle Screen
Downloaded from www.Manualslib.com manuals search engine
15. Model 6757i IP Phone User Guide 7
Getting
Started
Network Connected/Network Disconnected
If your phone is successful when connecting to the network the following screen displays before
changing to the Idle screen.
If your phone did not successfully connect to the network, the "Network Disconnected" prompt
appears on the display and the telephone status light turns on.
Check that the cables are tightly connected to the phone and to the wall jack. The phone should
automatically detect when it is reconnected and displays the "Network Connected" prompt for a
few seconds. However, if changes have been made to your phone’s network settings, you may
need to restart your phone.
For more information about connecting your phone, see the Aastra 6757i IP Phone Installation
Guide, the section "Connecting to the Network and to Power".
Check with your system or network administrator for assistance.
Note: f the phone displays "No Service" you can still use the phone but it is not
registered with the Registrar. For more information about registering your phone,
see your System Administrator.
Services
Dir
Callers
Icom
L1 John Smith
Sat Jan 1 12:18am
Network Connected
Services
Dir
Callers
Icom
L1 John Smith
Sat Jan 1 12:18am
Network Disconnected
Downloaded from www.Manualslib.com manuals search engine
16. 8 Model 6757i IP Phone User Guide
Getting
Started
Idle Screen
When the phone has successfully updated the configuration and connected to the network, the
phone displays the Idle State screen. The idle screen is shown whenever your phone is not in
use.
The Idle State screen lists your name (SIP screen name) and day, date, and time. In the above
screen, the "L1" indicates John Smith is configured on Line 1.
By default, the top softkeys 1 through 4 are configured for Services, Directory, Callers List, and
Intercom, respectively. You can configure the 6 top keys with up to 10 functions, and the 6
bottom softkeys with up to 20 functions as required.
Note: Your System Administrator sets up your SIP screen name, line number, and
any other administrative features required. If your name does not display on the
screen, contact your System Administrator.
Services
Dir
Callers
Icom
L1 John Smith
Sat Jan 1 12:18am
Services
Directory
Callers List
Intercom
Downloaded from www.Manualslib.com manuals search engine
17. Model 6757i IP Phone User Guide 9
Getting
Started
Reference
For more information about configuring the top and bottom softkeys, see “Softkeys” on page 60.
For more information about using the Services, Directory, Callers List, Intercom, Dial,
Conference, and Transfer keys, see the following sections:
• “Making Calls” on page 152.
• “Handling Calls” on page 161.
• “Managing Calls” on page 171.
Idle Screen With Softkeys Configured
If you or your administrator have configured softkey functions on your phone, the labels for those
functions display on the screen. For example, in the following illustration, "Home" was configured
as a speeddial key on the bottom set of softkeys and "Do Not Disturb" (DND) was configured on
the top set of softkeys.
You can configure up to 10 functions on the top set of softkeys. If you have additional functions
configured on the top softkeys that do not display on the main idle screen, a "More" displays at the
top right of the screen. Pressing the More softkey toggles between the first screen and a second
screen of softkeys configured on your phone.
Services
Dir
Callers
Icom
L1 John Smith
Sat Jan 1 12:18am
Home
DND
More
Speeddial Softkey
"Do Not Disturb"
Softkey
Idle Screen
Speeddial Softkeys
Idle Screen
L1 John Smith
Sat Jan 1 12:18am
Home
More
HR
Support
Downloaded from www.Manualslib.com manuals search engine
18. 10 Model 6757i IP Phone User Guide
Getting
Started
Idle Screen with Voicemail Messages
The envelope icon displays on the Idle State screen only if you have new messages waiting.
The number next to the envelope indicates how many new messages you have.
To access your voicemail messages, use the star codes for your system if a voicemail softkey has
not been configured on your phone. For more information on your system’s star codes, please
refer to the documentation for the voicemail system you are using.
Screen Display After Picking Up the Handset
When you pickup the handset, the screen displays as follows:
This screen displays the following keys located on the bottom left of the screen:
• Dial
• Conf (Conference)
• Xfer (Transfer)
A More softkey also displays at the bottom right of the screen if you have configured softkeys
other than the default softkeys.
Voicemail Icon
Idle Screen
Services
Dir
Callers
Icom
L1 John Smith
Sat Jan 1 12:18am
1
Services
Dir
Callers
Icom
L1 John Smith
Dial
Conf
Xfer More
>
Downloaded from www.Manualslib.com manuals search engine
19. Model 6757i IP Phone User Guide 11
Getting
Started
For example, if you configure a bottom softkey for speeddialing to Home, and then you pickup the
handset, the screen displays the Dial, Conf, and Xfer default softkeys with a More softkey. You
can press the More softkey to toggle between the first and second screens to display all configured
softkeys. See illustrations below.
Note: The bottom set of 6 softkeys map to the current state-based configurable
softkeys. The top set of 6 softkeys allow you to configure up to 10 functions.
Services
Dir
Callers
Icom
L1 John Smith
Dial
Conf
Xfer More
>
Services
Dir
Callers
Icom
L1 John Smith
Sat Jan 1 12:18am
Home
Idle Screen After Handset Pickup
Services
Dir
Callers
Icom
L1 John Smith
More
>
Home
After Pressing "More"
Downloaded from www.Manualslib.com manuals search engine
20. 12 Model 6757i IP Phone User Guide
IP
Phone
Keys
and
Key
Descriptions
IP Phone Keys and Key Descriptions
The following sections describe the various 6757i phone key functions, and how they help you
make and manage your calls and caller information.
Key Descriptions
The following table identifies the keys on the key panel of your 6757i IP phone that you can use
for handling calls.
Keys Key Description
Goodbye key - Ends an active call. The Goodbye key also exits an open list,
such as the Options List, without saving changes.
Options key - Accesses options to customize your phone. Your System
Administrator may have already customized some of your settings. Check with
your System Administrator before changing the administrator-only options.
Hold key - Places an active call on hold. To retrieve a held call, press the call
appearance button beside the light that is flashing.
Redial key - Redials up to 100 previously dialed numbers. Pressing the Redial
key twice simultaneously redials the last dialed number.
Volume control key - Adjusts the volume for the handset, headset, ringer, and
handsfree speaker.
Downloaded from www.Manualslib.com manuals search engine
21. Model 6757i IP Phone User Guide 13
IP
Phone
Keys
and
Key
Descriptions
Line/Call Appearance key - Connects you to a line or call. The Aastra 6757i IP
phone supports up to 4 line keys.
Handsfree key - Activates Handsfree for making and receiving calls without lifting
the handset. When the audio mode option is set, this key is used to switch
between a headset and the handsfree speakerphone.
Mute key - Mutes the microphone so that your caller cannot hear you (the light
indicator flashes when the microphone is on mute).
Navigation keys - Pressing the UP and DOWN arrow keys lets you view different
status and text messages on the LCD display (if there is more than 1 line of
status/text messages). These buttons also let you scroll through menu selections,
such as the Options List.
Pressing the LEFT and RIGHT arrow keys lets you view the different line/call
appearances. While in the Options List, these keys allow you to exit or enter the
current option. When you are editing entries on the display, pressing the LEFT
arrow key erases the character on the left; pressing the RIGHT arrow key sets the
option.
Keys Key Description
Downloaded from www.Manualslib.com manuals search engine
22. 14 Model 6757i IP Phone User Guide
IP
Phone
Keys
and
Key
Descriptions
Softkeys - 12 softkeys on the 6757i IP Phone.
- 6 Top Keys: static softkeys (up to 10 programmable functions)
- 6 Bottom Keys: state-based softkeys (up to 20 programmable functions)
All top and bottom keys can be configured for specific functions.
By default, keys 1 through 4 are assigned as Services, Directory, Callers List, and
Intercom, respectively:
1 SERVICES Accesses enhanced features and services such as XML
applications and voicemail, provided by third parties.
2 DIRECTORY Accesses the Directory List which displays up to 200
names and phone numbers (stored in alphabetical order)
3 CALLERS LIST Accesses the Callers List which lists the last 200 calls
received.
4 INTERCOM Automatically connects with a remote extension for
outgoing calls, and answers incoming intercom calls.
The following softkeys display when you pick up the handset:
• DIAL - After entering a phone number from the keypad, you can press the Dial
softkey to immediately dial the number.
• CONF - Begins a conference with the active call.
• XFER - Transfers the active call to another number.
Note: For more information about programming the softkeys to perform specific
functions, see the “Softkeys” on page 60.
Keys Key Description
Downloaded from www.Manualslib.com manuals search engine
23. Model 6757i IP Phone User Guide 15
Methods
for
Customizing
Your
Phone
Methods for Customizing Your Phone
There are two ways to customize specific options on your phone:
• Using the Options key on the IP Phone
• Using the Aastra Web UI in an Internet browser window from your PC.
Phone Options via the IP Phone UI
You can customize your phone by pressing the Options key and accessing the IP Phone UI.
These options allow you to customize the following phone settings.
Option
Number Option
1 Call Forward
1. Cfwd Number
2. Cfwd Mode
3. No. Rings
Note: The menus that display for Call
Forward are dependant on the Call Forward
Mode set on the phone. Default is "Account"
mode.
2 Preferences
1. Tones
Ring Tone
Tone Set
2. Contrast Level
3. Speeddial Edit
4. Live Dialpad
5. Set Audio
Audio Mode
Headset Mic Vol
6. Time and Date
Time Zone
Daylight Savings
Time Format
Date Format
Time Server
Time Server 1
Time Server 2
Time Server 3
Set Time
Set Date
7. Language
Screen Language
Input Language
Downloaded from www.Manualslib.com manuals search engine
24. 16 Model 6757i IP Phone User Guide
Methods
for
Customizing
Your
Phone
Simplified Options Menu
Your System Administrator may configure a simplified options menu for your phone. The
following table indicates the options that may appear on your phone if the simplified options
menu is applied.
3 Phone Status
1. IP&MAC Addresses
2. LAN Port
3. PC Port
4. Firmware Info
5. Error Messages
4 User Password
5 Administrator Menu
(Password Protected)
6 Restart Phone
7 Phone Lock
Note: *The "Administrator Menu" options are Administrator level functions only,
and are not accessible by the user. These options should only be set up and changed
by your System Administrator.
Option
Number Option
1 Call Forward
1. Cfwd Number
2. Cfwd Mode
3. No. Rings
Note: The menus that display for Call
Forward are dependant on the Call Forward
Mode set on the phone. Default is "Account"
mode.
2 Preferences
1. Tones
Ring Tone
Tone Set
2. Contrast Level
3. Live Dialpad
4. Set Audio
Audio Mode
Headset Mic Vol
3 Phone Status
1. IP&MAC Addresses
2. LAN Port
3. PC Port
4. Firmware Info
5. Error Messages
4 Phone Lock
Downloaded from www.Manualslib.com manuals search engine
25. Model 6757i IP Phone User Guide 17
Methods
for
Customizing
Your
Phone
Using the IP Phone UI
1. Press the Options key on the phone to enter the Options List.
2. To go to an Option, use 5 and 2 to scroll through the list, or press the number corresponding
to the Option.
3. Press the Show softkey, the 4 button, or press the digit number of the corresponding option to
select an option.
4. Use the softkeys that display for each option to change a selected option.
5. Press the Done button to save the change.
6. Press the button, the 3 button, or the button at any time to exit without saving
changes.
References
For more information about customizing your phone using the available options from the IP Phone
UI, see the section “Customizing Your Phone” on page 27.
For more information about administrator options, contact your System Administrator.
IP Phone UI
Downloaded from www.Manualslib.com manuals search engine
26. 18 Model 6757i IP Phone User Guide
Methods
for
Customizing
Your
Phone
Phone Options via the Aastra Web UI
In addition to the IP Phone UI options, you can also customize additional options on the IP
Phone using the Aastra Web UI. In order to access your phone using the Aastra Web UI, you
need to know your phone’s IP address. To find your phone’s IP address, see “Finding Your
Phone’s IP Address” on page 23.
Using the Aastra Web UI
1. Open your web browser, enter the phone’s IP address or host name into the address field and
press <Enter>. The following logon screen displays.
2. At the prompt, enter your username and password and click .
Aastra Web UI
Note: For a user, the default user name is “user” (not case sensitive) and the
password field is left blank.
Downloaded from www.Manualslib.com manuals search engine
27. Model 6757i IP Phone User Guide 19
Methods
for
Customizing
Your
Phone
The Network Status window displays for the IP phone you are accessing.
3. You can logout of the Aastra Web UI at any time by clicking Log Off.
Downloaded from www.Manualslib.com manuals search engine
28. 20 Model 6757i IP Phone User Guide
Methods
for
Customizing
Your
Phone
The following categories display in the side menu of the Aastra Web UI: Status, Operation,
Basic Settings.
Headings Descriptions
Status The Status section displays the network status and the MAC address of the IP phone. It
also displays hardware and firmware information about the IP phone, and information about
the SIP account(s) currently configured on the phone. The information in the Network
Status window is read-only.
Operation User Password - Allows you to change user password.
Phone Lock - Allows you to assign an emergency dial plan to the phone, lock the phone to
prevent any changes to the phone and to prevent use of the phone, and reset the user
password.
Keypad Speeddial - Allows you to assign a speeddial number to a specific digit on the
phone’s keypad for speeddialing purposes.
Softkeys and XML - Allows you to configure up to 6 top softkeys and 6 bottom softkeys
with functions identified in the list below. You can configure up to 10 functions on the top
softkeys and up to 20 functions on the bottom softkeys.
Available Functions for Softkeys
Expansion Modules - Allows you to configure an additional 36 softkeys with a M670i
Expansion Module, or an additional 60 softkeys with a M675i Expansion Module if an it is
attached to the phone. This option displays on the side menu of the Aastra Web UI only if
an Expansion Module is attached. For more information about the expansion modules see
“Model M670i and M675i Expansion Modules” on page 245.
Directory - Allows you to copy the Callers List and Directory List from your IP phone to
your PC.
Reset - Allows you to restart the IP phone when required.
• none • pickup
• line • Last Call Return (lcr)
• speeddial • Call Forward
• do not disturb (DND) • BLF/Xfer
• Busy Lamp Field
(BLF)
• Speeddial/Xfer
• BLF List • Speeddial/Conf
• Auto Call Distribution
(ACD)
• Directory
• Directed Call Pickup • Callers List
• Extensible Markup
Language (XML)
• Intercom
• WebApps • Services
• flash • Phone Lock
• sprecode • Paging
• park • Empty
Downloaded from www.Manualslib.com manuals search engine
29. Model 6757i IP Phone User Guide 21
Methods
for
Customizing
Your
Phone
Basic
Settings
Preferences - Allows you to enable/disable the following:
• Park Call
• Pickup Parked Call
• Suppress DTMF Playback
• Display DTMF Digits
• Call Waiting
• Play Call Waiting Tone
• Stuttered Dial Tone
• XML Beep Support
• Status Scroll Delay (seconds)
• Incoming Call Interrupts Dialing
• Switch UI Focus to Ringing Line
• Preferred Line
• Preferred Line Timeout (seconds)
• Goodbye Key Cancels Incoming Call
• UPnP Mapping Lines
• Message Waiting Indicator Line
• DND Key Mode
• Call Forward Key Mode
• Use LLDP ELIN
This category also allows you to configure:
• incoming Intercom call settings
• group paging RTP settings
• ring tones (global and per-line basis)
• ring tone sets
• time and date settings
• Webpage language and input language
Account Configuration - Allows you to configure “do not disturb” (DND) and “call
forwarding” (CFWD) by account. You can have multiple accounts on the 6757i.
Headings Descriptions
Downloaded from www.Manualslib.com manuals search engine
30. 22 Model 6757i IP Phone User Guide
Phone
Status
Phone Status
You can view the status of your phone using the IP Phone UI or the Aastra Web UI.
Phone Status via IP Phone UI
Phone Status via IP Phone UI
The "Phone Status" option on the IP phone displays the status of your phone to the LCD
display.
This option allows you to view your phone’s:
• Network status including your phone’s IP and MAC address
• Local Area Network (LAN) port
• PC port
• Firmware version
• Error messages from last reboot or startup
Use the following procedure to view the status of your phone using the IP Phone UI.
1. Press on the phone to enter the Options List.
2. Select Phone Status.
3. Select the option you want to view:
• IP&MAC Address
• LAN Port
• PC Port
• Firmware Info
• Error Messages
The option you select displays to the LCD. Use the 5 and 2 keys to scroll the through the
LCD display.
IP Phone UI
Downloaded from www.Manualslib.com manuals search engine
31. Model 6757i IP Phone User Guide 23
Phone
Status
Finding Your Phone’s IP Address
If you want to access your phone’s options using an Internet browser, you need to enter the IP
address of the phone in the browser to open the Aastra Web UI. Use the following procedure to
find your phone’s IP address.
1. Press to enter the Options List.
2. Scroll to Phone Status and press Select.
3. Scroll to IP&MAC Addresses and press Select.
The IP address of your 6757i IP phone displays in the "IP Address" field.
IP Phone UI
Options List
Done -
- Select
1. Call Forward
2. Preferences
3. Phone Status
4. User Password
Phone Status
Done -
- Select
1. IP&MAC Addresses
2. LAN Port
3. PC Port
4. Firmware Info
5. Error Messages
IP&MAC Addresses
IP Address:
192.168.0.100
MAC Address:
00-44-7D-18-03-26
Done -
Downloaded from www.Manualslib.com manuals search engine
32. 24 Model 6757i IP Phone User Guide
Phone
Status
Phone Status via the Aastra Web UI
Use the following procedure to view the phone status via the Aastra Web UI.
1. Open your web browser, enter the phone’s IP address or host name into the address field and
press <Enter>.
2. In the Username/Password window, enter your username and password and click .
The Network Status window displays for the IP phone you are accessing.
This Network Status window is view only. It displays the Network Status of your phone which
includes the following:
• Link State, Negotiation, Speed, and Duplex setting for the LAN and PC ports
• MAC Address
• Hardware Information
• Firmware Information
• SIP Account status
Aastra Web UI
Note: For a user, the default user name is “user” and the password field is left
blank.
Downloaded from www.Manualslib.com manuals search engine
33. Model 6757i IP Phone User Guide 25
Phone
Status
SIP Account Status
The IP Phones show the SIP registration status on the IP Phone’s Network Status screen in the
Aastra Web UI.
The following is an illustration of the Network Status screen in the Aastra Web UI with SIP status
displayed.
SIP Account Status
Downloaded from www.Manualslib.com manuals search engine
34. 26 Model 6757i IP Phone User Guide
Phone
Status
The following table describes the status conditions that can display for the account.
Status
Condition Description
Registered Displays this status on accounts that HAVE been registered with the SIP proxy server.
Example:
Backup
Registrar
Line SIP Account Status Used?
1 9057604603@anasipproxy.aastra.com:5060 Registered Yes
where
Account Number is “1”
SIP Account is “9057604603@anasipproxy.aastra.com” on port “5060”
Status is “Registered”
Backup registrar is used (“Yes”)
SIP Error
Number
Displays on accounts when registration fails with the SIP proxy server.
Example:
Backup
Registrar
Line SIP Account Status Used?
4 9057604601@anasipproxy.aastra.com:5060 401 No
where
Account Number is “4”
SIP Account is “9057604601@anasipproxy.aastra.com” on port “5060”
Status is “401” - Unregistered if SIP registration fails.
Backup registrar is used (“No”)
Downloaded from www.Manualslib.com manuals search engine
35. Model 6757i IP Phone User Guide 27
Customizing
Your
Phone
Customizing Your Phone
The following paragraphs describe the options available from either the IP Phone UI, the Aastra
Web UI, or both, and provide procedures applicable to the option.
Ring Tones and Tone Sets
You can configure ring tones and ring tone sets on the IP phone.
Ring Tones
There are several distinct ring tones a user can select from to set on the IP phones. You can enable/
disable these ring tones on a global or per-line basis.
The following table identifies the valid settings and default values for each type of configuration
method.
Ring Tones Table
Configuration Method Valid Values Default Value
IP Phone UI Global
Tone 1
Tone 2
Tone 3
Tone 4
Tone 5
Silent
Global Setting:
Tone 1
Aastra Web UI Global:
Tone 1
Tone 2
Tone 3
Tone 4
Tone 5
Silent
Global Setting:
Tone 1
Lines 1 to 9 Per-Line Setting:
Global
Tone 1
Tone 2
Tone 3
Tone 4
Tone 5
Silent
Per-Line Setting:
Global
Downloaded from www.Manualslib.com manuals search engine
36. 28 Model 6757i IP Phone User Guide
Customizing
Your
Phone
Ring Tone Sets
In addition to ring tones, you can configure ring tone sets on a global-basis on the IP phone. Ring
tone sets consist of tones customized for a specific country. The ring tone sets you can configure
on the IP phones are:
• United States (US) (Default - also used in Canada)
• Mexico
• United Kingdom (UK)
• Italy
• Germany
• France
• Europe (generic tones)
• Australia
When you configure the country's tone set, the country-specific tone is heard on the phone for
the following:
• dial tone
• secondary dial tone
• ring tone
• busy tone
• congestion tones
• call waiting tone
• ring cadence pattern
You configure global ring tones and tone sets using the Aastra Web UI and the IP Phone UI.
Configuring Ring Tones and Tone Sets
Use the following procedures to configure ring tones and tone sets on the IP phone.
Global configuration only
1. Press on the phone to enter the Options List.
2. Select Preferences.
3. Select Tones.
4. Select Ring Tone.
5. Select the type of ring tone (Tone 1 through Tone 5, or Silent).
IP Phone UI
Downloaded from www.Manualslib.com manuals search engine
37. Model 6757i IP Phone User Guide 29
Customizing
Your
Phone
6. Press Done.
7. Select Tone Set.
8. Select the country for which you want to apply the tone set. Valid values are
Australia, Europe, France, Germany, Italy, UK, Mexico, and US. Default is US.
9. Press Done.
The ring tone and tone set you select is immediately applied to the IP phone.
1. Click on Basic Settings->Preferences->Ring Tones.
For global configuration:
2. In the "Ring Tones" section, select a country from the "Tone Set" field.
Valid values are Australia, Europe, France, Germany, Italy, UK, Mexico, and US. Default
is US.
3. Select a value from the "Global Ring Tone" field.
For per-line configuration:
4. In the "Ring Tone" section, select a line for which you want to set ring tone.
5. Select a value from the "LineN" field.
6. Click to save your settings.
Aastra Web UI
Note: See the Ring Tones Table on page 27 for valid values.
Note: See the Ring Tones Table on page 27 for valid values.
Downloaded from www.Manualslib.com manuals search engine
38. 30 Model 6757i IP Phone User Guide
Customizing
Your
Phone
Contrast Level
The "Contrast Level" option on the IP phone allows you to set the amount of light that
illuminates the LCD display. Use this option to set the preference of contrast level.
You can set the contrast level using the IP Phone UI only.
Setting Contrast Level
1. Press on the phone to enter the Options List.
2. Select Preferences.
3. Select Display.
4. Select Contrast Level.
5. Use the 3 and 4 navigation buttons to increase or decrease the intensity of contrast
lighting on the LCD.
6. Press Done to save your selection.
IP Phone UI
Display
1. Contrast Level
2. Backlight
Done -
- Select
Done -
Contrast Level
Contrast Level:
Cancel -
Downloaded from www.Manualslib.com manuals search engine
39. Model 6757i IP Phone User Guide 31
Customizing
Your
Phone
Backlight
The "Backlight" option on the IP phone allows you to set the backlight status on the LCD display
to the following:
• Off - Backlight is always OFF.
• Auto (Default)- Automatically turns ON the backlight when the phone is in use, and then
automatically turns OFF the backlight when the phone is idle after a specified length of time.
Auto backlighting sets the phone to turn off the backlighting after a period of inactivity; the idle
period is user definable under the Advanced softkey when you select the Auto mode. In Auto
mode, the backlight turns on with a key press or state change on the phone.
Setting the Backlight
1. Press on the phone to enter the Options List.
2. Select Preferences.
3. Select Display.
4. Select Backlight.
5. Use the 5 and 2 navigation buttons to select the Backlight status for your phone. Default is
"Auto". Available options are:
• Off
• Auto (Default)
6. If you selected "Off", press Done to save your setting.
IP Phone UI
Display
1. Contrast Level
2. Backlight
Done -
- Select
Backlight
Off
Auto
Done -
Cancel -
Downloaded from www.Manualslib.com manuals search engine
40. 32 Model 6757i IP Phone User Guide
Customizing
Your
Phone
7. If you selected "Auto", press the Advanced softkey.
8. Using the keypad, enter the amount of seconds you want the phone to stay backlit when the
phone is idle. Valid values are 1 to 120 seconds (2 minutes). Default is 10 seconds. When
this period of time is reached, the phone turns OFF the backlight. Use the "Backspace" and/
or "Clear" softkeys to delete entries if required.
9. Press Done to save your setting.
Backlight
Off
Auto
Done -
Cancel -
Advanced -
Backlight On Time
Done -
Cancel -
- Backspace
- Clear
10 seconds
Downloaded from www.Manualslib.com manuals search engine
41. Model 6757i IP Phone User Guide 33
Customizing
Your
Phone
Live Dialpad*
The "Live Dialpad" option on the IP phone turns the Live Dial Pad mode ON or OFF. With live
dial pad ON, the 6757i IP phone automatically dials out and turns ON Handsfree mode as soon as
a dial pad key or softkey is pressed. With live dial pad OFF, if you dial a number while the phone
is on-hook, lifting the receiver or pressing the initiates a call to that number.
*Availability of feature dependant on your phone system or service provider.
You can enable/disable the live dialpad using the IP Phone UI only.
Enabling/Disabling Live Dialpad
1. Press on the phone to enter the Options List.
2. Select Preferences.
3. Select Live Dialpad.
4. Use the Change softkey to turn the live dialpad ON or OFF.
5. Press Done to save your setting.
IP Phone UI
Live Dialpad
Done -
Cancel -
- Change
Live Dialpad is
OFF
Downloaded from www.Manualslib.com manuals search engine
42. 34 Model 6757i IP Phone User Guide
Customizing
Your
Phone
Set Audio
The "Set Audio" option on the IP Phone allows you to set the audio mode for your IP phone. It
also allows you to set the volume level of the headset microphone.
You can set Audio on your IP phone using the IP Phone UI only.
Audio Mode
The 6757i allows you to use a handset, a headset, or handsfree mode to handle incoming and
outgoing calls. The audio mode option provides different combinations of these three methods to
provide maximum flexibility in handling calls. There are four audio mode options you can set:
Audio Mode
Option Description
Speaker This is the default setting. Calls can be made or received using the handset
or handsfree speakerphone. In handset audio mode, pressing the
button on the phone switches to handsfree speakerphone. In Speaker
audio mode, lift the handset to switch to the handset.
Headset Choose this setting if you want to make or receive all calls using a handset
or headset. Calls can be switched from the handset to headset by pressing
the button on the phone. To switch from the headset to the handset,
lift the handset.
Speaker/Headset Incoming calls are sent to the handsfree speakerphone first when the
button is pressed. By pressing the button again, you can switch back
and forth between the handsfree speakerphone and the headset. At
anytime, lifting the handset switches back to the handset from either the
handsfree speakerphone or the headset.
Headset/Speaker Incoming calls are sent to the headset first when the button is
pressed. By pressing the button again, you can switch back and forth
between the headset and the handsfree speakerphone. At anytime, lifting
the handset switches back to the handset from either the headset or the
handsfree speakerphone.
Downloaded from www.Manualslib.com manuals search engine
43. Model 6757i IP Phone User Guide 35
Customizing
Your
Phone
Headset Mic Volume
The "Headset Mic Volume" option allows you to set the volume level for the headset microphone.
Setting Audio Mode and Headset Mic Volume
1. Press on the phone to enter the Options List.
2. Select Preferences.
3. Select Set Audio.
4. Select Audio Mode.
5. Select the audio mode you want to use on your phone. Default is Speaker.
Valid values are:
• Speaker (Default)
• Headset
• Speaker/Headset
• Headset/Speaker
6. Press Done to save your setting.
IP Phone UI
Set Audio
Done -
- Select
1. Audio Mode
2. Headset Mic Volume
Audio Mode
Done -
Cancel -
Speaker
Headset
Speaker/Headset
Headset/Speaker
Downloaded from www.Manualslib.com manuals search engine
44. 36 Model 6757i IP Phone User Guide
Customizing
Your
Phone
7. Select Headset Mic Volume.
8. Select the Low, Medium, or High volume level. Default is Medium.
9. Press Done to save your selection.
Set Audio
Done -
- Select
1. Audio Mode
2. Headset Mic Volume
Headset Mic Volume
Done -
Cancel -
Low
Medium
High
Downloaded from www.Manualslib.com manuals search engine
45. Model 6757i IP Phone User Guide 37
Customizing
Your
Phone
Time and Date
On the IP phones, you can configure the following:
• Time and date
• Time and date format
• Time zone
• Daylight savings time
• Time Servers
Configuring Time and Date
Use the following procedures to configure the time and date settings on the IP phone.
Set Time and Time Format
1. Press on the phone to enter the Options List.
2. Select Preferences.
3. Select Time and Date.
4. Select Set Time.
Note: Only the Time and Date Formats and Time Servers can be set using the
Aastra Web UI.
IP Phone UI
Note: The time and time format you configure display on the phone’s idle screen.
Time and Date
Done -
- Select
1. Time Zone
2. Daylight Savings
3. Time Format
4. Date Format
5. Time Server
6. Set Time
7. Set Date
Downloaded from www.Manualslib.com manuals search engine
46. 38 Model 6757i IP Phone User Guide
Customizing
Your
Phone
5. Using the keys on the keypad, enter a time to set on the IP phone. Use the
"Backspace" key to move back a space and delete a character. Use the "AM/PM" softkey to
specify either AM or PM for the time setting.
6. Press Done to save the setting.
7. Select Time Format.
8. Using the "Change" softkey, set the Time Format to either a 12 hour format or a 24 hour
format. Valid values are 12h and 24h. Default is 12h.
9. Press Done to save the Time Format you selected.
Set Date and Date Format
1. Select Preferences.
2. Select Time and Date.
3. Select Set Date.
Note: The date and date format you configure display on the phone’s idle screen.
Set Time
Done -
- Backspace
- AM/PM
Enter Time:
01:13am
Cancel -
Time Format
Done -
- Change
Time Format:
12h
Cancel -
Time and Date
Done -
- Select
1. Time Zone
2. Daylight Savings
3. Time Format
4. Date Format
5. Time Server
6. Set Time
7. Set Date
Downloaded from www.Manualslib.com manuals search engine
47. Model 6757i IP Phone User Guide 39
Customizing
Your
Phone
4. Using the keys on the keypad, enter a date to set on the IP phone. Use the
"Backspace" key to move back a space and delete a character.
5. Press Done to save the setting.
6. Select Date Format.
7. Select a date format from the list of options. Default is Sun Jan 2. Valid values are:
• Sun Jan 2 (Default)
• 2-Jan-00
• 2000 01 02
• 02/01/2000
• 02/01/00
• 02-01-00
• 01/.02/00
• Jan 2
• 2 Jan 2000
• Sun 2 Jan
• 2 Jan
• 02.01.2000
8. Press Done to save the Date Format.
Set Date
Done -
- Backspace
Enter Date (y-m-d):
2000-01-02
Cancel -
Date Format
Done -
Sun Jan 2
2-Jan-00
2000-01-02
02/01/2000
02/01/00
02-01-00
01/.02/00
Jan 2
2 Jan 2000
Sun 2 Jan
2 Jan
02.01.2000 Cancel -
Downloaded from www.Manualslib.com manuals search engine
48. 40 Model 6757i IP Phone User Guide
Customizing
Your
Phone
Set Time Zone
1. Select Preferences.
2. Select Time and Date.
3. Select Time Zone.
A list of Time Zones display for different areas of the world.
4. Select a Time Zone that applies to your area.
The default Time Zone is US-Eastern.
5. Press Done to save the Time Zone setting.
Daylight Savings Time
1. Select Preferences.
2. Select Daylight Savings.
Note: For a list of the Time Zones values available on the IP Phone, see ‘Appendix
A - Time Zone Codes.”
Time and Date
Done -
- Select
1. Time Zone
2. Daylight Savings
3. Time Format
4. Date Format
5. Time Server
6. Set Time
7. Set Date
Done -
Cancel -
Time Zone
US-Aleutain
US-Central
US-Eastern
US-Hawaii
United States
Time and Date
Done -
- Select
1. Time Zone
2. Daylight Savings
3. Time Format
4. Date Format
5. Time Server
6. Set Time
7. Set Date
Downloaded from www.Manualslib.com manuals search engine
49. Model 6757i IP Phone User Guide 41
Customizing
Your
Phone
3. Select a Daylight Savings time from the list of options.
Default is Automatic. Valid values are:
• OFF
• 30 min summertime
• 1h summertime
• Automatic (Default)
4. Press Done to save the Daylight Savings value you selected.
Set Time Servers
With a valid time server enabled your IP phone will synchronize the time displayed with the
specified configuration server. The phone will use the time from Time Server 1 unless it is not
configured or unavailable, in which case it will move on to Time Server 2, and if neccessary Time
Server 3.
1. Select Preferences.
2. Select Time and Date.
3. Select Time Server.
4. Select from Time Server 1, Time Server 2, or Time Server 3.
Done -
Cancel -
Off
30 min summertime
1h summertime
Automatic
Daylight Savings
Time and Date
Done -
- Select
1. Time Zone
2. Daylight Savings
3. Time Format
4. Date Format
5. Time Server
6. Set Time
7. Set Date
Downloaded from www.Manualslib.com manuals search engine
50. 42 Model 6757i IP Phone User Guide
Customizing
Your
Phone
5. Enable the time server if required using the "Enable" key.
6. Using the keys on the keypad, enter an IP address or domain name for the time server.
Use the "Backspace" key to move back a space and delete a character. Use the "Dot"
softkey to enter dots within the IP address or domain name. Use the "123" softkey to toggle
between entering numbers and entering letters.
7. Press Done to save the time server setting.
1. Click on Basic Settings->Preferences->Time and Date Setting.
2. In the “Time Format” field, select the time format you want to use on your phone. Valid
values are:
• 12h (12 hour format) (default)
Note: The default for Time Servers is Enabled.
Aastra Web UI
Time Server 1
Done -
- 123
Time Server Address:
Network Time Disabled
Cancel -
Enable -
Time Server 1
Done -
- Backspace
- Dot“ . ”
- 123
Time Server Address:
0.0.0.0
Cancel -
Disable -
Downloaded from www.Manualslib.com manuals search engine
51. Model 6757i IP Phone User Guide 43
Customizing
Your
Phone
• 24h (24 hour format)
3. In the “Date Format” field, select the date format you want to use on your phone. Default is
WWW MMM DD. Valid values are:
• WWW MMM DD (default)
• DD-MMM-YY
• YYYY-MM-DD
• DD/MM/YYYY
• DD/MM/YY
• DD-MM-YY
• MM/DD/YY
• MMM DD
• DD MMM YYYY
• WWW DD MMM
• DD MMM
• DD.MM.YYYY
4. In the “NTP Time Servers” field, enable by checking the checkbox or disable by unchecking
the box (default is enabled).
5. In the “Time Server 1”, “Time Server 2”, and “Time Server 3” fields, enter IP addresses or
qualified domain names for the primary, secondary, and tertiary time servers.
6. Click to save your settings.
Note: The time and time format you configure display on the phone’s idle screen.
Note: The date and date format you configure display on the phone’s idle screen.
Note: Time Servers can only be entered if NTP Time Servers is enabled.
Downloaded from www.Manualslib.com manuals search engine
52. 44 Model 6757i IP Phone User Guide
Customizing
Your
Phone
Language
The IP phones support several different languages. You can have the IP Phone UI and the Aastra
Web UI display in a specific language as required. When you set the language to use, all of the
display screens (menus, services, options, configuration parameters, etc.) display in that
language. The IP phones support the following languages:
• English (default)
• French (European and Canadian)
• Spanish (European and Mexican)
• German
• Italian
You can also configure the language to use when inputing values in the Aastra Web UI and the
IP Phone UI.
Specifying the Language to Use
Once the language pack(s) are available on your phone from your System Administrator, you
can specify which language to use on the phone and/or the Aastra Web UI.
Use the following procedure to specify which language to use for the IP Phone UI.
1. Press on the phone to enter the Options List.
2. Select Preferences.
3. Select Language.
4. Select Screen Language.
The current language setting displays on the IP Phone.
5. To change the language setting, use the 5 and 2 keys to scroll through the langugses. Valid
values are:
• English (default)
• Français (French)
• Español (Spanish)
• Deutsch (German)
• Italiano (Italian)
Note: All languages may not be available for selection. The available languages are
dependant on the language packs currently loaded to the IP phone.
IP Phone UI
Downloaded from www.Manualslib.com manuals search engine
53. Model 6757i IP Phone User Guide 45
Customizing
Your
Phone
6. Press Done to set the language on the phone.
The change is dynamic. When you exit the Options Menu, the phone displays all menu items
in the language you selected.
1. Click on Basic Settings->Preferences->Language Settings.
2. In the “Webpage Language” field, select a language to apply to the Aastra Web UI. The IP
phone supports the following languages:
• English (default)
• Français (French)
• Español (Spanish)
• Deutsch (German)
• Italiano (Italian)
3. Click to save your settings. The change is dynamic. The Aastra Web UI displays all
screens in the language you selected.
Note: All languages may not be available for selection. The available languages are
dependant on the language packs currently loaded to the IP phone. English is the
default language and cannot be changed or removed. For more information about
loading language packs, see your System Administrator.
Aastra Web UI
Note: You must have the language pack(s) already loaded to your phone in order to
use them. For more information about loading language packs, see your System
Administrator.
Note: All languages may not be available for selection. The available languages are
dependant on the language packs currently loaded to the IP phone by your System
Administrator. English is the default language and cannot be changed or removed.
Downloaded from www.Manualslib.com manuals search engine
54. 46 Model 6757i IP Phone User Guide
Customizing
Your
Phone
Language Input
The 6757i supports text and character inputs in various languages (English, German, French,
Spanish, and Italian). Inputting textual or character information into the IP Phone UI can be done
using the keypad on the phone. You enable the Language Input feature using the Aastra Web UI
or the IP Phone UI. You can then use text and characters in a specific language when performing
inputs on the phone.
The following tables identify the language characters that you can use to enter text and
characters on the 6757i.
Keypad Input Alphabet Tables
English
French
Key Uppercase Characters Lowercase Characters
0 0 0
1 1.:;=_,-'&() 1.:;=_,-'&()
2 ABC2 abc2
3 DEF3 def3
4 GHI4 ghi4
5 JKL5 jkl5
6 MNO6 mno6
7 PQRS7 pqrs7
8 TUV8 tuv8
9 WXYZ9 wxyz9
* * <SPACE> * <SPACE>
# #/@ #/@
Key Uppercase Characters Lowercase Characters
0 0 0
1 1.:;=_,-'&() 1.:;=_,-'&()
2 ABC2ÀÂÇÁÅÆ abc2àâçáåæ
3 DEF3ÉÈÊË def3éèêë
4 GHI4ÎÏ ghi4îï
5 JKL5 jkl5
6 MNO6ÑÓÒÔÖ mno6ñóòôö
7 PQRS7 pqrs7
8 TUV8ÚÙÛÜ tuv8úùûü
9 WXYZ9 wxyz9
* * <SPACE> * <SPACE>
# #/@ #/@
Downloaded from www.Manualslib.com manuals search engine
56. 48 Model 6757i IP Phone User Guide
Customizing
Your
Phone
Italian
Configuring Language Input Using the IP Phone UI
You can configure the language you use for inputting on the phone by setting the Input
Language option. The default input language setting is English. You can change this setting
using the IP Phone UI or the Aastra Web UI.
Example
Use the following procedure to change the input language using the IP Phone UI.
1. Press on the phone to enter the Options List.
2. Select Preferences.
3. Select Language.
Key Uppercase Characters Lowercase Characters
0 0 0
1 1.:;=_,-'&() 1.:;=_,-'&()
2 ABC2ÀCÇ abc2àcç
3 DEF3ÉÈË def3éèë
4 GHI4 ghi4
5 JKL5 jkl5
6 MNO6ÓÒ mno6óò
7 PQRS7 pqrs7
8 TUV8Ù tuv8ù
9 WXYZ9 wxyz9
* * <SPACE> * <SPACE>
# #/@ #/@
IP Phone UI
Language
1. Screen Language
2. Input Language
- Select
Done -
Preferences
1. Tones
2. Contrast Level
3. Speed Dial Edit
4. Live Dialpad
5. Set Audio
6. Time and Date
7. Language
- Select
Done -
Input Language
1. English
2. Français
3. Español
4. Deutsch
5. Italiano
Done -
Cancel -
Language Option Input Language Option Select an Input
Language
Downloaded from www.Manualslib.com manuals search engine
57. Model 6757i IP Phone User Guide 49
Customizing
Your
Phone
4. Select Input Language.
Select the language you want to use when inputting text and characters into the IP Phone UI.
Valid values are:
• English (default)
• Français (French)
• Español (Spanish)
• Deutsch (German)
• Italiano (Italian)
5. Press Done when you have selected an input language.
Use the following procedure to set the input language using the Aastra Web UI.
1. Click on Basic Settings-> Preferences->Language Settings.
2. Select a language from the "Input Language" field. Setting this field allows you to specify
the language to use when entering text and characters in the Aastra Web UI and IP Phone UI.
Valid values are:
• English (default)
• Français (French)
• Español (Spanish)
• Deutsch (German)
• Italiano (Italian)
3. Click to save your settings. The change is dynamic. The Aastra Web UI and IP Phone
UI allow you to enter text and characters in the language you selected.
Note: Available input languages are dependent on the configuration enabled by
your System Administrator.
Aastra Web UI
Note: All languages may not be available for selection. The available input
languages are dependant on the configuration enabled by your System
Administrator.
Downloaded from www.Manualslib.com manuals search engine
58. 50 Model 6757i IP Phone User Guide
Customizing
Your
Phone
Latin 2 Character Set
The 6757i includes support for ISO 8859-2 (Latin2) of multi-national languages when
displaying and inputing in the IP Phone UI and the Aastra Web UI.
UTF-8 is also compatible with XML encoding on the IP Phones.
The following table illustrates the Latin 2 character set used on the 6757i IP Phone.
Downloaded from www.Manualslib.com manuals search engine
59. Model 6757i IP Phone User Guide 51
Customizing
Your
Phone
User Password
This category allows you to change the user password for your phone. Changing your password
ensures that only you can alter your phone settings, and helps keep your system secure. You can
change your user password using the IP Phone UI or the Aastra Web UI.
Setting a User Password
1. Press on the phone to enter the Options List.
2. Select User Password and press Select.
3. At the "Current Password:" prompt, enter the current user password and press Enter.
4. At the "New Password:" prompt, enter the new user password and press Enter.
5. At the "Re-enter Password:" prompt, re-enter the new user password and press Enter.
A message, "Password Changed" displays on the screen.
If you change the password Then you need to:
using the IP Phone UI, use that new password to log into
the Aastra Web UI.
using the Aastra Web UI, use that new password when
changing the user password via the
IP Phone UI.
Note: Valid values when creating or changing a password are 0 to 4294967295
(integers only; symbols and alpha characters are not allowed). Default password is
an empty string "" (field is blank).
IP Phone UI
Note: If required, use the following keys while entering a password:
• Backspace softkey moves cursor back a space and deletes characters
• Clear softkey clears entire field of all characters
• Quit softkey cancels the password changing process without saving.
Downloaded from www.Manualslib.com manuals search engine
60. 52 Model 6757i IP Phone User Guide
Customizing
Your
Phone
1. Click on Operation->User Password.
2. In the "Current Password" field, enter the current user password.
3. In the "New Password" field, enter the new user password.
4. In the "Password Confirm" field, enter the new user password again.
5. Click to save your changes.
Aastra Web UI
Note: By default, the user name is “user” (all lowercase) and the password field is
left blank.
Downloaded from www.Manualslib.com manuals search engine
61. Model 6757i IP Phone User Guide 53
Customizing
Your
Phone
Resetting a User Password
If you forget your password, you can reset it and enter a new password. The reset user password
feature resets the password to the factory default which is blank (no password).
You can reset a user password using the Aastra Web UI only.
Reset a User Password
Use the following procedure to reset a user password.
1. Click on Operation->Phone Lock.
2. In the "Reset User Password" field, click .
The following screen displays.
3. In the "Current Password" field, leave this blank.
4. In the "New Password" field, enter a new password.
5. In the "Password Confirm" field, re-enter your new user password.
6. Click to save your settings.
Note: Valid values when creating or changing a password are 0 to 4294967295
(integers only; symbols and alpha characters are not allowed). Default password is
an empty string "" (field is blank).
Aastra Web UI
Downloaded from www.Manualslib.com manuals search engine
62. 54 Model 6757i IP Phone User Guide
Customizing
Your
Phone
Restarting your phone
You may want to restart your phone to check for updates on the server. You may occasionally
need to restart your phone to set changes or updates to your phone or network settings. You
may also need to restart your phone if you have been asked to do so by your System
Administrator, or should you experience any unexpected behavior.
1. Press the button on the phone to enter the Options List.
2. Select Restart Phone.
3. When the prompt, "Are you sure you wish to restart the phone?" appears, press the Restart
softkey. If you do not wish to restart your phone, press Cancel.
1. Click on Operation->Reset.
2. Click .
3. Click OK at the confirmation prompt.
IP Phone UI
Note: Your phone is out of service temporarily during the restart and downloading
process.
Aastra Web UI
Downloaded from www.Manualslib.com manuals search engine
63. Model 6757i IP Phone User Guide 55
Customizing
Your
Phone
Phone Lock
You can lock your phone to prevent the phone from being used or configured. You can lock the
phone using any of the following:
• At the path Options->Phone Lock on the IP Phone UI.
• At the path Operations->Phone Lock on the Aastra Web UI.
• At a configured key on the phone. For more information about configuring a Lock/Unlock key
on your phone, see “Making Calls” on page 152.
In the Aastra Web UI, the Operation->Phone Lock path also allows you to perform the following:
• Reset a user password. Clicking on the “Reset” button in the “Reset User Password” field
displays a screen that allows you to enter and save a new user password.
• Set an emergency dial plan. An emergency dial plan can be 911, 999, 112, 110 or all of the
above. The default emergency dial plan is 911|999|112|110.
The following procedures describe locking the phone, setting an emergency dial plan, and
resetting the user password.
Locking/Unlocking a Phone
Use the following procedures to lock an IP phone and prevent it from being used or configured.
Lock the Phone
1. Press on the phone to enter the Options List.
2. Select Phone Lock and press Select.
3. At the "Lock the phone?" prompt, press Lock.
The message "Phone is locked" displays.
Unlock the Phone
1. Press on the phone to enter the Options List.
2. At the prompt, "To unlock the phone", enter your user password and press Enter.
The phone unlocks.
IP Phone UI
Downloaded from www.Manualslib.com manuals search engine
64. 56 Model 6757i IP Phone User Guide
Customizing
Your
Phone
1. Click on Operation->Phone Lock.
Lock the Phone
2. In the "Lock the Phone?" field, click .
The phone locks dynamically and displays the following message:
"Phone is locked".
Unlock the Phone
3. Click on Operation->Phone Lock.
4. In the "Unlock the Phone?" field, click .
The phone unlocks dynamically and displays the following message:
"Phone is unlocked".
Aastra Web UI
Downloaded from www.Manualslib.com manuals search engine
65. Model 6757i IP Phone User Guide 57
Customizing
Your
Phone
Defining an Emergency Dial Plan
Public telephone networks in countries around the world have a single emergency telephone
number (emergency services number), that allows a caller to contact local emergency services for
assistance when required. The emergency telephone number may differ from country to country. It
is typically a three-digit number so that it can be easily remembered and dialed quickly. Some
countries have a different emergency number for each of the different emergency services.
You can specify the digits to dial on the IP phone for contacting emergency services. Once you
specify the emergency number(s) on the phone, you can dial those numbers directly on the dial pad
when required and the phone automatically dials to those emergency services.
The following table describes the default emergency numbers on the IP phones.
You can set the emergency dial plan using the Aastra Web UI.
Note: Contact your local phone service provider for available emergency numbers
in your area.
Emergency
Number Description
911 A United States emergency number
999 A United Kingdom emergency number
112 An international emergency telephone number for GSM mobile phone
networks.
In all European Union countries it is also the emergency telephone
number for both mobile and fixed-line telephones.
110 A police and/or fire emergency number in Asia, Europe, Middle East, and
South America.
Downloaded from www.Manualslib.com manuals search engine
66. 58 Model 6757i IP Phone User Guide
Customizing
Your
Phone
Define an Emergency Dial Plan
Use the following procedure to specify the numbers to use on your phone for dialing emergency
services in your area.
1. Click on Operation->Phone Lock.
2. In the "Emergency Dial Plan" field, enter the 3-digit number used in your local area to
contact emergency services. For multiple numbers, enter a “|” between each emergency
number. For example:
911|110
Default for this field is 911|999|112|110.
3. Click to save the emergency dial plan to your phone.
Reference
For more advanced options you can set on your phone, see “Additional Features” on page 211.
Aastra Web UI
Downloaded from www.Manualslib.com manuals search engine
67. Model 6757i IP Phone User Guide 59
Line
Keys
and
Softkeys
Line Keys and Softkeys
This section describes the Multiple Line/Call Appearance Keys (L1, L2, L3, and L4) located on
the bottom-right of the phone, and the customizable softkeys located at the top and bottom of the
phone screen.
Multiple Line and Call Appearances
The 6757i has 4 hard line/call appearance buttons each with a corresponding status light.
These line/call appearance buttons and lights can represent physical lines, calls for your extension
or calls from a group that your extension is part of. By pressing a line/call appearance button, you
connect to the line or a call it represents. The line/call appearance light indicates the status of that
line or call. When the phone is taken off-hook, the phone automatically selects a line for you.
When you have more than one call, you can use the left and right navigation buttons (3 and 4) to
scroll left and right to the different call information. Icons 3 and 4 appear if there is call
information either left, right or both sides of the current information you are viewing.
The display shows which line the call information is referring to (L1, L2, L3, L4 etc.), the Caller
ID information (name and number, if available), the call status (Connected, Ring, Hold, etc.) and
the timer specific to that call.
Line/Call Appearance Light Behavior Line/Call Appearance Status
Off Idle line or no call activity
Light flashes quickly Ringing
Light is solid Connected
Light flashes slowly Hold
Multiple Line/
Call Appearance
Keys
Softkeys
Downloaded from www.Manualslib.com manuals search engine
68. 60 Model 6757i IP Phone User Guide
Line
Keys
and
Softkeys
Softkeys
Your 6757i has 12 multi-functional softkeys:
• 6 Top Keys: static softkeys
(up to 10 programmable functions)
• 6 Bottom Keys: state-based softkeys
(up to 20 programmable functions).
You can use the Aastra Web UI only, to configure key functions.
Note: If a M670i or M675i Expansion Module(s) is attached to the phone, you can
configure up to an additional 36 softkeys on each M670i Expansion Module and up
to 60 softkeys on each M675i Expansion Module. (The 6757i IP Phone allows up to
3 expansion modules on each phone). For more information about expansion
modules, see “Model M670i and M675i Expansion Modules” on page 245.
Services
Directory
Callers List
Intercom
None
None
Softkeys
(state-based)
None
None
None
None
None
None
Softkeys
Downloaded from www.Manualslib.com manuals search engine
69. Model 6757i IP Phone User Guide 61
Line
Keys
and
Softkeys
The following table lists the functions you can set on the softkeys and provides a description for
each function,.
Key Function Description
None Indicates no setting for the key.
Line Indicates the key is configured for line use.
Speeddial Indicates the key is configured for speeddial use. You can also
configure a prefix for a speeddial number.
Do Not Disturb Indicates the key is configured for "do not disturb" on the phone.
Busy Lamp Field (BLF) Indicates the key is configured for Busy Lamp Field (BLF) use. User can
dial out on a BLF configured key.
(Maximum of 50 BLFs allowed on M670i Expansion Module.)
BLF List Indicates the key is configured for BLF list use. User can dial out on a
BLF List configured key.
Auto Call Distribution (ACD) (For Sylantro Servers)
Indicates the key is configured to allow the Sylantro server to distribute
calls from a queue to registered IP phone users (agents).
Directed Call Pickup (DCP)/
Group Call Pickup (GCP)
(For Sylantro Servers)
Indicates the key is configured to allow you to intercept - or pickup - a
call on a monitored extension(s).
XML Indicates the key is configured to accept an XML application for
accessing customized XML services. You can also specify an XML key
URL for this option.
WebApps
(Key 1 on bottom keys by
default)
Indicates the key is pre-programmed to access an Aastra XML-based
application called, “xml.myaastra.com“. You can access WebApps by
pressing the applicable function key, or by pressing the Services key
and selecting the WebApps option.
Flash Indicates the key is set to generate a flash event when it is pressed on
the 6757i. The IP phone generates flash events only when a call is
connected and there is an active RTP stream (for example, when the
call is not on hold).
Sprecode Indicates the key is configured to automatically activate specific
services offered by the server. For example, if the sprecode value of *82
is configured, then by pressing the Sprecode key, *82 automatically
activates a service provided by the server. Contact your System
Administrator for available services.
Park Indicates the key is configured to park incoming calls when pressed.
Pickup Indicates the key is configured to pick up parked calls when pressed.
Last Call Return (lcr) Indicates the key is configured for “last call return” when pressed.
Call Forward Indicates the key is configured as a Call Forward key. When pressed,
the IP Phone UI displays the Call Forward menus.
BLF/Xfer Indicates the key is configured as a simplified BLF key and a transfer
key. You can use this key to perform the BLF function, or you can use it
as a transfer key to transfer calls.
Speeddial/Xfer Indicates the key is configured as a simplified speeddial key and a
transfer key. You can use this key to perform speeddial functions, or you
can use it as a transfer key to transfer calls.
Downloaded from www.Manualslib.com manuals search engine
70. 62 Model 6757i IP Phone User Guide
Line
Keys
and
Softkeys
Keys can also be set up to quickly to access features such as Call Return (*69) or Voicemail.
Speeddial/Conf Indicates the key is configured as a speeddial key and a conference
key. You can use this key to speeddial from within a conference call,
and add the new call directly to the conference.
Services
(Key 1 on top keys by default)
Indicates the key is set to access Services, such as, Directory List,
Callers List, Voicemail, or any other XML applications set up by your
System Administrator.
Directory
(Key 2 on top keys by default)
Indicates the key is configured to access the Directory List.
Callers List
(Key 3 on top keys by default)
Indicates the key is configured to access the Callers List.
Intercom
(Key 4 on top keys by default)
Indicates the key is configured to be used for intercom calls.
Phone Lock Indicates the key is configured as a phone lock key, allowing you to
press this key to lock/unlock the phone.
Paging Indicates the key is configured as a Paging key. When pressed, the
phone can send Real Time Transport Protocol (RTP) streams from a
pre-configured multicast address without involving SIP signaling. You
can also receive RTP streams from pre-configured multicast addresses
(can specify up to 5 addresses) using the "Paging Listen Addresses" at
the path, Basic Settings->Preferences->Group Paging RTP Settings
in the Aastra Web UI. For more information about setting this parameter,
see “Group RTP Paging (receives RTP streams)” on page 235.
Empty Indicates the key has no function assigned.
Note: Quick access features like Call Return and Voicemail must first be configured on
your PBX in order to work on your phone. See your System Administrator for more
information.
Key Function Description
Downloaded from www.Manualslib.com manuals search engine
71. Model 6757i IP Phone User Guide 63
Line
Keys
and
Softkeys
State-Based Softkeys (Bottom Keys only)
On the 6757i bottom softkeys, you can configure a specific state to display when a softkey is being
used.
The following table describes the states available to configure for the softkeys.
The following table identifies the applicable default states for each softkey type on the IP phone.
State Description
idle The phone is not being used.
connected The current line is in an active call (or the call is on hold).
incoming The phone is ringing.
outgoing The user is dialing a number, or the far-end is ringing.
busy The current line is busy because the line is in use or the line is set as “Do Not Disturb”.
Softkey Type Default States
None All states disabled.
Line idle, connected, incoming, outgoing, busy
Speeddial idle, connected, incoming, outgoing, busy
DND idle, connected, incoming, outgoing, busy
BLF idle, connected, incoming, outgoing, busy
BLF List idle, connected, incoming, outgoing, busy
Auto Call Distribution (ACD) idle
Directed Call Pickup (DCP)
Group Call Pickup (GCP)
idle, connected, incoming, outgoing, busy
XML idle, connected, incoming, outgoing, busy
Softkeys
(state-based)
None
None
None
None
None
None
Downloaded from www.Manualslib.com manuals search engine
72. 64 Model 6757i IP Phone User Guide
Line
Keys
and
Softkeys
In the Aastra Web UI, the operational states for each softkey display enabled. To disable a state,
you uncheck the box for that state.
Key Display Behavior
On the 6757i IP Phone, you can configure up to 20 functions on the bottom softkeys. If you have
no softkeys configured on the IP Phone, and you assign softkey functions to higher number keys
in the Aastra Web UI, the key functions automatically appear in the first available position on the
LCD display.
For example, if softkeys 1 through 20 are set to "None", and you set softkey 12 as the following:
Type: speeddial
Label: LAB
Value: 3456
after saving the settings, the "LAB" label actually appears in position 1 of the LCD.
A softkey function of "none" does not display on the idle screen at all.
WebApps idle, connected, incoming, outgoing, busy
Flash All states disabled.
Sprecode connected
Park connected
Pickup idle, outgoing
Last Call Return idle, connected, incoming, outgoing, busy
Call Forward idle, connected, incoming, outgoing, busy
BLF/Xfer idle, connected, incoming, outgoing, busy
Speeddial/Xfer idle, connected, incoming, outgoing, busy
Speeddial/Conf idle, connected, incoming, outgoing, busy
Services idle, connected, incoming, outgoing, busy
Directory idle, connected, incoming, outgoing, busy
Callers List idle, connected, incoming, outgoing, busy
Intercom idle, connected, incoming, outgoing, busy
Phone Lock All states disabled.
Paging All states disabled.
Empty idle, connected, incoming, outgoing, busy
Softkey Type Default States
Downloaded from www.Manualslib.com manuals search engine
73. Model 6757i IP Phone User Guide 65
Line
Keys
and
Softkeys
The following illustrations show the configuration of Key 12 and how that key displays on the
phone.
Key 12 configured as a speeddial
Key 12 displays in
softkey position 1
on the phone
L1 John Smith
Sat Jan 1 12:18am
- LAB
Downloaded from www.Manualslib.com manuals search engine
74. 66 Model 6757i IP Phone User Guide
Line
Keys
and
Softkeys
Line Key
You can set a softkey to act as a line/call appearance key on the 6757i. The This key acts as a line
that behaves the same as a hard line key (L1, L2, L3, and L4). For more information about the
behavior of line keys, see “Multiple Line and Call Appearances” on page 59.
If you configure line keys for the softkeys, the status of the lines/call appearance keys appear on
the phone’s display as shown in the following image.
Icons next to the softkeys on the phone’s display indicate the status for that line or call. The
following table provides a description for each icon.
Depending on how the phone has been configured, the maximum number of total line/call
appearances that can be configured is 9 (4 line/call appearance hard keys plus 5 softkeys). If all
line/call appearances have been set up between two different numbers, a total of 8 lines can be
configured.
Services
Dir
Callers
Icom
John Smith
Sat Jan 1 12:18am
1
L5
L6
L7
L8
L9
Icon Definition
There is no call activity for the line/call appearance
softkey.
A call is ringing at your phone on this line/call
appearance softkey.
The equivalent on a line/call appearance hard key
is a fast flashing green light.
A call is on hold on your phone on this line/call
appearance softkey.
The equivalent on a line/call appearance hard key
is a slow flashing green light.
A call is connected to your phone on this
line/call appearance softkey.
The equivalent on a line/call appearance hard key
is a solid green light.
Light
Flashing
Flashing
Solid
Solid
Activity
Idle
Connected
Ringing
On Hold
Softkey Line/Call Appearance Lights
Downloaded from www.Manualslib.com manuals search engine
75. Model 6757i IP Phone User Guide 67
Line
Keys
and
Softkeys
This means that when all line/call appearances are in use, 1 call is connected while the rest are on
hold. No further outgoing or incoming calls can be made until one of the line/call appearances
becomes available.
In active states, such as ringing, conference, connected, etc., all softkeys disappear except softkeys
that have been set up as line/call appearances, and any context dependent softkeys required for the
active state, such as the Drop softkey in the connected state. Typically, context dependent softkeys
appear in the top left position and all line/call appearance softkeys appear in the remaining
positions.
You use the Aastra Web UI to set a softkey as a line.
Note: In some situations, such as during a conference call, the line/call appearance
softkeys may overwrite some of the context dependent softkeys. In this case, instead
of the Previous and Next softkeys, up or down icons, 5 and 2 appear on the
display. By using the 5 and 2 navigation keys, you can access the same
functionality as the Previous and Next softkeys.
Downloaded from www.Manualslib.com manuals search engine
76. 68 Model 6757i IP Phone User Guide
Line
Keys
and
Softkeys
Configuring a Line Key
You can set a key as an additional line on the 6757i. The key acts as a line that behaves the same
as a hard line key. For more information about the behavior of line keys, see “Multiple Line and
Call Appearances” on page 59.
You use the Aastra Web UI to set a key as a line.
Use the following procedure to set a key to function as a line. The procedure shows the softkey
screens as an example.
1. Click on Operation->Softkeys and XML.
or
Click on Operation->Expansion Module <N>.
Softkeys
2. Select from “Key 1” through “Key 10” on the Top keys.
or
Select from "Key 1" through "Key 20" on the Bottom keys.
3. In the "Type" field, select Line to apply to the key.
4. In the "Label" field, enter a label to apply to this key.
5. In the "Line" field, select a line to apply to this key.
Valid values are 5 through 9.
Aastra Web UI
Downloaded from www.Manualslib.com manuals search engine
77. Model 6757i IP Phone User Guide 69
Line
Keys
and
Softkeys
6. (Bottom Softkeys) In the state fields, check (enable) or uncheck (disable) the states you want
to apply to this softkey.
Expansion Module Keys
7. Select from “Key 1” through “Key 36” (M670i)
or
Select from “Key 1” through “Key 60” (M675i)
8. In the "Type" field, select Line to apply to the key.
9. (M675i) In the "Label" field, enter a label to apply to this key.
10. In the "Line" field, select a line to apply to this key.
Valid values are 5 through 9.
11. Click to save your changes.
Downloaded from www.Manualslib.com manuals search engine
78. 70 Model 6757i IP Phone User Guide
Line
Keys
and
Softkeys
Speeddial Key
The normal function of the speeddial option allows you to dial a number quickly by pressing a
key configured for speeddialing. You can program the keys on the 6757i to speeddial outside
numbers, dial directly to another person’s line or extension, or set up to quickly access features
such as Caller ID (*69), Voicemail.
The speeddial function can be set using the IP Phone UI or the Aastra Web UI.
You can create speeddial keys using any of the following methods:
• Using the Aastra Web UI at the paths:
- Operation->Softkeys and XML
- Operation->Expansion Module Keys
• Using the IP Phone UI at the path, Options->Preferences->Speed Dial Edit
• By pressing and holding a softkey, keypad key, or expansion module key.
Speeddial Prefix
The speeddial feature also allows you to specify a preset string of numbers followed by a “+”
that the phone dials automatically after pressing the speeddial key. You can use this feature for
numbers that contain long prefixes.
For example, if you had the following speeddial configuration in the Aastra Web UI:
Key 1
Type=speeddial
Label=Europe Office
Value=1234567+
Line=2
