1. RV College Of Engineering
Dept Of Information Science Page 26

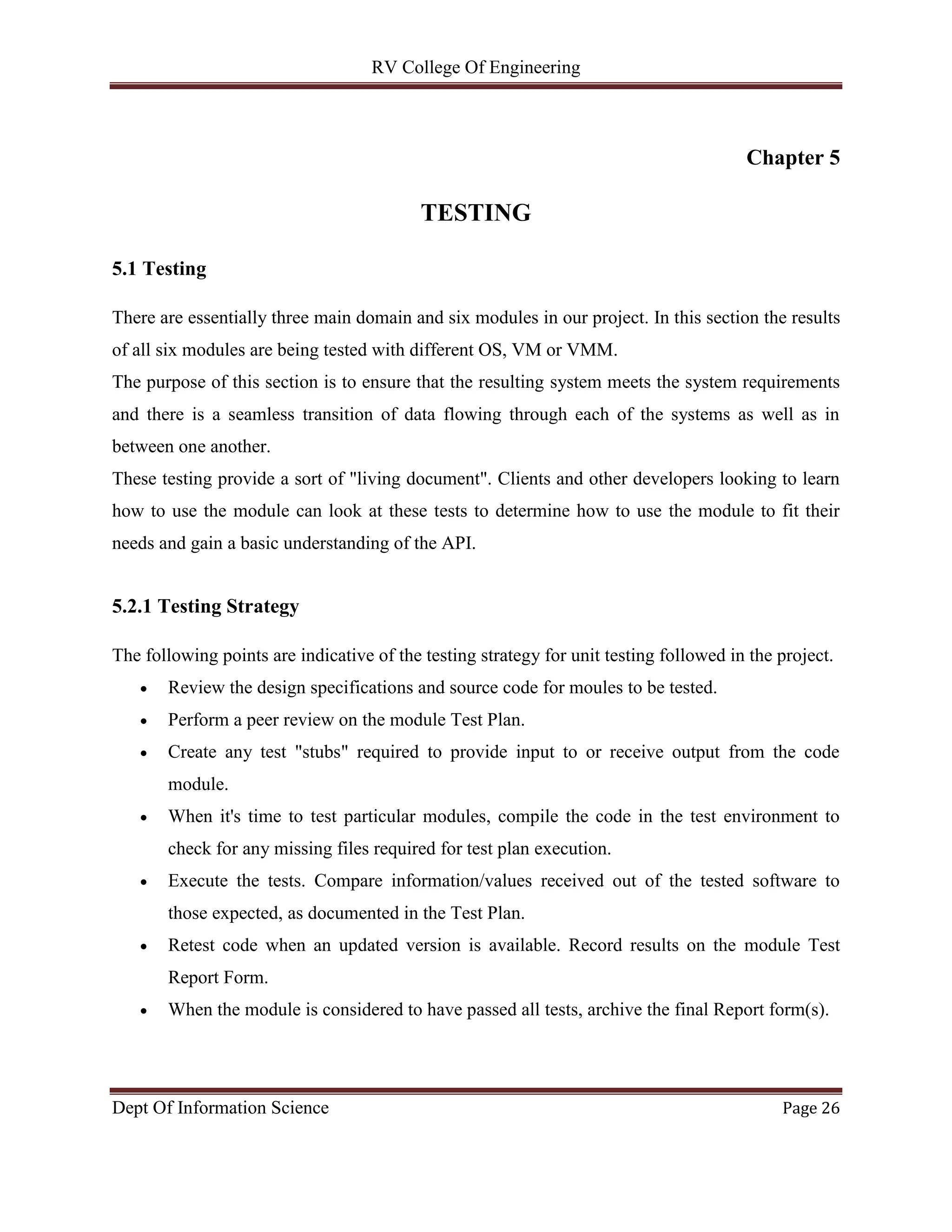

Chapter 5
TESTING
5.1 Testing
There are essentially three main domain and six modules in our project. In this section the results
of all six modules are being tested with different OS, VM or VMM.
The purpose of this section is to ensure that the resulting system meets the system requirements
and there is a seamless transition of data flowing through each of the systems as well as in
between one another.
These testing provide a sort of "living document". Clients and other developers looking to learn
how to use the module can look at these tests to determine how to use the module to fit their
needs and gain a basic understanding of the API.
5.2.1 Testing Strategy
The following points are indicative of the testing strategy for unit testing followed in the project.
 Review the design specifications and source code for moules to be tested.
 Perform a peer review on the module Test Plan.
 Create any test "stubs" required to provide input to or receive output from the code
module.
 When it's time to test particular modules, compile the code in the test environment to
check for any missing files required for test plan execution.
 Execute the tests. Compare information/values received out of the tested software to
those expected, as documented in the Test Plan.
 Retest code when an updated version is available. Record results on the module Test
Report Form.
 When the module is considered to have passed all tests, archive the final Report form(s).

2. RV College Of Engineering
Dept Of Information Science Page 27
Table 5.1: Test case 1
Test case 1 Cold reboot based on Time
Test Case ID T-1
Purpose The system should rejuvenate at given rejuvenation time(TTR)
Pre-
Conditions System time
Inputs Time to Rejuvenate(TTR)
Expected
Output Reboot
Post-
Conditions After rebooting the system the current state should not be saved
Execution History
Date Result Version Remark
17-02-2014 Pass 1.0 Testing passed in Ubuntu 12.04 operating system
15-03-2014 Pass 1.0 Testing passed in CentOS operating system
27-03-2014 Pass 1.0 Testing passed in Ubuntu 12.04 operating system
04-04-2014 Pass 1.0 Testing passed in CentOS operating system
09-04-2014 Pass 1.0 Testing passed in Ubuntu 12.04 operating system
09-04-2014 Pass 1.0 Testing passed in CentOS operating system

3. RV College Of Engineering
Dept Of Information Science Page 28
Table 5.2: Test case 2
Test Case ID T-2
Purpose System should rejuvenate at given memory threshold value
Pre-
Conditions System free memory
Inputs Memory threshold value
Expected
Output Reboot
Post-
Conditions After rebooting the system the current state should not be saved
Execution History
Date Result Version Remark
17-02-2014 Pass 1.0 Testing passed in Ubuntu 12.04 operating system
15-03-2014 Pass 1.0 Testing passed in CentOS operating system
27-03-2014 Pass 1.0 Testing passed in Ubuntu 12.04 operating system
04-04-2014 Pass 1.0 Testing passed in CentOS operating system
09-04-2014 Pass 1.0 Testing passed in Ubuntu 12.04 operating system
09-04-2014 Pass 1.0 Testing passed in CentOS operating system
Test case 2 Cold reboot based on Workload
.

4. RV College Of Engineering
Dept Of Information Science Page 29
Table 5.3: Test case 3
Test Case ID T-3
Purpose
The system optimize the rejuvenation time based on the workload and then system
rejuvenates at an optimized time
Pre-
Conditions System time and Free memory
Inputs Time to Rejuvenate(TTR) and Memory threshold value
Expected
Output Reboot
Post-
Conditions After rebooting the system the current state should not be saved
Execution History
Date Result Version Remark
17-02-2014 Pass 1.0 Testing passed in Ubuntu 12.04 operating system
15-03-2014 Pass 1.0 Testing passed in CentOS operating system
27-03-2014 Pass 1.0 Testing passed in Ubuntu 12.04 operating system
04-04-2014 Pass 1.0 Testing passed in CentOS operating system
09-04-2014 Pass 1.0 Testing passed in Ubuntu 12.04 operating system
09-04-2014 Pass 1.0 Testing passed in CentOS operating system
Test case 3 Cold reboot based on both Time and Workload

5. RV College Of Engineering
Dept Of Information Science Page 30
Table 5.4: Test case 4
Test Case ID T-4
Purpose The system should rejuvenate at given rejuvenation time(TTR)
Pre-
Conditions System time
Inputs Time to Rejuvenate(TTR)
Expected
Output Reboot
Post-
Conditions After rebooting the system the current state should be saved
Execution History
Date Result Version Remark
27-02-2014 Failed 1.0
Testing Failed in CentOS operating system due to
OS is not compatible
28-03-2014 Pass 1.0.1 Testing passed in Ubuntu 12.04
27-03-2014 Pass 1.0.1 Testing passed in Ubuntu 12.04
04-04-2014 Pass 1.0.1 Testing passed in Ubuntu 12.04
09-04-2014 Pass 1.0.1 Testing passed in Ubuntu 12.04
09-04-2014 Pass 1.0.1 Testing passed in Ubuntu 12.04
Test case 4 Warm reboot based on Time

6. RV College Of Engineering
Dept Of Information Science Page 31
Table 5.5: Test case 5
Test Case ID T-5
Purpose The system should rejuvenate at given Memory threshold value
Pre-
Conditions System Free memory
Inputs Memory threshold value
Expected
Output Reboot
Post-
Conditions After rebooting the system the current state should be saved
Execution History
Date Result Version Remark
27-02-2014 Failed 1.0
Testing Failed in CentOS operating system due to
OS is not compatible
28-03-2014 Pass 1.0.1 Testing passed in Ubuntu 12.04
27-03-2014 Pass 1.0.1 Testing passed in Ubuntu 12.04
04-04-2014 Pass 1.0.1 Testing passed in Ubuntu 12.04
09-04-2014 Pass 1.0.1 Testing passed in Ubuntu 12.04
09-04-2014 Pass 1.0.1 Testing passed in Ubuntu 12.04
Test case 5 Cold reboot based on Workload

7. RV College Of Engineering
Dept Of Information Science Page 32
Table 5.6: Test Case 6
Test Case ID T-6
Purpose
The system optimize the rejuvenation time based on the workload and then system
rejuvenates at an optimized time
Pre-
Conditions System Time and Free memory
Inputs Time to Rejuvenate and Memory threshold value
Expected
Output Reboot
Post-
Conditions After rebooting the system the current state should be saved
Execution History
Date Result Version Remark
27-02-2014 Failed 1.0
Testing Failed in CentOS operating system due to
OS is not compatible
28-03-2014 Pass 1.0.1 Testing passed in Ubuntu 12.04
27-03-2014 Pass 1.0.1 Testing passed in Ubuntu 12.04
04-04-2014 Pass 1.0.1 Testing passed in Ubuntu 12.04
09-04-2014 Pass 1.0.1 Testing passed in Ubuntu 12.04
09-04-2014 Pass 1.0.1 Testing is passed in Ubuntu 12.04
Test case 6 Warm reboot based on both time and Workload

8. RV College Of Engineering
Dept Of Information Science Page 33
Table 5.7: Test case 7
Test Case ID T-7
Purpose The Virtual Machine(VM) should rejuvenate at given rejuvenation time(TTR)
Pre-
Conditions System time
Inputs Time to Rejuvenate(TTR)
Expected
Output Virtual Machine(VM) Reboot
Post-
Conditions After rebooting the Virtual Machine(VM) the current state should not be saved
Execution History
Date Result Version Remark
27-03-2014 Pass 1.0 Testing passed in Ubuntu 12.04 operating system
04-04-2014 Pass 1.0 Testing passed in CentOS operating system
09-04-2014 Pass 1.0 Testing passed in Ubuntu 12.04 operating system
09-04-2014 Pass 1.0 Testing passed in CentOS operating system
Test Case 7 VM cold reboot based on Time

9. RV College Of Engineering
Dept Of Information Science Page 34
Table 5.8: Test case 8
Test Case ID T-8
Purpose The Virtual Machine(VM) should rejuvenate at given Memory threshold value
Pre-
Conditions System Free memory
Inputs Memory threshold value
Expected
Output Virtual Machine(VM) Reboot
Post-
Conditions After rebooting the Virtual Machine(VM) the current state should not be saved
Execution History
Date Result Version Remark
27-03-2014 Pass 1.0 Testing passed in Ubuntu 12.04 operating system
04-04-2014 Pass 1.0 Testing passed in CentOS operating system
09-04-2014 Pass 1.0 Testing passed in Ubuntu 12.04 operating system
09-04-2014 Pass 1.0 Testing passed in CentOS operating system
Test case 8 VM cold reboot based on Workload

10. RV College Of Engineering
Dept Of Information Science Page 35
Table 5.9: Test case 9
Test Case ID T-9
Purpose
The system optimize the rejuvenation time based on the workload and then Virtual
Machine(VM) rejuvenates at an optimized time
Pre-
Conditions System time and Free memory
Inputs Time to Rejuvenate(TTR) and Memory threshold value
Expected
Output Virtual Machine(VM) Reboot
Post-
Conditions After rebooting the Virtual Machine(VM) the current state should not be saved
Execution History
Date Result Version Remark
27-03-2014 Pass 1.0 Testing passed in Ubuntu 12.04 operating system
04-04-2014 Pass 1.0 Testing passed in CentOS operating system
09-04-2014 Pass 1.0 Testing passed in Ubuntu 12.04 operating system
09-04-2014 Pass 1.0 Testing passed in CentOS operating system
Test case 9 VM cold reboot based on both Time and workload

11. RV College Of Engineering
Dept Of Information Science Page 36
Table 5.10: Test case 10
Test Case ID T-10
Purpose The Virtual Machine(VM) should rejuvenate at given rejuvenation time(TTR)
Pre-
Conditions System time
Inputs Time to Rejuvenate(TTR)
Expected
Output Virtual Machine(VM) Reboot
Post-
Conditions After rebooting the Virtual Machine(VM) the current state should be saved
Execution History
Date Result Version Remark
27-03-2014 Pass 1.0 Testing passed in Ubuntu 12.04 operating system
04-04-2014 Pass 1.0 Testing passed in CentOS operating system
09-04-2014 Pass 1.0 Testing passed in Ubuntu 12.04 operating system
09-04-2014 Pass 1.0 Testing passed in CentOS operating system
Test case 10 VM warm reboot based on Time

12. RV College Of Engineering
Dept Of Information Science Page 37
Table 5.11: Test case 11
Test Case ID T-11
Purpose The Virtual Machine(VM) should rejuvenate at given Memory threshold value
Pre-
Conditions System Free memory
Inputs Memory threshold value
Expected
Output Virtual Machine(VM) Reboot
Post-
Conditions After rebooting the Virtual Machine(VM) the current state should be saved
Execution History
Date Result Version Remark
27-03-2014 Pass 1.0 Testing passed in Ubuntu 12.04 operating system
04-04-2014 Pass 1.0 Testing passed in CentOS operating system
09-04-2014 Pass 1.0 Testing passed in Ubuntu 12.04 operating system
09-04-2014 Pass 1.0 Testing passed in CentOS operating system
Test case 11 VM warm reboot based on Workload

13. RV College Of Engineering
Dept Of Information Science Page 38
Table 5.12: Test case 12
Test Case ID T-12
Purpose
The system optimize the rejuvenation time based on the workload and then Virtual
Machine(VM) rejuvenates at an optimized time
Pre-
Conditions System time and Free memory
Inputs Time to Rejuvenate(TTR) and Memory threshold value
Expected
Output Virtual Machine(VM) Reboot
Post-
Conditions After rebooting the Virtual Machine(VM) the current state should be saved
Execution History
Date Result Version Remark
27-03-2014 Pass 1.0 Testing passed in Ubuntu 12.04 operating system
04-04-2014 Pass 1.0 Testing passed in CentOS operating system
09-04-2014 Pass 1.0 Testing passed in Ubuntu 12.04 operating system
09-04-2014 Pass 1.0 Testing passed in CentOS operating system
Test case 12 VM warm reboot based on both Time and workload

14. RV College Of Engineering
Dept Of Information Science Page 39
Table 5.13: Test case 13
Test Case ID T-13
Purpose
The Virtual Machine Monitor(VMM) should rejuvenate at given rejuvenation
time(TTR)
Pre-
Conditions System time
Inputs Time to Rejuvenate(TTR)
Expected
Output Virtual Machine Monitor(VMM) Reboot
Post-
Conditions
After rebooting the Virtual Machine Monitor(VMM) connection between VMM
and VM’s should loss
Execution History
Date Result Version Remark
27-03-2014 Pass 1.0 Testing passed in Ubuntu 12.04 operating system
04-04-2014 Pass 1.0 Testing passed in CentOS operating system
09-04-2014 Pass 1.0 Testing passed in Ubuntu 12.04 operating system
09-04-2014 Pass 1.0 Testing passed in CentOS operating system
Test case 13 VMM reboot based on Time

15. RV College Of Engineering
Dept Of Information Science Page 40
Table 5.14: Test case 14
Test Case ID T-14
Purpose
The Virtual Machine Monitor(VMM) should rejuvenate at given Memory
threshold value
Pre-
Conditions System Free memory
Inputs Memory threshold value
Expected
Output Virtual Machine Monitor(VMM) Reboot
Post-
Conditions
After rebooting the Virtual Machine Monitor(VMM) connection between VMM
and VM’s should loss
Execution History
Date Result Version Remark
27-03-2014 Pass 1.0 Testing passed in Ubuntu 12.04 operating system
04-04-2014 Pass 1.0 Testing passed in CentOS operating system
09-04-2014 Pass 1.0 Testing passed in Ubuntu 12.04 operating system
09-04-2014 Pass 1.0 Testing passed in CentOS operating system
Test case 14 VMM reboot based on Workload

16. RV College Of Engineering
Dept Of Information Science Page 41
Table 5.15: Test case 15
Test Case ID T-15
Purpose
The system optimize the rejuvenation time based on the workload and then Virtual
Machine Monitor(VMM) rejuvenates at an optimized time
Pre-
Conditions System time and Free memory
Inputs Time to Rejuvenate(TTR) and Memory threshold value
Expected
Output Virtual Machine Monitor(VMM) Reboot
Post-
Conditions
After rebooting the Virtual Machine Monitor(VMM) connection between VMM
and VM’s should loss
Execution History
Date Result Version Remark
27-03-2014 Pass 1.0 Testing passed in Ubuntu 12.04 operating system
04-04-2014 Pass 1.0 Testing passed in CentOS operating system
09-04-2014 Pass 1.0 Testing passed in Ubuntu 12.04 operating system
09-04-2014 Pass 1.0 Testing passed in CentOS operating system
Test case 15 VMM reboot based on both Time and Workload

17. RV College Of Engineering
Dept Of Information Science Page 42
Table 5.16: Test case 16
Test Case ID T-16
Purpose
The Virtual Machine(VM) should migrate from one Physical Machine(PM1) to
another Physical Machine(PM2) at given rejuvenation time(TTR)
Pre-
Conditions System time
Inputs Time to Rejuvenate(TTR)
Expected
Output
Virtual Machine(VM) should migrate from one Physical Machine(PM1) to
another Physical Machine(PM2)
Post-
Conditions
After the migration Virtual Machine(VM) from Physical Machine(PM1) should
reboot
Execution History
Date Result Version Remark
27-02-2014 Failed 1.0
Testing Failed in Ubuntu 12.04 operating system
due to OS is not compatible
05-03-2014 Failed 1.0
Testing Failed in Ubuntu 12.04 operating system
due to OS is not compatible
10-03-2014 Failed 1.0
Testing Failed in Ubuntu 12.04 operating system
due to OS is not compatible
30-03-2014 Pass 1.0.1 Testing passed in CentOS operating system
04-04-2014 Pass 1.0.1 Testing passed in CentOS operating system
09-04-2014 Pass 1.0.1 Testing passed in CentOS operating system
Test case 16 VM migration based on Time

18. RV College Of Engineering
Dept Of Information Science Page 43
Table 5.17: Test case 17
Test Case ID T-17
Purpose
The Virtual Machine(VM) should migrate from one Physical Machine(PM1) to
another Physical Machine(PM2) at given Memory threshold value
Pre-
Conditions System Free memory
Inputs Memory threshold value
Expected
Output
Virtual Machine(VM) should migrate from one Physical Machine(PM1) to
another Physical Machine(PM2)
Post-
Conditions
After the migration Virtual Machine(VM) from Physical Machine(PM1) should
reboot
Execution History
Date Result Version Remark
27-02-2014 Failed 1.0
Testing Failed in Ubuntu 12.04 operating system
due to OS is not compatible
05-03-2014 Failed 1.0
Testing Failed in Ubuntu 12.04 operating system
due to OS is not compatible
10-03-2014 Failed 1.0
Testing Failed in Ubuntu 12.04 operating system
due to OS is not compatible
30-03-2014 Pass 1.0.1 Testing passed in CentOS operating system
04-04-2014 Pass 1.0.1 Testing passed in CentOS operating system
09-04-2014 Pass 1.0.1 Testing passed in CentOS operating system
Test case 17 VM migration based on workload

19. RV College Of Engineering
Dept Of Information Science Page 44
Table 5.18: Test case 18
Test Case ID T-18
Purpose
The system optimize the rejuvenation time based on the workload and then Virtual
Machine(VM) should migrate from one Physical Machine(PM1) to another
Physical Machine(PM2) based on optimized time
Pre-
Conditions System Free memory and System Free memory
Inputs System Time and Memory threshold value
Expected
Output
Virtual Machine(VM) should migrate from one Physical Machine(PM1) to
another Physical Machine(PM2)
Post-
Conditions
After the migration Virtual Machine(VM) from Physical Machine(PM1) should
reboot
Execution History
Date Result Version Remark
27-02-2014 Failed 1.0
Testing Failed in Ubuntu 12.04 operating system
due to OS is not compatible
05-03-2014 Failed 1.0
Testing Failed in Ubuntu 12.04 operating system
due to OS is not compatible
10-03-2014 Failed 1.0
Testing Failed in Ubuntu 12.04 operating system
due to OS is not compatible
30-03-2014 Pass 1.0.1 Testing passed in CentOS operating system
04-04-2014 Pass 1.0.1 Testing passed in CentOS operating system
09-04-2014 Pass 1.0.1 Testing passed in CentOS operating system
Test case 18 VM migration based on both Time and workload

20. RV College Of Engineering
Dept Of Information Science Page 45
