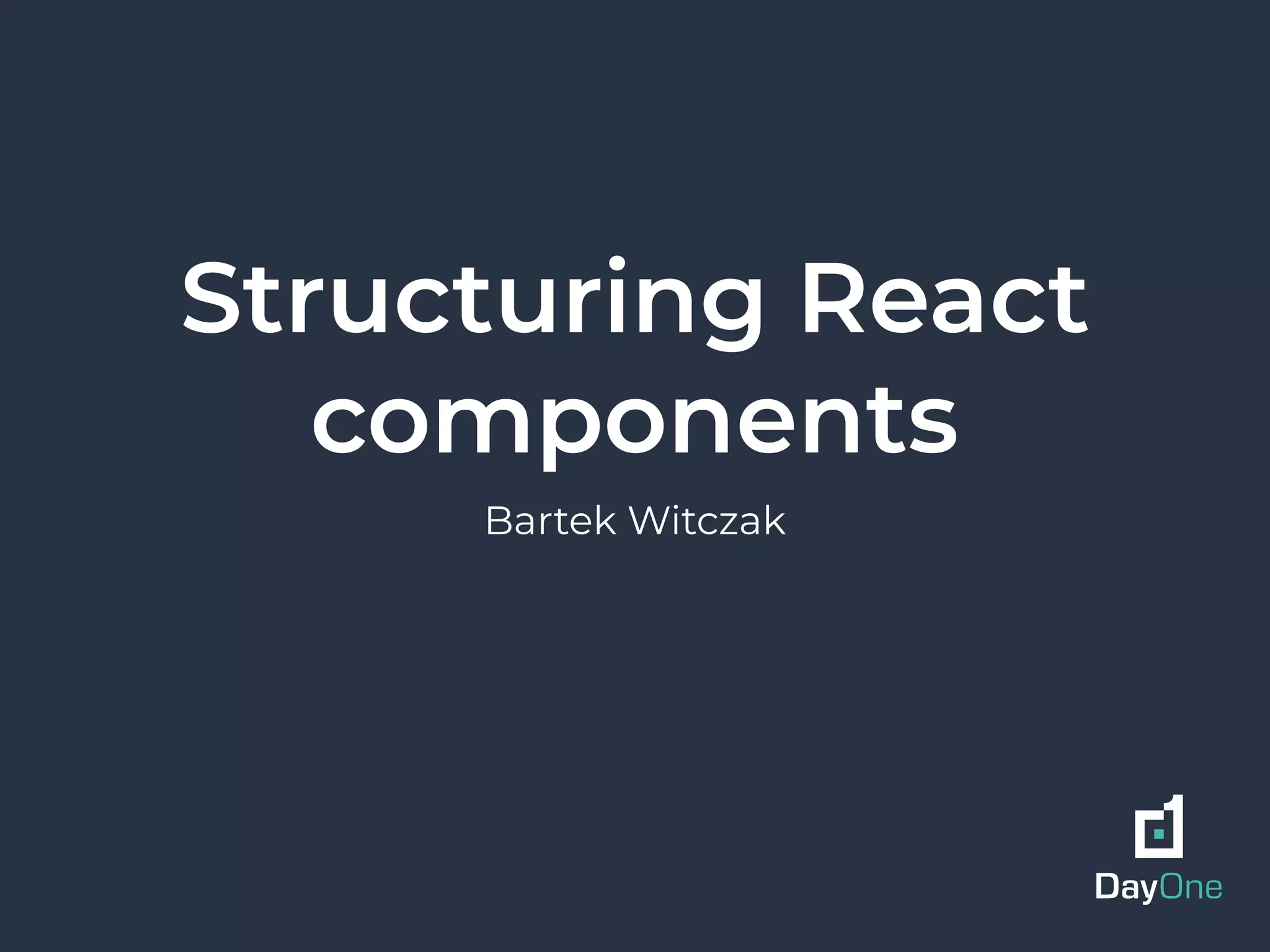

4Developers 2018: Structuring React components (Bartłomiej Witczak)

Structuring React
components
Bartek Witczak

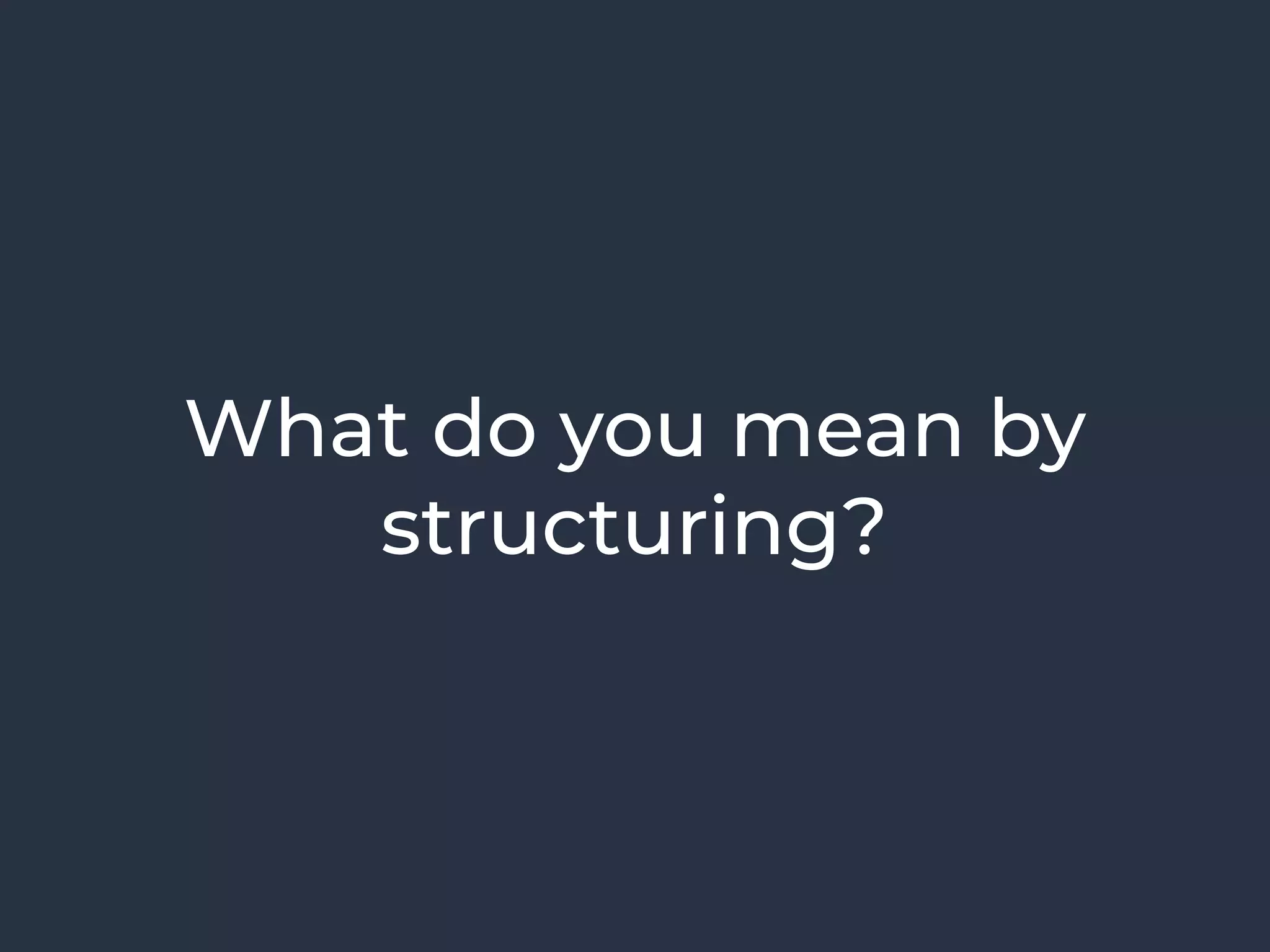

What do you mean by
structuring?

What do you mean by
structuring?
• single component in isolation
• relation between components
• structuring modules
• whole page architecture

What’s the purpose?
Product Library

React component
Props State
Lifecycle event
ContextRender

class WelcomeTo4Devs extends React.Component {
render () {
return 'Welcome to meme generator!'
}
}

(Functional) Stateless
Props State
Lifecycle event
ContextRender

const Loading = () => (
<div className='loading'>
<i className='icon-refresh spin’/>
</div>
)
Functional stateless

Functional stateless
const Loading = ({ text }) => (
<div className='loading'>
<i className='icon-refresh spin'/>
<div className='loading-text'>
{text}
</div>
</div>
)

Stateful
Props State
Lifecycle event
ContextRender

class UsersSelect extends React.Component {
constructor(props) {
super(props)
this.state = { loading: true, options: [] }
}
componentDidMount() {
UsersService.getAll().then(options => {
this.setState({ loading: false, options })
})
}
render() {
const { selected, onSelect } = this.props
const { loading, options } = this.state
return (
<Select
value={selected}
isLoading={loading}
options={options}
onChange={onSelect}
/>
)
}
}

Container & Presentational
Smart & Dumb
View & Controller

Container & Presentational
Props State
Lifecycle event
ContextRender
Props State
Lifecycle event
ContextRender

const UsersSelect = ({
onSelect,
options,
selected,
}) => (
<Select
value={selected}
options={options}
onChange={onSelect}
/>
)
Presentational
const mapStateToProps = state => ({
options: state.users.options,
selected: state.users.selected,
})
const mapDispatchToProps = dispatch => ({
onSelect: options => dispatch({
type: 'SELECT_USER',
options,
})
})
const Users = connect
(mapStateToProps, mapDispatchToProps)
(UsersSelect)
Container

const withLoading = WrappedComponent => ({ loading, ...props }) => {
if ( loading ) {
return <div>Keep calm and eat broccoli ...</div>
} else {
return <WrappedComponent {...props} />
}
}

Coupling
Dependency between elements
( components)
===

changing one
component does
not imply changes in
other
Loose coupling Tight coupling
changing one
component implies
changes in other

Cohesion
if element’s responsibilities form
one thing
===

single
responsibility
High cohesion Low cohesion
multiple
responsibilities

Loosely coupled
&
high cohesive component

Challenge:
Create meme details panel
{
name: 'Challenge accepted',
ﬁle: 'challenge-accepted.jpg',
date: '2018-04-05T11:15:30',
creator: 'Jim Beam’,
}

const MemeDetails = ({ meme }) => (
<div className='meme-details'>
<div>Name: <span>{meme.name}</span></div>
<div>File: <span>{meme.file}</span></div>
<div>Date: <span>{format(meme.date, 'YYYY-MM-DD')}</span></div>
<div>Creator: <span>{meme.creator}</span></div>
</div>
)
John
...
<MemeDetails meme={meme} />
...

Mike
const MemeDetails = ({ name, file, date, creator }) => (
<div>Name: <span>{name}</span></div>
<div>File: <span>{file}</span></div>
<div>Date: <span>{date}</span></div>
<div>Creator: <span>{creator}</span></div>
</div>
)
...
<MemeDetails
name={meme.name}
file={meme.file}
date={format(meme.date, ‘YYYY-MM-DD’)}
creator={meme.creator}
/>
...

Tom
const MemeDetails = ({ fields }) => (
<div className="meme-details">
{fields.map(f => (
<div>
{f.label}: <span>{f.value}</span>
</div>
))}
</div>
)
...
<MemeDetails
fields={[
{label: 'Name', value: meme.name},
{label: 'File', value: meme.file},
{label: 'Date', value: format(meme.date, 'YYYY-MM-DD')},
{label: 'Creator', value: meme.creator},
]}
/>
...

What about future
changes?
• changing model schema

const MemeDetails = ({ meme }) => (
<div>Format: <span>{meme.format}</span></div>
<div>Date: <span>{format(meme.date, 'YYYY-MM-DD')}</span></div>
</div>
)
John
...
<MemeDetails meme={meme} />
...

Mike
const MemeDetails = ({ name, file, format, date, creator }) => (
<div>Format: <span>{format}</span></div>
</div>
)
...
<MemeDetails
name={meme.name}
file={meme.file}
format={meme.format}
date={format(meme.date, ‘YYYY-MM-DD’)}
/>
...

Tom
{fields.map(f => (
<div>
{o.label}: <span>{o.value}</span>
</div>
))}
</div>
)
...
<MemeDetails
fields={[
{label: 'Format', value: meme.format},
{label: 'Date', value: format(meme.date, 'YYYY-MM-DD')},
]}
/>
...

What about future
changes?
• changing model schema
• formatting

const MemeDetails = ({ meme, dateFormat }) => (
<div>Date: <span>{format(meme.date, dateFormat)}</span></div>
</div>
)
John
...
<MemeDetails meme={meme} meme=‘YYYY-MM-DD H:mm’/>
...

Mike
const MemeDetails = ({ name, file, date, creator }) => (
</div>
)
...
<MemeDetails
name={meme.name}
file={meme.file}
date={format(meme.date, ‘YYYY-MM-DD H:mm’)}
/>
...

Tom
{fields.map(f => (
<div>
{o.label}: <span>{o.value}</span>
</div>
))}
</div>
)
...
<MemeDetails
fields={[
{label: 'Date', value:
format(meme.date, ‘YYYY-MM-DD H:mm’)},
]}
/>
...

High cohesion
Tightly coupled with model
Single place when
modifying model
FormattingJohn

Loosely coupled with model
Formatting
Low cohesion
Many places when
modifying model
Mike

Very abstract
Loosely coupled with model
Low cohesion
Multiple places when
modifying model
Very abstract
Tom

And something from  
real world?

const OptionsList = ({ open, width, options = [], onOptionClick, range, height }) => !open || options.length === 0
? null
: (
<div style={{ width: width < 70 ? 70 : width, maxHeight: height }} className={classes2.optionsList}>
{
options.map(({ name, value, selected }, key) => (
<div
key={key}
className={classes2.optionsListItem + ' ' + (selected ? classes2.selected : '')}
onClick={e => {
e.stopPropagation()
onOptionClick(value, !selected)
}}>
{!range && <input type='checkbox' checked={selected} style={{ marginRight: '5px' }} />}
{name}
</div>
))
}
</div>
)
export class MultiSelect extends Component {
state = { optionsListOpen: false }
componentDidMount () {
const width = ReactDOM.findDOMNode(this).offsetWidth
this.setState({ width })
}
getInputText = () => {
const value = this.props.value || []
return value.length > 0 ? value.sort().join(', ') : 'Not selected'
}
onOptionClick = (selectedValue, selected) => {
const { onChange } = this.props
onChange && onChange(selected
? [selectedValue, ...value]
: value.filter(item => selectedValue !== item)
)
}
toggleOptionsList = () => {
const { optionsListOpen } = this.state
this.setState({ optionsListOpen: !optionsListOpen })
}
prepareOptions = () => {
const { options } = this.props
const preparedOptions = [...options]
value.forEach(selected => {
const optionIndex = preparedOptions.findIndex(({ value }) => value === selected)
if (optionIndex !== -1) preparedOptions[optionIndex] = { ...preparedOptions[optionIndex], selected: true }
})
return preparedOptions
}
close = () => this.setState({ optionsListOpen: false })
render () {
const { optionsListOpen, width } = this.state
const { options, inputSize, customStyle = {}, height } = this.props
return (
<ClickOutside onClickOutside={this.close}>
<div
className={classes.inputSelectForm}
style={{
position: 'relative',
display: 'flex',
height: inputSize || '44px',
alignItems: 'center',
...customStyle
}}
onClick={this.toggleOptionsList}>
<span style={{
textOverflow: 'ellipsis',
overflow: 'hidden',
whiteSpace: 'nowrap',
display: 'block',
fontSize: '15px'
}}>{this.getInputText()}</span>
<div style={{ position: 'absolute', right: 0}}>
<ChevronDown marginRight='0' />
</div>
<OptionsList
open={optionsListOpen}
width={width}
height={height}
options={this.prepareOptions()}
onOptionClick={this.onOptionClick} />
</div>
</ClickOutside>
)
}
}
export class RangeSelect extends Component {
state = { optionsListOpen: false, currentlyEditing: 'min' }
componentDidMount () {
const width = ReactDOM.findDOMNode(this).offsetWidth
this.setState({ width })
}
getParsedMinMax = () => ({
min: parseInt(this.props.min, 10),
max: parseInt(this.props.max, 10)
})
getInputText = () => {
const { min = 0, max = 0 } = this.getParsedMinMax()
if (!min && min !== 0) return '0'
return min === max ? max : `${min} - ${max}`
}
openOptionsList = () => {
const { optionsListOpen, currentlyEditing } = this.state
this.setState({ optionsListOpen: true })
}
prepareOptions = () => {
const { options } = this.props
const { min, max } = this.getParsedMinMax()
return options
.map(({ name, value }) => ({ name, value: parseInt(value, 10) }))
.map(option => ({ ...option, selected: option.value >= min && option.value <= max }))
}
onOptionClick = (selectedValue, selected) => {
const { onChange } = this.props
const { min, max } = this.getParsedMinMax()
const { currentlyEditing } = this.state
const parsedValue = parseInt(selectedValue, 10)
const newMinMax = { min: min.toString(), max: max.toString() }
if (currentlyEditing === 'min') {
newMinMax.min = parsedValue
newMinMax.max = parsedValue
this.setState({ currentlyEditing: 'max' })
} else {
if (parsedValue < min) {
newMinMax.max = min
newMinMax.min = parsedValue
} else {
newMinMax.max = parsedValue
}
this.setState({ currentlyEditing: 'min' })
}
onChange && onChange(newMinMax)
}
close = () => this.setState({ optionsListOpen: false, currentlyEditing: 'min' })
render () {
const { optionsListOpen, width } = this.state
const { options, inputSize, customStyle, height } = this.props
return (
<ClickOutside onClickOutside={this.close}>
<div
className={classes.inputSelectForm}
style={{
position: 'relative',
display: 'flex',
height: inputSize || '44px',
alignItems: 'center',
paddingRight: '0px',
...customStyle
}}
onClick={this.openOptionsList}>
<span style={{
textOverflow: 'ellipsis',
overflow: 'hidden',
whiteSpace: 'nowrap',
display: 'block',
fontSize: '15px'
}}>{this.getInputText()}</span>
<div style={{ position: 'absolute', right: 0}}>
<ChevronDown marginRight='0' />
</div>
<OptionsList
range
ref={optionsList => this.optionsList = optionsList}
open={optionsListOpen}
width={width}
height={height}
options={this.prepareOptions()}
onOptionClick={this.onOptionClick} />
</div>
</ClickOutside>
)
}
}
const typeInputs = {
text: (params, error, returnEvent) => (
<input
type='text'
{...params}
onChange={(e) => { (params && params.onChange) ? returnEvent ? params.onChange(e) : params.onChange(e.target.value) : null }}
className={`${classes.inputForm} ${error ? classes.inputError : ''} ${params.disabled ? classes.inputDisabled : ''} ${ (Object.keys(params.emptyStyle || {}).length && (!params.value || params.value === NOT_SELECTED)) ? classes.emptyInput : null }`} />
),
select: (params = {}, error) => {
const { options = [], onChange, prependNullOption, emptyStyle = {}} = params
const preparedOptions = prependNullOption ? [{ name: 'Not selected', value: null }, ...options] : options
const showEmptyStyle = Object.keys(emptyStyle).length && (!params.value || params.value === NOT_SELECTED)
return (
<select
disabled={params.disabled}
value={params.value}
onChange={e => {
const val = e.target.value
if (!onChange) return
if (typeof val === 'string') {
try {
const parsedVal = JSON.parse(val)
onChange && onChange(parsedVal)
} catch (e) {
onChange && onChange(val)
}
}
}}
className={`${classes.inputSelectForm} ${showEmptyStyle ? classes.emptyInput : null}`}>
{
preparedOptions.map((item, key) => (
<option
key={key}
value={item.value !== undefined ? item.value : item.name}>
{item.name}
</option>
))
}
</select>
)
},
multiselect: (params = {}, error) => (
<MultiSelect
options={params.options}
onChange={params.onChange}
value={params.value} />
),
range: (params = {}, error) => <RangeSelect {...params} />,
checkbox: (params, error) => (
<input
type='checkbox'
{...params}
/>
)
}
const renderInput = (type, params, error, returnEvent) => {
return typeInputs[type] ? typeInputs[type](params, error, returnEvent) : null
}
export const InputForm = ({ icon, type = 'text', params, error, labelText, labelStyle, labelType, customStyle, returnEvent }) => {
return (
<div
className={`${classes.inputContainer} ${type === 'select' || type === 'multiselect' ? classes.inputContainerWithIcon : ''}`}
style={!labelText ? { marginTop: '0', ...customStyle } : customStyle}>
{labelText && (<label className={`${classes[labelType] || classes.inputLabelForm} ${params.disabled ? classes.inputDisabled : ''}`} style={labelStyle} >{labelText}</label>)}
{renderInput(type, params, error, returnEvent)}
{icon && (<i className={`fa fa-${icon} ${classes.inputAddon} ${params.disabled ? classes.inputDisabled : ''}`} />)}
</div>
)
}
export default InputForm
export const NOT_SELECTED = 'not_selected'
export const validateSelected = (property) => {
return property && property !== NOT_SELECTED
}

INPUT
5 types
• text
• select
• multiselect
• range
• checkbox
9 props
params {}  
can match any type
very-very-very-generic
both controlled & uncontrolled
at the same time

I thought GENERIC is a good thing

Keep calm, 
start small,
refactor in need.

class MemePage extends React.Component {
...
render() {
const { permissions } = this.props
return (
<div>
{
Permissions.canCreateMeme(permissions) ? (
<MemeGeneratorLink />
) : null
}
{/* RENDER MEMES */}
</div>
)
}
}
const mapStateToProps = state => ({ permissions: state.permission })
export default connect(mapStateToProps)(MemePage)

• create meme?
• edit meme?
• delete meme?
• see meme history?
• generate meme for
presentation?
• download meme?

const HasPermission = ({ children, permissions, role}) => {
if (role === 'CREATE_MEME' && Permissions.canCreateMeme(permissions)) {
return children
}
return null
}
export default connect(mapStateToProps)(HasPermission)

class MemesPage extends React.Component {
...
render() {
return (
<div>
<HasPermission role='CREATE_MEME'>
</HasPermission>
</div>
)
}
}

const withPermission = (WrappedComponent, role) =>  
connect(mapStateToProps)(({ permissions, ...props }) => {
if (role === 'CREATE_MEME' && Permissions.canCreateMeme(permissions)) {
return <WrappedComponent {...props}/>
}
return null
}
))

export withPermission(MemeGeneratorLink, ‘CREATE_MEME’)
///
class MemesPage extends React.Component {
...
render() {
return (
<div>
</div>
)
}
}

Children  
/  
HOC  
/ 
nothing
?

Criteria
• better abstraction
• separation of concerns
• improved maintainability
• better reusability

Context is the king
• project
• stage of project
• component
• developer preferences
• requirements

“We value code that is easy to maintain  
over code that is easy to write”
Nat Pryce, Steve Freeman
Bartek Witczak
@bartekwitczak
bartek@dayone.pl

4Developers 2018: Structuring React components (Bartłomiej Witczak)

Recommended

Recommended

More Related Content

What's hot

What's hot (16)

Similar to 4Developers 2018: Structuring React components (Bartłomiej Witczak)

Similar to 4Developers 2018: Structuring React components (Bartłomiej Witczak) (20)

Recently uploaded

Recently uploaded (20)

4Developers 2018: Structuring React components (Bartłomiej Witczak)
