The document describes three prototypes of a cargo ship designed by a group of students. The first prototype was created in Tinkercad and included a container, antenna, propeller, and lifeboat. The second prototype was created in 123D Design and featured a smaller, more detailed model. The third prototype discussed using 123D Make software and producing the 3D data for manufacturing. The group collaborated during planning, analysis, design, and execution stages of the project. Challenges included using the new software and creating detailed designs.

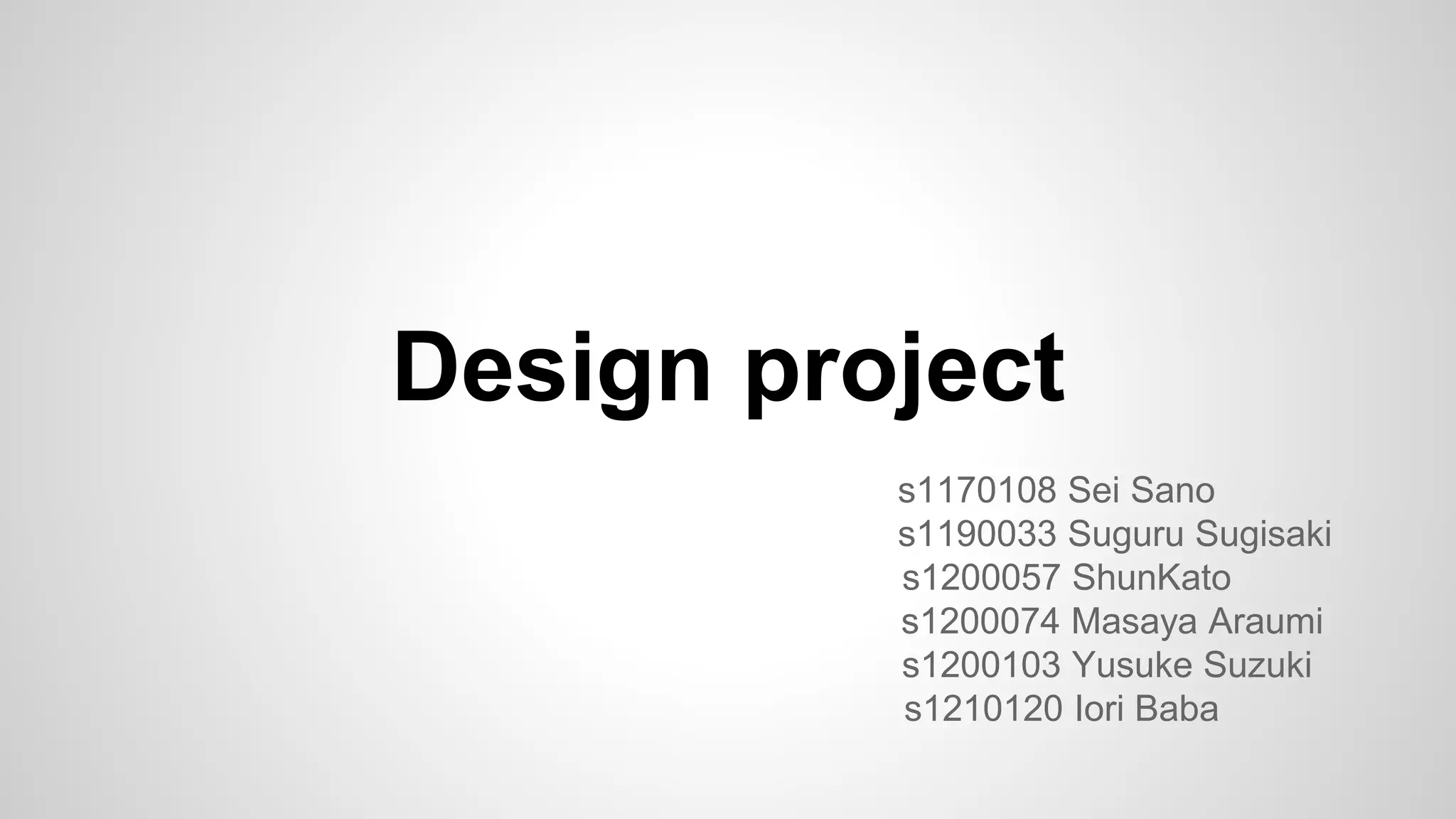

1. Design project
s1170108 Sei Sano
s1190033 Suguru Sugisaki
s1200057 ShunKato
s1200074 Masaya Araumi
s1200103 Yusuke Suzuki
s1210120 Iori Baba

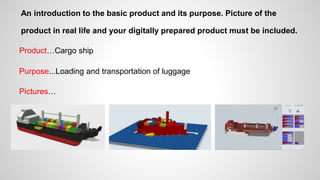

2. An introduction to the basic product and its purpose. Picture of the
product in real life and your digitally prepared product must be included.
Product…Cargo ship
Purpose...Loading and transportation of luggage
Pictures…

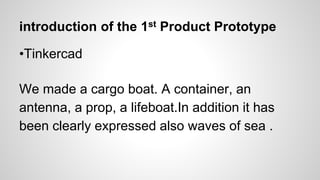

3. introduction of the 1st Product Prototype
•Tinkercad
We made a cargo boat. A container, an
antenna, a prop, a lifeboat.In addition it has
been clearly expressed also waves of sea .

4. introduction of the 2nd Product Prototype
•123D Design
We made a cargo boat. A container, an
antenna, a prop, a lifeboat. We reappeared to a
small thing. I modelled it on expression and the
real thing of the color and expressed it.

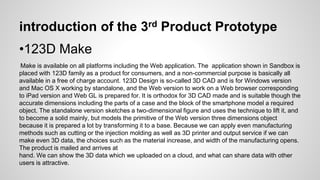

5. introduction of the 3rd Product Prototype
•123D Make
Make is available on all platforms including the Web application. The application shown in Sandbox is
placed with 123D family as a product for consumers, and a non-commercial purpose is basically all
available in a free of charge account. 123D Design is so-called 3D CAD and is for Windows version
and Mac OS X working by standalone, and the Web version to work on a Web browser corresponding
to iPad version and Web GL is prepared for. It is orthodox for 3D CAD made and is suitable though the
accurate dimensions including the parts of a case and the block of the smartphone model a required
object. The standalone version sketches a two-dimensional figure and uses the technique to lift it, and
to become a solid mainly, but models the primitive of the Web version three dimensions object
because it is prepared a lot by transforming it to a base. Because we can apply even manufacturing
methods such as cutting or the injection molding as well as 3D printer and output service if we can
make even 3D data, the choices such as the material increase, and width of the manufacturing opens.
The product is mailed and arrives at
hand. We can show the 3D data which we uploaded on a cloud, and what can share data with other
users is attractive.

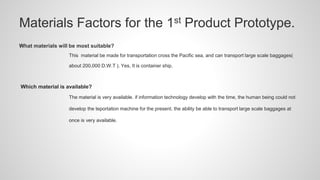

6. Materials Factors for the 1st Product Prototype.
What materials will be most suitable?
This material be made for transportation cross the Pacific sea, and can transport large scale baggages(
about 200,000 D.W.T ). Yes, It is container ship.
Which material is available?
The material is very available. if information technology develop with the time, the human being could not
develop the teportation machine for the present. the ability be able to transport large scale baggages at
once is very available.

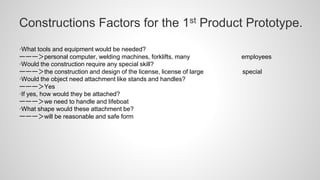

7. Constructions Factors for the 1st Product Prototype.
·What tools and equipment would be needed?
ーーー＞personal computer, welding machines, forklifts, many employees
·Would the construction require any special skill?
ーーー＞the construction and design of the license, license of large special
·Would the object need attachment like stands and handles?
ーーー＞Yes
·If yes, how would they be attached?
ーーー＞we need to handle and lifeboat
·What shape would these attachment be?
ーーー＞will be reasonable and safe form

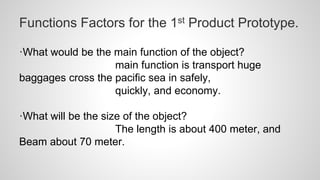

8. Functions Factors for the 1st Product Prototype.
·What would be the main function of the object?
main function is transport huge
baggages cross the pacific sea in safely,
quickly, and economy.
·What will be the size of the object?
The length is about 400 meter, and
Beam about 70 meter.

9. Appearance Factors for the 1st Product Prototype.
·If color is important, what should be the most
appropriate color?
--->it is a noticeable color, for example yellow,
red, black
·How can you make the object safe to use?
--->management of working hours

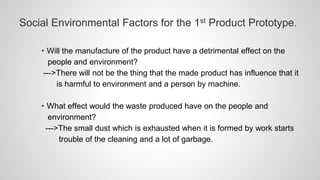

10. Social Environmental Factors for the 1st Product Prototype.
・Will the manufacture of the product have a detrimental effect on the
people and environment?
--->There will not be the thing that the made product has influence that it
is harmful to environment and a person by machine.
・What effect would the waste produced have on the people and
environment?
--->The small dust which is exhausted when it is formed by work starts
trouble of the cleaning and a lot of garbage.

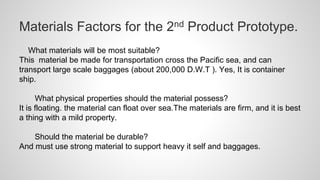

11. Materials Factors for the 2nd Product Prototype.
What materials will be most suitable?
This material be made for transportation cross the Pacific sea, and can
transport large scale baggages (about 200,000 D.W.T ). Yes, It is container
ship.
What physical properties should the material possess?
It is floating. the material can float over sea.The materials are firm, and it is best
a thing with a mild property.
Should the material be durable?
And must use strong material to support heavy it self and baggages.

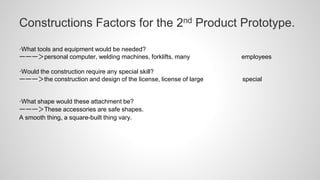

12. Constructions Factors for the 2nd Product Prototype.
·What tools and equipment would be needed?
ーーー＞personal computer, welding machines, forklifts, many employees
·Would the construction require any special skill?
ーーー＞the construction and design of the license, license of large special
·What shape would these attachment be?
ーーー＞These accessories are safe shapes.
A smooth thing, a square-built thing vary.

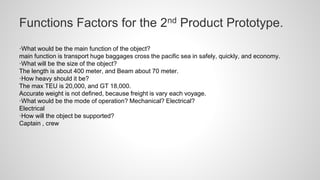

13. Functions Factors for the 2nd Product Prototype.
·What would be the main function of the object?
main function is transport huge baggages cross the pacific sea in safely, quickly, and economy.
·What will be the size of the object?
The length is about 400 meter, and Beam about 70 meter.
·How heavy should it be?
The max TEU is 20,000, and GT 18,000.
Accurate weight is not defined, because freight is vary each voyage.
·What would be the mode of operation? Mechanical? Electrical?
Electrical
·How will the object be supported?
Captain , crew

14. Appearance Factors for the 2nd Product Prototype.
·What shape/form should the object take?
--->Safe form, the form less susceptible to resistance of the waves, the a
lot of container packed.
·If color is important, what should be the most appropriate color?
--->it is a noticeable color, for example yellow, red, black
·How can you make the object safe to use?
--->management of working hours

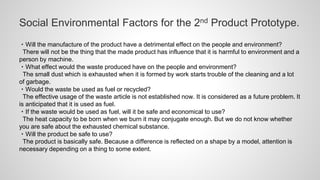

15. Social Environmental Factors for the 2nd Product Prototype.
・Will the manufacture of the product have a detrimental effect on the people and environment?
There will not be the thing that the made product has influence that it is harmful to environment and a
person by machine.
・What effect would the waste produced have on the people and environment?
The small dust which is exhausted when it is formed by work starts trouble of the cleaning and a lot
of garbage.
・Would the waste be used as fuel or recycled?
The effective usage of the waste article is not established now. It is considered as a future problem. It
is anticipated that it is used as fuel.
・If the waste would be used as fuel, will it be safe and economical to use?
The heat capacity to be born when we burn it may conjugate enough. But we do not know whether
you are safe about the exhausted chemical substance.
・Will the product be safe to use?
The product is basically safe. Because a difference is reflected on a shape by a model, attention is
necessary depending on a thing to some extent.

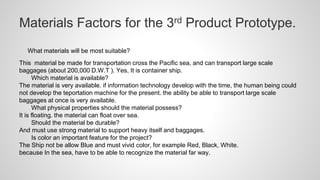

16. Materials Factors for the 3rd Product Prototype.
What materials will be most suitable?
This material be made for transportation cross the Pacific sea, and can transport large scale
baggages (about 200,000 D.W.T ). Yes, It is container ship.
Which material is available?
The material is very available. if information technology develop with the time, the human being could
not develop the teportation machine for the present. the ability be able to transport large scale
baggages at once is very available.
What physical properties should the material possess?
It is floating. the material can float over sea.
Should the material be durable?
And must use strong material to support heavy itself and baggages.
Is color an important feature for the project?
The Ship not be allow Blue and must vivid color, for example Red, Black, White.
because In the sea, have to be able to recognize the material far way.

17. Constructions Factors for the 3rd Product Prototype.
·What tools and equipment would be needed?
ーーー＞personal computer, welding machines, forklifts, many employees
·Would the construction require any special skill?
ーーー＞the construction and design of the license, license of large special
·Would the object need attachment like stands and handles?
ーーー＞Yes
·If yes, how would they be attached?
ーーー＞we need to handle and lifeboat
·What shape would these attachment be?
ーーー＞will be reasonable and safe form

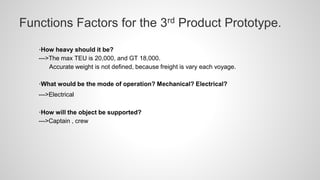

18. Functions Factors for the 3rd Product Prototype.
·How heavy should it be?
--->The max TEU is 20,000, and GT 18,000.
Accurate weight is not defined, because freight is vary each voyage.
·What would be the mode of operation? Mechanical? Electrical?
--->Electrical
·How will the object be supported?
--->Captain , crew

19. Appearance Factors for the 3rd Product Prototype.
·Is color a vital issue to be considered?
--->Yes.
·If color is important, what should be the most appropriate color?
--->it is a noticeable color, for example yellow, red, black
·How can you make the object safe to use?
--->management of working hours

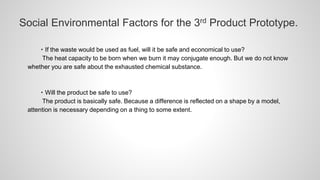

20. Social Environmental Factors for the 3rd Product Prototype.
・If the waste would be used as fuel, will it be safe and economical to use?
The heat capacity to be born when we burn it may conjugate enough. But we do not know
whether you are safe about the exhausted chemical substance.
・Will the product be safe to use?
The product is basically safe. Because a difference is reflected on a shape by a model,
attention is necessary depending on a thing to some extent.

22. First major step
It was made to focus on duck. Because
this ship is cargo, it need durability and
propulsion.
Therefore, duck is big and thick. In addition to it
is made alloy that light and strong.

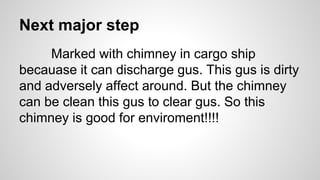

23. Next major step
Marked with chimney in cargo ship
becauase it can discharge gus. This gus is dirty
and adversely affect around. But the chimney
can be clean this gus to clear gus. So this
chimney is good for enviroment!!!!

24. Third major step
The thing that is attached to the center is
the sail. Actually, it is not need for cargo ship.
But, if engine fails, this sail useful. The move in
the only force of the wind if there is a sail.

25. 4th major step
There is life saving boat at side of the
cargo ship. This boat can help clew when the
ship is stranding, malfuction and be attacked by
pirates.

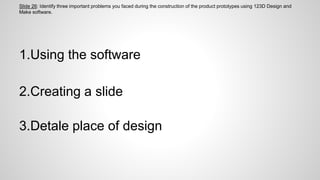

26. Slide 26: Identify three important problems you faced during the construction of the product prototypes using 123D Design and
Make software.
1.Using the software
2.Creating a slide
3.Detale place of design

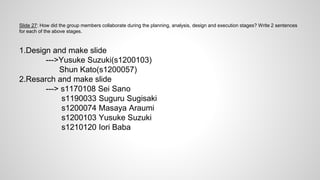

27. Slide 27: How did the group members collaborate during the planning, analysis, design and execution stages? Write 2 sentences
for each of the above stages.
1.Design and make slide
--->Yusuke Suzuki(s1200103)
Shun Kato(s1200057)
2.Resarch and make slide
---> s1170108 Sei Sano
s1190033 Suguru Sugisaki
s1200074 Masaya Araumi
s1200103 Yusuke Suzuki
s1210120 Iori Baba

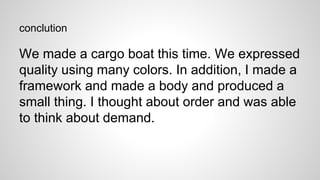

28. conclution
We made a cargo boat this time. We expressed
quality using many colors. In addition, I made a
framework and made a body and produced a
small thing. I thought about order and was able
to think about demand.
