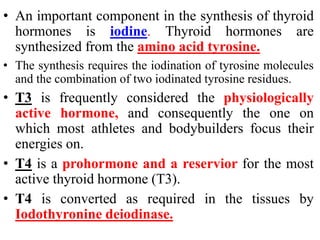

• An important component in the synthesis of thyroid
hormones is iodine. Thyroid hormones are
synthesized from the amino acid tyrosine.
• The synthesis requires the iodination of tyrosine molecules
and the combination of two iodinated tyrosine residues.
• T3 is frequently considered the physiologically
active hormone, and consequently the one on
which most athletes and bodybuilders focus their
energies on.

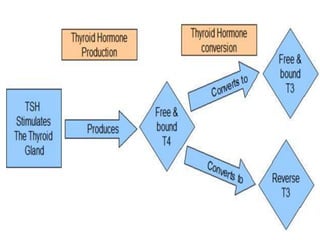

• T4 is a prohormone and a reservior for the most
active thyroid hormone (T3).
• T4 is converted as required in the tissues by
Iodothyronine deiodinase.
•

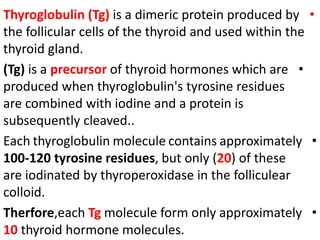

Thyroglobulin (Tg) is a dimeric protein produced by
the follicular cells of the thyroid and used within the
thyroid gland.
•
(Tg) is a precursor of thyroid hormones which are
produced when thyroglobulin's tyrosine residues
are combined with iodine and a protein is
subsequently cleaved..
•
Each thyroglobulin molecule contains approximately
100-120 tyrosine residues, but only (20) of these
are iodinated by thyroperoxidase in the folliculear
colloid.
•
Therfore,each Tg molecule form only approximately
10 thyroid hormone molecules.

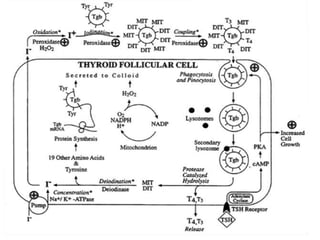

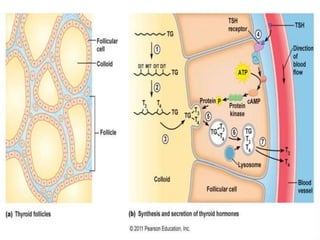

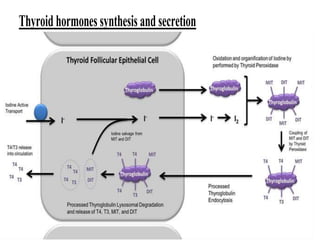

Thyroidhormones synthesisandsecretion

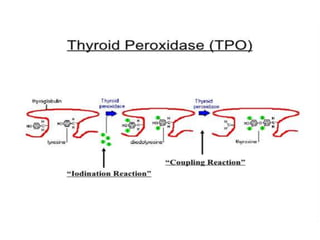

• The nature of the enzyme thyroperoxidase
• Oxidation of iodide to active iodine, iodination of tyrosine
residues and coupling of iodotyrosines are catalyzed by a heme-
containing particulate bound peroxidase called thyroperoxidase
which requiresH2O2 for its activity.
• Iodine trapping: The thyroid gland concentrates iodine by
actively and selectively transporting it from the circulation. The
transport mechanism is called as iodide trapping or iodide-
pump.
• The iodide trapping is done :_
• 1-Against electrical gradient.
• 2-Against concentration gradient.
• Iodide transporter pump is located in the basal plasma membrane
in association with Na+-K+ dependent ATP ase and requires a
simultaneous activity of the soduim pump.
• Energy is provided by hydrolysis of ATP followed by a K+ influx
and Na+ efflux.

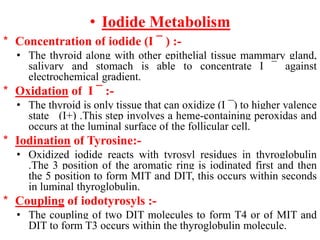

• Iodide Metabolism
* Concentration of iodide (I ¯ ) :-
• The thyroid along with other epithelial tissue mammary gland,
salivary and stomach is able to concentrate I ¯ against
electrochemical gradient.
* Oxidation of I ¯ :-
• The thyroid is only tissue that can oxidize (I ¯) to higher valence
state (I+) .This step involves a heme-containing peroxidas and
occurs at the luminal surface of the follicular cell.

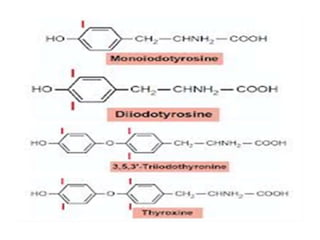

* Iodination of Tyrosine:-
• Oxidized iodide reacts with tyrosyl residues in thyroglobulin
.The 3 position of the aromatic ring is iodinated first and then
the 5 position to form MIT and DIT, this occurs within seconds
in luminal thyroglobulin.
* Coupling of iodotyrosyls :-
• The coupling of two DIT molecules to form T4 or of MIT and
DIT to form T3 occurs within the thyroglobulin molecule.

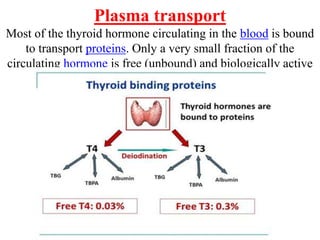

Plasma transport
Most of the thyroid hormone circulating in the blood is bound
to transport proteins. Only a very small fraction of the
circulating hormone is free (unbound) and biologically active

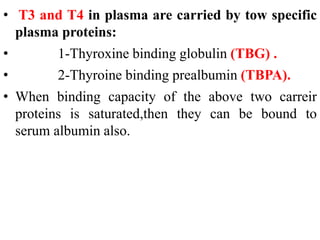

• T3 and T4 in plasma are carried by tow specific
plasma proteins:
• 1-Thyroxine binding globulin (TBG) .
• 2-Thyroine binding prealbumin (TBPA).
• When binding capacity of the above two carreir
proteins is saturated,then they can be bound to
serum albumin also.

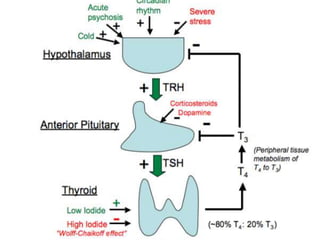

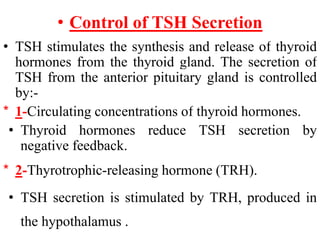

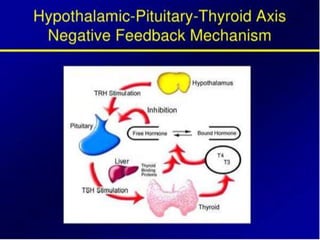

• Control of TSH Secretion
• TSH stimulates the synthesis and release of thyroid
hormones from the thyroid gland. The secretion of
TSH from the anterior pituitary gland is controlled
by:-
* 1-Circulating concentrations of thyroid hormones.
• Thyroid hormones reduce TSH secretion by
negative feedback.
* 2-Thyrotrophic-releasing hormone (TRH).
• TSH secretion is stimulated by TRH, produced in
the hypothalamus .

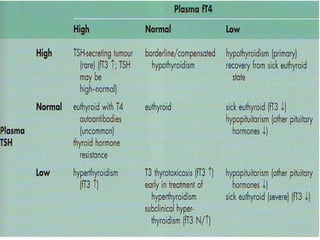

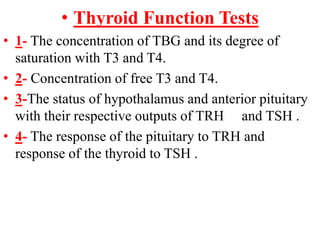

• Thyroid Function Tests
• 1- The concentration of TBG and its degree of
saturation with T3 and T4.
• 2- Concentration of free T3 and T4.
• 3-The status of hypothalamus and anterior pituitary
with their respective outputs of TRH and TSH .
• 4- The response of the pituitary to TRH and
response of the thyroid to TSH .

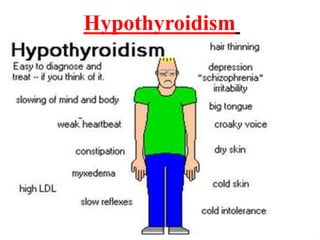

Hypothyroidism

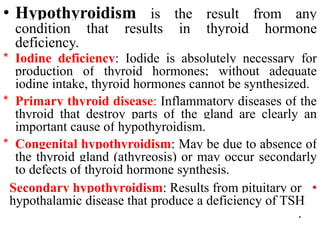

• Hypothyroidism is the result from any
condition that results in thyroid hormone
deficiency.
* Iodine deficiency: Iodide is absolutely necessary for
production of thyroid hormones; without adequate
iodine intake, thyroid hormones cannot be synthesized.
* Primary thyroid disease: Inflammatory diseases of the
thyroid that destroy parts of the gland are clearly an
important cause of hypothyroidism.
* Congenital hypothyroidism: May be due to absence of
the thyroid gland (athyreosis) or may occur secondarly
to defects of thyroid hormone synthesis.
•
Secondary hypothyroidism: Results from pituitary or
hypothalamic disease that produce a deficiency of TSH
.

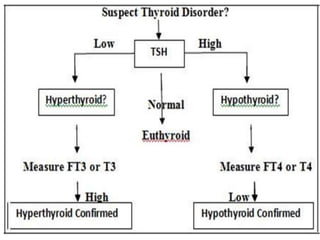

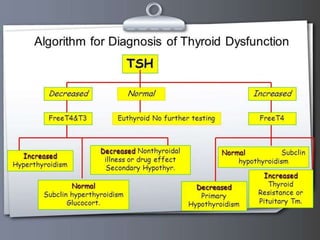

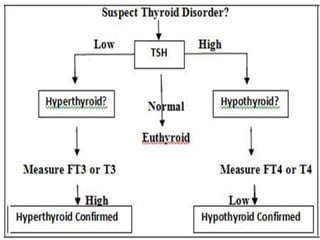

• Laboratory Evaluation of Hypothyroidism
• Hypothyroidism may be suspected by symptoms and
signs, but the diagnosis needs to be confirmed
biochemically.
* Free T4 levels are low, T3 levels may within normal
limits. TSH is raised in primary hypothyroidism
which is the most common cause of hypothyroidism.
If TSH is not elevated, it is important to look for
pituitary or hypothalamic disease.
* In older individuals, biochemical screening for
hypothyroidism with a single TSH is recommended.
* Thyroid autoantibodies suggest Hashimoto's
thyroiditis
* LDL may be elevated

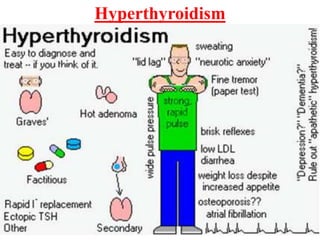

Hyperthyroidism
