This document provides information about using Sony's FeliCa SDK with Adobe AIR/Flash to access RFID tags. It describes the FeliCaProxy software which allows reading from and writing to FeliCa tags. It includes code snippets in ActionScript showing how to open the FeliCa port, perform polling to get card IDs, and do read/write operations. It also mentions other resources for learning about FeliCa and using NFC on Android devices.

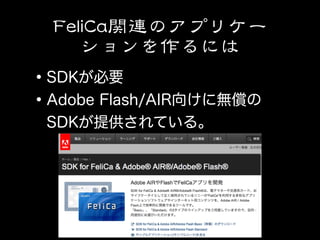

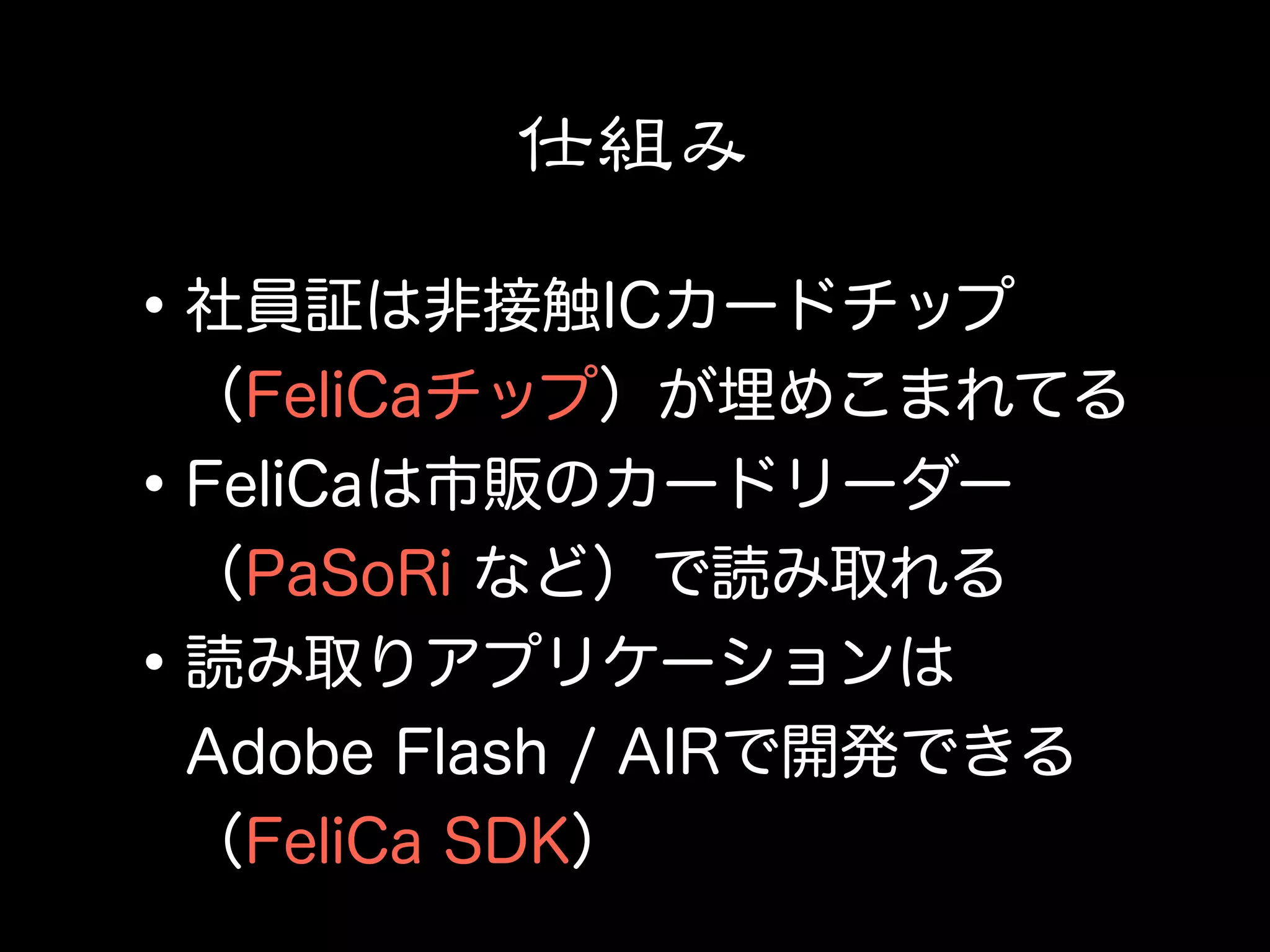

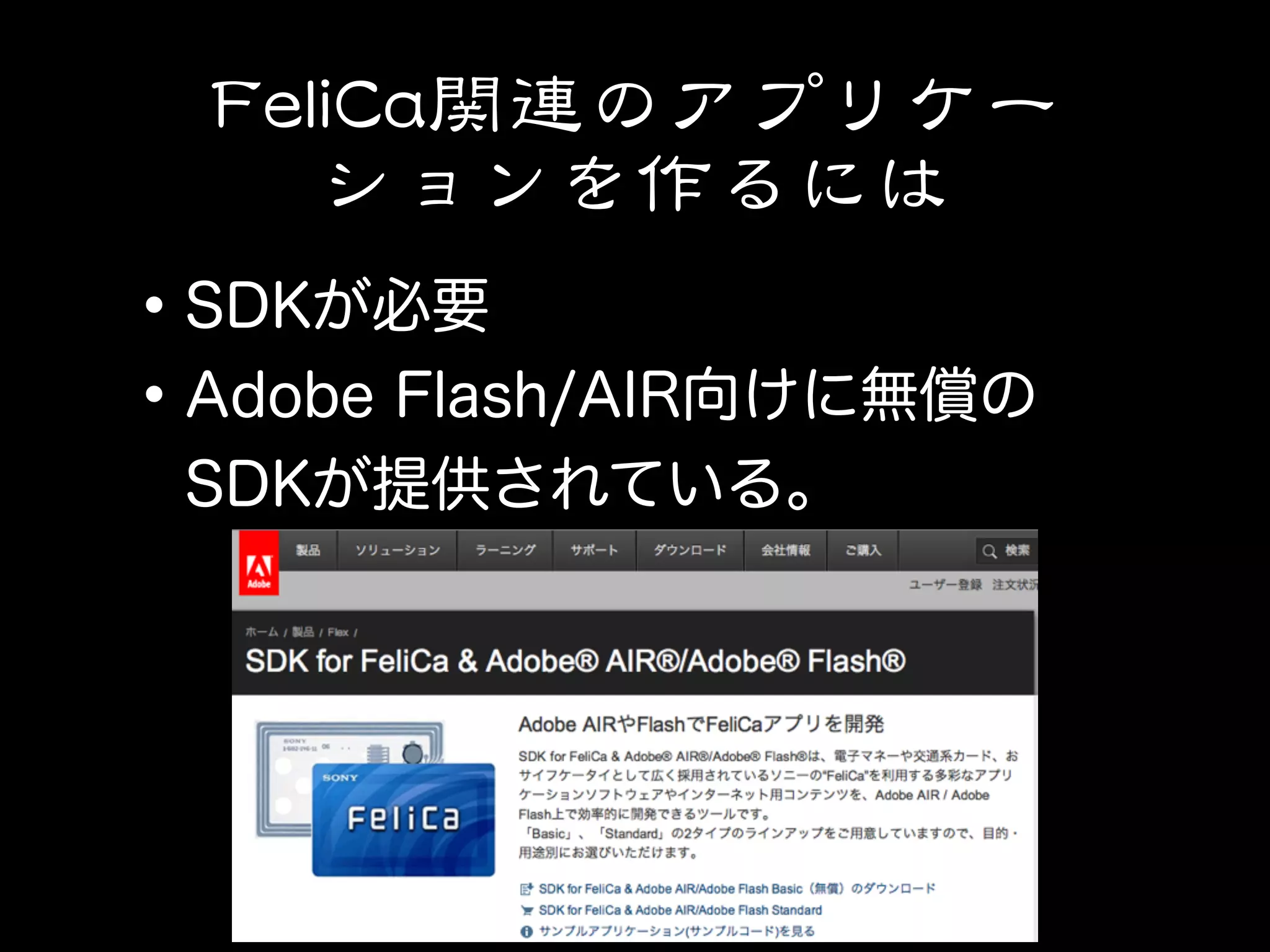

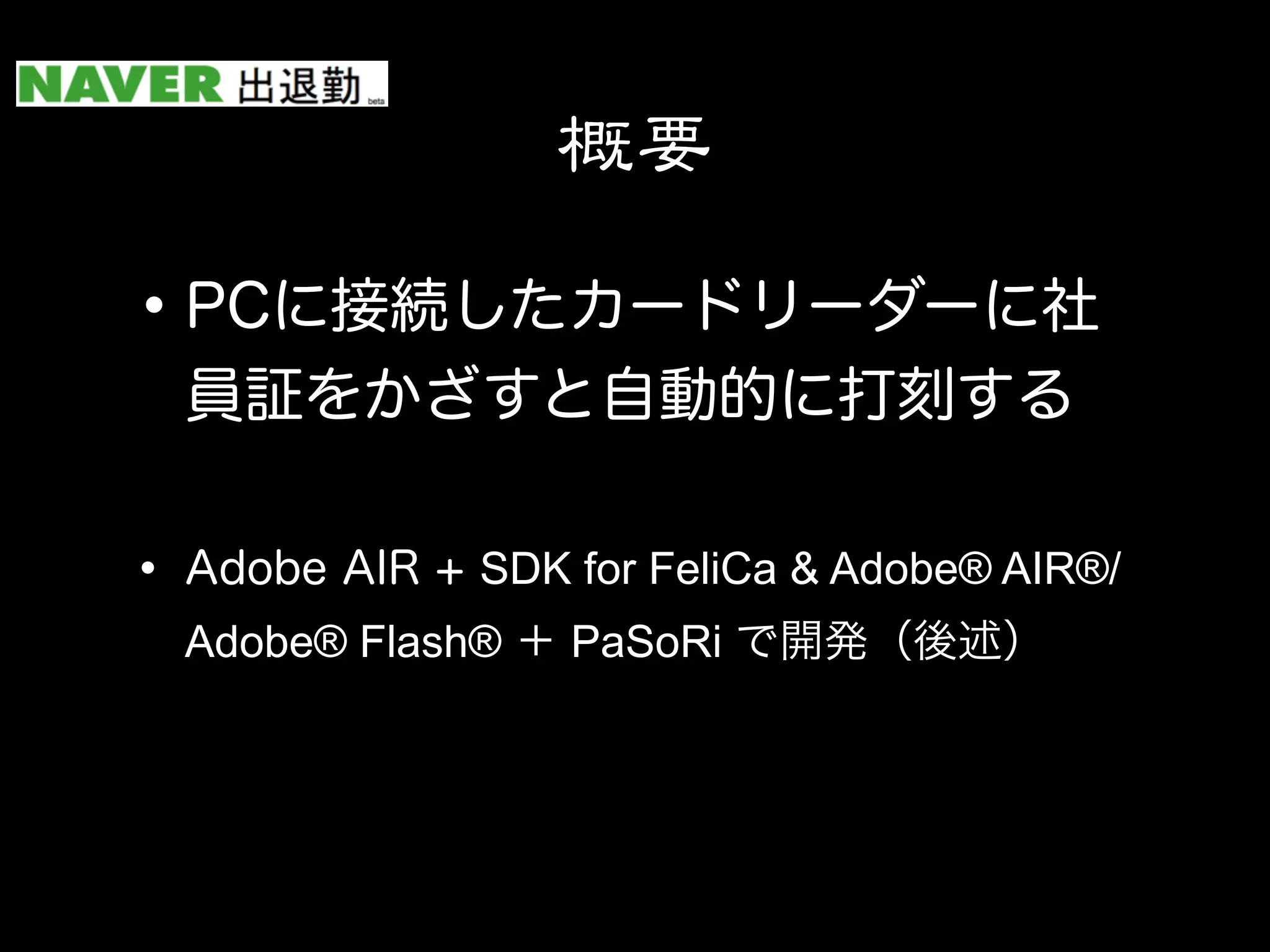

9. SDK for FeliCa & Adobe® AIR®/

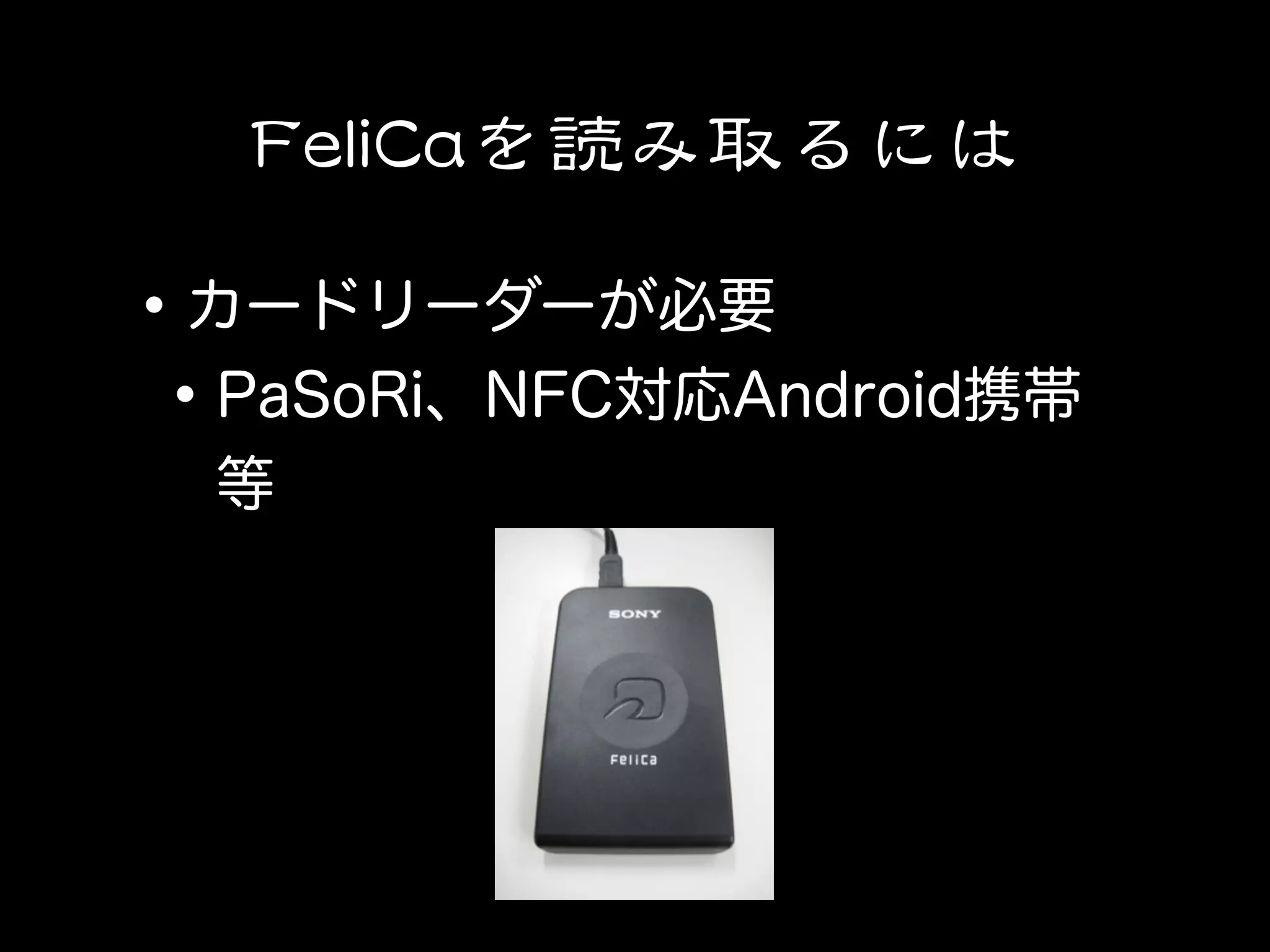

Adobe® Flash® PaSoRi

18. RFID Radio Frequency IDentification

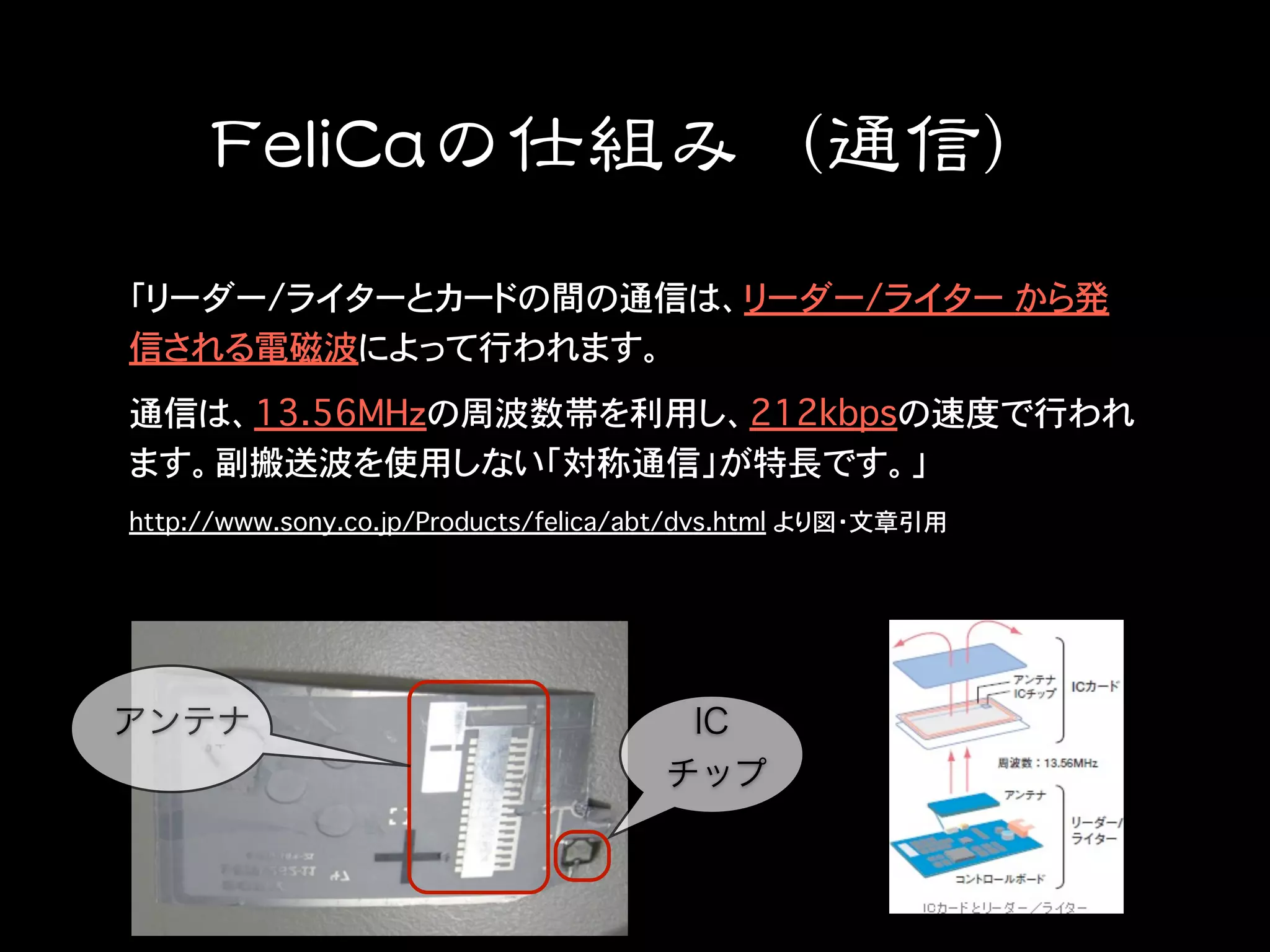

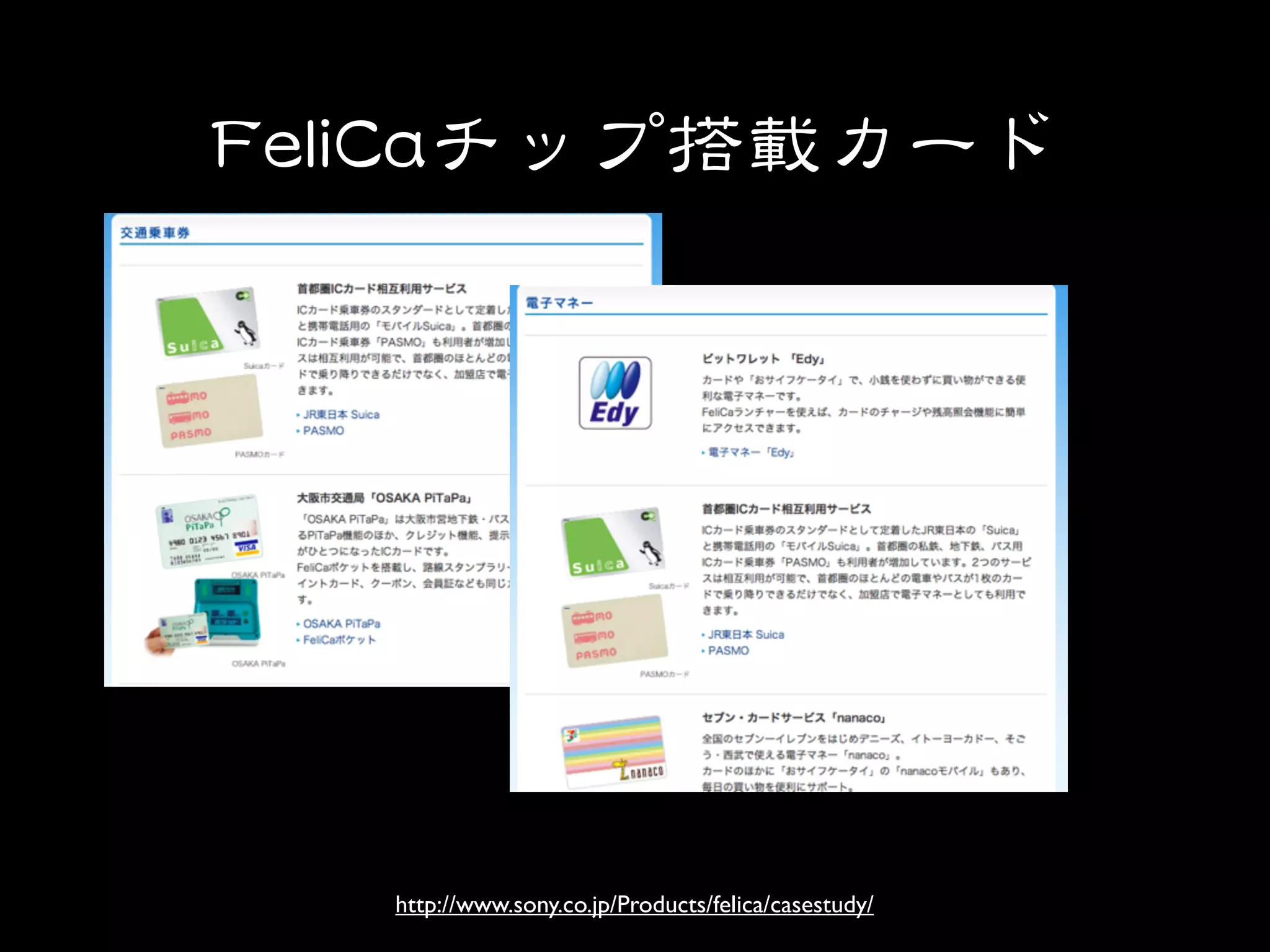

19. http://www.sony.co.jp/Products/felica/casestudy/

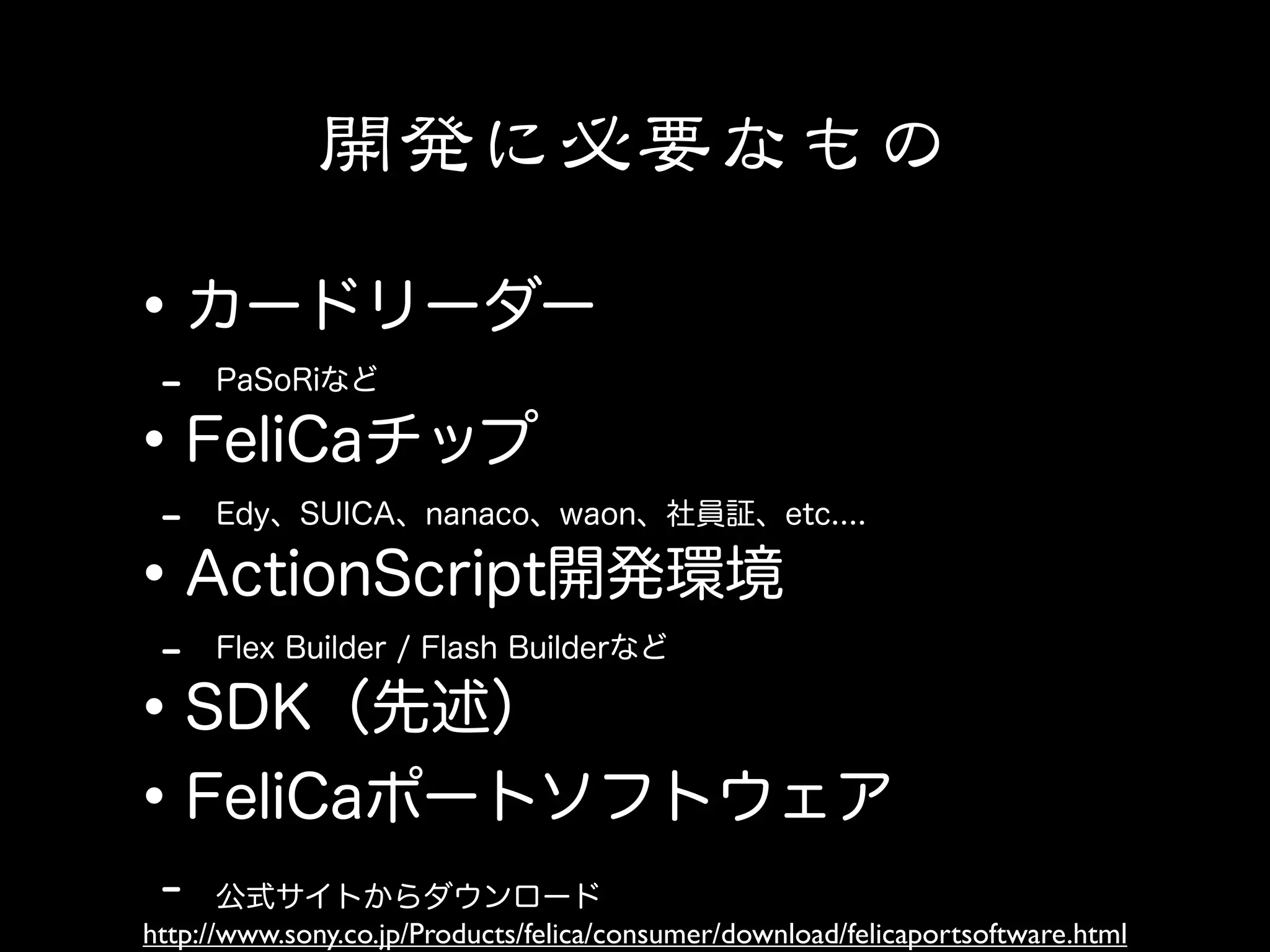

24. http://www.sony.co.jp/Products/felica/consumer/download/felicaportsoftware.html

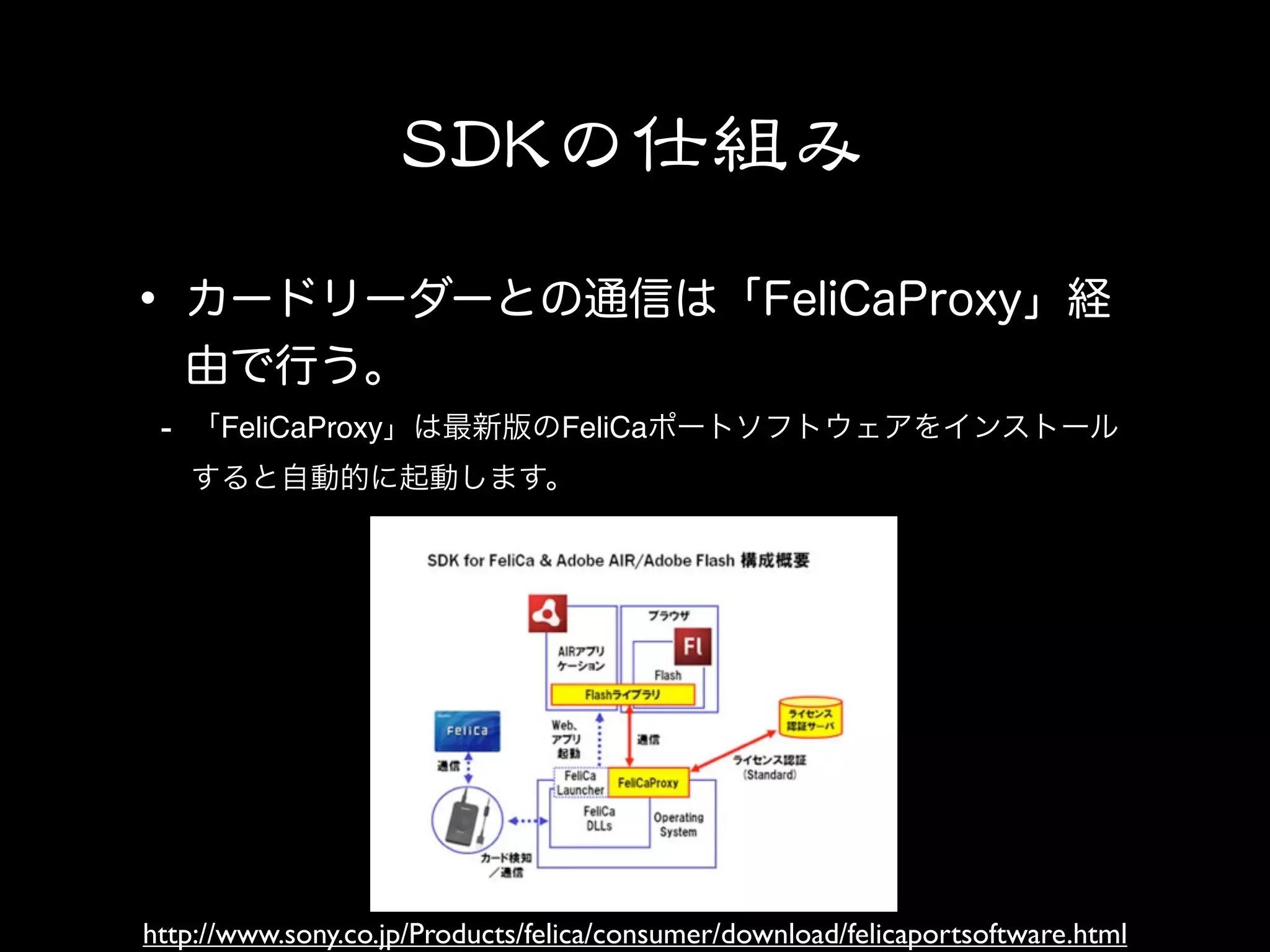

25. - FeliCaProxy FeliCa
http://www.sony.co.jp/Products/felica/consumer/download/felicaportsoftware.html

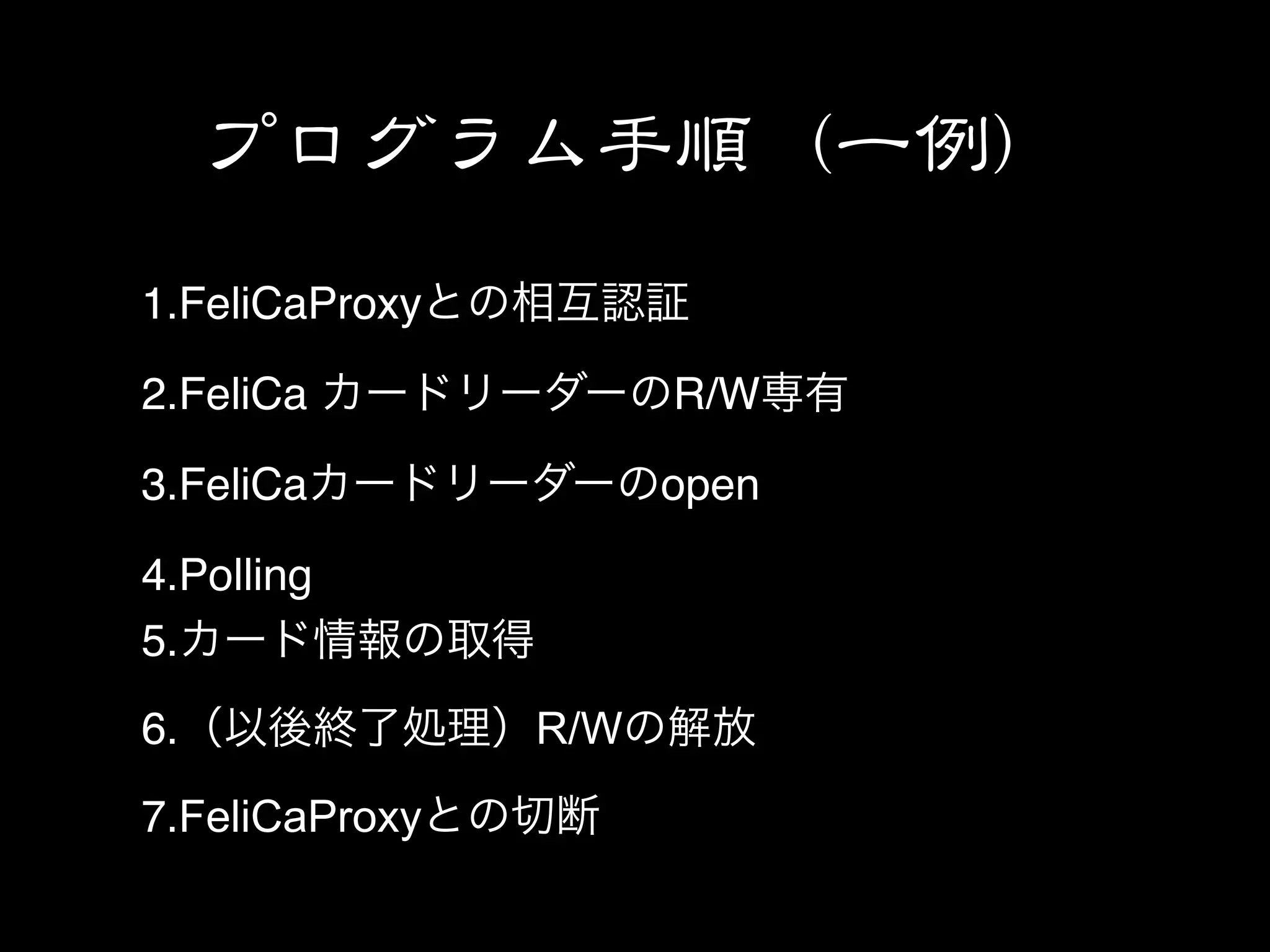

26. 1.FeliCaProxy
2.FeliCa R/W
3.FeliCa open
4.Polling
5.
6. R/W
7.FeliCaProxy

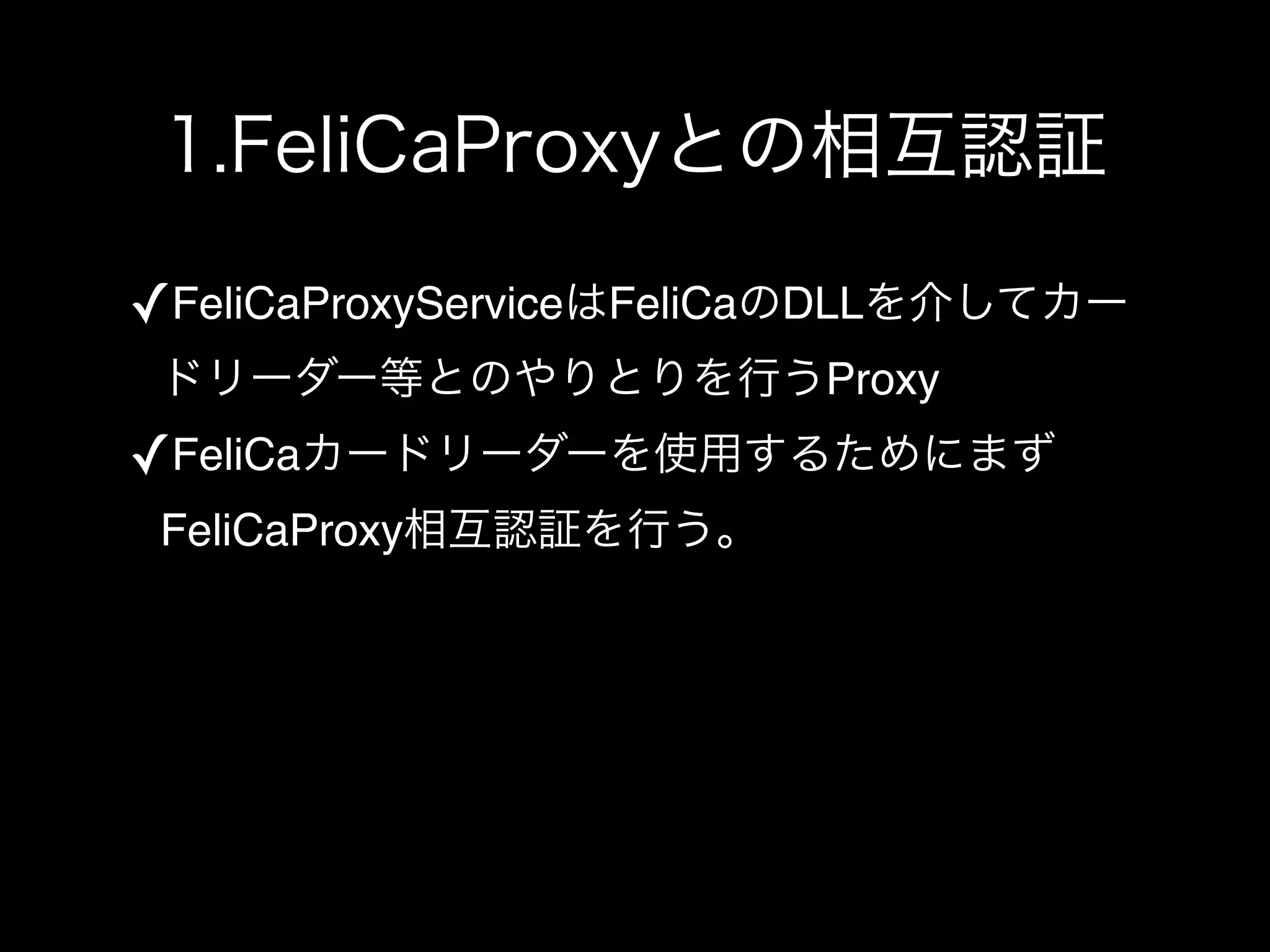

27. ✓FeliCaProxyService FeliCa DLL
Proxy
✓FeliCa
FeliCaProxy

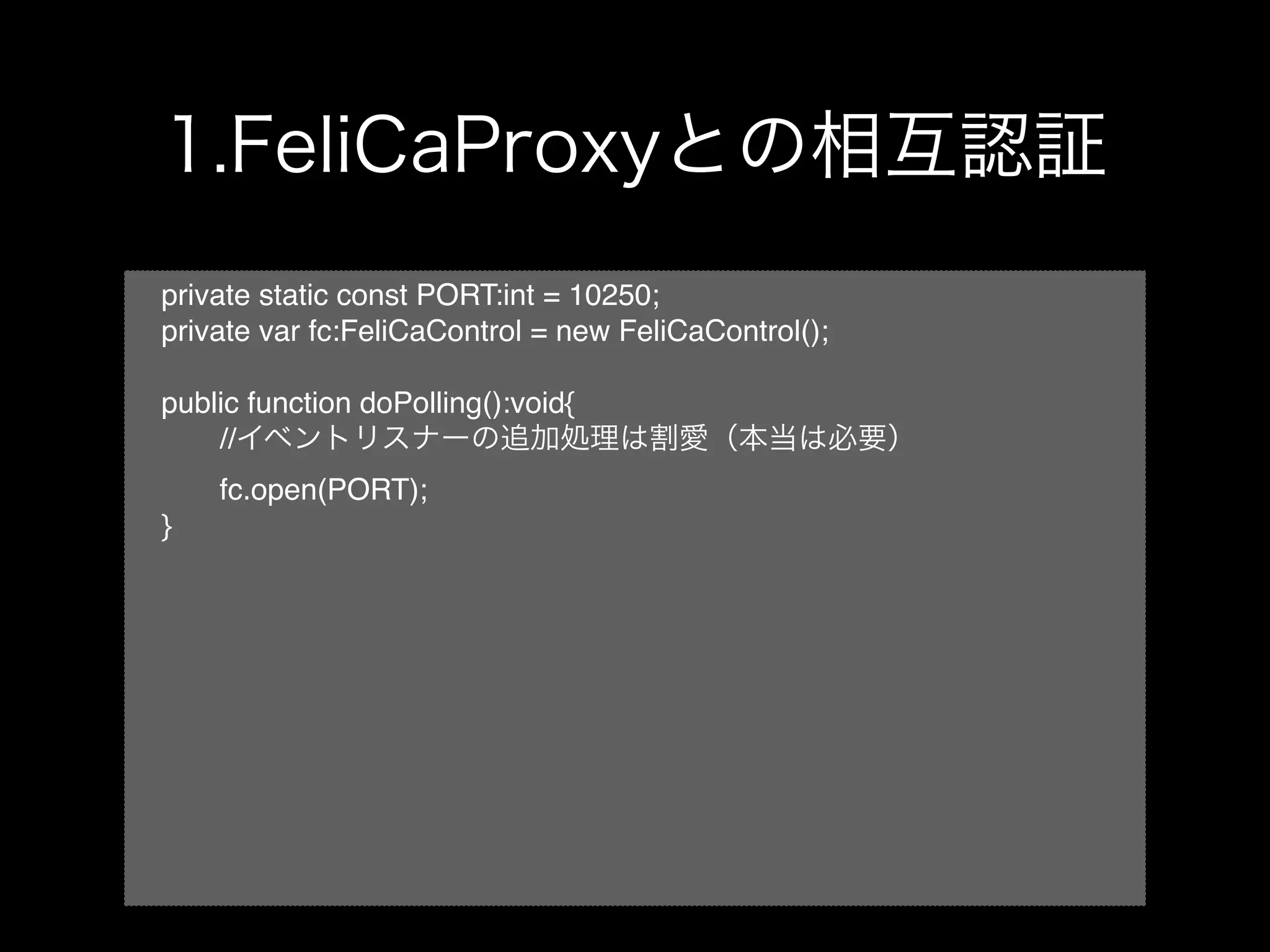

28. private static const PORT:int = 10250;
private var fc:FeliCaControl = new FeliCaControl();
public function doPolling():void{
! //
! fc.open(PORT);
}

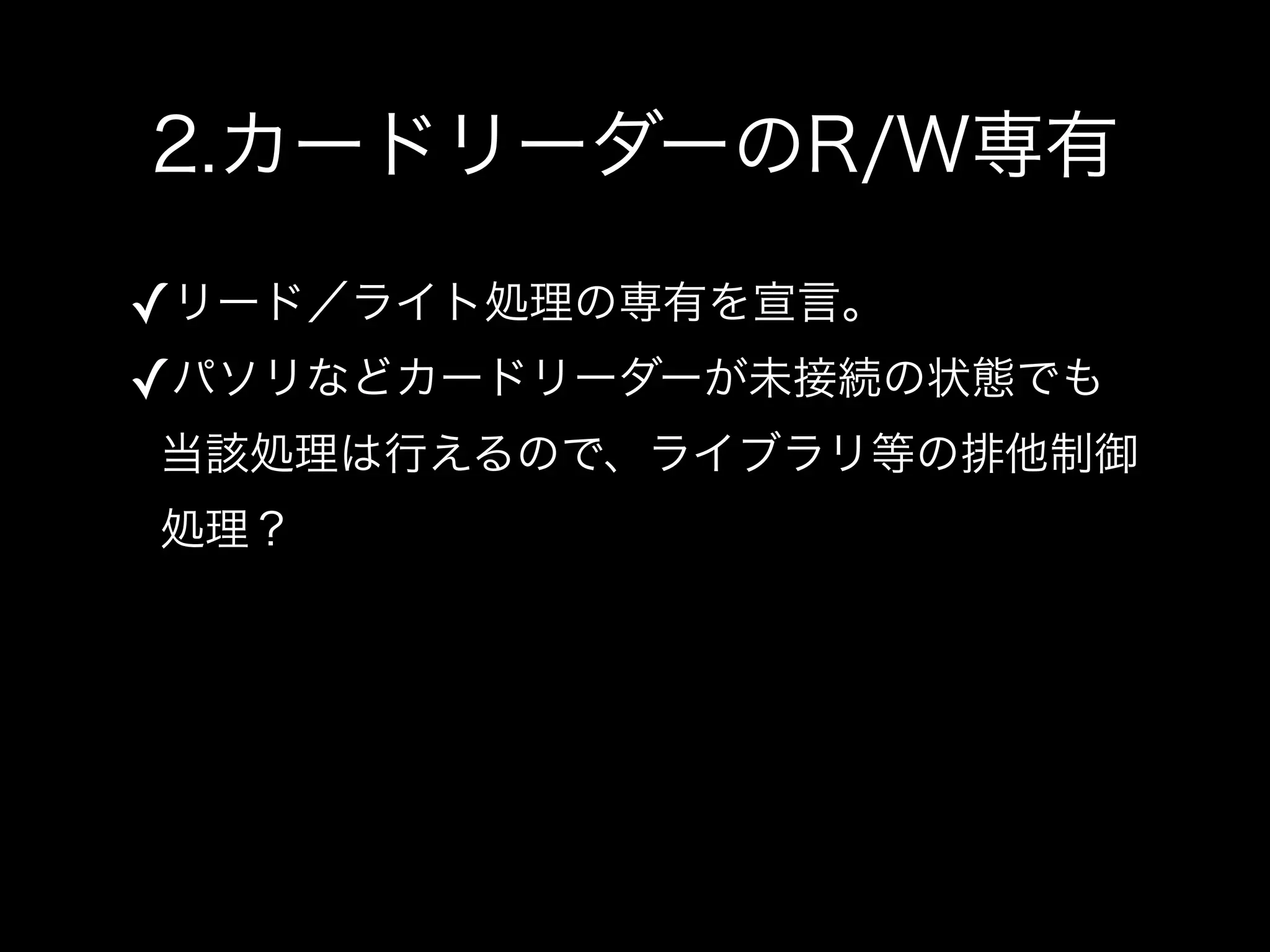

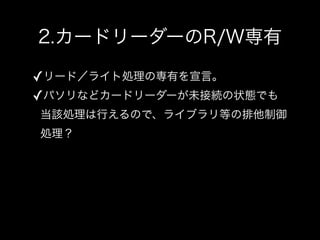

29. ✓
✓

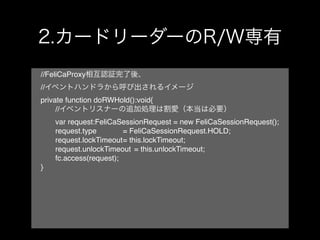

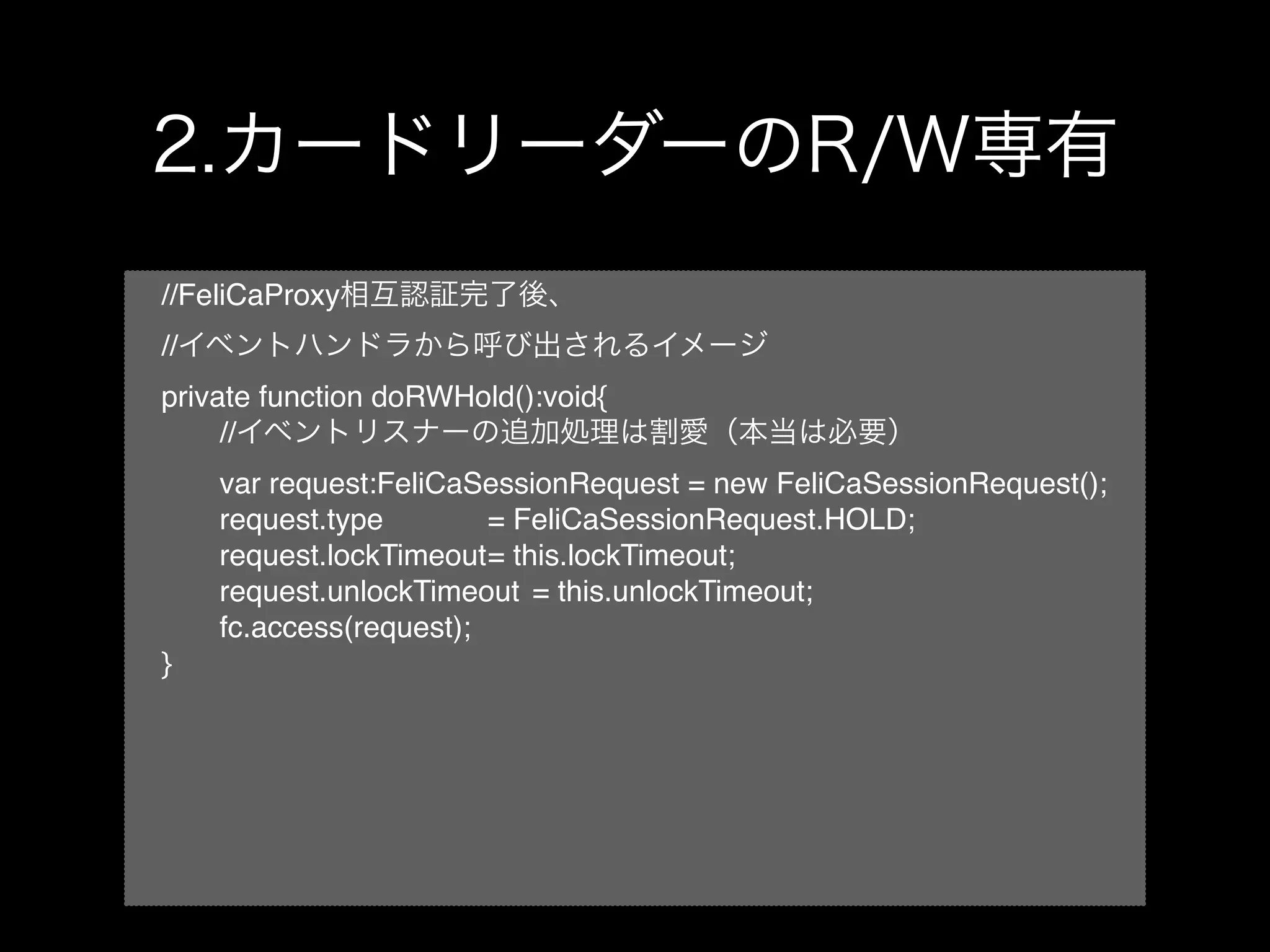

30. //FeliCaProxy
//
private function doRWHold():void{
! //
! var request:FeliCaSessionRequest = new FeliCaSessionRequest();
! request.type! ! ! = FeliCaSessionRequest.HOLD;
! request.lockTimeout! this.lockTimeout;!
=
! request.unlockTimeout! = this.unlockTimeout;
! fc.access(request);
}

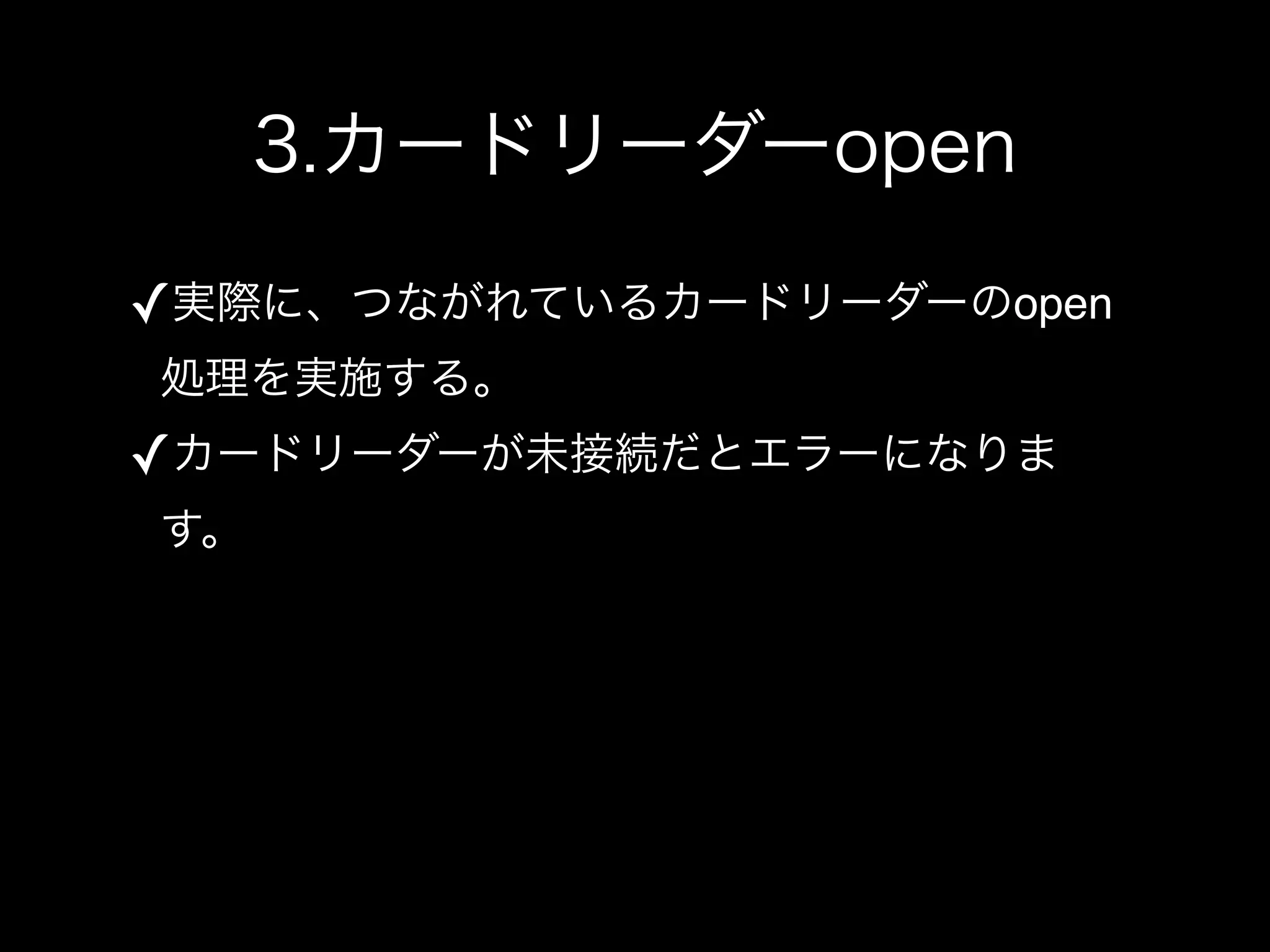

31. ✓ open
✓

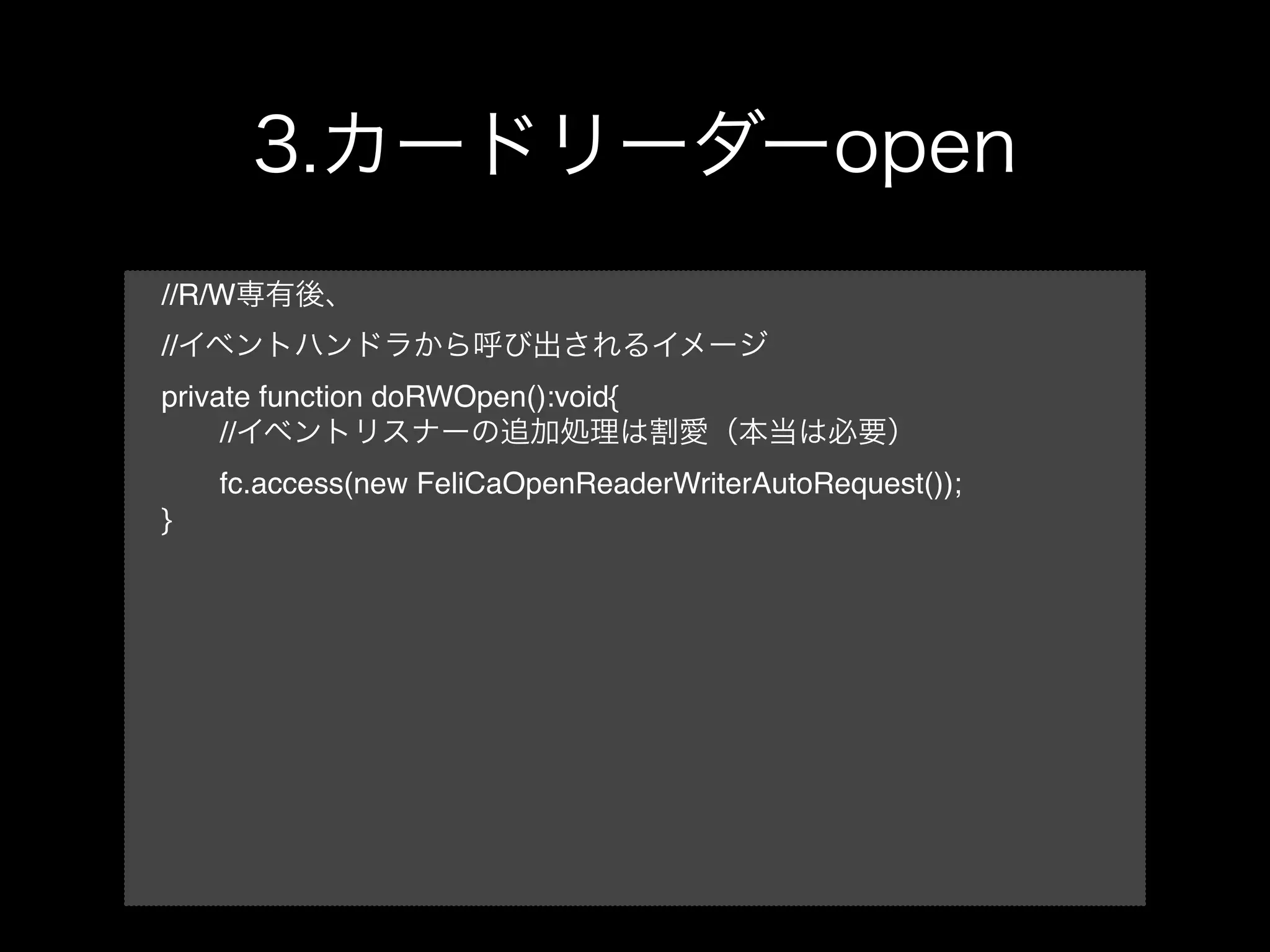

32. //R/W
//
private function doRWOpen():void{
! //
! fc.access(new FeliCaOpenReaderWriterAutoRequest());
}

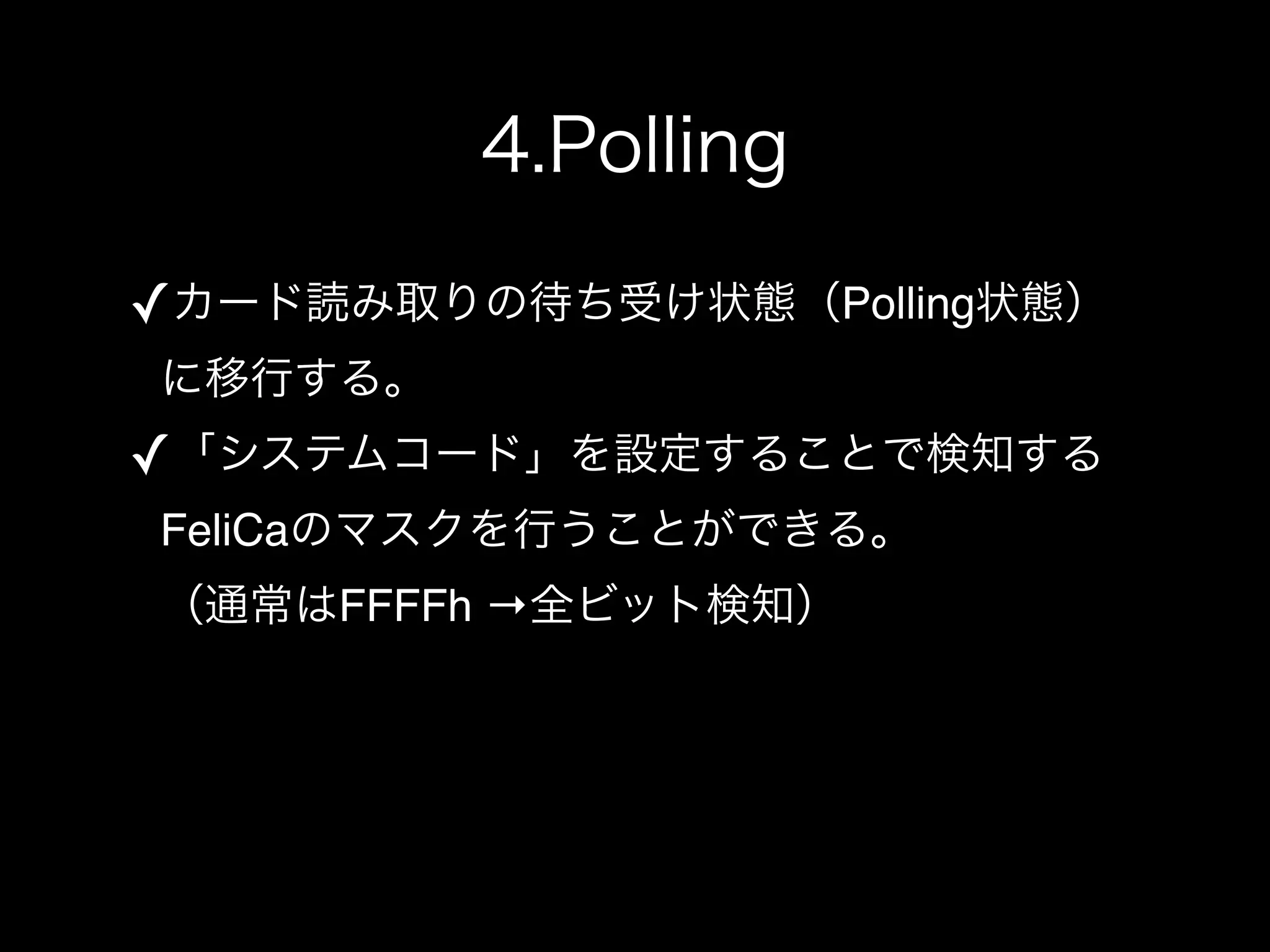

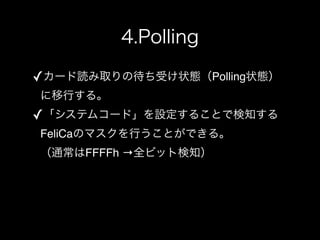

33. ✓ Polling
✓
FeliCa
FFFFh →

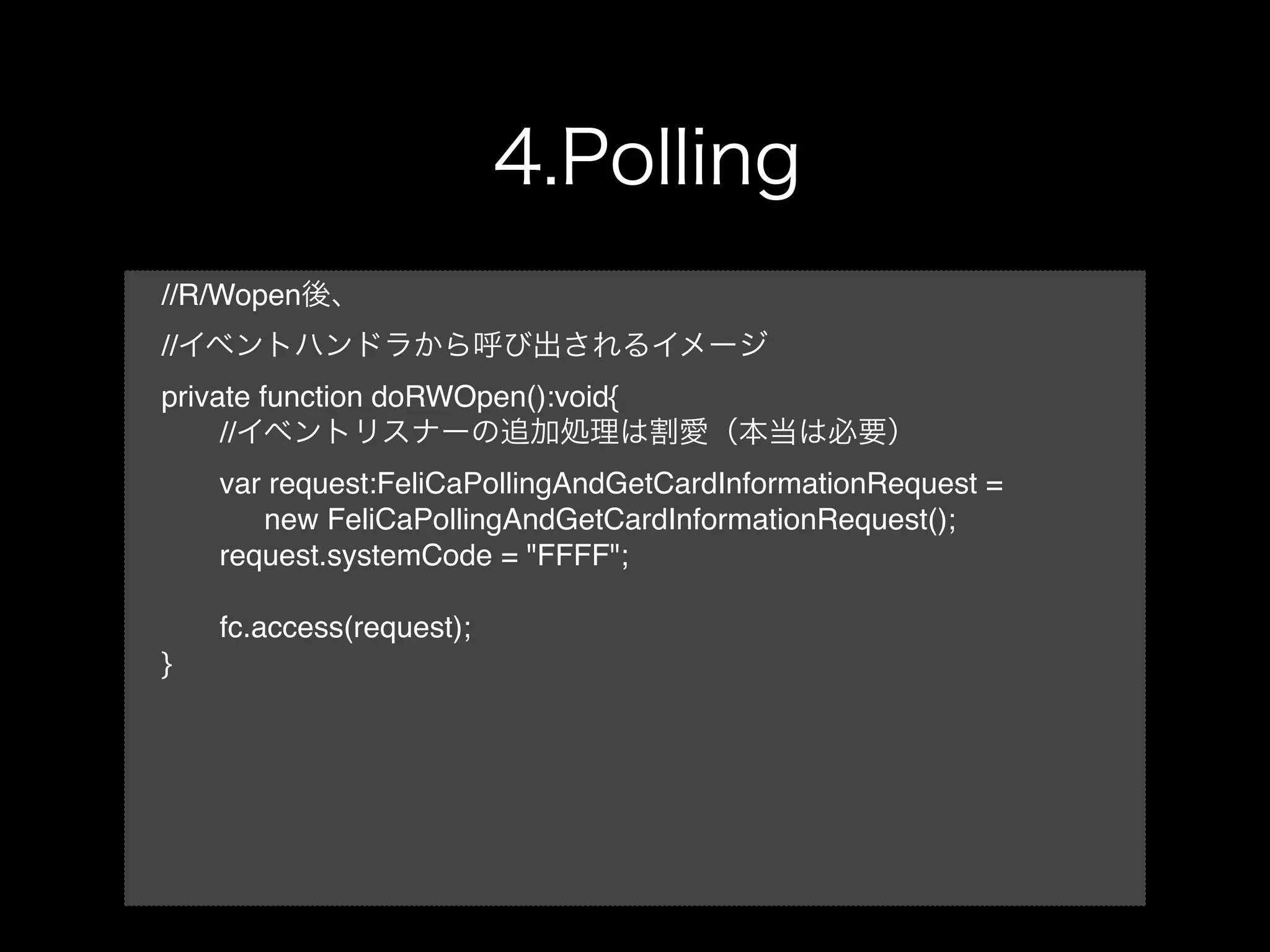

34. //R/Wopen
//
private function doRWOpen():void{
! //
! var request:FeliCaPollingAndGetCardInformationRequest =
! ! new FeliCaPollingAndGetCardInformationRequest();
! request.systemCode = "FFFF";
! fc.access(request);
}

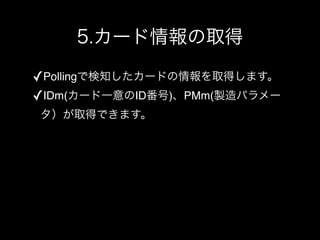

35. ✓Polling
✓IDm( ID ) PMm(

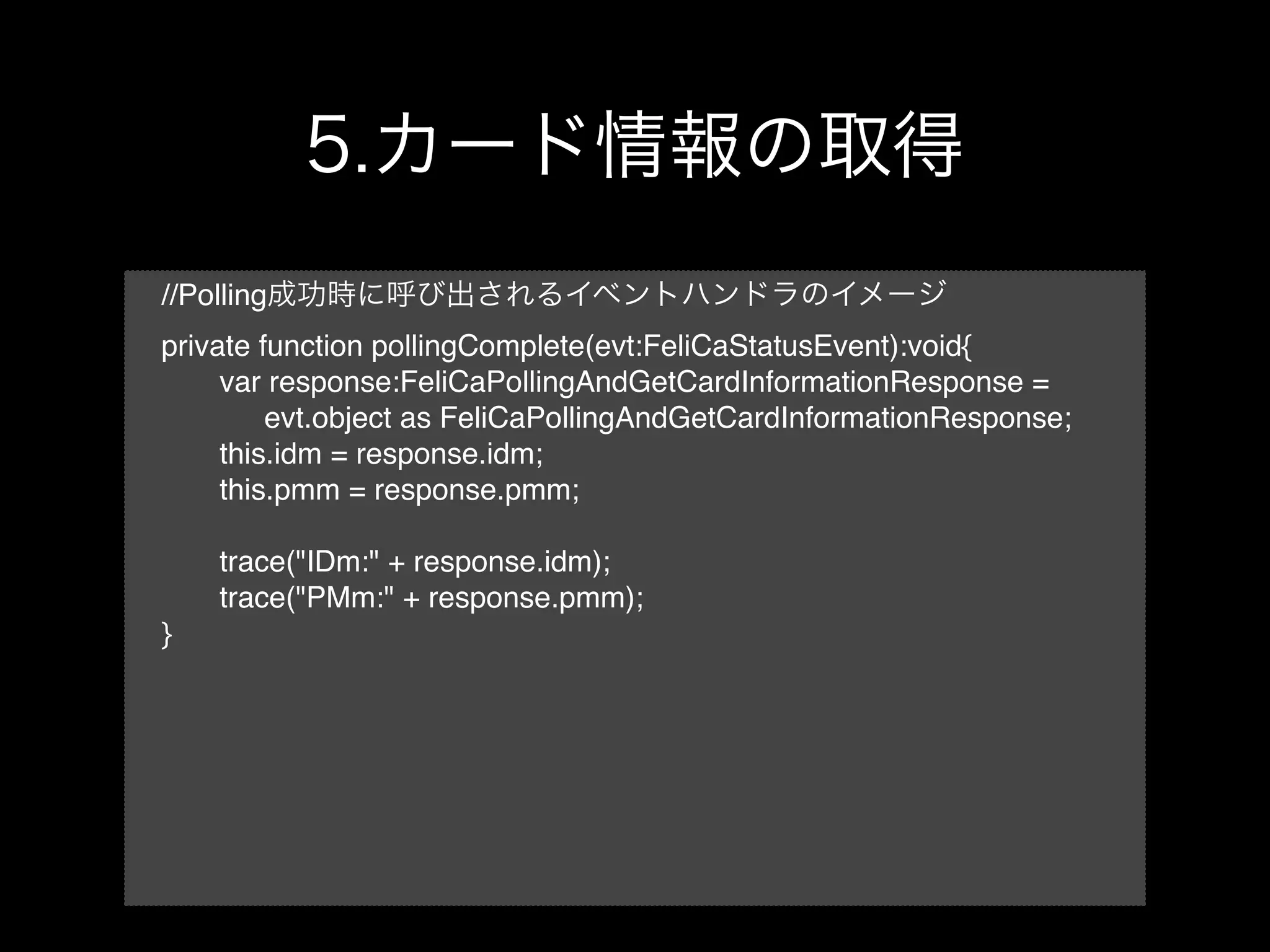

36. //Polling
private function pollingComplete(evt:FeliCaStatusEvent):void{
! var response:FeliCaPollingAndGetCardInformationResponse =
! ! evt.object as FeliCaPollingAndGetCardInformationResponse;
! this.idm = response.idm;
! this.pmm = response.pmm;
! trace("IDm:" + response.idm);
! trace("PMm:" + response.pmm);
}

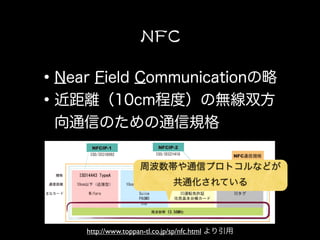

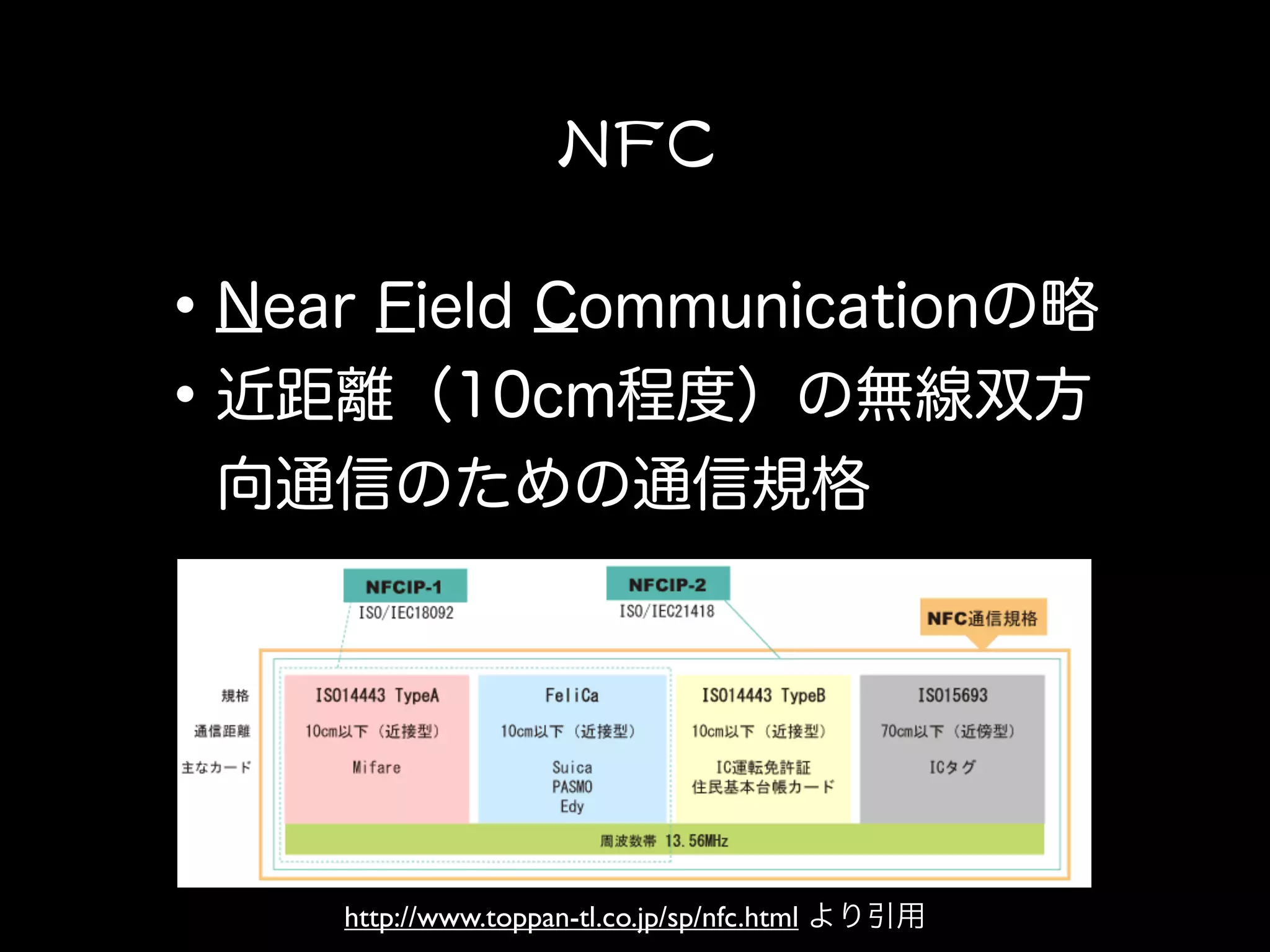

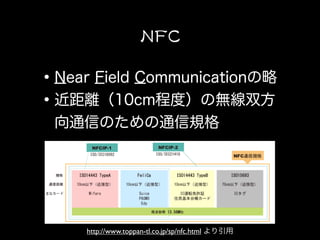

39. http://www.toppan-tl.co.jp/sp/nfc.html

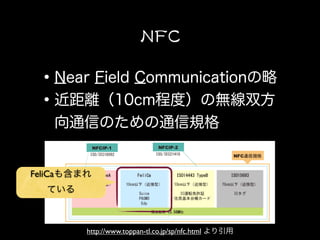

40. FeliCa
http://www.toppan-tl.co.jp/sp/nfc.html

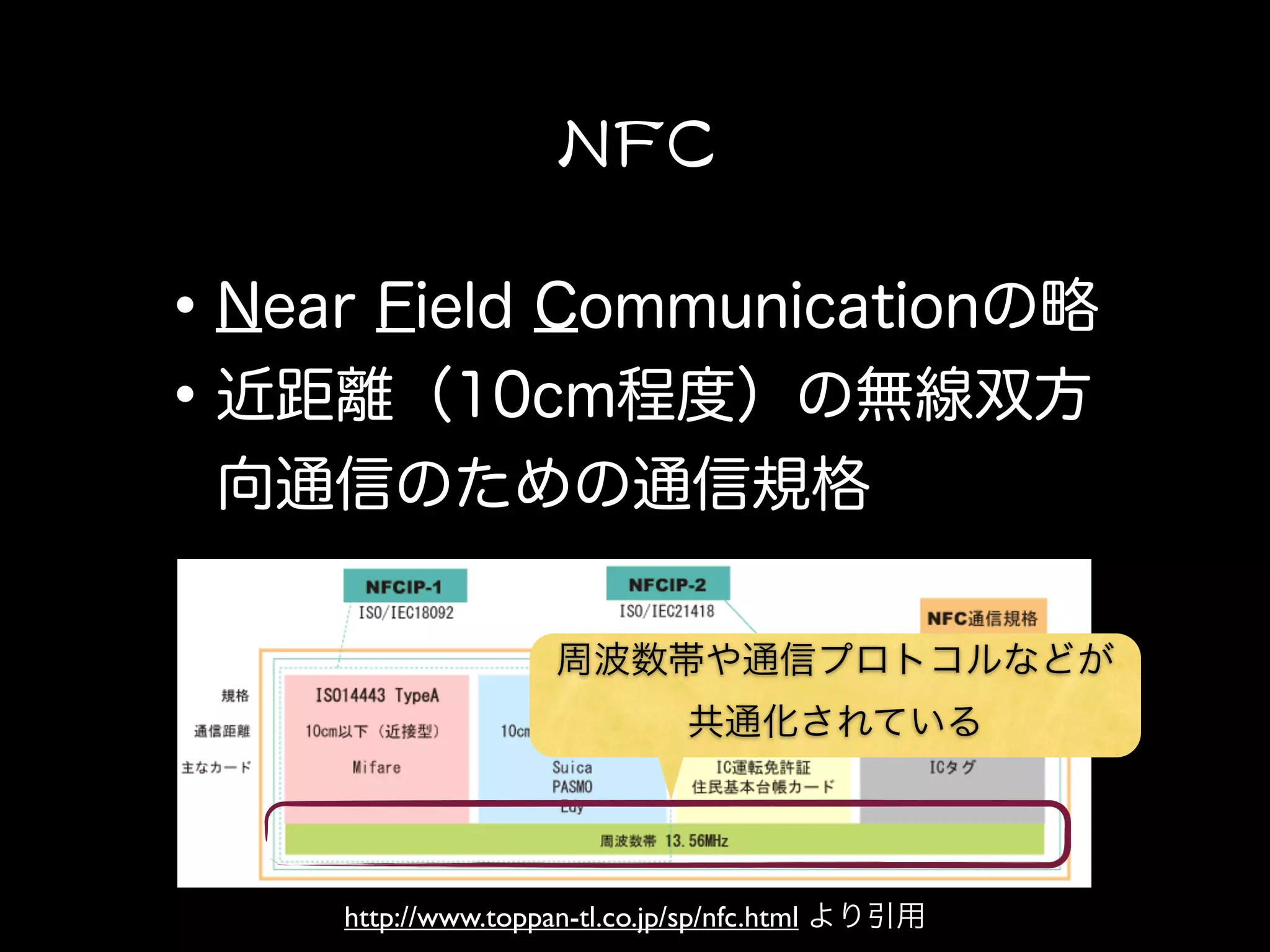

41. http://www.toppan-tl.co.jp/sp/nfc.html

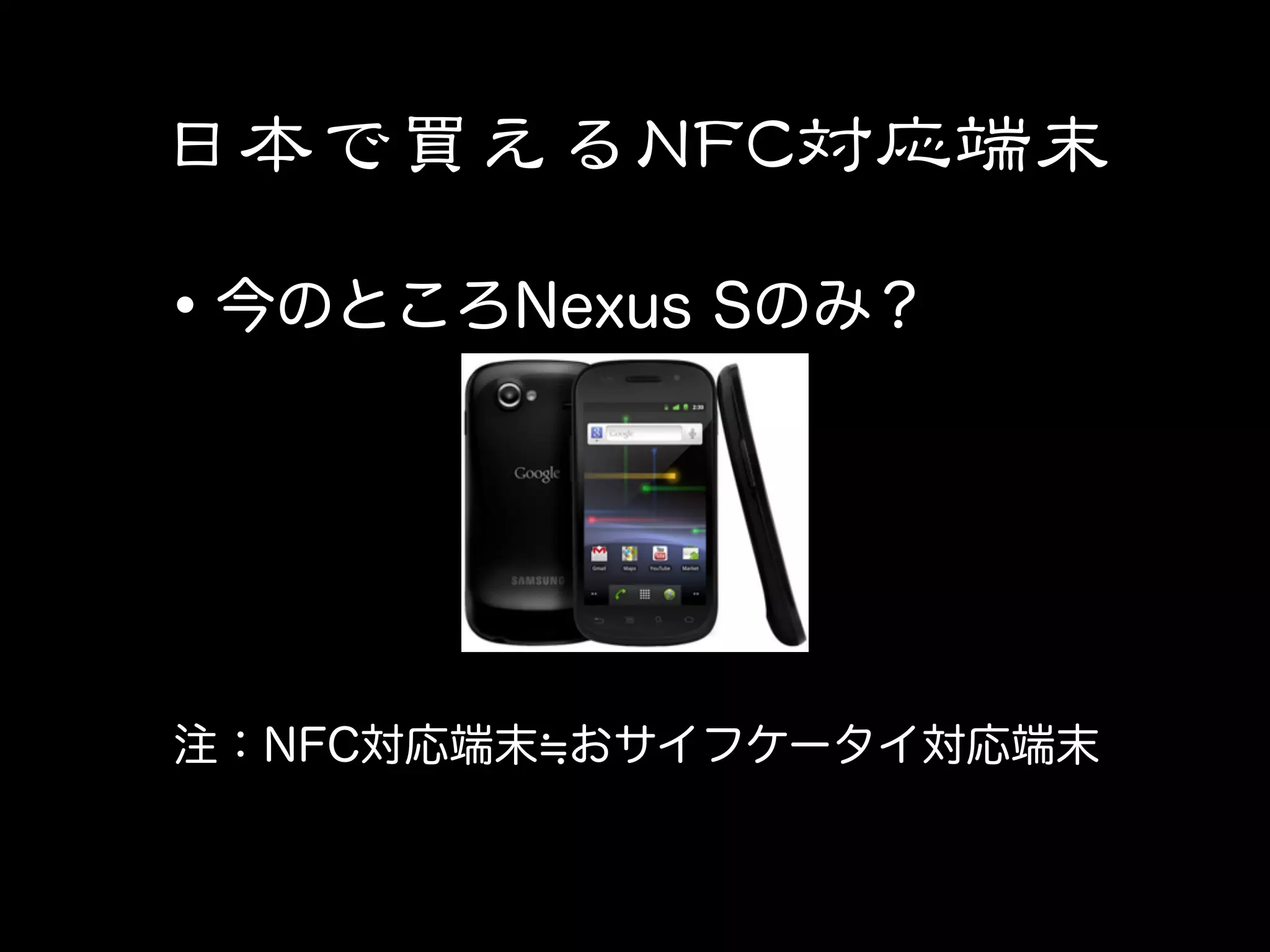

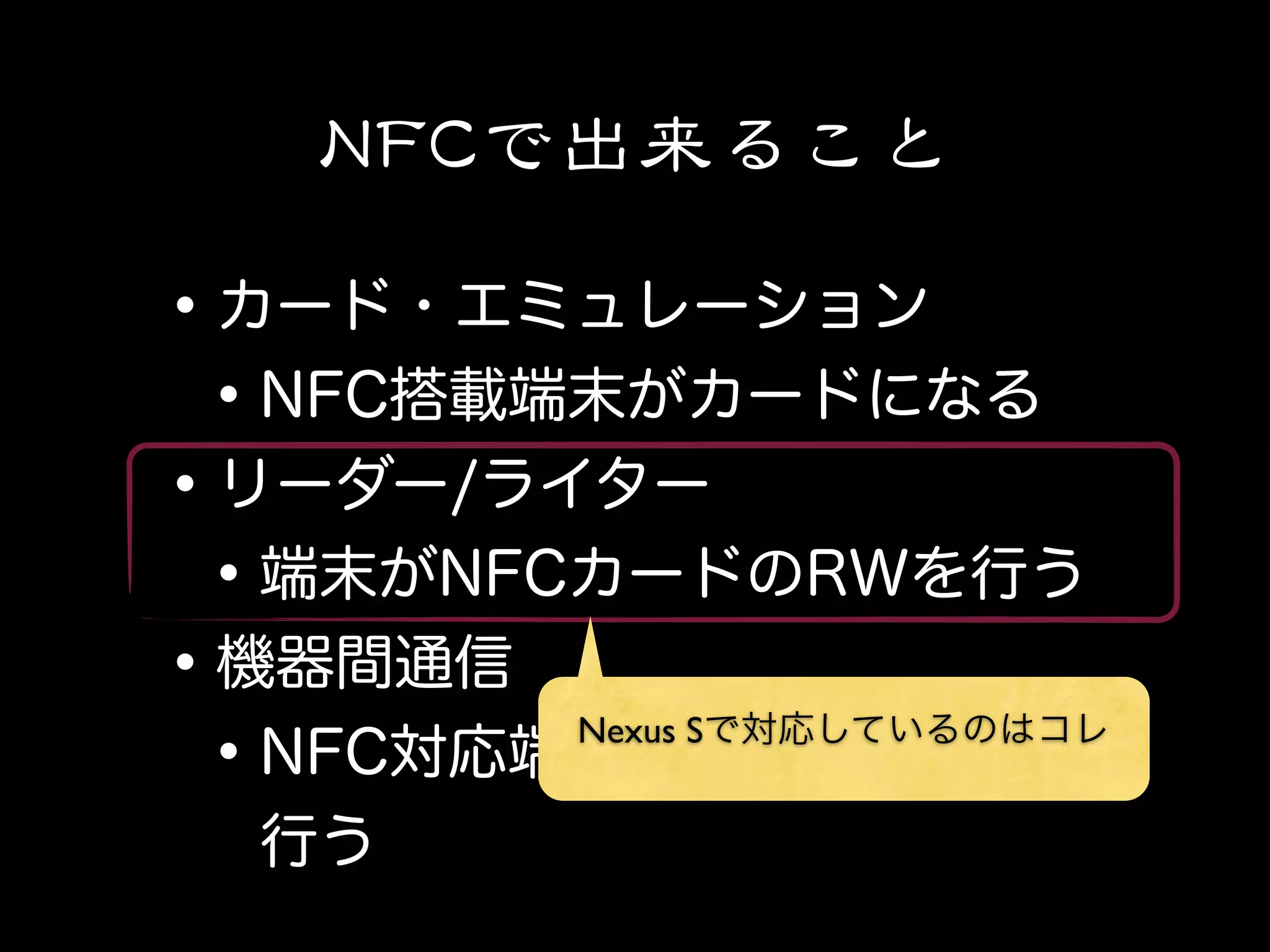

44. Nexus S

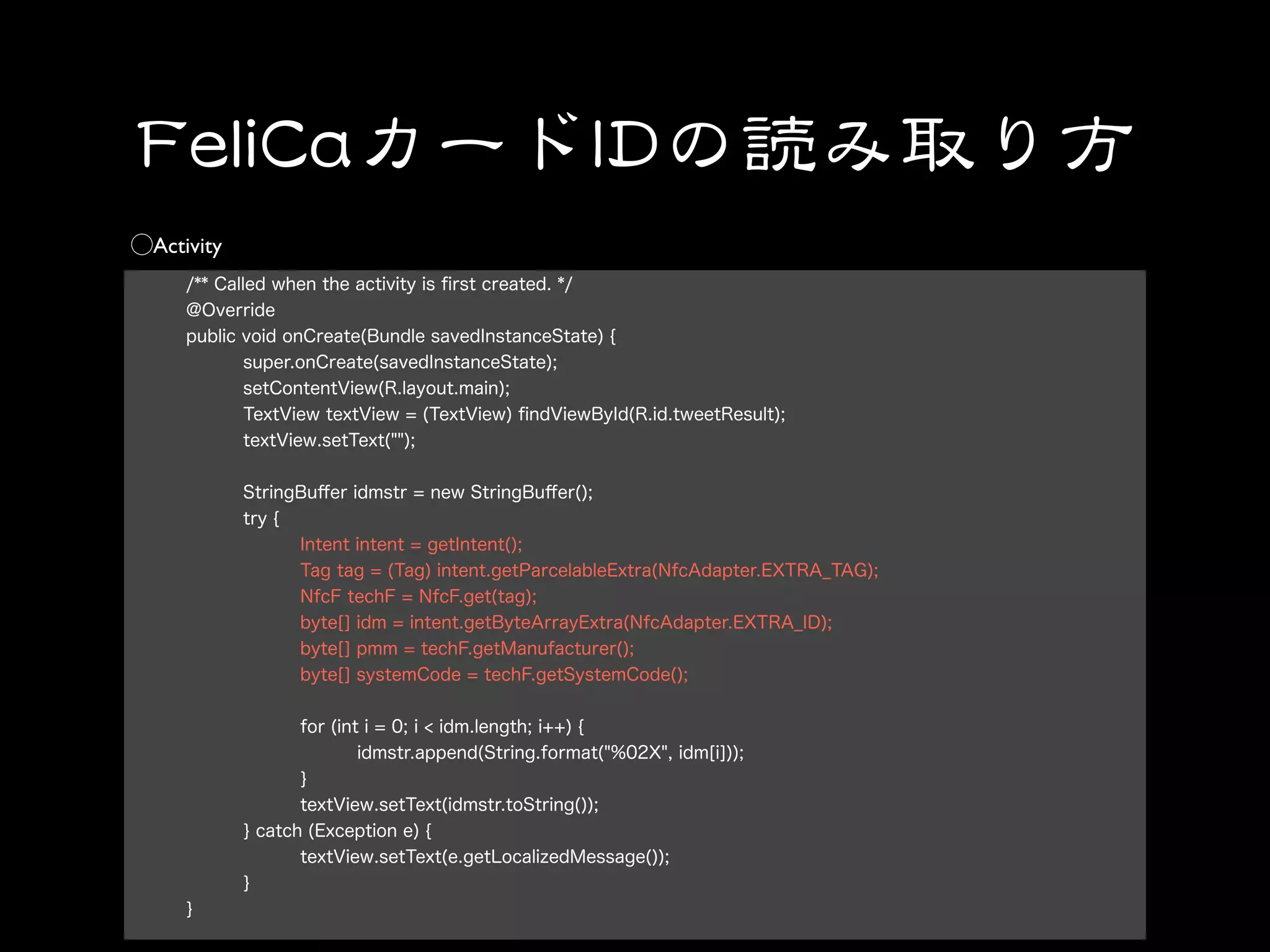

45. Activity

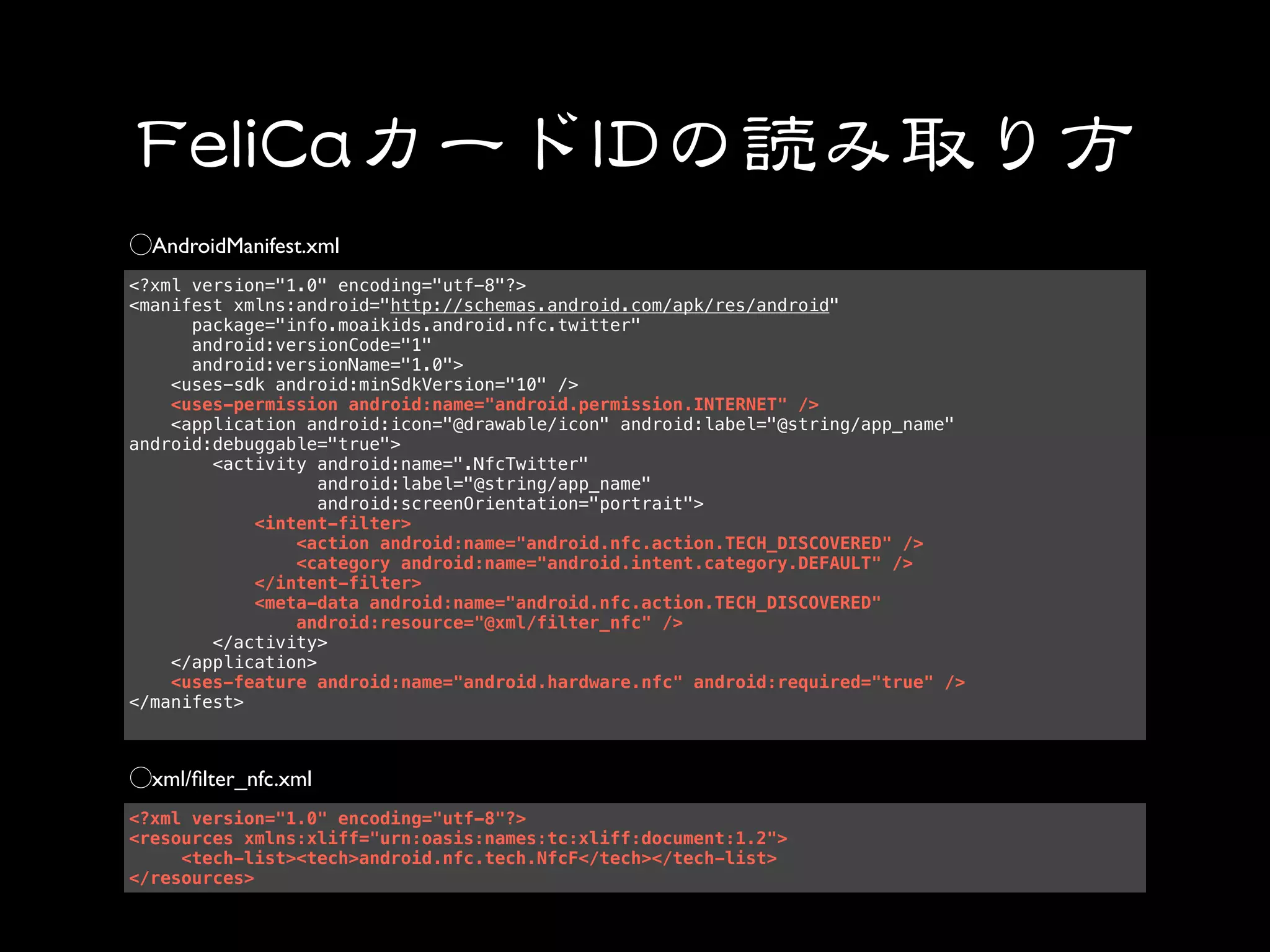

46. AndroidManifest.xml
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
package="info.moaikids.android.nfc.twitter"
android:versionCode="1"
android:versionName="1.0">
<uses-sdk android:minSdkVersion="10" />
<uses-permission android:name="android.permission.INTERNET" />
<application android:icon="@drawable/icon" android:label="@string/app_name"
android:debuggable="true">
<activity android:name=".NfcTwitter"
android:label="@string/app_name"
android:screenOrientation="portrait">
<intent-filter>
<action android:name="android.nfc.action.TECH_DISCOVERED" />
<category android:name="android.intent.category.DEFAULT" />
</intent-filter>
<meta-data android:name="android.nfc.action.TECH_DISCOVERED"
android:resource="@xml/filter_nfc" />
</activity>
</application>
<uses-feature android:name="android.hardware.nfc" android:required="true" />
</manifest>
xml/filter_nfc.xml
<?xml version="1.0" encoding="utf-8"?>
<resources xmlns:xliff="urn:oasis:names:tc:xliff:document:1.2">
<tech-list><tech>android.nfc.tech.NfcF</tech></tech-list>
</resources>

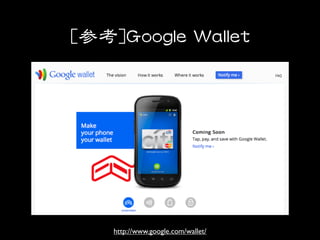

48. http://www.google.com/wallet/
