MagickTiler is a Java tool and library for converting images into tile formats suitable for zoomable web images. It supports various tiling schemes like TMS, Zoomify, Google Maps, and generates tilesets and previews in formats like JPEG and PNG. The tool can be run from the command line to generate tilesets from images.

1. M agickTiler
A Java tool and embeddable library for converting images into
formats suitable for publishing as zoomable Web images.
http://code.google.com/p/magicktiler/

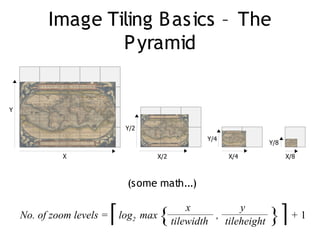

2. Image Tiling B asics – The
P yramid
Y
Y/2
Y/4
Y/8
X X/2 X/4 X/8
(some math...)
No. of zoom levels = ⌈ log 2 max { x
tilewidth
,
y
tileheight }⌉ + 1

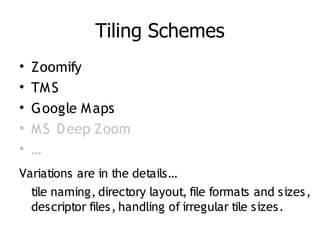

3. Tiling Schemes
• Zoomify
• TM S
• Google M aps
• M S D eep Zoom
• …
Variations are in the details…
tile naming, directory layout, file formats and sizes,
descriptor files, handling of irregular tile sizes.

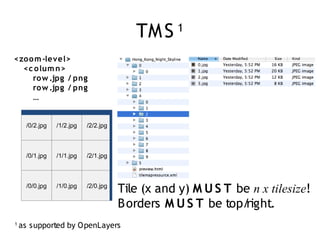

4. TM S 1
<zo o m -level>
<c o lum n>
ro w .jpg / png
ro w .jpg / png
…
/0/2.jpg /1/2.jpg /2/2.jpg
/0/1.jpg /1/1.jpg /2/1.jpg
/0/0.jpg /1/0.jpg /2/0.jpg
Tile (x and y) M U S T be n x tilesize!
B orders M U S T be top/right.
1
as supported by O penLayers

5. Zoomify
<T ileG ro upX >
<level>-<c o l>-<ro w >.jpg
<level>-<c o l>-<ro w >.jpg
…
-0-0.jpg -1-0.jpg -2-0.jpg
-0-1.jpg -1-1.jpg -2-1.jpg
-0-2.jpg -1-2.jpg -2-2.jpg
Irregular tiles M U S T be
bottom/ right.

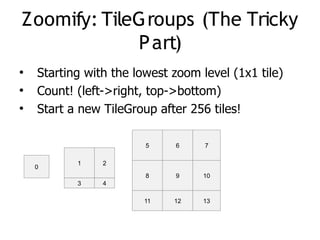

6. Zoomify: TileGroups (The Tricky
P art)
●
Starting with the lowest zoom level (1x1 tile)
●
Count! (left->right, top->bottom)
●
Start a new TileGroup after 256 tiles!
5 6 7
1 2
0
8 9 10
3 4
11 12 13

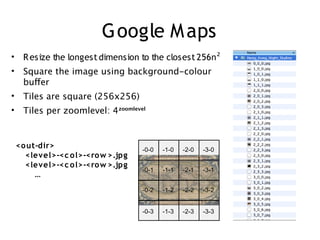

7. Google M aps
• R esize the longest dimension to the closest 256n²
• Square the image using background-colour
bufer
• Tiles are square (256x256)
• Tiles per zoomlevel: 4zoomlevel
<o ut-dir> -0-0 -1-0 -2-0 -3-0
<level>-<c o l>-<ro w >.jpg
<level>-<c o l>-<ro w >.jpg
-0-1 -1-1 -2-1 -3-1
…
-0-2 -1-2 -2-2 -3-2
-0-3 -1-3 -2-3 -3-3

8. P erformance O ptimizations
• Striping
– The base image is cut into either horizontal or
vertical stripes to avoid operations on 'large'
images
– For each zoom level, the stripes are generated
based on the stripes of the previous
zoomlevel (stripes are merged)
• Single GM/IM operations where possible

9. C LI
usage: java -jar magicktiler [-b <color>] [-f <format>] [-g] [-h] -i
<input> [-l] [-o <output>] [-p] [-q <quality>] -s <scheme> [-v]
-b <color> background color, default=white
-f <format> tile format ('jpeg' or 'png'), default=jpeg
-g displays the GUI (ignores all other parameters)
-h displays this help text
-i <input> mandatory input file or directory
-l writes reporting information to a log file
-o <output> output directory (for tilesets) or file (for PTIF), default=.
-p generate an HTML preview file
-q <quality> JPEG compression quality (0 - 100), default=75
-s <scheme> mandatory tiling scheme ('tms', 'zoomify', 'gmap' or 'ptif')
-v validate the input instead of generating a tileset
Example: java -jar magicktiler.jar -s tms -f jpeg -i image.tif -p

10. Finally, some Java!
