2 Speed IT powered by Microsoft Azure and Minecraft
- 1. Sponsored & Broughtto you by 2 Speed IT powered by Microsoft Azure and Minecraft Michael Stephenson https://twitter.com/michael_stephen https://www.linkedin.com/in/michaelstephensonuk1
- 2. 2 Speed IT Poweredby Microsoft Azure TheAzureCoach.com

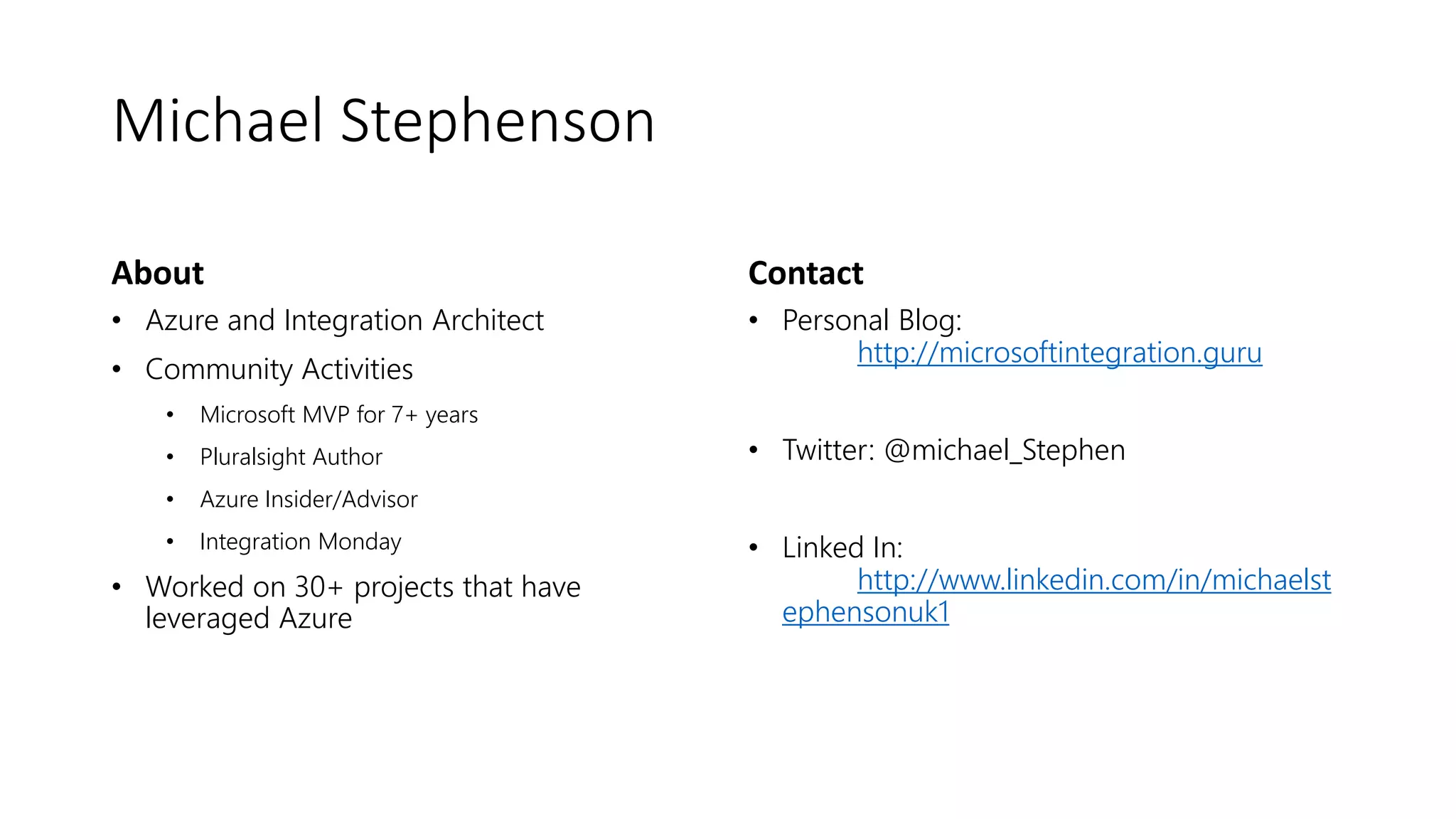

- 3. Michael Stephenson About • Azureand Integration Architect • Community Activities • Microsoft MVP for 7+ years • Pluralsight Author • Azure Insider/Advisor • Integration Monday • Worked on 30+ projects that have leveraged Azure Contact • Personal Blog: http://microsoftintegration.guru • Twitter: @michael_Stephen • Linked In: http://www.linkedin.com/in/michaelst ephensonuk1

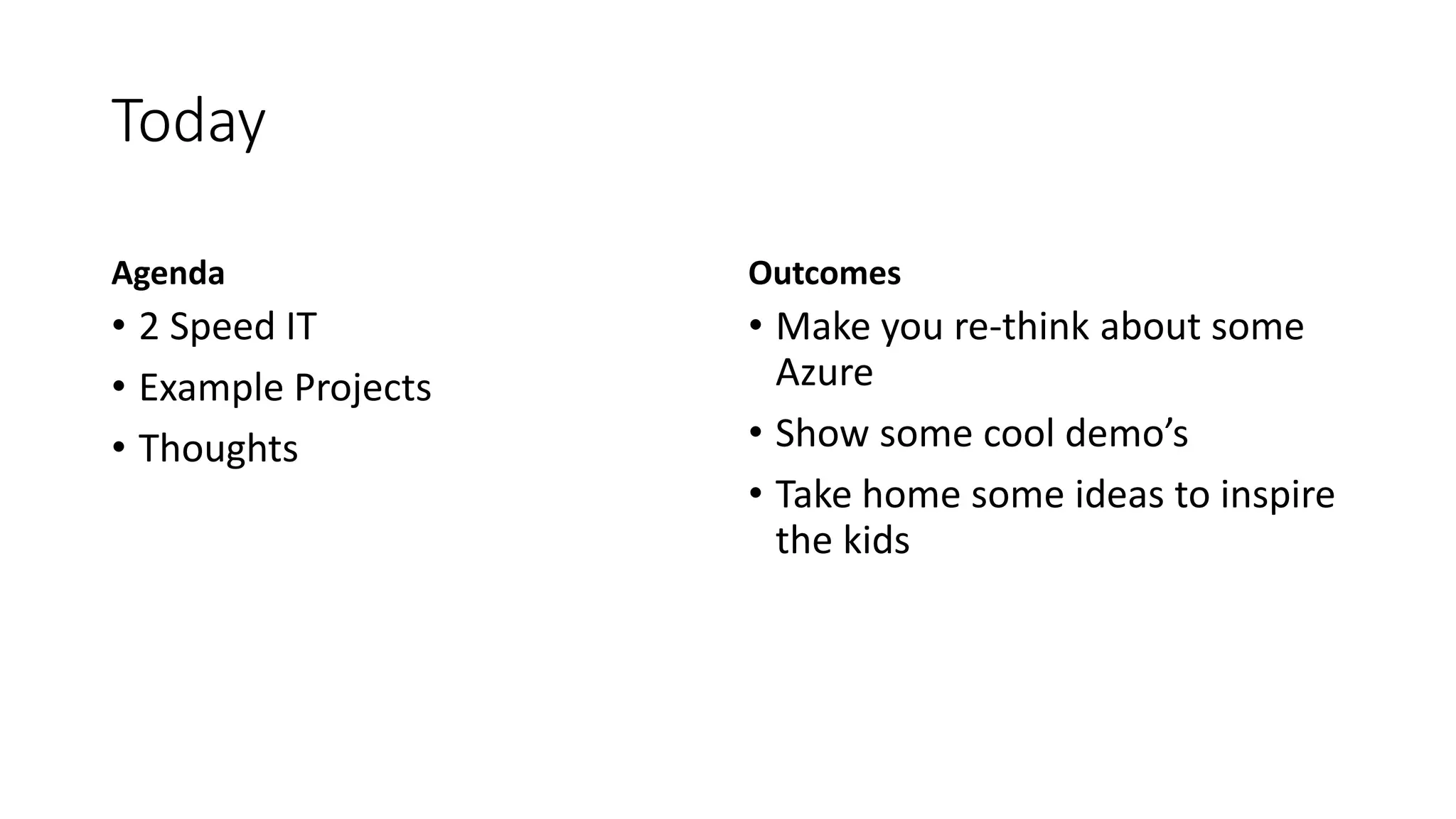

- 4. Today Agenda • 2 SpeedIT • Example Projects • Thoughts Outcomes • Make you re-think about some Azure • Show some cool demo’s • Take home some ideas to inspire the kids

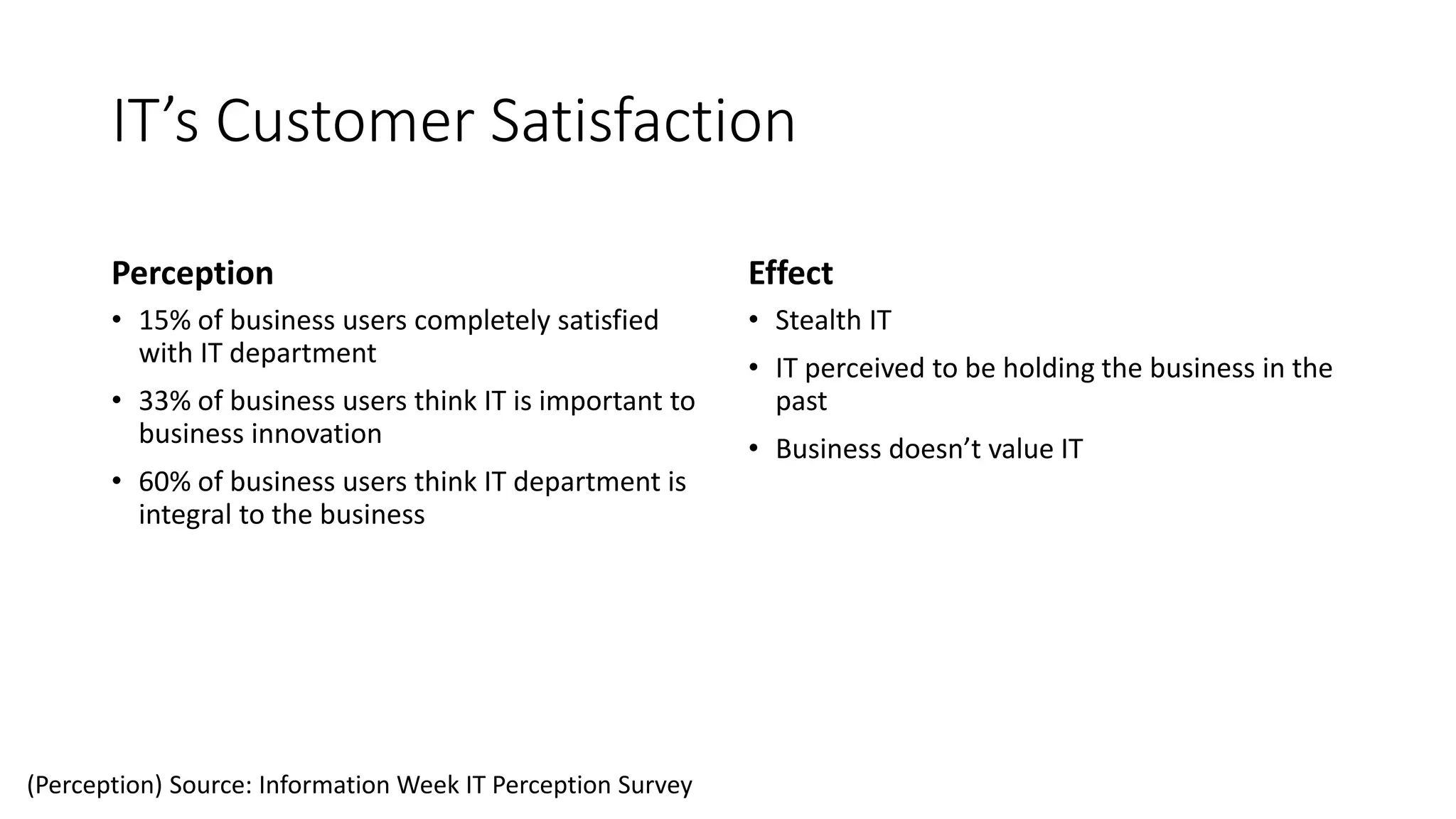

- 5. IT’s Customer Satisfaction Perception •15% of business users completely satisfied with IT department • 33% of business users think IT is important to business innovation • 60% of business users think IT department is integral to the business Effect • Stealth IT • IT perceived to be holding the business in the past • Business doesn’t value IT (Perception) Source: Information Week IT Perception Survey
- 6. “By 2017, 75%of organisations will have a 2 speed IT capability”

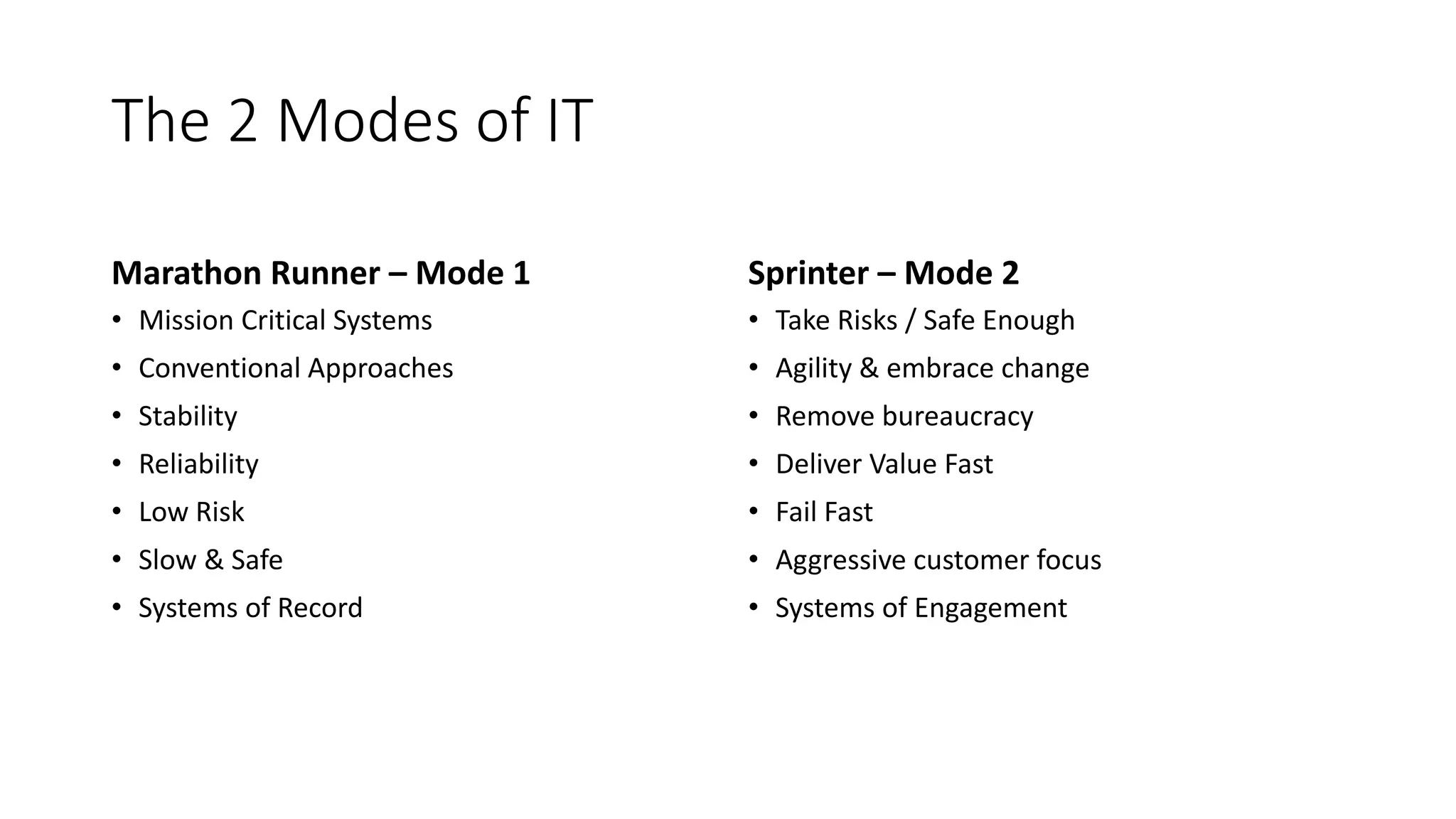

- 7. The 2 Modesof IT Marathon Runner – Mode 1 • Mission Critical Systems • Conventional Approaches • Stability • Reliability • Low Risk • Slow & Safe • Systems of Record Sprinter – Mode 2 • Take Risks / Safe Enough • Agility & embrace change • Remove bureaucracy • Deliver Value Fast • Fail Fast • Aggressive customer focus • Systems of Engagement

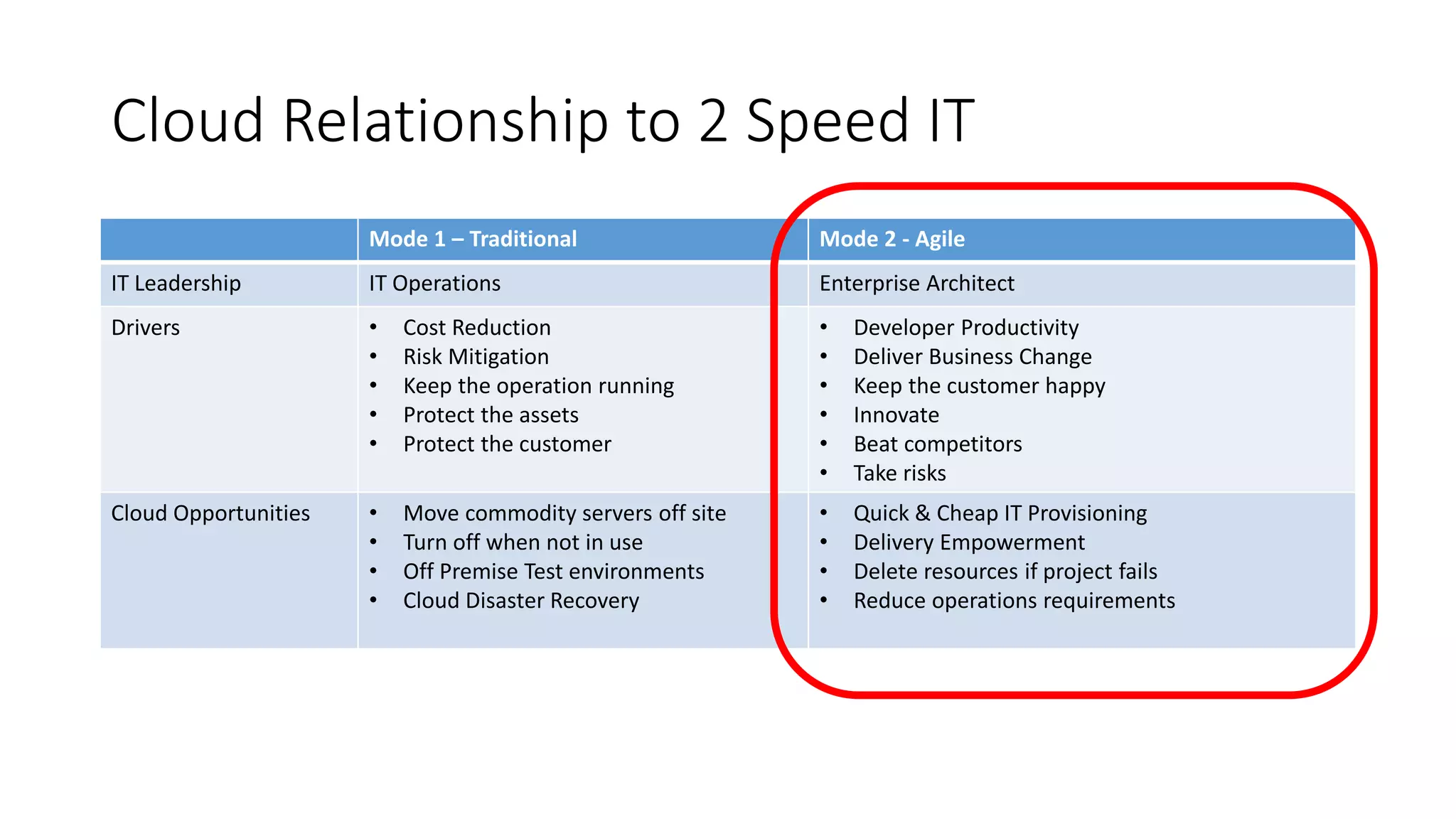

- 8. Cloud Relationship to2 Speed IT Mode 1 – Traditional Mode 2 - Agile IT Leadership IT Operations Enterprise Architect Drivers • Cost Reduction • Risk Mitigation • Keep the operation running • Protect the assets • Protect the customer • Developer Productivity • Deliver Business Change • Keep the customer happy • Innovate • Beat competitors • Take risks Cloud Opportunities • Move commodity servers off site • Turn off when not in use • Off Premise Test environments • Cloud Disaster Recovery • Quick & Cheap IT Provisioning • Delivery Empowerment • Delete resources if project fails • Reduce operations requirements
- 9.
- 10. Mode 2 Architects “Asan architect, the cloud offers me new ways to solve problems and opportunities to excite the business and super charge my mode 2 IT teams”
- 11. Example 1 -Seasonal Load

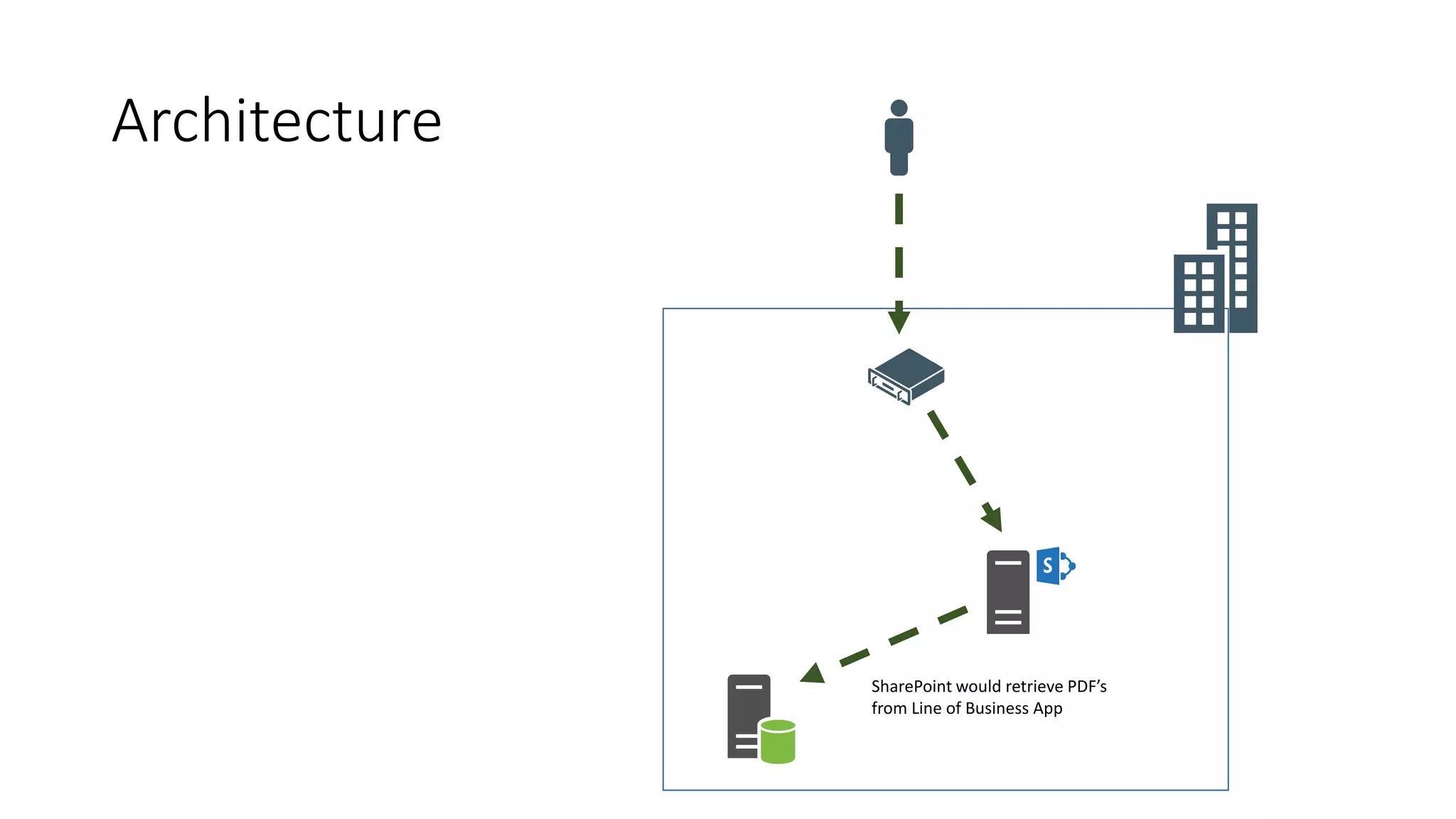

- 12. Architecture SharePoint would retrievePDF’s from Line of Business App

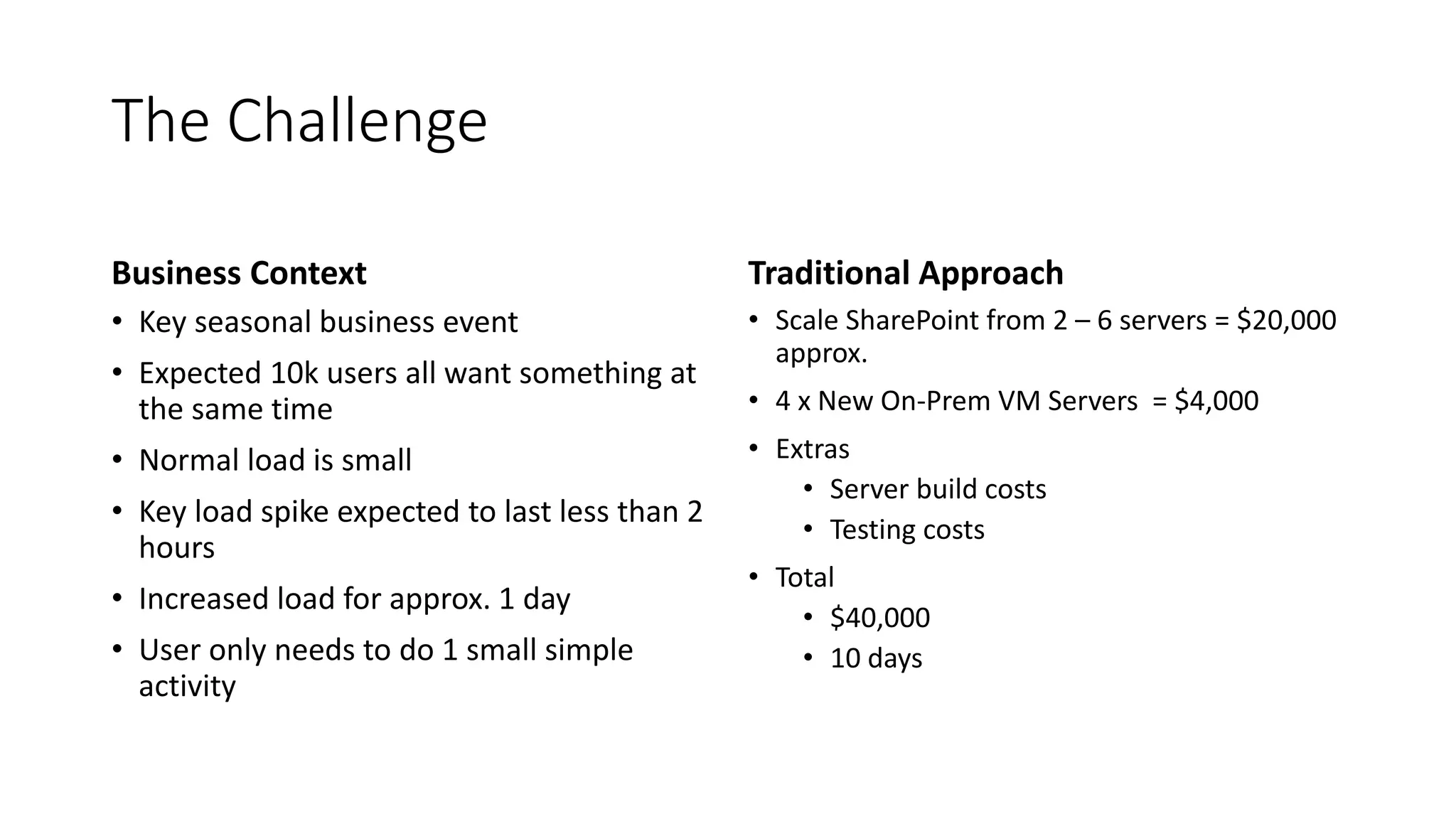

- 13. The Challenge Business Context •Key seasonal business event • Expected 10k users all want something at the same time • Normal load is small • Key load spike expected to last less than 2 hours • Increased load for approx. 1 day • User only needs to do 1 small simple activity Traditional Approach • Scale SharePoint from 2 – 6 servers = $20,000 approx. • 4 x New On-Prem VM Servers = $4,000 • Extras • Server build costs • Testing costs • Total • $40,000 • 10 days

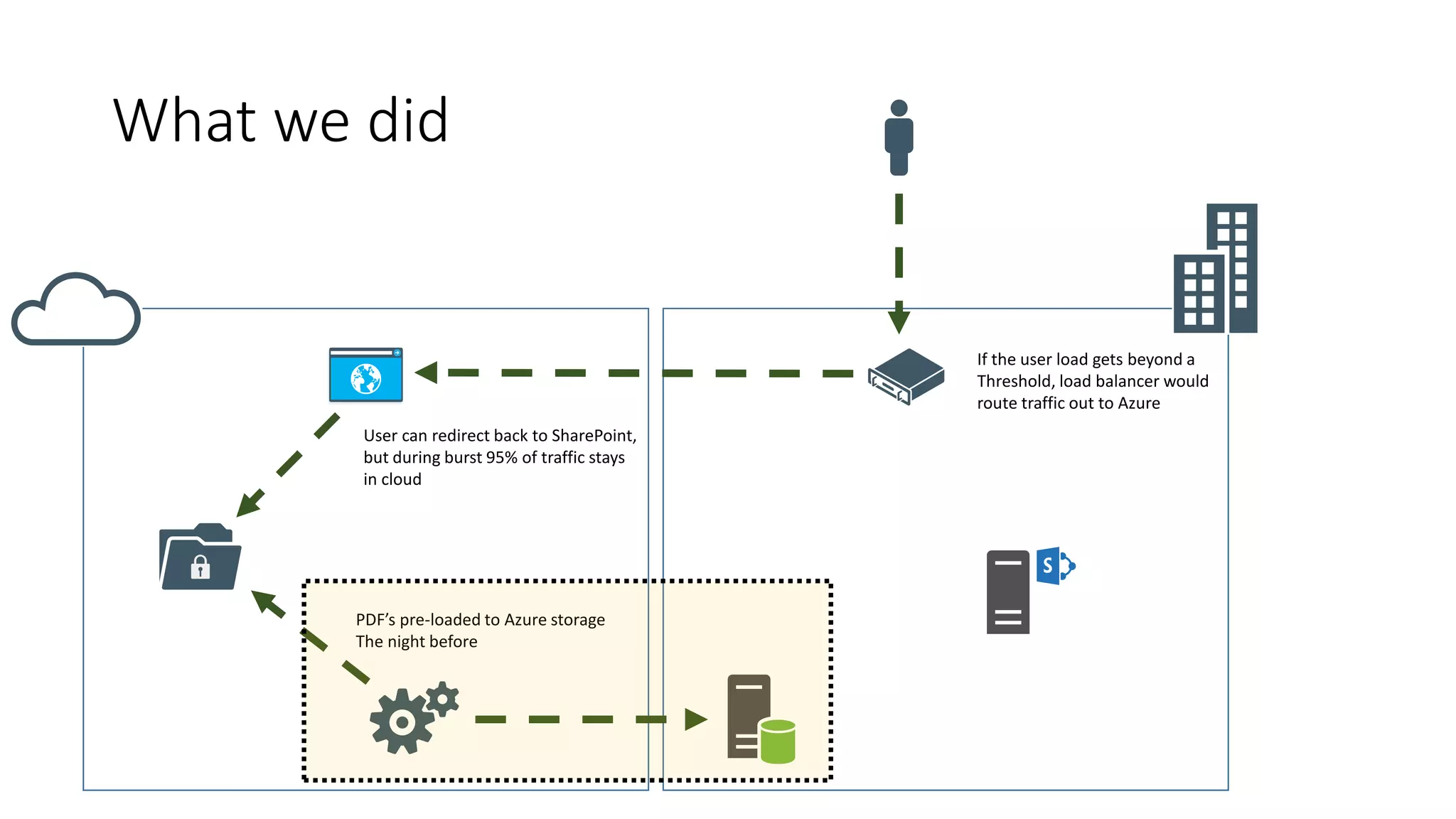

- 14. What we did Ifthe user load gets beyond a Threshold, load balancer would route traffic out to Azure PDF’s pre-loaded to Azure storage The night before User can redirect back to SharePoint, but during burst 95% of traffic stays in cloud

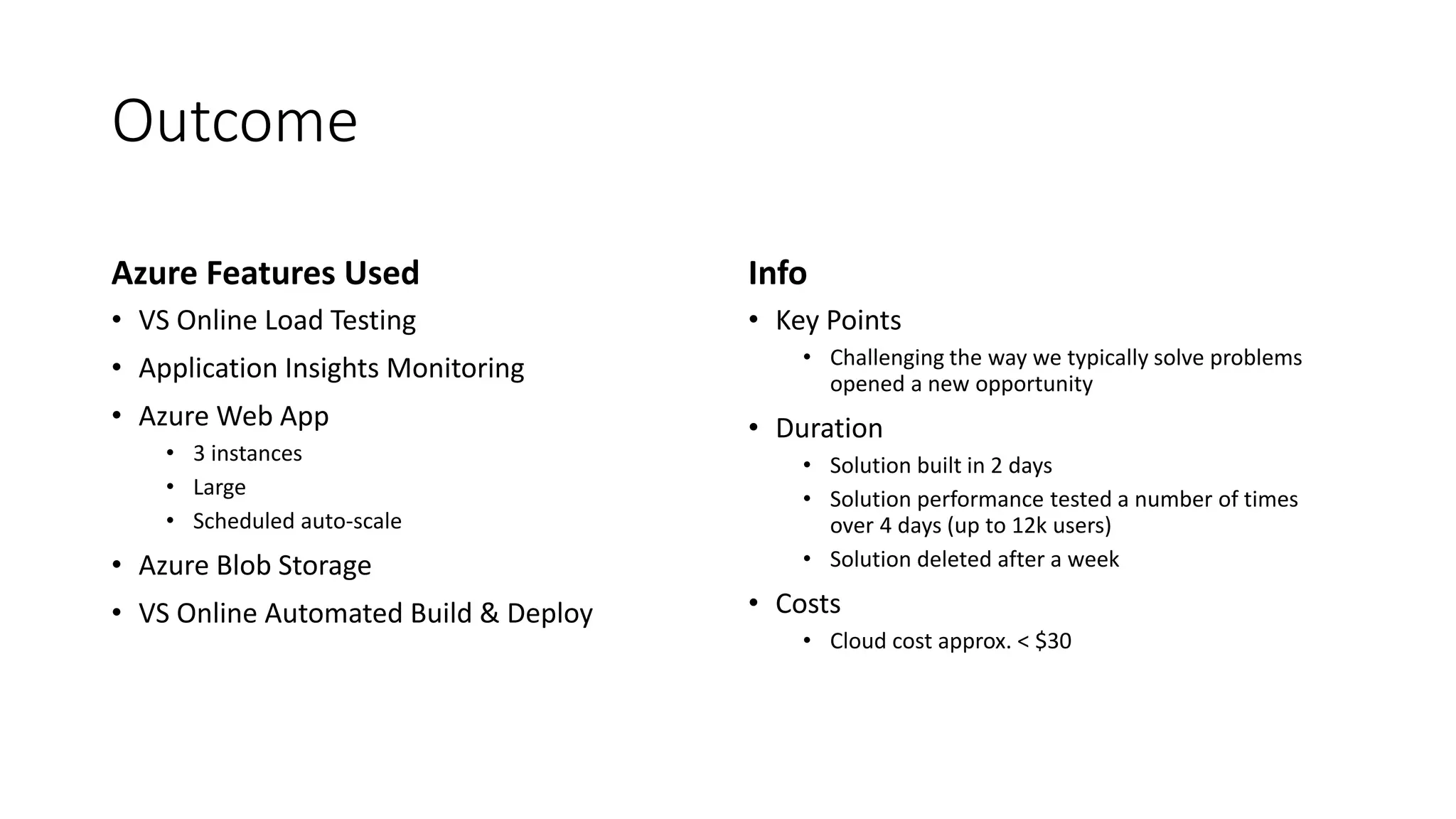

- 15. Outcome Azure Features Used •VS Online Load Testing • Application Insights Monitoring • Azure Web App • 3 instances • Large • Scheduled auto-scale • Azure Blob Storage • VS Online Automated Build & Deploy Info • Key Points • Challenging the way we typically solve problems opened a new opportunity • Duration • Solution built in 2 days • Solution performance tested a number of times over 4 days (up to 12k users) • Solution deleted after a week • Costs • Cloud cost approx. < $30

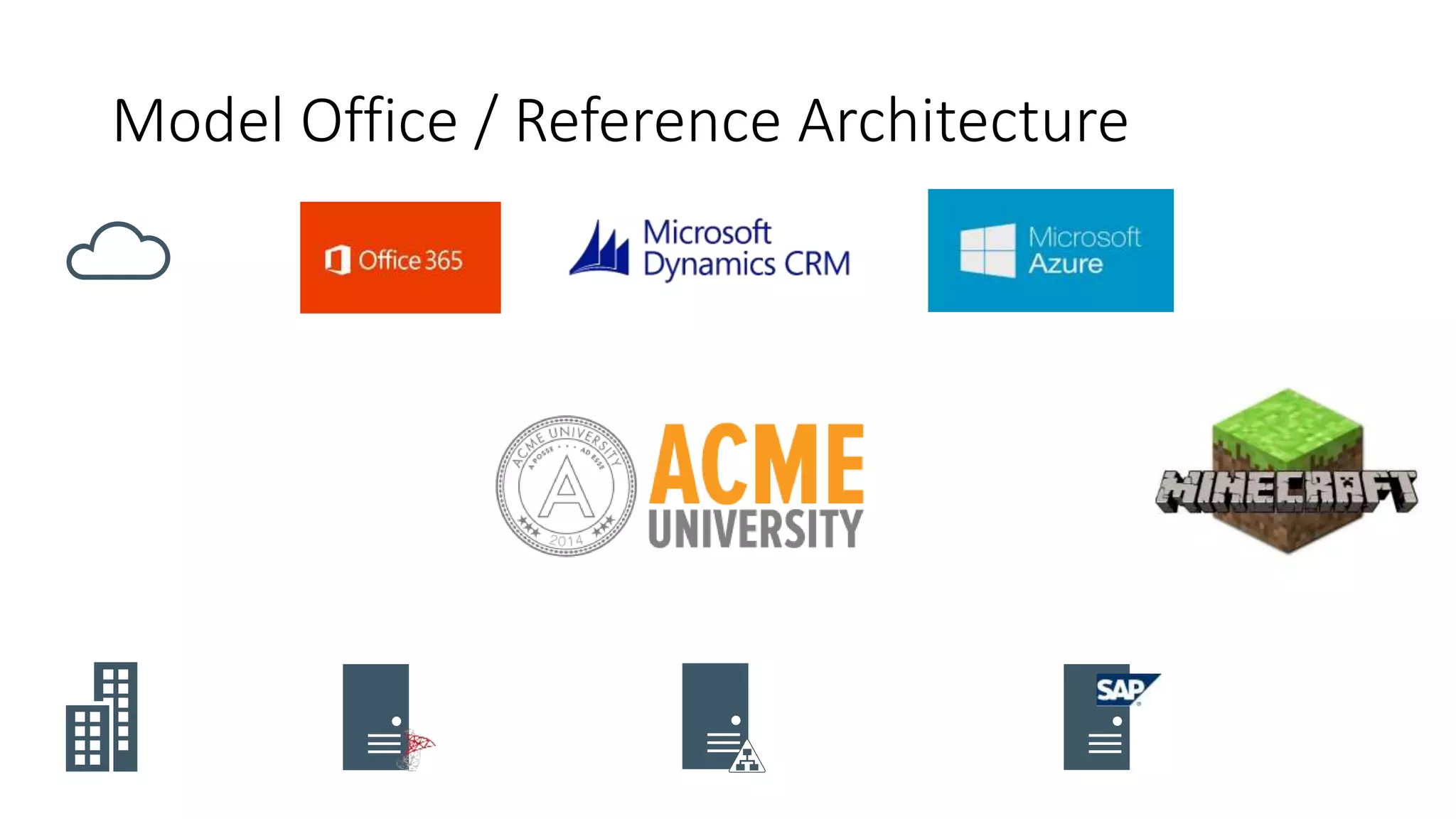

- 16. Model Office /Reference Architecture
- 17. Example 2 -Organisational Telemetry

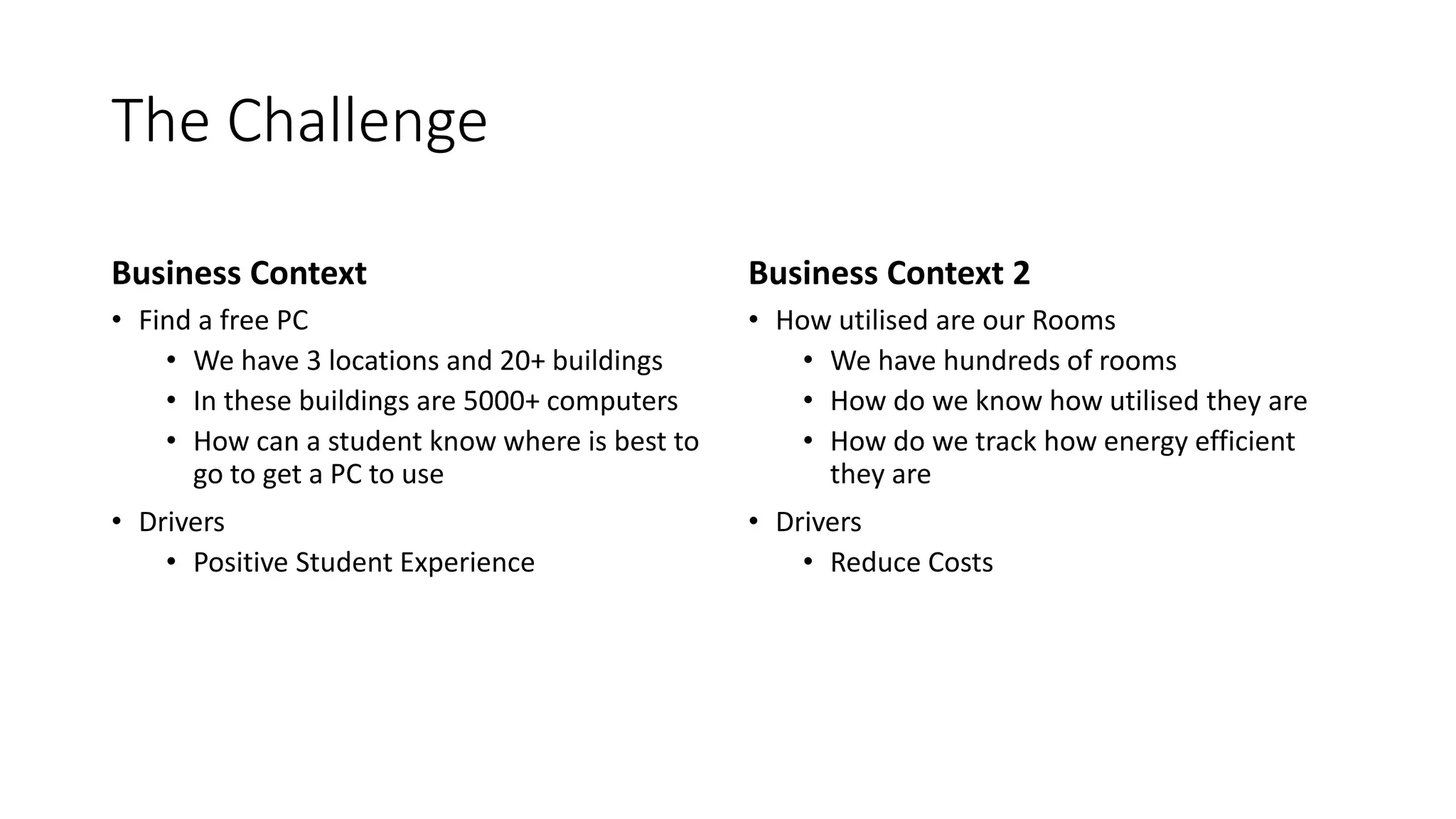

- 18. The Challenge Business Context •Find a free PC • We have 3 locations and 20+ buildings • In these buildings are 5000+ computers • How can a student know where is best to go to get a PC to use • Drivers • Positive Student Experience Business Context 2 • How utilised are our Rooms • We have hundreds of rooms • How do we know how utilised they are • How do we track how energy efficient they are • Drivers • Reduce Costs

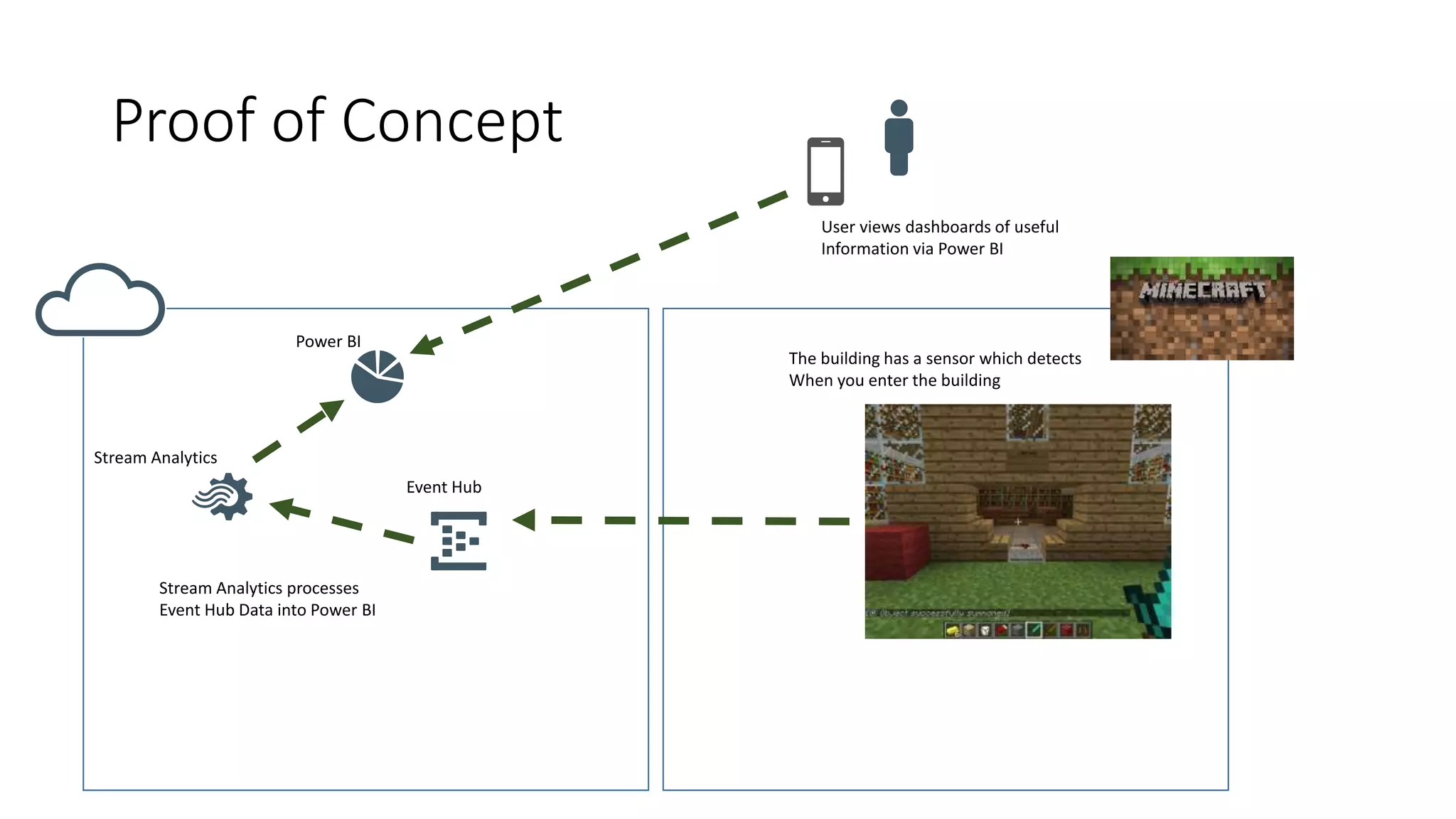

- 19. Proof of Concept Thebuilding has a sensor which detects When you enter the building Stream Analytics processes Event Hub Data into Power BI User views dashboards of useful Information via Power BI Power BI Stream Analytics Event Hub
- 20.

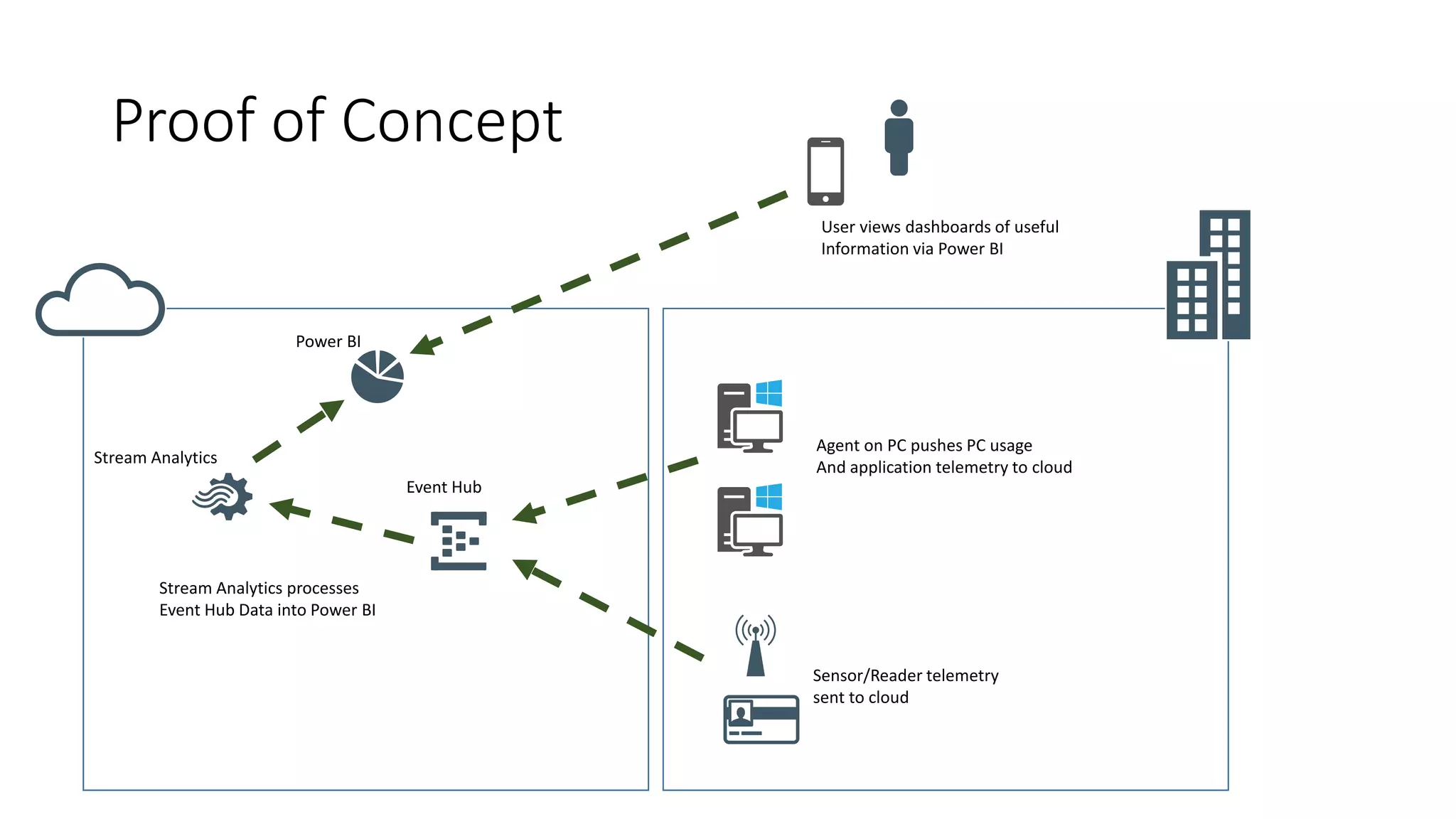

- 21. Proof of Concept Agenton PC pushes PC usage And application telemetry to cloud Sensor/Reader telemetry sent to cloud Stream Analytics processes Event Hub Data into Power BI User views dashboards of useful Information via Power BI Power BI Stream Analytics Event Hub

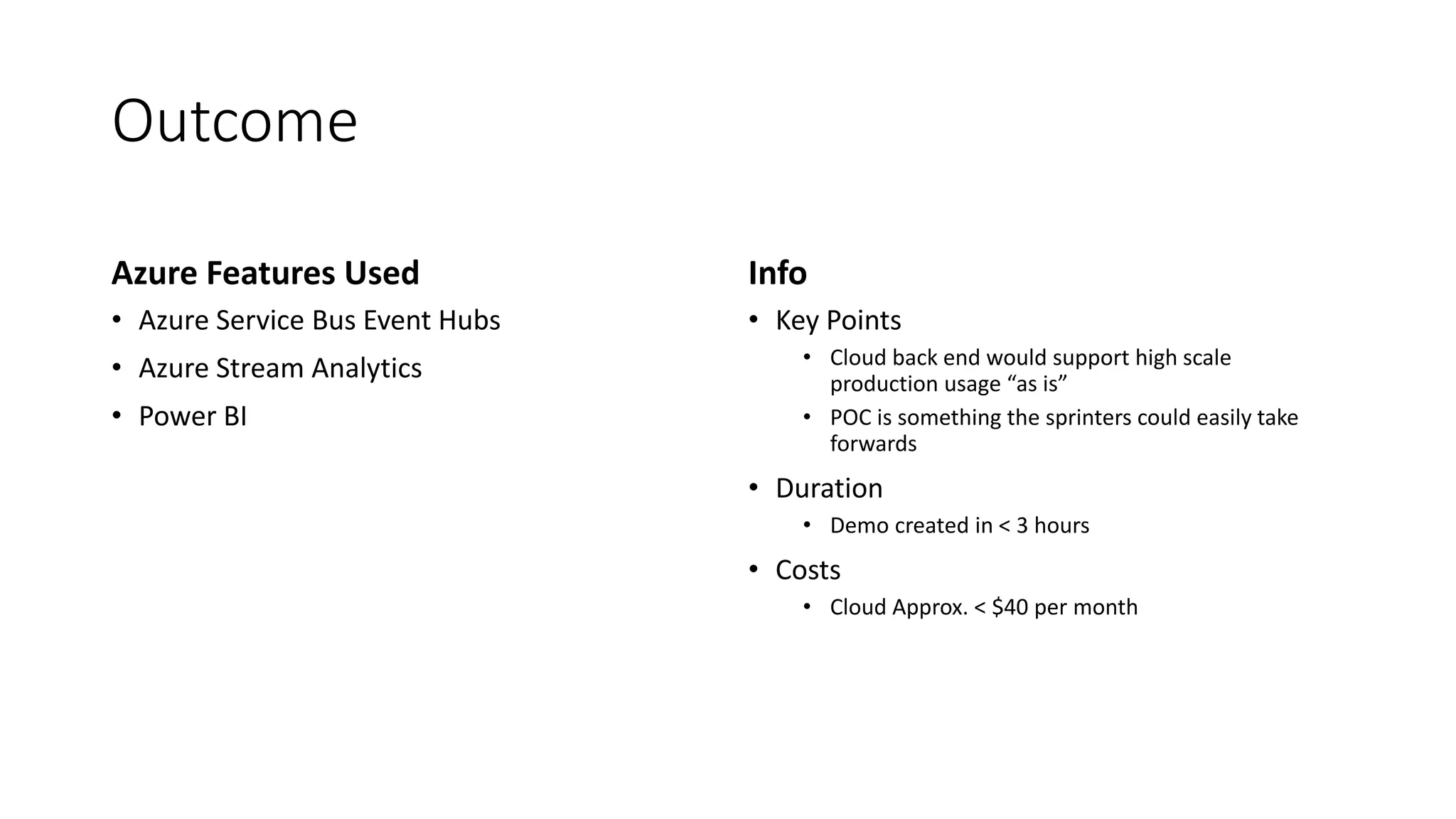

- 22. Outcome Azure Features Used •Azure Service Bus Event Hubs • Azure Stream Analytics • Power BI Info • Key Points • Cloud back end would support high scale production usage “as is” • POC is something the sprinters could easily take forwards • Duration • Demo created in < 3 hours • Costs • Cloud Approx. < $40 per month
- 23. Example 2 –Staff HR Self Service

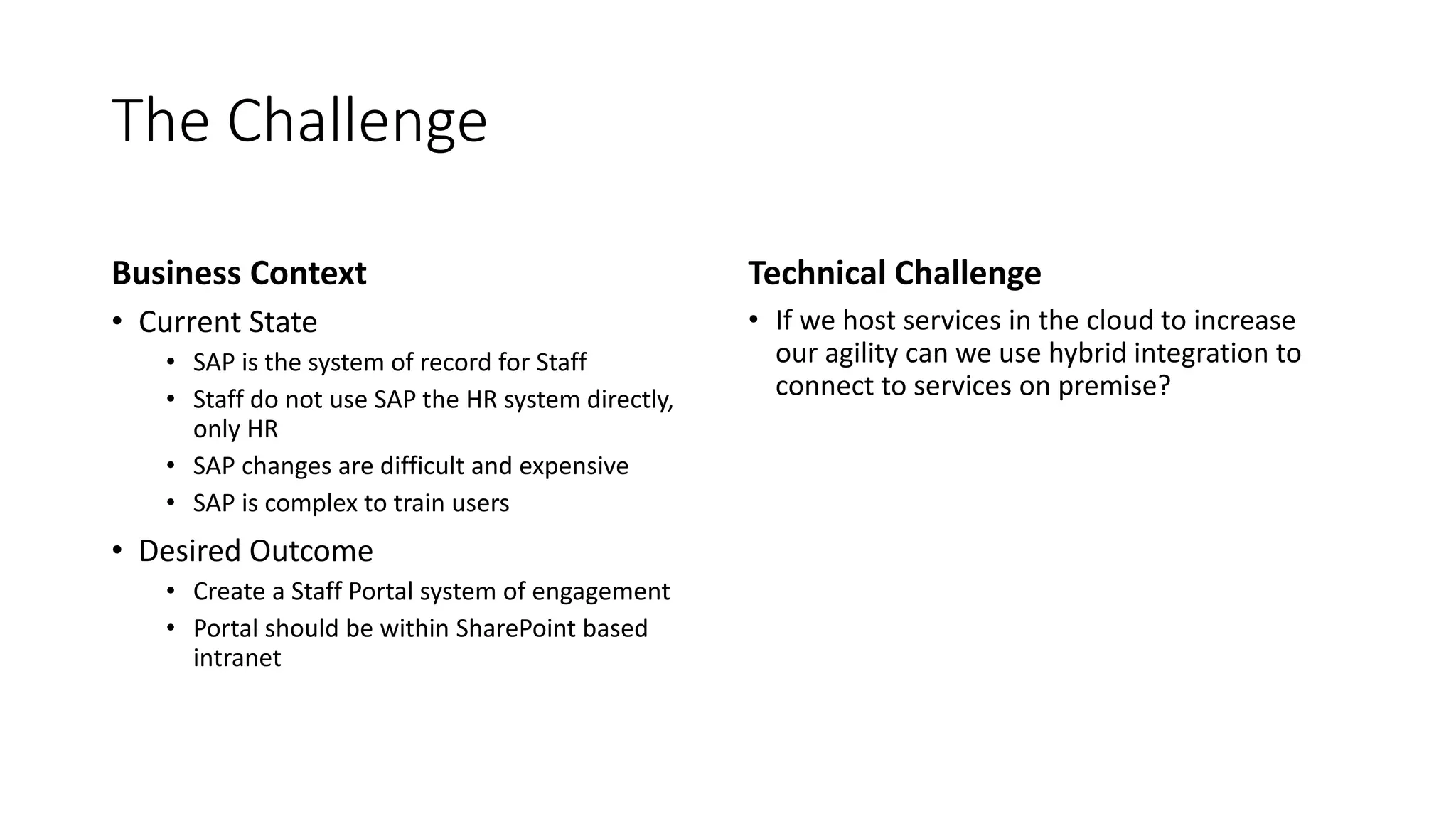

- 24. The Challenge Business Context •Current State • SAP is the system of record for Staff • Staff do not use SAP the HR system directly, only HR • SAP changes are difficult and expensive • SAP is complex to train users • Desired Outcome • Create a Staff Portal system of engagement • Portal should be within SharePoint based intranet Technical Challenge • If we host services in the cloud to increase our agility can we use hybrid integration to connect to services on premise?

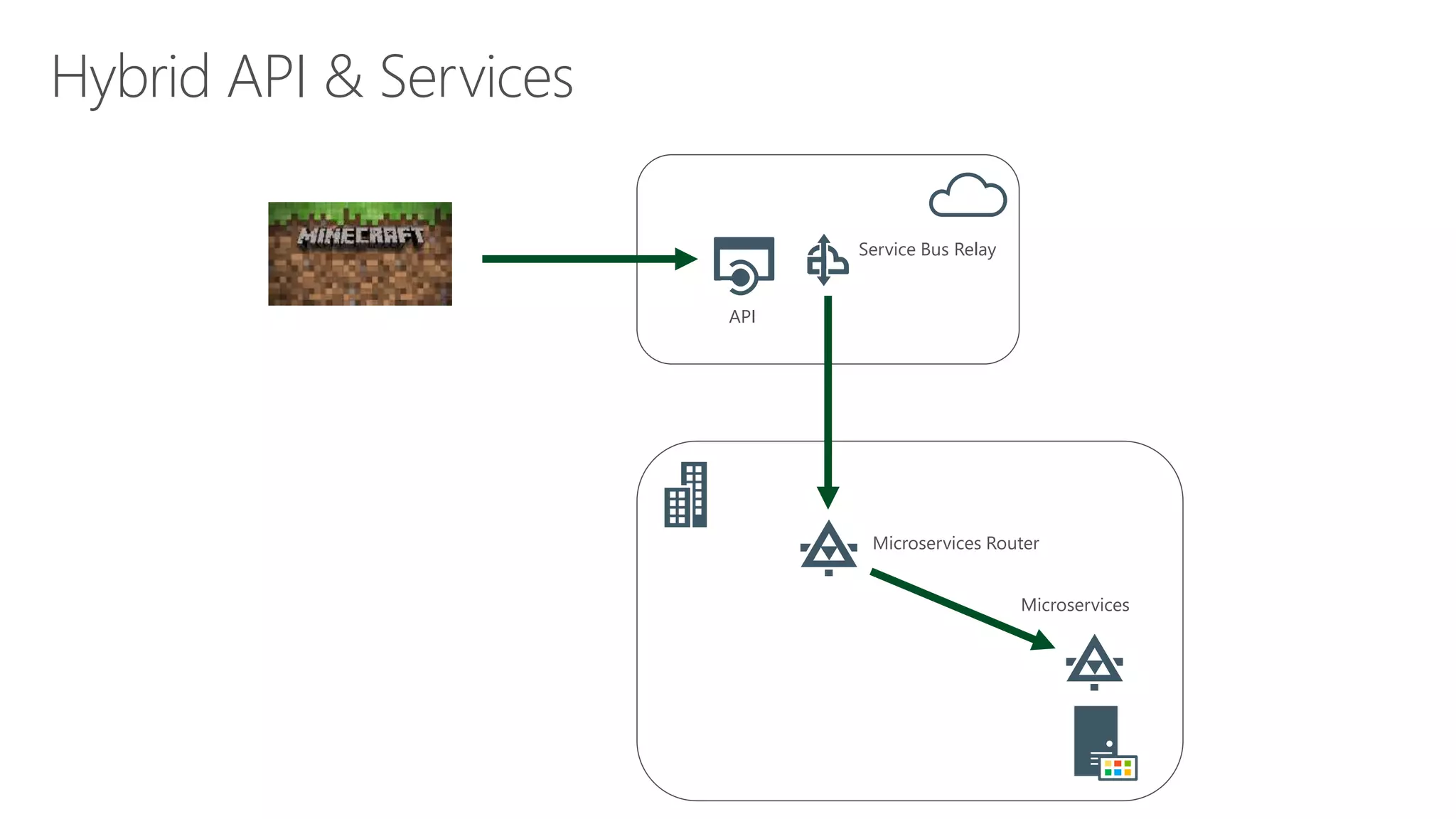

- 25. Hybrid API &Services Microservices Router Service Bus Relay API Microservices

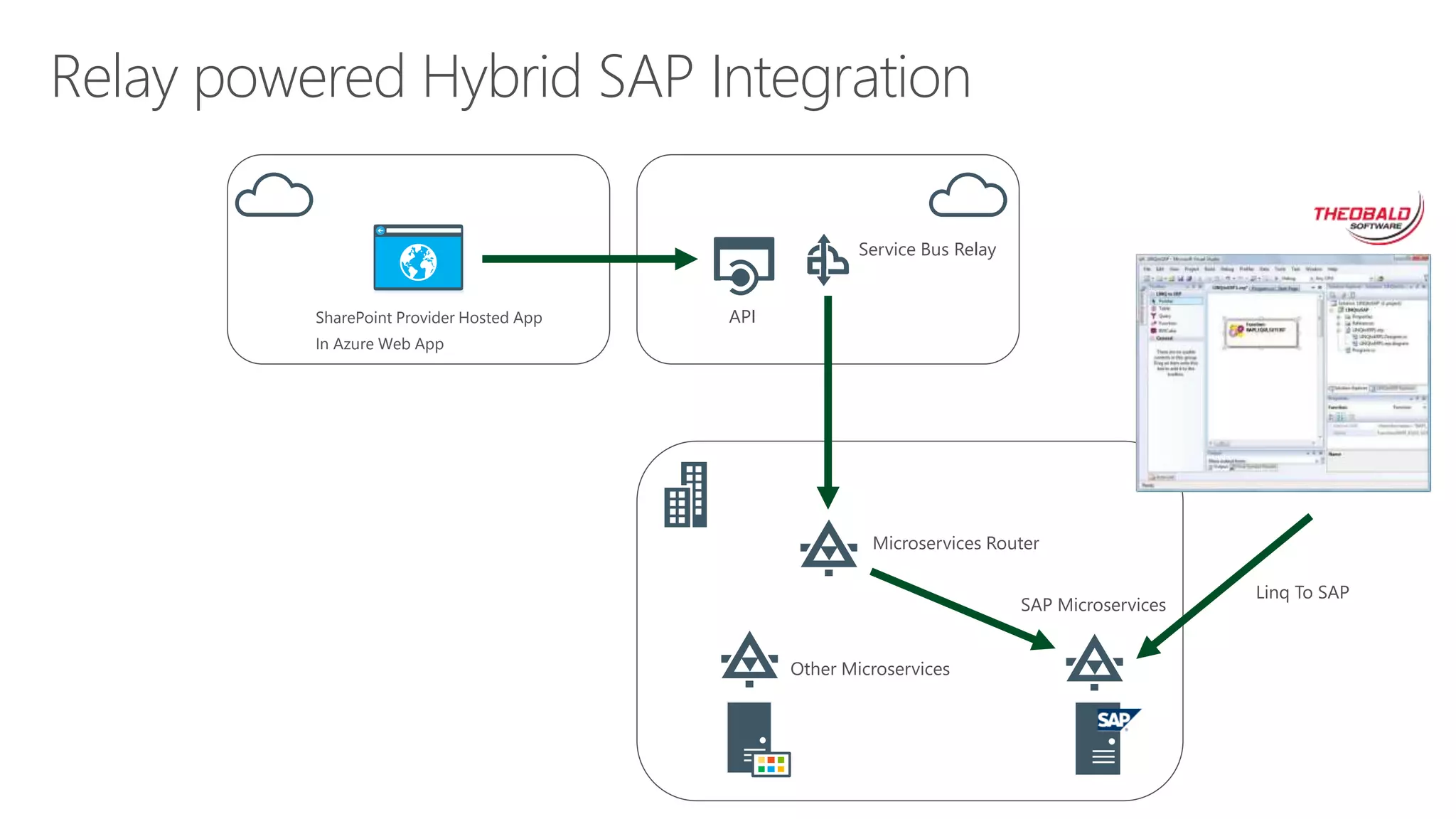

- 26. Relay powered HybridSAP Integration SharePoint Provider Hosted App In Azure Web App Microservices Router Service Bus Relay API SAP Microservices Other Microservices Linq To SAP

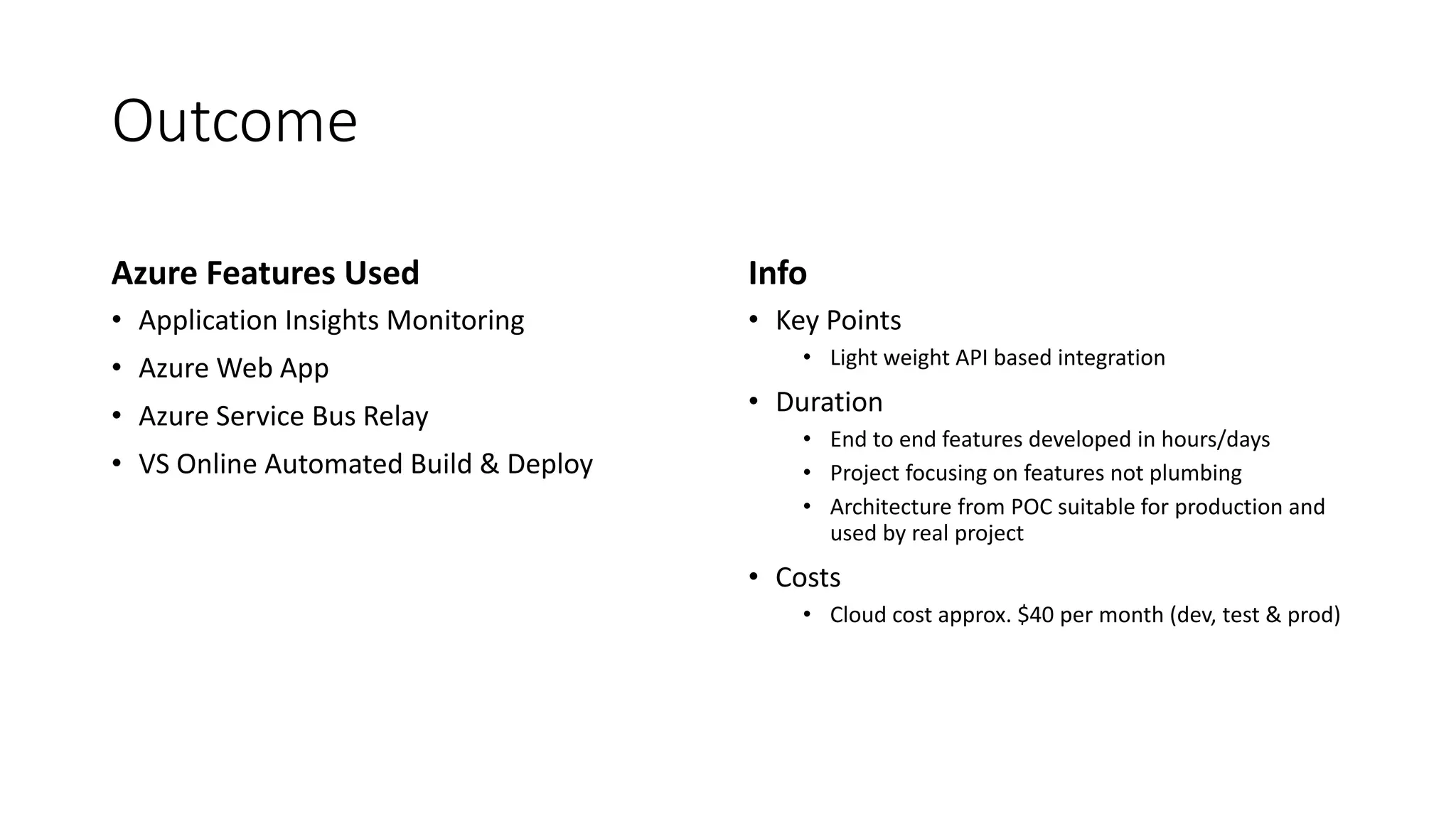

- 27. Outcome Azure Features Used •Application Insights Monitoring • Azure Web App • Azure Service Bus Relay • VS Online Automated Build & Deploy Info • Key Points • Light weight API based integration • Duration • End to end features developed in hours/days • Project focusing on features not plumbing • Architecture from POC suitable for production and used by real project • Costs • Cloud cost approx. $40 per month (dev, test & prod)
- 28.
- 29. Disconnected 2 SpeedIT ????? Its ok we will use the cloud & DevOps and it will all be fine

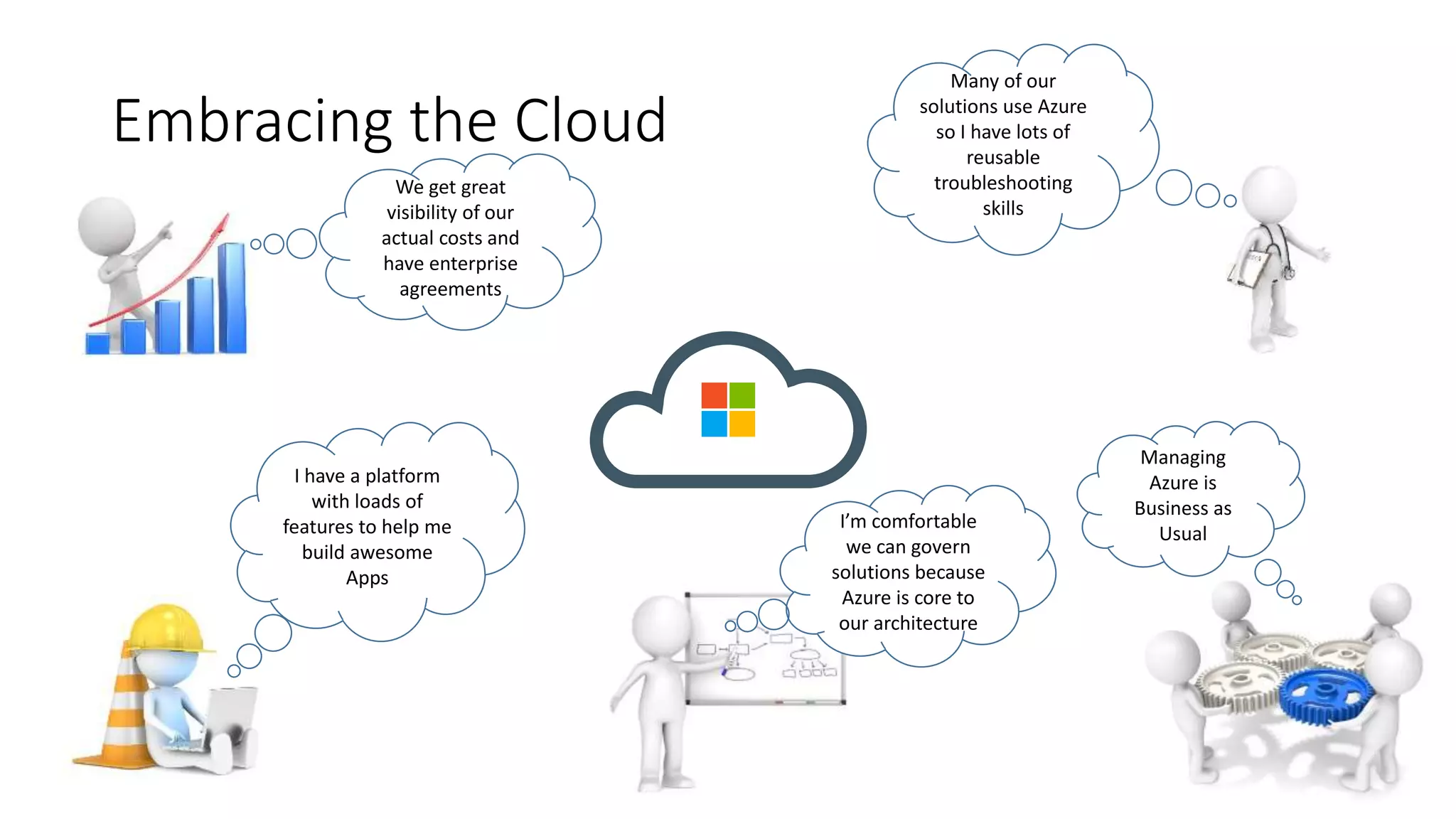

- 30. Embracing the Cloud Ihave a platform with loads of features to help me build awesome Apps I’m comfortable we can govern solutions because Azure is core to our architecture Many of our solutions use Azure so I have lots of reusable troubleshooting skills Managing Azure is Business as Usual We get great visibility of our actual costs and have enterprise agreements
- 31.
- 32.
