1. Robot Framework – Basic Level.
Date: 2011-10-03
Version: 1.0
Page 1

2. Robot Framework - Introduction
Robot Framework is a generic test automation
framework for acceptance testing and acceptance
test-driven development (ATDD).
Page 2

3. Robot Framework - Introduction
It has easy-to-use tabular test data syntax and
utilizes the keyword-driven testing approach.
Page 3

4. Robot Framework - Introduction
Its testing capabilities can be extended by test
libraries implemented either with Python or Java,
and users can create new keywords from existing
ones using the same syntax that is used for creating
test cases.
Page 4

5. Robot Framework - Features
 Enables easy-to-use tabular syntax for creating test cases in a uniform way.
 Allows using keyword-driven, data-driven and behavior-driven (BDD) approaches.
 Provides ability to create reusable higher-level keywords from the existing keywords.
 Provides easy-to-read reports and logs in HTML format.
 Is platform and application independent.
 The modular architecture supports creating tests even for applications with several
diverse interfaces.
 Provides a simple library API for creating customized test libraries.
 Provides a command line interface and XML based outputs for integration into existing
build infrastructure (continuous integration systems).
 Provides support for Selenium for web testing, Java GUI testing, running processes,
Telnet, SSH , Swing, and so on.
 Remote library interface enables distributed testing and implementing test libraries in
any programming language.
 Provides tagging to categorize and select test cases to be executed.
 Has built-in support for variables, practical particularly for testing in different
environments.
Page 5

6. How to install?
ROBOT FRAMEWORK
 http://code.google.com/p/robotframework/wiki/Installation
SELENIUM RC
 http://seleniumhq.org/docs/05_selenium_rc.html#installation
Page 6

7. Plugins and Libraries
 FireFox:
 Firebug integrates with Firefox to put a wealth of development
tools at your fingertips while you browse. You can edit, debug, and
monitor CSS, HTML, and JavaScript live in any web page.
 XPath Checker is a Firefox Extension for testing XPath expressions
interactively.
Page 7

8. Plugins and Libraries
 ROBOT (buil in):
 Selenium Library (used in the workshop). SeleniumLibrary is a
Robot Framework test library that uses the popular Selenium web
testing tool internally. It provides a powerful combination of
simple test data syntax and support for different browsers.
 Database Library Database Library is a Robot Framework test
library that provides common funtionality for testing database
contents.
 SSH Library It enables execution of commands on a remote
machine over an SSH connection. It also offers possibility to
transfer files from and to a remote machine.
 Swing Library SwingLibrary is a Robot Framework test library for
testing Java Swing applications.
 Dialogs test library Dialogs is Robot Framework's standard library
that provides means for pausing the test execution and getting
input from users.
Page 8

9. Documentation – for example SeleniumLibrary
 All keywords in SeleniumLibrary that need to find an element on the page take an
argument, locator.
 In the most common case, locator is matched against the values of key attributes of
the particular element type.
 For example, id and name are key attributes to all elements, and locating elements is
easy using just the id as a locator
Page 9

10. How to find LOCATOR?
 For example button <Szukaj w Google> from www.google.pl:
 1. Click RMB on button <Szukaj w Google>
 2. Choose Inspect element (Zbadaj element) from menu.
Page 10

11. How to start using ROBOT?
1. Run Selenium Server RC (click shortcut on desktop)
or from Terminal* : java -jar /usr/local/lib/python2.6/dist-
packages/SeleniumLibrary/lib/selenium-server.jar -port 4444
2. Run RIDE:
Shortcut „ctrl+i” or from Terminal* type ride.py
Tips: run Terminal – Aplications>Accessories>Terminal
or shortcut „ctr+~” (tylda)
Page 11

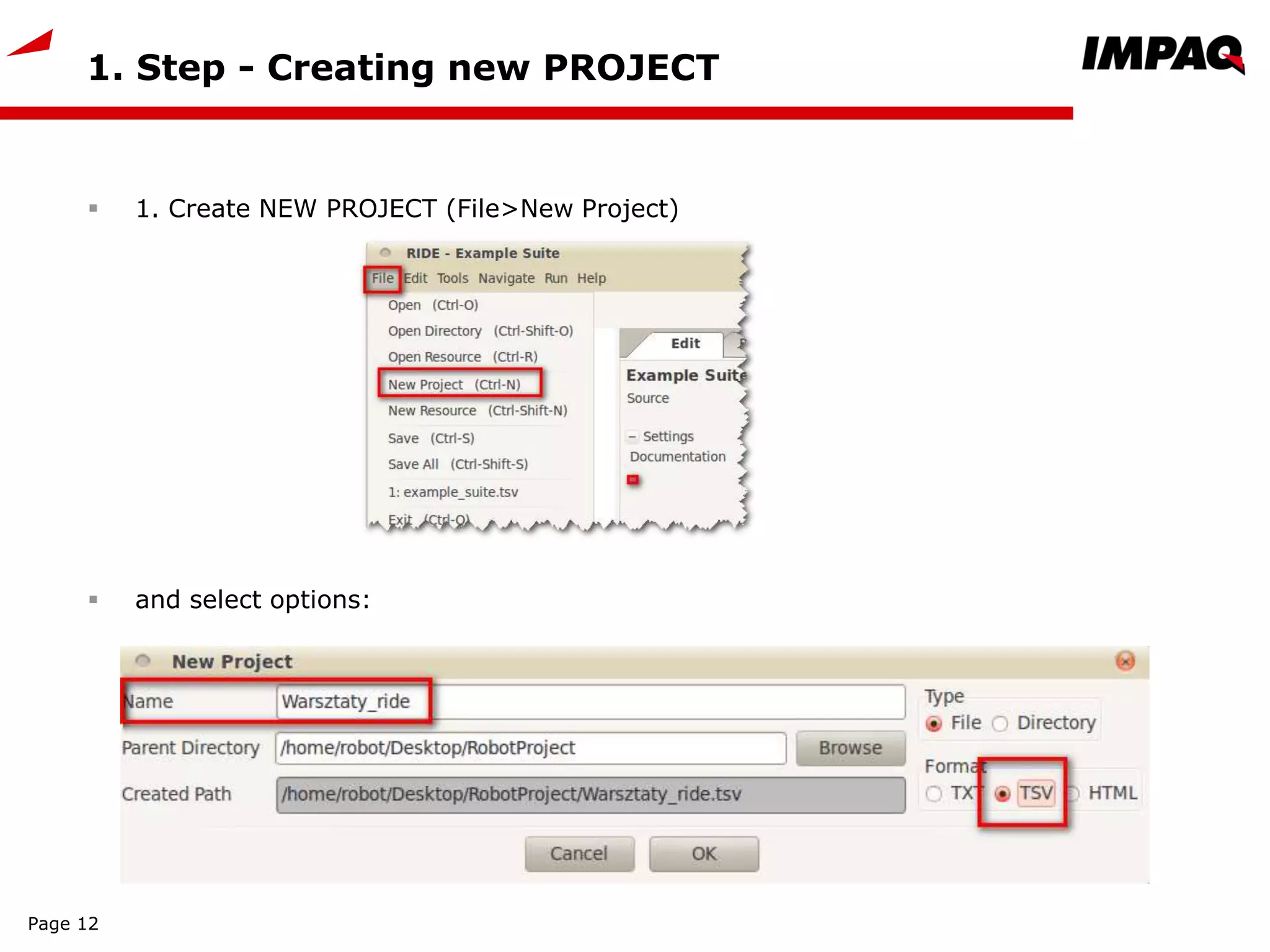

12. 1. Step - Creating new PROJECT
 1. Create NEW PROJECT (File>New Project)
 and select options:
Page 12

13. Add Libraries to PROJECT
 Choose Project_name and add three LIBRARIES:
 TIPS: Selenium Library is with argument value 15 – stands for 15 seconds
timeout
Page 13

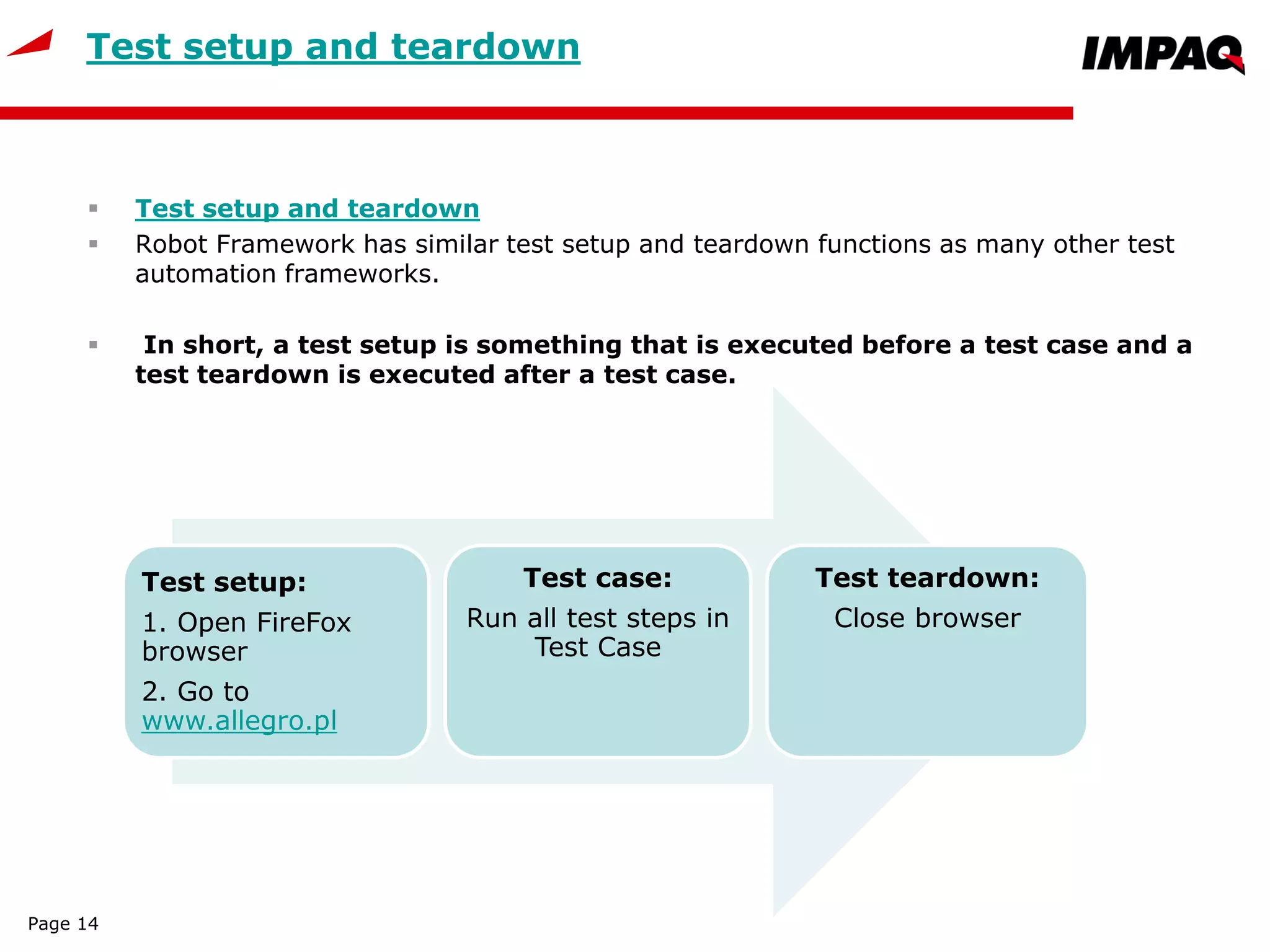

14. Test setup and teardown
 Test setup and teardown
 Robot Framework has similar test setup and teardown functions as many other test
automation frameworks.
 In short, a test setup is something that is executed before a test case and a
test teardown is executed after a test case.
Page 14
Test setup:
1. Open FireFox
browser
2. Go to
www.allegro.pl
Test case:
Run all test steps in
Test Case
Test teardown:
Close browser

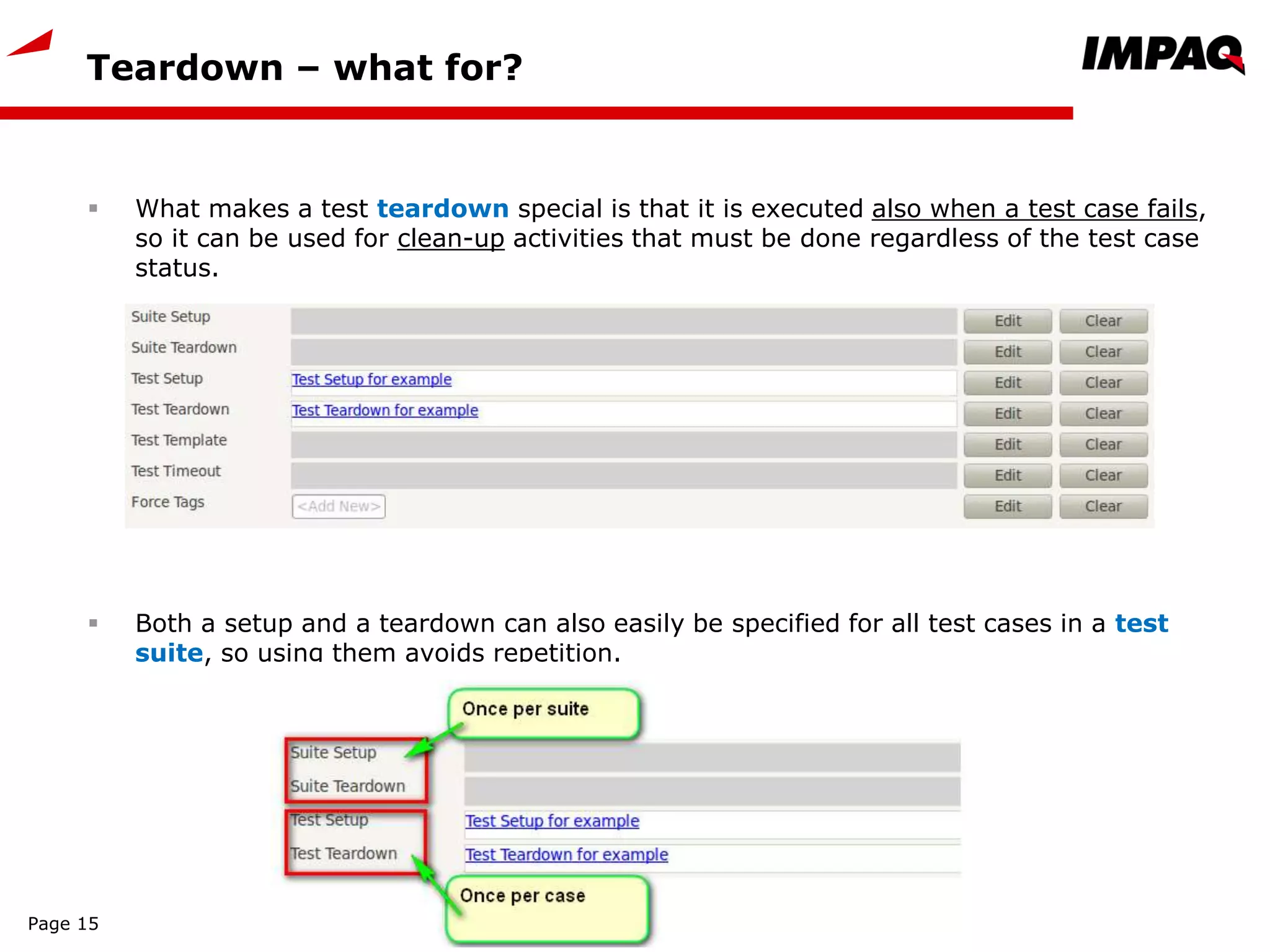

15. Teardown – what for?
Page 15
 What makes a test teardown special is that it is executed also when a test case fails,
so it can be used for clean-up activities that must be done regardless of the test case
status.
 Both a setup and a teardown can also easily be specified for all test cases in a test
suite, so using them avoids repetition.

16. 2 Step – Create Test Setup
 1. Click RMB on Project_name > New User Keyword
Page 16

17. 2 Step – Create Test Setup
 2. Type in table:
 ff – stands for FireFox browser

Page 17

18. 2 Step – Create Test Setup
 Tips: Start typing ‚Open Br..’ and then use ‚ctr+space’ for autocompletion.
Page 18

19. 2 Step – Create Test Teardown
 1. Click RMB on Project_name > New User Keyword
 2. Type in script table:
Page 19

20. Adding setup and teardown - success
 Select
Test Setup
and
Test Teardown
into
Project Settings
Page
Page 20

21. SAVE
 Save:Hit ‚ctrl+shift+s’
 or click (save button):
Page 21

22. Create new TEST CASE
 Click RMB on Project_name > New test Case
Page 22

23. Excrsise 1 – Steps
1. Open FF and go to www.allegro.pl (this part is in Test Setup)
2. Input text ROWER in search field.
3. Click submitt button <Szukaj>
4. VALIDATE: Results page schould contain text ‚ROWER’
Page 23

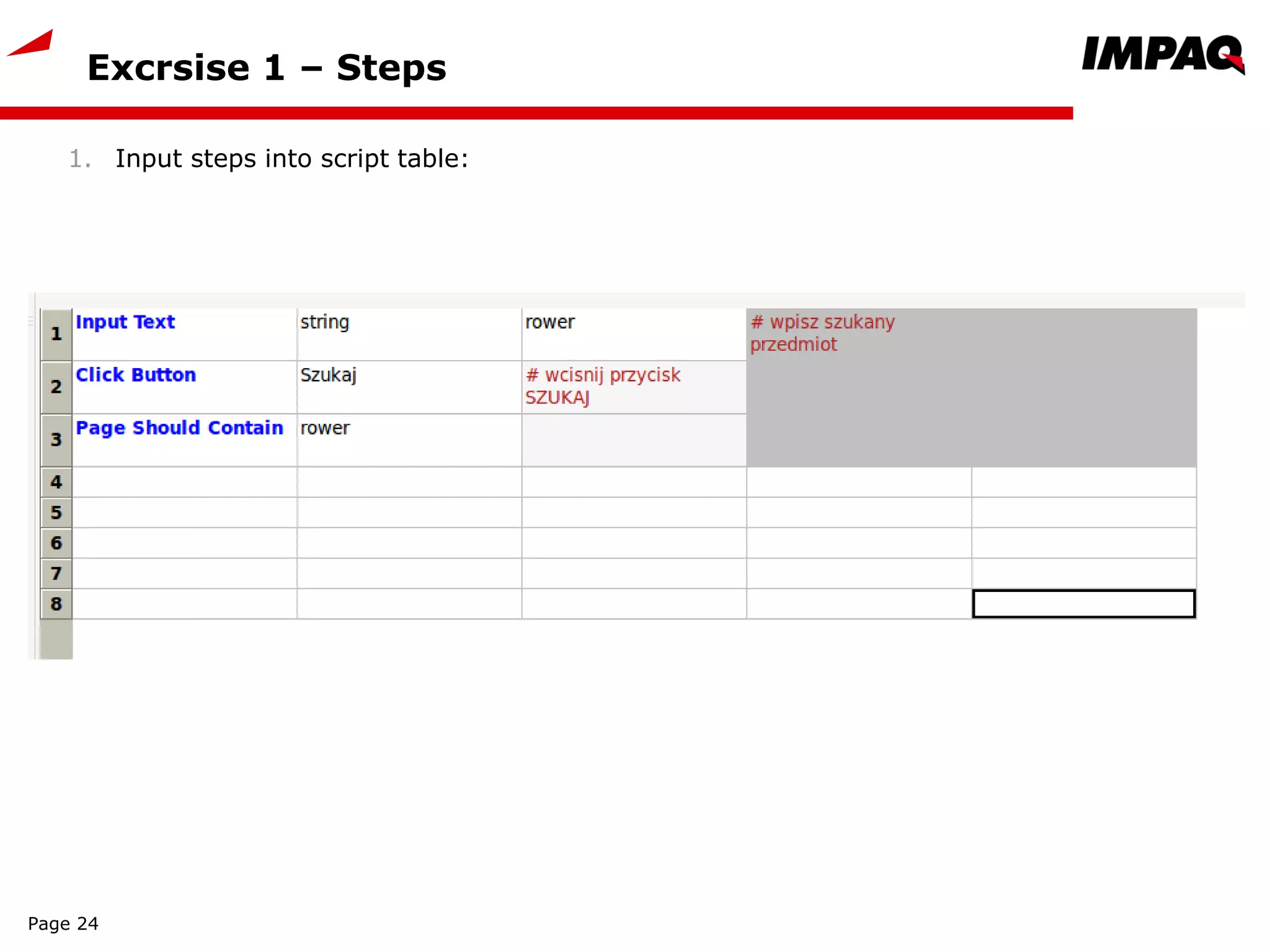

24. Excrsise 1 – Steps
1. Input steps into script table:
Page 24

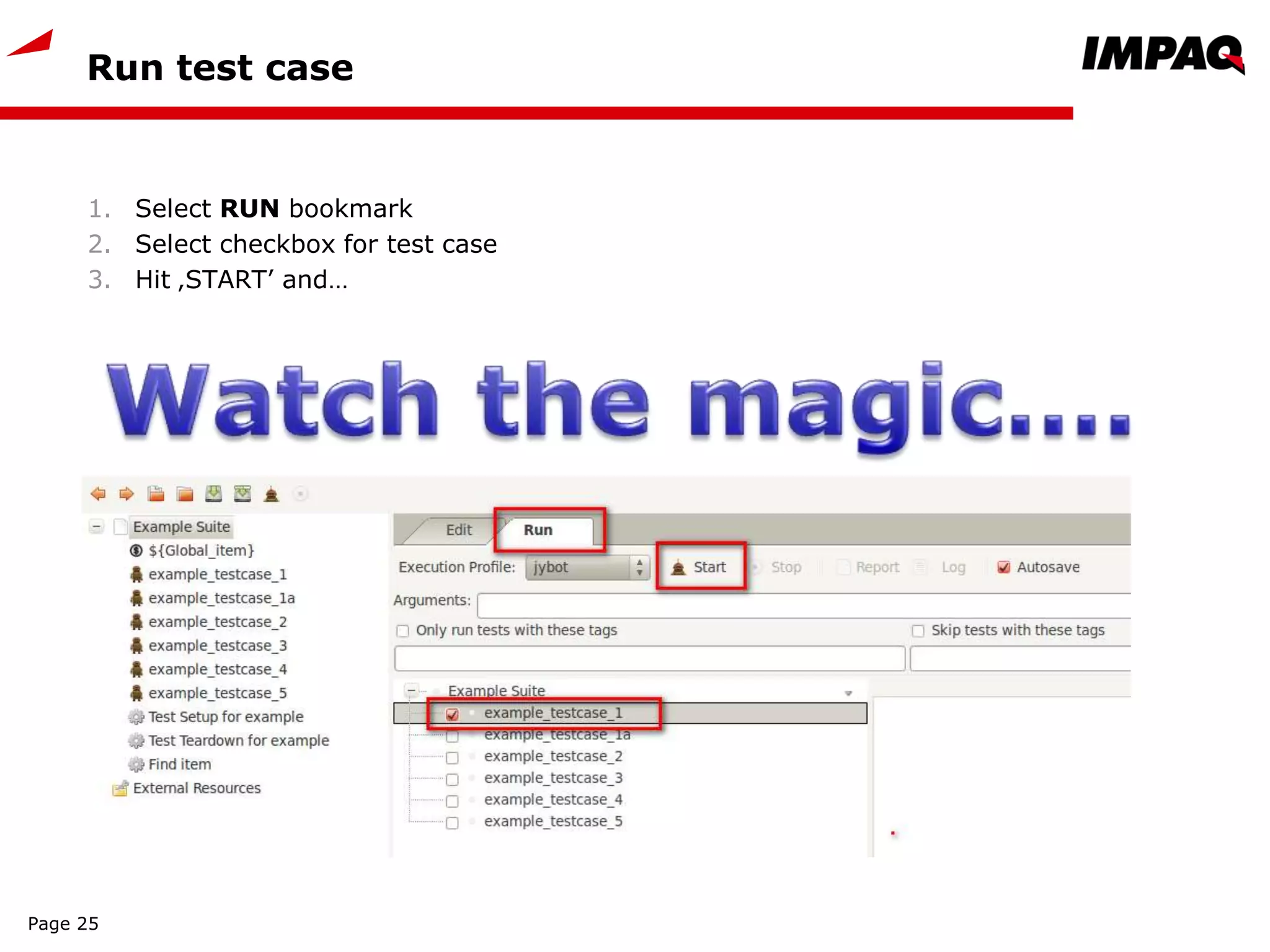

25. Run test case
1. Select RUN bookmark
2. Select checkbox for test case
3. Hit ‚START’ and…
Page 25

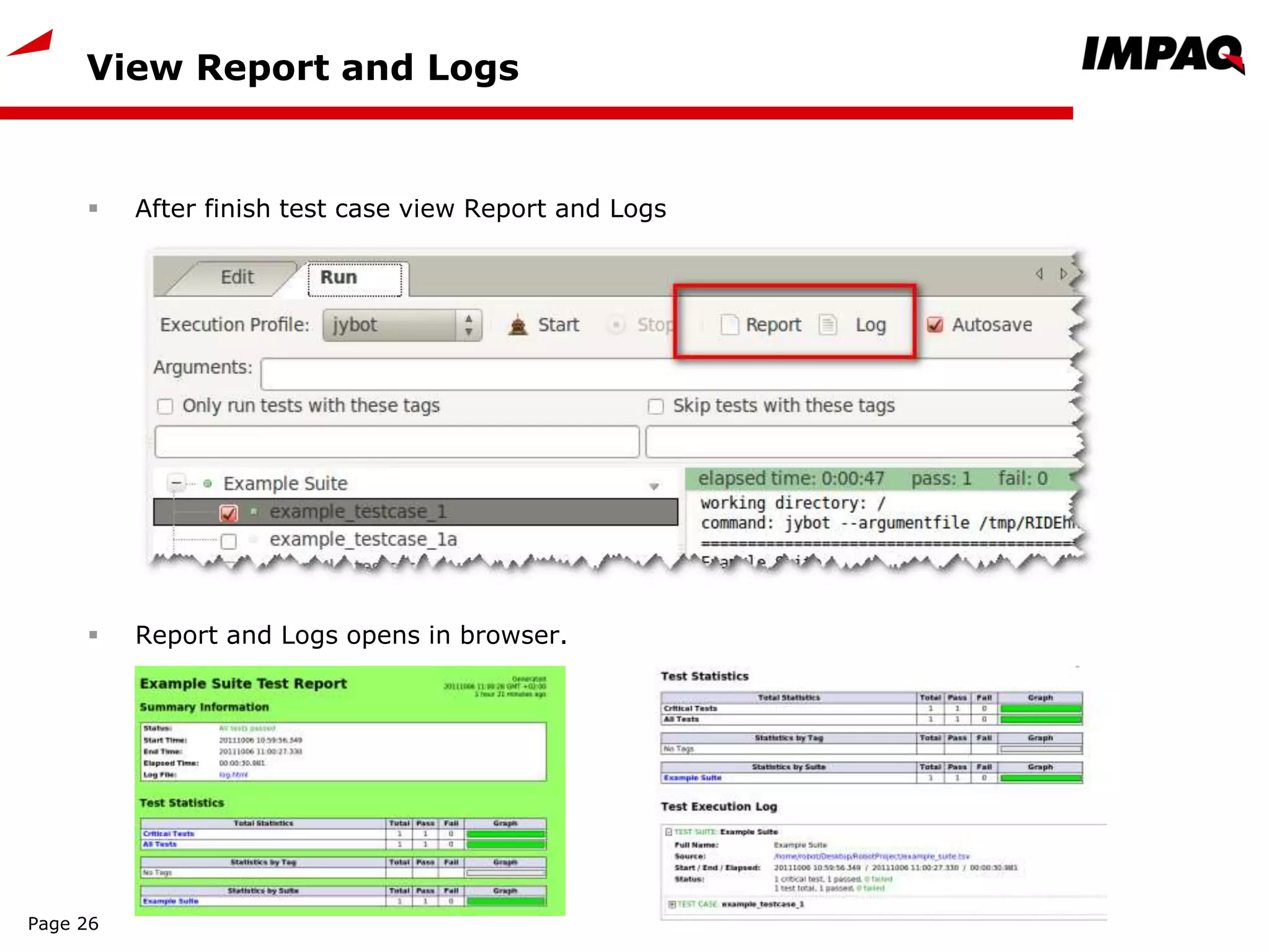

26. View Report and Logs
 After finish test case view Report and Logs
 Report and Logs opens in browser.
Page 26

27. Exercise 1a (variables) – Steps
1. Copy exercise 1 test case
2. In script:
 add new row (RMB>Insert Rows)
 replace Value ‚Rower’ to ${item}
Page 27

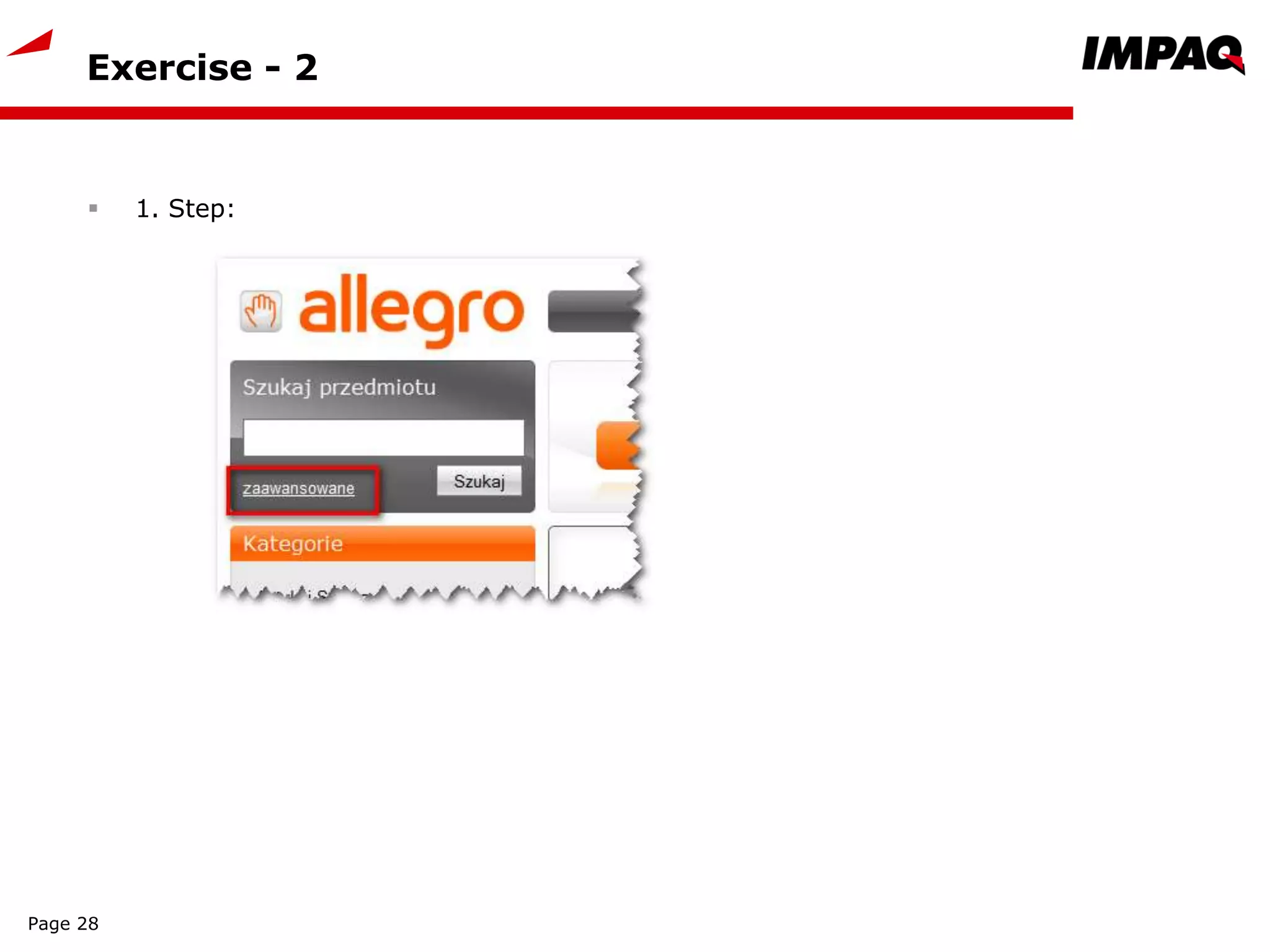

28. Exercise - 2
 1. Step:
Page 28

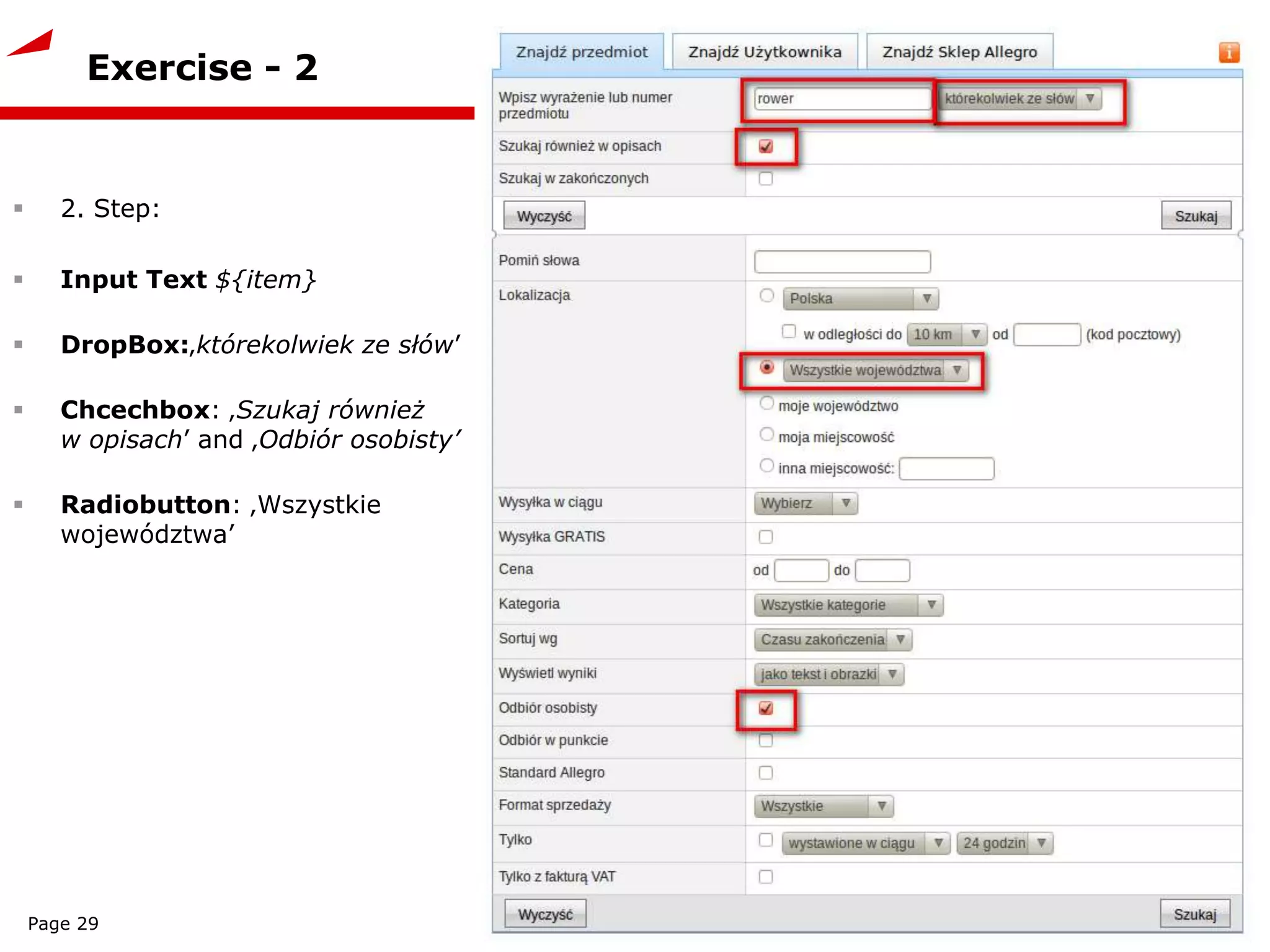

29. Exercise - 2
 2. Step:
 Input Text ${item}
 DropBox:‚którekolwiek ze słów’
 Chcechbox: ‚Szukaj również
w opisach’ and ‚Odbiór osobisty’
 Radiobutton: ‚Wszystkie
województwa’
Page 29

30. Exercise - 2
Page 30

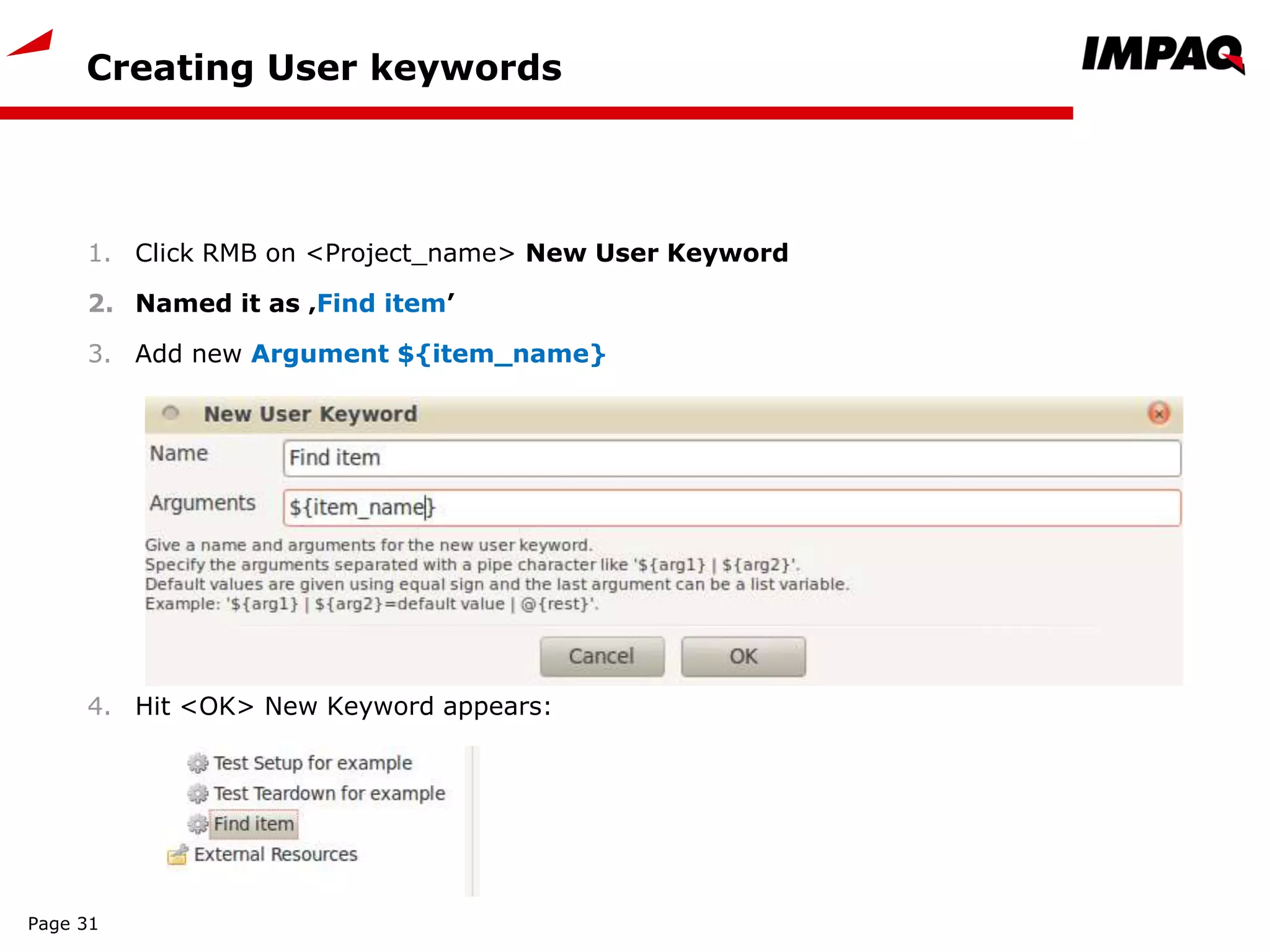

31. Creating User keywords
1. Click RMB on <Project_name> New User Keyword
2. Named it as ‚Find item’
3. Add new Argument ${item_name}
4. Hit <OK> New Keyword appears:
Page 31

32. Creating User keywords
1. Select all rows from Excercise 2 – copy to clipbord (ctr+c)
2. Paste it to ‚Find item’ keyowrd
`
Page 32

33. Exercise 3 – using user keywords
 Use ‚Find item’ keyword to build script
 Then on Results Page delete dynamic link (shown as button)
<Odbiór osobisty>
Page 33

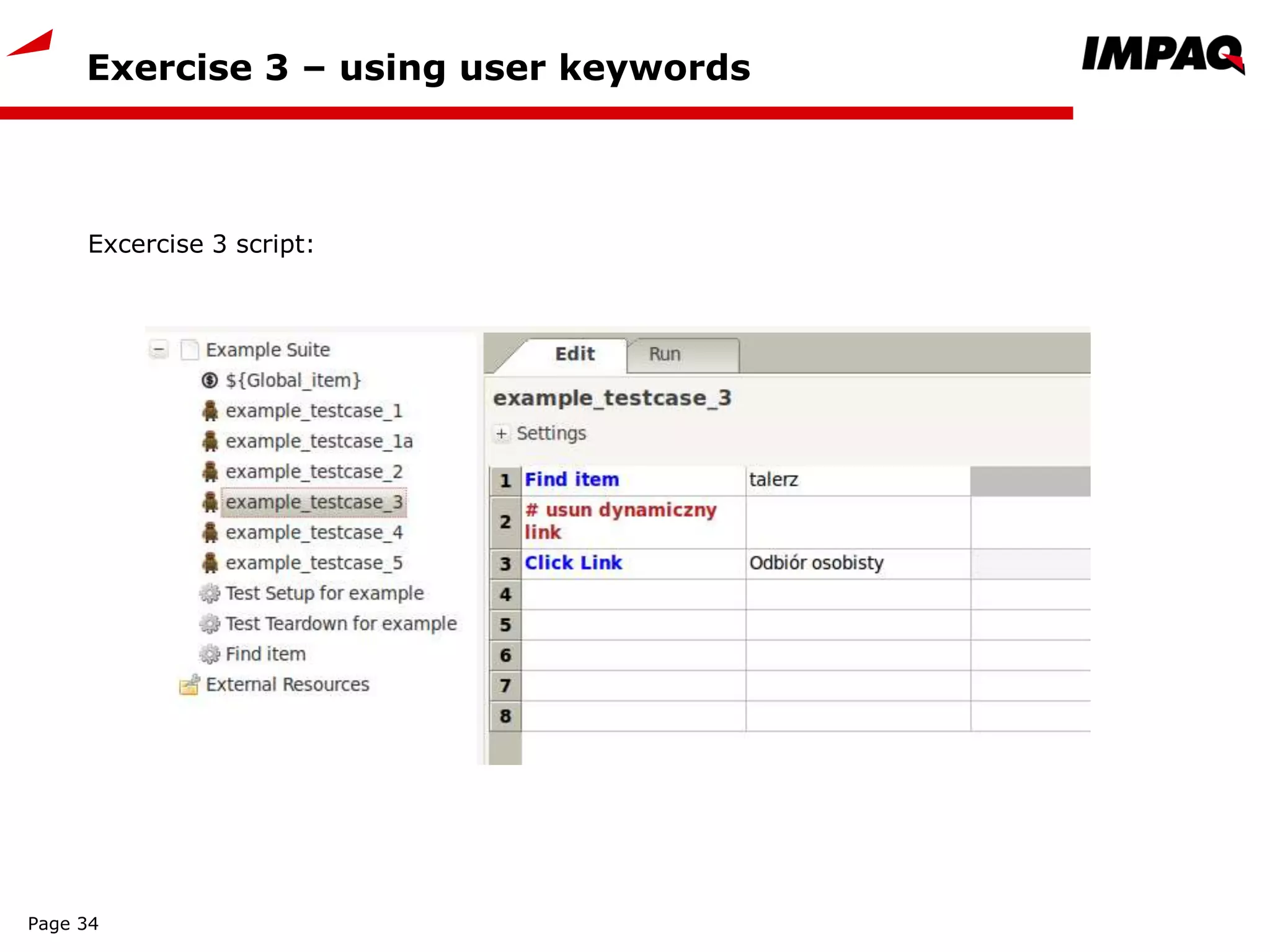

34. Exercise 3 – using user keywords
Excercise 3 script:
Page 34

35. Excersise 4 - Loops
 Find few items in one Test Case
 Script for Loop is:
Page 35

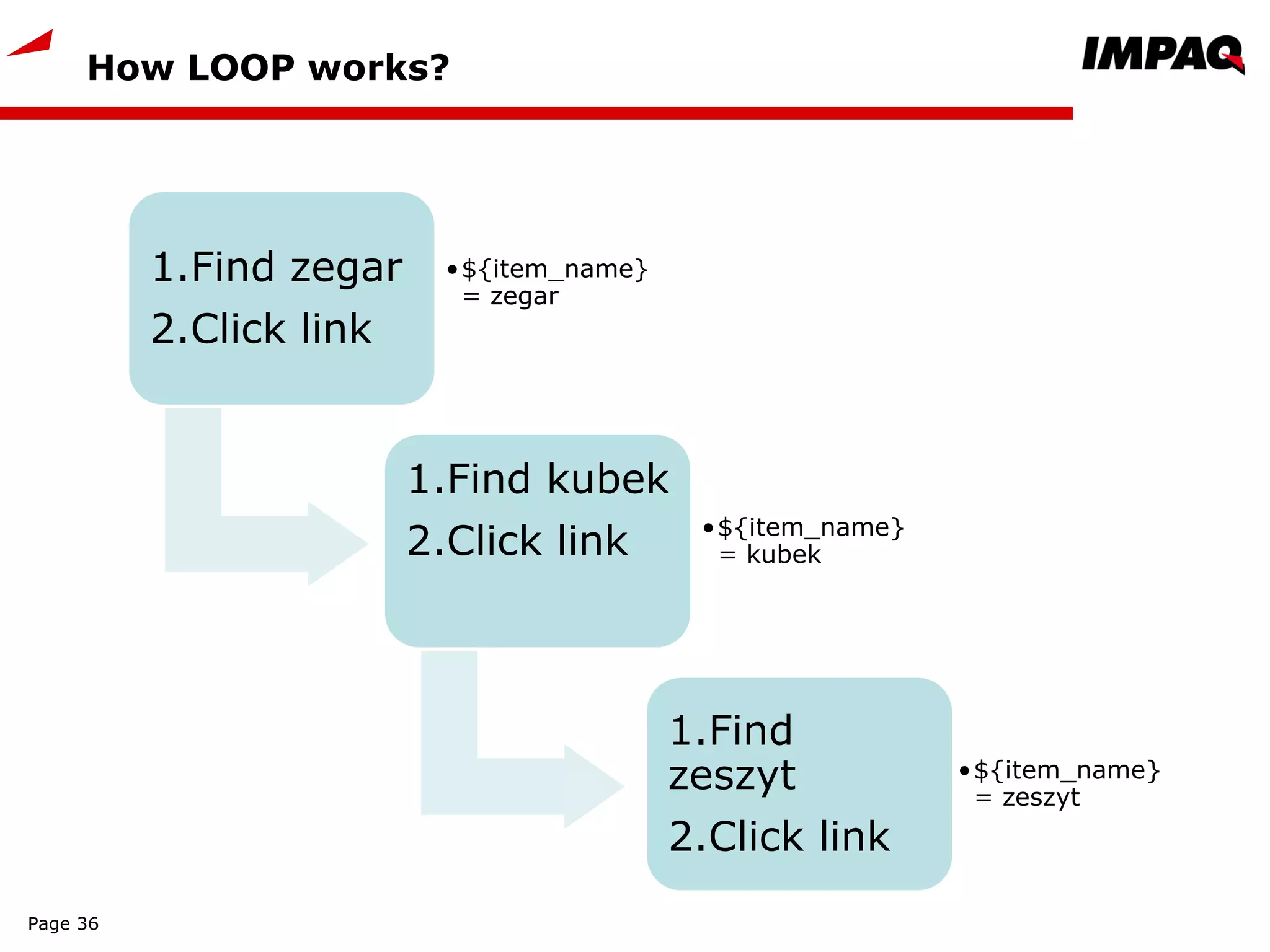

36. How LOOP works?
1.Find zegar
2.Click link
•${item_name}
= zegar
1.Find kubek
2.Click link •${item_name}
= kubek
1.Find
zeszyt
2.Click link
•${item_name}
= zeszyt
Page 36

37. LOOP with multiple variables
Page 37

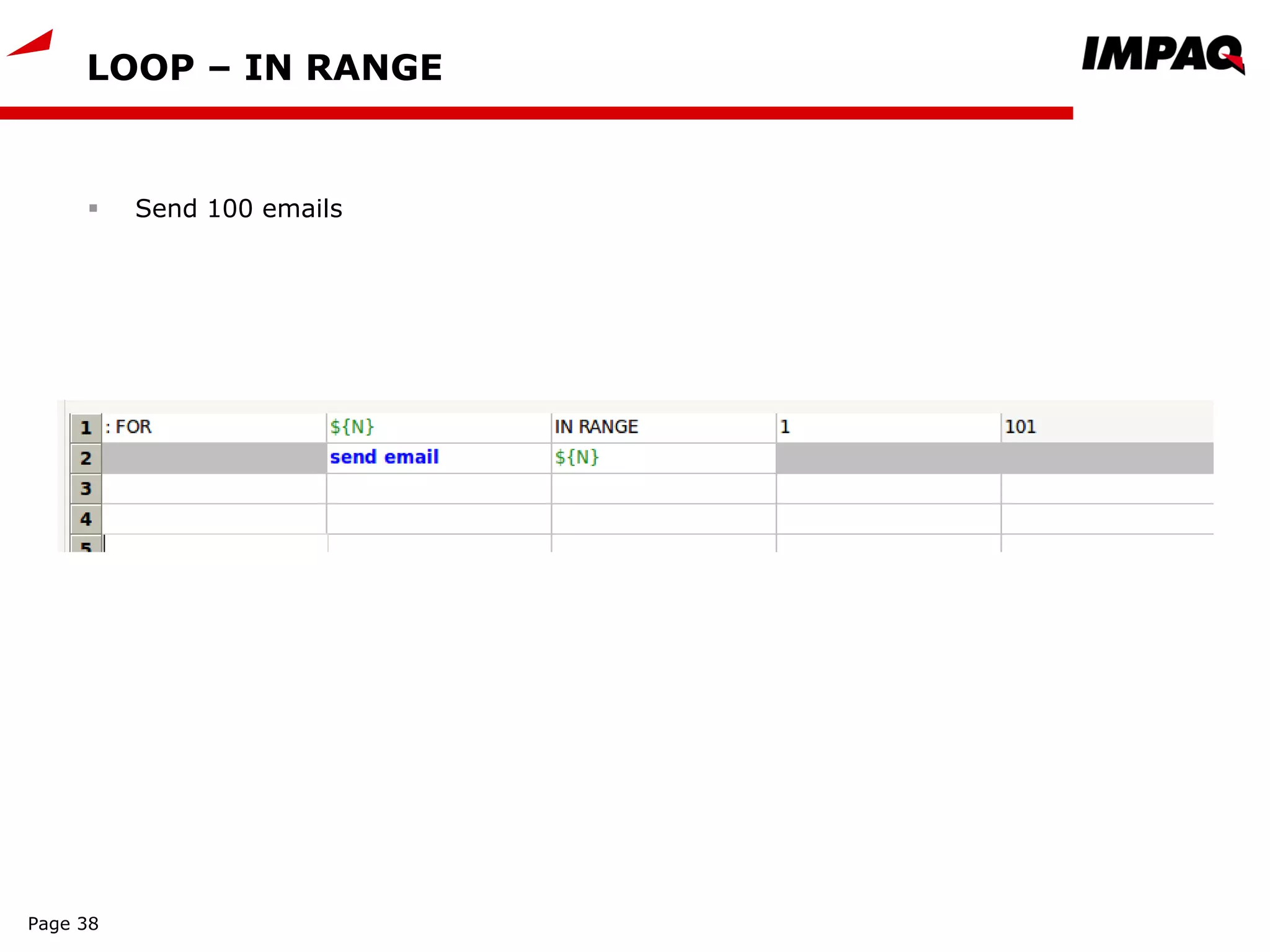

38. LOOP – IN RANGE
 Send 100 emails
Page 38

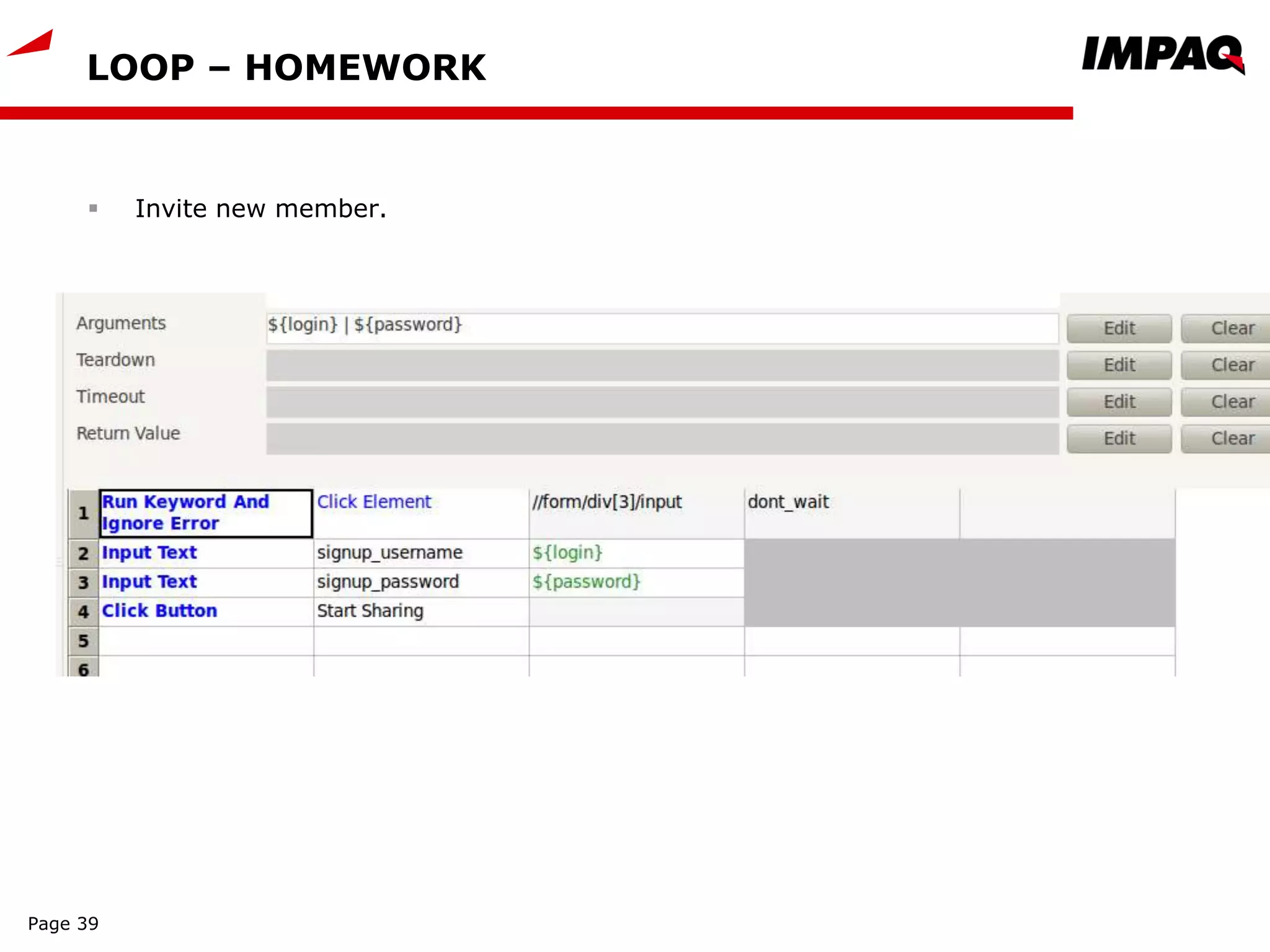

39. LOOP – HOMEWORK
 Invite new member.
Page 39

40. HOMEWORK
 Invite 50 times
Page 40

41. The End
Page 41
