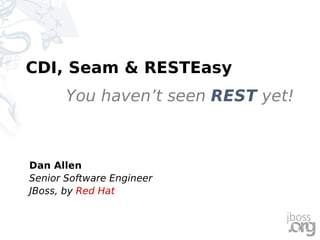

CDI, Seam & RESTEasy
       You haven’t seen REST yet!



Dan Allen
Senior Software Engineer
JBoss, by Red Hat
Agenda

 REST principles
 JAX-RS
 Seam RESTEasy integration
 JAX-RS enhanced with CDI
 Demo
Abusing HTTP with SOAP
REST to the rescue




        Web Service
Staying grounded with REST

  Simple
  Lightweight
  High performance
Simple ingredients of the Web

  HTTP application protocol
  URI naming standard
  XML markup language
  (and alternatives)
A tale of two webs

                   Document


                        HTML +
   Browsable web       images +
         ...
Every web site is a service
Enabling automation
REST, spelled out




   REpresentational State Transfer
RESTful architectural principles

  Addressable resources
  Uniformed, constrained interface
  Representation-oriented
  S...
Addressable resources

  URI for every resource in system
  Resource reachable by unique ID
  http://socialize.com/rest/up...
Uniformed, constrained interface

  Protocol method == operation
  –   4 HTTP methods: GET, PUT, DELETE, POST
  An archite...
HTTP methods

 GET - read only, idempotent and safe
 PUT - insert or update, idempotent
 DELETE - remove services, idempot...
Representation-oriented

  Data has a representation
  –   Negotiated between client and server
  HTTP was designed for th...
Stateless communication

  More scalable
  –   GET lends itself well to caching
  Client maintains state
  Takes burden of...
Respect the medium

  Request               Response
  –   HTTP method       –   HTTP response code
  –   URI             ...
What do you need to REST?

  HTTP client (browser, bot, smart phone)
  HTTP server that speaks REST




                  ...
JSR-311: JAX-RS

  Java APIs for developing Web Services
  following the REST architectural style
  Served via an HTTP ser...
Our first REST resource




      http://socialize.com/rest/timeline
Our first JAX-RS resource

@Path("/timeline")
public class TimelineService {

    @GET
    public String getUpdates() {
  ...
How it works

  REST Servlet handles GET request
  Instance of TimelineService is created
  @GET method called
  Return va...
Throttling the response




   http://socialize.com/rest/timeline?count=25
Accepting a query parameter

@Path("/timeline")
public class TimelineService {

    @GET
    public String getUpdates(@Que...
Parameter types

  @QueryParam – Query string
  @HeaderParam – HTTP header
  @CookieParam – HTTP cookie
  @FormParam – For...
Stepping into a sub-resource




   http://socialize.com/rest/timeline/mojavelinux
Mapping a path parameter

@Path("/timeline")                  Name defined in path expression;
                           ...
Mapping different patterns

@Path("/timeline")
public class TimelineService {

    @GET
    @Path("/{id:[0-9]+}")
    publ...
Negotiating a response

  Which representation?
  –   Plain text?
  –   HTML?
  –   XML?
  –   JSON?
  The client needs to...
Producing explicitly

@Path("/timeline")                        Specify which formats are
                                ...
Producing explicitly

@Path("/timeline")                         Specify which formats are
                               ...
Simplifying response production

  Creating XML and JSON is laborious :(
  JAX-RS supports converters
  –   HTTP entity bo...
A model with XML hints

@XmlRootElement(name = "updates")
public class Timeline implements Serializable {

    private Lis...
A related model with XML hints

@Entity
@XmlRootElement
public class Update implements Serializable {

    private Long id...
Turning production over to JAXB

@Path("/timeline")
public class TimelineService {

    @GET
    @Path("/{u}")
    @Produc...
RESTEasy

 Fully certified JAX-RS implementation
 Portable to any container
 Embedded server for testing
 Client-side fram...
Invoking a service with RESTEasy

public interface TimelineClient {

    @GET
    @Path("/timeline")
    @Produces("applic...
What does Seam 2 provide?

  RESTEasy bootstrap and configuration
  –   Automatic resource/provider discovery
  –   Resour...
Typical JAX-RS setup (Java EE 5)

public abstract class Application {
  public abstract Set<Class<?>> getClasses();
  publ...
REST as a Seam resource




http://socialize.com/seam/resources/rest/timeline/mojavelinux
Seam-infused REST

@Name("timelineService")
@Path("/timeline")
public class TimelineService {
  @In TimelineDao timelineDa...
Trapping exceptions

<exception class="com.socialize.NoSuchUserException">
 <http-error error-code="404">
    <message>No ...
REST in a few fragments

<components>
 <framework:entity-home name="userHome"
   entity-class="com.socialize.model.User"/>...
Java EE 6, keeping it simple

@ApplicationPath("rest")
public class JaxRsConfig extends Application {}

@Stateless
@Path("...
Java EE 6, keeping it clean

@ApplicationPath("rest")
public class JaxRsConfig extends Application {}

@Stateless
@Path("/...
Socialize demo
Summary and call to action

  Respect HTTP
  –   Resources are the foundation of the web
  Expose your data in a standard ...
Must reads




  RESTful Web Services   RESTful Java with JAX-RS
  Richardson & Ruby      Bill Burke
  O’Reilly           ...
To follow me


               mojavelinux
GET /questions? HTTP/1.1
Presentation resources

  JSR-311
  –   http://jcp.org/en/jsr/detail?id=311
  RESTEasy
  –   http://jboss.org/resteasy
  S...
