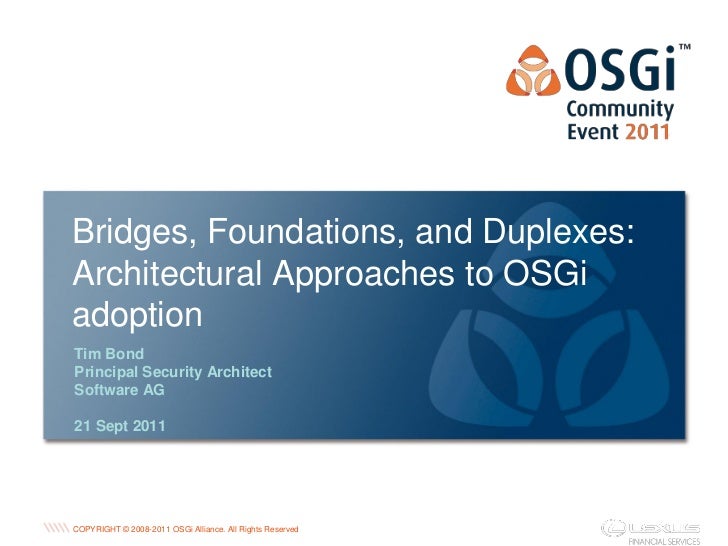

Bridges, Foundations, and Duplexes:Architectural Approaches to OSGiadoptionTim BondPrincipal Security ArchitectSoftware AG...
Agenda•     OSGi evolution @ Software AG•     Architecture approaches•     Challenges•     Tooling    COPYRIGHT © 2008-201...
Company profile•   Founded in 1969•   ADABAS / Natural / Tamino•   Acquired webMethods in 2007•   Acquired IDS Scheer in 2...
So why a common platform?
…many issues
Why a common platform?Platform evolved over time and via acquisitions  6 runtime servers + more embedded runtimes  5 diffe...
Big picture• Process Engine   webMethods history here                         Assets                              Assets  ...
Why a common platform (& OSGi!)         Common startup scripts            Common Configuration              Deployment ...
Integration Server             .NET                 Adapter                    Tomcat             PKG                   PK...
Architecture approaches• Balcony (application package)• Duplex (side-by-side)• Bridge (fun with classloaders)
BalconyRun OSGi as  application  package Image credit foto3116: http://www.flickr.com/photos/29385617@N00/2297575310/in/ph...
Scheduler                                                                                                                 ...
Problems with balconyQuick winGood for developmentbut . . . .Does not help create a platformDoes not solve library complex...
Rebuild foundation?
Logging svc                                                              Config agent                                     ...
Foundation• Worked (mostly)• But . . .   •   How to move forward?   •   Significant packaging changes   •   Difficult to p...
Logging svc                                                                                                Config agent   ...
Service bridge in practice                         Adapter                                  OSGi                          ...
Issues / Challenges / Struggles•   “Common lib”•   Import-Dynamic:* and Buddy classloading•   Fat JARs•   Build systems•  ...
Common lib• Multiple products install and share single directory of  third party and internal jar files• Who uses what?• W...
The fat jar•   Legacy code “solution”•   Wrap everything up, export all packages•   There’s even an eclipse plugin . . .• ...
Class and resource loadingLegacy libraries (internal and external) aren’t designed  with modularity in mind. Require code ...
Build / dependency systems• Ant (6.000 line build files)• Many factions solutions   •   PDE/Eclipse   •   maven   •   ivy ...
Tooling•   jaranalyzer (kirkk.com)•   Lattix•   Structure 101•   OpenGrok (source code search)
Jaranalyzer custom output
Package level deps with Lattix
Source code search
Thank you . . .
