  • 1. Technical Briefing of nuclear safety aspects of the situation in Japan
    March 17 2011
    James E. LyonsDirector Nuclear Installation Safety, IAEA
  • 2. Boiling Water Reactor (BWR)
    3/17/2011
    Lyons, James Edward
    2
  • 3. BWR Design Features
    Fuel channels
    RPV upper
    internal structures
    Large lower
    plenum
    3
    Short Course on Level 2 PSA (Section L2-3)
    October 2010
  • 4. Key Plant Systems (Mark-I)
    4
  • 5. BWR Mark I - Containment
    3/17/2011
    Lyons, James Edward
    5

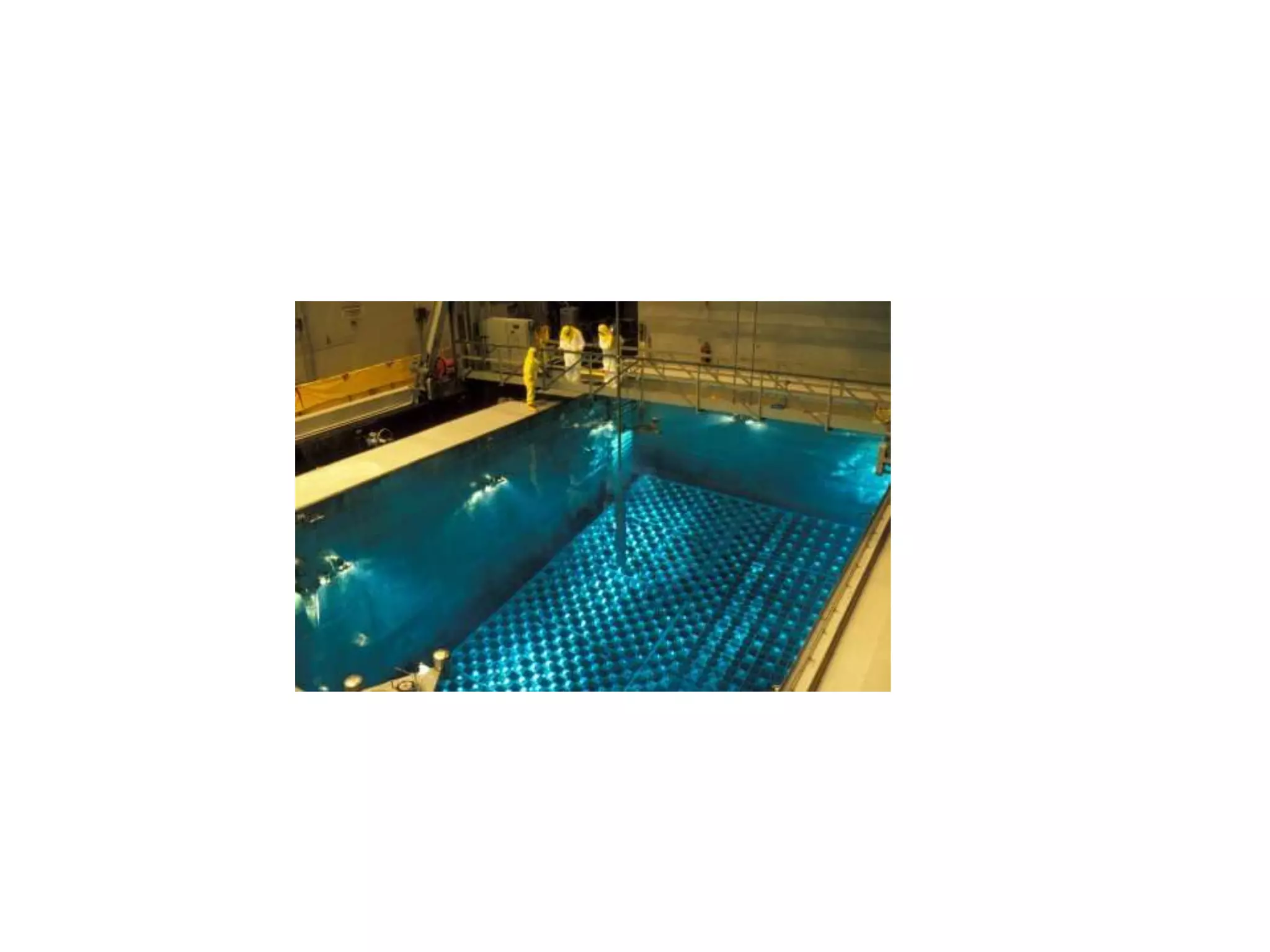

  • 6.
  • 7.
  • 8.

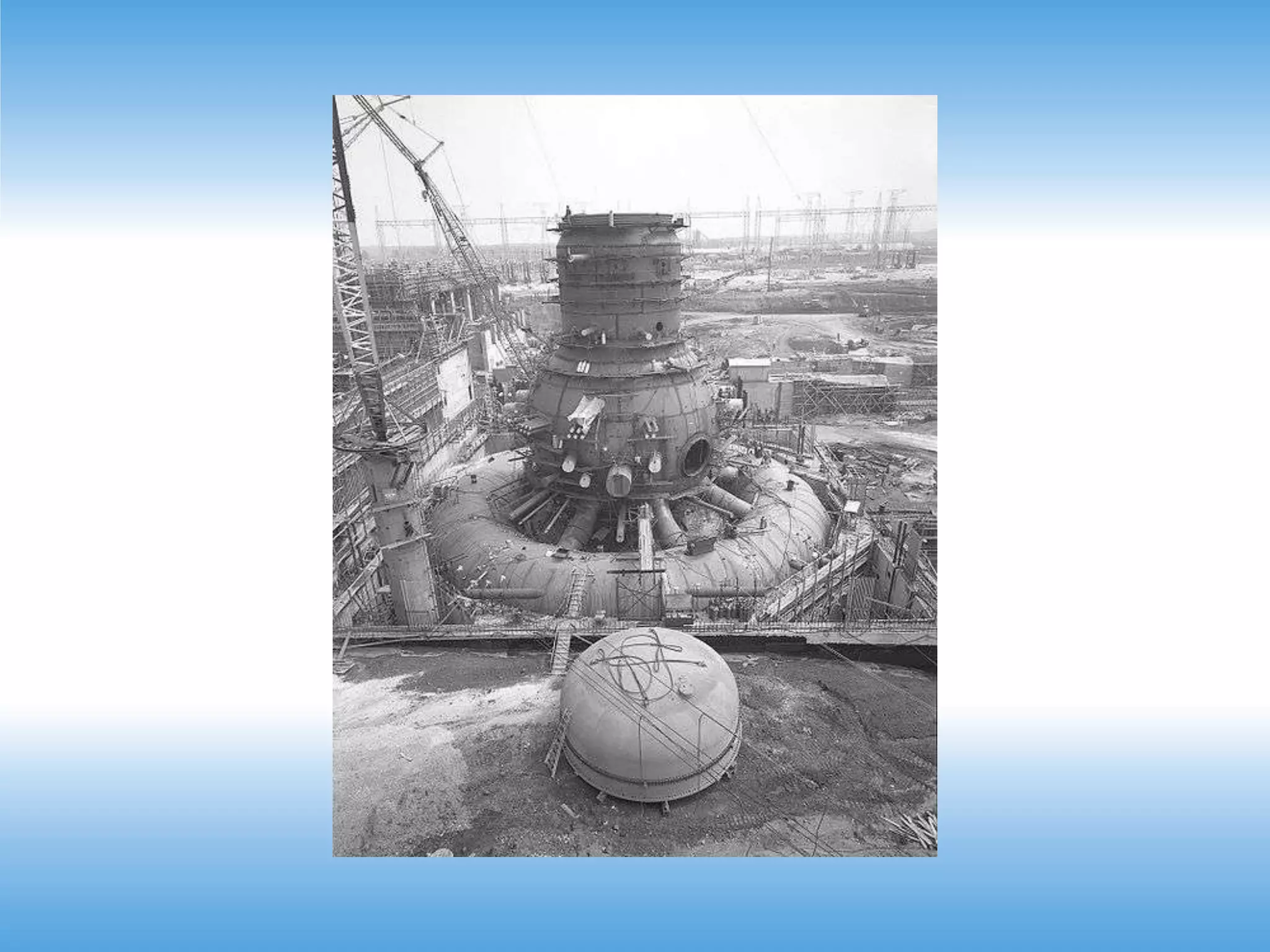

  • 9. BWR Mark I Containment
    3/17/2011
    Lyons, James Edward
    9

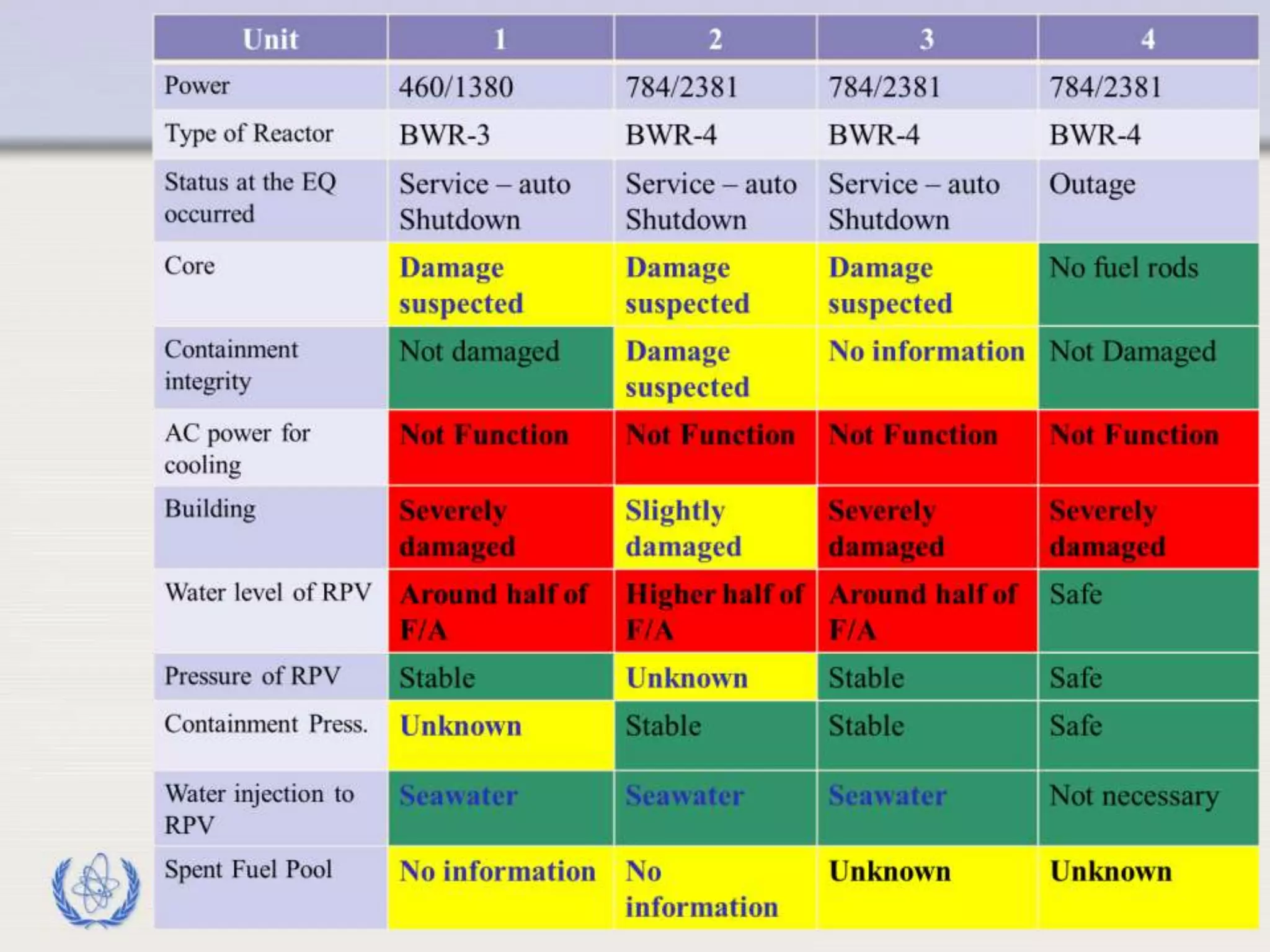

  • 10.

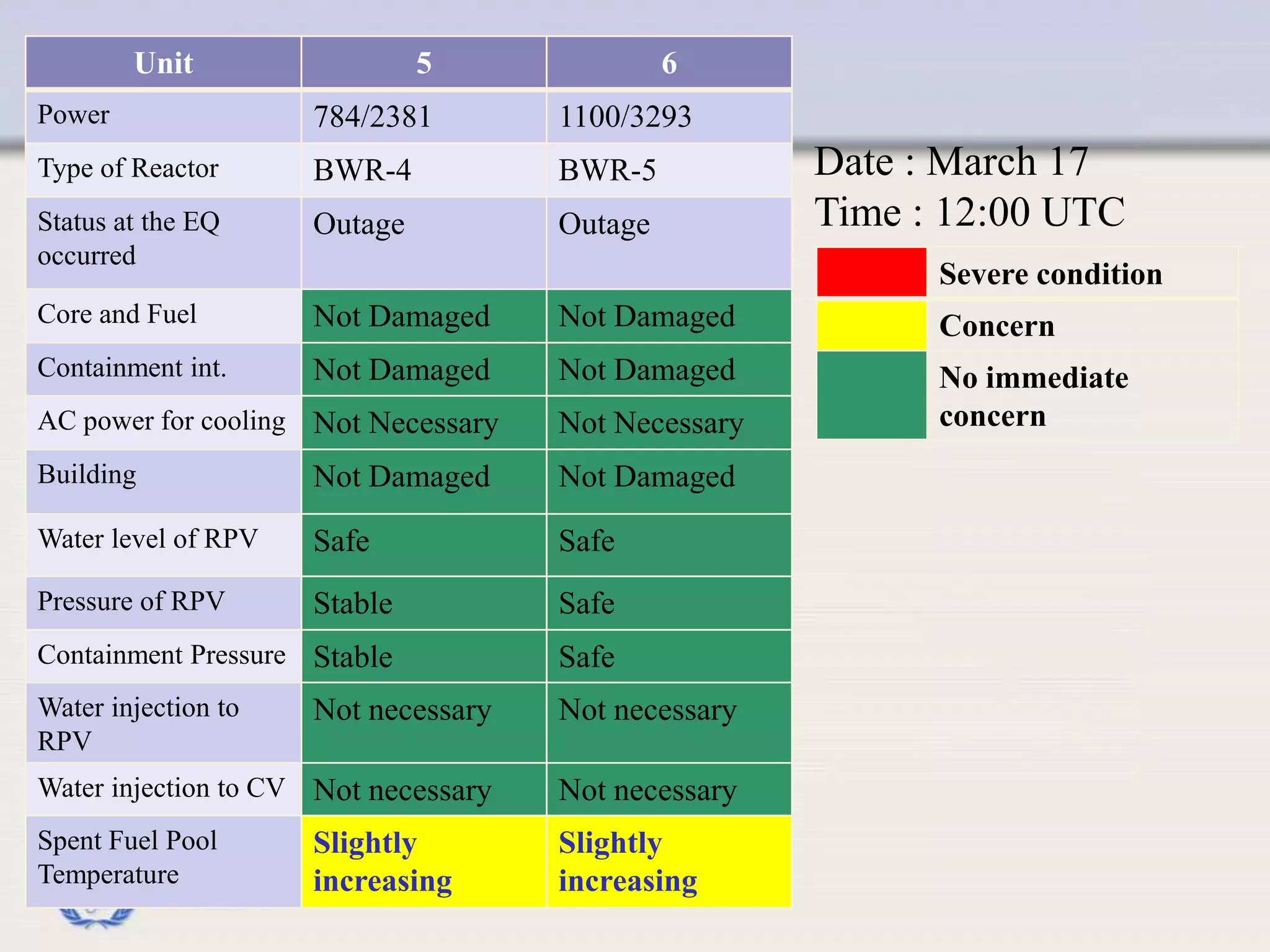

  • 11. Date : March 17
    Time : 12:00 UTC
