https://budapestdata.hu/2022/en/speakers/timothy-spann/ Unified Messaging and Data Streaming 101.pdf Unified Messaging and Data Streaming 101 Democratizing the ability to build streaming data pipelines will help turn everyone who needs streaming data to be able to do it themselves. By utilizing the open source streaming platform Apache Pulsar enhanced with Apache Flink, we can build messages and data streaming applications utilizing the one unified data platform. Apache Pulsar supports multiple protocols including Pulsar, AMQP, Kafka, MQTT and RocketMQ. It also supports a variety of message subscription models to support all your workloads from batch, work queues, exactly once streaming and more. With the ability to run cloud native on all your K8, VM, container and cloud platforms. Pulsar has built-in geo-replication, scalability, separate of compute and storage, function support and high reliability. Let’s get streaming. I will also touch of utilizing Apache Spark and Apache NiFi with Apache Pulsar. Timothy Spann Developer Advocate, StreamNative Tim Spann is a Developer Advocate for StreamNative. He works with StreamNative Cloud, Apache Pulsar, Apache Flink, Flink SQL, Apache NiFi, MiniFi, Apache MXNet, TensorFlow, Apache Spark, Big Data, the IoT, machine learning, and deep learning. Tim has over a decade of experience with the IoT, big data, distributed computing, messaging, streaming technologies, and Java programming. Previously, he was a Principal DataFlow Field Engineer at Cloudera, a Senior Solutions Engineer at Hortonworks, a Senior Solutions Architect at AirisData, a Senior Field Engineer at Pivotal and a Team Leader at HPE. He blogs for DZone, where he is the Big Data Zone leader, and runs a popular meetup in Princeton on Big Data, Cloud, IoT, deep learning, streaming, NiFi, the blockchain, and Spark. Tim is a frequent speaker at conferences such as ApacheCon, DeveloperWeek, Pulsar Summit and many more. He holds a BS and MS in computer science. Flink + Pulsar + Spark + NiFi FLiPNs

2. Tim Spann
Developer Advocate
● FLiP(N) Stack = Flink, Pulsar and NiFi Stack
● Streaming Systems/ Data Architect
● Experience:
○ 15+ years of experience with batch and streaming
technologies including Pulsar, Flink, Spark, NiFi, Spring,
Java, Big Data, Cloud, MXNet, Hadoop, Datalakes, IoT
and more.

3. 101
Unified
Messaging
Platform
Guaranteed
Message
Delivery
Resiliency Infinite
Scalability

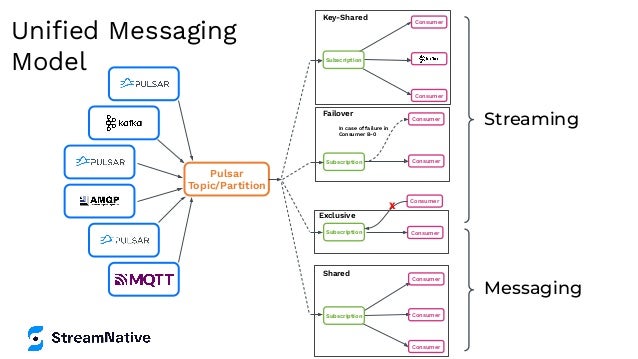

4. Streaming
Consumer
Consumer
Consumer
Subscription
Shared
Failover
Consumer
Consumer
Subscription
In case of failure in
Consumer B-0
Consumer
Consumer
Subscription
Exclusive
X
Consumer
Consumer
Key-Shared
Subscription
Pulsar
Topic/Partition
Messaging
Unified Messaging
Model

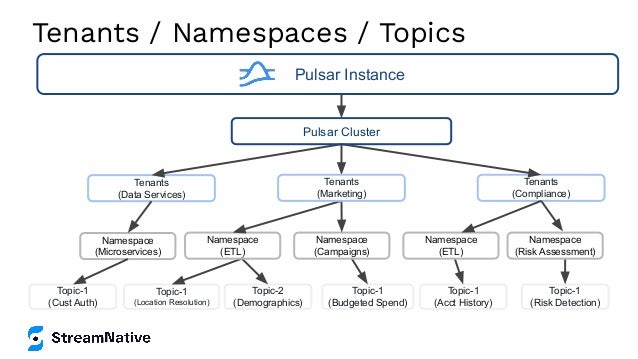

5. Tenants / Namespaces / Topics
Tenants
(Compliance)
Tenants
(Data Services)
Namespace
(Microservices)
Topic-1
(Cust Auth)
Topic-1
(Location Resolution)
Topic-2
(Demographics)
Topic-1
(Budgeted Spend)
Topic-1
(Acct History)
Topic-1
(Risk Detection)
Namespace
(ETL)
Namespace
(Campaigns)
Namespace
(ETL)
Tenants
(Marketing)
Namespace
(Risk Assessment)
Pulsar Instance
Pulsar Cluster

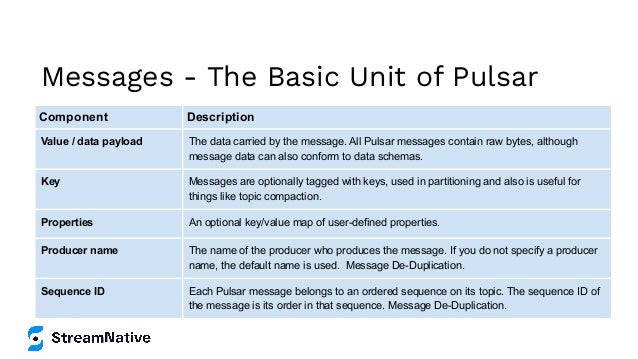

6. Component Description
Value / data payload The data carried by the message. All Pulsar messages contain raw bytes, although
message data can also conform to data schemas.
Key Messages are optionally tagged with keys, used in partitioning and also is useful for
things like topic compaction.
Properties An optional key/value map of user-defined properties.
Producer name The name of the producer who produces the message. If you do not specify a producer
name, the default name is used. Message De-Duplication.
Sequence ID Each Pulsar message belongs to an ordered sequence on its topic. The sequence ID of
the message is its order in that sequence. Message De-Duplication.
Messages - The Basic Unit of Pulsar

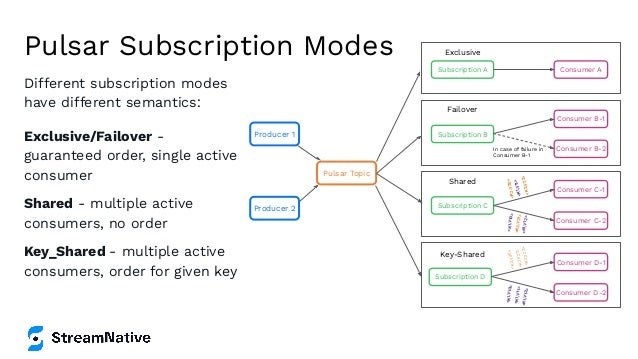

7. Pulsar Subscription Modes
Different subscription modes
have different semantics:
Exclusive/Failover -
guaranteed order, single active
consumer
Shared - multiple active
consumers, no order
Key_Shared - multiple active
consumers, order for given key
Producer 1
Producer 2
Pulsar Topic
Subscription D
Consumer D-1
Consumer D-2
Key-Shared
<
K
1,
V
10
>
<
K
1,
V
11
>
<
K
1,
V
12
>
<
K
2
,V
2
0
>
<
K
2
,V
2
1>
<
K
2
,V
2
2
>
Subscription C
Consumer C-1
Consumer C-2
Shared
<
K
1,
V
10
>
<
K
2,
V
21
>
<
K
1,
V
12
>
<
K
2
,V
2
0
>
<
K
1,
V
11
>
<
K
2
,V
2
2
>
Subscription A Consumer A
Exclusive
Subscription B
Consumer B-1
Consumer B-2
In case of failure in
Consumer B-1
Failover

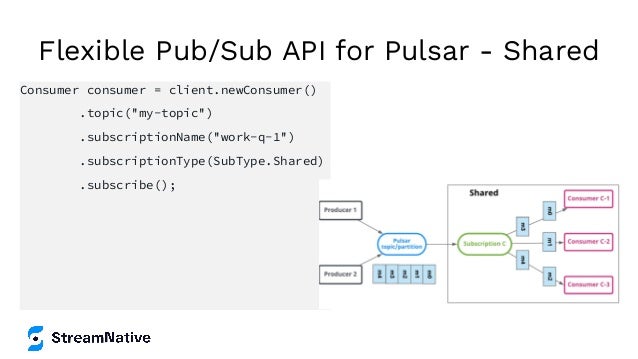

8. Flexible Pub/Sub API for Pulsar - Shared
Consumer consumer = client.newConsumer()
.topic("my-topic")
.subscriptionName("work-q-1")
.subscriptionType(SubType.Shared)
.subscribe();

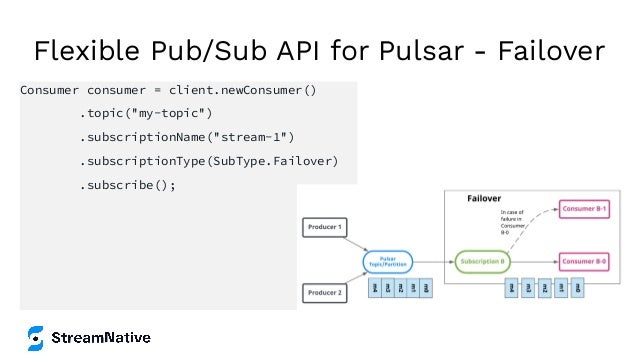

9. Consumer consumer = client.newConsumer()
.topic("my-topic")
.subscriptionName("stream-1")
.subscriptionType(SubType.Failover)
.subscribe();
Flexible Pub/Sub API for Pulsar - Failover

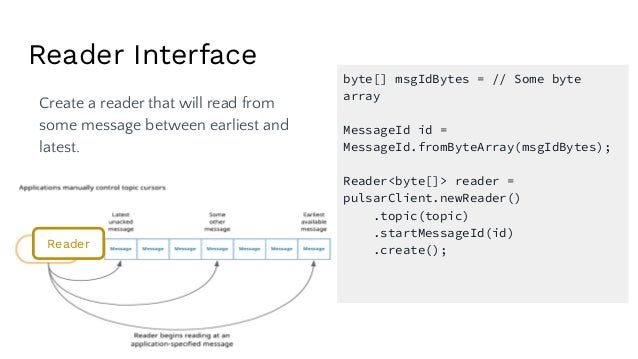

10. Reader Interface
byte[] msgIdBytes = // Some byte
array
MessageId id =
MessageId.fromByteArray(msgIdBytes);
Reader<byte[]> reader =
pulsarClient.newReader()
.topic(topic)
.startMessageId(id)
.create();
Create a reader that will read from
some message between earliest and
latest.
Reader

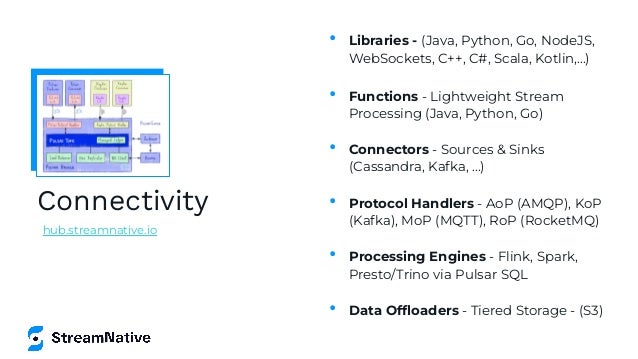

11. Connectivity
• Libraries - (Java, Python, Go, NodeJS,
WebSockets, C++, C#, Scala, Kotlin,...)
• Functions - Lightweight Stream
Processing (Java, Python, Go)
• Connectors - Sources & Sinks
(Cassandra, Kafka, …)
• Protocol Handlers - AoP (AMQP), KoP
(Kafka), MoP (MQTT), RoP (RocketMQ)
• Processing Engines - Flink, Spark,
Presto/Trino via Pulsar SQL
• Data Offloaders - Tiered Storage - (S3)
hub.streamnative.io

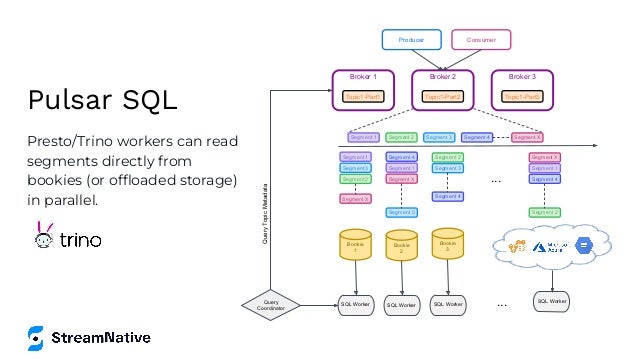

12. Pulsar SQL
Presto/Trino workers can read
segments directly from
bookies (or offloaded storage)
in parallel.
Bookie
1
Segment 1
Producer Consumer
Broker 1
Topic1-Part1
Broker 2
Topic1-Part2
Broker 3
Topic1-Part3
Segment 2 Segment 3 Segment 4 Segment X
Segment 1
Segment 1 Segment 1
Segment 3 Segment 3
Segment 3
Segment 2
Segment 2
Segment 2
Segment 4
Segment 4
Segment 4
Segment X
Segment X
Segment X
Bookie
2
Bookie
3
Query
Coordinator
...
...
SQL Worker SQL Worker SQL Worker
SQL Worker
Query
Topic
Metadata

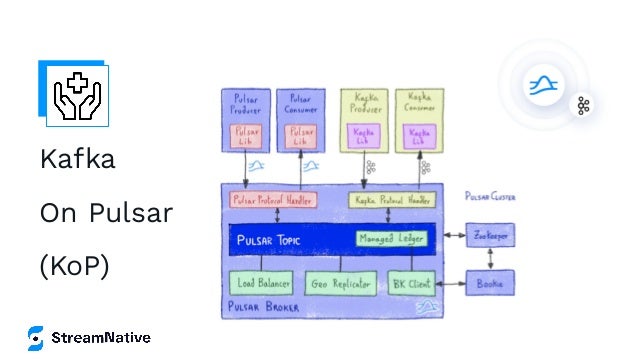

13. Kafka
On Pulsar
(KoP)

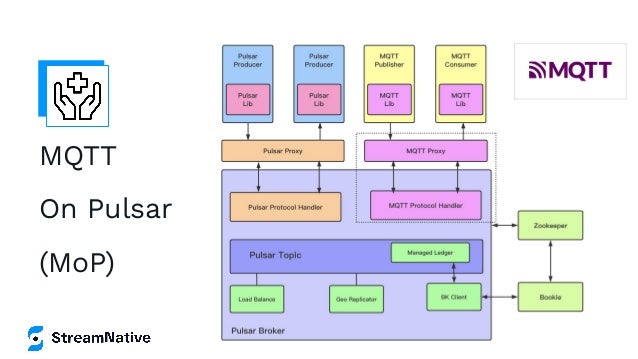

14. MQTT
On Pulsar
(MoP)

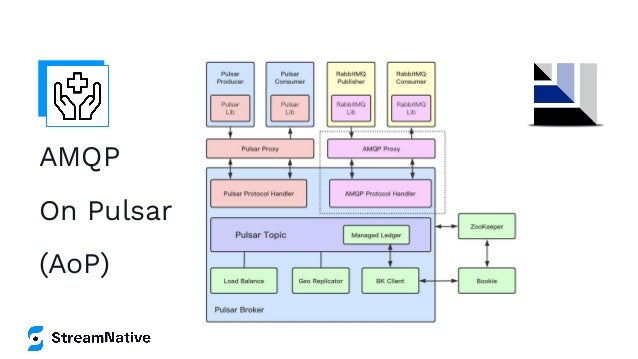

15. AMQP
On Pulsar
(AoP)

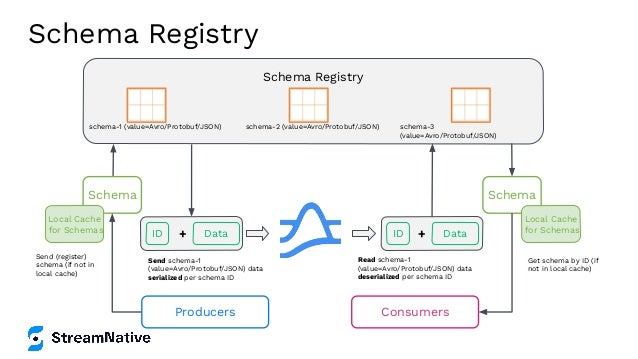

16. Schema Registry
Schema Registry
schema-1 (value=Avro/Protobuf/JSON) schema-2 (value=Avro/Protobuf/JSON) schema-3
(value=Avro/Protobuf/JSON)
Schema
Data
ID
Local Cache
for Schemas
+
Schema
Data
ID +
Local Cache
for Schemas
Send schema-1
(value=Avro/Protobuf/JSON) data
serialized per schema ID
Send (register)
schema (if not in
local cache)
Read schema-1
(value=Avro/Protobuf/JSON) data
deserialized per schema ID
Get schema by ID (if
not in local cache)
Producers Consumers

17. Pulsar Functions
● Lightweight
computation similar to
AWS Lambda.
● Specifically designed to
use Apache Pulsar as a
message bus.
● Function runtime can
be located within
Pulsar Broker.
A serverless event streaming
framework

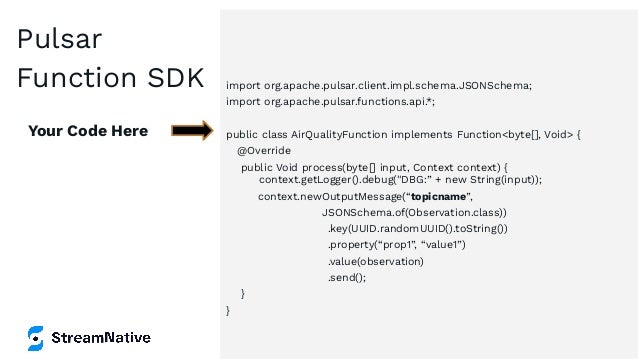

18. import org.apache.pulsar.client.impl.schema.JSONSchema;
import org.apache.pulsar.functions.api.*;
public class AirQualityFunction implements Function<byte[], Void> {
@Override
public Void process(byte[] input, Context context) {
context.getLogger().debug("DBG:” + new String(input));
context.newOutputMessage(“topicname”,
JSONSchema.of(Observation.class))
.key(UUID.randomUUID().toString())
.property(“prop1”, “value1”)
.value(observation)
.send();
}
}
Your Code Here
Pulsar
Function SDK

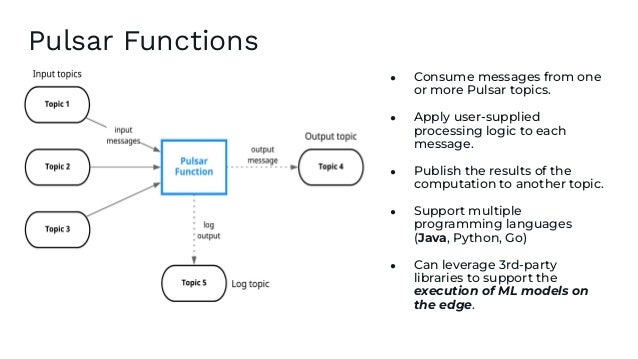

19. ● Consume messages from one
or more Pulsar topics.
● Apply user-supplied
processing logic to each
message.
● Publish the results of the
computation to another topic.
● Support multiple
programming languages
(Java, Python, Go)
● Can leverage 3rd-party
libraries to support the
execution of ML models on
the edge.
Pulsar Functions

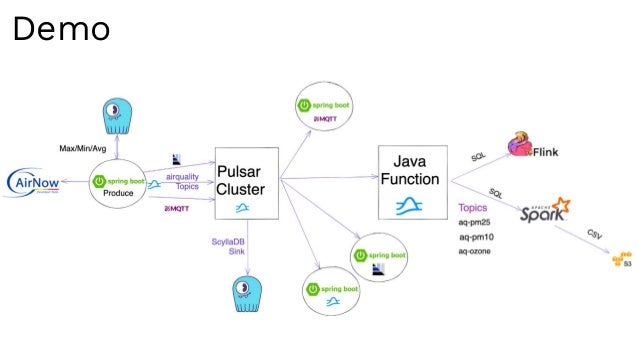

20. Demo

21. Apache Pulsar Training
● Instructor-led courses
○ Pulsar Fundamentals
○ Pulsar Developers
○ Pulsar Operations
● On-demand learning with labs
● 300+ engineers, admins and
architects trained!
StreamNative Academy
Now Available
On-Demand
Pulsar Training
Academy.StreamNative.io

22. streamnative.io
Pulsar
Resources Page
Learn More
https://spring.io/blog/2020/08/03/creating-a-function-fo
r-consuming-data-and-generating-spring-cloud-stream
-sink-applications
https://streamnative.io/blog/engineering/2022-04-14-w
hat-the-flip-is-the-flip-stack/
https://streamnative.io/cloudforkafka/
https://github.com/tspannhw/airquality
https://github.com/tspannhw/pulsar-airquality-function

23. FLiP Stack Weekly
This week in Apache Flink, Apache Pulsar, Apache
NiFi, Apache Spark, Java and Open Source friends.
https://bit.ly/32dAJft

24. streamnative.io
Passionate and dedicated team.
Founded by the original developers of
Apache Pulsar.
StreamNative helps teams to capture,
manage, and leverage data using Pulsar’s
unified messaging and streaming
platform.

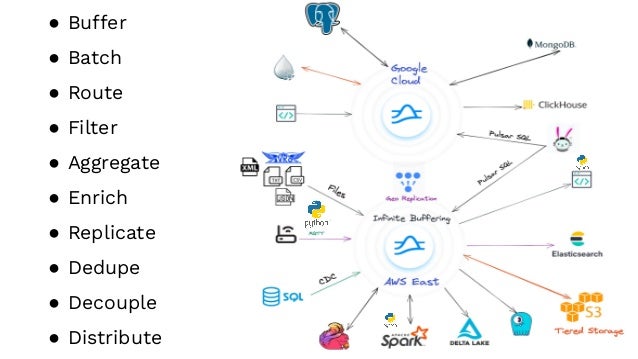

25. ● Buffer
● Batch
● Route
● Filter
● Aggregate
● Enrich
● Replicate
● Dedupe
● Decouple
● Distribute

26. Let’s Keep
in Touch!
Tim Spann
Developer Advocate
PaaSDev
https://www.linkedin.com/in/timothyspann
https://github.com/tspannhw

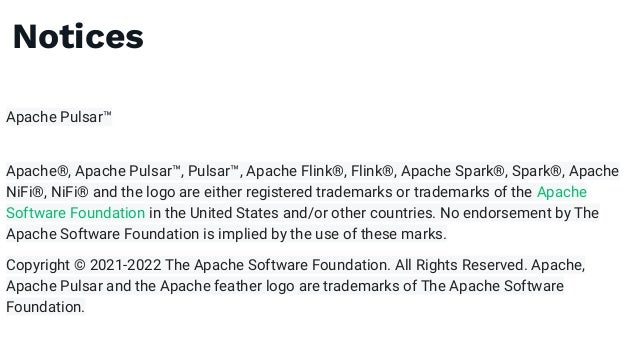

27. Notices
