1. CMSC 414
Computer and Network Security
Lecture 25
Jonathan Katz

2. Secure programming techniques
(Based on: “Programming Secure Applications
for Unix-Like Systems,” David Wheeler)

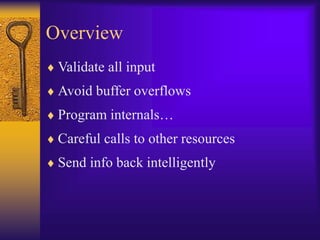

3. Overview
 Validate all input
 Avoid buffer overflows
 Program internals…
 Careful calls to other resources
 Send info back intelligently

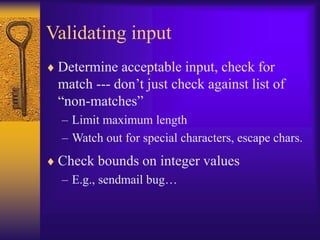

4. Validating input
 Determine acceptable input, check for
match --- don’t just check against list of
“non-matches”
– Limit maximum length
– Watch out for special characters, escape chars.
 Check bounds on integer values
– E.g., sendmail bug…

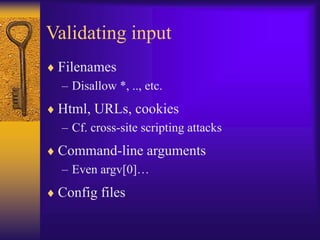

5. Validating input
 Filenames
– Disallow *, .., etc.
 Html, URLs, cookies
– Cf. cross-site scripting attacks
 Command-line arguments
– Even argv[0]…
 Config files

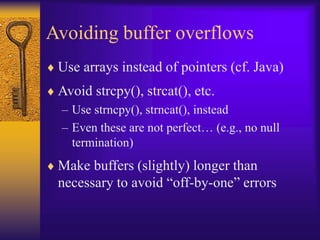

6. Avoiding buffer overflows
 Use arrays instead of pointers (cf. Java)
 Avoid strcpy(), strcat(), etc.
– Use strncpy(), strncat(), instead
– Even these are not perfect… (e.g., no null
termination)
 Make buffers (slightly) longer than
necessary to avoid “off-by-one” errors

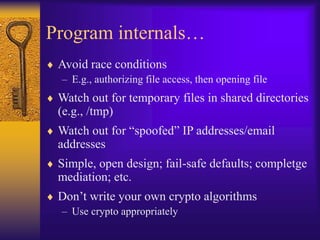

7. Program internals…
 Avoid race conditions
– E.g., authorizing file access, then opening file
 Watch out for temporary files in shared directories
(e.g., /tmp)
 Watch out for “spoofed” IP addresses/email
addresses
 Simple, open design; fail-safe defaults; completge
mediation; etc.
 Don’t write your own crypto algorithms
– Use crypto appropriately

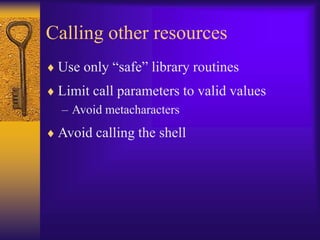

8. Calling other resources
 Use only “safe” library routines
 Limit call parameters to valid values
– Avoid metacharacters
 Avoid calling the shell

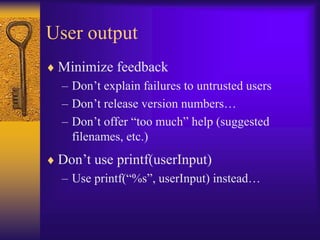

9. User output
 Minimize feedback
– Don’t explain failures to untrusted users
– Don’t release version numbers…
– Don’t offer “too much” help (suggested
filenames, etc.)
 Don’t use printf(userInput)
– Use printf(“%s”, userInput) instead…

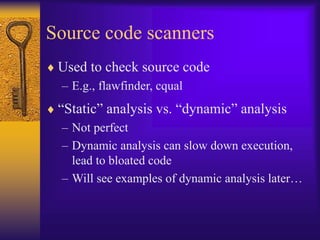

10. Source code scanners
 Used to check source code
– E.g., flawfinder, cqual
 “Static” analysis vs. “dynamic” analysis
– Not perfect
– Dynamic analysis can slow down execution,
lead to bloated code
– Will see examples of dynamic analysis later…

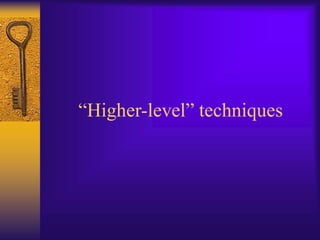

11. “Higher-level” techniques

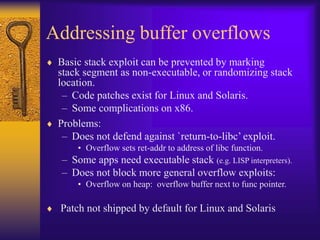

12. Addressing buffer overflows
 Basic stack exploit can be prevented by marking
stack segment as non-executable, or randomizing stack
location.
– Code patches exist for Linux and Solaris.
– Some complications on x86.
 Problems:
– Does not defend against `return-to-libc’ exploit.
• Overflow sets ret-addr to address of libc function.
– Some apps need executable stack (e.g. LISP interpreters).
– Does not block more general overflow exploits:
• Overflow on heap: overflow buffer next to func pointer.
 Patch not shipped by default for Linux and Solaris

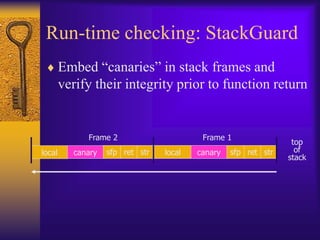

13. Run-time checking: StackGuard
 Embed “canaries” in stack frames and
verify their integrity prior to function return
str
ret
sfp
local
top
of
stack
canary
str
ret
sfp
local canary
Frame 1
Frame 2

14. Canary types
 Random canary: (used in Visual Studio 2003)
– Choose random string at program startup.
– Insert canary string into every stack frame.
– Verify canary before returning from function.
– To corrupt random canary, attacker must learn current
random string.
 Terminator canary:
Canary = 0, newline, linefeed, EOF
– String functions will not copy beyond terminator.
– Attacker cannot use string functions to corrupt stack

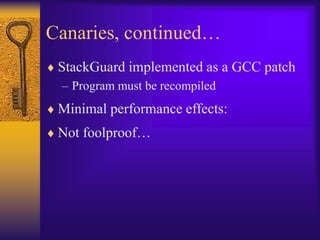

15. Canaries, continued…
 StackGuard implemented as a GCC patch
– Program must be recompiled
 Minimal performance effects:
 Not foolproof…

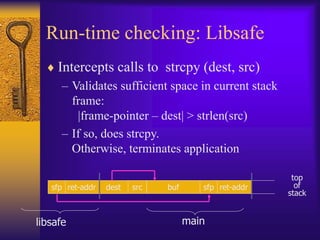

16. Run-time checking: Libsafe
 Intercepts calls to strcpy (dest, src)
– Validates sufficient space in current stack
frame:
|frame-pointer – dest| > strlen(src)
– If so, does strcpy.
Otherwise, terminates application
dest
ret-addr
sfp
top
of
stack
src buf ret-addr
sfp
libsafe main

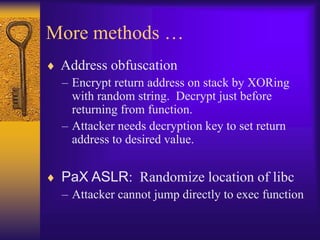

17. More methods …
 Address obfuscation
– Encrypt return address on stack by XORing
with random string. Decrypt just before
returning from function.
– Attacker needs decryption key to set return
address to desired value.
 PaX ASLR: Randomize location of libc
– Attacker cannot jump directly to exec function

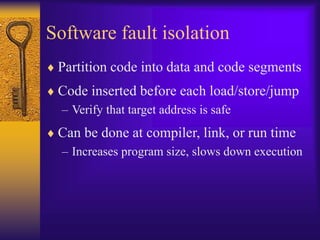

18. Software fault isolation
 Partition code into data and code segments
 Code inserted before each load/store/jump
– Verify that target address is safe
 Can be done at compiler, link, or run time
– Increases program size, slows down execution

19. Security for mobile code
 Mobile code is particularly dangerous!
 Sandboxing
– Limit the ability of code to do harmful things
 Code-signing
– Mechanism to decide whether code should be
trusted or not
 ActiveX uses code-signing, Java uses
sandboxing (plus code-signing)

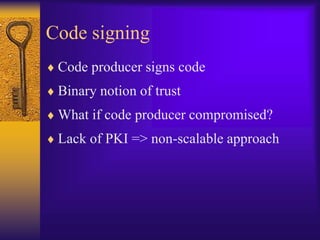

20. Code signing
 Code producer signs code
 Binary notion of trust
 What if code producer compromised?
 Lack of PKI => non-scalable approach

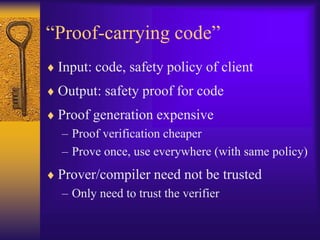

21. “Proof-carrying code”
 Input: code, safety policy of client
 Output: safety proof for code
 Proof generation expensive
– Proof verification cheaper
– Prove once, use everywhere (with same policy)
 Prover/compiler need not be trusted
– Only need to trust the verifier

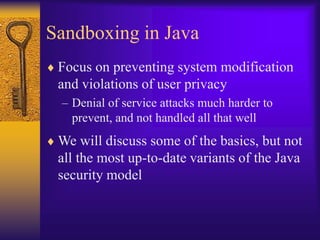

22. Sandboxing in Java
 Focus on preventing system modification
and violations of user privacy
– Denial of service attacks much harder to
prevent, and not handled all that well
 We will discuss some of the basics, but not
all the most up-to-date variants of the Java
security model

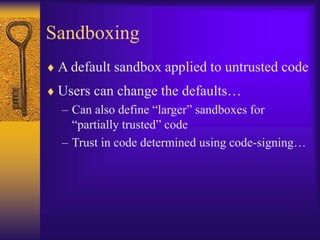

23. Sandboxing
 A default sandbox applied to untrusted code
 Users can change the defaults…
– Can also define “larger” sandboxes for
“partially trusted” code
– Trust in code determined using code-signing…

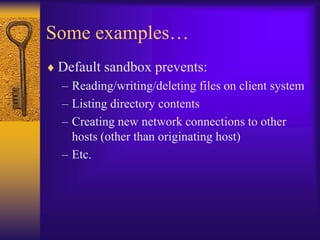

24. Some examples…
 Default sandbox prevents:
– Reading/writing/deleting files on client system
– Listing directory contents
– Creating new network connections to other
hosts (other than originating host)
– Etc.

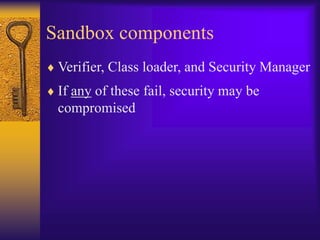

25. Sandbox components
 Verifier, Class loader, and Security Manager
 If any of these fail, security may be
compromised

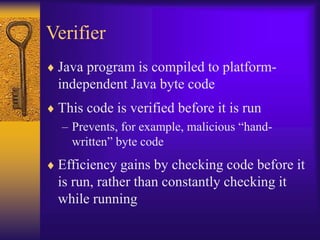

26. Verifier
 Java program is compiled to platform-
independent Java byte code
 This code is verified before it is run
– Prevents, for example, malicious “hand-
written” byte code
 Efficiency gains by checking code before it
is run, rather than constantly checking it
while running

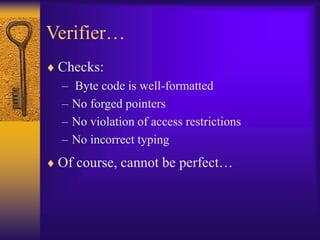

27. Verifier…
 Checks:
– Byte code is well-formatted
– No forged pointers
– No violation of access restrictions
– No incorrect typing
 Of course, cannot be perfect…

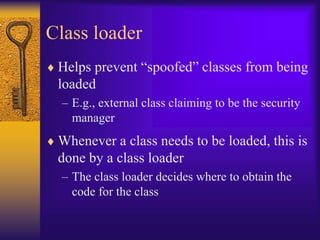

28. Class loader
 Helps prevent “spoofed” classes from being
loaded
– E.g., external class claiming to be the security
manager
 Whenever a class needs to be loaded, this is
done by a class loader
– The class loader decides where to obtain the
code for the class

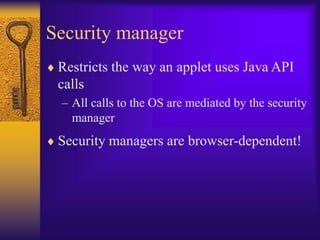

29. Security manager
 Restricts the way an applet uses Java API
calls
– All calls to the OS are mediated by the security
manager
 Security managers are browser-dependent!

30. System call monitoring
 Monitor all system calls
– Enforce particular policy
– Policy may be loaded in kernel
 Hand-tune policy for individual applications
 Similar to Java security manager
– Difference in where implemented

31. Viruses/malicious code

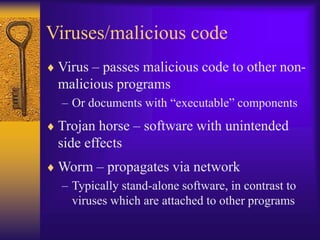

32. Viruses/malicious code
 Virus – passes malicious code to other non-
malicious programs
– Or documents with “executable” components
 Trojan horse – software with unintended
side effects
 Worm – propagates via network
– Typically stand-alone software, in contrast to
viruses which are attached to other programs

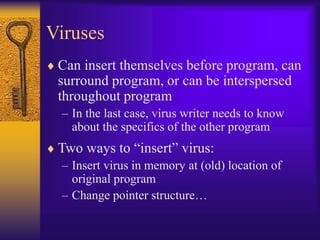

33. Viruses
 Can insert themselves before program, can
surround program, or can be interspersed
throughout program
– In the last case, virus writer needs to know
about the specifics of the other program
 Two ways to “insert” virus:
– Insert virus in memory at (old) location of
original program
– Change pointer structure…

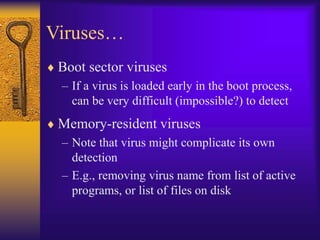

34. Viruses…
 Boot sector viruses
– If a virus is loaded early in the boot process,
can be very difficult (impossible?) to detect
 Memory-resident viruses
– Note that virus might complicate its own
detection
– E.g., removing virus name from list of active
programs, or list of files on disk

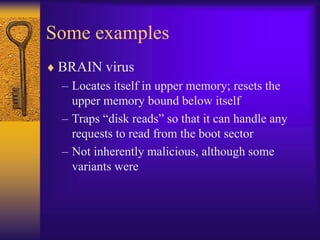

35. Some examples
 BRAIN virus
– Locates itself in upper memory; resets the
upper memory bound below itself
– Traps “disk reads” so that it can handle any
requests to read from the boot sector
– Not inherently malicious, although some
variants were

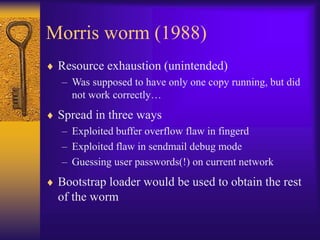

36. Morris worm (1988)
 Resource exhaustion (unintended)
– Was supposed to have only one copy running, but did
not work correctly…
 Spread in three ways
– Exploited buffer overflow flaw in fingerd
– Exploited flaw in sendmail debug mode
– Guessing user passwords(!) on current network
 Bootstrap loader would be used to obtain the rest
of the worm

37. Chernobyl virus (1998)
 When infected program run, virus becomes
resident in memory of machine
– Rebooting does not help
 Virus writes random garbage to hard drive
 Attempts to trash FLASH BIOS
– Physically destroys the hardware…

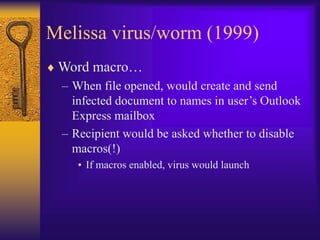

38. Melissa virus/worm (1999)
 Word macro…
– When file opened, would create and send
infected document to names in user’s Outlook
Express mailbox
– Recipient would be asked whether to disable
macros(!)
• If macros enabled, virus would launch

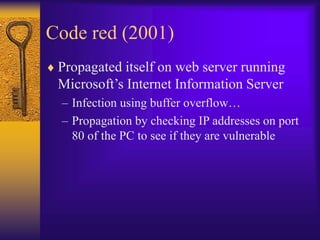

39. Code red (2001)
 Propagated itself on web server running
Microsoft’s Internet Information Server
– Infection using buffer overflow…
– Propagation by checking IP addresses on port
80 of the PC to see if they are vulnerable

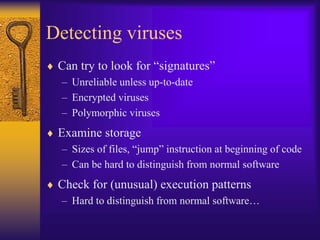

40. Detecting viruses
 Can try to look for “signatures”
– Unreliable unless up-to-date
– Encrypted viruses
– Polymorphic viruses
 Examine storage
– Sizes of files, “jump” instruction at beginning of code
– Can be hard to distinguish from normal software
 Check for (unusual) execution patterns
– Hard to distinguish from normal software…
