This document provides an overview of XML messages processed through the CWDirect system, including the base Integrate site(s) that use each message. It includes links to the DTD and schema for each message, as well as links to sample XML files. The document lists the XML message, associated process(es), direction (inbound/outbound), relevant Integrate site(s), and links to documentation for each message type processed by CWDirect.

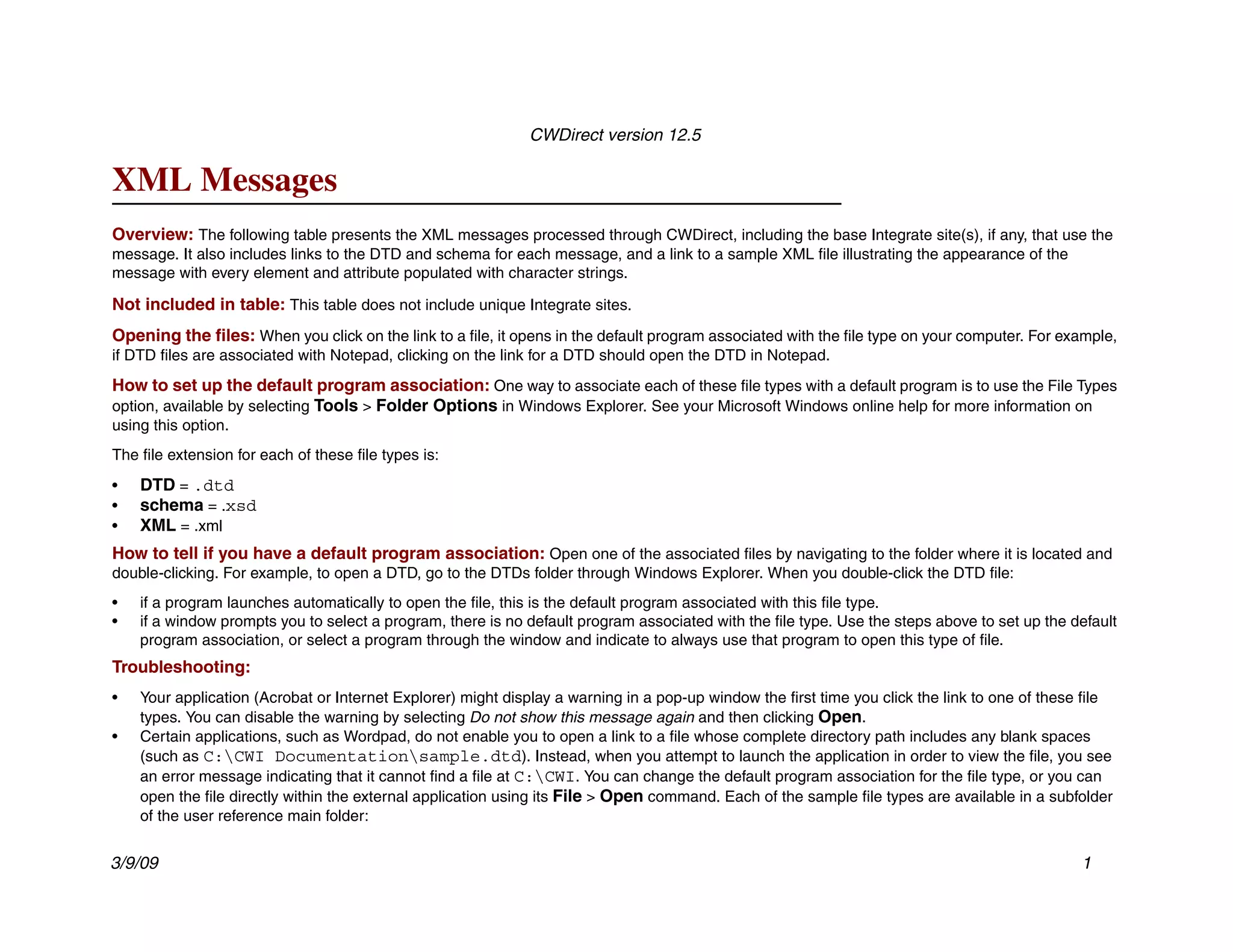

1. CWDirect version 12.5
XML Messages
Overview: The following table presents the XML messages processed through CWDirect, including the base Integrate site(s), if any, that use the
message. It also includes links to the DTD and schema for each message, and a link to a sample XML file illustrating the appearance of the
message with every element and attribute populated with character strings.
Not included in table: This table does not include unique Integrate sites.
Opening the files: When you click on the link to a file, it opens in the default program associated with the file type on your computer. For example,
if DTD files are associated with Notepad, clicking on the link for a DTD should open the DTD in Notepad.
How to set up the default program association: One way to associate each of these file types with a default program is to use the File Types
option, available by selecting Tools > Folder Options in Windows Explorer. See your Microsoft Windows online help for more information on
using this option.
The file extension for each of these file types is:
• DTD = .dtd
• schema = .xsd
• XML = .xml
How to tell if you have a default program association: Open one of the associated files by navigating to the folder where it is located and
double-clicking. For example, to open a DTD, go to the DTDs folder through Windows Explorer. When you double-click the DTD file:
• if a program launches automatically to open the file, this is the default program associated with this file type.
• if a window prompts you to select a program, there is no default program associated with the file type. Use the steps above to set up the default
program association, or select a program through the window and indicate to always use that program to open this type of file.
Troubleshooting:
• Your application (Acrobat or Internet Explorer) might display a warning in a pop-up window the first time you click the link to one of these file
types. You can disable the warning by selecting Do not show this message again and then clicking Open.
• Certain applications, such as Wordpad, do not enable you to open a link to a file whose complete directory path includes any blank spaces
(such as C:CWI Documentationsample.dtd). Instead, when you attempt to launch the application in order to view the file, you see
an error message indicating that it cannot find a file at C:CWI. You can change the default program association for the file type, or you can
open the file directly within the external application using its File > Open command. Each of the sample file types are available in a subfolder
of the user reference main folder:
3/9/09 1

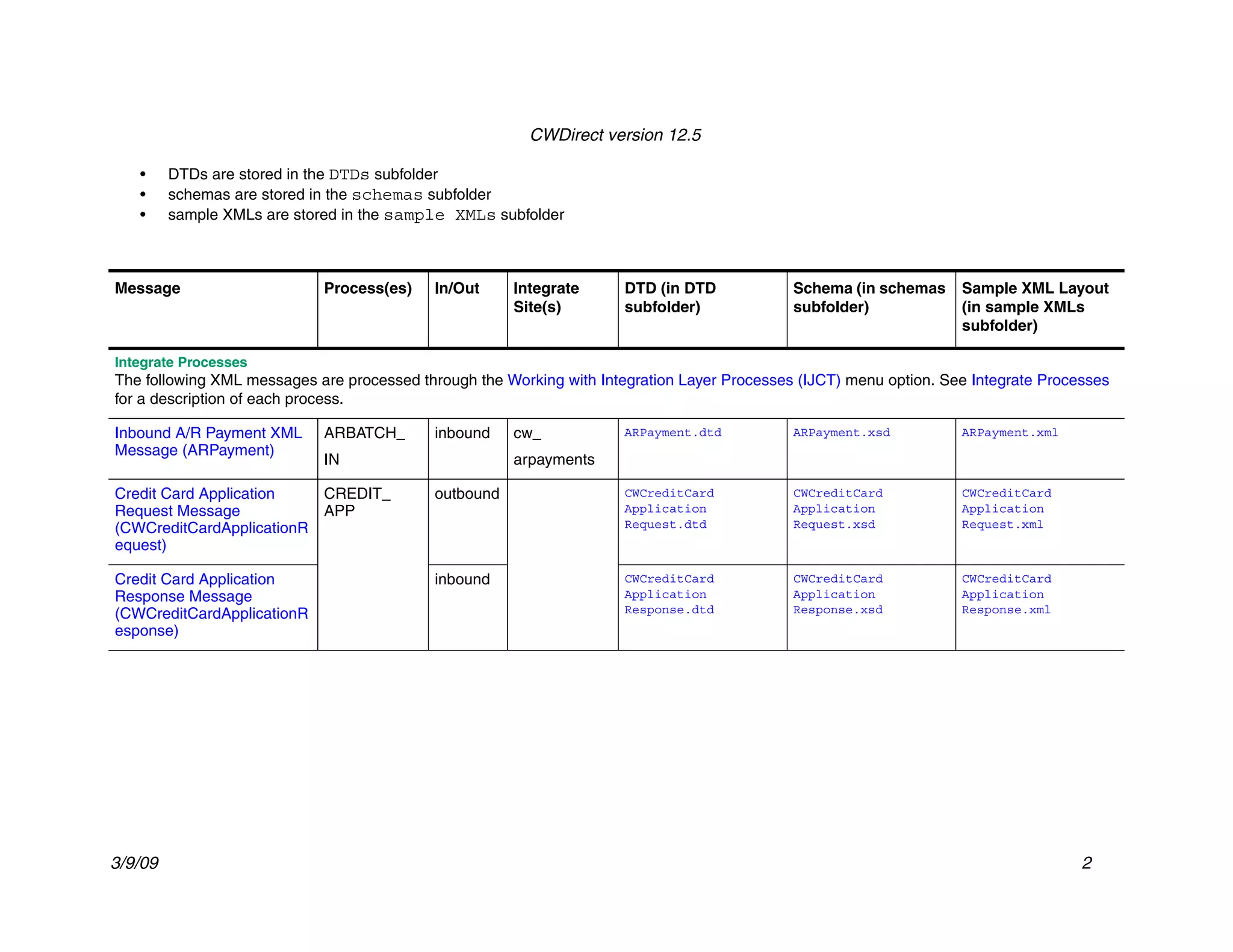

2. CWDirect version 12.5
• DTDs are stored in the DTDs subfolder
• schemas are stored in the schemas subfolder
• sample XMLs are stored in the sample XMLs subfolder
Message Process(es) In/Out Integrate DTD (in DTD Schema (in schemas Sample XML Layout
Site(s) subfolder) subfolder) (in sample XMLs
subfolder)
Integrate Processes
The following XML messages are processed through the Working with Integration Layer Processes (IJCT) menu option. See Integrate Processes
for a description of each process.
Inbound A/R Payment XML ARBATCH_ inbound cw_ ARPayment.dtd ARPayment.xsd ARPayment.xml
Message (ARPayment)
IN arpayments
Credit Card Application CREDIT_ outbound CWCreditCard CWCreditCard CWCreditCard
Request Message APP Application Application Application
(CWCreditCardApplicationR Request.dtd Request.xsd Request.xml
equest)
Credit Card Application inbound CWCreditCard CWCreditCard CWCreditCard
Response Message Application Application Application
(CWCreditCardApplicationR Response.dtd Response.xsd Response.xml
esponse)
3/9/09 2

3. CWDirect version 12.5
Message Process(es) In/Out Integrate DTD (in DTD Schema (in schemas Sample XML Layout
Site(s) subfolder) subfolder) (in sample XMLs
subfolder)
Authorization Request XML CCAUTH_ outbound cw_chase_ CWAuthorization CWAuthorization CWAuthorization
Message Request_1_0.dtd Request_1_0.xsd Request_1_0.xml
(CWAuthorizationRequest) BTH fdms
CWAuthorization CWAuthorization CWAuthorization
CCAUTH_ Request_2_0.dtd Request_2_0.xsd Request_2_0.xml
ONL cw_
CWAuthorization CWAuthorization CWAuthorization
SVC_ paymentech Request_3_0.dtd Request_3_0.xsd Request_3_0.xml
BALANC CWAuthorization CWAuthorization CWAuthorization
SVC_OUT cw_npc_ Request_4_0.dtd Request_4_0.xsd Request_4_0.xml
Authorization Response SVC_REVSL inbound multilink CWAuthorization CWAuthorization CWAuthorization
XML Message Response_1_0.dtd Response_1_0.xsd Response_1_0.xml
(CWAuthorizationResponse)
CWAuthorization CWAuthorization CWAuthorization
cw_
Response_2_0.dtd Response_2_0.xsd Response_2_0.xml
datavantage
CWAuthorization CWAuthorization CWAuthorization
Response_3_0.dtd Response_3_0.xsd Response_3_0.xml
cw_
valuecard
cw_
cybersource
3/9/09 3

4. CWDirect version 12.5
Message Process(es) In/Out Integrate DTD (in DTD Schema (in schemas Sample XML Layout
Site(s) subfolder) subfolder) (in sample XMLs
subfolder)
Deposit Request XML DEPOSITS outbound cw_chase_ CWDepositRequest CWDepositRequest CWDepositRequest
Message _1_0.dtd _1_0.xsd _1_0.xml
(CWDepositRequest) fdms
CWDepositRequest CWDepositRequest CWDepositRequest
_2_0.dtd _2_0.xsd _2_0.xml
cw_
CWDepositRequest CWDepositRequest CWDepositRequest
paymentech _3_0.dtd _3_0.xsd _3_0.xml
CWDepositRequest CWDepositRequest CWDepositRequest
cw_npc_ _4_0.dtd _4_0.xsd _4_0.xml
Deposit Response XML inbound multilink CWDepositResponse CWDepositResponse CWDepositResponse
Message _1_0.dtd _1_0.xsd _1_0.xml
(CWDepositResponse)
CWDepositResponse CWDepositResponse CWDepositResponse
cw_
_2_0.dtd _2_0.xsd _2_0.xml
datavantage
cw_valuecard
cw_
cybersource
Inbound Customer Message CUSTOMR_ inbound cw_store CWCustomerIn_1_0.dtd CWCustomerIn_1_0.xsd CWCustomerIn_1_0.xml
(CWCustomerIn)
IN CWCustomerIn_2_0.dtd CWCustomerIn_2_0.xsd CWCustomerIn_2_0.xml
3/9/09 4

5. CWDirect version 12.5
Message Process(es) In/Out Integrate DTD (in DTD Schema (in schemas Sample XML Layout
Site(s) subfolder) subfolder) (in sample XMLs
subfolder)
Inbound Customer Search CUST_SRCH inbound cw_store CWCustomerInqRequest CWCustomerInqRequest CWCustomerInqRequest
Message _1_0.dtd _1_0.xsd _1_0.xml
(CWCustomerInqRequest) CWCustomerInqRequest CWCustomerInqRequest CWCustomerInqRequest
_2_0.dtd _2_0.xsd _2_0.xml
Outbound Customer Search outbound cw_store CWCustomerInq CWCustomerInq CWCustomerInq
Response Response.dtd Response.xsd Response.xml
(CWCustomerInqResponse)
Customer History Request CUST_HIST inbound cw_store CWCUSTHISTIN_1_0.dtd CWCUSTHISTIN_1_0.xsd CWCUSTHISTIN_1_0.xml
XML Message (CustHistIn)
CWCUSTHISTIN_2_0.dtd CWCUSTHISTIN_2_0.xsd CWCUSTHISTIN_2_0.xml
Customer History Response outbound cw_store CWCUSTHISTOUT_1_0. CWCUSTHISTOUT_1_0. CWCUSTHISTOUT_1_0.
XML Message dtd xsd xml
(CWCUSTHISTOUT)
CWCUSTHISTOUT_2_0. CWCUSTHISTOUT_2_0. CWCUSTHISTOUT_2_0.
dtd xsd xml
Store21 Customer History outbound CWCUSTHISTOUTSTORE21 CWCUSTHISTOUTSTORE21 CWCUSTHISTOUTSTORE21
Response XML Message . dtd . xsd . xml
(CWCUSTHISTOUTSTORE
21)
3/9/09 5

6. CWDirect version 12.5
Message Process(es) In/Out Integrate DTD (in DTD Schema (in schemas Sample XML Layout
Site(s) subfolder) subfolder) (in sample XMLs
subfolder)
Detailed Order XML CUST_HIST outbound cw_store CWORDEROUT_1_0.dtd CWORDEROUT_1_0.xsd CWORDEROUT_1_0.xml
Response
ORDER_IN CWORDEROUT_2_0.dtd CWORDEROUT_2_0.xsd CWORDEROUT_2_0.xml
(CWORDEROUT) or
Summary Order Inquiry
CWORDEROUT_3_0.dtd CWORDEROUT_3_0.xsd CWORDEROUT_3_0.xml
Response XML Message
(CWORDEROUT) CWORDEROUT_4_0.dtd CWORDEROUT_4_0.xsd CWORDEROUT_4_0.xml
(see also Detailed Customer
History Response XML
Message (CWORDEROUT)
and Order
Acknowledgement XML
Message
(CWORDEROUT))
Email XML Message EMAIL inbound cw_email CWEmail.dtd CWEmail.xsd CWEmail.xml
(CWEmail)
Outbound Email XML EMAIL_OUT outbound CWEmailOut_1_0.dtd CWEmailOut_1_0.xsd CWEmailOut_1_0.xml
Message (CWEmailOut)
CWEmailOut_2_0.dtd CWEmailOut_2_0.xsd CWEmailOut_2_0.xml
Important:
Version 2.0 of the
CWEmailOut is required to
generate the backorder,
soldout, credit card credit,
and stored value card
notifications.
3/9/09 6

7. CWDirect version 12.5
Message Process(es) In/Out Integrate DTD (in DTD Schema (in schemas Sample XML Layout
Site(s) subfolder) subfolder) (in sample XMLs
subfolder)
Inventory Download XML INV_ outbound cw_store CWInventoryDownload_ CWInventoryDownload_ CWInventoryDownload_
Message DOWNLD 1_0.dtd 1_0.xsd 1_0.xml
(CWInventoryDownload)
CWInventoryDownload_ CWInventoryDownload_ CWInventoryDownload_
cw_merch 2_0.dtd 2_0.xsd 2_0.xml
locator
Inventory Inquiry Request INV_INQURY inbound cw_merch CWInventoryInquiry CWInventoryInquiry CWInventoryInquiry
XML Message locator _1_0.dtd _1_0.xsd _1_0.xml
(CWInventoryInquiry)
CWInventoryInquiry CWInventoryInquiry CWInventoryInquiry
_2_0.dtd _2_0.xsd _2_0.xml
Inventory Inquiry Response outbound cw_merch CWInventoryInquiry CWInventoryInquiry CWInventoryInquiry
XML Message locator Response_1_0.dtd Response_1_0.xsd Response_1_0.xml
(CWInventoryInquiryRespon
CWInventoryInquiry CWInventoryInquiry CWInventoryInquiry
se)
Response_2_0.dtd Response_2_0.xsd Response_2_0.xml
Invoice Download XML INVOICE_ outbound cw_store CWINVOICEOUT_2_0.dtd CWINVOICEOUT_2_0.xsd CWINVOICEOUT_2_0.xml
Message OUT
(CWINVOICEOUT) CWINVOICEOUT_3_0.dtd CWINVOICEOUT_3_0.xsd CWINVOICEOUT_3_0.xml
Note: Version 1.0 of the CWINVOICEOUT message is no longer supported.
Inventory Transaction INVTRANS_ inbound cw_store inCreateInvXaction. inCreateInvXaction. inCreateInvXaction.
Upload XML Message IN dtd xsd xml
(inCreateInvXaction)
Item Transaction History INVTRAN outbound CWInvXactionOut.dtd CWInvXactionOut.xsd CWInvXactionOut.xml
Outbound XML Message OUT
(CWInvXActionOut)
3/9/09 7

8. CWDirect version 12.5
Message Process(es) In/Out Integrate DTD (in DTD Schema (in schemas Sample XML Layout
Site(s) subfolder) subfolder) (in sample XMLs
subfolder)
Item Download XML ITEM_OUT outbound cw_store CWItemOut_1_0.dtd CWItemOut_1_0.xsd CWItemOut_1_0.xml
Message (CWITEMOUT)
CWItemOut_2_0.dtd CWItemOut_2_0.xsd CWItemOut_2_0.xml
cw_merch CWItemOut_3_0.dtd CWItemOut_3_0.xsd CWItemOut_3_0.xml
locator
CWItemOut_4_0.dtd CWItemOut_4_0.xsd CWItemOut_4_0.xml
CWItemOut_5_0.dtd CWItemOut_5_0.xsd CWItemOut_5_0.xml
CWItemOut_6_0.dtd CWItemOut_6_0.xsd CWItemOut_6_0.xml
Merchandise Locator MERCH_ outbound cw_merch CWMerchLocRequest. CWMerchLocRequest. CWMerchLocRequest.
Request XML Message LOC locator dtd xsd xml
(CWMerchLocRequest)
Merchandise Locator inbound cw_merch CWMerchLocResponse. CWMerchLocResponse. CWMerchLocResponse.
Response XML Message locator dtd xsd xml
(CWMerchLocResponse)
Order Broker Request XML BROKER_ outbound cw_locate CWOrderBrokerRequest CWOrderBrokerRequest CWOrderBrokerRequest
Message ORD .dtd .xsd .xml
(CWOrderBrokerRequest) BROKER_
STS
Order Broker Response inbound CWOrderBroker CWOrderBroker CWOrderBroker
XML Message Response.dtd Response.xsd Response.xml
(CWOrderBrokerResponse)
3/9/09 8

9. CWDirect version 12.5
Message Process(es) In/Out Integrate DTD (in DTD Schema (in schemas Sample XML Layout
Site(s) subfolder) subfolder) (in sample XMLs
subfolder)
Inbound Order XML ORDER_IN inbound cw_store CWORDERIN_1_0.dtd CWORDERIN_1_0.xsd CWORDERIN_1_0.xml
Message (CWORDERIN)
CWORDERIN_2_0.dtd CWORDERIN_2_0.xsd CWORDERIN_2_0.xml
CWORDERIN_3_0.dtd CWORDERIN_3_0.xsd CWORDERIN_3_0.xml
CWORDERIN_4_0.dtd CWORDERIN_4_0.xsd CWORDERIN_4_0.xml
CWORDERIN_5_0.dtd CWORDERIN_5_0.xsd CWORDERIN_5_0.xml
CWORDERIN_6_0.dtd CWORDERIN_6_0.xsd CWORDERIN_6_0.xml
Order Transaction History In CW_OTH inbound CWORDTRANSHSTIN.dtd CWORDTRANSHSTIN.xsd CWORDTRANSHSTIN.xml
Message
(CWORDTRANSHSTIN)
Order Line History In CW_OLH inbound CWORDLNHSTIN.dtd CWORDLNHSTIN.xsd CWORDLNHSTIN.xml
Message
(CWORDLNHSTIN)
Online Cash Payment PAYAPPROV outbound cw_ebillme CWPaymentApproval CWPaymentApproval CWPaymentApproval
Approval Request E Request_1_0.dtd Request_1_0.xsd Request_1_0.xml
(CWPaymentApprovalRequ
est)
Online Cash Payment inbound CWPaymentApproval CWPaymentApproval CWPaymentApproval
Approval Response Response_1_0.dtd Response_1_0.xsd Response_1_0.xml
(CWPaymentApprovalResp
onse)
Online Cash Payment PAYMENT_IN inbound cw_ebillme CWPayment CWPayment CWPayment
Confirmation Response ConfirmationResponse ConfirmationResponse ConfirmationResponse
(CWPaymentConfirmationR _1_0.dtd _1_0.xsd _1_0.xml
esponse)
3/9/09 9

10. CWDirect version 12.5
Message Process(es) In/Out Integrate DTD (in DTD Schema (in schemas Sample XML Layout
Site(s) subfolder) subfolder) (in sample XMLs
subfolder)
Pick Message from PICK_OUT outbound cw_scancode CWPickOut_1_0.dtd CWPickOut_1_0.xsd CWPickOut_1_0.xml
CWDirect (CWPickOut)
CWPickOut_2_0.dtd CWPickOut_2_0.xsd CWPickOut_2_0.xml
Promotional Pricing Request PROMOTION inbound CWPromotionalRequest CWPromotionalRequest CWPromotionalRequest
Message .dtd .xsd .xml
(CWPromotionalRequest)
Promotional Pricing outbound CWPromotional CWPromotional CWPromotional
Response Message Response.dtd Response.xsd Response.xml
(CWPromotionalResponse)
Return Request Message RETURN_IN inbound CWReturnIn.dtd CWReturnIn.xsd CWReturnIn.xml
(CWReturnIn)
Return Response Message outbound CWReturnOut.dtd CWReturnOut.xsd CWReturnOut.xml
(CWReturnOut)
Store Fulfillment Request STORE_ outbound cw_store StoreFulfillment StoreFulfillment StoreFulfillment
XML Message PKUP Request.dtd Request.xsd Request.xml
(StoreFulfillmentRequest)
Note: The StorePickupRequest message is no longer supported.
Stored Value Card Remote SVC_ outbound CWSVCRemoteOut.dtd CWSVCRemoteOut.xsd CWSVCRemoteOut.xml
Fulfillment Request REMOTE
(CWSVCRemoteOut)
Stored Value Card Remote inbound CWSVCRemoteIn.dtd CWSVCRemoteIn.xsd CWSVCRemoteIn.xml
Fulfillment Confirmation
(CWSVCRemoteIn)
Customer Merge XML TRIGGER_ outbound CWFileTransfer.dtd CWFileTransfer.xsd CWFileTransfer.xml
Message (CWFileTransfer) DL
3/9/09 10

11. CWDirect version 12.5
Message Process(es) In/Out Integrate DTD (in DTD Schema (in schemas Sample XML Layout
Site(s) subfolder) subfolder) (in sample XMLs
subfolder)
Generic Outbound Tax TAX_INT outbound CWTaxRequest.dtd CWTaxRequest.xsd CWTaxRequest.xml
Request Message
(CWTaxRequest)
Generic Inbound Tax TAX_INT inbound CWTaxResponse.dtd CWTaxResponse.xsd CWTaxResponse.xml
Response Message
(CWTaxResponse)
Vendor Download XML VENDOR_ outbound cw_store CWVENDOROUT_1_0.dtd CWVENDOROUT_1_0.xsd CWVENDOROUT_1_0.xml
Message OUT
(CWVENDOROUT) CWVENDOROUT_2_0.dtd CWVENDOROUT_2_0.xsd CWVENDOROUT_2_0.xml
Generic Workflow XML WORKFLOW inbound cw_workflow CWWORKFLOW.dtd CWWORKFLOW.xsd CWWORKFLOW.xml
Message (CWWorkflow)
E-Commerce Processes
The following XML messages are processed through the Working with E-Commerce Job Control (EJCT) menu option. See E-Commerce
Processes for a description of each process.
E-Commerce CUSTOMER inbound CWAddressChg.dtd CWAddressChg.xsd CWAddressChg.xml
Name/Address Change UPDATES
Message (CWAddressChg)
E-Commerce outbound CWCchgResponse.dtd CWCchgResponse.xsd CWCchgResponse.xml
Name/Address Change
Response Message
(CWCchgResponse)
3/9/09 11

12. CWDirect version 12.5
Message Process(es) In/Out Integrate DTD (in DTD Schema (in schemas Sample XML Layout
Site(s) subfolder) subfolder) (in sample XMLs
subfolder)
E-Commerce Item ITEM inbound CWItemAvail.dtd CWItemAvail.xsd CWItemAvail.xml
Availability Request AVAILABILIT
Message (CWItemAvail) Y
E-Commerce Item outbound CWAvailResponse.dtd CWAvailResponse.xsd CWAvailResponse.xml
Availability Response
Message
(CWAvailResponse)
E-Commerce Cancel CANCELS inbound CWCancel.dtd CWCancel.xsd CWCancel.xml
Request Message
(CWCancel)
E-Commerce Catalog CATALOG inbound CWCatRequest.dtd CWCatRequest.xsd CWCatRequest.xml
Request Message REQUESTS
(CWCatRequest)
E-Commerce Catalog outbound CWCatreqResponse.dtd CWCatreqResponse.xsd CWCatreqResponse.xml
Request Response
Message
(CWCatreqResponse)
E-Commerce New Order ORDER inbound CWCreateOrder.dtd CWCreateOrder.xsd CWCreateOrder.xml
Message (CWCreateOrder) PROCESS
ING
E-Commerce Payment ORDER inbound CWPayment.dtd CWPayment.xsd CWPayment.xml
Message (CWPayment) PAYMENT/
ACCEPT
3/9/09 12

13. CWDirect version 12.5
Message Process(es) In/Out Integrate DTD (in DTD Schema (in schemas Sample XML Layout
Site(s) subfolder) subfolder) (in sample XMLs
subfolder)
E-Commerce New Order ORDER outbound CWOrderResponse.dtd CWOrderResponse.xsd CWOrderResponse.xml
Response Message PROCESS
(CWOrderResponse) ING
ORDER
PAYMENT/
ACCEPT
E-Commerce Order ORDER inbound CWOrderReject.dtd CWOrderReject.xsd CWOrderReject.xml
Reject/Cancel Message REJECT/
(CWOrderReject) CANCEL
E-Commerce Order List ORDER inbound CWOrderList.dtd CWOrderList.xsd CWOrderList.xml
Message (CWOrderList) INQUIRY BY
CUSTOMER
E-Commerce Order List outbound CWListResponse.dtd CWListResponse.xsd CWListResponse.xml
Response Message
(CWListResponse)
E-Commerce Maintenance MAINTEN inbound CWMaintenance.dtd CWMaintenance.xsd CWMaintenance.xml
Request Message
ANCE
(CWMaintenance)
E-Commerce Maintenance outbound CWMaintResp.dtd CWMaintResp.xsd CWMaintResp.xml
Response Message
(CWMaintResp)
E-Commerce Return RETURNS inbound CWReturn.dtd CWReturn.xsd CWReturn.xml
Request Message
(CWReturn)
E-Commerce Return outbound CWReturnResponse.dtd CWReturnResponse.xsd CWReturnResponse.xml
Response Message
(CWReturnResponse)
3/9/09 13

14. CWDirect version 12.5
Message Process(es) In/Out Integrate DTD (in DTD Schema (in schemas Sample XML Layout
Site(s) subfolder) subfolder) (in sample XMLs
subfolder)
E-Commerce Order Status ORDER inbound CWOrderStatus.dtd CWOrderStatus.xsd CWOrderStatus.xml
Message (CWOrderStatus) STATUS/
INQUIRY
E-Commerce Order Status outbound CWStatusResponse.dtd CWStatusResponse.xsd CWStatusResponse.xml
Response Message
(CWStatusResponse)
WMS Processes
The following XML messages are processed through the Working with WMS MQ Job Control (WMJC) menu option. See WMS Processes for a
description of each process.
PkMS Customer Return CUSTOMER outbound cw_pkms CaseBridge_1_0.dtd CaseBridge_1_0.xsd CaseBridge_1_0.xml
XML Message RETURNS
(CaseBridge_1_0) EXPORT
Generic WMS Customer outbound cw_pkms CWCustomerReturn_1_0 CWCustomerReturn_1_0 CWCustomerReturn_1_0
Return XML Message .dtd .xsd .xml
(CWCustomerReturn)
CWCustomerReturn_2_0 CWCustomerReturn_2_0 CWCustomerReturn_2_0
.dtd .xsd .xml
PkMS Immediate Needs IMMDIATE outbound cw_pkms ImmediateNeeds_1_0.d ImmediateNeeds_1_0.x ImmediateNeeds_1_0.x
XML Message NEEDS td sd ml
(ImmediateNeeds_1_0) EXPORT
Generic WMS Immediate outbound cw_pkms CWImmediateNeeds.dtd CWImmediateNeeds.xsd CWImmediateNeeds.xml
Needs XML Message
(CWImmediateNeeds)
PkMS Batch Invoice XML INVOICES inbound cw_pkms Invoice_1_0.dtd Invoice_1_0.xsd Invoice_1_0.xml
Message (Invoice_1_0)
Generic WMS Invoice XML GENERIC inbound cw_pkms CWInvoices.dtd CWInvoices.xsd CWInvoices.xml
Message (CWInvoices) INVOICES
3/9/09 14

15. CWDirect version 12.5
Message Process(es) In/Out Integrate DTD (in DTD Schema (in schemas Sample XML Layout
Site(s) subfolder) subfolder) (in sample XMLs
subfolder)
PkMS Item XML Message ITEM outbound cw_pkms ItemMaster_1_0.dtd ItemMaster_1_0.xsd ItemMaster_1_0.xml
(ItemMaster_1_0) EXPORT
Generic WMS Item XML outbound cw_pkms CWItem_1_0.dtd CWItem_1_0.xsd CWItem_1_0.xml
Message (CWItem)
CWItem_2_0.dtd CWItem_2_0.xsd CWItem_2_0.xml
Generic WMS Item Notes ITEM NOTES outbound cw_pkms CWItemNotes.dtd CWItemNotes.xsd CWItemNotes.xml
XML Message EXPORT
(CWItemNotes)
PkMS Pick XML Message PICK TICKET outbound cw_pkms Pickticket_1_0.dtd Pickticket_1_0.xsd Pickticket_1_0.xml
(Pickticket_1_0) EXPORT
PkMS Stop Shipment STOP
Request XML Message SHIPMENTS
(Pickticket_1_0)
Generic WMS Pick XML PICK TICKET outbound cw_pkms CWPickTicket.dtd CWPickTicket.xsd CWPickTicket.xml
Message (CWPickTicket) EXPORT
PkMS PIX XML Message PIX_PKMS inbound cw_pkms PIX_1_0.dtd PIX_1_0.xsd PIX_1_0.xml
(PIX_1_0)
Generic WMS PIX XML GENERIC inbound cw_pkms CWPix.dtd CWPix.xsd CWPix.xml
Message (CWPIX) PIX
TRANSACTI
ON
3/9/09 15

16. CWDirect version 12.5
Message Process(es) In/Out Integrate DTD (in DTD Schema (in schemas Sample XML Layout
Site(s) subfolder) subfolder) (in sample XMLs
subfolder)
PkMS PO XML Message PURCHASE outbound cw_pkms InboundASN_1_0.dtd InboundASN_1_0.xsd InboundASN_1_0.xml
(InboundASN_1_0) ORDERS
EXPORT
Generic WMS PO XML outbound cw_pkms CWPurchaseOrder.dtd CWPurchaseOrder.xsd CWPurchaseOrder.xml
Message
(CWPurchaseOrder)
Generic WMS Stop STOP outbound cw_pkms CWStopShipment.dtd CWStopShipment.xsd CWStopShipment.xml
Shipment Request XML SHIPMENTS
Message
(CWStopShipment)
PkMS Vendor XML VENDOR outbound cw_pkms VendorMaster_1_0.dtd VendorMaster_1_0.xsd VendorMaster_1_0.xml
Message EXPORT
(VendorMaster_1_0, VendorContact_1_0. VendorContact_1_0. VendorContact_1_0.
dtd xsd xml
VendorContact_1_0)
Generic WMS Vendor XML outbound cw_pkms CWVendor.dtd CWVendor.xsd CWVendor.xml
Message (CWVendor)
Generic WMS Vendor VENDOR outbound cw_pkms CWVendorContacts.dtd CWVendorContacts.xsd CWVendorContacts.xml
Contacts XML Message CONTACTS
(CWVendorContacts) EXPORT
Generic WMS Vendor Notes VENDOR outbound cw_pkms CWVendorNotes.dtd CWVendorNotes.xsd CWVendorNotes.xml
XML Message NOTES
(CWVendorNotes) EXPORT
Retail Integration Processes
The following XML messages are processed through the Retail Integration Job Control (RIJC) menu option. See ASYNC Processes for the Retail
Integration (from an External System into CWDirect) for a description of each process.
3/9/09 16

17. Process(es) In/Out Integrate DTD (in DTD Schema (in schemas Sample XML Layout
Contents
Site(s) subfolder) subfolder) (in sample XMLs
subfolder)
age ITEM inbound CWCreateItem.dtd CWCreateItem.xsd Index
CWCreateItem.xml
UPLOAD
onse outbound item_upload_response item_upload_response item_upload_response
.dtd .xsd .xml Glossary
ponse)
ge Upload RETAIL inbound CWPriceChange.dtd CWPriceChange.xsd CWPriceChange.xml
ceChange) PRICE SCVs
CHANGE
UPLD
Secured Features
Reports
Files/Fields
E-Commerce Guide
XML Formats
CWDirect 12.5 XML Messages 17
