Serverless Security
defense against the
dark arts
Shared Responsibility Model
Shared Responsibility Model
protection from OS attacks
Amazon automatically apply latest patches to host VMs
Shared Responsibility Model
still have to patch your code
vulnerable code, 3rd party dependencies, etc.
https://snyk.io/blog/owasp-top-10-breaches
https://snyk.io/blog/owasp-top-10-breaches
Known Vulnerable Components cause 24% of the top 50 data breaches
https://snyk.io/blog/77-percent-of-sites-use-vulnerable-js-libraries
http://bit.ly/2topw5I
use prepared statements
sanitise inputs & outputs
(standardise and encapsulate into shared lib)
security is as much about what your function
should do as well as what it shouldn’t do
(protect against data exfiltration)
http://bit.ly/2gSHtay
Broken Access Control
Insecure Direct Object Reference
Information Leakage
GraphQL Injection
http://bit.ly/2uKhGXF
Yan Cui
http://theburningmonk.com
@theburningmonk
AWS user for 10 years
http://bit.ly/yubl-serverless
Yan Cui
http://theburningmonk.com
@theburningmonk
Developer Advocate @
Yan Cui
http://theburningmonk.com
@theburningmonk
Independent Consultant
advisetraining delivery
theburningmonk.com/courses
theburningmonk.com/courses
realworldserverless.com
app dependencies
is a
attack surface
BIGGER
than you think
your dependencies
your dependencies
transient dependencies
https://david-dm.org/request/request?view=tree
https://snyk.io
security updates are often
bundled with unrelated
feature and API changes
your security is as strong
as its weakest link

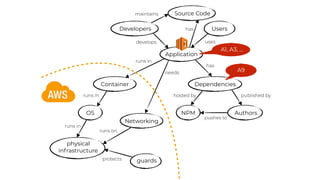

OS
Application
Dependencies
physical
infrastructure
NPM Authors
Container
runs in
runs in
runs in
has
hosted by published ...
OS
Application
Dependencies
physical
infrastructure
NPM Authors
Container
runs in
runs in
runs in
has
hosted by published ...
OS
Dependencies
physical
infrastructure
NPM Authors
Container
runs in
runs in
runs in
has
hosted by published by
pushes to...
people are often the WEAKEST link
in the security chain
OS
Dependencies
physical
infrastructure
NPM Authors
Container
runs in
runs in
runs in
has
hosted by published by
pushes to...
OS
Dependencies
physical
infrastructure
NPM Authors
Container
runs in
runs in
runs in
has
hosted by published by
pushes to...
OS
Dependencies
physical
infrastructure
NPM Authors
Container
runs in
runs in
runs in
has
hosted by published by
pushes to...
http://bit.ly/2sFDwYX
…obtained publish access to 14% of npm packages…
http://bit.ly/2sFDwYX
debug, request, react, co, express, moment, gulp, mongoose, mysql, bower,
browserify, electron, jasm...
http://bit.ly/2sFDwYX
total downloads/month of the unique packages which I got
myself publish access to was 1 972 421 945,...
20% of all monthly NPM downloads…
brute force
known account leaks from other sources
leaked NPM credentials (github, etc.)
http://bit.ly/2sFDwYX
http://bit.ly/2sFDwYX
662 users had password “123456”
172 — “123”
124 — “password”
WTF!?!?
oh god, that was too easy…
compromised package is a
transient dependency
sigh…
still “works”…
npmjs.com/~hacktask
rm -rf /!!!
NPM default - get latest
“compatible” version, ie. 1.X.X
clean install (eg. on CI server) will
download the latest, compromised
package without any code change…
NPM default - get ...
use `npm ci` in CI environment
not specific to Node.js or NPM
the attackers are in…
the attackers are in…
what now?
Shared Responsibility Model
who can invoke the function?
what can the function access?
Least Privilege Principle
everything here
is trusted
sensitive data
http://bit.ly/2zHvbcB
always public
access is controlled via IAM
compromised servers allow
attacker to access all of
your sensitive data!
implement authentication and
authorization for every API
aka. zero-trust networking
Which auth method
should I use?
https://theburningmonk.com/2020/06/how-to-choose-the-right-api-gateway-auth-method
https://theburningmonk.com/2020/06/how-to-choose-the-right-api-gateway-auth-method
https://theburningmonk.com/2020/06/how-to-choose-the-right-api-gateway-auth-method
https://theburningmonk.com/2020/06/how-to-choose-the-right-api-gateway-auth-method
https://theburningmonk.com/2020/06/how-to-choose-the-right-api-gateway-auth-method
DON’T authenticate in the
API function itself!
minimise function’s access
requires developer discipline
AWS Lambda
docs
Write your Lambda function
code in a stateless style, and
ensure there is no affinity
between your code and...
S3
AWS IoT
DynamoDB
RDS
EventStore
Elasticsearch Couchbase
Redshift
Neo4j
Google BigQuery
secure sensitive data both
at rest and in-transit
leverage server-side encryption
http://amzn.to/1N3Twb8
http://amzn.to/1xF41eX
http://amzn.to/2tgvFR2
https://amzn.to/2DaXFwA
Least Privilege Principle
Disposability is a virtue
AWS Lambda
docs
Delete old Lambda functions that
you are no longer using.
http://amzn.to/2jzLmkb
easier said than done…
identifying component
ownership in a big IT
organization is challenging
identifying ownership of
individual functions is
much harder
tag every function with Team name
source: http://www.digitalattackmap.com
more likely to scale through
DoS attacks
DoS + per exec billing =
Denial of Wallet problem
configure WAF rules on
API Gateway or CloudFront
review the default API Gateway
throttling settings
AWS Shield Advanced also gives you access to the AWS DDoS
Response Team (DRT) and protection against DDoS related
spikes i...
avoid (unnecessary) long timeouts
alert on error rate
cryptojacking
http://bit.ly/2tlGTbc
monitor activities in unused regions
using CloudWatch Events
disable inactive regions & services
using AWS Organization and SCPs
https://github.com/OlafConijn/AwsOrganizationFormation
https://www.youtube.com/watch?v=mLAGHzidHJ0
watertight compartments that can contain water in
the case of hull breach or other leaks
Michael Nygard
least privilege principle
per function policies
account level isolation
@theburningmonk theburningmonk.com
Recap
app dependencies
is a
attack surface
BIGGER
than you think
sanitise inputs and outputs
Least Privilege Principle
here’s your per function policy
NEXT!
S3
AWS IoT
DynamoDB
RDS
EventStore
Elasticsearch Couchbase
Redshift
Neo4j
Google BigQuery
encrypt data at rest
S3
AWS IoT
DynamoDB
RDS
EventStore
Elasticsearch Couchbase
Redshift
Neo4j
Google BigQuery
and in-transit
delete unused functions.
DoS DoW*
* Denial of Wallet
don’t be an unwilling bit miner
don’t be an unwilling bit miner
safeguard your credentials…
prod dev
compartmentalise breaches
people are often the WEAKEST link
in the security chain
@theburningmonk theburningmonk.com
lambdabestpractice.com
https://theburningmonk.com/hire-me
AdviseTraining Delivery
“Fundamentally, Yan has improved our team by increasing our
abi...
@theburningmonk
theburningmonk.com
github.com/theburningmonk
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Serverless Security: Defence Against the Dark Arts
Upcoming SlideShare
Loading in …5
×

Serverless Security: Defence Against the Dark Arts

Recording: https://www.youtube.com/watch?v=bnXp29kQIwU
Real-world serverless podcast: https://realworldserverless.com
Learn Lambda best practices: https://lambdabestpractice.com
Blog: https://theburningmonk.com
Consulting services: https://theburningmonk.com/hire-me
Production-Ready Serverless workshop: https://productionreadyserverless.com

AWS has taken over the responsibilities of patching the OS and securing the underlying physical infrastructure that runs your serverless application, so what’s left for you to secure? Quite a bit it turns out.

The OWASP top 10 is as relevant to you as ever; DOS attacks are still a threat even if you can probably brute force your way through it as AWS auto-scales Lambda functions automatically; and did you know attackers can easily steal your AWS credentials via your application dependencies?

In addition to the traditional threats, serverless applications have more granular deployment units and therefore there are more things to configure and secure, and the tools and practices are still catching up with this fast-changing world.

  • Be the first to comment

  • Be the first to like this

Serverless Security: Defence Against the Dark Arts

  1. 1. Serverless Security defense against the dark arts
  2. 2. Shared Responsibility Model
  3. 3. Shared Responsibility Model
  4. 4. protection from OS attacks Amazon automatically apply latest patches to host VMs
  5. 5. Shared Responsibility Model
  6. 6. still have to patch your code vulnerable code, 3rd party dependencies, etc.
  7. 7. https://snyk.io/blog/owasp-top-10-breaches
  8. 8. https://snyk.io/blog/owasp-top-10-breaches Known Vulnerable Components cause 24% of the top 50 data breaches
  9. 9. https://snyk.io/blog/77-percent-of-sites-use-vulnerable-js-libraries
  10. 10. http://bit.ly/2topw5I
  11. 11. use prepared statements
  12. 12. sanitise inputs & outputs (standardise and encapsulate into shared lib)
  13. 13. security is as much about what your function should do as well as what it shouldn’t do (protect against data exfiltration)
  14. 14. http://bit.ly/2gSHtay Broken Access Control Insecure Direct Object Reference Information Leakage GraphQL Injection
  15. 15. http://bit.ly/2uKhGXF
  16. 16. Yan Cui http://theburningmonk.com @theburningmonk AWS user for 10 years
  17. 17. http://bit.ly/yubl-serverless
  18. 18. Yan Cui http://theburningmonk.com @theburningmonk Developer Advocate @
  19. 19. Yan Cui http://theburningmonk.com @theburningmonk Independent Consultant advisetraining delivery
  20. 20. theburningmonk.com/courses
  21. 21. theburningmonk.com/courses
  22. 22. realworldserverless.com
  23. 23. app dependencies is a attack surface BIGGER than you think
  24. 24. your dependencies
  25. 25. your dependencies transient dependencies
  26. 26. https://david-dm.org/request/request?view=tree
  27. 27. https://snyk.io
  28. 28. security updates are often bundled with unrelated feature and API changes
  29. 29. your security is as strong as its weakest link
  30. 30. OS Application Dependencies physical infrastructure NPM Authors Container runs in runs in runs in has hosted by published by pushes to Developers develops uses Users guardsprotects Networking runs on needs Source Code has maintains
  31. 31. OS Application Dependencies physical infrastructure NPM Authors Container runs in runs in runs in has hosted by published by pushes to Developers develops uses Users guardsprotects Networking needs runs on this is where an attacker will target in a movie Source Code has maintains
  32. 32. OS Dependencies physical infrastructure NPM Authors Container runs in runs in runs in has hosted by published by pushes to Developers develops uses Users guardsprotects Application A9 Networking runs on needs Source Code has maintains A1, A3, …
  33. 33. people are often the WEAKEST link in the security chain
  34. 34. OS Dependencies physical infrastructure NPM Authors Container runs in runs in runs in has hosted by published by pushes to Developers develops uses Users guardsprotects Application phishing… Networking runs on needs Source Code has maintains
  35. 35. OS Dependencies physical infrastructure NPM Authors Container runs in runs in runs in has hosted by published by pushes to Developers develops uses Users guardsprotects Application brute force, known account leaks, … Networking runs on needs Source Code has maintains
  36. 36. OS Dependencies physical infrastructure NPM Authors Container runs in runs in runs in has hosted by published by pushes to Developers develops uses Users guardsprotects Application brute force, known account leaks, … Networking runs on needs Source Code has maintains
  37. 37. http://bit.ly/2sFDwYX …obtained publish access to 14% of npm packages…
  38. 38. http://bit.ly/2sFDwYX debug, request, react, co, express, moment, gulp, mongoose, mysql, bower, browserify, electron, jasmine, cheerio, modernizr, redux, …
  39. 39. http://bit.ly/2sFDwYX total downloads/month of the unique packages which I got myself publish access to was 1 972 421 945, that’s 20% of the total number of d/m directly.
  40. 40. 20% of all monthly NPM downloads…
  41. 41. brute force known account leaks from other sources leaked NPM credentials (github, etc.)
  42. 42. http://bit.ly/2sFDwYX
  43. 43. http://bit.ly/2sFDwYX 662 users had password “123456” 172 — “123” 124 — “password”
  44. 44. WTF!?!?
  45. 45. oh god, that was too easy…
  46. 46. compromised package is a transient dependency sigh…
  47. 47. still “works”…
  48. 48. npmjs.com/~hacktask
  49. 49. rm -rf /!!!
  50. 50. NPM default - get latest “compatible” version, ie. 1.X.X
  51. 51. clean install (eg. on CI server) will download the latest, compromised package without any code change… NPM default - get latest “compatible” version, ie. 1.X.X
  52. 52. use `npm ci` in CI environment
  53. 53. not specific to Node.js or NPM
  54. 54. the attackers are in…
  55. 55. the attackers are in… what now?
  56. 56. Shared Responsibility Model
  57. 57. who can invoke the function?
  58. 58. what can the function access?
  59. 59. Least Privilege Principle
  60. 60. everything here is trusted
  61. 61. sensitive data
  62. 62. http://bit.ly/2zHvbcB
  63. 63. always public access is controlled via IAM
  64. 64. compromised servers allow attacker to access all of your sensitive data!
  65. 65. implement authentication and authorization for every API aka. zero-trust networking
  66. 66. Which auth method should I use?
  67. 67. https://theburningmonk.com/2020/06/how-to-choose-the-right-api-gateway-auth-method
  68. 68. https://theburningmonk.com/2020/06/how-to-choose-the-right-api-gateway-auth-method
  69. 69. https://theburningmonk.com/2020/06/how-to-choose-the-right-api-gateway-auth-method
  70. 70. https://theburningmonk.com/2020/06/how-to-choose-the-right-api-gateway-auth-method
  71. 71. https://theburningmonk.com/2020/06/how-to-choose-the-right-api-gateway-auth-method
  72. 72. DON’T authenticate in the API function itself!
  73. 73. minimise function’s access
  74. 74. requires developer discipline
  75. 75. AWS Lambda docs Write your Lambda function code in a stateless style, and ensure there is no affinity between your code and the underlying compute infrastructure. http://amzn.to/2jzLmkb
  76. 76. S3 AWS IoT DynamoDB RDS EventStore Elasticsearch Couchbase Redshift Neo4j Google BigQuery
  77. 77. secure sensitive data both at rest and in-transit
  78. 78. leverage server-side encryption
  79. 79. http://amzn.to/1N3Twb8
  80. 80. http://amzn.to/1xF41eX
  81. 81. http://amzn.to/2tgvFR2
  82. 82. https://amzn.to/2DaXFwA
  83. 83. Least Privilege Principle
  84. 84. Disposability is a virtue
  85. 85. AWS Lambda docs Delete old Lambda functions that you are no longer using. http://amzn.to/2jzLmkb
  86. 86. easier said than done…
  87. 87. identifying component ownership in a big IT organization is challenging
  88. 88. identifying ownership of individual functions is much harder
  89. 89. tag every function with Team name
  90. 90. source: http://www.digitalattackmap.com
  91. 91. more likely to scale through DoS attacks
  92. 92. DoS + per exec billing = Denial of Wallet problem
  93. 93. configure WAF rules on API Gateway or CloudFront
  94. 94. review the default API Gateway throttling settings
  95. 95. AWS Shield Advanced also gives you access to the AWS DDoS Response Team (DRT) and protection against DDoS related spikes in your ELB, CloudFront or Route 53 charges.
  96. 96. avoid (unnecessary) long timeouts
  97. 97. alert on error rate
  98. 98. cryptojacking
  99. 99. http://bit.ly/2tlGTbc
  100. 100. monitor activities in unused regions using CloudWatch Events
  101. 101. disable inactive regions & services using AWS Organization and SCPs
  102. 102. https://github.com/OlafConijn/AwsOrganizationFormation
  103. 103. https://www.youtube.com/watch?v=mLAGHzidHJ0
  104. 104. watertight compartments that can contain water in the case of hull breach or other leaks
  105. 105. Michael Nygard
  106. 106. least privilege principle
  107. 107. per function policies
  108. 108. account level isolation
  109. 109. @theburningmonk theburningmonk.com
  110. 110. Recap
  111. 111. app dependencies is a attack surface BIGGER than you think
  112. 112. sanitise inputs and outputs
  113. 113. Least Privilege Principle
  114. 114. here’s your per function policy NEXT!
  115. 115. S3 AWS IoT DynamoDB RDS EventStore Elasticsearch Couchbase Redshift Neo4j Google BigQuery encrypt data at rest
  116. 116. S3 AWS IoT DynamoDB RDS EventStore Elasticsearch Couchbase Redshift Neo4j Google BigQuery and in-transit
  117. 117. delete unused functions.
  118. 118. DoS DoW* * Denial of Wallet
  119. 119. don’t be an unwilling bit miner
  120. 120. don’t be an unwilling bit miner safeguard your credentials…
  121. 121. prod dev compartmentalise breaches
  122. 122. people are often the WEAKEST link in the security chain
  123. 123. @theburningmonk theburningmonk.com lambdabestpractice.com
  124. 124. https://theburningmonk.com/hire-me AdviseTraining Delivery “Fundamentally, Yan has improved our team by increasing our ability to derive value from AWS and Lambda in particular.” Nick Blair Tech Lead
  125. 125. @theburningmonk theburningmonk.com github.com/theburningmonk

×
