Writing multimedia applications with Grilo
The document discusses the initialization of a digicam manager class in the Grilo framework, which simplifies multimedia content discovery for developers through a single API and plugins. It highlights the metadata requirements and retrieval strategies, addressing the challenges of source compatibility and performance. Additionally, it outlines interactions with services like Gnome Music, emphasizing the handling of music-related metadata in a distinct way.
More Related Content
Similar to Writing multimedia applications with Grilo
Writing multimedia applications with Grilo
- 1. static void _g_digicam_manager_class_init (GDigicamManagerClass *klass) { GObjectClass*object_class = (GObjectClass*) klass; g_assert (G_DIGICAM_IS_MANAGER_CLASS (klass)); parent_class = g_type_class_peek_parent (klass); g_type_class_add_private (klass, sizeof (GDigicamManagerPrivate)); /* Override virtual functions */ object_class->finalize = _g_digicam_manager_finalize; /** * GDigicamManager::focus-done: * @manager: the gdigicam manager Juan A. Suárez Romero jasuarez@igalia.com Writing multimedia applications with Grilo
- 2.
- 3.
- 4.

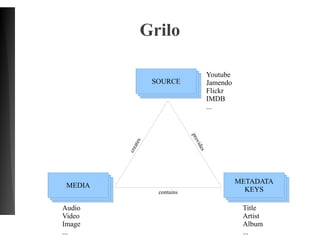

- 5. Grilo ● Framework focusedon making discovery and browsing easy for application developers ● A single, high-level API for all the sources ● Plugins ● Provides access to multimedia content ● Extendable
- 6.
- 7.
- 8.
- 9. Requirements ● Define whatwe need ● Type of content – Any kind? – Only video? Music? ● Metadata keys – URL – Title – Thumbnail – ... 55 metadata keys
- 10. Content to show ●Ignore any source that does not provide Videos ● In “browse” view, ignore any source that does not support browsing ● In “search” view, ignore any source that does not support searching
- 11. Information to show -Title - Author - Duration - Thumbnail - URL - Title - Author - Duration - Thumbnail - URL Browse Search
- 12. Invoke Grilo - Title -Author - Duration - Thumbnail - URL - Title - Author - Duration - Thumbnail - URL Browse Search
- 13. Problems ● Two problemsto solve ● Source not handling some keys ● Too much expensive to retrieve some keys
- 14. Totem ● Flags tocontrol content retrieval ● Normal: provides the known requested content – GRL_RESOLVE_NORMAL ● Fast only: provides the known requested content that does not penalize the operation in terms of performance – GRL_RESOLVE_FAST_ONLY ● Full: provides the known requested content using all the available sources – GRL_RESOLVE_FULL
- 15. Reduce the problems ●Request content in chunks ● Request fast only in first iteration ● While current chunk is visible ● Ask for each visible media element the discarded keys (using full flag) ● URL key case: slow key and not shown in the UI ● Request it when user wants to play
- 16.
- 17.
- 18. GNOME Music ● Musicdefines its own structure ● Grilo's one is different ● Does not have concept of “Artist” or “Album” ● They are “boxes” ● Needs to sort the results
- 19.
- 20. Approaches ● Request contentfrom Tracker directly ● Create Grilo Media elements to add missing information (Cover Art) ● Instruct Grilo's Tracker plugin how to construct the medias ● Use query() function ● Very specific to the plugin ● In case of Tracker plugin, use SPARQL to make the query – First column is the media to build – Use alias to map each SPARQL column to specific metadata keys
- 21.
- 22. Other use-cases ● Applicationto upload audio/video content to web services ● store() function ● Mediaplayer with auto-resume ● “playback-interrupted-time” key ● store_metadata() function – Metadata Store source handles it
- 23. Show me acode
- 24. Resources ● Wiki ● http://live.gnome.org/Grilo ●Source code ● git://git.gnome.org/grilo ● git://git.gnome.org/grilo-plugins ● IRC ● #grilo at irc.gnome.org ● Mailing list ● http://mail.gnome.org/mailman/listinfo/grilo-list
