The document describes a workflow and Ruby gem called T1k that is used to link Trello cards to GitHub issues and code commits. It allows creating an issue from a Trello card, updating the card with the issue ID, checking out a branch with the issue ID, committing code with a reference to the issue, syncing the branch with master, and pushing the code. The T1k gem handles the interactions with Trello and GitHub APIs to enable this workflow.

1. Workflow Nel

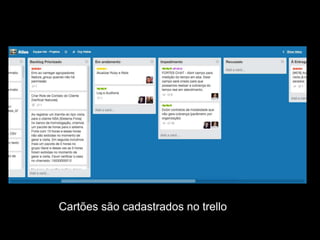

2. Cartões são cadastrados no trello

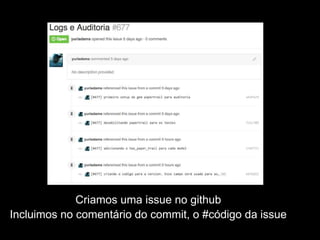

3. Criamos uma issue no github
Incluimos no comentário do commit, o #código da issue

4. hack && ship
(Hashrocket)

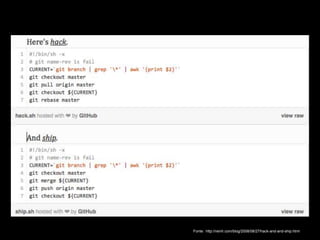

5. http://reinh.com/blog/2008/08/27/hack-and-and-ship.htmlFonte:

6. t1k

9. t1k:hack

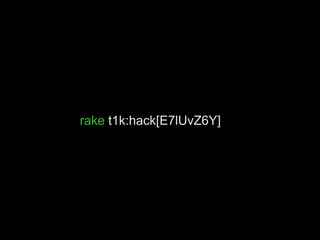

10. rake t1k:hack[E7lUvZ6Y]

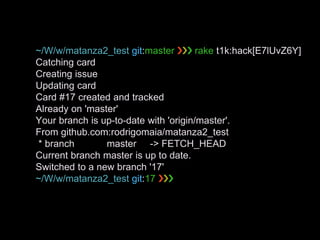

11. ~/W/w/matanza2_test git:master ❯❯❯ rake t1k:hack[E7lUvZ6Y]
Catching card
Creating issue
Updating card
Card #17 created and tracked
Already on 'master'
Your branch is up-to-date with 'origin/master'.
From github.com:rodrigomaia/matanza2_test
* branch master -> FETCH_HEAD
Current branch master is up to date.
Switched to a new branch '17'
~/W/w/matanza2_test git:17 ❯❯❯

13. t1k:commit

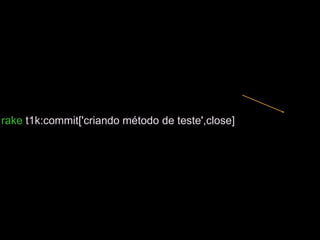

14. rake t1k:commit['criando método de teste',close]

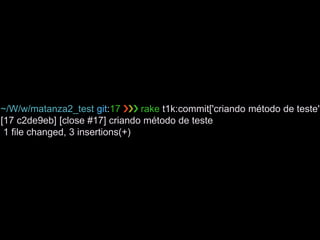

15. ~/W/w/matanza2_test git:17 ❯❯❯ rake t1k:commit['criando método de teste',
[17 c2de9eb] [close #17] criando método de teste
1 file changed, 3 insertions(+)

16. t1k:sink

17. rake t1k:sink

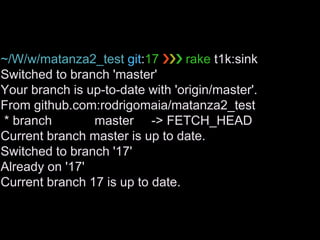

18. ~/W/w/matanza2_test git:17 ❯❯❯ rake t1k:sink
Switched to branch 'master'
Your branch is up-to-date with 'origin/master'.
From github.com:rodrigomaia/matanza2_test
* branch master -> FETCH_HEAD
Current branch master is up to date.
Switched to branch '17'
Already on '17'
Current branch 17 is up to date.

19. t1k:ship

20. rake t1k:ship

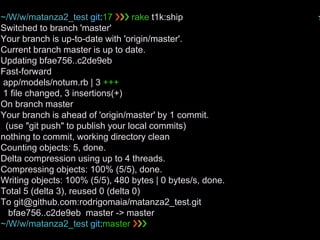

21. ~/W/w/matanza2_test git:17 ❯❯❯ rake t1k:ship ✭
Switched to branch 'master'
Your branch is up-to-date with 'origin/master'.
Current branch master is up to date.
Updating bfae756..c2de9eb
Fast-forward
app/models/notum.rb | 3 +++
1 file changed, 3 insertions(+)
On branch master
Your branch is ahead of 'origin/master' by 1 commit.
(use "git push" to publish your local commits)
nothing to commit, working directory clean
Counting objects: 5, done.
Delta compression using up to 4 threads.
Compressing objects: 100% (5/5), done.
Writing objects: 100% (5/5), 480 bytes | 0 bytes/s, done.
Total 5 (delta 3), reused 0 (delta 0)
To git@github.com:rodrigomaia/matanza2_test.git
bfae756..c2de9eb master -> master
~/W/w/matanza2_test git:master ❯❯❯

23. Como usar?

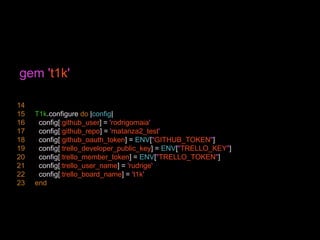

24. gem 't1k'
14
15 T1k.configure do |config|
16 config[:github_user] = 'rodrigomaia'
17 config[:github_repo] = 'matanza2_test'
18 config[:github_oauth_token] = ENV["GITHUB_TOKEN"]
19 config[:trello_developer_public_key] = ENV["TRELLO_KEY"]
20 config[:trello_member_token] = ENV["TRELLO_TOKEN"]
21 config[:trello_user_name] = 'rudrige'
22 config[:trello_board_name] = 't1k'
23 end

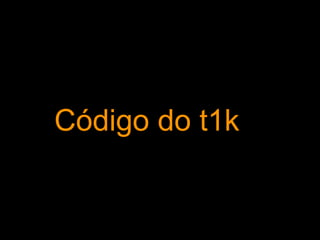

25. Código do t1k

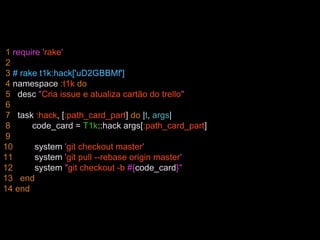

26. 1 require 'rake'
2
3 # rake t1k:hack['uD2GBBMf']
4 namespace :t1k do
5 desc "Cria issue e atualiza cartão do trello"
6
7 task :hack, [:path_card_part] do |t, args|
8 code_card = T1k::hack args[:path_card_part]
9
10 system 'git checkout master'
11 system 'git pull --rebase origin master'
12 system "git checkout -b #{code_card}"
13 end
14 end

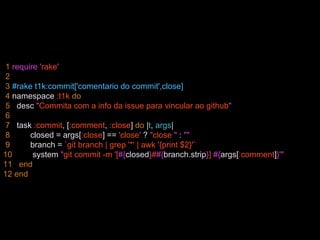

27. 1 require 'rake'
2
3 #rake t1k:commit['comentario do commit',close]
4 namespace :t1k do
5 desc "Commita com a info da issue para vincular ao github"
6
7 task :commit, [:comment, :close] do |t, args|
8 closed = args[:close] == 'close' ? "close " : ""
9 branch = `git branch | grep '*' | awk '{print $2}'`
10 system "git commit -m '[#{closed}##{branch.strip}] #{args[:comment]}'"
11 end
12 end

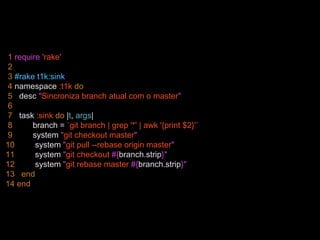

28. 1 require 'rake'
2
3 #rake t1k:sink
4 namespace :t1k do
5 desc "Sincroniza branch atual com o master"
6
7 task :sink do |t, args|
8 branch = `git branch | grep '*' | awk '{print $2}'`
9 system "git checkout master"
10 system "git pull --rebase origin master"
11 system "git checkout #{branch.strip}"
12 system "git rebase master #{branch.strip}"
13 end
14 end

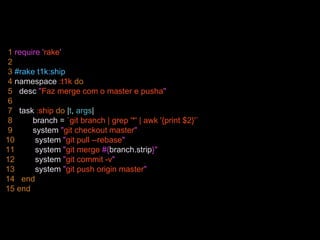

29. 1 require 'rake'
2
3 #rake t1k:ship
4 namespace :t1k do
5 desc "Faz merge com o master e pusha"
6
7 task :ship do |t, args|
8 branch = `git branch | grep '*' | awk '{print $2}'`
9 system "git checkout master"
10 system "git pull --rebase"
11 system "git merge #{branch.strip}"
12 system "git commit -v"
13 system "git push origin master"
14 end
15 end

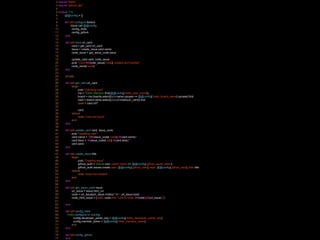

30. 2 require "trello"
3 require "github_api"
4
5 module T1k
6 @@config = {}
7
8 def self.configure &block
9 block.call @@config
10 config_trello
11 config_github
12 end
13
14 def self.hack url_card
15 card = get_card url_card
16 issue = create_issue card.name
17 code_issue = get_issue_code issue
18
19 update_card card, code_issue
20 puts "Card ##{code_issue[:code]} created and tracked"
21 code_issue[:code]
22 end
23
24 private
25
26 def self.get_card url_card
27 begin
28 puts "Catching card"
29 me = Trello::Member.find(@@config[:trello_user_name])
30 board = me.boards.select{|x| x.name.upcase == @@config[:trello_board_name].upcase}.first
31 card = board.cards.select{|x| x.url.index(url_card)}.first
32 raise if card.nil?
33
34 card
35 rescue
36 raise 'Card not found'
37 end
38 end
39
40 def self.update_card card, issue_code
41 puts "Updating card"
42 card.name = "[##{issue_code[:code]}] #{card.name}"
43 card.desc = "#{issue_code[:link]} #{card.desc}"
44 card.save
45 end
46
47 def self.create_issue title
48 begin
49 puts "Creating issue"
50 github_auth = Github.new :oauth_token => @@config[:github_oauth_token]
51 github_auth.issues.create user: @@config[:github_user], repo: @@config[:github_repo], title: title
52 rescue
53 raise 'Issue not created'
54 end
55 end
56
57 def self.get_issue_code issue
58 url_issue = issue.html_url
59 code = url_issue[url_issue.rindex('/')+1..url_issue.size]
60 code_html_issue = {code: code,link: "Link to code: [#{code}](#{url_issue})”}
61
62 end
63
64 def self.config_trello
68 Trello.configure do |config|
69 config.developer_public_key = @@config[:trello_developer_public_key]
70 config.member_token = @@config[:trello_member_token]
71 end
72 end
73
74 def self.config_github
77 end

31. https://github.com/fortesinformatica/t1k
https://rubygems.org/gems/t1k
[ t1k ]
