May 21st, 2015: Entry Points In Plugin & Managing Your Own Contents

1. WordPress Plugin #3
May 21st, 2015
changwoo

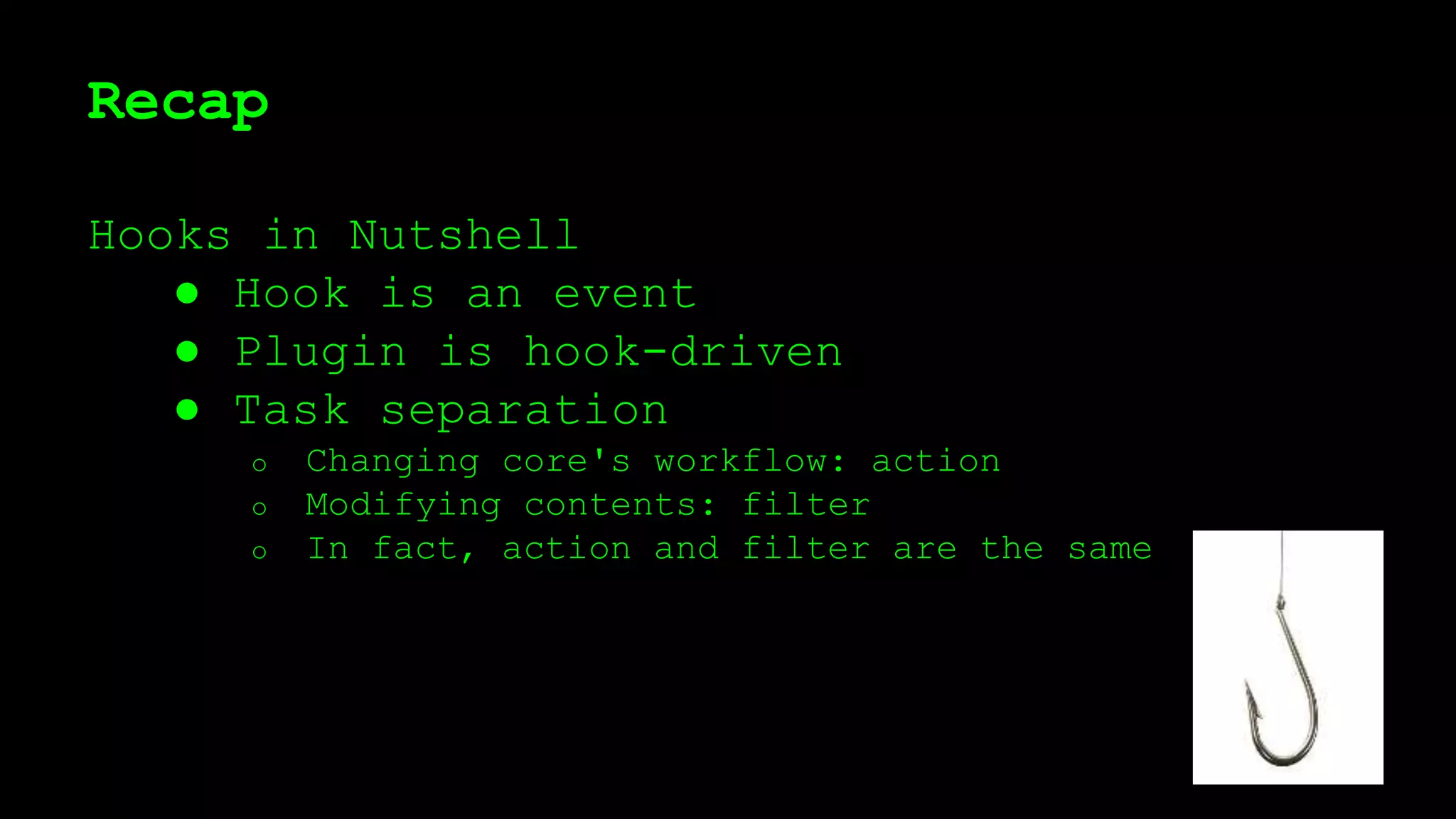

2. Recap
Hooks in Nutshell
● Hook is an event
● Plugin is hook-driven
● Task separation
o Changing core's workflow: action
o Modifying contents: filter
o In fact, action and filter are the same

3. Recap
Hooks in Nutshell
● Callback function utility
● You can define your own hooks
● There are many predefined hooks

4. Recap
Datbase Nutshell
● Parent-meta strategy
o Flexiblility
o Extendible
o But can experience some defects
● Meta key, meta value
o Hash-like storage

5. Recap
Database Nutshell
● Term, taxonomy
o Term: a word
o Taxonomy: a classification of words
● There are some pre-defined terms, and
taxonomies
o category (hierarchical), post_tag (flat)

6. Recap

7. Today's Topics
1.Entry Points in Plugin
a. Menu
b. Shortcodes
c. Admin Post
d. Ajax
e. Redirect
f. activation, deactivation, uninstall
2.Managing Your Own Contents
a. All About Custom Posts

8. Entry Points in Plugin

9. Entry Points
Plugins run on the server side.
Server only responds when it is requested.
Requested moment → entry point

10. Entry Points
Q. When the server is requested?
A. It is when client access via a URL.
Q. Why a URL is used?
A. To define a resource: output to client
A. To receive data: input from client

11. Entry Points
Q. Output Form?
A. Whatever,
Images, audio, video, html documents, ...
Q. Input form?
A. Generally submitting forms
via GET/POST method.

12. Entry Points
There are some special entry points left for
plugins
● Menu items
● Shortcodes
● Admin post
● AJAX
● Redirecting
● Activation, deactivation, uninstall

13. Menu Items
Callback from admin menu clicking
add_menu_page()
add_submenu_page()
remove_menu_page()
remove_submenu_page()

14. Where is default menu?
wp-admin/menu-header.php
<ul id="adminmenu">
<?php
_wp_menu_output( $menu, $submenu );
function _wp_menu_output( $menu, $submenu, $submenu_as_parent = true )
here menus are printed in html

15. Where is default menu?
wp-admin/menu.php (admin.php includes it)
wp-amdin/includes/menu.php
builds administrative menus
global $menu, $submenu stores menu
information

16. Our custom menus
wp-admin/includes/menu.php
do_action( 'admin_menu', '' );
Menu API are defined in wp-
admin/includes/plugin.php

17. add_menu_page
function add_menu_page( $page_title, $menu_title, $capability, $menu_slug,
$function = '', $icon_url = '', $position = null ) {
...
$new_menu = array( $menu_title, $capability, $menu_slug, $page_title,
'menu-top ' . $icon_class . $hookname, $hookname, $icon_url );
if ( null === $position )
$menu[] = $new_menu;
else
$menu[$position] = $new_menu;

18. add_submenu_page
function add_submenu_page( $parent_slug, $page_title, $menu_title,
$capability, $menu_slug, $function = '' ) {
...
$submenu[$parent_slug][] = array ( $menu_title, $capability, $menu_slug,
$page_title );
...
}

19. derivatives
● add_dashboard_page()
● add_posts_page()
● add_media_page()
● add_pages_page()
● add_comments_page()
● add_theme_page()
● add_plugins_page()
● add_users_page()
● add_management_page()
● add_options_page()

20. Shortcodes
What is shortcode?
A "magic word" in post content that is
replaced by some process defined in plugin
or themes in runtime.
Good for displaying complex, dynamic
contents

21. Shortcodes
Sample:
[gallery id="123" size="medium"]
[gallery]
or
[caption]My Caption[/caption] *enclosed form

22. Shortcodes
add_shortcode()
$shortcode_tags = array();
function add_shortcode($tag, $func) {
global $shortcode_tags;
if ( is_callable($func) )
$shortcode_tags[$tag] = $func;
}

23. Shortcodes
function do_shortcode($content) {
global $shortcode_tags;
if ( false === strpos( $content, '[' ) ) {
return $content;
}
if (empty($shortcode_tags) || !is_array($shortcode_tags))
return $content;
$pattern = get_shortcode_regex();
return preg_replace_callback( "/$pattern/s", 'do_shortcode_tag',
$content );
}

24. Shortcodes
function do_shortcode_tag( $m ) {
...
if ( isset( $m[5] ) ) {
// enclosing tag - extra parameter
return $m[1] . call_user_func( $shortcode_tags[$tag], $attr, $m[5],
$tag ) . $m[6];
} else {
// self-closing tag
return $m[1] . call_user_func( $shortcode_tags[$tag], $attr, null,
$tag ) . $m[6];
}
}

25. Shortcodes
callback params
● $attrs: attributes
● $content: enclosed tag's text
● $tag: shortcode tag itself

26. Admin-post
Data from clients.
Processing requests.
You can just process requests in your own
page because $_REQUEST, $_GET, $_POST is
global.

27. Admin-post
But in your own handler,
You cannot use WP core functions.
You cannot authenticate.
Do not reinvent the wheel!
So there is admin-post.php

28. Admin-post
wp-admin/admin-post.php
define & include minimal settings,
and do_action
$action = empty( $_REQUEST['action'] ) ? '' : $_REQUEST['action'];
admin_post_nopriv, admin_post_nopriv_{$action}
admin_post, admin_post_{$action}
finish using die() in callback function!

29. AJAX
Very similar to admin-post, but 'DOING_AJAX' is defined:
define( 'DOING_AJAX', true );
also use die() in callback function
if ( is_user_logged_in() ) {
do_action( 'wp_ajax_' . $_REQUEST['action'] );
} else {
do_action( 'wp_ajax_nopriv_' . $_REQUEST['action'] );
}
// Default status
die( '0' );

30. Redirect
You can generate custom page in plugin, by
using 'template_redirect' action.
function my_page_template_redirect() {
if( is_page( 'goodies' ) && ! is_user_logged_in() ) {
wp_redirect( home_url( '/signup/' ) );
exit();
}
}
add_action( 'template_redirect', 'my_page_template_redirect' );

31. Redirect
You can generate web pages on-the-fly by
utilizing these 3 hooks.
● rewrite rule
● query parsing
● redirect
Detailed instructions, later

32. (de)activation, uninstall
register_activation_hook($file, $cb)
register_deactivation_hook($file, $cb)
register_uninstall_hook($file, $cb)
$file: full path of plugin file
$cb: callback function
● callbacks should be "SILENT". No echo please.

33. Summary
● menu items, shortcodes, admin post, ajax,
template redirects, and (de)activation-
uninstall hooks are good initial entry
points.
o It is a good strategy to find these
hooks in plugins first and dissect
their codes from those points.

34. I know you want to do something!
You understand hook concept.
You know database detail.
Now you know entry points
Definitely, you wanna make something.

35. Visit http://[ip]/practice/ and download entry-points.php

36. 소스코드: http://[ip]/source-codes/
1.어드민 화면에 메뉴 추가
2.쇼트코드 추가
3.메뉴에서 admin post 전송
4.메뉴에서 ajax 전송
5.redirect 테스트
<author> 부분은 자신의 이름으로 일괄변경하고,
적절히 콜백 함수를 정의해 주세요.
Source code explained

37. 10 minutes break

38. Managing Your Own Contents

39. Wow, there are too many
things about posts!

40. For today, just focuse on
"custom post type"

41. Arguments are too complex!
Just use Types, or Pods plugin.
Thats' all, problem solved!
Yeah!

42. ... of course, you might not want
this. I was just kidding.

43. Custom Post
You want to manage your own contents.
That's why custom post is.
● Music collections
● Online store
● Event calendar
● Book data
● Photo portfolio

44. Custom Post: Motivation
Well, with just one type "post", and you may
define many categories and use them to
organize all contents.
JUST ONE TYPE: POST
MANY CATEGORIES:
portfolio, calendar, music db, ...

45. Custom Post: Motivation
But you might feel that some post types:
● should be hidden from some users
● even might be excluded from search
● may be only for private use
● may have very complex taxonomies.
so that it should have its own
territory.
● can be accessible from their own URL
rules

46. Custom Post: Motivation
Why re-invent wheel again?
By extending built-in post type system,
you can REUSE whole facilities related to
posts easily!
UI, and all thing about managing

47. Built-in Custom Post Types
wp-includes/post.php (included in wp-settings.php)
function create_initial_post_types() {
register_post_type( 'post', array( ...
register_post_type( 'page', array( ...
register_post_type( 'attachment', array( ...
register_post_type( 'revision', array( ...
register_post_type( 'nav_menu_item', array( ...
register_post_status( 'publish', array( ...
...

48. register_post_type
<?php register_post_type( $post_type, $args ); ?>
$arg is very complex.
But I think it should be explained in detail. Actually,
you cannot avoid it, because eventuall all post type
plugins will use that function, too.
Those plugins also have diffcult UIs, too.

49. register_post_type
Let's take a look how Types, and Pods create
their custom posts...
They have easy (really?) UI and provide
better functionaliy, but you can see
horribly many options there.

50. register_post_type $post_type
● Up to 20 characters
● Only lowercase and numbers

51. register_post_type $args
public:
visible to authors
true implies
exclude_from_search: false,
publicly_queryable, show_in_nav_manues, show_ui
false implies
exclude_from_search: true, publicly_queryable: false,
show_in_nav_manues: false, show_ui: false

52. register_post_type $args
label:
plural descriptive name
e.g:
"Music Collections"
Mostly localized text

53. register_post_type $args
labels: more specific text labels
name
sigular_name
menu_name
name_admin_bar
all_items
add_new
add_new_item
edit_item
view_item
search_items
search_items
not_found
not_found in trash
parent_item_colon

54. register_post_type $args
description:
summary of this post type

55. register_post_type $args
exclude_from_search:
do not search this post type
try '/S=beatbles'

56. register_post_type $args
publicly_queryable:
can use query
e.g) /?post_type=music_collection

57. register_post_type $args
show_ui:
display default UI

58. register_post_type $args
show_in_nav_menus:
show in navigation menus
be careful! 'publicly_queryable'
must be true

59. register_post_type $args
show_in_menu:
show admin_menu. show_ui must be true.
Just showing menu.
true, false, else some strings
(tools.php / edit.php)
altough it is false,
you can access URLS like:
/wp-admin/edit.php?post_type=music_collection
(show_ui must be true!)

60. register_post_type $args
show_in_admin_bar:
available in admin bar
menu_postion:
default: below comments
menu_icon
see dashicons

61. register_post_type $args
capability_type:
string or array to build capabilites
in our exampe,
edit_music_collections
edit_others_music_collections
publish_music_collections
read_private_music_collections

62. register_post_type $args
capabilities:
to give specific names to each capability
map_meta_cap:
if true, default meta capability will be added
and then, your role or account need capabilities

63. register_post_type $args
hierarchical:
post type can be hierarchical.
this is for page-styles.

64. register_post_type $args
query_var:
to query posts /?{query_var}={slug}
rewrite:
to use pretty permalinks.
has_archive:
Enables post type archive

65. register_post_type $args
permalink_epmask:
rewrite endpoint bitmask
can_export:
true makes the post can be exported

66. Too exhaustive... but worth it.

67. Practice Custom Post
Create custom-plugin-<author>.php
Create a simple custom post.
Display admin menu,
Hide admin_bar,
Write your post:
● Any content is OK.
● Include at least one meta field.

68. Next Week.
Customizing Visual Components
● List Table Screen
● Widgets
● ...
WordPress System Undercover
● Constants and Globals
● WPDB
