Monkie Bender offers rotary-draw mandrel capabilities for thin wall tube bending, compatible with major brands. Key features include a maximum capacity of 3.0 inches OD, LED digital data input, and a free-standing controller with foot pedals. The equipment comes with a one-year warranty or 2000 hours of service.

1. UTE , Inc / Fairing Industrial Inc. - a partnership between west and east Presents MONKIE BENDER www.monkiebender.com To

2. Monkie Bender Advantage Monkie Bender ™ provides rotary-draw mandrel capability specializing in thin wall tube bending. Tooling design is compatible with major brand in the market. Option to order the compression tooling set to handle your heavy tube or pipe bending applications.

3. Features Capacity up to 3.0” OD Thin Wall Tube Rotary Draw Bending Adopt Compression & Draw Bending Major Brand Tooling Compatibility Bend up to 1.5DR with Mandrel (mild steel) LED Digital Data Input 50 program/10 bend memory Free Standing Controller with Foot Pedal 3HP with Overload Protection 3 Phase 220 Volt Compact design: L:34”xW:20”xH:42”

4. Model Selection Monkie.Pro-III: Rotary Draw Mandrel Bend

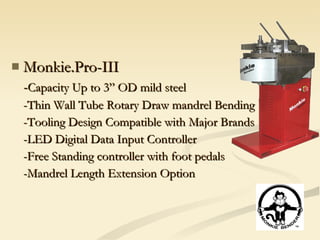

5. Monkie.Pro-III - Capacity Up to 3” OD mild steel -Thin Wall Tube Rotary Draw mandrel Bending -Tooling Design Compatible with Major Brands -LED Digital Data Input Controller -Free Standing controller with foot pedals -Mandrel Length Extension Option

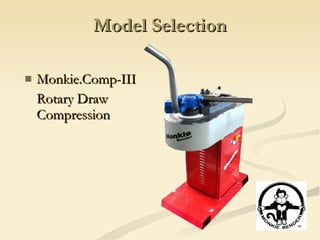

6. Model Selection Monkie.Comp-III Rotary Draw Compression

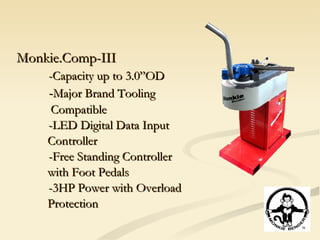

7. Monkie.Comp-III -Capacity up to 3.0”OD - Major Brand Tooling Compatible -LED Digital Data Input Controller -Free Standing Controller with Foot Pedals -3HP Power with Overload Protection

8. Other Features -Controller LED Digital Data Input 50 Program/10bends capability Free Standing Controller with Foot Pedals Equipped with Auto/Jog Switch and Emergency Stop (

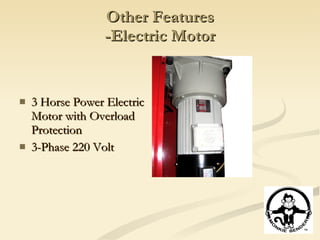

9. Other Features -Electric Motor 3 Horse Power Electric Motor with Overload Protection 3-Phase 220 Volt

10. Monkie Bender Dimensions & Specifications Max. Capacity: 3.0”x0.078” Round Tube Size OD Ф 0.125”~ 3.0” Square Tube Size 0.125”~2.0 Nominal Pipe Size OD Ф 0.125”~2.5” Sch 40 Center Line Radius (CLR) Up to 8” Maximum Bend Angle 190 Degree Bending Speed 15 degrees per second Mandrel Extension Base Option Item Hydraulic Mandrel Retractor Option Item Bending Direction Left or Right Hand Bend Motor 2.2 KW (3HP)-8AMP/220 Volt Dimension (LxWxH) 34”x24”x42” Weight 1000 lbs

11. Service/Warranty One year or 2000 hours manufacturing warranty.

12. Thank you. www.monkiebender.com Please feel free to contact us:
