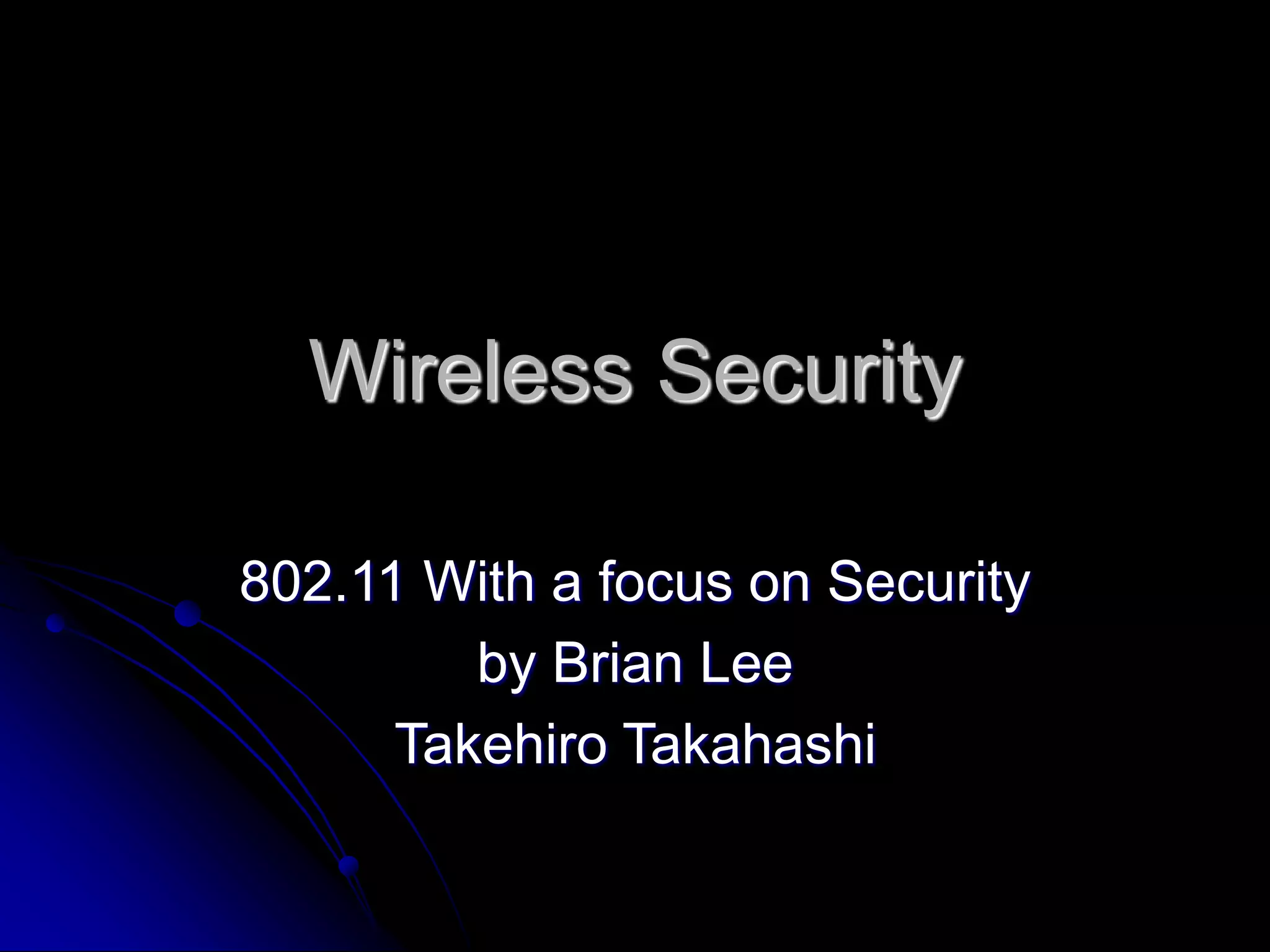

1. Wireless Security
802.11 With a focus on Security
by Brian Lee
Takehiro Takahashi

2. Survey (1)
 Who has not used wireless?
 Are you confident with your wireless
network?

3. Brief Overview
 Wireless Technology Overview
 Architecture
 Features
 Wireless Security Overview
 Built-in security features in 802.11
 WEP insecurity
 802.1x
 WPA
 WPA2 - 802.11i

4. GOAL
 Understand the state of art
 WEP is insecure
 But we CAN make a wireless network ‘secure’

5. 802.11Basics
 Infrastructure Mode or Ad Hoc
 11Mbps with 802.11b
 feels slow….? (effective speed ~ 50%)
 802.11 a/b/g/n : Physical Layer Spec
 802.11i : Security Spec
 802.11r : QoS

6. 802.11 Built-in Features
 802.11 frame types
 Association Request/Response Frame
 Beacon Frame
 RTS/CTS Frame
 Shared/Open Authentication
 WEP (Layer 2 security)
 Integrity
 Confidentiality

7. SSID
 Network identifier
 SSID is broadcasted in a beacon frame
 Clear Text!
 Change it from the default
 Cisco = tsunami
 Linksys = linksys
 Netgear = netgear
 Stop broadcasting!

8. MAC Address Filtering
 White-list approach
 Does not scale
 Frame headers are never encrypted
 Sniffing traffic will reveal valid MAC addresses
 Bottom line…..
 Prevents casual hacking..
 Quite useless

9. Shared/Open Authentication (1)
 2 ways of initiating communication
 Shared Key
 Open Key authentication
 Open key Auth = No authentication
 Shared Key Auth = requires WEP

10. Shared Authentication (2)
 The challenge is generated using a PRNG used
by WEP
 Challenge is then encrypted using WEP key and
sent back
 This is bad…….. reveals the WEP key

11. WEP (Wired Equivalent
Protocol)
 Provides “Confidentiality”, and “Integrity”.
 Uses 40/104 bits RC4 encryption +
CRC32

12. WEP Encryption

13. 64/40 and 128/104 bits
confusion
 IV (24bits)
 Your WEP key:
 5-ASCII char word = 40bits
 13-ASCII char word = 104bits
Security-wise, it’s really 40bits or 104bits

14. Problems with WEP
 1 Static Key
 No encryption is strong if one key is used forever
 Key length is short (40bits)
 Brute forcing is possible
 104bits version exists
 Using CRC32
 CRC is a hash function used to produce a checksum
 Improper use of RC4
 IV space is too small (24bits)
 No protection against replay attack
 No specification on key distribution
 Lacks scalability

15. CRC32 and WEP
 CRC32 doesn’t have the cryptographic
strength seen in MD5 or SHA1
 Bit-flipping is possible
 Change the data, and WEP won’t catch it
Seems trivial….?

16. RC4 and WEP (1)
 RC4 – Rivest’s Cipher 4
 Stream Cipher
 What is a requirement for a stream cipher?
 Avoid key sequence collision at any cost
 ｛M1 XOR RC4-Key｝ XOR ｛M2 XOR RC4-Key｝
= M1 XOR M2
 With WEP, key sequences are repeated every 16
million packets (2 ^ 24)
Key sequence collision doesn’t reveal the WEP key!

17. RC4 and WEP (2)
 Weak IVs reveal the WEP key
 5% chance of guessing the portion of the seed (WEP key)
correctly
 FMS attack
 2M~ packets to decrypt 40bit WEP key
 The time needed is a linear function to the key length
 104bit key is just as useless as 40bits key

18. Replay Attacks
 Reinjection of the captured packets are
possible
 IV usage is not specified

19. Effective WEP cracking
 KoreK attack (Aug. 2004)
 Another statistical analysis based attack on WEP key
 Extremely fast
 Decrypts packets using CRC32 vulnerability
 Possible with as little as 0.1M IVs (packets)…
 Traditional method requires more than 2M packets
 Accelerate it with packet injection – ARP
A 40-bit WEP can be cracked in 10 Minutes
Fast swapping of WEP key is no longer safe

20. Conclusion: WEP
 Confidentiality
 FMS attack
 KoreK attack
 Integrity
 Bit-flipping attack
 Authentication
 Non-existent
 Attacks can be completely passive
NO MORE WEP

21. WEP….
Wired Equivalent Privacy
Well.. More like
What on the Earth does it Protect?

22. Finally…. we have solutions!
 802.1x (Authentication)
 per-user authentication
 Key distribution mechanism
 WPA (Confidentiality, Integrity)
 Subset of 802.11i
 2 forms
 802.1x Auth + TKIP (Enterprise mode)
 Pre-shared Key + TKIP
 WPA2 – 802.11i
 WPA2 is the implementation of 802.11i
 Uses AES-CCMP

23. 802.1x (Authentication)
WPA
WPA2 (802.11i)

24. 802.1X
 802.1X is a port-based, layer 2 authentication
framework
 Not limited wireless networks
 Uses EAP for implementation
 End-result
 A WEP key for WEP
 A seed for an encryption key used in WPA/WPA2
802.1X is not an alternative to WEP

25. 802.1x authentication

26. Extensible Authentication Protocol
(EAP)
 Authentication Framework
 runs on the different layer than 802.1x
 Very flexible
 RADIUS is de-facto
 a server for remote user authentication and
accounting

27. Implementations
 EAP methods adopted in WPA/WPA2
 EAP-MD5
 EAP-LEAP
 EAP-TLS
 EAP-TTLS
 PEAP

28. EAP-MD5
 EAP-MD5 is a simple EAP implementation
 Uses and MD5 hash of a username and
password that is sent to the RADIUS
server
 Authenticates only one way
 Man in the middle attack
 Bottom line: Not recommended

29. LEAP (EAP-Cisco)
 Like EAP-MD5, it uses a Login/Password
scheme that it sends to the RADIUS server
 Each user gets a dynamically generated one
time key upon login
 Authenticates client to AP and vice versa
 Only guaranteed to work with Cisco wireless
clients
 Broken – ASLEAP by Joshua Wright
 Dictionary attack

30. EAP-TLS by Microsoft
 Instead of a username/password scheme, EAP-TLS
uses certificate based authentication
 Two way authentication
 Uses TLS (Transport Layer Security) to pass the
PKI (Public Key Infrastructure) information to
RADIUS server
 Compatible with many OS’s
 Harder to implement and deploy because PKI for
clients are also required

31. PEAP by Microsoft and Cisco
 A more elegant solution!
 Very similar to EAP-TLS except that the client
does not have to authenticate itself with the
server using a certificate, instead it can use a
login/password based scheme
 Much easier to setup, does not necessarily
require a PKI
 Currently works natively with Windows XP SP1,
and OSX. 802.1x supplicant exists for linux

32. WPA (Wi-Fi Protected Access)
 Subset of 802.11i
 Confidentiality
 Fix flawed encryption mechanism
 TKIP: Per-packet dynamic key mechanism
 Integrity
 Upgradeability
 Software / Firmware Upgrade

33. WPA Mechanism
1. Confirmation of association capability
2. Authentication by 802.1x or PSK
3. 4-way handshake
4. Encryption using TKIP
Very Different from WEP which took care of
“everything”

34. 802.1x Authentication (recap)

35. 4 Way Handshake and PTK

36. 802.1x Authentication + PMK
 Security level can be selected
 Pairwise Master Key (PMK) is a seed for
temporal key generation used in
encryption
 PMK is generated based on the user
authentication result

37. 4 Way Handshake and PTK
 PTK (512bits) splits in 4 ways
 Part of PTK is used to generate the
encryption key (WEP equivalent) in the
next phase

38. 4 Way Handshake and PTK

39. TKIP (Temporal Key Integrity
Protocol)
 The heart of WPA encryption mechanism
 Expands IV space (24  48bits)
 IV sequence is specified
 Generate a key which conforms to WEP
 A fresh key is used for every 16M packets
 Michael
 Very cheap integrity checker for MAC
addresses and DATA

40. WPA-PSK
 For home / SOHO use
 Removes 802.1x authentication
 Pre-shared Key + TKIP
 Weak against passive dictionary attack
 Attacks exist - WPA Cracker
Still MUCH better than WEP

41. WPA Security Insight
 No effective attacks found on WPA + 802.1x
 WPA-PSK should be used with care

42. WPA2 - 802.11i
 The long-awaited security standard for
wireless, ratified in June 2004
 Better encryption: AES-CCMP
 Key-caching (optional)
 Pre-authentication (optional)
 Hardware manufactured before 2002 is
likely to be unsupported: too weak

43. PMK Key-Caching
 Skips re-entering of the user credential by
storing the host information on the network
 Allows client to become authenticated with
an AP before moving to it
 Useful in encrypted VoIP over Wi-Fi
 Fast Roaming

44. Conclusion
 WEP = Dead Meat
 WPA-PSK = Potentially Insecure
 WPA + 802.1x (Secure EAP) = Secure
 WPA2-PSK = Potentially Insecure
 WPA2 + 802.1x = Very Secure

45. Suggested Practice
 Hide SSID
 Do NOT use WEP
 Use WPA-PSK with a good pass-phrase
 or Use WPA with 802.1x if possible
 Get WPA2 certified product for your next
purchase

46. tinyPEAP (1)
 A self contained PEAP enabled RADIUS
server
 Currently available in Linksys
WRT54G/GS router and Win32 binary
 Native Windows XP SP1 support
 Web-based user management
 The easiest and the most secure solution
available in consumer level

47. tinyPEAP (2)

48. tinyPEAP (3)

49. Survey (2)
 Ready to reconfigure your wireless
network?

51. Links to the tools used:
 Airsnort
http://airsnort.shmoo.com
 Netstumbler
http://www.netstumbler.com
 Ethereal
http://www.ethereal.com
 tinyPEAP
http://www.tinypeap.com

52. Papers and Wireless Security Web
Pages
 Weaknesses in the Key Scheduling Algorithm of
RC4
 The Unofficial 802.11 Security Web Page
 Wireless Security Blackpaper
 The IEEE 802.11 specifications (includes WEP
spec)
 Paper on detecting Netstumbler and similar
programs
 Further reading on upcoming 802.11 variations
 Assorted 802.11 related crypto algorithms
written in ANSI C

53. An exercise in wireless
insecurity
 Tools used:
 Laptop w/ 802.11a/b/g card
 GPS
 Netstumbler
 Aircrack (or any WEP cracking tool)
 Ethereal
 the car of your choice

54. Step1: Find networks to attack
 An attacker would first use Netstumbler to
drive around and map out active wireless
networks
 Using Netstumbler, the attacker locates a
strong signal on the target WLAN
 Netstumbler not only has the ability to
monitor all active networks in the area, but
it also integrates with a GPS to map AP’s

55. WarDriving

56. Step 2: Choose the network to
attack
 At this point, the attacker has chosen his
target; most likely a business
 Netstumbler can tell you whether or not
the network is encrypted
 Also, start Ethereal to look for additional
information.
This time…….
Your target is GTwireless

57. Step3: Analyzing the Network
 WLAN has no broadcasted SSID
 Netstubmler tells me that SSID is
GTwireless
 Multiple access points
 Open authentication method
 WLAN is encrypted with 40bit WEP
 WLAN is not using 802.1X (WEB-auth)

58. Step4: Cracking the WEP key
 Attacker sets NIC drivers to Monitor Mode
 Begins capturing packets with Airodump
 Airodump quickly lists the available
network with SSID and starts capturing
packets.
 After a few hours of airodump session,
launch aircrack to start cracking!
 WEP key for GTwireless is revealed!

59. Step5: Sniffing the network
 Once the WEP key is cracked and the NIC
is configured appropriately, the attacker is
assigned an IP, and can access the WLAN
 However, a secure proxy with an SSL
enabled web based login prevents access
to the rest of network and the Internet
 Attacker begins listening to traffic with
Ethereal

60. Step6: Sniffing continued…
 Sniffing a WLAN is very fruitful because
everyone on the WLAN is a peer, therefore
you can sniff every wireless client
 Listening to connections with plain text
protocols (in this case FTP, POP, Telnet) to
servers on the wired LAN yielded 2 usable
logins within 1.5hrs

61. What was accomplished?
 Complete access to the WLAN
 Complete access to the wired LAN
 Complete access to the internet
 Access to servers on the wired LAN using
the sniffed accounts
 Some anonymity. Usage of Netstumbler
and other network probing devices can be
detected. Skip that step if possible.

62. Other possibilities
 Instead of sniffing a valid login, the
attacker could have exploited a known
vulnerability in the proxy (provided there is
one)
 The greater risk for being noticed,
something an attacker does not want

63. That’s it…the network is
compromised
 As long as WEP is in place, such attack is
always possible
 Sadly, many are less secure
 How about yours?
