Wide Open Spaces:
 MySQL as a Web
 Mapping Service
     Backend
          Don Beesing
 Alion Science and Technology
  USJFCOM Experimentation
    Modeling and Simulation

        April 22, 2009

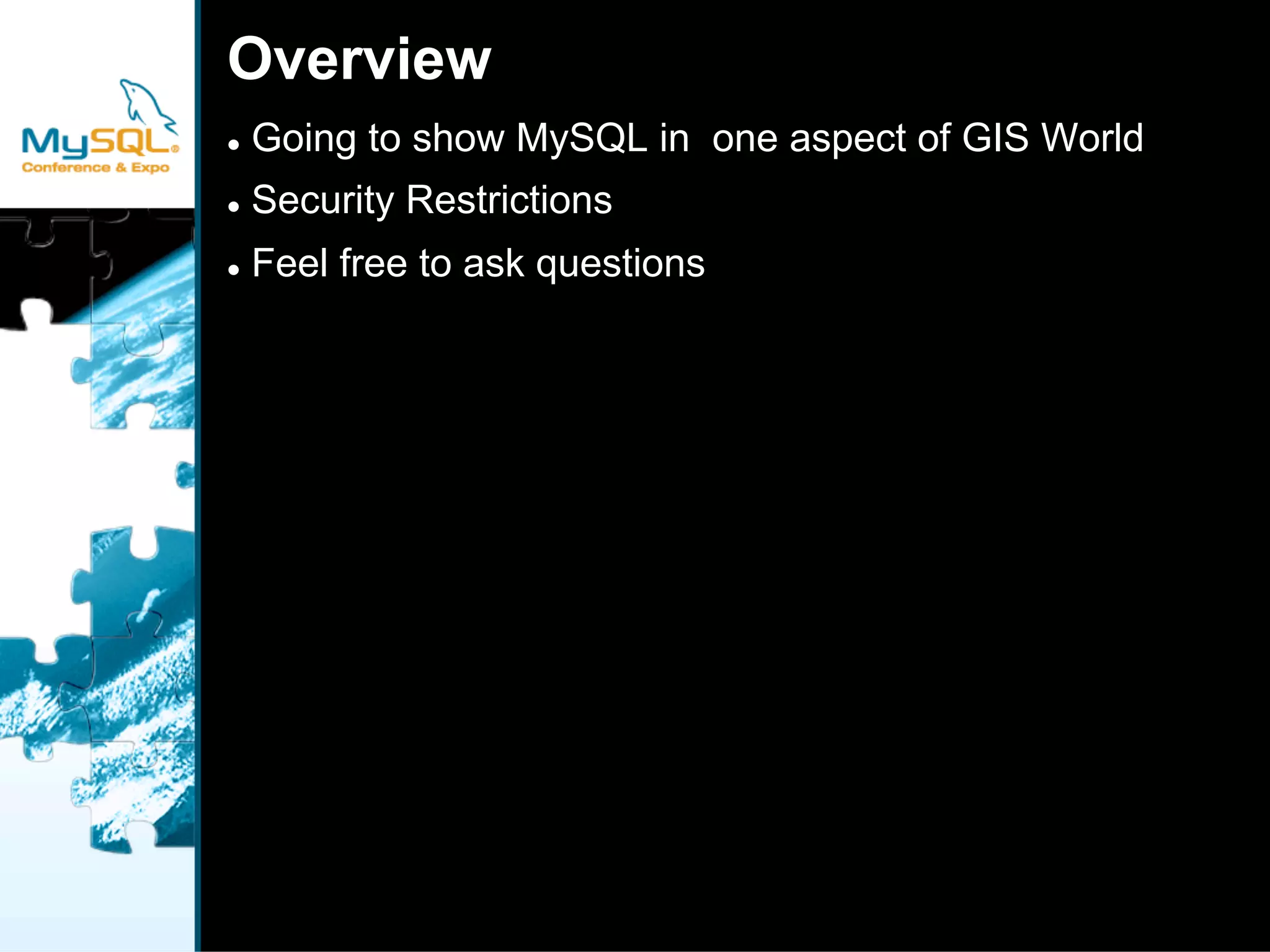

Overview
     Going to show MySQL in one aspect of GIS World
 


     Security Restrictions
 


     Feel free to ask questions
 

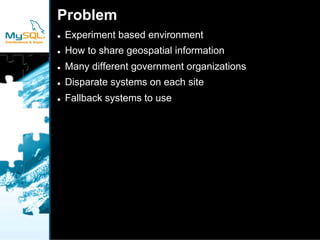

Problem
     Experiment based environment
 


     How to share geospatial information
 


     Many different government organizations
 


     Disparate systems on each site
 


     Fallback systems to use
 

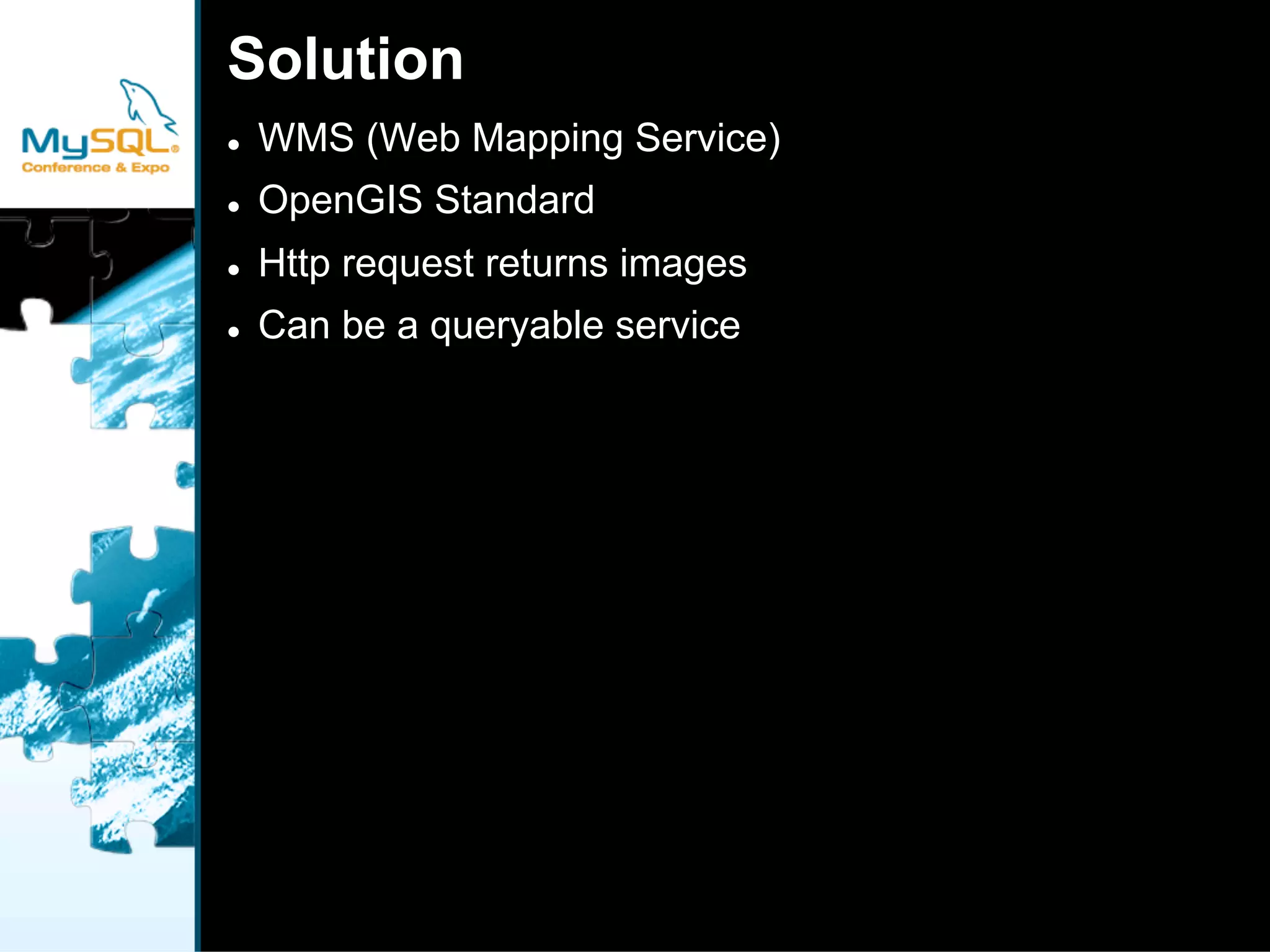

Solution
     WMS (Web Mapping Service)
 


     OpenGIS Standard
 


     Http request returns images
 


     Can be a queryable service
 

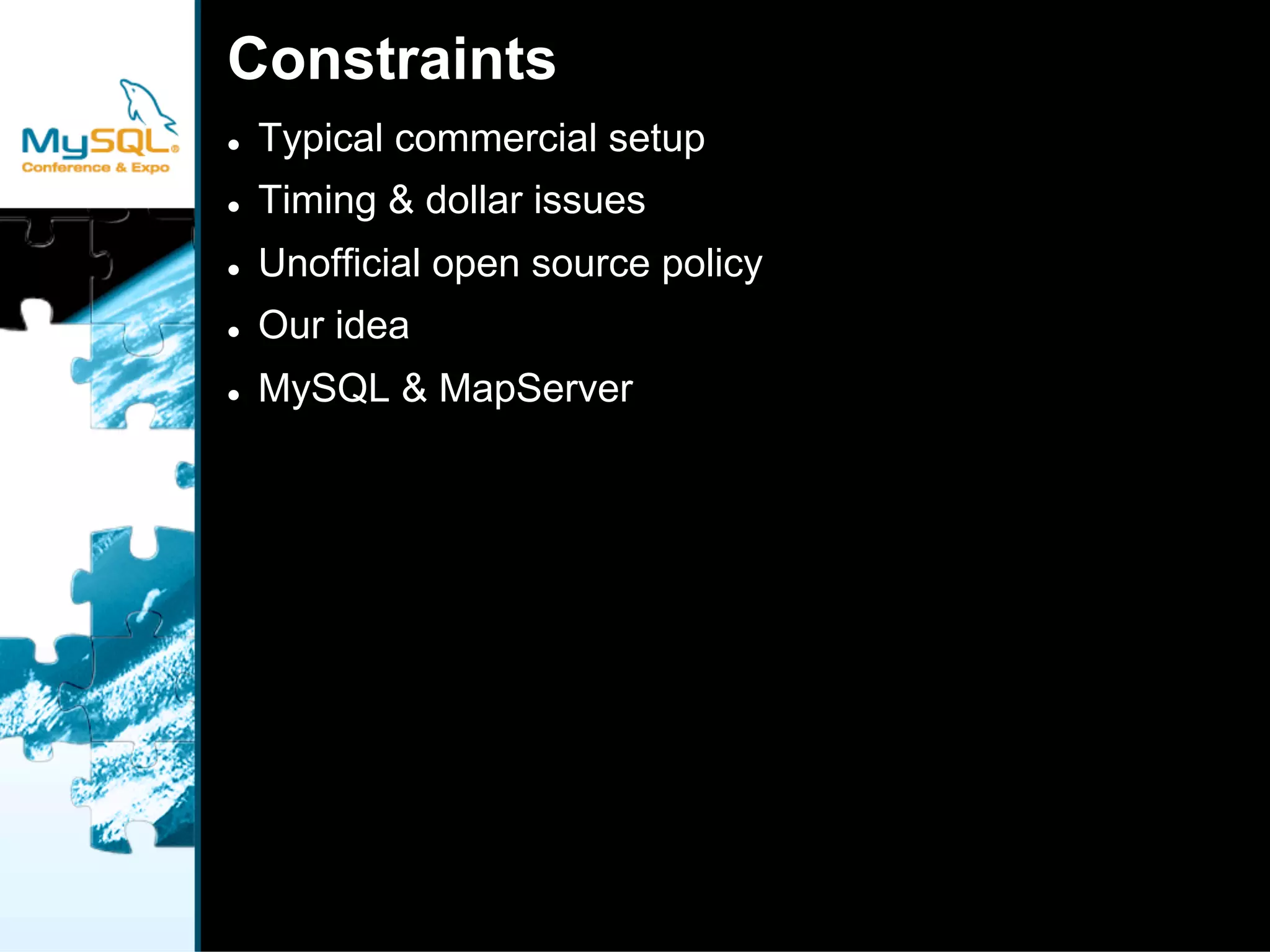

Constraints
     Typical commercial setup
 


     Timing & dollar issues
 


     Unofficial open source policy
 


     Our idea
 


     MySQL & MapServer
 

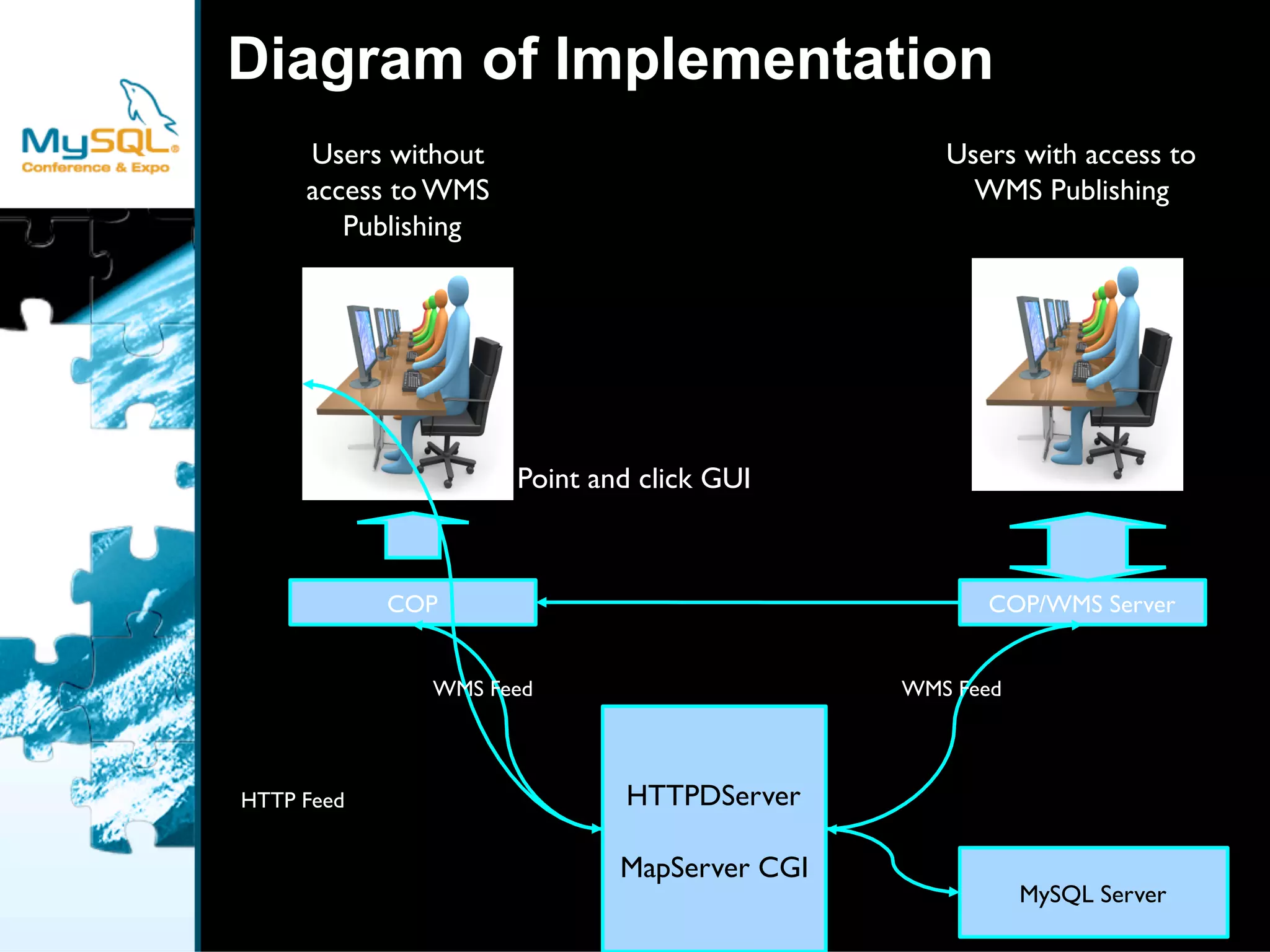

Diagram of Implementation
     Users without                                 Users with access to
     access to WMS                                   WMS Publishing
        Publishing





                       Point and click GUI



             COP
                                      COP/WMS Server


                WMS Feed
                       WMS Feed



                                HTTPDServer
HTTP Feed


                               MapServer CGI
                                                            MySQL Server

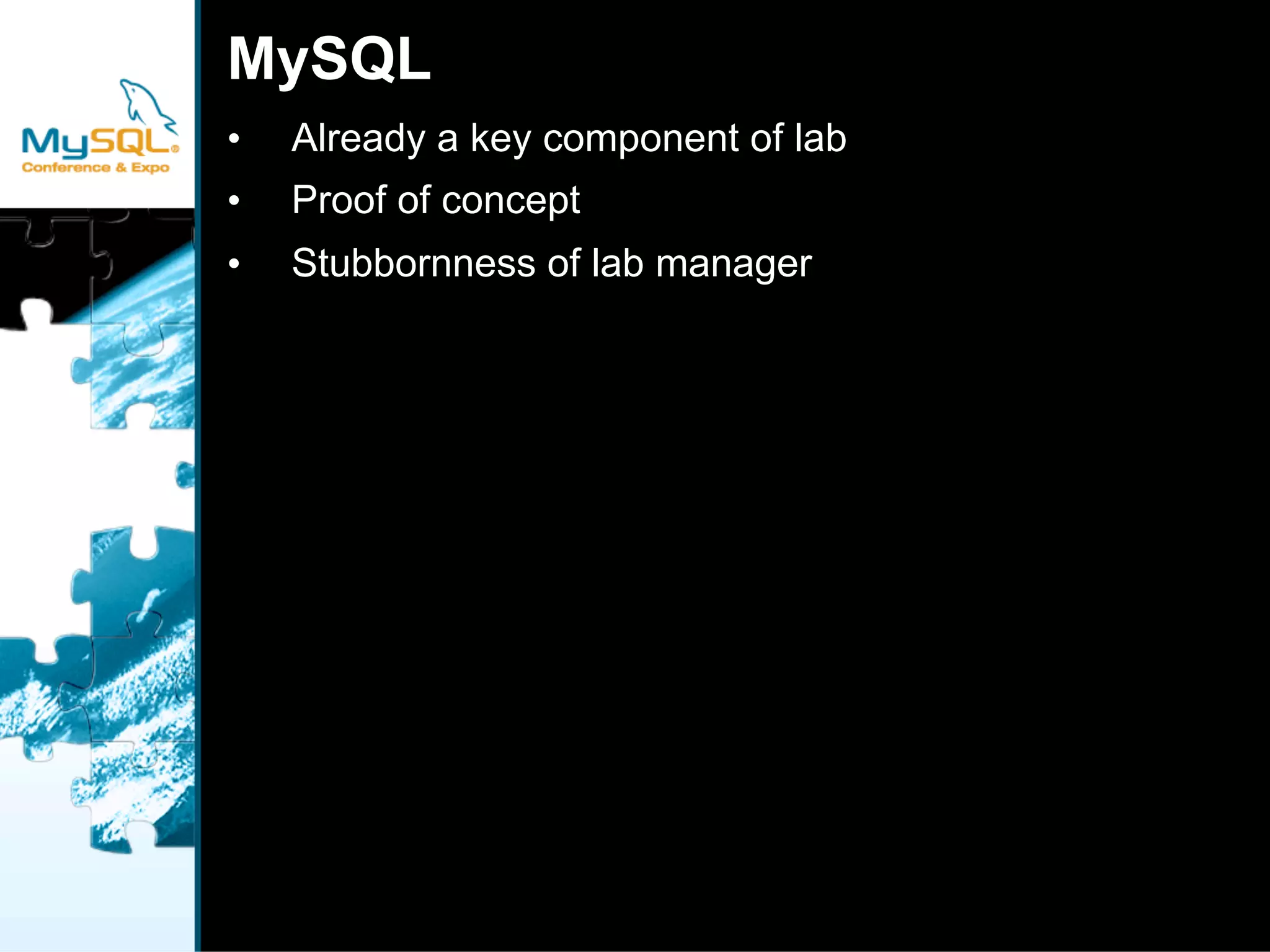

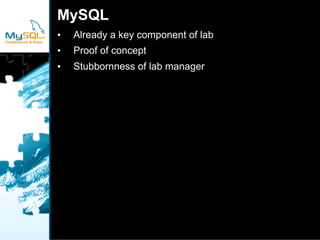

MySQL
     Already a key component of lab
• 
     Proof of concept
• 
     Stubbornness of lab manager
• 

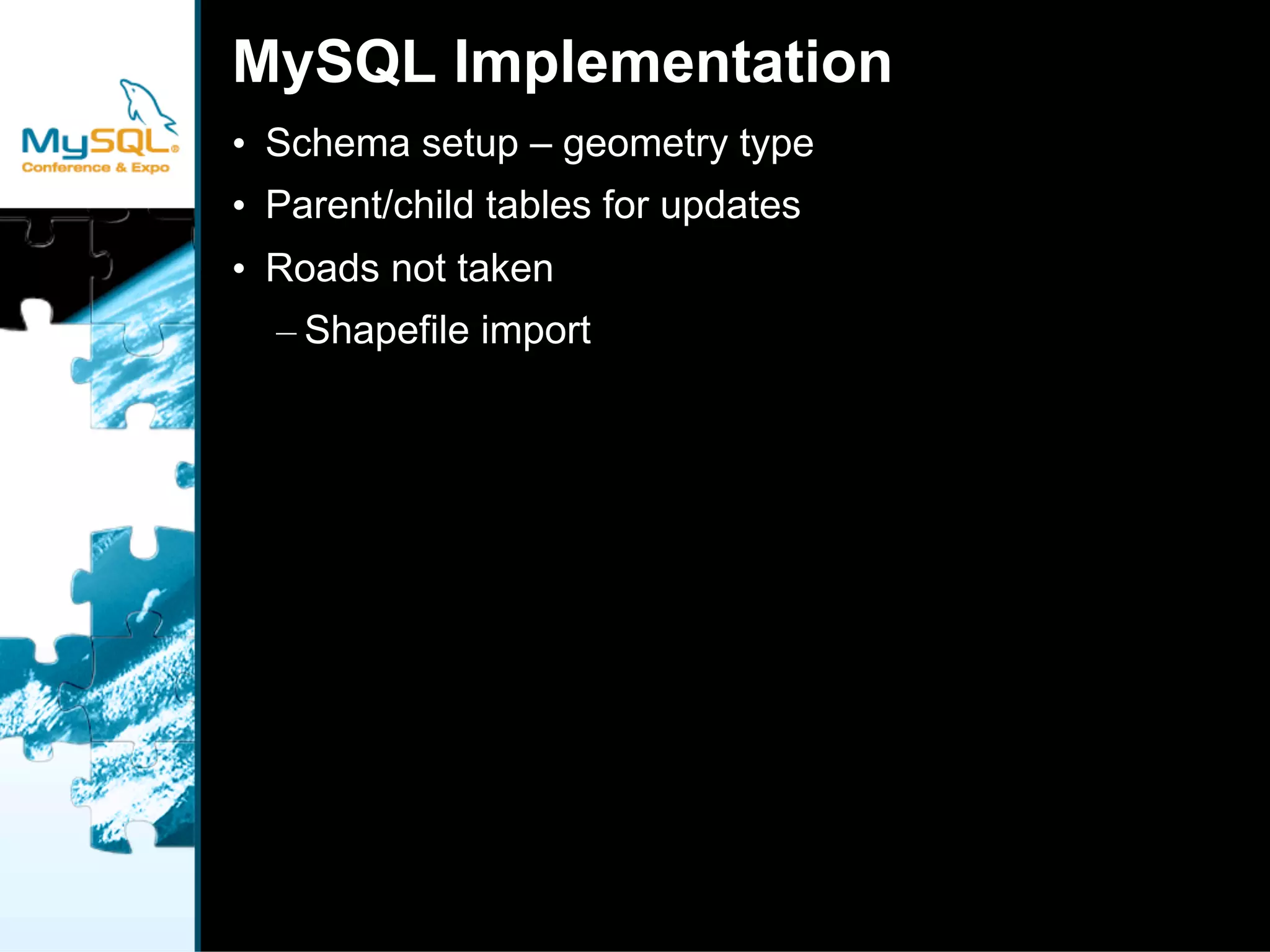

MySQL Implementation
•  Schema setup – geometry type
•  Parent/child tables for updates
•  Roads not taken
  – Shapefile import

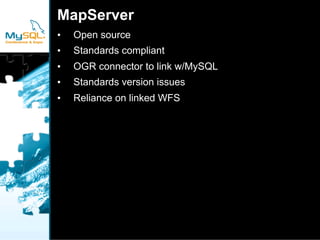

MapServer
     Open source
• 
     Standards compliant
• 
     OGR connector to link w/MySQL
• 
     Standards version issues
• 
     Reliance on linked WFS
• 

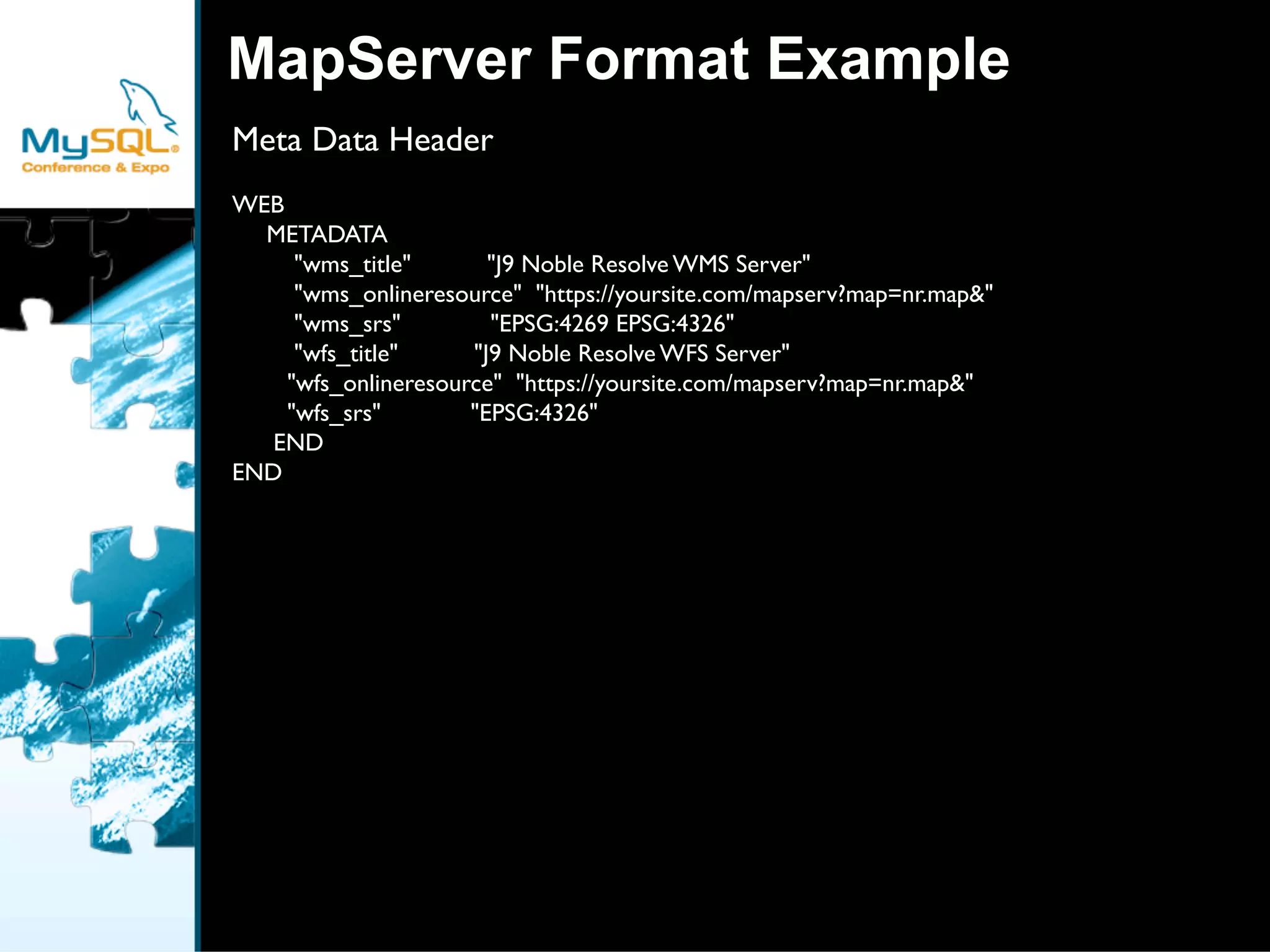

MapServer Format Example
Meta Data Header
WEB
  METADATA
     quot;wms_titlequot;       quot;J9 Noble Resolve WMS Serverquot;
     quot;wms_onlineresourcequot; quot;https://yoursite.com/mapserv?map=nr.map"
     quot;wms_srsquot;         quot;EPSG:4269 EPSG:4326quot;
     quot;wfs_titlequot;     quot;J9 Noble Resolve WFS Serverquot;
    quot;wfs_onlineresourcequot; quot;https://yoursite.com/mapserv?map=nr.map"
    quot;wfs_srsquot;        quot;EPSG:4326quot;
   END
END

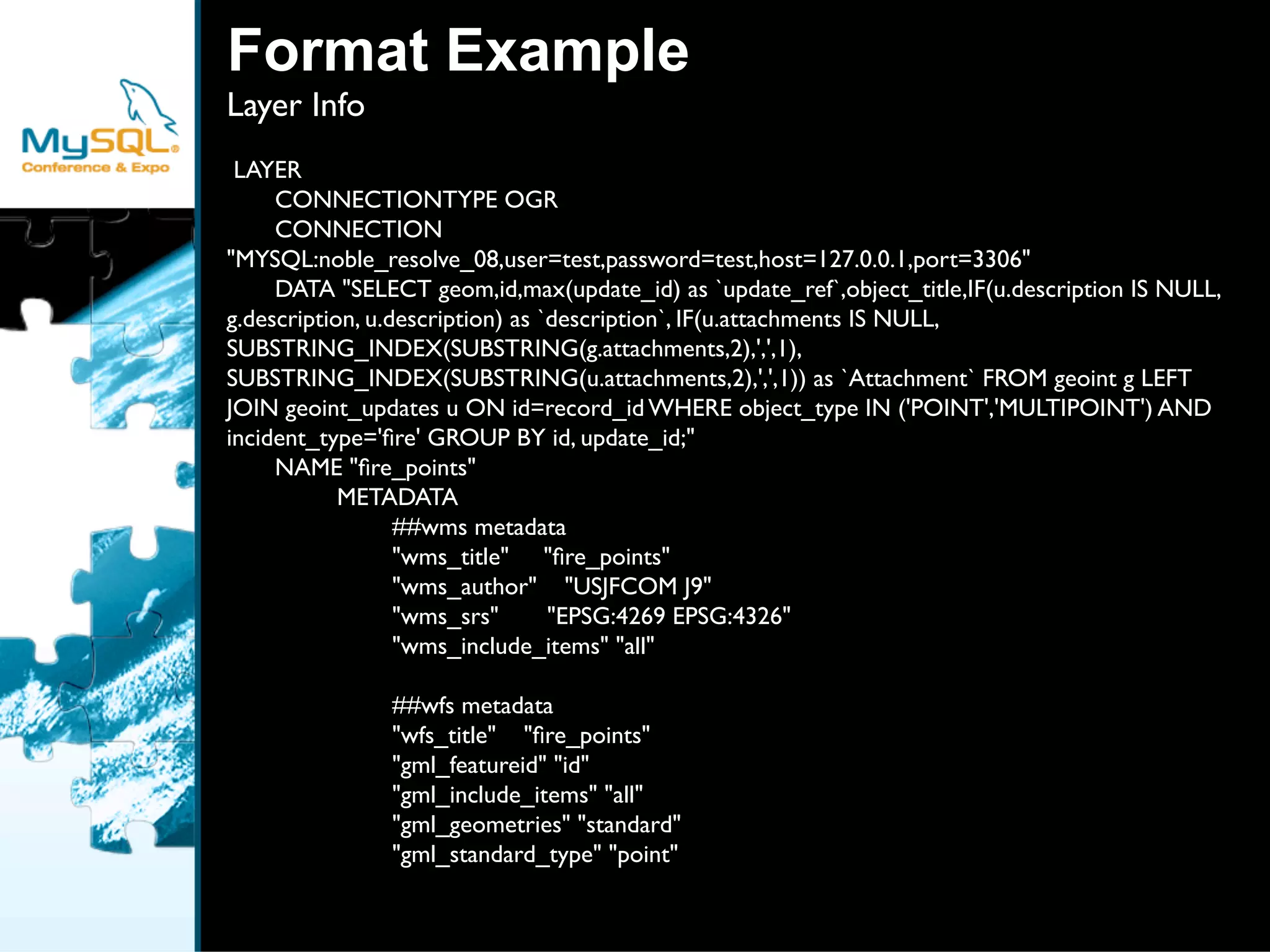

Format Example
Layer Info
 LAYER
     CONNECTIONTYPE OGR
     CONNECTION
quot;MYSQL:noble_resolve_08,user=test,password=test,host=127.0.0.1,port=3306quot;
     DATA quot;SELECT geom,id,max(update_id) as `update_ref`,object_title,IF(u.description IS NULL,
g.description, u.description) as `description`, IF(u.attachments IS NULL,
SUBSTRING_INDEX(SUBSTRING(g.attachments,2),',',1),
SUBSTRING_INDEX(SUBSTRING(u.attachments,2),',',1)) as `Attachment` FROM geoint g LEFT
JOIN geoint_updates u ON id=record_id WHERE object_type IN ('POINT','MULTIPOINT') AND
incident_type='fire' GROUP BY id, update_id;quot;
     NAME quot;fire_pointsquot;
            METADATA
                  ##wms metadata
                  quot;wms_titlequot; quot;fire_pointsquot;
                  quot;wms_authorquot; quot;USJFCOM J9quot;
                  quot;wms_srsquot;       quot;EPSG:4269 EPSG:4326quot;
                  quot;wms_include_itemsquot; quot;allquot;

               ##wfs metadata
               quot;wfs_titlequot; quot;fire_pointsquot;
               quot;gml_featureidquot; quot;idquot;
               quot;gml_include_itemsquot; quot;allquot;
               quot;gml_geometriesquot; quot;standardquot;
               quot;gml_standard_typequot; quot;pointquot;

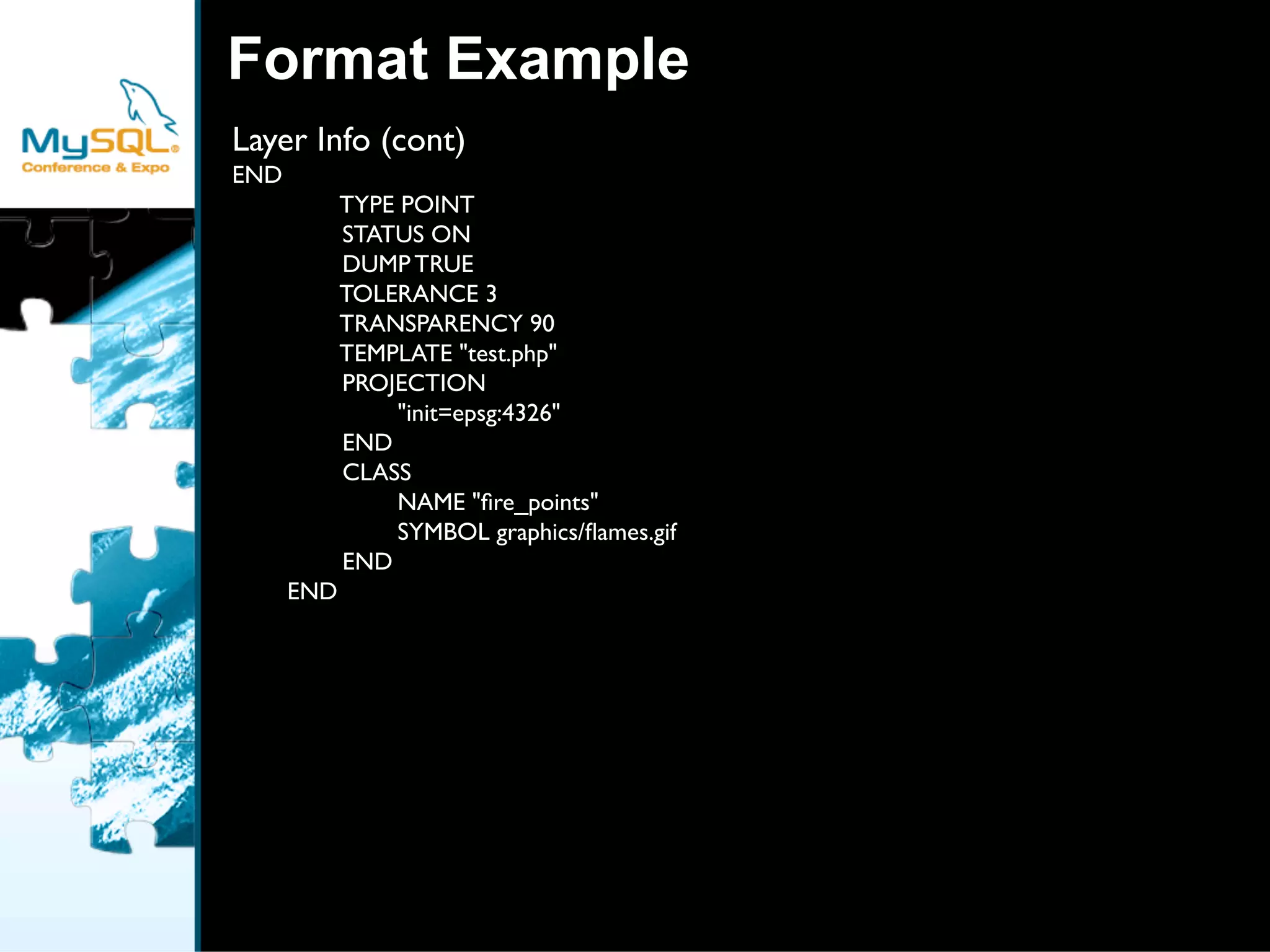

Format Example
Layer Info (cont)
END
       TYPE POINT
        STATUS ON
        DUMP TRUE
       TOLERANCE 3
       TRANSPARENCY 90
       TEMPLATE quot;test.phpquot;
        PROJECTION
            quot;init=epsg:4326quot;
        END
        CLASS
            NAME quot;fire_pointsquot;
            SYMBOL graphics/flames.gif
        END
    END

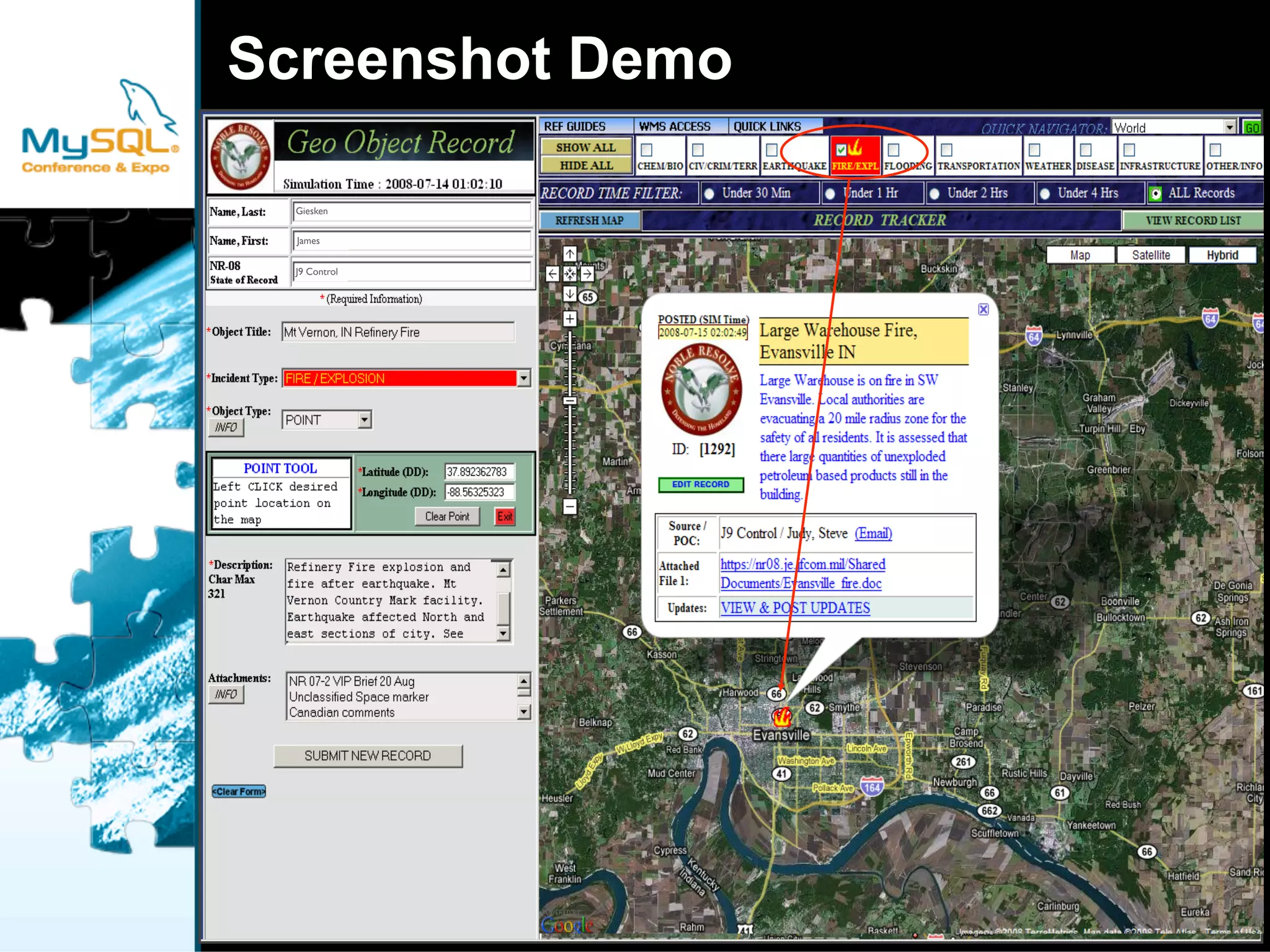

Screenshot Demo

  Giesken


  James


  J9 Control
Screenshot Demo

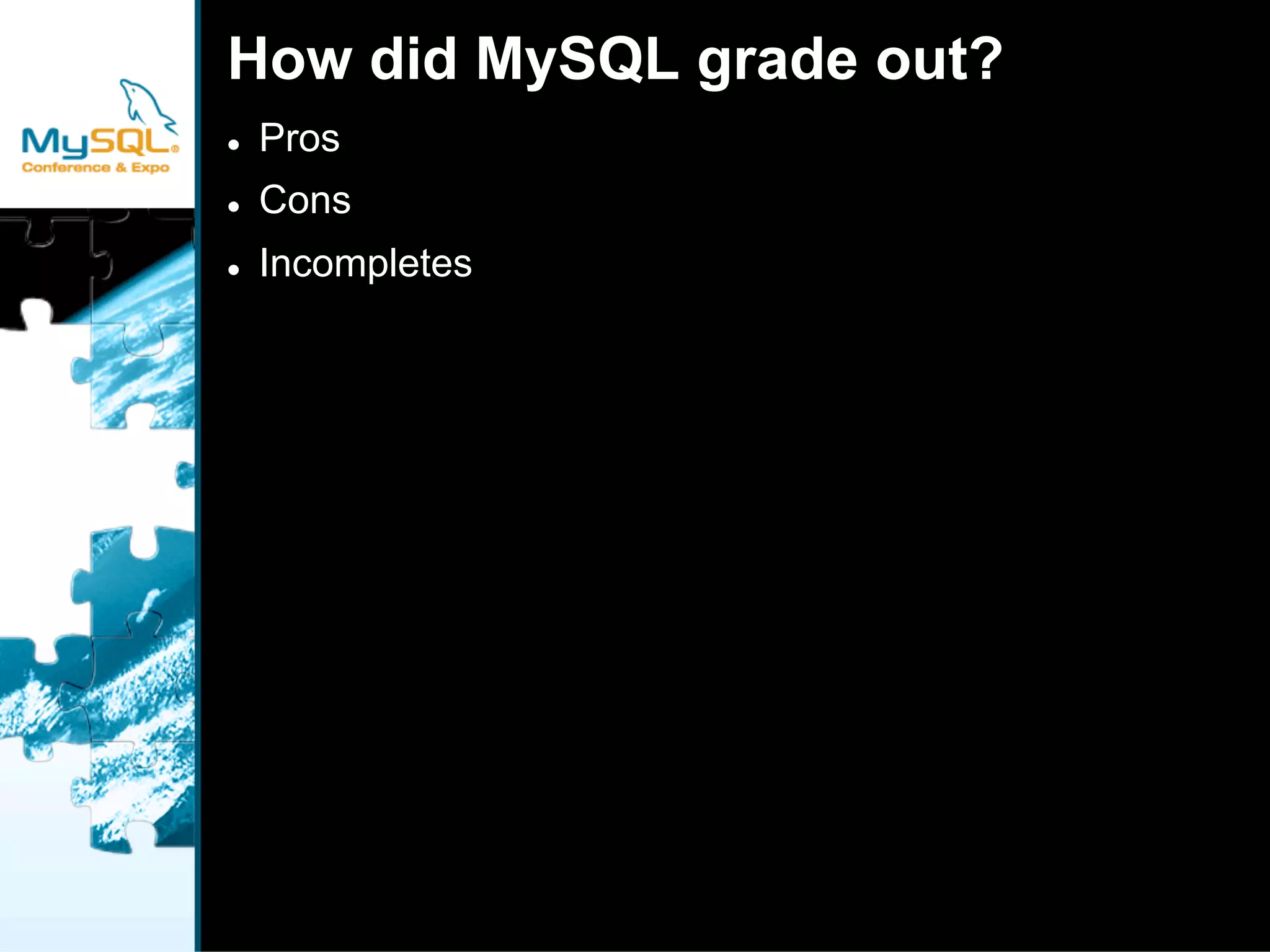

How did MySQL grade out?
     Pros
 


     Cons
 


     Incompletes
 

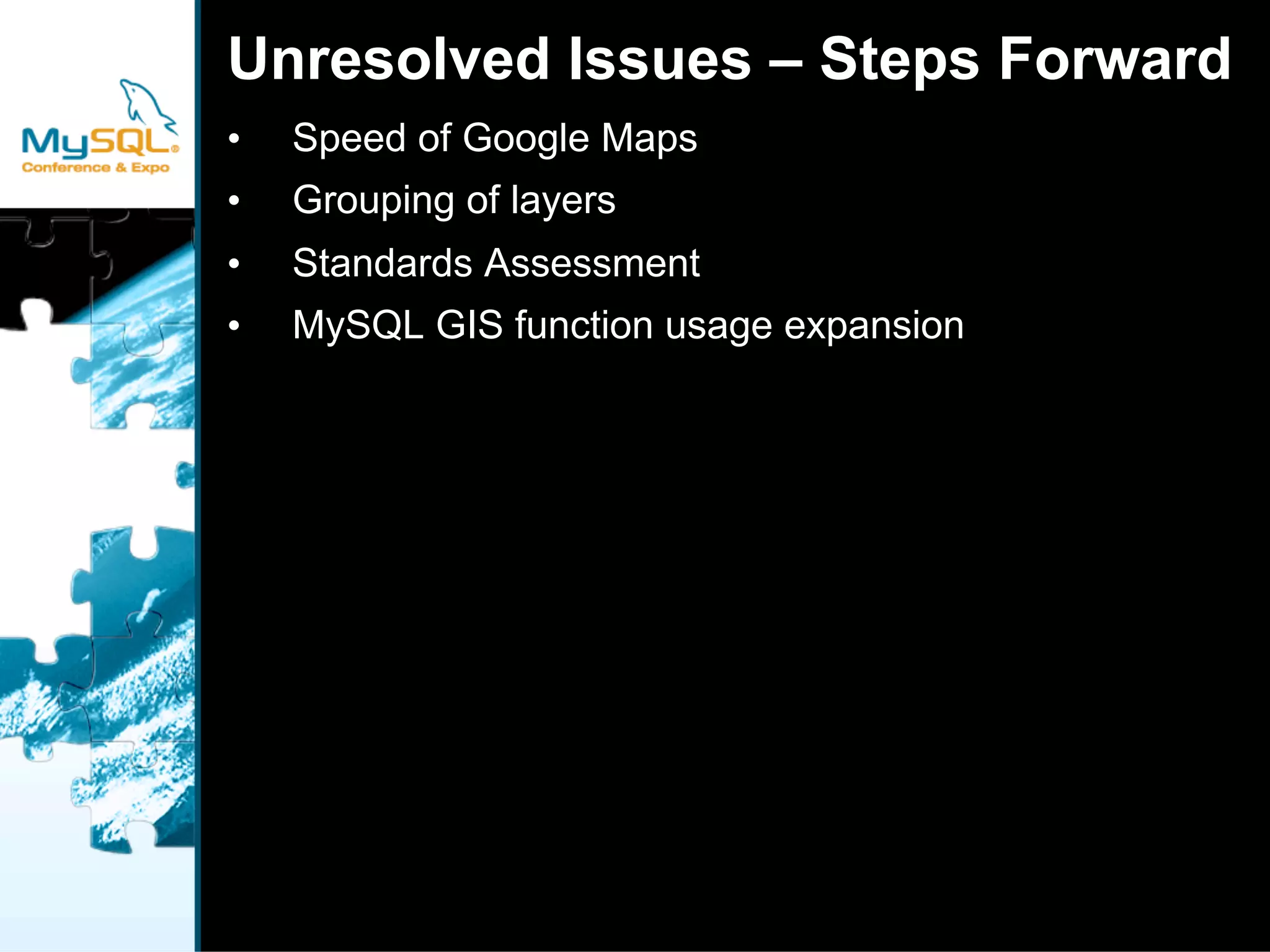

Unresolved Issues – Steps Forward
     Speed of Google Maps
• 
     Grouping of layers
• 
     Standards Assessment
• 
     MySQL GIS function usage expansion
• 

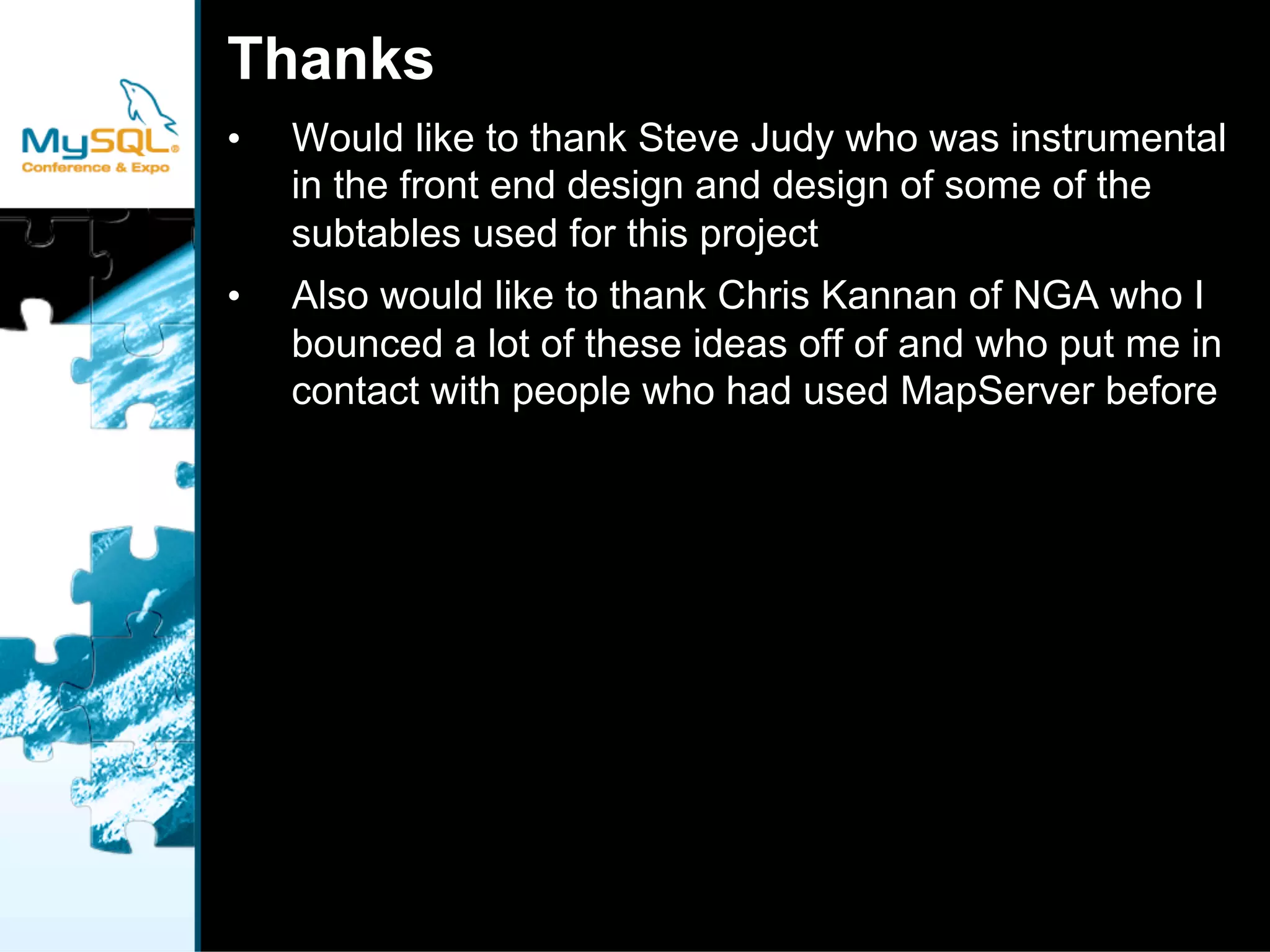

Thanks
     Would like to thank Steve Judy who was instrumental
• 
     in the front end design and design of some of the
     subtables used for this project
     Also would like to thank Chris Kannan of NGA who I
• 
     bounced a lot of these ideas off of and who put me in
     contact with people who had used MapServer before

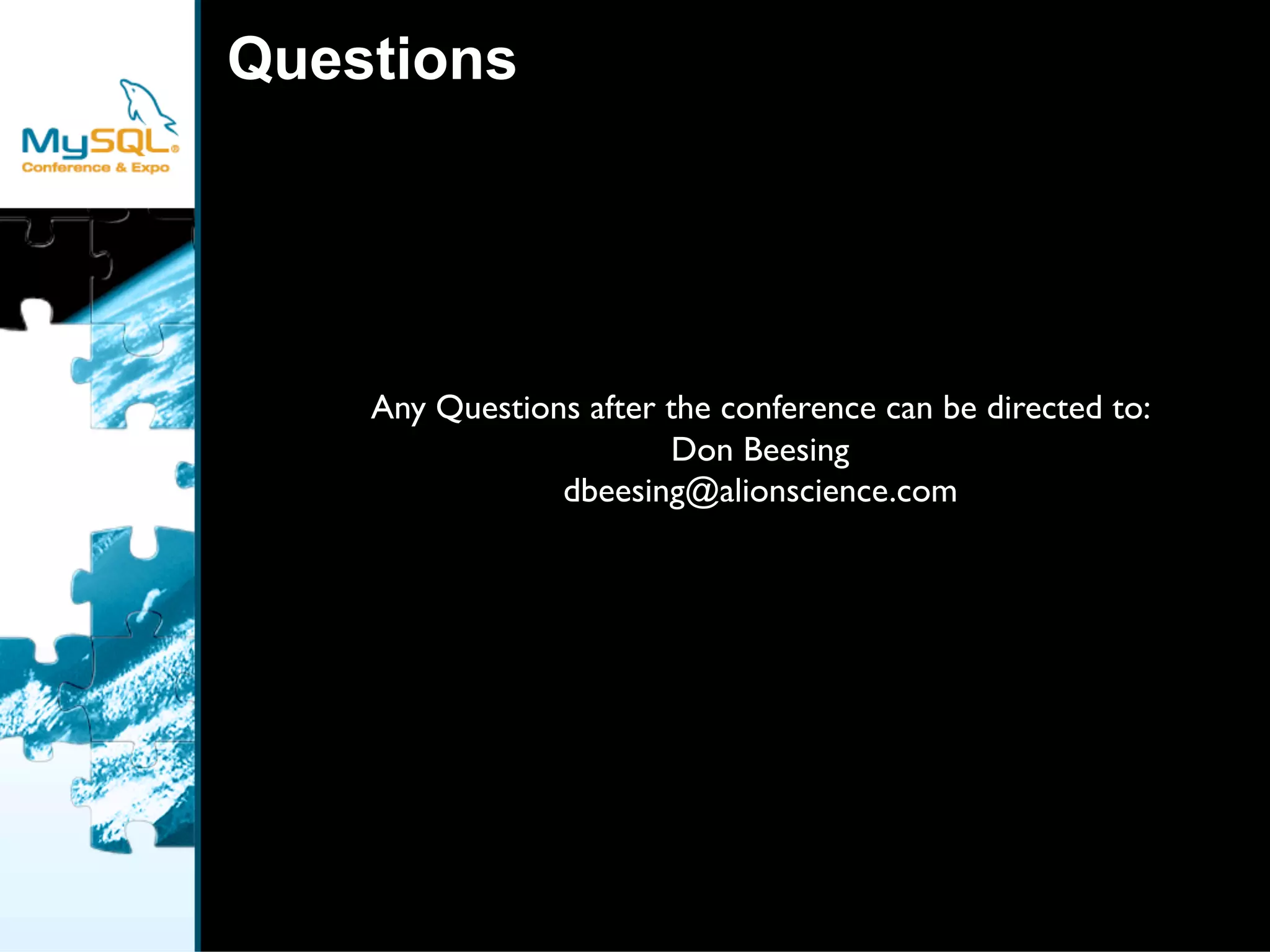

Questions




    Any Questions after the conference can be directed to:
                        Don Beesing
                dbeesing@alionscience.com

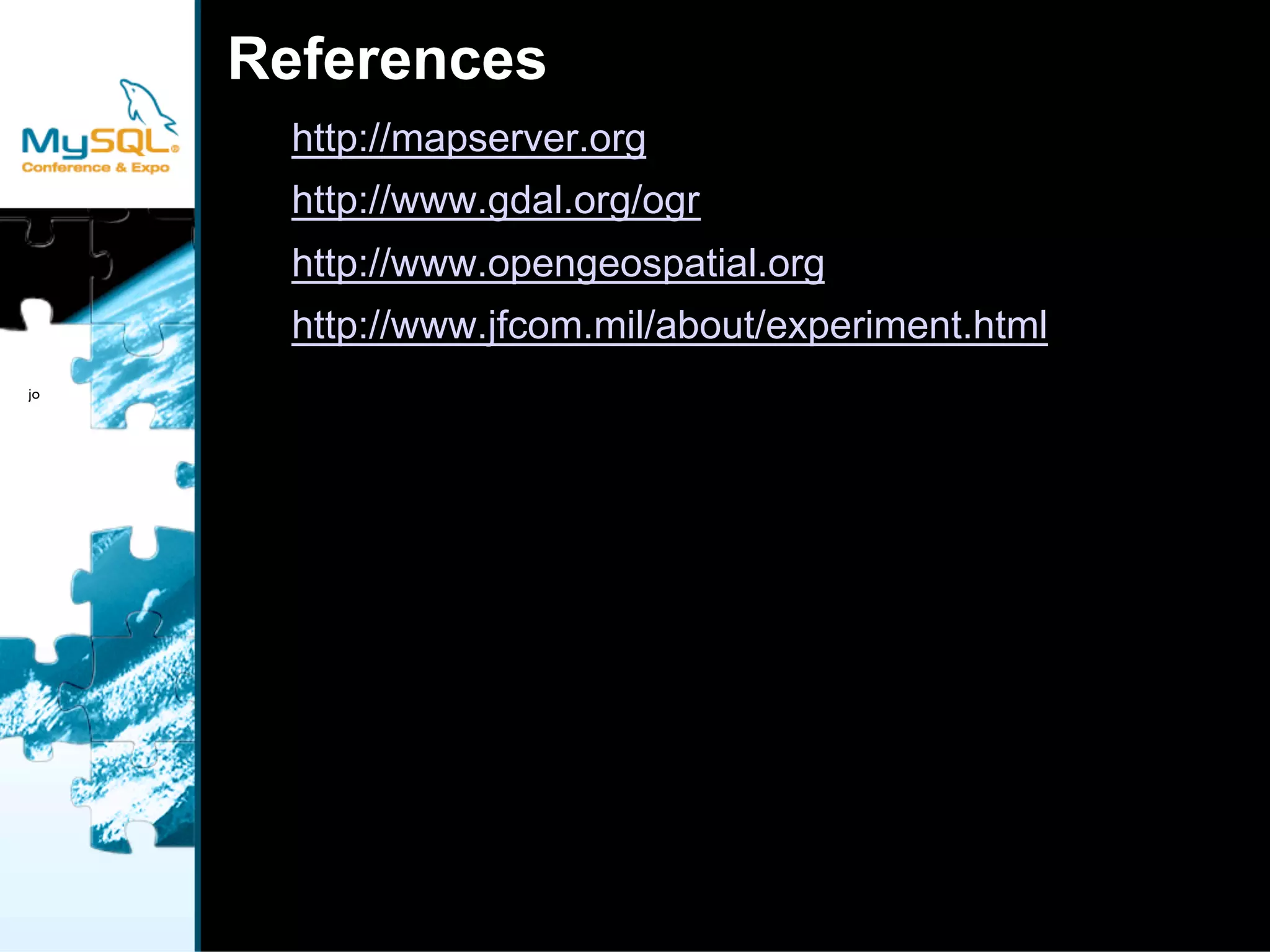

References
           http://mapserver.org
      • 
           http://www.gdal.org/ogr
      • 
           http://www.opengeospatial.org
      • 
           http://www.jfcom.mil/about/experiment.html
      • 
