CloudStack currently provides a variety bespoke high availability mechanisms for resources such as virtual machines, hosts, and virtual routers. Each of these implementations duplicates the HA check/recovery cycle, as well as, concurrency, persistence, and clustering required manage high available for any CloudStack resource. The High Availability Resource Management Service has been developed to consolidate these concerns -- providing a robust, extensible HA mechanism. Using this service, plugins only need to define health check, activity check, and fence operations.
Cloud Frontiers: A Deep Dive into Serverless Spatial Data and FME
When the Cloud is a Rockin: High Availability in Apache CloudStack
1. The Cloud
Specialists

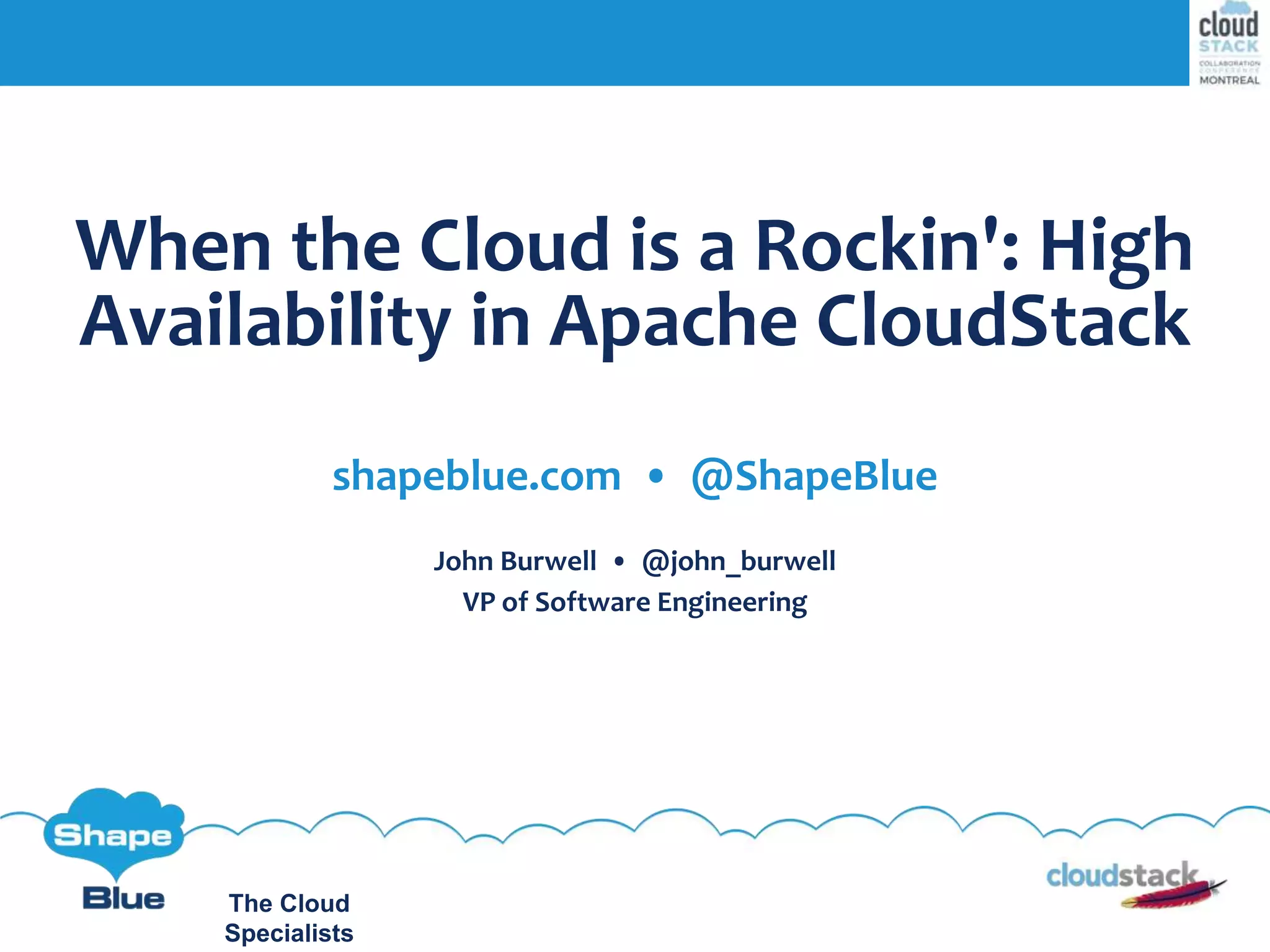

When the Cloud is a Rockin': High
Availability in Apache CloudStack
shapeblue.com • @ShapeBlue
John Burwell • @john_burwell
VP of Software Engineering
2. C l i c k t o e d i t
The Cloud Specialists ShapeBlue.com @ShapeBlue
A b o u t M e
• VP of Software Engineering @ ShapeBlue
• Member, Apache CloudStack PMC (June
2013)
• Ran operations and designed automated
provisioning for analytic/virtualization clouds
• Led architectural design and server-side
development of a SaaS physical security
platform
3. C l i c k t o e d i t
The Cloud Specialists ShapeBlue.com @ShapeBlue
• Rohit Yadav
• Abhi Prateek
• Murali Reddy
• Boris Stoyanov
T h e r e ’ s N o “ I ” i n T e a m
4. C l i c k t o e d i t
The Cloud Specialists ShapeBlue.com @ShapeBlue
M o t i v a t i o n

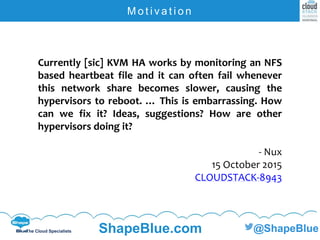

Currently [sic] KVM HA works by monitoring an NFS
based heartbeat file and it can often fail whenever
this network share becomes slower, causing the
hypervisors to reboot. … This is embarrassing. How
can we fix it? Ideas, suggestions? How are other
hypervisors doing it?
- Nux
15 October 2015
CLOUDSTACK-8943
5. C l i c k t o e d i t
The Cloud Specialists ShapeBlue.com @ShapeBlue

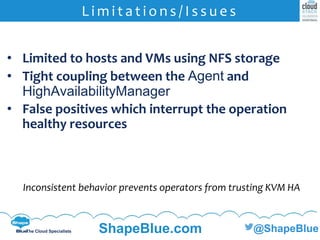

• Limited to hosts and VMs using NFS storage
• Tight coupling between the Agent and
HighAvailabilityManager
• False positives which interrupt the operation
healthy resources
L i m i t a t i o n s / I s s u e s
Inconsistent behavior prevents operators from trusting KVM HA
6. C l i c k t o e d i t
The Cloud Specialists ShapeBlue.com @ShapeBlue
B u i l d v s . B u y

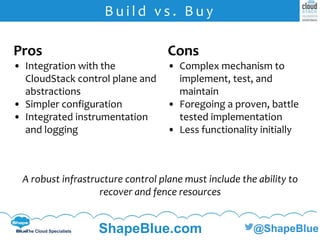

Pros
• Integration with the
CloudStack control plane and
abstractions
• Simpler configuration
• Integrated instrumentation
and logging
Cons
• Complex mechanism to
implement, test, and
maintain
• Foregoing a proven, battle
tested implementation
• Less functionality initially
A robust infrastructure control plane must include the ability to
recover and fence resources
7. C l i c k t o e d i t
The Cloud Specialists ShapeBlue.com @ShapeBlue
H A R e s o u r c e M a n a g e m e n t S e r v i c e

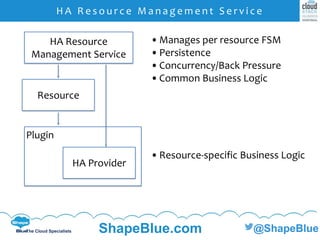

HA Resource
Management Service
Plugin
•Manages per resource FSM
•Persistence
•Concurrency/Back Pressure
•Common Business Logic
•Resource-specific Business Logic
HA Provider
Resource
8. C l i c k t o e d i t
The Cloud Specialists ShapeBlue.com @ShapeBlue

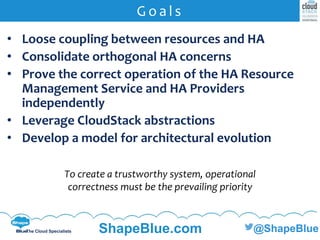

• Loose coupling between resources and HA
• Consolidate orthogonal HA concerns
• Prove the correct operation of the HA Resource
Management Service and HA Providers
independently
• Leverage CloudStack abstractions
• Develop a model for architectural evolution
G o a l s
To create a trustworthy system, operational
correctness must be the prevailing priority
9. C l i c k t o e d i t
The Cloud Specialists ShapeBlue.com @ShapeBlue

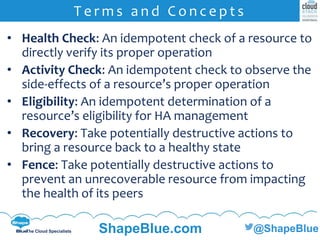

• Health Check: An idempotent check of a resource to
directly verify its proper operation
• Activity Check: An idempotent check to observe the
side-effects of a resource’s proper operation
• Eligibility: An idempotent determination of a
resource’s eligibility for HA management
• Recovery: Take potentially destructive actions to
bring a resource back to a healthy state
• Fence: Take potentially destructive actions to
prevent an unrecoverable resource from impacting
the health of its peers
T e r m s a n d C o n c e p t s
10. C l i c k t o e d i t
The Cloud Specialists ShapeBlue.com @ShapeBlue

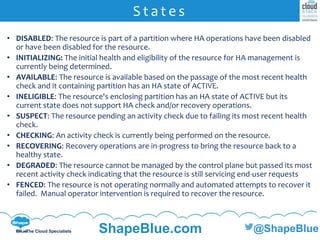

• DISABLED: The resource is part of a partition where HA operations have been disabled
or have been disabled for the resource.
• INITIALIZING: The initial health and eligibility of the resource for HA management is
currently being determined.
• AVAILABLE: The resource is available based on the passage of the most recent health
check and it containing partition has an HA state of ACTIVE.
• INELIGIBLE: The resource's enclosing partition has an HA state of ACTIVE but its
current state does not support HA check and/or recovery operations.
• SUSPECT: The resource pending an activity check due to failing its most recent health
check.
• CHECKING: An activity check is currently being performed on the resource.
• RECOVERING: Recovery operations are in-progress to bring the resource back to a
healthy state.
• DEGRADED: The resource cannot be managed by the control plane but passed its most
recent activity check indicating that the resource is still servicing end-user requests
• FENCED: The resource is not operating normally and automated attempts to recover it
failed. Manual operator intervention is required to recover the resource.
S t a t e s
11. C l i c k t o e d i t
The Cloud Specialists ShapeBlue.com @ShapeBlue
S t a t e M o d e l
12. C l i c k t o e d i t
The Cloud Specialists ShapeBlue.com @ShapeBlue
H A P r o v i d e r I n t e r f a c e
public interface HAProvider<R> extends Adapter {
ResourceType resourceType();
ResourceSubType resourceSubType();
boolean isEligible(R r);
boolean isHealthy(R r) throws HACheckerException;
boolean hasActivity(R r) throws HACheckerException;
boolean recover(R r) throws HARecoveryException;
boolean fence(R r) throws HAFenceException;
}
13. C l i c k t o e d i t
The Cloud Specialists ShapeBlue.com @ShapeBlue

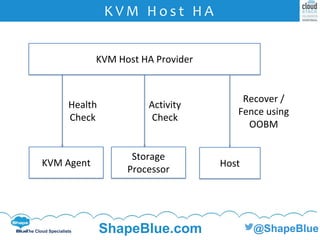

K V M H o s t H A
KVM Host HA Provider
Storage
Processor
Activity
Check
Host
Recover /
Fence using
OOBM
KVM Agent
Health
Check
14. C l i c k t o e d i t
The Cloud Specialists ShapeBlue.com @ShapeBlue
C o n c u r r e n c y M o d e l

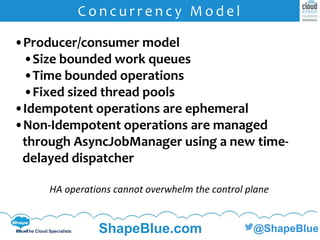

•Producer/consumer model
•Size bounded work queues
•Time bounded operations
•Fixed sized thread pools
•Idempotent operations are ephemeral
•Non-Idempotent operations are managed
through AsyncJobManager using a new time-
delayed dispatcher
HA operations cannot overwhelm the control plane
15. C l i c k t o e d i t
The Cloud Specialists ShapeBlue.com @ShapeBlue

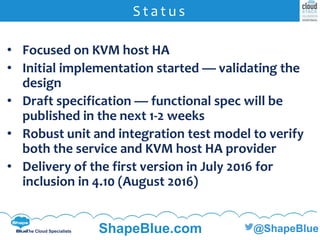

• Focused on KVM host HA
• Initial implementation started — validating the
design
• Draft specification — functional spec will be
published in the next 1-2 weeks
• Robust unit and integration test model to verify
both the service and KVM host HA provider
• Delivery of the first version in July 2016 for
inclusion in 4.10 (August 2016)
S t a t u s
16. C l i c k t o e d i t
The Cloud Specialists ShapeBlue.com @ShapeBlue

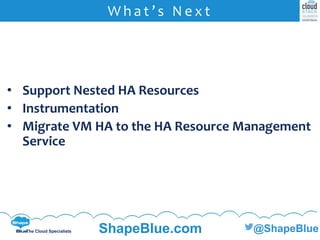

• Support Nested HA Resources
• Instrumentation
• Migrate VM HA to the HA Resource Management
Service
W h a t ’ s N e x t
17. C l i c k t o e d i t
The Cloud Specialists ShapeBlue.com @ShapeBlue
Questions? Comments?
#cloudstackworks
Editor's Notes
Goals
Provide an overview of the HA Resource Management Service which will be delivered in 4.10
Explain how developers can leverage it to add HA management for their plugins/resources
Caveats
20 min talk — a high level overview of large, complex topic
We started working on fixing KVM host HA, and discovered that we would build something useful for other types of resources
How many people have pulled a HA system out of production because you couldn’t trust it?
Considered integrating the Linux-HA project
Runs side-by-side with the existing HA mechanism
HA is an aspect of sorts applied to a resource
Separate tables which for persistence of HA state without impacting the core schema
New APIs to configure and control HA for a resource
Breeze through this slide — provided for reference
These transitions are completely encapsulated
Implemented per resource type/plugin
Dynamically discovered at startup via reflection
Activity check does not require clock sync
Only NFS now, but any storage provider that adds the capability will be able to leveraged
Handoff of HA operations in clustered configurations
