Uploaded byCluster TWEED
Webinar - Which technologies & digital tools do we need to implement an energy community ? - 23/02/21
The document discusses various energy community projects in Belgium and the EU that focus on renewable energy solutions and community engagement. It highlights the establishment of energy cooperatives that allow local residents to share energy resources, thereby promoting self-sufficiency and sustainability, supported by EU funding. Additionally, it examines the evolving landscape of energy consumption, including the integration of advanced technologies and community-driven initiatives for energy management and collective self-consumption.
More Related Content
Similar to Webinar - Which technologies & digital tools do we need to implement an energy community ? - 23/02/21
Webinar - Which technologies & digital tools do we need to implement an energy community ? - 23/02/21

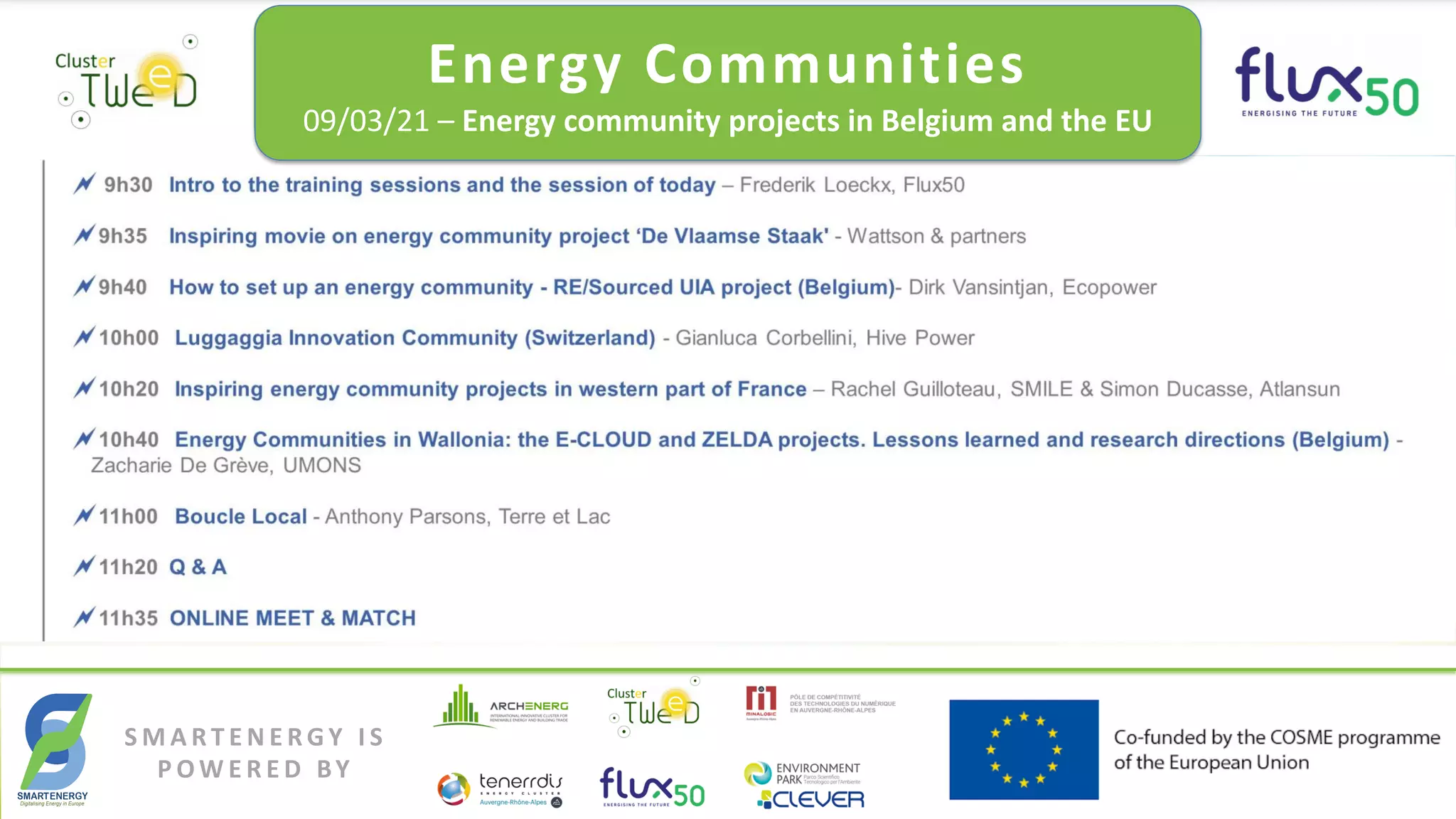

- 1. SmartEnergy SMARTENERGY – Digitalisingenergy in europe S M A R T E N E R G Y I S P O W E R E D BY Energy Communities 09/03/21 – Energy community projects in Belgium and the EU

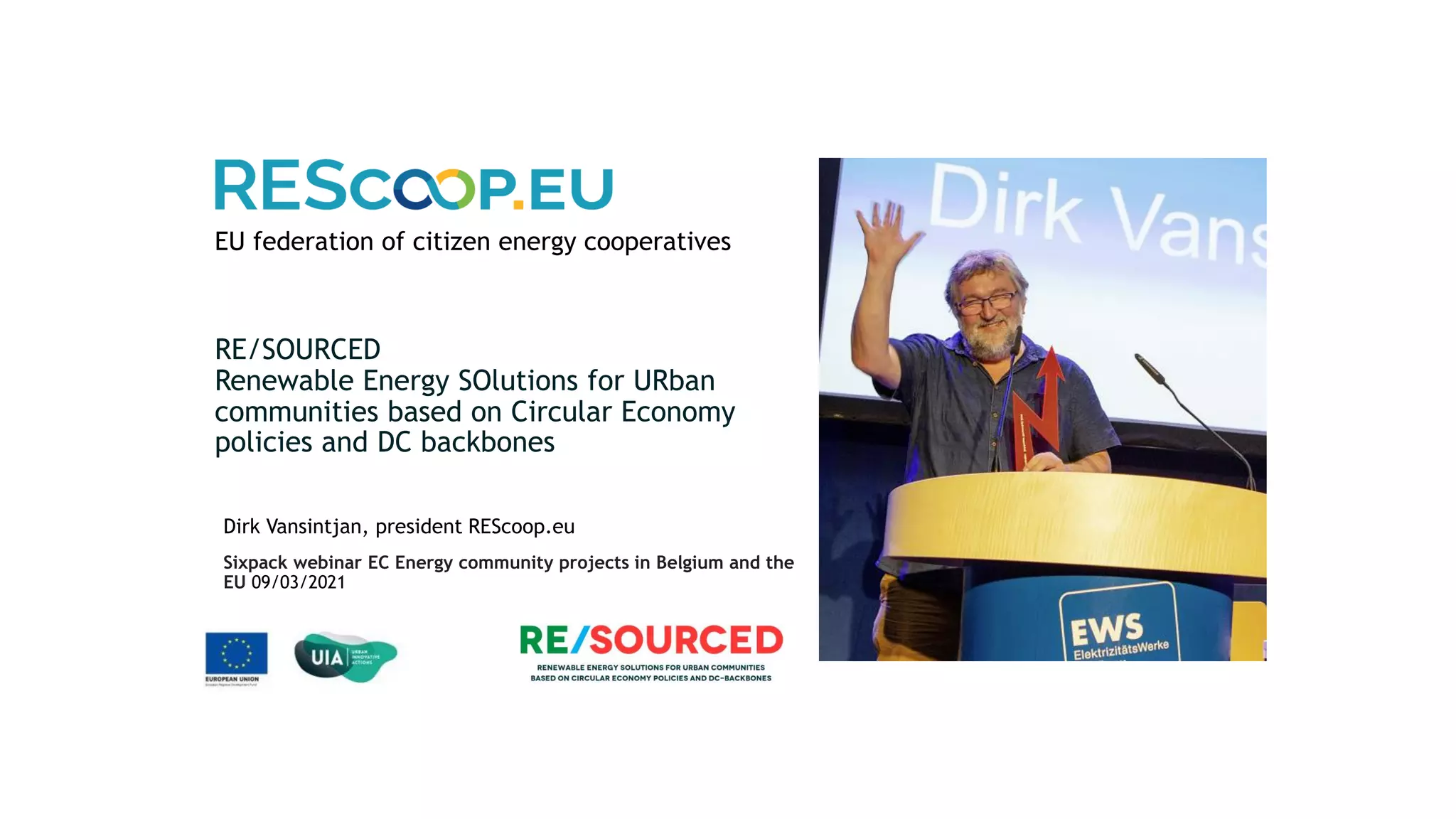

- 2. EU federation ofcitizen energy cooperatives RE/SOURCED Renewable Energy SOlutions for URban communities based on Circular Economy policies and DC backbones Dirk Vansintjan, president REScoop.eu Sixpack webinar EC Energy community projects in Belgium and the EU 09/03/2021

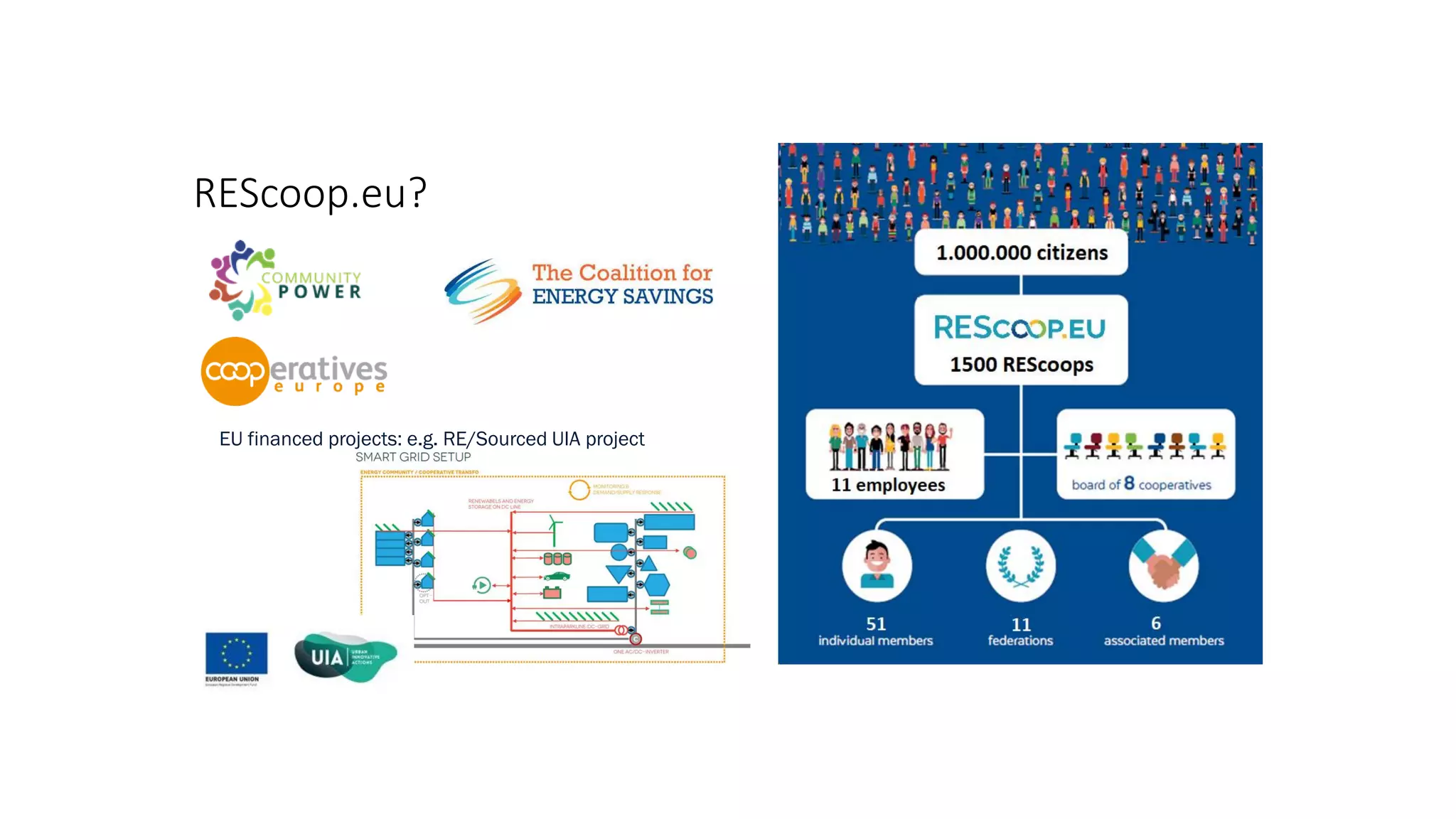

- 3. REScoop.eu? EU financed projects:e.g. RE/Sourced UIA project

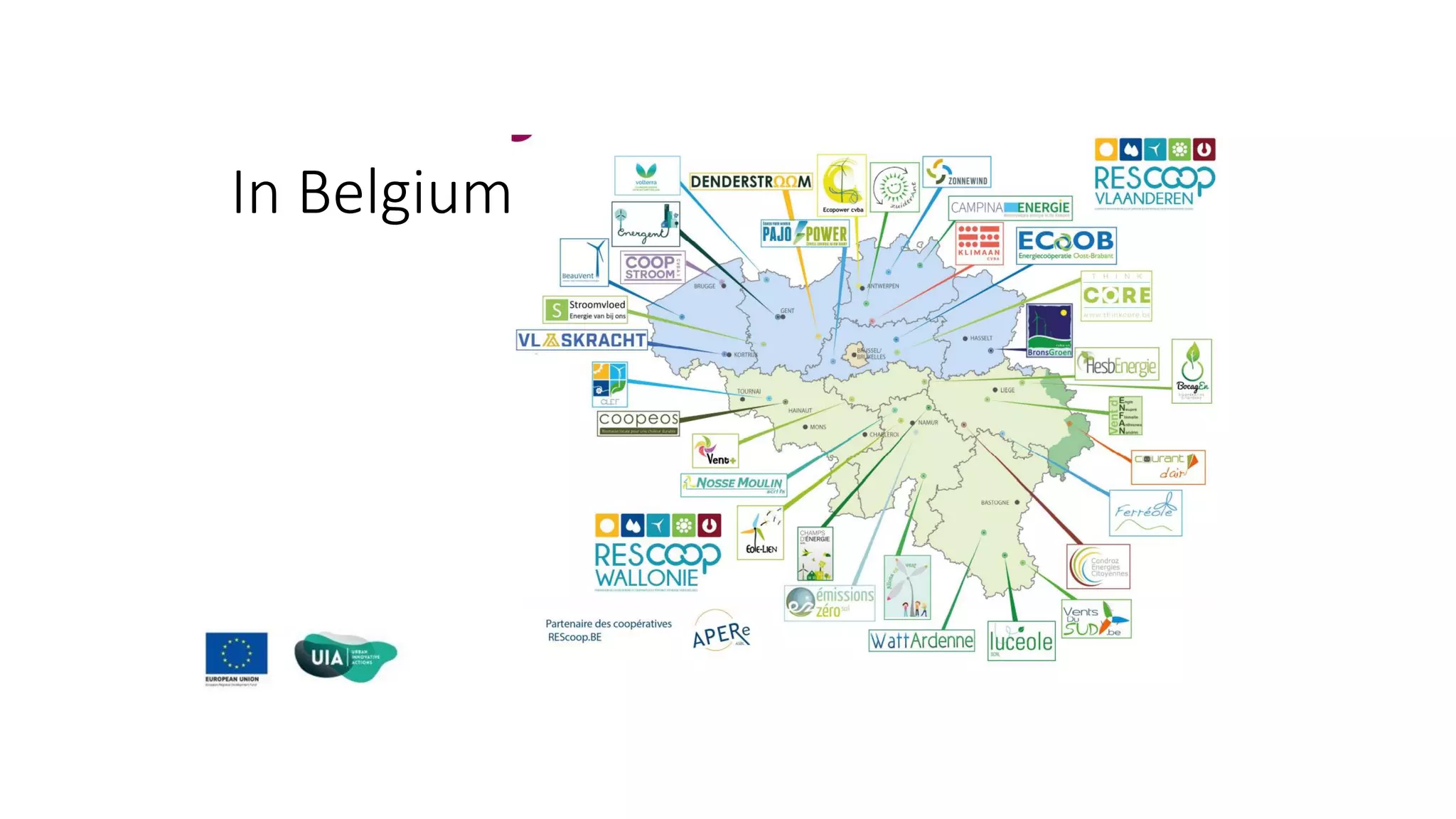

- 4. 51 11 6 InBelgium?
- 5.
- 6.

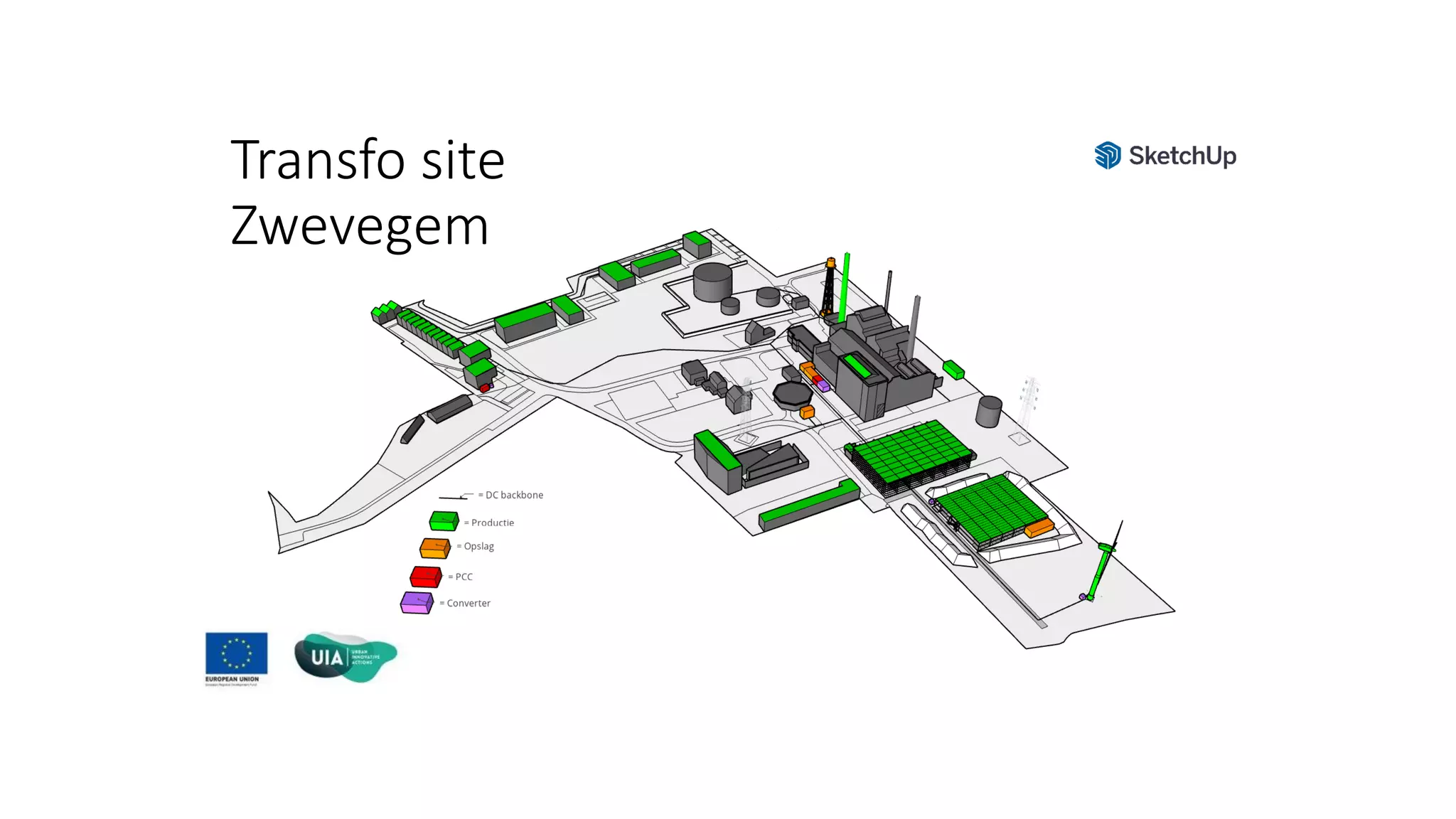

- 7.

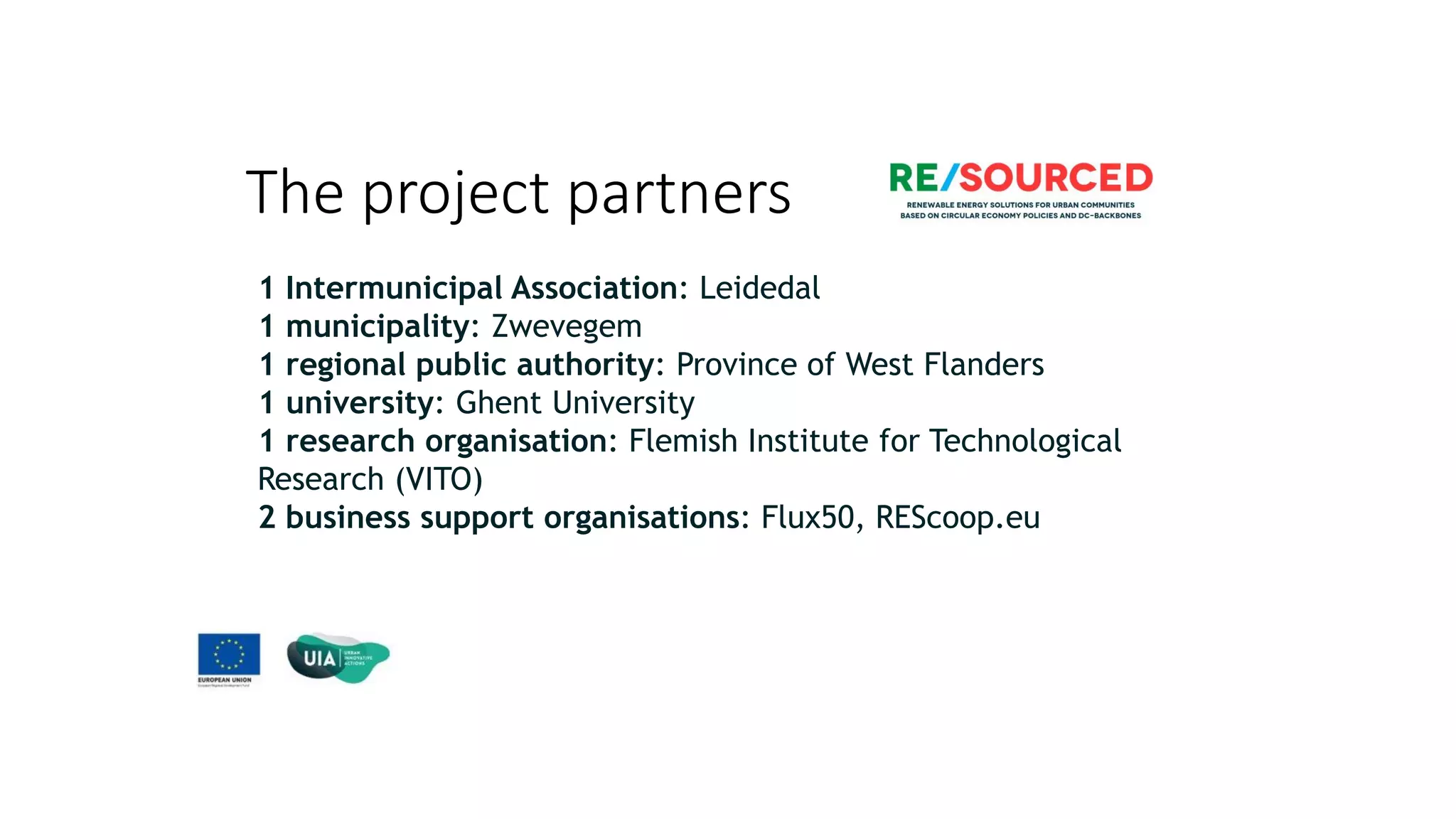

- 8. The project partners Theproject in numbers 1 Intermunicipal Association: Leidedal 1 municipality: Zwevegem 1 regional public authority: Province of West Flanders 1 university: Ghent University 1 research organisation: Flemish Institute for Technological Research (VITO) 2 business support organisations: Flux50, REScoop.eu
- 9. The project innumbers The project in numbers 90% of the Transfo district’s energy use will come from a community-shared renewable energy system. 50% of the elements used to build this system will be sourced using circular procurement. 70 families will experience the added value that this lighthouse project offers. 10 businesses will experience the added value that this lighthouse project offers. 50 000 visitors will experience the added value that this lighthouse project offers. 3,998,436.80 Total ERDF budget granted

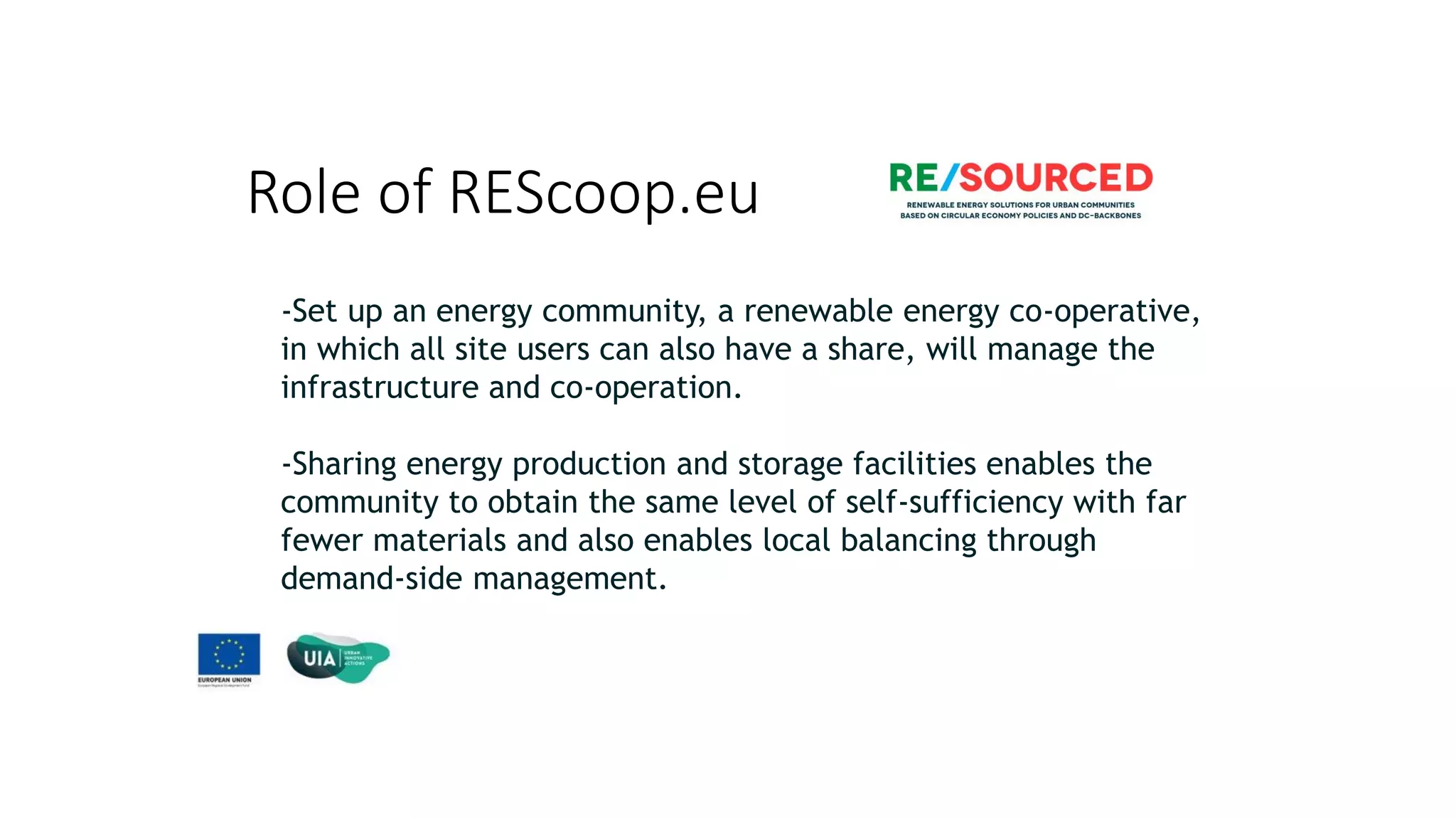

- 10. Role of REScoop.eu -Setup an energy community, a renewable energy co-operative, in which all site users can also have a share, will manage the infrastructure and co-operation. -Sharing energy production and storage facilities enables the community to obtain the same level of self-sufficiency with far fewer materials and also enables local balancing through demand-side management.

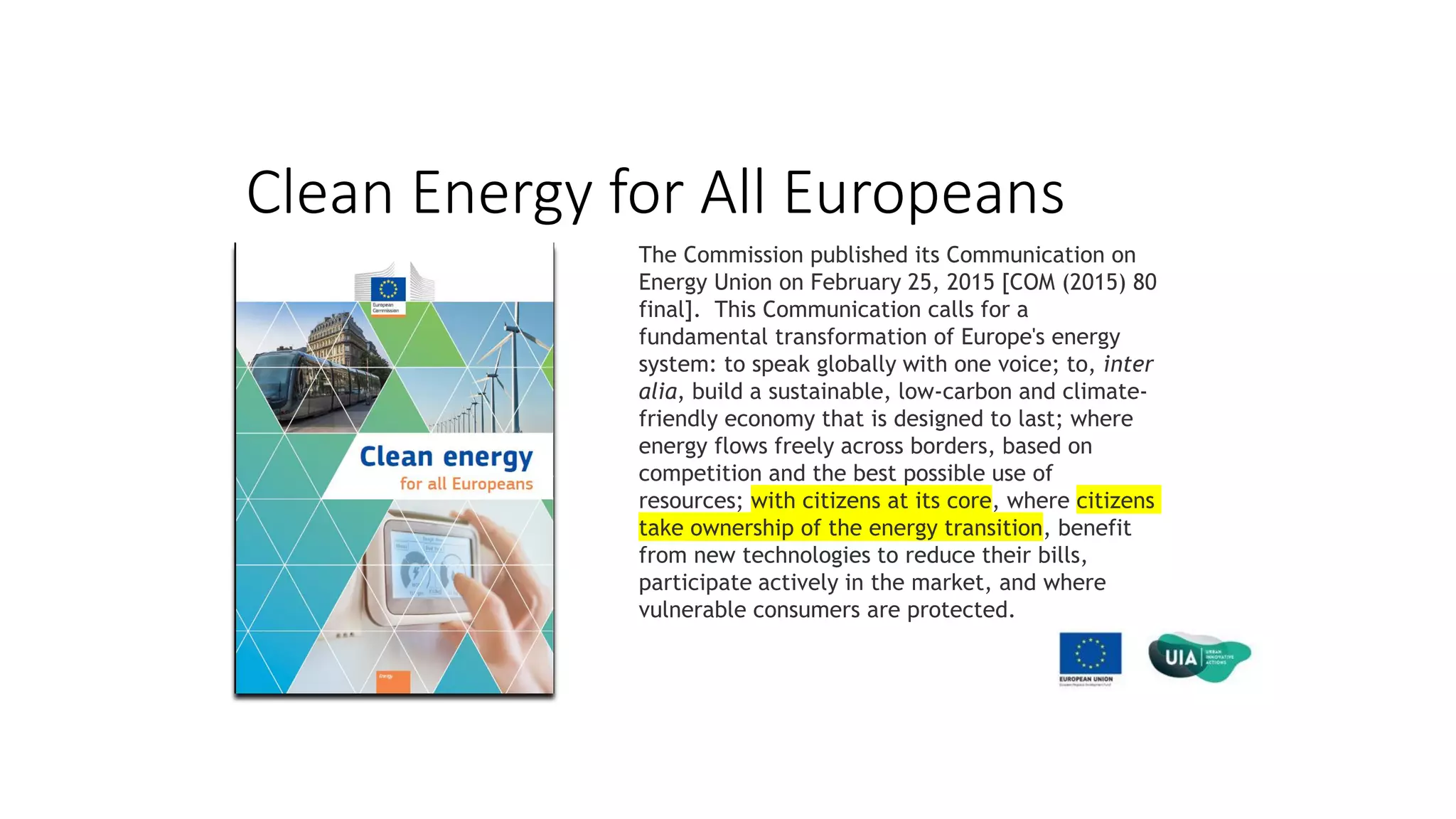

- 11. Clean Energy forAll Europeans The Commission published its Communication on Energy Union on February 25, 2015 [COM (2015) 80 final]. This Communication calls for a fundamental transformation of Europe's energy system: to speak globally with one voice; to, inter alia, build a sustainable, low-carbon and climate- friendly economy that is designed to last; where energy flows freely across borders, based on competition and the best possible use of resources; with citizens at its core, where citizens take ownership of the energy transition, benefit from new technologies to reduce their bills, participate actively in the market, and where vulnerable consumers are protected.

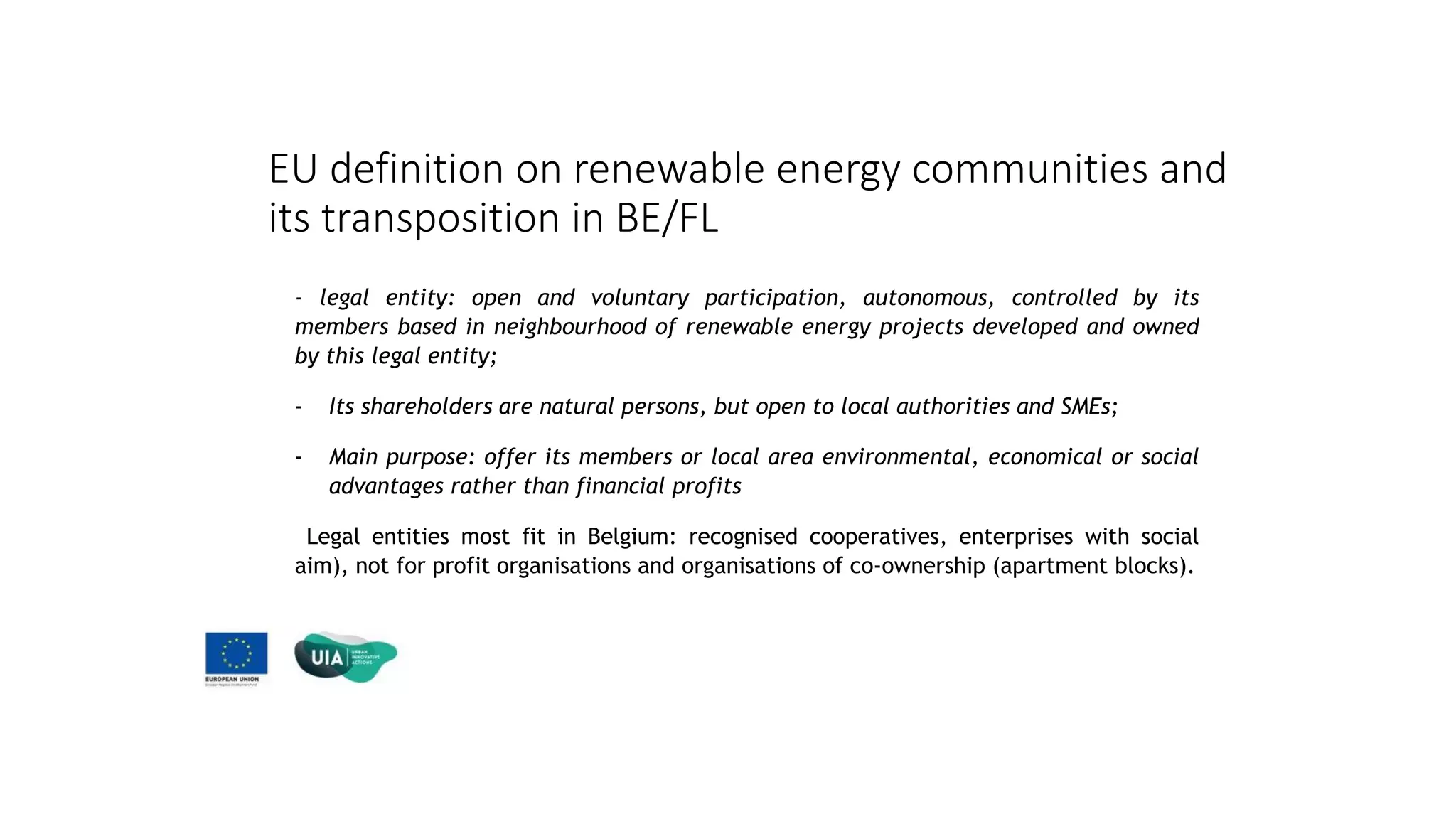

- 12. EU definition onrenewable energy communities and its transposition in BE/FL - legal entity: open and voluntary participation, autonomous, controlled by its members based in neighbourhood of renewable energy projects developed and owned by this legal entity; - Its shareholders are natural persons, but open to local authorities and SMEs; - Main purpose: offer its members or local area environmental, economical or social advantages rather than financial profits Legal entities most fit in Belgium: recognised cooperatives, enterprises with social aim), not for profit organisations and organisations of co-ownership (apartment blocks).

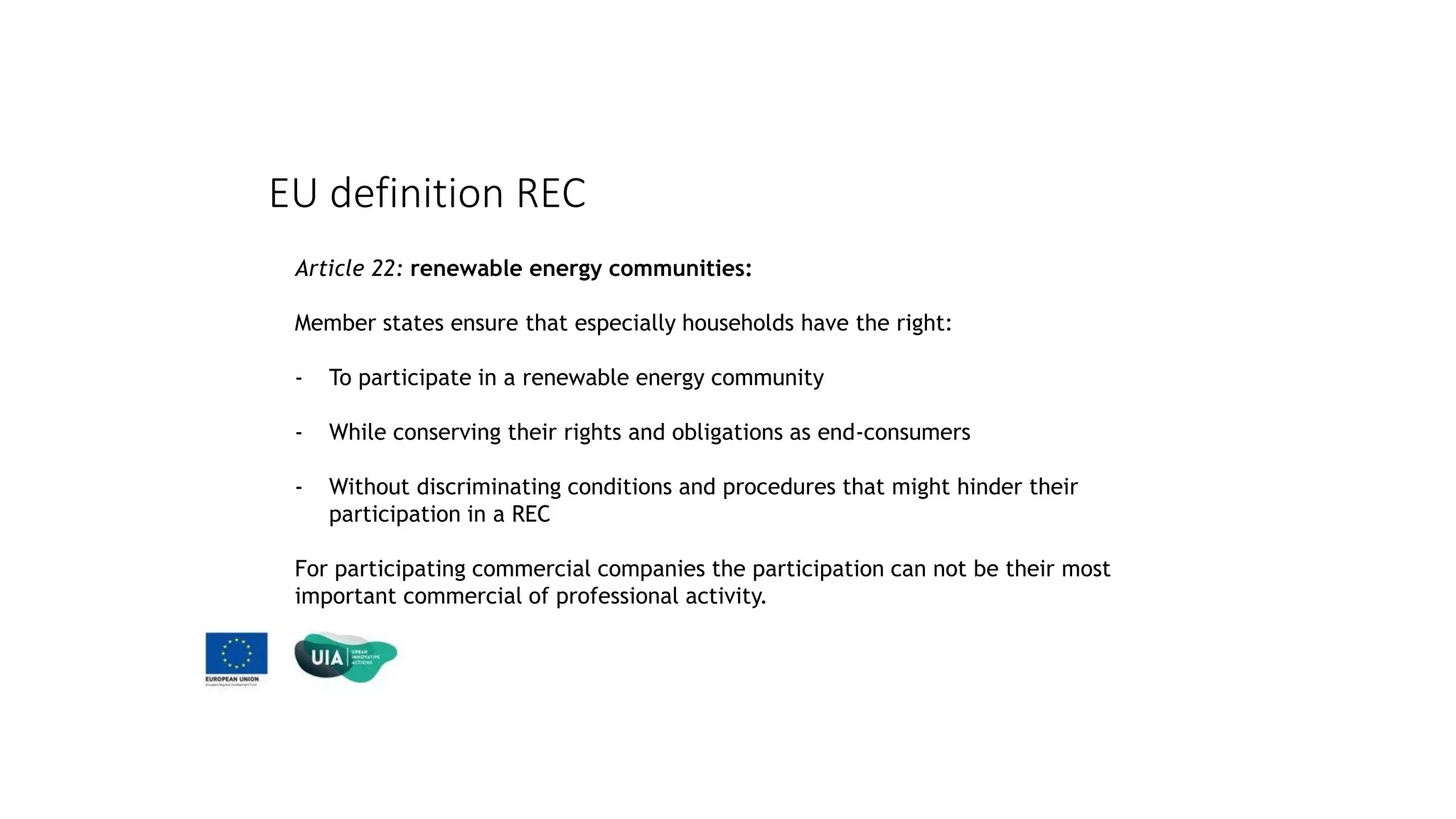

- 13. EU definition REC Article22: renewable energy communities: Member states ensure that especially households have the right: - To participate in a renewable energy community - While conserving their rights and obligations as end-consumers - Without discriminating conditions and procedures that might hinder their participation in a REC For participating commercial companies the participation can not be their most important commercial of professional activity.

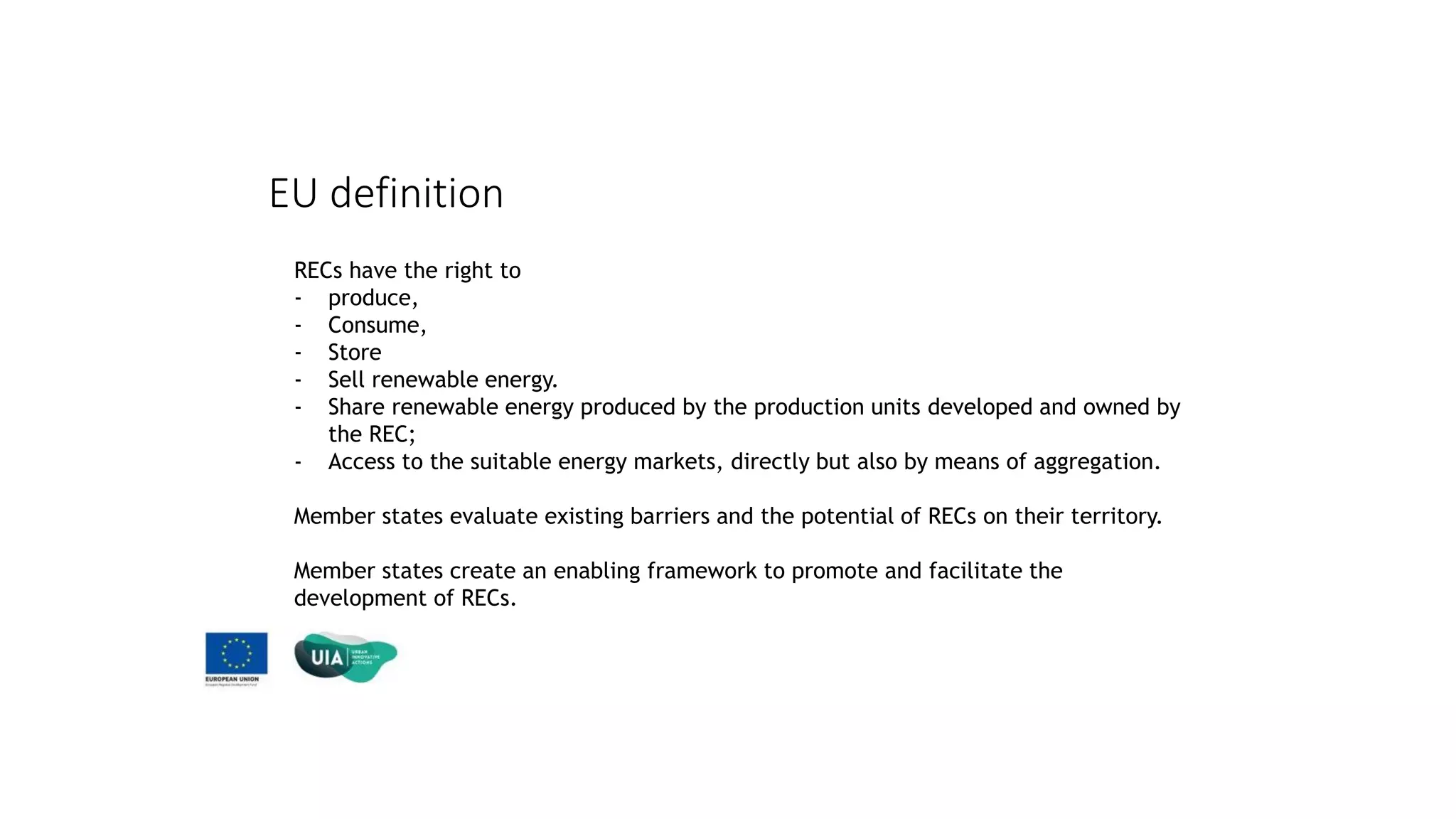

- 14. EU definition RECs havethe right to - produce, - Consume, - Store - Sell renewable energy. - Share renewable energy produced by the production units developed and owned by the REC; - Access to the suitable energy markets, directly but also by means of aggregation. Member states evaluate existing barriers and the potential of RECs on their territory. Member states create an enabling framework to promote and facilitate the development of RECs.

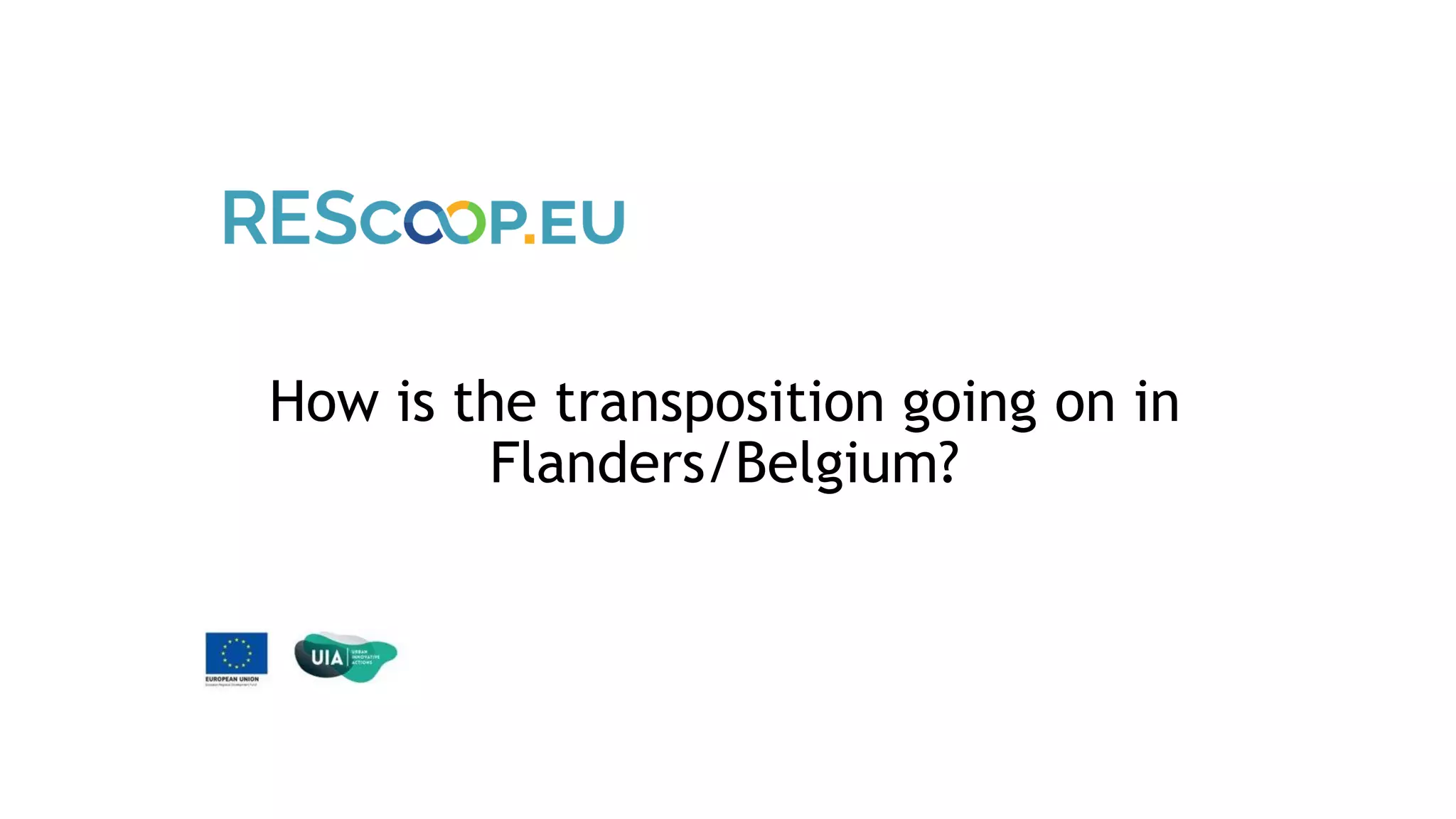

- 15. How is thetransposition going on in Flanders/Belgium?

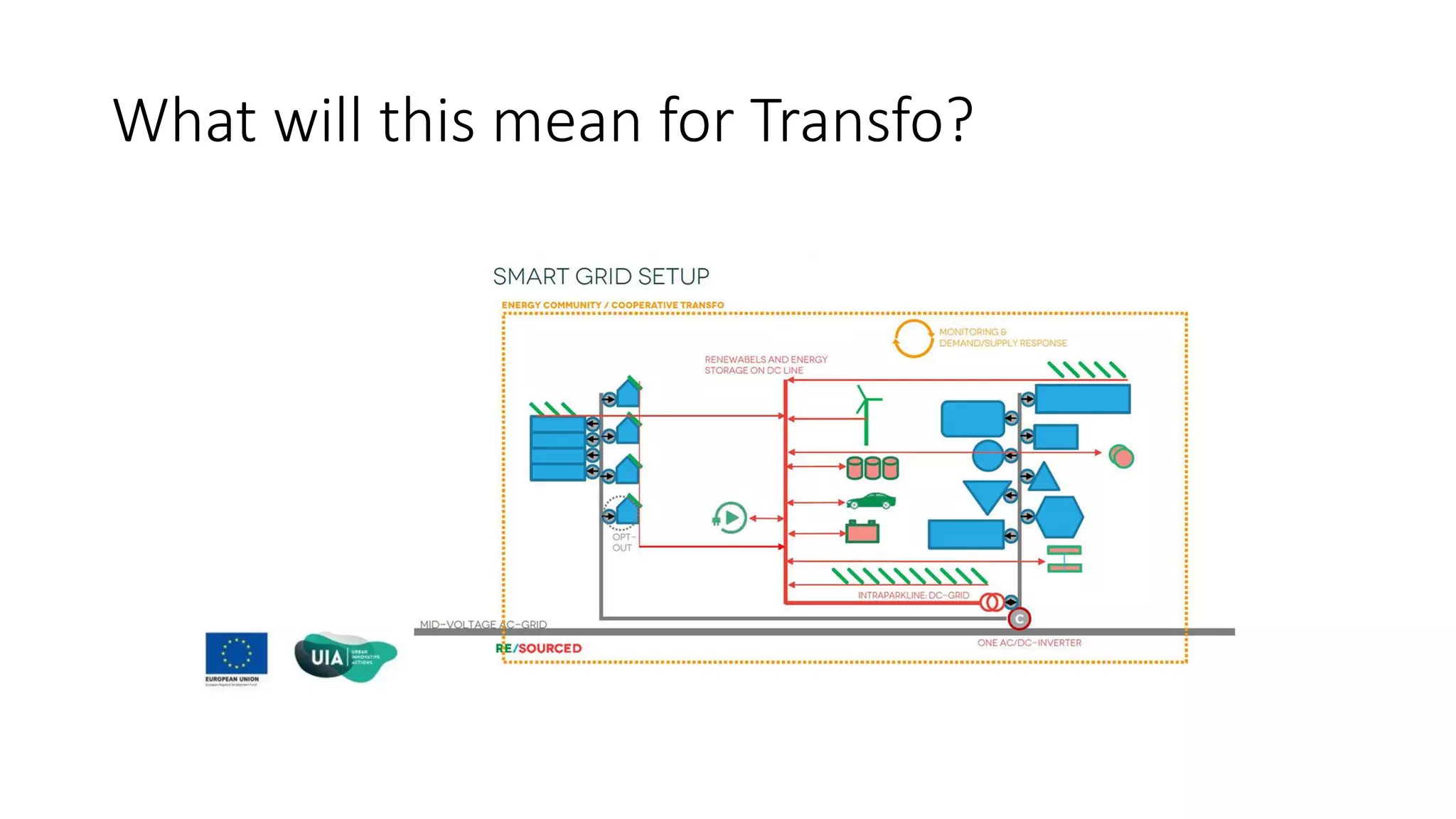

- 16. What will thismean for Transfo?
- 17.
- 18. Grids, made smart LugaggiaInnovation Community - LIC
- 19. WHO WE ARE GianlucaCorbellini MSc Mathematical Engineering ● Altran - Consultant ● E.ON - Performance Engineer ● SUPSI - Researcher Hive Power - CEO and co-founder 2 SaaS for Smart Grid Analytics for energy retailers and grid operators to optimise the grid and asset management

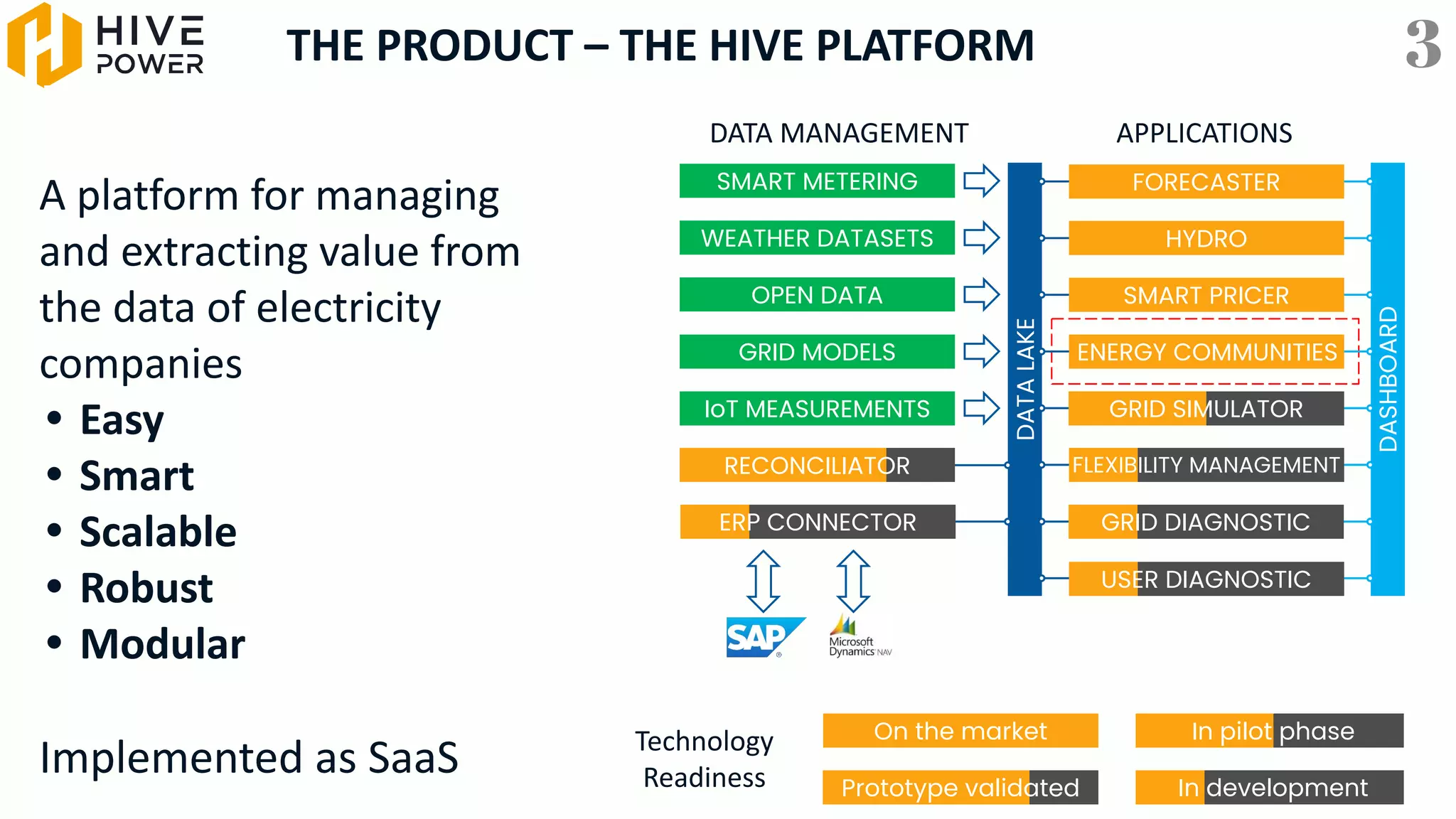

- 20. THE PRODUCT –THE HIVE PLATFORM A platform for managing and extracting value from the data of electricity companies • Easy • Smart • Scalable • Robust • Modular Implemented as SaaS DATA MANAGEMENT APPLICATIONS Technology Readiness On the market Prototype validated In development In pilot phase DASHBOARD DATA LAKE SMART METERING WEATHER DATASETS OPEN DATA GRID MODELS IoT MEASUREMENTS RECONCILIATOR ERP CONNECTOR USER DIAGNOSTIC GRID DIAGNOSTIC FLEXIBILITY MANAGEMENT GRID SIMULATOR ENERGY COMMUNITIES FORECASTER SMART PRICER HYDRO 3
- 21.

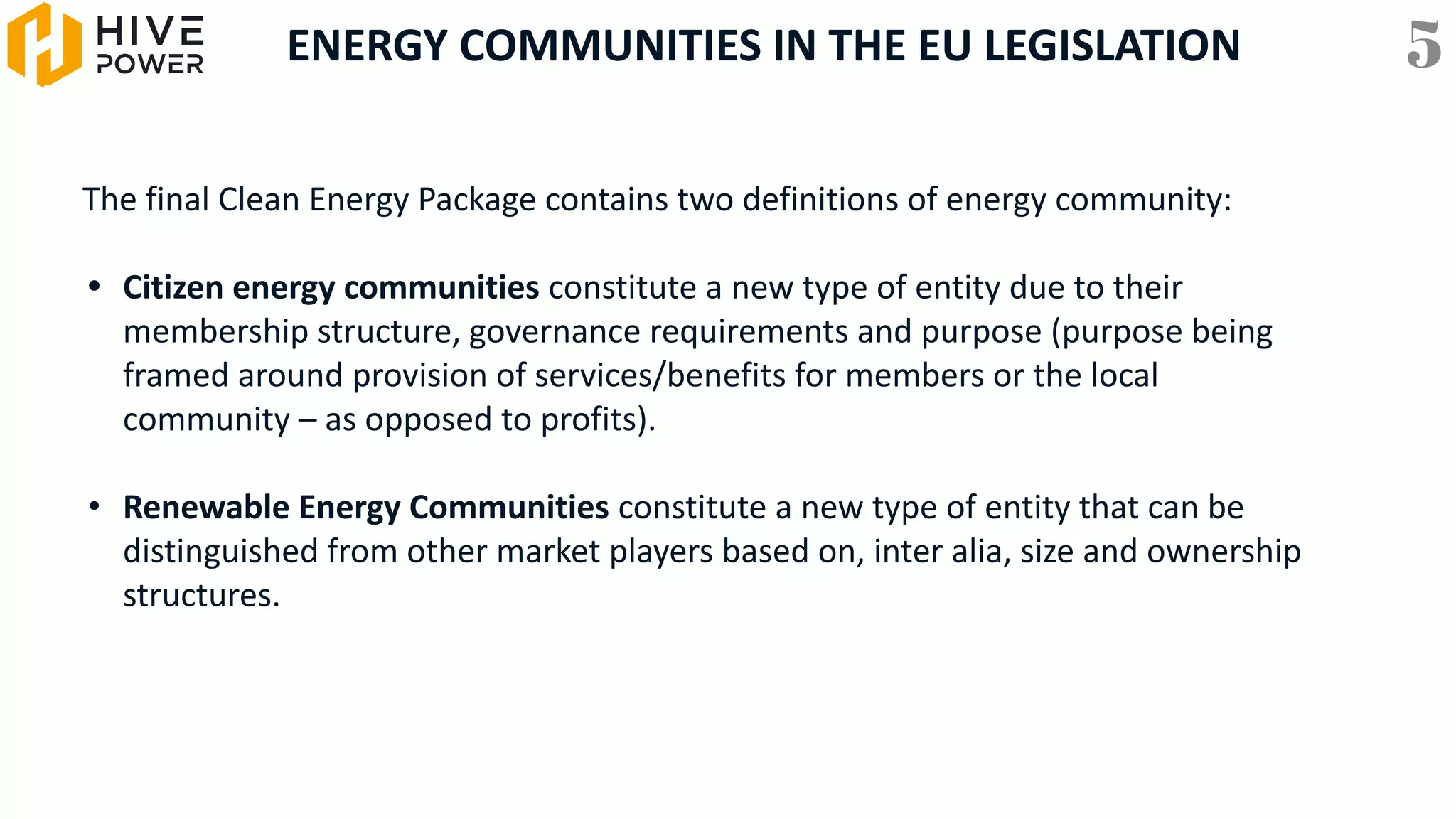

- 22. ENERGY COMMUNITIES INTHE EU LEGISLATION The final Clean Energy Package contains two definitions of energy community: • Citizen energy communities constitute a new type of entity due to their membership structure, governance requirements and purpose (purpose being framed around provision of services/benefits for members or the local community – as opposed to profits). • Renewable Energy Communities constitute a new type of entity that can be distinguished from other market players based on, inter alia, size and ownership structures. 5

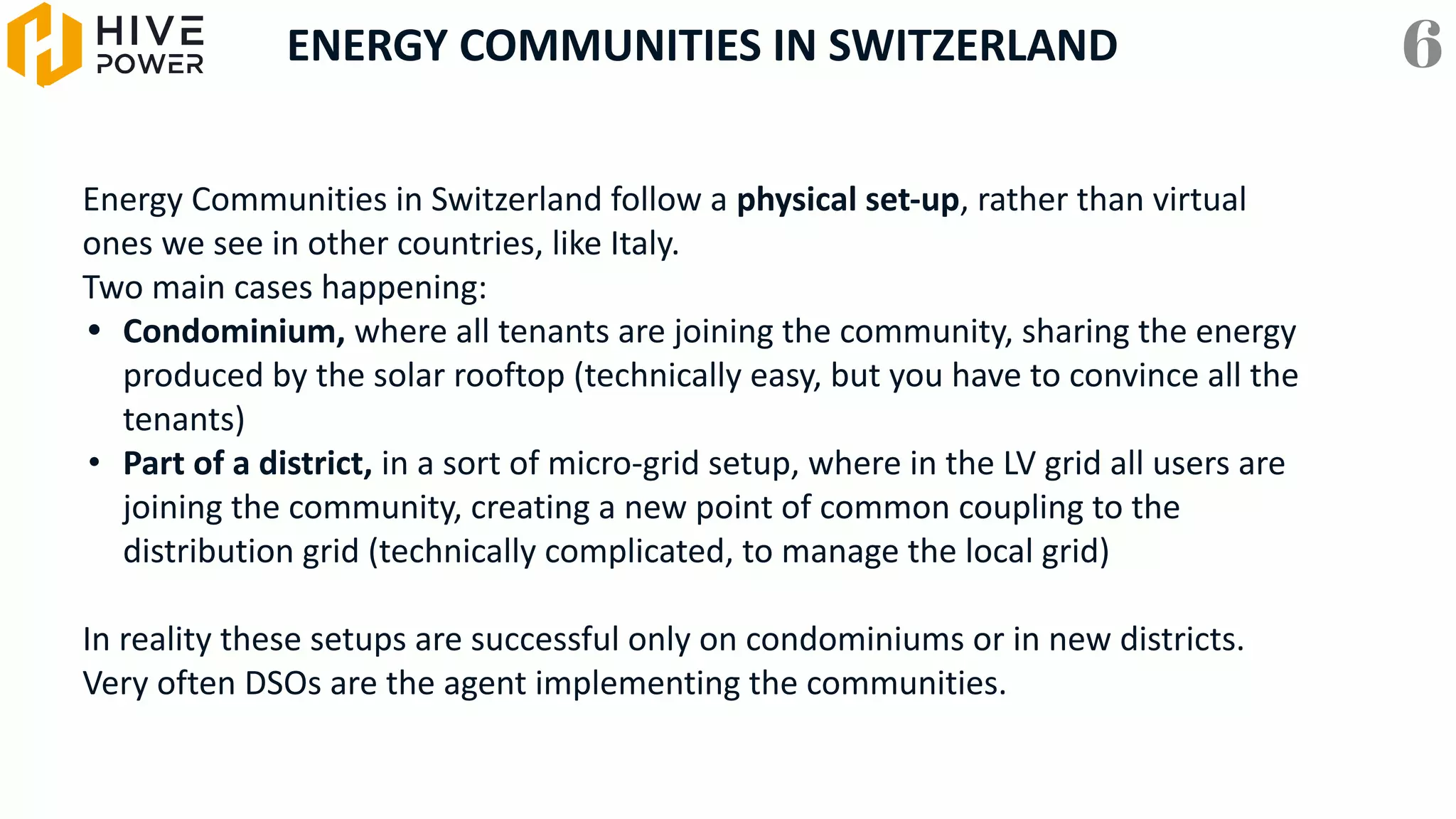

- 23. ENERGY COMMUNITIES INSWITZERLAND Energy Communities in Switzerland follow a physical set-up, rather than virtual ones we see in other countries, like Italy. Two main cases happening: • Condominium, where all tenants are joining the community, sharing the energy produced by the solar rooftop (technically easy, but you have to convince all the tenants) • Part of a district, in a sort of micro-grid setup, where in the LV grid all users are joining the community, creating a new point of common coupling to the distribution grid (technically complicated, to manage the local grid) In reality these setups are successful only on condominiums or in new districts. Very often DSOs are the agent implementing the communities. 6

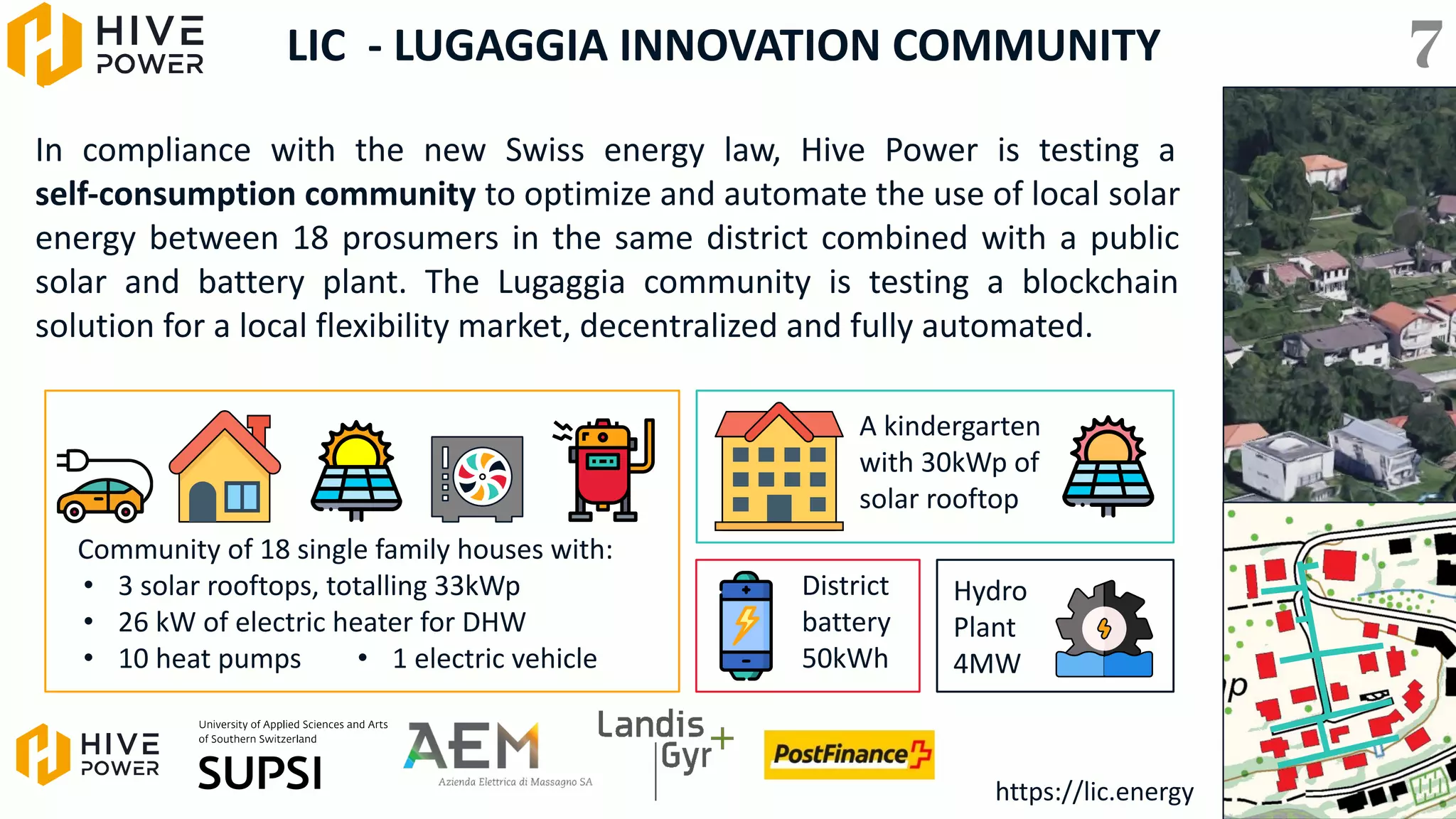

- 24. LIC - LUGAGGIAINNOVATION COMMUNITY In compliance with the new Swiss energy law, Hive Power is testing a self-consumption community to optimize and automate the use of local solar energy between 18 prosumers in the same district combined with a public solar and battery plant. The Lugaggia community is testing a blockchain solution for a local flexibility market, decentralized and fully automated. Community of 18 single family houses with: • 3 solar rooftops, totalling 33kWp • 26 kW of electric heater for DHW • 10 heat pumps A kindergarten with 30kWp of solar rooftop District battery 50kWh Hydro Plant 4MW • 1 electric vehicle https://lic.energy 7

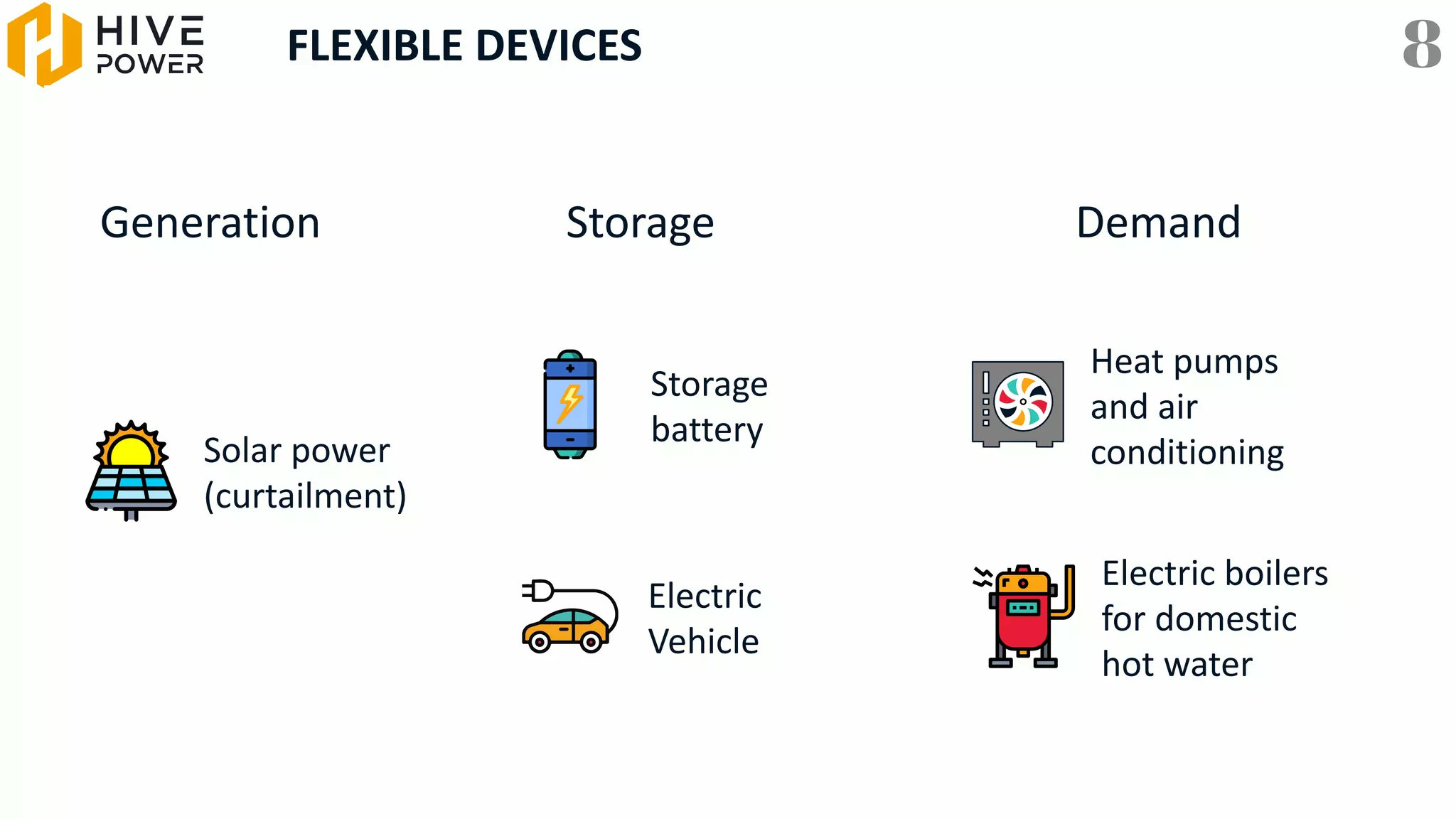

- 25. FLEXIBLE DEVICES 8 Storage battery Heatpumps and air conditioning Electric Vehicle Electric boilers for domestic hot water Solar power (curtailment) Generation Demand Storage

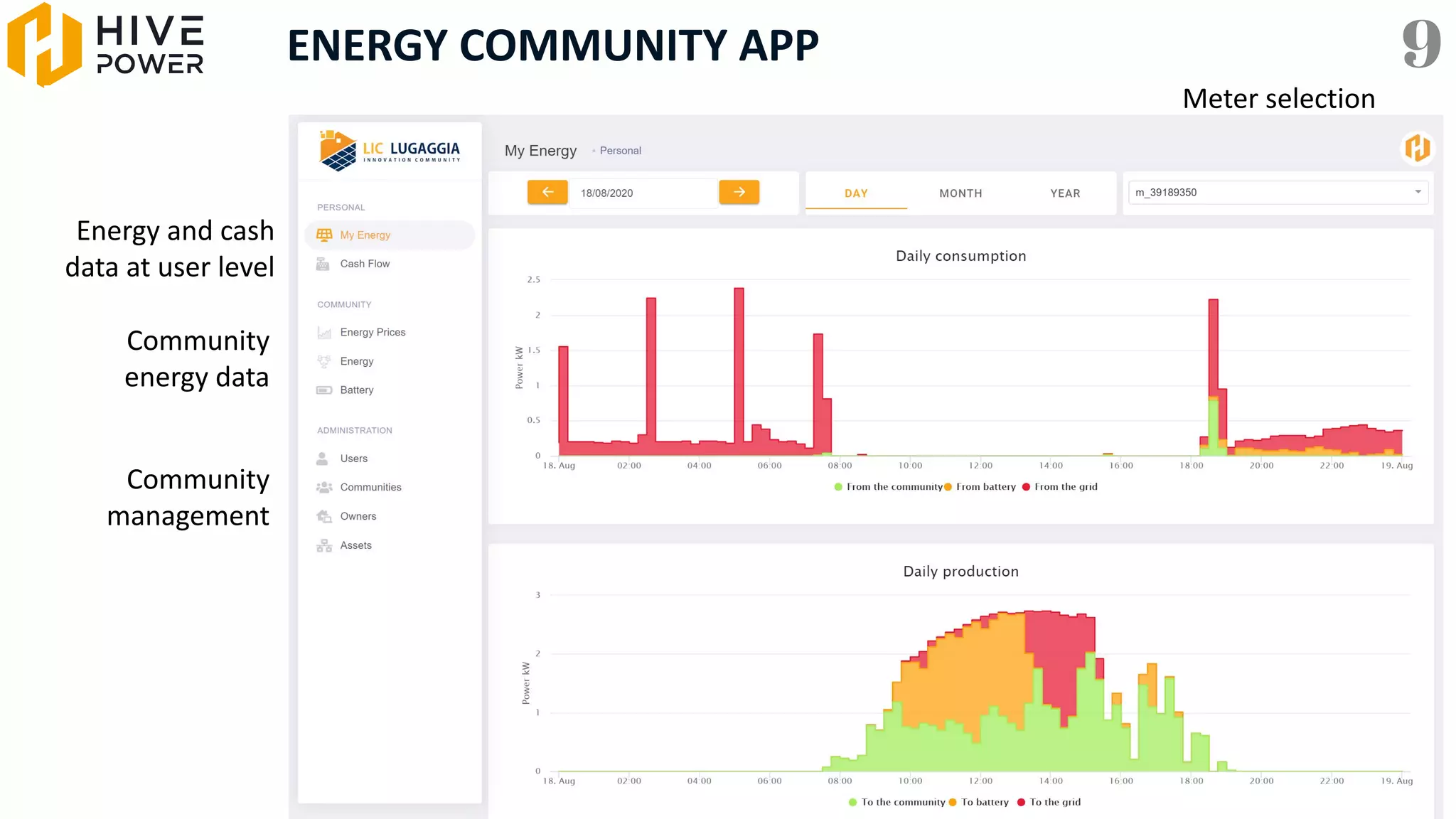

- 26. ENERGY COMMUNITY APP9 Energy and cash data at user level Community energy data Community management Meter selection

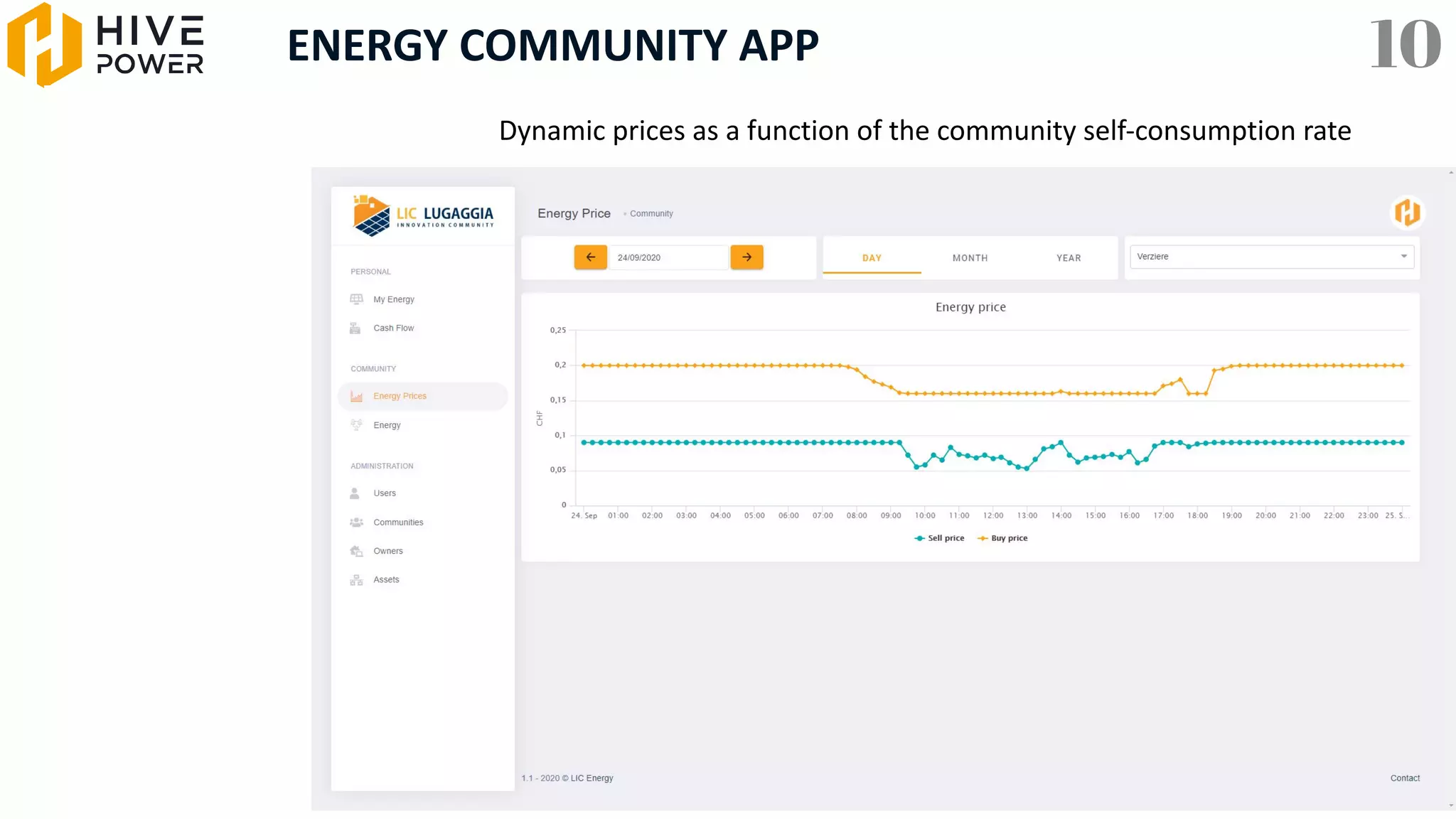

- 27. ENERGY COMMUNITY APP10 Dynamic prices as a function of the community self-consumption rate

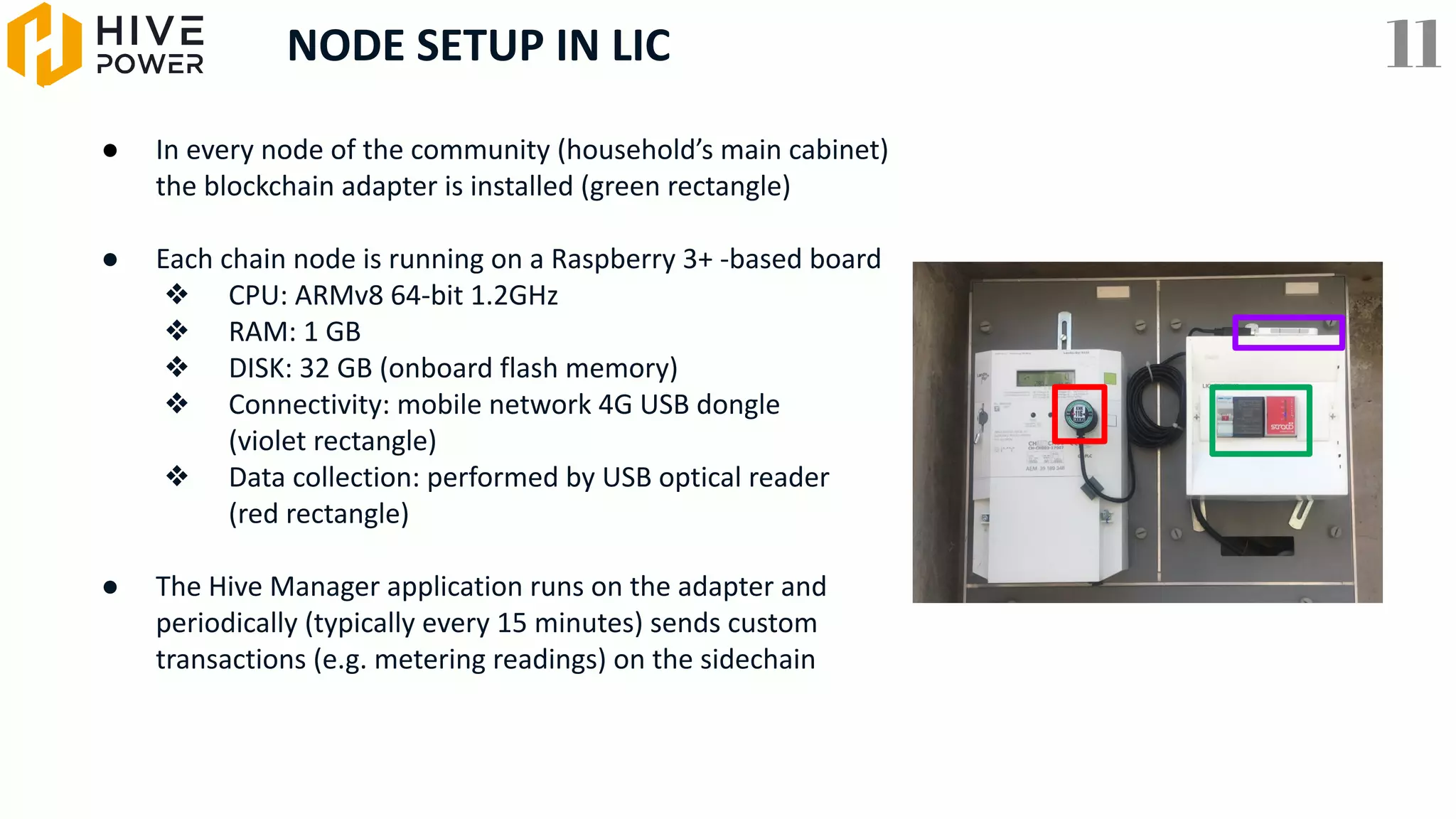

- 28. ● In everynode of the community (household’s main cabinet) the blockchain adapter is installed (green rectangle) ● Each chain node is running on a Raspberry 3+ -based board ❖ CPU: ARMv8 64-bit 1.2GHz ❖ RAM: 1 GB ❖ DISK: 32 GB (onboard flash memory) ❖ Connectivity: mobile network 4G USB dongle (violet rectangle) ❖ Data collection: performed by USB optical reader (red rectangle) ● The Hive Manager application runs on the adapter and periodically (typically every 15 minutes) sends custom transactions (e.g. metering readings) on the sidechain NODE SETUP IN LIC 11

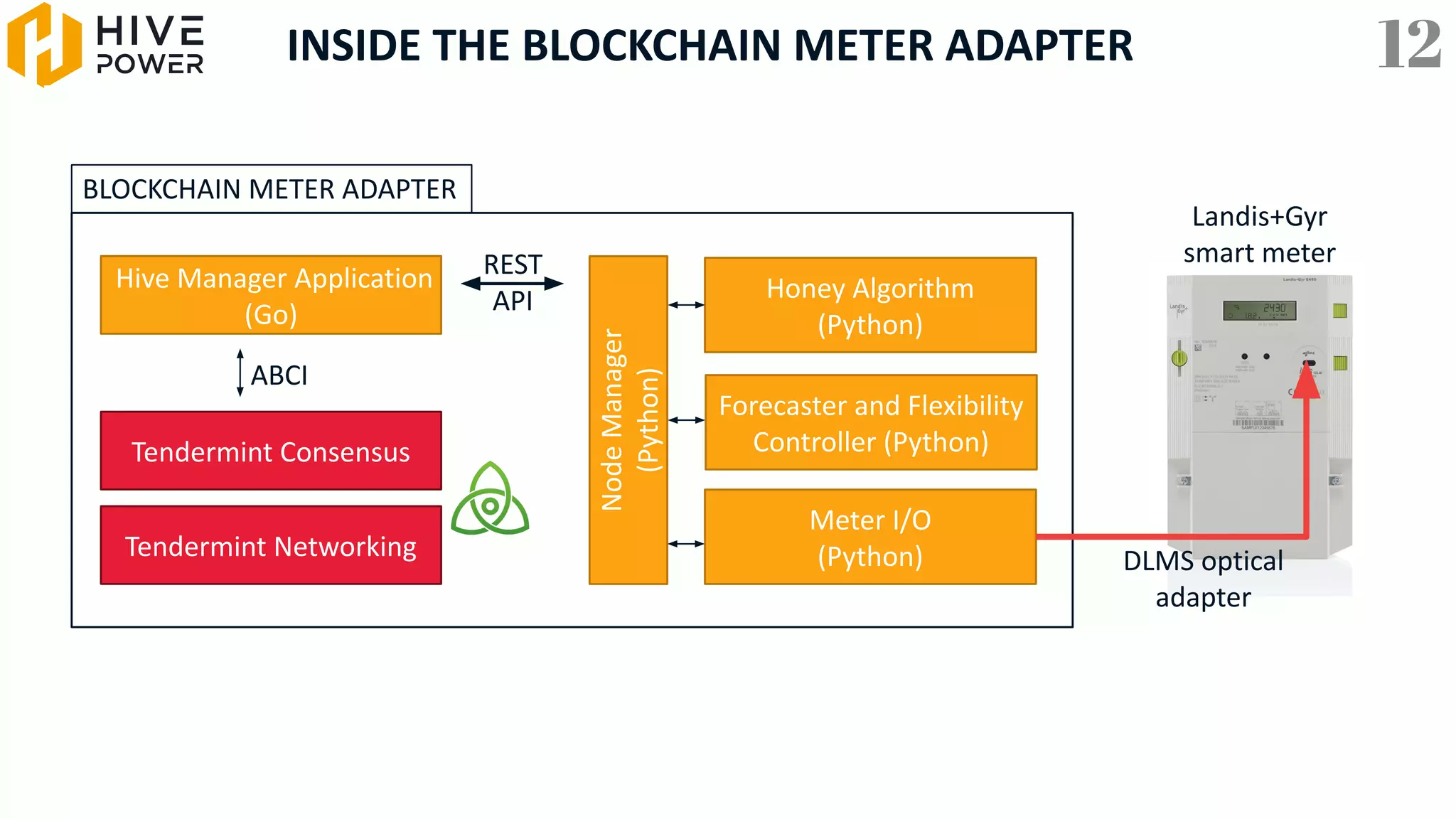

- 29. REST API INSIDE THE BLOCKCHAINMETER ADAPTER Tendermint Networking Tendermint Consensus ABCI Hive Manager Application (Go) Honey Algorithm (Python) Meter I/O (Python) Forecaster and Flexibility Controller (Python) Node Manager (Python) Landis+Gyr smart meter BLOCKCHAIN METER ADAPTER DLMS optical adapter 12
- 30. THE ROAD AHEAD Blockchainwill eat the world, but energy is hard to chew: • Smart meters are not yet smart enough: • Energy-intensive appliances have old and limited interfaces • Digitalization is still ongoing, especially for the low voltage grid However the potential is huge: the combination of blockchain, automation and IoT will be needed to ensure a resilient operation of the grid of the future dynamic, heterogeneous and fossil-free grid. Piloting and experimentation are crucial: to unlock this potential we need an interdisciplinary effort connecting domain experts with data-driven generalists. That’s what we aim for in Hive Power. 13
- 31. Thanks for yourattention 14
- 32. @SmileSmartGrids #SmileSmartGrids #Smile2Business InspiringEnergy community projects in western part of France
- 33. @SmileSmartGrids #SmileSmartGrids #Smile2Business Smile& Atlansun Projects’ accelerators

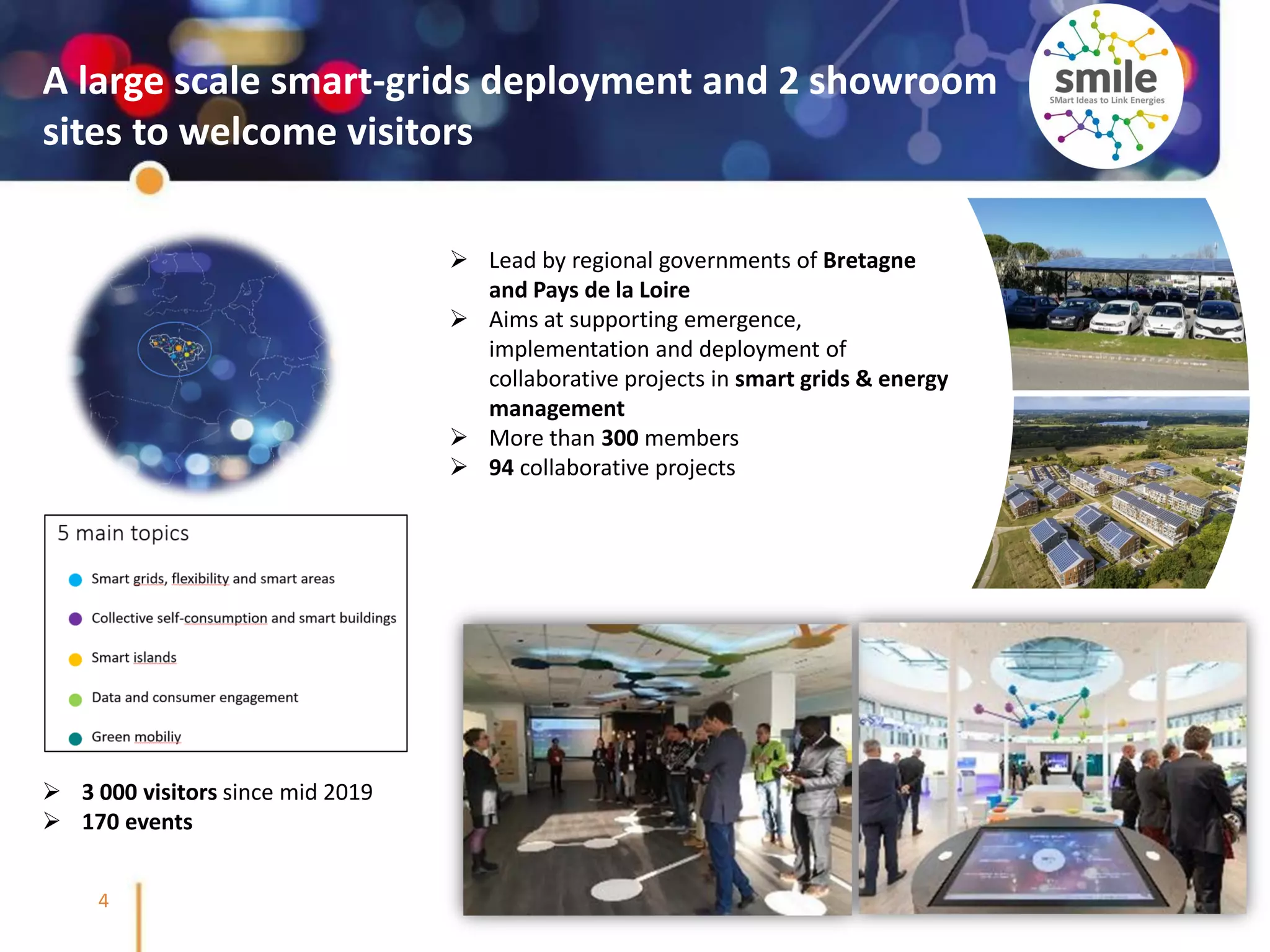

- 34. @SmileSmartGrids #SmileSmartGrids #Smile2Business 4 Alarge scale smart-grids deployment and 2 showroom sites to welcome visitors ➢ Lead by regional governments of Bretagne and Pays de la Loire ➢ Aims at supporting emergence, implementation and deployment of collaborative projects in smart grids & energy management ➢ More than 300 members ➢ 94 collaborative projects ➢ 3 000 visitors since mid 2019 ➢ 170 events

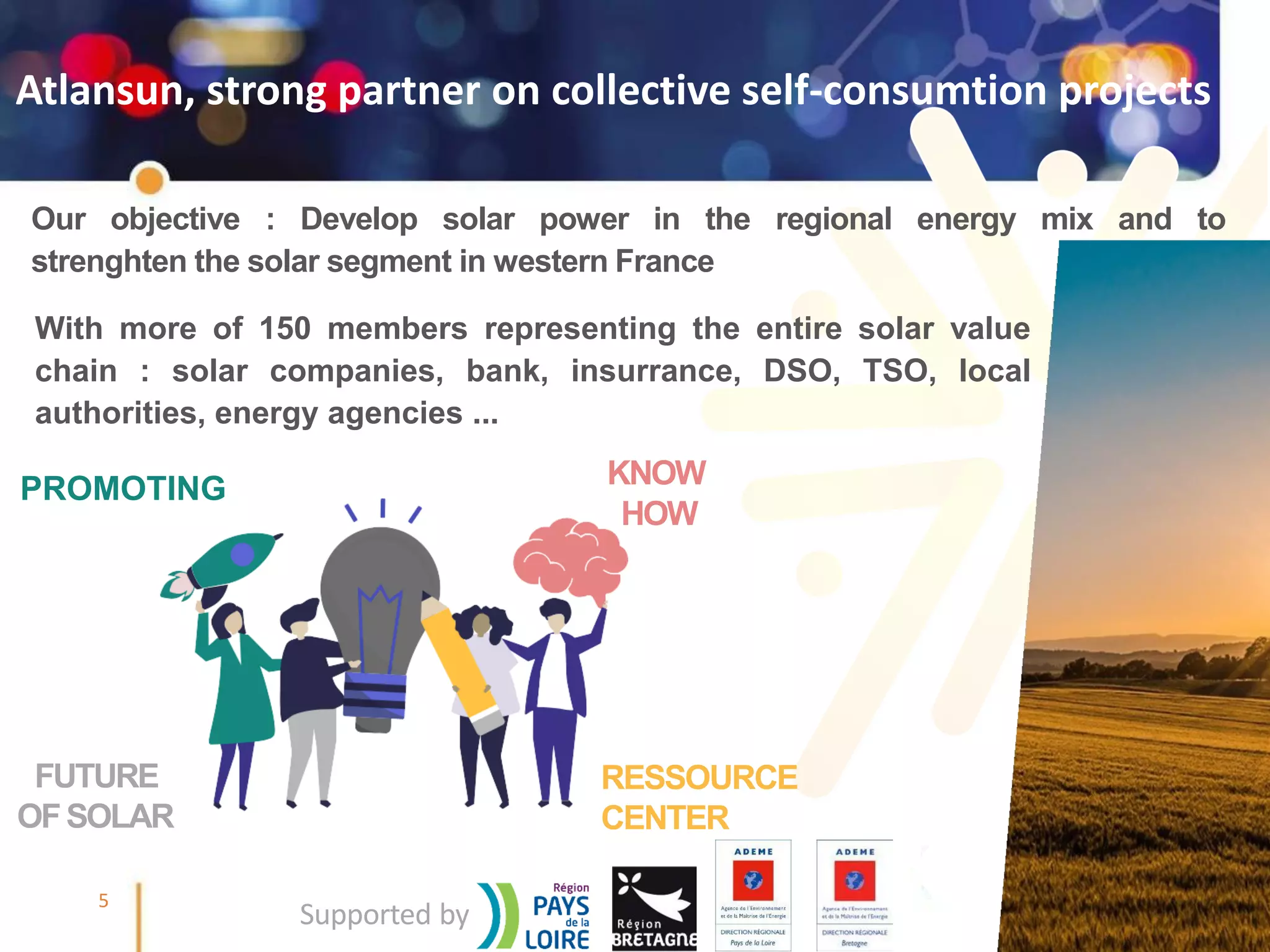

- 35. @SmileSmartGrids #SmileSmartGrids #Smile2Business 5 Atlansun,strong partner on collective self-consumtion projects PROMOTING KNOW HOW FUTURE OFSOLAR RESSOURCE CENTER Our objective : Develop solar power in the regional energy mix and to strenghten the solar segment in western France Supported by With more of 150 members representing the entire solar value chain : solar companies, bank, insurrance, DSO, TSO, local authorities, energy agencies ...

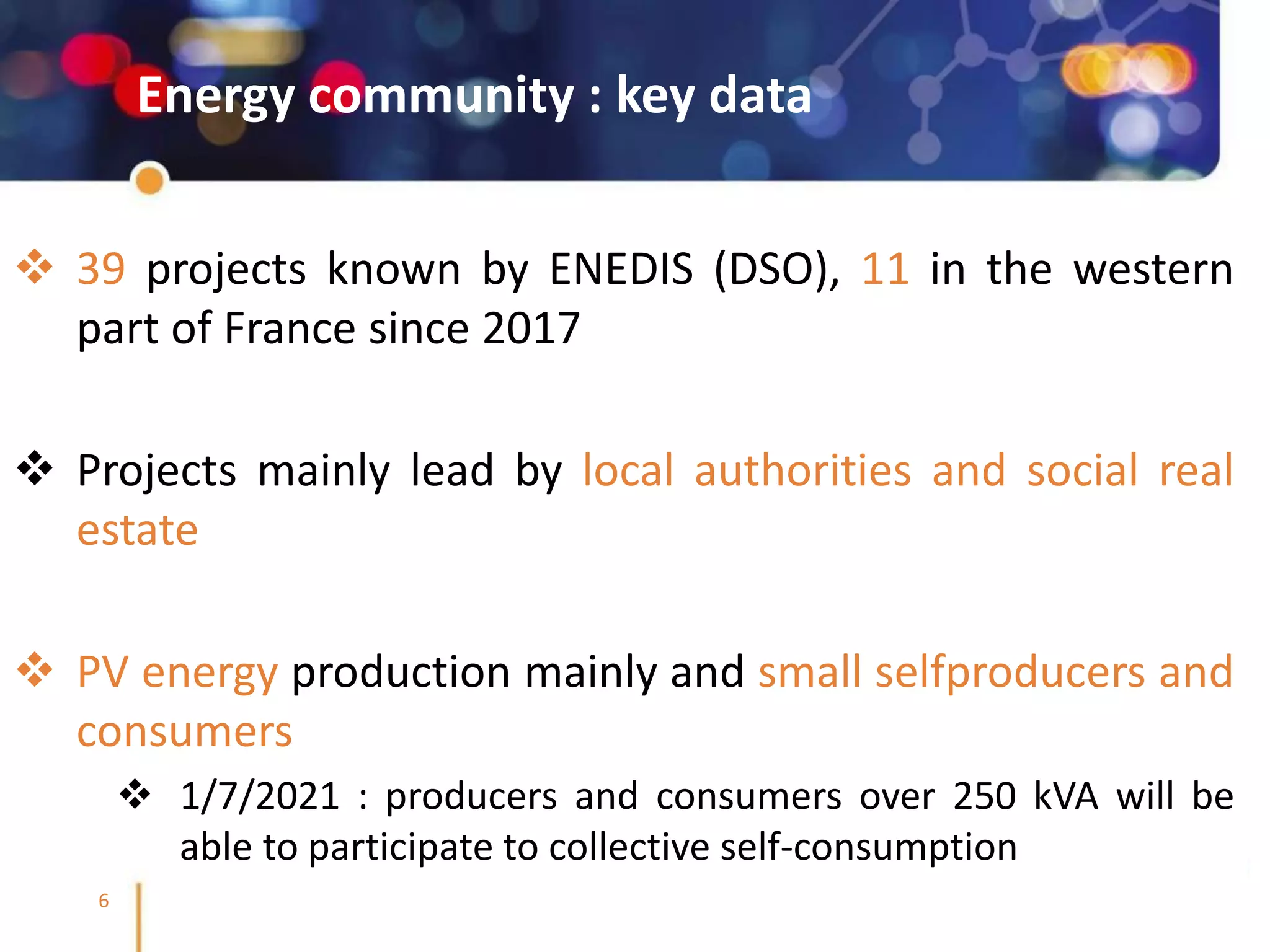

- 36. @SmileSmartGrids #SmileSmartGrids #Smile2Business 6 Energycommunity : key data ❖ 39 projects known by ENEDIS (DSO), 11 in the western part of France since 2017 ❖ Projects mainly lead by local authorities and social real estate ❖ PV energy production mainly and small selfproducers and consumers ❖ 1/7/2021 : producers and consumers over 250 kVA will be able to participate to collective self-consumption

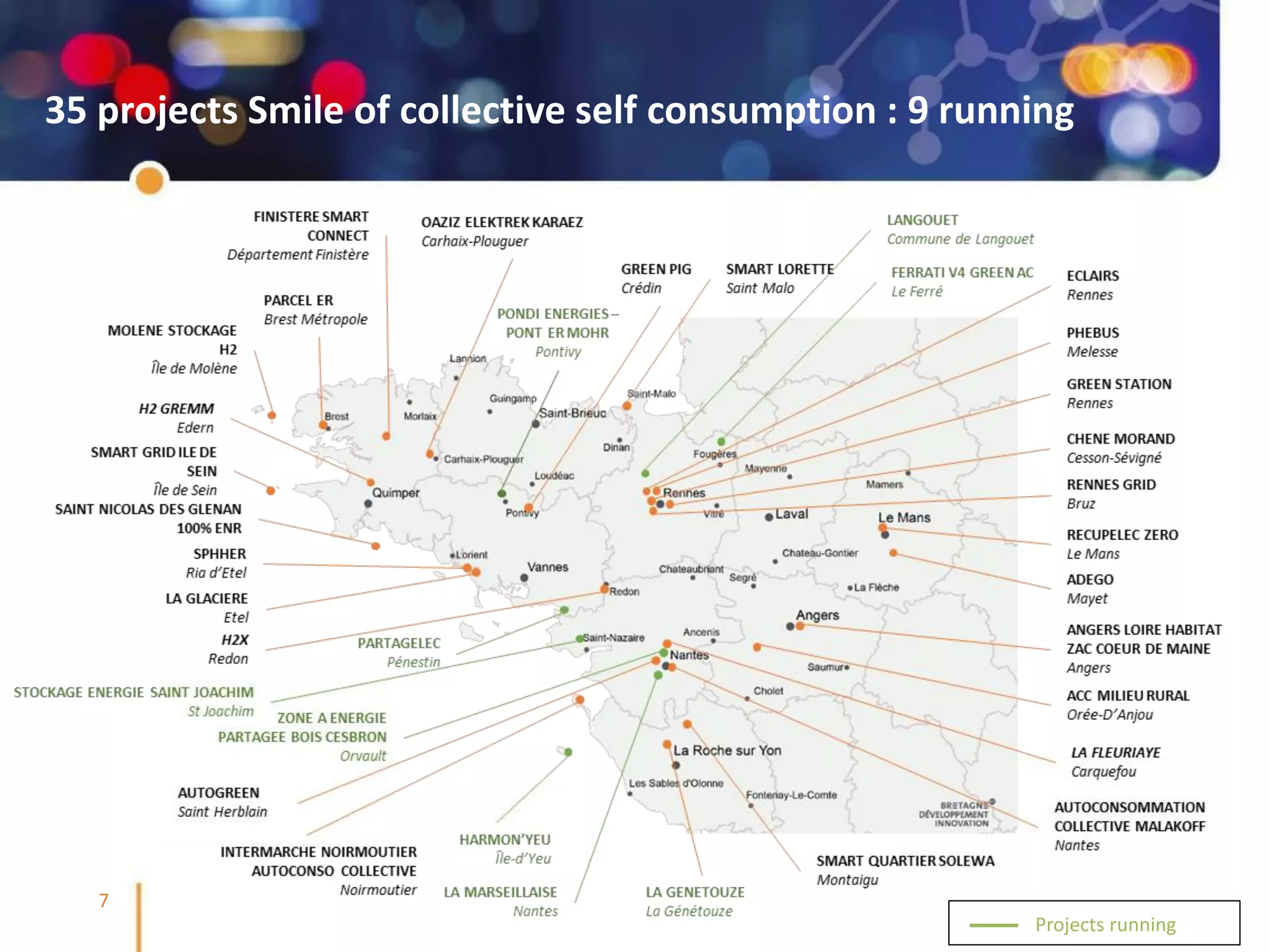

- 37. @SmileSmartGrids #SmileSmartGrids #Smile2Business 7 35projects Smile of collective self consumption : 9 running Projects running
- 38. @SmileSmartGrids #SmileSmartGrids #Smile2Business Energycommunities projects Focus on 3 projects

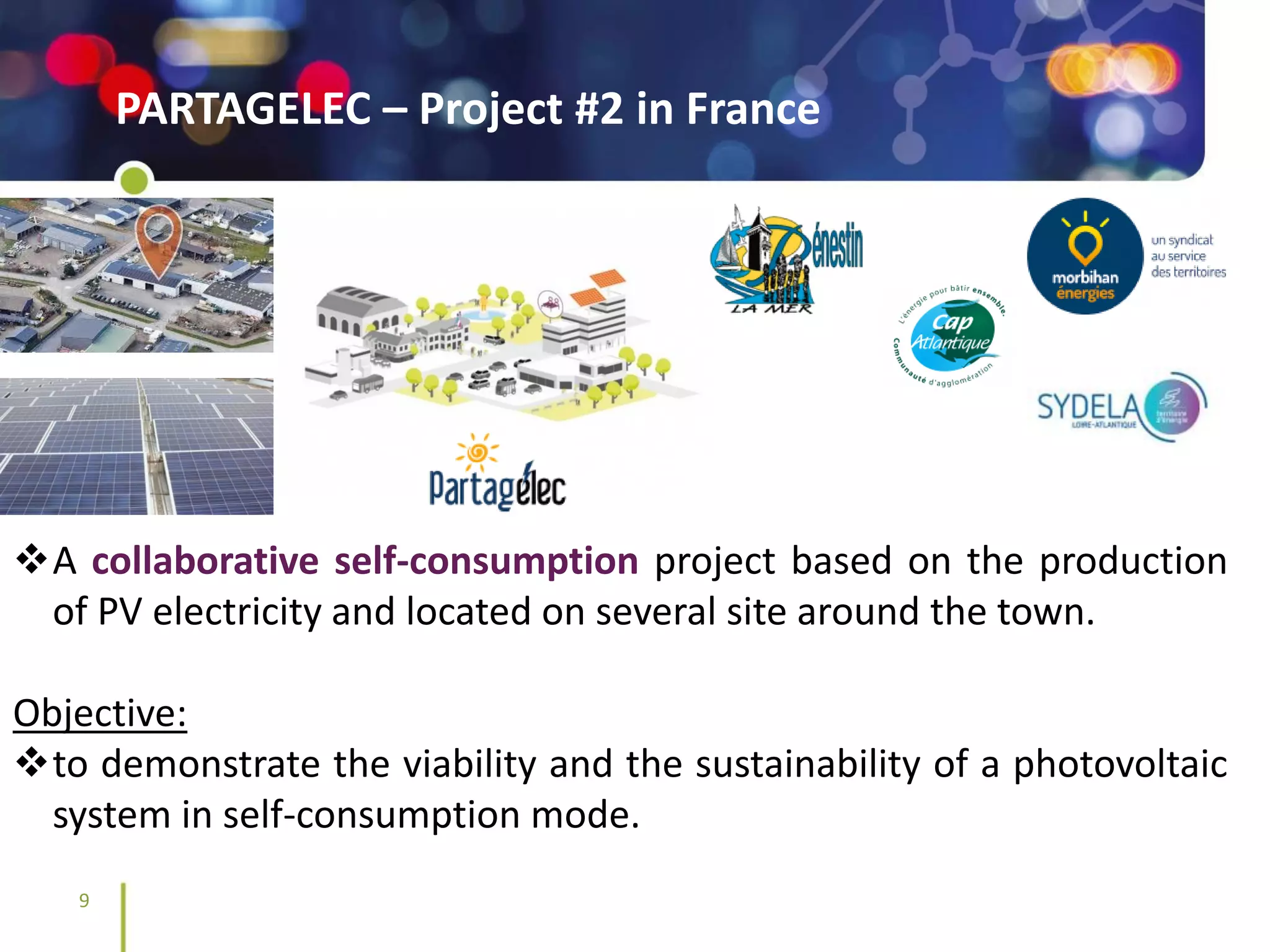

- 39. @SmileSmartGrids #SmileSmartGrids #Smile2Business 9 PARTAGELEC– Project #2 in France JUILLET 2020 DEC 2020 ❖A collaborative self-consumption project based on the production of PV electricity and located on several site around the town. Objective: ❖to demonstrate the viability and the sustainability of a photovoltaic system in self-consumption mode.

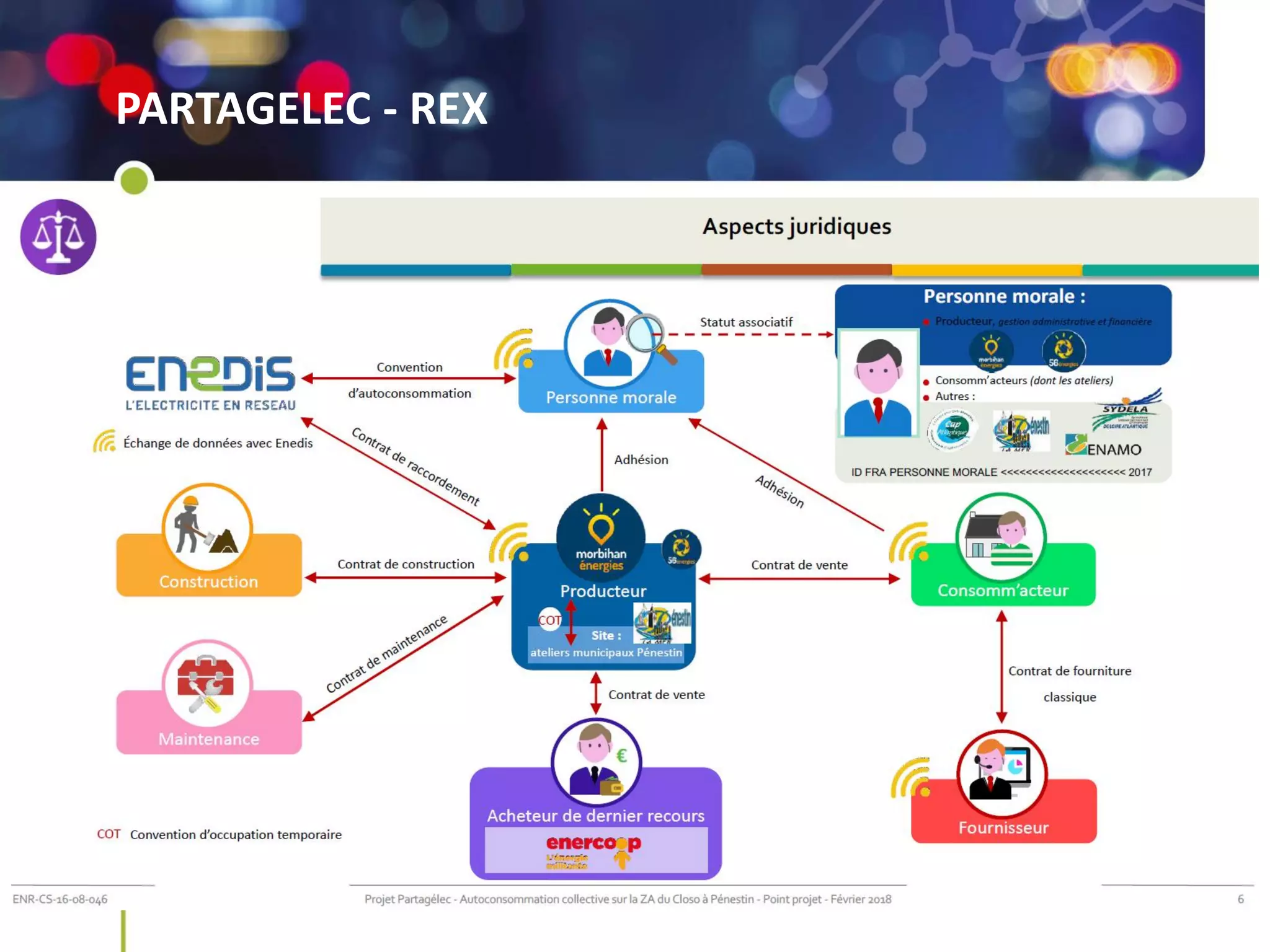

- 40. @SmileSmartGrids #SmileSmartGrids #Smile2Business 10 PARTAGELEC- REX JUILLET 2020 DEC 2020

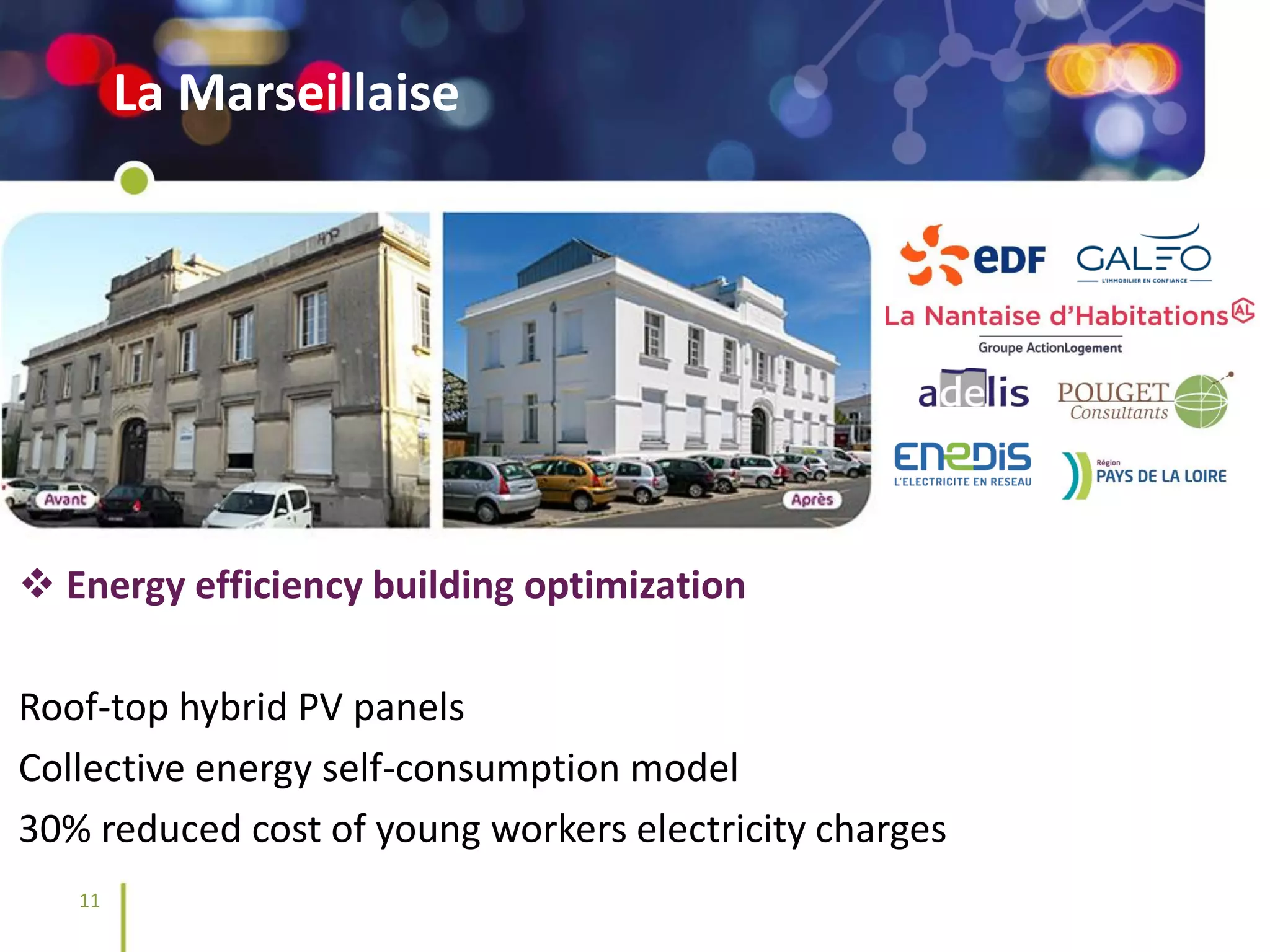

- 41. @SmileSmartGrids #SmileSmartGrids #Smile2Business 11 LaMarseillaise ❖ Energy efficiency building optimization Roof-top hybrid PV panels Collective energy self-consumption model 30% reduced cost of young workers electricity charges JAN2019 DEC 2020

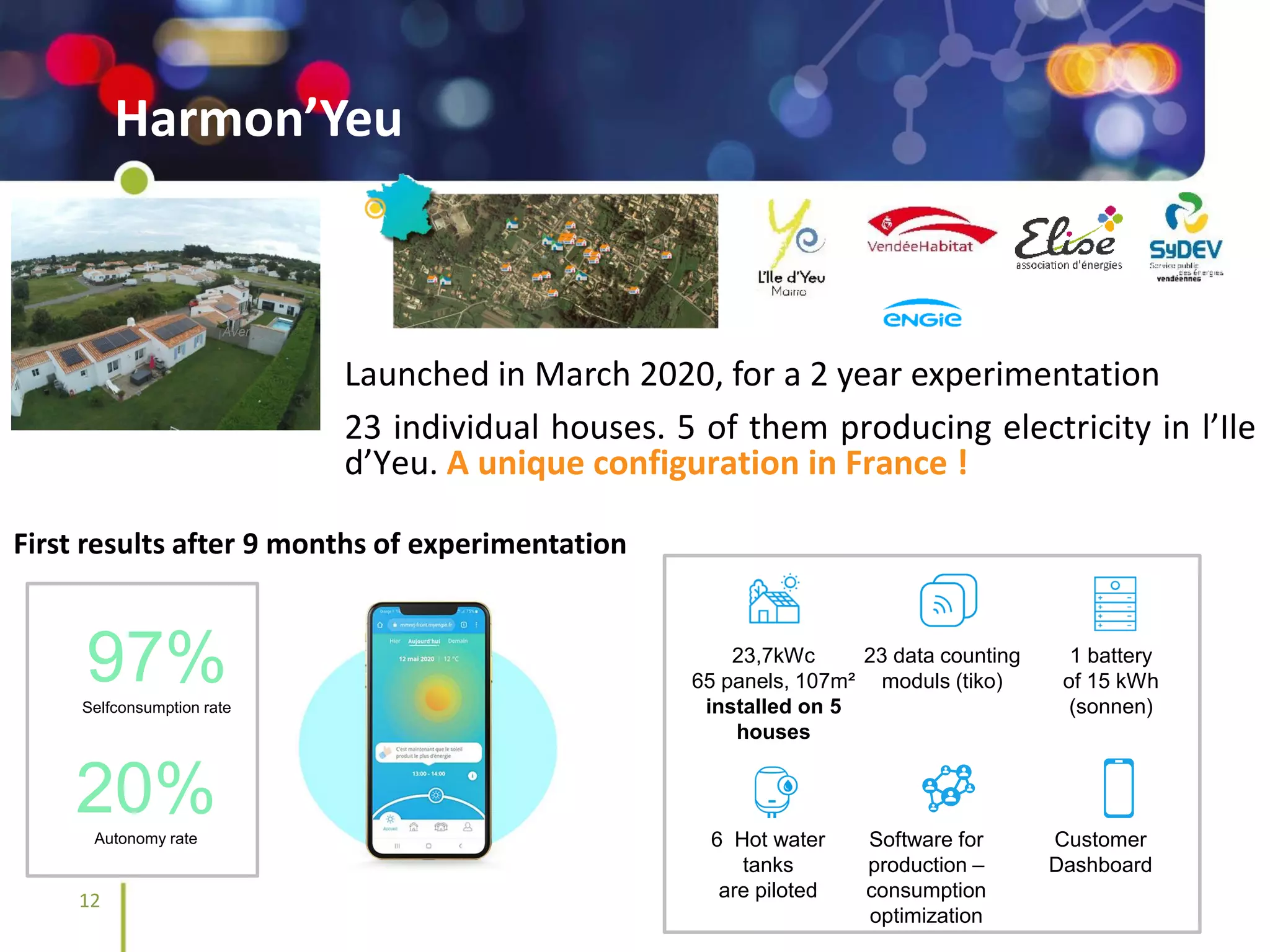

- 42. @SmileSmartGrids #SmileSmartGrids #Smile2Business 12 Harmon’Yeu JAN2019 DEC2020 Launched in March 2020, for a 2 year experimentation 23 individual houses. 5 of them producing electricity in l’Ile d’Yeu. A unique configuration in France ! 23,7kWc 65 panels, 107m² installed on 5 houses 23 data counting moduls (tiko) 1 battery of 15 kWh (sonnen) 6 Hot water tanks are piloted Software for production – consumption optimization Customer Dashboard First results after 9 months of experimentation 97% Selfconsumption rate 20% Autonomy rate Average
- 43. @SmileSmartGrids #SmileSmartGrids #Smile2Business Toolsto support the emergence of projects

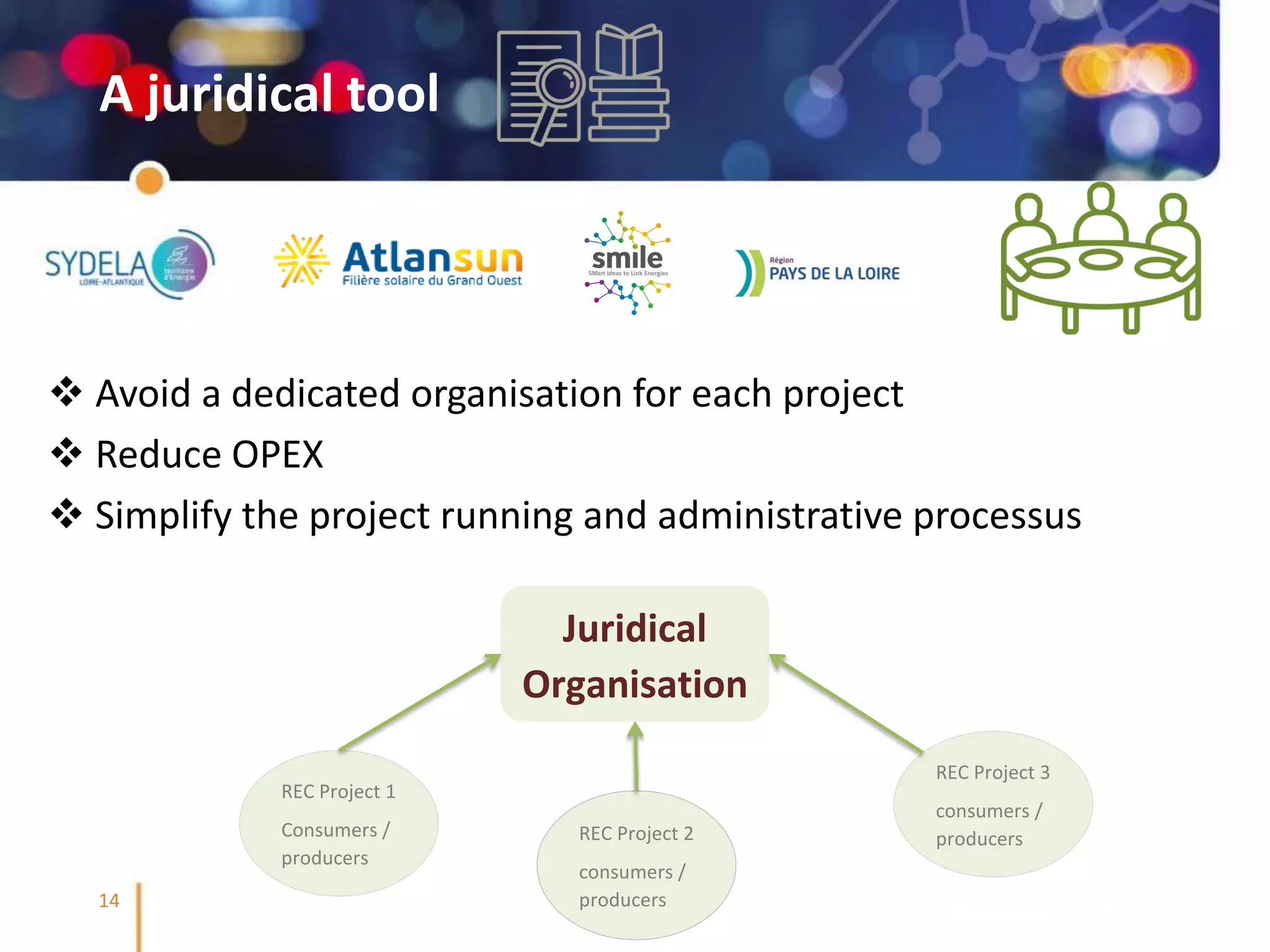

- 44. @SmileSmartGrids #SmileSmartGrids #Smile2Business 14 Ajuridical tool ❖ Avoid a dedicated organisation for each project ❖ Reduce OPEX ❖ Simplify the project running and administrative processus Juridical Organisation REC Project 1 Consumers / producers REC Project 2 consumers / producers REC Project 3 consumers / producers
- 45. @SmileSmartGrids #SmileSmartGrids #Smile2Business Weare available for further information and to organise customized visit. Marine Gabory Smile showroom manager m.gabory@solutions-eco.fr +33 (0) 6 99 15 52 54 Rachel Guilloteau Smartgrids project manager r.guilloteau@solutions-eco.fr +33 (0)6 24 53 13 51 Simon Ducasse Atlansun manager simon@atlansun.fr +33 (0)6 76 93 88 19

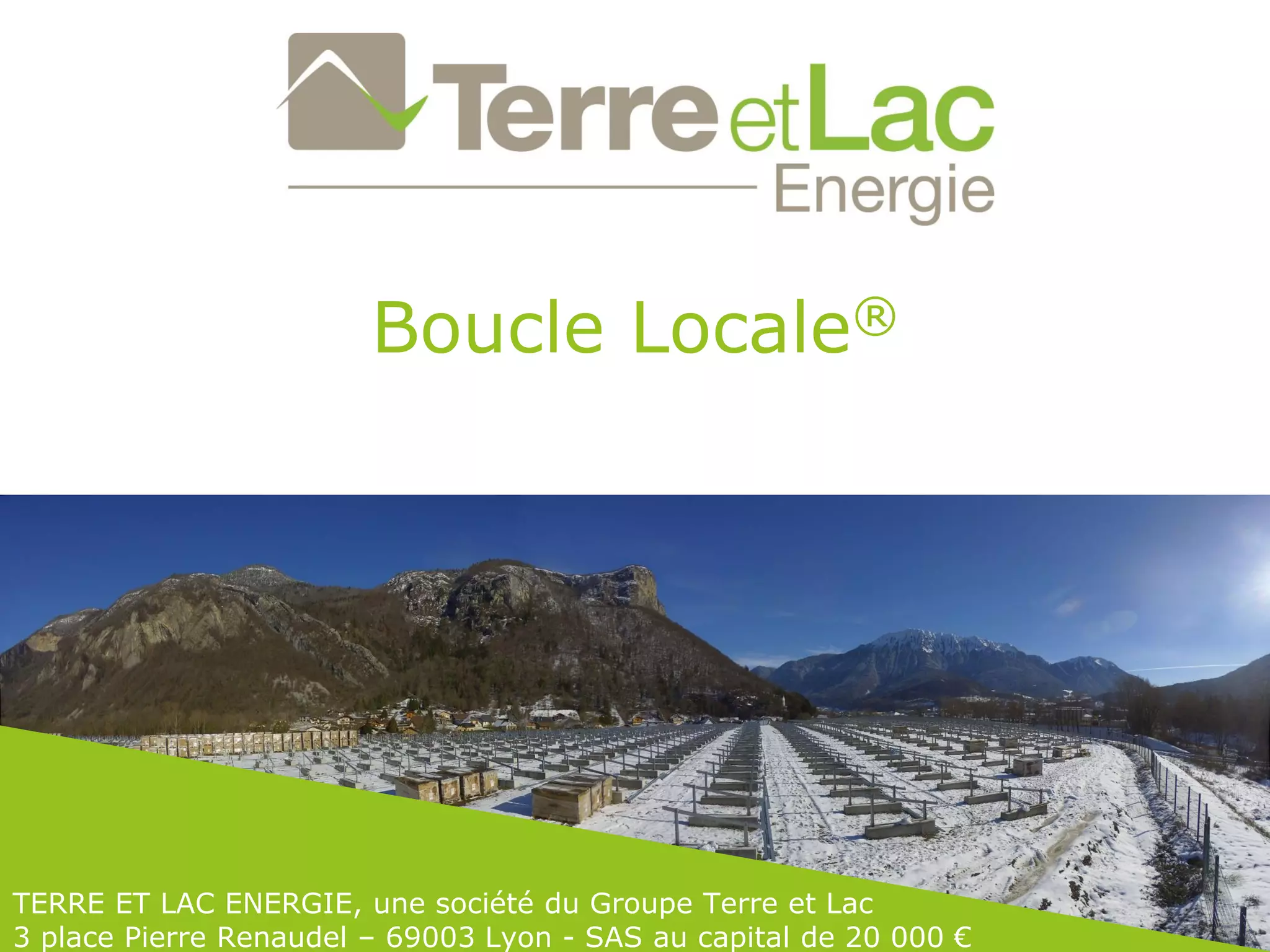

- 46. Boucle Locale® TERRE ETLAC ENERGIE, une société du Groupe Terre et Lac 3 place Pierre Renaudel – 69003 Lyon - SAS au capital de 20 000 €

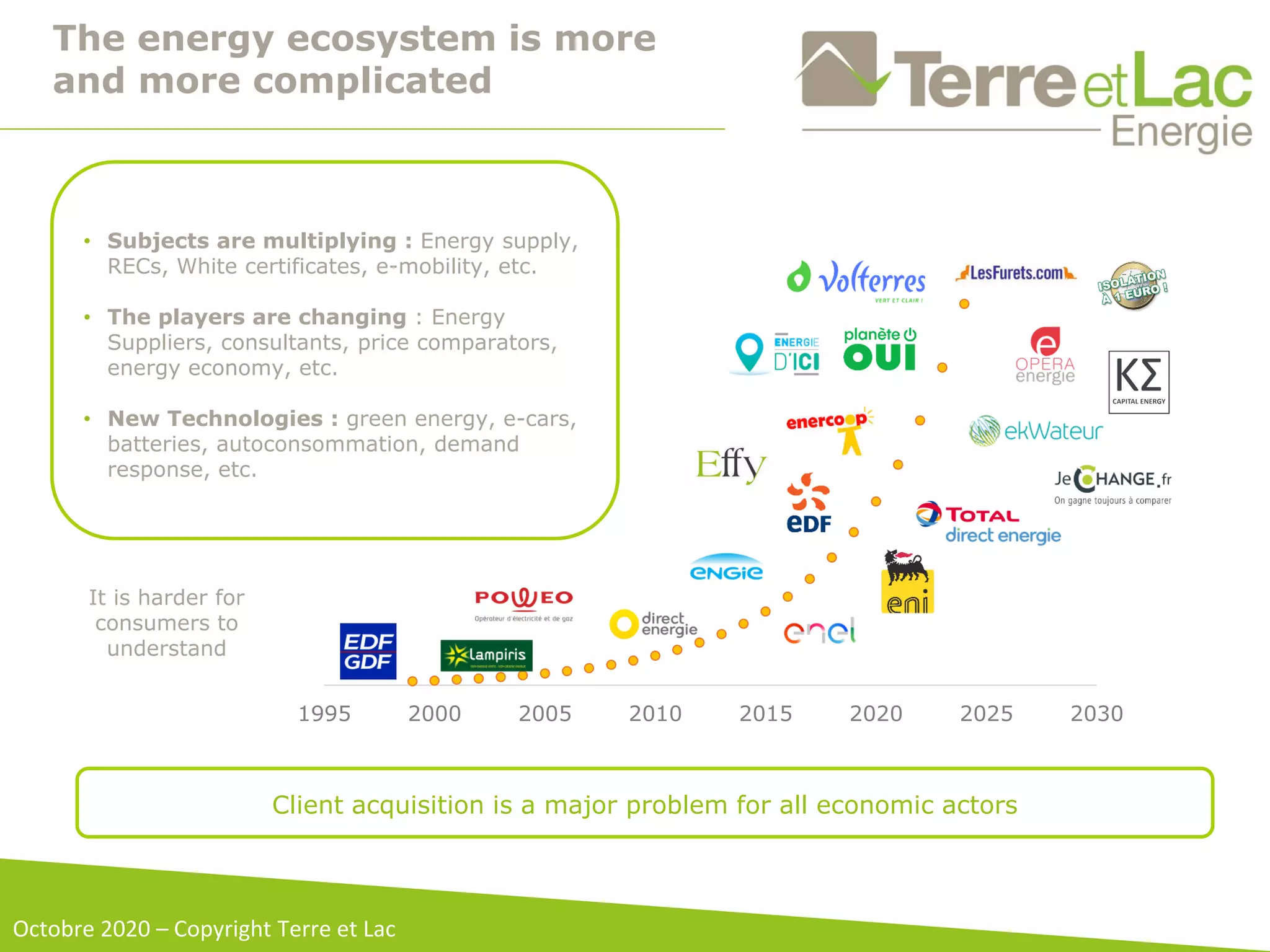

- 47. The energy ecosystemis more and more complicated Octobre 2020 – Copyright Terre et Lac • Subjects are multiplying : Energy supply, RECs, White certificates, e-mobility, etc. • The players are changing : Energy Suppliers, consultants, price comparators, energy economy, etc. • New Technologies : green energy, e-cars, batteries, autoconsommation, demand response, etc. 1995 2000 2005 2010 2015 2020 2025 2030 Client acquisition is a major problem for all economic actors It is harder for consumers to understand

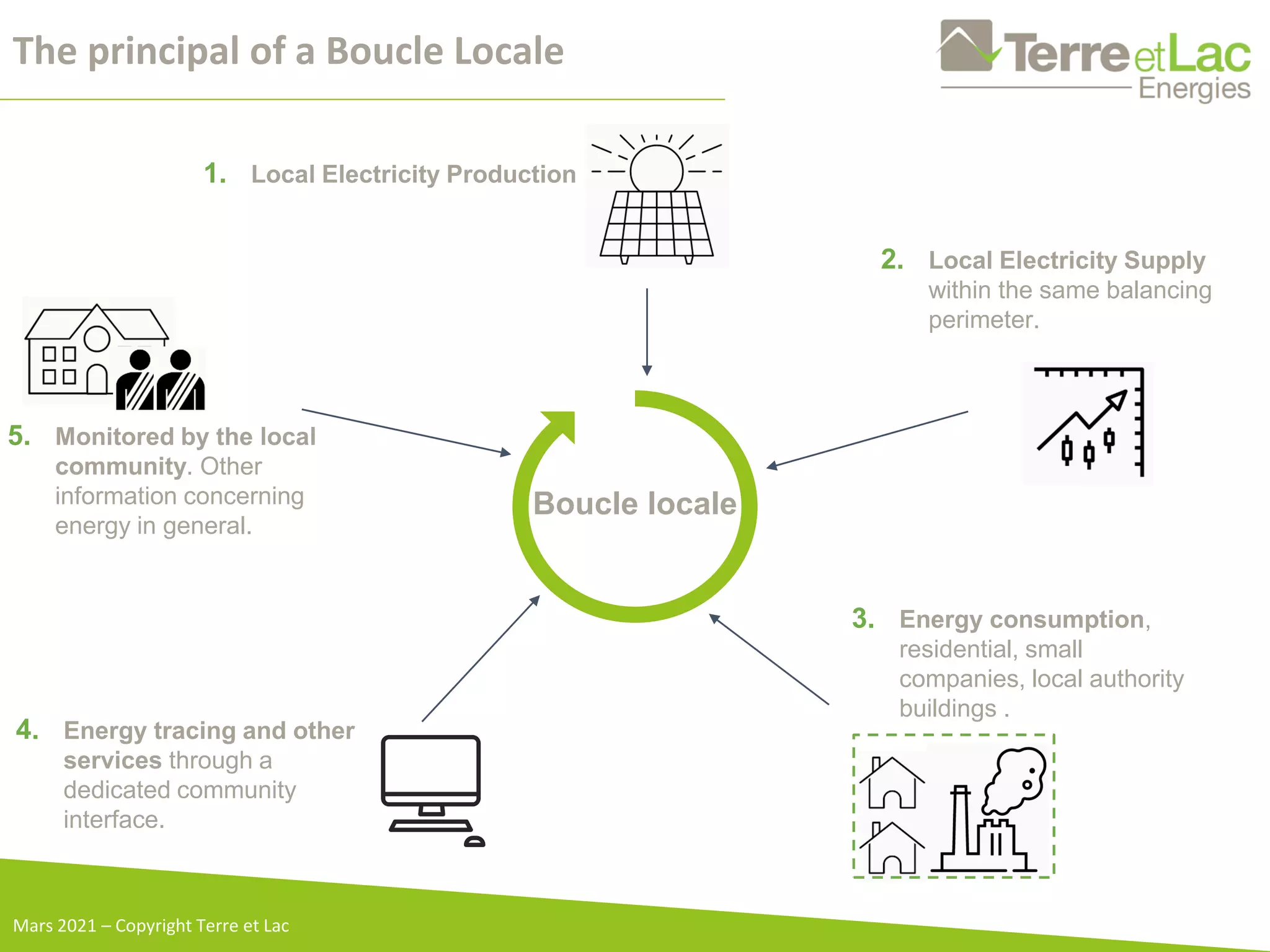

- 48. The principal ofa Boucle Locale Mars 2021 – Copyright Terre et Lac Boucle locale 4. Energy tracing and other services through a dedicated community interface. 3. Energy consumption, residential, small companies, local authority buildings . 1. Local Electricity Production 2. Local Electricity Supply within the same balancing perimeter. 5. Monitored by the local community. Other information concerning energy in general.

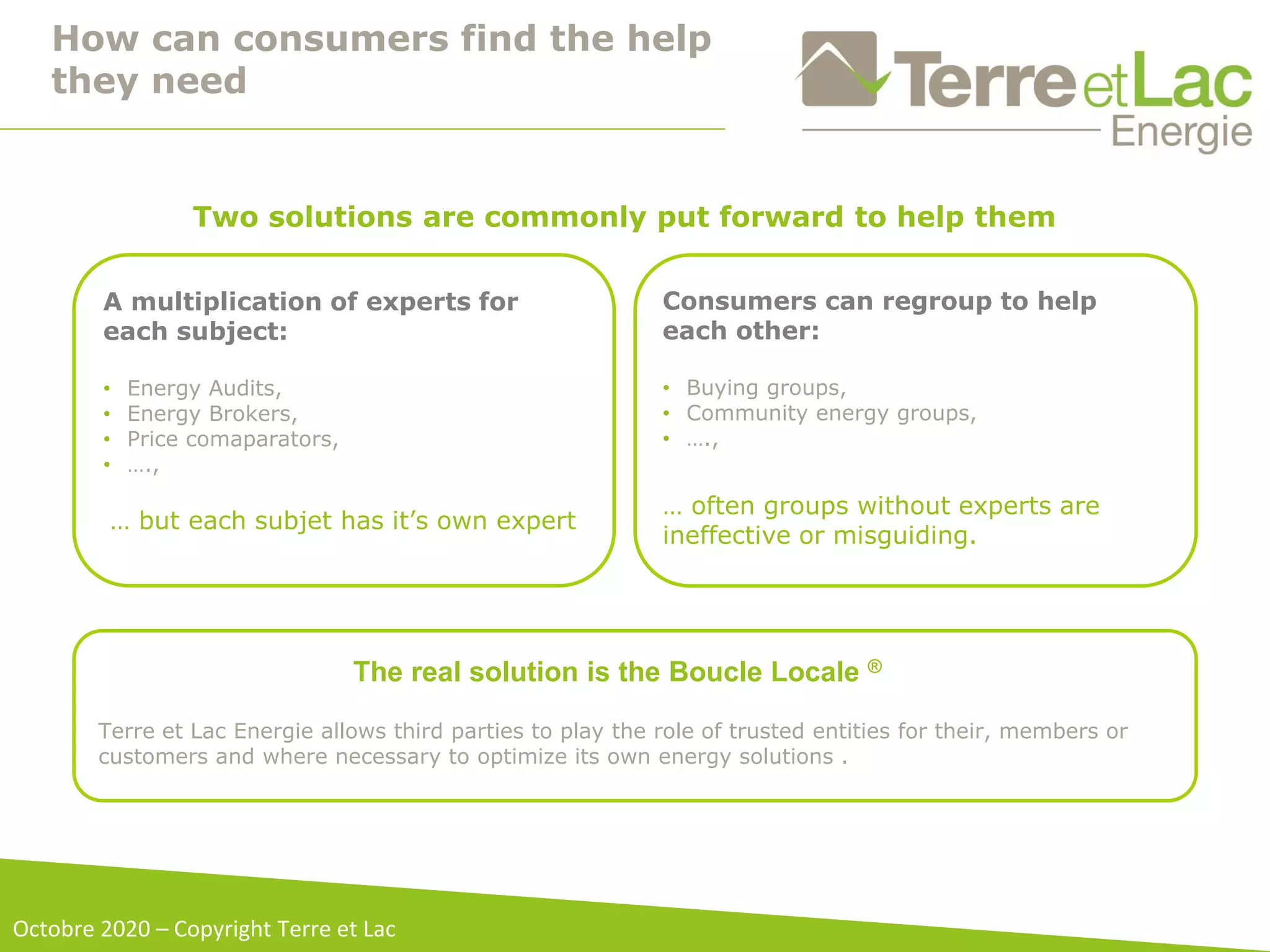

- 49. How can consumersfind the help they need Octobre 2020 – Copyright Terre et Lac A multiplication of experts for each subject: • Energy Audits, • Energy Brokers, • Price comaparators, • …., Consumers can regroup to help each other: • Buying groups, • Community energy groups, • …., … but each subjet has it’s own expert … often groups without experts are ineffective or misguiding. Two solutions are commonly put forward to help them Terre et Lac Energie allows third parties to play the role of trusted entities for their, members or customers and where necessary to optimize its own energy solutions . The real solution is the Boucle Locale ®

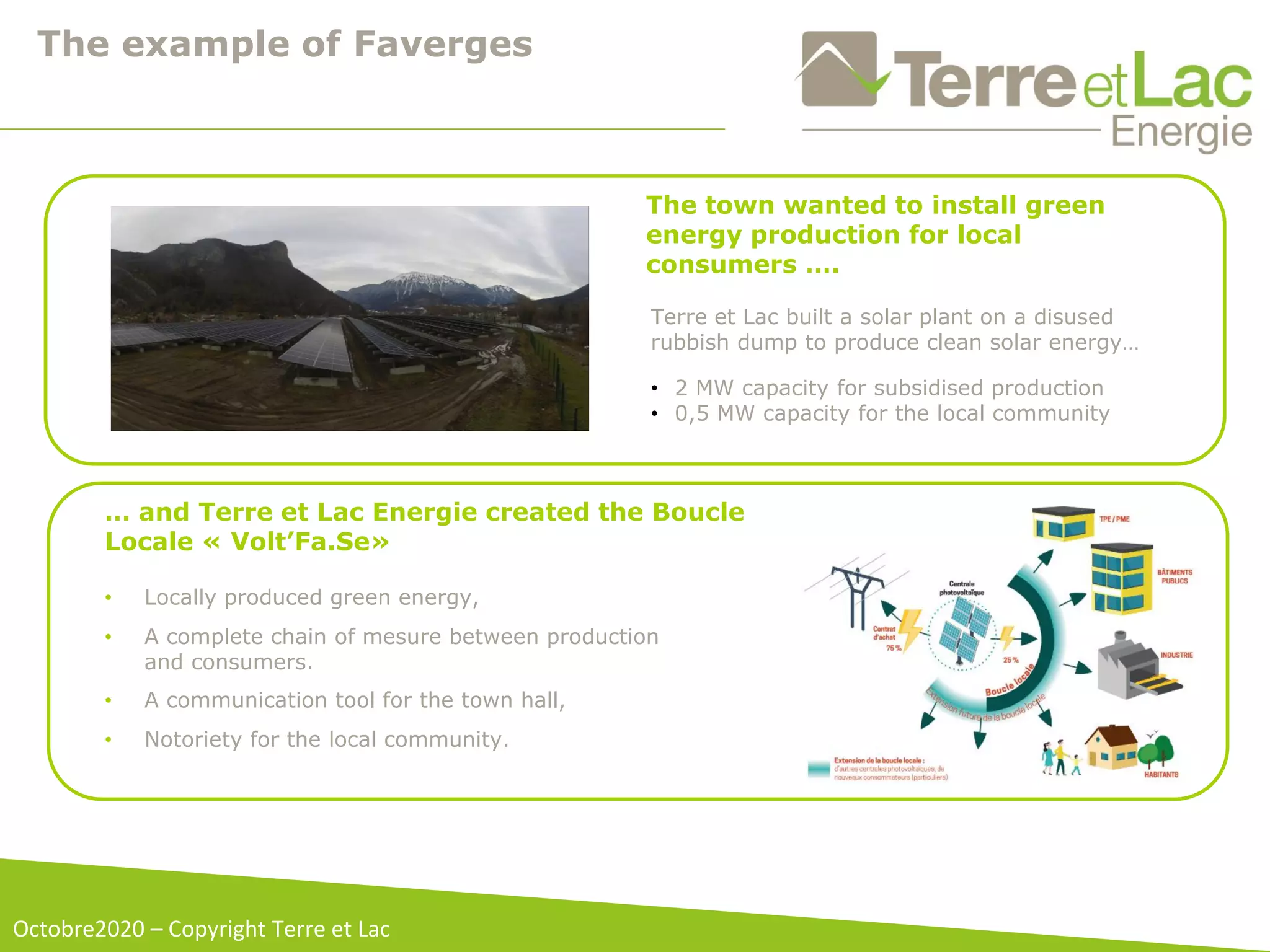

- 50. The example ofFaverges Octobre2020 – Copyright Terre et Lac … and Terre et Lac Energie created the Boucle Locale « Volt’Fa.Se» • Locally produced green energy, • A complete chain of mesure between production and consumers. • A communication tool for the town hall, • Notoriety for the local community. The town wanted to install green energy production for local consumers …. • 2 MW capacity for subsidised production • 0,5 MW capacity for the local community Terre et Lac built a solar plant on a disused rubbish dump to produce clean solar energy…
- 51. Step 1 :Build solar plant Octobre2020 – Copyright Terre et Lac

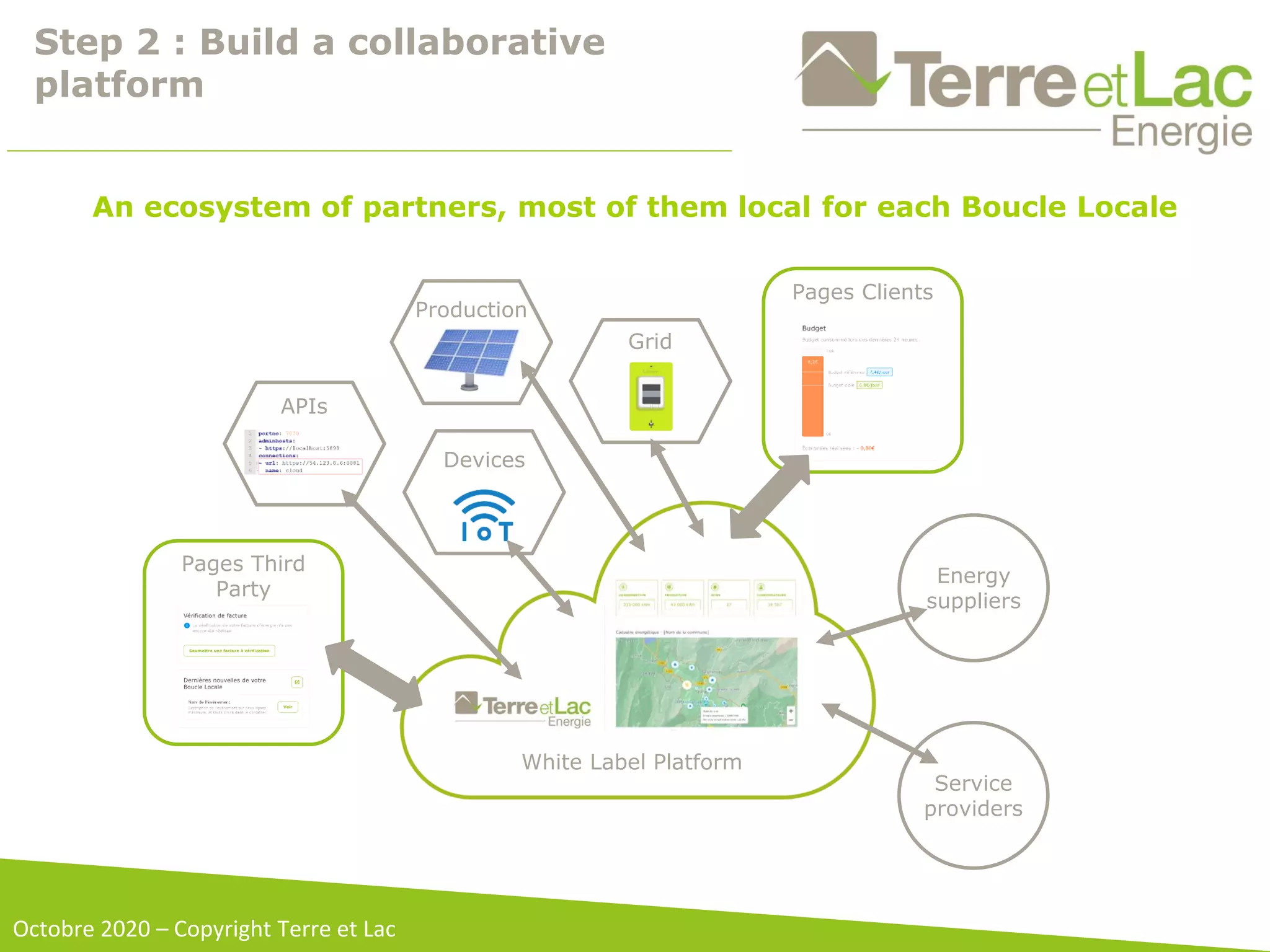

- 52. Step 2 :Build a collaborative platform Octobre 2020 – Copyright Terre et Lac White Label Platform Devices Pages Third Party Pages Clients Grid APIs Energy suppliers Service providers Production An ecosystem of partners, most of them local for each Boucle Locale

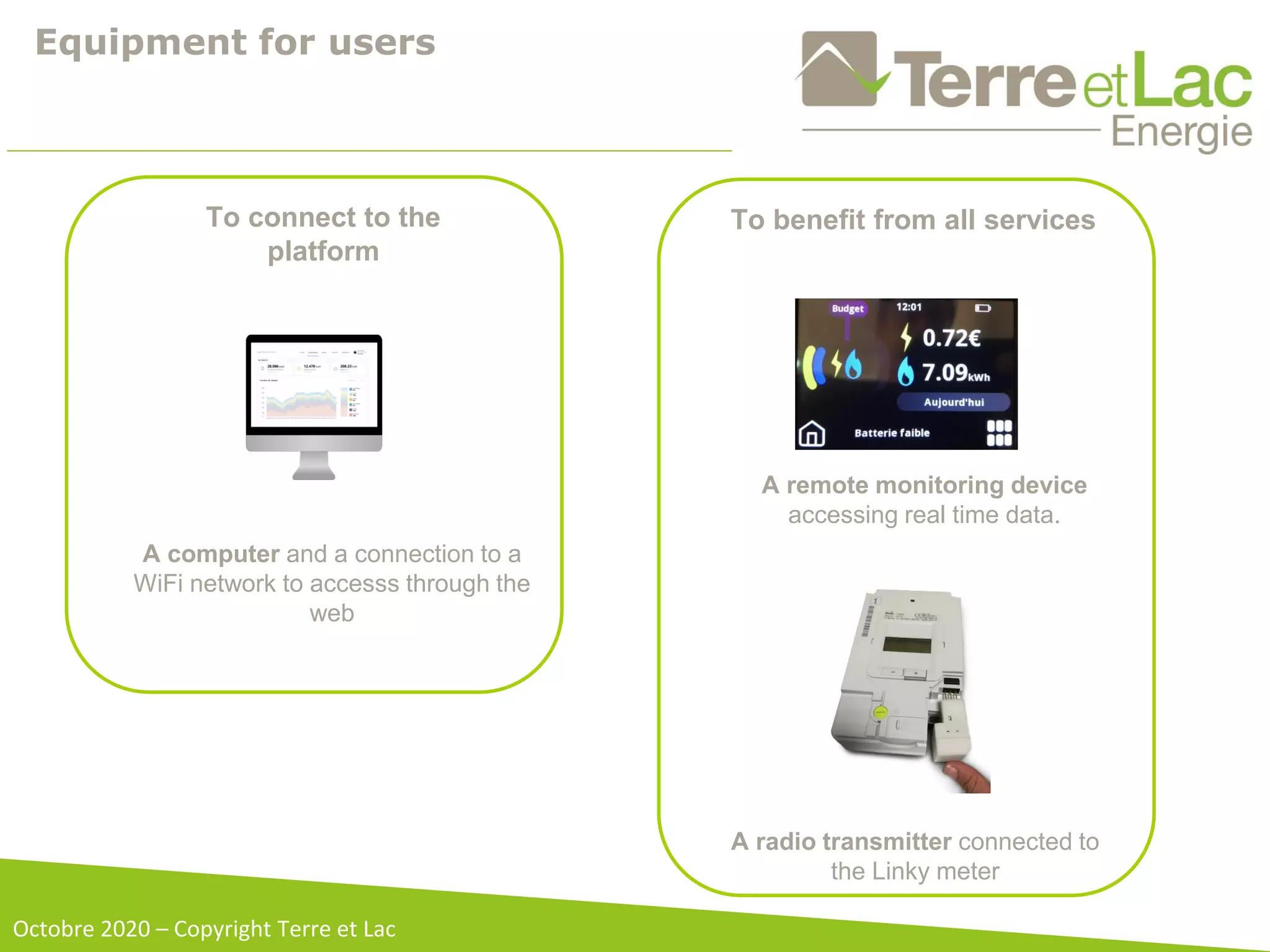

- 53. Equipment for users Octobre2020 – Copyright Terre et Lac A radio transmitter connected to the Linky meter A remote monitoring device accessing real time data. A computer and a connection to a WiFi network to accesss through the web To connect to the platform To benefit from all services

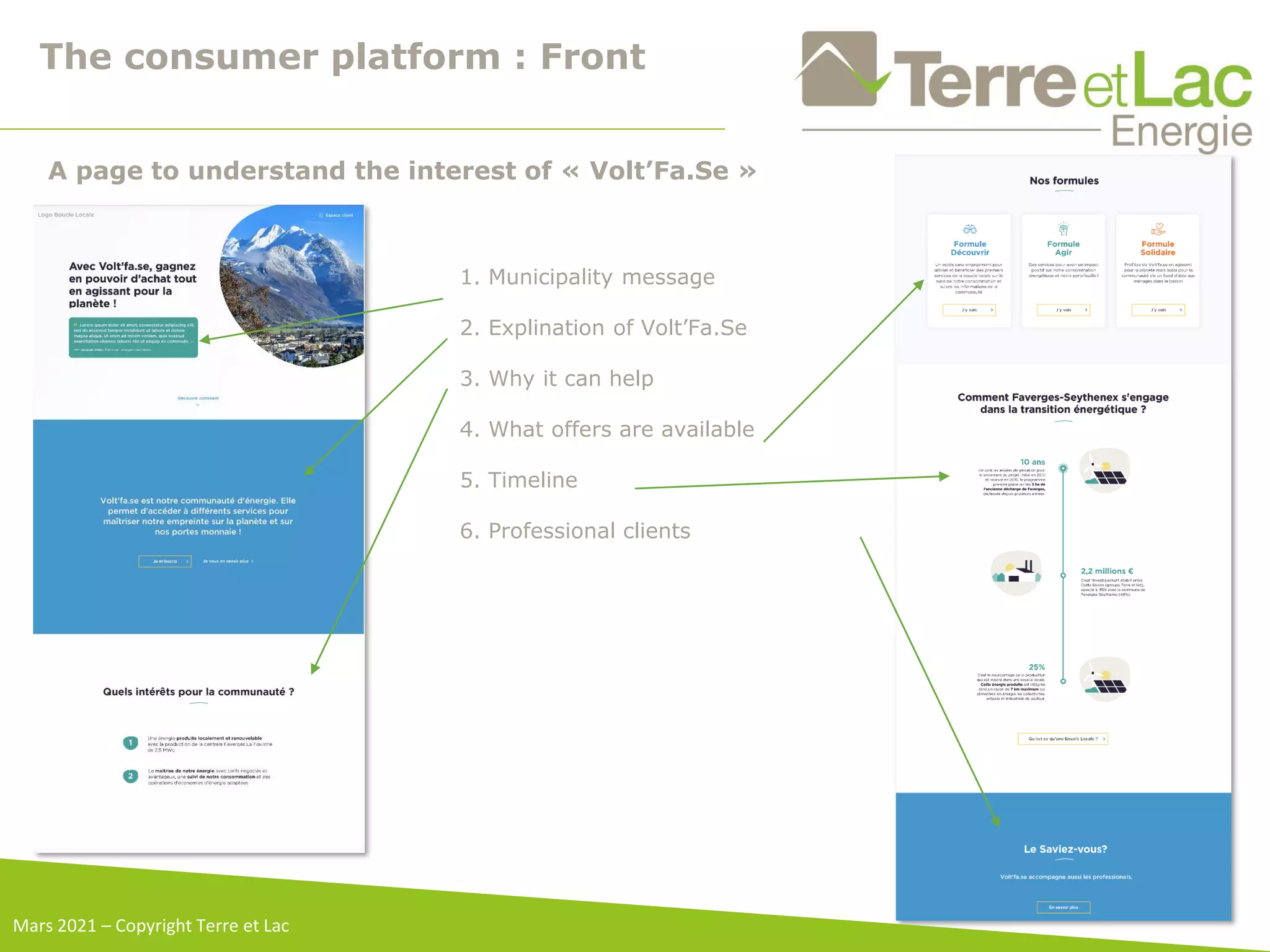

- 54. 1. Municipality message 2.Explination of Volt’Fa.Se 3. Why it can help 4. What offers are available 5. Timeline 6. Professional clients The consumer platform : Front A page to understand the interest of « Volt’Fa.Se » Mars 2021 – Copyright Terre et Lac

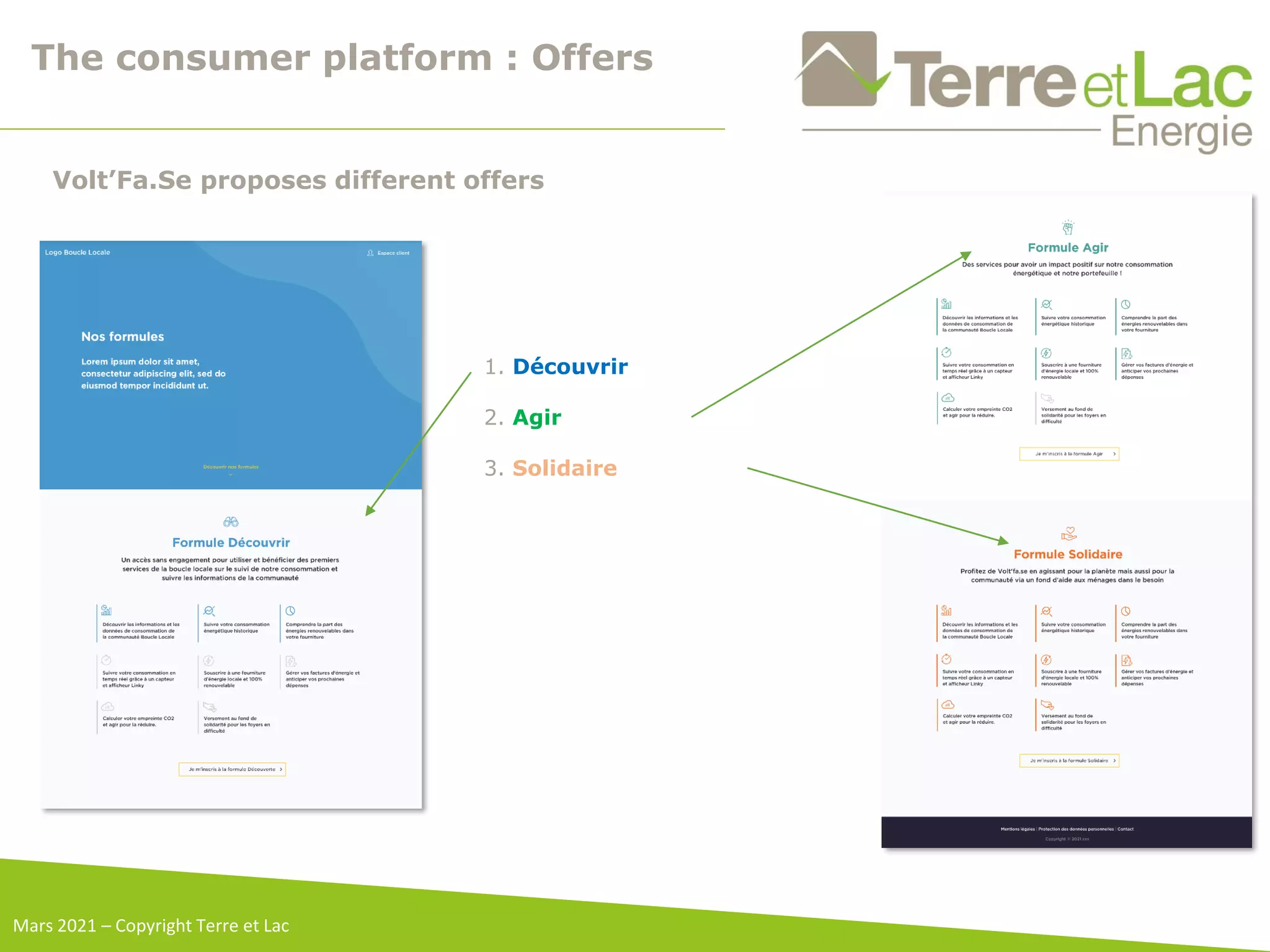

- 55. 1. Découvrir 2. Agir 3.Solidaire The consumer platform : Offers Volt’Fa.Se proposes different offers Mars 2021 – Copyright Terre et Lac

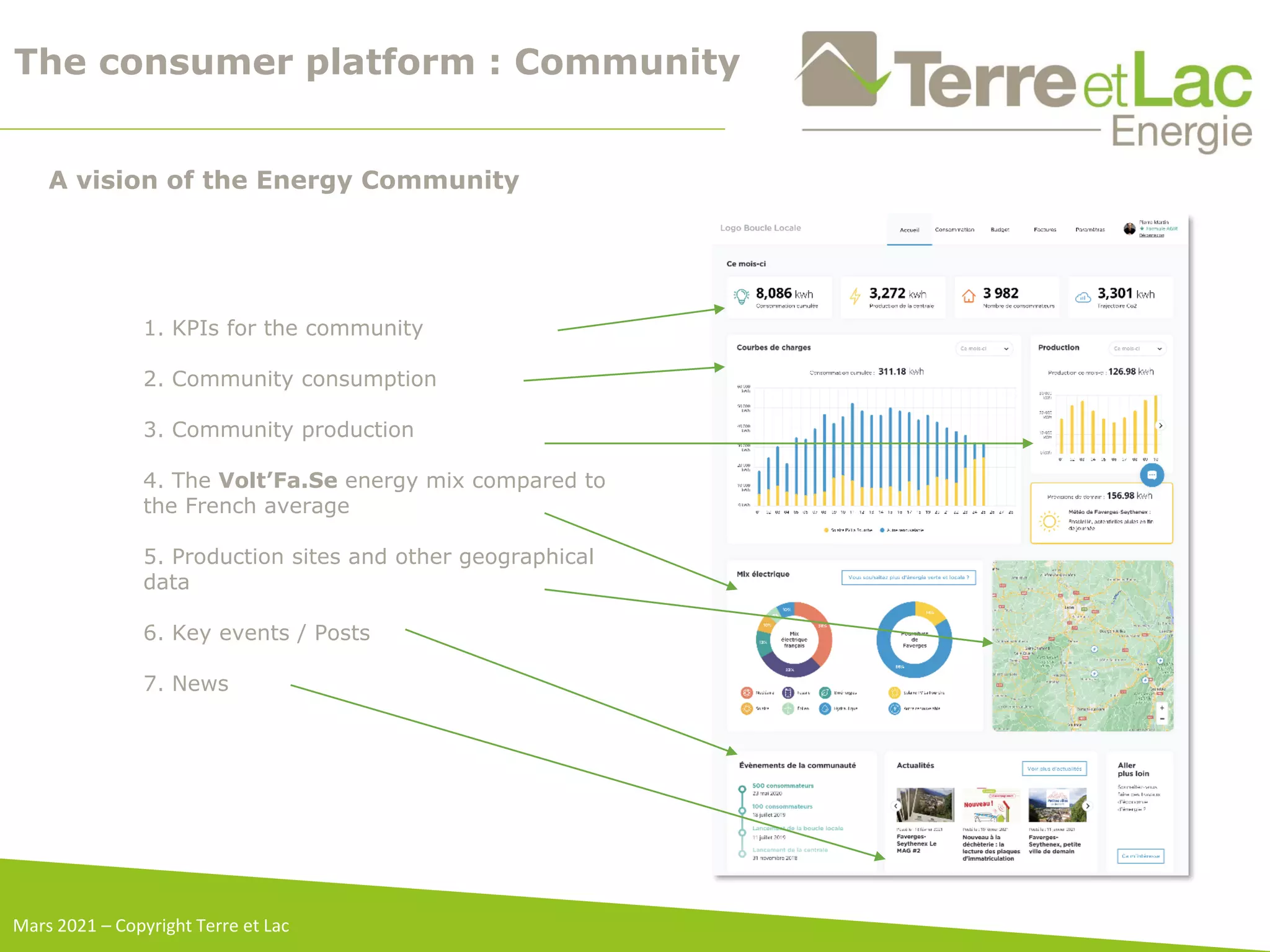

- 56. The consumer platform: Community 1. KPIs for the community 2. Community consumption 3. Community production 4. The Volt’Fa.Se energy mix compared to the French average 5. Production sites and other geographical data 6. Key events / Posts 7. News A vision of the Energy Community Mars 2021 – Copyright Terre et Lac

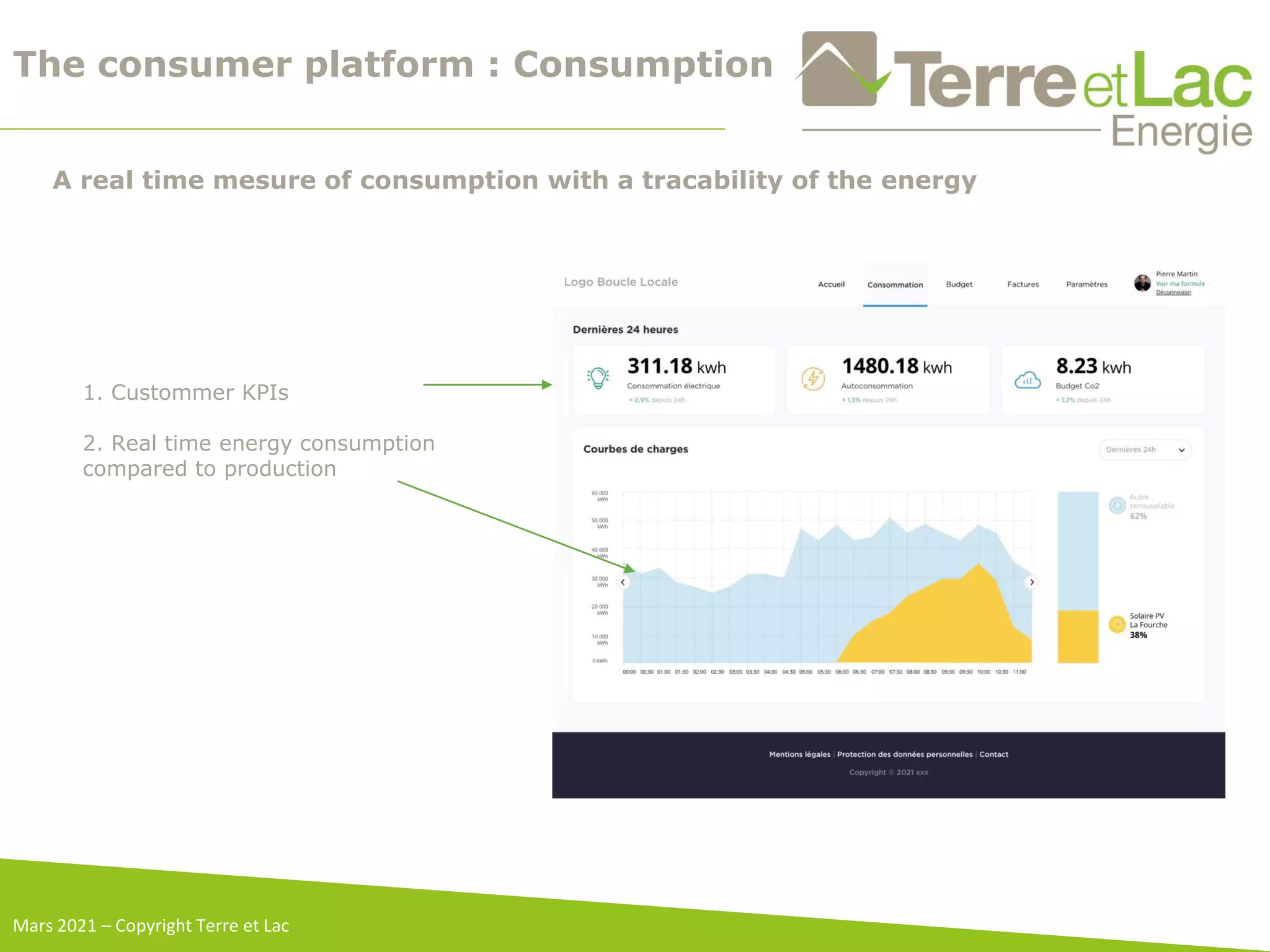

- 57. The consumer platform: Consumption 1. Custommer KPIs 2. Real time energy consumption compared to production A real time mesure of consumption with a tracability of the energy Mars 2021 – Copyright Terre et Lac

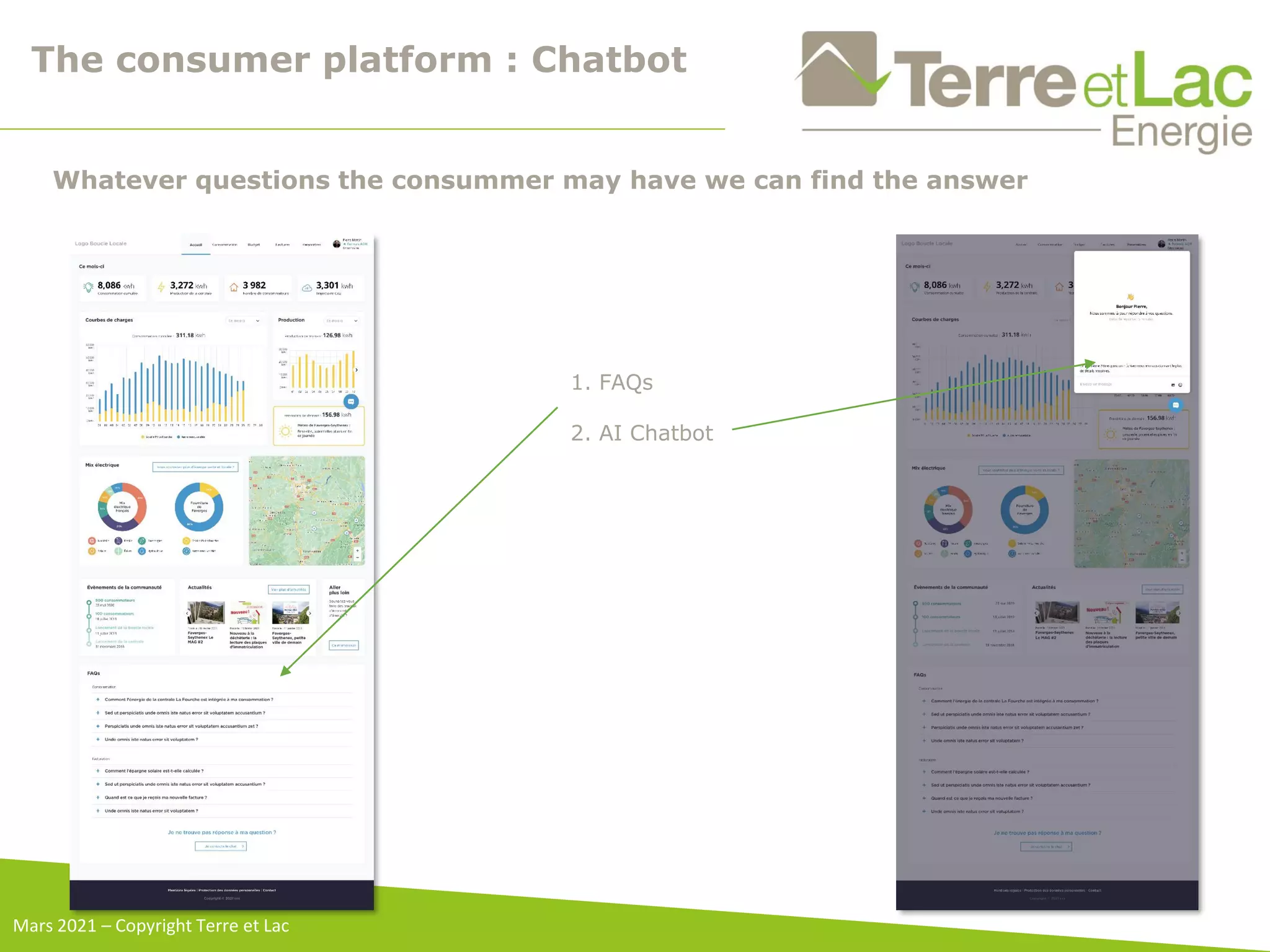

- 58. The consumer platform: Chatbot 1. FAQs 2. AI Chatbot Whatever questions the consummer may have we can find the answer Mars 2021 – Copyright Terre et Lac

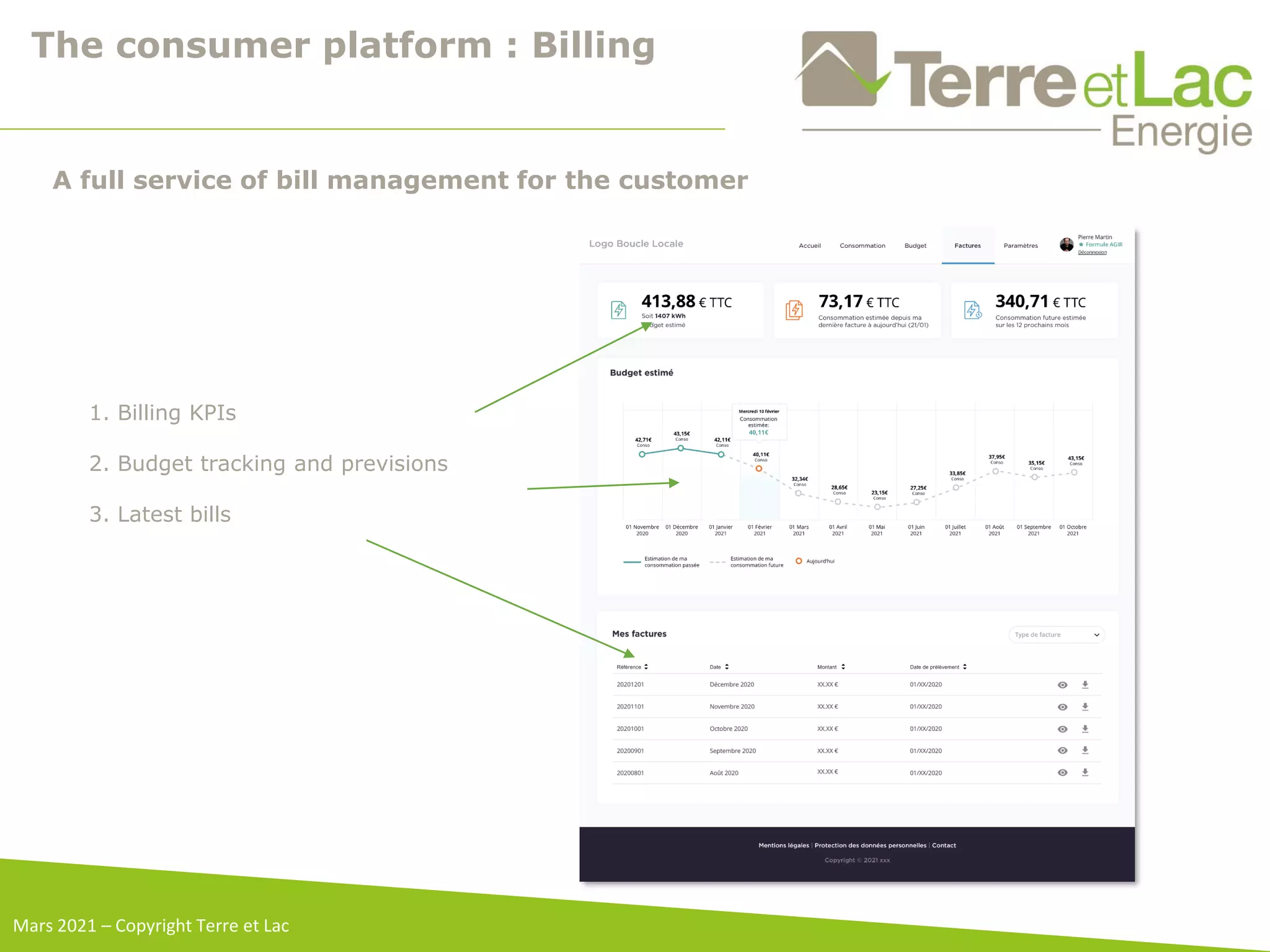

- 59. The consumer platform: Billing 1. Billing KPIs 2. Budget tracking and previsions 3. Latest bills A full service of bill management for the customer Mars 2021 – Copyright Terre et Lac
- 60. BACKUP Janvier 2020 –Copyright Terre et Lac Octobre 2020 – Copyright Terre et Lac

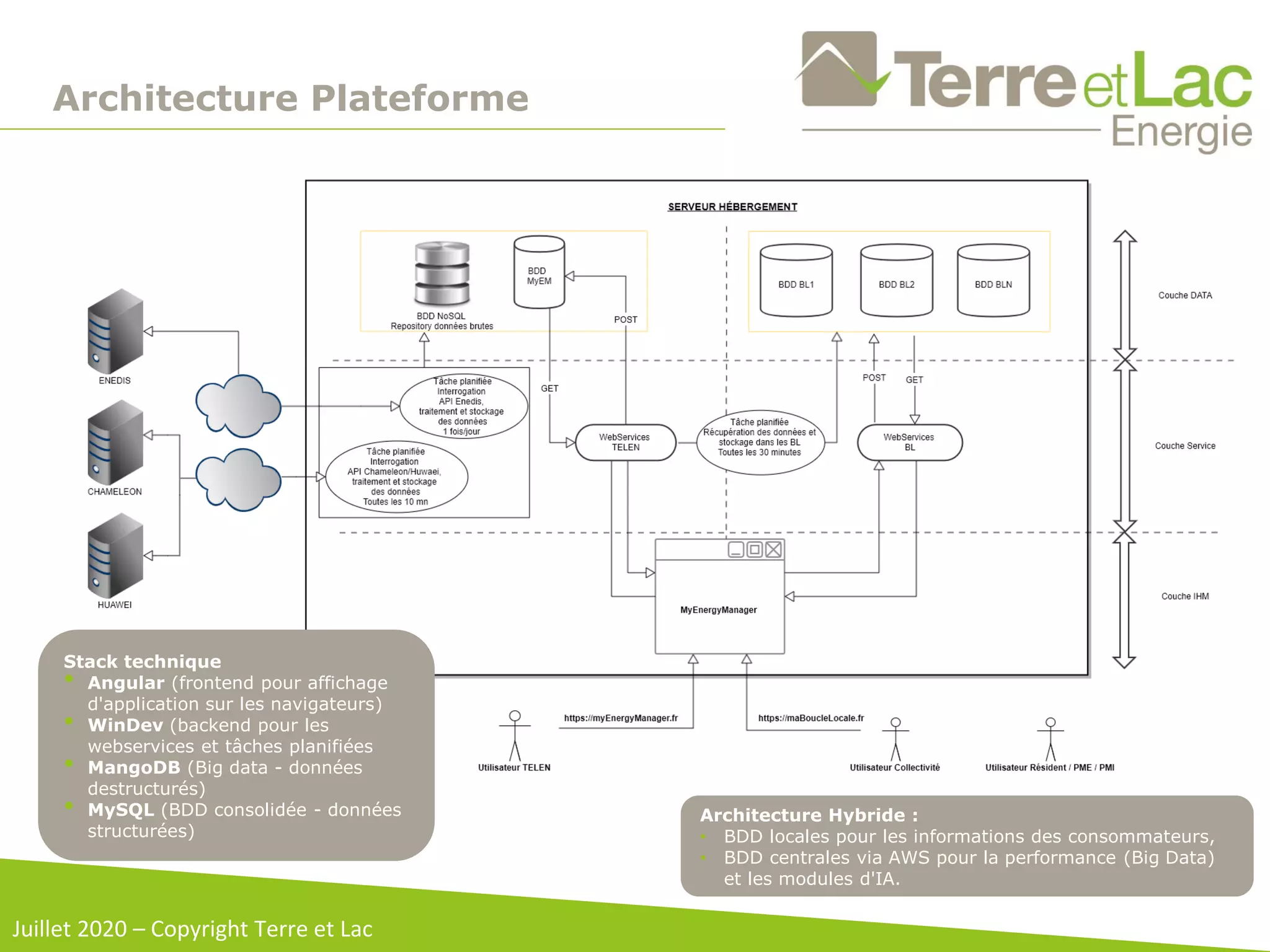

- 61. Architecture Plateforme Juillet 2020– Copyright Terre et Lac Stack technique • Angular (frontend pour affichage d'application sur les navigateurs) • WinDev (backend pour les webservices et tâches planifiées • MangoDB (Big data - données destructurés) • MySQL (BDD consolidée - données structurées) Architecture Hybride : • BDD locales pour les informations des consommateurs, • BDD centrales via AWS pour la performance (Big Data) et les modules d'IA.
