The VS-81V is a high-performance mechanical switcher that switches one of eight composite video signals to a single output. It has a high bandwidth of 400MHz and uses mechanical switching with no power required. The compact desktop size unit can be rack mounted in a 1U space with an optional adapter and has eight video inputs and one video output on BNC connectors.

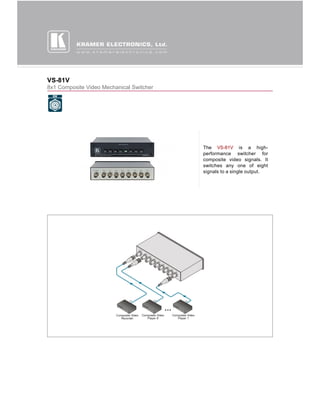

1. VS-81V
8x1 Composite Video Mechanical Switcher
The VS-81V is a high-
performance switcher for
composite video signals. It
switches any one of eight
signals to a single output.

2. VS-81V
FEATURES TECHNICAL SPECIFICATIONS
High Bandwidth - 400MHz (-3dB). INPUTS: 8 video, 1Vpp/75Ω nom. on
Mechanical (Passive) Switching - No power BNC connectors.
required. OUTPUT: 1 video, 1Vpp/75Ω nom. on a
Desktop Size - Compact size. 2 units can be BNC connector.
rack mounted side-by-side in a 1U rack space SWITCHING Mechanical, break-before-
with the optional RK-81 adapter. SYSTEM: make.
CROSSPOINTS: 1 of 8.
VIDEO -47dB @5MHz.
CROSSTALK:
BANDWIDTH (- 400MHz.
3dB):
DIMENSIONS: 18.8cm x 10.2cm x 4.4cm (7.4”
x 4” x 1.7”) W, D, H.
WEIGHT: 0.72kg (1.6lbs) approx.
OPTIONS: RK-81 19” rack adapter.
