The 4x1V is a high-performance mechanical switcher that switches one of four composite video signals to a single output. It has four video inputs and one output on RCA connectors, switches passively without power, and can be rack mounted in a 1U space. The switcher has a bandwidth of 400MHz and dimensions of 12cm x 7.5cm x 2.5cm.

1. 4x1V
4x1 Composite Video Mechanical Switcher
The 4x1V is a high-
performance switcher for
composite video signals. It
switches any one of four
signals to a single output.

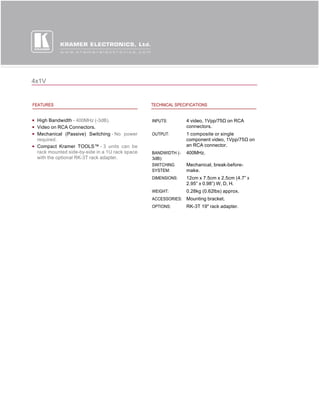

2. 4x1V
FEATURES TECHNICAL SPECIFICATIONS
High Bandwidth - 400MHz (-3dB). INPUTS: 4 video, 1Vpp/75Ω on RCA
Video on RCA Connectors. connectors.
Mechanical (Passive) Switching - No power OUTPUT: 1 composite or single
required. component video, 1Vpp/75Ω on
Compact Kramer TOOLS™ - 3 units can be an RCA connector.
rack mounted side-by-side in a 1U rack space BANDWIDTH (- 400MHz.
with the optional RK-3T rack adapter. 3dB):
SWITCHING Mechanical, break-before-
SYSTEM: make.
DIMENSIONS: 12cm x 7.5cm x 2.5cm (4.7” x
2.95” x 0.98”) W, D, H.
WEIGHT: 0.28kg (0.62lbs) approx.
ACCESSORIES: Mounting bracket.
OPTIONS: RK-3T 19" rack adapter.
