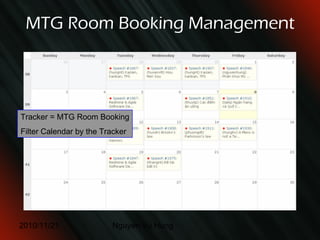

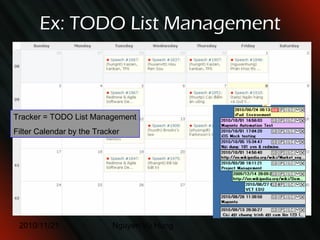

The document discusses information management using the project management tool Redmine. It provides an overview of project management and software development models. It then details the installation process for Redmine and describes Redmine's basic features, customization options, and integration with other tools like TestLink and Kanban boards. Useful plugins, configurations and examples of using Redmine for activities like meeting scheduling and TODO lists are also covered.

1. Information Management with Redmine Nguyen Vu Hung [email_address] 2010/11/21

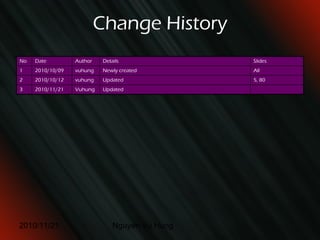

2. Change History No Date Author Details Slides 1 2010/10/09 vuhung Newly created All 2 2010/10/12 vuhung Updated 5, 80 3 2010/11/21 Vuhung Updated

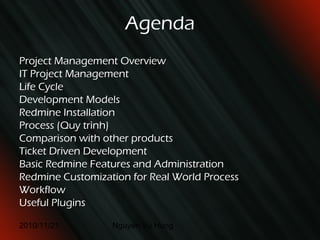

3. Agenda Project Management Overview

4. IT Project Management

5. Life Cycle

6. Development Models

7. Redmine Installation

8. Process (Quy trình)

9. Comparison with other products

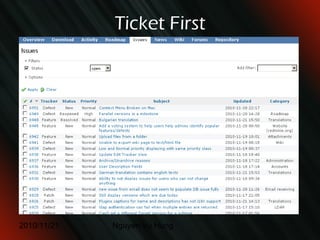

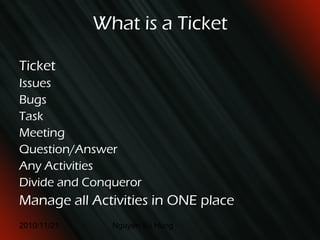

10. Ticket Driven Development

11. Basic Redmine Features and Administration

12. Redmine Customization for Real World Process

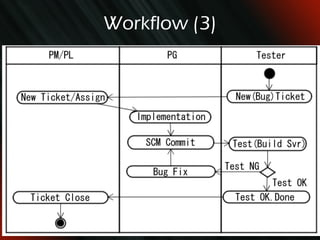

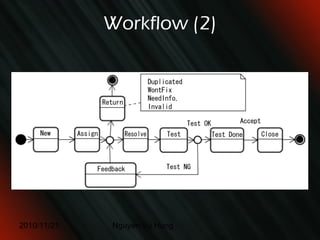

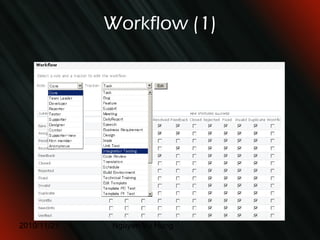

13. Workflow

14. Useful Plugins

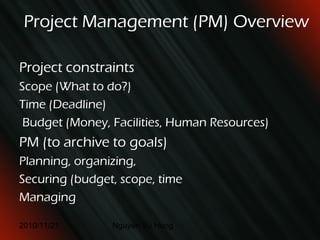

15. Project Management (PM) Overview Project constraints Scope (What to do?)

16. Time (Deadline)

17. Budget (Money, Facilities, Human Resources) PM (to archive to goals) Planning, organizing,

18. Securing (budget, scope, time

19. Managing

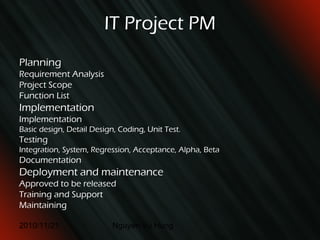

20. IT Project PM Planning Requirement Analysis

21. Project Scope

22. Function List Implementation Implementation Basic design, Detail Design, Coding, Unit Test. Testing Integration, System, Regression, Acceptance, Alpha, Beta Documentation Deployment and maintenance Approved to be released

23. Training and Support

24. Maintaining

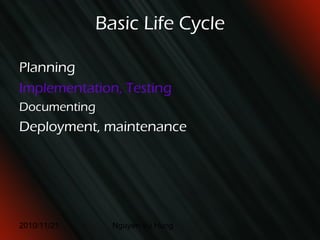

25. Basic Life Cycle Planning Implementation, Testing Documenting Deployment, maintenance

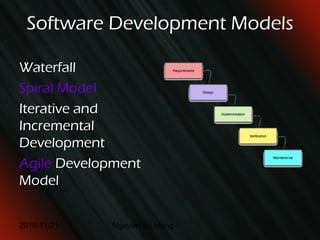

26. Software Development Models Waterfall Spiral Model Iterative and Incremental Development Agile Development Model

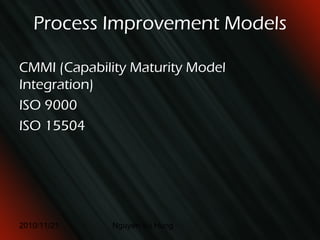

27. Process Improvement Models CMMI (Capability Maturity Model Integration)

28. ISO 9000

29. ISO 15504

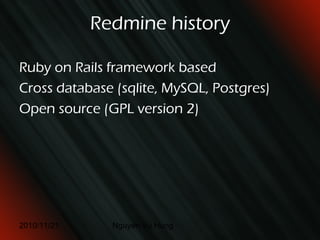

30. Redmine history Ruby on Rails framework based

31. Cross database (sqlite, MySQL, Postgres)

32. Open source (GPL version 2)

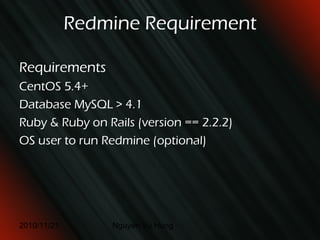

33. Redmine Requirement Requirements CentOS 5.4+

34. Database MySQL > 4.1

35. Ruby & Ruby on Rails (version == 2.2.2)

36. OS user to run Redmine (optional)

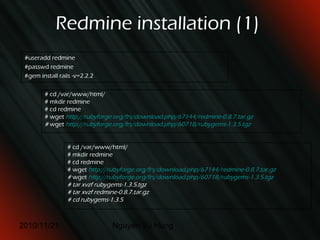

37. Redmine installation (1) #useradd redmine #passwd redmine #gem install rails -v=2.2.2 # cd /var/www/html/ # mkdir redmine # cd redmine # wget http://rubyforge.org/frs/download.php/67144/redmine-0.8.7.tar.gz # wget http://rubyforge.org/frs/download.php/60718/rubygems-1.3.5.tgz # cd /var/www/html/ # mkdir redmine # cd redmine # wget http://rubyforge.org/frs/download.php/67144/redmine-0.8.7.tar.gz # wget http://rubyforge.org/frs/download.php/60718/rubygems-1.3.5.tgz # tar xvzf rubygems-1.3.5.tgz # tar xvzf redmine-0.8.7.tar.gz # cd rubygems-1.3.5 # yum install ruby-devel # ruby setup.rb

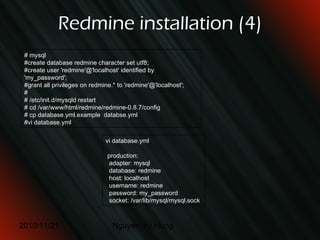

38. Redmine installation (4) # mysql #create database redmine character set utf8; #create user 'redmine'@'localhost' identified by 'my_password'; #grant all privileges on redmine.* to 'redmine'@'localhost'; # # /etc/init.d/mysqld restart # cd /var/www/html/redmine/redmine-0.8.7/config # cp database.yml.example databse.yml #vi database.yml vi database.yml production: adapter: mysql database: redmine host: localhost username: redmine password: my_password socket: /var/lib/mysql/mysql.sock

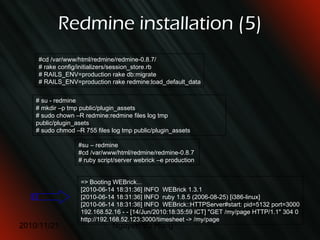

39. Redmine installation (5) #cd /var/www/html/redmine/redmine-0.8.7/ # rake config/initializers/session_store.rb # RAILS_ENV=production rake db:migrate # RAILS_ENV=production rake redmine:load_default_data # su - redmine # mkdir –p tmp public/plugin_assets # sudo chown –R redmine:redmine files log tmp public/plugin_asets # sudo chmod –R 755 files log tmp public/plugin_assets #su – redmine #cd /var/www/html/redmine/redmine-0.8.7 # ruby script/server webrick –e production => Booting WEBrick... [2010-06-14 18:31:36] INFO WEBrick 1.3.1 [2010-06-14 18:31:36] INFO ruby 1.8.5 (2006-08-25) [i386-linux] [2010-06-14 18:31:36] INFO WEBrick::HTTPServer#start: pid=5132 port=3000 192.168.52.16 - - [14/Jun/2010:18:35:59 ICT] "GET /my/page HTTP/1.1" 304 0 http://192.168.52.123:3000/timesheet -> /my/page

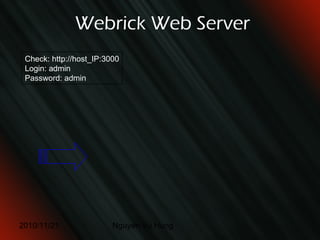

40. Webrick Web Server Check: http://host_IP:3000 Login: admin Password: admin

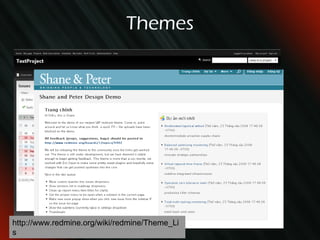

41. Themes http://www.redmine.org/wiki/redmine/Theme_Lis

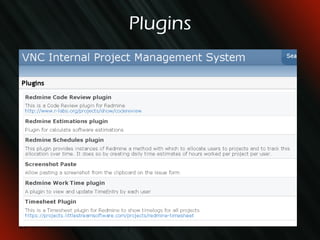

42. Plugins

43. Plugins http://www.redmine.org/wiki/redmine/Plugin_List

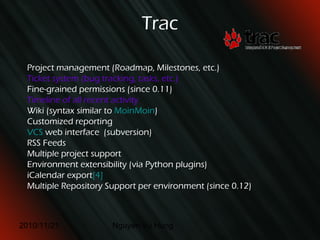

44. Trac Project management (Roadmap, Milestones, etc.) Ticket system (bug tracking, tasks, etc.) Fine-grained permissions (since 0.11) Timeline of all recent activity Wiki (syntax similar to MoinMoin )

45. Customized reporting VCS web interface (subversion) RSS Feeds

46. Multiple project support

47. Environment extensibility (via Python plugins)

48. iCalendar export [4]

49. Multiple Repository Support per environment (since 0.12)

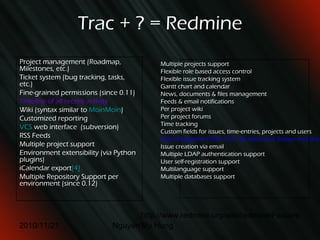

50. Trac + ? = Redmine Project management (Roadmap, Milestones, etc.)

51. Ticket system (bug tracking, tasks, etc.)

52. Fine-grained permissions (since 0.11) Timeline of all recent activity Wiki (syntax similar to MoinMoin )

53. Customized reporting VCS web interface (subversion) RSS Feeds

54. Multiple project support

55. Environment extensibility (via Python plugins)

56. iCalendar export [4]

57. Multiple Repository Support per environment (since 0.12) Multiple projects support

58. Flexible role based access control

59. Flexible issue tracking system

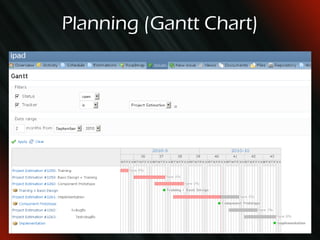

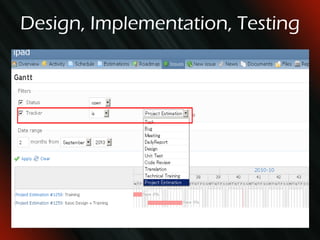

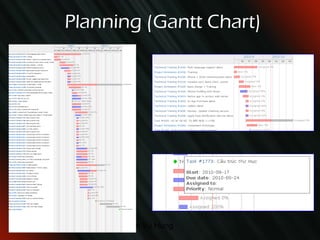

60. Gantt chart and calendar

61. News, documents & files management

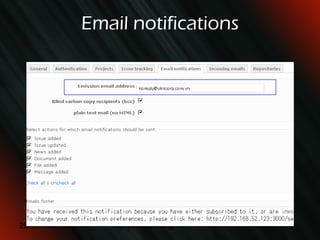

62. Feeds & email notifications

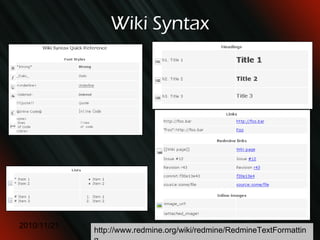

63. Per project wiki

64. Per project forums

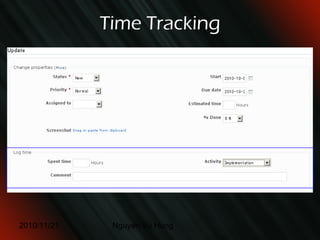

65. Time tracking

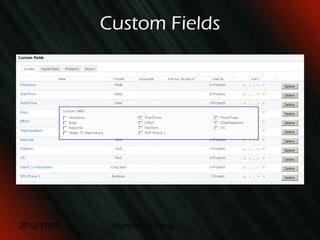

66. Custom fields for issues, time-entries, projects and users SCM integration (SVN, CVS, Git, Mercurial, Bazaar and Darcs) Issue creation via email

67. Multiple LDAP authentication support

68. User self-registration support

69. Multilanguage support

70. Multiple databases support http://www.redmine.org/wiki/redmine/Features

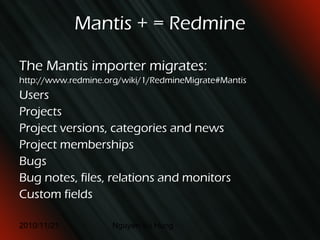

71. Mantis + = Redmine The Mantis importer migrates: http://www.redmine.org/wiki/1/RedmineMigrate#Mantis

72. Users

73. Projects

74. Project versions, categories and news

75. Project memberships

76. Bugs
