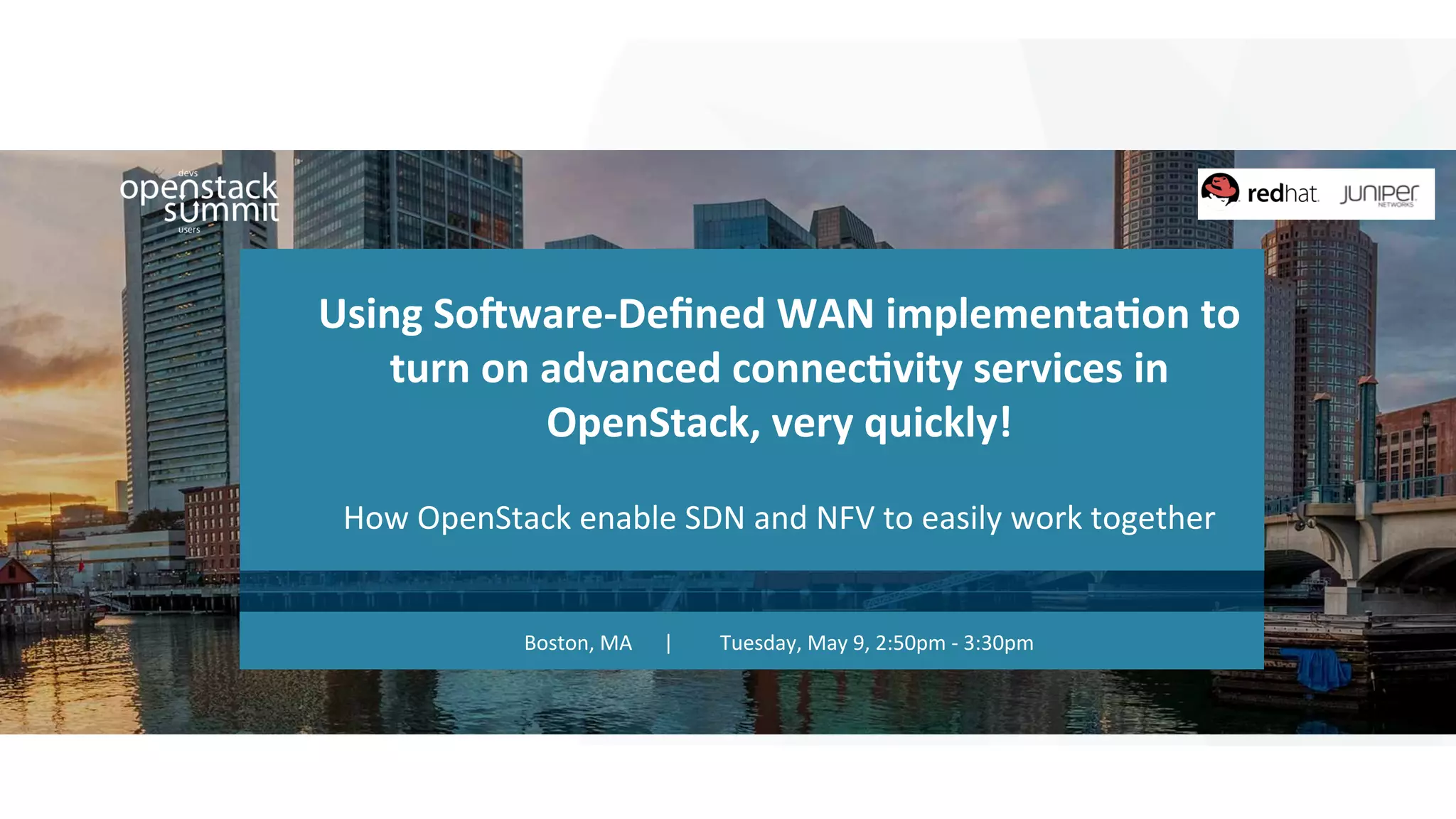

Using Software-Defined WAN implementation to turn on advanced connectivity services in OpenStack
- 2. 2 Today’s speakers Ali Kafel, Red Hat @akafel DP Ayyadevara, Juniper Networks

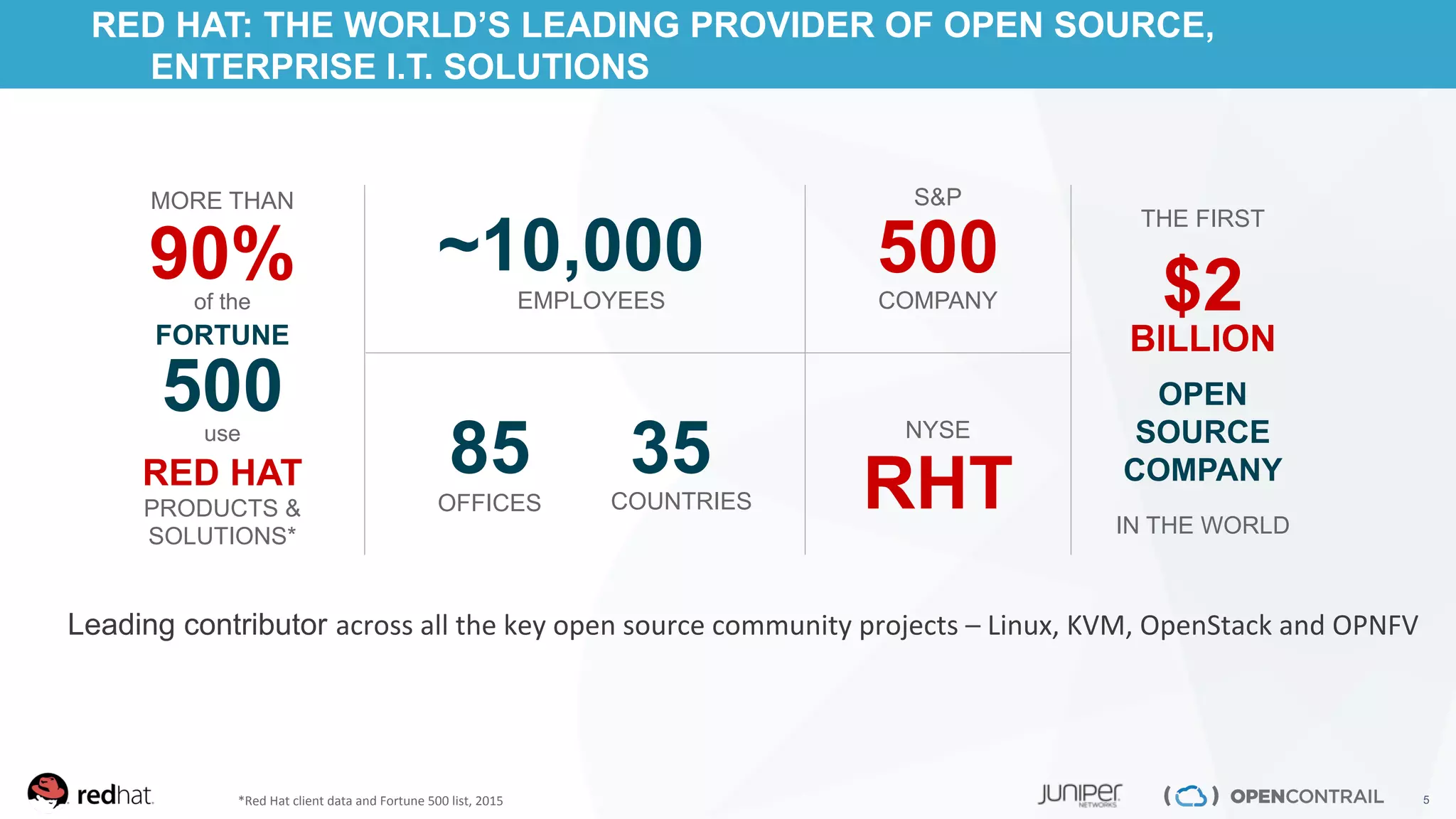

- 5. 5 RED HAT: THE WORLD’S LEADING PROVIDER OF OPEN SOURCE, ENTERPRISE I.T. SOLUTIONS MORE THAN 90%of the FORTUNE 500 RED HAT use PRODUCTS & SOLUTIONS* ~10,000 EMPLOYEES 85 OFFICES S&P 500COMPANY NYSE RHT35COUNTRIES *Red Hat client data and Fortune 500 list, 2015 THE FIRST $2 OPEN SOURCE COMPANY IN THE WORLD BILLION Leading contributor across all the key open source community projects – Linux, KVM, OpenStack and OPNFV

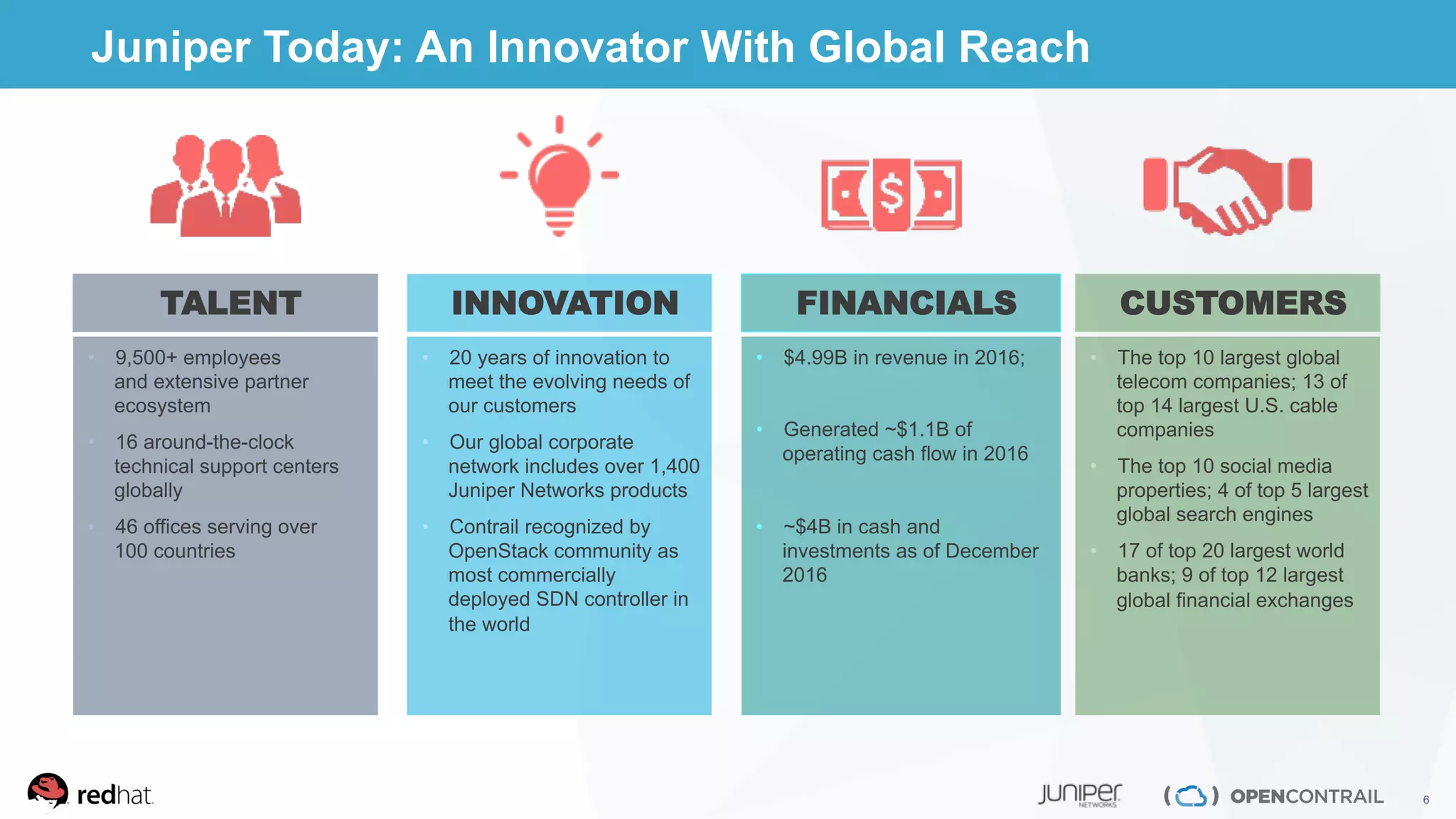

- 6. 6 Juniper Today: An Innovator With Global Reach TALENT INNOVATION FINANCIALS CUSTOMERS • 9,500+ employees and extensive partner ecosystem • 16 around-the-clock technical support centers globally • 46 offices serving over 100 countries • 20 years of innovation to meet the evolving needs of our customers • Our global corporate network includes over 1,400 Juniper Networks products • Contrail recognized by OpenStack community as most commercially deployed SDN controller in the world • $4.99B in revenue in 2016; • Generated ~$1.1B of operating cash flow in 2016 • ~$4B in cash and investments as of December 2016 • The top 10 largest global telecom companies; 13 of top 14 largest U.S. cable companies • The top 10 social media properties; 4 of top 5 largest global search engines • 17 of top 20 largest world banks; 9 of top 12 largest global financial exchanges

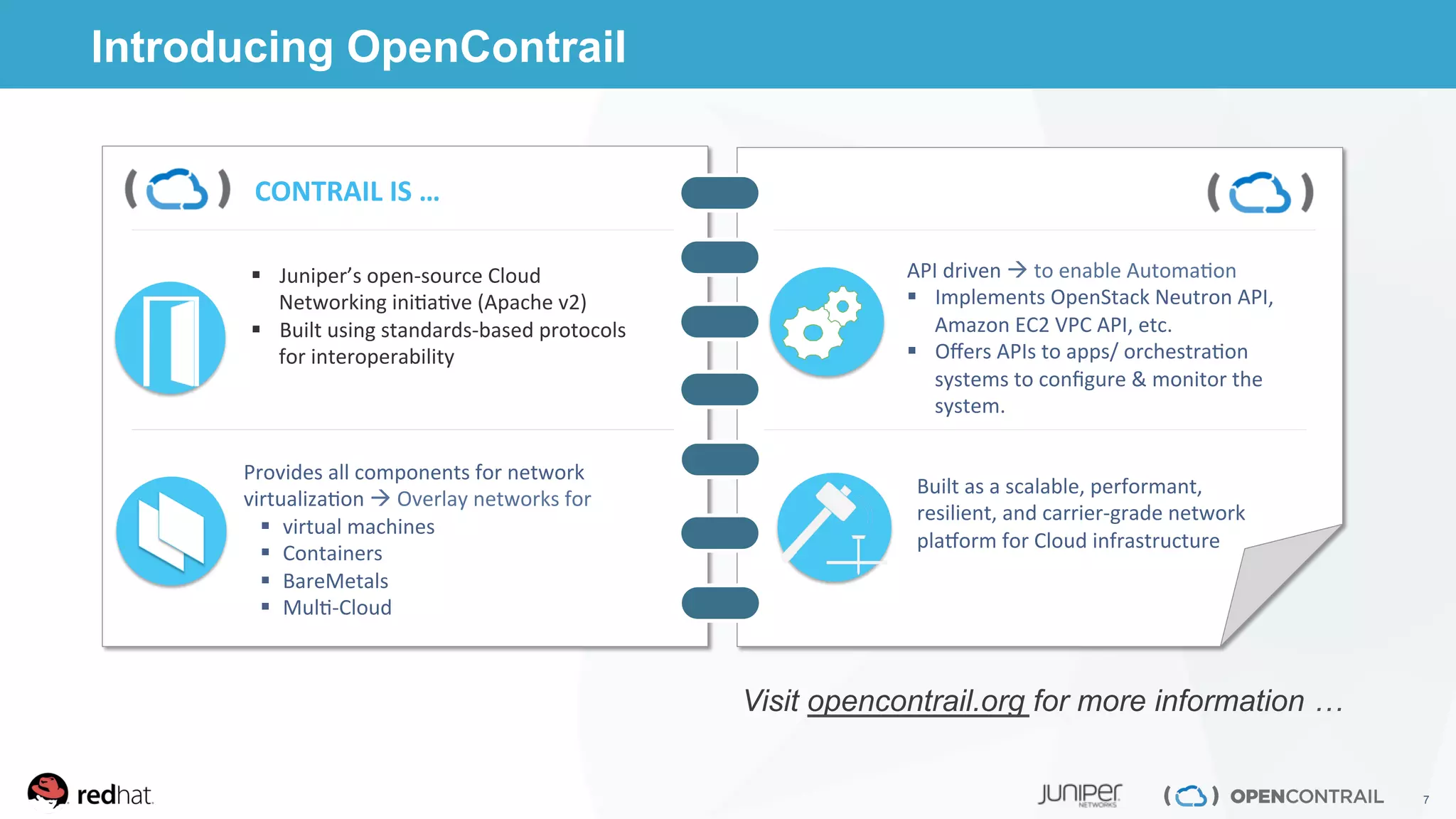

- 7. 7 Introducing OpenContrail API driven à to enable AutomaNon § Implements OpenStack Neutron API, Amazon EC2 VPC API, etc. § Offers APIs to apps/ orchestraNon systems to configure & monitor the system. Built as a scalable, performant, resilient, and carrier-grade network placorm for Cloud infrastructure § Juniper’s open-source Cloud Networking iniNaNve (Apache v2) § Built using standards-based protocols for interoperability Provides all components for network virtualizaNon à Overlay networks for § virtual machines § Containers § BareMetals § MulN-Cloud CONTRAIL IS … Visit opencontrail.org for more information …

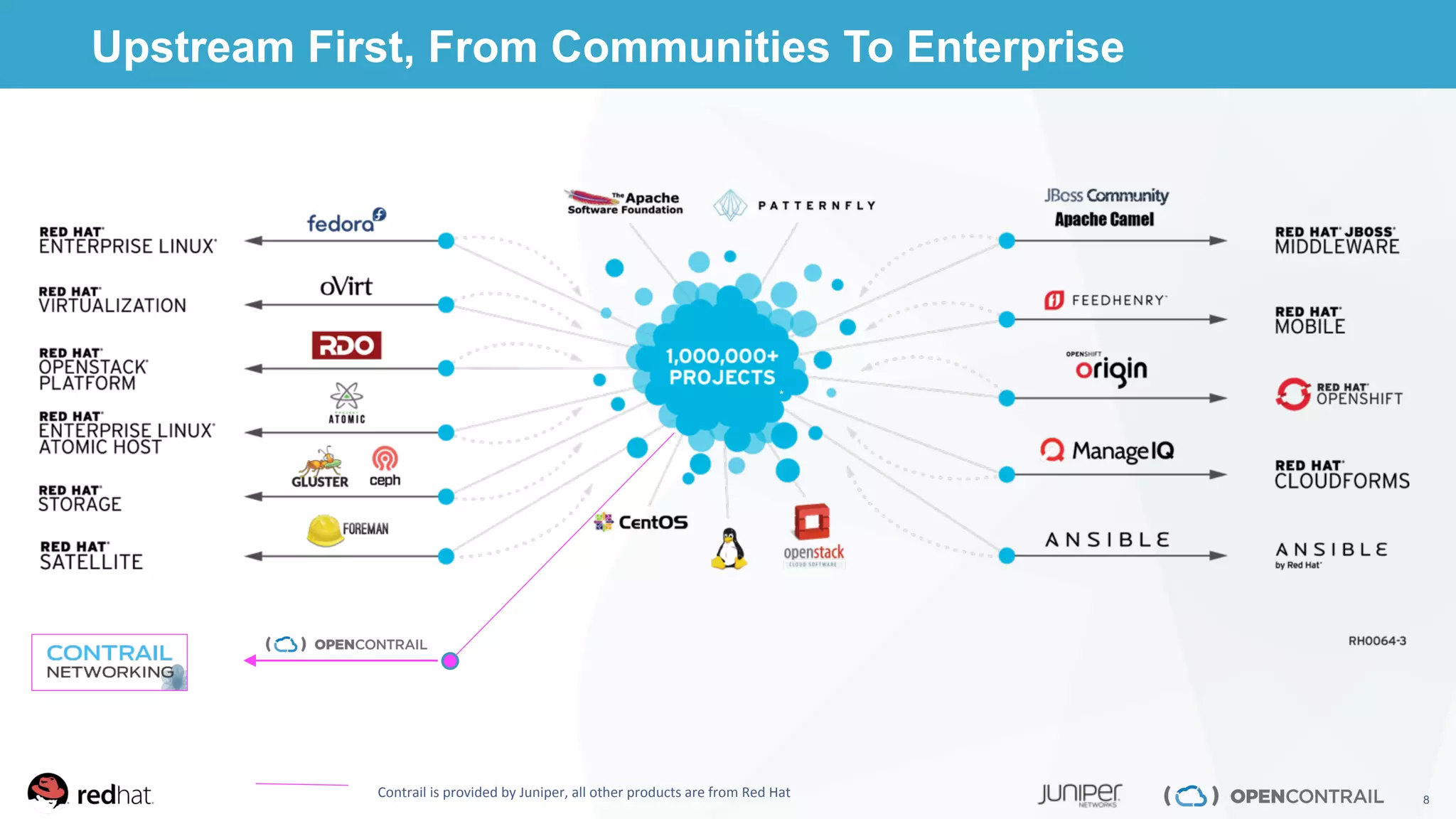

- 8. 8 Upstream First, From Communities To Enterprise ** Contrail is provided by Juniper, all other products are from Red Hat

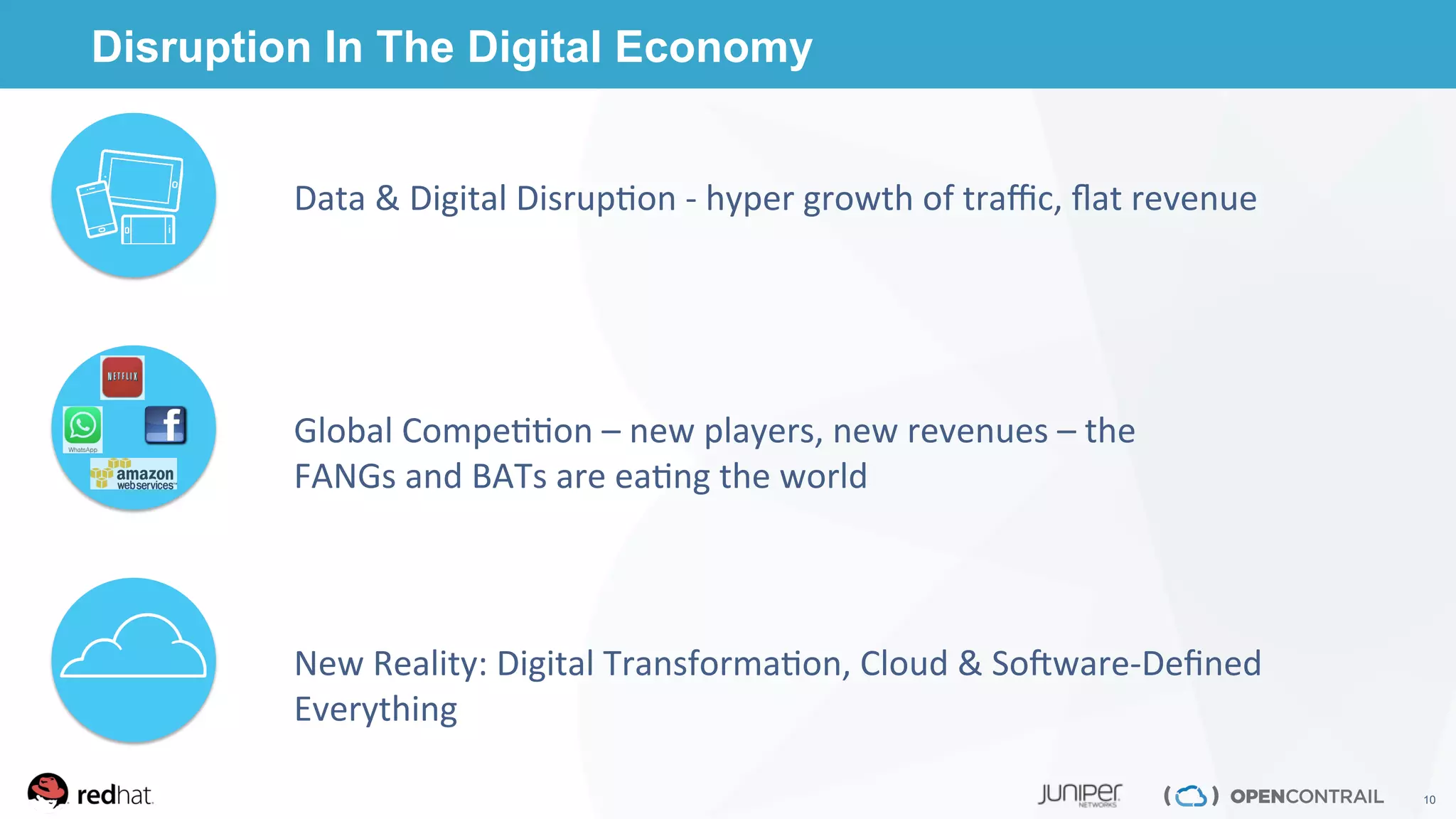

- 10. 10 Disruption In The Digital Economy Data & Digital DisrupNon - hyper growth of traffic, flat revenue Global CompeNNon – new players, new revenues – the FANGs and BATs are eaNng the world New Reality: Digital TransformaNon, Cloud & Sohware-Defined Everything

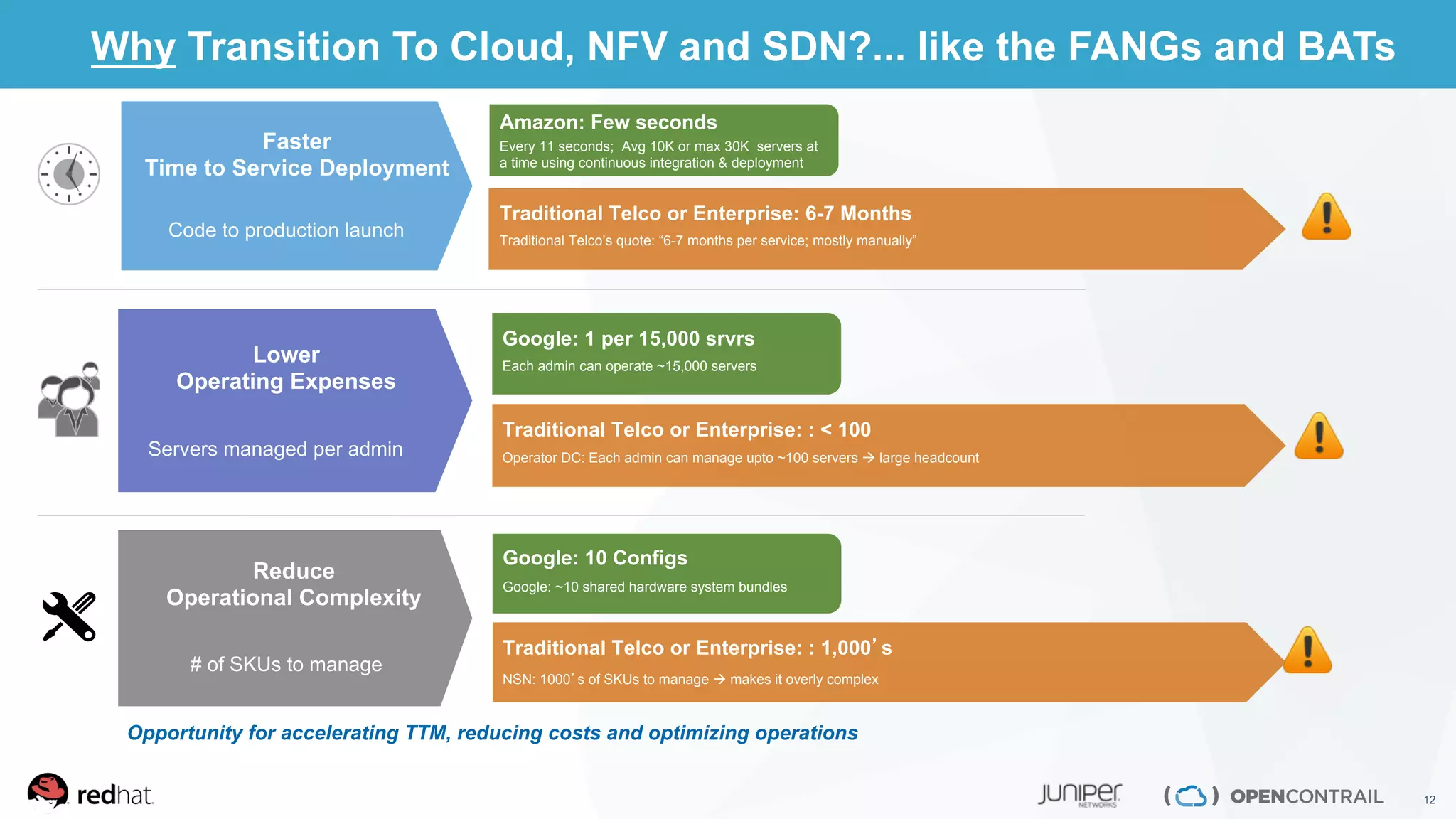

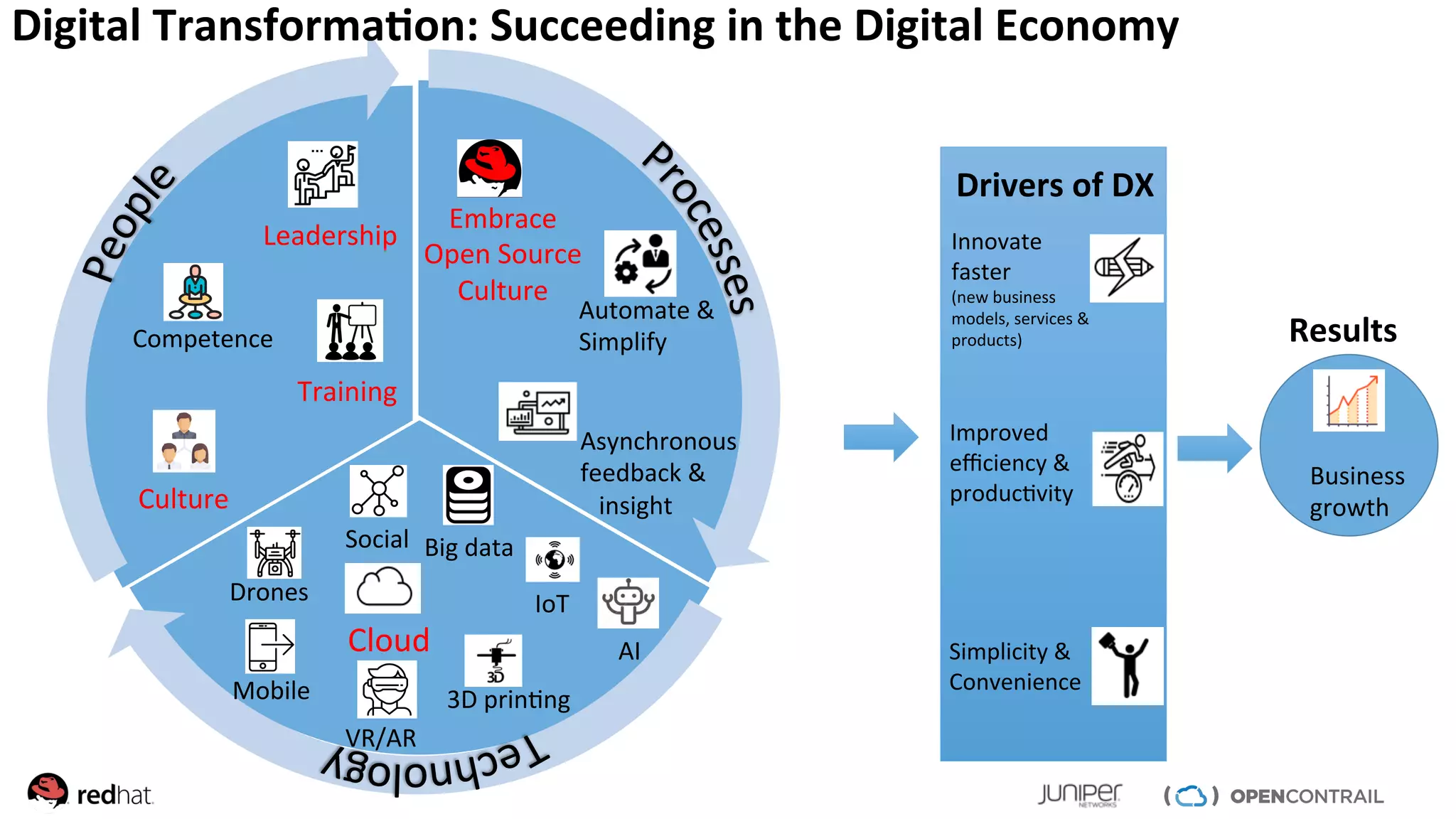

- 12. 12 Why Transition To Cloud, NFV and SDN?... like the FANGs and BATs Opportunity for accelerating TTM, reducing costs and optimizing operations Faster Time to Service Deployment Code to production launch Traditional Telco or Enterprise: 6-7 Months Amazon: Few seconds Every 11 seconds; Avg 10K or max 30K servers at a time using continuous integration & deployment Traditional Telco’s quote: “6-7 months per service; mostly manually” Lower Operating Expenses Servers managed per admin Traditional Telco or Enterprise: : < 100 Google: 1 per 15,000 srvrs Operator DC: Each admin can manage upto ~100 servers à large headcount Each admin can operate ~15,000 servers Reduce Operational Complexity # of SKUs to manage Google: 10 Configs Traditional Telco or Enterprise: : 1,000’s NSN: 1000’s of SKUs to manage à makes it overly complex Google: ~10 shared hardware system bundles

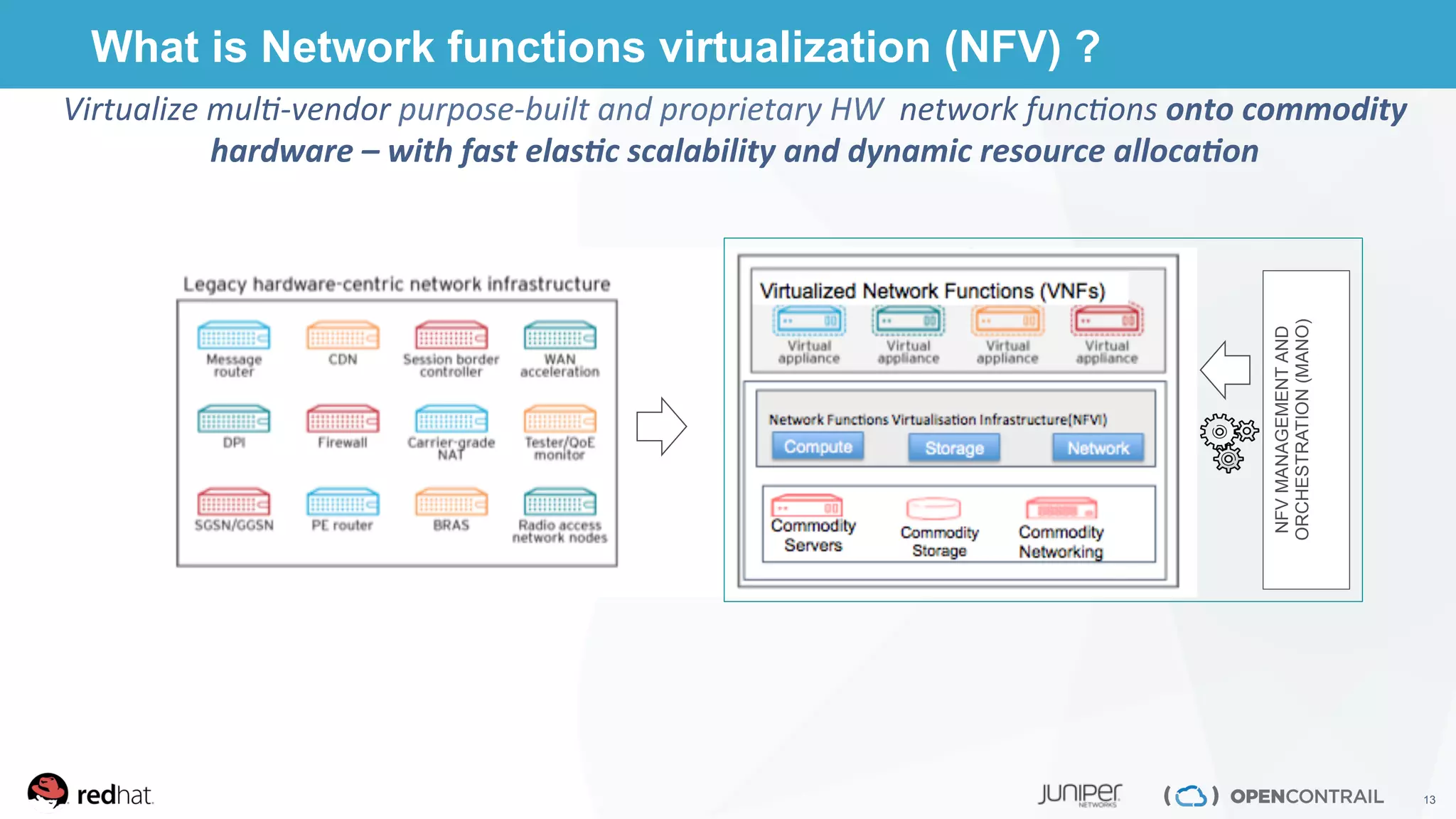

- 13. 13 What is Network functions virtualization (NFV) ? Virtualize mul,-vendor purpose-built and proprietary HW network func,ons onto commodity hardware – with fast elas3c scalability and dynamic resource alloca3on NFVMANAGEMENTAND ORCHESTRATION(MANO)

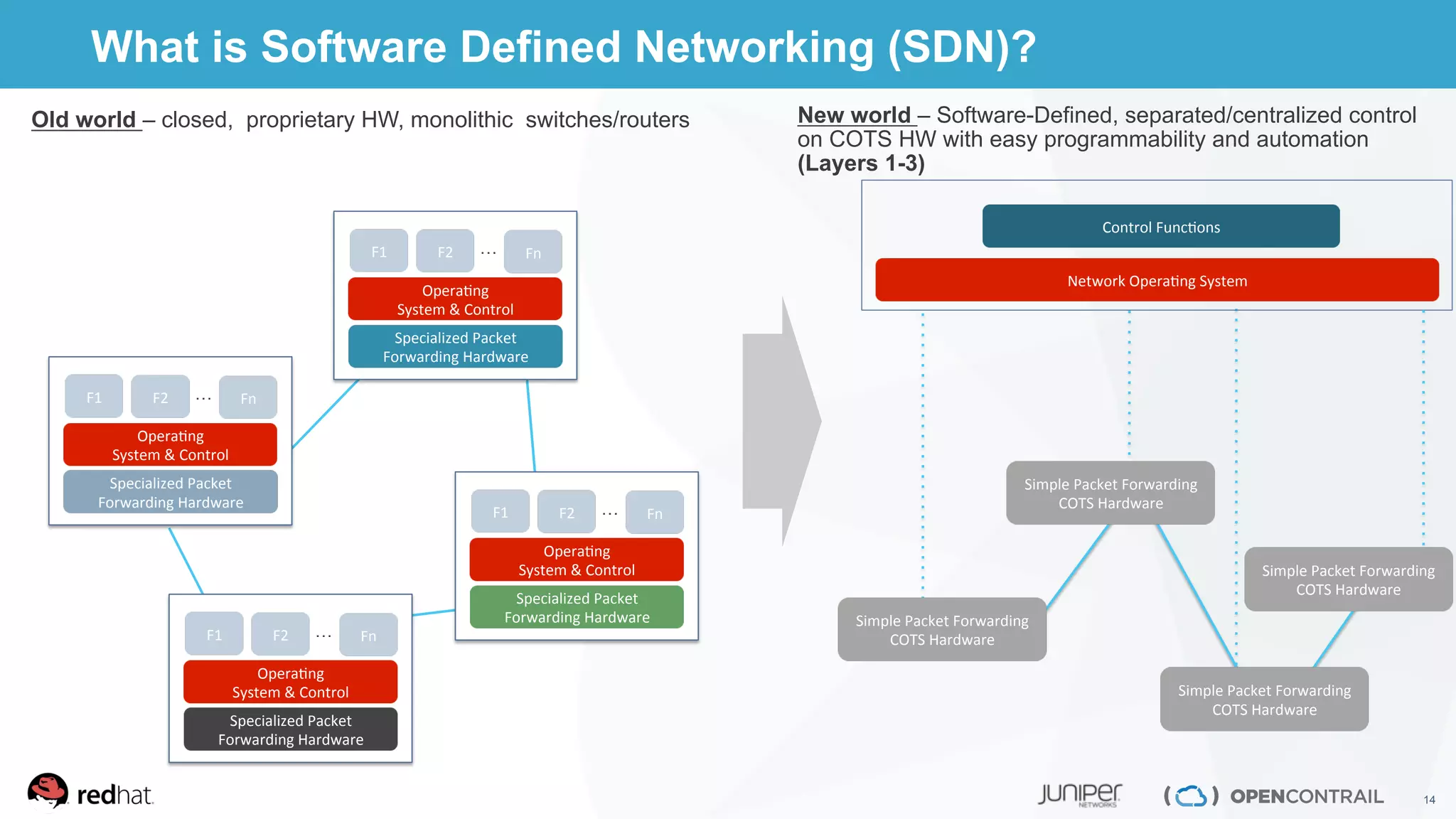

- 14. 14 What is Software Defined Networking (SDN)? Old world – closed, proprietary HW, monolithic switches/routers New world – Software-Defined, separated/centralized control on COTS HW with easy programmability and automation (Layers 1-3) OperaNng System & Control Specialized Packet Forwarding Hardware F1 F2 Fn … OperaNng System & Control Specialized Packet Forwarding Hardware F1 F2 Fn … OperaNng System & Control Specialized Packet Forwarding Hardware F1 F2 Fn … OperaNng System & Control Specialized Packet Forwarding Hardware F1 F2 Fn … Network OperaNng System Control FuncNons Simple Packet Forwarding COTS Hardware Simple Packet Forwarding COTS Hardware Simple Packet Forwarding COTS Hardware Simple Packet Forwarding COTS Hardware

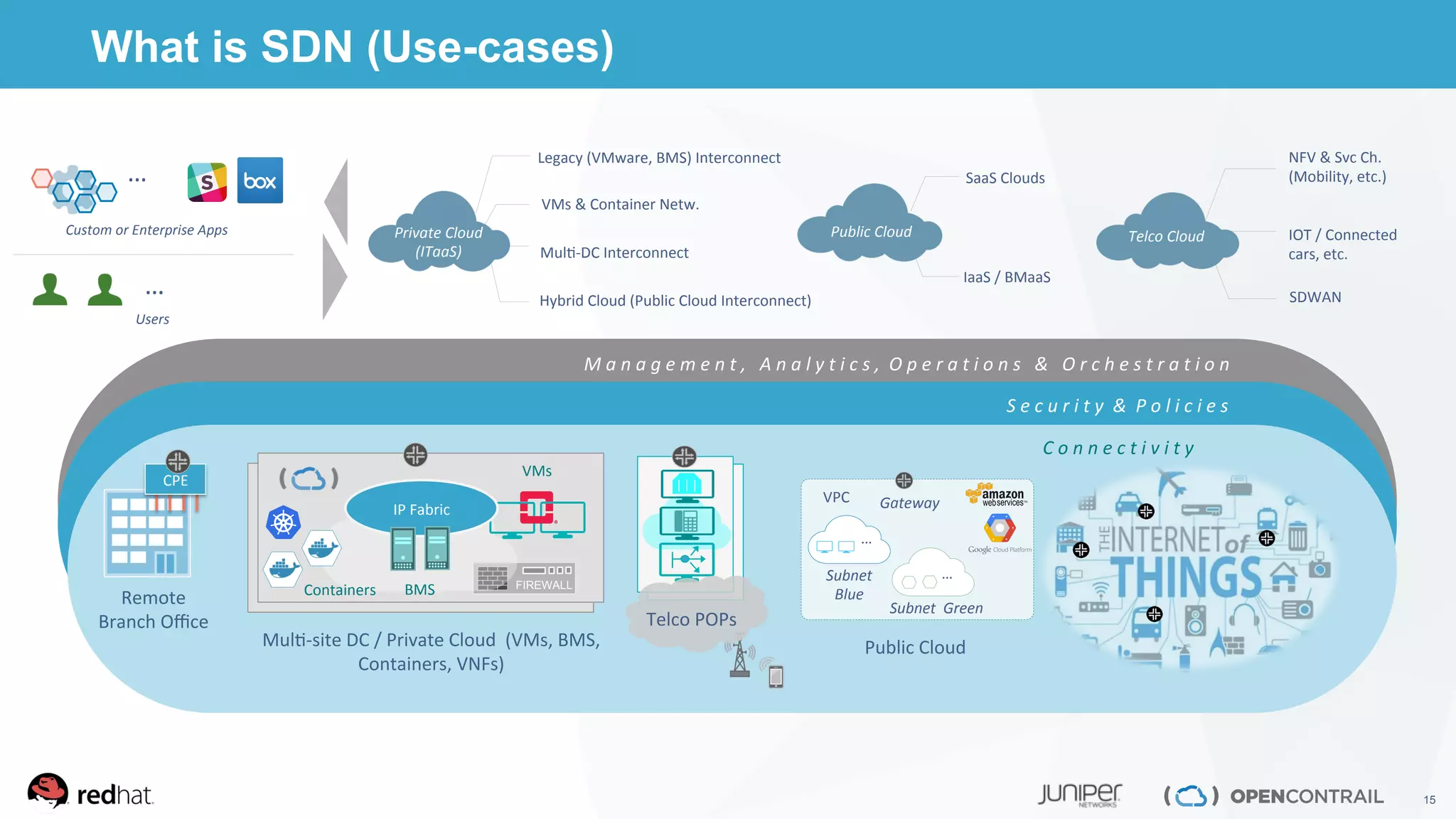

- 15. 15 What is SDN (Use-cases) M a n a g e m e n t , A n a l y t i c s , O p e r a t i o n s & O r c h e s t r a t i o n S e c u r i t y & P o l i c i e s C o n n e c t i v i t y CPE Remote Branch Office Telco POPs MulN-site DC / Private Cloud (VMs, BMS, Containers, VNFs) FIREWALL VMs Containers IP Fabric BMS Private Cloud (ITaaS) Legacy (VMware, BMS) Interconnect VMs & Container Netw. MulN-DC Interconnect Hybrid Cloud (Public Cloud Interconnect) SaaS Clouds IaaS / BMaaS Public Cloud NFV & Svc Ch. (Mobility, etc.) SDWAN IOT / Connected cars, etc. Telco Cloud Subnet Blue Subnet Green VPC … Gateway … Public Cloud Users … Custom or Enterprise Apps …

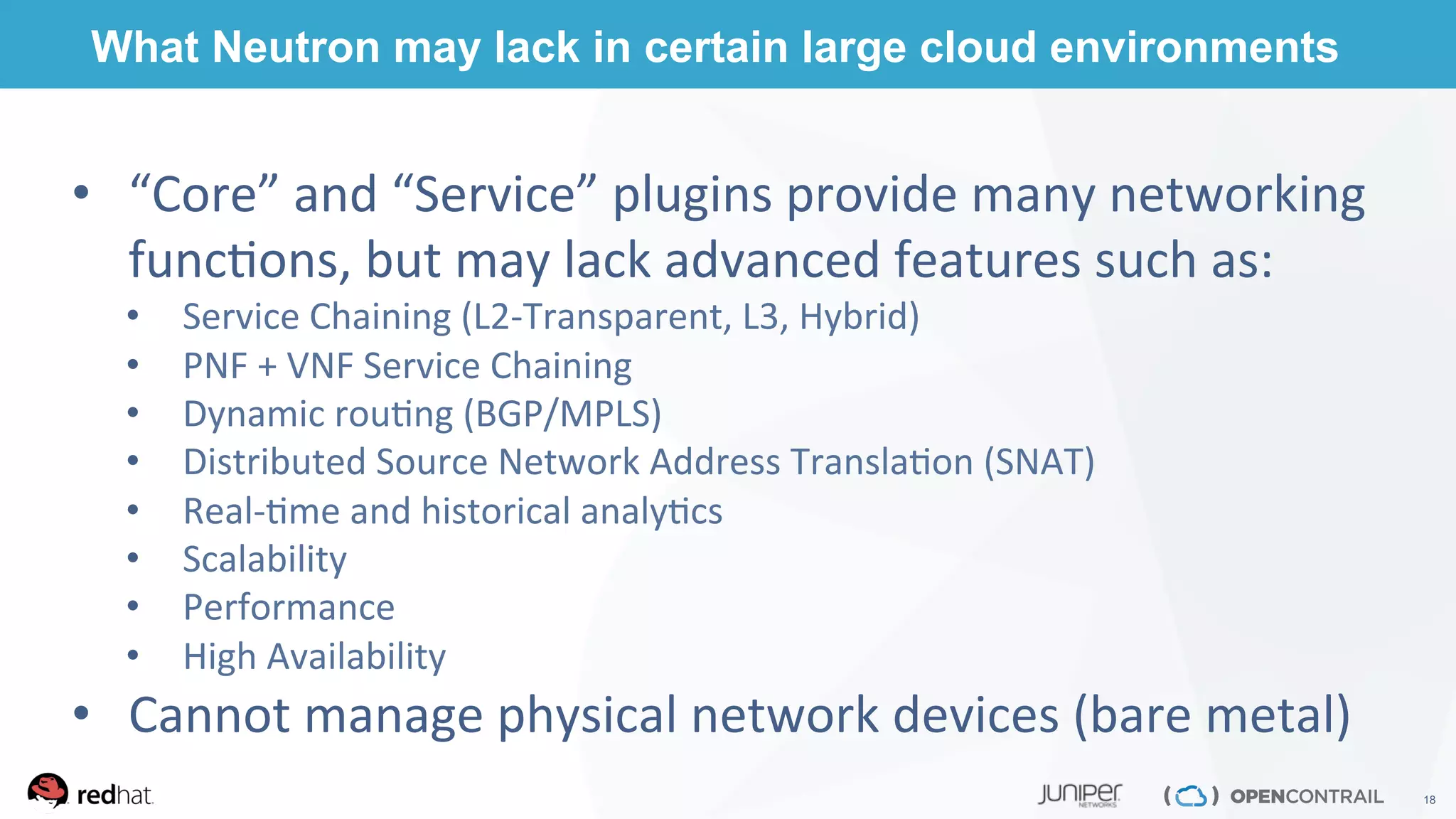

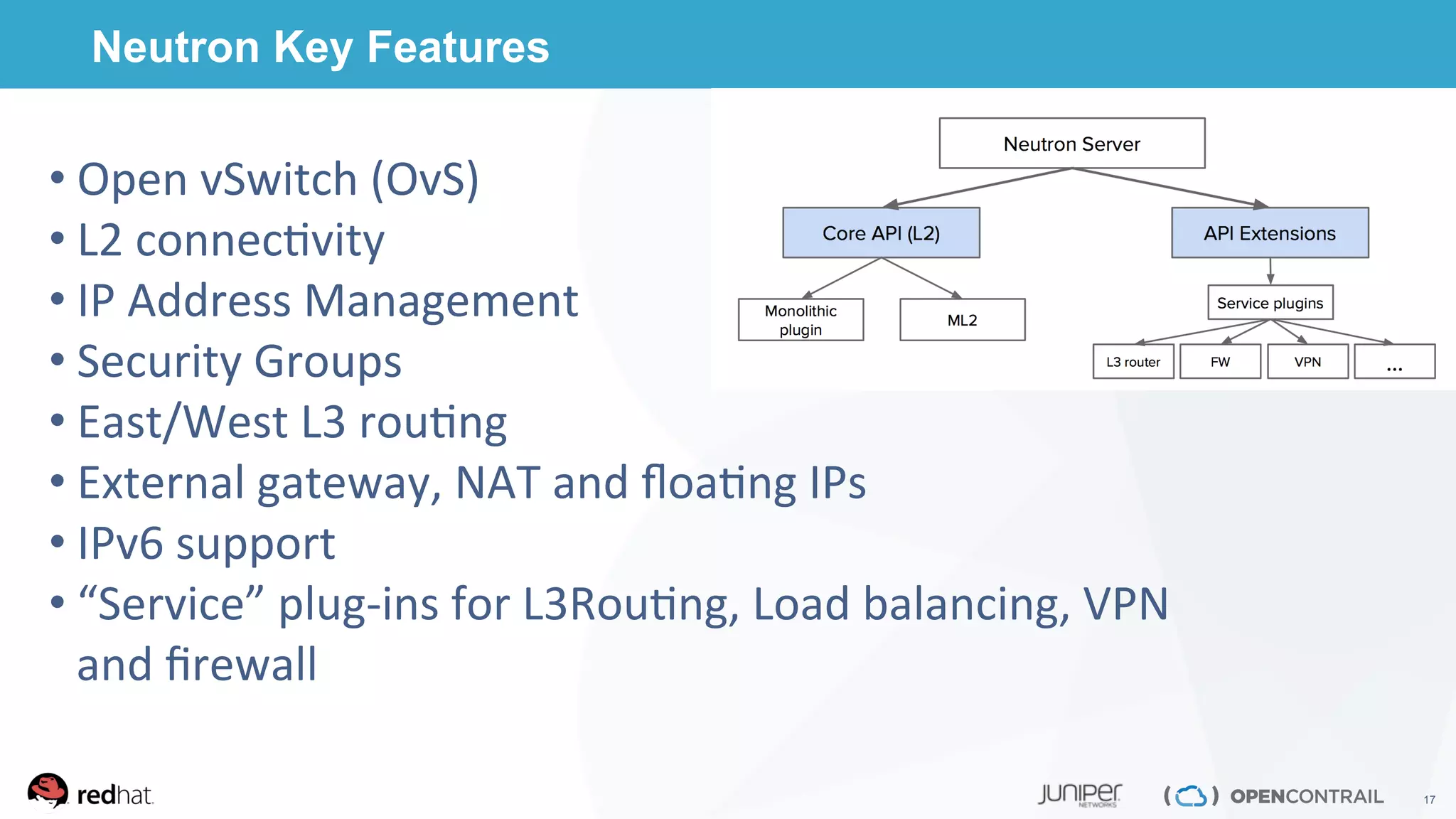

- 18. 18 What Neutron may lack in certain large cloud environments • “Core” and “Service” plugins provide many networking funcNons, but may lack advanced features such as: • Service Chaining (L2-Transparent, L3, Hybrid) • PNF + VNF Service Chaining • Dynamic rouNng (BGP/MPLS) • Distributed Source Network Address TranslaNon (SNAT) • Real-Nme and historical analyNcs • Scalability • Performance • High Availability • Cannot manage physical network devices (bare metal)

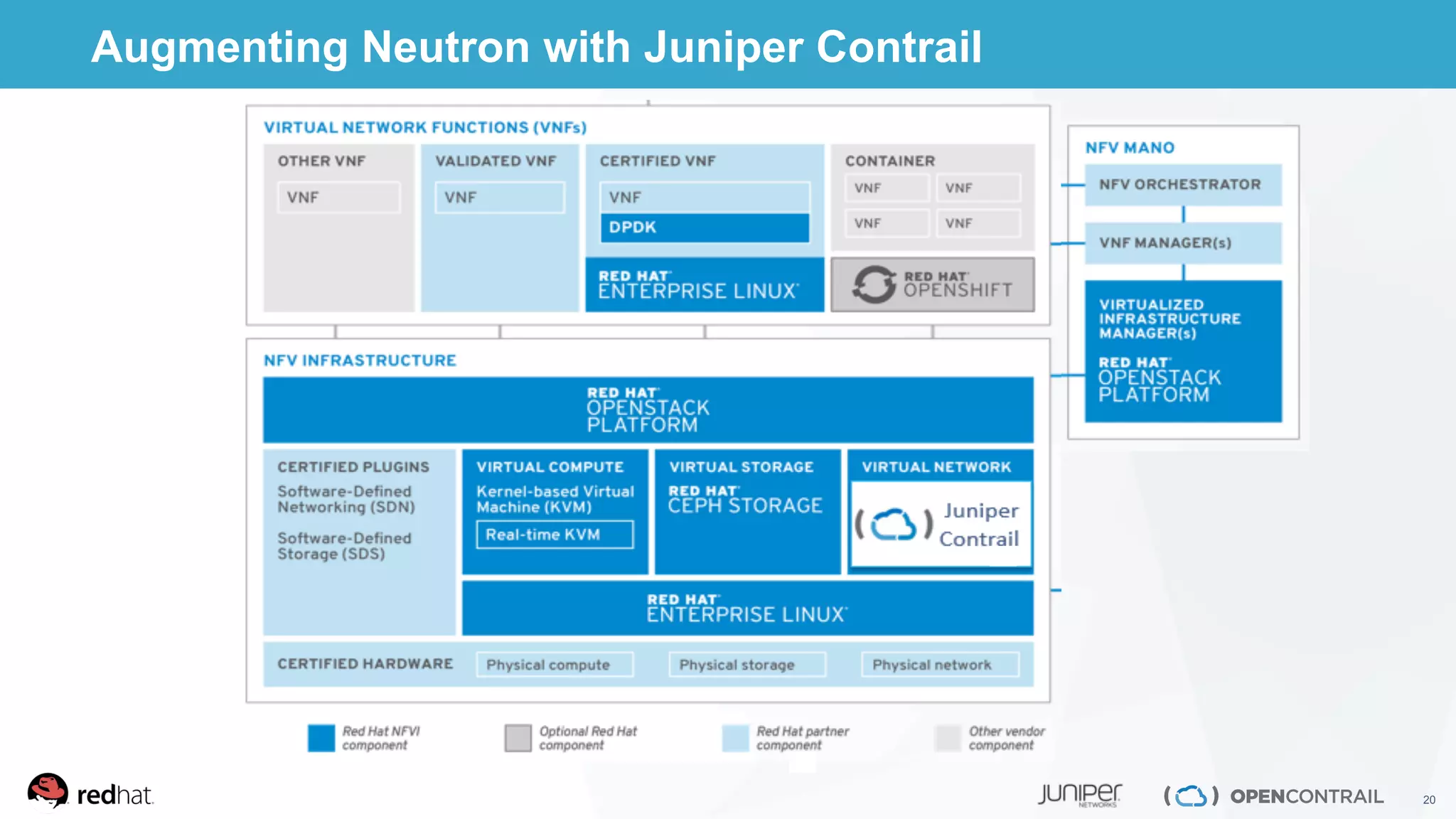

- 20. 20 Augmenting Neutron with Juniper Contrail

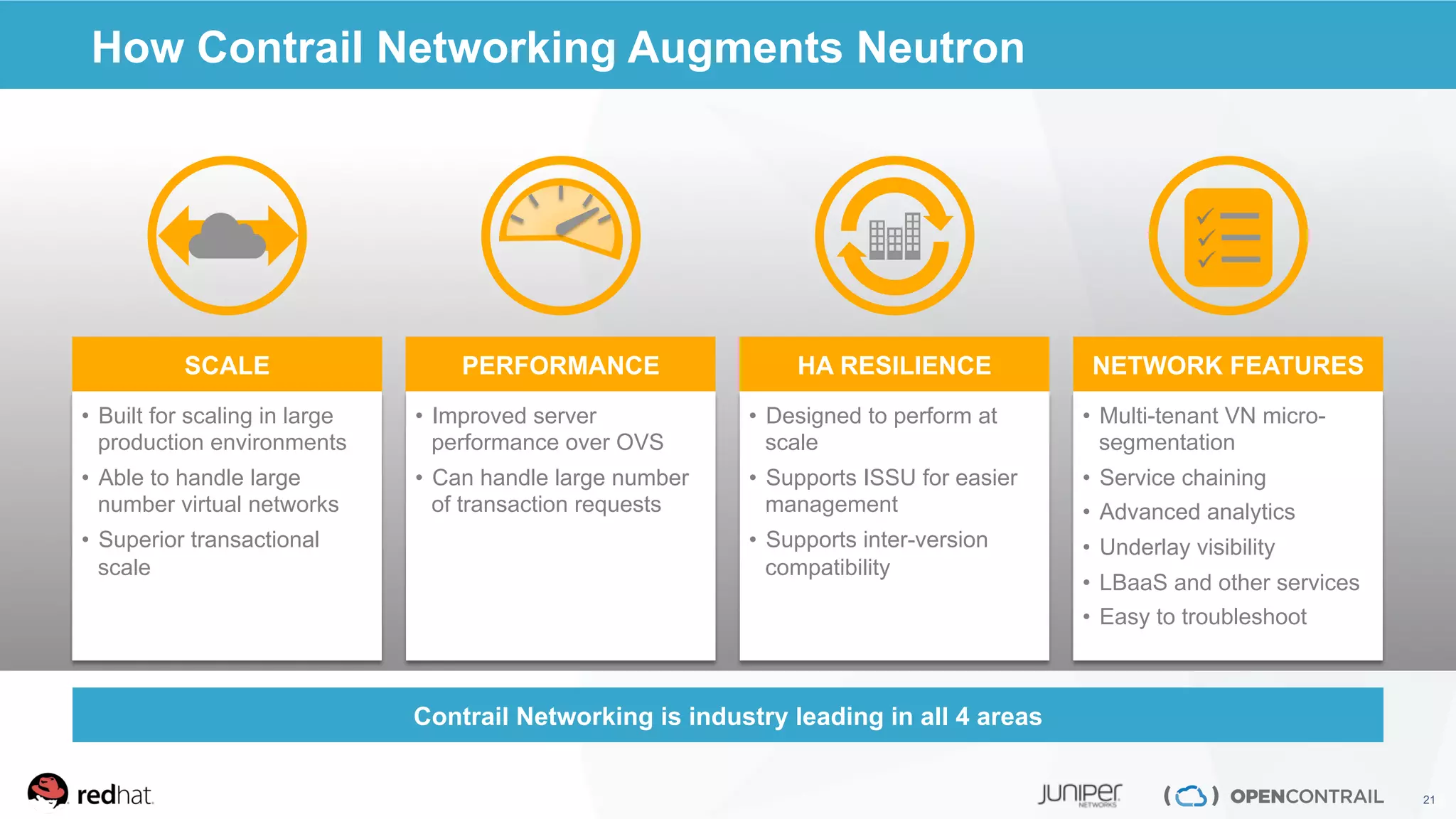

- 21. 21 How Contrail Networking Augments Neutron • Built for scaling in large production environments • Able to handle large number virtual networks • Superior transactional scale • Improved server performance over OVS • Can handle large number of transaction requests • Designed to perform at scale • Supports ISSU for easier management • Supports inter-version compatibility • Multi-tenant VN micro- segmentation • Service chaining • Advanced analytics • Underlay visibility • LBaaS and other services • Easy to troubleshoot SCALE PERFORMANCE HA RESILIENCE NETWORK FEATURES Contrail Networking is industry leading in all 4 areas
- 22. 22 Contrail Networking Features The image cannot be displayed. Your computer may not have enough memory to open the image, or the image may have been corrupted. Restart your computer, and then open the file again. If the red x still appears, you may have to delete the image and then insert it again. Rou9ng & Switching (IPv4, v6) Network Services (IPAM, DNS, DHCP SNAT, FIP, QoS, BGPaaS) Load Balancing (customizable ECMP, LBaaS) The image cannot be displayed. Your computer may not have enough memory to open the image, or the image may have been corrupted. Restart your computer, and then open the file again. If the red x still appears, you may have to delete the image and then insert it again. Security & Policies (Policy Enf.,Distributed FW, Sec Grp, XMPP Encryp.) Gateway Services (L2, L3, SoYware GW) Rich Analy9cs (Alerts, Overlay-Underlay Correla,on, mul,-region) The image cannot be displayed. Your computer may not have enough memory to open the image, or the image may have been corrupted. Restart your computer, and then open the file again. If the red x still appears, you may have to delete the image and then insert it again. Service Chaining (PNF, VNF, v6, 3rd party / TAP, Health-check, policy- based) HA, Upgrades (Infra Failover, SFC Failover, ISSU) API Services (mul,-vendor Orch., SDN-U, OpenStack, K8s, vCenter) Perf & Scale (DPDK / SRIOV, Smart NIC, Infra scale) The image cannot be displayed. Your computer may not have enough memory to open the image, or the image may have been corrupted. Restart your computer, and then open the file again. If the red x still appears, you may have to delete the image and then insert it again.

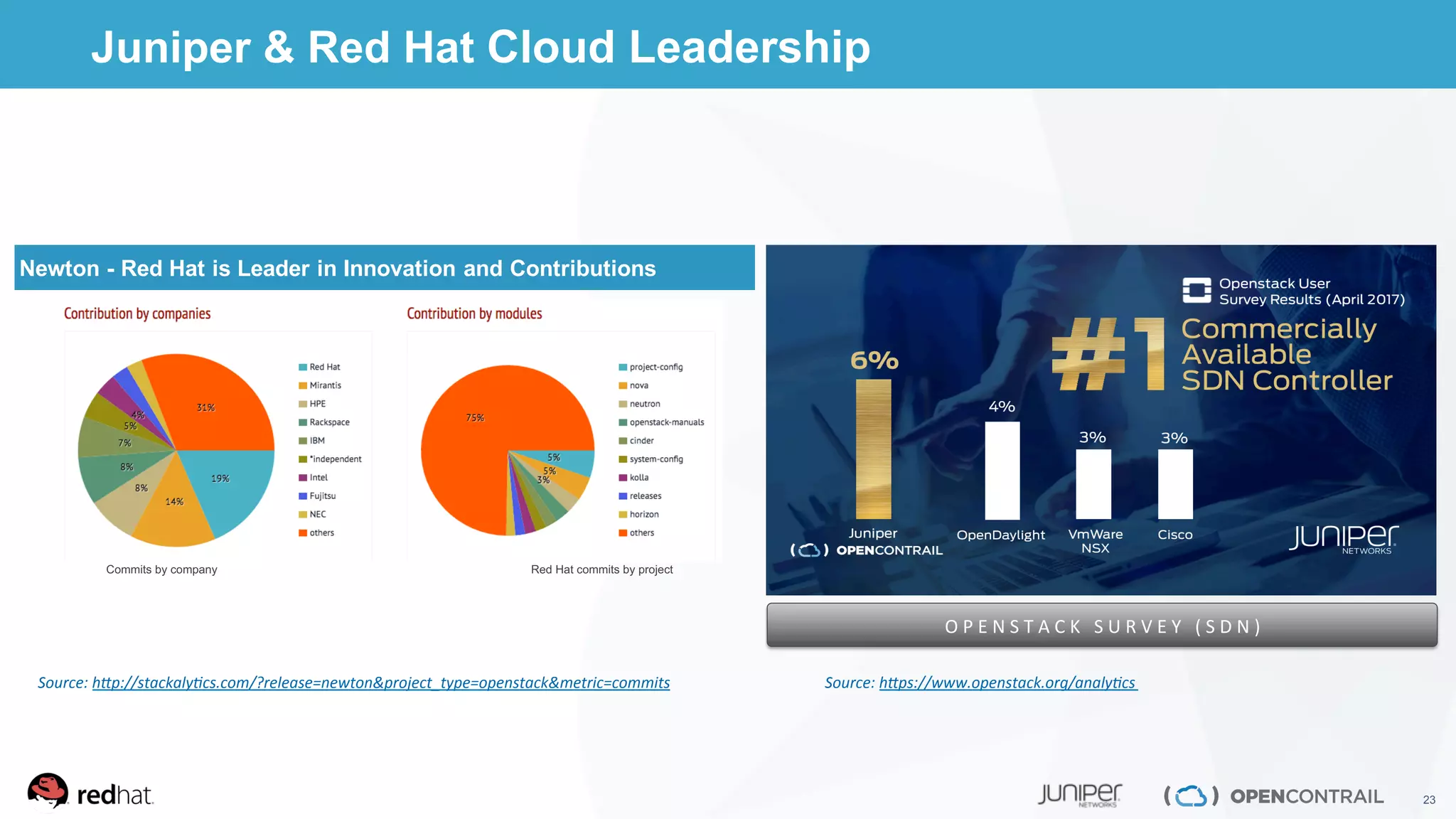

- 23. 23 Juniper & Red Hat Cloud Leadership Source: h_ps://www.openstack.org/analy,cs O P E N S T A C K S U R V E Y ( S D N ) Newton - Red Hat is Leader in Innovation and Contributions Commits by company Red Hat commits by project Source: h_p://stackaly,cs.com/?release=newton&project_type=openstack&metric=commits

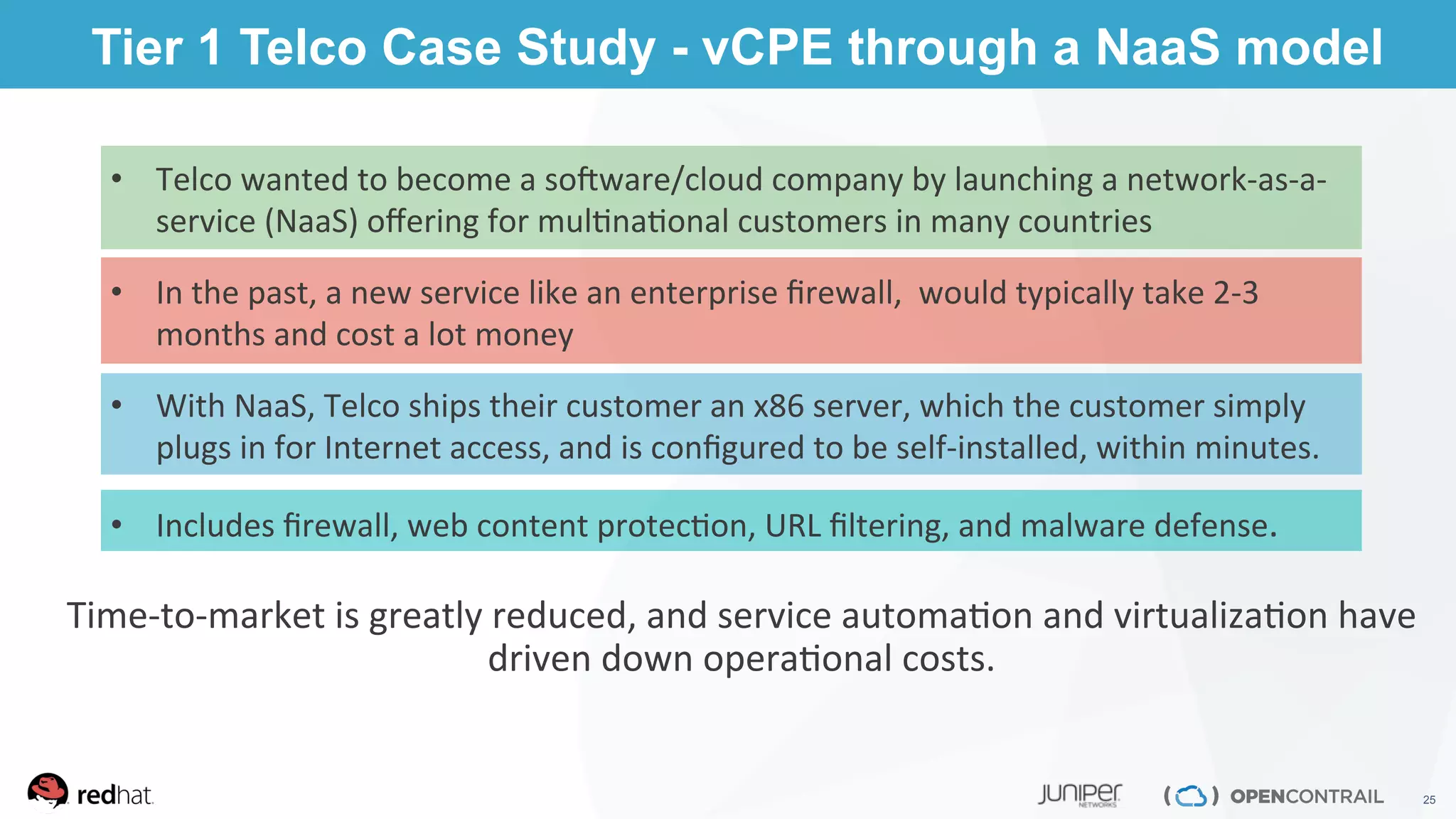

- 25. 25 Tier 1 Telco Case Study - vCPE through a NaaS model • Telco wanted to become a sohware/cloud company by launching a network-as-a- service (NaaS) offering for mulNnaNonal customers in many countries • In the past, a new service like an enterprise firewall, would typically take 2-3 months and cost a lot money • With NaaS, Telco ships their customer an x86 server, which the customer simply plugs in for Internet access, and is configured to be self-installed, within minutes. • Includes firewall, web content protecNon, URL filtering, and malware defense. Time-to-market is greatly reduced, and service automaNon and virtualizaNon have driven down operaNonal costs.

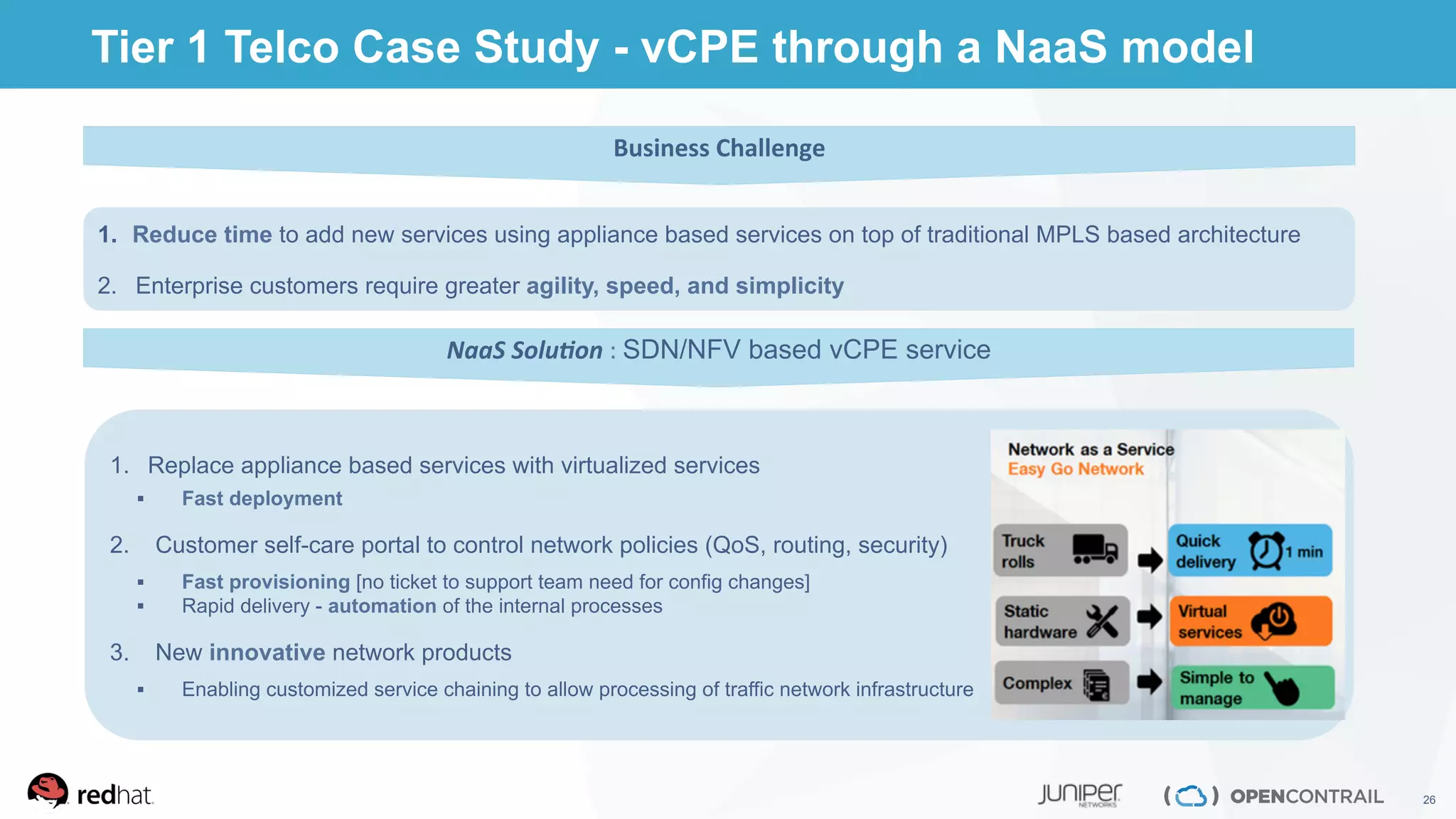

- 26. 26 Tier 1 Telco Case Study - vCPE through a NaaS model Business Challenge NaaS Solu3on : SDN/NFV based vCPE service 1. Reduce time to add new services using appliance based services on top of traditional MPLS based architecture 2. Enterprise customers require greater agility, speed, and simplicity 1. Replace appliance based services with virtualized services § Fast deployment 2. Customer self-care portal to control network policies (QoS, routing, security) § Fast provisioning [no ticket to support team need for config changes] § Rapid delivery - automation of the internal processes 3. New innovative network products § Enabling customized service chaining to allow processing of traffic network infrastructure

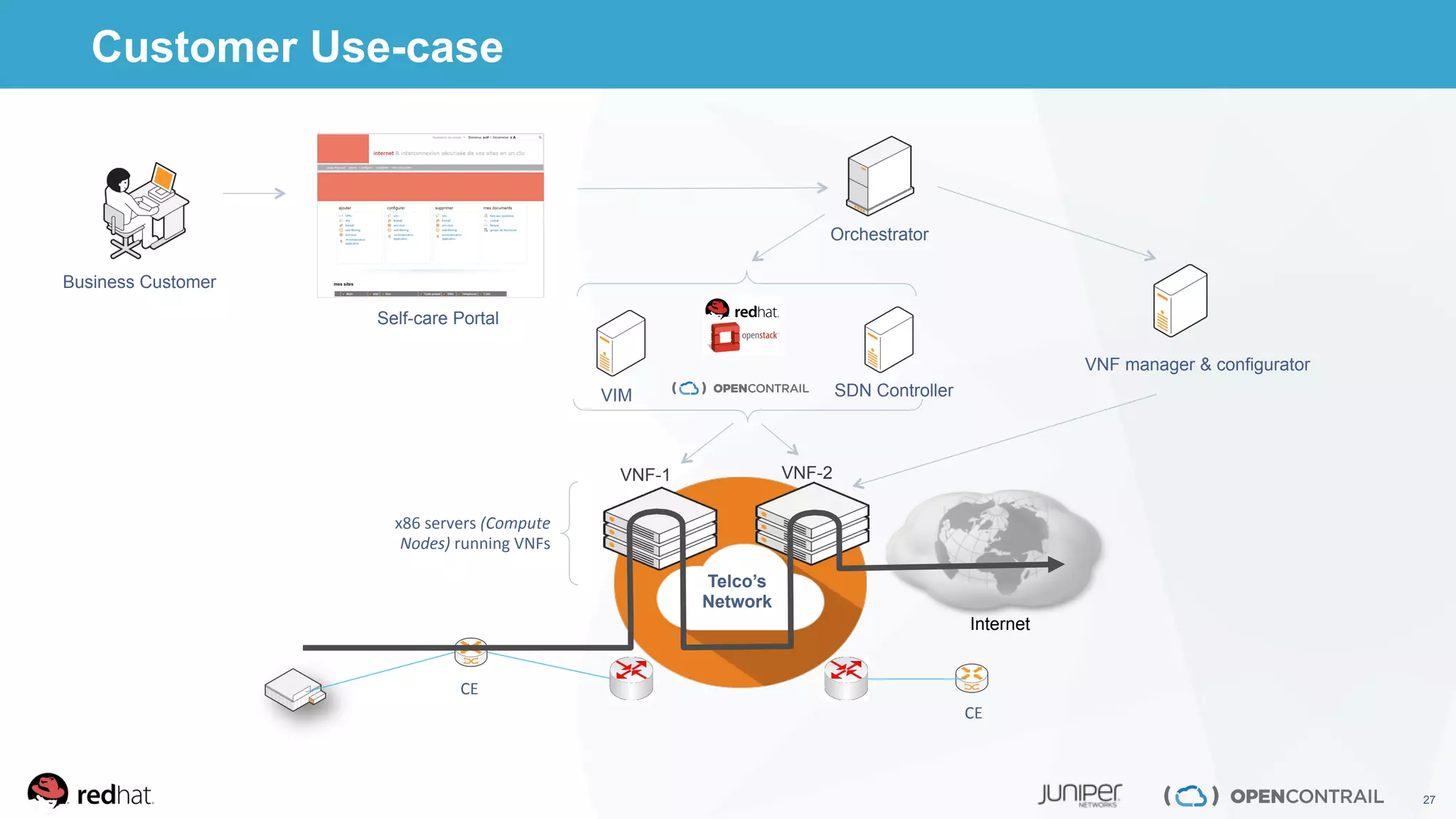

- 27. 27 Customer Use-case Orchestrator VNF manager & configurator Telco’s Network SDN Controller x86 servers (Compute Nodes) running VNFs CE Business Customer Internet CE VIM VNF-1 VNF-2 Self-care Portal

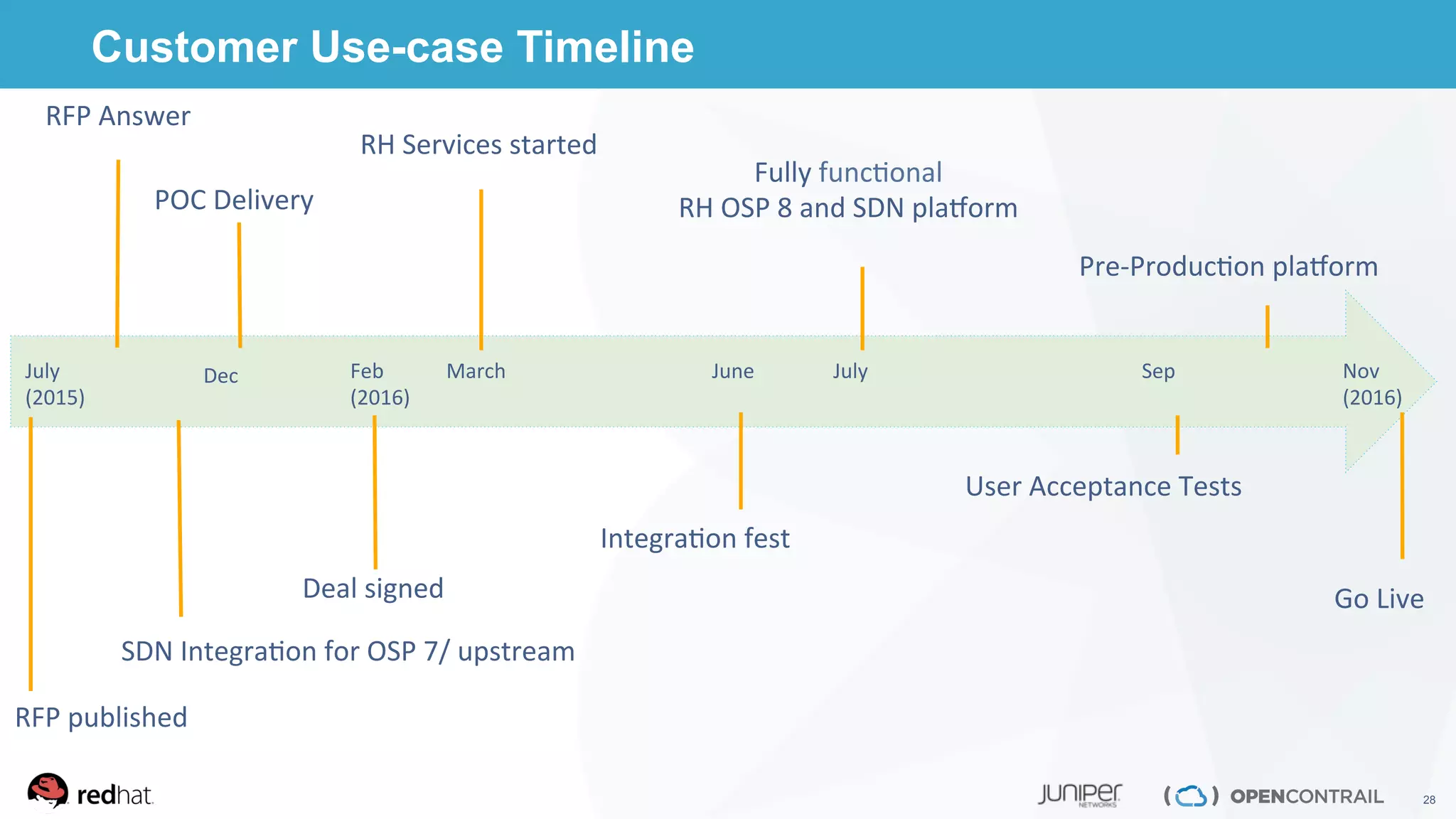

- 28. 28 Customer Use-case Timeline RFP published RFP Answer SDN IntegraNon for OSP 7/ upstream POC Delivery Deal signed RH Services started IntegraNon fest Fully funcNonal RH OSP 8 and SDN placorm User Acceptance Tests Pre-ProducNon placorm Go Live July (2015) Dec June Nov (2016) March Sep July Feb (2016)

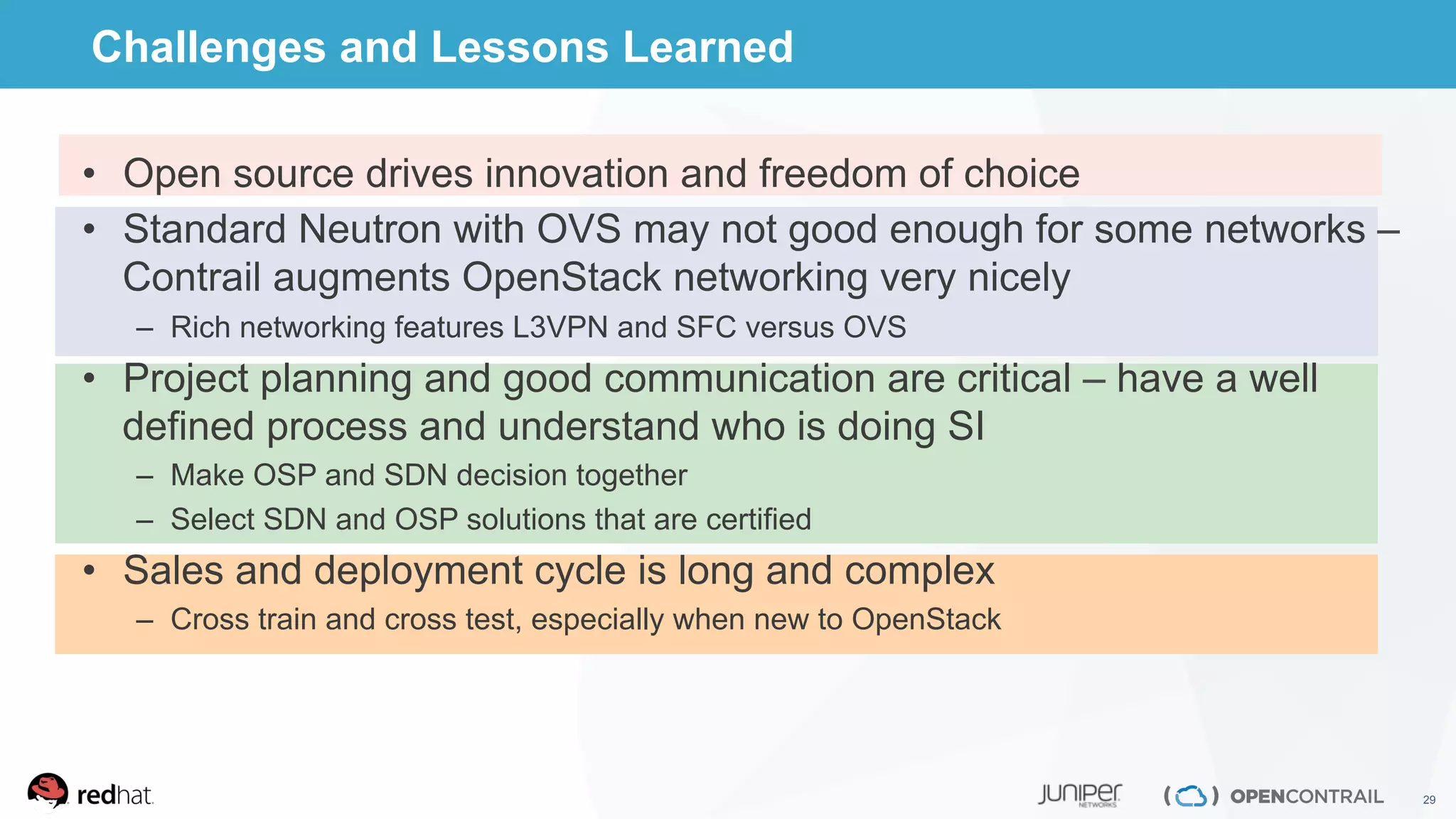

- 29. 29 Challenges and Lessons Learned • Open source drives innovation and freedom of choice • Standard Neutron with OVS may not good enough for some networks – Contrail augments OpenStack networking very nicely – Rich networking features L3VPN and SFC versus OVS • Project planning and good communication are critical – have a well defined process and understand who is doing SI – Make OSP and SDN decision together – Select SDN and OSP solutions that are certified • Sales and deployment cycle is long and complex – Cross train and cross test, especially when new to OpenStack
- 30. 30 CLICK TO EDIT MASTER TITLE STYLE Ali Kafel, Red Hat @akafel DP Ayyadevara, Juniper Networks
