This document describes a traceability model and project schema for the requirements management and systems engineering tool Cradle to support agile methodologies like Scrum. The schema includes item types and relationships to link releases, sprints, tasks, user stories, and stakeholders. It also describes attributes for statuses, estimates, dates, and more to enable planning and tracking. The document provides instructions for downloading and importing the schema to use it on a new Cradle project.

1. with Project Schema for Cradle
3SL Cradle
Requirements Management and Systems Engineering
Traceability model for Scrum
@ SATURS LLC 2014

2. Why?
2
If you love Scrum you will be able to apply all advantages of Cradle to
your process, without need to change your project methodology
If you study Scrum you can easily learn its artifacts structure after
simple installation of the accompanied project schema for Cradle
If you’d like to change your methodology in the future you will not need
to change (pay, learn) the tool, just change your Cradle settings
If you study Cradle you can learn its valuable features using this
schema and the sample data that comes with it
If you study requirements management and system engineering then
Cradle is the best tool for working in real projects so you will not study
unnecessary things. Cradle's worldwide rating
USER
STORY
Which is your story? Share with us on LinkedIn orFacebook
USER
STORY
USER
STORY
USER
STORY
USER
STORY

3. RELEASE
SPRINT
TASK
USER
STORY
TASK
TASK
STAKE-
HOLDER
Traceability model. Categories and relations
*
3
* - one Cradle’s item type for the both categories

4. RELEASE
SPRINT
TASK
USER
STORY
TASK
TASK
STAKE-
HOLDER
Useful transitive relations
4

5. ACCEPTANCE
CRITERIA
ACHIEVEMENTName
RELEASE/
SPRINT
TASK
USER
STORY
STAKE-
HOLDER

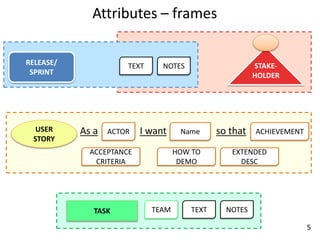

Attributes – frames
ACTORAs a I want so that
HOW TO
DEMO
EXTENDED
DESC
TEAM TEXT NOTES
TEXT NOTES
5

6. RELEASE/
SPRINT
TASK
USER
STORY
STAKE-
HOLDER
Attributes – categories
ESTIMATION
0…N ORDER
0…M
Order and estimation
6

7. RELEASE/
SPRINT
TASK
USER
STORY
STAKE-
HOLDER
Attributes – categories
STATUS
In progress
Done
Undefined
Planning
Status
7

8. USER
STORY
RELEASE/
SPRINT
TASK
STAKE-
HOLDER
Attributes – categories
Value
Business Value
1
2
3
4
5
6
7
8
9
8

9. RELEASE/
SPRINT
TASK
USER
STORY
STAKE-
HOLDER
START DATE
Planning and tracking
END DATE
ACTUAL START
ACTUAL FINISH
DURATION
ACTUAL
DURATION
%Complete
Attributes – categories
9

10. RELEASE
SPRINT
Using traceability model’s relations
10

11. RELEASE SPRINT USER
STORY
11
Using traceability model’s relations

12. RELEASE SPRINT USER
STORY
TASK
12
Using traceability model’s relations

13. SPRINT
USER
STORY
TASK
current
13
Using traceability model’s relations

14. RELEASE STAKE-
HOLDER
14
Using traceability model’s relations

15. RELEASE
TASK
USER
STORY
STAKE-
HOLDER
15
Using traceability model’s relations

16. USER
STORY
16
Using traceability model’s relations

17. Using relations and attributes
USER
STORY Name
(ACTION)
ACTOR
ACHIEVEMENT
Business Value
STATUS
ESTIMATION 17

18. Some other useful types of views
HID-Hierarchical Diagrams
18

19. Some other useful types of views
Traceability matrix – compact view
19

20. Some other useful types of views
Traceability matrix – detailed view
20

21. Reports
21

22. Reports
22

23. Task Management
Personal Tasks Panel
23

24. Graphs
Burndown Chart
24

25. Graphs
Earned Value Chart
25

26. How to get the Schema
26Or just write me to mail@saturs.ru

27. How to install Schema
27
1. Create a new project using Project Manager

28. How to install Schema
28
2. Login to Workbench
Username: MANAGER
Password: MANAGER

29. How to install Schema
29
3. Go to File->Import

30. How to install Schema
30
That’s all. Enjoy your project studying the test data or
adding your own!

31. Discussion
Join the conversation!
31
Downloads
http://saturs.ru/index.php?r=trials/gettrial&trialtype=cradle&label=
cradle&mode=overview
Download title
Cradle for Scrum
http://www.linkedin.com/groupItem?view=&gid=4027985&type=member
&item=5810636079564357634&qid=1750e6f6-dbd3-4145-b683-
2275debba6bb&trk=groups_most_recent-0-b-
ttl&goback=%2Egmr_4027985
